Machine Learning within a Graph Database: A Case Study on Link

Prediction for Scholarly Data

Sepideh Sadat Sobhgol

1 a

, Gabriel Campero Durand

2 b

, Lutz Rauchhaupt

1 c

and Gunter Saake

2 d

Ifak e.v.Magdeburg, Germany

Otto-von-Guericke University, Magdeburg, Germany

Keywords:

Graph Analysis, Network Analysis, Link Prediction, Supervised Learning.

Abstract:

In the combination of data management and ML tools, a common problem is that ML frameworks might

require moving the data outside of their traditional storage (i.e. databases), for model building. In such scenar-

ios, it could be more effective to adopt some in-database statistical functionalities (Cohen et al., 2009). Such

functionalities have received attention for relational databases, but unfortunately for graph-based database

systems there are insufﬁcient studies to guide users, either by clarifying the roles of the database or the pain

points that require attention. In this paper we make an early feasibility consideration of such processing for a

graph domain, prototyping on a state-of-the-art graph database (Neo4j) an in-database ML-driven case study

on link prediction. We identify a general series of steps and a common-sense approach for database support.

We ﬁnd limited differences in most steps for the processing setups, suggesting a need for further evaluation.

We identify bulk feature calculation as the most time consuming task, at both the model building and inference

stages, and hence we deﬁne it as a focus area for improving how graph databases support ML workloads.

1 INTRODUCTION

Authors commonly deﬁne Machine learning (ML)

as the process of solving a problem by relying

on a dataset and building a statistical model over

it (Burkov, 2019). With the continuous digitization

of everyday life, ML has become an increasingly

popular way for companies to extract business in-

sights from their copious data, and to offer new ser-

vices (Shoham et al., 2018). Instead of having to

move a large amount of data outside of databases, into

another tool, for building ML models, it would be

much more convenient and efﬁcient to have a sin-

gle platform in which the traditional storage and the

novel processing can be both embedded. Hence, in-

tegrating ML algorithms into existing database sys-

tems so that we can take advantage of the bene-

ﬁts in both technologies is an active area of re-

search, specially in relational databases (Kumar et al.,

2017). However the development of such extensions

for databases with non-relational models (e.g. doc-

https://orcid.org/0000-0002-9746-3612

https://orcid.org/0000-0002-4901-1849

https://orcid.org/0000-0002-6907-0520

https://orcid.org/0000-0001-9576-8474

ument or graph models) has not received similar in-

terest at this stage. Graph databases are a type of

database system that allows to store entities as nodes

and edges in a graph data model. In addition these

systems offer specialized query languages and plugin

libraries to express queries from the ﬁeld of network

science (e.g. connected components, shortest paths,

etc.). Considering analysis, graph databases provide

natural support for network-based feature engineer-

ing, potentially helping ongoing ML tasks in ﬁnding

more context for data items (by considering their re-

lationships). These observations on: a) the potential

of graphs to improve ML processes, and b) existing

limitations in tooling to support such processes, serve

as compelling motivations for research.

In this work we aim to identify how a general case

study might look like. We also seek to evaluate from

a practical perspective, the pipeline of running clas-

siﬁers on graph databases, compared to running them

outside of the database system, and to identify in an

early stage, the stress points of the process. From our

research we are interested in execution time, F-scores

of the trained models (to assess the feasibility of the

model), and complexity of implementation.

The ML task that we choose for our study is

link prediction. Link prediction is deﬁned as the

Sobhgol, S., Durand, G., Rauchhaupt, L. and Saake, G.

Machine Learning within a Graph Database: A Case Study on Link Prediction for Scholarly Data.

DOI: 10.5220/0010381901590166

In Proceedings of the 23rd International Conference on Enterprise Information Systems (ICEIS 2021) - Volume 1, pages 159-166

ISBN: 978-989-758-509-8

159

task of predicting the (future) possible connections

among nodes in different networks (Agarwal et al.,

2012), given features from the current state of the net-

work. This task is a very common ML task on graphs,

and it has applications in social networks, chemistry

and other domains.

To support such a task in- and outside a graph

database, we require a process that follows the next

steps:

1. Data Preparation, which includes train and test

data split.

2. Model Building, covering training and storing a

model inside the database.

3. Model Exploration, which includes the explo-

ration of the model by utilizing meta-data. This

is beyond the scope of this research.

4. Inference, which includes using the model to

make new predictions, given data passed as an ex-

ample.

After deﬁning the steps of the process, we can now

establish the main contributions of this study: a) We

provide a simple prototype for link prediction us-

ing traditional network features and XGBoost, over

a subset of the Microsoft Academic Graph.

. b) We

compare the costs of data split and feature calcula-

tion using an off-the-shelf database, and in- and out-

database processing. c) We validate the feasibility of

our pipeline, with limited hyper-parameter tuning and

feature importance analysis. d) We report early re-

sults for inference in- and outside the database. The

remainder of this paper is structured as follows: Sec. 2

provides basic concepts for graph ML tasks and link

prediction. Sec. 3 introduces our research questions

and the setup for our study. We follow with our re-

sults in Sec. 4 and we wrap-up with our conclusions

and suggestions for future research, in Sec. 5.

2 BACKGROUND

In this section, we brieﬂy establish key terms and con-

text to understand our study. We start with a basic

listing of ML tasks on graph data and ML-driven ap-

proaches towards link prediction.

2.1 Machine Learning Tasks On Graphs

The most common ML tasks on graphs that can be

found in the literature include Link Prediction, Com-

munity Detection (Agarwal et al., 2012), Node Clas-

The code is available online https://github.com/

sepideh06/ML-on-graphs/

siﬁcation (Agarwal et al., 2012), Anomaly Detec-

tion (Kaur and Singh, 2016; Chu et al., 2012) and

Graph Embedding (Wang et al., 2016; Goyal and Fer-

rara, 2018). In traditional research graph features are

calculated and then fed to ML models such as SVMs,

or Random Forests (Agarwal et al., 2012), in recent

years the use of graph neural networks has been pop-

ularized, leading to improvements over more tradi-

tional models (Dwivedi et al., 2020).

The task of link prediction is to predict the possi-

bility of a future connection between nodes by using

features of the entities in the current graph (Agarwal

et al., 2012; Vartak, 2008). Current link prediction

algorithms can be categorized into supervised (Tang

et al., 2016), unsupervised (Kashima et al., 2009) and

semi-supervised (Berton et al., 2015) methods.

2.2 Machine Learning Approaches

towards Link Prediction

For a set of training data, if there is a link between two

vertices, the data point will get a label +1 otherwise

-1. A classiﬁcation model which is based on this def-

inition needs to predict a label for data points which

are not currently linked in the train dataset. Classi-

ﬁcation models can be built based on a set of fea-

tures, such as so-called graph-topological features, in-

cluding Node Neighborhood-Based Features (based

on this feature, the probability of having connection

between two nodes x and y grows if the number

of neighbours they share increases), Path-based Fea-

tures and Features based on Node and Edge Attributes

(Agarwal et al., 2012; Mutlu and Oghaz, 2019).

Different supervised learning algorithms have been

used in the literature for this classiﬁcation includ-

ing naive Bayes, k-nearest neighbors, neural net-

works, support vector machines and XGBoost. Com-

paring the performance of different classiﬁcation al-

gorithms on link prediction task, shows that XG-

Boost (Becker et al., 2013) is an appropriate solution

especially when we deal with unbalanced data (Chuan

et al., 2018). Based on (Al Hasan et al., 2006), the per-

formance of the mentioned algorithms on BIOBASE

and DBLP datasets are shown to not be as good as

the performance of XGBoost. Apart from traditional

supervised algorithms, there are also other emerg-

ing approaches towards link prediction. For exam-

ple a state of the art solution for ﬁnding relations

between semantic concepts on the WN18RR dataset

has been presented by Pinter and Einstein (Pinter

and Eisenstein, 2018). Other recent models for link

prediction include DihEdral (Xu and Li, 2019), In-

teractE (Vashishth et al., 2019), HypER (Balazevic

et al., 2018), ConvE(Dettmers et al., 2018) and De-

ICEIS 2021 - 23rd International Conference on Enterprise Information Systems

160

Com (Kong et al., 2019) which are all designed based

on neural networks. Such approaches rely more

on neighborhood information and less on traditional

graph topological features.

3 LINK PREDICTION ON A

SUBSET OF THE MICROSOFT

ACADEMIC GRAPH

In this section, we introduce our research ques-

tions. We also describe the key components of our

approach including our dataset, and the studied con-

ﬁgurations for the ML process with a graph database.

3.1 Research Questions

To guide our research to support a standard ML pro-

cess over a graph model, we have chosen a list of re-

search questions:

1. Data Preparation. What is the impact, in terms

of execution time, of performing data splitting

and feature calculation in- and outside of the

database?

2. Model Building. How efﬁcient is it to build, store

and evaluate a model in- and outside the Neo4j

graph database? How relevant are different com-

binations of graph features to improve the ac-

curacy (efﬁcacy) of the selected link prediction

model?

3. Inference. How does the size of data which is

used for inference affect the performance of the

task?

3.2 Dataset

The dataset we have selected to use, is a subset of the

Microsoft Academic Graph (Sinha et al., 2015), (pub-

lished on 2018-11-09). This dataset contains infor-

mation about scientiﬁc publications, journals, con-

ferences, the relationships between publications, au-

thors, afﬁliations and the relationships between au-

thors and papers.

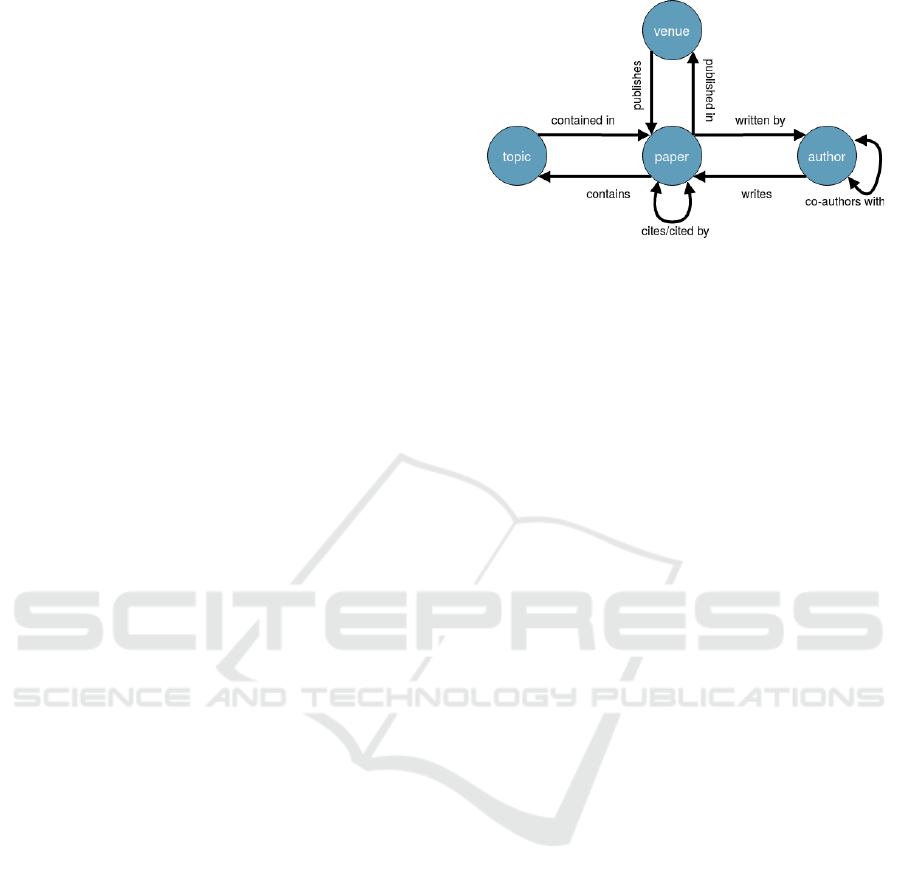

Fig. 1 shows a Co-authorship network which is

a type of bibliographic network, such as the MAG.

Nodes represent the relations between papers, venues,

topics and authors (Lee and Adorna, 2012).

We choose publications and their relationships

with authors for our link prediction task to predict

possible future collaboration between authors. Since

as we get close to 2019, the number of publications

gets quite large, for our study we decided to choose

Figure 1: Schema of co-authorship network (based on (Lee

and Adorna, 2012)).

all publications as of selected years (we report using

the year 1989). For the ﬁrst year considered we label

publications as train and test both, with the links of

the following year considered for the train labels. For

the test data we have used the data of both the ﬁrst

and second year, with the links of the third year used

as test labels. We did not consider information from

years previous to the one taken as the ﬁrst year. Our

dataset consists of 6.7 M papers, distributed as fol-

lows for the three years (1989, 1990, 1991): 2.1 M,

2.3 M, 2.3 M, and 10 M authors. In terms of relation-

ships, the dataset contains 16.5 M authorship relation-

ships, distributed as follows for the selected years: 5.2

M, 5.6 M, 5.7 M. It also contains 54 M co-authorship

relationships, distributed as follows: 15 M, 20 M,

18.7 M, and 3 M citation relationships among the

papers of the corresponding years. We report the in-

formation for co-authorships in duplicate, to account

for the un-directed nature of edges. Otherwise there

are, 27 M edges for co-authorships in the selected

years.

Fig. 2 shows a visualization of the co-authorship

graph for the years we study (based on a random sam-

ple of 50k edges), using the OpenOrd (Martin et al.,

2011) algorithm for graph layouting as provided in

Gephi. The ﬁgure shows nodes (authors) with colors

and sizes proportional to the number of edges (co-

authorships) connected to them. The ﬁgure shows a

general pattern where most authors have a small num-

ber of co-authorships on the year, creating the multi-

plicity of blue leaf-like relationships that make-up the

largest area of the graph. At the center, with darker

colors, there are small numbers of authors forming

very dense communities of collaborations.

Machine Learning within a Graph Database: A Case Study on Link Prediction for Scholarly Data

161

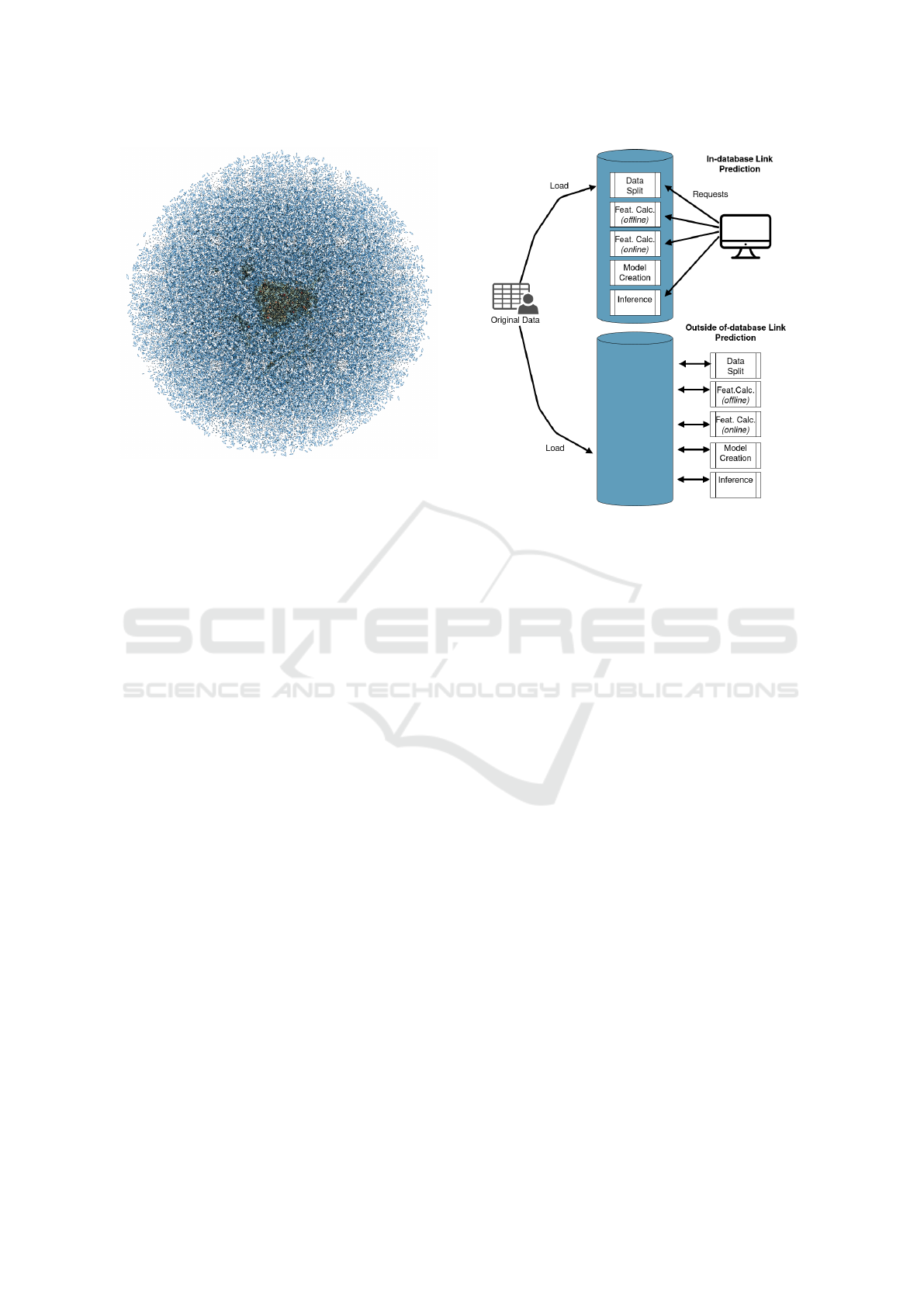

Figure 2: Visualization of Co-authorship Graph for 1991,

based on Gephi and OpenOrd Layouting algorithm.

3.3 Link Prediction with a Graph

Database: A Stored

Procedure-based Approach

In this section we introduce the different execution

scenarios we consider for involving a graph database

in the ML task. For this paper we choose Neo4j

as our graph database. It is a popular database sup-

porting property graphs, equipped with the Cypher

query language. Executing the process from outside

of a database is straight-forward: the database can

be used for storing the intermediate data between

steps (e.g. test and train splits, and the model it-

self), and the interaction with the database can be ac-

complished through a program developed by a user

that employs a client from the database with its API

for database interaction. The execution from inside

the database follows a similar logic, but the code with

the client connection has to be shipped beforehand to

the database, as a stored procedure. This stored pro-

cedure can then be called from outside, as a request to

the database, and its execution starts and concludes on

the server side. Fig. 3 describes the generic process of

doing link prediction in- and outside the database. The

feature calculation (ofﬂine) stands for those features

which can be independently calculated for each node

such as PageRank (which is used to compute the rank

of a node by iteratively propagating node importance

over the graph). There are also some other features

such as ’common neighbours’ or ’shortest path’ which

are required to be calculated on the ﬂy because they

arefor a speciﬁc pair of nodes (for example a pair of

authorIDs) and need to be computed online.

Figure 3: In-Database and Outside of Database Link Pre-

diction.

4 EVALUATION

4.1 RQ1: Data Preparation

In this section, we provide experimental insights to

answer to the ﬁrst of our research questions.

4.1.1 Creating Balanced Training and Testing

Datasets

With link prediction, we are interested in predict-

ing the possible future collaboration between au-

thors. This dataset provides a good criteria for split-

ting train and test data, by using the ’Year’ for each

publication. However existing links need to be com-

plemented with a selection of non-existing links (for

training on both kinds of labels). To this end we

randomly sample without repetition from the set of

all possible non-existing links, until we match the

number of positive examples in the corresponding

split. We make two different lists of train and test pairs

(just the ids of the nodes), and we save the lists back in

the database, as properties of two nodes named train

and test. These nodes are further tagged, with a times-

tamp and additional metadata, to facilitate keeping

track of ML experiments. In order to split data efﬁ-

ciently, a stored procedure is required to be inserted

into Neo4j as a plugin.

ICEIS 2021 - 23rd International Conference on Enterprise Information Systems

162

4.1.2 Feature Calculation

For our dataset, we consider ﬁve features includ-

ing ’common neighbours’, ’shortest path in co-

author graph’, ’second shortest path in co-author

graph’, ’shortest path in citation graph’ and ’second

shortest path in citation graph’. We calculate these

features because previous work establishes that some

similarity measurements (Al Hasan et al., 2006; Han

and Xu, 2016), such as shortest path and common

neighbours., have been shown to contribute to good

model performance. For example the shortest distance

between two authors will be calculated by counting

the number of hops between them. This captures the

idea that perhaps a smaller distance between authors

could be an indicator of their possibility of collabo-

rating in the future. All the features can be calculated

by using Cypher queries.

In order to understand the density of our data, we

calculate the distribution of our features for posi-

tive and negative observations. We employ cumula-

tive distribution plots to describe a summary of the

connection between authors in terms of different fea-

tures. Fig. 4 and Fig. 5, the distribution plots for

train and test data for the feature ’Shortest Path in co-

Author graph’ are presented. For train data in Fig. 4

and for ’exist’ connections, -1 is representative of no

shortest path. The Cypher query return -1 instead of

0, if there is no shortest path between a pair of au-

thor. The plot depicts that a value of 2 hops covers

more than 300 authors and very small number have

a shortest path greater than 20. For ’non-exists’ con-

nections, there is no shortest path between more than

400 authors. A very small portion have a shortest path

greater than 20. The distribution plots for train and

test data for the other features repeats similar patterns

concerning a clear difference in the distributions be-

tween labels (signalling the common-sense nature of

the selected features), and stability in label distribu-

tions across the years.

4.1.3 Experiment Result

This process of reading pairs of authors and calculat-

ing ﬁve features for each pair is quite time consuming,

so for the sake of repeated experiments, we sampled

2k random observations at a time. Table. 1 shows the

recorded time for splitting data and calculating fea-

tures in- and outside the data base. Data split inside

the database takes 2 times less than doing the process

outside the database. In addition, there are smaller rel-

ative performance improvements in feature calcula-

tion for in-database usage.

Figure 4: Shortest Path-CoAuthor Graph-Train Data.

Figure 5: Shortest Path-CoAuthor Graph-Test Data.

Table 1: Data Split and Feature Calculation In- and Outside

Neo4j.

In- Outside Graph DB

Data Split 3.1 minutes 7.2 minutes

Feature Calculation 15.21 hours 16.93 hours

4.2 RQ2: Model Creation

In this section we present the results of our exper-

imental evaluation on the aspects of model build-

ing, addressing the second of our research ques-

tions. In order to create and train a model, a

list of parameters needs to be set which will be

later passed to the train function of XGBoost. The

key parameters which affect the most the perfor-

mance of the model are ’learning

rate’, ’n estimators’

and ’early stopping rounds’. The last parameter will

make the algorithm stop if after a certain number of

iterations, no improvement in ’log loss’ or ’classiﬁ-

cation error’ of algorithm is obtained. The goal is to

minimize ’mlog loss’ by setting other parameters such

as ’n estimators’ and ’learning rate’ to some optimal

values.

Fig. 7 is the result of including all 5 features

and having ’learning-rate’ equal to 0.01. The mini-

mum log loss is 0.483624 which is obtained at iter-

ation 99. By changing ’learning-rate’ to 0.001 and

’n-estimators’ to 500,700,1000, we get higher mlog

loss equal to 0.490644. The second attempt in which

the ’learning-rate’ is equal to 0.01 generates the min-

imum error for our dataset. The value we consider for

Machine Learning within a Graph Database: A Case Study on Link Prediction for Scholarly Data

163

Figure 6: XGBoost mlog loss for 24 iterations-0.1 learning

rate-5 features.

Figure 7: XGBoost mlog loss for 100 iteration-0.01 learn-

ing rate-5 features.

mlog loss is based on test set (orange line), since the

result for train set is so optimal which signals that we

could be overﬁtting. In the next step, we would like to

know which features are more valuable in building the

decision trees within the XGBoost model. The impor-

tance score can be calculated for each feature, help-

ing the features to be ranked and prioritised within

the dataset. For calculating importance of each fea-

ture, we can make use of the Gini Index. Feature im-

portance give us an array of values for our 5 fea-

tures. Table.2 shows the values for each feature in

Threshold column. Common neighbour and second

shortest path in citation graph have the least val-

ues and hence can be considered as the most impor-

tant features. ’SelectFromModel’ class which belongs

to ’scikit-learn’library in Python will consider each

score as a threshold. Applying threshold will help to

ﬁlter one or more features in each step to observe if

the performance of the model improves. Considering

all features, ﬁrst of all we train a model using our train

dataset, then measure the performance of the model

on the test data considering the same feature selec-

tion. Table.2 shows that the performance of the model

does not change by decreasing the number of selected

features until the last step , in which F-score decreases

from 81.65% to 76.98%. Apart from reducing the fea-

Table 2: Filtering Features based on Threshold For 5 Fea-

tures.

Threshold Num Of Features Accuracy F-Score

0.000 5 77.70% 81.65%

0.004 4 77.70% 81.65%

0.005 3 77.70% 81.65%

0.035 2 77.70% 81.65%

0.955 1 70.40% 76.98%

Table 3: Filtering Features based on Threshold For 2 Fea-

tures.

Threshold Num Of Features Accuracy F-Score

0.090 2 94.60% 94.43%

0.910 1 94.60% 94.43%

tures based on threshold, we reduce the number of

features by removing the features randomly to see

how it affects the accuracy of the model. The per-

formance of the model increases by decreasing the

number of selected features to ’common neighbours’

and ’shortest path in co-author graph’ from 81.65% in

the ﬁrst step of having 5 features to 94.43%. Hence

our results show us that, contrary to expectations,

a smaller set of features is sufﬁcient for improving

the performance of the model. Table.3 shows the re-

sult. Fig. 8 is the result of including 2 features (com-

mon neighbors and shortest path in co-authorship

graph) and having ’learning-rate’ equal to 0.01 and

’n-estimate’ equal to 500. The minimum log loss is

obtained which is equal to 0.1789333.

Figure 8: XGBoost mlog loss for 500 iteration-0.01 learn-

ing rate-2 features.

We include this analysis, just to illustrate the role of

parameters and features in optimizing our results. Af-

ter calculating features for each pair of authors, we

need to train the model based on XGBoost and store

it inside Neo4j. The detailed implementation can be

found in GitHub

. The results show that training

See the storedprocedure named ’CreateAuthorPaper-

Model’ inside the class ’AuthorPaperModel’ in: https://

github.com/sepideh06/ML-on-graphs

ICEIS 2021 - 23rd International Conference on Enterprise Information Systems

164

Table 4: Inference In- and Outside Neo4j.

In- Outside the Graph

Feature Calculation 3.31 hours 3.16 hours

MI For 100 Samples 111 ms 104 ms

MI For 75 Samples 94 ms 113 ms

MI For 50 Samples 92 ms 95 ms

MI For 25 Samples 97 ms 99 ms

the model on the database side, using a stored pro-

cedure, can be close-enough in terms of execution

time, as training the model on the user side and the

difference between the approaches is not markedly

large, though more studies are required. The evalu-

ation results also reveal that features such as shortest

path are quite informative for link prediction task and

result in better performance measurements.

4.3 RQ3: Inference

In this section we present the results of our exper-

imental evaluation on the aspects of inference, us-

ing our experimental prototype. Inference involves

using the learned model to make a prediction, given

some data passed as an example. If the model is

saved within Neo4j, we need to retrieve it and read

it into an array of bytes, interpreting it then into the

API of the ML library on which the model is imple-

mented. From outside of the database, the model is

already saved as a local ﬁle, hence, we just need to

load the model, ask the model about our sample and

record the time for the predictions. Table. 4 presents

an overview on recorded times for different samples

over 10 iterations. Evaluation results show that in-

creasing the size of the sample does not deteriorate

the performance of the model in- or outside of graph

database Neo4j. Although, the recorded time for the

batch will be increasing little by little as the size of

data is growing but it does not create such a big dif-

ference in the ﬁnal performance. Besides, there is not

huge difference in recorded time of doing inference

in the alternative cases, since for both situations, such

time is spent to retrieve the model from either inside

database or a local ﬁle. The feature calculation for

the new data, is shown to be at an entirely different

temporal scale than inference.

5 CONCLUSION

In this paper, we provided an early consideration

of what could be a practical case study and design

choices for carrying out an ML task with the sup-

port of an off-the-shelf graph database. We envi-

sion that the graph database could be tasked to help

with feature calculation, and to store metadata about

the model which assist model exploration and infer-

ence. To evaluate some choices for such a support

we studied link prediction with traditional ML mod-

els (XGBoost) and simple graph-based features, over

a subset of the popular Microsoft Academic Knowl-

edge Graph, using the Neo4j graph database with a

stored-procedure-based integration. From our study

we ﬁnd that feature calculation is by far the most

time-consuming task of the process, with an impact

on inference and model building. Hence for graph

databases and ML based on traditional graph features,

future research should emphasize combinations of the

database with scale-out processing frameworks (e.g.

Neo4j and Spark), and extensions to query interfaces

to support better bulk feature calculation. The latter

improvement shares research interests with ongoing

work in close couplings of ML tasks with relational

databases (Ngo and Nguyen, 2020). Regarding this

concern we should also note that speciﬁc algorith-

mic improvements building on ﬁne-grained measure-

ments, scoped per type of feature and kind of topol-

ogy, would contribute to the research. Based on our

work we can also suggest that for traditional ML, a

sample-based approach for evaluating feature combi-

nations prior to training models on the whole data is

a common-sense important practice to focus the pro-

cessing on the highest-leverage features. The automa-

tion of the aforementioned practice could also be of

interest for process improvements. In our study we

identiﬁed that only 2 features could produce the best

F-score, illustrating the need to establish feature rel-

evance so as to limit the computational requirements

of feature calculation. In our work we also provide an

early assessment on the time for model training when

the model is in- or outside of the database. We ﬁnd lit-

tle difference between both cases, when not consider-

ing feature calculation as part of the process. Regard-

ing inference, we ﬁnd that there is a small advantage

of the in-database option over the alternative, similar

observations were made for data splits, but we iden-

tify that future studies with ﬁner-grain proﬁling and

more data size variations are required to better under-

stand these ﬁndings. Moving forward, we suggest that

as graph neural networks are becoming increasingly

competitive for ML tasks, cursor-based approaches

for dataset/feature generation in order to produce the

tensors required to train/use such models, constitutes

a potentially rewarding novel workload for graph data

management systems to consider.

Machine Learning within a Graph Database: A Case Study on Link Prediction for Scholarly Data

165

REFERENCES

Agarwal, A., Corvalan, A., Jensen, J., and Rambow, O.

(2012). Social network analysis of alice in wonder-

land. In Proceedings of the NAACL-HLT 2012 Work-

shop on computational linguistics for literature, pages

88–96.

Al Hasan, M., Chaoji, V., Salem, S., and Zaki, M. (2006).

Link prediction using supervised learning. In SDM06:

workshop on link analysis, counter-terrorism and se-

curity.

Balazevic, I., Allen, C., and Hospedales, T. M. (2018).

Hypernetwork knowledge graph embeddings. arXiv

preprint arXiv:1808.07018.

Becker, C., Rigamonti, R., Lepetit, V., and Fua, P. (2013).

Supervised feature learning for curvilinear structure

segmentation. In International conference on medical

image computing and computer-assisted intervention,

pages 526–533. Springer.

Berton, L., Valverde-Rebaza, J., and de Andrade Lopes,

A. (2015). Link prediction in graph construction for

supervised and semi-supervised learning. In 2015

International Joint Conference on Neural Networks

(IJCNN), pages 1–8. IEEE.

Burkov, A. (2019). The Hundred-Page Machine Learning

Book. Andriy Burkov.

Chu, Z., Widjaja, I., and Wang, H. (2012). Detecting social

spam campaigns on twitter. In International Confer-

ence on Applied Cryptography and Network Security,

pages 455–472. Springer.

Chuan, P. M., Giap, C. N., Bhatt, C., Khang, T. D., et al.

(2018). Enhance link prediction in online social net-

works using similarity metrics, sampling, and classiﬁ-

cation. In Information Systems Design and Intelligent

Applications, pages 823–833. Springer.

Cohen, J., Dolan, B., Dunlap, M., Hellerstein, J. M., and

Welton, C. (2009). Mad skills: new analysis practices

for big data. Proceedings of the VLDB Endowment,

2(2):1481–1492.

Dettmers, T., Minervini, P., Stenetorp, P., and Riedel, S.

(2018). Convolutional 2d knowledge graph embed-

dings. In Thirty-Second AAAI Conference on Artiﬁcial

Intelligence.

Dwivedi, V. P., Joshi, C. K., Laurent, T., Bengio, Y., and

Bresson, X. (2020). Benchmarking graph neural net-

works. arXiv e-prints, pages arXiv–2003.

Goyal, P. and Ferrara, E. (2018). Graph embedding tech-

niques, applications, and performance: A survey.

Knowledge-Based Systems, 151:78–94.

Han, S. and Xu, Y. (2016). Link prediction in microblog

network using supervised learning with multiple fea-

tures. JCP, 11(1):72–82.

Kashima, H., Kato, T., Yamanishi, Y., Sugiyama, M., and

Tsuda, K. (2009). Link propagation: A fast semi-

supervised learning algorithm for link prediction. In

Proceedings of the 2009 SIAM international confer-

ence on data mining, pages 1100–1111. SIAM.

Kaur, R. and Singh, S. (2016). A survey of data mining

and social network analysis based anomaly detection

techniques. Egyptian informatics journal, 17(2):199–

216.

Kong, X., Chen, X., and Hovy, E. (2019). Decompressing

knowledge graph representations for link prediction.

arXiv preprint arXiv:1911.04053.

Kumar, A., Boehm, M., and Yang, J. (2017). Data man-

agement in machine learning: Challenges, techniques,

and systems. In Proceedings of the 2017 ACM Inter-

national Conference on Management of Data, pages

1717–1722. ACM.

Lee, J. B. and Adorna, H. (2012). Link prediction in a

modiﬁed heterogeneous bibliographic network. In

Proceedings of the 2012 International Conference on

Advances in Social Networks Analysis and Mining

(ASONAM 2012), pages 442–449. IEEE Computer

Society.

Martin, S., Brown, W. M., Klavans, R., and Boyack, K. W.

(2011). Openord: an open-source toolbox for large

graph layout. In Visualization and Data Analysis

2011, volume 7868, page 786806. International So-

ciety for Optics and Photonics.

Mutlu, E. C. and Oghaz, T. A. (2019). Review on graph

feature learning and feature extraction techniques for

link prediction. arXiv preprint arXiv:1901.03425.

Ngo, H. Q. and Nguyen, X. (2020). Learning models over

relational data: A brief tutorial. In Scalable Uncer-

tainty Management: 13th International Conference,

SUM 2019, Compi

egne, France, December 16–18,

2019, Proceedings, volume 11940, page 423. Springer

Nature.

Pinter, Y. and Eisenstein, J. (2018). Predicting semantic

relations using global graph properties. arXiv preprint

arXiv:1808.08644.

Shoham, Y., Perrault, R., Brynjolfsson, E., Clark, J.,

Manyika, J., Niebles, J. C., Lyons, T., Etchemendy,

J., and Bauer, Z. (2018). The ai index 2018 an-

nual report. AI Index Steering Committee, Human-

Centered AI Initiative, Stanford University. Available

at http://cdn. aiindex. org/2018/AI% 20Index, 202018.

Sinha, A., Shen, Z., Song, Y., Ma, H., Eide, D., Hsu, B.-j. P.,

and Wang, K. (2015). An overview of microsoft aca-

demic service (mas) and applications. In Proceedings

of the 24th international conference on world wide

web, pages 243–246. ACM.

Tang, J., Chang, Y., Aggarwal, C., and Liu, H. (2016).

A survey of signed network mining in social media.

ACM Computing Surveys (CSUR), 49(3):42.

Vartak, S. (2008). A survey on link prediction. State Uni-

versity of New York.

Vashishth, S., Sanyal, S., Nitin, V., Agrawal, N.,

and Talukdar, P. (2019). Interacte: Improv-

ing convolution-based knowledge graph embeddings

by increasing feature interactions. arXiv preprint

arXiv:1911.00219.

Wang, D., Cui, P., and Zhu, W. (2016). Structural deep net-

work embedding. In Proceedings of the 22nd ACM

SIGKDD international conference on Knowledge dis-

covery and data mining, pages 1225–1234. ACM.

Xu, C. and Li, R. (2019). Relation embedding with di-

hedral group in knowledge graph. arXiv preprint

arXiv:1906.00687.

ICEIS 2021 - 23rd International Conference on Enterprise Information Systems

166
