Balancing Performance and Effort in Deep Learning via the Fusion of

Real and Synthetic Cultural Heritage Photogrammetry Training Sets

Eugene Ch’ng

1,3

, Pinyuan Feng

, Hongtao Yao

, Zihao Zeng

, Danzhao Cheng

and Shengdan Cai

NVIDIA Joint-Lab on Mixed Reality, University of Nottingham Ningbo, China

School of Computer Science, University of Nottingham Ningbo, China

Digital Heritage Centre, University of Nottingham Ningbo, China

Keywords: Digital Heritage, Deep Learning, Object Detection, Data Augmentation, Photogrammetry, Fusion Dataset.

Abstract: Cultural heritage presents both challenges and opportunities for the adoption and use of deep learning in 3D

digitisation and digitalisation endeavours. While unique features in terms of the identity of artefacts are

important factors that can contribute to training performance in deep learning algorithms, challenges remain

with regards to the laborious efforts in our ability to obtain adequate datasets that would both provide for the

diversity of imageries, and across the range of multi-facet images for each object in use. One solution, and

perhaps an important step towards the broader applicability of deep learning in the field of digital heritage is

the fusion of both real and virtual datasets via the automated creation of diverse datasets that covers multiple

views of individual objects over a range of diversified objects in the training pipeline, all facilitated by close-

range photogrammetry generated 3D objects. The question is the ratio of the combination of real and synthetic

imageries in which an inflection point occurs whereby performance is reduced. In this research, we attempt

to reduce the need for manual labour by leveraging the flexibility provided for in automated data generation

via close-range photogrammetry models with a view for future deep learning facilitated cultural heritage

activities, such as digital identification, sorting, asset management and categorisation.

1 INTRODUCTION

One of the key advancements that led to an increased

interest-driven amateur 3D recording of cultural

heritage objects can be said to be a critical progress

made within the field of Digital Heritage. This critical

progress in combined technology and approach is

close-range photogrammetry in its many

implementations, methods and use (Ch’ng et al.,

2019; Luhmann et al., 2006; Mudge et al., 2010;

Yilmaz et al., 2007). Its advent has opened up

possibilities for both digitisation and digitalisation

due to its ease of use and accessibility and thus, is a

catalyst for the widespread recording of objects

within cultural heritage. The ability to record true

appearances of objects can open up many

possibilities; it removes barriers such as the effort and

cost of 3D laser scanning and closes the gap between

visual representations of authentic cultural heritage

objects that can populate virtual environments (Cai et

al., 2018; Ch’ng et al., 2019; Li et al., 2018). We see

further potentials for the use of photogrammetry-

based objects, and that is the use of such models for

generating complementary data that could be used for

augmenting datasets meant for identifying cultural

relics. We believe that, for the fact that the 3D

recorded objects are 1) digital, and that these objects

can be 2) manipulated within a virtual space, and that

many facets of each object can be generated as

images, and across many collections of objects.

Therefore, a dataset composed of sythetic imageries

can be used as training datasets that complements

existing databases. We have since created such a

dataset named DeepRelic. What we are unsure of is,

if training datasets can be entirely virtual, i.e.,

photogrammetry-based imageries, or if there is a ratio

whereby an inflection point can be found where

additional virtual imageries will no longer increase

deep learning performances in terms of object

identification. We therefore ask the question – can

Ch’ng, E., Feng, P., Yao, H., Zeng, Z., Cheng, D. and Cai, S.

Balancing Performance and Effort in Deep Lear ning via the Fusion of Real and Synthetic Cultural Heritage Photogrammetry Training Sets.

DOI: 10.5220/0010381206110621

In Proceedings of the 13th International Conference on Agents and Artiﬁcial Intelligence (ICAART 2021) - Volume 1, pages 611-621

ISBN: 978-989-758-484-8

611

Figure 1: Workflows in our data augmentation pipeline describing the source of the photogrammetry modells, data processing,

data fusion, the creation of deep learning training sets, and object detection.

virtual images compliment real images and, if so,

what is the right combination as measured by the

average ratio of a collection of objects with variable

appearances? Our hypotheses are as follows:

: There is no difference in performance

between different combinations of ratios of computer-

generated images as compared to real images.

: There is a difference in performance if

computer-generated images are combined with real

images.

Our aim is to test our hypotheses, and if the

alternate hypothesis is true, to discover a ratio and,

associated with that ratio, further seek for an

inflection point where the insertion of virtual

imageries will degrade performances using fusion

machine learning datasets.

The article is written as follows – we first review

literatures related to our core ideas before proceeding

to describe our method and approaches in how we

manage the fusion of data and design experiments.

Within our expriments, we describe the process of

creating our DeepRelic dataset, through to the

training process, and our testing of the performance

of deep learning algorithms based on the dataset. The

workflow diagram in Figure 1 illustrates our method.

The article is then followed by the results of our

hypotheses testing, and finally we conclude our study

with future work.

2 RELATED WORKS

The genericity of the utility value of AI, and in

particularly machine learning and deep learning are

pervasive across many different fields. This is true

within the many activities of digital heritage, where

AI has been employed for various purposes. Deep

learning and object detection is one such area for they

can be used for assisting, facilitating and

complementing human labour for archives and

collections, for education and audience engagement

within museums. Here, we review relevant

approaches that fit our research intention prior to

delving into the literatures of related works.

2.1 Object Detection

Object detection, the process of identifying objects in

an image along with localisation and classification,

has drawn significant benefits from the introduction

of deep learning techniques over the past several

years. Compared with traditional object detection

methods, modern object detection algorithms have

made significant improvements in accuracy, speed

and memory, and thereby have become pervasive in

a wide range of applications. Some examples are

malaria image detection (Hung et al., 2017),

automobile vision system (Chen et al., 2018) weed

detection (Sivakumar et al., 2020), and etc.

There are two groups of principles behind object

detection in deep learning – single-stage and double-

stage approach. Single Shot Multi-Box Detector

(SSD) (Liu et al., 2016) and YOLO (Redmon et al.,

2016) are typical examples of the single-stage

approach, which classifies objects as well as their

locations within a single step. For double-stage

approach, Fast Region-based Convolutional Network

method, i.e., Fast R-CNN (Girshick, 2015) is a

Online Images

3D Modeling

with

Photogrammetry

Training set

Tes ti ng se t

Data split

Real-world Image set

Hybrid Training Set

groun

Object Detector

train

predict

Photos taken from museums

Synthetic

Image set

…

creens

ots

ARTIDIGH 2021 - Special Session on Artiﬁcial Intelligence and Digital Heritage: Challenges and Opportunities

612

Figure 2: Samples of augmented images.

representative, which creates a set of high-probability

regions that surround objects, and then conducts the

final localisation and classification steps by taking

these regions as input. Fast R-CNN’s performance is

similar to SSD in comparison with F1 score, recall,

precision and IoU, but it might have higher

generalisation than the SSD in weed detection

(Sivakumar et al., 2020). The SSD algorithm supports

low-level computational platforms with ~ 99.3%

accuracy and adequate speed when used for detecting

vehicle. The YOLO algorithm on the other hand

focuses on real-time object detection and performs

well on objects.

In our experiment, SSD algorithm was used

within our training framework. SSD is capable of

directly finding the bounding boxes of objects and is

able to predict classes from feature maps in a single

shot. This can enable us to speed up the training

process. Its performance is able to achieve a level of

accuracy adequate for object identification in our

training datasets. Our research attempts to balance the

trade-off between performance and usefulness and

therefore SSD as our choice of algorithm for

hypotheses testing.

2.2 Data Augmentation

Deep learning is dependent on large volumes of data

for achieving best performances. However, obtaining

adequate amounts of data for acceptable performance

is challenging for many domains. This is especially

true in the field of cultural heritage considering the

limited access to museum collections and the fragility

of cultural heritage objects. A viable approach is to

use data augmentation. Data augmentation maximises

the utilisation of small datasets whilst achieving

acceptable performance, and it provides a diverse

viewpoint and scale coverage to generate more

images with minimal effort (Dwibedi et al., 2017).

The most common approach is the transformation of

existing datasets by flipping, rotating, scaling,

cropping, translation and noise injection (Shorten &

Khoshgoftaar, 2019). Dataset transformation are

based on adequate real-world images. Cultural

heritage objects are often well-preserved in the

archives or encased in display glass, which makes it

difficult to acquire multi-angled pictures of an object

that would become composites of a good training

dataset. Cultural heritage objects for image-based

resources are limited as such, and also that relics are

uncommon, unique and often unpublished and

inaccessible in the public domain. Therefore, in order

to resolve this issue, our study documents and

reconstructs relics as 3D models through close-range

photogrammetry technniques, and makes use of the

3D nature of objects for automatically generating

imageries that represent the different facets of each

object, and across many different objects for data

augmentation.

2.3 3D Reproductions of Cultural

Heritage

The significance of digital documentation and

reconstruction of cultural heritage has been

emphasised (Alker & Donaldson, 2018). Digitisation

can be said to be the prerequisite towards the full

Balancing Performance and Effort in Deep Learning via the Fusion of Real and Synthetic Cultural Heritage Photogrammetry Training Sets

613

Table 1: Our choice of cultural heritage objects used in this research and their metadata.

Item Full Name ID Sample Image Year Museum

Gilt Bronze Bull

Cattle

Western Xia Dynasty

(1038-1227)

Ningxia Museum

Tri-coloured Camel

Camel

Tang Dynasty

(618–907)

Nanjing Museum

Kneeling Archer

Soldier

Qin Dynasty

(221-206 BC)

Emperor

Qinshihuang's

Mausoleum Site

Museum

Ox-shaped Bronze Lamp

Lamp

Eastern Han Dynasty

(25-220)

Nanjing Museum

Bronze Mask

Mask

Shu Kingdom

(circa 2800-1100BC)

Sanxingdui Museum

Bronze Owl-shaped Zun with

Inscription of Fuhao (Xiaozun)

Owl

Shang Dynasty

(1600-1046BC)

Henan Museum

Pottery Figure of a Standing Lady

Lady

Tang Dynasty

(618–907)

National Palace

Museum, Taipei

Celadon Glazed Porcelain Zun

with Design of a Monster

Monster

Western Jin Dynasty

(265-316)

Nanjing Museum

potentials of the digitalisation of cultural heritage. 3D

repositories such as Sketchfab have provided a

platform for the sharing of cultural heritage. While

there are methods that provide scientific and

archivable copies (Mudge et al., 2007), methods for

capturing directly from museums (Ch’ng et al., 2019),

and the more expensive laser scanning and even a

combination of close-range photogrammetry and

laser scanning techniques (Hess et al., 2015), in

reviewing literatures, and in having practically

captured over 200 artefacts, we think that any

leisurely methods that can capture true appearances

(Ch’ng, 2021), i.e., copies that retains the overall

identity of the object will be adequate for data

augmentation.

3 METHODOLOGY

Our main goal is to augment our cultural heritage

image dataset with synthetic imageries so as to test

our hypotheses. We began with a dataset of 100% real

images and incrementally adds synthetic images

consisting of photogrammetry-based 3D objects that

is automatically generated via 360° rotations and

positioning using Blender Scripts, in combination

with different backgrounds. We selected cultural

heritage datasets within our photogrammetry object

repository, and made the choice of object structure

and appearance to increase the variability of our

dataset as a simulation for scalability in future work.

ARTIDIGH 2021 - Special Session on Artiﬁcial Intelligence and Digital Heritage: Challenges and Opportunities

614

The dataset we created consisted of 800 real-

world images and 800 synthetic images in 8

categories (Table 1). The size of images is 416 x 416

x 3 (RGB). Some real-world images were patially

downloaded from the Web, while others were

manually photographed at different museums.

Professional annotators have been adopted to ensure

that bounding boxes are tightly encapsulating the

bounding edges of the target objects. We resized

images with the original aspect ratio and then added

paddings to avoid distortion to the image contents.

In our experiment, we randomly combined real-

world images and synthetic images to form a training

set of 800 object images based on different image

proportions. We further created a testing set

consisting of real-world images for performance

evaluation.

3.1 Data Preparation

This section describes our data preparation pipeline,

which consists of how 3D objects are managed and

how imageries generated from the objects in

combination with background images can be used for

augmenting our training dataset.

3.1.1 Photogrammetry Objects

We used a combination of close-range

photogrammetry objects, captured from museums

and processed via RealityCapture. These processes

align images and generate point-cloud and polygon

data, and additional effort was needed to remove

access data that are not part of the model (e.g.,

pedestals, visitors, labels, and etc.). Additional

processing and editing were conducted within

Blender to position and scale the model. Images

generated from the 3D models were used for

extracting features which will then be used for

recovering the positions of surface points. Images of

facets of the models are then sorted and categorised

together with real-world object data. Details of how

we digitise museum objects are available (Ch’ng et

al., 2019).

3.1.2 Automated Data Augmentation

Instead of synthesising images through re-scaling,

rotating, cropping, and etc., we adopted the “Model-

To-Image” methodology to enlarge our dataset. We

considered our data augmentation approach to be a

further step from traditional approaches in that we

have considerably increased the diversity of the

dataset.

To speed up the production of our dataset, we

exported our model from RealityCapture to Sketchfab

and used a standard plugin that imports models

directly from Sketchfab into Blender to save time

from having to remodel our 3D objects within

Blender. We added an object constraint property to

the camera in Blender, so that objects are always

within the viewport. An additional step was to affix

the trajectory of the camera to a spherical object

surface and establishing a mathematical correlation of

its coordinates in three-dimensional Euclidean space.

When the camera is setup, we randomly modified the

camera positional coordinates so that we can capture

images from all sides of the object. We set the

background as transparent in the rendering pipeline of

so that we can overlay the object images on

background images. Through the steps above, we

automated the image generation process and created

projections of models with consistent resolution and

transparent backgrounds across all objects. This

increases the diversity of imageries, and saves

considerable effort in the need for manual labour.

The next step is to use Python with image

processing package to encase bounding boxes around

the target objects by detecting pixel values in each

image and the location of object-pixel edges. In the

process, we generated the documents that record the

coordinates of the bounding box and the

corresponding labels that we use for inputs for the

machine learning training model. The completion of

our pipeline yielded a preliminary dataset containing

images of objects surrounded by bounding boxes and

corresponding documents containing the coordinates

of the boxes (Figure 1).

We employed existing open-source datasets, i.e.,

“Indoor Scene Recognition” created by MIT

(Quattoni & Torralba, 2009) of background images as

they are established datasets that meet our criteria for

backdrops that contains indoor scenes. We automated

the placement and scaling of objects in random

locations on the background images. Based on the

position and the size of each object’s boundary box in

the projection image, we calculated the new

coordinates of the bounding box in the synthetic

picture and record the related training information

into annotation files. By repeating the preceding

steps, we were able to generate a new dataset

containing the synthetic images and the documents

from the annotated information.

We now have a series of datasets with the same

magnitude but with different stepped proportions of

synthetic images (10% incremental). In each dataset,

images were evenly divided into diverse parts with

each part corresponding to a specific heritage artefact.

Balancing Performance and Effort in Deep Learning via the Fusion of Real and Synthetic Cultural Heritage Photogrammetry Training Sets

615

In selecting the eight sample cultural heritage

artefacts, we have considered a range of properties

which includes cultural backgrounds, texture and

size. We set the magnitude of a single dataset to be

800 images. We have valid reasons for the size as it

is difficult to obtain images of rare artefacts, and that

every cultural heritage objects are unique. This was

also the reason for the size of our dataset in the

present, initial research. We made sure that have the

same proportion of synthetic images in each dataset.

For different datasets, the ratio of synthetic images

spans from 0% to 100% set at an incremental interval

of 10%. When an inflection point is found in the

performance data, we generated smaller incremental

intervals of 1% so that we could determine the trend

of the performance as it descends in line with the

increase of synthetic images.

3.2 Experiment

3.2.1 Hardware and Software

We used a light workstation with GeForce RTX 2080

Super, with 64GB of RAM and Intel(R) Core(TM) i7-

9700K CPU @ 3.60GHz (8 CPUs), ~3.6GHz. The

training process is conducted using Tensorflow deep

learning framework.

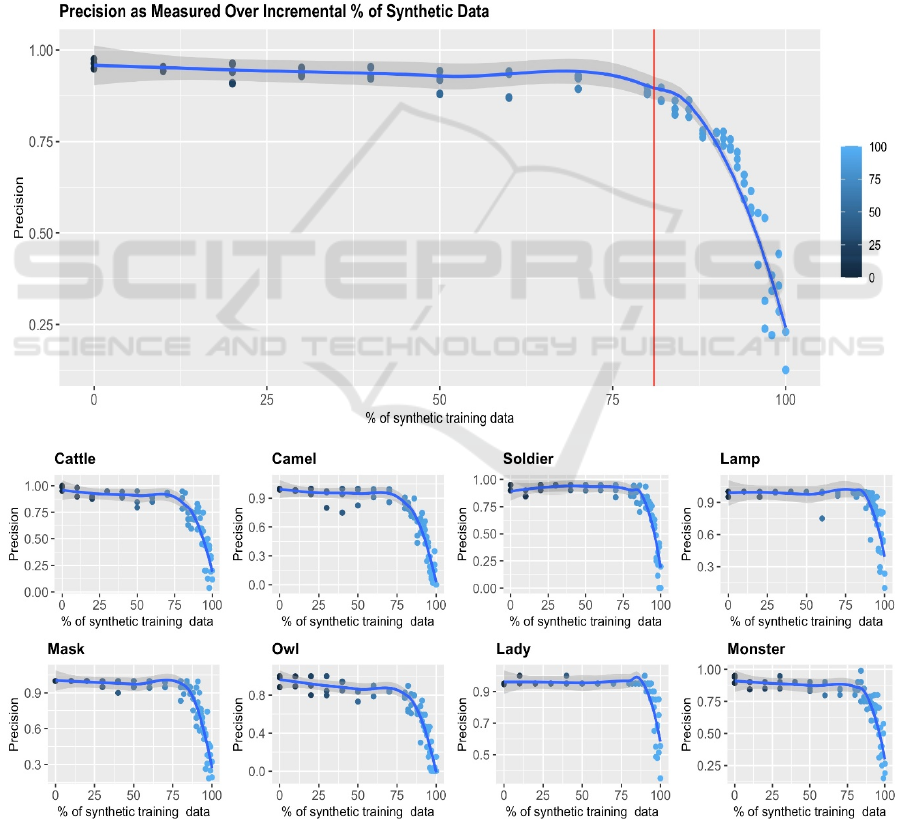

Figure 3: Average precision for all datasets (top), and precision graphs for each relic. The precision (y axis) were plotted

against the incremental percentage of synthetic images in the dataset.

ARTIDIGH 2021 - Special Session on Artiﬁcial Intelligence and Digital Heritage: Challenges and Opportunities

616

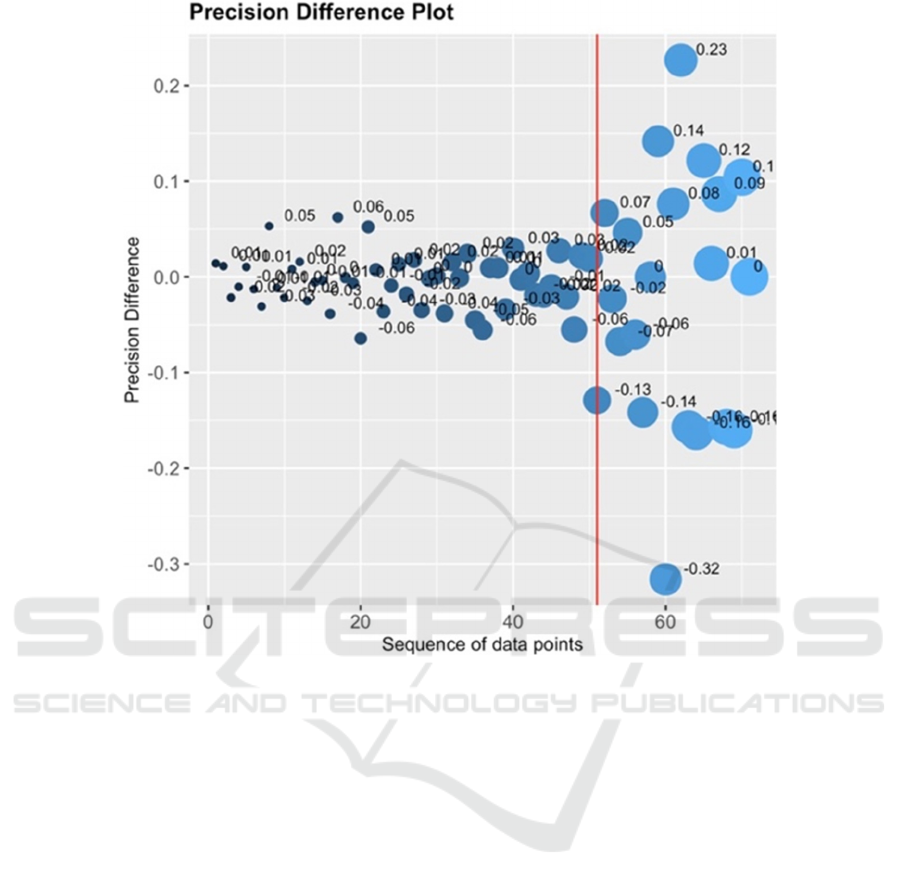

Figure 4: Precision difference plot, showing where precision has diverged. The threshold for divergence is set at T=0.08 (red

vertical line).

3.2.2 Model and Algorithm Selection

Given that the size of the current dataset is small, we

selected a light-weight neural network architecture

MobileNet to avoid excessive learning on the training

set. Rather than training from scratch, we further

leveraged transfer learning to fine-tune the model on

our dataset to avoid overfitting.

We hope to seek an appropriate training

configuration so that the results can reflect the trend

with the incremental interval percentage of synthetic

images that we gradually added to the dataset.

Through repeated training with different object

detection algorithms with the increase of ratio of

synthetic images, we found that the performance

(mean average precision for each object) of SSD

ranges from 20% - 95%, while the performance of the

other algorithms were generally over 90%. With high

variance of the results obtained from SSD, we can

easily see the distribution plots and observe the

relationship between the change of ratio and how it

influences performance. Therefore, the SSD

framework satisfies our requirements.

3.2.3 “Hybrid Training” Setup

In the training process, we leveraged the SSD

framework with MobileNet V2 backbone pre-trained

on MS COCO dataset. To test our hypotheses and to

investigate if synthetic images can influence the

performance of cultural heritage object detection, we

adopted the “Control Variable” methodologies to

train different training sets and observe how different

combinations of real and synthetic data can affect the

learning performance. With the same training

configuration, we train models on the datasets, and

evaluated the object detection performance based on

the same testing dataset. For model hyper-parameters,

we fine-tune each deep learning model for 20K

iterations using Adam Optimizer with a step-based

learning rate schedule. This starts from the learning

rate of 0.001, proceeding to the warming up steps

until 0.003, and cosine annealing decay were

Balancing Performance and Effort in Deep Learning via the Fusion of Real and Synthetic Cultural Heritage Photogrammetry Training Sets

617

Figure 5: Object detection results of “Soldier”, “Cattle”, “Mask” and “Camel” based on our fusion dataset.

performed, before gradually decreasing the moving

step that approaches the minimum. To minimise the

probability of outliers in our results for each ratio, we

trained the model three consecutive times in order to

validate that they are in alignment with each other.

4 RESULTS

Our results reported an Average Precision (AP) at

IOU of 0.5 for each dataset. We trained each deep

learning models using the fusion datasets we have

generated separately, each yielding a result measured

as a precision value. Figure 3 shows the result of the

incremental percentage of synthetic images added to

the dataset in each cycle of training. The x axis shows

the percentage of synthetic images, and the y axis the

average precision value across all eight artefacts. We

can visually identify that between the range of 80%

and 100% is a change in precision where the

inflection point is (red line). When a visual inflection

point is found, and for the subsequent datapoints

toward 100% synthetic images, we reduced the

granularity of our incremental percentage to 1% so

that we are sure that the trend is actually descending.

Therefore, there are more datapoints within the range

of 80% and 100% in our dataset.

We calculated the difference between each

subsequent precision data point (see Figure 4) with a

threshold T=0.08 where the difference begin to

matter. The graph with 72 datapoints shows where the

ARTIDIGH 2021 - Special Session on Artiﬁcial Intelligence and Digital Heritage: Challenges and Opportunities

618

Figure 6: Object detection results of “Owl”, “Lamp”, “Lady” and “Monster” based on our fusion dataset.

precision diverged from stability and begin to degrade

over time. The red vertical line shows the calculation

of the inflection point. The value at the threshold was

used to identify the inflection point for the average

precision graph (Figure 4, red vertical line).

We queried the precision of each 3D model

dataset for the purpose of investigating if there are

general trends. Figure 3 is the precision (y) and

incremental percentage (x) of synthetic images added

to the fusion dataset for each artefacts. A similar trend

be observed. In Figure 3, we noted that artefact “Owl”

has more volatility and lesser precision. In inspecting

the 3D model (Figure 2), we realised that the contrast

of light and shadow of the environment where the

relic was captured was not ideal, thus contributing to

darker areas that have no features. This indicated that

the quality of capture is important in the dataset, and

that care should be taken to ensure appropriate

lighting conditions were met before including the data

into the training set.

In reviewing our original research questions: ‘Can

virtual images compliment real images?’ and, if so,

‘what is the right combination as measured by the

average ratio of a collection of objects with variable

appearances?’, we can confirm that they have been

answered via the testing of the hypotheses we

formulated at the beginning of the article (H

and H

‘There is no difference in performance between

different combinations of ratios of computer-

generated images as compared to real images.’ is

false, and therefore the alternate hypothesis H

‘There

is a difference in performance if computer-generated

Balancing Performance and Effort in Deep Learning via the Fusion of Real and Synthetic Cultural Heritage Photogrammetry Training Sets

619

images are combined with real images.’ is true. The

inflection point for our present DeepRelic dataset is

81%, indicating that up to 80% synthetic images

could be used for augmenting the training set without

performance tradeoffs.

5 CONCLUSIONS

Our research began from exploring how we may

combine deep learning with digitalisation activities,

such as the use of deep learning algorithms for object

recognition, and for identification and augmentation

in mixed reality developments within our range of

digital heritage activities. We then looked at a

combination of algorithms, datasets and devices for

that purpose, and projected that there will be tradeoffs

between what types of deep learning algorithms we

use, and the devices, i.e., smartphones, AR headsets

that are able to support digitalisation endeavours. As

with any deep learning developments, one of the

greatest challenges in venturing into new areas is the

effort needed to acquire data. Within the field of

digital heritage, this challenge is amplified by the

rarity of cultural heritage object image datasets, and

that relics are uncommon, unique and often

unpublished and inaccessible in the public domain.

This limitation, together with our experience of close-

range photogrammetry prompts us to probe if fusion

datasets would work, which led to our research

enquiry into the possibility of a level of performance

in object detection that could be facilitated by an

initially limited dataset, that could be augmented by

synthetic imageries generated from photogrammetry

data. We hypothesised that there would be a

difference in performance if computer-generated

images are combined with real images, and also asked

where the inflection point would be.

We created a workflow to test our hypotheses,

resulting in a dataset which we termed DeepRelic, and

conducted experiments in order to determine where

the inflection point if any would be. We discovered

based on our fusion dataset that up to 80% of virtual

images could be used without significant

performance tradeoff and thereby have answered our

research questions. Of course, as data increases, and

particular collections of cultural heritage objects

become diverse, the inflection point and

consequently, the ratio may change. Nevertheless,

collections of artefacts that are used for digitalisation

are often bounded to particular exhibits and therefore,

the size of the dataset may not increase that much. It

does matter when digitalisation activities are

expanded to an entire city.

This research has led to some questions which we

will be probing for the future. Presently, we are

interested to know if the precision and percentage of

synthetic data will be similar in all cases, across

collections, since this may be influenced by factors

such as the size of the dataset, the content of the

images, the quality of synthetic images, and etc. Our

aim is to continue our initial exploration and

hypotheses testing by expanding our DeepRelic

dataset with models from different collections that

may contain similar forms so as to explore limits for

the fusion approach which we have discussed in this

article.

In summary, the creation of new datasets are

challenging on many fronts, but our experiments have

demonstrated the potentials of fusion datasets that

have composites of both real and synthetic images.

We strongly believe that imageries of 3D models

generated by close-range photogrammetry can

complement real-world datasets, and thus can

tremendously increase the magitute of datasets, but

also considerably reduce human effort.

ACKNOWLEDGEMENTS

This work is part of an annual summer internships

carried out at the NVIDIA Joint-Lab on Mixed

Reality, at the University of Nottingham’s China

campus. The authors acknowledge the financial

support from the Ningbo Science and Technology

Bureau (2017D10035) that has made this research

work possible. We would like to especially thank

RealityCapture for the tremendous support which has

made this and other exciting, investigative research

possible.

REFERENCES

Alker, Z., & Donaldson, C. (2018). Digital Heritage.

Journal of Victorian Culture, 23(2), 220–221.

https://doi.org/10.1093/jvcult/vcy019

Cai, S., Ch’ng, E., & Li, Y. (2018). A Comparison of the

Capacities of VR and 360-Degree Video for

Coordinating Memory in the Experience of Cultural

Heritage. In Digital Heritage 2018. San Francisco,

USA: IEEE.

Ch’ng, E. (2021). Asking the Right Questions when

Digitising Cultural Heritage. In “Convergence of

Digital Humanities”, International Conference on

Digital Heritage: Convergence of Digital Humanities.

Gyeongju, Republic of Korea, 20 September 2019.

Ch’ng, E., Cai, S., Zhang, T. E., & Leow, F.-T. (2019).

Crowdsourcing 3D cultural heritage: best practice for

ARTIDIGH 2021 - Special Session on Artiﬁcial Intelligence and Digital Heritage: Challenges and Opportunities

620

mass photogrammetry. Journal of Cultural Heritage

Management and Sustainable Development, 9(1), 24–

42. https://doi.org/10.1108/JCHMSD-03-2018-0018

Ch’ng, E., Cai, S., Zhang, T. E., Leow, F. T., Ch’ng, E., Cai,

S., … Leow, F. T. (2019). Crowdsourcing 3D cultural

heritage : best practice for mass photogrammetry.

Emerald Publishing Limited 2019, 9(1), 24–42.

https://doi.org/10.1108/JCHMSD-03-2018-0018

Ch’ng, E., Li, Y., Cai, S., & Leow, F.-T. (2019). The Effects

of VR Environments on the Acceptance, Experience

and Expectations of Cultural Heritage Learning.

Journal of Computing and Cultural Heritage.

Chen, L., Zhang, Z., & Peng, L. (2018). Fast single shot

multibox detector and its application on vehicle

counting system. IET Intelligent Transport Systems,

12(10), 1406–1413. https://doi.org/10.1049/iet-

its.2018.5005

Dwibedi, D., Misra, I., & Hebert, M. (2017). Cut, Paste and

Learn: Surprisingly Easy Synthesis for Instance

Detection. Proceedings of the IEEE International

Conference on Computer Vision, 2017-Octob, 1310–

1319. https://doi.org/10.1109/ICCV.2017.146

Girshick, R. (2015). Fast R-CNN. Proceedings of the IEEE

International Conference on Computer Vision, 2015

Inter, 1440–1448.

https://doi.org/10.1109/ICCV.2015.169

Hess, M., Petrovic, V., Meyer, D., Rissolo, D., & Kuester,

F. (2015). Fusion of multimodal three-dimensional data

for comprehensive digital documentation of cultural

heritage sites. 2015 Digital Heritage International

Congress, Digital Heritage 2015, 595–602.

https://doi.org/10.1109/DigitalHeritage.2015.7419578

Hung, J., Rangel, G., Chan, H. T. H., Leônidas, I., Paulo,

U. D. S., Ferreira, M. U., … Carpenter, A. E. (2017).

Applying Faster R-CNN for Object Detection on

Malaria Images. 2017 IEEE Conference on Computer

Vision and Pattern Recognition Workshops (CVPRW),

56–61.

Li, Y., Ch’ng, E., Cai, S., & See, S. (2018). Multiuser

Interaction with Hybrid VR and AR for Cultural

Heritage Objects. In Digital Heritage 2018. San

Francisco, USA: IEEE. Retrieved from

file:///Users/yueli/Library/Application

Support/Mendeley Desktop/Downloaded/Li et al. -

2018 - Multiuser Interaction with Hybrid VR and AR

for Cultural Heritage Objects.pdf

Liu, W., Anguelov, D., Erhan, D., Szegedy, C., Reed, S.,

Fu, C. Y., & Berg, A. C. (2016). SSD: Single shot

multibox detector. Lecture Notes in Computer Science

(Including Subseries Lecture Notes in Artificial

Intelligence and Lecture Notes in Bioinformatics), 9905

LNCS, 21–37. https://doi.org/10.1007/978-3-319-

46448-0_2

Luhmann, T., Robson, S., Kyle, S. A., & Harley, I. A.

(2006). Close range photogrammetry: principles,

techniques and applications. Whittles.

Mudge, M., Ashley, M., & Schroer, C. (2007). A digital

future for cultural heritage. International Archives of

the Photogrammetry, Remote Sensing and Spatial

Information Sciences - ISPRS Archives,

36(5/C53).

Mudge, M., Schroer, C., Earl, G., Martinez, K., Pagi, H.,

Toler-Franklin, C., … Ashley, M. (2010). Principles

and practices of robust photography-based digital

imaging techniques for museums. In VAST 2010: The

11th International Symposium on Virtual Reality,

Archaeology and Cultural Heritage.

Quattoni, A., & Torralba, A. (2009). Recognizing indoor

scenes. In 2009 IEEE Conference on Computer Vision

and Pattern Recognition (pp. 413–420). IEEE.

Redmon, J., Divvala, S., Girshick, R., & Farhadi, A. (2016).

You only look once: Unified, real-time object detection.

Proceedings of the IEEE Computer Society Conference

on Computer Vision and Pattern Recognition, 2016-

Decem, 779–788.

https://doi.org/10.1109/CVPR.2016.91

Shorten, C., & Khoshgoftaar, T. M. (2019). A survey on

Image Data Augmentation for Deep Learning. Journal

of Big Data, 6(1). https://doi.org/10.1186/s40537-019-

0197-0

Sivakumar, A. N. V., Li, J., Scott, S., Psota, E., Jhala, A. J.,

Luck, J. D., & Shi, Y. (2020). Comparison of object

detection and patch-based classification deep learning

models on mid-to late-season weed detection in UAV

imagery. Remote Sensing, 12(13).

https://doi.org/10.3390/rs12132136

Yilmaz, H. M., Yakar, M., Gulec, S. A., & Dulgerler, O. N.

(2007). Importance of digital close-range

photogrammetry in documentation of cultural heritage.

Journal of Cultural Heritage, 8(4), 428–433.

https://doi.org/10.1016/j.culher.2007.07.004.

Balancing Performance and Effort in Deep Learning via the Fusion of Real and Synthetic Cultural Heritage Photogrammetry Training Sets

621
