Comparing Feature Engineering and Deep Learning Methods
for Automated Essay Scoring of Brazilian National High School
Aluizio Haendchen Filho
, Fernando Concatto
, Hércules Antonio do Prado
and Edilson Ferneda
Laboratory of Technological Innovation in Education (LITE), University of Vale do Itajaí (UNIVALI), Itajaí, Brazil
Catholic University of Brasilia (UCB) QS 07, Lote 01, Taguatinga, Brasília, DF, Brazil
Keywords: Automated Essay Scoring, Machine Learning, Deep Learning.
Abstract: The National High School Exam (ENEM) in Brazil is a test applied annually to assess students before entering
higher education. On average, over 7.5 million students participate in this test. In the same sense, large
educational groups need to conduct tests for students preparing for ENEM. For correcting each essay, it is
necessary at least two evaluators, which makes the process time consuming and very expensive. One
alternative for substantially reducing the cost and speed up the correction of essays is to replace one human
evaluator by an automated process. This paper presents a computational approach for essays correction able
to replace one human evaluator. Techniques based on feature engineering and deep learning were compared,
aiming to obtain the best accuracy among them. It was found that is possible to reach accuracy indexes close
to 100% in the most frequent classes that comprise near 80% of the essays set.
The Brazilian National High School Examination
(ENEM) is an evaluation that happens annually in
order to verify the knowledge of the participants
about skills acquired during the high school years,
including writing abilities. During the essay
evaluation, two reviewers assign scores ranging from
0 to 2, in intervals of 0,5 for each of the five
competencies: [C
] Formal writing of Brazilian-
Portuguese language; [C
] Understanding the essay
proposal within the structural limits of the essay-
argumentative text; [C
] Selecting, relating,
organizing, and interpreting information, facts,
options, and defence of a point of view; [C
Demonstrating knowledge of the linguistic
mechanisms necessary to construct the
argumentation; [C
] Proposing of an intervention for
the problem addressed based on consistent
The scoring process varies from 0 to 2 for each
competence, summing 10 for the essay. A grade 0
(zero) for a competence means that the author does
not demonstrate mastery over the competence in
question. In contrast, a score of 2 indicates that the
author demonstrates mastery over that competence. It
is important to mention that two reviewers are
considered in agreement when the difference between
grades is less or equal than 20%.
Arguably, the essays evaluation by at least two
reviewers makes the process time-consuming and
expensive. According to a survey conducted by the
Brazilian G1 portal, 6.1 million essays were evaluated
in 2019 at a cost of US$ 4.96 per essay, reaching
approximately US$ 30.27 million. This value
includes the structure, logistics, and personnel needed
to evaluate the national exam. On the other hand,
large educational groups need to conduct training
tests with students for the ENEM test. It is necessary
to use at least two evaluators for each essay, which
Filho, A., Concatto, F., Antonio do Prado, H. and Ferneda, E.
Comparing Feature Engineering and Deep Learning Methods for Automated Essay Scoring of Brazilian National High School Examination.
DOI: 10.5220/0010377505750583
In Proceedings of the 23rd International Conference on Enterprise Information Systems (ICEIS 2021) - Volume 1, pages 575-583
ISBN: 978-989-758-509-8
2021 by SCITEPRESS Science and Technology Publications, Lda. All rights reserved
makes the process time consuming and very
expensive. One of the ways to substantially reduce the
cost and speed up the correction of essays is to replace
one of the human evaluators by an automated process.
Automated Essay Scoring (AES) has been the
subject of study for some decades. An AES system
takes as input an essay and assigns a numeric score
reflecting its quality, based on its content, grammar,
and organization. Until recently, Machine Learning
(ML) approaches using methods based on Features
Engineering (FE) prevailed for predicting such
outcomes (Shermis and Burstein, 2003, 2013; Dikli,
2006; Fonseca et al., 2018). Some studies have
pointed out that Deep Learning (DL) AES
frameworks seem to have better prediction results
compared to FE-based approaches (Nguyen and
Dery, 2016; Shin, 2018; Fonseca et al., 2018; Ge and
Chen, 2020).
This paper presents a comparison between FE and
DL results for AES, emphasizing the particular
characteristics that can lead to improvements in the
ENEM scoring. The comparison results point out to a
solution able to automatedly score essays that, in
synergy with a human evaluator, can lead to a
decreasing in the set of essays that requires another
human reviewer. Consequently, this approach can
reduce substantially the number of required human
reviewers. The solution was tested on the five ENEM
competencies, however, due to space limitations,
only the results with Competence C
are shown.
Section 2 presents some concepts of the main
technologies used. Section 3 gives an overview on the
related works. The details of this approach are
provided in Section 4. Following, Section 5 brings a
discussion on the results and the conclusion is
presented in Section 6.
A summary of AES approaches and a description of
FE-based and DL methods along with balancing
techniques is presented in this section.
2.1 Automated Essay Scoring
AES is defined as the computer technology that
evaluates and scores the written prose (Dikli, 2006;
Shermis and Burstein, 2003). AES systems are
mainly used to overcome time, cost, reliability, and
generalization issues in essay assessment (Bereiter,
2003). This subject keeps attracting the attention of
public schools, universities, testing companies,
researchers and educators (Dikli, 2006). Usually,
AES systems are dedicated to assist teachers in
classroom assessment both in low and large-scale
A number of studies have been driven to assess
the accuracy and reliability of AES systems regarding
essay assessment. Several studies have been
developed in order to increase the agreement rates
between AES systems and human scoring (Attali and
Burstein, 2006; Foltz et al., 1999; Shermis and
Burstein, 2013; Fonseca et al., 2018).
AES systems are built using several technologies
and heuristics that allow for essay evaluation with fair
accuracy. Moreover, unlike human evaluators, these
systems maintain consistency over the assigned
scores, as they are not affected by subjective factors.
They can also enable faster in providing grades on
essays (Shermis and Burstein, 2013).
2.2 Feature Engineering Methods
Currently, most of the research efforts for features
extraction from essays are based on ML approaches
(Rao and Pais, 2019). These approaches use mainly a
combination of statistical and Natural Language
Processing techniques to extract linguistic features.
The features extracted by this method are classified
with different models such as Support Vector
Machines with different kernels (Shin, 2018), neural
network models (Taghipour and Ng, 2016), and
Gradient Boosting Trees (GBT) (Friedman, 2001;
Fonseca et al., 2018).
Analysis of essays based on linguistic features is
interesting not only for scoring but also for providing
student feedback. Given a set of human scored essays,
the features can be derived from the essays and a
classifier can be trained to associate the feature values
with the previously assigned score.
The statistical method Least Absolute Shrinkage
and Selection Operator (LASSO), proposed by
Tibshirani (1996), is an alternative to improve the
accuracy and interpretability of linear regression.
This is accomplished by removing the less relevant
features, i.e., with lower impacts in the regression
results. The gradient boosting machine proposed by
Friedman (2001) works as an estimation-
approximation function. It can be considered as a
numerical optimization in the function space, rather
than the parameter space. A connection is done
among stepwise additive expansions and steepest
descent minimization. A general gradient descent
boosting paradigm is developed for additive
expansions based on an arbitrarily chosen criterion.
Specific boosting procedures are proposed for: (i)
least-squares; (ii) least absolute deviation; (iii)
ICEIS 2021 - 23rd International Conference on Enterprise Information Systems
Huber-M loss functions; and (iv) multiclass logistic
likelihood for classification. Special enhancements
are derived for the particular case of regression trees,
for which tools for interpretation are presented.
According to Friedman (2001), the relatively high
accuracy, consistent performance, and robustness of
boosting may represent a noticeable advantage.
2.3 Deep Learning Methods
DL aims at solving the dependence of FE with respect
to quality of the features. It is a laborious task to
manually select the most informative features for
such a system (Taghipour and Ng, 2016). DL aims at
releasing a strong human effort in selecting features
for AES.
Prediction accuracy, and interpretability of the
scoring algorithms are concerns in adopting AES
(Zaidi, 2016). In order to overcome such concerns,
researchers have attempted to introduce improved
AES frameworks (Shin, 2018). Some improvements
in accuracy prediction have been obtained by means
of DL algorithms or by using deep language features
to ensure the model captures essay contents and the
focused construct (Dong et al., 2017).
ML approaches (especially DL) for AES have
shown promising prediction results (Shin, 2018;
Taghipour and Ng, 2016; Dong et al., 2017). ML-
based AES algorithms are heavily dependent on
features selected by humans (or Feature
Engineering). On the other hand, the effectiveness of
DL algorithms depends only on having at least a
medium or large training corpus.
Recurrent neural networks are one of the most
successful DL models and have attracted the attention
of researchers from many fields. Compared to
feedforward neural networks, recurrent neural
networks (RNN) are theoretically more powerful and
are capable of learning more complex patterns from
data (Taghipour and Ng, 2016). Previous studies (Kim
et al., 2016; Dong et al., 2016) have demonstrated that
DL AES frameworks using RNN and convolutional
neural networks (CNN) can produce more robust
results than the traditional models based on ML
algorithms across different domains. Many algorithms
have been used to demonstrate the robustness of results
such as the RNN approach (Dong et al., 2017; Fonseca
et al., 2018).
2.4 Classes Balancing
Class imbalance is a common problem in many
application domains, including AES. The imbalance
of the number of samples among the classes
represents a problem for traditional classification
algorithms. The problem is that these algorithms are
biased by the classes’ frequency distribution, which
influences the prediction accuracy benefiting the
more frequent classes. For example, if 25% of all
essays correspond to the set of minority classes, then
the algorithm will to produce a classifier with an
accuracy tending to 75% (Seiffert et al., 2008).
There are different balancing techniques, like
Synthetic Minority Oversampling Technique –
SMOTE (Chawla et al., 2002), Adaptive Synthetic
Sampling Method – ADASYN (He et al., 2008),
Random Undersampling – RUS and Random
Oversampling (ROS) (Yap et al., 2014). SMOTE
creates synthetic examples of the minority class based
on samples of this class, applying the nearest
neighbour’s approach. ADASYN is based on
SMOTE, adding the distribution of samples on the
minority class as a criterion to decide the number of
synthetic examples that should be created from each
sample. RUS takes the non-minority classes and
randomly discard some examples in order to match
the amount of the minority class. Conversely, ROS
approach increases the number of non-majority
classes samples by replicating them in order to match
the majority class.
Some studies were obtained from the literature
review, considering how up to date and relevant they
are to the state of art of AES in Brazilian-Portuguese
language. Shin (2018) compares the effectiveness and
the performance of two AES frameworks, one based
on FE and the other on DL algorithms. The FE-based
framework adopts support vector machines (SVM) in
conjunction with Coh-Metrix features, and the second
one uses the CNN approach. The results were
evaluated using the Quadratic Weighted Kappa
(QWK) score and compared with the results from
human evaluators. CNN model outperformed the
Coh-Metrix + SVM model based on the two-criterion
guidelines (Writing Application and Language
Convention Competencies) and produced a higher
average QWK score.
Fonseca et al. (2018) pursued two directions for
AES: (i) deep neural networks, considered the state-
of-art results in the literature; and (ii) FE-based
systems, which can benefit from domain knowledge
and usually are faster to train and provide a more
transparent feedback. On the FE-based method, they
had trained one regressor for each competence with
features extracted from the data.
Comparing Feature Engineering and Deep Learning Methods for Automated Essay Scoring of Brazilian National High School Examination
The authors extracted five types of features: (i)
count metrics: most of these features are
commonplace in the literature and extract basic
statistics about the text, such as number of commas,
number of characters, number of paragraphs, number
of sentences, sentences per paragraph ratio, average
sentence length, and so on; (ii) specific expressions:
some groups of words and expressions are expected
to appear in good essays (e.g., social agents such as
the government, media, family, law enforcement
agencies, and schools); (iii) token n-Grams: checked
in order to identify the presence of n-grams highly
correlated with essay score; (iv) POS n-Grams: they
extract a similar list of POS tag n-grams, with 2 n
4, and check their presence in essays; and (v) POS
Counts: count the occurrences of each POS tag in the
text. In total, they consider a pool of 681 features
values, but not all of them are relevant to each of the
ENEM competencies.
For the deep neural network, they used a
hierarchical neural architecture with two RNN layers.
The first layer reads word vectors and generates
sentence vectors, which are in turn read by the second
layer to produce a single essay vector. Both recurrent
layers use bidirectional Long Short-Term Memory
(BiLSTM) cells. A BiLSTM is basically two LSTM,
one reading the sequence from left to right and the
other reading it from right to left. At each time step
(each token in the first layer or each sentence in the
second one), the hidden states of both LSTM are
concatenated, and the resulting vector of the layer
(sentence or essay vector) is obtained as the mean of
all hidden states.
Taghipour and Ng (2016) developed a system
called Neural Essay Assessor – NEA. It works with a
recurrent neural network-based method to score the
essays in an end-to-end manner. They have explored
a variety of neural network models in this paper to
identify the most suitable model. The best model
found was a LSTM neural network trained with a
regression method. The approach accepts directly an
essay as input and automatically learns the features
from the data.
The neural network architecture used includes
five layers: (i) lookup table layer, that projects each
word into a high-dimensional space; (ii) convolution
layer, which extracts local features; (iii) recurrent
layer, that works by generating embeddings (whether
from the convolution layer or directly from the
lookup table layer) and a representation for the given
essay; (iv) mean over time layer, that receives the
recurrent layer outputs and calculates an average
vector; and (v) linear layer with sigmoid activation,
that maps the vector generated in the mean over time
layer into a scalar value. They concluded that the
recurrent neural network model effectively utilizes
essay content to extract the required information for
scoring essays.
At this point, empirical results on the search for better
performances are presented in terms of accuracy of
FE and DL approaches in the context of AES for
ENEM. It involves the following steps: (i) corpus and
class balancing; (ii) FE-based approach; (iii) DL-
based approach.
4.1 Corpus
The corpus used in the experiments was extracted by
a crawling process on essays datasets from Brasil
Escola portal (
Monthly, a topic is proposed in this portal and
interested students submit their textual productions
for evaluation. Part of the evaluated essays are then
made available along with the respective corrections,
scores, and comments from the reviewers. For each
competence in an essay, a score between 0 and 2 is
assigned, ranging in steps of 0.5.
It is also important to highlight the verification of
the quality of the scores attributed by the evaluator.
For this, approximately 10% of the total essays were
checked by specialists in the Portuguese-Brazilian
language. It was found that the agreement index
between evaluators and specialists in Portuguese was
close to 90%.
In order to avoid noise in the automatic
classification process, the following processing steps
were performed: (i) removal of special characters,
numbers, and dates; (ii) transformation of all text to
lowercase; (iii) application of morphological markers
(POS tagging) using the nlpnet library; (iv) inflection
of the tokens by means of stemming using the NLTK
library and the RSLPS algorithm, specific for the
Portuguese language; and (v) segmentation
(tokenization) by words, sentences, and paragraphs.
Only the essays with more than fifty characters
and with scores available in all competencies were
considered. A set of 4,317 essays, from 2007 to 2018,
was collected. The corpus has an imbalanced number
of essays per grade in Competence C
, as well as in
the other four competencies, which could negatively
affect the efficiency of the classifier. The first
competence was chosen to illustrate how the
ICEIS 2021 - 23rd International Conference on Enterprise Information Systems
balancing was carried out; other competencies have
slightly different balances, but do not differ

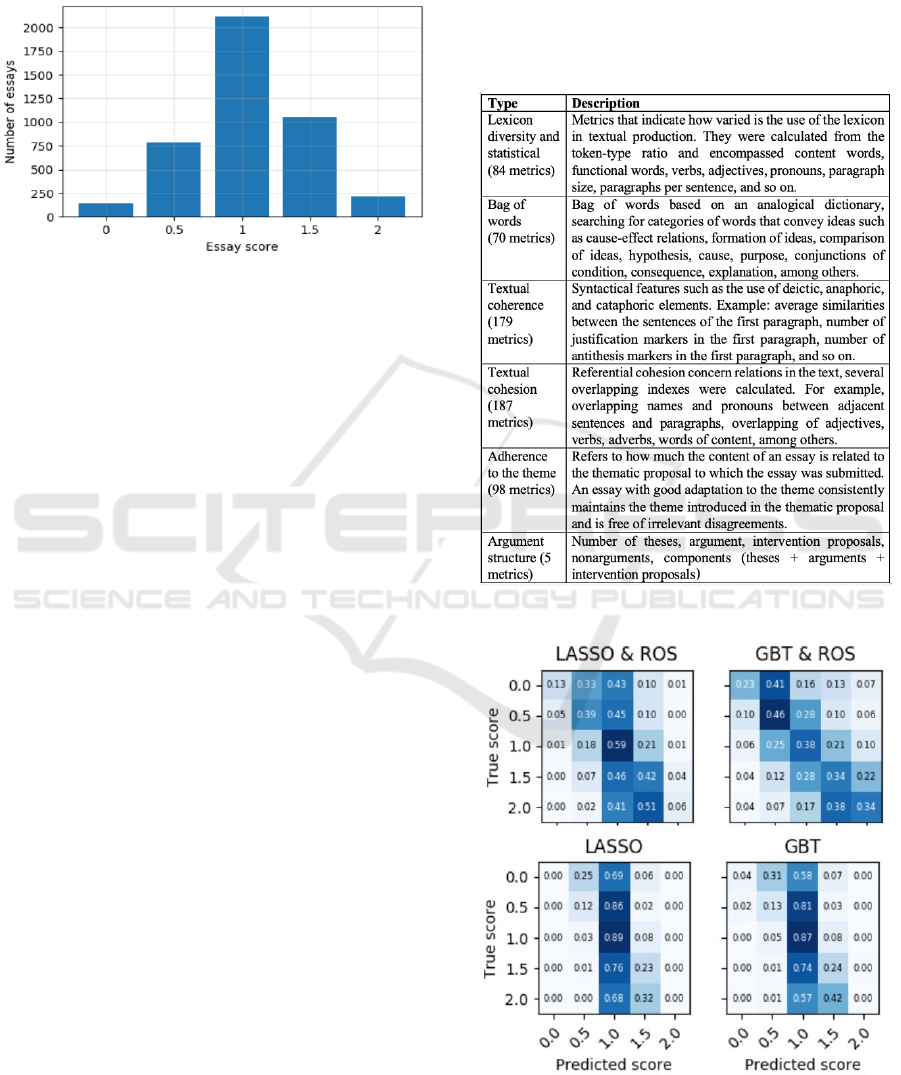

significantly. Fig. 1 shows the proportion of scores
for each category.
Figure 1: Class distribution in the corpus.
Better results in the experiments were achieved by
using balancing techniques. For balancing, SMOTE,
Adasyn, Random Oversampling, and Random
Undersampling algorithms were applied. Each
technique generated a new corpus that was submitted
to the algorithms below.
4.2 Feature Engineering Approach
This approach comprises features generation and
features vector scoring.
Features Generation. It was considered 623 textual
features, taking into account the results obtained by
(Haendchen Filho et al., 2019), organized in five
dimensions: lexical diversity, bag of words, textual
cohesion, adherence to the theme, and argument
structure, as shown in Figure 2. The features were
submitted to a z-score standardization.
Features Vector Scoring. For transforming each
feature vector into a grade, a function of the form F:
V C must be applied, with each v = (f
, f
, … f
V representing a 623-dimensional feature vector
and each c = (c
, c
, c
, c
, c
) C representing a 5-
dimensional vector of grades. Due to the high
dimensionality of the input vector, this function must
be discovered by means of inference algorithms.
During the experiments, six algorithms were applied
to the same problem, and concluded LASSO and
GBT as the most accurate algorithms (see Figure 3).
So, these were the choices for this research.
A slightly modified version of the k-fold cross-
validation (Hastie et al., 2009) was applied. So, each
cycle of the k-fold algorithm splits the entire training
data into two disjoint subsets: a test set, containing a
fraction of the full available data given by 1/k, and a
restricted training set containing the remaining data.
A stratified sampling approach was adopted, where
the distribution of each class, present in the full
training data, is maintained in the two subsets. This
methodology guarantees the same characteristics for
both the test sets and the data that will be input into
the model in a deployment environment. It was used
a 5-fold splitting strategy.
Figure 2: Characteristics of the applied features groups.
Figure 3: Correlation matrices for model pairs.
Comparing Feature Engineering and Deep Learning Methods for Automated Essay Scoring of Brazilian National High School Examination
The examples in this section refer to Competence
of ENEM. The distribution of occurrences in other
competencies are similar to Competence C
, except
for Competence C
, which is studied in a specific
work (Haendchen Filho et al., 2019).
An analysis based on confusion matrices was
carried out in order to provide an overview on the
performance of the model-balancer combinations.
The values of each matrix were normalized according
the usual column-wise procedure, considering the
extreme values as 0 or 2, and defining proportionally
the remaining values. The results are shown in Fig. 3.
A few conclusions can be clearly gleaned from
these results. First, when no balancing methods are
used (second row of the figure), neither of the two
models achieved a true positive rate of more than 4%
in the classes located in the extremities (0 and 2).
Thus, they cannot be applied in real situations, as they
are unable to discern high- and low-quality essays
from average ones. In terms of QWK, the LASSO
achieved a value of 0.245, while the GBT achieved
Second, the ROS balancing method, coupled with
GBT classification model, was found to be the only
kind of combination that can pinpoint low- and high-
quality essays with some level of reliability.
However, even with balancing, the LASSO
algorithm, which represents the regressor model,
concentrates the predictions in the score class 1.0,
which represents the baseline. It is, therefore,
inefficient in predicting scores in the extreme classes.
With the balanced corpus, the LASSO achieved a
QWK of 0.384, which is higher than GBT result
(QWK=0.367) due to its more accurate predictions in
the intermediate classes.
4.3 Deep-Learning Approach
Some researchers and developers (Dikli, 2006; Shermis
and Burstein, 2013; Fonseca et al., 2018; Amorim and
Veloso, 2017
) share the same opinion that feature
selection for AES is one of the most important tasks.
According to Ge and Chen (2020), DL is a technique
suitable for AES research and development and can
be used to select meaningful features related to
writing quality and to be applied in the AES model
The results found by applying NEA framework to
ENEM are here presented. The training vector was
generated by a Word2vec model of the continuous
bag-of-words (CBOW) variety, with 50 and 100
dimensions. The vocabulary was composed by the
4,000 most frequent words from a total of 31,953
unique words, resulting in an unknown rate of
approximately 10%.
The model architecture comprises 300 LSTM as
recurrent units and did not use a convolutional layer.
To avoid overfitting, 50% of the outputs of the
recurrent layer were dropped out; the remaining
partition fed a Mean-over-Time aggregation layer
(Taghipour and Ng, 2016). Finally, a fully connected
layer mapped the incoming signs into a single real
number – the essay’s score – using a sigmoidal
activation function.
The model was trained for a fixed amount of 50
epochs in each experiment. Nearly the same
behaviour could be observed when using 50 or 100
dimensions in the embedding layer, with the first
option offering marginally better results on average.
This section concentrates on the results achieved with
a 50-dimensional embedding.
Similar to the FE-based approach, a 5-fold
procedure was carried out, where the data was split
into five 80/20 folds before any training was
proceeded. At the end of each epoch, an evaluation
step was executed in which the model attempted to
predict the scores for the validation set of the current
fold. The results presented in this section are the best
ones (in QWK) out of all 50 epochs.
The adapted NEA was trained with the corpus of
4,317 essays, without balancing. Since FE-based
models assigned a score of 1 (the majority class) to
the vast majority of essays, it is expected a similar
behaviour using this approach. The results obtained
are presented in Fig. 4, which represents epoch 23, the
one with the highest QWK (0.329).
From these results, one can see that even though
there is a considerable concentration on the more
prevalent classes (0.5, 1.0 and 1.5), the NEA
outperforms both FE-based models when no
balancing is used. These results are comparable to the
LASSO-ROS pair. However, these results are still
lower than GBT-ROS, which produces more accurate
results in the minority classes (0.0 and 2.0). These
results point out that DL approaches have a high
potential for scoring Portuguese written essays.
Afterwards, an experiment with the ROS balancer
was executed, aiming to measure how it affects the
learning process in a deep neural network. The results
of the 9th epoch, which achieved a QWK of 0.336,
are presented in Fig. 5.
ICEIS 2021 - 23rd International Conference on Enterprise Information Systems
Figure 4: Confusion matrix for NEA’s 23
epoch, without
class balancing.
Figure 5: Confusion matrix for 9
epoch of the NEA model,
with ROS.
Observing these results, it becomes noticeable
that the improvement obtained by means of balancing
procedure was significant, but considerably less
pronounced when compared to the FE-based
approach. Considering the ENEM criteria for correct
predictions, an accuracy of 0.57 was achieved in both
extreme classes – a value that, on average, surpasses
all other models, except for GBT-ROS. Even though
the DL approach produces competitive results
without balancing, it has shown to be unable to
surpass the accuracy of the best FE-based model in
the minority classes.
Two main issues are discussed in this section. First, a
comparison between FE and DL is presented. Next,
this configuration is compared with the state of art.
5.1 On the Results
FE is based on features extracted from a 623-
dimensional vector of real numbers representing each
essay. The resulting data set was submitted to LASSO
and GBT inference algorithms. On the other hand, DL
(NEA) creates its own features from the essays. Table
1 shows the computed QWK values for the three
algorithms used in this work, with and without
Table 1: Computed QWK scores.
Algorithm No balancing With ROS
LASSO 0.245 0.384
GBT 0.285 0.367
NEA 0.329¹ 0.336²
¹ epoch 23
² epoch 9
The results demonstrate that, when the corpus is
used with no balancing, the deep neural network
clearly outperforms both FE-based models. As shown
in the confusion matrices, the FE-based models
assign a score of 1.0 (the mean) to the vast majority
of essays, producing a mostly vertical figure.
NEA accuracy tends to the optimal diagonal
figure, although it is still unable to precisely detect
extremely good or bad essays. This accuracy
improves much more when the ROS balancing
procedure is applied. Both FE-based approaches
exhibit a significant increase in QWK: 56.7% with
LASSO and 28.8% with GBT. In the extreme classes,
the largest gain was observed in the GBT method,
which varied from a mean accuracy of 2% to 28.5%,
while LASSO varied from 0% to 9.5%. On the other
hand, DL performance did not change significantly
by oversampling the corpus, showing just a small
increase of 2.1% in the QWK and a very subtle
change in the confusion matrix, achieving a mean
accuracy of 13.5% in the extremities.
It is important to consider that, according to ENEM
criteria, two reviewers are considered agreed when the
difference between their grades is less or equal than
20%. It is the so-called relaxed accuracy. When the
scores are in this range, the final score is considered as
their mean. Table 2 presents the relaxed accuracies for
each model or combination model-balancer.
Table 2: Relaxed accuracies.
0.0 0.25 0.46 0.35
0.40 0.57
0.5 0.98 0.89 0.96 0.84
0.92 0.98 0.84 0.95 0.86
0.92 0.98 0.84 0.95 0.86
2.0 0.32 0.57 0.42
0.60 0.57
Comparing Feature Engineering and Deep Learning Methods for Automated Essay Scoring of Brazilian National High School Examination
The relaxed accuracy in the intermediate classes,
is near 100% for LASSO and for NEA, both with no
balancing. The extreme classes seem to benefit from
oversampling, having 0.64 and 0.72 as the best
accuracies with GBT-ROS.
One can realize that, predicting better in the
central classes will produce a smaller number of
essays to be submitted to another evaluator, what will
reduce considerably the time and costs involved.
5.2 Comparison with the State of Art
A discussion on the relation between this work and
the state of art of AES for ENEM (Fonseca et al.,
2018) is here presented. While Fonseca et al. (2018)
reported a QWK of 0.68 for the first competence
using Gradient Boosting (which achieved the best
results), the approach proposed here found a QWK of
only 0.384 in the best case (LASSO with
oversampling). One can hypothesize that this
difference is mainly a consequence of the dataset that
was used by the authors: while in this work an open-
access corpus of 4,317 essays was used, Fonseca et
al. (2018) employed a proprietary dataset containing
56,644. Due to the small number of examples, it is
likely that the models were unable to make proper
generalizations from the data, therefore producing a
smaller QWK value. The deep learning model used in
Fonseca et al. (2018) is also proprietary, while an
open source model (NEA) was applied in this work.
This model was applied by Taghipour and Ng (2016)
for English essays with promising results.
From the present approach, that adheres to the
ENEM criteria for true positives, it is noticeable a
high level of accuracy, near 100% in scores 0.5, 1.0,
1.5. In these classes, the accuracy rates are,
respectively, 1.00/0.95/0.95 with DL NEA, and
0.98/0.99/0.99 with LASSO. In the extreme classes
e C
) it was found accuracies of 0.64/0.72,
respectively, by combining GBT and ROS. Notice
that these classes correspond to less than 1% of the
total amount of essays (see Fig. 1). Since accuracies
near 100% was already reached in classes C
, C
, any improvement would be residual.
Tools for helping to reduce problems related to the
proficiency of the Portuguese-Brazilian language are
fundamental for the development of education in
Brazil. The average reading performance of Brazilian
students in the exam carried out by the Program for
International Student Assessment (PISA), in 2018,
was below average (INEP-MEC, 2020). This
deficiency is reflected in undergraduate courses,
where students have difficulties to express
themselves in an appropriate and logical way, which
ends up compromising their learning.
In order for educational institutions to apply tests
and essay writing exercises on a large scale, it is
essential to reduce the costs related to correction time
and, at the same time, streamline the process. In a
context in which two human evaluators participate,
replacing one of them by a reliable AES system is an
alternative that may be feasible.
The search for an accurate system able to replace
a human was one of the main objectives of this work.
In a context of 5 scoring classes (0.0 / 0.5 / 1.0 / 1.5 /
2.0) for each competence, accuracies close to 100%
was achieved for the three central scores, and close to
57% in the two extremity scores (0.0 / 2.0). It means
that, on average, 90% of the scores assigned by the
computer are correct. Another advantage is the
consequent reduction in the number of essays that
need to be sent to a third reviewer.
The study also showed that significant gains in
accuracy can be obtained for true positives by
applying balancing techniques. As class imbalance is
one of the characteristics for essay grading corpora,
in this work this technique has proven to be efficient
for AES, and contributed to obtain required
accuracies (Table 2). In addition, there are very few
studies on literature exploring the corpora balancing
technique in the context of AES.
Another contribution of this work is the corpus of
ENEM-based essays that is made available ready to
use (download from
portuguese). It is relevant for research in Portuguese,
beyond the usual English. There is no equivalent
corpus available for the research community.
As future works, firstly, it is suggested to combine
the best aspects of each approach in an ensemble.
Taking into account that some models or
combinations of model-balancer techniques learn
better some specific class, it is interesting to build a
model with these combinations and take advantage
from the particular accuracies. Other interesting
future work is to improve the predictive quality of the
features. Although the high level of relaxed accuracy
- near 100% - had been reached for the dominant
classes, there is still room to improve the QWK scores
in the extremes. Finally, the accuracy on ENEM
results could be enabled by taking a bigger corpus and
exploring new features.
ICEIS 2021 - 23rd International Conference on Enterprise Information Systems
Amorim, E. C. F., Veloso, A., 2017. A Multi-aspect
Analysis of Automatic Essay Scoring for Brazilian
Portuguese. 15th Conference of the European Chapter
of the Association for Computational Linguistics, pp.
94-102. DOI: 10.18653/v1/E17-4010.
Attali Y., Burstein, J., 2006. Automated Essay Scoring with
e-rater® V.2. Journal of Technology, Learning, and
Assessment, 4(3).
Bereiter, C., 2003. Foreword. In Mark D. Shermis and Jill
Burstein (Eds.), Automated essay scoring: a cross
disciplinary perspective. Lawrence Erlbaum
Associates, Mahwah, NJ, pp. vii-x.
Chawla, N. V., Bowyer, K. W., Hall, Lawrence, O. W.,
Kegelmeyer, P., 2002. SMOTE: Synthetic Minority
oversampling technique. Journal of Artificial
Intelligence Research, 16:321-357. DOI:
Dikli, S., 2006. An Overview of Automated Scoring of
Essays. Journal of Technology Learning, and
Assessment, 5(1).
Dong, F., Zhang, Y., Yang, J. 2017. Attention-based
Recurrent Convolutional Neural Network for
Automatic Essay Scoring. 21st Conference on
Computational Natural Language Learning – CoNLL
2017, pp. 153-162. DOI: 10.18653/v1/K17-1017.
Foltz, P. W., Laham, D., Landauer, T. K., 1999. Automated
Essay Scoring: Applications to educational technology.
World Conference on Educational Multimedia,
Hypermedia and Telecommunications – EdMedia’99,
pp. 939-944.
Fonseca, E. R., Medeiros, I., Kamikawachi, D., Bokan, A.,
2018. Automatically grading Brazilian student essays. 13th
International Conference on Computational Processing of
the Portuguese Language – PROPOR 2018, pp. 170-179.
DOI: 10.1007/978-3-319-99722-3_18.
Friedman, J. H., 2001. Greedy function approximation: A
gradient boosting machine. Annals of Statistics,
Ge, S., Chen, X., 2020. The Application of Deep Learning
in Automated Essay Evaluation. In Emerging
Technologies for Education. LNCS 11984, Springer,
pp.310-318. DOI: 10.1007/978-3-030-38778-5_34
Haendchen Filho, A., Concatto, F., Nau, J., do Prado, H. A.,
Imhof, D. O., Ferneda, E., 2019. Imbalanced Learning
Techniques for Improving the Performance of
Statistical Models in Automated Essay Scoring.
Procedia Computer Science, 159:764-773.
Hartmann, N. S., Fonseca, E. R., Shulby, C. D., Treviso, M.
V., Rodrigues, J. S., Aluísio, S. M., 2017. Portuguese
Word Embeddings: Evaluating on Word Analogies and
Natural Language Tasks. Symposium in Information
and Human Language Technology – STIL 2017, pp.
Hastie, T., Tibshirani, R., Friedman, J. H., 2009. The Elements
of Statistical Learning: Data Mining, Inference, and
Prediction. Springer, New York, NY, 2
He, H., Bai, Y., Garcia, E. A., Li, S., 2008. ADASYN:
Adaptive Synthetic Sampling Approach for Imbalanced
Learning. IEEE International Joint Conference on
Neural Networks (IEEE World Congress on
Computational Intelligence), pp. 1322-1328. DOI:
INEP-MEC, 2018. Relatório Brasil no Pisa 2018. Diretoria
de Avaliação da Educação Básica. Ministério da
Educação. Brasilia. Brazil.
Kim, Y. Jernite, Y., Sontag, D., Rush, A. M., 2016.
Character-aware neural language models. Thirtieth
AAAI Conference on Artificial Intelligence – AAAI-16,
pp. 2741-2749.
Nguyen H., Dery, L., 2016. Neural Networks for Automated
Essay Grading. CS224d Stanford Reports.
Rao, R. S., Pais, A. R., 2019. Detection of phishing
websites using an efficient feature-based machine
learning framework. Neural Comput & Applications
31:3851-3873. DOI: 10.1007/s00521-017-3305-0.
Seiffert, C., Khoshgoftaar, T. M., van Hulse, J., Napolitano,
A., 2008. Building Useful Models from Imbalanced
Data with Sampling and Boosting. Twenty-First
International FLAIRS Conference, pp. 306-311.
Shermis, M. D., Burstein J. (Eds.), 2003. Automated essay
scoring: A cross-disciplinary perspective. Lawrence
Erlbaum Associates Publishers, Mahwah, NJ.
Shermis, M. D., Burstein J., 2013. Handbook of Automated
Essay Evaluation: Current applications and new
directions. Routledge, New York, NY.
Shin, E., 2018. A Neural Network approach to Automated
Essay Scoring: A Comparison with the Method of
Integrating Deep Language Features using Coh-
Metrix. Master Thesis. Department of Educational
Psychology University of Alberta, Canada. DOI:
Taghipour K., Ng, H. T., 2016. A Neural Approach to
Automated Essay Scoring. 2016 Conference on
Empirical Methods in Natural Language Processing,
pp. 1882-1891.
Tibshirani, R., 1996. Regression shrinkage and selection
via the LASSO. Journal of the Royal Statistical Society
B, 58(1):267-288.
Yap, B. W., K. A. Rani, K. A., Rahman, H. A. A., Fong, S.,
Khairudin, Z., Abdullah, N. N., 2014. An Application
of Oversampling, Undersampling, Bagging and
Boosting in Handling Imbalanced Datasets. First
International Conference on Advanced Data and
Information Engineering, pp. 13-22. Lecture Notes in
Electrical Engineering 285, Springer. DOI:
Zaidi, A. H., 2016. Neural Sequence Modelling for
Automated Essay Scoring. Master Thesis. University of
Zou, Will Y., Socher, R., Cer, D., Manning, C. D., 2013.
Bilingual word embeddings for phrase-based machine
translation. IN Conference on Empirical Methods in
Natural Language Processing, pp. 1393-1398.
Comparing Feature Engineering and Deep Learning Methods for Automated Essay Scoring of Brazilian National High School Examination
