SimFaaS: A Performance Simulator for Serverless Computing Platforms
Nima Mahmoudi
1 a
and Hamzeh Khazaei
2 b
1
Electrical and Computer Engineering, University of Alberta, Edmonton, Alberta, Canada
2
Electrical Engineering and Computer Science, York University, Toronto, Ontario, Canada
Keywords:
Simulator, Serverless, Serverless Computing, Performance Analysis.
Abstract:
Developing accurate and extendable performance models for serverless platforms, aka Function-as-a-Service
(FaaS) platforms, is a very challenging task. Also, implementation and experimentation on real serverless
platforms is both costly and time-consuming. However, at the moment, there is no comprehensive simulation
tool or framework to be used instead of the real platform. As a result, in this paper, we fill this gap by
proposing a simulation platform, called SimFaaS, which assists serverless application developers to develop
optimized Function-as-a-Service applications in terms of cost and performance. On the other hand, SimFaaS
can be leveraged by FaaS providers to tailor their platforms to be workload-aware so that they can increase
profit and quality of service at the same time. Also, serverless platform providers can evaluate new designs,
implementations, and deployments on SimFaaS in a timely and cost-efficient manner.
SimFaaS is open-source, well-documented, and publicly available, making it easily usable and extendable to
incorporate more use case scenarios in the future. Besides, it provides performance engineers with a set of tools
that can calculate several characteristics of serverless platform internal states, which is otherwise hard (mostly
impossible) to extract from real platforms. In previous studies, temporal and steady-state performance models
for serverless computing platforms have been developed. However, those models are limited to Markovian
processes. We designed SimFaaS as a tool that can help overcome such limitations for performance and cost
prediction in serverless computing.

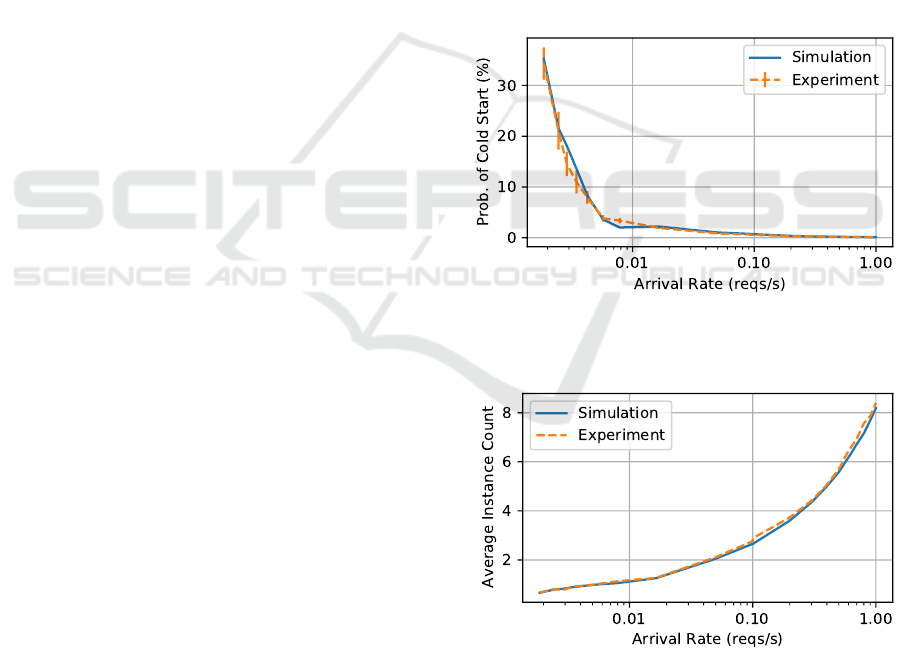

We show how SimFaaS facilitates the prediction of essential performance metrics such as average response
time, probability of cold start, and the average number of instances reflecting the infrastructure cost incurred by
the serverless computing provider. We evaluate the accuracy and applicability of SimFaaS by comparing the
prediction results with real-world traces from Amazon AWS Lambda.
1 INTRODUCTION
There is very little official documentation made pub-
licly available about the scheduling algorithms in pub-
lic serverless computing platforms. However, many
works have focused on partially reverse engineering
this information through experimentations on these
platforms (Wang et al., 2018; Figiela et al., 2018;
Lloyd et al., 2018). Using the results of such stud-
ies and by modifying their code base and thorough
extensive experimentation, we have come to a good un-
derstanding of the way modern serverless frameworks
are operated and managed by the service providers. In
this work, we plan to use this information to build an
open and public performance simulator
1
for modern
a
https://orcid.org/0000-0002-2592-9559
b
https://orcid.org/0000-0001-5439-8024
1
A simulator focusing on the performance-related key
metrics and aspects of the system.
serverless computing platforms with a high degree of
flexibility, fidelity and accuracy.
In serverless computing platforms, computation is
done in function instances. These instances are com-
pletely managed by the serverless computing platform
provider and act as tiny servers for the incoming trig-
gers (requests). To develop a comprehensive simulator
for serverless computing platforms, we first need to
understand how they work underneath and are man-
aged.
The simulator presented in this work is written in
Python. The resulting package can easily be installed
using pip
2
. The source code is openly accessible on
the project Github
3
. The documentation is accessible
on Read the Docs
4
. For more information, interested
2
https://pypi.org/project/simfaas/
3
https://github.com/pacslab/simfaas
4
https://simfaas.readthedocs.io/en/latest/
Mahmoudi, N. and Khazaei, H.
SimFaaS: A Performance Simulator for Serverless Computing Platforms.
DOI: 10.5220/0010376500230033
In Proceedings of the 11th International Conference on Cloud Computing and Services Science (CLOSER 2021), pages 23-33
ISBN: 978-989-758-510-4
Copyright
c
2021 by SCITEPRESS Science and Technology Publications, Lda. All rights reserved
23
readers can check out our Github repository, which
provides links to all of our artifacts as well as easy-to-
setup environments, to try out our sample scenarios.
The remainder of the paper is organized as follows:
Section 2 describes the system simulated in SimFaaS
in detail. Section 3 outlines the design of SimFaaS
with the most important design choices and character-
istics. Section 4 lists some of possible use cases for
SimFaaS. In Section 5, we present the experimental
evaluation of SimFaaS, validating the accuracy of the
simulator. Section 6 gives a summary of the related
work. Finally, Section 7 concludes the paper.
2 SYSTEM DESCRIPTION
In this section, we introduce the management system
in serverless computing platforms, which has been
fully captured by the serverless simulator presented in
this paper.
Function Instance States:
according to recent stud-
ies (Mahmoudi and Khazaei, 2020a; Mahmoudi and
Khazaei, 2020b; Wang et al., 2018; Figiela et al., 2018;
Mahmoudi et al., 2019), we identify three states for
each function instance: initializing, running, and idle.
The initializing state happens when the infrastructure
is spinning up new instances, which might include set-
ting up new virtual machines, unikernels, or containers
to handle the excessive workload. The instance will
remain in the initializing state until it is able to handle
incoming requests. As defined in this work, we also
consider application initializing, which is the time
user’s code is performing initial tasks like creating
database connections, importing libraries or loading a
machine learning model from an S3 bucket as a part of
the initializing state which needs to happen only once
for each new instance. Note that the instance cannot
accept incoming requests before performing all initial-
ization tasks. It might be worth noting that the applica-
tion initializing state is billed by most providers while
the rest of the initializing state is not billed. When
a request is submitted to the instance, the instance
goes into the running state. In this state, the request is
parsed and processed. The time spent in the running
state is also billed by the serverless provider. After the
processing of a request is over, the serverless platform
keeps the instances warm for some time to be able
to handle later spikes in the workload. In this state,
we consider the instance to be in the idle state. The
application developer is not charged for an instance
that is in the idle state.
Cold/Warm Start:
as defined in previous
work (Lloyd et al., 2018; Wang et al., 2018;
Figiela et al., 2018), we refer to a request as a cold
start request when it goes through the process of
launching a new function instance. For the platform,
this could include launching a new virtual machine,
deploying a new function, or creating a new instance
on an existing virtual machine, which introduces
an overhead to the response time experienced by
users. In case the platform has an instance in the idle
state when a new request arrives, it will reuse the
existing function instance instead of spinning up a
new one. This is commonly known as a warm start
request. Cold starts could be orders of magnitude
longer than warm starts for some applications. Thus,
too many cold starts could impact the application’s
responsiveness and user experience (Wang et al.,
2018). This is the reason a lot of research in the field
of serverless computing has focused on mitigating
cold starts (Lin and Glikson, 2019; Bermbach et al.,
2020; Manner et al., 2018).
Autoscaling:
we have identified three main autoscal-
ing patterns among the mainstream serverless comput-
ing platforms: 1) scale-per-request; 2) concurrency
value scaling; 3) metrics-based scaling. In scale-per-
request Function-as-a-Service (FaaS) platforms, when
a request comes in, it will be serviced by one of the
available idle instances (warm start), or the platform
will spin up a new instance for that request (cold start).
Thus, there is no queuing involved in the system, and
each cold start causes the creation of a new instance,
which acts as a tiny server for subsequent requests. As
the load decreases, to scale the number of instances
down, the platform also needs to scale the number of
instances down. In the scale-per-request pattern, as
long as requests that are being made to the instance
are less than the expiration threshold apart, the in-
stance will be kept warm. In other words, for each
instance, at any moment in time, if a request has not
been received in the last expiration threshold units of
time, it will be expired and thus terminated by the
platform, and the consumed resources will be released.
To enable simplified billing, most well-known pub-
lic serverless computing platforms use this scaling
pattern, e.g., AWS Lambda, Google Cloud Functions,
IBM Cloud Functions, Apache OpenWhisk, and Azure
Functions (Wang et al., 2018; Van Eyk et al., 2018).
As scale-per-request is the dominant scaling technique
used by major providers, in this paper, we strive to
simulate the performance of this type of serverless
platform.
In the concurrency value scaling pattern (Google
Cloud Platform Inc., 2020), function instances can re-
ceive multiple requests at the same time. The number
of requests that can be made concurrently to the same

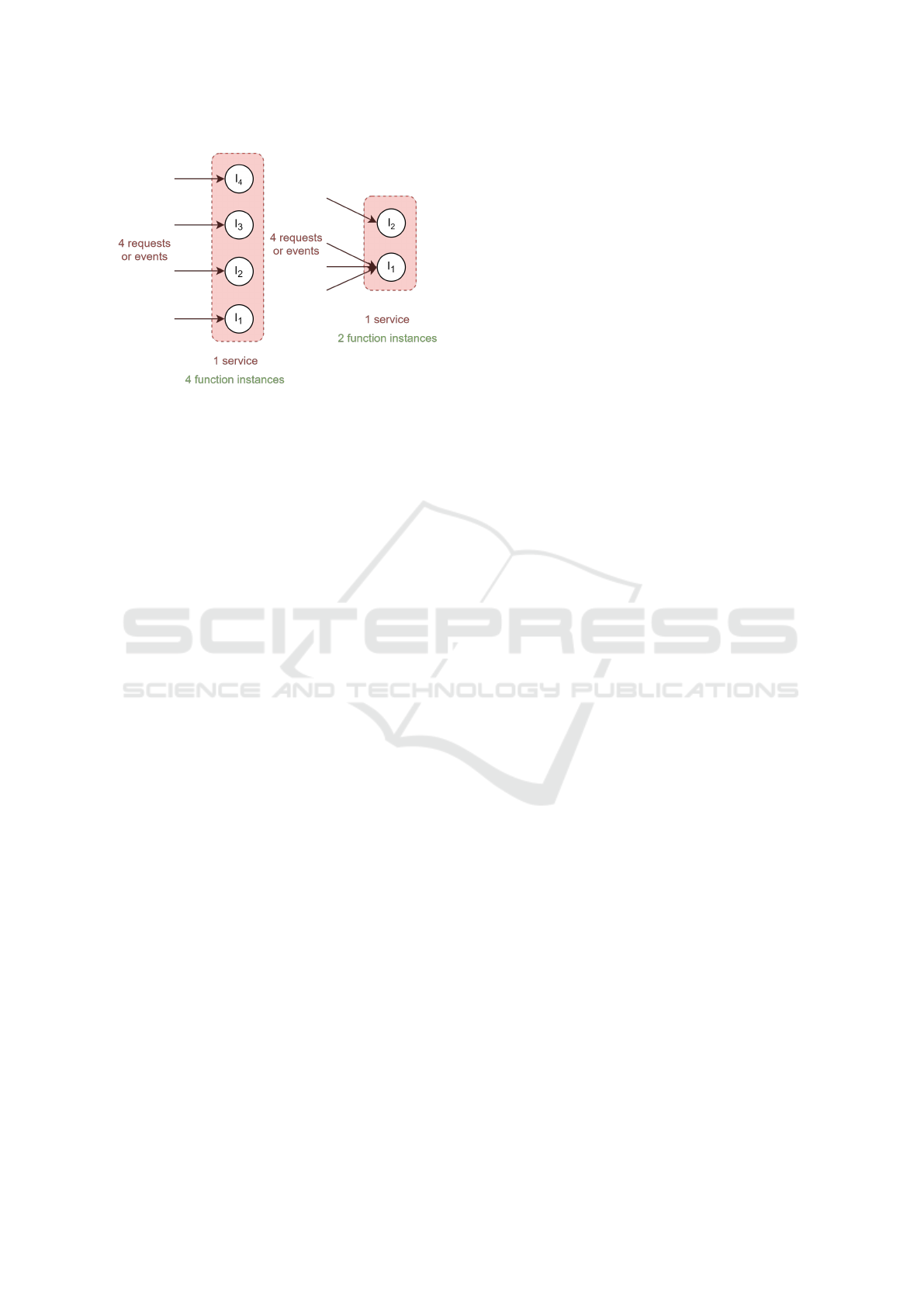

instance can be set via concurrency value. Figure 1
shows the effect of concurrency value on the autoscal-
CLOSER 2021 - 11th International Conference on Cloud Computing and Services Science
24
Figure 1: The effect of the concurrency value on the number
of function instances needed. The left service has a concur-
rency value of 1, while the right service has a concurrency
value of 3.
ing behaviour of the platform. It is worth noting that
the scale-per-request autoscaling pattern can initially
be seen as a special case of concurrency value scaling
pattern where concurrency value is set to 1. However,
due to its popularity, importance, and fundamental dif-
ferences in their management layer, we classify them
into separate categories. Examples of this scaling pat-
tern are Google Cloud Run and Knative.
Metrics-based scaling tries to keep metrics like
CPU or memory usage within a predefined range.
Most on-premises serverless computing platforms
work with this pattern due to its simplicity and re-
liability. Some of the serverless computing platforms
that use this pattern are AWS Fargate, Azure Container
Instances, OpenFaaS, Kubeless, and Fission.
The simulator proposed in this work considers only
the platforms that use the scale-per-request pattern
due to their importance and widespread adoption in
mainstream public serverless computing platforms.
Initialization Time:
as mentioned earlier, when the
platform is spinning up new instances, they will first
go into the initialization state. The initialization time is
the amount of time it takes since the platform receives
a request until the new instance is up and running and
ready to serve the request. The initialization time, as
defined here, is comprised of the platform initializa-
tion time and the application initialization time. The
platform initialization time is the time it takes for the
platform to make the function instance ready, whether
a unikernel or a container and the application initializa-
tion time is the time it takes for the application to run
the initialization code, e.g., connecting to the database.
Response Time:
the response time usually includes
the queuing time and the service time. Since we are
addressing the scale-per-request serverless computing
platforms here, there is no queuing involved for the in-
coming requests. Due to the inherent linear scalability
in serverless computing platforms (Lloyd et al., 2018;
Wang et al., 2018; Figiela et al., 2018), the distribution
of the response time does not change over time with
different loads.
Maximum Concurrency Level:
every public server-
less computing platform has some limitations on the
number of function instances that can be spun up and
in running state for a single function. This is mainly
due to ensuring the availability of the service for oth-
ers, limiting the number of instances one user can have
up and running at the same time. This is mostly known
as the maximum concurrency level. For example, the
default maximum concurrency level for AWS Lambda
is 1000 function instances in 2020 for most regions.
When the system reaches the maximum concurrency
level, any request that needs to be served by a new
instance will receive an error status showing the server
is not able to fulfill that request at the moment.
Request Routing:
in order to minimize the number of
containers that are kept warm and thus to free up sys-
tem resources, the platform routes incoming requests
to new containers, and it will use older containers
only if all containers that are created more recently are
busy (McGrath and Brenner, 2017). In other words,
the scheduler gives priority to newly instantiated idle
instances using priority scheduling according to cre-
ation time, i.e., the newer the instance, the higher the
priority. By adopting this approach, the system mini-
mizes the number of requests going to older containers,
maximizing their chance of being expired and termi-
nated.
3 THE DESIGN OF SimFaaS
This section discusses the design of the novel Function-
as-a-Service (FaaS) platform simulator (SimFaaS) pro-
posed in this work. SimFaaS was created by the au-
thors as a tool for simplifying the process of validating
a developed performance model and allowing accurate
performance prediction for providers and application
developers in the absence of one. SimFaaS mainly tar-
gets public serverless computing platforms. There are
several built-in tools for visualizing, analyzing, and
verifying a developed analytical performance model.
In addition, we added tools that can accept custom
state encoding and generate approximations for Proba-
bility Density Functions (PDF) and Cumulative Distri-
bution Functions (CDF) from the simulations, which
can help debug several parts of a given analytical per-
formance model.
The proposed simulator can predict several QoS-
related metrics accurately like cold start probability,
SimFaaS: A Performance Simulator for Serverless Computing Platforms
25
7/13/2020 packages_simfaas.svg
file:///D:/Users/Nima/Documents/Github/serverless-performance-simulator/packages_simfaas.svg 1/1
simfaas
simfaas.FunctionInstance
simfaas.ServerlessSimulator
simfaas.SimProcess
simfaas.ServerlessTemporalSimulator
simfaas.Utility
Figure 2: The package diagram of SimFaaS. Each square
represents a class in the package and arrows represent depen-
dency.
average response time, and the probability of rejec-
tion for requests under different load intensities, which
helps application developers understand the limits of
their system and measure their SLA compliance with-
out the need for expensive experiments. In addition,
it can predict the average number of running server
count and total server count, which helps predict the
cost of service for the application developer and the
infrastructure cost incurred by the serverless provider,
respectively.
Figure 2 outlines the package diagram of SimFaaS,
showing the dependency between different modules.
The Utility module provides helper functions for plots
and calculations. The SimProcess module will help
simulate a single process and allows for comparisons
with the optional analytical model provided as a func-
tion handle to the module. The FunctionInstance mod-
ule provides the functionality of a single function in-
stance. The main simulation with an empty initial state
is provided by the ServerlessSimulator module. Fi-
nally, ServerlessTemporalSimulator module performs
simulations similar to ServerlessSimulator module, but
with added functionality allowing customized initial
state and calculation of simulation results in a time-
bounded fashion.
3.1 Extensibility and Ease of Use
SimFaaS has been developed entirely in Python using
an object-oriented design methodology. In order to
leverage the tools within the package, the user needs
to write a Python application or a Jupyter notebook
initializing the classes and providing the input parame-
ters. In addition, the user has the option to extend the
functionality in the package by extending the classes
and adding their custom functionality. Almost every
functionality of classes can be overridden to allow for
modification and extensions. For example, the arrival,
cold start service, and warm start service processes
can be redefined by simply extending the SimProcess
class. We included deterministic, Gaussian, and Ex-
ponential processes as examples of such extensions in
the package. Examples of such changes can be found
in the several examples we have provided for SimFaaS.
In addition, the user can include their analytically pro-
duced PDF and CDF functions to be compared against
the simulation trace results.
The simulator provides all of the functionality
needed for modelling modern scale-per-request server-
less computing platforms. However, we created a mod-
ular framework that can span future types of computa-
tional platforms. To demonstrate this, we extended the
ServerlessSimulator class to create ParServerlessSim-
ulator, which simulates serverless platforms that allow
queuing in the function instances but have a scaling
algorithm similar to scale-per-request platforms.
3.2 Support for Popular Serverless
Platforms
SimFaaS includes simulation models able to mimic the
most popular public serverless computing platforms
like AWS Lambda, Google Cloud Functions, IBM
Cloud Functions, Apache OpenWhisk, Azure Func-
tions, and all other platforms with similar autoscaling.
We have also performed over one month of experimen-
tation to demonstrate the validity of the simulation
results extracted from SimFaaS.
To capture the exogenous parameters needed for
an accurate simulation, the following information is
needed:
Expiration Threshold
which is usually constant
for any given public serverless computing plat-
form. According to our experimentations and
other works (Shahrad et al., 2020; Mikhail Shilkov,
2020), in 2020, this value is 10 minutes for AWS
Lambda, Google Cloud Functions, IBM Cloud,
and Apache OpenWhisk, and 20 minutes for Azure
Functions. For other serverless computing plat-
forms, experimentation is needed by the users. The
use of a non-deterministic expiration threshold is
also possible by extending the FunctionInstance
class.
The arrival process
which can rather safely be as-
sumed as an exponential for most consumer-facing
applications. However, other applications might
use a deterministic process, e.g. cron jobs, or other
types like batch arrival. The user can use one of
our built-in processes or simply define their own.
The warm/cold service process
can be extracted
CLOSER 2021 - 11th International Conference on Cloud Computing and Services Science
26
by measuring the response time from monitoring
the workload response time for cold and warm
requests. By default, SimFaaS uses exponential
distribution for this process but can be overridden
by the user by passing any class that extends the
SimProcess class. We have provided Gaussian and
fixed-interval distributions as part of the package
to demonstrate this.
4 SAMPLE SCENARIOS FOR
USING SimFaaS
In this section, we will go through a few sample use
cases for the serverless platform simulator presented
in this work. For more details, a comprehensive list
of examples can be found in the project Github reposi-
tory
5
.
4.1 Steady-state Analysis
In this example, we use the SimFaaS simulator to cal-
culate the steady-state properties of a given workload
in scale-per-request serverless computing platforms.
In SimFaaS, the workload is only characterized by
arrival rate, service time (warm start response time),
and the provisioning time (the amount of time to have
a cold start instance get ready to serve the request),
which are easily accessible through experimentation
and any monitoring dashboard. The only information
needed to characterize the serverless computing plat-
form is the expiration threshold, which is the amount
of time it takes for the platform to expire and recycle
the resources of an instance after it has finished pro-
cessing its last request. This value is usually constant
and the same for all users of the serverless computing
platform. To run a simple simulation, we can leverage
the ServerlessSimulator class and run the simulation
long enough to minimize the transient effect and let
the system achieve the steady-state.
Table 1 shows a set of example simulation parame-
ters with the default exponential distribution both for
the arrival and service time processes. Note that in-
stead of using exponential distributions, the user can
pass a random generator function with a custom dis-
tribution to achieve more accurate results for specific
applications. As can be seen, the system can produce
QoS-related parameters like the probability of cold
start or rejection of the request for a given arrival rate,
which can help the application developer analyze and
find the limits of the system. In addition, the appli-
5
https://github.com/pacslab/SimFaaS/tree/master/
examples
Table 1: An example simulation input and selected output pa-
rameters. The output parameters are signified with a leading
star (*).
Parameter Value
Arrival Rate 0.9 req/s
Warm Service Time 1.991 s
Cold Service Time 2.244 s
Expiration Threshold 10 min
Simulation Time 10
6
s
Skip Initial Time 100 s
*Cold Start Probability 0.14 %
*Rejection Probability 0 %
*Average Instance Lifespan 6307.7389 s
*Average Server Count 7.6795
*Average Running Servers 1.7902
*Average Idle Count 5.8893
cation developer can also use the average number of
running servers as an important measure for the cost of
their service that can be used for setting different con-
figurations of services that the function relies on, e.g.,
the database concurrent connection capacity (Ama-
zon Web Services Inc., 2020). Besides, information
like the average server count can produce an estimate
for the infrastructure cost incurred by the serverless
provider. The serverless provider can use SimFaaS as
a tool to analyze the possible effect of changing pa-
rameters like the expiration threshold on their incurred
cost and QoS for different scenarios.
Another way the proposed simulator can be lever-
aged is for extracting information about the system
that is not visible to software engineers and devel-
opers in public serverless computing platforms like
AWS Lambda or Google Cloud Functions. This in-
formation could facilitate research for predicting cost,
performance, database configurations or other related
parameters. For example, we can find out the distri-
bution of instance counts in the system throughout
time in the simulated platform for input parameters
shown in Table 1, which is shown in Figure 3. This
information can help researchers develop performance
models based on internal states of the system with
very good accuracy, which is otherwise not possible
in public serverless offerings. To further analyze the
reproducibility of our instance count estimation us-
ing the parameters in Table 1, we ran 10 independent
simulations and generated our estimation of average
instance count over time for each run. Figure 4 shows
the average and 95% confidence interval of our estima-
tion over those runs. As can be seen, our estimation
SimFaaS: A Performance Simulator for Serverless Computing Platforms
27
converges, showing less than 1% deviation from the
mean in the 95% confidence interval.

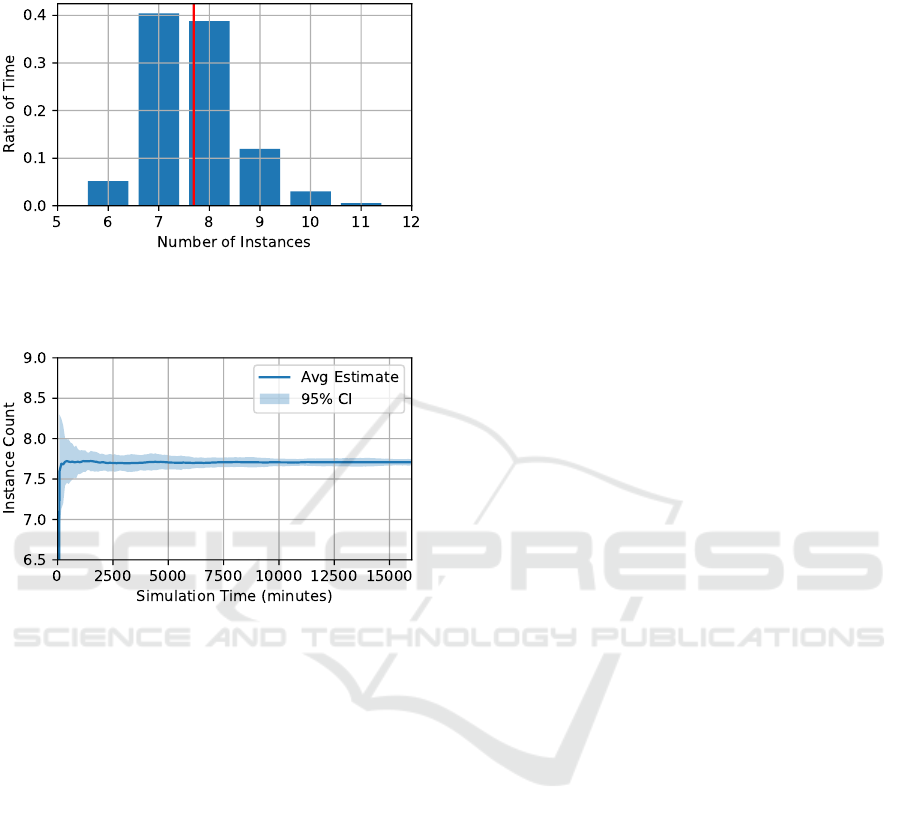

Figure 3: The instance count distribution of the simulated
process throughout time. The y-axis represents the portion
of time in the simulation with a specific number of instances.
Figure 4: The estimated average instance count over time in
10 simulations. The solid line shows the average of simula-
tions and the shaded area shows the 95% Confidence Interval
(CI).
4.2 Transient Analysis
Although the steady-state analysis of the serverless
computing platform’s performance can give us the
long-term quality of service metrics, the application
developer or the serverless provider might be inter-
ested in the platform’s transient behaviour. A transient
analysis simulation can provide insight into the im-
mediate future, facilitating time-bound performance
guarantees. Besides, it can help serverless providers
ensure the short-term quality of service when trying
new designs.
Previous efforts have been made to develop per-
formance models able to provide transient analysis of
serverless computing platforms (Mahmoudi and Khaz-
aei, 2020b). However, there are inherent limitations
to such performance models, like the absence of batch
arrival modelling and being limited to Markovian pro-
cesses. SimFaaS doesn’t have such limitations and
can help both application developers and serverless
providers gain insight into the transient aspect of the
performance of serverless computing platforms.
4.3 What-if Analysis
Due to the inherent highly-dynamic infrastructure of
serverless computing platforms, there are very few
tools from the performance engineering methodologies
and analysis that can be used in the emerging serverless
technologies. Because of this inherent lack of tools
and resources, serverless computing platforms were
forced to use trial and error through implementation to
analyze their new designs for making performance and
efficiency improvements. There have been previous
studies that proposed analytical performance models
for serverless computing platforms (Mahmoudi and
Khazaei, 2020a; Mahmoudi and Khazaei, 2020b), but
these methods have limitations like only supporting
Markovian processes, limiting their applicability in a
number of scenarios.
One major benefit of having an accurate serverless
platform simulator is the ability to perform what-if
analysis on different configurations and find the best-
performing settings for a given workload. Implementa-
tion and experimentation to gather similar data is both
time-consuming and costly, while using the proposed
simulator makes the data collection much faster and
easier. Figure 5 shows an example of such an anal-
ysis for different values for the expiration threshold
in the system. Different workloads running on server-
less computing platforms might have different perfor-
mance/cost criteria. Using what-if analysis powered
by an accurate performance model, one could optimize
the configuration for each unique workload. Similar
examples can be found in the project examples.
4.4 Cost Calculation
Performing cost prediction under different loads in
cloud computing is generally a very challenging task.
These challenges tend to be exacerbated in the highly
dynamic structure of serverless computing platforms.
Generally, there is a broad range of possible costs for a
given serverless function, including computation, stor-
age, networking, database, or other API-based services
like machine learning engines or statistical analysis.
However, all charges incurred by serverless functions
can be seen as either per-request charges (e.g., exter-
nal APIs, machine learning, face recognition, network
I/O) or runtime charges billed based on execution time
(e.g., memory or computation). Per-request charges
can be calculated using only the average arrival rate.
However, runtime charges may differ under different
load intensities due to the difference in cold start prob-
CLOSER 2021 - 11th International Conference on Cloud Computing and Services Science
28
ability. Using the proposed simulator, users can get an
estimate on the cold start probability and the average
number of running servers, which are necessary for
cost estimation under different load intensities.
In addition to the average running server count,
which helps estimate the cost incurred by the appli-
cation developer, the average total server count is lin-
early proportional to the infrastructure cost incurred
by the serverless provider. Thus, using the proposed
simulator, both developer charges and infrastructure
charges incurred by the provider can be estimated un-
der different configurations, which can help improve
the platform by studying the effect of using different
configurations or designs without the need to perform
expensive or time-consuming experiments or imple-
mentations.

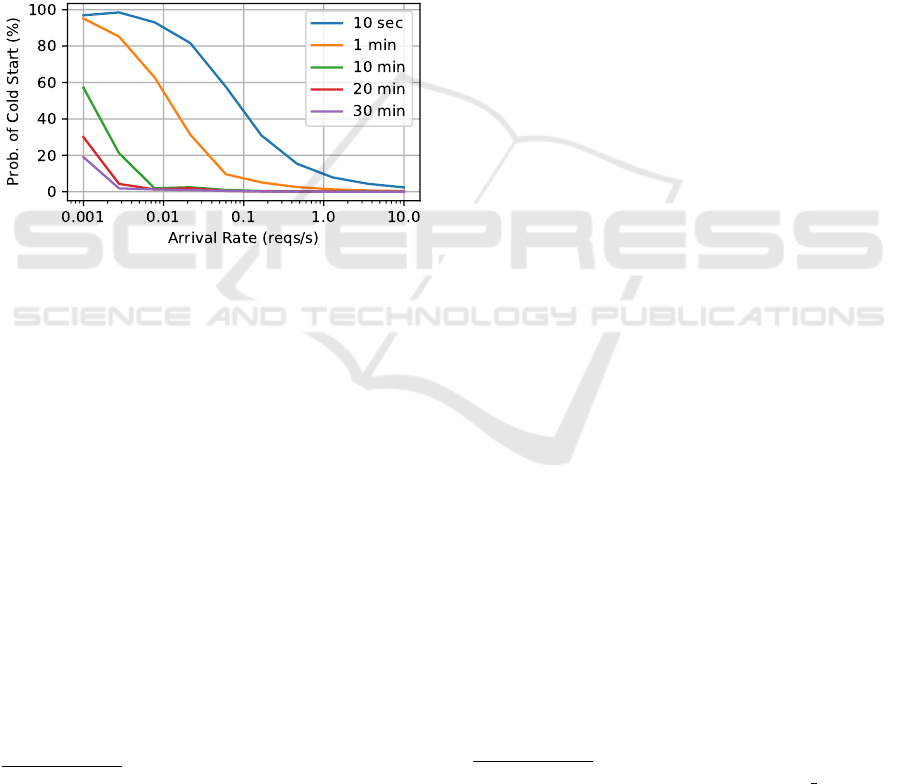

Figure 5: Cold start probability against the arrival rate for
different values of the expiration threshold for the workload
specified in Table 1. SimFaaS can ease the process of con-
ducting experiments with several configurations to find the
best performing one.
5 EXPERIMENTAL EVALUATION
To show the accuracy of the proposed simulator,
we performed extensive experimentations on AWS
Lambda and showed that the results were in tune with
the results from SimFaaS. The experiments are above
one month of running benchmark applications on AWS
Lambda and are openly accessible on Github
6
. All of
our experiments were executed for a 28-hour window
with 10 minutes of warm-up time in the beginning, dur-
ing which we do not record any data. The workload
used in this work was based on the work of Wang et
al. (Wang et al., 2018) with minor modifications. Our
workload is openly available in our Github repository
7
.
For the purpose of experimental validation, we used a
6
https://github.com/pacslab/
serverless-performance-modeling/tree/master/experiments/
results
7
https://github.com/pacslab/
serverless-performance-modeling
combination of CPU intensive and I/O intensive work-
loads. During the experimentation, we have obtained
performance metrics and the other parameters such as
cold/warm start information, instance id, lifespan, etc.
5.1 Experimental Setup
In our AWS Lambda deployment, we used the Python
3.6 runtime with 128 MB of RAM deployed on the
us-east-1 region in order to have the lowest possible
latency from our client. Note that the memory con-
figuration won’t affect the accuracy of the simulation
as the results depend on the service time distribution,
which captures the effect of changing the memory con-
figuration. For the client, we used a virtual machine
with 8 vCPUs, 16 GB of memory, and 1000 Mbps
network connectivity with single-digit milliseconds
latency to AWS servers hosted on Compute Canada
Arbutus cloud
8
. We used Python as the programming
language and the official boto3 library to communi-
cate with the AWS Lambda API to make the requests
and process the resulting logs for each request. For
load-testing and generation of the client requests based
on a Poisson process, we used our in-house work-
load generation library
9
, which is openly accessible
through PyPi
10
. The result is stored in a CSV file
and then processed using Pandas, Numpy, Matplotlib,
and Seaborn. The dataset, parser, and the code for ex-
traction of system parameters and properties are also
publicly available in our analytical model project’s
Github repository
11
.
5.2 Parameter Identification
We need to estimate the system characteristics to be
used in our simulator as input parameters. In this
section, we discuss our approach to estimating each of
these parameters.
Expiration Threshold:
here, our goal is to measure
the expiration threshold, which is the amount of time
after which inactive function instance in the warm
pool will be expired and therefore terminated. To
measure this parameter, we created an experiment in
which we make requests with increasing inter-arrival
times until we see a cold start meaning that the system
has terminated the instance between two consecutive
requests. We performed this experiment on AWS
lambda with the starting inter-arrival time of 10
seconds, each time increasing it by 10 seconds until
8
https://docs.computecanada.ca/wiki/Cloud resources
9
https://github.com/pacslab/pacswg
10
https://pypi.org/project/pacswg
11
https://github.com/pacslab/
serverless-performance-modeling
SimFaaS: A Performance Simulator for Serverless Computing Platforms
29
we see a cold start. In our experiments, AWS lambda
instances seemed to expire an instance exactly after
10 minutes of inactivity (after it has processed its last
request). This number did not change in any of our
experiments leading us to assume it is a deterministic
value. This observation has also been verified in
(Mikhail Shilkov, 2020; Shahrad et al., 2020).
Average Warm Response Time and Average Cold
Response Time:
with the definitions provided here,
warm response time is the service time of the function,
and cold response time includes both provisioning time
and service time. To measure the average warm re-
sponse time and the average cold response time, we
used the average of response times measured through-
out the experiment.
5.3 Simulator Results Validation
In this section, we outline our methodology for
measuring the performance metrics of the system,
comparing the results with the predictions of our
simulator.
Probability of Cold Start:
to measure the probability
of cold start, we divide the number of requests causing
a cold start by the total number of requests made
during our experiment. Due to the inherent scarcity of
cold starts in most of our experiments, we observed
an increased noise in our measurements for the
probability of cold start, which led to increasing the
window for data collection to about 28 hours for each
sampled point.
Mean Number of Instances in the Warm Pool:
to
measure the mean number of instances in the warm
pool, we count the number of unique instances that
have responded to the client’s requests in the past 10
minutes. We use a unique identifier for each function
instance to keep track of their life cycle, as obtained
in (Wang et al., 2018).
Mean Number of Running Instances:
we calculate
this metric by observing the system every ten seconds,
counting the number of in-flight requests in the
system, taking the average as our estimate.
Mean Number of Idle Instances:
this can be
measured as the difference between the total average
number of instances in the warm pool and the number
of instances busy running the requests.
Average Wasted Capacity:
for this metric, we de-
fine the utilized capacity as the ratio of the number of
running instances over all instances in the warm pool.
Using this definition, the ratio of idle instances over
all instances in the warm pool is the wasted portion of
capacity provisioned for our workload. Note that this
value is very important to the provider as it measures
the ratio of the utilized capacity (billed for the applica-
tion developer) over the deployed capacity (reflecting
the infrastructure cost).
5.4 Experimental Results
Figure 6 shows the probability of cold start for differ-
ent arrival rates extracted from the simulation com-
pared with real-world results. As can be seen, the
results match the performance metrics extracted from
experimentations. The results show an average error
of
12.75%
, while the standard error of the underlying
process for the experiments over
10
runs totalling
28
hours is
10.14%
showing the accuracy of the results
obtained from the simulation. Figures 7 and 8 show the
average number of instances and the average wasted
capacity (in idle state) for the simulation and experi-
ments with Mean Absolute Percentage Error (MAPE)
of 3.43% and 0.17%, respectively.
Figure 6: Probability of cold start extracted from simula-
tion compared with real-world experimentations on AWS
Lambda.
Figure 7: The average number of instances extracted from
simulation compared with real-world experimentations on
AWS Lambda.
CLOSER 2021 - 11th International Conference on Cloud Computing and Services Science
30

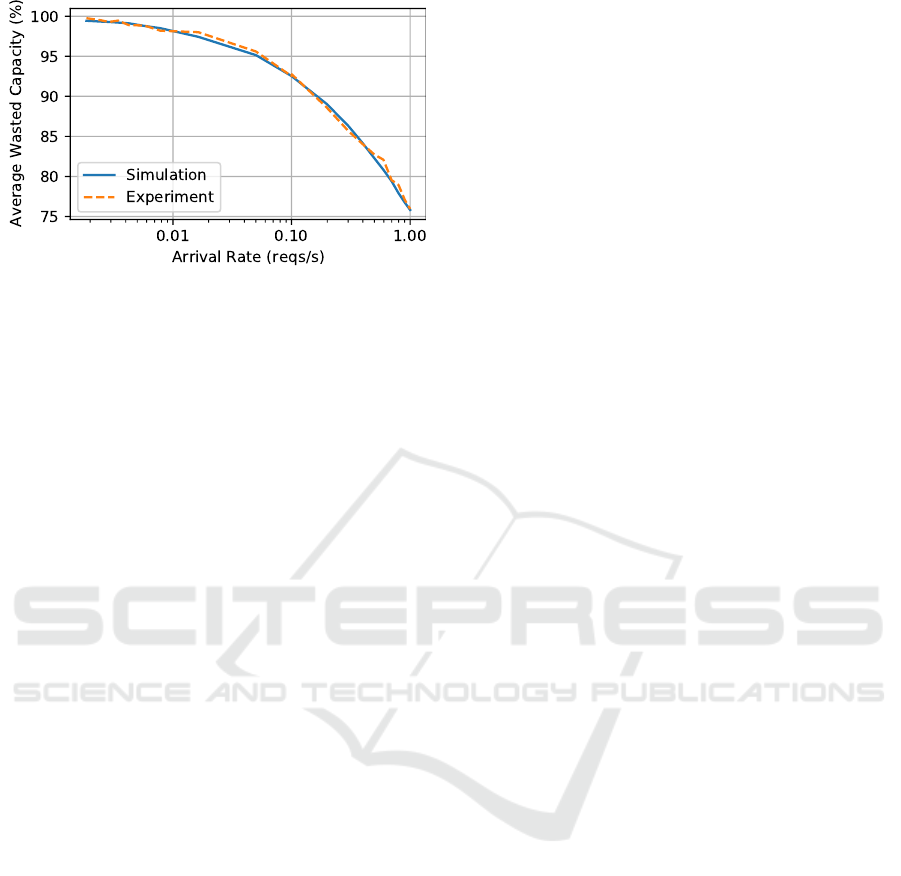

Figure 8: Average wasted resources extracted from simula-
tion compared with real-world experimentations on AWS
Lambda.
6 RELATED WORK
Many recent works in the area of serverless computing
platforms have focused on studying and finding ways
to improve the performance of serverless computing
platforms (van Eyk and Iosup, 2018; Manner et al.,
2018; Manner, 2019; Boza et al., 2017; Abad et al.,
2018; Jeon et al., 2019). However, to the best of the
authors’ knowledge, none have been able to predict
or simulate comprehensive performance or quality of
metrics characteristics for a given workload. In this
section, we will go through the most related recent
works in the prediction of the performance or quality
of service for serverless computing platforms.
Some of the previous studies have focused on
developing comprehensive performance models for
steady-state and transient analysis of a given work-
load (Mahmoudi and Khazaei, 2020a; Mahmoudi and
Khazaei, 2020b). However, the proposed models im-
pose several limitations on the arrival and service time
processes and cannot handle batch arrivals. These
limitations render the developed performance model
unusable for many types of workloads, especially for
batch and analytics workloads. The serverless per-
formance simulator proposed in this work can handle
any type of arrival or service time process and can
be adapted to future emerging serverless computing
management models with less manual effort.
In (Bortolini and Obelheiro, 2019), Bortolini et
al. used experimentations on different configurations
and serverless providers in order to find the most im-
portant factors influencing the performance and cost
of current serverless platforms. In their study, they
found low predictability of cost as one of the most
important drawbacks of serverless computing plat-
forms. Using simulators like what we proposed in this
work can help improve the predictability of the cost
of a given workload under different load intensities.
Hellerstein et al. (Hellerstein et al., 2018) addressed
the main shortcomings present in the first-generation
serverless computing platforms and the anti-patterns
present in them. They showed that current implemen-
tations are restricting distributed programming and
cloud computing innovations. Eyk et al. (Van Eyk
et al., 2018) found the most important issues surround-
ing the widespread adoption of FaaS to be sizeable
overheads, unreliable performance, and new forms of
cost-performance trade-off. In their work, they identi-
fied six performance-related challenges for the domain
of serverless computing and proposed a roadmap for
alleviating these challenges. Several of the aforemen-
tioned shortcomings of serverless computing platforms
can be mitigated by predicting the cost-performance
trade-off using serverless simulators.
Eyk et al. (van Eyk and Iosup, 2018) investigated
the performance challenges in current serverless com-
puting platforms. They found the most important chal-
lenges in the adoption of FaaS to be the remarkable
computational overhead, unreliable performance, and
absence of benchmarks. The introduction of an accu-
rate simulator for function-as-a-service offerings could
overcome some of these shortcomings. Manner et
al. (Manner et al., 2018) investigated the factors influ-
encing the cold start performance of serverless comput-
ing platforms. Their experiments on AWS Lambda and
Azure Functions show that factors like the program-
ming language, deployment package size, and memory
settings affect the performance on serverless comput-
ing platforms. In a later study, Manner et al. (Manner,
2019) describe the importance of an accurate simula-
tor for Function-as-a-Service (FaaS) products. They
mention how scaling, cold starts, function configura-
tions, dependent services, network latency, and other
important configurations influence cost-performance
trade-off. In their work, they propose a simulation
framework for a cost and performance simulator for
serverless computing platforms. In this platform, they
suggest extracted mean values from experiments as
inputs to the performance model in order to calculate
different properties.
Boza et al. (Boza et al., 2017) introduced a model-
based simulation for cloud budget planning. In their
work, they perform cost simulation for using reserved
VMs, on-demand VMs, bid-based VMs, and serverless
computing for a similar computing task. In their work,
the serverless computing simulation is overly simplis-
tic for performance modelling researchers and lacks
several important details. In this work, we focus solely
on performance simulation of serverless computing
platforms, but with more details in mind, which seems
necessary for the simulator to be leveraged by the per-
SimFaaS: A Performance Simulator for Serverless Computing Platforms
31
formance research community, application developers,
and serverless providers.
Abad et al. (Abad et al., 2018) mainly considered
the problem of scheduling small cloud functions on
serverless computing platforms. As a part of their eval-
uations, they implemented a SimPy-based simulation
for their proposed scheduling method. Although this
work shows promise of rather accurate serverless com-
puting simulations, their focus is on scheduling tasks
while ignoring several details of interest for perfor-
mance modelling. In this work, we strive to fill this
gap by providing the performance modelling research
with the proper tooling necessary for high-fidelity per-
formance models of serverless computing platforms.
Jeon et al. (Jeon et al., 2019) introduced a CloudSim ex-
tension focused on Distributed Function-as-a-Service
(DFaaS) on edge devices. Although the DFaaS sys-
tems hold a great promise for the future of serverless
computing, it doesn’t allow simulation for the main-
stream serverless computing platforms.
7 CONCLUSION AND FUTURE
WORK
In this work, we presented SimFaaS, a simulator for
modern serverless computing platforms with sufficient
details to yield very accurate results. We introduced
a range of tools available for performance modelling
researchers giving them insights and details into sev-
eral internal properties that are not visible for users in
public serverless computing platforms. We reviewed
some of the possible use cases of the proposed simula-
tor and showed its accuracy through comparison with
real-world traces gathered from running benchmark
applications on AWS Lambda.
SimFaaS enables performance modelling re-
searchers with a tool allowing them to develop accurate
performance models using the internal state of the sys-
tem, which cannot be monitored on public serverless
computing platforms. Using SimFaaS, both server-
less providers and application developers can predict
the quality of service, expected infrastructure and in-
curred cost, amount of wasted resources, and energy
consumption without performing lengthy and expen-
sive experimentations. The benefits of using SimFaaS
for serverless computing platform providers could be
two-fold: 1) They can examine new designs, develop-
ments, and deployments in their platforms by initially
validating new ideas on SimFaaS, which will be sig-
nificantly cheaper in terms of time and cost compared
to actual prototyping; 2) They can provide users with
fine-grain control over the cost-performance trade-off
by modifying the platform parameters (e.g., expiration
threshold). This is mainly due to the fact that there
is no universal optimal point in the cost-performance
trade-off for all workloads. By making accurate pre-
dictions, a serverless provider can better optimize their
resource usage while improving the application devel-
opers’ experience and consequently the end-users.
As future work, we plan to extend SimFaaS to
include new generations of serverless computing, in
addition to adding several billing schemas in order to
predict the cost of running workloads on the serverless
platform. We are also aiming to maintain SimFaaS
by the members of PACS Lab
12
to add new features
offered by serverless providers.
ACKNOWLEDGEMENTS
This research was enabled in part by support provided
by Sharcnet (www.sharcnet.ca) and Compute Canada
(www.computecanada.ca). We would also like to thank
Amazon for supporting this research by providing us
with the education credit to access the Amazon Web
Services (AWS).
REFERENCES
Abad, C. L., Boza, E. F., and Van Eyk, E. (2018). Package-
aware scheduling of faas functions. In Companion
of the 2018 ACM/SPEC International Conference on
Performance Engineering, pages 101–106.
Amazon Web Services Inc. (2020). Amazon DynamoDB
Read/Write Capacity Mode. https://docs.aws.amazon.
com/amazondynamodb/latest/developerguide/
HowItWorks.ReadWriteCapacityMode.html. Last
accessed 2020-11-20.
Bermbach, D., Karakaya, A. S., and Buchholz, S. (2020).
Using application knowledge to reduce cold starts in
faas services. In Proceedings of the 35th ACM/SIGAPP
Symposium on Applied Computing.
Bortolini, D. and Obelheiro, R. R. (2019). Investigating
performance and cost in function-as-a-service plat-
forms. In International Conference on P2P, Parallel,
Grid, Cloud and Internet Computing, pages 174–185.
Springer.
Boza, E. F., Abad, C. L., Villavicencio, M., Quimba, S., and
Plaza, J. A. (2017). Reserved, on demand or serverless:
Model-based simulations for cloud budget planning.
In 2017 IEEE Second Ecuador Technical Chapters
Meeting (ETCM), pages 1–6. IEEE.
Figiela, K., Gajek, A., Zima, A., Obrok, B., and Malawski,
M. (2018). Performance evaluation of heterogeneous
cloud functions. Concurrency and Computation: Prac-
tice and Experience, 30(23):e4792.
12
https://pacs.eecs.yorku.ca
CLOSER 2021 - 11th International Conference on Cloud Computing and Services Science
32
Google Cloud Platform Inc. (2020). Concurrency. https:
//cloud.google.com/run/docs/about-concurrency. Last
accessed 2020-02-13.
Hellerstein, J. M., Faleiro, J., Gonzalez, J. E., Schleier-Smith,
J., Sreekanti, V., Tumanov, A., and Wu, C. (2018).
Serverless computing: One step forward, two steps
back. arXiv preprint arXiv:1812.03651.
Jeon, H., Cho, C., Shin, S., and Yoon, S. (2019). A cloudsim-
extension for simulating distributed functions-as-a-
service. In 2019 20th International Conference on
Parallel and Distributed Computing, Applications and
Technologies (PDCAT), pages 386–391. IEEE.
Lin, P.-M. and Glikson, A. (2019). Mitigating cold starts in
serverless platforms: A pool-based approach. arXiv
preprint arXiv:1903.12221.
Lloyd, W., Ramesh, S., Chinthalapati, S., Ly, L., and Pal-
lickara, S. (2018). Serverless computing: An investiga-
tion of factors influencing microservice performance.
In 2018 IEEE International Conference on Cloud En-
gineering (IC2E), pages 159–169. IEEE.
Mahmoudi, N. and Khazaei, H. (2020a). Performance Mod-
eling of Serverless Computing Platforms. IEEE Trans-
actions on Cloud Computing, pages 1–15.
Mahmoudi, N. and Khazaei, H. (2020b). Temporal Perfor-
mance Modelling of Serverless Computing Platforms.
In Proceedings of the 6th International Workshop on
Serverless Computing, WOSC ’20, pages 1–6. Associ-
ation for Computing Machinery.
Mahmoudi, N., Lin, C., Khazaei, H., and Litoiu, M. (2019).
Optimizing serverless computing: introducing an adap-
tive function placement algorithm. In Proceedings of
the 29th Annual International Conference on Computer
Science and Software Engineering, pages 203–213.
Manner, J. (2019). Towards performance and cost simulation
in function as a service. Proc. ZEUS (accepted).
Manner, J., Endreß, M., Heckel, T., and Wirtz, G. (2018).
Cold start influencing factors in function as a service.
In 2018 IEEE/ACM International Conference on Utility
and Cloud Computing Companion (UCC Companion),
pages 181–188. IEEE.
McGrath, G. and Brenner, P. R. (2017). Serverless com-
puting: Design, implementation, and performance.
In 2017 IEEE 37th International Conference on Dis-
tributed Computing Systems Workshops (ICDCSW),
pages 405–410. IEEE.
Mikhail Shilkov (2020). Cold starts in aws lambda. https:
//mikhail.io/serverless/coldstarts/aws/. Last accessed
2020-03-18.
Shahrad, M., Fonseca, R., Goiri,
´
I., Chaudhry, G., Batum, P.,
Cooke, J., Laureano, E., Tresness, C., Russinovich, M.,
and Bianchini, R. (2020). Serverless in the wild: Char-
acterizing and optimizing the serverless workload at a
large cloud provider. arXiv preprint arXiv:2003.03423.
van Eyk, E. and Iosup, A. (2018). Addressing performance
challenges in serverless computing. In Proc. ICT.
OPEN.
Van Eyk, E., Iosup, A., Abad, C. L., Grohmann, J., and
Eismann, S. (2018). A spec rg cloud group’s vision on
the performance challenges of faas cloud architectures.
In Companion of the 2018 ACM/SPEC International
Conference on Performance Engineering, pages 21–24.
ACM.
Wang, L., Li, M., Zhang, Y., Ristenpart, T., and Swift, M.
(2018). Peeking behind the curtains of serverless plat-
forms. In 2018 USENIX Annual Technical Conference
(USENIX ATC 18), pages 133–146.
SimFaaS: A Performance Simulator for Serverless Computing Platforms
33
