Efﬁcient Multi-task based Facial Landmark and Gesture Detection in

Monocular Images

Jon Goenetxea

, Luis Unzueta

, Unai Elordi

, Oihana Otaegui

and Fadi Dornaika

2,3

Vicomtech, Parque Cient

ıﬁco y Tecnol

ogico de Gipuzkoa, Donostia, San Sebastian, Spain

Computer Engineering Faculty, University of the Basque Country EHU/UPV,

Manuel de Lardizabal, 1, 20018 Donostia, Spain

Ikerbasque, Basque Foundation for Science, Alameda Urquijo, 36-5, Plaza Bizkaia, 48011 Bilbao, Spain

Keywords:

Facial Feature Point Detection, Gesture Recognition, Multi-task Learning.

Abstract:

The communication between persons includes several channels to exchange information between individuals.

The non-verbal communication contains valuable information about the context of the conversation and it is

a key element to understand the entire interaction. The facial expressions are a representative example of this

kind of non-verbal communication and a valuable element to improve human-machine interaction interfaces.

Using images captured by a monocular camera, automatic facial analysis systems can extract facial expressions

to improve human-machine interactions. However, there are several technical factors to consider, including

possible computational limitations (e.g. autonomous robots), or data throughput (e.g. centralized computation

server). Considering the possible limitations, this work presents an efﬁcient method to detect a set of 68

facial feature points and a set of key facial gestures at the same time. The output of this method includes

valuable information to understand the context of communication and improve the response of automatic

human-machine interaction systems.

1 INTRODUCTION

Human communication includes several information

channels, including verbal and non-verbal messages.

A complete analysis of human communication needs

to evaluate the person’s gestures and expressions. As

a representative example, facial gestures are powerful

communication elements used by any single person

instinctively. Using low-cost monocular cameras, an

automatic detection system can extract those expres-

sions, being a key element for most human-machine

interaction interfaces.

The ﬁnal implementation of a facial gesture anal-

ysis tool needs to consider several technical factors

for the ﬁnal deployment. Considering computation-

ally constrained edge devices like smartphones and

onboard systems, computational efﬁciency is a key el-

ement that determines the ﬁnal performance. Apart

from the optimization techniques used for the ﬁnal

implementation, the adopted analysis method is one

of the main factors inﬂuencing efﬁciency.

Moreover, the facial analysis method may need to

identify different kinds of facial attributes depending

on the ﬁnal application scope. The list of possible at-

tributes includes such diverse elements as the facial

feature points, the orientation of the head, the eye-

gaze and the local gestures, among others. There are

synergies between some attributes that could be har-

nessed to improve the performance of the ﬁnal esti-

mation. For instance, facial feature points and the

estimation of the facial gesture are strictly related at-

tributes, and it is possible to combine them taking ad-

vantage of this relationship to improve the accuracy

of both estimations.

This article proposes an efﬁcient method based

on multi-task, multi-modal and multi-level approach

(named M3) to improve the landmark and gesture es-

timations, as well as other attributes like eye gaze and

head orientation. It divides the analysis into local

facial regions, where the estimated attributes have a

strong correlation (e.g. mouth landmarks and mouth

gestures). This division improves local estimations in

expressiveness and accuracy, maintaining a high level

of computational efﬁciency.

We compared computational performance and ac-

curacy of our method with similar approaches using

the same hardware, as reference for their use in plat-

form with computational limitations.

680

Goenetxea, J., Unzueta, L., Elordi, U., Otaegui, O. and Dornaika, F.

Efﬁcient Multi-task based Facial Landmark and Gesture Detection in Monocular Images.

DOI: 10.5220/0010373006800687

In Proceedings of the 16th International Joint Conference on Computer Vision, Imaging and Computer Graphics Theory and Applications (VISIGRAPP 2021) - Volume 5: VISAPP, pages

680-687

ISBN: 978-989-758-488-6

2 RELATED WORK

The analysis of these gestures and emotions using

monocular images can estimate the state of inatten-

tion, level of liking or other interesting indicators for

multiple applications. However, the great diversity of

facial shapes and possible deformations make it difﬁ-

cult to deﬁne those facial gestures.

In the last decades, various notations have been

proposed to deﬁne facial gestures. Summarising, we

can point to three main notations: a) gestures based on

micro-expressions (commonly called Action Units or

AUs), b) gestures based on cardinal expressions (e.g.,

happiness, sadness, surprise, fear, anger and disgust),

and c) gestures based on a combination of local ex-

pressions (e.g., smile, kiss, blink and brow rise).

The methods based on micro-expressions (Li

et al., 2017; Shao et al., 2018; Rathee and Gan-

otra, 2018; Sanchez-Lozano et al., 2018) combine

elemental facial movements to generate more com-

plex gestures (e.g., movements of several muscles of

the mouth to deﬁne the smile gesture). The meth-

ods based on emotion or cardinal expressions (Aneja

et al., 2017; Pons and Masip, 2018; Jain et al., 2018)

use a set of six complex emotional gestures - happi-

ness, surprise, sadness, fear, disgust and anger- pro-

posed by (Ekman et al., 2002) to deﬁne a wide range

of facial gestures. The methods based on face region

expressions can be seen as a middle ground between

the other two. Such methods estimate local zone-

speciﬁc gestures and combine them to generate the

global face estimation as a complete expression (Cao

et al., 2016; Zhang et al., 2014; Ranjan et al., 2018).

The facial expression estimation methods use fa-

cial feature point estimations, facial texture analysis

or a combination of both elements.

The method proposed in (Baltru

saitis et al., 2015)

analyses the face texture using a set of previously de-

tected facial feature points and a Histograms of Ori-

ented Gradients (HoG) analysis to extract the gesture

features. With both type of features as input, the au-

thors propose training a speciﬁc AU regressor to es-

timate the gestures. Experiments show real-time per-

formance on a desktop PC, but there are no measure-

ments on computationally constrained devices.

In addition, the method in (Rathee and Ganotra,

2018) proposes ﬁrst to detect the facial feature land-

marks of the users’ face and then estimate the facial

expression using the face texture with the landmark

location as reference. In this second stage, a set of Ga-

bor ﬁlters analyse the area around the feature points.

This method uses information that feature point de-

tection is not using (like skin wrinkles, for example).

Within the scope of automatic detection of facial

feature points, there are many and diverse methods to

detect characteristic points in monocular images (Jin

and Tan, 2017; Wu and Ji, 2018).

A widely adopted method was presented in

(Saragih et al., 2009) which was later adopted by

works like (Baltru

saitis et al., 2018). The method

proposed iteratively improving an initial rough es-

timation of the face, analysing the region around

each landmark to improve the previous location with

each repetition. On each iteration, a two-dimensional

structural model constrains the new locations consid-

ering all the landmark set to avoid unnatural or im-

possible point distributions.

Later, studies like (Ren et al., 2014; Kazemi and

Sullivan, 2014) suggest using specialised regressors

to detect the face landmarks, dramatically improving

the performance of the process. They both assume

that the regression method includes the global facial

shape constraints for the entire facial structure, avoid-

ing the use of a shape veriﬁcation process. However,

in both cases, accuracy suffers in the presence of out-

of-plane head rotations.

As a real-time Deep Learning (DL) method, the

study (Zhang et al., 2014) outlines the extraction

of facial features and a set of facial gestures using

the same computation adopting a multi-task strategy.

Based on a direct relationship between the landmark

locations and the face gesture, the proposed method

uses the facial gestures to improve the landmark es-

timation, and the landmarks to estimate the face ges-

tures. This method achieves real-time performance on

a desktop PC with a limited set of facial gestures.

3 MULTI-LEVEL APPROACH

The proposed approach divides the task in two lev-

els of analysis (see Figure 1): a) holistic face attribute

detection and b) facial zone-speciﬁc attribute estima-

tion.

The ﬁrst level extracts general facial attributes. It

takes the entire face in to consideration in order to

estimate an initial set of landmarks and the head pose

(i.e., the face yaw orientation).

The second level uses the output of the ﬁrst level

as input - it extracts the attributes of each facial zone

(i.e., landmarks, gestures or gaze). First, it gener-

ates a set of normalised facial zone patches, one for

each face region (i.e., mouth, eyebrows and each eye).

Then, it estimates the zone-speciﬁc landmarks and

gestures using the zone patches and the orientation of

the head.

Efﬁcient Multi-task based Facial Landmark and Gesture Detection in Monocular Images

681

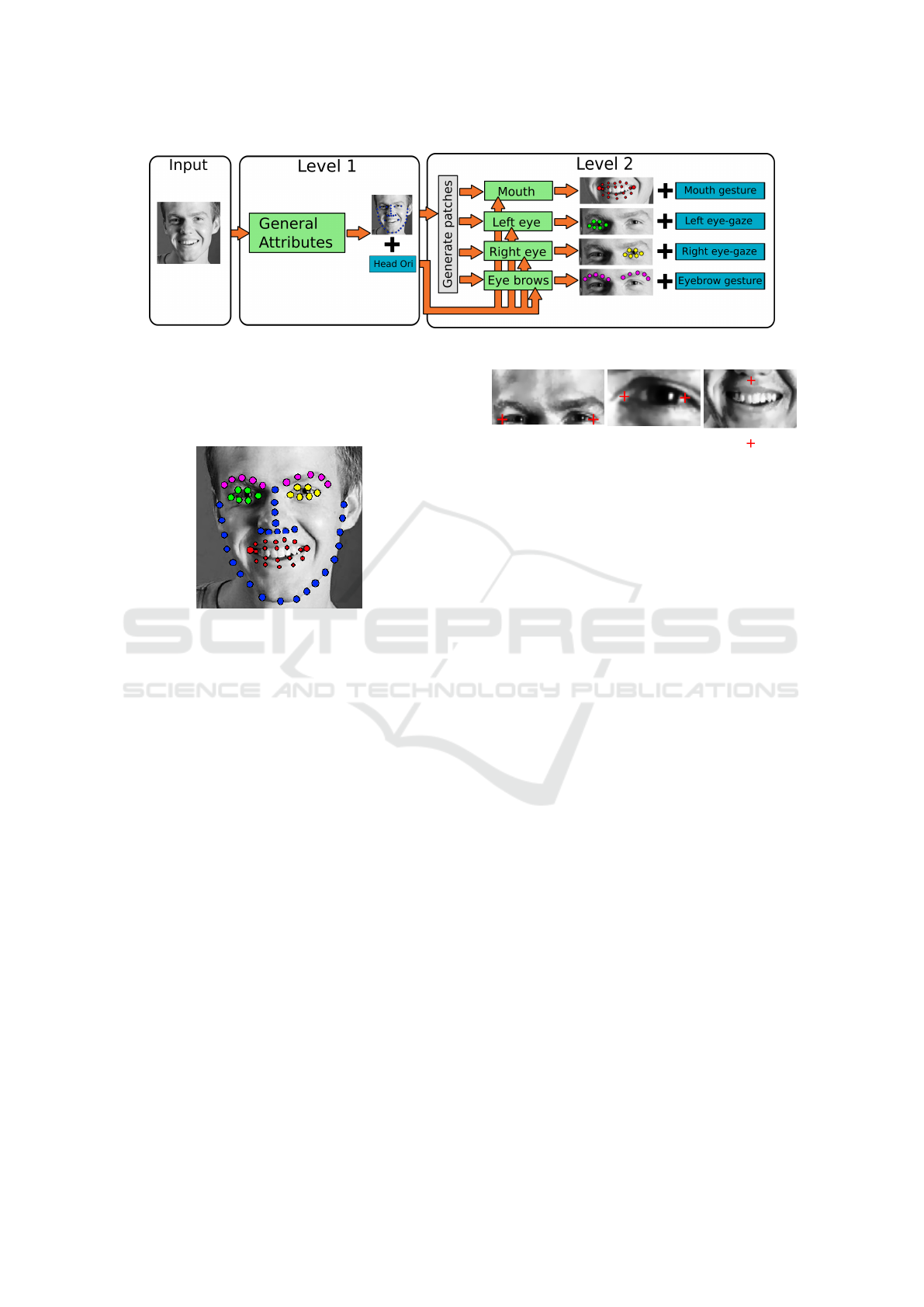

Figure 1: Flowchart of the proposed multi-level analysis pipeline.

The ﬁnal output merges all the landmarks from

both levels into a single set of 68 landmarks. Figure

2 shows all the landmarks detected on each level and

the ﬁnal set of landmarks for a face image.

Figure 2: A combined representation of all the detected fea-

tures. Each colour represents the landmarks for each face

zone.

The zone patch generation process uses two ref-

erence landmarks from the landmark set extracted in

the ﬁrst step. Then, it applies a warping procedure

to align the reference landmarks with two target lo-

cations in a previously deﬁned zone patch template.

The warping procedure normalises the orientation and

size of the zone image region. Note that this process

could add some unwanted distortion in patch regions

occluded by a large out of plane head rotation.

The reference feature points used to generate the

patches are those that maintain their relative location

during gestures. Considering the high deformability

of the mouth region, we chose feature points out of

the gesture inﬂuence, like the bottom of the nose and

the chin. We selected those landmarks because the

inﬂuence of the evaluated mouth gestures in those lo-

cations is small enough to assume that they are stable

or relatively static. Likewise, the reference points for

each eye region are the eye corner landmarks, and the

reference points for the eyebrow region are the left

eye left corner and the right eye right corner land-

marks, including both eyebrows in the same image

patch. Figure 3 shows some examples of normalised

face patches, including the location of the reference

landmarks.

Figure 3: Examples of (from left to right) an eyebrow patch,

a right eye patch and a mouth patch using the image shown

in Figure 2. The red cross represents the target location

of the reference landmarks for each patch. Note that the

reference point of the mouth patch is out of the patch region.

To enhance the zone patches for the inference step,

we apply a bilateral ﬁltering process to reduce the

possible noise in the warped image. At the same

time, it preserves the information of edges and gen-

eral shape. In the case of the eye regions, the warp-

ing process smooths the edge information because the

size of this region tends to be small compared with

the entire face region. An image intensity histogram

equalisation compensates the sharpness reduction in-

creasing the contrast and normalising the brightness

for the eye patches.

Finally, each zone-speciﬁc neural network ex-

tracts the landmarks and attributes of each zone patch,

also considering the estimated head orientation. The

inclusion of the head orientation in the estimation pro-

cess helps to ignore or reduce distortions caused by

large head rotations during the warping procedure,

making the estimation more reliable.

4 FACIAL ATTRIBUTE

DEFINITION

The ﬁnal estimation includes different facial at-

tributes: a) the orientation of the head, b) the gesture

of the mouth, c) the gesture of the eyebrows and d)

the eye gaze of each eye.

The head pose (i.e., face yaw orientation) is de-

ﬁned as a classiﬁcation between 5 possible classes -

60 (for angles <-60), -30 (for angles from -60 to -30),

0 (for angles from -30 to 30), 30 (for angles from 30

VISAPP 2021 - 16th International Conference on Computer Vision Theory and Applications

682

to 60) and 60 (for angles >60).

The included zone-speciﬁc gestures are: smile,

mouth frown and kiss gestures for the mouth region

and inner eyebrow raise and inner eyebrow frown for

the eyebrow region. The gestures in each region are

mutually exclusive, so only one can be active in a

frame. Other gestures (e.g., mouth open) can be di-

rectly extracted from the landmark positions, measur-

ing the distance between inner mouth landmarks, for

example.

Gesture estimation is a classiﬁcation process

which estimates the probability distribution of the

group of gestures for each face element. Moreover,

we include an additional neutral class for each re-

gion to represent the absence of all gestures. The ﬁnal

probability estimation of the gestures in a face region

is normalised using a softmax function.

Eye gaze estimation deﬁnes a gaze vector for each

eye as a normalised vector of three values.

5 NETWORK STRUCTURE

Each network relies on a Multi-Task Learning (MTL)

approach for the estimation process. It deﬁnes a CNN

model to generate a list of outputs of different types

and meanings using the same computation, similar to

the method proposed by (Zhang et al., 2014). Con-

ventional MTL approaches try to optimise all tasks

at once using a combined loss function. In our case,

the loss function combines the loss of each task, as-

signing different priorities to each one. This priority

designation deﬁnes the landmark detection as the pri-

mary task, setting the gesture estimation as an auxil-

iary task. Even if the landmarks have higher priority

than the gestures, the gesture information improves

the accuracy of the landmark detection due to the di-

rect correlation between the position of the landmarks

and the deﬁnition of each gesture.

The structure of each network has two parts, a)

the trunk which performs the general feature extrac-

tion, and b) the leaves in charge of the ﬁnal task es-

timations. The trunk of the network estimates all the

features needed by the leaves to generate their estima-

tions. The trunk shares its output with all the leaves,

which use this information to estimate the landmarks

and gestures. During training, the process updates the

weights of the trunk and leaves combining all the out-

puts of the network. Hence, all the estimation tasks

inﬂuence the training of the feature detection, enhanc-

ing their results through the synergies between them.

The ﬁrst row of Figure 4 shows a schematic exam-

ple of a multi-task network, divided in the trunk (in

green) and leaves (in blue).

The trunk is a concatenation of four convolutional

layers, including a pooling step after each convolu-

tion, and a ﬁnal fully connected layer. Each convolu-

tion layer includes a Rectiﬁed Linear Unit (ReLU) ac-

tivation function. This network conﬁguration is sim-

ilar for all the cases, with small variation in layer

sizes. Figure 4 shows the detailed conﬁguration of

each layer.

The input of the network in the ﬁrst layer is only

the cropped image of the face. However, the networks

in the second level have two inputs: the normalised

face zone patch and the orientation of the head esti-

mated in layer one. To include the orientation of the

head in the estimation process, the networks in the

second level include an extra fully connected layer.

This layer includes the head orientation values as con-

catenated elements (see Figure 4). Then, the ﬁnal

fully connected layer integrates all the elements into

a single output vector.

Figure 4 includes the details and conﬁguration of

the proposed networks, and how the output of level 1

interacts with the estimation process of level 2.

6 LEARNING PROCESS

Due to the multilayer structure of the method, the

learning process has two phases. In the ﬁrst phase,

we train the neural network deﬁned for level 1. Then,

in a second phase, we use the model trained for level

1 to generate the input data to train the models in level

In all the cases, we deﬁne the landmarks y

as a list

of x and y coordinate values in the image I

, ordered

as a unique list y



, y

, x

, y

, ..., x

, y



. The er-

ror function for the landmarks is set as a least square

problem,

L(y, I, W) =

∑

i=1

− f (I

;W)

(1)

where f is the model function, N is the number of

images in the batch and W is a list of weights that

encapsulates the trained parameters of the neural net-

work.

As mentioned previously, the model in level 1

classiﬁes the head pose values (i.e., head yaw orienta-

tion) in ﬁve classes. Each head orientation class takes

a probability value in the range [0, 1]. For the ground

truth, a class has the value 1 if the head pose matches

the class or 0 if it does not. As an orientation can

only belong to one of the classes, they are mutually

exclusive.

To compute the head’s pose probability, the

method adopts a softmax function P, which mod-

Efﬁcient Multi-task based Facial Landmark and Gesture Detection in Monocular Images

683

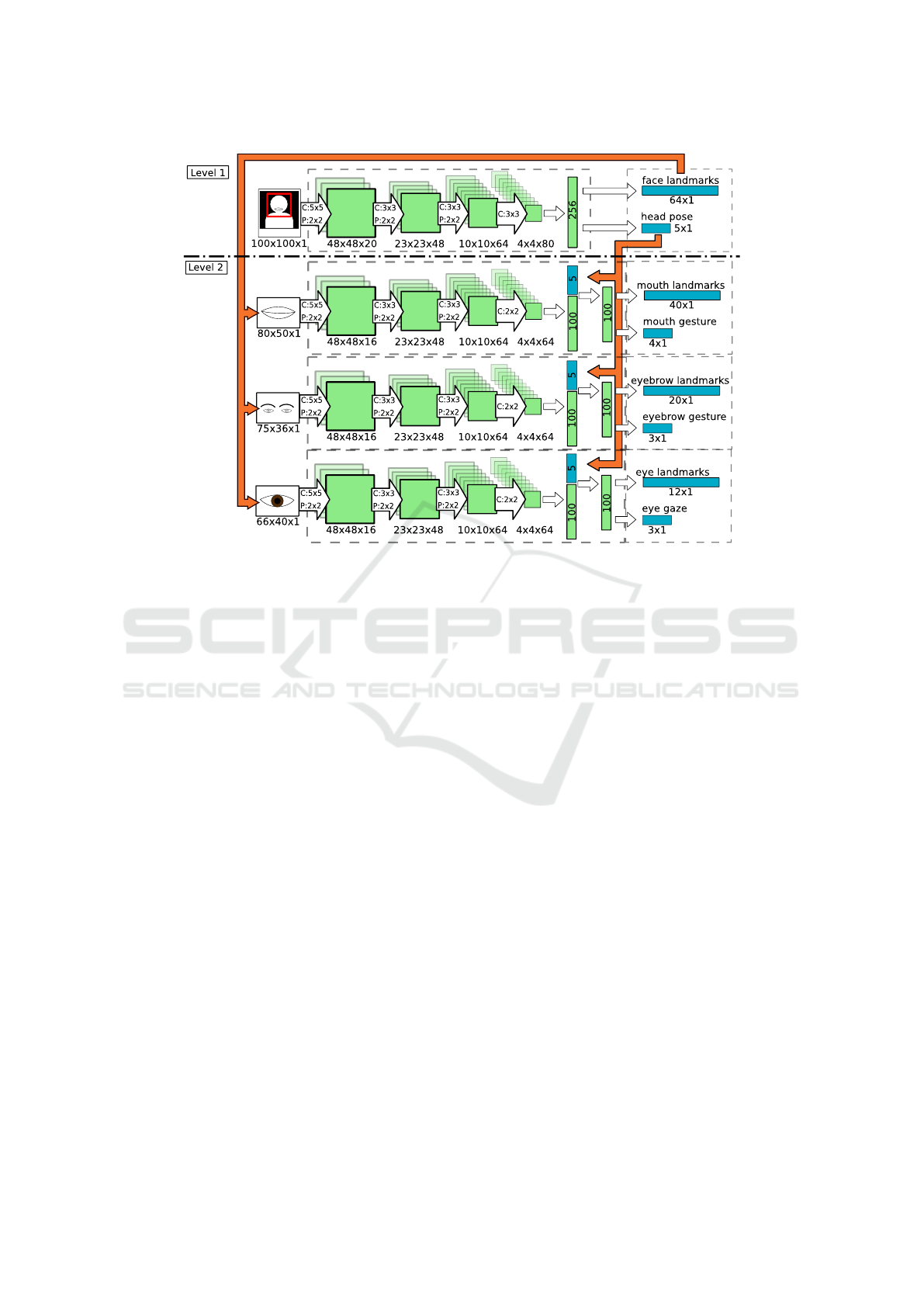

Figure 4: The neural network conﬁguration for the attribute estimation process. The ﬁrst row shows the network conﬁguration

for the ﬁrst estimation level, including the input and the output elements. The rows below show the network conﬁguration for

each estimation model in the second level. A single eye model estimates the eye attributes for both eyes, using symmetry to

estimate the attributes of the second eye. For each model, ’C’ represents the kernel size of the convolutional layer and the ’P’

represents the conﬁguration of the pooling layer.

els the class posterior probability. P combines all

orientation classes in a list of probabilities h =

{

, h

, ..., h

}

. Equation (2) shows the cross-entropy

loss function used for the head orientation error dur-

ing the training process for a list of A classes. In this

equation, h

i,a

represents the ground truth value of the

orientation class a for the image i.

H(h, I, W) = −

∑

i=1

∑

a=1

i,a

log(P(h

i,a

;W)) (2)

For the ﬁnal error function, we combine equations

(1) and (2) in a single expression to produce a com-

bined output. The ﬁnal loss function (3) includes a

regularisation term to penalise high layer weight val-

ues, similar to the function proposed in (Zhang et al.,

2014). To maintain the landmark estimation as the

primary task, the ﬁnal loss function includes a prior-

ity factor λ to manage the inﬂuence of the orientation

class estimation error in the learning process. We de-

ﬁne the λ value experimentally to correctly balance

the landmark and gesture estimations.

argmin

L(y, I, W) + λH(h, I, W) +

(3)

For models in level 2, the learning process fol-

lows a similar approach. However, the data used as

ground truth for the training of the models in level

2 needs to be generated using the model trained for

level 1. Thus, we processed the training dataset using

the model trained for level 1, storing the output data

for the posterior level 2 training phase.

For the mouth and eyebrow regions, each gesture

g gets a value in the range [0, 1], 1 being if the gesture

is present and 0 if the gesture is not present. For the

training process, it uses a loss function similar to (3)

to determine the gesture probability model.

The softmax function P models the class posterior

probability. To simplify the output and assuming that

the gestures in the training dataset are mutually exclu-

sive, it combines all gestures for a facial zone in a list

of gesture probabilities g =

{

, g

, ..., g

}

. For exam-

ple, for the gestures in the mouth region (smile, mouth

frown and kiss) the gesture probability distribution

would be g =



smile

, g

f rown

, g

kiss

, g

neutral



. The last

value (g

neutral

) deﬁnes the absence of any gesture,

having the value of 1 when none of the deﬁned ges-

tures is present. Equation (4) shows the cross-entropy

loss function used for the gesture error during the

training process for a list of B gestures (including the

neutral gesture). In this equation, g

i,b

represents the

ground-truth value of the gesture b for the image i.

G(g, I, W) = −

∑

i=1

∑

b=1

i,b

log(P(g

i,b

;W)) (4)

VISAPP 2021 - 16th International Conference on Computer Vision Theory and Applications

684

For the landmarks in the mouth and eyebrow re-

gions, the learning process uses the same loss func-

tion presented in Equation (1). Both loss functions

(L and G) are combined in a single expression (equa-

tion (5)) to produce a combined output. The equation

also includes the regularisation term and the balance

modiﬁer λ.

argmin

L(y, I, W) + λG(g, I, W) +

(5)

For the attributes in the eye region, the learning

process replaces the classiﬁcation loss function with a

regression function similar to that presented in Equa-

tion (1). In Equation (6), g is the model function, the

vector v

represents the ground truth values for the eye

gaze vector on image i, and v lists the eye gaze vector

values for all the images.

V (v, I, W) =

∑

i=1

− g(I

;W)

(6)

Similar to previous examples, the ﬁnal loss func-

tion for the eye region (Equation (7)) combines the

error of the landmarks and the eye gaze estimation,

with the additional λ factor to manage the inﬂuence

of the secondary task.

argmin

L(y, I, W) + λV (v, I, W) +

(7)

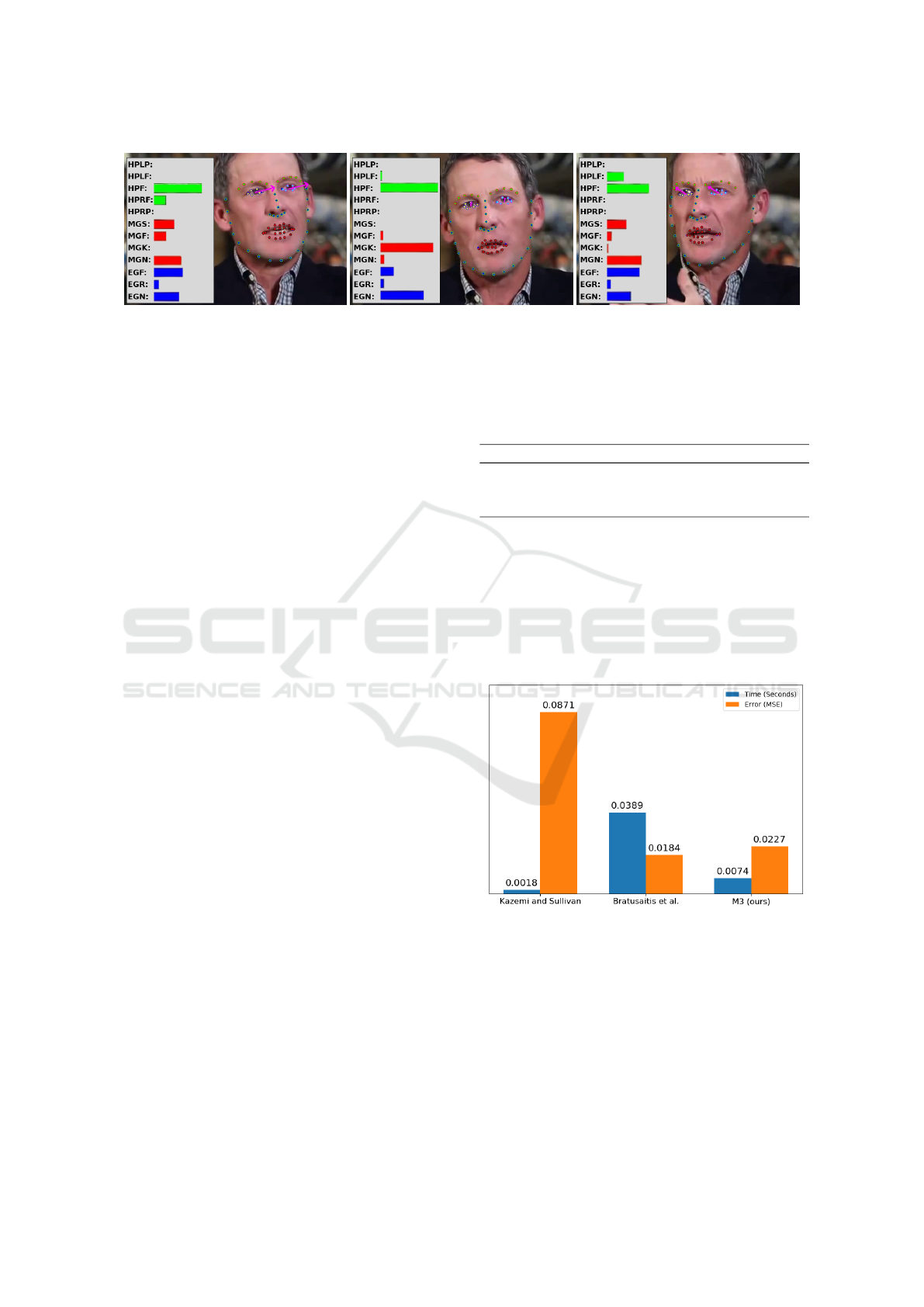

7 EXPERIMENTAL RESULTS

To evaluate the general performance of M3, this sec-

tion compares the computation time of its implemen-

tation with two real-time methods proposed in the

literature: (Kazemi and Sullivan, 2014) and (Bal-

tru

saitis et al., 2018). Although the method by (Bal-

tru

saitis et al., 2018) is also capable of estimating cer-

tain gestures, the experimental comparison focuses

only on the result of the main task, which is the ex-

traction of facial feature points.

The authors in (Kazemi and Sullivan, 2014) pro-

pose a fast landmark detection method, able to esti-

mate 68 face landmarks in a single millisecond. It

relies on linear regressors, using binary pixel compar-

isons as a feature.

The work presented in (Baltru

saitis et al., 2018)

combines the AU detector presented in (Baltru

saitis

et al., 2015) with efﬁcient methods to extract facial

feature landmarks (Zadeh et al., 2017), head orien-

tation estimation, and facial texture generation in a

single analysis tool.

7.1 Model Training

For the training phase, we used a subset of the im-

ages from the Multi-Task Facial Landmark (MTFL)

dataset presented in (Zhang et al., 2014). However,

we manually re-annotated the entire dataset with 68

facial landmarks, the gestures of the mouth (smile,

mouth frown and kiss) and the gestures of the eye-

brows (inner eyebrow raise and inner eyebrow frown).

First, we generated a mirrored copy of each image,

doubling the number of samples. Then, we used an

automatic landmark detection based on (Kazemi and

Sullivan, 2014) to get a ﬁrst estimation of the facial

landmarks. Finally, we manually checked the results

to discard the images with signiﬁcant landmark esti-

mation errors. The ﬁnal dataset had 18720 images in

total.

To increase the number of samples in the train-

ing dataset and increase the robustness of the estima-

tion in different image capture conditions, we aug-

mented the number of samples using different image

perturbations (e.g., random noise, afﬁne transforma-

tions and occlusions).

In addition, we balanced the dataset for the classi-

ﬁcation. Thus, the ﬁnal training dataset for each clas-

siﬁcation process (i.e., the models for level 1, eye-

brows and mouth) had the same number of samples

for each of the classes to classify. For example, for

the model in level 1, we generated a different number

of augmentation images so that the number of ﬁnal

samples was the same for each orientation. We fol-

lowed the same approach to create the training data

for mouth and eyebrow models in level 2.

For the eye regions, we used the samples created

using a synthetic eye image generator based on the

approach proposed in (Wood et al., 2016). It creates a

set of photo-realistic 3D eye renders, simulating eyes

from different persons by variations in shape, skin

colour and skin texture, among others. It also varies

the eye-gaze and the orientation of the head with re-

spect to the camera randomly.

7.2 Performance Comparison

For the comparison, we used a desktop PC to measure

the processing time of each method. The PC included

an Intel i5-9400F (@ 2.90GHz) as the main CPU, and

16 gigabytes of RAM, using an Ubuntu 18.04 as the

operating system. No hardware acceleration was used

in any of the cases.

The database used to make the comparison is the

one presented by (Sagonas et al., 2016). This database

includes 600 images of different resolutions annotated

manually with 68 facial feature points that include

Efﬁcient Multi-task based Facial Landmark and Gesture Detection in Monocular Images

685

Figure 5: Each image shows the estimated gesture probabilities as bars (left), the tracked facial feature points (dots) and the

estimated eye gaze vector (purple arrows). The gesture deﬁnitions are, from top to bottom, head pose left proﬁle (HPLP), head

pose left-front (HPLF), head pose front (HPF), head pose right-front (HPRF), head pose right proﬁle (HPRP), mouth gesture

smile (MGS), mouth gesture frown (MGF), mouth gesture kiss (MGK), mouth gesture neutral (MGN), eyebrow gesture frown

(EGF), eyebrow gesture raise (EGR) and eyebrow gesture neutral (EGN).

points for the eyes, eyebrows, nose, mouth and the

contour of the face. Since the three compared meth-

ods needed a facial region to initialise the estimation

process, the bounding boxes of the landmarks deﬁned

in the database were used as input for each evaluated

method.

The point detection error is the mean square error

(MSE) using the 68 points on the face and averaging

across all images in the dataset. We normalised the es-

timation of each image using the interocular distance.

This normalisation avoided biases caused by different

image sizes in the dataset.

The measurement of computing time in each case

included only the time necessary for the calculation

of the feature points, excluding any image handling

process (like loading or resizing processes) or the ini-

tialisation of the models.

7.3 Qualitative Results

During tracking, the method extracted the landmark

positions and gesture probabilities from the users

face. Figure 5 shows some examples of attributes ex-

tracted from a monocular video sequence.

Moreover, in the experiments using embedded de-

vices, the implementation reached real-time perfor-

mance (> 25 fps) using the embedded camera as im-

age source. The hardware used for the experiments

was the Iphone SE, which has an A9 (ARMv8-A dual-

core @ 1.85 GHz) central processor.

7.4 Quantitative Results

Taking all this into account, Table 1 presents the data

extracted from the comparison. The table includes the

landmark estimation error and the average time for

their calculation.

The method proposed in (Baltru

saitis et al., 2018)

is more accurate than the other methods, but the com-

putation time is also signiﬁcantly higher. In the case

Table 1: Results of the landmark estimation time measure-

ment.

Method MSE Seconds

(Kazemi and Sullivan, 2014) 0.0872 0.0018

(Baltru

saitis et al., 2018) 0.0184 0.0389

M3 (Ours) 0.0227 0.0074

of (Kazemi and Sullivan, 2014), it estimates the fea-

ture points very efﬁciently, but at the cost of signiﬁ-

cantly higher error.

To see the relationship between the MSE and the

computation time, Figure 6 shows the values in a vi-

sual representation. The image shows how the pro-

posed method improves the CPU time and error com-

pared to the other two.

Figure 6: Visual representation of the MSE and time values

for (Kazemi and Sullivan, 2014), (Baltru

saitis et al., 2018)

and the proposed method (M3).

M3 presents a better balance between computa-

tional load and precision, extracting data from the

face gesture in the process.

VISAPP 2021 - 16th International Conference on Computer Vision Theory and Applications

686

8 CONCLUSIONS

This study presents a computationally efﬁcient

method to estimate the facial feature points as well

as several additional attributes (i.e., head orientation,

facial gestures and eye gaze orientation) in a single

computation.

The experimental section shows that even if meth-

ods like (Baltru

saitis et al., 2018) have more accu-

rate landmark estimation and real-time performance,

our method uses signiﬁcantly fewer resources (∼81%

faster) with a less signiﬁcant accuracy loss (∼23%).

Considering hardware with computational con-

straints, and the results of the experiments as a ref-

erence, the proposed method maintains real-time per-

formance even on smartphones with ARM architec-

ture like the IphoneSE. Thus, it allows the integration

of real-time face tracking and analysis systems into

several types of constrained devices.

REFERENCES

Aneja, D., Colburn, A., Faigin, G., Shapiro, L., and Mones,

B. (2017). Modeling Stylized Character Expressions

via Deep Learning. In Lai, S.-H., Lepetit, V., Nishino,

K., and Sato, Y., editors, Computer Vision ACCV

2016, volume 1, pages 136—-153. Springer Interna-

tional Publishing.

Baltru

saitis, T., Mahmoud, M., and Robinson, P. (2015).

Cross-dataset learning and person-speciﬁc normalisa-

tion for automatic Action Unit detection. In Interna-

tional Conference and Workshops on Automatic Face

and Gesture Recognition (FG), pages 1–6. IEEE.

Baltru

saitis, T., Zadeh, A., Lim, Y. C., and Morency,

L. P. (2018). OpenFace 2.0: Facial behavior analy-

sis toolkit. In Proceedings - 13th IEEE International

Conference on Automatic Face and Gesture Recogni-

tion, FG 2018. IEEE.

Cao, C., Wu, H., Weng, Y., Shao, T., and Zhou, K. (2016).

Real-time facial animation with image-based dynamic

avatars. ACM Transactions on Graphics, 35(4):1–12.

Ekman, P., Friesen, W. V., and Hager, H. (2002). Facial

action coding system. Investigator’s Guide. Salt Lake

City.

Jain, N., Kumar, S., Kumar, A., Shamsolmoali, P., and

Zareapoor, M. (2018). Hybrid deep neural networks

for face emotion recognition. Pattern Recognition Let-

ters, 115:101 – 106. Multimodal Fusion for Pattern

Recognition.

Jin, X. and Tan, X. (2017). Face alignment in-the-wild: A

Survey. Computer Vision and Image Understanding,

162:1–22.

Kazemi, V. and Sullivan, J. (2014). One Millisecond Face

Alignment with an Ensemble of Regression Trees.

Computer Vision and Pattern Recognition (CVPR).

Li, W., Abtahi, F., and Zhu, Z. (2017). Action unit de-

tection with region adaptation, multi-labeling learning

and optimal temporal fusing. Proceedings - 30th IEEE

Conference on Computer Vision and Pattern Recogni-

tion, CVPR 2017, 2017-Janua:6766–6775.

Pons, G. and Masip, D. (2018). Multi-task, multi-label

and multi-domain learning with residual convolu-

tional networks for emotion recognition. CoRR.

Ranjan, A., Bolkart, T., Sanyal, S., and Black, M. J. (2018).

Generating 3d faces using convolutional mesh autoen-

coders. In Ferrari, V., Hebert, M., Sminchisescu, C.,

and Weiss, Y., editors, European Conference on Com-

puter Vision (ECCV), pages 725–741, Cham. Springer

International Publishing.

Rathee, N. and Ganotra, D. (2018). An efﬁcient approach

for facial action unit intensity detection using distance

metric learning based on cosine similarity. Signal, Im-

age and Video Processing, 12(6):1141–1148.

Ren, S., Cao, X., Wei, Y., and Sun, J. (2014). Face align-

ment at 3000 FPS via regressing local binary features.

Proceedings of the IEEE Computer Society Confer-

ence on Computer Vision and Pattern Recognition,

1(1):1685–1692.

Sagonas, C., Antonakos, E., Tzimiropoulos, G., Zafeiriou,

S., and Pantic, M. (2016). 300 faces In-the-wild chal-

lenge: Database and results. Image and Vision Com-

puting, 47:3–18.

Sanchez-Lozano, E., Tzimiropoulos, G., and Valstar, M.

(2018). Joint Action Unit localisation and intensity es-

timation through heatmap regression. In BMVC, pages

1–12.

Saragih, J. M., Lucey, S., and Cohn, J. F. (2009). Face

alignment through subspace constrained mean-shifts.

In IEEE 12th International Conference on Computer

Vision, pages 1034–1041.

Shao, Z., Liu, Z., Cai, J., and Ma, L. (2018). Deep Adaptive

Attention for Joint Facial Action Unit Detection and

Face Alignment. ArXiv.

Wood, E., Baltru

saitis, T., Morency, L.-P., Robinson, P., and

Bulling, A. (2016). Learning an appearance-based

gaze estimator from one million synthesised images.

In Proceedings of the Ninth Biennial ACM Symposium

on Eye Tracking Research & Applications, pages 131–

138.

Wu, Y. and Ji, Q. (2018). Facial Landmark Detection: a

Literature Survey. International Journal of Computer

Vision.

Zadeh, A., Baltru

saitis, T., and Morency, L. P. (2017). Con-

volutional Experts Constrained Local Model for Fa-

cial Landmark Detection. In IEEE Computer Society

Conference on Computer Vision and Pattern Recogni-

tion Workshops, volume 2017-July, pages 2051–2059.

IEEE.

Zhang, Z., Luo, P., Loy, C. C., and Tang, X. (2014). Fa-

cial landmark detection by deep multi-task learning.

In European Conference on Computer Vision (ECCV),

pages 94–108. Springer International Publishing.

Efﬁcient Multi-task based Facial Landmark and Gesture Detection in Monocular Images

687
