Effects of Emotion-induction Words on Memory of
Viewing Visual Stimuli with Audio Guide
Mashiho Murakami
1
, Motoki Shino
1
, Katsuko T. Nakahira
2 a
and Muneo Kitajima
2 b
1
Department of Human & Engineered Environmental Studies, The University of Tokyo,
Kashiwanoha, Kashiwa, Chiba, Japan
2
Department of Information & Management Systems Engineering,
Nagaoka University of Technology, Nagaoka, Niigata, Japan
Keywords:
Memory, Audio Guide, Emotion, Omnidirectional Watching, Information Acquisition, Cognitive Model.
Abstract:
The goal of this paper is to examine the possibility of using emotion-induction words in audio guide for
the learning of visual contents by extending the study that focused on the provision timings of visual and
auditory information (Hirabayashi et al., 2020). Thirty emotion-induction words were extracted from the
database and categorized into positive, negative, and neutral words. Three experiments were carried out.
The first experiment was conducted to confirm the reliability of the emotional values. The result showed a
good consistency between the values on the database and the ratings given by the participants. The second
experiment was for examining whether the consistency is maintained if the words appeared in sentences. The
result confirmed the expectation but showed larger individual differences compared with the first experiment.
The third experiment was conducted to examine the effect of emotion-induction words used in audio guide for
explaining the visual contents on memory. The results showed that the participants who were exposed to the
positive and negative emotion-induction words, remembered the content better than those who were presented
with neutral triggers. Through the three experiments, the emotion value of the neutral words were found to be
sensitive to the context in which they were embedded, which was confirmed by observing the changes of pupil
diameter. Suggestions for designing audio and visual contents by using emotion-induction words for better
memory are provided.
1 INTRODUCTION
Effect of an excess of information on human beings’
cognitive processes has been pointed out in a vari-
ety of contexts. Simon suggested that an excess of
information should cause lack of attention (Simon,
1971). Bitgood focused on the way museum visi-
tors were able to learn given the excess of informa-
tion they were presented with, pointing out “Dur-
ing museum visits, learners may fail to understand
the exhibits deeply because of the abundance of ex-
hibits and time limitations leading to information
overload” (Bitgood, 2002). As the development of
ICT, the amount of information that can transmit from
the artifacts to human beings continues to increase.
On the other hand, human beings, who receive the in-
formation, are equipped with limited perceptual and
cognitive capabilities for processing the rich informa-
a
https://orcid.org/0000-0001-9370-8443
b
https://orcid.org/0000-0002-0310-2796
tion. As described above, the excess of information
would cause undesirable effect on human beings such
as lack of attention, fatigue, and ineffective learning.
In order to balance the excess of information with hu-
man perceptual and cognitive capabilities, Pierdicca
et al. proposed the methodologies that enable the
use of both novel IoT architectures and suitable al-
gorithms to derive indicators concerning visitor atten-
tion with a significant degree of confidence in the con-
cept of “ubiquitous museum” (Pierdicca et al., 2019).
Lifelong learning has become an important part of
our daily life and visiting museum is considered as a
typical method for it. The development of ICT has
changed the style of exhibition toward the direction
of information excess. The more information trans-
mitted from the exhibit does not necessarily mean the
more knowledge the viewer acquires due to the prob-
lems involved in information excess. In the infor-
mation excess, learning methods should be designed
considering human perceptual and cognitive capabili-
ties.
Murakami, M., Shino, M., Nakahira, K. and Kitajima, M.
Effects of Emotion-induction Words on Memory of Viewing Visual Stimuli with Audio Guide.
DOI: 10.5220/0010348800890100
In Proceedings of the 16th International Joint Conference on Computer Vision, Imaging and Computer Graphics Theory and Applications (VISIGRAPP 2021) - Volume 2: HUCAPP, pages
89-100
ISBN: 978-989-758-488-6
Copyright
c
 2021 by SCITEPRESS – Science and Technology Publications, Lda. All rights reserved
89

In the context of lifelong learning, the knowledge
that is acquired while appreciating exhibits in mu-
seum visit has to be remembered. Hirabayashi et
al. took omnidirectional movie as an example of ex-
hibition that utilizes the modern advanced technolo-
gies and examined the effect of auditory information
presentation timings on memory (Hirabayashi et al.,
2020). Their idea was that a stronger memory would
result if an auditory information for a particular ob-
ject is provided after having the viewer attend to it,
which is projected on the surface of the dome. For
directing the viewer’s eyeballs to the object to be ex-
plained, they used the appearance of the object to be
announced as a part of the audio guide (appearance in-
formation). The information for explaining the object
(contents information), which is not directly accessi-
ble from the appearance of the object, was provided
as audio guide after the appearance information us-
ing a variety of intervals. They found experimentally
that the intervals of 2 ∼ 3 seconds was most effec-
tive for creating memory of the object. They argued
that, in the best presentation interval condition, the vi-
sual process and the auditory process that are carried
out for comprehending the object should have jointly
activated part of long-term memory to generate most
richly connected network.
This paper extends Hirabayashi et al.’s study by
shifting the focus the research from the richness of
the network connection to the contents of the richly
connected network. The idea is to strengthen the con-
stituent nodes by manipulating the words used in the
audio guide while maintaining the topology of the
network generated by processing visual and auditory
information by using the best interval of 2 ∼ 3 sec-
onds between the timings of provision of appearance
information and content information. Namely, on the
assumption that generation of richly connected mem-
ory network is assured by the best interval condition,
this paper investigates the possibility of making the
network stronger in terms of the total amount of ac-
tivation the network holds by manipulating the con-
crete words used in the contents information.
For this purpose, this paper utilizes the finding that
emotion enhances episodic memory by strengthening
the constituent nodes. Deborah et al. (Talmi et al.,
2019) proposed an extension of the Context Main-
tenance and Retrieval Model (CMR) (Polyn et al.,
2009), eCMR, to explain the way people may repre-
sent and process emotional information. The eCMR
model assumes that a word associated with emo-
tion, e.g., spider, is encoded with its emotional state
in working memory (they called it “context layer”)
and the presented emotional word establishes stronger
link than neutral words. This paper realizes the same
effect operationally by attaching a larger strength to
the emotional node in the network and examines
the effect of emotion-induction words used in audio
guide on memory of movie viewing experience. It
is likely that viewers’ reaction to emotion-induction
words may reflect their personal experience or knowl-
edge. Therefore, this paper also utilizes the finding
that pupil dilation reflects the time course of emotion
recognition (Oliva and Pupil, 2018; Henderson et al.,
2018; Partala and Surakka, 2003) to gather the evi-
dence that the manipulation of emotion induction is
successful.
This paper is organized as follows. Section 2 de-
scribes cognitive framework that shows the effect of
timings and contents of audio guide on memory. Sec-
tion 3 describes three experiments that investigate the
effect of emotion-induction words on memory. The
first one is for examining the participants response to
emotion-induction words, the second one is for sen-
tences with emotion-induction words, and the last one
is to measuring memory for movie with positive, neg-
ative, and neutral emotion-induction words. The fol-
lowing sections, Section 4 and Section 5, provide the
results of the experiments and discusses them from
the viewpoint of pupil diameter changes.
2 INTEGRATION OF VISUAL
INFORMATION AND
AUDITORY INFORMATION
Hirabayashi et al. studied the importance of
timing of providing auditory information while
watching movies to make the experience memo-
rable (Hirabayashi et al., 2020). This paper extends
their findings, i.e., effective provision timing of audi-
tory information for memory formation, by focusing
on the effect of emotion-induction words in the au-
ditory information. This section outlines Hirabayashi
et al.’s model that explains the effective timing audi-
tory information while processing visual information
along with necessary modifications for dealing with
the effect of emotion-induction words in auditory in-
formation. Starting from the introduction of cognitive
model of memory formation, this section discusses
why it is essential to take timings into account.
2.1 Memory Formation by Integrating
Visual and Auditory Information
Figure 1 illustrates the perceptual and cognitive pro-
cesses while acquiring visual information with the
support of an audio guide, incorporating the find-
HUCAPP 2021 - 5th International Conference on Human Computer Interaction Theory and Applications
90

Movie
Exhibit
Audio guide
Narration
Visual
SENSORY
MEMORY
I
V
Auditory
I
A
SENSORY
INFORMATION
FILTER
LONG-TERM MEMORY
I
1
(t
1
), τ
1
I
2
(t
2
), τ
2
WORKING MEMORY
Chunk i
Chunk f
Chunk l
Chunk j
Chunk k
Chunk e
t
1
< t
i
< t
j
t
2
< t
k
< t
l
Integration
h(t
i
)
τ
j
h(t
k
)
h(t
l
)
h(t
j
)
τ
i
τ
k
τ
l
Figure 1: A cognitive model on memory formation.
duration time
t
1
+ τ
1
t
2
+ τ
2
t
i
+ τ
i
t
j
+ τ
j
t
k
+ τ
k
t
l
+ τ
l
Information 1
Information 2
h
i
h
j
h
k
h
l
Amount of
Information
Activated
memory
Activated
memory
t
1
t
i
t
j
t
2
t
k
t
l
Incl. Emotion Induction Words
Figure 2: Timeline of memory activation.
ing concerning effective timing of provision of audio
guide (Hirabayashi et al., 2020).
In Figure 1, visual information and auditory infor-
mation are represented as “movie exhibit” and “au-
dio guide narration”, respectively. Consider the situ-
ation where visual and auditory stimuli that have the
amount of information of I
V
and I
A
are fed into sen-
sory memory, respectively. Part of the information
stored in the sensory memory, I
V
and I
A
, is passed to
working memory (WM) via the sensory information
filter as I
1
and I
2
at the time t
1
and t
2
, respectively.
This paper assumes that ∆t = t
2
− t
1
≈ 2 ∼ 3 sec-
onds following Hirabayashi et al.’s finding that their
participants showed the best performance of memory
for the movie exhibit when auditory information was
provided 2 ∼ 3 seconds after the corresponding visual
information was provided. Visual information I
1
(t
1
)
and auditory information I
2
(t
2
) are present in WM for
the duration time of τ
1
and τ
2
, respectively.
The visual information and auditory information
in WM activate part of long-term memory (LTM) via
a resonance mechanism (Kitajima and Toyota, 2013).
The activated portion of LTM is incorporated in WM,
which serves as the next source of activation as long
as it exists in WM. In this paper, WM is considered as
activated portion of LTM, which is called Long-Term
Working Memory (Ericsson and Kintsch, 1995). This
process is expressed as follows:
Only Visual Information Is Available (t
1
≤ t < t
2
).
1. Visual information I
1
is stored in WM at t
1
, which
is present in WM for the duration time of τ
1
.
2. At t = t
i
(> t
1
), a chunk in LTM C
i
is activated by
the current contents of WM.
3. The activated chunk C
i
is incorporated into WM.
The information thus incorporated in WM at t
i
is
denoted as h(t
i
).
4. h(t
i
) is present in WM for the duration time of τ
i
.
5. During the overlapping period of (t
1
,t
1
+ τ
1
) and
(t
i
,t
i
+ τ
i
), I
1
and h(t
i
) serve as the WM contents
to activate LTM further. In Figure 1, the chunk C
j
is activated at t
j
and incorporated in WM as h(t
j
)
with the lifetime of τ
j
Auditory Information Is Available (t ≥ t
2
).
1. Auditory information I
2
is stored in WM at t
2
,
which is present in WM for the duration time of
τ
2
.
2. At t = t
k
(> t
2
), a chunk in LTM C
k
is activated by
the current contents of WM.
3. The activated chunk C
k
is incorporated into WM
as h(t
k
) with the lifetime of τ
k
.
Effects of Emotion-induction Words on Memory of Viewing Visual Stimuli with Audio Guide
91

4. During the overlapping period of (t
2
,t
1
+ τ
2
) and
(t
k
,t
k
+τ
k
), I
2
and h(t
k
) serve as the WM contents
to activate LTM further. The chunk C
l
is activated
at t
l
and incorporated in WM as h(t
l
) with the life-
time of τ
l
As these processes proceed, the visual informa-
tion I
1
at t
1
and the auditory information I
2
at t
2
are elaborated through the cascade of activation of
chunks in LTM using the dynamically updated con-
tents of WM. The activated chunks are then integrated
to make sense of the visual information and the audi-
tory information. In text comprehension research in
cognitive psychology, these processes are modeled as
the Construction-Integration process (Kintsch, 1998;
Kintsch, 1988).
Figure 2 schematically shows the process how the
visual information provided at t
1
collects information
in LTM by activating relevant chunks at t
i
and t
j
. The
vertical axis represents the number of chunks incorpo-
rated in WM. At t = t
2
, where t
1
< t
2
< t
1
+ τ
1
, audi-
tory information is incorporated in WM, and collects
information in LTM by activating relevant chunks at
t
k
and t
l
. The information originated from the visual
information and the auditory information are repre-
sented as red rectangles and blue rectangles, respec-
tively. The number of information is the largest be-
tween the time t
k
< t < t
1
+ τ
1
= t
i
+ τ
i
. It is five,
three and two originated from visual and auditory in-
formation, respectively.
Assuming that the auditory information provided
after the provision of visual information should be
used for helping the viewers comprehend the movie
better, the overlapping part of the diagram should di-
rect to the common areas of the memory network in
LTM. Hirabatashi et al. (Hirabayashi et al., 2020) ex-
amined how the intervals between the provision of
visual information and auditory information should
affect the number of links that could be established
through these processes. Through these processes,
the activated chunks establish links with the existing
memory networks and as a result, it is memorized.
Figure 2 is the best timing for creating a richly
connected network for better memory. If t
2
− t
1
gets
longer or shorter, the area of overlap of the read
area and the blue area becomes smaller than the case
shown by Figure 2. Therefore, not only the input in-
formation itself but also the other pieces of informa-
tion that is available at the same time plays an impor-
tant role in how memorable the input information is.
Even if the same pieces of information are presented,
if the pieces of information are perceived in different
timings, it directly affects the quantity of information
available for integration and organization of the ac-
quired information.
2.2 Emotion-induction Words for Better
Memory
This paper examines the possibility of the effect of
the overlapping part of Figure 2 by using emotion-
induction words in the auditory information. In Fig-
ure 2, the blue part that corresponds to the audi-
tory information is represented by different color val-
ues which corresponds the strength of the activated
chunks.
According to the theory of cognition, Adaptive
Control of Thought - Rational (ACT-R) (Anderson
and Lebiere, 1998), the more strong the chunk be-
comes, the more probable the chunk is retrieved. In
ACT-R, the activation level of the i-th chunk, A
i
, is
defined by the following equation:
A
i
= B
i
+
N
∑
j=1
W
ji
× A
j
.
In this equation, B
i
, W
ji
, and N denote the base level
activation of the chunk C
i
, the strength of the link
between C
j
and C
i
(from j to i),and the number of
chunks that are connected to the chunk C
i
. The base
level activation decays overtime. But it gets larger
when the chunk is used, or activated. This paper as-
sumes that emotion-induction words should activate
stronger chunks than emotionally neutral words. Fig-
ure 2 depicts the situation where the auditory informa-
tion contains emotion-induction words and stronger
chunks are activated and incorporated in WM. This
should cause stronger memory trace than neutral
words are used in the auditory information.
3 THREE EXPERIMENTS FOR
INVESTIGATING EFFECTS OF
EMOTION-INDUCTION
WORDS
Three experiments were conducted to understand the
relationships between emotion-induction words and
memory when watching movie. Figure 3 outlines the
relationships between the experiments. The first ex-
periment (Word Impression Evaluation Experiment,
Exp-W) was conducted to confirm the reliability of
the emotional values. The second experiment (Sen-
tence Impression Evaluation Experiment, Exp-S) was
for examining whether the consistency is maintained
if the words appeared in sentences. The third exper-
iment (Video Appreciation Experiment, Exp-V) was
conducted to examine the effect of emotion-induction
words used in audio guide for explaining visual con-
tents on memory. Thirty participants took part in all
HUCAPP 2021 - 5th International Conference on Human Computer Interaction Theory and Applications
92

Experiment 1 : Word Impression Evaluation
Experiment 2 : Sentence Impression
Evaluation
Experiment 3 : Video Appreciation
purpose
confirming participants’ characteristic for affective
value and check the discrepancy between affective
value DB and participants’ feature
confirm emotion
-induction words effects for one
sentence
find out the role of emotion
-induction words in the
viewpoint of memory
content
word
sentence
movie
conditions
participant’s PC at their home
PC at laboratory
display and speaker at laboratory
measuring
data
impression evaluation
impression evaluation and pupil diameter
impression evaluation, pupil diameter, and
memory test
stimuli
visual
audio
visual + audio
stimuli control
by participant
by participant
by operator
stimuli
outline
how to
response
mouse click
mouse click
Impression : oral communication
Memory : after video watching, write
-down
貢献
○Not Agree ・・・・・・ ○Agree
○Not Agree ・・・・・・ ○Agree
*”貢献(ko-ken)”
means contribution.
……ko-ken shita
……Koreha Re-ganbashi….
Figure 3: The outline of three experiments flow.
experiments. They first participated in Exp-S and
Exp-V consecutively scheduled on a single day in the
laboratory. After an interval of about 10 days, they
participated in Exp-W on their own PC’s. Different
sets of induction words were used in Exp-S and Exp-
V. Exp-W was conducted after Exp-S and Exp-V for
the purpose of checking the appropriateness of the
emotion-induction words used in the sentences and
audio guides presented in Exp-S and Exp-V.
3.1 Measurement Data
Impression Rating. In this study, emotion-
induction words were used to investigate the
influence of emotion on memory. All of them were
taken from the database (Gotoh and Ohta, 2001)
being created as the following way: 618 participants
were asked to rate their impressions to the presented
words by using a 7-point Likert scale as follows:
that were “very positive,” “positive,” “somewhat
positive,” “neither,” “somewhat negative,” “negative,”
and “very negative,” After the rating experiment, a
database of 389 words consisting of 122 negative,
146 positive, and 121 neutral valence words were
constructed.
In this study, impression ratings were collected
for words in Exp-W, sentences in Exp-S, and videos
in Exp-V. The options for rating included the ones
used for constructing the above-mentioned database
and a new option, “I cannot catch the mean of this
word/sentence/video.” The last one was added con-
sidering the possibility of not knowing the word or
not being able to get the meaning of the sentence.
Pupil Diameter. It is known that pupil diameter di-
lates when emotions move (Oliva and Pupil, 2018;
Henderson et al., 2018; Partala and Surakka, 2003).
From this reason, the participants’ pupil diameters
were measured in Exp-S and Exp-V. Tobii Pro2 with
the sampling rate of 50 Hz was used as the equipment.
Memory. Memory was measured in Exp-V. A ques-
tionnaire was conducted to investigate the infor-
mation that participants memorized when viewing
movies. Since the questionnaire was conducted soon
after viewing the movie, a recall test was chosen. To
make the quantitative evaluation of memory, the re-
sponses from the participants were broken down to
meaningful units using a morphological analysis tech-
nique. They were scored from the quantitative and
qualitative perspectives, by giving special points to
those units related to the targets and the narrative con-
tents spoken in the audio guides (one point was given
to a noun or a verb, two points to a pronoun). Those
points were summed up to define “Memory Score.”
Table 1 shows an example of the responses from Exp-
V and the calculated Memory Score.
Effects of Emotion-induction Words on Memory of Viewing Visual Stimuli with Audio Guide
93

Table 1: Examples of Memory Score (n/v:noun or verb, pn:
pronoun, MS: Memory Score (points)).
Response n/v pn MS
Statue 1 0 1
Statue of Messenger 0 1 2
replica of Statue of Messenger 1 1 3
Statue of Messenger was
2 1 4
given as a proof of friendship
3.2 Word Impression Evaluation
Experiment (Exp-W)
The purpose of Exp-W was to confirm that there
was no discrepancy between the emotional value of
the two-character words in the Japanese language in
the database and the evaluations of the participants.
Thirty participants evaluated their impressions of the
words displayed on their own PC’s by using the 7-
point Likert scale. The number of words was thirty.
Considering the order effect on evaluation, multi-
ple patterns were randomly created, and experiments
were conducted on 5 patterns for thirty words.
3.3 Sentence Impression Evaluation
Experiment (Exp-S)
The purpose of Exp-S was to confirm that emotion-
induction words affect emotion even when they are
presented in sentence. The procedure was exactly the
same as Exp-W except for the stimuli were sentences
instead of words and presented in audio, and the loca-
tion of the experiment.
The number of sentences was thirty and they were
randomly presented as Exp-W in the laboratory using
a laptop computer with a 13-inch display. The partic-
ipants operated the touch pad of the laptop computer.
Ten negative words, ten positive words, and ten neu-
tral words were extracted from the database. Each
sentence was a single sentence containing one of the
extracted word. Each sentence was a single sentence
lasting about 3-5 seconds, and was broadcast twice,
read out loud by the same person in succession. The
break between the two was clear. The participants lis-
tened to the thirty sentences and evaluated their im-
pressions. The sentences were not shown visually on
the display.
3.4 Video Appreciation Experiment
(Exp-V)
Exp-V was performed in an appreciation environment
similar to learning at a social education institution.
Thirty participants took part in the experiments and
Table 2: Three presentation patterns for audio guides of
three movies that contain positive, negative, and neutral
emotion-induction words.
Pattern Movie 1 Movie 2 Movie 3
1 Neutral Positive Negative
2 Negative Neutral Positive
3 Positive Negative Neutral
no one had visual or health problem on taking the
experiment. They watched three movies consecu-
tively and evaluated impression of each movie using
the 7-point Likert scale. Each movie was provided
with audio guide that contained a few number of pos-
itive, negative, or neutral words extracted from the
database. Memory test was conducted immediately
after the viewing the movies by having the partici-
pants write anything they remembered. In Exp-V, bi-
ological information was collected as well as a poten-
tial objective indicator that should reflect the effect of
emotion-induction words on the psychological states
of the participants.
Exp-V was conducted in the laboratory. The par-
ticipants operated the touch pad of the laptop com-
puter. The participants evaluated their impressions of
the sentences in the same way as Exp-W after watch-
ing three movies. Three patterns were considered for
the presentation order of positive, negative, and neu-
tral audio guide as shown in Table 2.
Visual and Auditory Stimuli: Three movies were
prepared. Each movie had a respective audio guide
with one of the three conditions of attributes of
emotion-induction words. The movies showed the
landscape taken from a slow-paced boat going down
the Sumida River in Tokyo. A movie taken from a
slow-paced boat was chosen as a stimulus for this ex-
periment because it is likely to contain scenes or tar-
gets that satisfy the following conditions:
1. The target in the movie should move in a slow
pace. This condition was needed to make the
target appear and stay in the field of view long
enough for a viewer to take needed visual infor-
mation of the target object.
2. The target should not be easy to notice without
a guidance. This condition was needed to refrain
viewers from paying attention to the target before-
hand and to see the effect of audio guide clearly.
3. Scenes should contain many objects to look at
throughout the movie. This condition was needed
to simulate the situations where audio guide is in
need.
HUCAPP 2021 - 5th International Conference on Human Computer Interaction Theory and Applications
94

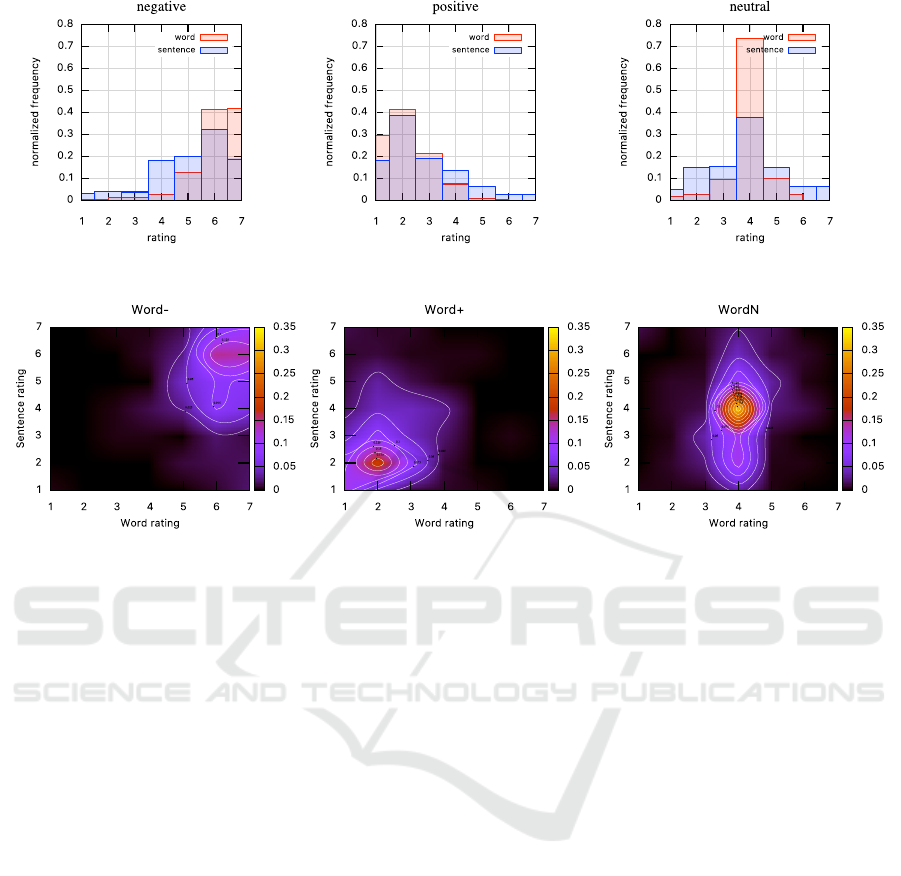

Figure 4: Upper three graphs : frequency of ratings for “word” and “sentence”. Left side is for negative, middle is for positive,
right is for neutral mode.Lower three graphs : probability distributions for “word” versus “sentence”. Word − is for negative,
Word + is for positive, and WordN is for neutral.
Experiment System. Viewing behavior including
pupil diameter was recorded using a wearable eye
tracker (Tobii Pro Glasses 2) at a sampling rate of 50
Hz. The experiment was carried out with one partici-
pant at a time. The participants were seated on a chair
and their head positions were located approximately
0.8 meters from the display.
Procedure. Before viewing the movie, participants
were told to make themselves comfortable and to
view the movie freely in order to simulate the actual
viewing behavior. Each movie was approximately
one minute long, and intervals were inserted between
the movies. Considering the order effect, each partic-
ipant was presented with a randomly chosen pattern
from the three shown in Table 2. After the partici-
pants finished viewing the movies, they were asked to
complete the questionnaire.
4 RESULT
This section starts by showing the results of Exp-W
and Exp-S concerning impression evaluation of words
that appeared in isolation and in context. It is fol-
lowed by the results of Exp-V concerning memory
score for the movies that used positive, negative and
neutral emotion-induction words.
4.1 Impression of Emotion-induction
Words
In the top half of Figure 4, normalized frequency in
Exp-W and Exp-S are shown. At a single glance, the
ratings for emotion-induction words that appeared in
isolation or in sentence were consistent irrespective of
the nature of the words, i.e., positive, negative, or neu-
tral. For the negative words, the mode of the ratings
for the negative words in isolation and in sentence was
6, that for the positive words was 2, and that for the
neutral words was 4.
The results shown by histograms are further de-
composed by focusing on the ratings for individual
words. Each word was rated in isolation and in sen-
tence. The bottom half of Figure 4 shows the nor-
malized frequency of the data points of the two di-
mensional space, i.e., rating of word in isolation vs.
rating of word in sentence. The number of data
points is 300 (10 words by 30 participants) for neg-
ative, positive, and neutral conditions. As shown
in the figures, the ratings for the emotion-induction
words were consistent whether they were rated in iso-
lation or in sentence in general. However, the neutral
Effects of Emotion-induction Words on Memory of Viewing Visual Stimuli with Audio Guide
95

0
1
2
3
4
5
6
7
8
Word- Word+ WordN
(a)
rating
0
1
2
3
4
5
6
7
8
S- S+ S-N
(b)
rating
0
1
2
3
4
5
6
7
8
C- C+ C-N
(c)
rating
(a) (b) (c)
*
*
*
*
*
*
*
*
Figure 5: Box-plots of ratings for (a) emotion-induction
words in Exp-W, (b) sentences that emotion-induction
words are embedded in Exp-S, and (c) visual contents with
audio that includes emotion-induction words in Exp-V. The
signs ‘+’, ‘-’, and ‘N’ stand for ‘positive’, ‘negative’, and
‘neutral’, respectively.
emotion-induction words showed a significant differ-
ence in terms of the degree of variance in the sen-
tence rating, as shown by the bottom-right plot in
Figure 4. This indicates that the neutral emotion-
induction words were rated as neutral when they were
presented as single words in isolation but the rating
of emotion value had fluctuated when they were pre-
sented in sentence. This suggests that the neutral
emotion-induction words cannot be emotionally neu-
tral when they appear in sentence.
Box-plots of the ratings for the emotion-induction
words, the sentences that the emotion-induction
words are embedded, and the visual contents with
audio that includes the emotion-induction words are
shown in Figure 5 (a), (b) and (c). The ratings were
significantly different across conditions, i.e., positive,
negative, and neutral except for the ratings between
neutral and positive emotion-induction words in Exp-
V. More specifically, by comparing the results of Exp-
V shown in Figure 5 (c) with the results of Exp-W
and Exp-S, it is found that only in negative condi-
tion, the impression ratings were in accordance with
the attributes of the emotion-induction words, and the
impression ratings for the positive and neutral con-
ditions were not consistent with the attributes of the
emotion-induction words. The ratings for the positive
condition in Exp-V shifted to the region of neutral im-
pression, and those for the neutral condition shifted to
the region of positive impression. This observation is
consistent with the result shown by the bottom-right
plot in Figure 4. It is likely that the ratings of emo-
tion value had fluctuated when the emotion-induction
words were presented in context.
-3
-2
-1
0
1
2
3
C- C+ C-N
rating
Figure 6: Memory scores for the three movie categories;
the movies in the C-, C+, and C-N categories consisted of
the negative, positive, and neutral emotion-induction words,
respectively.
4.2 Memory Score
A standardized summary of memory score in each
video is shown in Figure 6. Using t test, a statistically
significant difference was seen between C- and C+
conditions and between C- and C-N conditions. How-
ever, there was no statistically significant difference
between C+ and C-N conditions. This result is paral-
lel with the the result concerning Figure 5 (c) for Exp-
V described in Section 4.1. In the condition where the
emotion-induction words appeared in audio guide for
providing information of the movies, it is likely that
positive and neutral words were more affected by the
context where they appeared and they could change
their context-free emotion values, which were main-
tained even if they appeared in sentences.
5 DISCUSSION
This section starts by analyzing the results of Exp-V
concerning relationship between emotion-induction
words included in movies and memory score. It fol-
lows pupil diameter dilation analysis, as an objective
indicator of emotional changes. Finally, this section
ends by discussing the possibility of implementing
a design method based on the above-mentioned two
points.
5.1 Memory Score Analysis
Section 4 showed that 1) the memory scores were
high in the negative condition, and 2) the attributes
of emotion-induction words in the impression evalu-
ation were only maintained i the negative condition.
As shown in Figure 4, the emotion-induction words
should also work in sentences regardless of they are
HUCAPP 2021 - 5th International Conference on Human Computer Interaction Theory and Applications
96

0
5
10
15
20
1 2 3 4 5 6 7
MemoryScore
ContextRating
C+
C-N
C-
Figure 7: Relation between context (movies) rating for
emotion and memory scores. C+ is for the movies
which were constructed with the positive emotive-induction
words. C- is for the movies which were constructed with the
negative emotive-induction words. The dotted lines are lin-
ear regression for each movie. The blue dotted line is for C-
with the R
2
value of 0.79. The red dotted line is for C+ with
the R
2
value of 0.33.
positive or negative. When they were added as an au-
dio guide to the video, it is likely that for some reason
the positive emotion-induction words did not manifest
their expected effect when added to the video. There-
fore, it is not possible to discuss the relationship be-
tween positive emotion-induction words and memory.
Further analysis is needed in the future. However, the
results suggest that negative emotion-induction words
also influenced the evaluation of impressions and con-
tributed to the improvement of memory in the movies.
Next, the relationship between impression eval-
uation and memory scores is discussed. As shown
in Figure 1 and Figure 2, the presence of emotion-
induction words in a sentence should enhance mem-
ory by overlapping visual information as objects with
auditory information at appropriate times. In addi-
tion, as shown in Figure 4, the influence of neutral
words on emotion varied more when they were pre-
sented in sentence than when they appeared in iso-
lation. This suggests that this tendency is more pro-
nounced when the words are presented in context.
The relationship between the ratings and the mem-
ory scores for each of the three videos obtained from
the participants is shown as a scatter plot in Figure 7.
The dotted lines are linear regression for each movie.
The blue dotted line is for C- with the R
2
value of
0.79. The red dotted line is for C+ with the R
2
value
of 0.33. The blue dotted line increases as ratings be-
come large. This means memory score becomes large
as the movie in C- condition were rated in accordance
with the negative emotion-induction words that ap-
peared in audio guide. Similarly, the red dotted line
decreases as ratings become large. This means mem-
ory score becomes large as the movie in C+ condition
were rated in accordance with the positive emotion-
induction words that appeared in audio guide. When
the emotion-induction words used for providing ex-
planation of the movies in audio guide function as
they were expected, memory scores should increase.
On the other hand, when they don’t function as they
should do, memory scores should not become large.
5.2 Pupil Diameter Analysis
To understand the effect of emotion-induction words
included in audio guide on memory, pupil diameter
changes in Exp-S was analyzed as an objective eval-
uation index. To analyze the relationship between
the attributes of emotion-induction words which each
participants heard and pupil diameter changes, the
participants were screened according to the following
conditions.
1. There is no problem in the ratings in Exp-W and
Exp-S.
2. There is no problem in the pupil diameter data.
Of those who satisfied these conditions, two par-
ticipants were selected for a preliminary analysis of
pupil data considering the degree of accordance with
their ratings for the sentences used in Exp-S with
the attributes of the sentences, i.e., S+, S-, and S-N.
One participant, ut33, showed the highest correlation
of 0.92 (consistent-participant) and the other, ut19,
showed the lowest correlation of 0.18 (inconsistent-
participant). Since the pupil diameter dilation to emo-
tional changes is smaller than the change to light
changes, the dilation to emotional changes is consid-
ered to be captured by lower envelope for pupil diam-
eter changes. Figure 8 is a graph showing the approx-
imate lines of the lower envelopes. The difference be-
tween the value of pupil diameter curve and the value
of the lower envelope was added by the time when the
sentence was played, and the average was calculated
by using the following formula:
1
n
×
n
∑
i=1
(T (t
i
) − L(t
i
)),
where T is the trajectory, L is the lower envelope, t
1
is the start time of the i-th sentence in audio, and t
n
is
its end time.
Figure 9 shows pupil size changing distribution
for ut33 and ut19. This result indicates that ut33 has a
difference in the effect of emotions between emotion-
induction words and neutral words, and ut19 has a
small difference between emotion-induction words
Effects of Emotion-induction Words on Memory of Viewing Visual Stimuli with Audio Guide
97

neutral positive negative
Figure 8: The black lines represent the trajectory of the size of pupil diameter. The horizontal axis is the sampling number
(500 corresponds to 10 seconds). The widths of the three rectangles correspond to the duration of the presentation of sentences
with neutral, positive, and negative emotional values. The blue solid lines represent the lower envelope for the trajectory.






   
pupilsizechangingdistribution[mm/Hz]
Figure 9: Participants’ pupil size changing distribution for
ut33 (2 red box-plots to the left) and ut19 (2 blue box-plots
to te right). WEI stands for “emotional-induction words in-
cluded”, NEI stands for “emotional-induction words not in-
cluded (i.e., neutral words)” .
and neutral words. This result corresponds to the
characteristic of correlation with the database. In
other words, the pupil diameter variability was greater
for those who rated impressions according to the
database when they heard emotion-induction words,
while those who rated impressions not according to
the database showed no difference in pupil diameter
variability when they heard emotion-induction words
compared to when they heard neutral words. The re-
sults suggest that there are individual differences in
the emotional changes caused by emotion-induction
words, which can be captured by pupil diameter anal-
ysis. Further pupil diameter analysis will support this
finding.
5.3 Design Implications
This subsection discusses designing for multi-modal
information for better memory. First, as showed in
Figure 4, it is found that impression ratings corre-
sponded to the attributes of emotion-induction words.
Second, it is known that emotional changes are cap-
tured by pupil diameter dilation. As shown in Fig-
ure 9, for the same stimuli, the consistent-participant
and the inconsistent participant showed significantly
different reaction in terms of pupil diameter reac-
tions. This indicates that the measure of pupil diam-
eter could be used to monitor how the participant re-
acted to the stimuli. As discussed in this paper, rat-
ings of impression, which could be subject to individ-
ual differences as evidenced by the existence of in-
consistent participants, should correlate with memory
score. Monitoring participants emotional state could
be a promising method for designing auditory infor-
mation for helping construct better memory. In addi-
tion, as shown in Figure 6, memory scores should be
higher when negative emotion-induction words were
acquired. This finding is also applicable to designing
auditory information.
6 CONCLUSION AND FUTURE
WORK
This paper investigated the effect of emotion-
induction words in audio guide on memory. As a re-
sult, it was found that the auditory information with
negative emotion-induction words is easy to remem-
ber. It was also suggested that emotional changes dur-
ing appreciation behavior might be measured by pupil
diameter.
For now, this study only focused on the two-
dimensional movie viewing behavior to simulate the
real environment. However, for applying it to our ev-
HUCAPP 2021 - 5th International Conference on Human Computer Interaction Theory and Applications
98

eryday life, such as museum, gallery, guided tours,
etc., it is important to apply and examine what this pa-
per found in the omnidirectional situations such as a
dome theater. Also, pupil diameter analysis was done
for only two participants to examine the feasibility
of the research direction. The results were promis-
ing. We plan to continue this approach and try to find
the way to objectively estimate the viewer’s cognitive
state that should enhance learning of visual contents
accompanied with auditory information.
ACKNOWLEDGEMENTS
This work was partly supported by JSPS KAKENHI
Grant Number 19K12246 and 20H04290.
REFERENCES
Anderson, J. R. and Lebiere, C. (1998). The Atomic Com-
ponents of Thought. Lawrence Erlbaum Associates,
Mahwah, NJ.
Bitgood, S. (2002). Environmental psychology in museums,
zoos, and other exhibition centers. In In Handbook of
environmental, pages 461–480.
Ericsson, A. K. and Kintsch, W. (1995). Long-term working
memory. Psychological Review, 102:221–245.
Gotoh, F. and Ohta, N. (2001). Affective valence of two-
compound kanji words. Tsukuba psychological re-
search, 23(23):45–52. in Japanese.
Henderson, R. R., Bradley, M. M., and Lang, P. J. (2018).
Emotional imagery and pupil diameter. Psychophysi-
ology, 55(6):e13050.
Hirabayashi, R., Shino, M., Nakahira, K. T., and Kita-
jima, M. (2020). How auditory information presen-
tation timings affect memory when watching omnidi-
rectional movie with audio guide. In Proceedings of
the 15th International Joint Conference on Computer
Vision, Imaging and Computer Graphics Theory and
Applications - Volume 2: HUCAPP,, pages 162–169.
INSTICC, SciTePress.
Kintsch, W. (1988). The use of knowledge in discourse pro-
cessing: A construction-integration model. Psycho-
logical Review, 95:163–182.
Kintsch, W. (1998). Comprehension: A paradigm for cog-
nition. Cambridge University Press, Cambridge, UK.
Kitajima, M. and Toyota, M. (2013). Decision-making and
action selection in Two Minds: An analysis based on
Model Human Processor with Realtime Constraints
(MHP/RT). Biologically Inspired Cognitive Architec-
tures, 5:82–93.
Oliva, M., A. and Pupil, A. (2018). dilation reflects the time
course of emotion recognition in human vocalizations.
Scientific Reports, 8:4871.
Partala, T. and Surakka, V. (2003). Pupil size variation as an
indication of affective processing. International Jour-
nal of Human-Computer Studies, 59:185–198.
Pierdicca, R., Marques-Pita, M., Paolanti, M., and Malin-
verni, E. S. (2019). Iot and engagement in the ubiqui-
tous museum. Sensors, 19(6):1387.
Polyn, S. M., Norman, K. A., and Kahana, M. J. (2009). A
context maintenance and retrieval model of organiza-
tional processes in free recall. Psychological Review,
116:129–156.
Simon, H. A. (1971). Designing organizations for an infor-
mation rich world. In Greenberger, M., editor, Com-
puters, communications, and the public interest, pages
37–72. Johns Hopkins University Press, Baltimore.
Talmi, D., Lohnas, L. J., and Daw, N. D. (2019). A re-
trieved context model of the emotional modulation of
memory. Psychological Review, 126:455–485.
Effects of Emotion-induction Words on Memory of Viewing Visual Stimuli with Audio Guide
99

APPENDIX
The emotion induction words and the sentences used for the experiment.
No. Word Score Sentence including the word
Positive
1 [murder] 6.51 Murder is one of the worst sins a person commit.
2 [tragedy] 6.38 A tragedy happened in the baseball tournament final.
3 [assassinate] 6.36 Ryoma Sakamoto was assassinated on his birthday.
4 [banish] 6.33 Unable to understand the situation, he was banished from the din-
ner party.
5 [prejudice] 6.15 It is difficult to be aware of unconscious prejudice.
6 [transfer school] 6.14 The first day of transfer school is full of anxiety.
7 [worst] 6.13 Enter the site assuming the worst situation.
8 [dismiss] 6.13 One of the college students working part-time must be dismissed.
9 [penalty] 6.10 Nothing is as boring as paying a penalty.
10 [fall] 6.06 I have fallen since I became a college student.
Neutral
1 [free] 1.93 Rice is often included free of charge at Iekei ramen shops.
2 [contribute] 1.93 How much do I contribute to the sales of the nearest convenience
store?
3 [love] 1.90 I cook curry with plenty of love.
4 [experienced] 1.87 Rookie is good, but experienced veteran is also good.
5 [courage] 1.80 I gave up my seat with courage.
6 [holiday] 1.77 When I was in elementary school, I loved holidays.
7 [plenty] 1.53 There are plenty of drink bars here, so I’ll follow you.
8 [fortunate] 1.50 I was fortunate to meet you.
9 [achieve] 1.47 I am good at achieving goals one by one.
10 [clear day] 1.47 Laundry progresses on a clear day.
Negative
1 [field] 4.0 I think I know more about this field than most people.
2 [loading platform] 4.00 I’m watching the cardboard boxes pile up on the loading platform.
3 [railway route] 4.00 There are so many railway routes in Tokyo that you can’t compare
to the countryside.
4 [job seeker] 4.07 Job seekers were in line.
5 [address] 3.97 When I write my address, I’m wondering whether to write it from
the prefecture.
6 [jacket] 3.93 It is difficult to choose a jacket because the temperature difference
between day and night is large.
7 [seal] 4.11 I always carry my seal.
8 [budget] 4.07 You can’t decide anything else unless you decide on a budget.
9 [next time] 4.1 Next time I will try to order a different menu.
10 [clerk] 3.98 Turn right at the end and a clerk is standing.
HUCAPP 2021 - 5th International Conference on Human Computer Interaction Theory and Applications
100
