On Open Workﬂows for Processing of Standardized

Electroencephalography Data

Roman Mou

cek

and Filip Kupil

ık

Department of Computer Science and Engineering, Faculty of Applied Sciences, University of West Bohemia,

Univerzitnı 8, Plzen, Czech Republic

Keywords:

Deep Learning, EEG Data Standards, EEG Workﬂows, EEG Pipelines, Electroencephalography, Event-related

Potentials, Human Brain, Machine Learning, Reproducibility.

Abstract:

With increasing amounts of experimental data, openness, fairness, and reproducibility of scientiﬁc experi-

mental work have become important factors for researchers, journals and funding bodies. However, these

kinds of challenges are not easily and directly achievable. The goal of this paper is to contribute to these

efforts by introducing advances in building more mature lifecycle of electroencephalography/event-related

potential data. The progressive data standardization initiatives, data formats, and trends in using machine

and deep learning methods for processing of domain data are described and discussed. An open process-

ing workﬂow based on the analysis of current software tools for preprocessing, processing and classiﬁcation

of electroencephalography/event-related potential data is proposed, implemented and veriﬁed on a publicly

available dataset.

1 INTRODUCTION

The electrical activity of the human brain has been

investigated, among other, by the methods and tech-

niques of electroencephalography (EEG) and event-

related potentials (ERPs) when brain data are col-

lected and processed to answer the questions of broad

scientiﬁc interest.

The EEG method has many advantages: afford-

ability, non-invasiveness, routine examination proto-

cols, and the opportunity to measure spontaneous ac-

tivity. However, it also has a signiﬁcant disadvantage,

which is evident in scientiﬁc experiments. The result-

ing picture of brain activity (the EEG signal) is very

rough since it represents a huge number of sources of

neuronal activity. It is challenging to derive the cor-

responding neurocognitive processes from the mea-

sured brain activity.

ERPs are changes in brain activity that are time-

locked to particular events (stimuli). Generally, they

have a very small amplitude (up to tens of microvolts)

and can be assessed in small time windows (tens or

hundreds of milliseconds).

When performing EEG/ERP experiments, it is es-

sential to run a laboratory with appropriate equipment

for event (stimuli) presentation, collect EEG/ERP

https://orcid.org/0000-0002-4665-8946

data, analyze, and interpret them.

Experimental work, data processing and analy-

sis, interpretation, as well as subsequent publishing

of ﬁndings, have been traditional activities that dom-

inated the lifecycle of EEG/ERP data. However, dur-

ing the last decade, these activities were extended

with the requirements for the long-term effectiveness

and efﬁciency of experimental work. Requirements

for openness, fairness, reproducibility, and citabil-

ity of important data lifecycle artefacts have arisen

and started to be demanded by respected journals and

funding bodies.

It brought an essential change to the culture of

scientiﬁc work (not only) in this ﬁeld. Open, well-

annotated, standardized, and shared EEG/ERP data

and well-described and publicly shared procedures

and workﬂows have slowly but continuously entered

experimental work and the entire EEG/ERP data life-

cycle. These approaches in a discipline of neu-

roinformatics started to inﬂuence traditional scientiﬁc

ﬁelds related to neural systems investigations. Neu-

roscience, cognitive sciences, or neurolinguistics are

typical examples of them.

The goal of this paper is to contribute to the open-

ness and reproducibility of the experimental work in

EEG/ERP research by making a step in deﬁning open

workﬂows for processing standardized EEG/ERP

data. More speciﬁcally, the achievable goal is to in-

Mou

cek, R. and Kupilík, F.

On Open Workﬂows for Processing of Standardized Electroencephalography Data.

DOI: 10.5220/0010345006670676

In Proceedings of the 14th International Joint Conference on Biomedical Engineering Systems and Technologies (BIOSTEC 2021) - Volume 5: HEALTHINF, pages 667-676

ISBN: 978-989-758-490-9

667

tegrate a selected set of machine learning (ML) and

deep learning (DL) methods (suitable for EEG/ERP

data processing) with open-source software tools de-

veloped to process standardized EEG/ERP data.

The paper is organized as follows. The state of the

art section presents a traditional EEG/ERP data life-

cycle and its possible improvements, FAIR data prin-

ciples, electrophysiological data standardization ini-

tiatives, and standardized data and metadata formats

used in the EEG/ERP domain. Then current trends in

using ML/DL methods to process the EEG/ERP data

are introduced, and popular ML/DL libraries contain-

ing these classiﬁcation methods are mentioned.

Subsequently, software tools suitable for the anal-

ysis of standardized EEG/ERP datasets and their abil-

ity to work together with ML/DL libraries are pre-

sented. As the result of the comparison of these

software tools, the feasibility of the selected set of

tools and libraries creating a workﬂow (pipeline) for

EEG/ERP standardized data processing, is veriﬁed by

implementing (reproducing) an analysis based on the

existing and already published EEG/ERP dataset; the

replicated workﬂow is presented. The last session

concludes the obtained ﬁndings.

2 STATE OF THE ART

In this section we introduce a traditional EEG/ERP

experiment, related data lifecycle, FAIR data prin-

ciples, current electrophysiological data standardiza-

tion initiatives, standardized data and metadata for-

mats used in the EEG/ERP domain, and ML/DL

methods suitable to process the EEG/ERP data.

2.1 EEG/ERP Experiment

A traditional EEG/ERP experiment and related data

lifecycle include the following steps and activities:

• research planning - includes experimental design

and its implementation respecting the advantages

and disadvantages of the EEG/ERP method and

its general principles, rules and strategies, ap-

proval of the experiment design by the ethics com-

mittee, the document of informed consent, and lab

setting,

• experimental work - includes preparation of the

participants for an experiment and instructions

given to them, performance of the experiment pro-

tocol, visual inspection of the course of the experi-

ment and its outputs, and collection and storage of

the EEG signal, event markers, and related meta-

data,

• data preprocessing - includes referencing, channel

selection, ﬁltering, ERP epochs extraction, arti-

facts detection, their removal or subtraction, base-

line correction, and epochs averaging,

• data processing and analysis - includes grand av-

eraging, feature extraction, detection (classiﬁca-

tion) of ERP components (power spectral analysis

in case of pure EEG recordings) and their further

detailed investigation,

• data visualization and interpretation - usually in-

clude visualization of channel spectra, topograph-

ical maps, tabular and graphical representation of

averages and grand averages on various electrodes

for selected stimuli, periodograms, classiﬁcation

results, and statistical interpretation of the ﬁnd-

ings,

• research publication - includes the publication of

research ﬁndings (experimental design, statistics

related to participants, found ERP components or

EEG frequencies), and their interpretation.

2.2 Traditional Lifecycle of EEG/ERP

Data

The traditional EEG/ERP data lifecycle does not at-

tribute too much value to the collected data, quality

of the metadata set, and reproducibility of the entire

experiment. Its typical features are that collected data

and metadata are stored in proprietary formats, tabu-

lar forms, simple ﬁles, or even various paper forms.

There is usually little effort to preserve such data and

metadata longer than for the time required to interpret

and publish experiment ﬁndings in a scientiﬁc jour-

nal. There is also little interest in data and metadata

sharing and transforming data and metadata into well-

organized structures. Speciﬁc processing algorithms

and workﬂows are usually described by referencing

the used software tools. If a non-standard, custom,

or proprietary processing tool is used, the processing

workﬂow (pipeline) is hardly reproducible.

To cope with the troubles of the experimental

work and drawbacks of the traditional EEG/ERP

data lifecycle and aim for their improvements, op-

portunities to develop open and standardized work-

ﬂows that are based on common EEG/ERP prepro-

cessing/processing methods enriched/integrated with

ML/DL classiﬁcation methods are addressed in this

paper.

2.3 FAIR Data Principles

The general effort to enhance the openness and re-

producibility of research and reusability and efﬁcient

HEALTHINF 2021 - 14th International Conference on Health Informatics

668

management of raw and derived data led to the design

and joint endorsement of a concise and measurable

set of principles referred to as the FAIR Data Princi-

ples. These principles for scientiﬁc data management

and stewardship were ﬁrst formally published in Sci-

entiﬁc Data (Wilkinson et al., 2016). The publication

explained the rationale behind them, gave some initial

implementation, and signiﬁcantly inﬂuenced the view

of scientiﬁc data from a long-term point of view.

The FAIR principles, in more detail also explained

in (Wilkinson et al., 2016), are the following ones:

ﬁndability, accessibility, interoperability, and reuse of

digital data. They put speciﬁc emphasis on enhancing

the ability of machines to automatically ﬁnd and use

the data, in addition to supporting its reuse by individ-

uals (Wilkinson et al., 2016). Since the interpretation

of the FAIR principles started to be various, several

original authors revisited them in (Mons et al., 2017).

These FAIR principles are highly reﬂected in the stan-

dardization efforts introduced below.

2.4 Standardization Initiatives

The absence of uniﬁed, extensible, open, and widely

accepted descriptive structures, models, and formats

for electrophysiology data has been naturally dis-

cussed in an international forum with the coordinat-

ing role of International Neuroinformatics Coordinat-

ing Facility - INCF (International Neuroinformatics

Coordinating Facility, 2020). Except for proprietary

formats used for simple storage of electrophysiologi-

cal data, there currently exist several competing pro-

posals of ﬂexible data structures, terminologies, and

formats for annotation, organization, and long term

storage of electrophysiological data and metadata.

The common denominator of these proposals is

that they follow the FAIR principles and have been

inspired by open and proprietary data structures and

formats used in electrophysiology, neurophysiology,

electroencephalography, and bioinformatics.

All of them also have to cope with contradictory

requirements: the proposed data/metadata descrip-

tions should be, on the one hand, harmonized and, if

possible, standardized to convey a global descriptive

terminology and support the reproducibility of scien-

tiﬁc data, procedures, and results. On the other hand,

they should be ﬂexible enough to meet the require-

ments of individual laboratories. However, even in

the case of the standards endorsed by INCF, these are

still in working progress when concerning the matu-

rity of the whole ecosystem – the entire lifecycle of

electrophysiology data has not been covered so far.

This fact also makes more extensive use of existing

standards difﬁcult.

Three global initiatives are currently worth men-

tioning. The descriptive structures they have pro-

posed usually go beyond the initially intended do-

main boundaries and can be considered to be used

and extended for the description and long-term stor-

age of diverse physiological data. The outcome of

the ﬁrst initiative, proposed by the German National

Node for Neuroinformatics (G-node), is the Neuro-

science Information Exchange format (NIX) enriched

with odML terminology for the description of meta-

data (Zehl et al., 2016).

Neurodata Without Borders (NWB) (Teeters et al.,

2015) (R

ubel et al., 2019) data structures were in-

troduced by the University of California and fur-

ther elaborated by the scientiﬁc community in the

U.S. The BIDS structure (Brain Imaging Data Struc-

ture) (Gorgolewski et al., 2016) introduced at the

McGill University in Montreal has been later ex-

tended with the descriptive structures for EEG

data (Pernet et al., 2019).

In addition to these three global initiatives two

data formats are broadly used for storage of EEG

recordings: the European Data Format (EDF/EDF+)

and the BrainVision Core Data Format. The latter

one deﬁnes the structure of data in three ﬁles: a text

header ﬁle containing metadata, text tag ﬁle contain-

ing information about events (stimuli) in data, and

binary data ﬁle containing raw EEG data and other

signals recorded together with EEG. All these ﬁles

must be stored in one folder; the header and data ﬁles

are required. The header and tag ﬁles have a ﬁxed

structure (key/value pairs) and their complete descrip-

tion, including a description of all usable keys, can be

found in (Brain Pruducts, 2019).

European data format (EDF) and especially Eu-

ropean data format ’plus’ (EDF+), have been consid-

ered as standard formats for the exchange of physio-

logical data since 2003. EDF+ is a more ﬂexible but

still simple format which is compatible to EDF except

that an EDF+ ﬁle may contain interrupted recordings.

When compared to EDF, EDF+ can not only store

annotations but also electromyography, evoked po-

tentials, electroneurography, electrocardiography and

many more types of investigations. (Kemp and Oli-

van, 2003)

Due to the robustness and widespread use of Euro-

pean data format and BrainVision Core Data Format

1.0, the BIDS project recognizes them as the recom-

mended standards for storing EEG/iEEG data (Brain

Products, 2020).

On Open Workﬂows for Processing of Standardized Electroencephalography Data

669

2.5 Machine and Deep Learning for

EEG/ERP Data Processing

As it has happened in many scientiﬁc disciplines,

ML and especially DL methods invaded also the

EEG/ERP domain. The question if DL methods truly

present advantages as compared to more traditional

EEG processing approaches remains an open question

according to a systematic review of DL-based method

for analysis of electroencephalography data that was

published in (Roy et al., 2019).

Effective and efﬁcient EEG/ERP data processing

as part of the whole EEG/ERP data lifecyle suffers

from several limitations. EEG has a low signal-to-

noise ratio (SNR) as the measured brain activity is

often hidden under multiple sources of noise of sim-

ilar or greater amplitude called ’artifacts’. Various

techniques are used to minimize the impact of noise

sources and extract brain activity from the EEG sig-

nal. EEG as a non-stationary signal is also highly

variable across time. Then classiﬁers trained on

a temporally-limited amount of data might provide

poor generalization to data recorded at a different time

on the same individual. High inter-subject variability

also limits the usefulness of EEG applications. (Roy

et al., 2019)

To cope with the issues mentioned above it seems

to be reasonable to extend traditional and domain-

speciﬁc EEG/ERP workﬂows with DL methods to

clean, extract features and classify EEG/ERP data.

Further automation of these workﬂows can be done

by utilizing existing data standards, using tools for

EEG/ERP data processing based on these standards

and integrating them with existing ML/DL libraries.

According to (Craik et al., 2019) it is not yet ver-

iﬁed whether DL methods can achieve better results

without use of any pre-processing method. However,

it is surprising that in more than a quarter of the ex-

periments examined, the artifacts were removed man-

ually. This, in addition to being time consuming, also

makes difﬁcult to reproduce the used procedures.

Feature extraction is one of the most challeng-

ing steps in the traditional EEG/ERP data process-

ing. Elimination of the feature extraction procedure

by deep neural networks is the main goal of many

experiments. For example, spectrograms commonly

used to visualize EEG data are used as input to convo-

lutional neural networks (CNNs), whose performance

has proven successful mainly in image data recogni-

tion. Furthermore, it was found that CNNs, which ac-

cept pure EEG signal values for input, performed on

average better than with spectrograms or calculated

features (Craik et al., 2019). This ﬁnding contradicts

the idea that feature extraction is an important step

in improving the success of the EEG data classiﬁca-

tion (Craik et al., 2019).

The fundamental decision during the application

of deep-learning methods is the correct selection of

the neural network architecture. For the ERP classi-

ﬁcation, CNN is surprisingly the most used architec-

ture, followed by a recurrent neural network (RNN).

Since 2015, there has been a large increase in the use

of CNNs, contrary to expectations that, due to the

temporal nature of the EEG signal, RNNs will be used

more than models that do not naturally work with time

dependencies. The expansion of the use of CNN for

the classiﬁcation of EEG data can be explained by the

success achieved in computer vision and the use of

a hierarchical structure of the data, as well as recent

discussions and ﬁndings concerning the effectiveness

of CNNs for time series processing. However, the fre-

quency of the RNN use is also increasing. (Roy et al.,

2019)

In addition to correct selection of the neural net-

work architecture, researchers must take a decision

about the number of layers. According to (Roy et al.,

2019), most projects used less than ﬁve layers for their

models, and it is possible to conclude that shallower

neural networks are currently more suitable for EEG

data. In (Schirrmeister et al., 2017), they directly ad-

dressed the number of CNN layers used for EEG data

and concluded that shallower CNNs successfully out-

performed deeper CNNs.

In the traditional EEG data classiﬁcation process,

the methods for feature extraction and then traditional

ML methods such as LDA and SVM are often used.

Almost all experiments in (Roy et al., 2019), over

which the successes of DL methods to traditional ML

methods was compared, showed that DL methods im-

proved the classiﬁcation results.

Currently, the generally well-known and most

popular libraries providing ML/DL methods, scikit-

learn in case of traditional ML methods, and Keras

(based on the TensorFlow library) and PyTorch in

case of DL methods, are also used for EEG/ERP data

processing.

3 SOFTWARE TOOLS FOR

EEG/ERP DATA PROCESSING

The traditional EEG/ERP data lifecycle includes

reading data and pre-/processing them before their

classiﬁcation. Currently, many various software tools

allow us to do these steps. These tools differ in many

aspects, e.g., in the set of data pre-/processing meth-

ods provided or the data formats they can read or write

to. Some tools provide a user interface; others are

HEALTHINF 2021 - 14th International Conference on Health Informatics

670

offered as libraries. They also differ in their abil-

ity to perform/cooperate/to be integrated with ML/DL

methods and related libraries.

The next subsection describes the tools available

for the pre-/processing of EEG/ERP data and their

current abilities to work/interact with ML/DL meth-

ods and libraries. Since our laboratory primarily

stores EEG/ERP data in the BrainVision format and

the BIDS standard recognizes this format as a do-

main standard, the software tools that can naturally

read/write data in this format are a bit favoured.

3.1 Software Tools Overview

Brainstorm (The Brainstorm team, 2020) is an open-

source tool for the analysis of brain recordings sup-

porting the BrainVision, EDF and NWB formats. It

provides methods for processing EEG data, such as

automated artefact detection, epoch extraction, time-

frequency transformations, and SVM and LDA clas-

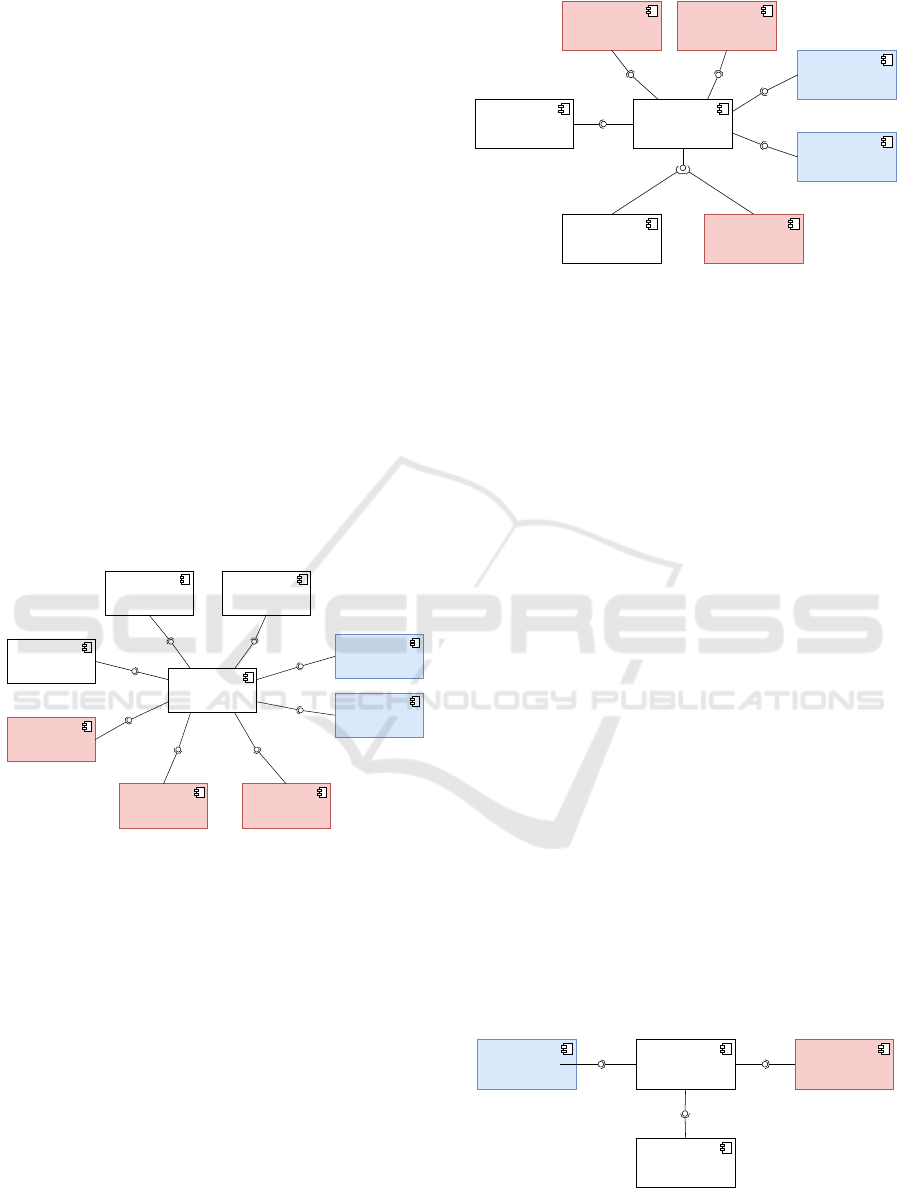

siﬁers. Figure 1 shows the UML component diagram

providing the data formats, analytical tools and ML

libraries the Brainstorm can work with. FieldTrip is

Brainstorm

BIDS

export BIDS

MATLAB

Statistics and Machine

Learning Toolbox

LDA a SVM

LibSVM

SVM

EEGLab

read EEGLab sets

FieldTrip

read Fieldtrip structs

NWB

read NWB

MNE

MATLAB - Python

libraries

BrainVision

read Brainvision

read MNE-FIF

Figure 1: UML component diagram - integration of Brain-

storm with data formats, analytical tools and ML libraries.

a MATLAB toolbox for analyzing MEG, EEG, iEEG

and fNIRS data. It contains methods for their prepro-

cessing and more advanced data analysis. It supports

the BrainVision, BIDS, and NWB data formats and

the format used in the EEGLab. The toolbox is free

and can be added to the local MATLAB installation.

FieldTrip does not have any GUI; the methods

provided can be used to create analytical pipelines

in MATLAB. It is integrated with two external ML

MATLAB toolboxes: Donders Machine Learning

Toolbox (DMLT) and MVPA-Light. DMLT offers a

large number of binary and discrete classiﬁers such as

SVM, Naive Bayesian classiﬁer, or regularized dis-

criminant analysis (van Gerven et al., 2011). Fig-

ure 2 shows the UML component diagram provid-

ing data formats, analytical tools and ML libraries

FieldTripMNE

ﬁeldtrip2ﬁff

BrainVision

ft_read_data

MVPA-Light

Donders Machine

Learning Toolbox

DML API

cfg.mvpa

EEGLab

BIDS

I/O BIDS

NWB

read NWB

Figure 2: UML component diagram - integration of Field-

Trip with data formats, analytical tools and ML libraries.

FieldTrip can work with. EEGLab is a software tool

written in MATLAB for processing EEG, MEG and

other types of electrophysiological data. It is an open-

source project allowing users to extend the capabili-

ties of the tool by implementing their plugins. It pro-

vides basic preprocessing methods such as ﬁltering,

re-sampling, epoch extraction, baseline correction, or

time-frequency transformation and offers several pro-

cedures for removing artefacts from a noisy signal.

BCILAB (Kothe and Makeig, 2013) (BCILAB,

2020) is an open-source Matlab toolbox for BCI re-

search that allows ML classiﬁcation algorithms to be

applied to data processed in EEGLab. It provides

algorithms for signal processing and contains imple-

mentations of ML methods including SVM, LDA and

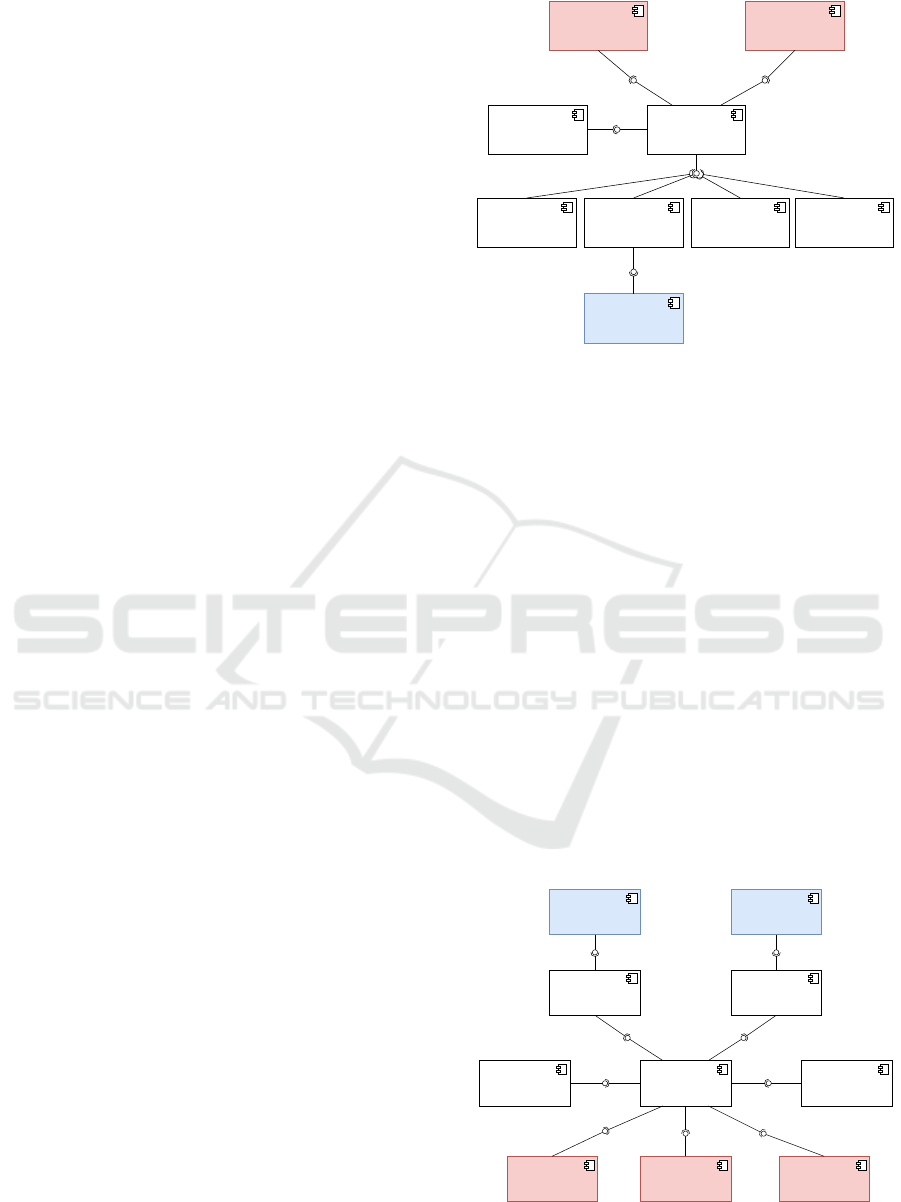

linear regression. Figure 3 shows the UML compo-

nent diagram providing data formats, analytical tools

and ML libraries EEGLab can work with. Neo (Gar-

cia et al., 2014) is a language-independent object

model for handling electrophysiology data in multiple

formats (NIX and BrainVision format are supported).

The motivation for its development was to increase in-

teroperability between Python tools for analysis, visu-

alization and generation of electrophysiological data.

Neo is limited purely to data representation and does

not provide functions for data analysis or visualiza-

tion. Its hierarchical data model is used by several

different tools for data analysis, visualization or sim-

ulation, such as SpykeViewer, Elephant, PyNN, and

EphyViewer.

EEGLab

FieldTrip

ﬁeldtrip2eeglab

BrainVision

read BrainVision

BCILab

read EEGLab

dataset

Figure 3: UML component diagram - integration of

EEGLab with data formats, analytical tools and ML li-

braries.

On Open Workﬂows for Processing of Standardized Electroencephalography Data

671

SpykeViewer (Pr

opper and Obermayer, 2013),

(The NeuralEnsemble Initiative, 2020b) is a cross-

platform application with a user interface for visual-

izing electrophysiological data.

Elephant (Electrophysiology Analysis Toolkit) is

an open-source library for the analysis of electrophys-

iological data in Python. It focuses on generic an-

alytic functions for action potentials and time-series

records from electrodes, such as local ﬁeld potentials

(LFP) or intracellular voltage. The aim of the Ele-

phant project is, in addition to a common platform for

analytical codes from different laboratories, to pro-

vide a consistent and homogeneous framework for

analysis built on a modular basis (Elephant authors

and contributors, 2020).

PyNN is a simulator-independent language for

creating spiking neural networks. Its goal is to al-

low users to write code for a simulation model only

once and then run it on any simulator that PyNN sup-

ports. PyNN provides a library of standard models of

neurons, synapses, and synaptic plasticities that have

been proven to work the same on various supported

simulators. It also provides a set of commonly used

connectivity algorithms. (The NeuralEnsemble Initia-

tive, 2020a)

EphyViewer is a Python library for visualizing

electrophysiological data. It supports the display of

possible representations of a given dataset (signal,

epochs, events, action potentials) and provides a stan-

dalone user interface that allows users to view data

from the Neo data format (Garcia and Gill, 2019).

When analyzing the Neo library, no possibility

to use ML classiﬁcation methods directly was found.

The only way to apply ML methods to EEG/ERP data

stored in the Neo format was by utilizing the Elephant

and Pandas libraries. However, Neo provides func-

tions for manipulating objects in its custom data for-

mat. The data can be extracted in a format that can be

used as an input into DL algorithms within the Keras

library and ML algorithms within the scikit-learn li-

brary. Figure 4 shows the UML component diagram

providing data formats, analytical tools and ML li-

braries can Neo work with. Pandas is an open-source

Python library that provides ﬂexible data structures

designed to work with different types of data; it can

work with the NIX, BIDS and NWB formats. It is

designed as a basic high-level building block for per-

forming practical data analysis. It is useful for differ-

ent types of data such as ordered and unordered time

series or any array data with descriptions of rows and

columns. Pandas is built on the NumPy library; it can

be integrated into the scientiﬁc computing environ-

ment with many other libraries such as MNE. (The

pandas development team, 2020)

NEO

BrainVIsion NIX

BrainVisionIO

NIXIO

MNE

MNE from

raw array

SpykeViewer Elephant PyNN EphyViewer

NEO data

model

Pandas

elephnat.pandas_bridge

Figure 4: UML component diagram - integration of Neo

with data formats, analytical tools and ML libraries.

From the internal pandas’ structure, it is easy to

extract data in a format that matches the inputs to

ML classiﬁcation methods. Although no use cases

for EEG data were found, there are use-cases for pan-

das time series processed using the Keras library. The

sklearn-pandas project was created to integrate pan-

das structures into the machine-learning pipelines of

the scikit-learn library. Another integration of the

pandas library with the library of deep-learning meth-

ods is the keras-pandas project (Herger, 2020). Fig-

ure 5 shows the UML component diagram providing

data formats, analytical tools and ML libraries pan-

das can work with. MNE (Gramfort et al., 2013)

is an open-source Python tool providing algorithms

for data preprocessing, resource localization, statisti-

cal analysis, and estimation of functional connectivity

between distributed areas of the brain. It is integrated

with the basic Python libraries for scientiﬁc computa-

tions (NumPy, SciPy) and visualization (Matplotlib).

MNE supports the processing of a number of data

Pandas

NIX NWB

NWBTable.to_dataframe()write_to_pandas()

MNE

to_data_frame()

Elephant

pandas_bridge()

keras-pandas sklearn-pandas

Keras scikit-learn

BIDS

to_df()

Figure 5: UML component diagram - integration of pandas

with data formats, analytical tools and ML libraries.

HEALTHINF 2021 - 14th International Conference on Health Informatics

672

types, such as EEG, MEG, ECG, SEEG, and ECoG.

It supports the BIDS and NIX data formats, BrainVi-

sion and EDF formats, but also data in the formats of

other analytical tools such as FieldTrip, EEGLab and

Brainstorm. MNE cannot work directly with the Neo

data format but provides instructions on how to con-

vert data from Neo to MNE structures.

MNE allows its users to export the processed data

to the structures of the pandas library. Several open-

source projects use the MNE package to process EEG

data, and then apply DL methods from the Keras li-

brary. The integration of these tools can be thus con-

sidered as widespread and proven. The developers of

the MNE library also created and shared examples of

how DL methods from the PyTorch library can be ap-

plied to the data processed in MNE. Figure 6 shows

the UML component diagram providing data formats,

analytical tools and ML libraries MNE can work with.

MNE

NEO

MNE-BIDS NIX-MNE

Brainstorm

MNE from

raw array

read_raw_eeglab()

read_raw_ﬁeldtrip()

bst_raw

EEGLab FieldTrip

BIDS NIX

Braindecode

MNE-torch

deepEEG

arl-EEGmodels

Pandas

to_data_frame()

PyTorch Keras

scikit-learn

mne.decoding

BrainVision

read_raw_brainvision()

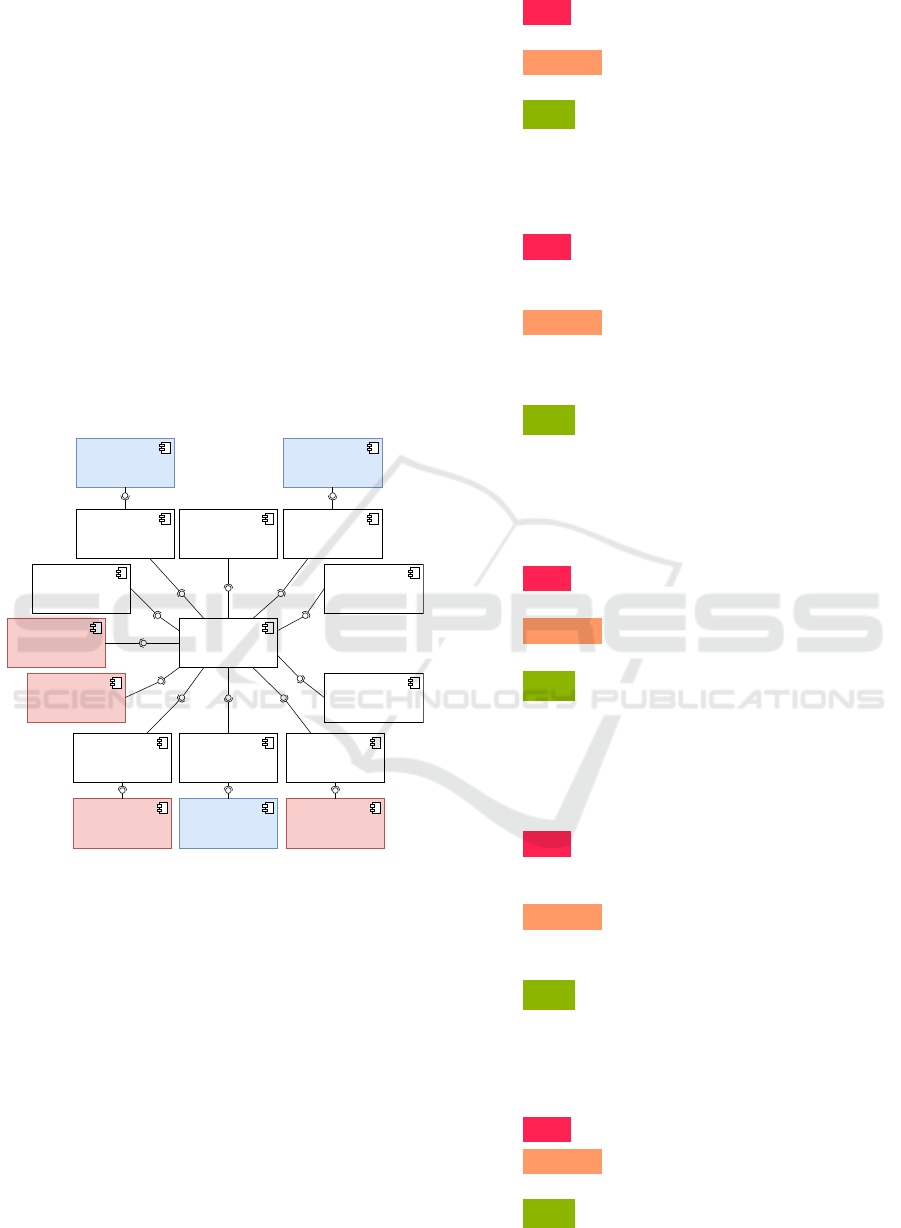

Figure 6: UML component diagram - integration of MNE

with data formats, analytical tools and ML libraries.

3.2 Software Tools Comparison

Based on the overview of software tools for EEG/ERP

processing given above, their abilities to work with

machine and DL methods and libraries, and experi-

ence in working with them, we set the criteria and

selected the software tools to form more automated

and open workﬂows for the processing of standard-

ized EEG/ERP data. The selection criteria are given

and explained below. The evaluation results are sum-

marized in Table 1. Except for licensing, all criteria

are graded in the following three levels:

1. need to get the MATLAB license,

2. level and scope of documentation,

• Low - weak documentation, missing com-

ments in the code, no tutorials,

• Medium - well-commented basic building

blocks of the code, several use cases,

• High - a large number of very detailed instruc-

tions and examples to help users understand the

tool, thoroughly annotated code,

3. current availabilities to use ML/DL learning clas-

siﬁcation methods,

• Low - the tool does not provide any possibili-

ties of using ML classiﬁcation methods, or only

a very limited set of them (up to 3 classiﬁers),

• Medium - the tool allows to use a more exten-

sive set of ML classiﬁcation methods, it does

not contain options for the use of DL meth-

ods/neural networks,

• High - the tool provides extensive possibilities

of using machine and DL classiﬁcation meth-

ods, or is integrated with libraries providing

these methods,

4. the size of the sets of functionalities suitable for

EEG/ERP data processing,

• Low - the tool does not provide any function-

alities for EEG/ERP data processing,

• Medium - the tool provides a limited set of

basic functions for EEG/ERP data processing,

• High - the tool contains extensive possibili-

ties for processing, analysis and visualization

of EEG/ERP data,

5. number of supported formats and tool abilities to

work/interact with other sw tools (the level of in-

tegration),

• Low - the tool supports only a very limited set

of EEG data formats and is not able to interact

with other tools,

• Medium - the tool supports a limited set of

EEG data formats and is integrated with a small

set of tools (up to 3),

• High - the tool supports all or almost all com-

monly used EEG data formats and provides

possibilities of working with other sw tools,

6. community size based on the number of forks of

the project on Github,

• Low - number of forks is < 200,

• Medium - number of forks is between 200 and

1000,

• High - number of forks is > 1000,

7. user friendliness,

On Open Workﬂows for Processing of Standardized Electroencephalography Data

673

• Low - deep knowledge of the tool is required

for convenient use, some entities are incompre-

hensibly implemented (it is often related to the

lower level of documentation),

• Medium - implementation is difﬁcult to un-

derstand, convenient use of the tool requires

good knowledge of the tool,

• High - implementation is easy to understand,

all functionalities of the tool are easily accessi-

ble.

When evaluating the results given in Table 1, the

MNE library and the related ecosystem (the Brain-

Vision data format, scikit-learn library and Keras li-

brary) were selected as the candidates for an open and

convenient workﬂow suitable for processing of stan-

dardized EEG/ERP data.

4 USE CASE EXAMPLE

The use case further presented veriﬁes the feasibil-

ity of the selected workﬂow; integration of appropri-

ate ML/DL classiﬁcation methods into the chosen tool

for EEG/ERP data pre-/processing is practically eval-

uated. This is demonstrated by replicating a process-

ing workﬂow of EEG/ERP data described in (Va

reka,

2020).

The related experiment called ’Guess the number’

included EEG/ERP data collected from 250 primary

and secondary school children; the underlying data

are also available in (Mou

cek et al., 2017). Before the

start of the experiment, each participant was asked to

select a number from 1 to 9 arbitrarily and to concen-

trate on it. Then, the recording of the EEG data was

started (EEG data from the electrodes Fz, Cz, and Pz

and event markers were collected) and the participant

was projected with visual stimuli (numbers between 1

and 9) in random orderNecessary experimental meta-

data from each participant were collected.

The experiment aimed to classify EEG/ERP

epochs into the target (thought number) and non-

target (another number) classes. The division of

epochs into training, validation and testing sets was

random. The success of the classiﬁcation using a con-

volutional neural network was tested and compared

with the traditional LDA and SVM classiﬁers. The

MATLAB tools for data loading, epoch extraction and

ﬁltering, and the scikit-learn and Keras libraries for

classiﬁcation purposes were used in the original pro-

cessing workﬂow.

The goal of the presented use case is to repli-

cate the original processing workﬂow described

in (Va

reka, 2020) entirely in the Python ecosystem se-

lected above and thus prove that this processing work-

ﬂow can be completed (when achieving the similar re-

sults) only with the use of open resources supporting

current standardization initiatives.

The data in the BrainVision format were read

and preprocessed (ﬁltering, epochs extraction) using

the same methods as described in (Va

reka, 2020),

but utilizing the MNE library. The data were fur-

ther classiﬁed with the LDA and SVM ML meth-

ods from the scikit-learn library as well as convolu-

tional and recurrent neural networks from the Keras

library (the same convolutional neural network as

in (Va

reka, 2020) was used). The success of the clas-

siﬁers was evaluated using the Monte-Carlo cross-

validation. The results were compared with the results

obtained in (Va

reka, 2020). The resulting implemen-

tation and the detailed manual are publicly available

in (Kupil

ık, 2020).

4.1 Testing

Due to the nature of the EEG/ERP data processing

and also because the original experiment is not fully

reproducible (the artefact rejection procedure is not

described in sufﬁcient detail, selection of non-target

epochs is random, and generally, neural networks

are used), the functionalities of the entire processing

workﬂow and its methods were both inspected visu-

ally by plotting the state of the data before and after

the application of the methods and by comparing the

achieved classiﬁcation results.

4.2 Results

The entire processing workﬂow was found functional.

The ﬁltering method was applied to the raw data of all

250 subjects, and the method for removing artefacts

removed approximately 30% of epochs from both tar-

get and non-target sets of epochs. Table 2 shows

the averaged results obtained after ten iterations of

the classiﬁcation method using standard metrics. The

standard deviations are given in parentheses. The

CNN classiﬁer achieved the best AUC (area under

the ROC curve), and the SVM classiﬁer achieved the

best accuracy and precision. The values closely cor-

respond to the results obtained in (Va

reka, 2020) for

the case when the core CNN architecture was used;

a positive change of 1-3 percentage points depending

on the metric is observable. The RNN classiﬁer that

was tested and evaluated only in this processing work-

ﬂow achieved decent results in terms of AUC and pre-

cision compared to other classiﬁers, but signiﬁcantly

worse values when recall is considered.

The MNE library was found to be a comprehen-

HEALTHINF 2021 - 14th International Conference on Health Informatics

674

Table 1: Evaluation of software tools for EEG/ERP data processing according to the given criteria.

Sw tool/Criteria Brainstorm FieldTrip EEGLab Neo Pandas MNE

License required N (Y for ML methods) Y (Matlab) Y (Matlab) N N N

Documentation

level

High High High Middle High High

ML/DL methods

utilization

Low Middle Middle Low High High

Number of

EEG/ERP data

processing methods

High High High Low Low High

Level of integration High High Middle High High High

Size of community Low Middle Low Low High Middle

User friendliness Middle Middle Middle Low High High

Table 2: Average cross-validation classiﬁcation results.

AUC accuracy precision recall

CNN 69.62% (0.79) 64.42% (0.74) 64.89% (1.17) 62.59% (2.52)

RNN 66.2% (0.87) 63.43% (0.83) 65.05% (1.77) 58.58% (4.51)

SVM 65.21% (0.44) 65.22% (0.45) 66.11% (0.64) 62.47% (1.04)

LDA 62.87% (0.38) 62.86% (0.38) 61.94% (0.43) 66.14% (0.8)

sive and convenient software tool for processing and

analyzing EEG/ERP data. Its structure is easy to un-

derstand, and its resources are logically and hierar-

chically well arranged. The level of documentation,

instructions provided, and commented use cases are

very high, and all the above support is continuously

updated. For ERP classiﬁcation, the great advantage

of the tool is the possibility to export the analyzed

epochs to the format of the NumPy library, which is

used by both libraries (scikit-learn and Keras) provid-

ing classiﬁcation methods.

5 CONCLUSIONS

The paper introduced an important step in deﬁn-

ing and implementing a processing workﬂow for

EEG/ERP data when open-source software ecosys-

tem and standardized EEG data format are used. In

parallel, this step contributes to the completion and

maturity of the whole lifecycle of electrophysiology

data. The EEG/ERP data lifecycle, standardization

initiatives, related EEG data formats, and current view

on the use of ML/DL approaches and libraries for

EEG/ERP data processing were introduced. Further-

more, software tools for processing EEG/ERP data

were analyzed (not only) concerning the utilization of

ML/DL methods contained in widespread ML/DL li-

braries.

Based on the results of the analysis, the MNE,

scikit-learn and Keras libraries were chosen for

the processing and classiﬁcation of standardized

EEG/ERP data. The proposed and implemented pro-

cessing workﬂow was evaluated over publicly avail-

able EEG/ERP datasets by replicating the processing

workﬂow described in (Va

reka, 2020). The achieved

classiﬁcation results were compared with similar re-

sults. If we take into account positive user experience,

the proposed workﬂow was recommended for open

and convenient processing of standardized EEG/ERP

data.

ACKNOWLEDGEMENTS

This work was supported by the University speciﬁc

research project SGS-2019-018 Processing of hetero-

geneous data and its specialized applications (project

SGS-2019-018).

REFERENCES

BCILAB (2020). Matlab toolbox for brain-computer inter-

face research. https://github.com/sccn/BCILAB, last

accessed on 2020-09-29.

Brain Products (2020). Bids adopts brainvision core

data format 1.0 as one of the recommended ofﬁcial

eeg/ieeg data formats. https://pressrelease.brainpro

ducts.com/bids/, last accessed on 2020-08-18.

Brain Pruducts (2019). Description of the brainvision

core data format 1.0. https://www.brainproducts.com/

ﬁles/public/products/more/BrainVisionCoreDataForm

at 1-0.pdf, last accessed on 2020-08-17.

On Open Workﬂows for Processing of Standardized Electroencephalography Data

675

Craik, A., He, Y., and Contreras-Vidal, J. L. (2019). Deep

learning for electroencephalogram (EEG) classiﬁca-

tion tasks:a review. Journal of Neural Engineering,

16(3):031001.

Elephant authors and contributors (2020). Ele-

phant - electrophysiology analysis toolkit.

https://elephant.readthedocs.io/en/latest/, last ac-

cessed on 2020-04-19.

Garcia, S. and Gill, J.(2019). ephyviewer 1.3.2.dev.

https://ephyviewer.readthedocs.io/en/latest/, last ac-

cessed on 2020-04-19.

Garcia, S., Guarino, D., Jaillet, F., Jennings, T., Pr

opper, R.,

Rautenberg, P., Rodgers, C., Sobolev, A., Wachtler,

T., Yger, P., and Davison, A. (2014). Neo: an object

model for handling electrophysiology data in multiple

formats. Frontiers in Neuroinformatics, 8:10.

Gorgolewski, K., Auer, T., Calhoun, V., Craddock, R., Das,

S., Duff, E., et al.(2016). The brain imaging data

structure, a format for organizing and describing out-

puts of neuroimaging experiments. Scientiﬁc Data, 3.

Gramfort, A., Luessi, M., Larson, E., Engemann,

D., Strohmeier, D., Brodbeck, C., Goj, R., Jas,

M., Brooks, T., Parkkonen, L., and H

ainen,

M.(2013). Meg and eeg data analysis with mne-

python. Frontiers in Neuroscience, 7:267.

Herger, B. (2020). keras-pandas 3.1.0. https://pypi.org/

project/keras-pandas/, last accessed on 2020-09-30.

International Neuroinformatics Coordinating Facility

(2020). https://www.incf.org/, last accessed on

2020-08-17.

Kemp, B. and Olivan, J. (2003). European data format

‘plus’ (edf+), an edf alike standard format for the ex-

change of physiological data. Clinical Neurophysiol-

ogy, 114(9):1755 – 1761.

Kothe, C. and Makeig, S. (2013). Bcilab: A platform for

brain–computer interface development. Journal of

neural engineering, 10:056014.

Kupil

ık, F. (2020). MNE ML - EEG data processing

pipeline using the MNE, Keras and the scikit-learn

libraries. https://github.com/fkupilik/MNE ML, last

accessed on 2020-10-27.

Mons, B., Neylon, C., Velterop, J., Dumontier, M.,

Da Silva Santos, L., and Wilkinson, M. (2017).

Cloudy, increasingly fair; revisiting the fair data guid-

ing principles for the european open science cloud. In-

formation Services and Use, 37(1):49–56.

Mou

cek, R., Va

reka, L., Prokop, T.,

ebet

ak, J., and Br

uha,

P. (2017). Event-related potential data from a guess

the number brain-computer interface experiment on

school children. Scientiﬁc Data, 4 cited By 5.

Pernet, C., Appelhoff, S., Gorgolewski, K., Flandin, G.,

Phillips, C., Delorme, A., et al. (2019). Eeg-bids, an

extension to the brain imaging data structure for elec-

troencephalography. Scientiﬁc Data, 6(1).

opper, R. and Obermayer, K. (2013). Spyke viewer:

a ﬂexible and extensible platform for electrophysio-

logical data analysis. Frontiers in Neuroinformatics,

7:26.

Roy, Y., Banville, H., Albuquerque, I., Gramfort, A., Falk,

T. H., and Faubert, J. (2019). Deep learning-based

electroencephalography analysis: a systematic review.

Journal of Neural Engineering, 16(5):051001.

ubel, O., Tritt, A., Dichter, B., Braun, T., Cain, N., Clack,

N., et al. (2019). Nwb:n 2.0: An accessible data stan-

dard for neurophysiology. bioRxiv.

Schirrmeister, R., Springenberg, J., Fiederer, L., Glasstet-

ter, M., Eggensperger, K., Tangermann, M., Hutter,

F., Burgard, W., and Ball, T. (2017). Deep learning

with convolutional neural networks for eeg decoding

and visualization: Convolutional neural networks in

eeg analysis. Human Brain Mapping, 38.

Teeters, J., Godfrey, K., Young, R., Dang, C., Friedsam, C.,

Wark, B., et al.(2015). Neurodata without borders:

Creating a common data format for neurophysiology.

Neuron, 88(4):629–634.

The Brainstorm team (2020). Brainstorm. https:// neuroim-

age.usc.edu/brainstorm/, last accessed on 2020-05-02.

The NeuralEnsemble Initiative (2020a). Pynn -

a python package for simulator-independent

speciﬁcation of neuronal network models.

https://neuralensemble.org/PyNN/, last accessed

on 2020-04-19.

The NeuralEnsemble Initiative (2020b). Spykeviewer.

https://neuralensemble.org/SpykeViewer/, last ac-

cessed on 2020-05-03.

The pandas development team (2020). pandas - data analy-

sis and manipulation tool. https://pandas.pydata.org/,

last accessed on 2020-09-30.

reka, L. (2020). Evaluation of convolutional neu-

ral networks using a large multi-subject p300

dataset. Biomedical Signal Processing and Control,

58:101837.

van Gerven, M., Bahramisharif, A., Farquhar, J., and

Heskes, T. (2011). Donders machine learning tool-

box. https://github.com/distrep/DMLT, last accessed

on 2020-05-02.

Wilkinson, M., Dumontier, M., Aalbersberg, I., Appleton,

G., Axton, M., Baak, A., et al.(2016). The fair guiding

principles for scientiﬁc data management and steward-

ship. Scientiﬁc Data, 3.

Zehl, L., Jaillet, F., Stoewer, A., Grewe, J., Sobolev, A.,

Wachtler, T., et al.(2016). Handling metadata in a neu-

rophysiology laboratory. Frontiers in Neuroinformat-

ics, 10:26.

HEALTHINF 2021 - 14th International Conference on Health Informatics

676
