Normalized Convolution Upsampling

for Reﬁned Optical Flow Estimation

Abdelrahman Eldesokey

and Michael Felsberg

Computer Vision Laboratory, Link

oping University, Sweden

Keywords:

Optical Flow Estimation CNNs, Joint Image Upsampling, Normalized Convolution, Spare CNNS.

Abstract:

Optical ﬂow is a regression task where convolutional neural networks (CNNs) have led to major breakthroughs.

However, this comes at major computational demands due to the use of cost-volumes and pyramidal repre-

sentations. This was mitigated by producing ﬂow predictions at quarter the resolution, which are upsampled

using bilinear interpolation during test time. Consequently, ﬁne details are usually lost and post-processing

is needed to restore them. We propose the Normalized Convolution UPsampler (NCUP), an efﬁcient joint

upsampling approach to produce the full-resolution ﬂow during the training of optical ﬂow CNNs. Our pro-

posed approach formulates the upsampling task as a sparse problem and employs the normalized convolutional

neural networks to solve it. We evaluate our upsampler against existing joint upsampling approaches when

trained end-to-end with a a coarse-to-ﬁne optical ﬂow CNN (PWCNet) and we show that it outperforms all

other approaches on the FlyingChairs dataset while having at least one order fewer parameters. Moreover, we

test our upsampler with a recurrent optical ﬂow CNN (RAFT) and we achieve state-of-the-art results on Sintel

benchmark with ∼ 6% error reduction, and on-par on the KITTI dataset, while having 7.5% fewer parameters

(see Figure 1). Finally, our upsampler shows better generalization capabilities than RAFT when trained and

evaluated on different datasets.

1 INTRODUCTION

Computer vision encompasses a broad range of re-

gression tasks where the goal is to produce numeri-

cal output given a visual input. Some of these tasks

such as depth prediction and optical ﬂow even require

pixel-wise output, which makes theses tasks more

challenging. Convolutional neural networks (CNNs)

have lead to major breakthroughs in these regression

tasks by exploiting deep representations of data. A

common design for these regression CNNs is coarse-

to-ﬁne where a low-resolution prediction is produced

and then progressively upsampled and reﬁned to the

full-resolution. This usually requires abundant GPU

memory, especially at ﬁner stages as the spatial di-

mensionality grows. Therefore, the scale of these net-

works has been throttled by the availability of compu-

tational resources, which has been mostly mitigated

either by limiting the depth of the networks or reduc-

ing the resolution of the data.

As an example, the early work on CNN-based

depth estimation in (Eigen et al., 2014) employed an

https://orcid.org/0000-0003-3292-7153

https://orcid.org/0000-0002-6096-3648

RAFT RAFT+NCUP (Ours)

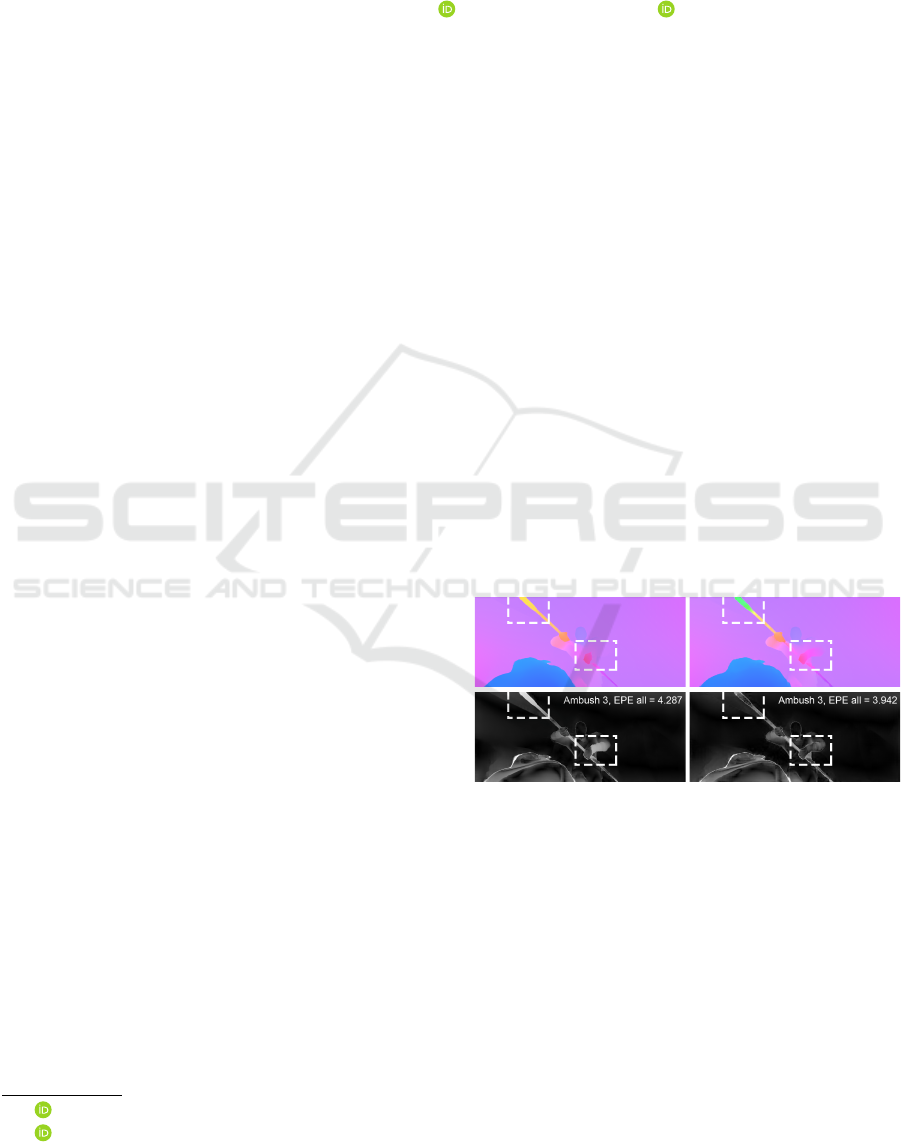

Figure 1: An example from the Sintel (Butler et al., 2012)

test set that shows the ﬂow improvement achieved by

our proposed upsampler NCUP in comparison with RAFT

(Teed and Deng, 2020).

encoder/decoder network where the training datasets

were downsampled to half the resolution to ﬁt into

the available GPU memory. Similarly, the preva-

lent optical ﬂow estimation network, FlowNet (Fis-

cher et al., 2015), trains on a quarter of the full res-

olution and uses bilinear interpolation to restore the

full-resolution during test time. This practice has

been preserved in subsequent optical ﬂow CNNs, par-

ticularly with the increased complexity of these net-

works and the emergence of the computationally ex-

pensive cost-volumes and pyramidal representations

742

Eldesokey, A. and Felsberg, M.

Normalized Convolution Upsampling for Reﬁned Optical Flow Estimation.

DOI: 10.5220/0010343707420752

In Proceedings of the 16th International Joint Conference on Computer Vision, Imaging and Computer Graphics Theory and Applications (VISIGRAPP 2021) - Volume 5: VISAPP, pages

742-752

ISBN: 978-989-758-488-6

(Fischer et al., 2015; Sun et al., 2018; Ilg et al., 2017).

Nonetheless, pyramid levels with full and half the res-

olution were not utilized as they would not ﬁt on the

available GPU memory. Unfortunately, operating on

a fraction of the full-resolution leads to loss of ﬁne

details, which might be crucial in certain tasks.

To alleviate these shortcomings of coarse-to-

ﬁne approaches, several joint image upsampling ap-

proaches have been applied as post-processing to the

output from optical ﬂow and depth estimation net-

works (Li et al., 2019; Su et al., 2019; Wu et al.,

2018). These approaches substitute the bilinear in-

terpolation and they utilize RGB images as guidance

to perform adaptive upsampling for the predicted ﬂow

that preserves edges and ﬁne details. The key idea of

theses approaches is to use a guidance modality, e.g.

. RGB images, to guide the upsampling of a target

modality such as ﬂow ﬁelds or depth values. How-

ever, these approaches act as post-processing and are

trained separately from the network of the original

task, omitting potential beneﬁts from training them

end-to-end. Therefore, we investigate training these

joint upsampling approaches within the coarse-to-ﬁne

optical ﬂow CNNs, e.g. . FlowNet, PWCNet, in an

end-to-end fashion to allow optical ﬂow networks to

exploit the ﬁne details during training. Moreover, we

propose a novel joint upsampling approach (NCUP)

that formulates the upsampling as a sparse problem

and employs the normalized convolutional neural net-

works (Eldesokey et al., 2018; Eldesokey et al., 2019)

to solve it. Our proposed upsampler that is more ef-

ﬁcient (2k parameters) and outperforms other joint

upsampling approaches in comparison on the task of

end-to-end optical ﬂow upsampling. An illustration

for the proposed setup is shown in Figure 2a.

Another category of optical ﬂow networks that

emerged recently is based on recurrent networks (Hur

and Roth, 2019; Teed and Deng, 2020), where the

predicted ﬂow is iteratively reﬁned. This requires the

availability of the ﬂow in full-resolution at the end

of each iteration. The bilinear interpolation was used

for this purpose in (Hur and Roth, 2019), while a

learnable convex combination upsampler was used in

(Teed and Deng, 2020). However, this convex up-

sampler performs the upsampling with a scaling fac-

tor of 8 in a single-shot with a limited kernel support

of 3 × 3. Moreover, it has a large number of param-

eters which encompasses approximately 10% of the

entire network. We replace this convex combination

module with our efﬁcient upsampler that performs the

upsampling at multi-scales, leading to state-of-the-art

results on Sintel dataset (Butler et al., 2012), simi-

lar results on the KITTI dataset (Menze et al., 2018),

better generalization capabilities, and using 5 times

fewer parameters. Figure 2b shows an illustration for

setup of recurrent networks, where we replace the up-

sampling module with our proposed upsampler.

Our Contributions Can Be Summarized as Fol-

lows:

• We propose a joint upsampling approach (NCUP)

that formulates upsampling as a sparse problem

and employs the normalized convolution neural

networks to solve it.

• We test our approach with coarse-to-ﬁne opti-

cal ﬂow networks (PWCNet) to produce the full-

resolution ﬂow during training, and we show that

it outperforms all other upsampling approaches,

while having at least one order fewer parameters.

• When we use our upsampler with a recurrent op-

tical ﬂow CNN, e.g. . RAFT (Teed and Deng,

2020), we achieve state-of-the-art results on the

Sintel (Butler et al., 2012) benchmark, and per-

form similarly on the KITTI (Menze et al., 2018)

test set using 5 times less parameters than their

convex combination upsampler.

• We show that our upsampler has better generaliza-

tion capabilities than the convex combination in

RAFT, when trained on FlyingThings3D (Mayer

et al., 2016) and evaluated on Sintel and KITTI.

2 RELATED WORK

CNN-based Optical Flow. Deep learning recently

surfaced as a plausible substitute for the classical

optimization-based optical ﬂow approaches (Xu et al.,

2017; Bailer et al., 2015; Horn and Schunck, 1981).

CNNs can be trained to directly predict optical ﬂow

given two images avoiding explicitly designing an op-

timization objective manually in classical approaches.

FlowNet (Fischer et al., 2015) introduced the ﬁrst

CNN for optical ﬂow estimation that is trained end-

to-end in a coarse-to-ﬁne fashion. Subsequent ap-

proaches followed the same scheme where FlowNet2

(Ilg et al., 2017) proposed a stacked version of

FlowNet, PWCNet (Sun et al., 2018) introduced a

pyramidal variation, and LiteFlowNet (Hui et al.,

2018) designed a light-weight cascaded network at

each pyramid level. VCN (Yang and Ramanan, 2019)

proposed several improvements for matching cost-

volumes to expand their receptive ﬁeld and they added

support for multi-dimensional similarities.

Recently, several recurrent approaches were pro-

posed where the ﬂow is iteratively reﬁned similar to

the optimization-based approaches. An initial ﬂow

Normalized Convolution Upsampling for Reﬁned Optical Flow Estimation

743

Feature Extractor

H x W

H/2 x W/2

H/4 x W/4

H/8 x W/8

Flow Estimation

Loss

NCUP Module

Image 1

Image 2

Coarser pyramid levels

(a) Coarse-to-ﬁne

Feature Encoder

H x W

H/8 x W/8

Flow Estimation

Loss

NCUP Module

Image 1

Image 2

Multi-Scale Correlation

Context Encoder

Update Module

Iterate

H/8 x W/8

H x W

(b) Recurrent

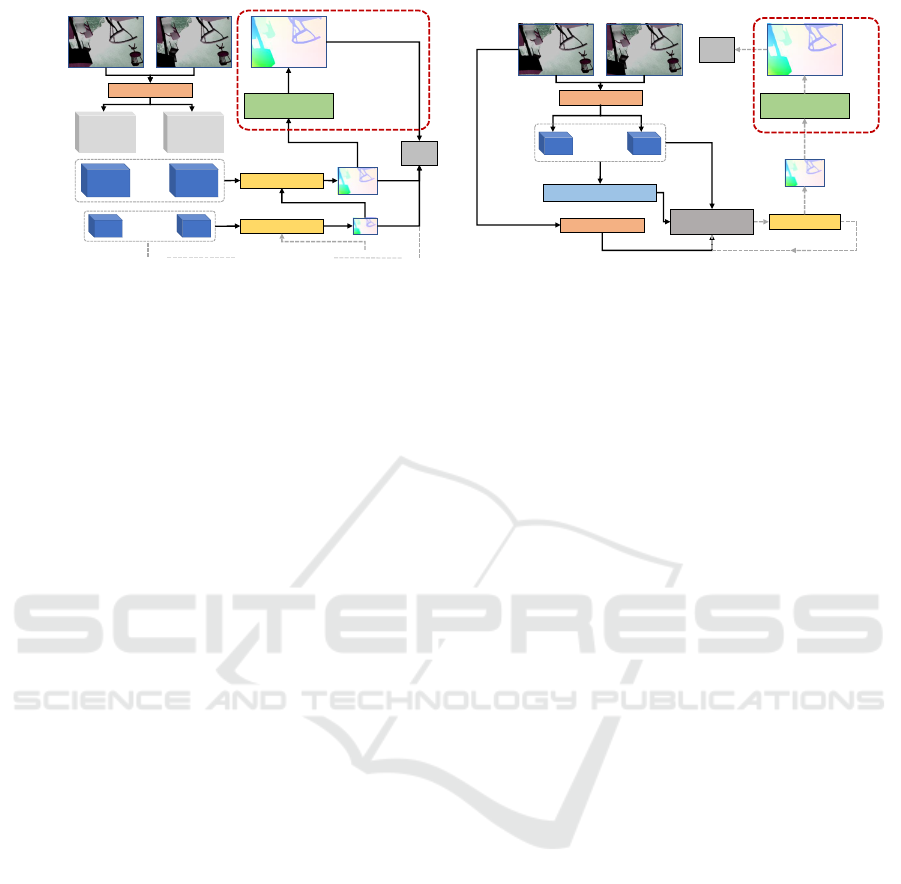

Figure 2: An illustration for how we train our proposed normalized convolution upsampler (NCUP) with coarse-to-ﬁne and

recurrent optical ﬂow networks. In coarse-to-ﬁne CNNs, e.g. . PWCNet (Sun et al., 2018) in (a), the ﬂow is estimated at

different levels of a pyramid of features. However, pyramid levels with full and half the resolution are not utilized as it is not

feasible to ﬁt them in GPU memory. We upsample the ﬂow to the full-resolution during training using our proposed approach

leading to reﬁned ﬂow predictions. In recurrent CNNs, e.g. . RAFT (Teed and Deng, 2020) in (b), the full-resolution ﬂow

needs to be available after each iteration. We replace the convex combination upsampler in RAFT, with our more compact

upsampler NCUP and we achieve state-of-the-art results using fewer parameters.

prediction is produced at the ﬁrst iteration and it is re-

ﬁned for a number of iterations. IRR (Hur and Roth,

2019) proposed to use either FlowNetS (Fischer et al.,

2015) or PWCNet (Sun et al., 2018) as a recurrent

unit that iteratively estimates the residual ﬂow from

the previous iteration. However, the number of iter-

ations was limited either by the size of the network

in FlowNet, or the number of pyramid levels in PWC-

Net. RAFT (Teed and Deng, 2020) introduced a light-

weight recurrent unit that is coupled with a GRU cell

(Cho et al., 2014) as an update operator. This cell al-

lowed performing more iterations and led to reﬁned

ﬂow predictions at a relatively lower computations.

Joint Image Upsampling. The notion of joint

(guided) image upsampling is to use a guidance im-

age to steer the upsampling of another target image,

where both the guidance and the target images could

be from the same or different modalities. Several

classical approaches were proposed that are based on

variations of the bilateral ﬁltering (Yang et al., 2007;

?). Li et al. (Li et al., 2019) proposed a CNN-based

architecture for joint image ﬁltering that can be ap-

plied to joint upsampling. They employed two sub-

networks for target and guidance features extraction

followed by a fusion block. Wu et al. (Wu et al.,

2018) proposed a trainable guided ﬁltering network

that was applied to clone the behavior of several vi-

sion tasks. Su et al. (Su et al., 2019) proposed pixel-

adaptive convolutions that modiﬁes the convolution

ﬁlter with a spatially varying kernel. Wannenwetsch

et al. (Wannenwetsch and Roth, 2020) extended the

pixel-adaptive convolutions to incorporate pixel-wise

conﬁdences.

Optical Flow Upsampling. For coarse-to-ﬁne net-

works, FlowNet (Fischer et al., 2015) suggested the

use of an iterative variational approach (Brox and

Malik, 2010) to produce the full-resolution ﬂow dur-

ing test time. However, this approach is computa-

tionally expensive and is not possible to train jointly

with the network. For recurrent networks, the full-

resolution ﬂow is required during the training at the

end of each iteration. IRR (Hur and Roth, 2019) at-

tempted a residual upsampling block, but found to be

futile with optical ﬂow and they used the bilinear in-

terpolation. RAFT (Teed and Deng, 2020) produces

the ﬂow in 1/8 of the full-resolution and employed a

convex combination upsampler to construct the full-

resolution. However, their upsampler has a limited

receptive ﬁeld and has a large number of parameters.

For coarse-to-ﬁne networks, we look into employ-

ing differentiable joint upsampling approaches to up-

sample the ﬂow during training. Moreover, we pro-

pose a joint upsampling approach (NCUP) that maps

the upsampling task to a sparsity densiﬁciation prob-

lem and employ the efﬁcient normalized convolu-

tional neural networks (Eldesokey et al., 2018; Eldes-

okey et al., 2019) to solve it. Experiments show that

our upsampler performs better than other approaches

in comparison on optical ﬂow upsampling. Different

to other joint upsampling approaches, our upsampler

estimates the guidance on the low-resolution data in-

stead of the full-resolution ones, which leads to fewer

computations and memory requirements compared to

other approaches.

For recurrent networks, i.e. . RAFT (Teed and

Deng, 2020), we replace the convex module with our

proposed upsampler, which performs the upsampling

VISAPP 2021 - 16th International Conference on Computer Vision Theory and Applications

744

at multi-scales and has 5 times fewer parameters. This

modiﬁcation leads to state-of-the-art results on Sintel

(Butler et al., 2012) dataset with ∼ 6% error reduc-

tion, similar performance on the KITTI (Menze et al.,

2018) dataset, while using 7.5% fewer parameters. Fi-

nally, our approach shows better generalization capa-

bilities when trained on FlyingThings (Mayer et al.,

2016) and tested on Sintel and the KITTI datasets.

3 APPROACH

In joint image upsampling task, it is desired to train

a network θ to upsample a low-resolution input I

to a high-resolution output I

, guided by some high-

resolution guidance data g

; θ : I

→ I

. The

guidance data is typically the RGB image, but can be

of any modality or even intermediate feature repre-

sentations from a CNN. In this section, we brieﬂy de-

scribe the normalized convolutional neural networks

(Eldesokey et al., 2018) followed by our proposed

Normalized Convolution Upsampler (NCUP).

3.1 Normalized Convolutional Neural

Networks

Eldesokey et al. (Eldesokey et al., 2018; ?) proposed

the normalized convolution layer, which is a sparsity-

aware convolution operator that was used to interpo-

late a sparse depth map on an irregular grid. More for-

mally, they learn an interpolation function θ :

→

|τ(

), where

is a sparse high-resolution in-

put with missing pixels, and τ() is a thresholding

operator that produces ones at pixels where data is

present and zeros otherwise. They recently proposed

to replace the thresholding operator τ with a CNN Φ

that predicts pixel-wise weights from the sparse in-

put θ :

→ I

|Φ(

) in a self-supervised manner

(Eldesokey et al., 2020). The high-resolution output

is predicted by a cascade of L normalized convo-

lution layers, where the output for layer l ∈ {1...L},

is calculated as:

(x) =

∑

m∈R

l−1

(x − m) w

l−1

(x − m) a

(m)

∑

m∈R

l−1

(x − m) a

(m)

(1)

where x, m are the spatial coordinates of the image,

, w

= Φ(

), and a

is the interpolation

kernel at layer l. The weights are propagated between

layers as:

(x) =

∑

m∈R

l−1

(x − m) a

(m)

∑

m∈R

(m)

, (2)

At the ﬁnal layer L, the high-resolution output is pro-

duced I

= I

3.2 Formulating Upsampling as a

Sparse Problem

Typically, the standard interpolation operations, e.g.

. bilinear, bicubic, employ backward mapping to en-

sure that each pixel in the output is assigned a value.

Contrarily, if forward mapping is used, a sparse grid is

formed in the output. Fortunately, normalized convo-

lution layers were demonstrated to perform well with

irregular sparse grids, e.g. . depth completion, sparse

optical ﬂow, and, consequently, can be used to inter-

polate regular sparse grids.

Given a low-resolution input image I

, a high-

resolution sparse grid

can be constructed using

forward mapping. The forward mapping from the

low-resolution grid coordinates (x

) to the high-

resolution grid (x, y) for a scaling factor s can be real-

ized as:

(x,y) = (round(s · x

),round(s · y

)) ∀ (x

) (3)

Note that the high-resolution grid is regular when s ∈

The initial pixel-wise weights w

required for

the normalized convolution network can be estimated

using a weights estimation network Φ similar to

(Eldesokey et al., 2020). But different from (El-

desokey et al., 2020) and other existing joint up-

sampling approaches, we estimate the pixel-wise

weights from the low-resolution guidance image, not

the high-resolution one. Predicting weights for the

low-resolution image requires less computations and

memory requirements making the weights estima-

tion network much smaller and shallower, and there-

fore, leading to a more efﬁcient upsampling. For in-

stance, the entire upsampling network that we use

with coarse-to-ﬁne optical ﬂow networks, e.g. .

FlowNet and PWCNet, has only 2k parameters (see

Figure 3 where ch1=16 and ch2=8), while being able

to outperform other approaches with at least one order

of magnitude more parameters.

Another difference from (Eldesokey et al., 2020)

is that we employ other modalities, e.g. . RGB in-

put image, intermediate CNN features, as guidance

for the weights estimation network similar to the ex-

isting joint upsampling approaches (Li et al., 2019;

Su et al., 2019); Φ([I

]). This allows exploit-

ing other modalities to adapt the weights based on the

context. The output from the weights estimation net-

work is also transformed to the high-resolution grid

using the forward mapping.

Essentially, we train an upsampling network θ :

→ I

|Φ([I

]), where the sparse high-

resolution grid

is an intermediate stage gener-

ated by applying forward mapping to the the low-

Normalized Convolution Upsampling for Reﬁned Optical Flow Estimation

745

𝐼

𝐿𝑅

(𝑥′, 𝑦′)

NConv

Low-Res Image

𝐼

𝐻𝑅

(𝑥, 𝑦)

Forward

Mapping

High-Res Image Grid

ሚ

𝐼

𝐻𝑅

(𝑥, 𝑦)

Sparse Input

CNN

Weights Estimation

Network

Low-Res Weights

𝑤

𝐿𝑅

(𝑥′, 𝑦′)

Forward

Mapping

High-Res Weights Grid

𝑤

𝐻𝑅

(𝑥, 𝑦)

Sparse Adaptive

Weights

Other

Guidance Data

High-Res Image

High-Res Groundtruth

Loss

𝑔

𝐿𝑅

(𝑥′, 𝑦′)

Conv2D, 3x3

BatchNorm

ReLU

Sigmoid

ch1

Conv2D, 3x3

BatchNorm

ReLU

Conv2D, 3x3

ch(𝐼

𝐿𝑅

)

ch(𝑔

𝐿𝑅

)

Weights Estimation Network

𝑤

𝐿𝑅

Interpolation Network

NConv2D, 5x5

Conf-Based Pooling

NConv2D, 5x5

NConv2D, 3x3

Upsampling

Concatenate

NConv2D, 1x1

ሚ

𝐼

𝐻𝑅

𝑤

𝐻𝑅

𝐼

𝐻𝑅

ch2

Interpolation

Network

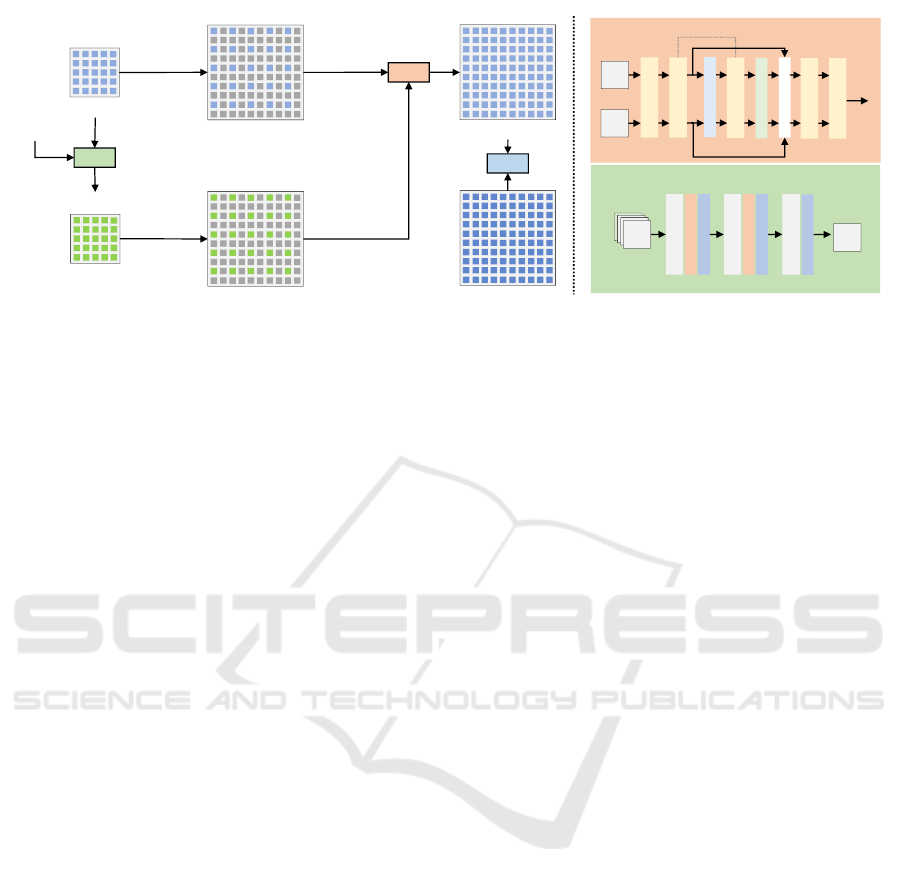

Figure 3: An illustration of our proposed joint upsampling approach (NCUP). First, a sparse high-resolution grid is constructed

from the low-resolution image using forward mapping. Pixel-wise weights for the low-resolution image are produced by a

weights estimation network the (green block) which takes the low-resolution image and other auxiliary data as input. The

weights are mapped to the high-resolution grid in a similar fashion using forward mapping. Next, an interpolation network

that encompasses a cascade of normalized convolution layers (the orange block) receives the high-resolution grid as well as

the weights and produce the high-resolution image. Note that the notation ch() denotes number of channels.

resolution input. The pixel-wise weights are pre-

dicted using a CNN from the low-resolution input

and any other guidance data. The weights are sim-

ilarly mapped to the high-resolution grid using for-

ward mapping. Finally, a cascade of normalized con-

volution layers is applied to interpolate the missing

values in the sparse high-resolution grid. An illustra-

tion of the whole pipeline is shown in Figure 3.

3.3 Weights Estimation Network

Since the weights are estimated for the low-resolution

input, the receptive ﬁeld of the weights estimation

network can be quite small. Therefore, we use two

convolution layers with a 3 × 3 ﬁlters followed by

Batch Normalization and ReLU activation. The num-

ber of channels per layer is determined based on the

guidance data that is used. When RGB images are

used, we use 16 and 8 channels for the two convolu-

tion layers, while we use 64 and 32 channels when

intermediate CNN features are used as guidance (ch1

and ch2 values in Figure 3). A last convolution layer

with a 1×1 ﬁlter is applied to produce the same num-

ber of channels as the low-resolution input I

. Fi-

nally, a Sigmoid activation is applied to produce valid

non-negative weights. Other function with a non-

negative co-domain can be used, e.g. . Softplus, but

the Sigmoid function was found to achieve the best

results. The estimated weights are transformed to the

high-resolution grid using forward mapping as well.

3.4 Interpolation Network

We build a U-Net shaped normalized convolution net-

work inspired by (Eldesokey et al., 2018). However,

we perform downsampling only once, i.e. . we use

two scales instead of four in (Eldesokey et al., 2018),

since the sparsity in our case is signiﬁcantly lower

than the LiDAR depth completion problem they were

solving. This leads to a smaller network with 224

parameters instead of 480 parameters in (Eldesokey

et al., 2018). The interpolation network receives the

high-resolution image grid

and the weights grid

as an input. The weights are propagated and up-

dated within the interpolation network until the ﬁnal

dense output I

is produced at the ﬁnal layer.

3.5 Optical Flow Upsampling

Optical ﬂow is represented as two channels for ver-

tical and horizontal ﬂow ﬁeld. We process the two

channels jointly within the weights estimation net-

work, i.e. . ch(I

) = 2 in Figure 3. However, for the

interpolation network, the two channels are processed

separately and then concatenated. In coarse-to-ﬁne

optical ﬂow estimation networks, e.g. . FlowNet (Fis-

cher et al., 2015) and PWCNet (Sun et al., 2018), the

ﬂow is produced at quarter the resolution. We attach

the upsampling module to the optical ﬂow estimation

network to upsample the ﬂow from H/4 × W /4 to

H ×W

Typically, the multi-scale loss is employed in

coarse-to-ﬁne networks:

∑

p∈P

− f

, (4)

where f

is the ﬂow estimation at pyramid level p

in PWCNet or resolution p in FlowNet, where P =

{3,4,5,6,7}, and f

is the corresponding down-

sampled groundtruth. The choice of α

’s were

VISAPP 2021 - 16th International Conference on Computer Vision Theory and Applications

746

Table 1: Summary of the results fpr two coarse-to-ﬁne optical ﬂow networks trained end-to-end with joint upsampling ap-

proaches. Relative Params. indicates the number of parameters for each upsampler. The stated results are the Average

End-Point Error (AEPE) on the FlyingChairs (Fischer et al., 2015) test set. The relative improvement is shown between

parentheses. The best results are shown in Bold and the second best in Italics. Our upsampler NCUP outperforms all other

approaches DJIF (Li et al., 2019), PAC (Su et al., 2019), ConvComb (Teed and Deng, 2020) with PWCNet , while having the

least number of parameters.

Baseline Bilinear DJIF PAC ConvComb NCUP

(Ours)

PWCNet (Sun

et al., 2018)

1.69 1.58

(+6.5%)

1.51

(+10.6%)

1.50

(+11.2%)

1.52

(+10.0%)

1.46

(+13.6%)

FlowNetS (Fischer

et al., 2015)

2.53 2.23

(+11.8%)

2.16

(+14.6%)

2.11

(+18.8%)

2.16

(+14.6%)

2.13

(+15.8%)

Relative Params. - - +56k +183k +44k +2k

empirically determined in (Fischer et al., 2015) as

{0.32,0.08,0.02,0.01,0.005}. Note that that p =

1, p = 2, where not considered during training as ex-

plained earlier. We consider another level/scale in the

loss for the full-resolution ﬂow, i.e. . we set P =

{1,3,4,5,6,7}, and following (Fischer et al., 2015),

we found empirically that the best performance is ob-

tained when α

= 0.02 for most methods. This de-

notes that the ﬂow is upsampled by a factor of 4 from

quarter the resolution to the full-resolution. For the

recurrent network RAFT, we use their proposed loss

(Teed and Deng, 2020).

4 EXPERIMENTS

In this section, we evaluate our proposed joint upsam-

pling approach with two types of optical ﬂow estima-

tion CNNs: coarse-to-ﬁne and recurrent networks.

4.1 Joint Upsampling for Coarse-to-ﬁne

Networks

We choose two of the most popular coarse-to-ﬁne

optical ﬂow CNNs, i.e. . FlowNet (Fischer et al.,

2015) and PWCNet (Sun et al., 2018). Different joint

upsampling approaches are attached to the two net-

works and they are trained end-to-end as illustrated

in Figure 2a. The joint upsampling approaches that

we compare against are DJIF (Li et al., 2019), PAC

(Su et al., 2019), the convex combination from RAFT

(Teed and Deng, 2020) which we refer to as Con-

vComb, and the bilinear interpolation. We train only

on the FlyingChairs (Fischer et al., 2015) as its spa-

tial resolution is smaller than its counterparts allow-

ing training memory-demanding joint upsampling ap-

proaches. For instance, PWCNet trained with PAC

fully occupy a 32 GB V100 GPU when trained of

FlyingChairs with a batch size of 3. We use the of-

ﬁcial PyTorch implementations provided by the cor-

responding authors.

Experimental Setup. We initialize FlowNetS and

PWCNet using pretrained models on the FlyingChairs

dataset, while the joint upsampling approaches are

initialized randomly. We train each network for 60

epochs with an initial learning rate of 0.0001 that is

halved at epochs {20,30,40,50,55}. Since we can

only ﬁt a batch size of 3 for PAC on a 32GB V100

GPU, we use a batch size of 4 for all other approaches

for a fair comparison. We use data augmentation as

described in (Hur and Roth, 2019).

Quantitative Results. Table 1 summarizes the re-

sults for coarse-to-ﬁne networks. All upsampling ap-

proaches lead to performance gains demonstrating the

advantage from making the full-resolution ﬂow avail-

able for coarse-to-ﬁne networks during training. On

PWCNet, our upsampler achieves the best improve-

ment over the baseline despite having at least one or-

der of magnitude lower parameters than its counter-

parts, while other approaches performs comparably

well. On FlowNetS, our upsampler performs second

best with a small margin to PAC. We believe that the

larger model of PAC allows it to reﬁne the poor pre-

dictions from FlowNetS slightly better than our up-

sampler.

Qualitative Results. A qualitative example for differ-

ent approaches on the FlyingChairs dataset is shown if

Figure 4. All upsampling approaches make edges and

details more sharp and deﬁned compared to the stan-

dard PWCNet as a result of making the full-resolution

ﬂow available during training. Nonetheless, PAC

and our upsampler tend to produce sharpest results

amongst all. However, our upsampler does a better

job preserving small objects in some situations such

as the red chair at the bottom of the scene.

Normalized Convolution Upsampling for Reﬁned Optical Flow Estimation

747

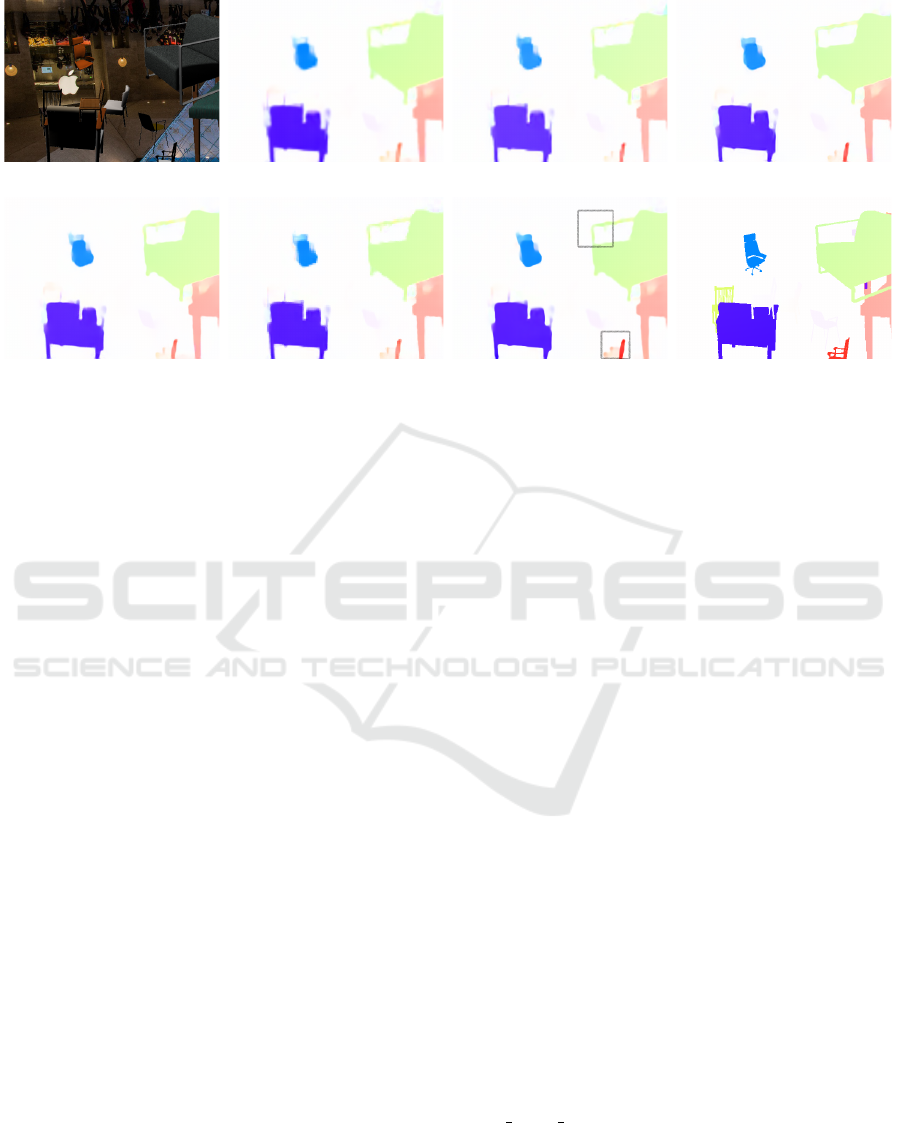

Image 1 PWCNet + Bilinear + DJIF

+ PAC + ConvComb + NCUP (Ours) Groundtruth

Figure 4: A qualitative example from the FlyingChairs (Fischer et al., 2015) dataset when PWCNet (Sun et al., 2018) is trained

end-to-end using different joint upsampling approaches. Our upsampler produces sharp edges and preserves ﬁne details such

as the arm of the green chair and the small red chair at the bottom. Better viewed on a computer display.

4.2 Joint Upsampling for Recurrent

Networks

We test our proposed upsampler as a substitute for the

convex combination upsampler in the recurrent opti-

cal ﬂow approach RAFT (Teed and Deng, 2020). The

convex upsampler which has ∼ 500k parameters is re-

moved and replaced with our upsampler constituting

∼ 100k parameters. We use the output from the GRU

cell, which has 128 channels as guidance data as they

suggested in addition to the low-resolution ﬂow. For

efﬁciency, we upsample the ﬂow from 1/8 to 1/4 the

full-resolution and then use our upsampler for restor-

ing the full-resolution.

Experimental Setup. We initialize the network using

the pretrained weights provided by the authors (Teed

and Deng, 2020). We use the same training hyperpa-

rameters as described in (Teed and Deng, 2020) ex-

cept for the weight decay that we set to 0.00005 and

we only train for 50k iterations. For Sintel, we do

not include FlyingThings3D and HD1k during ﬁne-

tuning. For KITTI, we disable the batch normaliza-

tion in the weights estimation network as it leads to

better results.

Benchmark Comparison. Table 2 shows the re-

sults for Sintel and KITTI benchmarks. On the Sintel

benchmark, we outperform the standard RAFT with

a 6.3% error reduction on the challenging ﬁnal pass,

while the error is slightly increased by 1.8% on the

clean pass. We believe that this performance boost on

the ﬁnal pass is caused by multi-scale interpolation

scheme employed by our upsampler that can elimi-

nate large faulty regions in the predicted ﬂow. On the

KITTI benchmark, we perform similarly the standard

RAFT despite having 7.5% fewer parameters.

Generalization Results. To examine the generaliza-

tion capabilities of our upsampler, we train it on Fly-

ingChairs followed by FlyingThings3D and evaluate

it on the training set of Sintel and KITTI. Table 2

shows that our upsampler outperforms the standard

RAFT on clean pass of Sintel and KITTI, while it per-

forms slightly worse on the ﬁnal pass of Sintel. We

believe that the slight degradation on the ﬁnal pass

is due to training the clean and the ﬁnal pass of Fly-

ingThings3D together without a weighted sampling.

However, the large improvement on KITTI signiﬁ-

cantly indicates that our upsampler posses better gen-

eralization.

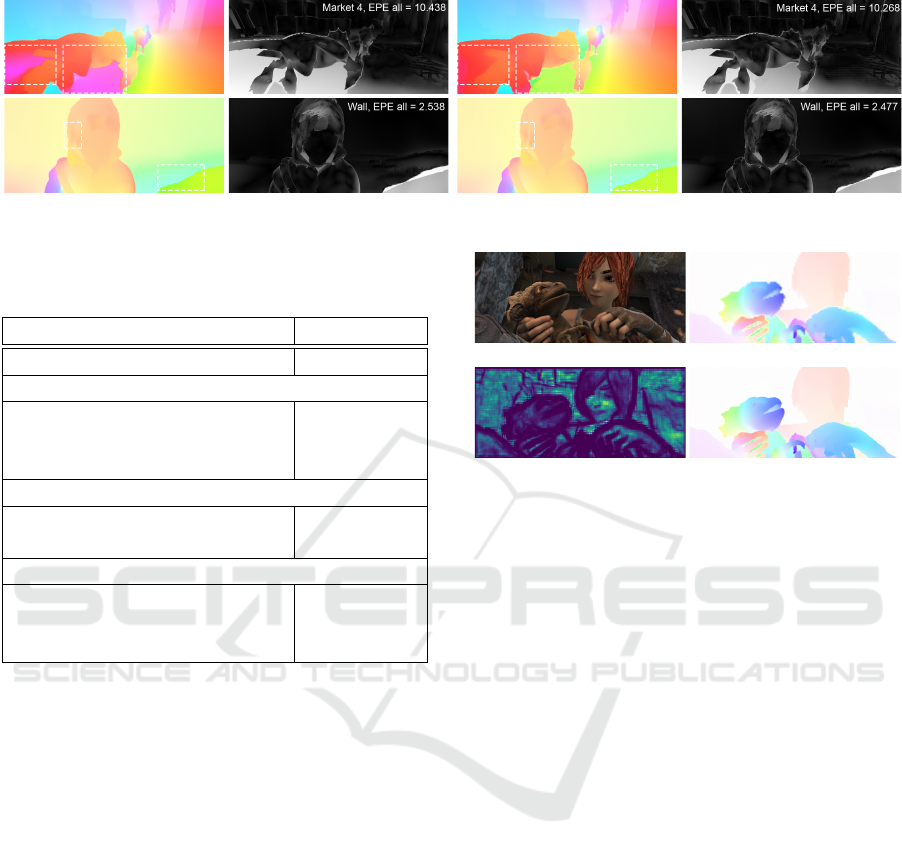

Qualitative Results. Figure 5 shows some qualita-

tive results from the Sintel test set. The use of our

upsampler leads to better ﬂow estimations compared

to the standard RAFT. The ﬁrst row shows an example

where a large region of faulty ﬂow prediction (the pur-

ple region under the dragon) produced by the standard

RAFT that is corrected when our proposed upsampler

was used. The second row shows another example

where the ﬂow is improved at ﬁne details such as the

hair. These results clearly demonstrates the impact of

upsampling on the quality of the ﬂow. Qualitative ex-

amples for the KIITI dataset can be found on the on-

line benchmark: http://www.cvlibs.net/datasets/kitti/

eval scene ﬂow.php?benchmark=ﬂow .

VISAPP 2021 - 16th International Conference on Computer Vision Theory and Applications

748

Table 2: Summary for quantitative results when using our upsampler NCUP with the recurrent network RAFT (Teed and

Deng, 2020). The best results are shown in Bold and the second best in Italics. Different datasets are indicated as following:

FlyingChairs (Fischer et al., 2015) → C, FlyingThings3D (Mayer et al., 2016) → T, Sintel (Butler et al., 2012) → S, KITTI-

Flow 2015 (Menze et al., 2018) → K, and HD1K (Kondermann et al., 2016) → H. Results between brackets are training

set score and hence not comparable. Note that we did not use FlyingThings3D and HD1K during ﬁnetuning for Sintel. We

outperform RAFT on the challenging ﬁnal pass of Sintel and perform similarly on the test set of KITTI, while having 5 times

smaller upsampler.

∗

Indicates that warm starts (Teed and Deng, 2020) were used.

Training Dataset Method

Sintel (Train) KITTI (Train) Sintel (Test) KITTI

Clean Final AEPE Fl-All Clean Final (Test)

C+T

PWCNet (Sun

et al., 2018)

2.55 3.93 10.35 33.7 - - -

LiteFlowNet (Hui

et al., 2018)

2.48 4.04 10.39 28.5 - - -

VCN (Yang and

Ramanan, 2019)

2.21 3.67 8.36 25.1 - - -

MaskFlowNet

(Zhao et al., 2020)

2.25 3.61 - 23.1 - - -

FlowNet2 (Ilg

et al., 2017)

2.02 3.54 10.08 30.0 3.96 6.02 -

RAFT-Small (Teed

and Deng, 2020)

2.21 3.35 7.51 26.9 - - -

RAFT (Teed and

Deng, 2020)

1.43 2.71 5.04 17.4 - - -

RAFT+NCUP 1.41 2.75 4.83 17.4 - - -

C+T+S+K+H

PWCNet+ (Sun

et al., 2019)

(1.71) (2.34) (1.50) (5.30) 3.45 4.60 7.27

VCN (Yang and

Ramanan, 2019)

(1.66) (2.24) (1.16) (4.10) 2.81 4.40 6.30

MaskFlowNet

(Zhao et al., 2020)

- - - - 2.52 4.17 6.10

RAFT

∗

(Teed and

Deng, 2020)

(0.77) (1.27) (0.63) (1.50) 1.61 2.86 5.10

RAFT+NCUP

∗

(0.71) (1.09) (0.67) (1.68) 1.66 2.69 5.14

4.3 Ablation Study

We conduct an ablation study to justify speciﬁc de-

sign choices in our proposed approach. Experiments

are reported for PWCNet+NCUP on the FlyingChairs

(Fischer et al., 2015) test set. Table 3 summarizes

the average end-point-error scores for different exper-

iments.

Weights Estimation Network. We replace the ﬁ-

nal activation with SoftPlus function instead of Sig-

moid to get the estimate weights in the range of [0,∞[

instead of [0, 1] produced by the Sigmoid function.

The network converges faster when using the SoftPlus

function, however the AEPE score is slightly worse.

We also attempt to feed the full-resolution guidance

data to the weights estimation networks similar to

other joint upsampling approaches. The kernel size

of the ﬁrst two convolution layers was increased to

5 × 5 for a larger receptive ﬁeld. The results are sig-

niﬁcantly worse, which is probably because a larger

network is needed to exploit the interesting informa-

tion in the full-resolution data. Finally, we omit the

low-resolution ﬂow from being used with guidance

data. The results shows that using the low-resolution

ﬂow with guidance data contributes signiﬁcantly to

the results.

Interpolation Network. We experiment with two

downsamplings, which indicates that the interpola-

tion is performed at three scales instead of two. The

results show that the the best results are achieved

when using only one downsampling. We also test the

standard max pooling for downsampling instead of

the conﬁdence-based pooling proposed in (Eldesokey

et al., 2018). The results show that the conﬁdence-

Normalized Convolution Upsampling for Reﬁned Optical Flow Estimation

749

RAFT (Teed and Deng, 2020) RAFT+NCUP (Ours)

Figure 5: Qualitative examples from the Sintel (Butler et al., 2012) test set.

Table 3: Ablation results on the FlyingChairs (Fischer et al.,

2015) test set. The baseline is PWCNet (Sun et al., 2018)

trained with our upsampler NCUP.

Model AEPE

PWCNet+NCUP (Baseline) 1.46

Weights Estimation Network

Final activation is SoftPlus 1.48

Estimate from High-Res 1.75

Low-Res not used as guidance 1.52

Interpolation Network

Two downsampling instead of one 1.49

Max instead of Conf. pooling 1.48

Loss Function

= 0.002 1.48

= 0.02 1.46

= 0.2 1.46

based pooling is slightly superior to max pooling.

The Loss Function. We experiment with one order

of magnitude higher and lower factor α

in (4). The

results indicates that the choice of α

= 0.02 and α

0.2 lead to the best results. So, we choose α

= 0.02

since it works the best for the majority of methods in

comparison, but the value of α

can be tuned further

for our approach.

4.4 What Does Our Upsampler Learn?

Figure 6 shows an example of the predicted weights

within our upsampler when used with RAFT on the

Sintel dataset in comparison to the bilinear interpo-

lation. The estimated weights essentially highlight

edges and ﬁne details with low-weight regions sep-

arating them. The width of these regions deﬁnes to

what extent each object is extrapolated and ensures

the separability between objects. Based on the de-

sign of the interpolation network, the width of these

regions is adapted accordingly. On the other hand,

solid regions, e.g. . the girl’s face, with no texture are

assigned uniform weights acting as averaging. This

adaptive behavior shows a great potential for using

Image 1 RAFT+Bilinear

Estimated Weights RAFT+NCUP

Figure 6: An example of the predicted weights from NCUP

when used with RAFT (Teed and Deng, 2020).

our upsampling with other regression tasks, where the

weights estimation network would learn the upsam-

pling pattern that minimizes the reconstruction error.

5 CONCLUSION

We introduced an efﬁcient upsampling approach

based on the normalized convolutional networks that

we incorporated in training coarse-to-ﬁne and recur-

rent optical ﬂow CNNs. In coarse-to-ﬁne networks,

e.g. . PWCNet, the full-resolution ﬂow was pro-

duced by our upsampler during the training leading

to the ﬁnes ﬂow estimations compared to other joint

upsampling approaches in comparison, while having

at least one order of magnitude fewer parameters.

When trained with the recurrent optical ﬂow network

RAFT, it achieved state-of-the-art results on the Sin-

tel dataset, and achieved a similar score on the KITTI

dataset, while having 400k less parameters. Addition-

ally, our approach showed better generalization capa-

bilities compared to the standard RAFT.

ACKNOWLEDGEMENTS

This work was supported by the Wallenberg AI, Au-

tonomous Systems and Software Program (WASP)

and Swedish Research Council grant 2018-04673.

VISAPP 2021 - 16th International Conference on Computer Vision Theory and Applications

750

REFERENCES

Bailer, C., Taetz, B., and Stricker, D. (2015). Flow ﬁelds:

Dense correspondence ﬁelds for highly accurate large

displacement optical ﬂow estimation. In Proceedings

of the IEEE international conference on computer vi-

sion, pages 4015–4023.

Brox, T. and Malik, J. (2010). Large displacement optical

ﬂow: descriptor matching in variational motion esti-

mation. IEEE transactions on pattern analysis and

machine intelligence, 33(3):500–513.

Butler, D. J., Wulff, J., Stanley, G. B., and Black, M. J.

(2012). A naturalistic open source movie for optical

ﬂow evaluation. In A. Fitzgibbon et al. (Eds.), editor,

European Conf. on Computer Vision (ECCV), Part IV,

LNCS 7577, pages 611–625. Springer-Verlag.

Cho, K., Van Merri

enboer, B., Gulcehre, C., Bahdanau, D.,

Bougares, F., Schwenk, H., and Bengio, Y. (2014).

Learning phrase representations using rnn encoder-

decoder for statistical machine translation. arXiv

preprint arXiv:1406.1078.

Eigen, D., Puhrsch, C., and Fergus, R. (2014). Depth map

prediction from a single image using a multi-scale

deep network. In Advances in neural information pro-

cessing systems, pages 2366–2374.

Eldesokey, A., Felsberg, M., Holmquist, K., and Persson,

M. (2020). Uncertainty-aware cnns for depth comple-

tion: Uncertainty from beginning to end. In Proceed-

ings of the IEEE/CVF Conference on Computer Vision

and Pattern Recognition, pages 12014–12023.

Eldesokey, A., Felsberg, M., and Khan, F. S. (2018). Prop-

agating conﬁdences through cnns for sparse data re-

gression. In The British Machine Vision Conference

(BMVC), Northumbria University, Newcastle upon

Tyne, England, UK, 3-6 September, 2018.

Eldesokey, A., Felsberg, M., and Khan, F. S. (2019). Con-

ﬁdence propagation through cnns for guided sparse

depth regression. IEEE transactions on pattern anal-

ysis and machine intelligence.

Fischer, P., Dosovitskiy, A., Ilg, E., H

ausser, P., Hazırbas¸,

C., Golkov, V., Van der Smagt, P., Cremers, D.,

and Brox, T. (2015). Flownet: Learning optical

ﬂow with convolutional networks. arXiv preprint

arXiv:1504.06852.

Horn, B. K. and Schunck, B. G. (1981). Determining op-

tical ﬂow. In Techniques and Applications of Image

Understanding, volume 281, pages 319–331. Interna-

tional Society for Optics and Photonics.

Hui, T.-W., Tang, X., and Change Loy, C. (2018). Lite-

ﬂownet: A lightweight convolutional neural network

for optical ﬂow estimation. In Proceedings of the

IEEE conference on computer vision and pattern

recognition, pages 8981–8989.

Hur, J. and Roth, S. (2019). Iterative residual reﬁnement for

joint optical ﬂow and occlusion estimation. In Pro-

ceedings of the IEEE Conference on Computer Vision

and Pattern Recognition, pages 5754–5763.

Ilg, E., Mayer, N., Saikia, T., Keuper, M., Dosovitskiy, A.,

and Brox, T. (2017). Flownet 2.0: Evolution of optical

ﬂow estimation with deep networks. In Proceedings of

the IEEE conference on computer vision and pattern

recognition, pages 2462–2470.

Kondermann, D., Nair, R., Honauer, K., Krispin, K., An-

drulis, J., Brock, A., Gussefeld, B., Rahimimoghad-

dam, M., Hofmann, S., Brenner, C., et al. (2016). The

hci benchmark suite: Stereo and ﬂow ground truth

with uncertainties for urban autonomous driving. In

Proceedings of the IEEE Conference on Computer Vi-

sion and Pattern Recognition Workshops, pages 19–

28.

Li, Y., Huang, J.-B., Ahuja, N., and Yang, M.-H. (2019).

Joint image ﬁltering with deep convolutional net-

works. IEEE transactions on pattern analysis and ma-

chine intelligence, 41(8):1909–1923.

Mayer, N., Ilg, E., H

ausser, P., Fischer, P., Cremers, D.,

Dosovitskiy, A., and Brox, T. (2016). A large dataset

to train convolutional networks for disparity, optical

ﬂow, and scene ﬂow estimation. In IEEE International

Conference on Computer Vision and Pattern Recogni-

tion (CVPR). arXiv:1512.02134.

Menze, M., Heipke, C., and Geiger, A. (2018). Object scene

ﬂow. ISPRS Journal of Photogrammetry and Remote

Sensing (JPRS).

Su, H., Jampani, V., Sun, D., Gallo, O., Learned-Miller,

E., and Kautz, J. (2019). Pixel-adaptive convolutional

neural networks. In Proceedings of the IEEE Con-

ference on Computer Vision and Pattern Recognition,

pages 11166–11175.

Sun, D., Yang, X., Liu, M.-Y., and Kautz, J. (2018). Pwc-

net: Cnns for optical ﬂow using pyramid, warping,

and cost volume. In Proceedings of the IEEE con-

ference on computer vision and pattern recognition,

pages 8934–8943.

Sun, D., Yang, X., Liu, M.-Y., and Kautz, J. (2019). Models

matter, so does training: An empirical study of cnns

for optical ﬂow estimation. IEEE transactions on pat-

tern analysis and machine intelligence, 42(6):1408–

1423.

Teed, Z. and Deng, J. (2020). Raft: Recurrent all-pairs

ﬁeld transforms for optical ﬂow. arXiv preprint

arXiv:2003.12039.

Wannenwetsch, A. S. and Roth, S. (2020). Probabilistic

pixel-adaptive reﬁnement networks. In Proceedings

of the IEEE/CVF Conference on Computer Vision and

Pattern Recognition (CVPR).

Wu, H., Zheng, S., Zhang, J., and Huang, K. (2018). Fast

end-to-end trainable guided ﬁlter. In Proceedings of

the IEEE Conference on Computer Vision and Pattern

Recognition, pages 1838–1847.

Xu, J., Ranftl, R., and Koltun, V. (2017). Accurate optical

ﬂow via direct cost volume processing. In Proceed-

ings of the IEEE Conference on Computer Vision and

Pattern Recognition, pages 1289–1297.

Yang, G. and Ramanan, D. (2019). Volumetric correspon-

dence networks for optical ﬂow. In Advances in neural

information processing systems, pages 794–805.

Yang, Q., Yang, R., Davis, J., and Nist

er, D. (2007). Spatial-

depth super resolution for range images. In 2007 IEEE

Conference on Computer Vision and Pattern Recogni-

tion, pages 1–8. IEEE.

Normalized Convolution Upsampling for Reﬁned Optical Flow Estimation

751

Zhao, S., Sheng, Y., Dong, Y., Chang, E. I., Xu, Y., et al.

(2020). Maskﬂownet: Asymmetric feature matching

with learnable occlusion mask. In Proceedings of the

IEEE/CVF Conference on Computer Vision and Pat-

tern Recognition, pages 6278–6287.

VISAPP 2021 - 16th International Conference on Computer Vision Theory and Applications

752
