MADLIRA: A Tool for Android Malware Detection

Khanh Huu The Dam

and Tayssir Touili

Nha Trang University, Vietnam

LIPN, CNRS, University Paris 13, France

Keywords:

Malware Detection, Android, Static Analysis.

Abstract:

Today, there are more threats to Android users since malware writers are changing their target to explore the

weakness of Android devices, in order to generate malicious behaviors. Thus, detecting Android malwares

is becoming crucial. We present in this paper a tool, called MADLIRA (MAlware Detection using Learning

and Information Retrieval for Android). This tool implements two static approaches: (1) apply Information

Retrieval techniques to automatically extract malicious behaviors from a set of malicious and benign appli-

cations, (2) apply learning techniques to automatically learn malicious applications. Then, in both cases,

MADLIRA can classify a new Android application as malicious or benign.

1 INTRODUCTION

The number of new malwares increased by 36 percent

in one year from 2014 to 2015. It is estimated that

there are more than one million of new pieces of mal-

wares released everyday (Symantec, 2016). Accord-

ing to the report of Kaspersky Lab in the third quar-

ter of 2017, there are more than 1.5 million malicious

packages detected on mobiles (Kaspersky, 2018). The

last years, the number of attacks on mobiles has in-

creased enourmeously, using various types such as

backdoors, cryptomining, fake apps, banking trojans,

etc. (McAfee, 2019). Consequently, there are more

threats to Android users. Thus, the challenge is to

detect malicious behaviors in Android applications.

However, most of industry anti-viruses are based on

the signature matching technique where a scanner will

search for speciﬁc elements (called signatures) like

permission requirements, package names and class

names or the segmentations of bytecode and certain

strings in the Android applications. If an application

contains such a signature, it is marked as malicious. If

not, it is marked as benign. This signature matching

technique is not very robust. Indeed, malware writ-

ers may implement some obfuscation techniques, e.g.,

renaming, inserting functions (Rastogi et al., 2013;

Zheng et al., 2013; Maiorca et al., 2015; Preda and

Maggi, 2016) to change the structure of a malware

while keeping its same behaviors so that the known

signatures cannot be used to recognize it.

To avoid this issue, several works (Burguera et al.,

2011; Dimja

sevic et al., 2015; Canfora et al., 2015;

Jang et al., 2016; Malik and Khatter, 2016) use dy-

namic analysis to analyze the behaviors of the An-

droid applications instead of its syntactic signatures.

In this approach, the behaviors are dynamically ob-

served while running the application on an emulated

environment. However, by the dynamic analysis tech-

nique, it is hard to trigger the malicious behaviors in

a short period since they may require a delay or only

show up after some interaction of users.

To overcome these limitations, one needs to anal-

yse the behaviors of a program without executing it.

To this aim, we consider in this paper API calls in

Android applications to model the malicious behav-

iors in a static way. Indeed, API functions are me-

diators between programs and their running environ-

ment. They are used to access or modify the system

by malware authors. Therefore, API functions are

crucial to specify malicious behaviors. Thus, in this

work, we model a program using an API call graph,

which is a directed graph whose nodes are API func-

tions, and whose edges specify the execution order of

the API function calls: an edge ( f , f

) expresses that

there is a call to the API function f followed by a

call to the API function f

. For example, let us look

at a typical behavior of an Android trojan SMS spy.

The smali code of this behavior is given in Figure 1.

This behavior consists in collecting the phone id and

then sending this data via a text message. This task is

done by a sequence of API calls. First, the function

getDeviceId() is called at line 5 to collect the phone

id. Then, the TelephonyManager object is gotten by

calling getDefault() at line 19. Finally, the phone id is

sent to an anonymous phone number via a text mes-

sage by calling sendTextMessage() at line 25.

670

Dam, K. and Touili, T.

MADLIRA: A Tool for Android Malware Detection.

DOI: 10.5220/0010339506700675

In Proceedings of the 7th International Conference on Information Systems Security and Privacy (ICISSP 2021), pages 670-675

ISBN: 978-989-758-491-6

To represent this behavior, we use a malicious API

graph. Figure 2 shows the malicious API graph of

this behavior. The edges express that a call to the

function Landroid/telephony/TelephonyManager; ->

getDeviceId() is followed by the calls to the func-

tions Landroid/telephony/gsm/SmsManager; -> get-

Default() and Landroid/telephony/gsm/SmsManager;

-> sendTextMessage().

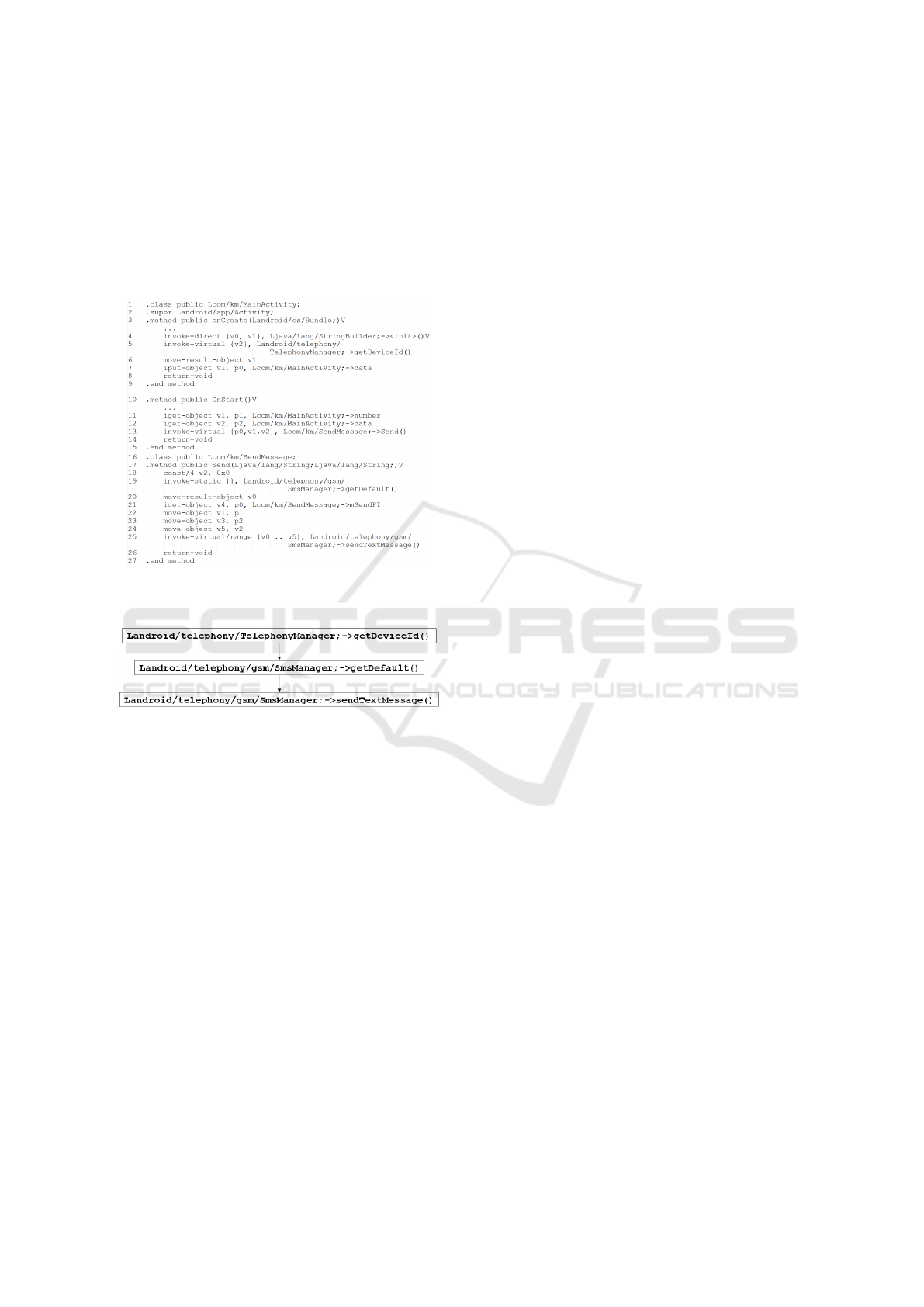

Figure 1: A piece of smali code of an Android trojan SMS

spy.

Figure 2: A malicious API graph of an Android trojan SMS

spy.

Using this API call graph representation, we

implement two static approaches in a tool, called

MADLIRA, for Android malware detection: (1) ap-

ply the Information Retrieval techniques of (Dam

and Touili, 2017a) to automatically extract mali-

cious behaviors from a set of malicious and benign

Android applications, and use the extracted mali-

cious behaviors to detect malwares; and (2) apply

the learning techniques of (Dam and Touili, 2017b)

to automatically learn malicious Android applica-

tions. We applied our tool on 3518 Android mal-

wares and 1118 Android benwares, we obtained a de-

tection rate of 98.76% with 0.24% false alarms. We

present our tool MADLIRA in this paper. Our tool

can be found in https://lipn.univ-paris13.fr/

∼

dam/

tool/androidTool/MADLIRA.html

2 RELATED WORK

Similar to our presentation, (Burguera et al., 2011;

Gascon et al., 2013; Jang et al., 2016; Song and

Touili, 2014; Dam and Touili, 2019b) use API calls to

represent the malicious behaviors of malware. (Gas-

con et al., 2013) represent the applications by func-

tion call graphs where nodes correspond to function

calls and edges connect the callers to the callees. This

model is different from our API call graph where

nodes correspond to API function calls and edges

specify the execution order of API functions in the

application, i.e., it allows the connection of two func-

tions which have the same callers while (Gascon et al.,

2013) do not allow that connection. Moreover, our

tool allows the extraction of Android malicious be-

haviors.

In (Burguera et al., 2011; Jang et al., 2016), dy-

namic analysis is applied to capture the behaviors of

an application via system calls. Crowdroid in (Bur-

guera et al., 2011) generates the feature vector for

each Android application by counting the number of

system calls which are required during its execution.

Andro-dumpsys in (Jang et al., 2016) monitors the

API calls and its parameters and store them in a pro-

ﬁle. As we have mentioned before, dynamic analysis

is limited by a time interval. Our analysis is done in a

completely static way.

In (Song and Touili, 2014), the authors apply static

analysis to model Android applications and then ap-

ply model checking for malware detection. Their

approach requires the manual speciﬁcation of mali-

cious behaviors (logic formulas), after a tedious man-

ual study of the code. In contrast, our tool can auto-

matically extract malicious behaviors of Android mal-

wares and then use these malicious behaviors to detect

malware.

Similar to the STAMAD tool (Dam and Touili,

2019a), our tool MADLIRA allows to learn and

extract malicious behaviors. However, STAMAD

is implemented for PC malwares whereas our tool

MADLIRA tackles Android malwares.

3 BACKGROUND

Given a set of malicious and a set of benign An-

droid applications, MADLIRA ﬁrst extracts from ev-

ery program its corresponding API call graph. To

perform this step, we apply the techniques of (Dam

and Touili, 2017a; Dam and Touili, 2017b) that com-

pute this graph by performing a kind of reachability

analysis on the Control Flow Graphs of the programs.

Then, MADLIRA can (1) either automatically extract

MADLIRA: A Tool for Android Malware Detection

671

malicious behaviors using Information Retrieval tech-

niques, or (2) apply machine learning techniques to

automatically learn and detect malwares. Then, in

both cases, MADLIRA can classify a new given un-

seen application as malicious or benign. In this sec-

tion, we will present the main ideas behind these two

approaches that are implemented in MADLIRA.

3.1 Extraction of Malicious Behaviors

Given a set of malicious and a set of benign An-

droid applications, MADLIRA implements the idea

of (Dam and Touili, 2017a), to automatically extract

the malicious behaviors of the malwares. It ﬁrst ex-

tracts the API call graph corresponding to each appli-

cation, then, MADLIRA’s goal is to compute a ma-

licious API call graph that represents the behaviors

that are present in the malicious programs but not in

the benign ones. To this aim, it will extract the sub-

graphs which are relevant to the malicious graphs but

not relevant to the benign ones. A relevant subgraph

contains nodes and edges that are crucial to the mali-

cious API call graphs. This problem can be seen as an

Information Retrieval (IR) problem, where the goal is

to retrieve relevant items and reject nonrelevant ones.

One of the most efﬁcient techniques in information

retrieval is the TFIDF

scheme. It was widely applied

for document extraction by the IR community in web

searching, text searching, image searching, etc. (Dam

and Touili, 2017a) applied these IR TFIDF techniques

to extract malicious API call graphs from a set of An-

droid malwares and benwares. MADLIRA applies

the techniques of (Dam and Touili, 2017a) to extract

malicious API call graphs: it associates to each node

and each edge of the API call graphs in the malicious

and benign applications a weight using the formulas

of (Dam and Touili, 2017a). These weights are com-

puted from the occurrences of terms (nodes/edges)

in benwares and malwares. These weights allow to

measure the relevance of each term (nodes/edges) to

malwares and benwares. The higher the weight is,

the more relevant the term is to malwares. Then,

the malicious API call graph is constructed from the

edges and nodes that have the highest weight. Finally,

MADLIRA uses the automatically extracted mali-

cious behavior speciﬁcation to determine whether a

new unknown program is malicious or not by per-

forming a kind of product between the extracted mali-

cious API call graph, and the new program’s API call

graph. More details about this approach can be found

in (Dam and Touili, 2017a).

TFIDF stands for Term Frequency and Inverse Docu-

ment Frequency

3.2 Learning Malicious Behaviors

In our second approach, we implement the kernel

based support vector machine technique on API call

graphs to compute a function h which classiﬁes An-

droid malwares from Android benign applications.

The choice of support vector machines is motivated

by the fact that they are very suitable for nonvecto-

rial data (graphs in our setting), whereas the other

well-known learning techniques like artiﬁcial neural

network, k-nearest neighbor, decision trees, etc. can

only be applied to vectorial data. This method is

highly dependent on the choice of kernels. A kernel

is a function which returns similarity between data.

In MADLIRA, we use a variant of the random walk

graph kernel that measures graph similarity as the

number of common paths of increasing lengths. To

implement this graph kernel support vector machine

approach to learn Android malwares, MADLIRA ap-

plies the ideas and details of (Dam and Touili, 2017b).

4 MADLIRA DESCRIPTION

MADLIRA takes as input a set of Android malwares

and a set of Android benwares and can either (1) ex-

tract a malicious API graph representing the mali-

cious behaviors of the Android malwares in the set;

or (2) learn to classify Android malwares without ex-

tracting the malicious behaviors. These phases are

called the training phases. Then, given a new An-

droid application, MADLIRA checks whether it is

malicious or not.

MADLIRA has two main components: TFIDF

component, which extracts the malicious behaviors

and uses these malicious behaviors to check whether a

new application is malicious or not (read Section 3.1

for more details), and SVM

component, which ap-

plies random walk graph kernel based support vector

machines to classify malwares from benign applica-

tions (read Section 3.2 for more details). MADLIRA

consists of three modules:

Module 1: Android Application Modeling.

This module takes as input an Android application (an

APK ﬁle). It ﬁrst applies the apktool (ApkAndroid-

Tool, 2016) to decompile this APK ﬁle to smali codes.

Then, these smali codes are transformed to the con-

trol ﬂow graphs of the Android application. Finally,

the Graph Computation component takes as input the

Android API Library and the control ﬂow graph of the

SVM stands for Support Vector Machine

ICISSP 2021 - 7th International Conference on Information Systems Security and Privacy

672

Android

Application (APK

file)

Apktool

Smali Codes

Control Flow

Graphs

Android API

Library

Graph

Computation

Android API

Call Graph

Android Application Modeling - Module 1

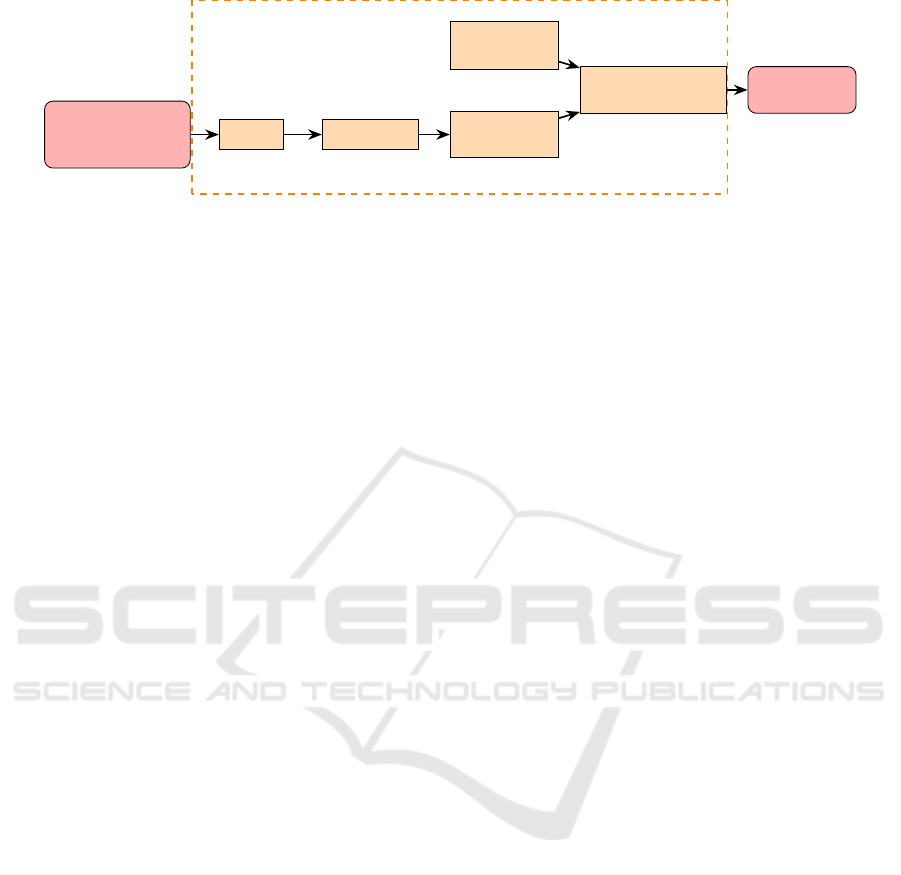

Figure 3: Android Application Modeling - Module 1.

Android application to compute the Android API call

graph by the algorithm of (Dam and Touili, 2017a).

Module 2 : Extraction of Malicious Behaviors.

This module consists in two phases: the extraction

phase, i. e., the extraction of malicious behaviors, and

the detection phase, i. e., the malicious behavior de-

tection. In the extraction phase, it takes as input a

set of malwares and a set of benwares. After ap-

plying the ﬁrst module to extract their corresponding

API call graphs, these graphs are fed to the Malicious

Graph Computation component to compute the ma-

licious API graph. This component implements the

TFIDF weighting term scheme introduced in Section

3.1 to compute the malicious behaviors. It outputs

malicious API graphs representing the malicious be-

haviors. This phase will be called ”training phase”.

In the detection phase, this module takes as input an

Android application (an APK ﬁle) and applies the

ﬁrst module to compute its corresponding API call

graph. Then, it checks whether the program’s graph

contains any malicious behavior from the malicious

API graphs (the output of the “training phase”) or not.

If this program contains any malicious behavior, the

output is “Malicious!”. Otherwise, the output is “Be-

nign!”.

Module 3: Learning Malicious Behaviors.

This module implements the learning technique de-

scribed in Section 3.2. It consists in two phases: the

learning phase and the detection phase. In the learn-

ing phase, it takes as input a set of malwares and a set

of benwares. It ﬁrst applies the ﬁrst Module to com-

pute their corresponding API call graphs. Then, these

API call graphs are fed to the SVM training compo-

nent, i.e., LIBSVM (Chang and Lin, 2011), to com-

pute a SVM training model.

In the detection phase, it takes as input an Android ap-

plication (an APK ﬁle), applies the Application Mod-

eling Module to compute its corresponding API call

graph. Then, it uses SVM classiﬁer with the training

model (the output of the ﬁrst phase) to classify the

program either” Malicious!” or “Benign!”.

5 EXPERIMENTS

To evaluate our tool, we use a dataset of 1118 An-

droid benwares, which are collected from the web-

site apkpure.com, and 3518 Android malwares which

are gotten from the Drebin dataset (Arp et al., 2014).

MADLIRA gives promising results:

Extraction of Malicious Behaviors. To evaluate the

performance of Module 2, we ﬁrst applied our tool to

automatically extract a malicious API graph from a

set of 1900 Android malwares and 704 Android ben-

wares. The obtained malicious API graph is then used

for malware detection on a test set of 1618 Android

malwares and 414 Android benwares. We obtained

encouraging results: a detection rate of 96.6% with

15.7% false alarms.

Learning Malware. To evaluate the performance of

Module 3, we randomly split the dataset into two par-

titions, a training and a testing partition. For the train-

ing partition, the quantity of malwares and benwares

is balanced with 704 samples for each, this will allow

us to compute the SVM classiﬁer. The test set con-

sisting of 2814 Android malwares and 414 Android

benwares, is used to evaluate the classiﬁer. Using the

training set, we compute the training model. Then,

we apply this training model to classify Android mal-

wares on the test set and obtain a detection rate of

98.76%, with 0.24% of false alarms.

6 EXAMPLES OF MALICIOUS

BEHAVIORS

In this section, we present some malicious behaviors

that were automatically extracted by MADLIRA.

Installing Malicious Packages. This malicious be-

havior installs a list of malicious packages to the sys-

MADLIRA: A Tool for Android Malware Detection

673

Set of

Malwares

Set of

Benwares

Application

Modeling

Malware

Graphs G

Benware

Graphs G

Malicious Graph

Computation

Malicious

Behaviors Graph

Extraction of Malicious Behaviors

A New

Application

Modeling

Program’s Graph

Detect

subgraphs?

Malicious Behavior Detection

Malicious!

Benign!

Yes

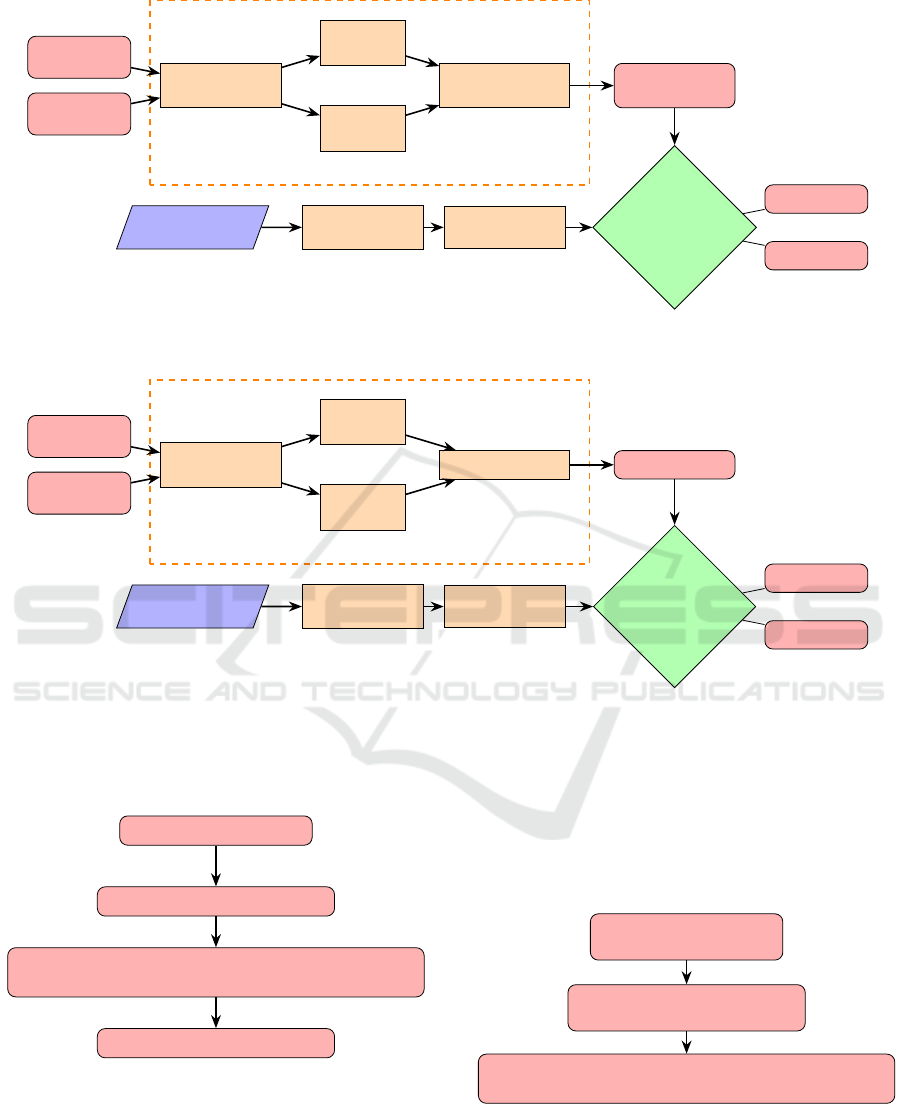

Figure 4: Extraction of Malicious Behaviors - Module 2.

Set of

Malwares

Set of

Benwares

Application

Modeling

Malware

Graphs G

Benware

Graphs G

LIBSVM training Training Model

Learning Malicious Behaviors

A New

Application

Modeling

Program’s Graph

LIBSVM

Classifier

Malicious!

Benign!

Malware Detection

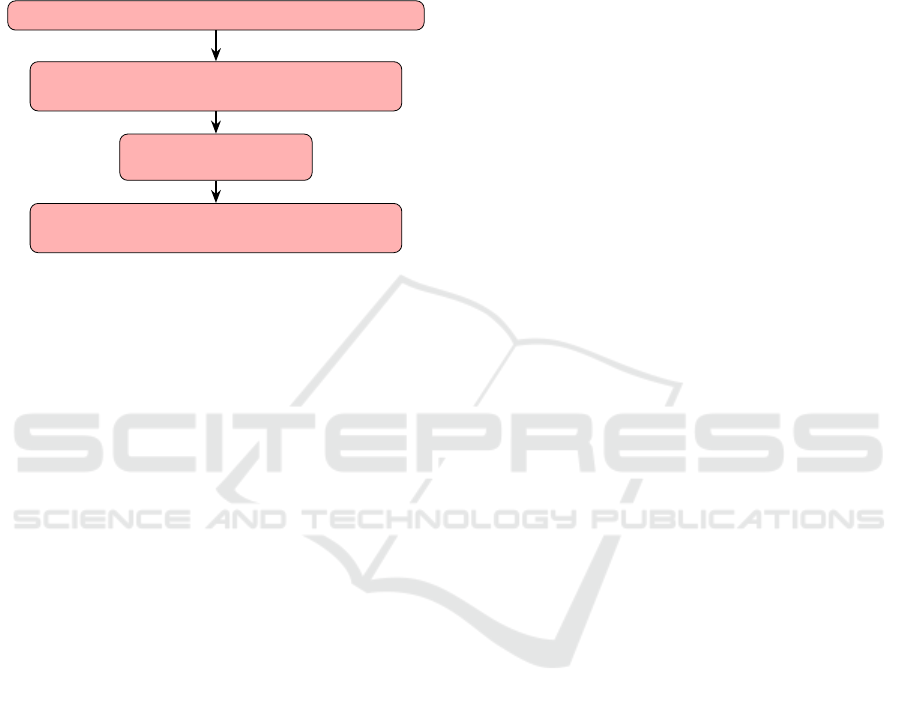

Figure 5: Learning Malicious Behaviors - Module 3.

tem. It is shown in the malicious API graph of Figure

6. This graph represents the following malicious be-

Ljava/util/Map; ->get

Ljava/lang/Runtimes; ->exec

Landroid/content/pm/PackageManager;

->getLaunchIntentForPackage

Ljava/util/Map; ->remove

Figure 6: The malicious API graph of the Android mali-

cious behavior of Installing malicious packages.

havior: the method get() in the object Map is ﬁrst

called to get the package from the list. Then, the

method exec() is called to execute the package and

getLaunchIntentForPackage() is called to install

the package. Finally, this package is removed from

the list by calling the method remove() in the object

Map.

Running a Malicious Process This malicious be-

havior replaces the running process by a malicious

process. It is shown in the graph of Figure 7. The ma-

Ljava/lang/String;

->valueOf

Landroid/os/Process;

->killProcess

Landroid/content/pm/PackageManager;

->getLaunchIntentForPackage

Figure 7: The malicious API graph of the Android mali-

cious behavior of Running a malicious process.

licious behavior is implemented as follows: The ma-

licious application ﬁrst calls valueOf() in the object

String to get the identiﬁer of the speciﬁc process.

ICISSP 2021 - 7th International Conference on Information Systems Security and Privacy

674

Then, it calls killProcess() to kill this process.

Finally, it calls getLaunchIntentForPackage() to

launch a replaced process in the system.

Repeatedly Sending Messages This malicious be-

havior repeatedly sends the data via SMS messages.

It is shown in the graph of Figure 8. The ma-

Landroid/content/SharedPreferences; ->getString

Landroid/telephony/SmsManager;

->getDefault

Ljava/util/Iterator;

->next

Landroid/telephony/SmsManager;

->sendTextMessage

Figure 8: The malicious API graph of the Android mali-

cious behavior of Repeatedly sending messages.

licious behavior is implemented as follows: The

malicious application ﬁrst calls getString() in

SharedPreferences to get the values of the vari-

ables. Then, it calls getDefault() in SmsManager to

get the object to handle SMS message in the system.

Finally, it calls sendTextMessage() in SmsManager

to send the messages. Besides, it calls next() in

Iterator to get a list of messages for sending.

REFERENCES

ApkAndroidTool (2016). A tool for reverse engineering an-

droid apk ﬁles. https://ibotpeaches.github.io/Apktool.

Accessed: 2016-11-25.

Arp, D., Spreitzenbarth, M., Hubner, M., Gascon, H., and

Rieck, K. (2014). Drebin: Effective and explain-

able detection of android malware in your pocket. In

NDSS.

Burguera, I., Zurutuza, U., and Nadjm-Tehrani, S. (2011).

Crowdroid: behavior-based malware detection system

for android. In Proceedings of the 1st ACM workshop

on Security and privacy in smartphones and mobile

devices.

Canfora, G., Medvet, E., Mercaldo, F., and Visaggio, C. A.

(2015). Detecting android malware using sequences

of system calls. In Proceedings of the 3rd Interna-

tional Workshop on Software Development Lifecycle

for Mobile.

Chang, C.-C. and Lin, C.-J. (2011). Libsvm: A library for

support vector machines. ACM Transactions on Intel-

ligent Systems and Technology, 2. Software available

at http://www.csie.ntu.edu.tw/ cjlin/libsvm.

Dam, K. and Touili, T. (2019a). STAMAD: a static mal-

ware detector. In Proceedings of the 14th Interna-

tional Conference on Availability, Reliability and Se-

curity, ARES 2019, Canterbury, UK, August 26-29,

2019, pages 25:1–25:6. ACM.

Dam, K.-H.-T. and Touili, T. (2017a). Extracting android

malicious behaviors. In International Workshop on

FORmal methods for Security Engineering.

Dam, K.-H.-T. and Touili, T. (2017b). Learning android

malware. In Proceedings of the 12th International

Conference on Availability, Reliability and Security,

ARES ’17.

Dam, K. H. T. and Touili, T. (2019b). Stamad: A static

malware detector. In Proceedings of the 14th Interna-

tional Conference on Availability, Reliability and Se-

curity, ARES ’19, New York, NY, USA. Association

for Computing Machinery.

Dimja

sevic, M., Atzeni, S., Ugrina, I., and Rakamaric, Z.

(2015). Android malware detection based on system

calls. University of Utah, Tech. Rep.

Gascon, H., Yamaguchi, F., Arp, D., and Rieck, K. (2013).

Structural detection of android malware using embed-

ded call graphs. In Proceedings of the 2013 ACM

workshop on Artiﬁcial intelligence and security, pages

45–54. ACM.

Jang, J.-w., Kang, H., Woo, J., Mohaisen, A., and Kim,

H. K. (2016). Andro-dumpsys: anti-malware system

based on the similarity of malware creator and mal-

ware centric information. Computers & security.

Kaspersky (2018). Internet security threat report.

https://securelist.com/it-threat-evolution-q3-2017-

statistics/83131/. Accessed: 2018-01-30.

Maiorca, D., Ariu, D., Corona, I., Aresu, M., and Giacinto,

G. (2015). Stealth attacks: An extended insight into

the obfuscation effects on android malware. Comput-

ers & Security.

Malik, S. and Khatter, K. (2016). System call analysis of

android malware families. Indian Journal of Science

and Technology.

McAfee (2019). Mcafee mobile threat re-

port. https://www.mcafee.com/enterprise/en-

us/assets/reports/rp-mobile-threat-report-2019.pdf.

Accessed: 2020-09-30.

Preda, M. D. and Maggi, F. (2016). Testing android mal-

ware detectors against code obfuscation: a systemati-

zation of knowledge and uniﬁed methodology. Jour-

nal of Computer Virology and Hacking Techniques.

Rastogi, V., Chen, Y., and Jiang, X. (2013). Droid-

chameleon: Evaluating android anti-malware against

transformation attacks. ASIA CCS ’13.

Song, F. and Touili, T. (2014). Model-checking for an-

droid malware detection. In Asian Symposium on Pro-

gramming Languages and Systems, pages 216–235.

Springer.

Symantec (2016). Internet security threat report.

https://www.symantec.com/securitycenter/threat-

report . Accessed: 2016-11-25.

Zheng, M., Lee, P. P. C., and Lui, J. C. S. (2013). ADAM:

An Automatic and Extensible Platform to Stress Test

Android Anti-virus Systems. DIMVA 2012.

MADLIRA: A Tool for Android Malware Detection

675
