Cybersecurity for SMEs: Introducing the Human Element into

Socio-technical Cybersecurity Risk Assessment

Costas Boletsis

1 a

, Ragnhild Halvorsrud

1 b

, J. Brian Pickering

2 c

, Stephen Phillips

2 d

and Mike Surridge

2 e

SINTEF Digital, Oslo, Norway

IT Innovation Centre, University of Southampton, Southampton, U.K.

Keywords:

Cybersecurity, Modelling, Socio-technical Risk Assessment, User Journey, Visualisation.

Abstract:

Small and medium-sized enterprises (SMEs) rarely conduct a thorough cyber-risk assessment and they may

face various internal issues when attempting to set up cyber-risk strategies. In this work, we apply a user

journey approach to model human behaviour and visually map SMEs’ practices and threats, along with a

visualisation of the socio-technical actor network, targeted speciﬁcally at the risks highlighted in the user jour-

ney. By using a combination of cybersecurity-related visualisations, our goals are: i) to raise awareness about

cybersecurity, and ii) to improve communication among IT personnel, security experts, and non-technical

personnel. To achieve these goals, we combine two modelling languages: Customer Journey Modelling Lan-

guage (CJML) is a visual language for modelling and visualisation of work processes in terms of user journeys.

System Security Modeller (SSM) is an asset-based risk-analysis tool for socio-technical systems. By demon-

strating the languages’ supplementary nature through a threat scenario and considering related theories, we

believe that there is a sound basis to warrant further validation of CJML and SSM together to raise awareness

and handle cyber threats in SMEs.

1 INTRODUCTION

Today, small and medium-sized enterprises (SMEs)

can be considered as the new big target for cyberat-

tacks, being among the least mature and most vulner-

able in terms of their cybersecurity risk and resilience

(Vakakis et al., 2019; Benz and Chatterjee, 2020; Pon-

sard and Grandclaudon, 2019; Paulsen, 2016). SMEs

rarely conduct a thorough cyber-risk assessment and

they may face various internal issues when attempting

to set up cyber-risk strategies, such as: having small

IT teams, inadequate security budgets, and disagree-

ments between IT and business leadership teams re-

garding cybersecurity risk management. As a result,

more than half of the existing SME companies lack

either an up-to-date cyber-risk strategy or any deﬁned

cyber-risk strategy at all (Benz and Chatterjee, 2020;

https://orcid.org/0000-0003-2741-8127

https://orcid.org/0000-0002-3774-4287

https://orcid.org/0000-0002-6815-2938

https://orcid.org/0000-0002-7901-0839

https://orcid.org/0000-0003-1485-7024

Paulsen, 2016; The National Center for the Middle

Market, 2016). The most challenging tasks for cyber-

security risk management in SMEs include which ini-

tial actions should they implement in order to improve

their security posture and how to address the human

element (i.e., errors made by employees). The latter

(the human element) is sometimes referred to as the

biggest internal threat faced by SMEs (Arctic Wolf,

2017; Meshkat et al., 2020; Symantec, 2019).

Mapping the SMEs current practices and the po-

tential threats they may face has been suggested as

a useful ﬁrst step in cybersecurity risk management

(Benz and Chatterjee, 2020; Paulsen, 2016; Meszaros

and Buchalcevova, 2017). This mapping should i)

lead to the modelling of human behaviour (i.e., of em-

ployees) in cybersecurity-related scenarios and ii) be

presented in a comprehensible way (Paulsen, 2016;

Kullman et al., 2020; Bellamy et al., 2007).

In this work-in-progress paper, we apply a user-

journey approach to model human behaviour and vi-

sually map SMEs’ practices and threats, along with a

visualisation of the socio-technical actor network, tar-

geted speciﬁcally at the risks highlighted in the user

266

Boletsis, C., Halvorsrud, R., Pickering, J., Phillips, S. and Surridge, M.

Cybersecurity for SMEs: Introducing the Human Element into Socio-technical Cybersecurity Risk Assessment.

DOI: 10.5220/0010332902660274

In Proceedings of the 16th International Joint Conference on Computer Vision, Imaging and Computer Graphics Theory and Applications (VISIGRAPP 2021) - Volume 3: IVAPP, pages

266-274

ISBN: 978-989-758-488-6

journey. By using a combination of cybersecurity-

related visualisations, our goals are: i) to raise aware-

ness about cybersecurity and to potentially reach out

to a bigger pool of SME employees, and ii) to improve

communication among IT personnel, security experts,

and non-technical personnel. More speciﬁcally, we

combine two modelling languages that supplement

each other that supplement each other: Customer

Journey Modelling Language (CJML) acts as an up-

per layer of mapping and visualising cyber threats for

clear communication of the problematic behaviours

and threatening issues to SMEs’ employees, indepen-

dently of their level of technical expertise. System

Security Modeller (SSM) is used at a lower/technical

level for mapping cyber threats and mitigating risks

and is targeted at IT and security experts.

2 RELATED WORK

Risk communication in the cybersecurity context con-

siders how to best communicate security-risk infor-

mation to users of a system or process in order to fa-

cilitate understanding and promote informed judge-

ment. The risk message itself presents a signiﬁcant

challenge for communication (Nurse et al., 2011).

Once a risk message has been investigated and the

appropriate information selected for communication,

the next crucial question is how should it be presented

(Nurse et al., 2011). Three broad formats of presenta-

tion have been suggested (Nurse et al., 2011): i) nu-

meric, i.e., using percentages, frequencies and prob-

abilities, ii) verbal, i.e., which applies terms such as

“unlikely”, “possible”, and “deﬁnite”, and iii) visual,

i.e., utilising graphics, graphs, charts, and risk ladders

(Nurse et al., 2011; Lipkus and Hollands, 1999; Lip-

kus, 2007).

Visual mechanisms have become popular formats

for communicating risks. The advantage of visuals

lies in their ability to attract and engage people’s at-

tention, to assist in visualising and portraying part-

to-whole relationships, and to capture and summarise

large amounts of data and several processes, thus

allowing for easier identiﬁcation of patterns (Nurse

et al., 2011) and appreciating relevance (Pickering

et al., 2019).

For cybersecurity assessments, simply supplying

accurate risk information is not enough to ensure that

individuals will be able to process, comprehend, and

act on the risk message (Nurse et al., 2011; Slovic,

1999; Skubisz et al., 2009). In providing an intuitive

and easily accessible message, visualisations can of-

fer an effective mechanism for communicating cyber

risks during cybersecurity assessments. Especially, if

we place SMEs as the risk message receivers in these

assessments, then a compelling research ﬁeld devel-

ops. In that ﬁeld, there are works - yet limited in

number - evaluating SMEs’ cybersecurity practices,

utilising visual elements. Such work is mostly fo-

cused on raising awareness among SMEs regarding

their cybersecurity maturity level, identifying cyber-

security gaps, and urging them to update their existing

or develop new cybersecurity strategies.

Benz and Chatterjee (2020) proposed an SME cy-

bersecurity evaluation tool (CET). The tool consists

of a 35-question online survey to be completed by

IT leaders to self-rate their maturity within the ﬁve

NIST

Cybersecurity Framework categories: identify,

protect, detect, respond, and recover. Survey respon-

dents, i.e., SME IT leaders, get a report card and a rec-

ommendation report after completing the survey. The

report card presents the survey scores and the cyber-

security gaps on the aforementioned ﬁve categories.

The recommendation report provides actionable rec-

ommendations for each potential gap. Both report

cards and recommendation reports are visualised as,

mostly, text-based ﬂyers that are handed out to the IT

leaders.

Ponsard and Grandclaudon (2019) followed a

gamiﬁed approach for raising awareness around

SMEs’ level of cybersecurity and resilience. SME

employees had to answer a cybersecurity quiz com-

posed of a set of questions covering situations like

managing passwords, performing backups, explain-

ing concepts like electronic signature among other

things. Then, a self-assessment questionnaire was ad-

ministered, based on the 20 controls of the Center for

Internet Security

in order to urge participants to en-

gage with a cybersecurity improvement process.

Shojaifar (2019) presented CYSEC, a DIY cy-

bersecurity assessment method for SMEs. CYSEC

automates elements of a counselling dialogue be-

tween a security expert and employees in the SME to

counter cyber threats. CYSEC coaches SMEs to im-

prove their cybersecurity awareness and capabilities

through three key features: i) a self-assessment ques-

tionnaire for capturing the state of various security

focus areas, ii) training and awareness content em-

bedded in the questionnaire to demonstrate counter-

measures against security threats, and iii) recommen-

dations from cybersecurity experts, based on users’

responses to the questionnaires, regarding the preven-

tion of cybersecurity compromises.

National Institute of Standards and Technology

https://www.cisecurity.org/controls/inventory-and-

control-of-hardware-assets/

Cybersecurity for SMEs: Introducing the Human Element into Socio-technical Cybersecurity Risk Assessment

267

2.1 Initial Evaluation

The works reviewed above rely almost exclusively on

a top-down approach. By that, we mean they focus on

the static representation of an infrastructure, with lit-

tle reference to human actors, their behaviours or their

experiences. Such approaches start with a presenta-

tion of generic cybersecurity practices before mov-

ing immediately on to speciﬁc practices, threats and

recommendations aimed at an individual SME. These

approaches typically deﬁne three main stages in at-

tempting to communicate the need for an improved or

completely new cybersecurity strategy to the SME:

1. Mapping existing cybersecurity practices;

2. Identifying potential threats to the business; and

3. Suggesting solutions to mitigate those potential

threats.

The ﬁrst stage usually involves a structured sur-

vey of the SME’s current processes. The second and

third stages include consultations led either by cyber-

security experts directly or by applying cybersecurity

frameworks and theory to the output of the ﬁrst stage.

These three stages are informed either by a cross-

section of employees at the SME or by IT profession-

als speciﬁcally tasked with cybersecurity implemen-

tation and strategy. Such approaches overlook the in-

ﬂuence of human actors within a socio-technical sys-

tem, and how specialist information pertaining to cy-

bersecurity is presented to non-cybersecurity experts.

Yet as highlighted in the WannaCry attack (Martin

et al., 2018), human responses to a cybersecurity in-

cident signiﬁcantly affected its impact both directly

(what those involved actually do) and indirectly (how

ongoing trust relations are affected).

Introducing human behaviours raise two major is-

sues. First, it is essential to appreciate any context

dependencies of human actor behaviours (Olli et al.,

2001). For example, overall compliance with organi-

sational policies may fail to take account of the differ-

ent processes undertaken, any individual user reliance

on personal assessment, and the interactions between

the two (Blythe, 2013)

. Secondly, even tools which

are based on an appropriate visualisation (Bellamy

et al., 2007) may not take account of adopter under-

standing and responses (Pickering et al., 2019, 2020).

With regard to the way the information from the

three stages outlined above are presented, appropriate

visualisations of information produced does not seem

to be a high priority. Existing research approaches

regarding mapping SMEs’ cybersecurity practices,

threats and providing recommendations focus on very

See also work by Acquisti et al. (2015) on privacy atti-

tudes.

limited methods of presentation. Naturally, there are

visual elements, e.g., report cards and recommenda-

tion reports (Benz and Chatterjee, 2020) and quiz in-

terfaces (Ponsard and Grandclaudon, 2019). How-

ever, there is no holistic visualisation approach that

could facilitate information distribution between em-

ployees of different levels of expertise. What is

more, there is no attempt to encourage a complete

understanding of the complexity of cybersecurity for

the speciﬁc target users beyond simple demonstra-

tions for their particular industry or domain. Without

differentiation amongst users, their expectations and

their working environment, long-term acceptance of

cybersecurity tools is unlikely (Rogers, 2010). Fur-

ther, contextualising human agent experience within

familiar contexts is an essential ﬁrst step in devel-

oping stakeholder understanding (Martin et al., 2018;

Pickering et al., 2019, 2020).

Given what we perceive to be a gap in previous

cybersecurity modelling approaches, speciﬁcally with

respect to human actors and human users of cyber-

security tooling, we present here two complemen-

tary methodologies in respect of providing ecologi-

cally valid and meaningful representations of activi-

ties (via customer journey modelling, Section 3) and

overall infrastructure (using a secure system mod-

eller, Section 4). We then provide a conceptual eval-

uation based on a representative use case (Section

5). Finally, a theoretical explanation for why these

approaches offer signiﬁcant beneﬁt in raising SME

awareness to cybersecurity risks is provided, as well

as the plans for future work (Section 6).

3 A USER JOURNEY

PERSPECTIVE

Since each SME process and practice essentially rep-

resent a pathway through a sequence of events, their

modelling and visualisation could be covered by user

journey modelling languages. To that end, we ex-

tend the validated Customer Journey Modelling Lan-

guage (CJML) (Haugstveit et al., 2016) to ﬁt our

cybersecurity-related purposes. CJML is a visual

language for modelling and visualising service and

work processes in terms of customer or user jour-

neys. Being centred around humans and human activ-

ities, CJML appeals to a broad user group through its

simple and intuitive form (Halvorsrud et al., 2016a).

CJML is well suited for detailed modelling of pro-

cesses that extends over time, involving two or more

actors who communicate through various commu-

nication channels. With its formalised terminology

and notation, CJML serves as a unifying language to

IVAPP 2021 - 12th International Conference on Information Visualization Theory and Applications

268

ease cross-departmental communication and to docu-

ment work processes in a systematic way (Halvorsrud

et al., 2016b). Its formalised language and nota-

tion is particularly suited to technology-based ser-

vices (Haugstveit et al., 2016).

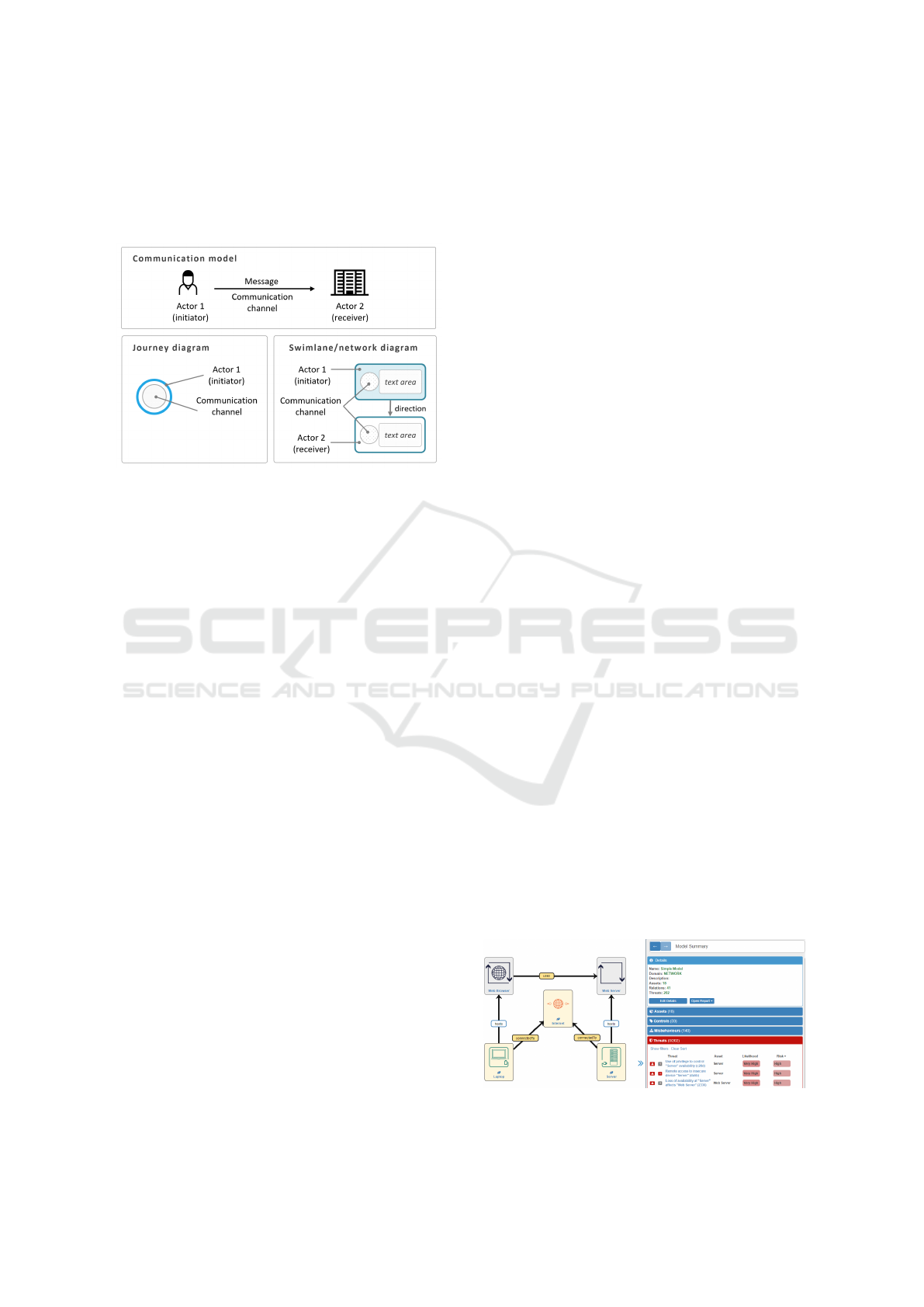

Figure 1: The visual representation of a touchpoint in the

case of a journey diagram (left) and a swimlane diagram

(right).

The basic units of CJML are the observable touch-

points that can take the form of a communication

event or a non-communicative activity or action. A

user journey is modelled as a sequence of touchpoints

involved for a user to achieve a speciﬁc goal. CJML

supports two states of a user journey: i) the hypothet-

ical, planned state – as it is intended to unfold in time;

and ii) the actual, real journey – as it is experienced

in a real context for an individual user. The actual

journey may deviate from the planned journey, and re-

sults in an experience which is subjective, context de-

pendent, and may change over time (Haugstveit et al.,

2016; Halvorsrud et al., 2016a).

In CJML, communication is deﬁned through

the Shannon-Weaver model of linear communication

(Shannon and Weaver, 1963), where a sender trans-

mits a message to a receiver through a communica-

tion channel. There are two types of diagrams avail-

able in CJML, serving different purposes. The simple

journey diagram is suitable for journeys with few ac-

tors and emphasises any deviation from the planned

journey. The swimlane or network diagram journeys

is useful for journeys involving several actors, and

thereby identiﬁes both the initiator and recipient of

a touchpoint (Halvorsrud et al., 2016b). Figure 1

shows the relationship between the communication

attributes and the touchpoint’s visual representation

for the two diagram types.

In this context, CJML is used to document

cybersecurity-related user journeys and it features

certain adjustments so that the attributes of the

extended modelling language cover the cybersecu-

rity domain. More speciﬁcally, the users are the

SMEs’ employees and external users that make use

of the SMEs’ infrastructure under B2B (business-to-

business) offerings, and the “deviations” are the cyber

threats.

4 A HUMAN-MACHINE

NETWORK APPROACH

The System Security Modeller (SSM) is an asset-

based risk-analysis tool for socio-technical systems,

providing an information-security perspective on the

interactions between assets across the whole system.

Assets may be people, technology or environments.

The SSM automates much of the risk assessment

procedures described in ISO 27005 and thereby sup-

ports ISO 27001 compliance. With such automation,

the risk assessment becomes systematic and repro-

ducible allowing a security analyst to work more ef-

ﬁciently (Surridge et al., 2019). Using the SSM in-

volves:

1. Draw a model of the system, including relevant

assets (networks, hosts, processes, data, people,

places) and their relationships, such as which pro-

cess uses what data (Fig.2).

2. Identify the primary assets for the business (gen-

erally data and processes) and indicate the im-

pact on the business that failures in those assets

(such as loss of conﬁdentiality) would cause. The

SSM then ﬁnds the threats to the system automat-

ically using the built-in domain knowledge base

and through its understanding of attack-paths and

threat cascades.

3. Specify what security control measures are al-

ready in place (such as passwords, ﬁrewalls, etc).

The SSM then computes the risk of every threat to

the system automatically. This is challenging by

hand and would be done by a security analyst. It

involves the use of the speciﬁed impacts, the inter-

connectedness of the assets (to see how failures in

the secondary assets affect the primary assets) and

Figure 2: An example model and the user interface of SSM.

Cybersecurity for SMEs: Introducing the Human Element into Socio-technical Cybersecurity Risk Assessment

269

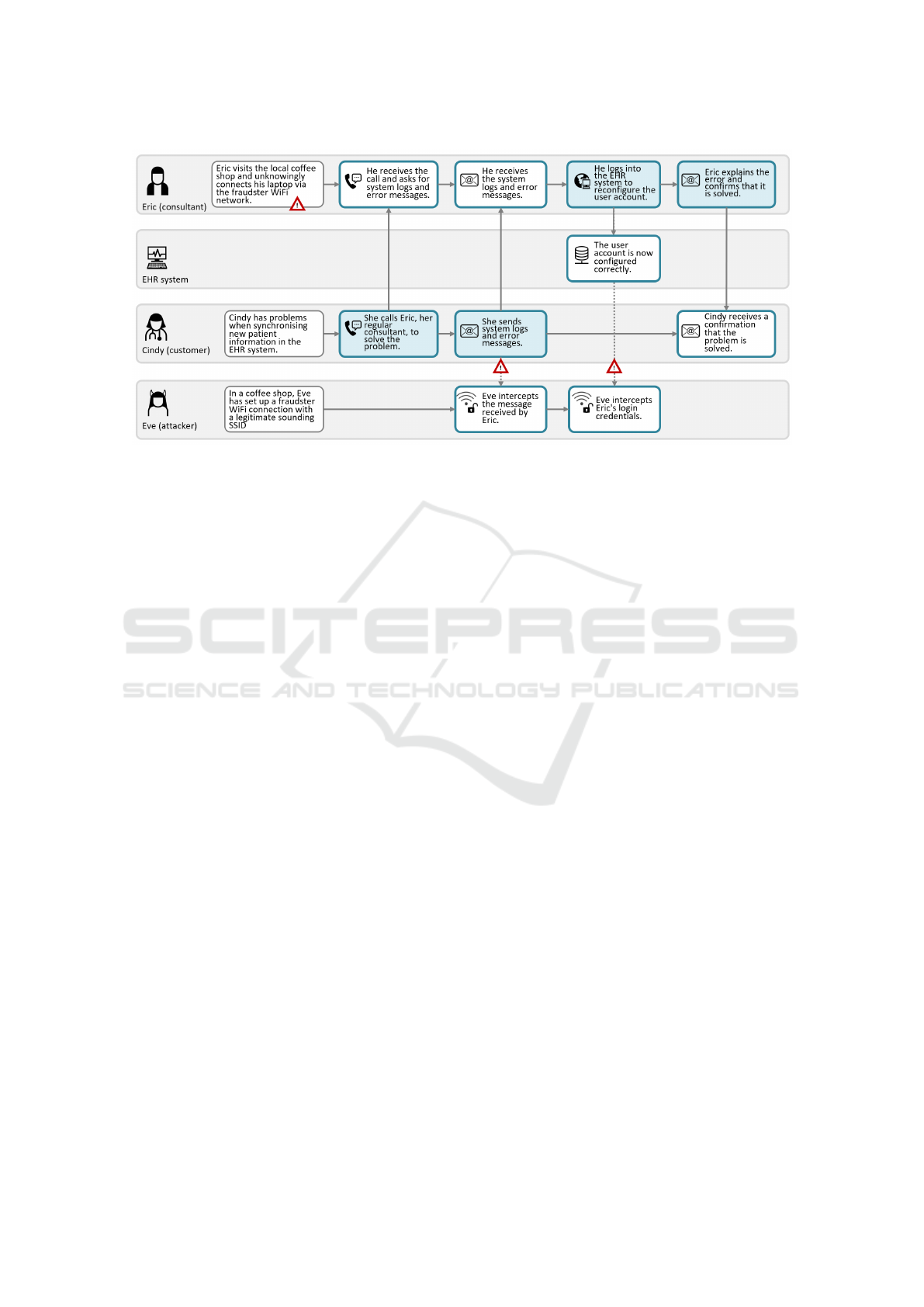

Figure 3: The application of CJML in the threat scenario.

an understanding of how the controls that are in

place affect the likelihood of each threat.

4. Examine the high-risk threats to the system, using

the SSM to understand the root causes and where

controls to reduce the risk can best be placed. Add

additional appropriate security controls are sug-

gested by the SSM and the risk is recomputed, re-

peating this process until the residual risk is ac-

ceptable for the business (Surridge et al., 2019).

The SSM models draw on the knowledge often

held by multiple people in an organisation and just

the construction of the models themselves has value

in bringing the information into one place and doc-

umenting it. The fact that this ”documentation” can

then be reasoned over by a computer and combined

with an information-security knowledge base makes

the tool a powerful one.

5 CASE STUDY

To better demonstrate the mapping and visualisation

elements of CJML and SSM, as well as their inter-

connectivity, an application of the two modelling lan-

guages in a mock threat scenario, inspired by the pre-

liminary and formal interviews we had with SMEs’

representatives, is presented as a case study. The sce-

nario follows:

Eric works for HealthRec, a company specialised

in software for patient administrative systems and

electronic health records (EHR) for municipal doc-

tors’ ofﬁces. Eric works as a customer consultant,

and his main tasks are answering customer inquiries

and developing training material.

After the COVID-19 outbreak, Eric works mostly

from home. From time to time, he brings his lap-

top down to the local coffee shop to have a change

in working environment. As a regular guest, Eric’s

laptop automatically connects to the shop’s WiFi net-

work.

While working on the new user manuals he re-

ceives a call from Cindy, a general practitioner in one

of their customer sites. She cannot synchronise pa-

tient journals that contain new lab results, that are im-

ported from another system. Eric asks her to send the

system log and error messages and promises to priori-

tise her problem. Five minutes later he receives the

e-mail from Cindy. He immediately understands the

reason for the error messages, which have to do with

Cindy not being assigned the correct editing privi-

leges. He quickly upgrades her user account to the

correct level and conﬁrms through an e-mail that the

problem is ﬁxed.

In the same coffee shop, Eve, a cybercriminal

guest has set up a WiFi access point duplicating the

coffee shop’s SSID and password. When Eric arrived

in the coffee shop, he unknowingly used the cyber-

criminal’s WiFi access point. Eve can now monitor

Eric’s online activity, intercept his login credentials

to the EHR system, and other data being transmit-

ted and received over the network. The consequences

may be severe, now that Eve has Eric’s login creden-

tials, as a system administrator in platforms used in

municipal doctors’ ofﬁces.

5.1 Applying the CJML

The CJML visualisation of the threat scenario is pre-

sented in Fig. 3. A network journey diagram is used

since the user scenario involves several actors. The

IVAPP 2021 - 12th International Conference on Information Visualization Theory and Applications

270

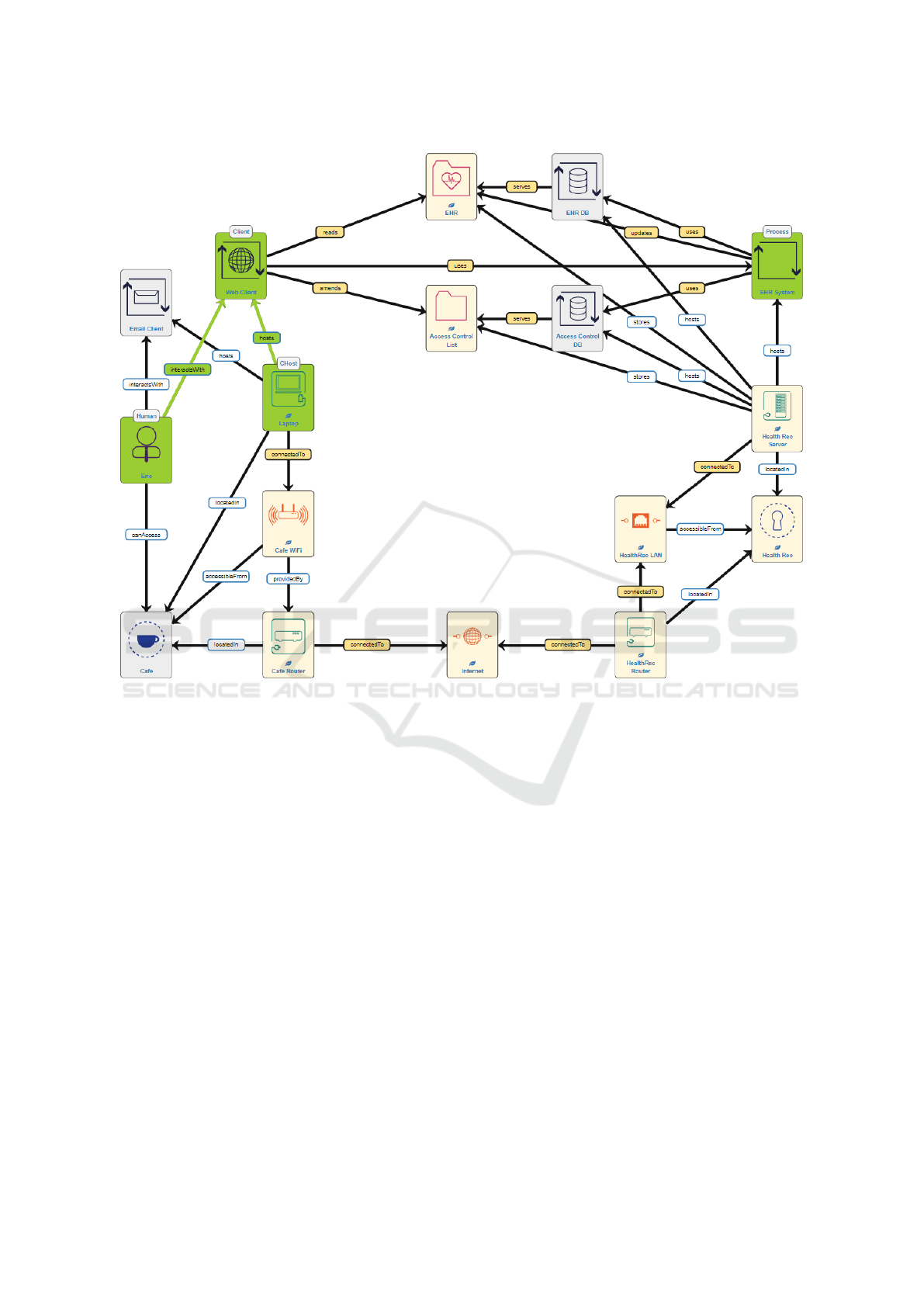

Figure 4: The application of SSM in the threat scenario with a snooped communication threat highlighted.

actors’ touchpoints are organised in horizontal paths

in a chronological order from left to right. The CJML

model uses action elements to explain the context of

each actor, and in Eric’s case it reveals the fatal Inter-

net connection through the fake WiFi access point. A

warning sign is introduced throughout to emphasize

cybersecurity threats and potential consequences.

The ﬁrst communication point in the model is

Cindy’s telephone call to Eric when having problems

with synchronising patient journals. Immediately af-

ter the call she initiates a second touchpoint by send-

ing an e-mail. At this point, a new warning sign ap-

pears in the diagram as the attacker Eve intercepts the

e-mail message. Next, a second data breach takes

place as Eve accesses Eric’s login credentials to the

EHR system. Still unaware about the man-in-the-

middle attack, Eric sends an e-mail to Cindy in the

last step of the CJML model.

5.2 Applying the SSM

Using the SSM we have modelled the same scenario

(Fig. 4). Such a model would generally require input

from various people to construct (network adminis-

trator, software and data specialists) and when com-

pleted helps communicate the system as well as the

threats.

The SSM is used to model the ”sunny day” sce-

nario (where the system is operating normally) and so

“Eve” and her fake WiFi access point are not explic-

itly modelled but attackers of all kinds are automati-

cally considered. To simplify the model slightly, the

data sent to and from Eric’s email client has also been

omitted.

The primary assets in this model are the Access

Control List and EHR datasets. The impact of loss

of conﬁdentiality on these datasets has been set to

“medium” and “high” respectively. A reasonable set

of baseline controls were added, such as ﬁrewalls,

passwords, anti-malware, secure conﬁguration, se-

cure BIOS, software patching, etc.

Cybersecurity for SMEs: Introducing the Human Element into Socio-technical Cybersecurity Risk Assessment

271

The initial model analysis and risk calculation by

the SSM ﬁnds many threats to the system and cal-

culates that the highest-risk threat consequence is the

loss of conﬁdentiality of the EHR dataset. When the

causes of the loss of conﬁdentiality are queried, the

SSM identiﬁes the threat of the “Cafe WiFi” network

being spoofed as the primary root cause and also iden-

tiﬁes the threats of snooped communication (in gen-

eral) between the “Web Client” and the “EHR Sys-

tem” as well as the speciﬁc case of the snooped pass-

word between the two systems.

The SSM user makes use of various displays de-

scribing threats to the system and their consequences,

and is also shown options, where available, to add se-

curity measures to reduce risk.

A couple of security measures are proposed by the

tool to ensure that the laptop connects to the genuine

Cafe Wiﬁ but, in this situation where the password is

public and systems administrator help is not available,

they are not appropriate.

Examining the snooped password threat reveals

three proposed security controls, all different ways to

provide an additional authentication factor. i) The ad-

dition of a one-time key such as through an authenti-

cator app on a phone or a separate physical device; ii)

an out-of-band key such as that sent via a text mes-

sage; or iii) a continuous authentication system that

monitors the characteristics of the usage of Eric’s lap-

top. Any of these controls would render the capture

of the password useless but the use of an additional

factor does not prevent the data accessed by Eric once

authenticated being snooped.

To prevent the snooping of data diverted over the

spoofed WiFi, the SSM recommends encrypting the

communication between the “Web Client” and the

“EHR System” (these assets are highlighted in Fig.

4). This not only makes snooping the password im-

possible but prevents the snooping of other data such

as the updated Access Control List. Just encrypt-

ing the communication without also adding a second

authentication factor still leaves the system open to

credential-stufﬁng attacks: both controls should be

used.

Adding these controls and recomputing the risk

shows that they do indeed bring the risk of loss of

conﬁdentiality of the EHR dataset down to an accept-

able value. The security controls proposed by the

system in this case would be unavoidable if imple-

mented, requiring no user choices. We might ques-

tion the wisdom of Eric accessing such data from a

public space (especially without such controls being

in place). The SSM does model the trustworthiness

of the users, which in turn links to the decisions taken

by the actors in the CJML model.

6 CONCLUSION & FUTURE

WORK

In this work, we have introduced a combination of

cybersecurity-related visualisations to raise aware-

ness about cybersecurity and to improve communi-

cation among security experts and non-technical per-

sonnel in SMEs. The human-centred CJML diagram

shows all the actual communication points between

the actors in the threat scenario. The target group of

this diagram is wide, and previous research shows a

high adoption among non-technical personnel. The

SSM asset-based risk-analysis tool addresses the se-

curity risks and the requirements to be assessed in the

scenario. Overall, we have demonstrated the two lan-

guages’ supplementary nature through a hypothetical

threat scenario.

Although we have presented a limited conceptual

validation of our modelling approach, there is some

theoretical evidence which indicates that the visuali-

sations we are working on will beneﬁt the target users.

The Job Characteristics Model (JCM) emphases the

possible effects of certain features of a task, such

as its signiﬁcance and the degree of autonomy it af-

fords those responsible in relation to the psychologi-

cal effect working the job is likely to promote (Hack-

man and Oldham, 1976), and more recently the po-

tential to exploit the model to encourage psycholog-

ical buy-in (Pierce et al., 2009). This in turn en-

courages a sense of responsibility and increased per-

formance. We maintain that the context-speciﬁc and

relevant model visualisations that we have presented

here optimise the perceived job characteristics to en-

hance autonomy and encourage intrinsic motivation

and psychological ownership of cybersecurity for all

actors within the complex socio-technical systems de-

scribed by the SMEs we interviewed.

Perhaps more importantly is the co-presentation

both of risk and threats together with the mitigation

strategies. This corresponds well with constructs in

the Health Belief Model (HBM) (Carpenter, 2010;

Champion and Skinner, 2008). According to this

model, originally applied to behavioural change in

healthcare and health interventions but also shown to

be relevant to other areas (Lindsay and Strathman,

1997) predicts that awareness of risk (which both

CJML and SSM foreground) and its severity or neg-

ative outcomes (the impacts of SSM) encourage ac-

tive engagement. Coupled with that, individuals de-

velop a feeling of self-efﬁcacy which gives them the

belief, just as the intrinsic motivation and psycholog-

ical ownership encouraged with the Job Characteris-

tics Model, that they are capable of dealing with the

threat (the mitigation strategies in the SSM tool). Tak-

IVAPP 2021 - 12th International Conference on Information Visualization Theory and Applications

272

ing both theories in combination (JCM and HBM),

therefore, we believe that there is a sound theoreti-

cal basis to warrant further validation of CJML and

SSM together to raise awareness of cyber threats and

encourage proactive engagement within SMEs to be

able to handle those threats, i.e., to encourage desired

cybersecure behaviours.

As future work, we will carry out validation case

studies with SMEs in four different business sectors.

As a starting point, we will deﬁne representative sce-

narios and environments where the tools should be ef-

fective. We will then apply the tools and investigate

how they support i) the identiﬁcation and analysis of

risks, ii) communication among security experts and

non-technical personnel, and iii) general cybersecu-

rity awareness across organisational units and roles.

ACKNOWLEDGEMENTS

This research is funded by the European Com-

mission through the CyberKit4SME project

(www.cyberkit4sme.eu) under Grant Agreement

883188. CyberKit4SME will provide cybersecurity

tools that help SMEs become aware of, analyse, and

manage cybersecurity and data protection risks.

REFERENCES

Acquisti, A., Brandimarte, L., and Loewenstein, G. (2015).

Privacy and human behavior in the age of information.

Science, 347(6221):509–514.

Arctic Wolf (2017). The state of mid-market

cybersecurity: Findings and implica-

tions. https://2p167arhj4lo70dn1q26fm1c-

wpengine.netdna-ssl.com/wp-content/uploads/-

AW Brief Midmarket Cybersecurity Survey.pdf

(Accessed 09 Aug 2020).

Bellamy, R. K., Erickson, T., Fuller, B., Kellogg, W. A.,

Rosenbaum, R., Thomas, J. C., and Wolf, T. V. (2007).

Seeing is believing: Designing visualizations for man-

aging risk and compliance. IBM Systems Journal,

46(2):205–218.

Benz, M. and Chatterjee, D. (2020). Calculated risk? A cy-

bersecurity evaluation tool for SMEs. Business Hori-

zons, 63:531–540.

Blythe, J. (2013). Cyber security in the workplace: Un-

derstanding and promoting behaviour change. In Pro-

ceedings of CHItaly 2013 Doctoral Consortium, vol-

ume 1065, pages 92–101. CEUR Workshop Proceed-

ings.

Carpenter, C. J. (2010). A meta-analysis of the effectiveness

of health belief model variables in predicting behavior.

Health communication, 25(8):661–669.

Champion, V. L. and Skinner, C. S. (2008). The health be-

lief model. In Glanz, K., Rimer, B. K., and Viswanath,

K., editors, Health behavior and health education:

Theory, research, and practice, pages 45–65. John

Wiley & Sons, 4th edition.

Hackman, R. J. and Oldham, G. (1976). Motivation through

the design of work: Test of a theory. Organizational

behavior and human performance, 16(2):250–279.

Halvorsrud, R., Haugstveit, I. M., and Pultier, A. (2016a).

Evaluation of a modelling language for customer

journeys. In Proceedings of IEEE Symposium on

Visual Languages and Human-Centric Computing

(VL/HCC), pages 40–48. IEEE.

Halvorsrud, R., Kvale, K., and Følstad, A. (2016b). Improv-

ing service quality through customer journey analysis.

Journal of Service Theory and Practice, 24(6):840–

867.

Haugstveit, I. M., Halvorsrud, R., and Karahasanovic, A.

(2016). Supporting redesign of C2C services through

customer journey mapping. In Service Design Ge-

ographies. Proceedings of the ServDes. 2016 Confer-

ence, number 125, pages 215–227. Link

oping Univer-

sity Electronic Press.

Kullman, K., Buchanan, L., Komlodi, A., and Engel, D.

(2020). Mental model mapping method for cyberse-

curity. In Proceedings of the International Confer-

ence on Human-Computer Interaction, volume 12210,

pages 458–470. Springer.

Lindsay, J. J. and Strathman, A. (1997). Predictors of re-

cycling behavior: an application of a modiﬁed health

belief model 1. Journal of Applied Social Psychology,

27(20):1799–1823.

Lipkus, I. M. (2007). Numeric, verbal, and visual formats of

conveying health risks: suggested best practices and

future recommendations. Medical decision making,

27(5):696–713.

Lipkus, I. M. and Hollands, J. G. (1999). The visual com-

munication of risk. JNCI monographs, 1999(25):149–

163.

Martin, G., Ghafur, S., Kinross, J., Hankin, C., and Darzi,

A. (2018). WannaCry - a year on. BMJ, 361.

Meshkat, L., Miller, R. L., Hillsgrove, C., and King, J.

(2020). Behavior modeling for cybersecurity. In Pro-

ceedings of the 2020 Annual Reliability and Maintain-

ability Symposium (RAMS), pages 1–7. IEEE.

Meszaros, J. and Buchalcevova, A. (2017). Introducing

ossf: A framework for online service cybersecurity

risk management. Computers & security, 65:300–313.

Nurse, J. R., Creese, S., Goldsmith, M., and Lamberts, K.

(2011). Trustworthy and effective communication of

cybersecurity risks: A review. In Proceedings of the

1st Workshop on Socio-Technical Aspects in Security

and Trust (STAST), pages 60–68. IEEE.

Olli, E., Grendstad, G., and Wollebaek, D. (2001). Corre-

lates of environmental behaviors: Bringing back so-

cial context. Environment and behavior, 33(2):181–

208.

Paulsen, C. (2016). Cybersecuring small businesses. Com-

puter, 49(8):92–97.

Pickering, B., Bartholomew, R., Janian, M. N., Moreno,

B. L., and Surridge, M. (2020). Ask me no ques-

tions: Increasing empirical evidence for a qualitative

approach to technology acceptance. In Proceedings

Cybersecurity for SMEs: Introducing the Human Element into Socio-technical Cybersecurity Risk Assessment

273

of the International Conference on Human-Computer

Interaction, pages 125–136. Springer.

Pickering, B., Janian, M. N., Moreno, B. L., Micheletti, A.,

Sanno, A., and Surridge, M. (2019). Seeing potential

is more important than usability: Revisiting technol-

ogy acceptance. In Proceedings of the International

Conference on Human-Computer Interaction, pages

238–249. Springer.

Pierce, J. L., Jussila, I., and Cummings, A. (2009). Psy-

chological ownership within the job design context:

Revision of the job characteristics model. Journal of

Organizational Behavior: The International Journal

of Industrial, Occupational and Organizational Psy-

chology and Behavior, 30(4):477–496.

Ponsard, C. and Grandclaudon, J. (2019). Guidelines and

tool support for building a cybersecurity awareness

program for SMEs. In Proceedings of the Interna-

tional Conference on Information Systems Security

and Privacy, pages 335–357. Springer.

Rogers, E. M. (2010). Diffusion of innovations. Simon and

Schuster.

Shannon, C. E. and Weaver, W. (1963). The mathematical

theory of communication. University of Illinois Press.

Shojaifar, A. (2019). SMEs conﬁdentiality issues and adop-

tion of good cybersecurity practices. In Proceedings

of the IFIP Summer School on Privacy and Identity

Management, pages 1–8.

Skubisz, C., Reimer, T., and Hoffrage, U. (2009). Com-

municating quantitative risk information. Annals

of the International Communication Association,

33(1):177–211.

Slovic, P. (1999). Trust, emotion, sex, politics, and science:

Surveying the risk-assessment battleﬁeld. Risk analy-

sis, 19(4):689–701.

Surridge, M., Meacham, K., Papay, J., Phillips, S. C., Pick-

ering, J. B., Shaﬁee, A., and Wilkinson, T. (2019).

Modelling compliance threats and security analysis of

cross border health data exchange. In Proceedings of

the International Conference on Model and Data En-

gineering, pages 180–189. Springer.

Symantec (2019). Symantec 2019 internet security threat

report. https://docs.broadcom.com/doc/istr-24-2019-

en (Accessed 19 Aug 2020).

The National Center for the Middle Market (2016).

Cybersecurity and the middle market: The

importance of cybersecurity and how mid-

dle market companies manage cyber risks.

https://www.middlemarketcenter.org/Media/-

Documents/the-importance-of-cybersecurity-and-

how-middle-market-companeis-manage-cyber-

risks NCMM Cybersecurity Report FINAL.pdf

(Accessed 09 Aug 2020).

Vakakis, N., Nikolis, O., Ioannidis, D., Votis, K., and

Tzovaras, D. (2019). Cybersecurity in SMEs: The

smart-home/ofﬁce use case. In Proceedings of the

2019 IEEE 24th International Workshop on Computer

Aided Modeling and Design of Communication Links

and Networks (CAMAD), pages 1–7. IEEE.

IVAPP 2021 - 12th International Conference on Information Visualization Theory and Applications

274
