Experimental Application of

a Japanese Historical Document Image Synthesis Method

to Text Line Segmentation

Naoto Inuzuka and Tetsuya Suzuki

Graduate School of Systems Engineering and Science, Shibaura Institute of Technology, Saitama, Japan

Keywords:

Text Line Segmentation, Historical Document, Deep Learning, Data Synthesis.

Abstract:

We plan to use a text line segmentation method based on machine learning in our transcription support system

for handwritten Japanese historical document in Kana, and are searching for a data synthesis method of an-

notated document images because it is time consuming to manually annotate a large set of document images

for training data for machine learning. In this paper, we report our synthesis method of annotated document

images designed for a Japanese historical document. To compare manually annotated Japanese historical

document images and annotated document images synthesized by the method as training data for an object

detection algorithm YOLOv3, we conducted text line segmentation experiments using the object detection

algorithm. The experimental results show that a model trained by the synthetic annotated document images

are competitive with that trained by the manually annotated document images from the view point of a metric

intersection-over-union.

1 INTRODUCTION

We plan to use a text line segmentation method based

on machine learning in a transcription support sys-

tem for handwritten Japanese historical document in

Kana which we are developing. Because it is time

consuming to manually annotate a large set of docu-

ment images for training data for machine learning,

we are searching for a data synthesis method of anno-

tated document images.

In this paper, we report our synthesis method of

annotated document images designed for a handwrit-

ten Japanese historical document. The method makes

it easy to automatically generate a lot of annotated

document images.

The organization of this paper is as follows. In

section 2, we summarize related work. We then ex-

plain characteristics of a target handwritten Japanese

historical document and our synthesis method of an-

notated document images designed for the document

in section 3, and evaluate the synthesis method by text

line segmentation experiments in section 4. In section

5 we state concluding remarks.

https://orcid.org/0000-0002-9957-8229

2 RELATED WORK

2.1 A Transcription Support System for

Handwritten Japanese Historical

Kana

We brieﬂy explain our transcription support system

for handwritten Japanese historical document in Kana

(Sando et al., 2018; Yamazaki et al., 2018) . Kana

is a kind of Japanese characters, and it is difﬁcult to

read handwritten Kana used in historical documents

because of the following reasons.

• It is difﬁcult to segment characters because they

are cursive.

• There exist similar shape characters with different

syllables.

The characteristic point of the system is that the

system outputs optimal combinations of multiple re-

sults of character segmentation, multiple reading or-

der among segmented characters, and multiple results

of character recognition.

The system consists of three parts: a document

image analyzer, a constraint solver and a graphical

user interface (GUI) which integrates them. The doc-

ument image analyzer segments characters, decides

628

Inuzuka, N. and Suzuki, T.

Experimental Application of a Japanese Historical Document Image Synthesis Method to Text Line Segmentation.

DOI: 10.5220/0010330206280634

In Proceedings of the 10th International Conference on Pattern Recognition Applications and Methods (ICPRAM 2021), pages 628-634

ISBN: 978-989-758-486-2

reading order among the segmented characters, and

outputs multiple recognition results for each of the

segmented characters. The constraint solver solves

a constraint satisfaction problem (CSP) based on the

output of the document image analyzer, and outputs

solutions of the CSP as transcription results. The

solver searches solutions which minimize the total

cost of occurrence costs of words and connective

costs between words with reference to an electrical

dictionary for morphological analysis (Ogiso et al.,

2010). The entire system can be used through the

GUI.

The GUI and the constraint solver have been de-

veloped, but the document image analyzer have not

yet. The ﬁrst step of the document image analysis

will be text line segmentation.

2.2 Training Data Generation for

Document Image Analysis

A problem in text line segmentation based on machine

learning is to construct training data. It is time con-

suming to manually annotate a large set of document

images. In this section, we brieﬂy present three works

related to construction of training data for document

image analysis. None of them targets on historical

Japanese document image synthesis.

Capobianco et al. proposed a historical docu-

ment image generation tool (Capobianco and Marinai,

2017). The generation process is as follows. First,

a user extracts background images from some exam-

ples of document images using a tool. The user, then,

describes structure of a document in XML with refer-

ence to the document images. The generator takes the

extracted background images, document structure in

XML, fonts, and a dictionary as inputs and generates

document images. To construct pages with various

characteristics, it is possible not only to randomly de-

cide text line height and repetition times of items but

also to specify a possibility to generate a text line. In

addition, it is possible to rotate document images and

add noise on document images.

Pondenkandath et al. proposed a synthesis method

of historical document images using a deep neural

network (Pondenkandath et al., 2019). The method

transforms a given document generated by L

X to

a handwritten-like historical document image using

a deep neural network. The authors experimentally

compared CycleGAN and Neural Style Transfer for

image transformation, and concluded that CycleGAN

is more promising than Neural Style Transfer.

Aoike et al. constructed a layout data set of docu-

ments usable for machine learning and made it public

(Aoike et al., 2019). The target documents are digi-

tal data included in digital collections of the National

Diet Library of Japan. The layout data set was con-

structed by revising recognition results by a document

layout recognizer based on machine learning. To im-

prove accuracy, the recognizer was updated by ma-

chine learning using the revised layout data as train-

ing data every time 100 to 200 pages were manually

processed.

3 A JAPANESE HISTORICAL

DOCUMENT IMAGE

SYNTHESIS METHOD

We explain characteristics of a target Japanese hand-

written historical document from the view point of

page layout, a model constructed for the document,

and a method which generates handwritten-like docu-

ment images from a given model.

3.1 Page Layout of a Japanese

Handwritten Historical Document

We chose the Tales of Ise (Reizei, 1994) as a target

Japanese handwritten historical document. It is rel-

atively easy to generate document images similar to

those of the document because it consists of vertically

written text lines and its page layout is simple.

The characteristics of its page layout are as fol-

lows.

C1. It includes notes representing the sources of po-

ems as shown in Fig.1 (1)

C2. Some text lines are folded at the bottom of pages

as shown in Fig.1 (2)

C3. Some text lines have readings or supplementary

explanations alongside them as shown in Fig. 1

(3)

C4. Some characters in adjoining text lines touch

each other as shown in Fig.1 (4)

C5. Center lines of some text lines are leaning as

shown in Fig.1 (5)

C6. There exist paragraphs with supplementary para-

graphs alongside them as shown in Fig.1 (6)

C7. There exist characters written in a cursive style.

3.2 A Document Model for the Target

Document

We designed a document model for documents with

characteristics shown in section 3.1 except the char-

acteristic C7 (characters in a cursive style). In this

Experimental Application of a Japanese Historical Document Image Synthesis Method to Text Line Segmentation

629

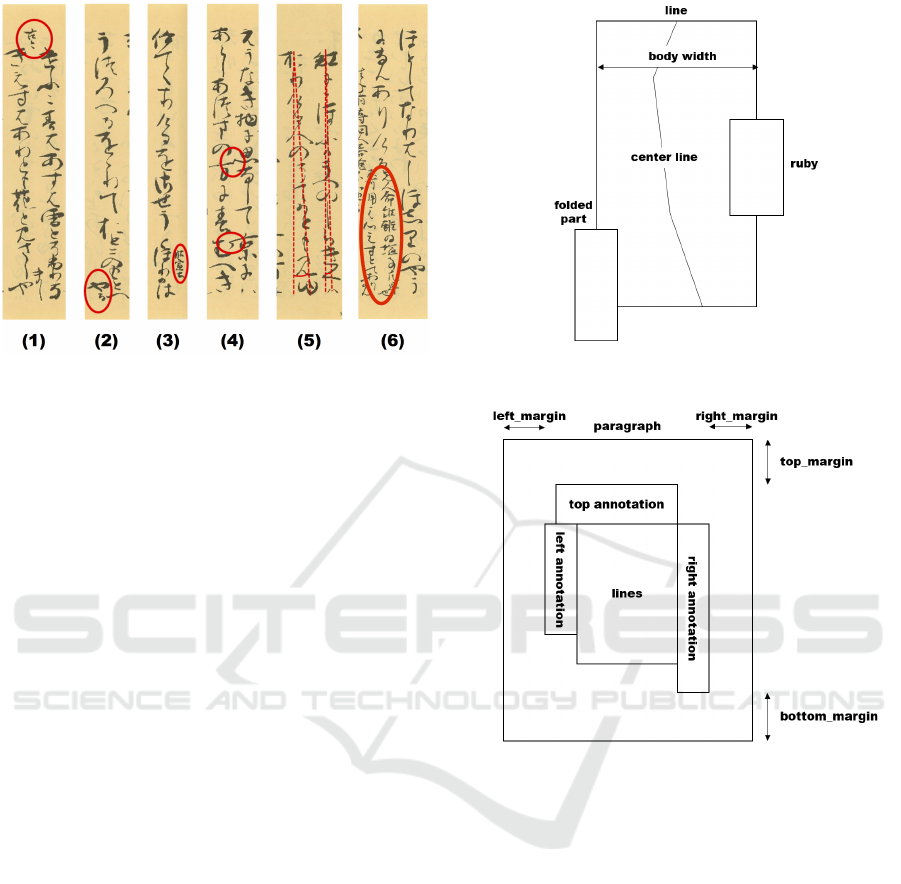

Figure 1: Characteristics of the target document’s layout

adopted from (Inuzuka and Suzuki, 2020) (Circles and

lines are added in document images scanned from (Reizei,

1994)).

section, we explain elements of the model: line rep-

resenting a text line, paragraph representing a para-

graph and format representing the entire format of a

document.

A line element represents a text line and has the

following attributes: the body width, the height of the

text line, the center line, ruby characters, and the fold-

ing part of the text line shown in Fig.2. The cen-

ter line of a text line is represented as a polyline on

which characters of the text line are placed. It is for

the characteristic C5 shown in section 3.1. The verti-

cal space between characters is speciﬁed in format.

A sequence of ruby characters of a text line is also a

line placed alongside a character of the text line. It is

for the characteristic C3 shown in section 3.1. A fold-

ing part of a text line is also a line whose top margin

can be speciﬁed and the folding part is placed closely

to the text line. It is for the characteristics C2 and C4

shown in section 3.1.

A paragraph element represents a paragraph and

has the following attributes: four margins around the

paragraph (top, bottom, left, and right), three annota-

tions around the paragraph (top, left, and right), the

minimum space between ﬁrst characters of adjoin-

ing text lines, and the sequence of line elements as

shown in Fig.3. Each of three annotations around a

paragraph is also a paragraph. They are for the

characteristics C1 and C6 shown in section 3.1. The

left and right annotations of a paragraph are placed

closely to the paragraph. Adjoining text lines of a

paragraph are placed closely with the speciﬁed mini-

mum space between their ﬁrst characters. These are

for the characteristic C4 shown in section 3.1.

A format represents the entire format of a docu-

ment, and has the height and the width of each page,

Figure 2: A line element of the document model adopted

from (Inuzuka and Suzuki, 2020).

Figure 3: A paragraph element of the document model

adopted from (Inuzuka and Suzuki, 2020).

four margins (top, bottom, left, and right) of each

page and a sequence of paragraphs as shown in Fig.4.

3.3 A Document Image Synthesis

System

We implemented a document image synthesis system

in Python, which consists of four command line in-

terface commands: fonts, format, typeset, and

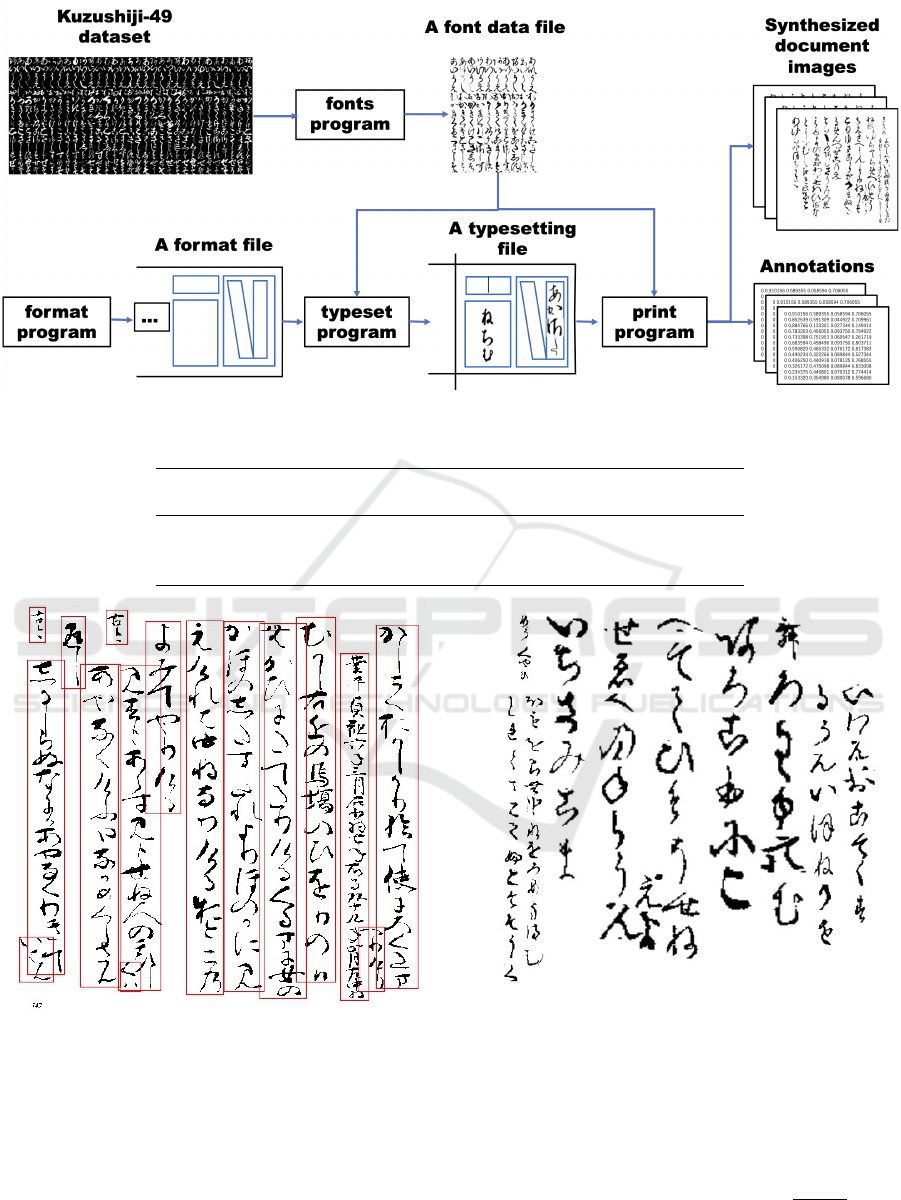

print. Fig.5 shows the document image synthesis

process by them.

The fonts command extracts at most n fonts

for each Japanese Kana from Kuzushiji-49(Clanuwat

et al., 2018) which is a data set of deformed Kana

with white on black. The command reverses white

and black in the extracted fonts, and removes white

lines at the top and the bottom of each font with black

on white. It ﬁnally outputs the resulting font data to a

python object ﬁle called a font data ﬁle.

ICPRAM 2021 - 10th International Conference on Pattern Recognition Applications and Methods

630

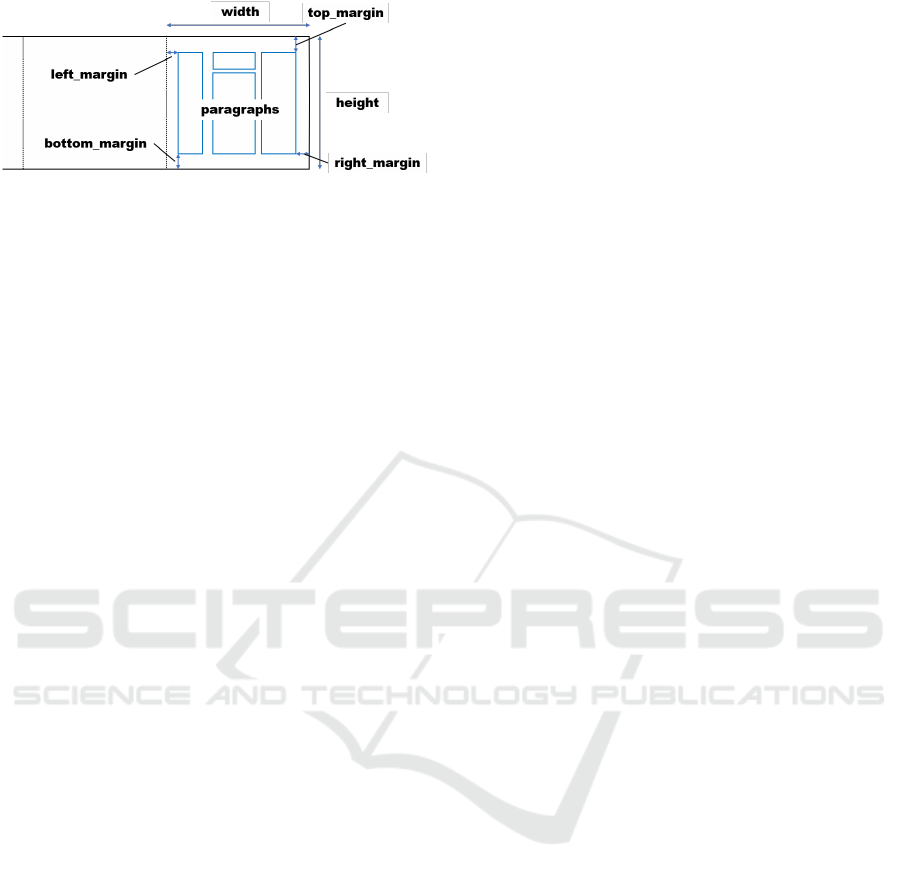

Figure 4: A format element of the document model

adopted from (Inuzuka and Suzuki, 2020).

The format command generates a format based

on the document model described in section 3.2 as a

dictionary object in Python, and outputs it to a ﬁle

called a format ﬁle. It randomly generate various

paragraphs and text lines.

The typeset command takes both a font data ﬁle

and a format ﬁle as its input, and outputs the result

of typesetting to a ﬁle called a typesetting ﬁle. The

command puts a randomly selected character in Kana

with a randomly selected font of it in the font data ﬁle

according to a format speciﬁed by the format ﬁle.

The print command reads a typesetting ﬁle and

generates both document images and rectangles as an-

notations, each of which surrounds a text line.

4 EXPERIMENTS

4.1 Objective

To check the effectiveness of document images gener-

ated by the method described in section 3.3 as training

data in text line segmentation, we conducted text line

segmentation experiments using a machine-learning-

based object detection algorithm. The details are de-

scribed in the following.

4.2 Method

4.2.1 Image Data Sets

We prepared three sets of document images as fol-

lows.

I1. Document images binarized and extracted from

the reference (Reizei, 1994)

I2. Binary document images generated by our

method with roughly adjusted parameters

I3. Binary document images generated by our

method with carefully adjusted parameters

Document images in the data set I1 were prepro-

cessed as follows. They were binarized by Otsu’s

method (Otsu, 1979) and resized to 512-pixel width

and 512-pixel height. Annotations for them were

done manually. An annotation is a bounding box of a

text line as shown in Fig.6. In our experiments, each

folding part of text lines and each of ruby character

sentences were also treated as text lines.

Document images in the data set I2 are syn-

thetic document images generated by our method with

roughly adjusted parameters.

Document images in the data set I3 are synthetic

document images generated by our method with care-

fully adjusted parameters as follows.

• At most 100 fonts were randomly selected for

each character in Kana.

• The selected grayscale fonts were completely bi-

narized.

• The selected font data were randomly shrunk or

expanded with some probability.

• Margins in pages and width of text lines were

adjusted with reference to the reference (Reizei,

1994).

• The vertical space between characters were ran-

domly set 0 to 10 pixels.

Fig.7 shows a document image generated under the

conﬁguration.

We divided the data sets I1, I2, and I3 as fol-

lows. The data set I1 was divided into three sets I1-

1, I1-2, and I1-3 for a machine-learning-based object

detection algorithm YOLOv3 (Redmon and Farhadi,

2018). I1-1, I1-2 and I1-3 are a training set, a valida-

tion set, and a test set respectively. The training set

and the the validation set of a data set were used in

training process. The test set was used to evaluate a

trained model in text line segmentation. The data sets

I2 and I3 were also divided as I1. Table.1 shows the

number of document images in I1, I2, I3, and their

subsets. The training set, the validation set and the

test set of each data set appear in a ratio 2:1:1.

4.2.2 Models

To create the following three models using YOLOv3,

we used a learning rate 0.001, a batch size 16, and

epoch 4000 in training process.

M1. a model trained by the data sets I1-1 and I1-2

M2. a model trained by the data sets I2-1 and I2-2

M3. a model trained by the data sets I3-1 and I3-2

4.2.3 Tests

We combined the trained models and the data sets for

text line segmentation as follows.

Experimental Application of a Japanese Historical Document Image Synthesis Method to Text Line Segmentation

631

Figure 5: The document image synthesis process amended from (Inuzuka and Suzuki, 2020).

Table 1: The number of document images in data sets.

Data set Subset for training Subset for validation Subset for test

(# of images) (# of images) (# of images)

I1 I1-1 (83) I1-2 (41) I1-3 (42)

I2 I2-1 (243) I2-2 (121) I2-3 (122)

I3 I3-1 (243) I3-2 (121) I3-3 (122)

Figure 6: An annotated document image (Rectangles are

added to a binarized document image scanned from (Reizei,

1994)).

Case 1. The model M1 and the data set I1-3

Case 2. The model M2 and the data set I2-3

Case 3. The model M2 and the data set I1-3

Case 4. The model M3 and the data set I3-3

Case 5. The model M3 and the data set I1-3

Figure 7: A synthetic document image adopted from (In-

uzuka and Suzuki, 2020).

For example, we segmented text lines in document

images in I1-3 using M1 in case 1.

We used intersection-over-union (IoU) as an eval-

uation metric. IoU between two regions A and B is

deﬁned as follows.

IntersectionOverUnion (IoU) =

|A ∩ B|

|A ∪ B|

ICPRAM 2021 - 10th International Conference on Pattern Recognition Applications and Methods

632

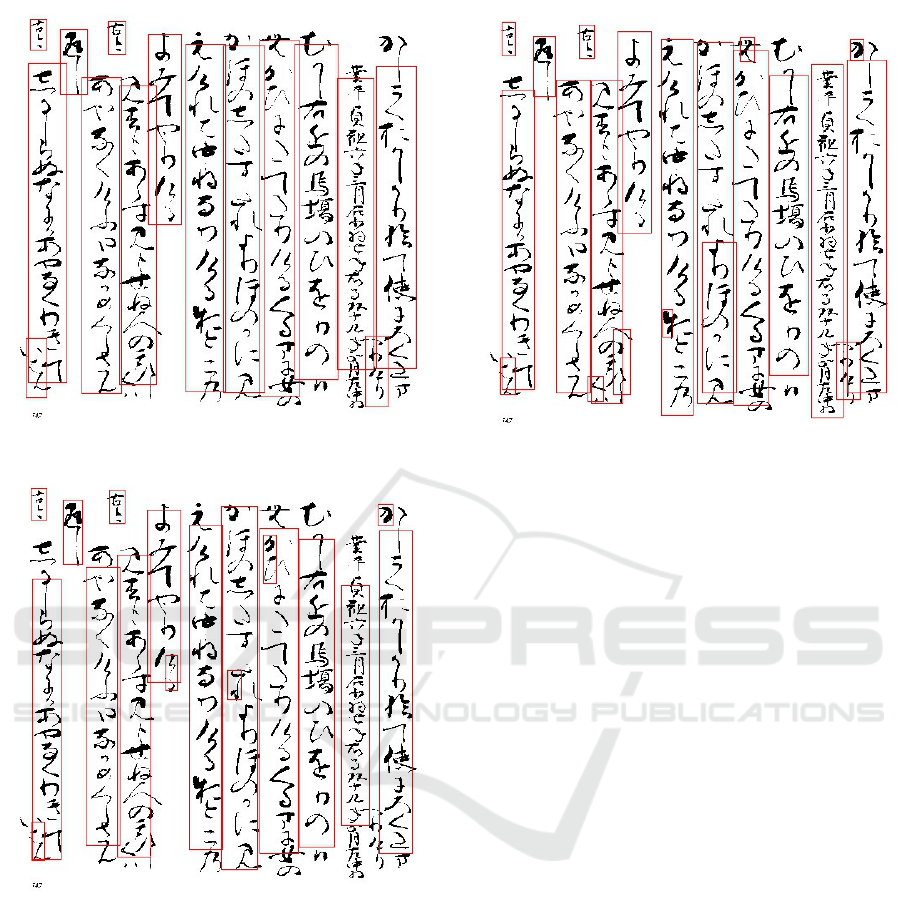

Figure 8: An example of text line segmentation in case 1.

Figure 9: An example of text line segmentation in case 3.

We calculated IoU between the ground truth and a

predicted region for each document image, and av-

eraged them.

4.3 Results

Table 2 shows the resulting average IoUs.

• In case 1, case 2 and case 4 where data sets for

training, validation and test are derived from a

data set, average IoUs are at least 0.892.

• The average IoU in case 5 is 0.877 while that in

case 3 is 0.806. Parameter adjustment in our doc-

ument image synthesis method improved the av-

Figure 10: An example of text line segmentation in case 5.

erage IoU by 0.71 points.

• The average IoU in case 1 is 0.897 while that in

case 5 is 0.877.

• The number of detected rectangles in case 1 is 514

while that in case 5 is 682.

Fig.8, Fig.9 and Fig.10 show the resulting text line

segmentation in case 1, 3, and 5 respectively. Fig.6

shows text lines to be detected.

• In Fig.8, Fig.9, and Fig.10, some detected text

lines lack their heads and/or ends.

• In Fig.9 and Fig.10, some detected text lines are

redundant. For example, a part of a text line is

detected as a text line.

4.4 Evaluation

We evaluate the experimental results as follows.

• The results in case 1, case 2 and case 4 show that

trained models works well.

• The results in case 3 and case 5 show that param-

eter adjustment in our method improved results in

text line segmentation.

• The results in case 1 and case 5 show that a model

trained by the synthetic annotated document im-

ages can be competitive with that trained by the

manually annotated real document images from

the view point of IoU.

• We need another metric which evaluates both the

accuracy of an object detector and the number of

detected objects because more text lines were de-

tected in case 5 than in case 1 though the average

IoU in case 5 is competitive with that in case1.

Experimental Application of a Japanese Historical Document Image Synthesis Method to Text Line Segmentation

633

Table 2: Average IoU and the number of detected text lines.

Case Model Data sets for Data set for test Avg. IoU # of detected text lines

training and validation

Case 1 M1 I1-1 and I1-2 I1-3 0.897 514

Case 2 M2 I2-1 and I2-2 I2-3 0.892 1,676

Case 3 M2 I2-1 and I2-2 I1-3 0.806 574

Case 4 M3 I3-1 and I3-2 I3-3 0.903 1,320

Case 5 M3 I3-1 and I3-2 I1-3 0.877 682

• If we use the document image synthesis method

and the object detection algorithm for text line

segmentation, we need post processes such as re-

moval of redundant detected text lines and expan-

sion of detected text lines.

5 CONCLUSION

We proposed an annotated Japanese historical doc-

ument image synthesis method, and experimentally

applied it to text line segmentation using a machine

learning-based object detection algorithm YOLOv3

where synthetic document images were used as train-

ing data for YOLOv3. The experimental results show

that a model trained by the synthetic annotated docu-

ment images can be competitive with a model trained

by the manually annotated real document images

from the view point of intersection-over-union. Pa-

rameters in our method are, however, needed to man-

ually adjust to generate such competitive document

images.

Future work would be as follows. To conﬁrm

applicability of our method, we need to apply our

method to same type of other historical documents

because we applied it to only a historical document.

Automatic parameter adjustment methods for docu-

ment image synthesis and post-processing for seg-

mented text lines will improve text line segmenta-

tion results. The post-processing, for example, would

be to remove segmented text lines included in other

segmented ones and to extend segmented text lines

to include missing parts of the text lines. Our docu-

ment image synthesis method will be also applicable

to character segmentation.

REFERENCES

Aoike, T., Kinoshita, T., Satomi, W., and Kawashima, T.

(2019). Construction and publication of book layout

datasets for machine learning. In Proceedings of the

Computers and the Humanities Symposium, volume

2019, pages 115–120.

Capobianco, S. and Marinai, S. (2017). Docemul: A

toolkit to generate structured historical documents. In

2017 14th IAPR International Conference on Docu-

ment Analysis and Recognition (ICDAR), volume 01,

pages 1186–1191.

Clanuwat, T., Bober-Irizar, M., Kitamoto, A., Lamb, A.,

Yamamoto, K., and Ha, D. (2018). Deep learning for

classical japanese literature. CoRR, abs/1812.01718.

Inuzuka, N. and Suzuki, T. (2020). Text line segmentation

for japanese historical document images using deep

learning and data synthesis. SIG Technical Reports

(CH), 2020-CH-122(4):1–6.

Ogiso, T., Ogura, H., Tanaka, M., Kondo, A., and Den,

Y. (2010). Development of an electrical dictionary

for morphological analysis of classical japanese. SIG

Technical Reports (CH), 2010-CH-85(4):1–8.

Otsu, N. (1979). A threshold selection method from gray-

level histograms. IEEE Transactions on Systems,

Man, and Cybernetics, 9(1):62–66.

Pondenkandath, V., Alberti, M., Diatta, M., Ingold, R., and

Liwicki, M. (2019). Historical document synthesis

with generative adversarial networks. In 2019 Interna-

tional Conference on Document Analysis and Recog-

nition Workshops (ICDARW), volume 5, pages 146–

151.

Redmon, J. and Farhadi, A. (2018). Yolov3: An incremental

improvement. arXiv.

Reizei, T. (1994). Tales of Ise (photocopy). Kasama Shoin.

Sando, K., Suzuki, T., and Aiba, A. (2018). A con-

straint solving web service for a handwritten japanese

historical kana reprint support system. In van den

Herik, H. J. and Rocha, A. P., editors, Agents and

Artiﬁcial Intelligence - 10th International Conference,

ICAART 2018, Funchal, Madeira, Portugal, January

16-18, 2018, Revised Selected Papers, volume 11352

of Lecture Notes in Computer Science, pages 422–

442. Springer.

Yamazaki, A., Sando, K., Suzuki, T., and Aiba, A. (2018).

A handwritten japanese historical kana reprint support

system: Development of a graphical user interface. In

Proceedings of the ACM Symposium on Document En-

gineering 2018, New York, NY, USA. Association for

Computing Machinery.

ICPRAM 2021 - 10th International Conference on Pattern Recognition Applications and Methods

634
