CyExec

∗

: Automatic Generation of Randomized Cyber Range Scenarios

Ryotaro Nakata

and Akira Otsuka

Institute of Information Security, Yokohama, Kanagawa, Japan

Keywords:

Information Security Education, Cyber Security, Cyber Range Scenario, Randomization, Docker Container.

Abstract:

With the development of information technology, the need for information security education is increasing, and

the effectiveness of cyber range exercises is attracting attention. The cyber range is a system to learn knowl-

edge and skills by experiencing an incident scenario reproduced in a virtual environment. Many scenarios are

required to train a security expert through various incident experiences. However, scenario development re-

quires highly specialized expertise. Thus, in practice, only a limited number of scenarios are worn out around.

Identical scenarios may decrease the educational effect since the other teams’ actions or write-ups on the in-

ternet will hint the students. We propose CyExec*, a cyber range system that automatically generates multiple

scenarios based on DAG(Directed Acyclic Graph)-based scenario randomization. Multiple scenarios with the

same learning objectives can enhance teaching effectiveness and prevent cheating. We developed the DAG-

based scenario randomization technique on a Docker-based cyber range system called CyExec. By taking

full advantage of Docker’s system/network conﬁguration power, we can randomize complex scenarios across

multiple networks. Comparison with the VM-based scenario generators, CyExec* outperforms, especially in

storage usage. Further, CyExec

∗

only consumes 1/3 memories, 1/4 CPU loads, and 1/10 storage usages. Thus,

Cyexec

∗

can operate approximately 3-times more complex scenarios than VM-based systems.

1 INTRODUCTION

With the development of information technology

and the internet, cyber-attacks and malware damage

worldwide, and information security measures have

become necessary everywhere. As a result, the train-

ing of information security personnel is very active,

and in recent years, skills training by cyber range has

received much attention (Maki et al., 2020).

The cyber range is a system that allows stu-

dents to learn knowledge and skills by experiencing

real security incident scenarios in a virtual environ-

ment(Vincent E Urias, 2018). The cyber range sce-

narios provide a highly realistic security incident ex-

perience. Therefore, it is expected to be highly ed-

ucational. However, scenario development and envi-

ronmental preparation require people with expertise.

Many scenarios are required to address a large amount

of learning content and repetition, but it is difﬁcult

for teachers and institutions to develop them indepen-

dently (Beuran et al., 2019).

Also, the cyber range exercises are divided into

teams of several people each. If a same scenario is

https://orcid.org/0000-0001-8885-848X

https://orcid.org/0000-0001-6862-2576

offered to all teams, and the learning content is the

same, there is a risk of leaking hints while the teams

work on the problem at the same place. So it is nec-

essary to prepare scenarios with different content for

each group, but this is easily said than done. It is

possible to develop multiple scenarios with the same

learning objectives, but that would be a huge burden

in terms of development (Razvan et al., 2017).

Moreover, existing cyber range consists of large

numbers of virtual machines to run scenarios. De-

pending on the number of attendees and teams, this

can require 100 or more virtual instances. The prob-

lem is that this requires high-performance hardware

that can withstand multiple virtual machines’ opera-

tion (Maki et al., 2020).

As described above, the existing cyber range is re-

quired to develop many scenarios, and preparing an

environment to do so will be a signiﬁcant operational

burden (Schreuders et al., 2015). We developed a new

cyber range platform, CyExec*, which incorporates

random components into cyber range scenarios and

leverages containerized virtualization to solve these

problems. Not only does this provide many scenario

patterns, but it is also a versatile cyber range that is

light, fast, and can be used in the cloud.

226

Nakata, R. and Otsuka, A.

CyExec*: Automatic Generation of Randomized Cyber Range Scenarios.

DOI: 10.5220/0010324502260236

In Proceedings of the 7th International Conference on Information Systems Security and Privacy (ICISSP 2021), pages 226-236

ISBN: 978-989-758-491-6

Table 1: Exercise environments used for information security education.

Type CTF Lab Work cyber range

Target

Beginners-

highly skilled Hackers

Students and

professionals studying

information security

Security personnel and

various other roles

Require Skill

Web/Network/

Programing/Encryption

etc...

Speciﬁc Vulnerabilities

and attack methods

Comprehensive response

to security incidents

Scenario

contents

One-off scenarios

in game format

A single scenario

to address a

speciﬁc vulnerability

Ability to respond

comprehensively to the

entire incident response

Implementation

cost

Low-Medium

(Large-scale events

are also held)

Medium

(A hands-on, primarily

on a personal device)

High

(Reproduce real-world

equivalent systems

in a virtual environment)

Examples

PicoCTF

SecGen

Webgoat

Labtainer

Tame Range

CyTrONE

In this paper, we describe the architecture and im-

plementation of the developed CyExec

∗

. We also

show the usefulness of CyExec

∗

by comparing it to

existing exercise platforms. We describe existing ex-

ercises and cyber range in Chapter 2, discuss the ran-

domization of cyber range scenarios in Chapter 3, de-

scribe the implementation in Chapter 4, and present

the comparative validation in Chapter 5.

2 INFORMATION SECURITY

EDUCATION

2.1 Various Hands-on Environments

In information security education, hands-on learn-

ing is prevalent, such as CTF (Capture The Flag).

Learners work on problems like a game using secu-

rity knowledge or lab work to learn the attack meth-

ods and vulnerabilities through experience. Many of

these are open to the public, and learners can set up

their environment to work on the problems (Chothia

and Novakovic, 2015).

On the other hand, in cyber range, teams are di-

vided into roles, such as CEOs, security personnel and

engineers, and they work on the exercise from their

perspective. The environment in which the exercise

is conducted is a reproduction of the real system en-

vironment, and the organization’s incident response

skills are developed through scenarios that simulate

real security incidents (Maki et al., 2020).

The cyber range exercises are complex environ-

ments, difﬁcult to set up, and are not available to

the public. Some educational institutions use them

in their professional courses, but companies use com-

mercially available cyber range systems to train their

professionals in many cases. Table 1 shows a com-

parison of hands-on exercises in information security

education.

CTF and lab-work are easy to prepare the environ-

ment and comfortable for individuals to learn. The cy-

ber range is highly effective in education but requires

the preparation of appropriate scenarios and environ-

ments. Therefore, it is not easy to conduct exercises

and utilize them in the educational curriculum (Chap-

man et al., 2014; E et al., 2017; Raj et al., 2016).

2.2 Responding to Cyber Range Issues

To address the problem of developing cyber range

scenarios and building an environment, we considered

the following.

• Easy to provide a large number of scenarios.

• Even if the content of the scenario is leaked, the

educational effect will not be compromised.

• The environment is capable of executing many

scenarios simultaneously.

Although cyber range scenarios are the cornerstone

of the exercise, the educational outcome is limited if

the same scenarios are always being offered. Also, if

many teams are working on the same scenario simul-

taneously, the scenario’s content could be leaked from

the situation of other teams. If the exercise is con-

ducted online, students may share tips and answers,

which is not a positively affect for teaching pur-

poses. Additionally, to run multiple scenarios, many

virtual instances need to be running simultaneously,

and the environment needs to be prepared, replicated,

replaced, started, and closed quickly (Costa et al.,

2020).

To address the above, we referred to the concept

of SecGen, which is a publicly available platform

CyExec*: Automatic Generation of Randomized Cyber Range Scenarios

227

that provides many exercise environments (Schreud-

ers et al., 2017). The main concepts of SecGen are as

follows.

• Provides a randomizable, ﬂexible, and generic

method for security education used in CTF and

security lab exercises and simulations.

• Outputs a set of VMs, including server, client and

network conﬁgurations, software and conﬁgura-

tion vulnerabilities, and randomizes their various

component to create richer scenarios.

• Design and implement a speciﬁcation for generat-

ing scenarios randomly.

These concepts can be used in a cyber range en-

vironment and are essential for providing students

with many organized learning opportunities. Even on

the cyber range, incorporating random components

into scenarios can provide many scenarios, provid-

ing learning opportunities, and improving educational

effectiveness. However, some of the randomization

components targeted by SecGen lack or have differ-

ent use for cyber range, since it has different learning

objectives and target systems. The cyber range char-

acteristics must be considered in determineing which

components should be randomized in the scenario.

That will be discussed in Chapter 3.

Also, cyber range requires more virtual instances

than other exercises. As a result, it requires a lot of

hardware resources and high-performance equipment.

Running multiple scenarios may require even more

high-performance equipment, which is not practical.

Therefore, we considered carrying on the concept of

CyExec, a cyber range platform that leverages con-

tainerized virtualization with Docker (Li et al., 2017).

Speciﬁcally, we have developed CyExec

∗

, which im-

plements the concept of scenario randomization in

CyExec. CyExec

∗

is envisioned as a realistic exercise

system that can be integrated into educational curric-

ula and will be discussed in detail in Chapter 4.

3 RANDOMIZE CYBER RANGE

SCENARIOS

3.1 DAG-based Cyber Range Scenario

In examining the randomization of cyber range sce-

narios, we analyzed an example of a common cyber

range scenarios as show on Figure 1.

The cyber range scenario has several milestone

points within the overall scenario. The operations and

actions that reach those milestones are a single sce-

nario that deals with individual attack methods, sim-

ilar to CTF and lab work. The overall scenario can

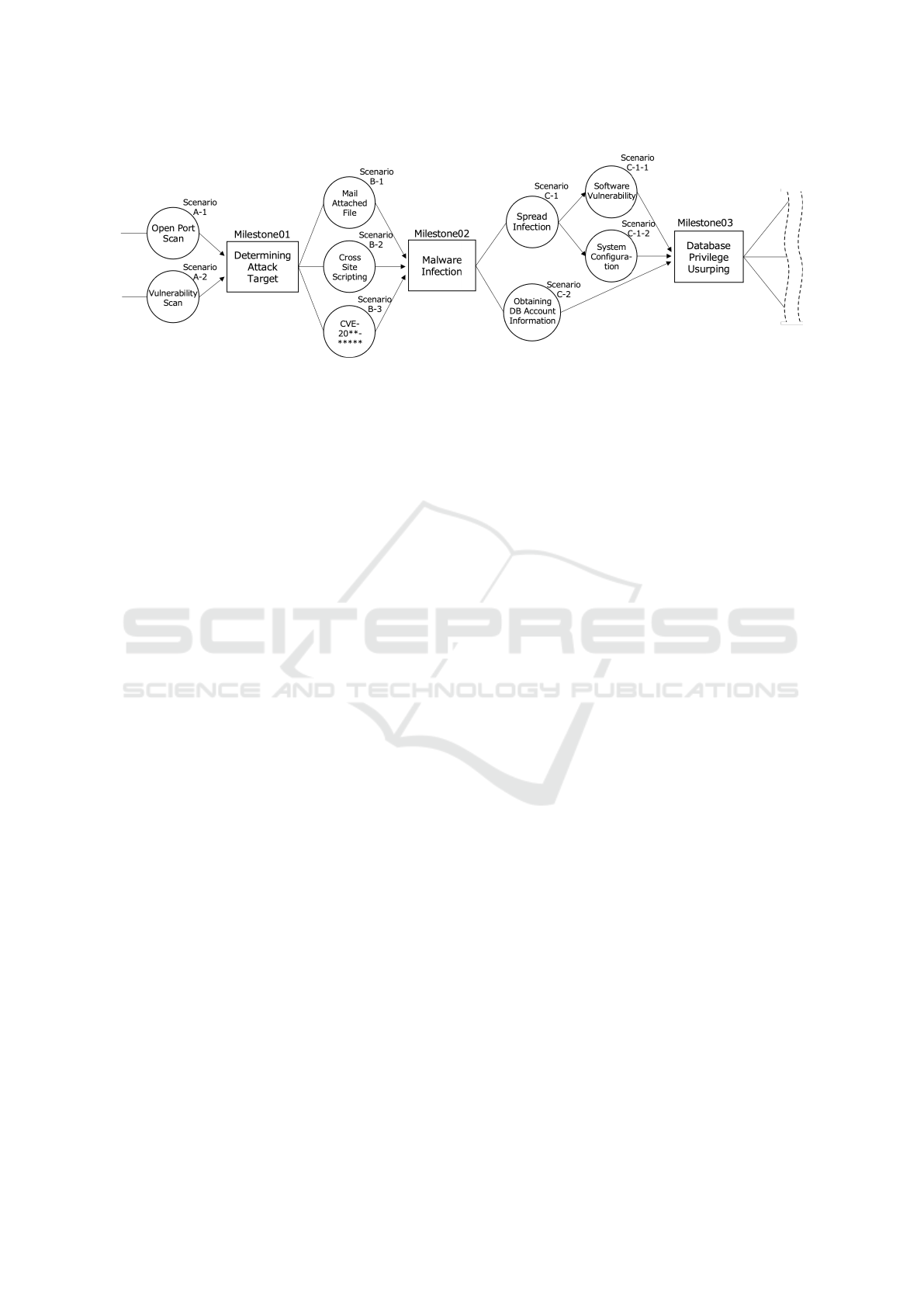

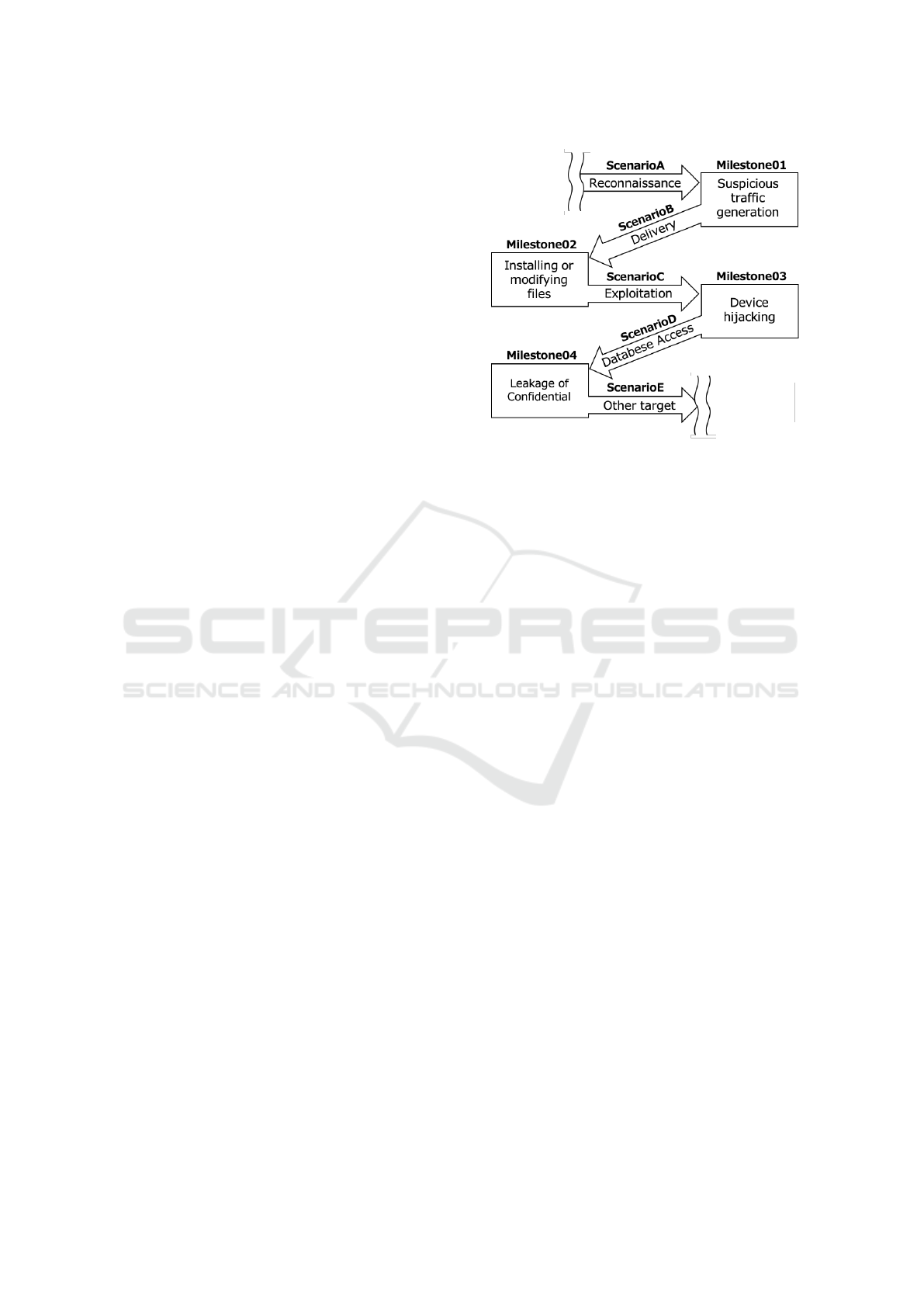

Figure 1: Example of a cyber range scenario.

be thought of as a composite scenario in which each

milestone is connected through a separate scenario,

ultimately forming the entire incident.

There is more than one operation or action to

reach each milestone. For example, the difference

between a malicious ﬁle or malware being sent via

email, or downloaded via a rogue website, and the dif-

ference between whether an attacker exploits a con-

ﬁguration issue in the operating system, or a vulnera-

bility in a particular software in an attempt take away

administrative rights. Some of these scenarios could

read to the same outcome, even if the attacker uses

different means. We thought that if we could ﬁx the

milestones and incorporate a random element into the

scenarios leading up to them, we could create a ran-

dom cyber range scenario. Figure 2 shows an image

of a cyber range scenario that incorporates random-

ization.

The randomized cyber range scenario takes the

form of a graph, with the milestone considered to be

the same state as the vertex and the scenario directed

to the next milestone as the edge. Since the attack

is directed towards the ﬁnal target, the scenario does

not consider the possibility of going back to a previ-

ous milestone or looping back to the same location.

Therefore, a cyber range scenario that takes random-

ness into account is a directed acyclic graph (DAG).

When developing a scenario, it is important to en-

sure that the overall scenario is a DAG and consider

multiple scenarios heading towards each milestone.

This method can provide a scenario pattern for the

total number of paths in the graph. Multiple random

scenarios with different paths but the same objectives

allow participants to experience security incidents in

a variety of situations.

ICISSP 2021 - 7th International Conference on Information Systems Security and Privacy

228

Figure 2: Example of a randomized cyber range scenario.

3.2 Consideration of Randomizable

Components

In 3.1, we showed how to develop a random scenario

using DAG. In order to conduct a cyber range exer-

cise, it is necessary to build a scenario reproduction

environment within the cyber range. To examine the

components that can be randomized during the con-

struction of the cyber range environment, we identi-

ﬁed the components considered in SecGen (Schreud-

ers et al., 2017), a VM-based scenario generation tool.

Table 2 shows the results of the examination of the

components that can be randomized.

The content of SecGen can be incorporated into

the CyExec* environment as well. Almost any ele-

ment can be considered for randomization and can be

used to cyber range exercise. These contents can be

randomized as long as they do not interfere with the

progress of the scenario. Even if the scenario leads

to the same milestone, they are provided as new situ-

ations, such as different environments and settings to

operate in, or a vulnerability used for an attack.

In the case of SecGen, there is an internal network

of single or multiple VMs, so there is no need to con-

sider the external networks, as long as the necessary

components work. In CyExec*, to replicate the real-

world network conﬁguration, not only do we need to

replicate the vulnerabilities and conﬁguration ﬂaws,

but we also need to consider randomization of in-

ternal/external network conﬁgurations, including not

only vulnerabilities and conﬁguration ﬂaws, but also

security devices such as IPS and ﬁrewalls, etc.

When developing scenarios, we will develop

DAG-based randomized scenarios by identifying

these randomizable components and branching them

out with content that can lead to same milestones.

4 DEVELOPMENT AND

IMPLEMENTATION

4.1 Consideration of Implementation

Methods

To implement the randomized cyber range scenar-

ios that we have studied, we investigated the imple-

mentation in CyExec, a container-based cyber range.

CyExec uses Docker to implement a virtual environ-

ment. Docker is a platform for containerized virtual-

ization and has the following features that make it use-

ful for cyber range implementations (Raj et al., 2016;

Docker, c).

• Reduced resource consumption due to virtual in-

stance increase

• Environment suitable for frequent changes and

disposables

• Managing image and network conﬁguration with

Dockerﬁle and Docker-compose

Docker behaves like an independent machine by

grouping and isolating only the processes that are nec-

essary to run the virtual environment. Because other

resources are shared with the host, the Overhead is

low, and the operation is fast and lightweight. Since it

does not occupy memory and CPU like VMs, the load

is low even when many virtual instances are launched

in the cyber range.

Containers have a smaller image size than VMs,

because containers require a minimal conﬁguration.

In addition, the Union File System (UFS) allows fre-

quent changes and partial additions to the base image

to be made efﬁciently. It is often used in veriﬁcation

environments that do not require data persistence, and

is suitable for disposable environments such as exer-

cises. The images can all be described in a simple

text ﬁle called Dockerﬁle (Docker, a). In the case of

CyExec*: Automatic Generation of Randomized Cyber Range Scenarios

229

Table 2: Scenario Components.

Random

Components

SecGen CyExec*

(virtual instance)

Single OS with multiple services Multiple OS and services can be added ﬂexibly

Network Internal network of VMs and hosts Internal/External complex multiple networks

Network

Services

such as FTP, IRC, HTTP, NFS

Internal Network Services

Including IPS/IDS and monitoring services.

Internal/External services

System

Conﬁguration

Conﬁguration within a single OS

and the Installed Software

Multiple OS and services, Softwares conﬁguration

Vulnerabilities

Independent Vulnerabilities

Conﬁguration/Softoware

Equivalent vulnerability resulting

in equivalent milestones

CTF-style

challenges

Addressing the above issues or

attacking vulnerabilities

Advanced attacks such as targeted attacks and

incident response

Figure 3: Image of CyExec

∗

in action.

SecGen, we use many platforms such as Ruby, Va-

grant, Puppet, Virtual-Box, to build VMs. Although

these environments are generally accessible, they may

not work correctly due to various factors, such as dif-

ferences in versions and modules’ interaction. Using

Docker as the primary platform makes it easier to im-

plement containers with the necessary conﬁgurations

instead of VMs.

CyExec

∗

uses many Dockerﬁles to build contain-

ers of various conﬁgurations and prepare multiple en-

vironments. To build a network environment using

multiple Dockerﬁles, we use Docker-compose to au-

tomate (Docker, b). Docker-compose can start an

environment with multiple container images, includ-

ing network conﬁguration. By providing multiple

Docker-compose ﬁles, it enables randomization or

changing the environment by specifying the Docker-

ﬁle to be used on startup.

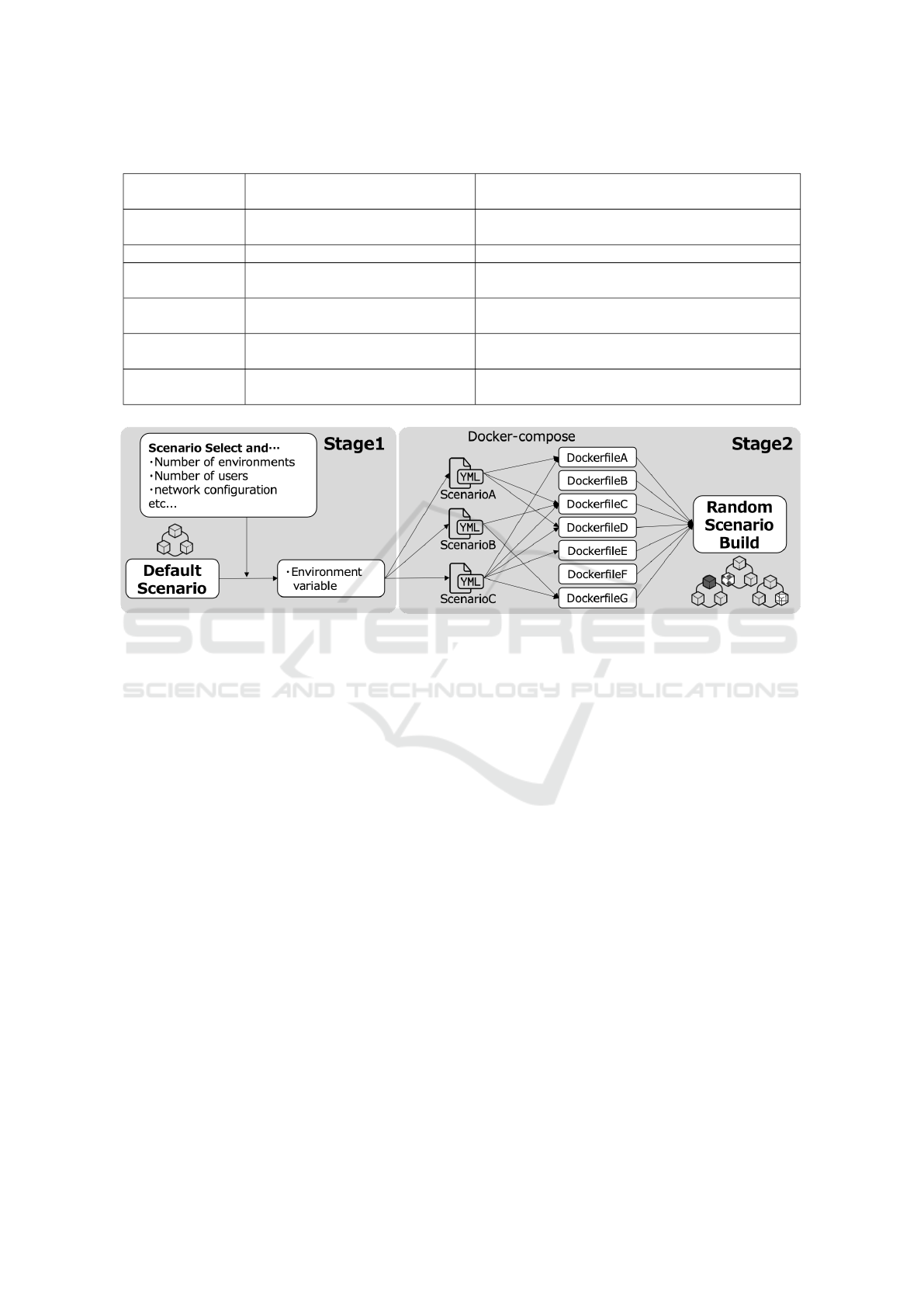

Figure 3 shows an image of CyExec

∗

in action.

CyExec

∗

, like SecGen, consists of two stages.

Stage 1 is based on the default scenario and deﬁnes,

the number of environments to generate, the number

of students to connect to (and the devices to prepare

for), etc. Based on this, CyExec passes the scenar-

ios and the necessary arguments to Docker-compose,

speciﬁes the Dockerﬁle needed to execute the scenar-

ios, builds the container, and launches the exercise en-

vironment at stage 2.

4.2 Implementing the Default Scenario

CyExec

∗

provides a default scenario with a base sys-

tem conﬁguration. Additional randomness can be ac-

commodated by modifying some of the default sce-

narios. The default scenario environment can also be

used as a place to learn attack and defense techniques

or to develop scenarios.

Default scenario is automatically generated by

Dockerﬁle and Docker-compose, which is highly

portable, and any environment running Docker can

build an equivalent environment. There is no need

to develop complex programs or modules for sce-

nario development. Scenario development can be

handled by adding a Dockerﬁle and editing Docker-

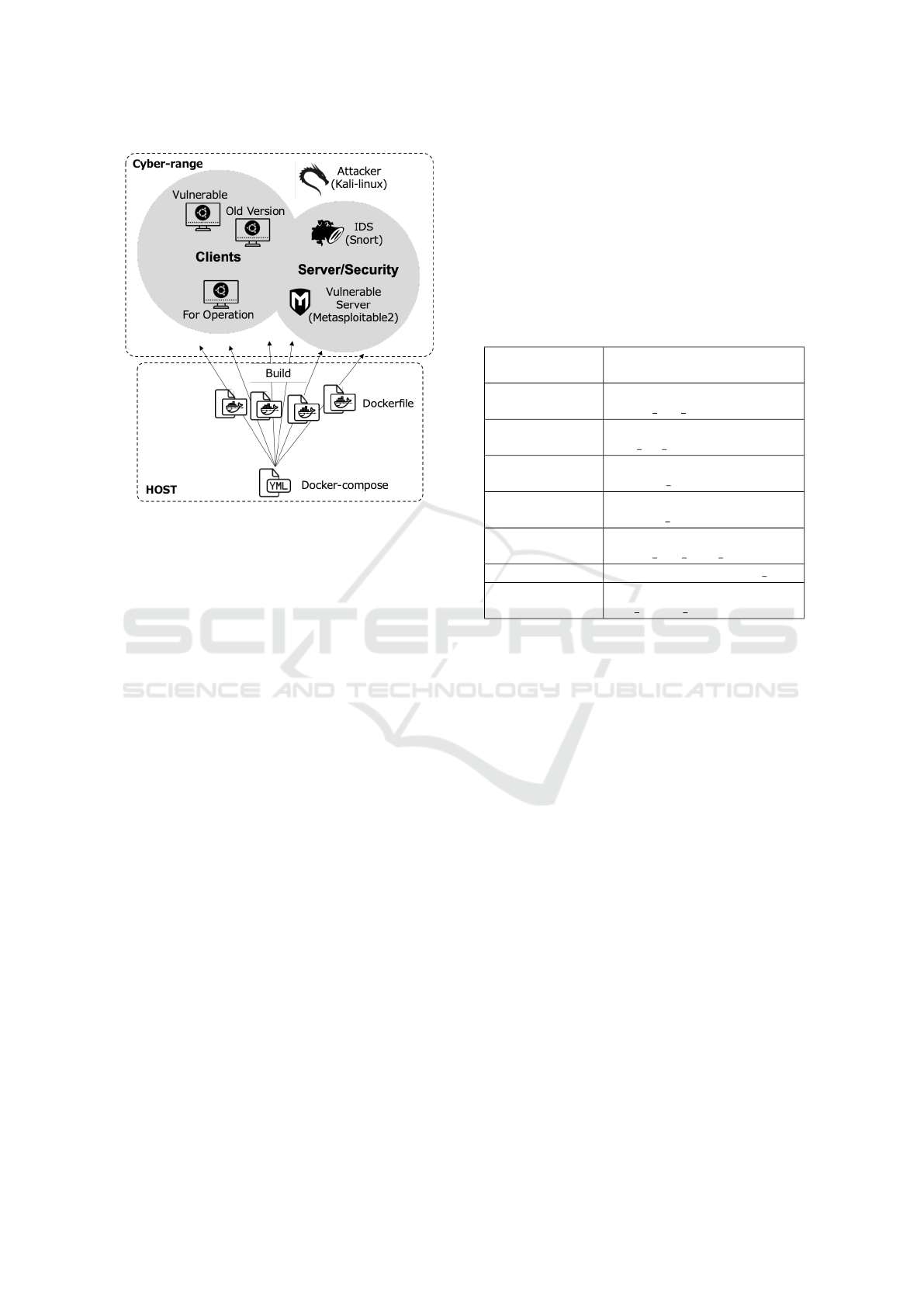

compose.yml ﬁle. Figure 4 shows the conﬁguration

of the default scenario.

In the exercise, students requires a device that can

be operated in the cyber range. Also, this device will

also include a GUI desktop environment that allows

connection from the host. In CTFs and lab work, the

host on which the virtual environment is built is also

part of the exercise environment. Because the cyber

ICISSP 2021 - 7th International Conference on Information Systems Security and Privacy

230

Figure 4: Conﬁgure the default scenario.

range reproduce a real-world network, providing an

operational devices within the exercise environment

can make the exercises more realistic.

Also, as a vulnerable environment, Metas-

ploitable2 is used to handle a variety of attack sce-

narios coming from the web and vulnerable applica-

tions. Metasploitable2 is a server that deliberately

holds vulnerable conﬁgurations and vulnerable ver-

sions of software, and is used for penetration test-

ing and other purposes (Rapid7, ). Ofﬁcially, Metas-

ploitable2 is offered in VM, but we implemented it by

containerizing. We implemented snort as an IDS that

can detect attacks from kali-linux (Security, ; team, ),

which is prepared as an attacker. Other vulnerabilities

with different settings and versions were also imple-

mented on multiple client devices.

All virtual instances are implemented in contain-

ers, but are as usable as VMs, and even attack scenario

can be executed at startup by writing into a Dockerﬁle

or making a script. By using this default scenario, the

exercises can be run from attack to defense. However,

this default scenario is not prepared for a speciﬁc at-

tack or vulnerability in mind. The idea is to add new

equipment and service containers to this environment

and expand the types of randomness by changing the

attack methods and forensic content to provide more

scenarios.

4.3 Adding Randomness

To test the addition of randomness, we considered

adding a random scenario with multiple attack meth-

ods to the default scenario environment. Vulnera-

ble application running on Metasploitable2 can be at-

tacked using the exploit module in kali-linux. If this

attack’s result creates the same state and leads to the

next scenario, this attack’s content can be chosen at

random. Table 3 shows the vulnerable applications

running on Metasploitable2 and the equivalent exploit

modules that leads to the same milestone.

Table 3: Vulnerable Applications and Equivalent Exploit

Modules.

Vulnerable

Applications

exploit on msfconsole

vsftpd

exploit/unix/ftp/

vsftpd 234 backdoor

php

exploit/multi/http/

php arg injection

Samba

exploit/multi/samba/

usermap script

PostgreSQL

exploit/linux/postgres/

postgres payload

UnrealIRCD

exploit/unix/irc/

unreal ircd 3281 backdoor

distccd exploit/unix/misc/distcc exec

Ruby DRb RMI

exploit/linux/misc/

drb remote codeexec

As a result of attacks using these exploit mod-

ules, arbitrary commands can be executed remotely

on Metasploitable2. Since they can execute com-

mands with root privileges, they can perform vari-

ous actions, such as obtaining information or tam-

pering with ﬁles, which leads to the next attack sce-

nario. This way, the scenarios can be swapped and

selected randomly if a similar situation is created, us-

ing a different vulnerability or attack technique. Be-

cause same circumstances can be created even from

different exploit modules, you can swap them around

and have it choose randomly. Therefore, you can add

randomness to the scenarios.

CyExec

∗

executes attack scenarios by writing

them in a Dockerﬁle or loading a script. In other

words, selecting which Dockerﬁle to use determines

the scenario. To make randomization easier, we

placed the Dockerﬁle in a separate directory for each

scenario; selecting a directory in the Docker-compose

launches the scenario based on where the Dockerﬁle

is placed. Figure 5 shows an example of the directory

structure.

Place the Docker-compose.yml ﬁle in the top di-

rectory. The environment will be built using the

Dockerﬁle in a subdirectory. Arrange the branches

of the scenario as symbolic links so that the direc-

tory structure takes a DAG form. The scenario struc-

CyExec*: Automatic Generation of Randomized Cyber Range Scenarios

231

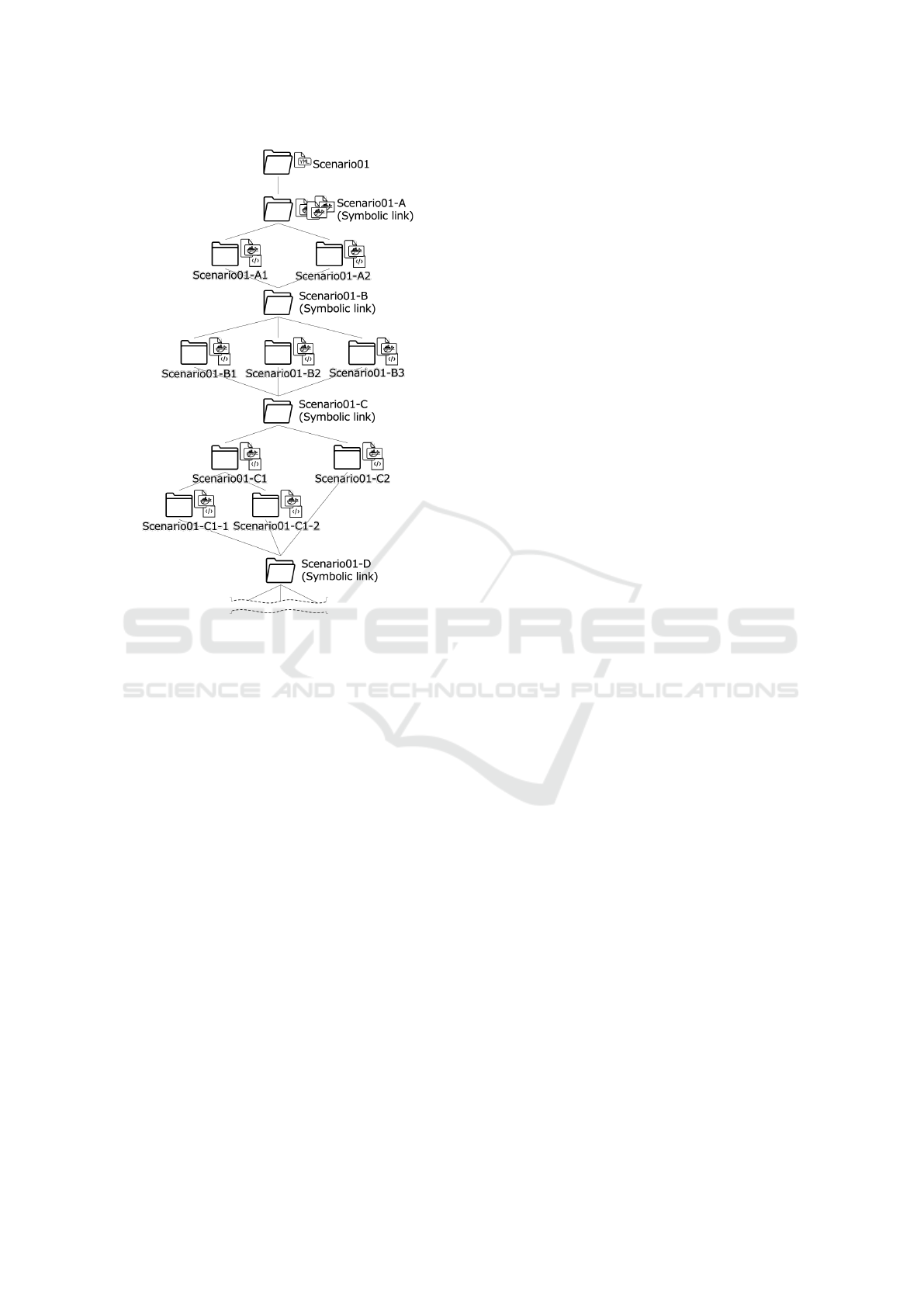

Figure 5: Example of CyExec

∗

directory structure.

ture matches the directory structure. The Docker-

compose.yml ﬁle speciﬁes the directory where the

Dockerﬁle is located. By making this a variable, it

made it possible to choose any scenario route or ran-

domize.

5 VERIFICATION AND

COMPARISON

5.1 Veriﬁcation of Operation

To verify the operation of CyExec

∗

, we ran the default

scenario. For reference, here is the example Docker-

ﬁle of the client device.

FROM ubuntu:18.04

LABEL maintainer="Ryotaro Nakata"

ARG host_name="cyexec*_client01"

ENV DEBIAN_FRONTEND=noninteractive \

HOSTNAME=$host_name

#Locale and Language setting

RUN apt-get update && \

apt-get install -y ibus-mozc

#User setting

ARG root_password="root"

ARG user_name="ubuntu"

ARG user_password="password"

RUN echo root:$root_password | \

chpasswd && apt-get update && \

apt-get install -y openssl sudo \

&& useradd -m -G sudo $user_name -p \

$(openssl passwd -1 $user_password) \

--shell /bin/bash

#RDP setting

RUN apt-get update && \

apt-get install -y xfce4 xfce4-terminal \

xfce4-goodies xrdp && adduser xrdp \

ssl-cert && update-alternatives --set \

x-terminal-emulator \

/usr/bin/xfce4-terminal.wrapper

COPY ./config/xrdp/sesman.ini \

/etc/xrdp/sesman.ini

COPY ./config/xrdp/xrdp.ini \

/etc/xrdp/xrdp.ini

COPY ./config/xrdp/default.pa \

/etc/xrdp/pulse/default.pa

EXPOSE 3389

#Startup setting

RUN apt-get update && \

apt-get install -y supervisor

ADD ./config/supervisord/* \

/etc/supervisor/conf.d/

#Install Preferred package

RUN apt-get update && \

apt-get install -y \

git tig gedit nano \

wget curl net-tools firefox\

build-essential \

software-properties-common

#Install Network tools

RUN apt-get update && \

apt-get install -y \

iputils-ping inetutils-traceroute \

net-tools

# Clean up

RUN apt-get clean && apt-get autoremove \

&& rm -rf /var/cache/apt/archives/* \

/var/lib/apt/lists/*

CMD ["bash", "-c", "/usr/bin/supervisord \

-c /etc/supervisor/supervisord.conf"]

This client device is available in all scenarios, as

a device for participants to study and review inci-

dents. We also built Kali-linux, Metasploitable, and

Snort using container images published on Docker-

HUB. These containers can be started and run in sce-

narios based on the Dockerﬁle description. Figure 6

shows a screenshot of the container connection and

operation.

We have conﬁrmed that everything works ﬁne.

All containers are working correctly, including ac-

cess to the Metasploitable2 web screen by launching

a browser from the operating terminal’s GUI desktop.

This state alone is sufﬁcient enough to be used as a

simulation environment. Students will carry out the

exercise by performing various checks and examina-

tions from this client device.

ICISSP 2021 - 7th International Conference on Information Systems Security and Privacy

232

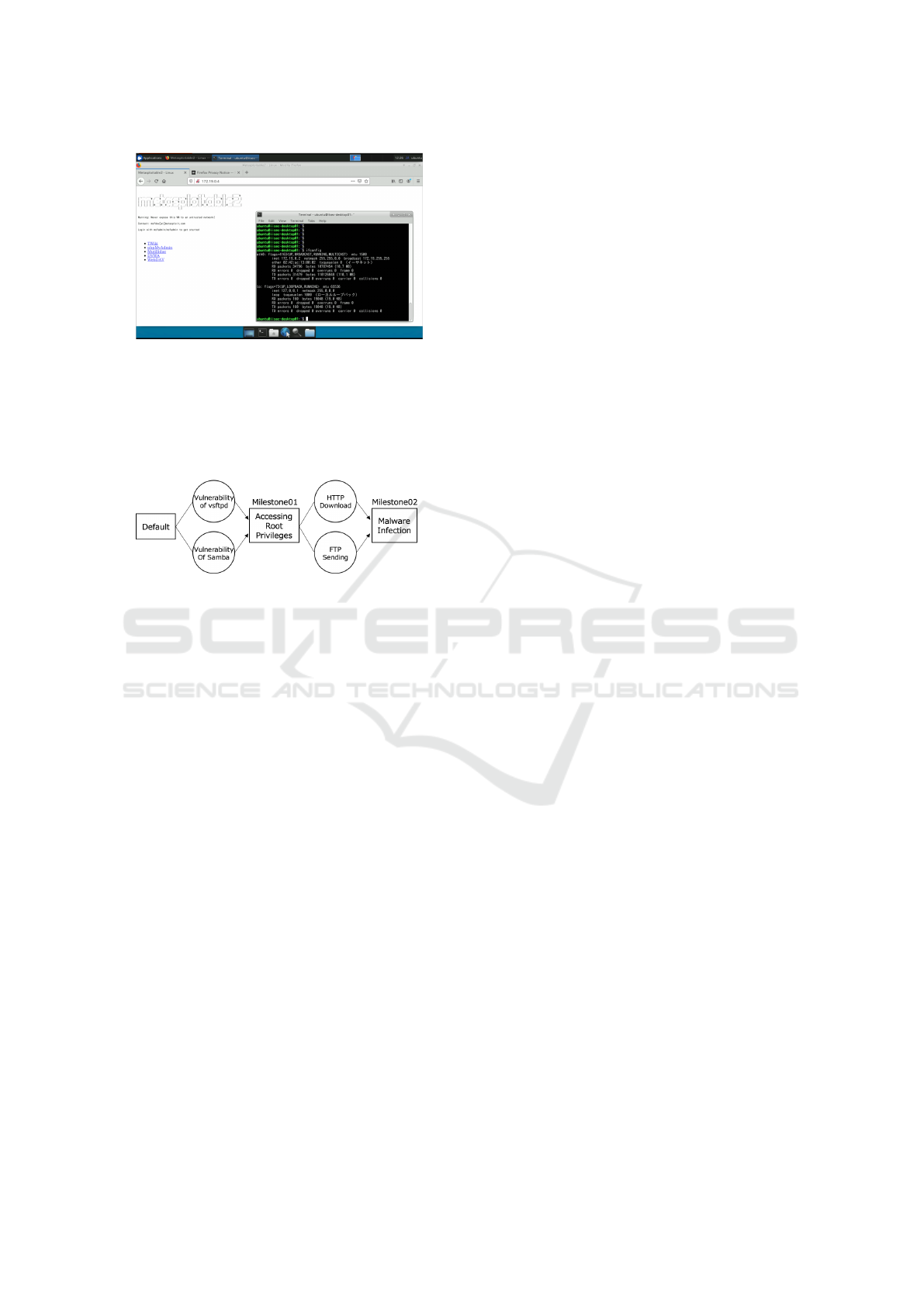

Figure 6: Desktop operations in a launched container.

5.2 Running Randomize Scenario

We added an exploit that sends malware to the default

scenario to verify that it can run a random scenario in

CyExec shown by Figure 7 .

Figure 7: Randomization.

With the randomization scenario shown in Fig-

ure 7, we conﬁrmed that all patterns of the scenar-

ios could be executed, as scenarios by changing the

exploit type and how to send malware. Here’s an ex-

ample of the Docker-compose.yml ﬁle used to select

the scenarios

version: ’3’

services:

client01:

build:

context: .

dockerfile: >

-./scenario01-A/Dockerfile_client01

client02:

build:

context: .

dockerfile: >

-./scenario01-A/Dockerfile_client02

vulnerable_server:

build:

context: .

Dockerfiles: >

-./scenario01-A

-/Dockerfile_metasploitable2

IDS:

Build: .

context: .

Dockerfiles: >

-./scenario01-A/Dockerfile_snort

scenario_A:

build:

context: .

Dockerfiles: >

-${SCENARIO_01_A:-"./scenario01_A1"}

scenario_B:

build:

context: .

Dockerfiles: >

-${SCENARIO_01_B:-"./scenario01_B1"}

Clients and servers, which are common to the en-

tire scenario are started at the ﬁrst step. The part re-

lated to the selection of the scenario is speciﬁed by

variables beforehand, but is started later so it does not

interfere with the progress. In the default scenario, all

the vulnerable applications shown in Table 3 are run-

ning, but some may not be necessary depending on the

selected scenario route. Since they do not interfere

with the scenario’s execution, they are left running

for this veriﬁcation. However, there are times when

stopping them is desirable, such as when you want to

simplify the exercise or focus on performance.

In this case, we conﬁrmed that 4 scenarios with

2x2 path can work without any problems. In the

Docker-compose.yml ﬁle, you can also specify ad-

ditional settings, such as network conﬁguration, in

variables. By running several scenarios at the same

time and separating the network conﬁguration, differ-

ent scenarios can be used in team-based exercises.

5.3 Performance Comparison with

SecGen

To verify the performance of CyExec

∗

, we compared

it to SecGen. CyExec

∗

and SecGen have very differ-

ent conﬁgurations. The default scenario of CyExec

∗

contains 6 containers and utilizes a large image such

as kali-linux, whereas the default scenario for SecGen

is 1 VM image, including web server, etc. CyExec* is

the more versatile environment, but it covers the con-

tent of the default SecGen scenario and can replicate

an equivalent environment. Both environments are

fundamental to the exercise and comparing the two

can provide useful information on preparation time

and hardware resource consumption.

Figure 8 shows a comparison of startup speed and

storage consumption for CyExec

∗

and SecGen, when

the default scenario is launched multiple times and

when the randomization of scenarios are in place.

Both CyExec* and SecGen require the necessary

images to be downloaded when they are run for the

ﬁrst time. In particular, CyExec* uses a large num-

ber of container images and requires more download

time and storage space when it is ﬁrst started. How-

ever, the build time and storage consumption are less

than 1/10 compared to SecGen after the second time.

This is most likely the result of the efﬁcient use of

storage with UFS(Union File System) and the elim-

ination of the startup process required for VMs , by

using Docker.

Even with the addition of random scenarios,

CyExec had a bit of increase in time for building

changes, but was still very fast and storage intensive

compared to the VM-based SecGen. Also assuming

CyExec*: Automatic Generation of Randomized Cyber Range Scenarios

233

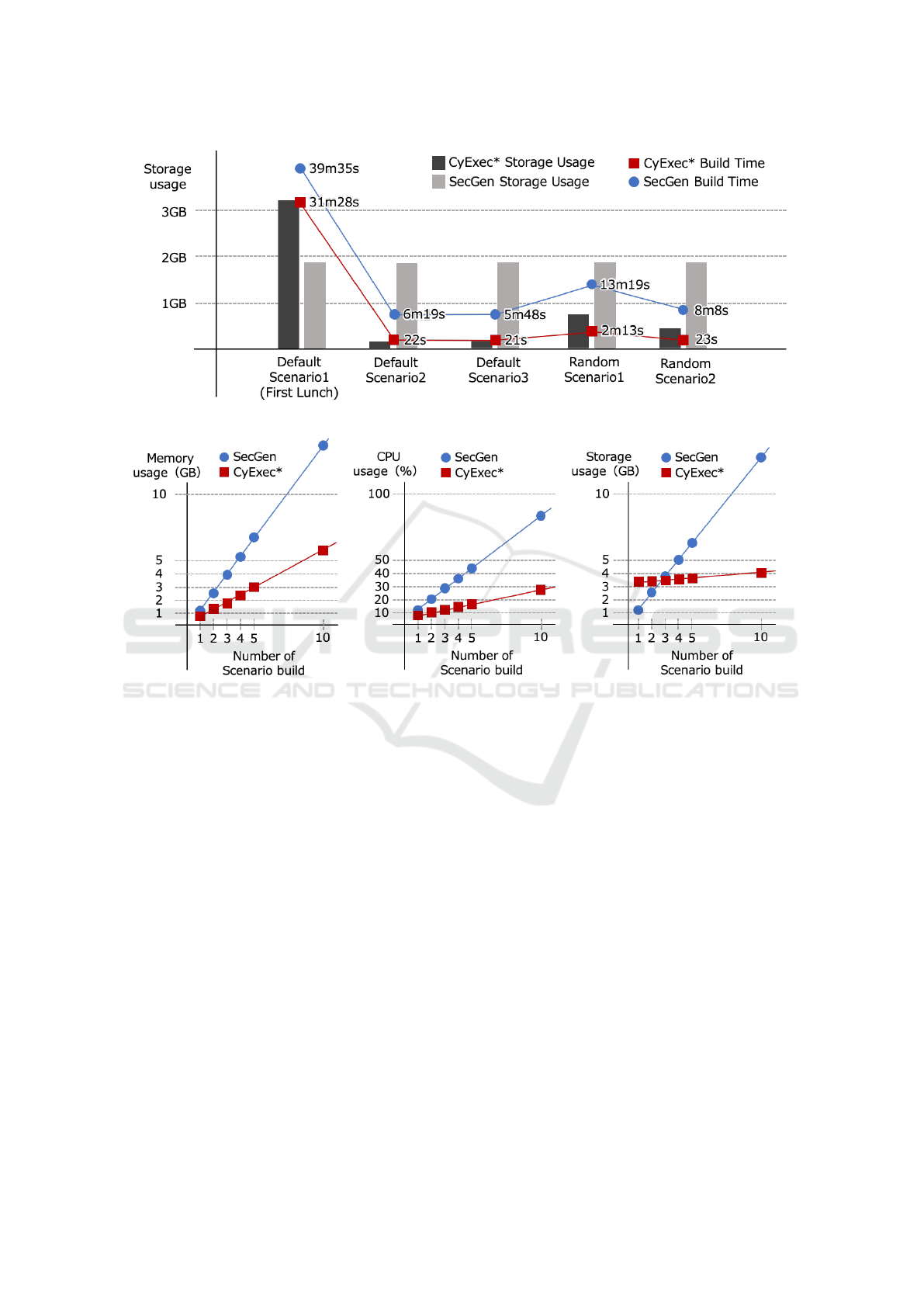

Figure 8: Comparison of startup time and storage consumption when launching several scenarios, including randomization.

Figure 9: Comparison of resource consumption for multiple launches of the same scenario.

an exercise with many teams, we compared the con-

sumption of hardware resources when multiple de-

fault scenarios were launched. The results are shown

in Figure 9.

When built under the same hardware, the increase

in hardware resource consumption was proportional

to the number of environments; CyExec’s default sce-

nario had less than one-half the memory consumption

and less than one-third the CPU consumption com-

pared to SecGen’s default scenario. With CyExec

∗

the initial storage consumption was high due to the

large number of images used during the initial build.

However, because consumption hardly increases even

when there are multiple environments, as the num-

ber of environments increases, the consumption can

be kept much lower than with SecGen. These results

show that CyExec

∗

has an advantage with an increas-

ing number of environments, which can be very use-

ful, especially when randomization requires multiple

exercise environments.

6 APPLICATION TO SECURITY

EDUCATION

The CyExec, on which this development was based

on, has been used in several educational institutions

and training for workers. We also consider to carry

out an exercises using the randomized scenarios de-

veloped in CyExec

∗

We planned to conduct the exercise at CyExec* as

well to test the educational effectiveness of the exer-

cise. However, due to COVID-19, we could not gather

students to conduct the exercise.

CyExec* takes into account the effectiveness of

conducting an exercise by assembling in a classroom

or other settings. In addition, we expect the demand

for online cyber range exercises to increase. We think

important to have randomness in the scenarios, even

when the exercises are conducted online.

We plan to use cloud services to apply CyExec

∗

the online environment, and test the effectiveness of

the exercise.

ICISSP 2021 - 7th International Conference on Information Systems Security and Privacy

234

CyExec

∗

is a cyber range that can signiﬁcantly re-

duce resource consumption and is suitable for cloud

services. Randomization of scenarios can further in-

crease its effectiveness. We have already started test-

ing it on several cloud services, and our goal is to

conduct online exercises and verify the effectiveness

of its educational outcome. We will continue our re-

search and development, and expand our information

security education in the future.

7 CONCLUSIONS

The cyber range used in information security exer-

cises is a system that allows students to learn knowl-

edge and skills efﬁciently, through a highly realis-

tic security incident experience reproduced in virtual

space. However, the system is not easy to implement

nor operate. In particular, scenario development re-

quires specialized knowledge, and using the same sce-

nario or sharing and leaking of scenario information

has been a problem.

We developed the DAG-based scenario random-

ization technique named CyExec

∗

on docker-based

cyber range system. Multiple scenarios with the same

learning objectives can enhance teaching effective-

ness and prevent cheating. CyExec

∗

makes the best

use of Docker’s performance, which allows us to build

exercise environment efﬁciently, eliminating the con-

cern of the increasing load on the system caused by

the scenario number increase. In comparison to Sec-

Gen, CyExec

∗

showed advantages of 1/3 memories,

1/4 CPU loads, and over 1/10 storage usage. This

shows that it has at least three times more capability

to reproduce scenarios than VM-based environments,

allowing more complex environments to be run simul-

taneously.

Our future work includes several main direc-

tions:(i) enriching the random scenarios that can be

provided by CyExec

∗

, (ii) applying to online exercise,

and (iii) testing their educational effectiveness.

ACKNOWLEDGEMENTS

This work is supported in part by the Telecommuni-

cation Advancement Foundation.

REFERENCES

Beuran, R., Inoue, T., Tan, Y., and Shinoda, Y. (2019). Re-

alistic cybersecurity training via scenarioprogression

management. In 2019 IEEE European Symposium on

Security and Privacy Workshops.

Chapman, P., Burket, J., and Brumley, D. (2014). Picoctf:

A game-based computer security competition for high

school students. In 2014 USENIX Summit on Gam-

ing, Games, and Gamiﬁcation in Security Education

(3GSE 14), San Diego, CA. USENIX Association.

Chothia, T. and Novakovic, C. (2015). An ofﬂine capture

the ﬂag-style virtual machine and an assessment of its

value for cybersecurity education. In 2015 USENIX

Summit on Gaming, Games, and Gamiﬁcation in Se-

curity Education (3GSE 15).

Costa, G., Russo, E., and Armando, A. (2020). Automating

the generation of cyber range virtual scenarios with

vsdl.

Docker. Dockerﬁle reference.

https://docs.docker.com/engine/reference/builder/.

Docker. Overview of docker compose.

https://docs.docker.com/compose/.

Docker. What is a container? a standardized unit of

software. https://www.docker.com/resources/what-

container.

E, I. C., F, T. M., and Jean, K. (2017). Labtainers: a frame-

work for parameterized cybersecurity labs using con-

tainers.

Li, Z., Kihl, M., Lu, Q., and Andersson, J. A. (2017).

Performance overhead comparison between hypervi-

sor and container based virtualization. In 2017 IEEE

31st International Conference on Advanced Informa-

tion Networking and Applications (AINA), pages 955–

962.

Maki, N., Nakata, R., Toyoda, S., Kasai, Y., Shin, S., and

Seto, Y. (2020). An effective cybersecurity exercises

platform cyexec and its training contents. In 2020 In-

ternational Conference on Advances in Education and

Information Technology(AEIT’20).

Raj, A. S., Alangot, B., Prabhu, S., and Achuthan, K.

(2016). Scalable and lightweight ctf infrastructures

using application containers. In 2016 USENIX Work-

shop on Advances in Security Education (ASE 16).

Rapid7. Metasploitable2.

https://docs.rapid7.com/metasploit/metasploitable-2/.

Razvan, B., Cuong, P., Dat, T., Ken-ichi, C., Yasuo, T., and

Yoichi, S. (2017). Cytrone: An integrated cyberse-

curity training framework. In Proceedings of the 3rd

International Conference on Information Systems Se-

curity and Privacy (ICISSP 2017): 157-166.

Schreuders, Z. C., Butterﬁeld, E., and Staniforth, P. (2015).

An open cloud-based virtual lab environment for com-

puter security education. In The ﬁrst UK Workshop on

Cybersecurity raining & EducationVibrant Workshop

2015.

Schreuders, Z. C., Shaw, T., Shan-A-Khuda, M., Ravichan-

dran, G., and Keighley, J. (2017). Security sce-

nario generator (secgen): A framework for generat-

ing randomly vulnerable rich-scenario vms for learn-

ing computer security and hosting ctf events. In 2017

USENIX Workshop on Advances in Security Educa-

tion(ASE’17).

CyExec*: Automatic Generation of Randomized Cyber Range Scenarios

235

Security, O. Kali linux — penetration testing and ethical

hacking linux distribution. https://www.kali.org.

team, S. Snort network intrusion detection & prevention

system. https://www.snort.org/.

Vincent E Urias, William M.S Stout Brian Van Leeuwen,

H. L. (2018). Cyber range infrastructure limitations

and needs of tomorrow.

ICISSP 2021 - 7th International Conference on Information Systems Security and Privacy

236
