ChronSeg: Novel Dataset for Segmentation of

Handwritten Historical Chronicles

Josef Baloun

1,2 a

, Pavel Kr

1,2 b

and Ladislav Lenc

1,2 c

Department of Computer Science and Engineering, University of West Bohemia, Univerzitn

ı, Pilsen, Czech Republic

NTIS - New Technologies for the Information Society, University of West Bohemia, Univerzitn

ı, Pilsen, Czech Republic

Keywords:

Page Segmentation, Dataset, Chronicle, Historical Document, Image, Text, Background, Fully Convolutional

Neural Network, Pixel Labeling, Artiﬁcial Page.

Abstract:

The segmentation of document images plays an important role in the process of making their content elec-

tronically accessible. This work focuses on the segmentation of historical handwritten documents, namely

chronicles. We take image, text and background classes into account. For this goal, a new dataset is created

mainly from chronicles provided by Porta fontium. In total, the dataset consists of 58 images of document

pages and their precise annotations for text, image and graphic regions in PAGE format. The annotations are

also provided at a pixel level. Further, we present a baseline evaluation using an approach based on a fully

convolutional neural network. We also perform a series of experiments in order to identify the best method

conﬁguration. It includes a novel data augmentation method which creates artiﬁcial pages.

1 INTRODUCTION

Nowadays, considerable efforts are being made to

digitize documents and make them accessible elec-

tronically in most areas like business or archives. The

goal is usually to reduce storage costs or to make doc-

uments available to the general public. This effort

is also covered by the project Porta fontium, which

aims to combine extensive digitization and web pre-

sentation of the archival documents from the Czech-

Bavarian border area. The goal of the project is the

reconnection of related archival documents that were

divided due to the events of the World War II. The

archival documents should be published via the web-

site

to the general public, the scientiﬁc world and

regional researchers. There are also efforts to im-

prove the search options by automatic annotation of

the archival document pages.

This work focuses on pages of chronicles and their

segmentation and classiﬁcation into text, image and

background classes. These segments are crucial for

further processing. For example, an Optical Charac-

ter Recognition (OCR) system requires a text input,

https://orcid.org/0000-0003-1923-5355

https://orcid.org/0000-0002-3096-675X

https://orcid.org/0000-0002-1066-7269

http://www.portafontium.cz/

but it could behave unpredictably when the input is

an image of a house. In such a case, the usability of

the result could be reduced due to the produced noise.

Image segments can be used to search for related im-

ages. The result also provides information whether

the page contains image or text.

To solve this task, there is a need for a precisely

annotated dataset with similar characteristics as the

chronicles. Ideally, the pages in the dataset should

contain the annotation of correct regions and also

should be realistic and representative. Because of in-

appropriate training data in existing datasets and the

lack of training data for deep learning methods in gen-

eral, it is beneﬁcial to create a new annotated dataset.

The new dataset consists of scanned pages pro-

vided by Porta fontium portal and contains precise

text, image and graphic region annotations. The main

emphasis is placed on the chronicles that form the

largest part of the dataset. In total, there are 58 an-

notated pages or double-sided pages of scanned doc-

uments.

Further, we performed a series of experiments on

the dataset with a fully convolutional neural network

(FCN) that is used as a baseline method. Generally,

the pages do not have common or regular pattern, so

the task is solved as a pixel-labeling problem. The

network takes the whole image as input and produces

masks for given classes. The experiments show that

314

Baloun, J., Král, P. and Lenc, L.

ChronSeg: Novel Dataset for Segmentation of Handwritten Historical Chronicles.

DOI: 10.5220/0010317203140322

In Proceedings of the 13th International Conference on Agents and Artiﬁcial Intelligence (ICAART 2021) - Volume 2, pages 314-322

ISBN: 978-989-758-484-8

the page segmentation task can be successfully solved

even with a small amount of data. We also present an

approach to automatically create artiﬁcial pages that

can be used for data augmentation.

2 RELATED WORK

The issue of locating text in document images has

a long history dating back to the late 1970s when

OCR was addressed and it was necessary to extract

these characters. ”In order to let character recognition

work, it is mandatory to apply layout analysis includ-

ing page segmentation.” (Kise, 2014) Today, there is

also a need for extracting images from pages. The ex-

tracted images can be also further processed to allow

image search for example.

This section ﬁrst summarizes recent methods

for page segmentation and then it provides a short

overview of available datasets.

2.1 Methods

Today, there are lots of methods for page segmenta-

tion. The methods can be categorized into top-down

and bottom-up categories. Historically, the segmenta-

tion problem was usually solved by conservative ap-

proaches based on simple image operations and on

connected component analysis. Recent trend is to use

neural networks for this task.

A method for segmenting pages using connected

components and a bottom-up approach is presented in

(Drivas and Amin, 1995). The method includes digiti-

zation, rotation correction, segmentation and classiﬁ-

cation into text or graphics classes. Another approach

based on background thinning that is independent of

page rotation is presented in (Kise et al., 1996). These

conservative methods usually fail on handwritten doc-

ument images, because it is hard to binarize pages due

to degraded quality. It is also hard to extract char-

acters since they are usually connected. These prob-

lems are successfully solved by approaches based on

convolutional neural networks (CNN) that brought a

signiﬁcant improvement in many visual tasks. An ex-

ample of a CNN for page segmentation of historical

document images is presented in (Chen et al., 2017).

Brieﬂy, super-pixels (groups of pixels with similar

characteristics) are found in the image and they are

classiﬁed with the network that takes 28x28 pixels in-

put. The result of the classiﬁcation is then assigned to

the whole superpixel.

Alternatively, every pixel could be classiﬁed sep-

arately in a sliding window manner. The problem is

computational inefﬁciency because a large amount of

computation is repeated as the window moves pixel

by pixel. This problem is solved by FCNs like well-

known U-Net (Ronneberger et al., 2015). U-Net was

initially used for biomedical image segmentation but

could be used on many other segmentation tasks in-

cluding page segmentation. Another FCN architec-

ture is presented by (Wick and Puppe, 2018), this

network is proposed for page segmentation of his-

torical document images. In contrast with U-Net, it

does not use skip-connections and uses transposed

convolutional layer instead of upsampling layer fol-

lowed by convolutional layer. The speed improve-

ment is achieved mainly thanks to the small input of

260x390 pixels. In order to achieve the best results in

competitions, there are also networks like (Xu et al.,

2017). This network uses the original resolution of

images and provides many more details in the outputs.

2.2 Datasets

There are many architectures that solve the problem

of segmentation very well. The main problem is the

corresponding training data because appropriate data

are the key point of approaches based on neural net-

works. There are several datasets for a wide range of

tasks. Unfortunately, a signiﬁcant number of datasets

are inappropriate for our task or they are not publicly

available.

Diva-hisdb (Simistira et al., 2016) is a publicly

available dataset with detailed ground-truth for text,

comments and decorations. It consists of three

manuscripts and 50 high-resolution pages for each

manuscript. These manuscripts have similar layout

features. The ﬁrst two manuscripts come from the

century. They are written in Latin language

using the Carolingian minuscule script. The third

manuscript is from the 14

century and shows a

chancery script. The language is Italian and Latin.

Unfortunately, there are no images on pages.

Handwritten historical manuscript images are

available in the repository IAM-HistDB (Fischer

et al., 2010) together with ground-truth for hand-

writing recognition systems. Currently, it includes

three datasets: Saint Gall Database, Parzival Database

and Washington Database. The Saint Gall Database

(Fischer et al., 2011) contains 60 page images of

a handwritten historical manuscript from 9

cen-

tury. It is written in Latin language and Carolin-

gian script. 47 page images of a handwritten his-

torical manuscript from 13

century are available in

the Parzival Database (Fischer et al., 2012). The

manuscript is written in Medieval German language

and Gothic script. The Washington database (Fischer

et al., 2012) is created from the George Washington

ChronSeg: Novel Dataset for Segmentation of Handwritten Historical Chronicles

315

Papers. There are word and text line images with tran-

scriptions. The provided ground-truth is not intended

for page segmentation, but Saint Gall Database con-

tains line locations that can be used for text segmen-

tation.

Another dataset is Layout Analysis Dataset (An-

tonacopoulos et al., 2009), that is precisely annotated

for page layout analysis and contains suitable regions

for our task. The dataset contains a huge amount of

page images of different document types. There is

a mixture of simple and complex page layouts with

varying font sizes. The problem is that the documents

are printed and consist mostly of modern magazines

and technical journals so the page layout is totally dif-

ferent to our chronicles in most cases.

There are also competition datasets at PRImA

website

. These datasets has to be requested ﬁrst and

consist mainly of newspapers, books and typewrit-

ten notes. The number of annotated pages is usually

around ten per dataset. Like in the Layout Analysis

Dataset, the text is printed and page layout is differ-

ent to our chronicles.

3 DATASET DESCRIPTION

The dataset is a collection of documents for the task of

historical handwritten chronicles segmentation. This

collection is closely described in this section together

with provided ground-truths and terms of use.

3.1 Content

The dataset is composed of scanned pages provided

by Porta fontium portal. The main part of the dataset

consists of 5 chronicles in a total of 38 double-sided

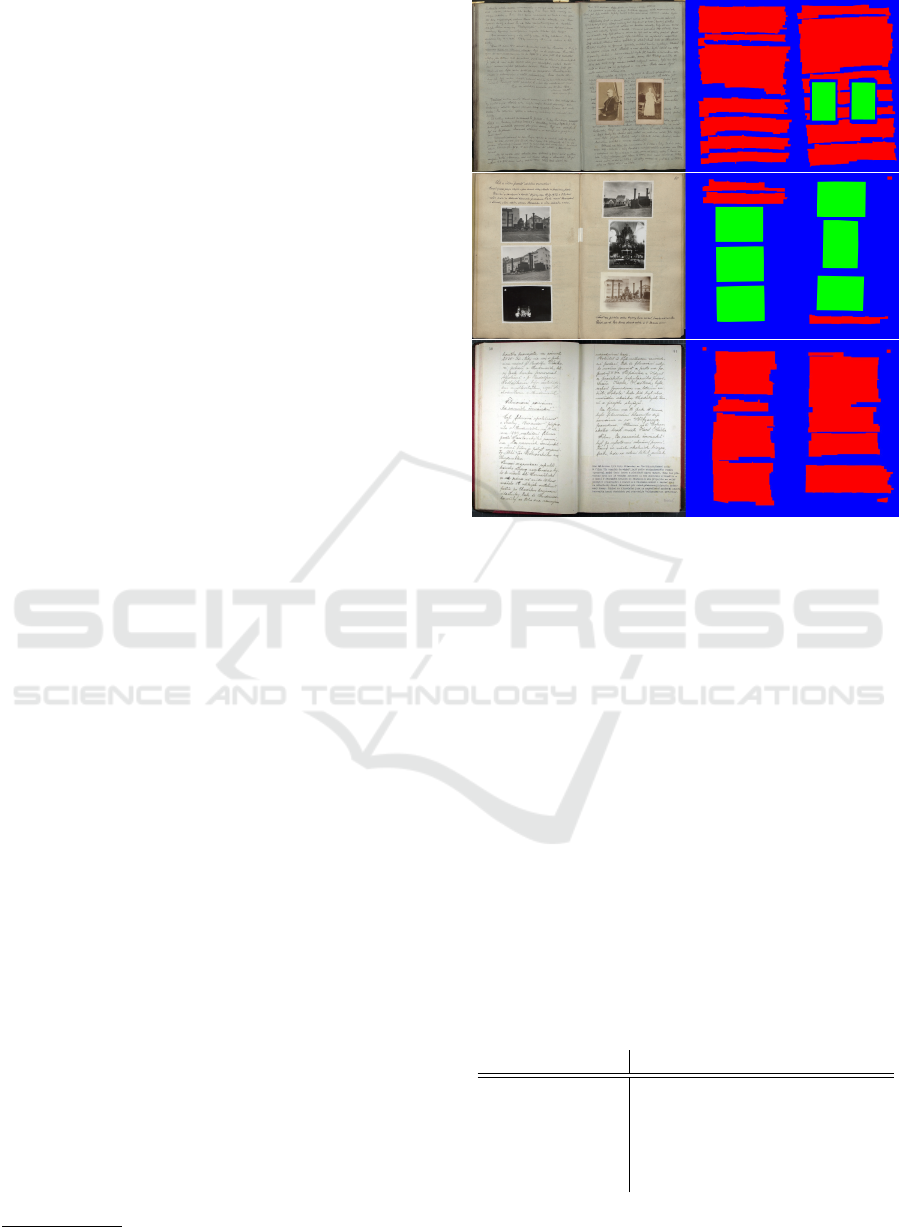

pages from which 18 contain images (see Figure 1).

We used chronicles from the rectory of Bud

etice, the

rectory of Petrovice u Su

sice, the town of Blovice, the

town of Chudenice and the village of Hrozn

ın.

This set is chosen with emphasis on realism and

representativeness in a wide range of chronicles that

appear in Porta fontium. These documents had been

created for many years. For example, the chronicle

from the rectory of Bud

etice is dated from 1649 to

1981. However, the latest chronicle from the village

of Hrozn

ın was written from 1949 to 1954. Usu-

ally, there are several writers and page layouts in one

chronicle. There are also printed text cuttings glued

into some pages. These facts make the dataset really

challenging.

https://www.primaresearch.org/datasets

Figure 1: Dataset examples: double-sided page (on the left)

and its ground-truth (on the right).

We have selected a representative set of pages

from the main part of the dataset and divided it into

train, test and validation sets. The test and valida-

tion parts of the dataset consist of 8 and 4 pages

with images respectively. In the training set, there

are 26 pages: 6 pages with images and 20 no-image

pages.

There is also an experimental part that contains

20 printed pages from documents of different types.

This set contains rare pages (see Figure 2 for exam-

ple) that can be used in different application areas.

Additionally, this part contains 29 standalone images

of old photographs. The experimental part is further

used in experiments.

Totally, there are images of 58 good-quality pages

of documents and their dimensions vary from 2000

to 5777 pixels. The detailed summary of the dataset

content is provided in Table 1.

Table 1: Content of the created dataset.

Main part Exp. part Total

Pages 38 20 58

Text regions 553 423 976

Image regions 33 31 64

Graphic regions 6 38 44

Images 0 29 29

ICAART 2021 - 13th International Conference on Agents and Artiﬁcial Intelligence

316

Figure 2: Page example of the experimental part.

3.2 Ground-truth

Every page image in the dataset contains annotation in

the widely used XML-based PAGE format

and also

the generated pixel-labeled ground-truth.

The annotation is provided for text, graphic and

image regions. The text regions are used for any block

of text, e.g. handwritten text paragraph, glued printed

text cutting or text over images. The image region

represents a picture or drawing. Finally, the graphic

regions are used for decoratives and stamps. The an-

notations are created with the document analysis sys-

tem Aletheia (Clausner et al., 2011). The annotation

process is visualized in Figure 3 and is as follows:

1. Page binarization using Otsu or adaptive binariza-

tion

2. Noise reduction in binary image

3. Annotation of regions

• a tool To Coarse Contour is used for text

• a tool To Fine Contour is used for image and

graphic with complex shape

4. Inspection and manual correction

Figure 3: The process of annotation: After the image is

binarized, the noise is ﬁltered out. Then, the region is anno-

tated and a tool To Coarse Contour is used for text. Finally,

the annotation is manually corrected.

Additionally, the pixel-level ground-truth is generated

and provided in png ﬁles, where R channel contains

https://www.primaresearch.org/schema/PAGE/

ground-truth for text, G channel for image/graphic

and B channel is used as a background. Since the ex-

perimental part contains the main part of the graphic

regions (38 of 44), we treat graphic region as the

same class as image. Since the task is solved as a

pixel-labeling problem, the number of samples corre-

sponds to the number of pixels rather than number of

page images. Totally, there are more than 773 million

pixels labeled, which represents enough samples for

training, validation and testing.

3.3 Terms of Use

This dataset is licensed under the Attribution-

NonCommercial-Share Alike 4.0 International Li-

cense

. Therefore, it is freely available for research

purposes at http://corpora.kiv.zcu.cz/segmentation.

4 EVALUATION

We also provide a baseline evaluation on this dataset

to offer to researchers a possibility of straightforward

comparison of their methods.

For the testing phase, the evaluation is as fol-

lows: The output of the system is compared with the

ground-truth separately for each class. The ﬁnal re-

sult is computed as the average of all images results

for the given class. Finally, the average of classes is

computed.

Since each pixel is binary labeled for a given class,

it can be ﬁgured in True Positive (TP), True Nega-

tive (TN), False Positive (FP) or False Negative (FN)

sets. Based on these sets the metrics accuracy, pre-

cision, recall, F1 score and Intersection over Union

are applied (see Equations 1). (Wick and Puppe,

2018) proposed the Foreground Pixel Accuracy which

is practically an accuracy calculated only over fore-

ground pixels. In this work, foreground pixels are ob-

tained with an adaptive document image binarization

method (Sauvola and Pietik

ainen, 2000).

accuracy =

T P + T N

T P + T N + FP + FN

precision =

T P

T P + FP

recall =

T P

T P + FN

F1 score = 2 ·

precision · recall

precision + recall

IoU =

T P

T P + FP + FN

(1)

https://creativecommons.org/licenses/by-nc-sa/4.0/

ChronSeg: Novel Dataset for Segmentation of Handwritten Historical Chronicles

317

48 x 48

32 32

skip-connection

conv 3x3 ReLU

conv 1x1 sigmoid

upsampling 2x2

max-pooling 2x2

96 32 32

24 x 24

64 64

192 64 64

12 x 12

128 128

384 128 128

128

6 x 6

256 256

768 256 256

256

3 x 3

512 512

dropout

Figure 4: Neural network architecture: Example for

48x48 input. Each box represents a feature map. The num-

ber of channels is marked above the box. Dimensions are

the same for the whole level and are described on the left of

the leftest box.

5 NETWORK MODEL

The U-Net like fully convolutional neural network ar-

chitecture used as a baseline model is described in

Figure 4. It is designed to process the whole page

(double-sided page) all at once so it uses padding

for convolutional layers to preserve dimensions. The

padding also lets the network process differently bor-

ders of the input, where increased amount of noise

occurs.

Convolutional layers use ReLU activation func-

tion except the last one that uses sigmoid and maps

feature vectors to desired classes. Thanks to the

shared parameters in the convolutional layers, the ar-

chitecture can take practically any input dimension as

long as the input dimension satisﬁes the Equation 2.

This equation is given by four max-pooling layers.

Max-pooling layers need to have even input. Other-

wise, the dimension inconsistency will appear during

concatenating feature maps for skip-connections after

the upsampling layer.

x = i · 16, i = 1, 2, . . . , ∞ (2)

In image overlayed with text, we want the pixel to

be classiﬁed as both text and image. For this goal, the

Binary Cross-Entropy loss function is chosen, so ev-

ery output channel is processed independently on the

other output channels. The optimization during train-

ing is done with Adam optimizer (Kingma and Ba,

2014). For the training, dropout (dropout rate = 0.2)

is applied and the technique of early stopping is used.

If the IoU does not improve during the last 30 epochs

(could be more, depends on the experiment), the train-

ing is stopped and the model with the best IoU score

is selected for the evaluation.

The input image size is limited to 512x512 pixels

to save time and satisfy the memory limitations. We

found this setup reasonable according to the results of

experiments in the Section 6.

FCN

Figure 5: Prediction of an input image with FCN

model. Boxes before and after FCN represent the limit of

512x512 input.

The processing of the page image starts by con-

verting it to a gray level image. Secondly, the de-

sired input image size is computed to satisfy the

512x512 input limit in a way that maintains the aspect

ratio of the image. In this step, the smaller dimension

may not ﬁt Equation 2 so it is eventually ﬁxed as the

nearest correct dimension. Finally, the image is re-

sized to the computed dimensions. The predicted out-

put is then resized back to the input image dimensions

as could be seen in Figure 5. We emphasize that the

input size could be different during both training and

prediction. For example, there could be 512x400 and

also 512x416 input.

6 EXPERIMENTS

We made several experiments with extending the

number of training samples, weighting loss function

and input resolutions to ﬁnd out their inﬂuence on

the result and to choose the correct setup for the ﬁ-

nal model training. We also present a data augmen-

tation approach for automatic creation of artiﬁcial

pages from existing ones. This approach deals with

the problem of class imbalances and signiﬁcantly im-

proves accuracy. The experiments are compared to

the baseline model. For the baseline model, only the

pages that contain images are used for training. The

evaluation of the experiments is done on the valida-

tion part of the dataset. The test part of the dataset is

used only for the evaluation of the ﬁnal model.

ICAART 2021 - 13th International Conference on Agents and Artiﬁcial Intelligence

318

Table 2: Average results (in %) of the experiments: Baseline is a referential model. Augmentation, artiﬁcial pages and printed

pages are the experiments to extend the number of training samples presented in Subsection 6.1. Weighting loss function is

an experiment described in Subsection 6.2. Final denotes the ﬁnal model results.

Accuracy Precision Recall F1 score IoU FgPA

Baseline 95.3 91.8 92.6 92.0 85.5 98.5

Augmentation 95.5 93.2 92.7 92.8 86.7 98.4

Artiﬁcial pages 96.1 94.0 94.3 94.0 88.9 99.2

Printed pages 95.5 94.2 92.1 93.0 87.1 98.8

Weighting loss function 95.3 94.6 90.7 92.3 85.9 99.0

Final 96.4 94.5 94.3 94.2 89.2 99.2

6.1 Extending the Number of Training

Samples

Although the task could be solved with a baseline

model and 6 pages for training, more training data

should provide better results.

A good approach for extending the number of

training samples is an image augmentation (see Fig-

ure 6), where the same transformations are applied on

the input image and its ground-truth. We were exper-

imenting with the library Augmentor (Bloice et al.,

2019) and methods random distortion, skew and ro-

tate. This combination led to an improvement (see

Augmentation in Table 2). It is good to mention that

the random distortion is the most suitable for this ar-

chitecture since it preserves the image borders and lets

the network to learn that the borders are often labeled

as a background and contain noise.

Figure 6: Image augmentation. From left: (1) input image

and its ground-truth, (2) augmented image, (3) image aug-

mented only with random distortion.

There are pages in the dataset that do not contain

any image. These no-image pages are causing class

imbalances and problems during training. The solu-

tion is to add images into a no-image page in a way

that is presented in Figure 7. The images are added

randomly with reasonable position and size restric-

tions so that the image can not appear at the borders

of the page image, the image size has to be at least

10x10 and image dimensions can not be bigger than

60 % of the page dimensions. This way, new artiﬁcial

pages are created and the training set could be easily

extended.

Figure 7: Artiﬁcial page creation: Document page is ran-

domly extended with images.

Although the training process (see Figure 8) is not

completely smooth, there is no evidence of problems

caused by generated samples. Overall, the result of

artiﬁcial pages presented in Table 2 shows a remark-

able improvement.

0 20 40 60 80 100 120

epochs

0.0

0.2

0.4

0.6

0.8

1.0

accuracy

accuracy V

IoU

IoU V

loss

loss V

Figure 8: Training process during epochs (artiﬁcial pages):

accuracy, IoU and loss on training and valid (denoted as V)

set.

The training set could be also extended by the

printed pages from the experimental part of the

dataset and Layout Analysis Dataset (Antonacopou-

los et al., 2009). This approach also led to an im-

provement but has not worked well in combination

with previously described approaches.

ChronSeg: Novel Dataset for Segmentation of Handwritten Historical Chronicles

319

Table 3: Average results (in %) with different input limits.

Accuracy Precision Recall F1 score IoU FgPA

512x512 96.1 94.6 93.8 94.1 88.9 99.1

1024x1024 96.6 94.7 94.0 94.2 89.2 99.2

6.2 Weighting Loss Function

This experiment faces the problem of separating com-

ponents by weighting the loss function as proposed

in the U-Net paper (Ronneberger et al., 2015). The

weights are computed separately for text and image

ground-truth channels. For these channels, the weight

map is calculated according to Equation 3:

w(x) = w

· exp



−

(x) + d

(x))

2σ



·(1 − gt(x)) + 1

(3)

where x denotes the pixel position, d

(x) and d

(x)

denotes the distance to the nearest and second nearest

component. Value given by ground-truth at speciﬁed

pixel is denoted as gt(x) so more weight is added to

the gaps between components as illustrated in Figure

9. During the experiments, we set w

= 10 according

to the U-Net paper and increased σ = 10 because of

wider gaps between components.

ground-truth

weights

Figure 9: Example of calculated weights for weighting the

loss function.

Although the results presented in Table 2 do

not show noticeable improvement, the separation be-

tween components is much better as could be seen in

Figure 10.

6.3 Input Resolution

We tried to increase the input resolution to provide

more detail in the output and improve accuracy. The

ﬁrst approach was to train the network on random

512x512 crops of the image limited to 1024x1024.

After the training, the prediction was done for the

whole 1024x1024 page. This could be done thanks

to the shared parameters in convolutional layers. This

approach led to wrong predictions at image borders as

presented in Figure 10. The explanation for this be-

haviour is the usage of padding in convolutional lay-

ers. Padding provides a lot of information for border

(a) (b)

Figure 10: Prediction examples: (a) input image, (b)

ground-truth, (c) prediction of the model trained on crops

(example training sample in green box of (a) and (b)), (d)

prediction of the base model, (e) prediction of a model with

weighting loss function.

predictions. At the page borders, the input image con-

tains noise, whereas training samples usually contain

other classes than background. Then, it is much easier

to mispredict the noise as the wrong class.

We also trained the network with 1024x1024 in-

put but there was no huge improvement as could be

seen in Table 3. During the training the augmenta-

tion and artiﬁcial pages were used for both 512 and

1024 inputs.

6.4 Final Model

Figure 11: Final model: An example prediction of the page

from test set.

For the ﬁnal model, an input was limited to

ICAART 2021 - 13th International Conference on Agents and Artiﬁcial Intelligence

320

Table 4: Final evaluation on the test part of the dataset (in %).

Accuracy Precision Recall F1 score IoU FgPA

Text 96.3 95.8 92.1 93.8 88.4 98.7

Image 99.1 93.7 98.0 95.7 91.9 98.7

Background 96.1 96.5 96.4 96.4 93.1 99.0

Average 97.2 95.4 95.5 95.3 91.2 98.8

512x512 pixels and the weighting of the loss function

with parameters set to w

= 5 and σ = 10 was used.

The training part was extended by artiﬁcial pages and

only random distortion was applied for image aug-

mentation since it preserves the image borders. With

this training setup, the best results on the validation

set were achieved. The results on the test part of the

dataset are presented in Table 4 and an example pre-

diction could be seen in Figure 11.

7 CONCLUSIONS AND FUTURE

WORK

This paper introduces a novel dataset for page seg-

mentation with a particular focus on handwritten

chronicles. We consider text, image and background

classes. The dataset contains 58 annotated pages in

total from which 38 are double-sided pages of chron-

icles. Furthermore, we performed several experi-

ments on the dataset to provide the baseline evalua-

tion. Based on the experiments, we can say that the

page segmentation task could be successfully solved

even with a small amount of data. Also, the artiﬁcial

pages can be created and used for training to improve

accuracy with no problem. This step allows us to sig-

niﬁcantly increase the number of training samples.

Even though the presented baseline method

achieved promising results of 97.2 % accuracy and

91.2 % IoU in average, there is still space for im-

provement.

We plan further processing of the network output

with approaches based on the connected components

to improve the results of segmentation. There is also

a possibility of transfer learning. Finally, we plan to

integrate the system into Porta fontium to improve

search options.

ACKNOWLEDGEMENTS

This work has been partly supported by Cross-border

Cooperation Program Czech Republic - Free State of

Bavaria ETS Objective 2014-2020(project no. 211)

and by Grant No. SGS-2019-018 Processing of het-

erogeneous data and its specialized applications.

REFERENCES

Antonacopoulos, A., Bridson, D., Papadopoulos, C., and

Pletschacher, S. (2009). A realistic dataset for per-

formance evaluation of document layout analysis. In

2009 10th International Conference on Document

Analysis and Recognition, pages 296–300.

Bloice, M. D., Roth, P. M., and Holzinger, A. (2019).

Biomedical image augmentation using Augmentor.

Bioinformatics, 35(21):4522–4524.

Chen, K., Seuret, M., Hennebert, J., and Ingold, R. (2017).

Convolutional neural networks for page segmenta-

tion of historical document images. In 2017 14th

IAPR International Conference on Document Analysis

and Recognition (ICDAR), volume 1, pages 965–970.

IEEE.

Clausner, C., Pletschacher, S., and Antonacopoulos, A.

(2011). Aletheia - an advanced document layout and

text ground-truthing system for production environ-

ments. In 2011 International Conference on Docu-

ment Analysis and Recognition, pages 48–52.

Drivas, D. and Amin, A. (1995). Page segmentation and

classiﬁcation utilising a bottom-up approach. In Pro-

ceedings of 3rd International Conference on Docu-

ment Analysis and Recognition, volume 2, pages 610–

614 vol.2.

Fischer, A., Frinken, V., Forn

es, A., and Bunke, H. (2011).

Transcription alignment of latin manuscripts using

hidden markov models. In Proceedings of the 2011

Workshop on Historical Document Imaging and Pro-

cessing, pages 29–36.

Fischer, A., Inderm

uhle, E., Bunke, H., Viehhauser, G., and

Stolz, M. (2010). Ground truth creation for handwrit-

ing recognition in historical documents. In Proceed-

ings of the 9th IAPR International Workshop on Doc-

ument Analysis Systems, pages 3–10.

Fischer, A., Keller, A., Frinken, V., and Bunke, H. (2012).

Lexicon-free handwritten word spotting using charac-

ter hmms. Pattern Recognition Letters, 33(7):934–

942.

Kingma, D. P. and Ba, J. (2014). Adam: A

method for stochastic optimization. arXiv preprint

arXiv:1412.6980.

Kise, K. (2014). Page Segmentation Techniques in Doc-

ument Analysis, pages 135–175. Springer London,

London.

ChronSeg: Novel Dataset for Segmentation of Handwritten Historical Chronicles

321

Kise, K., Yanagida, O., and Takamatsu, S. (1996). Page seg-

mentation based on thinning of background. In Pro-

ceedings of 13th International Conference on Pattern

Recognition, volume 3, pages 788–792 vol.3.

Ronneberger, O., Fischer, P., and Brox, T. (2015). U-

net: Convolutional networks for biomedical image

segmentation. In Navab, N., Hornegger, J., Wells,

W. M., and Frangi, A. F., editors, Medical Image Com-

puting and Computer-Assisted Intervention – MICCAI

2015, pages 234–241, Cham. Springer International

Publishing.

Sauvola, J. and Pietik

ainen, M. (2000). Adaptive document

image binarization. Pattern Recognition, 33(2):225 –

236.

Simistira, F., Seuret, M., Eichenberger, N., Garz, A., Li-

wicki, M., and Ingold, R. (2016). Diva-hisdb: A pre-

cisely annotated large dataset of challenging medieval

manuscripts. In 2016 15th International Conference

on Frontiers in Handwriting Recognition (ICFHR),

pages 471–476. IEEE.

Wick, C. and Puppe, F. (2018). Fully convolutional neu-

ral networks for page segmentation of historical docu-

ment images. In 2018 13th IAPR International Work-

shop on Document Analysis Systems (DAS), pages

287–292.

Xu, Y., He, W., Yin, F., and Liu, C.-L. (2017). Page segmen-

tation for historical handwritten documents using fully

convolutional networks. In 2017 14th IAPR Interna-

tional Conference on Document Analysis and Recog-

nition (ICDAR), volume 1, pages 541–546. IEEE.

ICAART 2021 - 13th International Conference on Agents and Artiﬁcial Intelligence

322
