Asset Detection in Railroad Environments using Deep Learning-based

Scanline Analysis

Johannes Wolf, Rico Richter and J

urgen D

ollner

Hasso Plattner Institute, Faculty of Digital Engineering, University of Potsdam, Germany

Keywords:

LiDAR, 3D Point Clouds, Digital Image Analysis, Semantic Classiﬁcation.

Abstract:

This work presents an approach for the automated detection of railroad assets in 3D point clouds from mobile

mapping LiDAR scans using established convolutional neural networks for image analysis. It describes how

images of individual scan lines can be generated from 3D point clouds. In these scan lines, objects such as

tracks, signal posts, and axle counters can be detected using artiﬁcial neural networks for image analysis, pre-

viously trained on ground-truth data. The recognition results can then be transferred back to the 3D point cloud

as a semantic classiﬁcation result, or they are used to generate geometry or map data for further processing in

GIS applications. Using this approach, trained objects can be found with high automation. Challenges such as

varying point density, different data characteristics of scanning devices, and the massive amount of data can

be overcome with this approach.

1 INTRODUCTION

Railway infrastructure is an essential backbone of to-

day’s transportation sector. Whether people or goods

are being transported, trains serve as vehicles with ex-

ceptionally high transport capacity. To ensure safe op-

eration, the infrastructure must be continuously mon-

itored. Maintenance and repairs are time-consuming

and costly, and breakdowns should be prevented as

far as possible. For this purpose, it is advantageous to

have up-to-date information on the railroad bed con-

dition at all times (Chia et al., 2019).

While people often still have to walk along the

tracks to check them for problems (Sanne, 2008),

trains can be equipped with suitable hardware to col-

lect digital information about the condition and up-

date it continuously. For example, the tracks and ties’

condition can be checked, and it can be determined

whether the track or ballast is sagging at any point and

whether the clearance area is being violated by grow-

ing vegetation. If this data is collected permanently,

changes can be registered quickly, and the responsi-

ble authorities can react directly and take measures

before a failure occurs (Ciocoiu et al., 2017).

Many national railroad companies, such as

Deutsche Bahn in Germany and SBB in Switzerland,

operate measuring trains that examine the tracks and

their surroundings in detail during the journey (Wirth,

2008). Besides photo data, LiDAR scans are used for

precise measurements, resulting in 3D point clouds.

3D point cloud analysis is done in different ways

depending on multiple factors. Data can be acquired

either with airborne systems or with mobile mapping

vehicles at ground level. Furthermore, the data can be

acquired either by LiDAR scans or via photogramme-

try. This work focuses on processing LiDAR scans

from mobile mapping scans in railroad environments.

Capturing with LiDAR is particularly suitable in

the railroad environment because LiDAR is less de-

pendent on environmental variables such as changing

lighting in tunnels. On the other hand, photogramme-

try is less suitable because, in many situations, it is

not possible to generate a sufﬁcient number of differ-

ent perspectives on an object.

Figure 1 shows a train with LiDAR scanners

mounted in front of the train. These scanners typi-

cally generate 3D point clouds with a scan line dis-

tance of 5 to 15 cm. The rotation of the laser beam

during the measurement and simultaneous movement

of the train result in a series of measurements in the

form of a helix, in which each measuring point can be

located by its distance from the scanner and the cur-

rent angle of the laser. The points of one rotation of

the laser are called a scan line. The resulting points

can be visualized as a 3D point cloud of the entire

track environment. Figure 2 shows a section of such

a 3D point cloud. The individual scan lines, each of

which are here 8 cm apart, are clearly visible.

Wolf, J., Richter, R. and Döllner, J.

Asset Detection in Railroad Environments using Deep Learning-based Scanline Analysis.

DOI: 10.5220/0010314704650470

In Proceedings of the 16th International Joint Conference on Computer Vision, Imaging and Computer Graphics Theory and Applications (VISIGRAPP 2021) - Volume 4: VISAPP, pages

465-470

ISBN: 978-989-758-488-6

 2021 by SCITEPRESS – Science and Technology Publications, Lda. All r ights reserved

465

Figure 1: Measurement train “Limez III” (Wirth, 2008).

Figure 2: 3D point cloud from a railroad mobile mapping

LiDAR scan, colored based on intensity values.

Automatic analysis of the data for early problem

detection depends on the semantic classiﬁcation of the

information. Thus, points captured in the 3D point

cloud must be grouped and identiﬁed in order to be

able to derive statements about the nature of and dis-

tances between objects.

For this purpose, geometric analyses are often

used, which analyze the properties of points and point

groups to derive the most probable semantic class

(Wolf et al., 2019b). In recent work, artiﬁcial neu-

ral networks such as PointNet++, which have learned

to derive semantic classes from the structure of 3D

point clouds, have also been delivering good results

(Qi et al., 2017; Wang et al., 2019; Zhang et al., 2019).

The analysis of image data with Convolutional

Neural Networks (CNNs), on the other hand, has

been in use for a considerably longer time, and many

techniques have been continuously improved over the

years. Therefore, this paper presents a concept of how

the scan line data of the LiDAR scans from railroad

environments can be converted into image data to sub-

sequently identify objects therein with established im-

age analysis methods and use this information for fur-

ther analyses.

2 RELATED WORK

Many analysis steps using 3D point clouds as input

depend on using information about surfaces in the

data since planar surfaces provide the basis for many

other recognition steps. Approaches have been devel-

oped to perform a planar segmentation (Oehler et al.,

2011). Plane recognition is even possible in sparse

data, e. g., when lidar data from the environment of a

moving car are acquired, as Wang et al. (2016) show.

Guan et al. (2016) compare how LiDAR informa-

tion is used for road information inventory in various

publications. For autonomous driving, the evaluation

of LiDAR data in road space must be very fast so that

the current environment can be evaluated immediately

without delay. The use of CNNs for this purpose was

investigated by Caltagirone et al. (2017). Speciﬁc ob-

jects in the road space, such as people, can also be

detected in the data and used for safely controlling

vehicles (Navarro-Serment et al., 2010). Many meth-

ods can also be transferred from the road to tracks.

Stein et al. (2016) investigate how tracks of light rails

can be detected automatically in LiDAR scans using

variations in the distance values.

Arastounia (2017) points out the necessity of ﬁnd-

ing assets in the track environment and presents an

algorithm for detecting rail tracks and contact cables

by geometrical analysis of point positions based on

an automated seed point search. G

ezero and Antunes

(2019) describe an approach to evaluate LiDAR point

clouds of a rail environment using the angular infor-

mation of a vertically mounted scanner at the front

of the train. Along an imaginary line lying under

the scanner, they determine the rails on either side of

it and the ballast’s dimensions. In his doctoral the-

sis, Taheriandani (2016) describes approaches for de-

tailed track analysis with LiDAR scanners that are di-

rectly aimed at the rails under the train to detect the

smallest deviations. Shang et al. (2018) present an

approach for ﬁnding rail defects by using CNNs on

railway image data.

Detecting structures and objects in images is a rel-

evant research ﬁeld for many applications, such as

face recognition, license plate identiﬁcation, or med-

ical imagery analysis. U-Net, initially developed for

the medical sector, is now widely used in image seg-

mentation (Ronneberger et al., 2015). With this net-

work’s help, speciﬁc areas in images can be recog-

nized with pixel accuracy, such as cancer cells and

streets in aerial images (Zhang et al., 2018). Another

promising implementation is YOLO (You only look

once), which only returns labeled bounding boxes, but

can process the provided images very fast (Redmon

and Farhadi, 2018). In a railway context, Yanan et al.

VISAPP 2021 - 16th International Conference on Computer Vision Theory and Applications

466

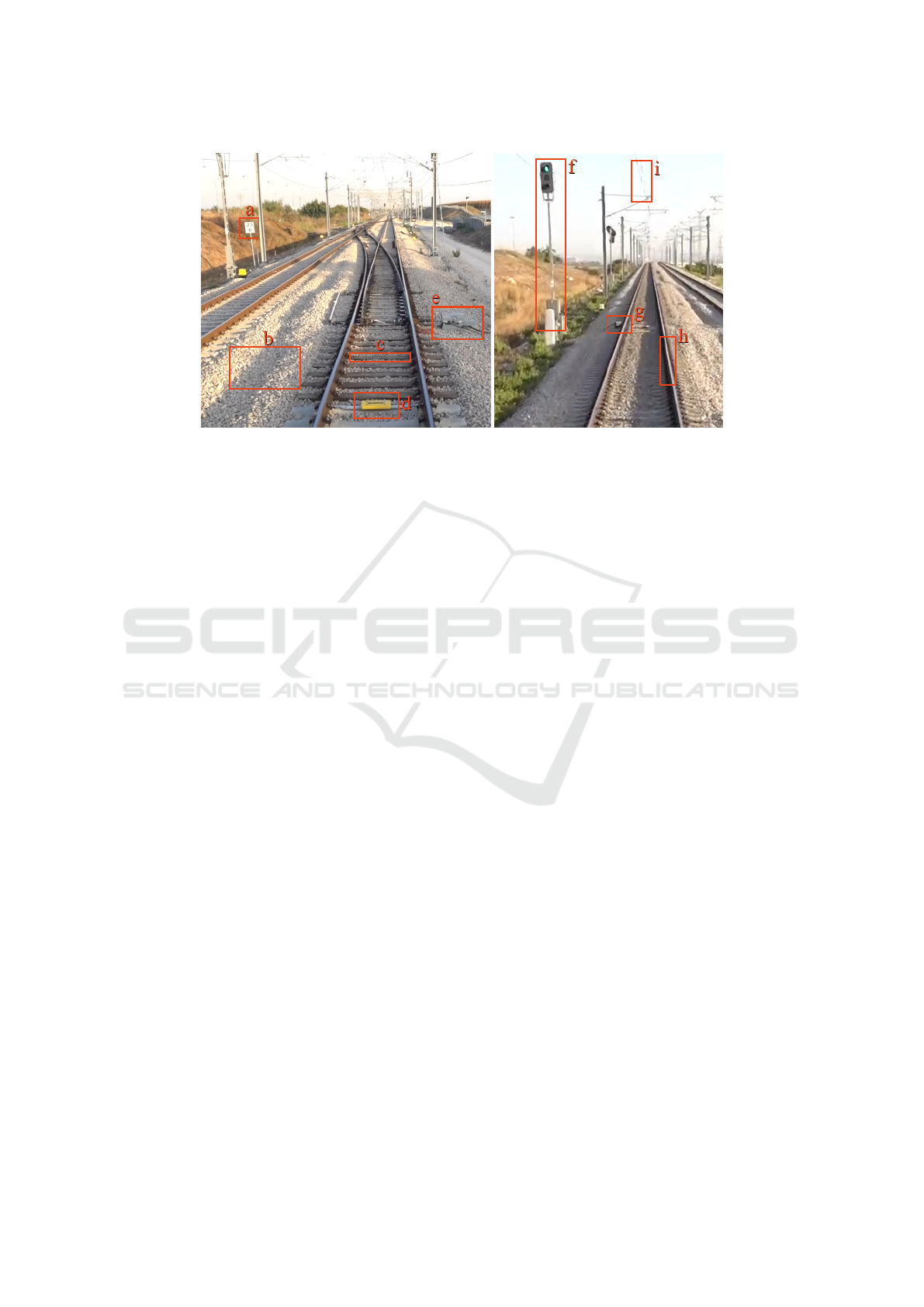

Figure 3: Typical objects found in railroad environments: Sign (a), ballast (b), tie (c), balise (d), switch motor (e), signal

pole (f), axle counter (g), rail (h), catenary (i).

(2018) use YOLO to detect problems on the surface

of rails, Yang et al. (2020) use it to recognize pole

numbers in images.

Hu and Ye (2013) use scan lines in aerial data to

detect buildings while Yan et al. (2016) present an ap-

proach using them to recognize road markings in mo-

bile mapping data.

3 CONCEPT

The idea of the approach presented in this paper is

based on the assumption that the performance of 2D

image recognition can be utilized due to the nature

of the data when individual scan lines are available.

Thus, even three-dimensional objects can be precisely

and efﬁciently identiﬁed and semantically classiﬁed

via this approach. Typical objects that should be clas-

siﬁed in railroad data are shown in Figure 3.

When rendering images from 3D point cloud data

for object classiﬁcation, positioning the virtual cam-

era is of utmost importance. As described in previous

work (Wolf et al., 2019a), top-down views are suitable

for detecting objects such as road markings and utility

hole covers in mobile mapping data. However, having

catenaries and signal bridges above railroad tracks,

these are occluding essential parts of the track in a

top-down view and are therefore hindering compre-

hensive classiﬁcation. Furthermore, in tunnels, cate-

naries and signals are often mounted to the ceiling,

making it very difﬁcult to do a top-down view analy-

sis. Using the scan lines is an obvious choice because

all objects are captured from the train’s perspective,

and therefore everything necessary is visible in the

data.

First, individual scan lines are identiﬁed: At best,

the measurement data already contain information

about the point’s position within the individual scan

lines by their sequence or timestamp. In this case, all

points can be combined within a run of possible scan

angles from 0 to 360 degrees, with 0 degrees being

straight above the train, and as soon as the angle of

the following point jumps back, a new scan line be-

gins. In a prototypic implementation, about 21 mil-

lion points per second were segmented this way into

individual scan lines from an ordered 3D point cloud.

If this information is not available in the current

data set, the scan lines can also be derived in an

additional preparatory step: Along the measurement

data’s trajectory, scan lines are generated perpendic-

ular to it by grouping adjacent points into scan lines.

Here, approximate solutions are sufﬁcient because the

afﬁliation to a particular scan line is not decisive for

the later analysis.

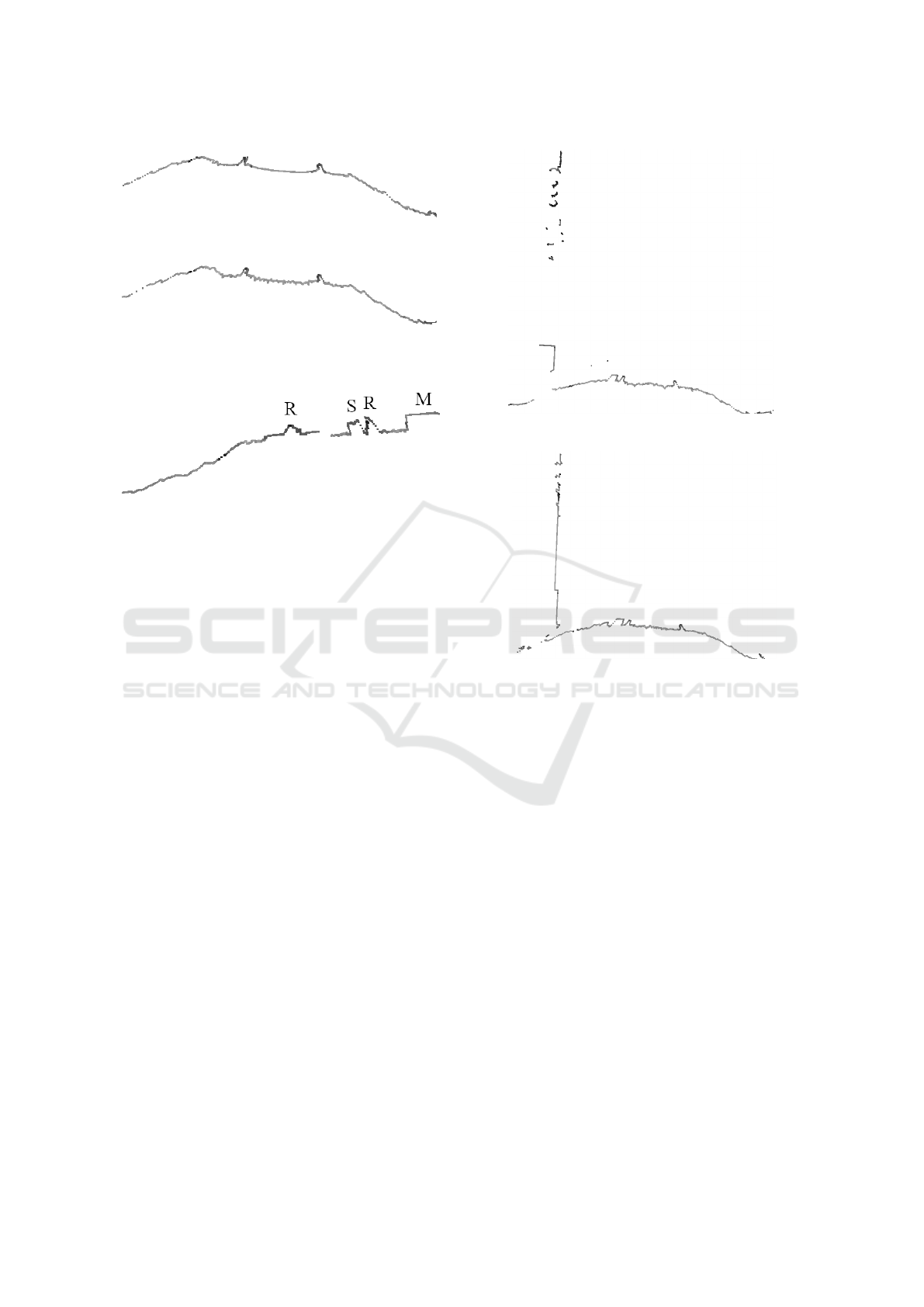

Now all scan lines can be rendered individually

as 2D images. A particular color (e. g., white (255))

is used as masking for the areas not containing data,

and all other pixels can be colored with gray levels ac-

cording to the intensity of the measuring points at the

respective position, mapping the lowest intensity to

black (0), the highest to almost white (254). An addi-

tional image channel containing the rendered points’

IDs will also be included so that the result can be

mapped back into the point cloud after the image clas-

siﬁcation. If several points are rendered in the same

pixel, the last rendered point’s ID is stored.

Figure 4 shows the difference of the surface’s

smoothness between two rails depending on whether

a tie is placed at this position or the ballast is exposed.

Thus, ties can be identiﬁed if the scan lines are placed

at suitable distances from each other.

Asset Detection in Railroad Environments using Deep Learning-based Scanline Analysis

467

(a) Two rails with a tie in between.

(b) Two rails with ballast in between.

Figure 4: Two scan lines of a railroad track on a ballast hill.

Grayscale represents the intensity values of the points.

Figure 5: Scan lines of two rails (R), a switch tongue (S)

and a box containing the motor (M) next to the rails.

A large variety of objects can be found in the im-

mediate neighborhood of the rails. Figure 5 shows a

scan line at the beginning of a track switch, where the

switch tongue is placed close to one of the rails and

a box with the switch motor on the other side of the

rail. The box shadows the area on the right side, so

this part of the ballast hill is missing.

Figure 6 shows two scan lines of a signal post next

to the rails. Due to its shape, the front of the actual

signal can be seen in multiple scan lines before the

signal post. In total, the structure has a length of ap-

proximately 1.5 meters.

Possible semantic classes analyzed with this tech-

nique are rails (running rails, guard rails, switch

tongues), ties, ballast, catenary posts, signals, signal

posts, and signal gantries.

A large number of rendered images will be needed

for training purposes. This data could be generated

manually by labeling individual pixels and bounding

boxes within the scan line images. A faster approach

would be using pre-classiﬁed 3D point clouds (which

have been created either manually or by a different

automated approach) so that the semantic informa-

tion can already be included when rendering the 2D

images.

Suitable networks for the analysis of the rendered

images are, for example, U-Net and YOLO. Both

follow a different approach but could provide sim-

ilarly relevant results for the application described

here. While U-Net classiﬁes individual pixels, YOLO

only determines bounding boxes for recognized ob-

jects. However, since there are hardly any overlaps of

(a) Front part of the signal.

(b) Signal post, six scan lines behind the one

above.

Figure 6: Scan lines of a signal post next to two rails. An

axle counter is attached to the outside of the left rail.

objects in individual scan lines and the objects to be

found, such as rails, ties, and signals, can be covered

relatively well by rectangles, this result should also

be sufﬁcient. When using YOLO, all non-background

pixels within the bounding box of a recognized object

could get assigned the corresponding semantic class,

and then they would be treated similarly to the images

classiﬁed pixel by pixel with U-Net.

Figures 7 and 8 show exemplary results of the se-

mantic classiﬁcation with YOLO and U-Net on a scan

line.

Once the semantic class for each pixel is deter-

mined, the information can be mapped back into the

3D point cloud by using the ID channel. In case the

point density is higher than the resolution of the ren-

dered images, several points have been covered by the

same pixel. In this case, all points in the immediate

neighborhood of the point just classiﬁed can also re-

ceive the respective semantic class so that all points

will receive semantic information.

VISAPP 2021 - 16th International Conference on Computer Vision Theory and Applications

468

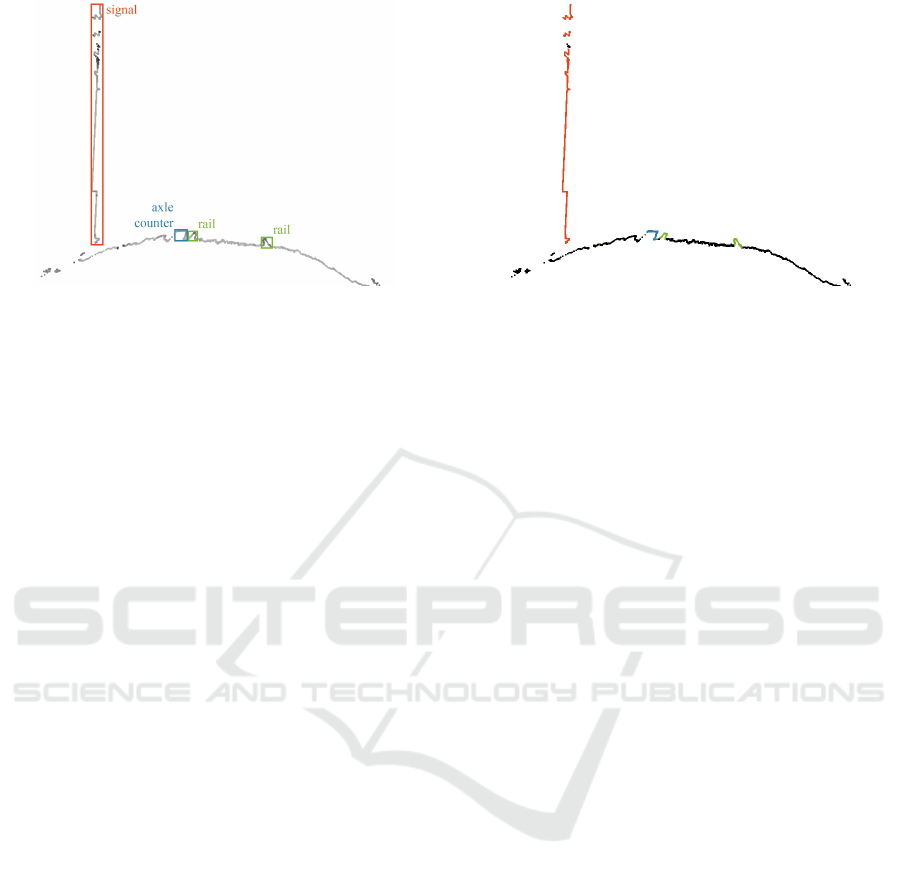

Figure 7: Exemplary semantic classiﬁcation results of the

scan line shown in Figure 6b using YOLO. Bounding boxes

are placed around identiﬁed objects.

Processing the data results in a 3D point cloud

with semantic information attached to each point.

This data can then be used for the previously de-

scribed use cases.

Simple post-processing steps and plausibility

checks can further improve the results of the classi-

ﬁcation. For example, axle counters must lie close to

the track, and rails of a track always run parallel with a

ﬁxed, previously known distance between them. Such

conditions can be checked for after the classiﬁcation.

For example, objects identiﬁed as axle counters but

not located right next to a track could then be dis-

carded and, e. g., classiﬁed as “other”.

4 CONCLUSION AND FUTURE

WORK

First prototypical tests show that the described ap-

proach is suitable for the semantic classiﬁcation of

3D point clouds of railroad environments. Individ-

ual scan lines can be analyzed by rendering images

and using established image analysis for the classiﬁ-

cation. However, the performance is still to be deter-

mined in more extensive tests. It should also be eval-

uated whether using one-dimensional CNNs as they

are used, e. g., for sound classiﬁcation or movement

recognition (Cho and Yoon, 2018; Abdoli et al., 2019)

can perform more efﬁcient on the given task.

The 3D point clouds classiﬁed by this approach

can then be used for various tasks in track mainte-

nance. For example, location maps could be gener-

ated for the detected objects in the track area, or ex-

isting data could be compared with the information

obtained here and adjusted if needed.

The approach can be extended in several ways to

presumably further improve the results. The gener-

Figure 8: Exemplary semantic classiﬁcation results of the

scan line shown in Figure 6b using U-Net. Points are col-

ored based on semantic class: Signal (red), rail (green), axle

counter (blue), other (black).

ated images could be centered along the train’s trajec-

tory, so the position within the images provides infor-

mation about the objects displayed. For example, the

rails would then always be found in a similar position.

Furthermore, several scan lines could be viewed si-

multaneously to enrich the images with context infor-

mation. For this purpose, the images could be given

additional layers so that, for example, three or ﬁve

scan lines are contained in one image, and the preced-

ing and following scan lines have additional inﬂuence

on the scan line to be analyzed.

REFERENCES

Abdoli, S., Cardinal, P., and Koerich, A. L. (2019). End-

to-end environmental sound classiﬁcation using a 1d

convolutional neural network. Expert Systems with

Applications, 136:252–263.

Arastounia, M. (2017). An enhanced algorithm for concur-

rent recognition of rail tracks and power cables from

terrestrial and airborne lidar point clouds. Infrastruc-

tures, 2(2):8.

Caltagirone, L., Scheidegger, S., Svensson, L., and Wahde,

M. (2017). Fast lidar-based road detection using fully

convolutional neural networks. In 2017 IEEE In-

telligent Vehicles Symposium (IV), pages 1019–1024.

IEEE.

Chia, L., Bhardwaj, B., Lu, P., and Bridgelall, R. (2019).

Railroad track condition monitoring using inertial sen-

sors and digital signal processing: A review. IEEE

Sensors Journal, 19:25–33.

Cho, H. and Yoon, S. M. (2018). Divide and conquer-

based 1d cnn human activity recognition using test

data sharpening. Sensors, 18(4):1055.

Ciocoiu, L., Siemieniuch, C. E., and Hubbard, E.-M.

(2017). From preventative to predictive maintenance:

The organisational challenge. Proceedings of the In-

Asset Detection in Railroad Environments using Deep Learning-based Scanline Analysis

469

stitution of Mechanical Engineers, Part F: Journal of

Rail and Rapid Transit, 231(10):1174–1185.

ezero, L. and Antunes, C. (2019). Automated three-

dimensional linear elements extraction from mobile

lidar point clouds in railway environments. Infrastruc-

tures, 4(3):46.

Guan, H., Li, J., Cao, S., and Yu, Y. (2016). Use of mobile

lidar in road information inventory: A review. Interna-

tional Journal of Image and Data Fusion, 7(3):219–

242.

Hu, X. and Ye, L. (2013). A fast and simple method of

building detection from lidar data based on scan line

analysis. ISPRS Annals of the Photogrammetry, Re-

mote Sensing and Spatial Information Sciences, pages

7–13.

Navarro-Serment, L. E., Mertz, C., and Hebert, M.

(2010). Pedestrian detection and tracking using three-

dimensional ladar data. The International Journal of

Robotics Research, 29(12):1516–1528.

Oehler, B., Stueckler, J., Welle, J., Schulz, D., and Behnke,

S. (2011). Efﬁcient multi-resolution plane segmenta-

tion of 3d point clouds. In International Conference

on Intelligent Robotics and Applications, pages 145–

156. Springer.

Qi, C. R., Yi, L., Su, H., and Guibas, L. J. (2017). Point-

net++: Deep hierarchical feature learning on point sets

in a metric space. In Advances in neural information

processing systems, pages 5099–5108.

Redmon, J. and Farhadi, A. (2018). Yolov3: An incremental

improvement. arXiv preprint arXiv:1804.02767.

Ronneberger, O., Fischer, P., and Brox, T. (2015). U-net:

Convolutional networks for biomedical image seg-

mentation. In International Conference on Medical

image computing and computer-assisted intervention,

pages 234–241. Springer.

Sanne, J. M. (2008). Framing risks in a safety-critical and

hazardous job: risk-taking as responsibility in railway

maintenance. Journal of Risk Research, 11:645 – 658.

Shang, L., Yang, Q., Wang, J., Li, S., and Lei, W. (2018).

Detection of rail surface defects based on cnn im-

age recognition and classiﬁcation. 2018 20th Interna-

tional Conference on Advanced Communication Tech-

nology (ICACT), pages 45–51.

Stein, D., Spindler, M., Kuper, J., and Lauer, M. (2016).

Rail detection using lidar sensors. International

Journal of Sustainable Development and Planning,

11(1):65–78.

Taheriandani, M. (2016). The Application of Doppler LI-

DAR Technology for Rail Inspection and Track Geom-

etry Assessment. PhD thesis, Virginia Tech.

Wang, L., Meng, W., Xi, R., Zhang, Y., Ma, C., Lu, L., and

Zhang, X. (2019). 3d point cloud analysis and clas-

siﬁcation in large-scale scene based on deep learning.

IEEE Access, 7:55649–55658.

Wang, W., Sakurada, K., and Kawaguchi, N. (2016). In-

cremental and enhanced scanline-based segmentation

method for surface reconstruction of sparse lidar data.

Remote Sensing, 8(11):967.

Wirth, H. (2008). Der neue lichtraummesszug limez iii der

deutschen bahn ag. Zeitschrift f

ur Geod

asie, Geoin-

formation und Landmanagement, 133(3):180–186.

Wolf, J., Richter, R., Discher, S., and D

ollner, J. (2019a).

Applicability of neural networks for image classiﬁca-

tion on object detection in mobile mapping 3d point

clouds. International Archives of the Photogramme-

try, Remote Sensing & Spatial Information Sciences,

42(4/W15):111–115.

Wolf, J., Richter, R., and D

ollner, J. (2019b). Techniques

for automated classiﬁcation and segregation of mobile

mapping 3d point clouds. In Proceedings of the 14th

International Joint Conference on Computer Vision,

Imaging and Computer Graphics Theory and Appli-

cations, pages 201–208.

Yan, L., Liu, H., Tan, J., Li, Z., Xie, H., and Chen, C.

(2016). Scan line based road marking extraction from

mobile lidar point clouds. Sensors, 16(6):903.

Yanan, S., Hui, Z., Li, L., and Hang, Z. (2018). Rail surface

defect detection method based on yolov3 deep learn-

ing networks. In 2018 Chinese Automation Congress

(CAC), pages 1563–1568. IEEE.

Yang, Y., Zhang, W., He, Z., and Li, D. (2020). High-

speed rail pole number recognition through deep rep-

resentation and temporal redundancy. Neurocomput-

ing, 415:201–214.

Zhang, Z., Hua, B.-S., and Yeung, S.-K. (2019). Shellnet:

Efﬁcient point cloud convolutional neural networks

using concentric shells statistics. 2019 IEEE/CVF In-

ternational Conference on Computer Vision (ICCV),

pages 1607–1616.

Zhang, Z., Liu, Q., and Wang, Y. (2018). Road extraction

by deep residual u-net. IEEE Geoscience and Remote

Sensing Letters, 15(5):749–753.

VISAPP 2021 - 16th International Conference on Computer Vision Theory and Applications

470
