Scene Detection in De Boer Historical Photo Collection

Melvin Wevers

Department of History, University of Amsterdam, Amsterdam, The Netherlands

Keywords:

Digital History, Computer Vision, Scene Detection, Digital Heritage.

Abstract:

This paper demonstrates how transfer learning can be used to improve scene detection applied to a historical

press photo collection. After applying transfer learning to a pre-trained Places-365 ResNet-50 model, we

achieve a Top-1 accuracy of .68 and a Top-5 accuracy of .89 on our data set, which consists of 132 categories.

In addition to describing our annotation and training strategy, we also reﬂect on the use of transfer learning

and the evaluation of computer vision models for heritage institutes.

1 INTRODUCTION

Computer vision algorithms have become capable of

locating and identifying objects represented in images

with high accuracy. While this speciﬁc technology is

commonplace in self-driving cars, drone technology,

and the analysis of social media posts, its use for her-

itage institutes has only recently been growing (Bhar-

gav et al., 2019; Bell et al., 2018; Mager et al., 2020;

Niebling et al., 2020). The possible beneﬁts for her-

itage institutions range from automatically enriching

collections, to improving search capabilities, or en-

abling large-scale analysis of visual collections. The

latter is of particular interest for historians with an in-

terest in the visual representations of the past.

While computer vision technology advanced

rapidly in the last decade, most computer vision re-

search focuses on use cases that require contempo-

rary data as training material. Exceptions include

art-historical research that relies on computer vi-

sion (Madhu et al., 2019; Bell and Impett, 2019; Of-

fert, 2018). Training on contemporary material re-

sults in models not tuned to detect objects in heritage

collections. In other words, the models have difﬁ-

culty detecting past representations of objects, which

often looked noticeably different. Moreover, the list

of categories of objects in existing models are not al-

ways existent or relevant to heritage collections. In

addition to objects changing, the visual medium it-

self has often-times changed, granting contemporary

visual medium a different materiality. Compare, for

example, a grainy black and white image of a trafﬁc

situation in the 1950s to a high-resolution color image

taken with a zoom lens of a highway in 2020. In this

instance, the cars will look different, but the improved

technological capabilities of the camera also shaped

the materiality of the picture. Models that are trained

on millions of contemporary images do not have the

sensitivity to deal with the color schemes and object

representations in older images.

One approach to counter this blind spot in mod-

els trained on contemporary data is to ﬁne-tune their

performance by feeding them with historical material.

This method builds upon the categories existent in the

modern data sets. However, these categories do not

always map onto the categories present in the collec-

tions of heritage institutes, or they do not align with

the search interests of users of such heritage collec-

tions. Another approach is transfer learning, which

adds new categories to existing models, which are

trained using the historical material that has been an-

notated with these new categories. Because the mod-

els have already been pre-trained with large collec-

tions of images, we often only require a small number

of images to learn a new category. Of course, this de-

pends on the visual complexity of the category and the

diversity present in the training data for that category.

In other words, an object that always looks the same

is easier to learn than one that shared visual aspects

but also differs considerably.

Existing research that applies computer vision

methods to historical photographs looks into automat-

ically dating images (Palermo et al., 2012), match-

ing images taken from different viewpoints (Maiwald,

2019), photogrammetric analysis of images (Maiwald

et al., 2017), and the classiﬁcation of historical build-

ings (Llamas et al., 2017).

As part of this research, we set out to discover

Wevers, M.

Scene Detection in De Boer Historical Photo Collection.

DOI: 10.5220/0010288206010610

In Proceedings of the 13th International Conference on Agents and Artiﬁcial Intelligence (ICAART 2021) - Volume 1, pages 601-610

ISBN: 978-989-758-484-8

601

what type of computer vision tasks were seen as most

relevant in the context of heritage institutions. For this

purpose, we conducted fourteen interviews with digi-

tal humanities experts, visitors of historical archives,

and heritage experts.

We discussed several computer

vision tasks, from which the respondents showed the

most interest in object and scene detection, with a spe-

ciﬁc interest in tracing buildings. Other tasks such as

the estimation of group sizes, facial emotion detec-

tion, detection of logos, and posture estimation, the

respondents deemed less relevant.

This paper focuses on one particular computer vi-

sion task: scene detection. This task tries to describe

“the place in which the objects seat”, rather than clas-

sifying the object depicted on an image, or locating

particular objects in a picture by drawing bounding

boxes around them (Zhou et al., 2018). More specif-

ically, this paper applies transfer learning to Places-

365, a scene detection model trained on contemporary

data. We reﬂect on creating training data, the train-

ing strategy, as well as the evaluation of the model.

Finally, we discuss the beneﬁts of this type of com-

puter vision algorithm for heritage institutes and vi-

sual archives. Rather than merely detecting objects,

the ability to search for images based on the scene

represented in them is a useful feature for heritage

institutions, especially since this information is often

not included in the metadata. Using such informa-

tion, historians could examine the representations of

particular scenes, for example, protests, at scale.

2 DATA

This data set for this study is the photo collection of

press agency De Boer for the period 1945-2004.

The

De Boer collection focuses on national and regional

events, although over time the collection’s focus grad-

ually shifted to the region Kennemerland. This re-

gion, just north of Amsterdam, includes cities such

as Haarlem, Zandvoort, Bloemendaal, and Alkmaar.

The value of the collection was recognized locally,

nationally, and internationally. In 1962, the founder

of the press photo agency, Cees de Boer, was awarded

the World Press Photo and the Silver Camera (Zilv-

eren Camera). He won the World Press Photo for a

picture showing Dutch singer Ria Kuyken being at-

tacked by a young bear in a circus. Seven years later,

Due to the Covid-19 pandemic, we had to conduct these

interviews virtually. We originally intended to invite more

people in person to the archive to conduct face-to-face in-

terviews.

This data has been kindly provided by the Noord-

Hollands Archief.

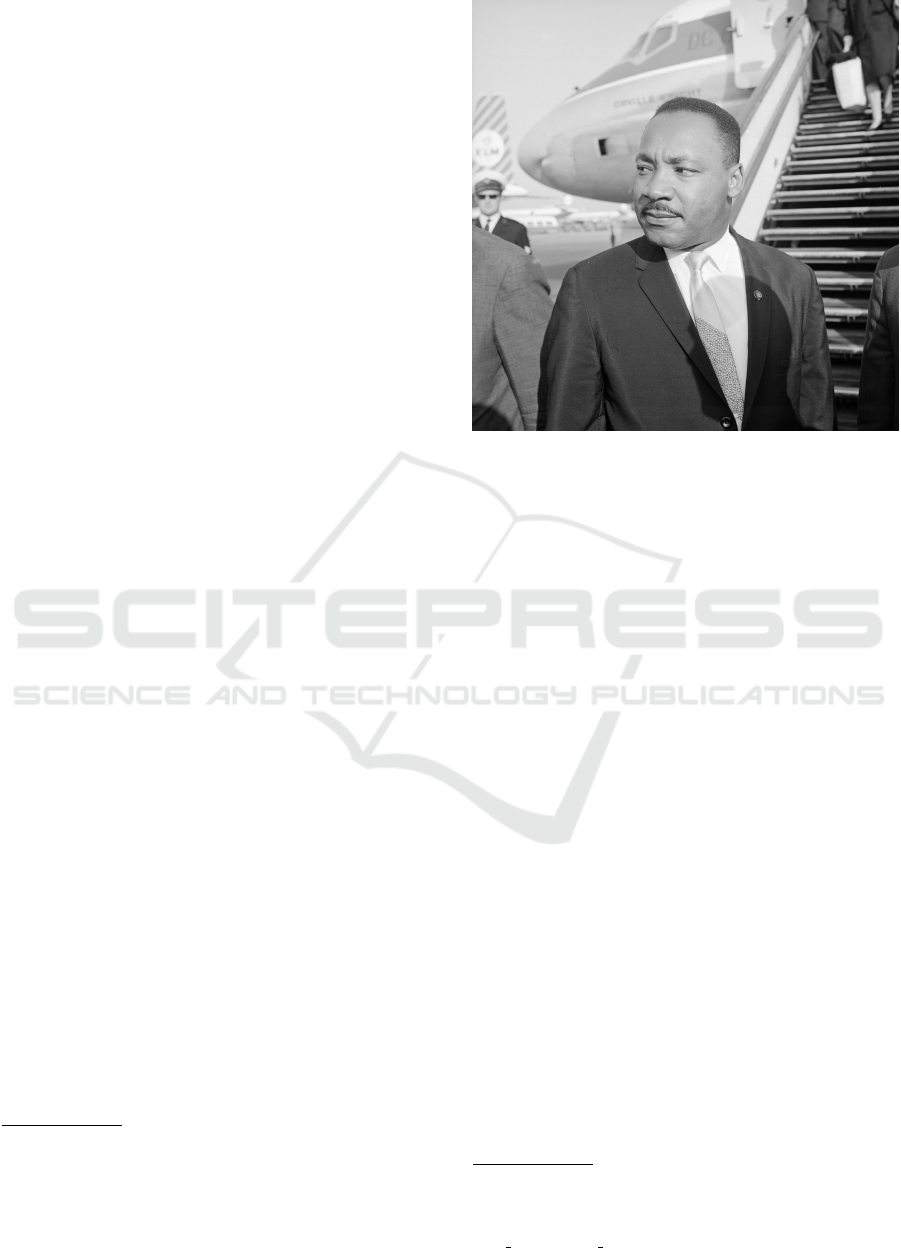

Figure 1: Arrival of Martin Luther King Jr. at Schiphol

Airport, August 15, 1964. Taken from De Boer Collection.

Cees’ son Poppe won the national photojournalism

award. The photo collection depicted a wide range

of events, ranging from the ﬁrst and only show of The

Beatles in the Netherlands in Blokker—a small vil-

lage just north of Amsterdam, the arrival of Martin

Luther King in 1964 (see Figure 1), to the opening of

restaurants, and sports events. The photo press agency

was one of the main providers of pictures to the re-

gional newspaper Haarlems Dagblad.

The photo collection consists of approximately

two million negatives accompanied with metadata for

the period 1945-2004. The metadata is extracted

from physical topic cards and logs kept by the photo

agency. On approximately nine thousand topic cards

with over a thousand unique topics, the agency de-

tailed what was depicted in the pictures. For the pe-

riod 1952-1990, these logs have been transcribed us-

ing volunteers.

The archive is currently in the process of digitiz-

ing the two million negatives and linking these to the

already-transcribed metadata.

At the moment of this

pilot study, the archive has only digitized a selection

of images. This pilot study explores whether transfer

learning can be applied to the data and how we should

categorize and label the data. During the larger dig-

itization project, we will use the annotation strategy

developed in this study to label a selection of images

to further improve the scene detection model. This

https://velehanden.nl/projecten/bekijk/details/project/

ranh

https://velehanden.nl/projecten/bekijk/details/project/

ranh tagselection deboer

ARTIDIGH 2021 - Special Session on Artiﬁcial Intelligence and Digital Heritage: Challenges and Opportunities

602

model will also be used to automatically label images

or detect images that are more difﬁcult to label and

which require human annotators. The enriched photo

collection will be used to improve the search func-

tionality of the archive. The labeled data and result-

ing model will be made publicly available to serve as

a starting point for other historical photo collections

that want to apply computer vision to their collection.

For this pilot study, we relied on a subset of

2,545 images that had already been digitized by the

Noord-Hollands Archief. Together with archivists

and cultural historians, we constructed scene cate-

gories for these images.

We used the categorization

scheme used in Places-365 as a starting point. As the

name implies, this scheme contains 365 categories of

scenes, ranging from ‘alcove’ to ‘raft’.

We combined

the categories in Places-365 with categories from the

catalog cards that De Boer used. These catalog cards

could not be linked to the categorization scheme di-

rectly, because these cards often contain categories

that are too speciﬁc or categories that were repre-

sented visually. These categories could only be in-

ferred from contextual information but not from the

image itself. During the process, we encountered that

the creation of categories is always a trade-off be-

tween speciﬁcity and generalization. In making these

categories, we kept in mind whether there remained a

historical and visual consistency in the categories and

whether the category would be of use for users of the

collection. At the same time, we had to make sure we

were not too speciﬁc, which would impact the amount

of training data.

During the annotation process, we noticed the dif-

ﬁculty in distinguishing between scenes that were

characterized by a particular object and scenes de-

ﬁned by the location or the action performed in the

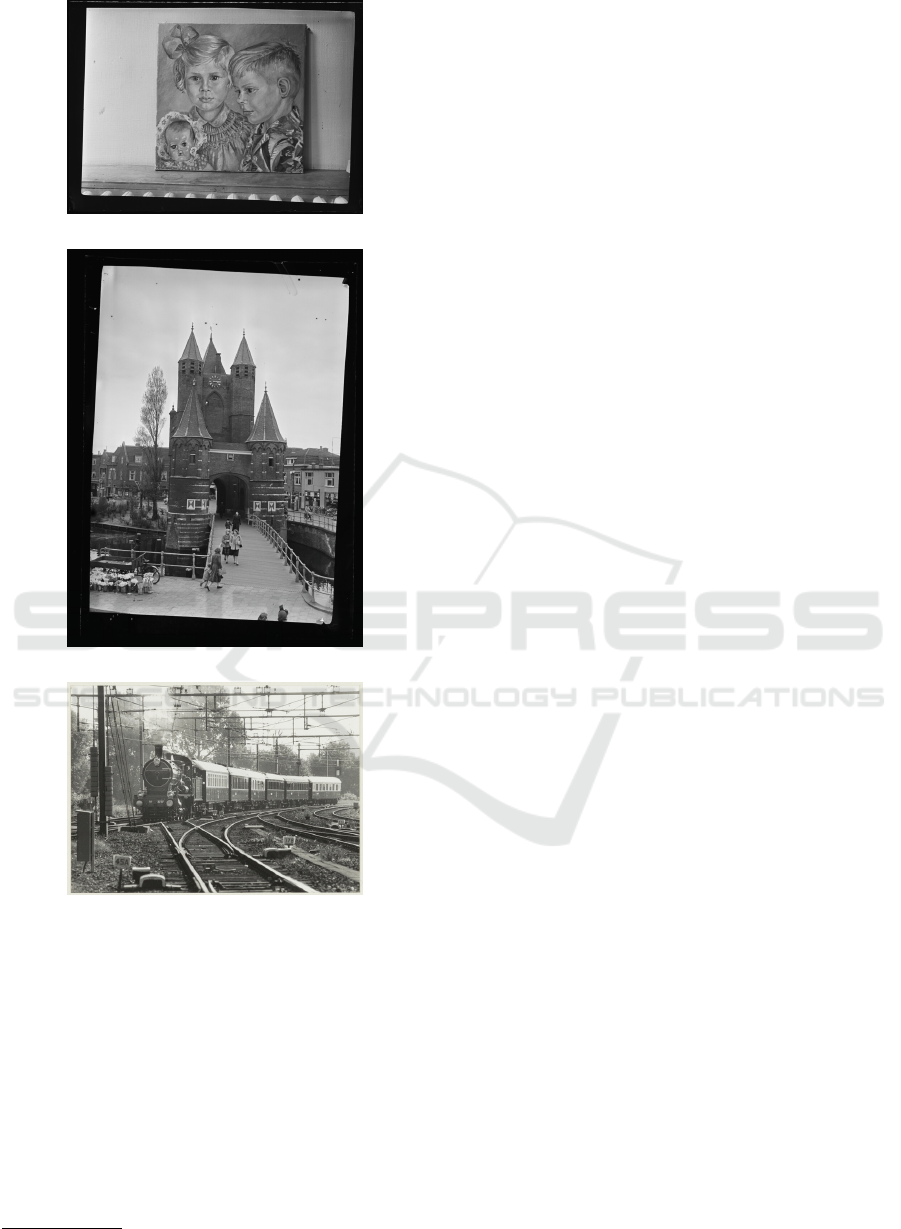

image. For example, the images in Figure 4 contain

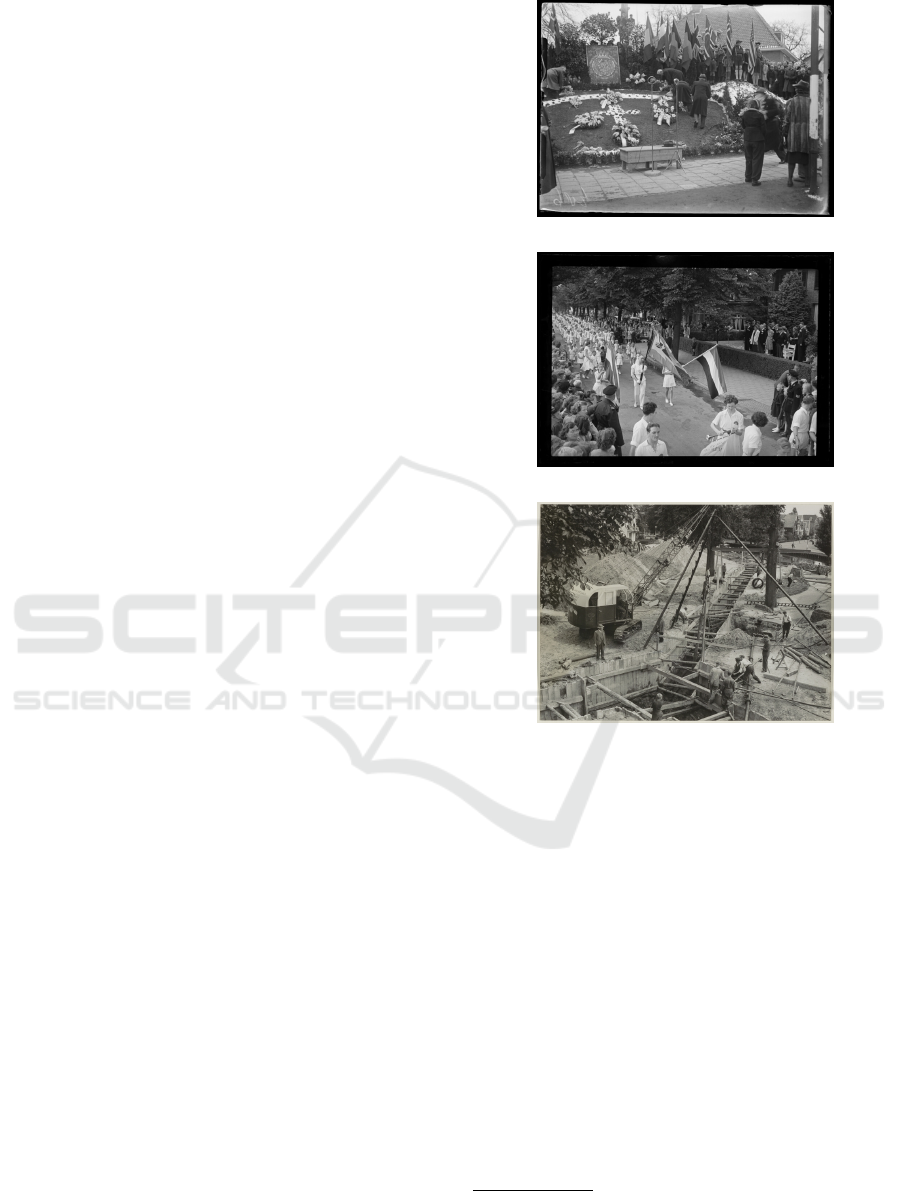

speciﬁc objects, while the images in Figure 3 depict

scenes. Still, the images in the latter also contain ob-

jects such as ﬂags, wreaths, cranes, and trees that are

not necessarily exclusive to a speciﬁc scene. This

particular challenge is also discussed by developers

of scene detection data sets. The developers of the

SUN database, for example, describe how scenes are

linked to particular functions and behaviors, which

are closely tied to the visual features that structure the

space. In the case of large rooms or spacious areas,

these allow for different types of behavior, opening

up the possibility for different scene categories (Xiao

In the Appendix, we added annotation guidelines,

which will be used for the annotation of the further data

set.

An overview of the categories can be found here: http:

//places2.csail.mit.edu/explore.html

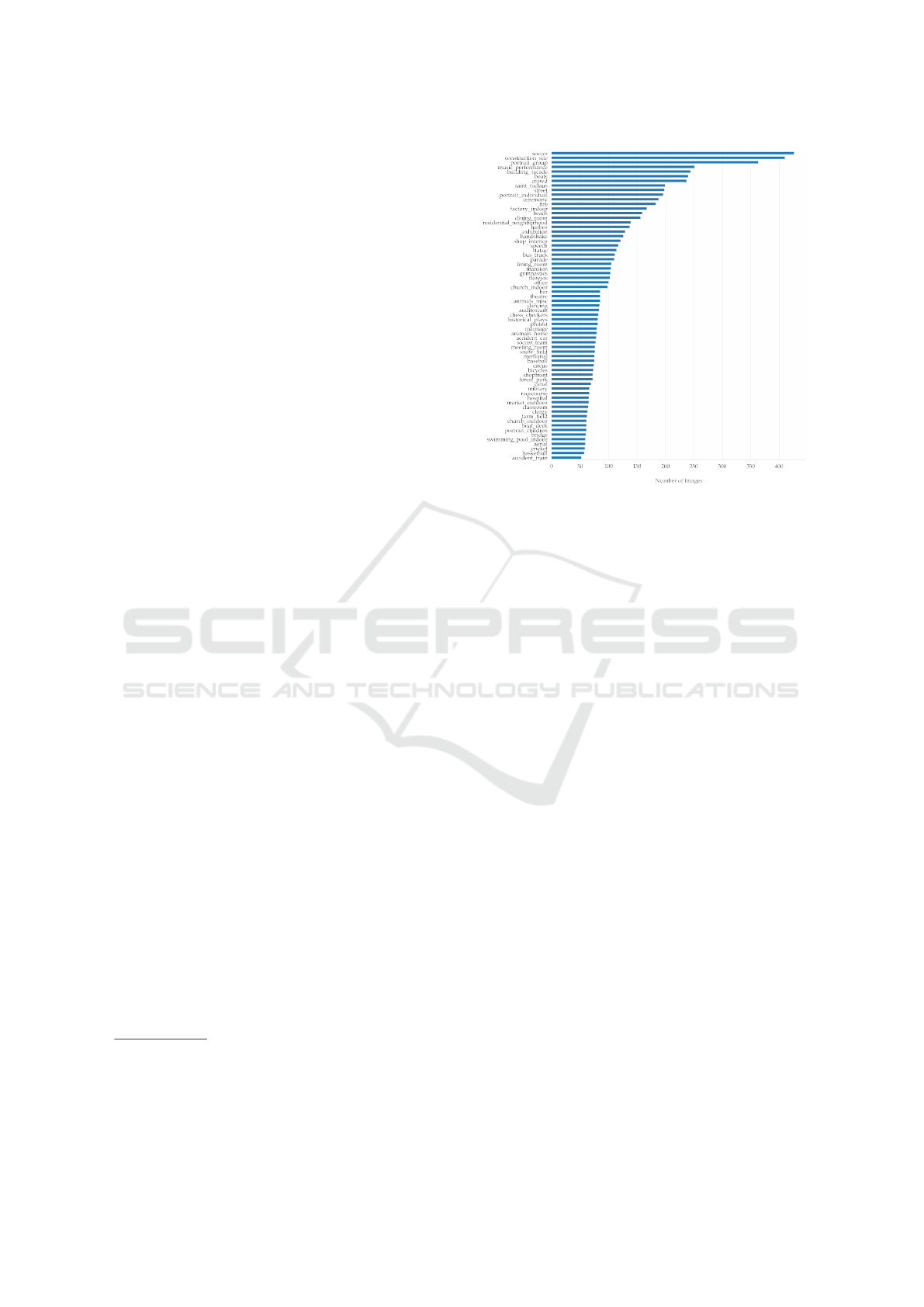

Figure 2: Distribution of categories (N > 50) in the training

set.

et al., 2010). Moreover, there are instances of large

inter-class similarity between scenes, for instance, be-

tween the categories ‘library’ and ‘bookstore’. At

the same time, we ﬁnd large intra-class variations, in

which the depicted scenes that belong to one category

are actually quite diverse (Xie et al., 2020).

After annotation, we used an initial baseline

model to correct incorrectly annotated images. Dur-

ing the annotation process of the larger dataset, we

will iteratively evaluate the training categories and

possibly add new categories and merge or remove ex-

isting ones. Our resulting dataset includes 115 unique

categories that can be found along with their descrip-

tions in the Appendix. The distribution of the cate-

gories in our training set is heavily skewed and long-

tailed (Figure 2). For training, we removed categories

with less than twenty images, this included categories

such as: ‘houseboat’, ‘castle’, and ‘campsite’. How-

ever, we intend to again include these categories when

we are annotating the newly digitized photographs.

The categories ‘soccer’ and ‘construction site’, for in-

stance, are very well represented, while most others

appeared much more infrequently. Even though trans-

fer learning can produce accurate results with few

training examples, more training data, especially in

categories with greater visual variations, is to be pre-

ferred.

Scene Detection in De Boer Historical Photo Collection

603

3 SCENE DETECTION

The authors of the Places-365 data set describe a

scene as an “environment(s) in the world, bounded by

spaces where a human body would ﬁt” (Zhou et al.,

2018). Scene detection is aimed at detecting such an

environment, or scene, from visual material. Humans

can quickly recognize the functional and categorical

properties of a scene while ignoring the objects and

locations in a scene (Oliva and Torralba, 2001). Still,

this does not mean that humans recognize scenes in

an unequivocal manner. Contextual factors that are

necessarily part of the image aid humans in describ-

ing scenes depicted in the image. Users of heritage

collections rely on search not only to discover for rep-

resentations of particular objects (Petras et al., 2017;

Clough et al., 2017). Especially in the context of press

photography, photographs often captured a particular

historical event or setting. Press photos are highly di-

verse and more often than not contain more groups of

people or objects placed in a particular setting.

In the De Boer collection, we ﬁnd depictions of

scenes, such as memorials, construction sites, or pa-

rades (see Figure 3). Even though these events are

characterized by the presence of particular objects, in

many cases, they cannot be described by just a single

object or person. At the same time, the collection also

includes images that can accurately be described by

a single object (see Figure 4). Scene detection, how-

ever, is also able to learn such representations.

We decided to not focus on object detection and

the segmentation of possible objects, but rather to

focus on the image as a whole using scene detec-

tion. The category schemes in existing object detec-

tion models were not directly applicable to the pho-

tographs in this collection. Using existing object de-

tection models did not yield useful categories. For ex-

ample, for a picture of a shopping street, object detec-

tion would identify people, bags, and perhaps a trafﬁc

light. To be able to detect objects represented in our

photo collection, we would need to draw bounding

boxes around these objects and annotate them, which

would prove to be a very time-consuming task. Nev-

ertheless, in future work, we would like to explore the

development of a framework that would provide his-

torical descriptions based on the relationship between

different objects in an image.

3.1 Transfer Learning

For the adaptation of existing scene detection models

to our data set, we turn to transfer learning (Rawat and

Wang, 2017). This method refers to using “what has

been learned in one setting [...] to improve generaliza-

(a) Memorial.

(b) Parade.

Figure 3: Three photographs with scene labels from De

Boer collection.

tion in another setting” (Goodfellow et al., 2016). In

our case, we use what has been learned about scenes

captured in the Places-365 models to learn how to de-

tect the scenes in our training data using our catego-

rization scheme. Rather than training a model from

scratch, transfer learning is known for reaching good

accuracy in a relatively short amount of time. Basi-

cally, we build upon the information already stored in

the places model, which is based on millions of la-

beled images.

As a starting point, we use a ResNet-50 model—a

convolutional neural network of ﬁfty layers— trained

on the Places-365 dataset.

This dataset consists of

1.8 million images from 365 scene categories. The

Places-365 data set builds upon the SUN database,

for code and data see: https://github.com/

melvinwevers/hisvis

https://github.com/CSAILVision/places365

ARTIDIGH 2021 - Special Session on Artiﬁcial Intelligence and Digital Heritage: Challenges and Opportunities

604

(a) Artwork.

(b) Castle.

Figure 4: Three photographs characterized by a central ob-

ject from De Boer collection.

consisting of 899 categories with short descriptions.

For our annotation guidelines, we used the SUN de-

scriptions as a starting point. Given that our data set

consists primarily out of black and white images, it

is worth noting that this type of image was excluded

from the SUN data. Next, we create a random vali-

dation set, containing twenty percent of the training

images. We use this validation set, to estimate the

model’s performance in terms of accuracy and its ﬁt.

In the context of a heritage institute, scene detection

https://groups.csail.mit.edu/vision/SUN/

is a meaningful task.

Applied to the Places-365 validation data set, the

Places-365 ResNet-50 model reaches a 54.74% top-1

accuracy and 85.08% top-5 accuracy. Top-1 accuracy

refers to the percentage of images where the predicted

label with the highest probability matches the ground-

truth label. Top-5 accuracy calculates whether the

ground-truth label is in the top-ﬁve predicted labels.

Because of the ambiguity between scene categories,

top-5 accuracy is generally seen as a more suitable

criterion than top-1 accuracy (Zhou et al., 2018).

The Places-365 model outperforms the widely-used

ImageNet-CNN on scene-related data sets, underscor-

ing the beneﬁt of using tailor-made models for scene

detection over more generic models, such as Ima-

geNet. Due to its performance on the places-365,

we also turned to the ResNet-50 implementation. We

have also experimented with simpler model architec-

tures, but these were less able to capture the complex-

ity of the images.

For our study, we load a pre-trained Places-365

model, which we then tune to our categories us-

ing the deep learning framework Fast.AI (Howard

et al., 2018). We transfer learn using the One-

Cycle method, an efﬁcient approach to setting hyper-

parameters (learning rate, momentum, and weight de-

cay), which can lead to faster convergence (Smith,

2018).

To account for the unevenly distributed and often

small number of training data and to prevent over-

ﬁtting, we experiment with different data augmenta-

tion methods, including image transformation, label

smoothing, MixUp, and CutMix. Overﬁtting refers

to the model adapting too closely to the training data,

making it less suitable for working with images the

model was not trained on. The image transformations,

in this case, include, ﬂipping, rotating, and zooming

of the source image. These transformations increase

the number of training images the model sees and

makes it harder for the model to overﬁt to a particu-

lar image. Labels Smoothing adds a small amount of

noise to the one-hot encoding of the labels, making it

more difﬁcult for the model to be conﬁdent about the

prediction. This reduces overﬁtting and improves the

generalizability of the model (Szegedy et al., 2014).

MixUp and CutMix are two relatively recent data

augmentation techniques. MixUp basically overlays

two different images with different labels. For exam-

ple, one can have an image of a cat with an overlay

of a dog. This makes it more difﬁcult for the model

to determine what’s in each image. The model has to

predict two labels for each image as well the extent to

which they are ‘mixed’ (Zhang et al., 2018). CutMix

is an extension of a random erasing technique that

Scene Detection in De Boer Historical Photo Collection

605

has often been used in data augmentation. In random

erasing, a random block of pixels is removed from the

image, making it harder for the model to learn the im-

age. CutMix cuts and pastes random patches of pixels

between training images. The labels are also mixed

proportionally to the area of patches in the training

image. CutMix pushes the model to focus on the less

discriminative parts of an image, making it suitable

for object detection (Yun et al., 2019). The downside

of MixUp and CutMix can be that they make it too

difﬁcult for the model to detect features, causing un-

derﬁtting.

We train the model for a maximum of 35 epochs,

with early stopping at ﬁve epochs monitoring changes

in validation loss. To account for underﬁtting, we ex-

perimented with varying the α parameter of MixUp

and CutMix, which controls how much of the aug-

mentation is applied. Too much of the augmentation

would make it too difﬁcult for the model to extract

generalizable features. Training a model is ﬁnding a

balance between underﬁtting and overﬁtting, which is

dependent on the size and complexity of the training

data. In the domain of cultural heritage, we are often

working with limited sets of annotated training mate-

rial, making it worthwhile to examine to what extent

transfer learning can be applied and how we can cope

with overﬁtting to these limited sets of data. In our

use case, we want to model to classify unseen data,

which requires a model that can generalize.

4 RESULTS

Our baseline model which only uses image transfor-

mations achieves a top-1 accuracy of 0.62 and a top-5

accuracy of 0.88 (see Table 1). Adding MixUp with

a low α (0.2) and Label Smoothing slightly improves

the top-1 accuracy to 0.68, but these augmentations

have no effect on the top-5 accuracy. The addition of

CutMix and Label Smoothing has a similar effect with

a Top-1 accuracy of 0.67. It is noteworthy that the

baseline model already achieves good results, which

underscores the power of transfer learning and the use

of the Places-365 model as a starting point for more

speciﬁc scene detection tasks. We can see that in al-

most nine out of ten cases, the correct result can be

found in the top 5 results. For our larger data set, we

will again explore to what extent MixUp and CutMix

can boost the performance of the model.

There was one category that was never correctly

identiﬁed, namely ‘accident stretcher’. This category

depicts people carried away on a stretcher. The cat-

egory consists of only 6 training images, which are

also quite diverse. The category ‘funeral‘ also scores

Table 1: Training Results.

Top 1-Acc Top 5-acc

Baseline + Aug 0.62 0.88

Label Smoothing (LS) 0.61 0.87

MixUp (0.2) 0.62 0.86

MixUp (0.2) + Aug 0.63 0.87

MixUp (0.2) + Aug + LS 0.68 0.89

MixUp (0.3) 0.63 0.88

MixUp (0.3) + Aug 0.61 0.87

MixUp (0.3) + Aug + LS 0.60 0.86

MixUp (0.4) 0.67 0.89

MixUp (0.4) + Aug 0.61 0.86

MixUp (0.4) + Aug + LS 0.67 0.89

CutMix (0.2) 0.63 0.87

CutMix (0.2) + Aug 0.63 0.87

CutMix (0.2) + Aug + LS 0.64 0.87

CutMix (0.5) 0.62 0.87

CutMix (0.5) + Aug 0.66 0.89

CutMix (0.5) + Aug + LS 0.67 0.89

CutMix (1.0) 0.61 0.86

CutMix (1.0) + Aug 0.63 0.87

CutMix (1.0) + Aug + LS 0.67 0.89

low on precision (0.25) and recall (0.1). This cat-

egory contains ten training images, but again they

are quite diverse and show a strong resemblance to

‘church indoor‘, ‘parade’, and ‘memorial’. We ex-

pect this accuracy to improve with more training ma-

terial. The categories that the model most often con-

fuses with each other includes the categories: ‘cer-

emony’, ‘handshake’, ‘portrait children’, ‘residential

neighborhood’, ‘harbor’, and ‘portrait group’. These

categories were commonly predicted as respectively:

‘handshake’, ‘ceremony’, ‘portrait group’, ‘street’,

‘boats’, and ‘ceremony’. The predictions offered by

the model are sensible since they are for the most part

closely related to the correct labels. For example, the

distinction between the category street and a residen-

tial neighborhood is difﬁcult, and actually, it might

be more appropriate to attach both labels to the im-

age. Also, the former might be better described as

an object and not a scene, while in some contexts a

street can also be an environment in which objects

are housed. This example foregrounds the concep-

tual overlap between an object and scene. Figure 8

shows the images with the top losses, which indicates

that among the predictions the correct answer had

a low probability. Upon closer inspection, we have

to conclude that these predictions are not necessarily

wrong. We see, for example, an image that shows a

handshake but also people in military attire. This im-

age was labeled as ‘military‘ but classiﬁed as ‘hand-

shake’. This leads us to conclude that it might be

worthwhile for the annotation of the larger dataset to

allow multiple labels and creating a multi-label clas-

siﬁer. This type of classiﬁer requires more training

ARTIDIGH 2021 - Special Session on Artiﬁcial Intelligence and Digital Heritage: Challenges and Opportunities

606

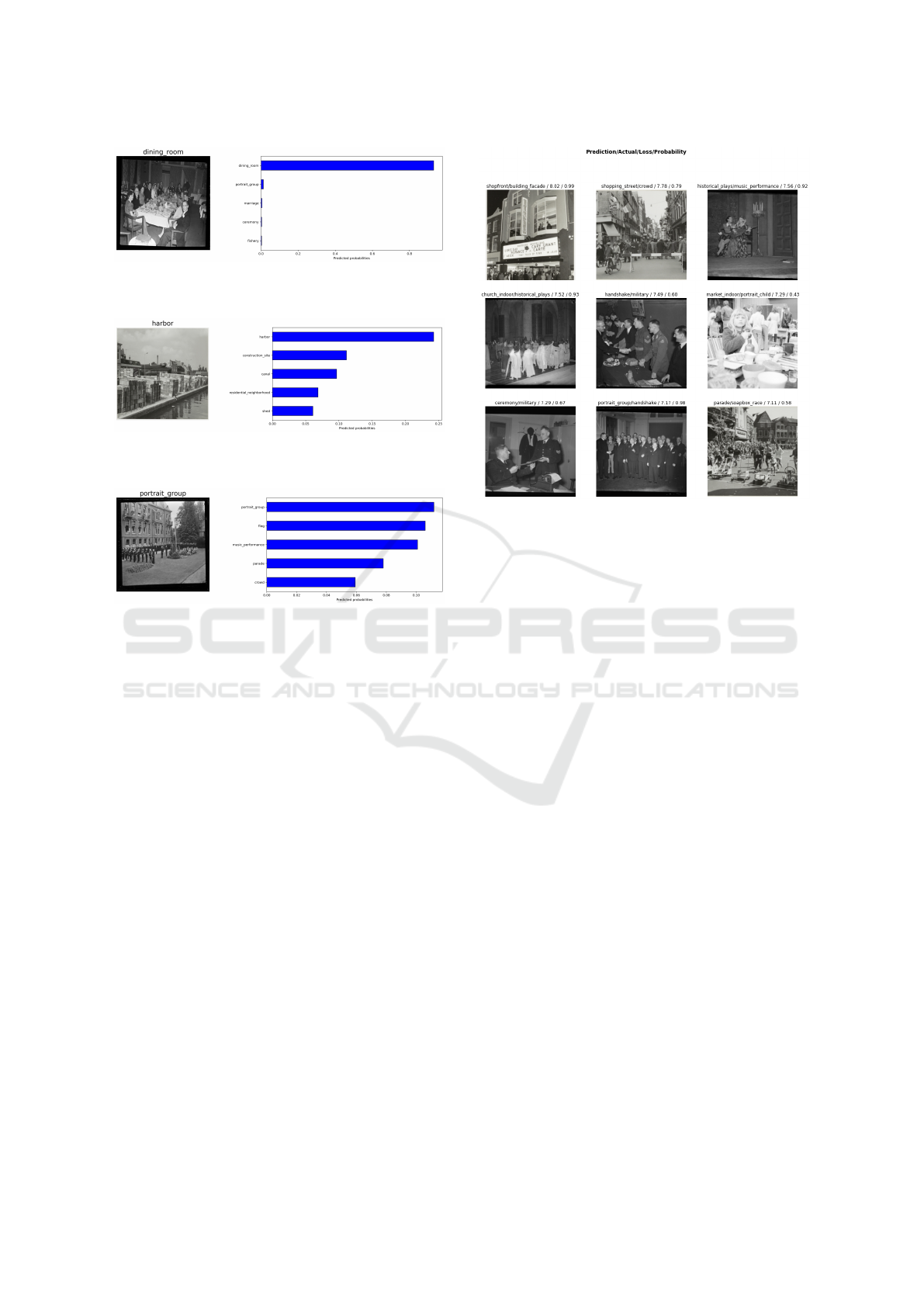

Figure 5: Top-5 predictions for a picture with the label ‘Din-

ing Room’.

Figure 6: Top-5 predictions for a picture with the label ‘Har-

bor’.

Figure 7: Top-5 predictions for a picture with the label ‘Por-

trait Group’.

data, but in future work, we will explore how much

more training data is required in order to reach accu-

rate predictions.

5 DISCUSSION

This paper demonstrated how we annotated a data

set of historical press photographs and applied trans-

fer learning to leverage existing scene detection mod-

els to a new domain. We highlighted the difﬁ-

culties of categorization and possible solutions for

working with skewed data sets. While our base-

line model with basic image transformation already

reached good accuracy scores, further augmentations

including MixUp and Label Smoothing improved our

top-1 accuracy (from 0.62 to 0.68). Our top-5 accu-

racy was only very slightly improved by these addi-

tional augmentations (0.88 to 0.89). The latter indi-

cates that the correct answer was often among the top

5 answers given. While there still exists some am-

biguity about labels, in some instances one of these

ﬁve labels was understandable from a visual perspec-

tive, but it might cause some ethical concerns. For ex-

ample, images of a funeral with lots of ﬂowers were

occasionally labelled as ‘parade’. Such mistakes are

Figure 8: Top Losses.

more impactful than mistaking, for instance, an auto-

mobile for a truck. In future work, we want to explore

how we can penalize such mistakes; hence, improving

the learning process. Furthermore, once more images

of the collection have been digitized, we can further

reﬁne the presented model and improve and expand

our presented categorization scheme.

REFERENCES

Bell, P. and Impett, L. (2019). Ikonographie und interak-

tion. computergest

utzte analyse von posen in bildern

der heilsgeschichte. Das Mittelalter, 24(1):31–53.

Bell, P., Ommer, B., Ommer, B., and Ommer, B. (2018).

Computing Art Reader: Einf

uhrung in Die Digitale

Kunstgeschichte, P. Kuroczy

nski et al. (Ed.).

Bhargav, S., van Noord, N., and Kamps, J. (2019).

Deep Learning as a Tool for Early Cinema Analy-

sis. In Proceedings of the 1st Workshop on Structuring

and Understanding of Multimedia heritage Contents,

SUMAC ’19, pages 61–68, Nice, France. Association

for Computing Machinery.

Clough, P., Hill, T., Paramita, M. L., and Goodale, P. (2017).

Europeana: What users search for and why. In Inter-

national Conference on Theory and Practice of Digi-

tal Libraries, pages 207–219. Springer.

Goodfellow, I., Bengio, Y., and Courville, A. (2016). Deep

Learning. The MIT Press, Cambridge, Massachusetts.

Howard, J. et al. (2018). fastai. https://github.com/fastai/

fastai.

Llamas, J., M. Lerones, P., Medina, R., Zalama, E., and

omez-Garc

ıa-Bermejo, J. (2017). Classiﬁcation of

Architectural Heritage Images Using Deep Learning

Techniques. Applied Sciences, 7(10):992.

Scene Detection in De Boer Historical Photo Collection

607

Madhu, P., Kosti, R., M

uhrenberg, L., Bell, P., Maier, A.,

and Christlein, V. (2019). Recognizing characters in

art history using deep learning. In Proceedings of

the 1st Workshop on Structuring and Understanding

of Multimedia heritAge Contents, pages 15–22.

Mager, T., Khademi, S., Siebes, R., Hein, C., de Boer,

V., and van Gemert, J. (2020). Visual Content Anal-

ysis and Linked Data for Automatic Enrichment of

Architecture-Related Images. In Kremers, H., editor,

Digital Cultural Heritage, pages 279–293. Springer

International Publishing, Cham.

Maiwald, F. (2019). Generation of a benchmark dataset us-

ing historical photographs for an automated evaluation

of different feature matching methods. International

Archives of the Photogrammetry, Remote Sensing &

Spatial Information Sciences.

Maiwald, F., Vietze, T., Schneider, D., Henze, F., M

unster,

S., and Niebling, F. (2017). Photogrammetric analysis

of historical image repositories for virtual reconstruc-

tion in the ﬁeld of digital humanities. The Interna-

tional Archives of Photogrammetry, Remote Sensing

and Spatial Information Sciences, 42:447.

Niebling, F., Bruschke, J., Messemer, H., Wacker, M., and

von Mammen, S. (2020). Analyzing Spatial Distri-

bution of Photographs in Cultural Heritage Applica-

tions. In Liarokapis, F., Voulodimos, A., Doulamis,

N., and Doulamis, A., editors, Visual Computing for

Cultural Heritage, Springer Series on Cultural Com-

puting, pages 391–408. Springer International Pub-

lishing, Cham.

Offert, F. (2018). Images of image machines. visual in-

terpretability in computer vision for art. In Proceed-

ings of the European Conference on Computer Vision

(ECCV).

Oliva, A. and Torralba, A. (2001). Modeling the shape

of the scene: A holistic representation of the spatial

envelope. International journal of computer vision,

42(3):145–175.

Palermo, F., Hays, J., and Efros, A. A. (2012). Dating his-

torical color images. In Fitzgibbon, A., Lazebnik, S.,

Perona, P., Sato, Y., and Schmid, C., editors, Com-

puter Vision – ECCV 2012, pages 499–512, Berlin,

Heidelberg. Springer Berlin Heidelberg.

Petras, V., Hill, T., Stiller, J., and G

ade, M. (2017).

Europeana–a search engine for digitised cultural her-

itage material. Datenbank-Spektrum, 17(1):41–46.

Rawat, W. and Wang, Z. (2017). Deep Convolutional Neu-

ral Networks for Image Classiﬁcation: A Comprehen-

sive Review. Neural Computation, 29(9):2352–2449.

Smith, L. N. (2018). A disciplined approach to neu-

ral network hyper-parameters: Part 1 – learning

rate, batch size, momentum, and weight decay.

arXiv:1803.09820 [cs, stat].

Szegedy, C., Liu, W., Jia, Y., Sermanet, P., Reed, S.,

Anguelov, D., Erhan, D., Vanhoucke, V., and Rabi-

novich, A. (2014). Going Deeper with Convolutions.

arXiv:1409.4842 [cs].

Xiao, J., Hays, J., Ehinger, K. A., Oliva, A., and Torralba,

A. (2010). Sun database: Large-scale scene recog-

nition from abbey to zoo. In 2010 IEEE Computer

Society Conference on Computer Vision and Pattern

Recognition, pages 3485–3492. IEEE.

Xie, L., Lee, F., Liu, L., Kotani, K., and Chen, Q. (2020).

Scene recognition: A comprehensive survey. Pattern

Recognition, 102:107205.

Yun, S., Han, D., Oh, S. J., Chun, S., Choe, J., and

Yoo, Y. (2019). CutMix: Regularization Strategy

to Train Strong Classiﬁers with Localizable Features.

arXiv:1905.04899 [cs].

Zhang, H., Cisse, M., Dauphin, Y. N., and Lopez-Paz, D.

(2018). Mixup: Beyond Empirical Risk Minimiza-

tion. arXiv:1710.09412 [cs, stat].

Zhou, B., Lapedriza, A., Khosla, A., Oliva, A., and Tor-

ralba, A. (2018). Places: A 10 Million Image

Database for Scene Recognition. IEEE Transac-

tions on Pattern Analysis and Machine Intelligence,

40(6):1452–1464.

APPENDIX

Here we list our annotation guides lines per cate-

gories. Some of these categories have been not been

included in the training, because they included fewer

than twenty images.

Accident Car. Trafﬁc accident involving an automo-

bile

Accident Stretcher. Accident involving an person on

a stretcher

Accident Train. Trafﬁc accident involving an train

Aerial. Picture with an aerial perspective

Amphitheater. The collection contains many pic-

tures taken at an outside amphitheater in Bloemen-

daal.

Animals cow. Pictures of live and dead cows.

Animals dog. Pictures of dogs

Animals horse. Pictures of horses

Animals misc. Animals that do not ﬁt in the previous

categories. For ﬁnal dataset, this might be subdivided

in more categories.

Artwork. Artwork without people, the focus is on the

art work. There is also a separate category for statues.

Auditorium. Public building (used for speeches, per-

formances) where audience sits. Pictures with and

without audiences. Overlap with categories ‘confer-

ence room‘ and ‘speech’

Bakery. Photos inside bakery, baking bread, present-

ing bread indoor/outdoors Overlap with Kitchen

Bar. Area where drinks are served/consumed. Over-

lap with Dining Room/Game Room

Baseball. People playing baseball

Basketball. People playing basketball.

Beach. If the beach is the picture’s main focus, we se-

lect beach. Dunes is a separate category. Overlap with

ARTIDIGH 2021 - Special Session on Artiﬁcial Intelligence and Digital Heritage: Challenges and Opportunities

608

crowd/horse/running. When there is only water visi-

ble, we still select Beach. Possibly ‘sea’ or ‘ocean’ as

a category.

Beauty Salon. Images that feature hairdressers or

beauty salons

Bicycles. Features bicycles or people riding bicycles.

Overlap with cycling, category for professional cy-

cling and street/

Boat Deck. Picture that focus on the deck of a boat,

either with or without people. Not showing entire

ship/boat from a distance. Overlap with boats cate-

gory.

Boats. Category focusing on a boat or multiple boats.

Overlap with harbor/shipyard. If boat is harboured

and harbor is taking up large area of picture. Ship-

yard depicts construction area for boats, boats under

construction Overlap with beach, canal, river, water-

front. Difference is focus on boat

Bookstore Library. Bookstore or library as a com-

bined category, as they are often difﬁcult to sepa-

rate. The pictures feature rows of books and/or people

reading. Overlap with ofﬁce, room which also often

features books.

Bridge. Picture should feature a bridge as a central

element. Overlap with street/canal/river/boat

Building Facade. Depicting the facade of a build-

ing/rows of buildings. Not showing the full build-

ing from a distance. Overlap with residential

area/mansion. Latter are single large house, former

pictures of areas without a clear focus on the facade.

Overlap shopping area/residential area/mansion

Bus/truck. Focus on large busses and trucks. Overlap

with street

Butchers Shop. Butcher shop from inside,

or people preparing meat. Overlap with ani-

mals/shopfront/shop/kitchen

Canal. Flow of water, also includes nat-

ural ﬂow of water rivers. Overlap with

bridge/river/boat/ﬁshing/waterfront

Car. Pictures that focus on a car

Car Shop. Showroom in which cars are sold

Catwalk. Models on a catwalk

Cemetery. Pictures taken of a cemetery. Important

element includes tombs, or tomb stones.

Ceremony. A group of people bundled together for a

ceremony. This could be awards, ﬂowers, or a medal.

Note that there is also a speciﬁc category for hand

shakes.

Chess Checkers. People playing either chess or

checkers. These are visually quite similar, for larger

dataset, this category might be divided into two, if

there are enough images.

Church Indoor. Pictures taken inside a church. This

could include masses, but also view of the church

without people.

Church Outdoor. Pictures of the church/cathedral

building.

Circus. Pictures taken of a circus, inside of a circus

tent. The outside of the circus tent is categorized as

tent.

City Hall Stairs. Pictures taken of a group of people

on the stairs outside of the city hall of Haarlem. This

is quite a speciﬁc categories, but there are quite a few

pictures that ﬁt this category.

Classroom. Students inside a classroom

Clergy. Pictures of clergy indoors or outdoors.

Construction Site. Construction site, this also in-

cludes pictures of demolitions. It is quite difﬁcult to

separate the two visually. If enough images of both,

we could separate the two.

Courtyard. Area between buildings, or outside yard

in a group of buildings.

Circus. Pictures taken of a circus, inside of a circus

tent. The outside of the circus tent is categorized as

tent.

Cricket. People playing cricket

Crowd. Gathering of people, where individuals are

not clearly discernible. When posing for picture put

in portrait category.

Cycling. Professional cyclists

Dancing. People dancing Overlap with bar, music

performance, plaza

Dining Room. Area where people eat, both in restau-

rants and houses

Drive Way. Drive way in front of buildings

Dunes. Photos of dunes. Overlap with pa-

rade/memorial/crowd

Excavation. People digging up something, archeo-

logical ﬁnds Overlap with construction site

Exhibition. Room with artwork(s) and people. The

focus is more clearly on the setting

Factory Indoor. Pictures taken with facto-

ries/assembly lines/production facilities

Farm Field. People working in farm ﬁelds/pictures

of crops/farm ﬁelds Overlap with animals

Field Hockey. People playing ﬁeld hockey

Fire. Pictures of ﬁres, or building destroyed by ﬁres.

Fishery. Pictures of ﬁshing industry

Flag. People holding or raising ﬂags Overlap with

parade in which people hold ﬂags

Flowers. Pictures that include ﬂowers

Forest/Park. Picture taken in a forest or park

Funeral. Pictures of a funeral. Similar to memorial

and cemetery. Here we only choose pictures that show

a casket or burial itself.Overlap with memorial, pa-

rade, cemetery, ﬂowers, church indoor

Gymnastics. People performing gymnastics indoor

and outdoor Overlap with circus/dancing

Scene Detection in De Boer Historical Photo Collection

609

Handshake. People shaking hands, subcategory of

ceremony.

Harbor. Ships docked at a harbor, focus is not ships,

but context of the harbor. Overlap with boats and wa-

terfront ¿ waterfront is focus is on waterfront/kade

Historical Plays. People dressed up in historical gar-

ment enacting historical plays

Hospital. Pictures taken in a hospital/dentist/medical

lab setting

Ice Skating. People skating on ice

Kitchen. People in kitchen, preparing food Overlap

with butcher store

Living Room. People situated in a living room space.

Overlap with portraits, which are often taken in a liv-

ing room. To learn the living room category, I placed

pictures in here taken in living rooms, with enough

information on the living room. Overlap with portrait

Mansion. Large houses, separated from housing

blocks

Market Indoor. Indoor market/shopping fair

Market Outdoor. Outdoor market Overlap with

crowd

Marriage. Depicting a marriage couple, marriage

ceremony Overlap with portrait group

Meeting Room. Setting features meeting table with

people sitting around it

Memorial. Depicting a memorial site. Overlap with

funeral/ﬂowers/ﬂag

Military. Pictures depicting military personnel

or military equipment. Overlap with parade and

bus/trucks

Motorcycle. Depicting motorcycle(s)

Musical Performance. People performing music

Overlap with dance

Ofﬁce. Pictures set in an ofﬁce environment

Parade. People parading, marching bands

Parade Floats. Pictures with ﬂower trucks/ﬂoats

Patio. People on patio’s sitting

Playground. People/Children playing in a play-

ground. Overlap with funfair and portrait children

Pond. Scenery of a pond. Overlap with

canal/river/park

Portrait Child. One child

Portrait Children. More children

Portrait Individual.

Portrait Group.

Protest. People protesting, banners clear signal

Racecourse. Pictures taken on racecourse. Also cat-

egory soapbox race Overlap with car, accident.

Residential Neighborhood. Living area. Overlap

with street/building facade

Rowing. People rowing

Running. People running in a sports event

Saint Niclaus. Pictures of the Saint Niclaus festivities

Shed. Wooden buildings, beach houses, living trailers

Shipyard. Construction area for ships. Overlap with

boats and harbor.

Shop Interior. Photos of different kinds of shop inte-

riors.

Shop Front. Picture of a shop front, ‘etalage’

Shopping Street. Depicting street of shops/shoppers

Sign. Signs, plaques, maps

Snowﬁeld. Scenes set in snow, people skiing, sled-

ding

Soapbox Race.

Soccer. people playing soccer

Soccer Indoor. People playing indoor soccer

Soccer Team. Portrait of soccer team

Speech. Focus on person specking

Statue. Pictures of sculptures/statues

Street. Depicting street sceneries. Overlap with car,

residential neighbourhood

Swimming Pool Indoor.

Swimming Pool Outdoor.

Theatre. Plays performed in a theatre setting

Tower. Pictures of towers, not church towers.

Train. Pictures of trains. Overlap with train station

Train Station. Pictures of train stations, trains at sta-

tions etc..

Tram. Pictures of trams

Volley ball. Pictures of people playing volley ball

Water Ski. People on water skis

Water Front. Scenes that focus on the water front

Windmill. Pictures that contain a windmill

ARTIDIGH 2021 - Special Session on Artiﬁcial Intelligence and Digital Heritage: Challenges and Opportunities

610
