Efﬁcient Semantic Representation of Network Access Control

Conﬁguration for Ontology-based Security Analysis

Florian Patzer

and J

urgen Beyerer

Fraunhofer IOSB, Institute of Optronics, System Technologies and Image Exploitation,

Fraunhoferstr. 1, 76131 Karlsruhe, Germany

Keywords:

Network Access Control, Security Analysis, Ontology-based Security Analysis, Security Ontology.

Abstract:

Assessing countermeasures and the sufﬁciency of security-relevant conﬁgurations within networked system

architectures is a very complex task. Even the conﬁguration of single network access control (NAC) instances

can be too complex to analyse manually. Therefore, model-based approaches have manifested themselves as

a solution for computer-aided conﬁguration analysis. Unfortunately, current approaches suffer from various

issues like coping with conﬁguration-language heterogeneity or the analysis of multiple NAC instances as one

overall system conﬁguration, which is the case for the maturity of analysis goals. In this paper, we show how

deriving and modelling NAC conﬁgurations’ effects solves the majority of these issues by allowing generic

and simpliﬁed security analysis and model extension. The paper further presents the underlying modelling

strategy to create such conﬁguration effect representations (hereafter referred to as effective conﬁguration) and

explains how analyses based on previous approaches can still be performed. Moreover, the linking between

rule representations and effective conﬁguration is demonstrated, which enables the tracing of issues, found in

the effective conﬁguration, back to speciﬁc rules.

1 INTRODUCTION

IT and OT Systems consist of various networks and

components, often with thousands of network ac-

cess control (NAC) conﬁgurations. This makes them

too complex to manually assess their conﬁguration,

for example to validate security policy and counter-

measure deployment. Model-based computer-aided

analysis addresses this issue by modelling security-

relevant information in a machine-interpretable man-

ner and using algorithms to ﬁnd issues. The last two

decades, ontologies, which can be deﬁned as explicit

speciﬁcation of a conceptualization (Gruber, 1993),

have proven themselves to provide adequate models

for this matter (cf. Section 3). Most noticeable, the

Web Ontology Language (OWL

) has been success-

fully applied for various such tasks. OWL and the

Semantic Web Rule Language (SWRL

) have been ap-

plied widely to model security-relevant knowledge

https://orcid.org/0000-0001-6620-9753

https://orcid.org/0000-0003-3556-7181

https://www.w3.org/TR/owl2-overview/, last accessed:

15.12.2020

https://www.w3.org/Submission/SWRL/, last ac-

cessed: 15.12.2020

about a system. These models can then be ex-

tended by various existing reasoners (e.g. Pellet

)

or rule engines (e.g. Drools

), and can further be

queried by semantic query languages like SPARQL

or SQWRL (Semantic Query-Enhanced Web Rule

Language) (O’Connor and Das, 2009).

Ontology-based security analysis, is usually ap-

plied on manually created ontological representations

of abstract information about systems. Only view

research focusses detailed conﬁgurations in order to

identify issues with impact to the security of the re-

spective system. With the increasing availability of

machine-interpretable information about the systems

under investigation, provided by conﬁguration man-

agement databases, software-deﬁned networking, en-

gineering tool exports, asset management interfaces,

etc., detailed conﬁguration gets more accessible as

time goes by. Therefore, security analysis on detailed

conﬁguration is becoming increasingly feasible and

relevant.

https://github.com/stardog-union/pellet, last accessed:

15.12.2020

https://www.drools.org/, last accessed: 15.12.2020

https://www.w3.org/TR/sparql11-overview/, last ac-

cessed: 15.12.2020

550

Patzer, F. and Beyerer, J.

Efﬁcient Semantic Representation of Network Access Control Conﬁguration for Ontology-based Security Analysis.

DOI: 10.5220/0010285305500557

In Proceedings of the 7th International Conference on Information Systems Security and Privacy (ICISSP 2021), pages 550-557

ISBN: 978-989-758-491-6

The already mentioned network access control is

of particular importance for security analysis. This

type of countermeasure, which includes host- and

network-based ﬁrewalls and proxies, is particularly

prone to conﬁguration errors, like missing, obsolete,

conﬂicting or shadowed policies. At the same time

NAC is critical for the security of a system. Thus, a

signiﬁcant part of ontology-based conﬁguration secu-

rity analysis focusses on NAC and its conﬁguration is-

sues (Khelf and Ghoualmi-Zine, 2018). Nevertheless,

only few research has concentrated on analysing the

compliance of NAC conﬁgurations to security poli-

cies. Moreover, existing approaches addressing this

kind of challenge either suffer from crucial scalabil-

ity issues or from non-applicability for more sophisti-

cated NAC conﬁgurations (cf. Section 3).

This paper suggests to model the effects of NAC

conﬁgurations (called effective conﬁguration), to al-

low compliance-related queries or reasoning in a

conﬁguration-language-independent manner. The ap-

proach exploits the fact that compliance and inter-

NAC conﬁguration analysis is focussed on the traf-

ﬁc a NAC-instance is conﬁgured to permit or deny.

Therefore, it follows the strategy to model patterns

for the allowed or prohibited trafﬁc, resp. the classes

of data/information ﬂows a NAC instance allow or

block. It is important to note that effective conﬁg-

uration is not targeting analysis on rule level and

thus cannot contribute to that type of analysis. For

example, the policy ‘‘Every rule needs to deﬁne a

source and destination port range” has to be anal-

ysed at rule level and not on the modelled effec-

tive conﬁguration. However, this paper shows that,

compared to currently available approaches, provid-

ing such a model of effective conﬁguration signiﬁ-

cantly improves the scalability and efﬁciency of se-

curity analysis and model extension (cf. Section 4).

The next sections are structured as follows: Sec-

tion 2 describes an example system architecture to

support the understanding of later sections. Subse-

quently, Section 3 describes and compares related ap-

proaches and their issues. Afterwards, the effective

conﬁguration approach is presented in Section 4 and

used to solve an example analysis question. Finally,

the presented approach is further discussed in Section

5, before the paper is summarized in Section 6

2 WORKING EXAMPLE

This section describes a small but realistic system ar-

chitecture to support the understanding of the next

sections. Figure 1 shows the example system archi-

tecture consisting of three different internal subnets

and one subnet mimicking the internet. Following the

IEC 62443

security standards the networks and their

connected assets are distributed into different security

zones, namely Internet, DMZ, Ofﬁce and Field.

Listing 1 shows a rule chain excerpt of the pf-

Sense

ﬁrewall Pfsense 1. In the pfSense conﬁgu-

ration language, inet signals the IPv4 context of a

rule. The rule processing in pfSense is rather com-

plex. However, for didactic reasons, the processing

strategy can be simpliﬁed as follows:

1. All rules without a quick instruction follow the

“last match wins” strategy.

2. Rules with a quick instruction follow the “ﬁrst

match wins” strategy.

Listing 1: Reduced rules of the ﬁrewall Pfsense 1.

1 b lo c k i n i n e t a l l l a b e l

2 b l o c k o u t i n e t a l l l a b e l

3 b l o c k i n on ! em0 i n e t f ro m

1 7 2 . 1 6 . 1 1 0 . 0 / 2 4 t o any

4 b l o c k i n i n e t from 1 7 2 . 1 6 . 1 1 0 . 1 1 8

t o any

5 b l o c k i n on ! em1 i n e t f ro m

1 7 2 . 1 6 . 1 2 1 . 0 / 2 4 t o any

6 b l o c k i n i n e t from 1 7 2 . 1 6 . 1 2 1 . 1 t o

any

7 b l o c k i n on ! em2 i n e t f ro m

1 7 2 . 1 6 . 1 2 2 . 0 / 2 4 t o any

8 b l o c k i n i n e t from 1 7 2 . 1 6 . 1 2 2 . 1 t o

any

9 p a s s i n q u i c k on em0 i n e t p r o t o

t c p from 1 7 2 . 1 6 . 1 1 0 . 0 / 2 4 t o

1 7 2 . 1 6 . 1 2 2 . 0 / 2 4 p o r t = h t t p

10 p a s s i n q u i c k on em1 i n e t p r o t o

udp from 1 7 2 . 1 6 . 1 2 1 . 0 / 2 4 t o

1 7 2 . 1 6 . 1 2 2 . 1 0 3 p o r t = domain

11 p a s s i n q u i c k on em2 i n e t p r o t o

udp from 1 7 2 . 1 6 . 1 2 2 . 1 0 3 t o any

The rules state the following:

• Rules 1 and 2 are the IPv4 default blocking rules.

• Rules 3, 5 and 7 block incoming packages on each

Ethernet interface which is not internally conﬁg-

ured for the IPv4 source networks of the packages.

• Rules 4, 6 and 8 are again default blocking rules

but for the ﬁrewall interface’s IPv4 addresses.

• Rule 9 allows HTTP trafﬁc to pass into the DMZ.

• Rule 10 allows DNS trafﬁc from the Ofﬁce zone

to the DNS server.

• Rule 11 allows any UDP trafﬁc from the DNS

server to pass through.

isa99.isa.org/ISA99\%20Wiki/Home.aspx, last ac-

cessed: 15.12.2020

https://www.pfsense.org/, last accessed: 15.12.2020

Efﬁcient Semantic Representation of Network Access Control Conﬁguration for Ontology-based Security Analysis

551

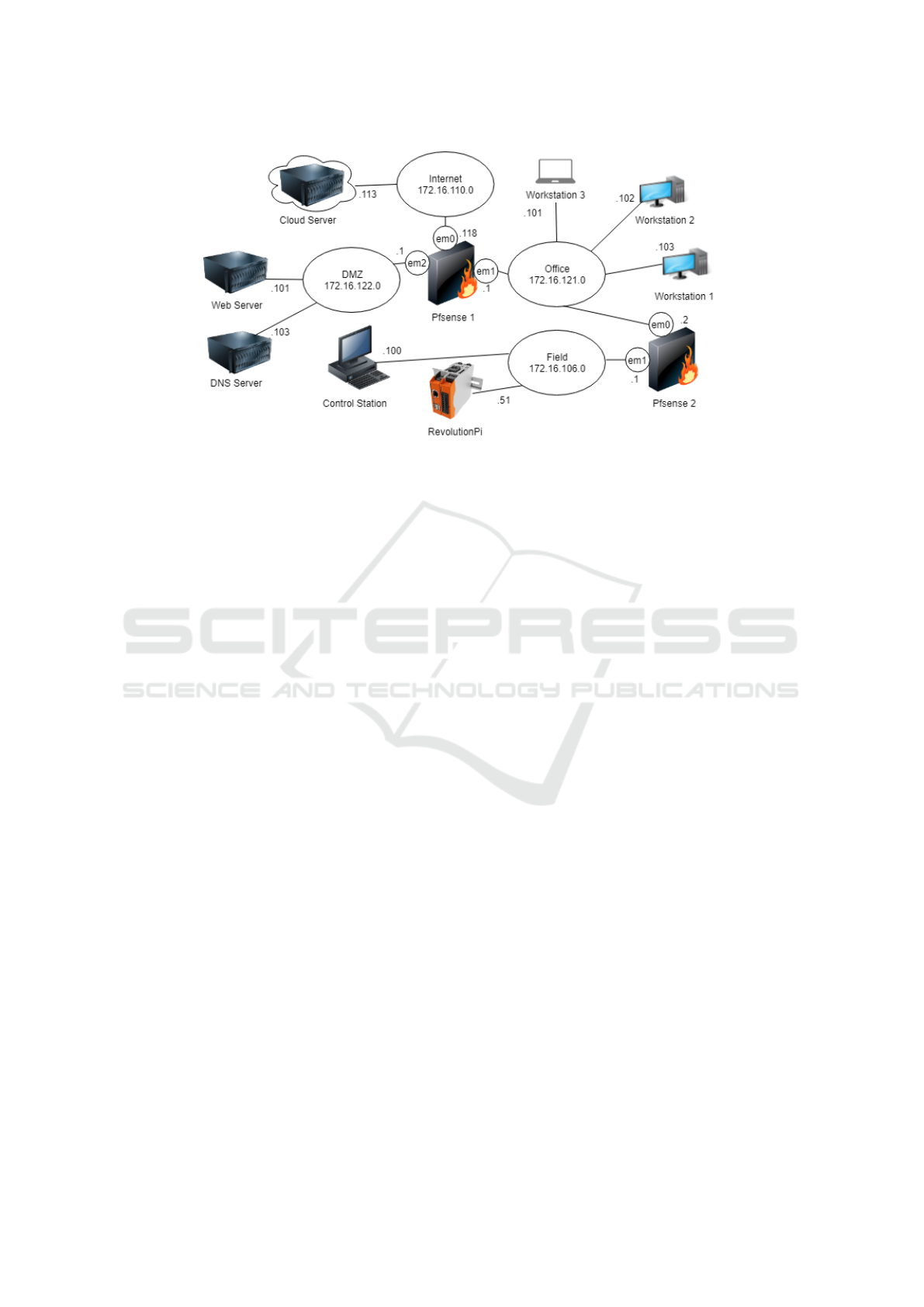

Figure 1: Example system architecture.

Due to space limitations, the remaining rules and

the conﬁguration of the second ﬁrewall are not listed

here.

Ontological Representation. The ontological

model of the example architecture was created by

command parsing and modelling of the information

with the Web Ontology Language (OWL) Version 2

using the description logic (DL) subset (cf. (Patzer

et al., 2019)). Individual component models were

created, merged and extended by reasoning and

SWRL rules to ensure the following assumptions

about the model hold:

1. IPv4 interfaces are linked to IPv4 networks.

2. Instead of modelling every possible IPv4 address

as an individual, only the networks are modelled

as individuals. Moreover, interfaces and networks

contain data properties with numeric representa-

tions of the respective addresses.

3. The order in which the ﬁrewall rules are conﬁg-

ured is modelled via linked list (cf. Figure 2).

4. To simplify queries regarding the order of rules,

each rule has a link to all successors.

5. IPv4 subnets are inferred to be within the same

zone as their parent networks.

6. Each rule addressing an IPv4 source or destination

contains respective IPv4 interfaces.

7. Firewall types are modelled by different classes.

8. The rules are modelled as distinct individuals.

This system ontology provides a suitable model to

embed the effective conﬁguration. However, it is not

part of the approach and therefore not the subject of

evaluation here. Rather, it serves as an “environmen-

tal example” to help the reader understand the ap-

proach.

3 RELATED APPROACHES

Previous approaches of ontology-based security anal-

ysis covering NACs can be summarized as follows:

• Approach 1 - Modelling policies in an abstract

conﬁguration language which can be used to eval-

uate the rules and to automatically generate NAC-

speciﬁc rules (Mart

ınez P

erez et al., 2007), (Davy

et al., 2013).

• Approach 2 - Automatically translate NAC-

speciﬁc rules into an abstract conﬁguration lan-

guage which can be used to evaluate the rules (Hu

et al., 2011), (Tong et al., 2015).

• Approach 3 - Modelling each NAC conﬁgura-

tion with language-dependent representations and

searching for issues on rule chain level (Fitzgerald

et al., 2007), (Foley and Fitzgerald, 2008), (Cor-

dova et al., 2018).

• Approach 4 - Modelling inter-policy relations

manually and searching for issues on the so cre-

ated abstract relationship (Fitzgerald et al., 2008),

(Fitzgerald et al., 2009).

In the following paragraphs, some of this research is

explained in more detail.

Research following Approach 1 concentrates on

generic policies, which are automatically trans-

formable into concrete conﬁgurations. Besides work

on general policy languages (Davy et al., 2013), the

ICISSP 2021 - 7th International Conference on Information Systems Security and Privacy

552

Table 1: Comparison of the four main classes of NAC modelling.

A 1 A 2 A 3 A 4 EC

Finding conﬁguration issues in rule chains, like shadowed, redundant, gen-

eralized rules

1 3 4 0 (4)

Finding inter-NAC issues like inconsistencies regarding certain policies 3 2 0 1 4

Finding network-centred issues not focussing NAC-rules (cf. example ques-

tion of Section 4)

2 2 0 3 4

Providing a vendor-agnostic NAC conﬁguration representation 4 3 0 0 2

Providing a representation covering all NAC conﬁguration languages 2 2 0 0 3

Providing a fully automated model generation strategy 2 2 2 0 3

term most related to this approach is policy-based net-

work management (PBNM). P

erez et al. (Mart

ınez

erez et al., 2007) presented a framework and pol-

icy representation for PBNM - more precisely the dis-

tributed ﬁrewall strategy, where ﬁrewall rules are de-

ﬁned in a centralized manner and are then enforced

at each network endpoint. Their policy representa-

tion is based on the – meanwhile outdated – OWL

mapping

of the common information model (CIM)

(Textor et al., 2010), which the authors extended with

concepts for the formalization of NAC policies that

are supposed to be translated to the respective NAC-

speciﬁc rules.

Approach 2 is comparable to Approach 1, but con-

centrates on the generation of the generic policies

from speciﬁc conﬁguration. Hu et al. (Hu et al., 2011)

presented a framework to build generic policies from

arbitrary access control policies, using an ontologi-

cal approach. The authors evaluated it using a simple

ﬁrewall conﬁguration and XACML

. Furthermore, as

an application of the approach, the authors showed

how redundant and conﬂicting conﬁgurations can be

discovered on that abstract layer. However, due to the

simplicity of the ﬁrewall conﬁguration utilized, which

does not contain complex control, state or substitution

commands, the approach is not applicable for mod-

ern ﬁrewalls, as it is. Tong et al. (Tong et al., 2015)

presented another example of Approach 2 which also

presents a generic algorithm to create the generaliza-

tion which, according to the authors, covers all NAC

conﬁguration languages.

Approach 1 and Approach 2 share the disad-

vantage of unpredictable expressiveness (henceforth

called Expressiveness Issue) of the generic language.

This means that it is unclear to what extend the

various conﬁguration languages are covered by the

generic language. This is a natural issue of any lan-

guage which is supposed to formalize conﬁgurations

on a generic level. Moreover, the approaches suffer

https://wwwvs.cs.hs-rm.de/oss/cimowl/index.html,

last accessed: 15.12.2020

https://www.oasis-open.org/committees/tc home.php?

wg abbrev=xacml, last accessed: 16.12.2020

from Scalability Issues - which are discussed in more

detail later in this section - and the dependency on the

transformation algorithms. The latter dictates what

really can be analysed within the respective generic

representation of rules and is henceforth called Trans-

formation Issue.

Approach 3 enables NAC-conﬁguration-

language-speciﬁc analysis. As an example, Foley

and Fitzgerald (Fitzgerald et al., 2007), (Foley and

Fitzgerald, 2008) proposed an OWL representation

of the Netﬁlter ﬁrewall and explained how this rep-

resentation is used to ﬁnd conﬁguration issues using

SWRL and reasoning. Later, the authors extended

their approach by adding risks and thresholds in order

to analyse the sufﬁciency of NAC policies, which

the authors suggest to use for inter-NAC analysis

(Approach 4) (Fitzgerald et al., 2008). Moreover, the

authors suggested to perform inter-NAC identiﬁca-

tion of conﬁguration issues, like shadowing, using

the intra-NAC approach. However, (Fitzgerald et al.,

2008) does not show how this should be scalable,

since with their method each rule would have to

be written for every possible NAC combination

separately (no generic NAC model is utilized). This

aligns to the fact that the authors later presented the

risk-based method as the inter-NAC analysis solution

of their choice in (Fitzgerald et al., 2009).

The previously mentioned Scalability Issues man-

ifest through information which needs to be evaluated

by every query or rule (Approach 1, Approach 2 and

Approach 3), vendor-speciﬁc modelling which makes

it’s application for inter-NAC analysis infeasible (Ap-

proach 3) and the necessity to manually add the rele-

vant knowledge to the model (Approach 4), instead of

generating or inferring it.

During our research, we identiﬁed six aspects

a modelling strategy of NAC conﬁguration should

cover, in order to be adequate for security analysis.

Table 1 displays the estimated degree in which each

aspect is covered by an approach class (abbreviated

as A 1 - A 4), using a scale from 0 to 4, where 0 is no

and 4 is full coverage. Furthermore, the approach of

modelling the effective conﬁguration (abbreviated as

Efﬁcient Semantic Representation of Network Access Control Conﬁguration for Ontology-based Security Analysis

553

EC) is analogously assessed and thus presents a quan-

tiﬁcation of the improvement compared to related ap-

proaches.

The table shows that even approaches targeting a

certain aspect are not being estimated to cover the as-

pect to a full extend. The main reasons for this esti-

mation are their expressiveness and scalability issues

which are signiﬁcantly mitigated by the approach de-

scribed in the following section. A more in depth dis-

cussion of the effective conﬁguration approaches’ as-

sessment is provided in Section 5.

4 EFFECTIVE CONFIGURATION

This section presents the effective conﬁguration ap-

proach which provides a solution for the Expressive-

ness Issue, Transformation Issue and Scalability Is-

sues.

Listing 2 describes the strategy of generating the

effective conﬁguration model, which can be applied

for common NAC-conﬁgurations, as pseudo code.

This strategy is conﬁguration language agnostic, but

contains conﬁguration-language-speciﬁc functions an

implementation has to provide.

Listing 2: Pseudo code describing the strategy to generate

the effective conﬁguration representation.

1 integrate additional conﬁg ( Λ )

2 transform action types( Λ )

3 f o r e a c h s ∈ Σ{

4 Λ

= transform to last match wins ( Λ

)

5 i n t e g r a t e Λ

i n t o Λ

6 }

7 f o r e a c h r u l e r ∈ Λ {

8 p

= get pattern ( r )

9 P = get overlapping patterns ( p

)

10 i f P 6=

0 {

11 P

= split expand reduce ( P , p

)

12 remove P from Π

13 add P

t o Π

14 } e l s e {

15 add p

t o Π

16 }

17 }

18 ϒ = create ﬂow concepts ( Π )

19 f o r e a c h p ∈ Π {

20 f o r e a c h t ∈ ϒ {

21 i f p c o n t a i n s t− s p e c i f i c

i n f o r m a t i o n i

{

22 add to ontology ( i

, p )

23 }

24 }

25 }

The following list provides deﬁnitions and clariﬁ-

cations for Listing 2:

• Λ contains the rule chain, i.e. the main con-

ﬁguration of the NAC instance. It is assumed

that any substitution or similar additional con-

ﬁguration has already been resolved, or is trans-

formed into the rule chain as part of the inte-

grate additional conﬁg routine, so that Λ after

this function only consists of the rule chain and

any necessary conﬁgurations which cannot be in-

tegrated. Listing 1 contains an example for a

necessary substitution in the form of domain and

http which are placeholders for the actual ports

and need to be replaced.

• transform action types performs the transforma-

tion of the rule’s actions to “allow” and “block”.

This reduction is useful because later on the ex-

act behaviour of the NAC instance is no longer

relevant. Instead, it is only of interest whether

certain network trafﬁc is allowed to pass the in-

stance or not. As an example, two actions that

block ICMP, where one sends a response on re-

ceiving the ICMP package and the other does not,

would both be substituted with the “block” action.

• Σ is the set of evaluation strategies of the NAC

conﬁguration.

• Λ

⊂ Λ is the partial rule chain of an evaluation

strategy s ∈ Σ.

• “integrate Λ

into Λ” means that the modiﬁed

partial rule chain Λ

replaces the original partial

rule chain Λ

in Λ such that it integrates into the

correct overall order. This reordering is important

because the evaluation strategy of Λ

is different

to the strategy ofΛ

• Π contains both, the patterns for allowed and for

blocked trafﬁc, in order to avoid a signiﬁcant ex-

pansion of the algorithm with various redundancy

due to the additional case distinctions. Instead, all

pattern processing functions are deﬁned as action-

type-aware.

• get overlapping patterns returns the patterns

which overlap with the passed pattern.

• split expand reduce creates as many sub-patterns

as necessary to represent the corresponding

passed patterns without containing contradictions

regarding the associated actions. This is explained

in more detail later in this section.

• create ﬂow concepts creates the ﬂow concepts

that do not yet exist in the model. These are

classes and roles that can be used per combina-

tion of action, identiﬁer type (e.g. IPv4 address

range or ports), ISO/OSI layer and protocol to rep-

resent the respective subpattern, including its re-

lationships to other subpatterns and the respective

ICISSP 2021 - 7th International Conference on Information Systems Security and Privacy

554

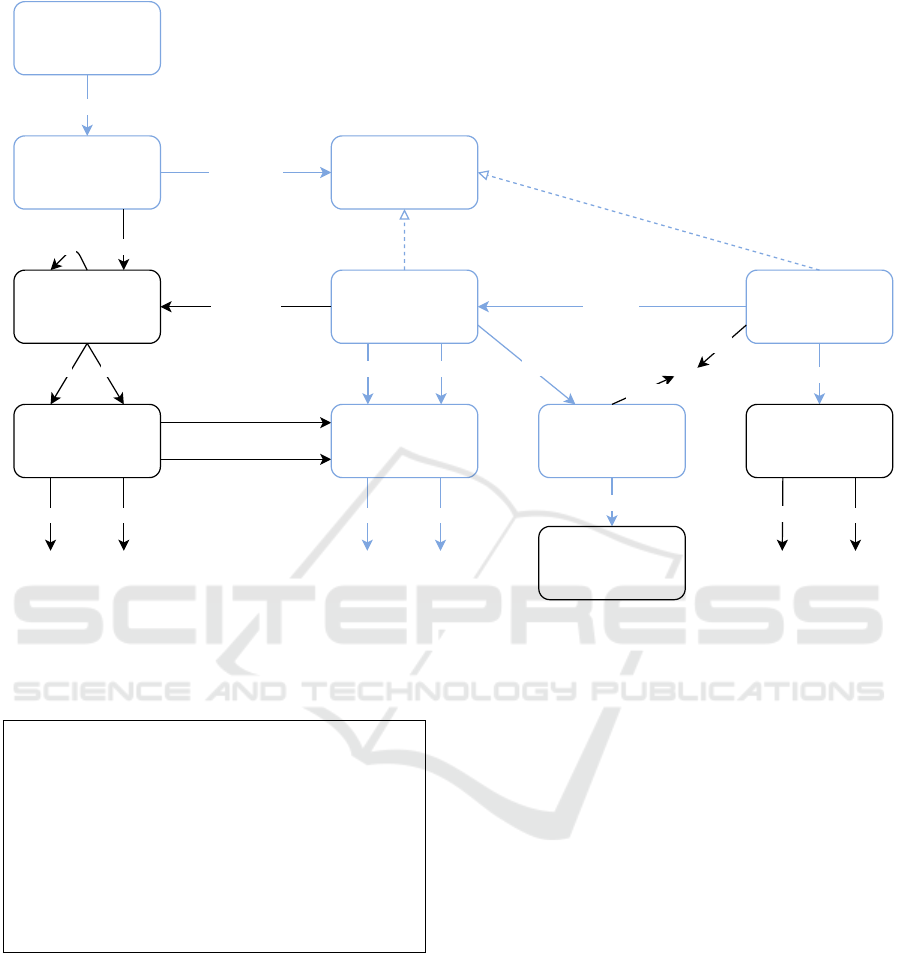

rules (if also part of the model). An example of

this is shown in Figure 2.

• ϒ is the ordered list of ﬂow concept types (cf.

AllowedIpV4Flow and AllowedTcpFlow in Fig-

ure 2). The order of the list is ascending with ref-

erence to the concerned ISO/OSI layer.

• add to ontology adds the passed information of

the pattern to the model using the ﬂow concepts

of the corresponding ﬂow concept type. In this

step, the already added information of the same

pattern is also linked to the newly added informa-

tion (cf. usesFlow from Figure 2). For the case of

allow actions, this reﬂects that each child concept

of AllowedFlow (e.g. AllowedEthernetFlow,

AllowedIpV4Flow and AllowedTcpFlow) is ei-

ther a self-contained pattern or a reﬁnement of an-

other AllowedFlow.

The following paragraphs provide additional in-

sights to the strategy.

The ﬁrst part of the strategy (lines 1-6) generalizes

the NAC conﬁguration, by dissolving substitutions -

like names for IP networks or hosts, service names

for port numbers or NAT tags for hosts - and by trans-

forming individual processing control strategies into

a “last-match-wins” strategy. For pfSense ﬁrewalls,

the latter can be achieved by separating the normal

from the quick rules, reversing the order of the quick

rules and concatenating the list of normal rules to the

reversed list of quick rules.

Since each rule can be interpreted as a pattern and

an action, in lines 7-17 the algorithm iterates over the

patterns, derives which patterns overlap with already

processed ones and adds the others to the pattern list.

However, if a pattern p

overlaps with an already pro-

cessed one, the following cases can occur:

1. Patterns overlap with p

partially and the respec-

tive rules have a different action than r.

2. Patterns overlap with p

partially and the respec-

tive rules have the same action as r.

In the ﬁrst case, each already processed pattern p will

be split into the parts of the pattern which are not cov-

ered by p

and the parts covered by p

. The ﬁrst parts

are reintroduced to the stored pattern as substitution

for p, while the second parts get substituted by p

In the second case, the already processed patterns are

merged with p

. Patterns overlapping with other pat-

terns occur in every NAC conﬁguration, since each

rule overlaps with the default rules (cf. rules 1 and 2

of Listing 1). During the processing of the algorithm,

Π remains consistent and free of contradictions.

Lines 18-25 address the actual modelling of patterns

for allowed or blocked trafﬁc, i.e. the effective conﬁg-

uration. The already referenced Figure 2 displays an

excerpt of a model for allow patterns. As the diagram

visualizes, each allowed ﬂow is linked to the network

knowledge of the model (cf. Section 2), which sig-

niﬁcantly simpliﬁes queries and processing tasks that

include, but are not limited to, the respective NAC

instance. Furthermore, the blue concepts and prop-

erties are part of the effective conﬁguration whereas

the black concepts and properties only exist if the

NAC conﬁguration is modelled as well. This is op-

tional, but has the advantage of supporting the intra-

NAC misconﬁguration detection Approach 3 allows

(cf. Section 3). Moreover, if issues are discovered

when analysing the effective conﬁguration, conclu-

sions on the causing rule can obviously only be drawn

if a representation of the rule is present and linked.

For this, an identiﬁer of the rule would already be

a sufﬁcient degree of knowledge, although existing

misconﬁguration detection approaches would not be

applicable.

Example Analysis. An ontology, built using the

method described in the preceding paragraphs,

enables conﬁguration-language-agnostic rules and

queries for connection- or trafﬁc-based model exten-

sion and analysis (cf. Section 3). To substantiate this

claim, the following paragraphs present an exemplary

analysis based on the following question:

Is there a TCP connection possible from the Field

Zone (containing the connection initiator) to the

DMZ?

To shorten the here described example, let the

question only be answered positively if a possible

TCP/IP link can be derived, able to pass both ﬁre-

walls, which implies that no bypasses or pivoting

opportunities are evaluated. Moreover, the example

analysis assumes that only one ﬁrewall is connected

to the Field Zone and only one path exists from the

Field Zone to the DMZ, with respect to ﬁrewalls to

pass.

In a ﬁrst step, the SWRL rule in Listing 3 links

the IPv4 ﬂows directly to the known subnets of their

source networks. An analogue rule is applied for des-

tination networks as well.

Listing 3: SWRL rule adding source networks to allowed

IPv4 ﬂows to simplify later rules and queries.

1 Allowed Ip V4Flow ( ? a i f )

2 ˆ s r c N e t w o r k ( ? a i f , ? s r c N e t )

3 ˆ p a r e n t N e t w o r k ( ? subN et , ? s r c N e t )

4 −> s r c N e t w o r k ( ? a i f , ? s u bNet )

In consequence, the query from Listing 4 directly

results in a selection of all ﬁrewalls, supporting the

requested connection.

Efﬁcient Semantic Representation of Network Access Control Conﬁguration for Ontology-based Security Analysis

555

Firewall

Configuration

firewallConfig

Rule

firstRule

srcInterface

IpV4Interface

dstInterface

nextRule

ipAddress networkPrefix

assignedToNetwork

isInNetwork

AllowedIpV4Flow

allowedFlow

IpV4Network

srcNetwork dstNetwork

AllowedFlow

ipAddress networkPrefix

xsd:integer xsd:byte xsd:integer xsd:byte

AllowedTcpFlow

usesFlow

dstPortRange

PortRange

portMin

xsd:integer

AllowedInbound

EthernetFlow

usesFlow

ethernetInterface

portMax

xsd:integer

...

firewallRule

EthernetInterface

Figure 2: Excerpt of the effective conﬁguration ontology.

Listing 4: SQWRL statement selecting all ﬁrewalls, which

have a matching allowed ﬂow.

1 c o n t a i n s N e t w o r k ( F i e l d Z o n e , ? sn )

2 ˆ c o n t a i n s N e t w o r k (DMZ, ? dn )

3 ˆ F i r e w a l l ( ? f )

4 ˆ f i r e w a l l C o n f i g ( ? f , ? f c )

5 ˆ AllowedTcp Flow ( ? a t f )

6 ˆ a l l o w e d Fl o w ( ? fc , ? a t f )

7 ˆ u s e s F l o w ( ? a t f , ? a i f )

8 ˆ All owedIpV4F low ( ? a i f )

9 ˆ s r c N e t w o r k ( ? a i f , ? s n )

10 ˆ d s t N e t w o r k ( ? a i f , ? dn )

11 −> s q w r l : s e l e c t ( ? f )

Consequently, if the result is empty, the link is not

allowed and vice versa.

Let’s assume that the analysis should further de-

termine whether a path from the Field Zone to the

DMZ exists which only passes ﬁrewalls from the

queried set. Because each IPv4 interface (including

the ones of ﬁrewall components) is directly linked

to an IPv4 network, a transitive “connected” rela-

tion between ﬁrewalls can be inferred, if they share

a network. If Listing 4 is extended by the condition

connected(?f, ?f), the additional requirement is

fulﬁlled.

5 DISCUSSION AND FUTURE

WORK

As this section shows, the effective conﬁguration ap-

proach does not suffer from Scalability Issues, since

the model is created once and generic model exten-

sion and analysis can be applied to it. Instead of

formalizing conﬁguration on a generic or abstract

level, the effective conﬁguration strategy models all

protocol-speciﬁc patterns that can trigger NAC ac-

tions. This is the reason for the allocation of only 2

points for aspect 4 in Table 1.

The strategy expresses all network-level effects of

the conﬁguration by design and thus does not suffer

from the Expressiveness Issue. Furthermore, if used

accompanied by a model of the rule chain, the ap-

proach can even provide inference of a set of rules

responsible for an identiﬁed problem. Therefore, al-

though the approach does not improve rule-level anal-

ysis, to the best of our knowledge, it is the ﬁrst ap-

proach to provide traceability to corresponding NAC

rules as part of an identiﬁcation of a cross-NAC prob-

lem. The ability to support conﬁguration-language-

speciﬁc rule models implies that the approach fully

ICISSP 2021 - 7th International Conference on Information Systems Security and Privacy

556

supports Approach 3 which means that it indirectly

earns the high score of aspect 1 in Table 1. In addi-

tion, the ﬁxed strategy of deriving the disjoint patterns

accompanied by their afﬁliation to the block or al-

low actions mitigates the Transformation Issue. Nev-

ertheless, it should be noted that a reverse transfor-

mation has not been analysed. This and the fact that

still a conﬁguration-language speciﬁc transformation

is needed once for every language is the reason why

the approach does not get allocated the high score re-

garding aspects 5 and 6 in Table 1.

Stateful control and ﬁltering conﬁgurations are cur-

rently ignored by our implementations. In future work

we will analyse to what extend they should be part of

the effective conﬁguration, resp. linked to it.

6 CONCLUSION

This paper discusses approaches for modelling net-

work access control conﬁguration for security analy-

sis, identiﬁes issues and proposes an alternative ap-

proach solving these issues. For this, the effective

conﬁguration of rule chains is derived and modelled

in a conﬁguration-language-agnostic way. The paper

shows that the approach does not suffer from scala-

bility problems, since the model is created once and

generic model extensions and analyses can be ap-

plied to it. The effective conﬁguration represents all

protocol-speciﬁc patterns that can trigger actions in a

rule chain. Therefore, it expresses all network-level

effects of the conﬁguration and, if used with a model

of the rule chain, can even provide inference of a set

of rules responsible for an identiﬁed problem. There-

fore, the effective conﬁguration approach is an im-

provement over existing approaches and, moreover,

can be used in combination with them.

ACKNOWLEDGEMENTS

This work has been funded by the Federal Ministry

of Education and Research (BMBF, Germany) in the

project AICAS (project number 16KIS1063K).

REFERENCES

Cordova, R. F., Marcovich, A. L., and Santivanez, C. A.

(2018). An Efﬁcient Method for Ontology-Based

Multi-Vendor Firewall Misconﬁguration Detection: A

Real-Case Study. In Cely Callejas, J. D., editor, 2018

IEEE ANDESCON, pages 1–3, [Piscataway, New Jer-

sey]. IEEE.

Davy, S., Barron, J., Shi, L., Butler, B., Jennings, B.,

Grifﬁn, K., and Collins, K. (2013). A language

driven approach to multi-system access control. 2013

IFIP/IEEE International Symposium on Integrated

Network Management (IM 2013), pages 1004–1008.

Fitzgerald, W. M., Foley, S. N., and Foghl

u, M.

O. (2008).

Network access control interoperation using semantic

web techniques. In WOSIS, pages 26–37.

Fitzgerald, W. M., Foley, S. N., Foghl

u, M.

O., et al.

(2009). Network access control conﬁguration man-

agement using semantic web techniques. Journal

of Research and Practice in Information Technology,

41(2):99.

Fitzgerald, W. M., Foley, S. N., and O’Foghlu, M. (2007).

Conﬁdent ﬁrewall policy conﬁguration management

using description logic. In 12th Nordic Workshop on

Secure IT Systems, pages 11–12.

Foley, S. N. and Fitzgerald, W. M. (2008). Semantic web

and ﬁrewall alignment. In 2008 IEEE 24th Inter-

national Conference on Data Engineering Workshop,

pages 447–453.

Gruber, T. R. (1993). A translation approach to portable

ontology speciﬁcations. Knowledge Acquisition,

5(2):199–220.

Hu, H., Ahn, G.-J., and Kulkarni, K. (15.10.2011 -

18.10.2011). Ontology-based policy anomaly man-

agement for autonomic computing. In Proceedings

of the 7th International Conference on Collaborative

Computing: Networking, Applications and Workshar-

ing. IEEE.

Khelf, R. and Ghoualmi-Zine, N. (26.11.2018 -

27.11.2018). Ipsec/ﬁrewall security policy anal-

ysis: A survey. In 2018 International Conference on

Signal, Image, Vision and their Applications (SIVA),

pages 1–7. IEEE.

Mart

ınez P

erez, G., Garc

ıa Clemente, F. J., and G

omez

Skarmeta, A. F. (2007). Managing semantic–aware

policies in a distributed ﬁrewall scenario. Internet Re-

search, 17(4):362–377.

O’Connor, M. and Das, A. (2009). SQWRL: A Query

Language for OWL. In Proceedings of the 6th In-

ternational Conference on OWL: Experiences and Di-

rections - Volume 529, OWLED’09, pages 208–215,

Aachen, DEU. CEUR-WS.org.

Patzer, F., Volz, F., Usl

ander, T., Blocher, I., and Beyerer, J.

(2019). The industrie 4.0 asset administration shell as

information source for security analysis. In 2019 24th

IEEE International Conference on Emerging Tech-

nologies and Factory Automation (ETFA), pages 420–

427. IEEE.

Textor, A., Stynes, J., and Kroeger, R. (2010). Transfor-

mation of the common information model to owl. In

Current trends in web engineering, Lecture Notes in

Computer Science SL 3, Information Systems and Ap-

plication, incl. Internet/Web and HCI, pages 163–174,

Berlin. SpringerLink.

Tong, W., Liang, X., Li, X., Zhao, J., and Liang, X.

(2015). An analysis method of nac conﬁguration con-

ﬂict based on ontology. In Proc. of the 3rd Interna-

tional Conference on Digital Enterprise and Informa-

tion Systems (DEIS2015), page 46.

Efﬁcient Semantic Representation of Network Access Control Conﬁguration for Ontology-based Security Analysis

557
