A Model-driven Implementation of PSCS Speciﬁcation for C

Maximilian Hammer, Ralph Maschotta, Alexander Wichmann, Tino Jungebloud, Francesco Bedini

and Armin Zimmermann

Systems and Software Engineering Group, Computer Science and Automation Department,

Technische Universit

at Ilmenau, Ilmenau, Germany

https://www.tu-ilmenau.de/sse/

Keywords:

Model Driven Software Development, Composite Structures, Executable UML, Code Generation, PSCS,

fUML, UML, C++.

Abstract:

OMG’s PSCS speciﬁcation extends the execution model of fUML by precise runtime semantics for UML com-

posite structures. With composite structures being a concept for describing structural properties of a model,

the majority of execution semantics speciﬁed by PSCS concern analysis and processing of static information

about the model’s ﬁne-grained structure at runtime. Using Model-To-Text-Transformation to generate source

code, which serves as an input for PSCS’s actual execution environment, the runtime level of model execution

can be relieved by outsourcing analysis and processing of static information to the level of code generation.

By inserting this step of preprocessing, the performance of the actual model execution at runtime can be im-

proved. This paper introduces an implementation of the PSCS speciﬁcation for C++ based on code generation

using Model-to-Text-Transformation. Moreover, it presents a set of test models validating the correct func-

tionality of the implementation as well as a performance benchmark. The PSCS implementation presented by

this paper was developed as a part of the MDE4CPP

∗

project.

1 INTRODUCTION

With Model-driven Architecture (MDA), the Object

Management Group (OMG) provides a standardized

approach to Model-driven engineering (MDE) tech-

niques. MDE, and respectively Model-driven Soft-

ware Development (MSDS) focusing speciﬁcally on

software development processes, suggest using mod-

eling languages to describe, represent and analyze

complex (software-)systems on higher levels of ab-

straction and use them to generate artifacts (e.g.,

source code) automatically throughout the whole de-

velopment process. By that, model-driven approaches

aim to increase ﬂexibility, reusability as well as efﬁ-

ciency of development processes (Stahl and V

olter,

2005).

In the domain of systems and software engineer-

ing, OMG’s Uniﬁed Modeling Language (UML) has

established as a de facto standard for modeling lan-

guages (Hutchinson et al., 2011). One of the main ob-

jectives of MDA is the ability to execute UML mod-

els. That means being able to create executable ap-

plications directly from conceptual models, either by

∗

See https://www.tu-ilmenau.de/sse/forschung/

projekte/mde4cpp/

complete transformation or by simulating the models

using an execution environment (OMG, 2014). With

UML, however, mainly being designed to be widely

applicable for all sorts of systems and software, and

aiming to be a tool for describing conceptual models

rather than being some sort of compilable program-

ming language, UML lacks precise semantical spec-

iﬁcation of its modeling concepts and metamodel el-

ements (Bedini et al., 2017). This circumstance in-

tuitively contradicts the idea of being able to execute

UML models like compilable source code. In 2011

OMG released the initial version of the fUML speci-

ﬁcation (Semantics of a Foundational Subset for Ex-

ecutable UML Models), which speciﬁes precise exe-

cution semantics for a minimal subset of UML activi-

ties and classes (OMG, 2011). fUML makes it possi-

ble to realize executable activity diagrams being one

of the most widely used UML concepts for modeling

behavior in the industry (Hutchinson et al., 2011). In

2015 the OMG extended fUML by PSCS (Precise Se-

mantics of UML Composite Structures), which speci-

ﬁes runtime semantics for UML composite structures

(OMG, 2015).

Composite structures are used to model the struc-

ture of systems as complex part-whole relationships.

100

Hammer, M., Maschotta, R., Wichmann, A., Jungebloud, T., Bedini, F. and Zimmermann, A.

A Model-driven Implementation of PSCS Speciﬁcation for C++.

DOI: 10.5220/0010267801000109

In Proceedings of the 9th International Conference on Model-Driven Engineering and Software Development (MODELSWARD 2021), pages 100-109

ISBN: 978-989-758-487-9

Such composite structures (metaclass StructuredClas-

siﬁer) can be described as a topology of parts (meta-

class Property whose AggregationKind is composite)

that are linked through connectors (metaclass Con-

nector) to form the internals of their owning element

(e.g., a Class or a Component) in terms of a network.

A classiﬁer may also deﬁne interaction points (meta-

class Port) to model communication interfaces be-

tween itself (or its internal parts) and its environment.

Ports are dedicated parts that encapsulate the behav-

ior of their owning classiﬁer (metaclass Encapsulat-

edClassiﬁer) and specify its provided and required in-

terfaces (OMG, 2017).

The PSCS speciﬁcation deﬁnes runtime semantics

for executable UML models that include Structured-

Classiﬁers, as well as EncapsulatedClassiﬁers. Like

fUML, PSCS provides a metamodel that describes an

execution environment to realize those runtime se-

mantics deﬁned in the speciﬁcation. In terms of struc-

tural semantics, PSCS speciﬁes the lifecycle manage-

ment of composite structures at runtime (i.e., creation

and destruction of instances of composite structures).

In terms of behavioral semantics, PSCS deﬁnes how

instances of composite structures communicate with

each other. More precisely, the behavioral seman-

tics of PSCS specify how communication, either syn-

chronously using operation calls or asynchronously

using signals is forwarded through a network of in-

terconnected runtime objects (OMG, 2019). While

the latter concerns dynamic aspects of a model which

have to be evaluated at runtime, the structural seman-

tics of PSCS mainly focus on the analysis and evalu-

ation of static information of a model. That is, for ex-

ample, evaluating how composite structures and their

internal topologies have to be instantiated, depending

on the deﬁnition of their structural properties in the

model (e.g., their parts and ports, their connectors,

involved multiplicities, etc.). The fact that such in-

formation is static for a model and does not change

during execution gives us the ability to outsource its

analysis and evaluation to a step of preprocessing be-

fore the actual execution happens and thus decrease

the amount of data processing required at runtime.

Of course, since PSCS (as well as fUML) is

designed-platform independent and makes no as-

sumptions about the environment it is implemented

in, all of PSCS’s functionality is encapsulated in its

metamodel classes which form a pure virtual machine

for executing models (OMG, 2019). The aim of the

PSCS implementation presented by this paper is to

make use of auto-generated, model-speciﬁc source

code to form the basis of the model execution as an in-

put for PSCS’s actual execution environment. By that,

the required functionality for executing PSCS models

concerning analysis and processing of static, struc-

tural information about the model (which is known

at generation time and does not change as long as

the underlying model does not change) can be out-

sourced from the execution environment itself to the

process of code generation. The described approach

should reduce computation overhead during execu-

tion because the evaluation of structural model infor-

mation (which is a signiﬁcant part of PSCS’s runtime

functionality) is done only once during generation in-

stead of multiple times at runtime during the actual

model execution.

Section 2 shows the realization workﬂow of the

PSCS implementation that is introduced by this pa-

per and selected design challenges and how they were

solved. Section 3 presents how the implementation’s

conformance to the original speciﬁcation and its cor-

rect functionality were validated as well as a perfor-

mance evaluation. The results of the validation pro-

cess and possible future work are ultimately discussed

in section 4.

2 METHODOLOGY

This section describes the design workﬂow and

the components that were implemented to realize a

model-driven implementation of the PSCS speciﬁca-

tion. One of the major challenges was the porting of

PSCS’s concept of links, that connect runtime objects

to form a topology, to the level of source code genera-

tion as well as the resulting requirements for memory

management. Details on how those challenges were

solved will also be explained in this section.

2.1 Workﬂow

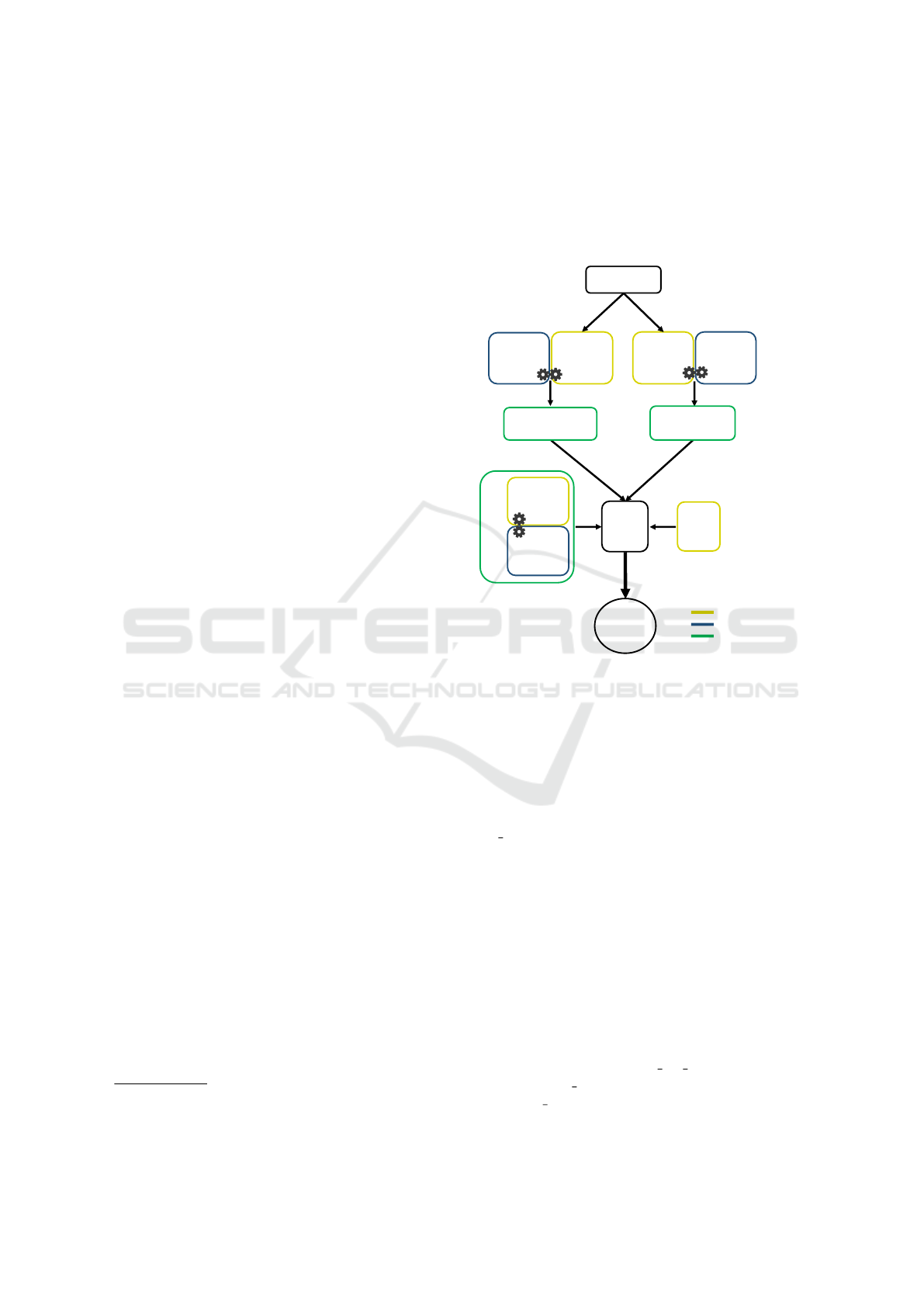

The realization of the PSCS speciﬁcation presented

by this paper is based on the MDE4CPP project (Sys-

tems and Software Engineering Group, 2016), which

develops an open-source framework for MDSD us-

ing C++. Being one of the most important third party

components of the MDE4CPP framework, the Eclipse

Modeling Framework

(EMF) is used as the founda-

tional toolset for creating and analyzing models as

well as developing the source code generation facil-

ities required for the implementation of PSCS pre-

sented by this paper.

MDE4CPP provides model-driven implementa-

tions for the meta models of UML as well as

fUML (which are required for implementing PSCS).

Eclipse’s Ecore model is used as the meta meta

see https://www.eclipse.org/modeling/emf/

A Model-driven Implementation of PSCS Speciﬁcation for C++

101

model, because it is well integrated into EMF. More-

over, MDE4CPP provides generators for Ecore mod-

els as well as UML/fUML models (J

ager et al., 2016),

which are implemented using the open-source code

generator tool Acceleo (Eclipse Foundation, 2018).

As described before, not all functionalities of the

PSCS meta model can be substituted by static code

generation. In the presented implementation, func-

tionalities that concern dynamic aspects of a model at

runtime shall remain in the meta model. For realiz-

ing the PSCS meta model as the ﬁrst step, a machine-

readable representation in the form of an XMI model

provided by OMG was used, which was manually

converted into an Ecore model. Because Ecore’s

structure is realized mostly equivalent to EMOF

(Steinberg et al., 2009), it only provides capabilities to

describe a models structure but not its behavior. The

model’s behavior was implemented using annotations

that carry the functionality of the model classes in the

form of C++ source code. Based on the implemented

PSCS Ecore model, a C++ library of the model is gen-

erated using MDE4CPP’s Ecore4CPP generator (Sys-

tems and Software Engineering Group, 2016).

In order to outsource parts of PSCS’s functionality

to code generation, those semantical aspects that are

suitable to do so have to be identiﬁed. After an eval-

uation of the structural semantics of PSCS, two main

aspects were chosen to be implemented generation-

based:

1. Instantiation of composite structures, which in-

cludes:

• Recursive instantiation of parts and ports

• Instantiation and extraction of links acting as

connections between runtime objects, respec-

tively creating and retrieving runtime topolo-

gies

• Object creation based on default values, which

are modeled using instance speciﬁcations

2. Destruction of objects in the context of composite

structures, which includes:

• Recursive destruction of part and port instances

• Destruction of corresponding links, respec-

tively cleanup of runtime topologies after ob-

ject destruction

The corresponding functionalities were implemented

as extension modules for the existing generators

UML4CPP (J

ager et al., 2016) and fUML4CPP (Be-

dini et al., 2017), which produce model-speciﬁc

source code for the generated model libraries that

substitutes the functionalities which were outsourced

Essential MOF - an essential subset of OMG’s Meta

Object Facility

from the meta model. Other functionalities of PSCS

remain in the meta model, respectively the model li-

brary generated from the corresponding PSCS Ecore

model, which is linked with the generated model-

speciﬁc source code during compilation to produce

executable applications. Figure 1 depicts this process.

C++ aModel

Library

C++aModel

Execuon Library

UML

Meta

Model

Execuon Environment

Compile

Link

Executable

Soware

UML4CPP

Generator

fUML4CPP

Generator

PSCS4CPP

Extension

aModel.uml

PSCS4CPP

Extension

exisng components

new components

extended components

Figure 1: Resulting workﬂow for executable PSCS models

and integrated components.

2.2 Generation-based Realization of

Runtime Links

On the model level, parts and ports can be con-

nected via connectors to form an internal network

of a composite structure. In PSCS links (metaclass

CS Link) represent instances of connectors that inter-

connect speciﬁc runtime objects during model exe-

cution. That means that in the metamodel of PSCS,

links are instances (objects in the term of program-

ming languages) of a metaclass that explicitly carry

information about which objects they connect. C++

itself does not provide any concept for generically

connecting arbitrary objects with each other. To be

able to implement PSCS’s object instantiation and de-

struction semantics on the level of automated source

code generation, a concept to represent links implic-

itly was developed. Consider the example classes of

ﬁgure 2.

Because of association A

left right, class Left has

an attribute my right : Right and class Right has n at-

tribute my left : Left. Assume that we want to model

MODELSWARD 2021 - 9th International Conference on Model-Driven Engineering and Software Development

102

Left

Right

my_left

my_right

0..*

A_left_right

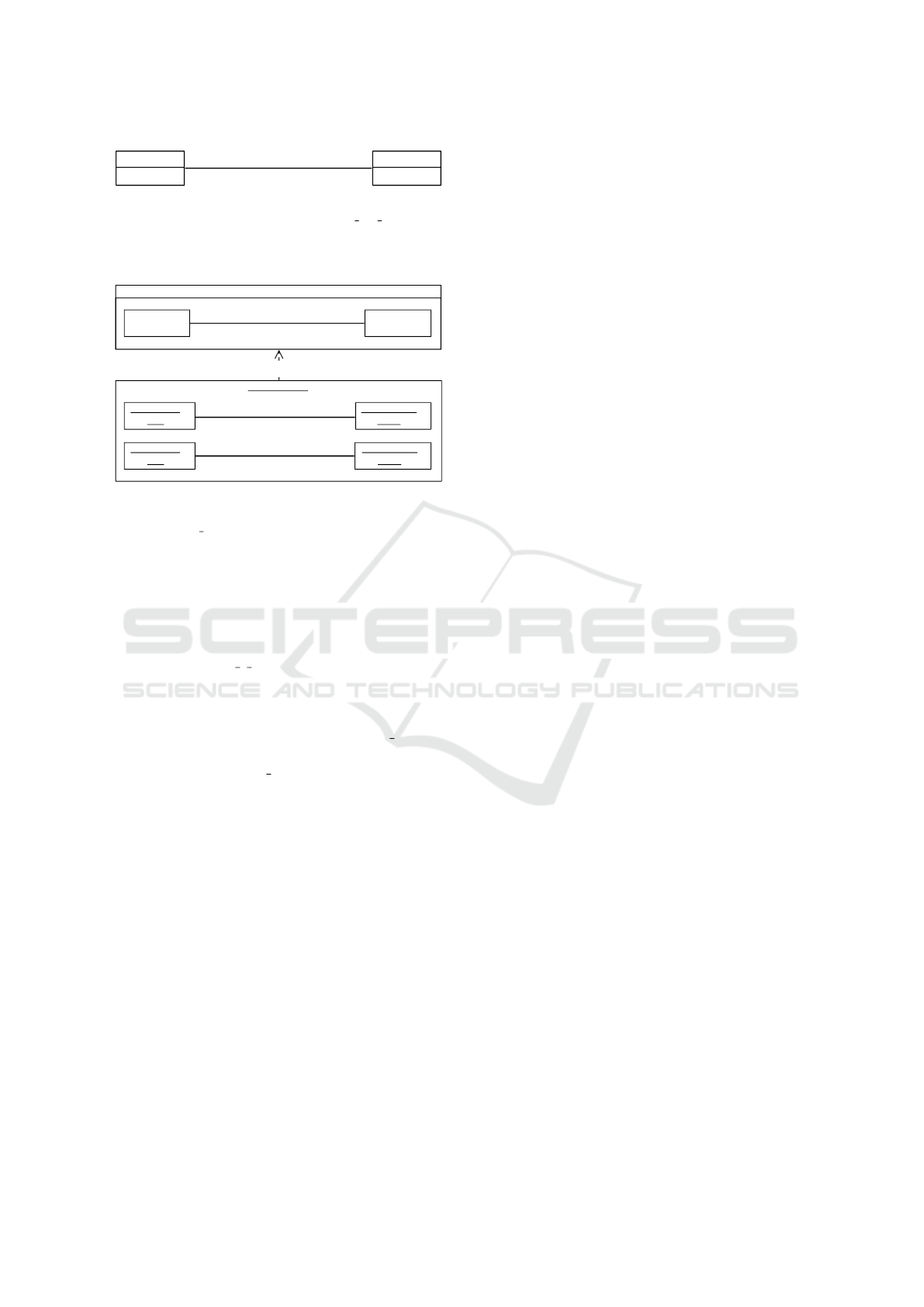

Figure 2: Class diagram showing two classes Left and Right

associated bidirectionally via association A left right.

a simple composite structure Comp as depicted in ﬁg-

ure 3.

Comp

partLeft :

Left [2..*]

partRight :

Right [2..*]

comp : Comp

partLeft[0]:

Left

partLeft[1]:

Left

partRight[0]: :

Right

partRight[1]: :

Right

my_left

my_right

1..*

<<instanceOf>>

l_r_1

l_r_0

l_r : A_left_right

Figure 3: Composite structure diagram of class Comp with

parts of classes Left and Right from ﬁg. 2 that are connected

via connector l r typed by the association from ﬁg. 2 (up-

per) as well as an instance comp of class Comp (lower).

When creating the instance comp : Comp we can

represent its internal links implicitly by letting

objects that should be connected refer to each other,

using the end properties of the association that

types the corresponding connector. To implicitly

represent the link l r 0 of instance comp (see ﬁgure

3) for example, we must generate source code that

creates a bidirectional reference between objects

comp::partLeft[0] and comp::partRight[0]. To

achieve that, we let comp::partLeft[0]::my right[0]

point to comp::partRight[0] as well as

comp::partRight[0]::my left[0] point to

comp::partLeft[0]. That way, we can create

topologies of connected objects without having to

instantiate explicit link instances, but rather represent

the information about connected objects implicitly

depending on which objects refer to each other. This

concept was used to implement a code generator that

generates source code to instantiate different kinds of

runtime topologies based on the model’s deﬁnition

by establishing bidirectional references as described

above. The PSCS speciﬁcation deﬁnes four kinds

of topologies (so-called connector patterns) whose

generator based instantiation is supported by the

implementation presented by this paper:

• Empty Pattern: A topology without objects and

hence without connections.

• Unconnected Pattern: A topology without con-

nections between its participating objects.

• Array Pattern: A topology consisting of 1-

to-1 connections between the corresponding

parts/ports that form a sequential order of con-

nected objects (ﬁgure 3 depicts an array pattern).

• Star Pattern: A topology in which each object

of one part/port is connected to each object of

the other part/port, forming a complete bipartite

graph between the connected properties.

Additionally, a mechanism was implemented that ex-

tends the model-speciﬁc execution library produced

by the fUML4CPP generator (see section 2.1). The

extension covers a generator-based adapter function-

ality between the generator-based components and the

metamodel level of a model execution. This adapter

functionality creates explicit link objects (used in

the PSCS metamodel) based on implicit link infor-

mation (used in the generator-based components) at

runtime, if and only if the PSCS execution environ-

ment requires them (e.g., to evaluate potential targets

during an invocation delegation). By implementing

this mechanism generation-based and hence model-

speciﬁc it can be ensured that only links that may be

useful for a speciﬁc execution step are processed at

runtime.

2.3 Memory Management

The MDE4CPP framework in which the PSCS imple-

mentation presented by this paper was realized uses

shared pointers of the C++-11 standard for its mem-

ory management. On the one hand, such shared point-

ers guarantee that memory is not deallocated as long

as it is referenced from somewhere. In other words,

no object that is managed by shared pointers is deleted

as long as there exists at least one shared pointer in-

stance that references the object (Stroustrup, 2013).

On the other hand, shared pointers guarantee that ob-

jects are deleted, only when they are not referenced

(i.e., not needed) anymore. The concept for implic-

itly representing links using objects that hold mutual

references to each other, which was introduced in the

previous section, inevitably produces circular depen-

dencies between connected objects. This causes prob-

lems trying to delete an object that is involved in such

a connection. If an instance of a composite structure’s

part shall be deleted during model execution it would

not truly be deleted (in terms of memory deallocation)

as long as it is connected to other objects, meaning

that other objects hold references to it. This leads to

both memory leaks as well as semantically incorrect

behavior during a model execution.

In cases where circular dependencies between ob-

jects are needed, it is suggested to use weak point-

ers for the back-reference (e.g., when implementing

A Model-driven Implementation of PSCS Speciﬁcation for C++

103

a composite pattern where both the parent and child

class refer to each other) (Stroustrup, 2013). In our

case there is no hierarchy between the connected ob-

jects, hence there is no identiﬁable ’back direction’.

Using weak pointers for one of the bidirectional ref-

erences would also have solved the issue for one ’di-

rection’ only. That is why the usage of weak pointers

would not have been a sufﬁcient solution for the im-

plementation presented by this paper. To solve the

issue sufﬁciently, a mechanism that generates model-

speciﬁc deletion routines for each model class was de-

veloped. When the deletion routine of an object is in-

voked, all references of connected objects that refer

to the object that is to be deleted, are destroyed. Af-

ter this process, there is only one shared pointer left

that manages our object. This last reference can now

safely be deleted, which ultimately results in the deal-

location of memory that holds the object, hence true

deletion.

3 VALIDATION

This section ﬁrst describes how the correct functional-

ity as well as conformance of the presented PSCS im-

plementation to OMG’s speciﬁcation were validated

using a set of test models. An example model is

described in section 3.1. Furthermore, section 3.2

presents a performance evaluation, including execu-

tion time and memory footprint of the PSCS imple-

mentation presented by this paper compared to a C++

reference implementation of PSCS as well as a Java

reference implementation of fUML.

3.1 Functional Validation

For validating correct functionality of the presented

PSCS implementation as well as its conformance to

the original speciﬁcation, a set of test models com-

bined with corresponding unit tests was implemented.

The test models are based on the PSCS test suite that

is provided by OMG and described in the speciﬁca-

tion document itself. The PSCS speciﬁcation states

that passing all test cases deﬁned in its test suite is

sufﬁcient for proving conformance of a tool that im-

plements the speciﬁcation (OMG, 2019). It should

be mentioned that asynchronous communication se-

mantics of PSCS are currently excluded from the pre-

sented implementation (and therefore from the vali-

dation process) as the processing of signals is not yet

supported in MDE4CPP.

The realized set of test models consists of four

different test suites, each addressing certain units of

functionality speciﬁed by PSCS:

1. Instantiation of topologies of runtime objects

based on composite structures.

2. Destruction of runtime objects which exist in the

context of composite structures (i.e., instances of

composite structures themselves or part/port ob-

jects of such instances).

3. Synchronous communication through a network

of runtime objects connected through links via

delegation of operation calls.

4. Synchronous communication via delegation of

operation calls (as in point 3) using the onPort at-

tribute of metaclass InvocationAction.

All test cases that were implemented to show the

presented PSCS implementation’s correct function-

ality could successfully be validated. The follow-

ing section describes an example model of test suite

4 that combines all functionalities mentioned above.

The original test model’s description can be found in

(OMG, 2019) on pages 94 and 95.

Example. The example model that is explained be-

low addresses synchronous communication between

instances of composite structures. More precisely,

when the model is executed, an operation call is in-

voked in an initial caller object. The call is then for-

warded through a network of port objects connected

through links to a target object, where it is ultimately

executed.

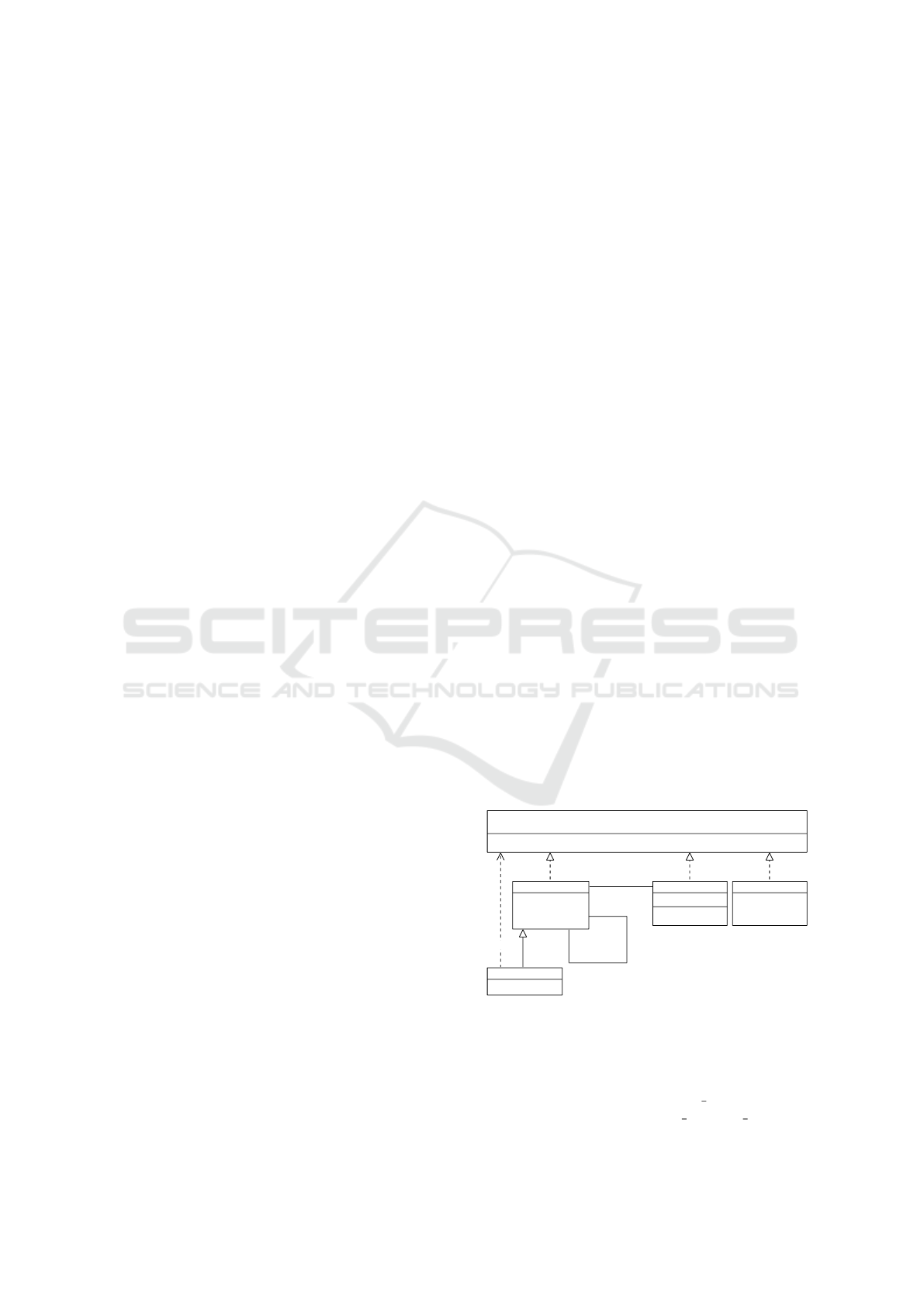

Figure 4 shows a class diagram of the example

model. Every class realizes interface I, which deﬁnes

the operation assignP. Only class B has an attribute p

of type int. Hence, class B is modeled as the only class

that truly implements the operation assignP, which

means that only class B will deﬁne a method for the

operation.

+assignP(v : int)

<<Interface>>

+assignP(v : int)

IImpl

-p : int

+assignP(v : int)

IProvReq

+assignP(v : int)

left

iImpl

right

<<use>>

Figure 4: Class diagram for test model.

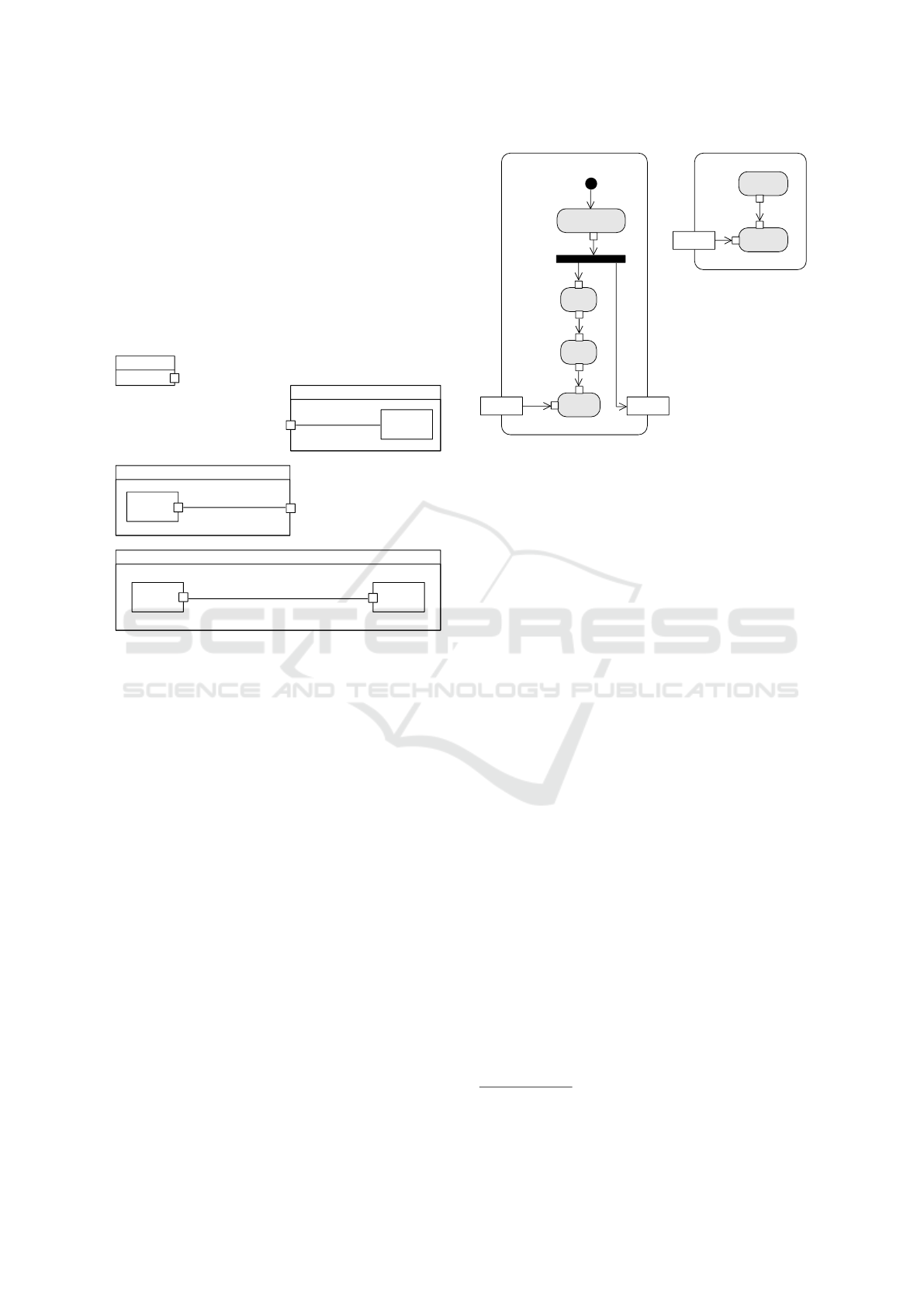

Figure 5 depicts class C from ﬁgure 4 as well as three

newly-introduced classes A, E and D as composite

structure diagrams. Classes A, C and E have ports

of type IImpl (which stands for I Implementation)

or IProvReq (which stands for I Provided Required)

MODELSWARD 2021 - 9th International Conference on Model-Driven Engineering and Software Development

104

from ﬁgure 4. The types of a port specify its provided

and required interfaces. In our example, class IImpl

provides interface I, because it has an interface real-

ization relationship (metaclass InterfaceRealization)

with I. Class IProvReq both provides and requires I

because it is inherited from IImpl (which determines

provision) and at the same time, it uses (metaclass Us-

age) interface I (which determines request). When an

operation call arrives at a port object, its provided and

required interfaces determine how the call is further

delegated from that port.

c : C [1]

b : B [1]

e : E [1]

a : A [1]

q : IProvReq [1]

q : IImpl [1]

q : IProvReq [1]

q : IImpl [1]

s : S

r : R

s : S

Figure 5: Composite structure diagram for test model.

Besides its structural aspects, the example model also

contains a test behavior called actTestCallDelegation

which is shown in ﬁgure 6 as an activity diagram.

First, an instance d : D is created. Further, an op-

eration call for assignP is invoked in d::e::c with

port C::q being set for the onPort attribute (not de-

picted) of action assignP() on Port q inside of activ-

ity actSetP. Instance d is returned by activity actTest-

CallDelegation to evaluate certain postconditions af-

ter its execution.

If the PSCS implementation presented by this paper

works correctly, the invoked operation call should ﬁrst

be delegated from port d::e::c::q to port d::e::q over

a link that was created from connector E::s (see ﬁg-

ure 5). Then the call should be dispatched out of d::e

and forwarded to port d::a::q over a link that was

created from connector D::s. Finally the operation

call must be dispatched inside d::a and delegated to

d::a::b over a link that was created from connector

A::r where it is ultimately executed. If the invocation

was delegated correctly, then after activity actTest-

CallDelegation has ﬁnished, property d::a::b::p must

be set to the value v that was provided into the activity.

In this case, v is chosen as 4.

actTestCallDelegation

createDObject

read

D::e

read

E::c

setP on C

v : int

out : D

actSetP

v : int

assignP()

on Port q

readSelf

d : D

e : E

c : C

owner : D

owner : E

target : C

value : int

v : int

context : C

self : C

Figure 6: Activity diagram for test model.

The output of the example model’s unit test rou-

tine is shown below:

Test model : Feature on both Required and

Provided Interface

-- Running test case: Feature on both

Required and Provided Interface --

d->a->b->p = 4

Operation call forwarded out of c through

c::q, out of e through e::q into a through

a::q to a::b : true

Test case successful : true

-- End of test case --

3.2 Performance Evaluation

This section presents a performance evaluation of the

presented PSCS implementation. Because there is

no third-party open-source implementation of PSCS

available by now, a C++ reference implementation

was developed in the context of the MDE4CPP

project. This reference implementation was used for

comparative evaluation. Furthermore, to be able to

compare our results to those of a third-party model ex-

ecution environment, the open-source Java fUML ref-

erence implementation by Model Driven Solutions

was used to reproduce certain PSCS-speciﬁc seman-

tics for this benchmark.

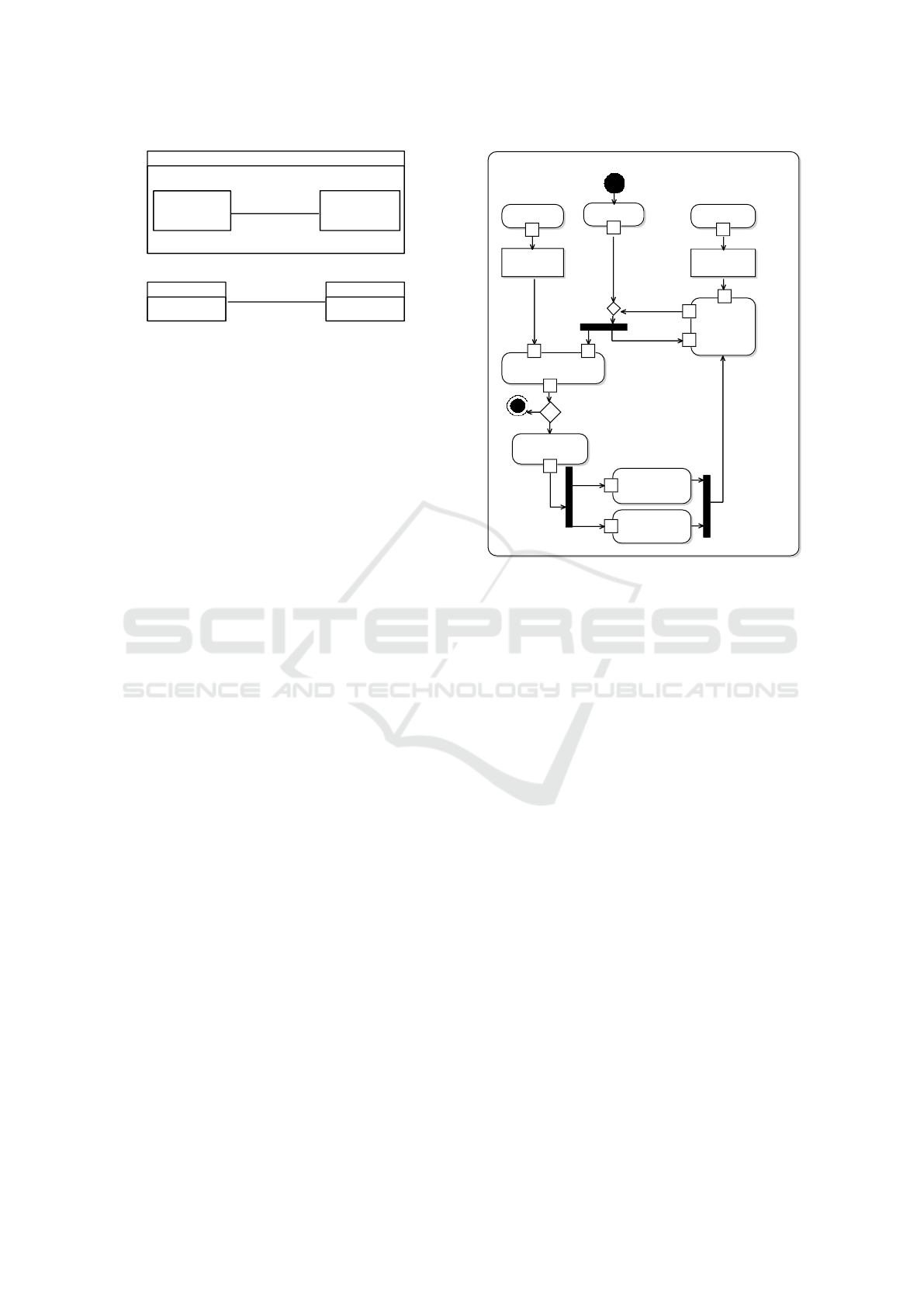

Test Models. For performance evaluation, a test

case that addresses instantiation and destruction of

composite structures was chosen. Figure 7 shows the

classes used in the realized test models. The internals

of class A represent an array pattern (see section 2.2).

see https://github.com/ModelDriven/fUML-Reference-

Implementation

A Model-driven Implementation of PSCS Speciﬁcation for C++

105

-b : B [4..*]

-c : C [4..*]

0..*

1..*

r : R

Figure 7: Classes used in the performance evaluation test

models. Class A is depicted using a composite structure

diagram.

When the test models are executed, instances of class

A shall be created and destroyed iteratively in a loop.

Concerning PSCS, this can be modeled by using the

corresponding actions to create and destroy objects

(metaclasses CreateObjectAction and DestroyObjec-

tAction). The instantiation itself is then handled by

the implemented PSCS semantics at runtime.

Because such semantics are not part of fUML,

they have to be reproduced using activities in the

fUML test model. The test model executed by Model

Driven Solution’s Java fUML reference implementa-

tion includes corresponding activities. Figure 8 de-

picts the activity actCreateParts, which instantiates

parts A::b and A::c. It does so by creating four in-

stances of classes B and C each and adding them to

the feature values of the corresponding parts using

AddStructuralFeatureValueActions.

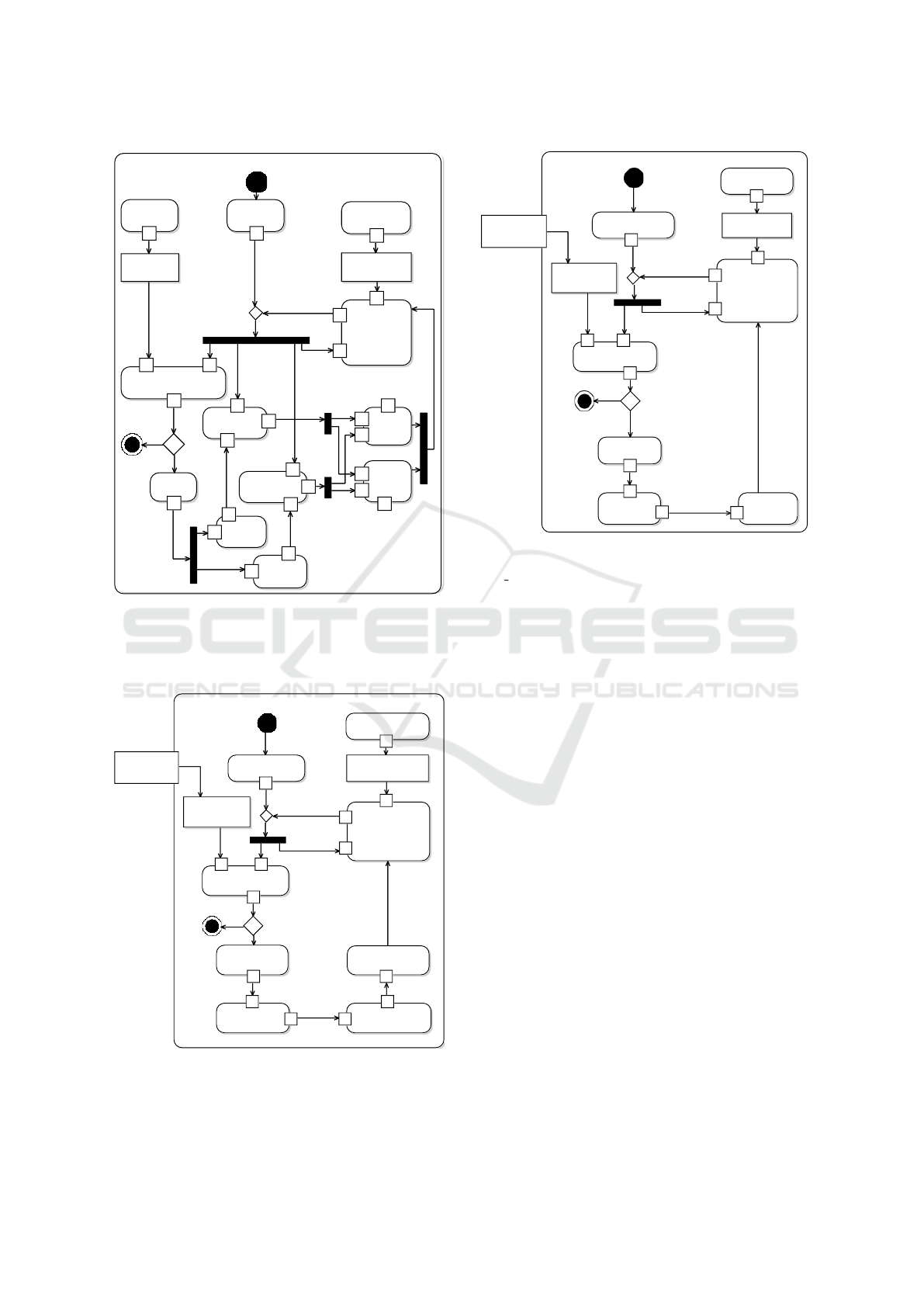

The activity actCreateArrayPattern, which is de-

picted in ﬁgure 9, is then used to instantiate the con-

nections between those instances as deﬁned by the

array pattern. The realization of links as described

in section 2.2 is reproduced by activity actCreateAr-

rayPattern by adding each part instance to the cor-

responding feature value of its linked instance. The

main loop activity of the fUML test model is shown

in ﬁgure 10.

On the model level, the PSCS implementation pre-

sented by this paper uses a simple CreateObjectAc-

tion for instantiation. The creation of part and port

objects as well as links between them is then handled

by the constructor of the auto-generated model classes

during execution. No further actions or declarations

of any kind are necessary.

The PSCS reference implementation that was de-

veloped for comparative evaluation additionally re-

quires the call of an empty constructor operation us-

ing a CallOperationAction. In this case an empty op-

eration is an operation with no deﬁned method. Con-

structor operation means, that the UML stereotype

<<Create>> has to be applied to it. Conforming

to the PSCS speciﬁcation, such a special operation

actCreateParts

Value_1

out : Integer

ReadSelf

result : A

Call_LessOrEqual

x : Integer

y : Integer

result : Boolean

Value_4

out : Integer

Call_Plus

x : Integer

result : Integer

y : Integer

createBinA :

createA_B_in

target : A

createCinA :

creat

eA_C_in_A

target : A

Value_1_Plus

out : Integer

«Datastore»

store_4

«Datastore»

store_1

Figure 8: Activity actCreateParts creates four instances

each for parts A::b and A::c.

serves as an indication for the execution engine, that

when it is called, an instance of its owning class has to

be created based on the deﬁned instantiation seman-

tics. Figure 11 shows the main loop acitivty of the test

model for the PSCS reference implementation.

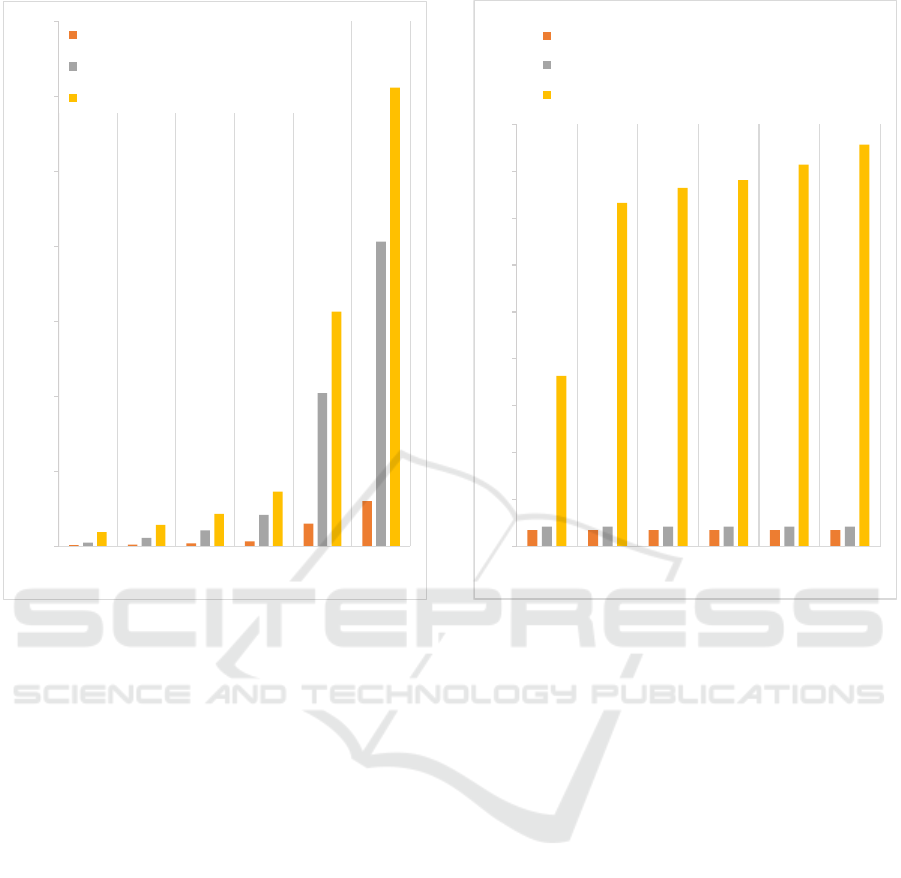

Creation and Deletion Benchmark. To compare

execution times between the PSCS implementation

presented by this paper and the fUML and PSCS

reference implementations mentioned above, the test

models described in section 3.2 were executed with

different numbers of loop iterations: 1000, 2500,

5000, 10000, 50000 and 100000. The number of

loop iterations is equal to the number of instances of

composite structure A from ﬁgure 7 that are created

and destroyed during model execution. The result-

ing execution times shown in ﬁgure 12 are arithmeti-

cal mean values calculated from 10 model executions

each. The x-axis represents the number of iterations

used for the model executions. Each region is split by

the different execution environments that were used.

The y-axis represents the average execution times in

milliseconds.

The model execution of the PSCS implementation

presented by this paper runs faster than the executions

of both reference implementation test models. This

result was expected as the presented PSCS imple-

mentation outsources functionalities for checking and

MODELSWARD 2021 - 9th International Conference on Model-Driven Engineering and Software Development

106

actCreateArrayPattern

Value_1

out : Integer

Value_4

out : Integer

Call_Plus

x : Integer

result : Integer

y : Integer

Call_LessOrEqual

x : Integer

y : Integer

result : Boolean

ReadSelf

result : A

ReadB

object : A

out : B

ReadC

object : A

out : C

Call_GetB

bList : B[1..*]

index : Integer

b : B

Call_GetC

cList : C[1..*]

index : Integer

c : C

AddToC

object : B

value : C

out : B

AddToB

object : C

value : B

out : C

Value_1_Plus

out : Integer

«Datastore»

store_4

«Datastore»

store_1

Figure 9: Activity actCreateArrayPattern reproduces the

links between the instances of parts A::b and A::c. It does

so by adding each instance of A::b to the feature value of

feature C::b of the corresponding instance of A::c and vice

versa.

actRunBenchmark

Value_1

out : Integer

Call_LessOrEqual

x : Integer

y : Integer

result : Boolean

Call_Plus

result : Integer

x : Integer

y : Integer

createA

result : A

Call_createA :

_createA

target : A

result : A

destroyA

target : A

Value_1_Plus

out : Integer

«Datastore»

store_Iterations

«Datastore»

store_1

Call_destroyA :

_destroyA

target : A

result : A

paramIterations

: Integer

oFLoopFinished oFLoopFinished

Figure 10: Activity actRunBenchmark iteratively creates,

instatiates and destroys instances of composite structure A

from ﬁg. 7.

actRunBenchmark

Call_LessOrEqual

x : Integer

y : Integer

result : Boolean

Call_Plus

x : Integer

result : Integer

y : Integer

CreateA

result : A

Value_1

out : Integer

DestroyA

target : A

Value_1_Plus

out : Integer

«Datastore»

store_Iterations

«Datastore»

store_1

Call_Construct

: construct

target : A

result : A

paramIterations

: Integer

oFLoopFinished oFLoopFinished

Figure 11: Activity actRunBenchmark of the test model ex-

ecuted by the PSCS C++ reference implementation. Action

Call Construct calls a special constructor operation to in-

stantiate composite structure A as described in section 3.2.

evaluating model information to the level of code gen-

eration. For both reference implementations, those

functionalities are executed by their respective execu-

tion environments. This produces computation over-

head at runtime compared to the presented implemen-

tation. Execution times of the fUML test model exe-

cuted by Model Driven Solution’s Java fUML refer-

ence implementation are higher compared to those of

the PSCS reference implementation. On the one hand,

this could be explained by general performance ad-

vantages of C++ over Java. On the other hand, a pure

fUML model was used to reproduce PSCS-speciﬁc

semantics. Because of that, the model is larger and

contains much more behavior that has to be executed

by the corresponding execution engine than the PSCS

test models.

Memory Footprint. Memory usage during test

model execution was measured in the same manner

as the measurement of execution time described in

section 3.2. Figure 13 depicts the arithmetical mean

values of peak RAM usage from 10 model executions

each. The Java fUML reference implementation uses

signiﬁcantly more RAM than both C++ PSCS imple-

mentations. The reason for this behavior might be the

additional RAM usage caused by the Java virtual ma-

chine. The PSCS implementation presented by this

paper requires the least amount of RAM. This can

A Model-driven Implementation of PSCS Speciﬁcation for C++

107

125,8

214,8

362,3

658,5

3018,2

6025

485,8

1106,7

2120,7

4164,7

20421,7

40627,5

1891,6

2851,4

4314,7

7257

31286,7

61168,1

10000

20000

30000

40000

50000

60000

70000

1000 2500 5000 10000 50000 100000

PSCS MDE4CPP Implementation (C++)

PSCS Reference Implementation (C++)

fUML Reference Implementation (Java)

Figure 12: Average execution times per number of created

and destroyed objects in milliseconds split by different exe-

cution environments.

be explained by the fact that the instantiation and de-

struction semantics used by this implementation are

directly translated to model-speciﬁc C++ code dur-

ing generation. Thus, overhead produced by the exe-

cution engine of the PSCS reference implementation

(which leads to a slightly higher RAM usage) is saved

during the execution of the presented PSCS imple-

mentation. Moreover, the RAM usage of this imple-

mentation (as well as the compared PSCS reference

implementation) is constant for each number of itera-

tions that was tested. This indicates that no memory

leaks exist.

4 CONCLUSION

This paper presented a model-driven implementation

of OMG’s PSCS speciﬁcation in C++. The pre-

sented solution substitutes speciﬁc parts of the PSCS

execution model with auto-generated, model-speciﬁc

source code. More precisely, the implementation pre-

sented by this paper outsources PSCS’s execution se-

mantics for instantiating and destroying objects from

the actual execution model to the generation level. By

42,4

364,1

732,7

764,7

781,1

814,1

856,9

100

200

300

400

500

600

700

800

900

1000 2500 5000 10000 50000 100000

PSCS MDE4CPP Implementation (C++)

PSCS Reference Implementation (C++)

fUML Reference Implementation (Java)

Figure 13: Average peak RAM usage per number of created

and destroyed objects in MB split by different execution en-

vironments.

that, the performance of the actual model execution

is improved. This is achieved because computational

overhead at runtime produced by repeatedly evaluat-

ing and processing static (i.e., runtime-independent)

structural model information is omitted and done pre-

runtime during the process of code generation.

For functional validation, a set of test models and

associated unit tests based on OMG’s original PSCS

test suite was realized. During the validation process,

the presented implementation was tested against the

set of test models described in section 3.1. The re-

sults showed that the presented PSCS implementation

functions correctly and conforms to the PSCS speci-

ﬁcation.

The results of the performance evaluation pre-

sented in section 3.2 show that substituting runtime

computation of the PSCS execution model with pre-

runtime computation via code generation improves

execution time signiﬁcantly. The memory footprints

of the evaluated test model executions prove that the

usage of C++ combined with the memory manage-

ment described in section 2.3 leads to much lower

RAM usage compared to the Java fUML reference

implementation.

MODELSWARD 2021 - 9th International Conference on Model-Driven Engineering and Software Development

108

Future Work. By now, PSCS semantics concerning

asynchronous communication via signals is excluded

from the presented implementation. To provide a full

realization of PSCS, including all aspects of its run-

time semantics, signal processing and asynchronous

communication is yet to be realized.

Based on the results of this paper, which display

the possibilities of exploiting automated source code

generation to reduce runtime computation of model

execution engines, we aim to develop model-driven

execution engines for fUML, PSCS and also PSSM

that rely more on code generation and also conform

(functionality-wise) the underlying speciﬁcations.

REFERENCES

Bedini, F., Maschotta, R., Wichmann, A., J

ager, S., and

Zimmermann, A. (2017). A model-driven fuml execu-

tion engine for c++. In Proceedings of the 5th Interna-

tional Conference on Model-Driven Engineering and

Software Development, MODELSWARD 2017, page

443–450, Setubal, PRT. SCITEPRESS - Science and

Technology Publications, Lda.

Eclipse Foundation (2018). Acceleo, see

https://wiki.eclipse.org/acceleo.

Hutchinson, J., Whittle, J., Rounceﬁeld, M., and Kristof-

fersen, S. (2011). Empirical assessment of mde in

industry. In Proceedings of the 33rd International

Conference on Software Engineering, ICSE ’11, page

471–480, New York, NY, USA. Association for Com-

puting Machinery.

ager, S., Maschotta, R., Jungebloud, T., Wichmann, A.,

and Zimmermann, A. (2016). An emf-like uml gen-

erator for c++. In 2016 4th International Conference

on Model-Driven Engineering and Software Develop-

ment (MODELSWARD), pages 309–316.

OMG (2011). Semantics of a Foundational Subset for Ex-

ecutable UML Models (fUML) Speciﬁcation, Version

1.0. https://www.omg.org/spec/FUML/1.0/PDF. on-

line.

OMG (2014). MDA Guide Revision 2.0. https://www.omg.

org/cgi-bin/doc?ormsc/14-06-01.pdf. online.

OMG (2015). Precise Semantics of UML Composite Struc-

ture (PSCS) Speciﬁcation, Version 1.0. https://www.

omg.org/spec/PSCS/1.0/PDF. online.

OMG (2017). Uniﬁed Modeling Language, Speciﬁcation,

Version 2.5.1. https://www.omg.org/spec/UML/2.5.1/

PDF. online.

OMG (2019). Precise Semantics of UML Composite Struc-

ture (PSCS) Speciﬁcation, Version 1.2. https://www.

omg.org/spec/PSCS/1.2/PDF. online.

Stahl, T. and V

olter, M. (2005). Modellgetriebene Soft-

wareentwicklung: Techniken, Engineering, Manage-

ment. dpunkt.verlag, 1st edition.

Steinberg, D., Budinsky, F., Paternostro, M., and Merks,

E. (2009). EMF: Eclipse Modeling Framework 2.0.

Addison-Wesley Professional, 2nd edition.

Stroustrup, B. (2013). The C++ Programming Language.

Addison-Wesley, 4th edition.

Systems and Software Engineering Group (2016). Model

Driven Engineering for C++ (MDE4CPP), see

http://sse.tu-ilmenau.de/mde4cpp.

A Model-driven Implementation of PSCS Speciﬁcation for C++

109
