An Effective 3D ResNet Architecture for Stereo Image Retrieval

E. Ghodhbani

1 a

, M. Kaaniche

2 b

and A. Benazza-Benyahia

1 c

University of Carthage SUP’COM, LR11TIC01, COSIM Lab., 2083, El Ghazala, Tunisia

Institut Galil

ee, L2TI, Universit

e Sorbonne Paris Nord, France

Keywords:

Image Retrieval, Color Stereo Images, Disparity Maps, Deep Learning, Residual Neural Networks.

Abstract:

While recent stereo images retrieval techniques have been developed based mainly on statistical approaches,

this work aims to investigate deep learning ones. More precisely, our contribution consists in designing a two-

branch neural networks to extract deep features from the stereo pair. In this respect, a 3D residual network

architecture is ﬁrst employed to exploit the high correlation existing in the stereo pair. This 3D model is then

combined with a 2D one applied to the disparity maps, resulting in deep feature representations of the texture

information as well as the depth one. Our experiments, carried out on a large scale stereo image dataset, have

shown the good performance of the proposed approach compared to the state-of-the-art methods.

1 INTRODUCTION

3D sensing mechanisms have witnessed a rapid

evolution in recent years. A particular attention has

been paid to the stereoscopic imaging paradigm.

The main advantage of this technique is the ability

to recover the depth information of the target scene

by simply capturing two images with two slightly

different viewing angles, mimicking in such way

the human visual system. This particular 3D image

representation has been widely integrated in several

active applications such as augmented reality displays

(Kim et al., 2014), obstacle detection for autonomous

vehicle navigation (Bernini et al., 2014), and laparo-

scopic surgeries (Sdiri et al., 2019). This growing

deployment has led to an expanding generation of

large-scale Stereo Image (SI) databases. Hence,

efﬁcient retrieval systems that grant both fast and

accurate access to these repositories is of major

concern. The core objective of retrieval systems is to

extract discriminating features in order to accurately

characterize the rich content of the images.

Regarding SI retrieval, different approaches have

been developed in the literature. 1 For instance, the

ﬁrst proposed approach (Feng et al., 2011) performs

the SI retrieval using MPEG-7 edge histograms ex-

tracted from the left image. Then, the selected image

https://orcid.org/0000-0002-6685-7117

https://orcid.org/0000-0003-1874-3243

https://orcid.org/0000-0002-4562-2757

candidates are further reﬁned through a re-ranking

procedure based on the disparity cues. Peng et

al. (Peng et al., 2015) proposed to retrieve optical

satellite SI using features extracted from digital

surface models and ortho-images. Other works have

relied on a statistical modeling framework in the

wavelet domain to generate salient features (Chaker

et al., 2015; Ghodhbani et al., 2019). The main

idea behind these works is to resort to an adequate

parametric modeling to ﬁt the distributions of the

wavelet coefﬁcients.

Recently, Deep Neural Networks (DNN) (LeCun

et al., 2015) have received considerable attention

in the retrieval community. The common objective

of the proposed DNN-based approaches is to train

deep architectures to capture high-level features that

efﬁciently abstract image attributes. Although this

research area has rapidly evolved towards developing

more efﬁcient retrieval systems, it is important to

note here that most deep learning based retrieval

methods have been devoted to the context of single

views (Babenko et al., 2014; Tolias et al., 2015), and

very few works have been developed for multi-view

images (Su et al., 2015; Ma et al., 2018).

Therefore, we propose in this paper to investigate

deep learning methods for the stereo image retrieval.

In this respect, a 3D residual network architecture

is ﬁrst developed to exploit the high correlations

existing between the left and right views of the stereo

pair. Moreover, another 2D architecture is applied

to the disparity maps. Finally, the resulting texture

380

Ghodhbani, E., Kaaniche, M. and Benazza-Benyahia, A.

An Effective 3D ResNet Architecture for Stereo Image Retrieval.

DOI: 10.5220/0010261103800387

In Proceedings of the 16th International Joint Conference on Computer Vision, Imaging and Computer Graphics Theory and Applications (VISIGRAPP 2021) - Volume 4: VISAPP, pages

380-387

ISBN: 978-989-758-488-6

and depth features are combined by a fusion

DNN for the retrieval purpose.

The rest of this paper is organized as follows. In

Section 2, we introduce the basic concept of resid-

ual networks. In Section 3, the proposed residual net-

works based retrieval methods are described. Exper-

imental results are provided and discussed in Section

4, and some conclusions are drawn in Section 5.

2 BACKGROUND ON RESIDUAL

NETWORKS

2.1 Motivation of Residual Networks

Convolutional Neural Networks (CNNs) are a promi-

nent category of artiﬁcial neural networks thanks to

their ability to capture local spatial coherence of im-

ages. They have shown a notable success in abstract-

ing semantic features, useful in a wide range of com-

puter vision tasks, including object detection (Ji et al.,

2018), action recognition (Zhang et al., 2018), seman-

tic segmentation (Long et al., 2015) and face identiﬁ-

cation (Zheng et al., 2019).

However, very deep CNNs have been frequently

exposed to the notorious problem of vanishing gra-

dient during the training phase (He et al., 2016). For

this reason, several attempts were made to build novel

CNNs that cope with this shortcoming. Residual net-

works (ResNet) are ones of the effective alternatives

(He et al., 2016). These networks make use of short-

cut connections that allow ﬂow of information to shal-

lower layers without attenuation frequently caused by

successive non-linear transformations. The intuition

behind this reformulation is that nonlinear layers are

unlikely to approximate an identity mapping that en-

ables to propagate larger gradients to initial layers,

which could potentially alleviate the vanishing gra-

dient issue. Formally, denoting by H (x) the under-

lying mapping to learn from a set of stacked layers

whose input is x. The mapping H (x) should be an

identity operator in order to alleviate the degradation

issue. The residual learning consists in ﬁtting a differ-

ence mapping (namely residual mapping) deﬁned as:

F (x) = H (x) − x instead of ﬁtting the conventional

H (x). Hence, it is much easier to optimize the resid-

ual mapping F (x) than ﬁtting an identity mapping.

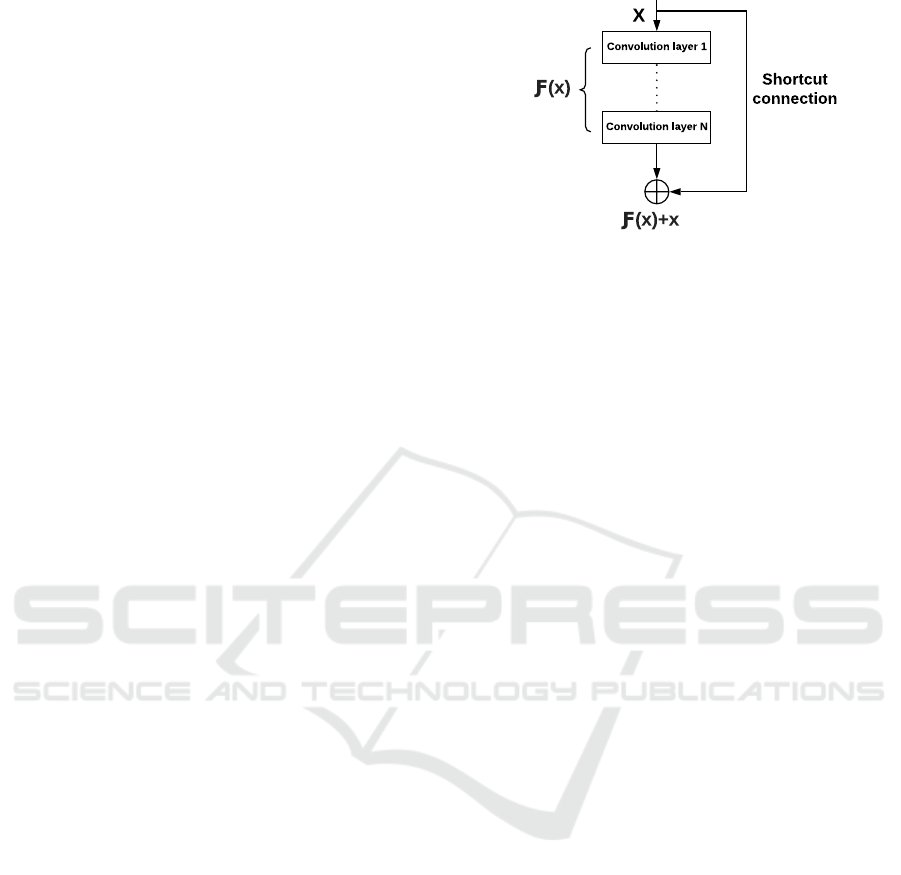

Fig. 1 displays a residual block (also called an

identity block) of a ResNet.

Empirical attainment of this paradigm is threefold.

First, extremely deep residual networks converge

faster than their plain counterparts. Secondly, in-

Figure 1: A basic residual block architecture.

creasing the depth of residual networks improves the

accuracy gain unlike conventional very deep CNNs.

Finally, residual networks with very high depth still

have low complexity than conventional deep CNNs

as VGG nets (Simonyan and Zisserman, 2015).

ResNets consist of three main parts. The ﬁrst

part involves a series of stacked residual blocks, each

block has 3 convolution layers with different number

of ﬁlters. The feature maps resulting from the last

residual block is then abstracted in a compact vector

using a global average pooling layer. Finally, a fully

connected (FC) layer followed by a softmax activa-

tion function is used to perform a categorical classiﬁ-

cation task.

For the retrieval task, the feature vector obtained

at the global average pooling layer could serve as an

efﬁcient semantic representation of each input image.

Indeed, a forward pass over the ResNet is ﬁrstly per-

formed to both query and database images. Then, an

adequate similarity measure is retained to assess the

closeness between the query image and each of the

candidate ones using their related feature vectors.

2.2 3D Residual Networks

In the conventional 2D residual networks, only the

spatial correlations are captured. However, using

only 2D kernels may ignore other kinds of correla-

tion like those existing in multi-component images

and video sequences. To this end, multi-dimensional

CNNs present a suitable alternative to resolve this is-

sue. These networks perform joint convolutions on

feature maps instead of operating in a separate man-

ner as conventional spatial 2D based CNNs.

Driven by the compelling advantages of exploit-

ing residual networks, researchers have focused on

extending such networks to the spatio-temporal do-

main. For this purpose, three-dimensional residual

networks (namely 3D ResNet) have been introduced

(Hara et al., 2018). These networks perform 3D con-

volution and pooling operations in order to model the

spatial information and simultaneously capture tem-

An Effective 3D ResNet Architecture for Stereo Image Retrieval

381

poral connections across frames. They were mainly

devoted to process multiple video frames. For in-

stance, authors in (Tran et al., 2017; Hara et al., 2017)

have proved the outperformance of 3D ResNets in

the task of action recognition, compared to the ﬁrst

proposed 3D CNN (Karpathy et al., 2014). For the

same task, Hara et al. (Hara et al., 2018) have empiri-

cally demonstrated that 3D ResNets trained on large-

scale video datasets, have reached competitive accu-

racy rates outperforming several 2D CNNs. While

such ResNet architecture has been mainly exploited

in the context of recognition and classiﬁcation, and

to the best of our knowledge, this current work is the

ﬁrst one exploring ResNets for stereo image retrieval.

3 RESNET-BASED STEREO

IMAGE RETRIEVAL

3.1 ResNet-based Independent Stereo

Image Representation

A straightforward deep learning-based SI retrieval

method may consist in applying a conventional single

view retrieval method to each view of the stereo pair.

This approach could be considered as a univariate SI

representation in the sense that each view is processed

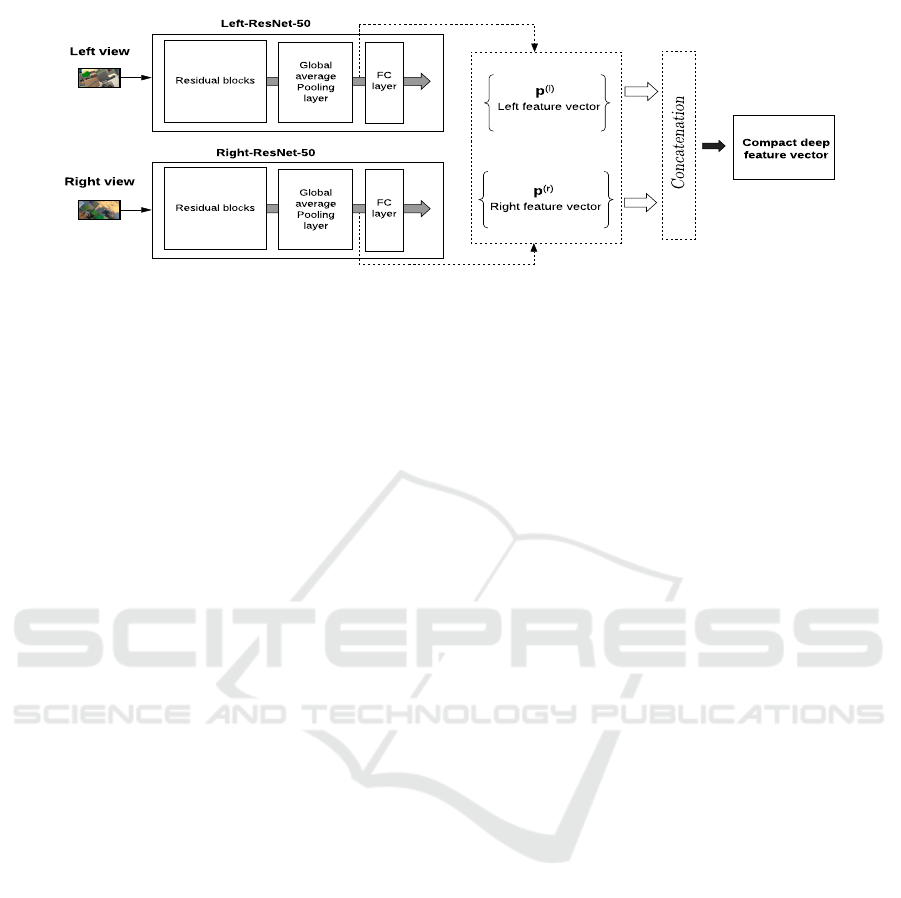

independently from the other. Fig. 2 illustrates this

approach. Formally, for each input view (for example

the left one), the resulting feature vector is given by:

(l)

= [v

(l)

,...,v

(l)

]

,with v

(l)

∑

i=1

∑

j=1

(l)

(i, j)

H ×W

(1)

where X

(l)

is the k-th feature map of size W × H, and

K denotes the whole number of maps at the last resid-

ual block. In a similar way, the deep feature vector

(r)

is deﬁned. As a result, the ﬁnal feature vector of

the stereo pair is given by:

p =



(l)

(r)



. (2)

Afterwards, the similarity between a query SI

(q,l)

(q,r)

) and each database SI (I

(db,l)

(db,r)

) is

measured using the sum of the Euclidean distances

between their associated feature vectors. It is ex-

pressed as follows:

D(I

(q)

k I

(db)

) = D(I

(q,l)

k I

(db,l)

) + D(I

(q,r)

k I

(db,r)

= kp

(q,l)

− p

(db,l)

+ kp

(q,r)

− p

(db,r)

(3)

where p

(q)

= (p

(q,l)

(q,r)

) and p

(db)

= (p

(db,l)

(db,r)

)

represent respectively the global feature vector of the

query and the database SI.

3.2 Joint SI Representations using 3D

ResNet

While 3D CNNs attempt to capture temporal correla-

tions across consecutive inputs, we are interested in

using such network to fully exploit the correlations

existing between the RGB channels of the left and

right views of the input color SI. More precisely, the

ﬁrst proposed approach consists in using simultane-

ously the resulting six channels of both views as an

input of our 3D ResNet architecture. Thus, as shown

in Fig. 3, the main difference of the latter with respect

to the previous 2D ResNet architecture is that the 3D

convolution steps are updated to take into account the

correlations between the two views. Besides, contrary

to the straightforward approach which outputs two

separate feature vectors (one vector per view), this ar-

chitecture enables to represent both stereo views in a

single compact feature vector.

During the training stage, the network learns to

encode the semantics of the color stereo components

in a joint fashion. Denoting by (I

(l)

(r)

) the i-th train-

ing SI and its corresponding class y

, the categorical

cross-entropy loss is used to backpropagate gradients.

It is expressed as follows:

L = −

∑

c=1

(i,c)

log(p

(i,c)

), (4)

where C is the total number of classes in the training

dataset, y

(i,c)

is a binary indicator of value 1 if the

class label c is the corresponding exact label y

) for

the i-th SI sample, and 0 if not. p

(i,c)

is the network

predicted probability that the i-th SI sample is of class

Later on, and similarly to the straightforward ap-

proach, the global average pooling layer of the trained

network is used as a feature extractor to generate rep-

resentative features for each SI. Finally, given p

(q)

and

(db)

the feature vectors of the query SI and the can-

didate SI, the Euclidean distance is used to measure

their similarity as follows:

D(I

(q)

k I

(db)

) = kp

(q)

− p

(db)

. (5)

3.3 Fusion with Depth Maps-based

Representation

Driven by the compelling beneﬁts of the depth infor-

mation in the SI retrieval task (Chaker et al., 2015;

Ghodhbani et al., 2019), we propose an improved ap-

proach that takes into account both texture and depth

attributes of the SI. In this regard, the proposed archi-

tecture consists of two branches. The ﬁrst branch is

a 3D ResNet used to extract relevant cues from both

VISAPP 2021 - 16th International Conference on Computer Vision Theory and Applications

382

Compact deep

feature vector

Left-ResNet-50

(l)

Left feature vector

Left view

Concatenation

Right view

Residual blocks

Global

average

Pooling

layer

Residual blocks

Global

average

Pooling

layer

(r)

Right feature vector

Right-ResNet-50

Figure 2: SI representation using two ResNets.

stereo views as described in the previous proposed

approach, while the second branch is a 2D ResNet,

adopted to learn how to analyze and abstract depth

data properties. The proposed architecture undergoes

a two-stage learning process. The ﬁrst stage aims

at learning a distinctive high-level cues associated to

texture and color in the SI. It has a 3D input shape

consisting of the six color channels of the stereo pair.

The second stage aims at training the second branch,

i.e. the 2D ResNet on the disparity maps of the train-

ing set. Both training are performed using the cate-

gorical cross-entropy loss function to back-propagate

gradients and adjust the network weights. Conse-

quently, the resulting two-branch architecture is used

to extract salient features from each SI and its corre-

sponding disparity map. Indeed, a couple of feature

vectors is generated for each stereo pair, reﬂecting in

such formulation both texture and depth attributes. It

could be expressed as:

p =



(c)

(d)



. (6)

The similarity measurement between a query and

database SI characterized by their feature vectors

(q)

= (p

(q,c)

(q,d)

) and p

(db)

= (p

(db,c)

(db,d)

) re-

spectively, is performed using the Euclidean distance

as follows:

D(I

(q)

k I

(db)

) = kp

(q,c)

− p

(db,c)

+ kp

(q,d)

− p

(db,d)

(7)

4 EXPERIMENTS

4.1 Training Setup

The proposed approaches have been conducted using

a ResNet-50. This network mainly consist of 5 stages.

The ﬁrst one involves a convolutional layer with 64

ﬁlters of size 7 × 7 and a stride of 2, a ReLu activa-

tion, followed by a max-pooling layer. The remaining

stages are a stack of identity and convolution blocks

as illustrated in Fig. 4. When input and output tensors

of an identity block do not have the same dimensions,

a 1 × 1 convolution operation is added to the shortcut

connection in order to match the dimensions before

performing the element-wise adding operation. The

modiﬁed identity block is referred to as a convolu-

tional block.

During all training stages, both 2D and 3D

ResNets are fed with inputs of size 480×270. Be-

sides, the batch size and learning rate are set to 16

and 10

−4

, respectively. Moreover, the Adam opti-

mizer (Kingma and Ba, 2014) is retained to update

the network weights. All experiments have been con-

ducted using a Nvidia Quadro P5000 GPU with 16

GB of memory.

4.2 Dataset Overview

To evaluate the retrieval performance of the proposed

approaches, a database with a large-scale training set

is crucial for training deep ResNets. However, to the

best of our knowledge, the only color SI dataset sat-

isfying the large scale criteria is the FlyingThings3D

dataset (Mayer et al., 2016). It consists of 25,000 SI

of size 960×540 and their associated ground truth dis-

parity maps. Since this database is not mainly dedi-

cated neither for classiﬁcation nor for retrieval tasks,

we propose to build upon it to generate our appro-

priate dataset as follows. The training dataset is ini-

tially partitioned into 10-frame subsets rendered from

small clips. Images in the same subset share visual

content, and are considered as a class of similar im-

ages. It is obvious that training deep CNNs such as

ResNets requires largely higher number of samples

in each subset. To this end, we resort to an ofﬂine

data augmentation framework in order to enlarge the

training subsets, and help the network to better gen-

eralize and prevent overﬁtting. We have considered

300 subsets and have performed 20 afﬁne data trans-

formations such as rotation, translation, shearing and

An Effective 3D ResNet Architecture for Stereo Image Retrieval

383

State

Training stereo views

Database SI

Retrieved SI

Query SI

3D ResNet-50

. . . .

Traning stage

Test stage

Query SI

representation

Database SI

representation

Similarity

measurement

Training disparity maps

2D ResNet-50

. . .

Residual block 1

Pooling Layer

300-d FC Layer

Conv. layer

Pooling Layer

Residual block 16

300-d FC Layer

. . .

Pooling Layer

Conv. layer

Pooling Layer

Text

Residual block 1

Text

Residual block 16

. . .

Trained 3D ResNet-50 on texture data

Trained 2D ResNet-50 on disparity data

. . .

Residual block 1

Pooling Layer

300-d FC Layer

Conv. layer

Pooling Layer

Residual block 16

300-d FC Layer

. . .

Pooling Layer

Conv. layer

Pooling Layer

Text

Residual block 1

Text

Residual block 16

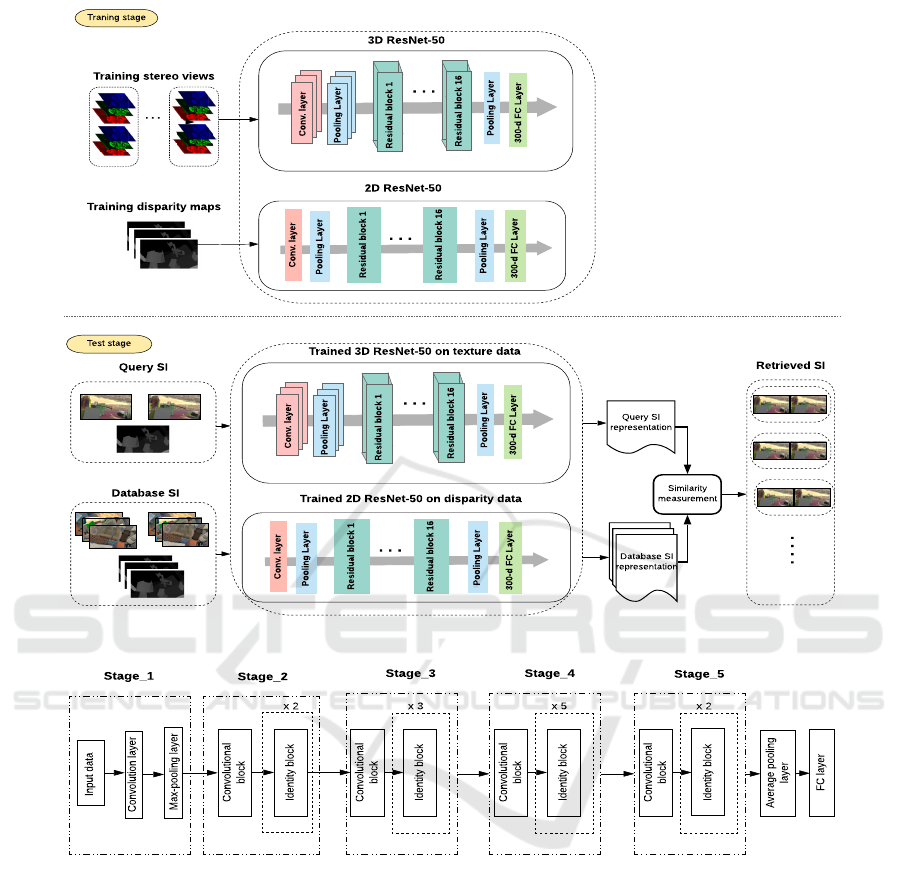

Figure 3: Flowchart of the proposed joint SI representation using a two-branch architecture.

Convolution layer

x 2 x 3

Max-pooling layer

Stage_2

Input data

Convolutional

block

Identity block

Convolutional

block

Identity block

Average pooling

layer

FC layer

x 5

Convolutional

block

Identity block

x 2

Convolutional

block

Identity block

Stage_3 Stage_4

Stage_5

Stage_1

Figure 4: A ResNet-50 architecture.

ﬂipping over each stereo pair. The new dataset is com-

posed of 63,000 SI, split into 80% for training (i.e.

50,400 stereo pairs), and 20% for test (i.e. 12,600

stereo pairs). Some class samples of this new dataset

are shown in Fig. 5. Note that the same transforma-

tions are carefully performed for both stereo pairs and

their associated disparity maps in order to preserve

their spatial correlation.

4.3 Comparison Methods

We will consider the following proposed and state-of-

the-art methods:

• GC-MGG-7-LRD (Ghodhbani et al., 2019): A

statistical-based approach to retrieve color SI.

This method considers a Gaussian copula-based

modelling in the wavelet domain in order to em-

phasize different dependencies between the stereo

pair, as well as those existing between the stereo

views and their associated depth maps. Note that

this approach has reached the best retrieval perfor-

mance relatively to other proposed methods, and

several state-of-the art statistical methods as well.

• CroW (Kalantidis et al., 2016): A deep learning-

based retrieval approach devoted for mono-view

images. This approach mainly relies on a cross-

dimensional weighting pipeline, followed by an

aggregation scheme in order to abstract output

tensors derived from the last convolutional layer

of the used network. The aggregated outputs are

VISAPP 2021 - 16th International Conference on Computer Vision Theory and Applications

384

Figure 5: Some class samples of the generated database.

considered as salient features to perform the re-

trieval task. We propose to test this approach in

the context of SI through joining convolutional

output tensors of both left and right views before

performing the weighting and aggregation proce-

dures.

• ResNet-LR: This method relies on an indepen-

dent stereo view representation by separately ap-

plying the conventional ResNet architecture to the

left and right views. It should be noted that this

method can also be seen as a direct application

of a conventional ResNet-based state-of-the-art

method.

• ResNet-3D-LR: The proposed joint representa-

tion that highlights texture correlations among the

stereo pair using a 3D ResNet.

• ResNet-3D-LR+ResNet-D: The proposed

method that aims at characterizing texture and

depth data using a two-branch network.

Regarding deep learning based approaches, Table 1

illustrates the number of trainable parameters as well

as the length of the resulting feature vectors used for

the retrieval task.

4.4 Results

In order to evaluate the performance of the retrieval

task, several objective metrics were deﬁned. The most

commonly used metrics are:

• The precision PR versus recall RC ratios. The pre-

cision PR = N

/N is the ratio between the number

of relevant images in the returned ones N

and the

number of returned images N, whereas the recall

RC = N

is the ratio between N

and the num-

ber of relevant images in the database N

. These

two metrics are commonly used to plot PR-RC

curve in order to illustrate the exhaustive retrieval

performance of the target algorithm.

• The mAP presents the mean over all queries of

average precision associated to each query. It is

expressed as follows:

mAP =

∑

q=1

AP(q)

(8)

where N is the total number of images in the test

set, and AP is the average precision of each query,

deﬁned as:

AP =

∑

i=1

index(i)

. (9)

Given the ordered candidate images relatively to

the query, and N

the number of relevant images

in the database, let NR(i) is the number of rele-

vant images till the i-th position in the ranked list.

Thereafter, R

index(i) is deﬁned as:

R index(i) =











NR(i) if the i-th ranked image

is relevant,

0 otherwise.

(10)

Note that a retrieved image is considered as rele-

vant if it shares the same class of the query one.

To evaluate the retrieval performance of deep

features obtained using the proposed architectures

for both independent and joint SI representations as

well as the above described state-of-the-art methods,

Tab. 2 outlines the reached mAP rates of each method

on the generated database. This table shows that the

different tested deep learning based approaches sig-

niﬁcantly outperform the classical statistical based re-

trieval method. Besides, we remark that the proposed

approaches, even the ResNet-LR that relies on an in-

dependent SI representation, outperform the CroW

method. This could conﬁrm the performance of the

ResNet relatively to the VGG network retained in

the CroW approach. For this reason, we propose

An Effective 3D ResNet Architecture for Stereo Image Retrieval

385

Table 1: The proposed approaches wih the number of trainable parameters (in millions) and the length of the ﬁnal feature

vector.

Model Number of Length of

parameters feature vector

CroW-SI (Kalantidis et al., 2016) 138M 1,024

ResNet-LR 25.7M 4,096

ResNet-3D-LR 46.8M 2,048

ResNet-3D-LR+ResNet-D 72.5M 4,096

Table 2: mAP rates of the state-of-the-art and proposed methods.

Methods mAP

GC-MGG-7-LRD (Ghodhbani et al., 2019) 0.23

CroW-SI (Kalantidis et al., 2016) 0.52

ResNet-LR 0.84

ResNet-3D-LR 0.87

ResNet-3D-LR+ResNet-D 0.91

0 0.1 0.2 0.3 0.4 0.5 0.6 0.7 0.8 0.9

0.75

0.8

0.85

0.9

0.95

ResNet-LR

ResNet-3D-LR

ResNet-3D-LR+ResNet-D

Figure 6: PR-RC curves of the independent and joint-based SI representations.

now to focus on the t3D ResNet-based retrieval meth-

ods and study their performance in terms of PR-RC.

Thus, as it can be seen from Fig. 6, the proposed 3D

ResNet architecture leads to better precision-recall re-

sults compared to the conventional ResNet architec-

ture applied separately to each view of the stereo pair.

This conﬁrms the interest of the joint feature extrac-

tion method compared to the independent one. It is

important to note here, as shown in Table 1, that an-

other main advantage of the joint method is that the

size of its resulting output feature vector is half of

that generated by the independent process of the two

views. This allows to accelerate the retrieval pro-

cess, especially for large scale databases. Moreover,

further improvements are obtained by combining the

previous deep features of the texture information with

those of the depth information.

5 CONCLUSION AND

PERSPECTIVES

In this paper, a two-branch neural network is proposed

for color stereo image retrieval. More precisely, a 3D

ResNet is employed to exploit the high correlations

existing between the left and right views of the stereo

pair. Then, a 2D ResNet architecture is added to ex-

tract deep feature from the depth information. Ex-

perimental results have shown the beneﬁts of the pro-

posed methods compared to state-of-the-art image re-

trieval methods. In future work, we propose to extend

this architecture by designing a multi-modal feature

learning framework.

VISAPP 2021 - 16th International Conference on Computer Vision Theory and Applications

386

REFERENCES

Babenko, A., Slesarev, A., Chigorin, A., and Lempitsky,

V. (2014). Neural codes for image retrieval. In Euro-

pean Conference on Computer Vision, pages 584–599.

Springer.

Bernini, N., Bertozzi, M., Castangia, L., Patander, M., and

Sabbatelli, M. (2014). Real-time obstacle detection

using stereo vision for autonomous ground vehicles:

A survey. In 17th International IEEE Conference on

Intelligent Transportation Systems (ITSC), pages 873–

878.

Chaker, A., Kaaniche, M., and Benazza-Benyahia, A.

(2015). Disparity based stereo image retrieval through

univariate and bivariate models. Signal Processing:

Image Communication, 31:174–184.

Feng, Y., Ren, J., and Jiang, J. (2011). Generic framework

for content-based stereo image/video retrieval. Elec-

tronics Letters, 47(2):97–98.

Ghodhbani, E., Kaaniche, M., and Benazza-Benyahia, A.

(2019). Depth-based color stereo images retrieval us-

ing joint multivariate statistical models. Signal Pro-

cessing: Image Communication, 76:272–282.

Hara, K., Kataoka, H., and Satoh, Y. (2017). Learning

spatio-temporal features with 3d residual networks for

action recognition. In Proceedings of the IEEE Inter-

national Conference on Computer Vision Workshops,

pages 3154–3160.

Hara, K., Kataoka, H., and Satoh, Y. (2018). Can spa-

tiotemporal 3d CNNs retrace the history of 2d cnns

and imagenet. In Proceedings of the IEEE conference

on Computer Vision and Pattern Recognition, pages

6546–6555.

He, K., Zhang, X., Ren, S., and Sun, J. (2016). Deep resid-

ual learning for image recognition. In Proceedings of

the IEEE Conference on Computer Vision and Pattern

Recognition, pages 770–778.

Ji, Y., Zhang, H., and Wu, Q. J. (2018). Salient object detec-

tion via multi-scale attention CNN. Neurocomputing,

322:130–140.

Kalantidis, Y., Mellina, C., and Osindero, S. (2016). Cross-

dimensional weighting for aggregated deep convolu-

tional features. In European conference on computer

vision, pages 685–701. Springer.

Karpathy, A., Toderici, G., Shetty, S., Leung, T., Suk-

thankar, R., and Fei-Fei, L. (2014). Large-scale video

classiﬁcation with convolutional neural networks. In

Proceedings of the IEEE Conference on Computer Vi-

sion and Pattern Recognition, pages 1725–1732.

Kim, M., Lee, J., and Whon, K. (2014). Sparogram:

the spatial augmented reality holographic display for

3d visualization and exhibition. In IEEE VIS In-

ternational Workshop on 3DVis, pages 81–86, Paris,

France.

Kingma, D. P. and Ba, J. (2014). Adam: A

method for stochastic optimization. arXiv preprint

arXiv:1412.6980.

LeCun, Y., Bengio, Y., and Hinton, G. (2015). Deep learn-

ing. Nature, 521(7553):436–444.

Long, J., Shelhamer, E., and Darrell, T. (2015). Fully con-

volutional networks for semantic segmentation. In

Proceedings of the IEEE Conference on Computer Vi-

sion and Pattern Recognition, pages 3431–3440.

Ma, C., Guo, Y., Yang, J., and An, W. (2018). Learn-

ing multi-view representation with lstm for 3-d shape

recognition and retrieval. IEEE Transactions on Mul-

timedia, 21(5):1169–1182.

Mayer, N., Ilg, E., Hausser, P., Fischer, P., Cremers, D.,

Dosovitskiy, A., and Brox, T. (2016). A large dataset

to train convolutional networks for disparity, optical

ﬂow, and scene ﬂow estimation. In Proceedings of

the IEEE Conference on Computer Vision and Pattern

Recognition, pages 4040–4048.

Peng, F., Wang, L., Gong, J., and Wu, H. (2015). Devel-

opment of a framework for stereo image retrieval with

both height and planar features. IEEE Journal of Se-

lected Topics in Applied Earth Observation and Re-

mote Sensing, 8(2):800–815.

Sdiri, B., Kaaniche, M., Cheikh, F. A., Beghdadi, A., and

Elle, O. J. (2019). Efﬁcient enhancement of stereo

endoscopic images based on joint wavelet decompo-

sition and binocular combination. IEEE Transactions

on Medical Imaging, 38(1):33–45.

Simonyan, K. and Zisserman, A. (2015). Very deep con-

volutional networks for large-scale image recognition.

In International Conference on Learning Representa-

tions.

Su, H., Maji, S., Kalogerakis, E., and Learned-Miller, E.

(2015). Multi-view convolutional neural networks for

3d shape recognition. In Proceedings of the IEEE

International Conference on Computer Vision, pages

945–953.

Tolias, G., Sicre, R., and J

egou, H. (2015). Particular object

retrieval with integral max-pooling of cnn activations.

arXiv preprint arXiv:1511.05879.

Tran, D., Ray, J., Shou, Z., Chang, S.-F., and Paluri, M.

(2017). Convnet architecture search for spatiotempo-

ral feature learning. arXiv preprint arXiv:1708.05038.

Zhang, B., Wang, L., Wang, Z., Qiao, Y., and Wang, H.

(2018). Real-time action recognition with deeply

transferred motion vector cnns. IEEE Transactions on

Image Processing, 27(5):2326–2339.

Zheng, L., Huang, Y., Lu, H., and Yang, Y. (2019). Pose-

invariant embedding for deep person re-identiﬁcation.

IEEE Transactions on Image Processing, 28(9):4500–

4509.

An Effective 3D ResNet Architecture for Stereo Image Retrieval

387
