Classification of Visual Interest based on Gaze and Facial Features

for Human-robot Interaction

Andreas Risskov Sørensen, Oskar Palinko

and Norbert Krüger

The Maersk Mc-Kinney Moller Institute, University of Southern Denmark, Campusvej 55, DK-5230 Odense M, Denmark

Keywords: Human-robot Interaction, Visual Interest, Gaze, Classification.

Abstract: It is important for a social robot to know if a nearby human is showing interest in interacting with it. We

approximate this interest with expressed visual interest. To find it, we train a number of classifiers with

previously labeled data. The input features for these are facial features like head orientation, eye gaze and

facial action units, which are provided by the OpenFace library. As training data, we use video footage

collected during an in-the-wild human-robot interaction scenario, where a social robot was approaching

people at a cafeteria to serve them water. The most successful classifier that we trained tested at a 94%

accuracy for detecting interest on an unrelated testing dataset. This allows us to create an effective tool for

our social robot, which enables it to start talking to people only when it is fairly certain that the addressed

persons are interested in talking to it.

1 INTRODUCTION

Robots are becoming more and more commonplace in

today's world and thus an effort is made on creating a

common ground between them and humans. A large

part of communication between humans is based on

body-language, eye gaze and other subtle movements

(Argyle, 1972), so for robots to truly understand our

intentions they must be able to pick up on these non-

verbal cues (Mavridis, 2015). Human-robot interaction

can benefit a lot from a robots’ ability to read humans

or take commands that are not direct, in order to initiate

communication faster and make it smoother.

Classifying whether a connection has been made

using gaze and facial expressions of a person could

enable a robot to quickly discern whether it should

engage them or offer its services elsewhere, saving

time for both itself and others.

Visual interest in this work will mean a human’s

expressed attention towards the robot and its

behavior. This interest can partly be expressed by

establishing mutual gaze, i.e. eye contact with the

robot. This is a special communication situation when

both agents become aware of each other’s attention,

which creates a dedicated communication channel

between them. In addition to eye contact, other face

https://orcid.org/0000-0002-4513-5350

https://orcid.org/0000-0002-3931-116X

features, like emotion expression can also contribute

to a stronger expressed interest.

This work is using the SMOOTH robot as a

platform (Juel et al, 2020). It is a modular social robot

for helping in care homes and other locations. It is

designed to complete logistics (transporting laundry

bins) and people-related tasks, e.g. guiding of elderly

to the cafeteria, while navigating among them. An

additional task is serving drinks to care home

residents, as dehydration is a large problem, as some

elderly people tend to forget to drink water.

In our current work, this task was generalized to

the wider public, as the robot was tested at a

university cafeteria which also caters a nearby concert

hall (Palinko et al, 2020) (see Figure 1). The videos

used in creating the interest classifier were recorded

at this location during lunch breaks for students as

well as preceding events at the concert hall. To detect

face and eye features an open source library,

OpenFace, was utilized in order to extract

information from people’s images, including not only

gaze and head orientation but also details about

different facial features (Baltrusaitis et al, 2016). The

robot was operated at the cafeteria in a Wizard-of-Oz

manner (i.e. controlled by human operators from a

concealed location).

198

Sørensen, A., Palinko, O. and Krüger, N.

Classiﬁcation of Visual Interest based on Gaze and Facial Features for Human-robot Interaction.

DOI: 10.5220/0010259301980204

In Proceedings of the 16th International Joint Conference on Computer Vision, Imaging and Computer Graphics Theor y and Applications (VISIGRAPP 2021) - Volume 2: HUCAPP, pages

198-204

ISBN: 978-989-758-488-6

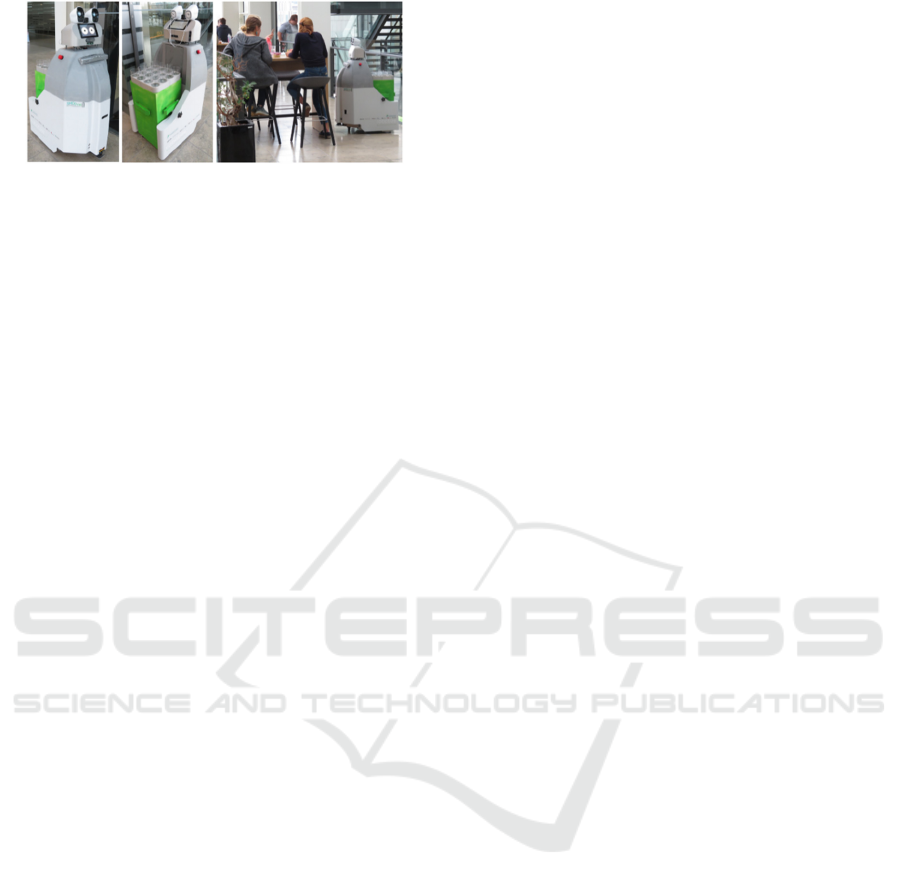

Figure 1: The setup of the SMOOTH robot.

Regarding classification of visual interest, the

features which OpenFace provides will be inspected

in order to make sure they have the desired relevance

regarding interest. The process of how the used

datasets were chosen in order to minimize bias will be

explained, along with the labelling technique used to

designate ground truth to said data.

These datasets will be used to train several

classifiers belonging to three different categories:

Decision Trees, k-Nearest Neighbors and Support

Vector Machines. The classification models will be

tested on parts of the human-robot interaction data in

the pursuit of finding the one yielding the highest

interest prediction accuracy.

Other ways to improve the classification models

will be explored, including a look at the importance

of the individual features and combinations thereof,

along with the structure of the input parameters.

2 BACKGROUND

Recently, automatic face feature analysis has seen a

great expansion. OpenFace is one of the most popular

open source libraries which provides automatic face

feature, head pose, facial action unit and eye gaze

recognition (Baltrusaitis et al, 2016). OpenFace

utilizes a set of Action Units developed by Swedish

anatomist Carl-Herman Hjortsjö in 1969 (Hjortsjö,

1969). Action Units are defined by the Facial Action

Coding System which classifies human facial

movements by their appearance on the face and can

be used in recognition of basic emotions.

Regarding visual interest, there is considerable

background on visual attention between two agents

expressed by mutual gaze (Argyle et al, 1976).

Mutual gaze is an important tool not only in human-

human but also in human-robot interaction (Palinko

et al, 2015). A human and a robot sharing mutual gaze

are evidently also sharing visual interest in each other.

But this interest can have additional elements like

face expressions caused by emotions: a smiling

person might be more interested in communicating

with the robot compared to a person with a neutral

expression. This type of interest has not yet been very

well explored in the field of human-robot interaction.

The only study which the authors found on this topic,

(Munoz-Salinas et al, 2005), showed a system for

detecting, tracking, and estimating the interest of

people in mobile robots using fuzzy logic and stereo

vision. A fuzzy system computes a level of

probability of interest based on the person's position

in relation to the robot and estimate of attention given

by the orientation of the person’s head. The

orientation is determined by the amount of skin

detected, as it follows the assumption that more of a

person’s skin is visible when facing the robot.

However, fuzzy logic has in recent years not seen so

many applications as compared to other machine

learning approaches, which will be discussed in this

study.

Mutual gaze can be found by determining the eye

gaze angles of two agents. Researchers have in recent

time chosen to replace eye gaze with its first proxy,

head orientation, in situation where eye gaze was too

inaccurate or impractical. (Palinko et al, 2016)

describe how the richer information gained from eye

gaze has a significant impact on the human-robot

interaction compared to that of the head orientation

alone.

Machine learning and classification algorithms

are as popular as ever, and a wide variety of classifier

types are available. Some of the more recent advances

in this field are described in (Zhang, 2010).

3 APPROACH

This section describes the experiment from where the

data was collected (Section 3.1), what the data consist

of and how it was labelled (Section 3.2), and finally

which features were extracted from it (Section 3.3).

3.1 Robot Experiment

An “in the wild” Wizard-of-Oz human-robot

interaction experiment was performed in which the

SMOOTH robot was serving glasses of water to a

naïve audience. It was conducted at the University of

Southern Denmark’s Sønderborg location at the

ground floor cafeteria, which is also co-located with

a concert hall. The drink serving was conducted

during lunch hours where many students were present

as well as in the evening before events at the concert

hall, when event-goers populated the sitting areas.

The Wizard-of-Oz setup meant that the robot was

controlled from a remote location by human

operators, but the interacting audience thought the

Classiﬁcation of Visual Interest based on Gaze and Facial Features for Human-robot Interaction

199

robot is acting autonomously. The operators had a

visual contact with the robot and could hear what

people were saying. One operator was driving the

robot, while the other pushed buttons to select what

and when the robot would say from a predefined set

of sentences, which were designed to convince people

to drink water. Results of this experiment were

reported on in (Palinko et al, 2020).

In our current study we used video recordings of

subjects interacting with the robot while getting

water. The recording device was a GoPro Hero

Session located on top of the robot’s head, just above

the simulated eyes, between the two loudspeakers, see

Figure 1 left and center. The data used for training

different classifiers was taken from videos recorded

by the robot during this water serving experiment.

3.2 Training and Testing Data

The data consists of a wide range of people; some are

interacting with the robot while others are not.

Figure 2: Examples of frames classified as ‘Interest’.

Figure 3: Examples of frames classified as ‘No Interest’.

From this data several smaller snippets were

extracted and put together to obtain two data sets of

people showing interest and no interest respectively.

Some examples of frames with each of the two

classification are shown in Figure 2 and Figure 3.

We selected snippets from the overall video

recordings and applied either the “interested” or “not

interested” category to each clip. Because of technical

difficulties in tracking each person in the video

separately, only those clips were selected in which

there was either only one person or where all people

shared the same interest or non-interest in the robot.

Clips with mixed interest were eliminated. The

assignment of interest was up to the judgement of the

authors and was based on people’s direction of gaze,

head orientation and face expressions.

A total of 48 video snippets were selected; 22 of

people showing interest and 26 of people showing no

interest. Each frame in the video snippets and each

face in each frame was used for training the classifier

separately. We had 22.604 frames labeled as

HUCAPP 2021 - 5th International Conference on Human Computer Interaction Theory and Applications

200

interested and 25.350 labeled as not interested in the

training dataset.

3.3 Gaze and Face Features

OpenFace is an open source facial behavior analysis

toolkit and is used in this work to extract facial

features to be used for classification. The system is

capable of performing Facial Landmark Detection,

head orientation tracking, and gaze tracking, and is

able to recognize certain Facial Action Units. Nearly

any anatomically possible facial expression can be

deconstructed using the Facial Action Coding System

(FACS), into the specific Action Units (AU) that

produced the expression (Ekman et al, 2012), which

is a common standard to objectively describe facial

expressions. OpenFace is able to recognize a subset

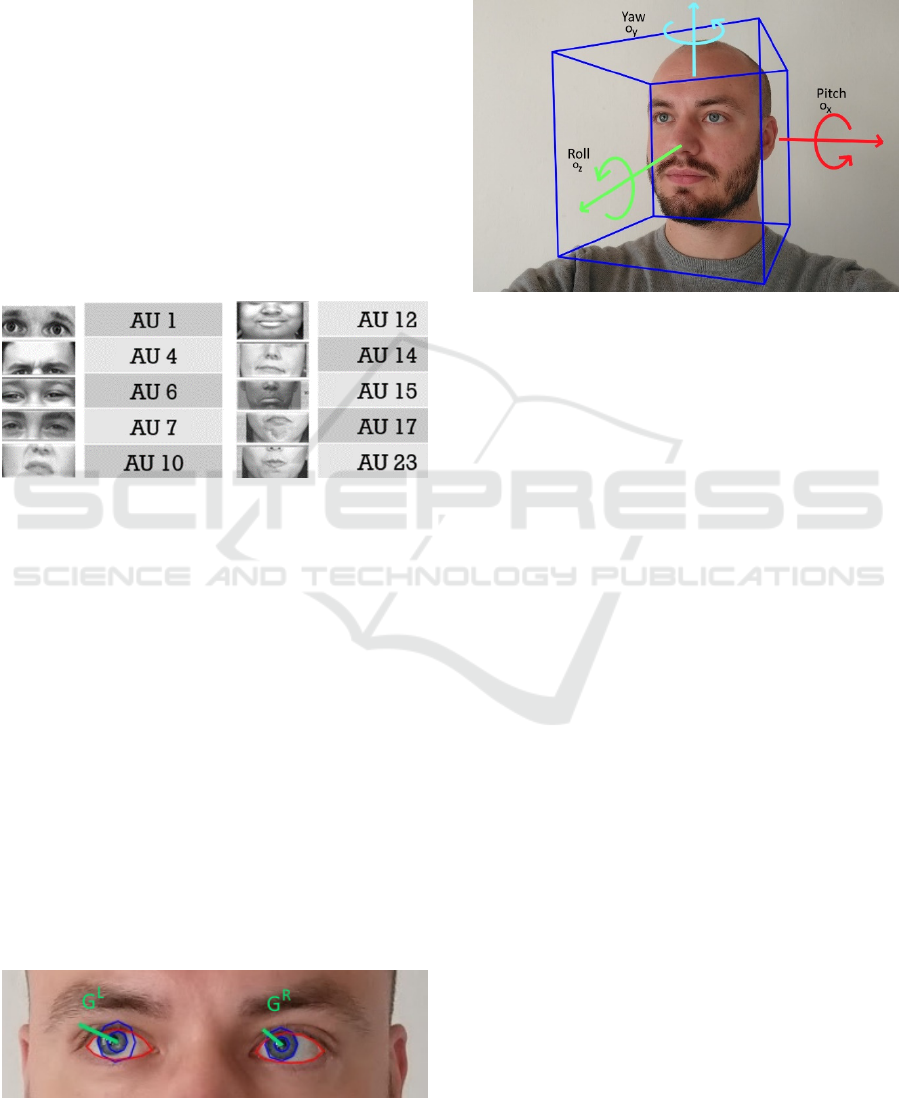

of AUs and selection of these are shown in Figure 4.

Figure 4: A selection of Action Units visualized: Outer

Brow Raiser, Brow Lowerer, Cheek Raiser, Lid Tightener,

Upper Lip Raiser, Lip Corner Puller, Dimpler, Lip Corner

Depressor, Chin Raiser, Lip Tightener.

In the following we will discuss which features were

used for training the classifiers:

Gaze Related. The gaze vectors for the eyes are

given by the three coordinates

𝐆

𝐋

=(g





, g





, g





) for

the left eye in the image and

𝐆

𝐑

=(g





, g





, g





) for the

right eye. The vectors are normalized and given in

world coordinates.

The eye gaze angles

𝐀=(a





) are found by

averaging the two gaze vectors (

𝐆

𝐚𝐯𝐠

=0.5

(

𝐆

𝐋

+𝐆

𝐑

)

and taking the angles in x and y direction. These angles

are given in radians and world coordinates. If a

person’s gaze is shifting left to right this will results in

the change of a



going from positive to negative, and

if a person’s gaze is shifting up to down this will result

in a change of a



going from negative to positive.

Figure 5: Visualization of eye gaze vectors as green lines.

Head Orientation. Rotation of the head pose in

world coordinates with the camera as origin is given

as O = (o

, o

). The rotation is in radians around

x,y,z axes. This can be seen as pitch (o

), yaw (o

and roll (o

Figure 6: Visualization of head orientation.

Facial Action Units. Action units can be described in

two ways. The first is a binary value determining if

the Action Unit is present or not, and the second is the

intensity of the Action Unit represented as a value

between 0 and 5. OpenFace provides both of these

parameters. It can detect the intensity and presence of

the following 17 Action Units:

𝐀𝐔

𝐤

=(AU





,AU





,AU





−AU





,AU





,AU





,AU









,AU





,AU





,AU





,AU





,AU





,AU





,AU





)

where k = i, p for intensity and presence, respectively.

Additionally, the presence of Action Unit AU





can

be detected.

The chosen parameters for use in the

classification are then the 6 features for the two gaze

vectors (

𝐆

𝐋

,𝐆

𝐑

), the 2 features for the gaze angles

(A), the 3 rotation features for the head orientation

(O), the 17 intensity Action Units (

𝐀𝐔

𝐢

), and the 18

presence Action Units (

𝐀𝐔

𝐩

). This gives a total of 46

features.

3.4 Data Processing

Change of Coordinate System. Head and gaze angles

in OpenFace are given in so-called world coordinates.

Since interest shown in the robot is in relation to the

camera, the angles were re-calculated with respect to

camera coordinates to reflect that. Figure 7 shows two

scenarios of the robot’s field of view seen from above,

with two people in the frame. On the left image the

orientations of the two people are parallel and in the

world coordinate system they have the angle value of

0. On the right they are both facing the camera of the

Classiﬁcation of Visual Interest based on Gaze and Facial Features for Human-robot Interaction

201

robot which means that both their angles with respect

to the camera are equal to zero.

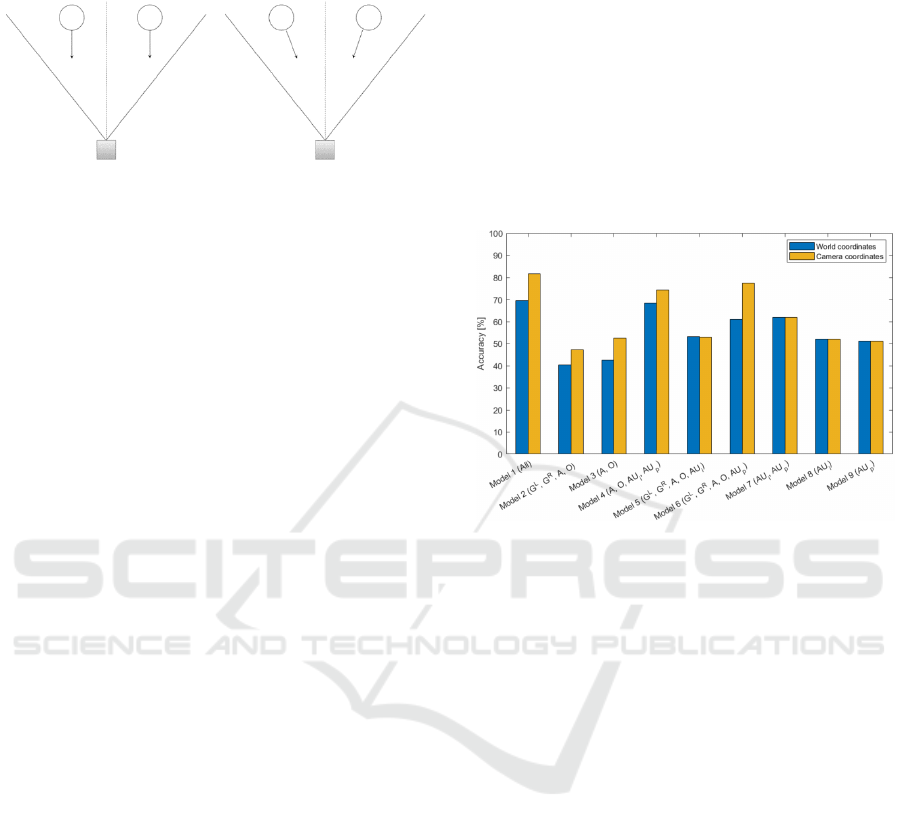

Figure 7: Left: the two people have the same orientation if

using world coordinates. Right: the two people have the

same orientation with respect to the camera.

Absolute Values. Gaze and head pose angles (𝐀 and

O) range from negative to positive depending on their

direction relative to the camera. The absolute values

of the horizontal angles (|



|) were used instead to

avoid potential bias of one data set having

significantly more people looking a certain direction

away from the camera. The same was not chosen for

the vertical angles (angles that change when looking

up-down) since the screen on the robot was located

below the camera, so direction of angle away from

zero could be related to interest.

Test Data. A separate dataset was created for use in

testing the classification models. This dataset

consisted of relatively short video snippets showing

the first author having varying gazes and head

orientations. The reason for not using parts of the

other source videos, as was done for the training data,

was to have an independent test set. In addition, using

average parameter values of several frames is

significantly easier with a single face compared to the

multiple faces in the source videos, which would have

to be tracked individually.

Training was done using 5-folds cross-validation to

avoid overfitting, and the accuracies of the models

were then found by using the models on the test dataset.

An additional observation made during these

experiments was that sometimes the outputs given by

OpenFace could be unreliable or incorrect for a short

period. That is, the gaze vectors were, during some

recordings, seen to be stable for most of the time, but

occasionally flicker in seemingly arbitrary directions

in short bursts. Therefore, it was chosen to use

averages of video clips for the testing data instead of

relying on single frames.

4 RESULTS

The dataset made from the data collected in

Sønderborg was used to train several classification

models, some only including a limited set of features,

to see which are most useful in classifying interest.

The classifier type was chosen to be Fine k-

Nearest Neighbours (meaning 𝑘=1) as it in initial

tests showed good accuracy combined with fast

training speed. The accuracies of the models were

found by evaluating the models on the separate

testing dataset by calculating the percentage of

correct classifications. One set of models were trained

using the camera coordinates, and another using the

world coordinates to determine whether there is an

improvement in accuracy as expected.

Figure 8: Comparison of accuracies between different

models using world coordinates and camera coordinates,

respectively. The used features are listed in parentheses.

Figure 8 shows that using all the features achieved

the highest accuracy. Using the camera coordinates

resulted in a significant improvement in the accuracy

compared to the world coordinates by almost 12

percentage points in the model with all features.

Using only features related to gaze and head

orientation (Figure 8, Model 2) reduced performance

to around 50 %, which is no better than guessing, and

is significantly worse than just the Action Units by

themselves. By comparing Model 5 to Model 6 it also

becomes clear that the presence Action Units are

more important than the intensity Action Units.

It was expected that the gaze and pose features

would be more relevant than the Action Units, so to

understand the poor performance of Model 2, the

prediction results for that model was inspected closer.

What proved to be the reason was that this model gave

a prediction of 'No Interest' for every point in the test

dataset. To see which of these 11 features were the

cause for this behaviour, further models were made

using different combinations of just these gaze and

head orientation features.

HUCAPP 2021 - 5th International Conference on Human Computer Interaction Theory and Applications

202

Table 1: Models using combinations of the 11 features.

Model Features

Accuracy

[%]





, g





, a



, o







, g





, g





, g





, a



, a



, o



, o







, g





, g





, g





, a



, o







, g





, a



, o



, 𝐀𝐔

𝐢

, 𝐀𝐔

𝐩

𝐆

𝐋

, 𝐆

𝐑

, a



, 𝑜



, AU





, AU









, 𝐀𝐔

𝒑

Table 1 shows that the features describing the

horizontal angles of gaze and head orientation (Model

10) by themselves give a relatively good accuracy but

combining them with the features for the vertical

angles (





, g





, a



, o



) results in a poorer performance.

The explanation for this could be the difference

between the training and testing datasets, where the

test data has less variation and possibly some bias in

what camera angles were used. Keeping these

horizontal features and adding the Action Units back

in (Model 13), however, still gives a lower accuracy

than using all the 46 features. Using this knowledge

and trying to exclude the various intensity Action

Units a final set of features with the highest accuracy

was derived and is shown as Model 14. The 29

features included are the two gaze vectors, the

horizontal gaze and head orientation angles, all the

presence Action Units and three intensity Action

Units.

In order to find the optimal classifier type

additional models were trained using the above

feature set. The k-Nearest Neighbours models and the

Tree models all performed relatively well, while the

Support Vector Machine showed more varied

accuracies, with Fine SVM having the lowest score

and Linear SVM having the second highest. The

highest accuracy achieved was 90.24 % and was

reached by the Fine Tree model.

As discussed in section 3.4, the outputs of

OpenFace can sometimes be unreliable when looking

at individual images. Therefore, the testing data was

taken temporally by averaging over 30 data points at

a time, which is equivalent to one second. The models

using the various classifier types were tested using

this temporal averaging and the comparison to the

previous static classifiers can be seen in Figure 9.

Figure 9: Comparison of various classifier models using

static and temporal data, respectively.

Almost all of the classifiers had improved

performance by applying temporal averaging. The

best performing model was still of the Fine Tree type

were the accuracy was increased to 94.10 %. A final

comparison was made by retraining the models using

all 46 features and applying temporal averaging.

Figure 10 shows that the set of 29 features still results

in the highest performing models, but for some of the

k-Nearest Neighbours models using the full feature set

gave slightly higher accuracies. The performance of

the best model and its features are shown in Table 2.

Figure 10: Comparison of various classifier models using

the set of all features and the set of 29 features, respectively.

Table 2: Fine Tree model with the highest achieved

accuracy.

Classifier Features Accuracy

[%]

Fine Tree

𝐆

𝐋

, 𝐆

𝐑

, a



, 𝑜



, AU





, AU









, 𝐀𝐔

𝒑

94.10

5 DISCUSSION AND

CONCLUSION

An interest detection system was developed by

training classifiers of various types and the best

performing model achieved an accuracy of 94 % on

Classiﬁcation of Visual Interest based on Gaze and Facial Features for Human-robot Interaction

203

the test dataset. Fifteen classifier types were tested,

and their performances evaluated using subsets of the

features. The model achieving the highest accuracy

was of the Fine Tree type and used a subset of 29

features. Applying a temporal averaging to the test

data in order to remove noise showed an increased

performance for most of the classifiers.

The three intensity Action Units that proved to be

relevant for the classification model were





, AU





, AU





. They refer to ‘Outer Brow Raiser’,

Brow Lowerer’ and ‘Lip Corner Puller’ respectively.

These are facial features that relate to frowning and

smiling, which could have significance when

evaluating interest. It should be noted, however, that

the Action Units might not be completely reliable,

especially in many of the ’No Interest’ cases where

the person is not facing the camera directly. Also, the

reliability of the Action Unit values are noted to

possibly be lower when using the feature extraction

method on sequences containing multiple faces,

which was used for this work, but despite this the

achieved performance of the classifiers was good.

The only previous work found discussing

classification of human interest in a robot (Munoz-

Salinas et al, 2005) used the detection of skin area

based on colour to determine how much interest a

person was showing. This method has two major

limitations. Firstly, the usage of skin colour as a

determining factor is not ideal as discerning in the

case of bald people and people with low contrast

between hair and skin colour can be problematic.

Secondly, face orientation does not necessarily

signify an interest in the robot. Both of these

limitations are addressed with our suggested method.

Including gaze provides a more reliable estimate a

person’s focus and thereby their point of interest.

The interest detection system described above can

have different applications, and it will be primarily

used on our robot for detecting which person in the

robot’s environment is interested in interacting with

it and taking a cup of water which the robot carries.

This detection algorithm will be especially useful in

high traffic noisy situations where we cannot rely on

the verbal communication channel, i.e. speech

recognition, to gauge people’s interest in having a cup

of water.

ACKNOWLEDGEMENTS

This work has been supported by InnovationsFonden

Danmark in the context of the Project “Seamless

huMan-robot interactiOn fOr THe support of elderly

people” (SMOOTH).

REFERENCES

Argyle, M. (1972). Non-verbal communication in human

social interaction.

Mavridis, N. (2015). A review of verbal and non-verbal

human–robot interactive communication. Robotics and

Autonomous Systems, 63, 22-35.

Juel, W. K., Haarslev, F., Ramírez, E. R., Marchetti, E.,

Fischer, K., Shaikh, D., ... & Krüger, N. (2020).

SMOOTH Robot: Design for a novel modular welfare

robot. Journal of Intelligent & Robotic Systems, 98(1),

19-37.

Palinko, O., Fischer, K., Ruiz Ramirez, E., Damsgaard

Nissen, L., & Langedijk, R. M. (2020, March). A

Drink-Serving Mobile Social Robot Selects who to

Interact with Using Gaze. In Companion of the 2020

ACM/IEEE International Conference on Human-Robot

Interaction (pp. 384-385).

Baltrušaitis, T., Robinson, P., & Morency, L. P. (2016,

March). Openface: an open source facial behavior

analysis toolkit. In 2016 IEEE Winter Conference on

Applications of Computer Vision (WACV) (pp. 1-10).

IEEE.

Hjortsjö, C. H. (1969). Man's face and mimic language.

Studentlitteratur.

Argyle, M., & Cook, M. (1976). Gaze and mutual gaze.

Palinko, O., Rea, F., Sandini, G., & Sciutti, A. (2015,

November). Eye gaze tracking for a humanoid robot. In

2015 IEEE-RAS 15th International Conference on

Humanoid Robots (Humanoids) (pp. 318-324). IEEE.

Munoz-Salinas, R., Aguirre, E., García-Silvente, M., &

González, A. (2005). A fuzzy system for visual

detection of interest in human-robot interaction. In 2nd

International Conference on Machine Intelligence

(ACIDCA-ICMI’2005) (pp. 574-581).

Palinko, O., Rea, F., Sandini, G., & Sciutti, A. (2016,

October). Robot reading human gaze: Why eye tracking

is better than head tracking for human-robot

collaboration. In 2016 IEEE/RSJ International

Conference on Intelligent Robots and Systems (IROS)

(pp. 5048-5054). IEEE.

Zhang, Y. (Ed.). (2010). New advances in machine

learning. BoD–Books on Demand.

Ekman, R. (2012). What the face reveals: Basic and applied

studies of spontaneous expression using the Facial

Action Coding System (FACS).

HUCAPP 2021 - 5th International Conference on Human Computer Interaction Theory and Applications

204
