Towards a Model Transformation based Code Renovation Tool

Norbert Somogyi

, G

abor K

ovesd

and L

aszl

o Lengyel

Budapest University of Technology and Economics, M

uegyetem rkp. 3, Budapest, Hungary

Keywords:

Code Modernization, Modeling, Model Transformation.

Abstract:

Maintaining legacy software has always required considerable effort in software engineering. To alleviate

these efforts, extensive research has been dedicated to automate the modernization of such systems. The pro-

cess includes several challenges, such as the syntactic translation of the old software to a modern programming

language, the mapping of the type systems of the source and target languages and the paradigm shift if the two

languages use different approaches, such as transforming procedural code to the object-oriented or functional

paradigm. In the case of procedural to object-oriented transformations, the state-of-the-art solutions are not

capable of automatically producing satisfactory results and some researchers suggest that complete automa-

tion will never be achieved. In our paper, we report on our work in progress on using recent advances in the

ﬁelds of modeling and model transformation to build a software modernization tool. Our solution capitalizes

on the advantages of the Ecore-based modeling ecosystem of Eclipse and focuses on not just the syntactic

translation of the system, but also on the paradigm shift of procedural to object-oriented transformations. Our

approach builds a semantic model from the original source code written in C language and produces Java code

by analysing and transforming this model.

1 INTRODUCTION

Software is a living artifact that is rarely left alone

once developed. As software evolves and is contin-

uously modiﬁed, the structure of the source code be-

comes less clear, which makes it much harder to un-

derstand its original intent, modify it or extend it with

additional features. This is called code rot (Izurieta

and Bieman, 2013).

It would be desirable for software engineers to pe-

riodically review and reconsider the technology stack

of a particular software and migrate to a more modern

and ideal option. However, it is rarely implemented

for two main reasons. First, when done manually,

it assumes the risk of introducing so-called regres-

sions, bugs that are accidentally introduced by mod-

ifying software. Secondly, corporations are driven

by business goals and are less likely to allocate re-

sources on projects that do not provide value for the

market but are solely for maintenance purposes. Code

modernization tools could help in this challenge by

at least partly automating this process, mitigating the

risk of regressions and cutting down on costs. In this

https://orcid.org/0000-0001-6908-7907

https://orcid.org/0000-0003-1527-2896

https://orcid.org/0000-0002-5129-4198

paper, we report on our work in progress towards a

code modernization tool that modernizes C code us-

ing modeling and model transformation techniques.

Our tool uses the Ecore-based modeling ecosystem of

Eclipse (McAffer et al., 2010) and focuses on translat-

ing procedural software into an object-oriented struc-

ture using model transformations. The tool produces

Java code, but the approach and the tool itself are

extensible to support different source and target lan-

guages as well.

Based on the conclusions drawn from the cited

papers and tools in Section 2, we believe that there

is a lack of procedural to object-oriented code mod-

ernization tools that actually use the various object

identiﬁcation methods and algorithms proposed in re-

search. Therefore, we aim to build a semi-automatic

tool that performs the conversion from procedural C

code to object-oriented Java code without interaction

as much as possible. We also propose two novel ap-

proaches when tackling this problem: call chain anal-

ysis and using a DSL (Domain Speciﬁc Language) for

the transformation of standard library calls.

Our main focus is to combine and expand upon

the various object identiﬁcation methods proposed

by existing literature with the Ecore-based modeling

ecosystem of Eclipse, which we believe to be a huge

advantage in the ﬁeld of code modernization. The

Somogyi, N., Kövesdán, G. and Lengyel, L.

Towards a Model Transformation based Code Renovation Tool.

DOI: 10.5220/0010246401910198

In Proceedings of the 9th International Conference on Model-Driven Engineering and Software Development (MODELSWARD 2021), pages 191-198

ISBN: 978-989-758-487-9

191

reason for this is because it is a well-developed and

well-known ecosystem that consists of a great deal of

various model-driven tools. Many of these are greatly

compatible with each other because all of them use

EMF (Eclipse Modeling Framework) models. Thus

this gives the opportunity to integrate these tools into

a code modernization framework, which can greatly

increase the capacities of the tool and reduce the costs

of developing it.

The paper is structured in the following way. Sec-

tion 2 reviews related work, state-of-the-art tools and

highlights the challenges in the ﬁeld. In Section 3, we

present our approach and the model transformations

used during the translation process. In Section 4, we

evaluate the feasibility of our solution, exploring the

advantages and shortcomings of our work. Section 5

concludes the paper, highlighting some future work.

2 RELATED WORK

2.1 Challenges in the Field of Code

Modernization

Code modernization has a number of cornerstones

that must be considered when aiming to build such

solutions. In their paper, Terekhov and Verhoef

(Terekhov and Verhoef, 2000) have highlighted the

difﬁculties of automated source code modernization

that are beyond purely syntactic translation. Firstly,

the target programming language may lack some of

the source language’s features that must be simulated

in the target language. Another challenge is mapping

the data type of variables. Different programming

languages have a wide range of differences regard-

ing data types, e.g. C has a universal pointer type

(void *) that can refer to arbitrary data in the mem-

ory, whereas Java deliberately lacks such primitive

type to avoid bugs that originate in manual memory

management. Moreover, data types that are missing

in the target language must be emulated. Further-

more, some languages, such as Cobol, have several

dialects that differ syntactically and also semantically.

Semantic differences are another considerable chal-

lenge in general. For example, most languages have

a function that prints a text to the standard output,

but the way they are called is different. For exam-

ple, C’s printf works with its own format string and

expects NULL-terminated character arrays, whereas

Java’s System.out.println works with a different for-

mat description and takes instances of String objects.

Considering the difﬁculties of automated conver-

sion, partially automated or interactive tools seem

more viable. The tools that attempt to perform truly

parallel conversion in practice may have some deﬁ-

ciencies. For example, the tool presented by Sneed

in (Sneed, 2011) has a systematic way of creating

object-oriented classes, but it can be argued whether

the resulting object-oriented model feels natural and

resembles what a programmer would have created

from scratch.

2.2 Cluster Analysis Methods

Discovering potential candidate classes in source

code is often referred to as object identiﬁcation. A

commonly used approach in identifying objects from

procedural code is cluster analysis (Everitt et al.,

2009). This method creates partitions out of the

entities (data structures, functions, global variables)

present in the code based on the dependencies be-

tween them. The goal is to minimize the dependen-

cies between the created partitions and create classes

from them. Although most of the solutions that use

this approach are largely similar, there exist basic dif-

ferences as well.

The solution presented by Zou and Kontogiannis

(Ying Zou and Kontogiannis, 2001) builds an inter-

mediate XML representation from the AST-s (Ab-

stract Syntax Tree) and then uses an incremental al-

gorithm to divide the entities of the algorithm to dif-

ferent clusters. The approach used by Czibula and

Czibula (Czibula and Czibula, 2011) is similar to

this but uses a different, heuristic partitioning algo-

rithm created by the authors. The algorithm deﬁnes

the distance between different entities and, based on

this property, creates clusters that have very minimal

distances between each other. The algorithm is tai-

lored to provide better performance against particu-

larly large software.

In conclusion, these approaches are similar to our

object identiﬁcation algorithm because they try to ﬁnd

functionally related parts of the application to con-

sider them for class creation. Our method, however,

focuses not only on the dependency relation between

the entities, but also on using parameter and return

type analysis, as proposed by (Ying Zou and Kon-

togiannis, 2001). This makes our approach identify

more classes than regular cluster analysis. Our solu-

tion also proposes a novel method of easing the au-

tomatic translation of standard function library calls

(Section 3.3).

MODELSWARD 2021 - 9th International Conference on Model-Driven Engineering and Software Development

192

2.3 Code Modernization and

Reengineering Tools

Due to the importance of modernizing legacy soft-

ware, much effort has been made to create tools ca-

pable of alleviating this process. However, these tools

usually have vastly different goals and focuses.

For example, the tool developed by mtSystems

(mtSystems, 2020) is capable of precise, fast and fully

automatic syntactical translation from C to Java code,

but the created code has two considerable disadvan-

tages. Firstly, when translating pointers into Java,

this tool uses different generated container classes to

emulate pointer functionality, which makes the gen-

erated code feel unnatural. Secondly, the tool does

not deal with shifting paradigm from procedural to

object-oriented design. We believe that using model

transformations to create an object-oriented design is

key to making the generated code feel as natural as

possible, thus our tool focuses on this aspect.

MoDisco (Bruneliere et al., 2014) is an extend-

able, model transformation based reverse engineering

framework. The process of the transformation con-

sists of 3 important steps. First, the source code is

parsed and a higher level semantic model is created

that implements OMG’s standard of KDM (Knowl-

edge Discovery Metamodel) (P

erez-Castillo et al.,

2011). In the next step, various model transforma-

tions may be deﬁned and ran on the model that reﬁne

and improve it step by step. MoDisco reuses ATL

(ATL, 2008) to deﬁne these model transformations.

ATL is a model transformation language and frame-

work. The ﬁnal step of the transformation process

is code generation based on the model. It should be

noted that MoDisco uses the Ecore-based modeling

ecosystem of Eclipse as well. It is what has inspired

us to use it in our paradigm shift-focused code reno-

vation tool.

As mentioned before, code modernization is a

broad term and tools may focus on different aspects

of the process. Our goal is to focus on the ac-

tual paradigm shift between procedural languages and

object-oriented design. Upon further inspection of the

MoDisco framework, we believe it is best used in two

different scenarios, none of which suit our needs well.

Firstly, it functions well as a refactoring tool. Sec-

ondly, the tool focuses on architecture modernization.

It supports modernization with regard to various tech-

nologies, for example JEE (Java Enterprise Edition)

and JUnit. Furthermore, another reason we believe

the tool is not optimal for our goals is because the

various object identiﬁcation algorithms are way too

complex to be described using ATL.

3 TRANSFORMING

PROCEDURAL CODE

3.1 Transformation Methodology

Our method of transforming procedural code into an

object-oriented design shares ideas with the tradi-

tional approach employed in many earlier solutions.

This includes parsing the source code, building a

model and generating code from it. However, in cer-

tain areas, we take new directions.

Using the ASTs (Abstract Syntax Trees), a much

higher-level representation of the source code is built

in the form of a semantic model, similar to the

approach used by MoDisco. It preserves the se-

mantics and thus the intent of the original code

but eliminates all of the language-dependent details.

OOGen is then subjected to various model transfor-

mations. M2M (Model-to-Model) transformations

(Langer et al., 2010) are responsible for identifying

the potential objects of the system, and M2T (Model-

to-Text) (Oldevik et al., 2005) transformations are

used to generate code based on the model.

Figure 1 illustrates the architectural view of our

solution. As mentioned before, using the Ecore-based

modeling ecosystem of Eclipse enables the tool to be

compatible with most other model-driven tools that

use or expect models that adhere to Ecore. This

makes the transformer easy to integrate with such

tools, which allows us to reuse them in our solution.

This reduces development costs and may further in-

crease the capabilities of a code modernization tool.

One concrete tool is Xtext, which we used to develop

the DSL that describes transformations of standard li-

brary functions (Section 3.3). In the future, more and

more such tools may be reused with the transformer.

It should be noted that the concept of the transfor-

mation process itself is language-independent. Nev-

ertheless, there are some parts of the transformation

that are dependent on the source language or the tar-

get language, yet these components can be easily re-

placed to support a wider range of source and tar-

get languages. Parsing the software requires a parser.

Similarly, code generation is dependent on the target

language, since the code generator must be capable of

creating code in the implied language.

3.2 Object Identiﬁcation: Model

Transformations

The quality of the created object-oriented design

largely depends on how well potential objects are

identiﬁed. Thus, it is an essential part of the trans-

Towards a Model Transformation based Code Renovation Tool

193

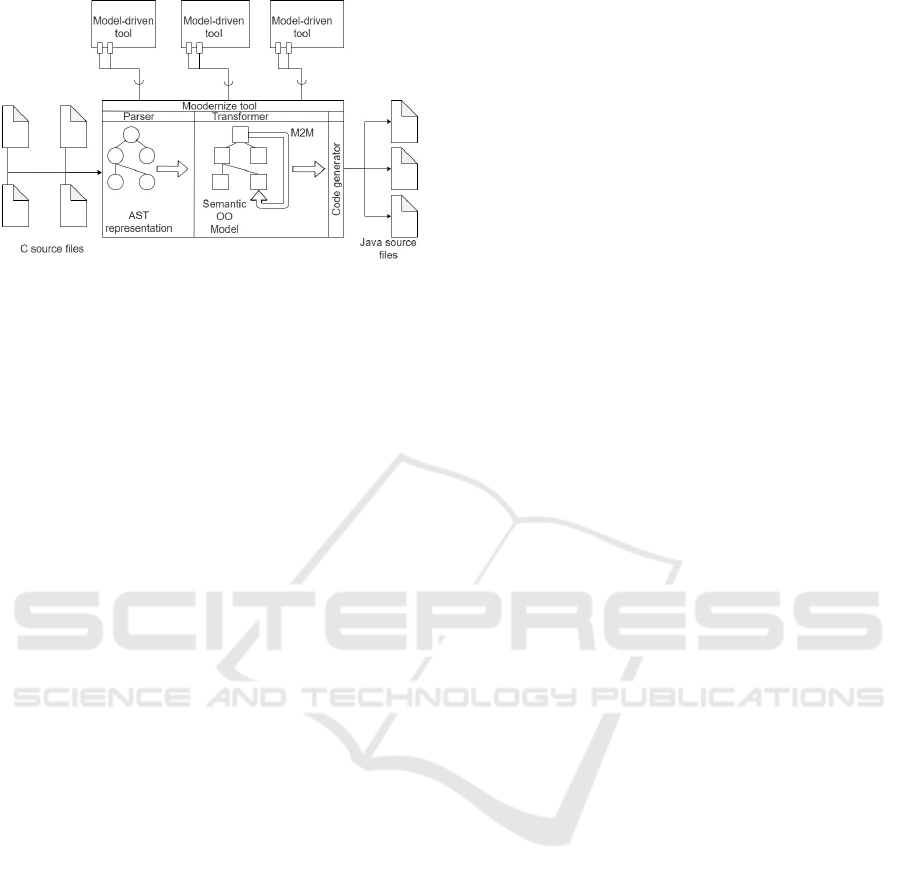

Figure 1: The overall architecture of our solution.

formation process. In our solution, object identiﬁca-

tion steps are implemented as model transformations.

Based on existing literature, we propose the following

combination of object identiﬁcation techniques.

3.2.1 Structure Collection

A basic ﬁrst step in transforming procedural code into

an object-oriented design is to collect all data struc-

tures by traversing the AST-s and create a correspond-

ing class for each of them. Each class encapsulates

all the data members of the structure as private mem-

bers and generates appropriate public getter and set-

ter methods for accessing these ﬁelds. These classes

form the basis of the application.

3.2.2 Parameter and Return Type Analysis

In this step, global functions are analyzed with the in-

tent of assigning them to the classes created in the

previous step. To this end, the parameters and the

return type of every global function should be taken

into consideration. This approach was ﬁrst proposed

in (Ying Zou and Kontogiannis, 2001).

A structure-type parameter implicates that the

function is dependent on the implied type. Since the

function uses this type for some reason or the other, it

could be beneﬁcial to assign this method to the class

that corresponds with the type of the parameter. A

structure-type return value may imply that the func-

tion either updates the value of a variable of the im-

plied type or creates and returns a new instance of it.

Either way, it is expedient to assign the function to

the class that corresponds with the type of the return

value. It should also be noted that return type analy-

sis is a stronger sign of cohesion and thus should take

priority over the results of parameter analysis.

3.2.3 Call Chain Analysis

In the third step of object identiﬁcation, we propose

the following method of ﬁnding candidate classes.

This idea expands on the concept of cluster analysis.

We analyze every global function that has not been as-

signed to a class in the previous step. The goal of this

model transformation step is to further reﬁne the re-

maining global functions by encapsulating functions

that may semantically belong together.

To this end, a CG (call graph) is built that repre-

sents the inter-procedural control ﬂow of the applica-

tion. The call graph is a directed graph where nodes

represent functions, and an edge from vertex f to ver-

tex g implies that function f calls function g at least

once. Our algorithm seeks call chains and creates a

class for each of these chains that meets two criteria.

Firstly, each and every function in the chain should

be called relatively rarely by the other functions in the

application that are not part of the analyzed chain. We

propose this value to be no more than 5% of the num-

ber of all the other functions outside of the current

call chain. This requirement (maximum allowed in-

bound calls) ensures that the created class is coupled

loosely with the rest of the application. Secondly, the

number of methods in the created class must exceed

a predeﬁned safety minimum value. We propose this

to be minimum of 3 functions in a class. We believe

that 2 functions together may not be a strong sign of

cohesion, whereas at least 3 likely yield classes that

actually encapsulate functions that logically belong

together.

We deﬁne our algorithm that traverses a call graph

and creates classes encapsulating methods in call

chains that satisfy the requirements mentioned above

in Algorithm 1. Let max f

denote the maximum al-

lowed inbound calls and F the set of all remaining

functions to analyze.

3.3 A Novel Approach of Transforming

Standard Library Calls

After object identiﬁcation, another important aspect

of modernizing between languages is the automatic

handling of standard library function calls. Trans-

forming them is an important part of modernizing

legacy software. However, doing so automatically is

a complex and very non-trivial problem. So much so

that even well-developed tools struggle with these is-

sues.

We propose a novel method of easing the auto-

matic conversion between standard library calls of

different languages. We have created a DSL (Do-

main Speciﬁc Language) (Fowler, 2010) designed

speciﬁcally for describing such transformations. We

have created the language using the Xtext (Bettini,

2016) framework of Eclipse. When designing the

language, we have paid attention to making it as

MODELSWARD 2021 - 9th International Conference on Model-Driven Engineering and Software Development

194

Algorithm 1: Call chain analysis.

Input: CG = (V(CG), E(CG)) call graph

Output: C = {c

, c

, ..., c

} set of

created classes

1 Function CreateClasses():

2 N = NumberOfAllFunctions()

3 max f

= CalcMaxfin(N)

4 F = V(CG)

5 C = {}

6 for ∀ f ∈ F do

7 c = Analyze(F, f, {})

8 if |c| ≥ 3 then

9 C = C ∪ c

10 else

11 for ∀g ∈ c do

12 F = F ∪g

13 return C

14 Function Analyze(F, f, c):

15 F = F \f

16 f

= NumberO f InboundCalls( f )

17 if f

> max f

then

18 return {}

19 c = c ∪ f

20 for ∀g ∈ ChildrenO f ( f ) do

21 if g ∈ F then

22 c = Analyze(F, g, c)

23 return c

generic as possible. This makes the approach lan-

guage independent as long as the source or tar-

get language is either procedural or object-oriented

in nature. The grammar of the language

is pub-

licly available on GitHub. It is deﬁned in the ﬁle

”hu.bme.aut.apitransform.ApiTransform.xtext” in the

project ”hu.bme.aut.apitransform”.

Let us now take a look at an example to illustrate

the feasibility of our approach. Listing 1 depicts the

handling of fopen and Listing 2 shows how to close

the stream when encountering an fclose call.

These scripts can be used to ease the refactoring

of basic C ﬁle handling. The ﬁrst one describes that

for every fopen call encountered per scope basic Java

ﬁle handling instances should be created (Filereader

and Bufferedreader) with the appropriate constructor

parameters. The second script says that when the cor-

responding fclose call is found, the stream must be

closed in the generated code as well by calling the

close method of the FileReader instance.

https://github.com/gaborbsd/Moodernize

Listing 1: Instantiations for fopen.

1 t r an s f o rm a t i o n {

2 sou r c e f un c t io n f o p e n {

3 p ar a me t er s : p a t h mode

4 }

5 ta r g e ts {

6 i n s ta n t i a t i o n {

7 in s t an c e in {

8 cl a s s N a me : java . io . F i le R ea d er

9 pa r am e te r s : p a t h

10 }

11 in s t an c e br {

12 cl a s s N a me : java . io .

13 Bu f f e re d R e a d e r

14 pa r am e te r s : in

15 }

16 }

17 }

18 }

Listing 2: Closing the stream at fclose.

1 t r an s f o rm a t i o n {

2 sour c e f u nc t i on f c l o se {

3 pa r a m e te r s : f i l e

4 }

5 tar g e ts {

6 fun c ti o n c l o s e {

7 pa r a m e te r s :

8 owner : in

9 }

10 }

11 }

4 EXPERIMENTAL EVALUATION

In this section, we present the feasibility evalua-

tion of our approach and the tool on a number of

open-source software publicly available on GitHub.

Apart from ”CTestProject”, which is a hand-crafted C

project used to quickly test new features introduced

to the tool, all these applications are real, existing C

projects. Most of these programs are really complex

and consist of considerable amounts of source code.

Table 1 depicts the software used during the evaluat-

ing transformations.

Most of these programs are very low level and

have dependencies that were not available during

compilation. Some of them may be compiled on spe-

ciﬁc operating systems only. Thus, the transforma-

tions of these programs introduce considerably more

errors than they would if all dependencies were avail-

able. Regardless, the reason we have chosen to use

these applications as test subjects is that open-source

complex software written in C is hard to come by.

This way, we can be certain that the transformation

completes without any runtime exceptions even on

software that consist of hundreds of thousands of

source code. We also get a glimpse on how these

transformations work on real, complex software.

Towards a Model Transformation based Code Renovation Tool

195

Table 1: The transformed test applications and their total

sum of LoC (Lines of Code) across all header and source

ﬁles.

Availability LoC

https://github.com/dajobe/ﬂickcurl 33k

https://github.com/pbatard/rufus 86k

https://github.com/hashcat/hashcat 176k

https://github.com/curl/curl 179k

https://github.com/git/git 229k

https://github.com/obsproject/obs-studio 240k

https://github.com/vim/vim 419k

Listing 3: Sample methods of the class dict.

1 publ i c void re d is _ a d d ( i nt times )

2 publ i c void r e d i s _ f e tc h ( int t i m e s )

3 publ i c void re d is _ d e l ( i nt times )

4 publ i c dict di c tC r ea t e

5 ( d ic t T yp e type , Objec t p r i v Da t a P t r )

6 publ i c int dic t R e s i z e ()

7 publ i c int di c t G e n e r i c D e l e t e

8 ( O b jec t key , int nofree )

https://github.com/NorbertSomogyi/

MoodernizeExamples

The components of the tool

, the OOGen

meta-

model and the transformed projects

that the tool pro-

duced are all publicly available on GitHub.

The core part of our solution was the use of var-

ious model transformation steps to create an object

identiﬁcation algorithm that creates various classes

from the procedural source code. In the next few sub-

sections, we evaluate the results of our transforma-

tions.

4.1 Parameter and Return Type

Analysis

The goal of this step is to assign responsibility to

classes based on the signature of the global functions.

In many cases, this step successfully added methods

to created classes. Take for instance the class ”dict”,

created in the CBufferedTree, project which imple-

ments a dictionary in the form of a linked list in the

original C code. This class gained several methods,

some samples of which are depicted in listing 3.

As we can see, these methods truly do belong in

this class. They are responsible for adding, fetch-

ing, deleting entries, creating a certain type of dic-

tionary or resizing it. Similarly, many other classes

(e.g. dictentry, container, node) were assigned several

https://github.com/gaborbsd/Moodernize

https://github.com/gaborbsd/OOGen

https://github.com/NorbertSomogyi/

MoodernizeExamples

Listing 4: Sample class created by call chain analysis.

1 publ i c s t a tic void _exit_

2 l o c a l iz a t i o n ( O bje c t r e i nit ) {

3 . ..

4 f r ee _ d i a l og _ l i s t ();

5 mt a b _ d e s tr o y ( r ein i t ) ;

6 . ..

7 }

8 pri v a te st a t i c void f r e e_ d i a l o g _

9 l i s t ( ) {...}

10 pri v a te st a t i c void m t a b_ d e s t r o y

11 ( O b jec t r e i n it ) {...}

methods that would have been placed in them even

when creating the design manually by scratch. Based

on these results, we conclude that this step of the algo-

rithm truly does create useful object-oriented design.

4.2 Call Chain Analysis

This transformation step is responsible for further re-

ﬁning those global functions that were not assigned

to a class in the previous analysis. It creates classes

encapsulating methods that logically belong together.

Across all the transformed programs, several call

chain classes were created. These classes are named

in the following format: < FirstFunctionName >

To < LastFunctionName > . Listing 4 shows an

example taken from the transformed Rufus project,

where a total of 16 call chain classes were success-

fully created.

We can see that one of the methods is public, the

others are private. This means that the private meth-

ods are never called by any other part of the applica-

tion. Moreover, the public method actually calls the

other 2 private methods at some point. This implies

these classes truly may belong together semantically.

In other classes, similar results can be observed. To

sum up, what we accomplish with this transforma-

tion step is that instead of putting every ”leftover”

global function in the global ModernizedCProgram

class, many of these functions are at least encapsu-

lated with other functions that logically belong to-

gether.

4.3 Standard Library Calls

To further elaborate on the examples presented in Sec-

tion 3.3, let us now take a look at how exactly the

the scripts depicted in listing 1 and listing 2 are used

to actually translate C ﬁle handling snippets. These

scripts describe how to handle the C fopen and fclose

calls. Coupled with two basic scripts that replace the

getC call with readLine (creating a String instance

before the calls) and putchar with System.out.print,

these can be used to actually translate a simple ﬁle

MODELSWARD 2021 - 9th International Conference on Model-Driven Engineering and Software Development

196

Listing 5: Java ﬁle handling snippet.

1 j a v a . io . Fi l eR e ad e r i n =

2 n ew Fi l eR e ad e r (" a s d . txt ");

3 j a v a . io . B u ff e r e d R e a d e r br =

4 n ew B u f f e r e dR e a d e r ( in );

5 Str i n g line ;

6 while (( line = br . r e ad L i ne ( ) )

7 != null ) {

8 S y s tem . out . prin t ( l i n e );

9 }

10 in . c lose ( );

handling code to its Java equivalent. Using the afore-

mentioned scripts, the Java code shown in listing 5 is

generated as a sample Java ﬁle handling snippet.

Based on these results, we believe this approach is

useful in easing the translation of not-too-complicated

code samples. However, to faithfully translate more

complex code, further improving the language might

be necessary. Particularly, detecting code patterns in-

stead of matching singular function calls could poten-

tially improve the expressive power of our DSL.

4.4 Critical Analysis

In this section, we summarize the strengths and weak-

nesses of our approach and tool and compare them to

the other tools mentioned in this paper.

One of the main strengths of our approach is the

use of Eclipse’s Ecore-based metamodeling ecosys-

tem. This is similar to what the Modisco tool uses and

employing it in a dedicated code modernization tool

is a novel approach of tackling this problem. Nat-

urally, our OOGen metamodel is not as detailed as

Modisco’s metamodel that adheres to OMG’s KDM

speciﬁcation. For example, KDM has a separate layer

dedicated to the architecture of the modernized pro-

gram. This is not touched upon in our approach, be-

cause for now we have chosen to focus on the model

transformations that identify classes in the system.

The reason we have not reused Modisco’s KDM com-

patible metamodel is that we had OOGen available

from a different project and it was easy and fast to

use it. In the future, reusing the MoDisco metamodel

will be beneﬁcial to our solution. To sum it up, al-

though Modisco’s metamodel is currently more ad-

vanced than ours, it is still a considerable advantage

against any other tool or approach formerly presented

in this paper.

The next notable advantage of our approach is the

use of model transformations. These are responsi-

ble for identifying potential objects as candidates for

class creation. This is an advantage when compared

to e.g. mtSystems, for this otherwise state-of-the-

art tool does not use any object-identiﬁcation algo-

rithms proposed in former literature. When compared

to Modisco, we believe that these algorithms are too

complex to be described using ATL, and have deemed

it necessary to implement them ”manually”. On the

other hand, some earlier solutions use more steps in

their object identiﬁcation algorithm, opposed to the

3 steps that we currently use. In the future, adding

more steps will be useful to create even better object-

oriented design.

We have also proposed the novel approach of call

chain analysis. It is similar to the previous cluster

analysis approaches seen in Section 2.2. It analyzes

the dependency between entities of the system and

creates classes that minimize dependencies between

the created classes. However, call chain analysis only

uses the functions of the system and not the global

variables or data structures. Thus, it is used only as

a reﬁning step in the end instead of being the main

algorithm that creates the object-oriented design. The

advantage of this is that we can combine dependency

analysis with other forms of object identiﬁcation, as

seen in this paper. The disadvantage is that it does

not consider data and classes should usually be used

to encapsulate behaviour with the data it operates on.

Thus, this step may further be improved in the future

by trying to combine the classes created by call chain

analysis with global variables that the functions may

heavily use.

Finally, our solution also uses an approach of eas-

ing the translation of standard library calls. Not only

is this a novel approach of tackling this problem,

but neither existing literature nor state-of-the-art tools

have made an effort to at least partially automate this

problem. Needless to say, we believe this is a consid-

erable advantage in favor of our solution.

On the other hand, there exist a number of C lan-

guage constructs that our reference implementation

tool does not handle properly as of now.The mtSys-

tems tool and other similar cutting-edge tools excel

at syntactic translation, leaving little to none compila-

tion errors in translated projects.

5 CONCLUSION

In this paper, we have presented our work in progress

code renovation tool that transforms procedural C

code to Java code in a semi-automatic way. Our ap-

proach relies on creating a high-level semantic model

out of the AST representation of the source code and

using a series of model transformations to create a

more object-oriented design. Our object identiﬁca-

tion algorithm reuses some ideas proposed in existing

literature and proposes the new method of call chain

analysis. The quality of the identiﬁed classes is sub-

Towards a Model Transformation based Code Renovation Tool

197

ject to the parametrization of the algorithm. In gen-

eral, the classes are highly cohesive, and they encap-

sulate data that logically belong to each other.

One of the main beneﬁts of our solution is using

the Eclipse EMF modeling ecosystem. This allows

us to easily integrate our solution with existing MDE

tools, which highly improve the capabilities of the

code modernizing tool. We have also created a DSL

that is used to effectively describe transformations of

standard library function calls. This is a novel ap-

proach of dealing with this problem.

We have also experimentally evaluated the fea-

sibility of our solution on various real, open-source

software. We have found that our object identiﬁca-

tion methodology produces useful object-oriented de-

sign. We have also compared our solution to existing

state-of-the-art tools and solutions presented in exist-

ing literature. We have determined that the novelty

of our solution is the Ecore-based model-driven ap-

proach, the proposed call chain analysis method, and

the DSL used for translating standard library calls.

There exist many promising aspects that could be

explored upon in future work. Formal proof of the

correctness of the transformation should be given in

the near future. To this end, we plan to use for-

mal veriﬁcation methods to ascertain that the trans-

formed program behaves equivalently to the original

software. Also, integrating our solution with more ex-

isting model-driven tools remains our main goal. For

example, instead of manually building a call graph,

Eclipse PTP (Watson and DeBardeleben, 2006) may

be used to easily and effectively generate it.

ACKNOWLEDGEMENTS

Project no. FIEK 16-1-2016-0007 has been imple-

mented with the support provided from the National

Research, Development and Innovation Fund of Hun-

gary, ﬁnanced under the Centre for Higher Education

and Industrial Cooperation - Research infrastructure

development (FIEK 16) funding scheme.

REFERENCES

ATL (2008). ATL presentation. https:

//www.eclipsecon.org/2008/sub/attachments/

Modeltomodel Transformation with ATL.pdf.

Accessed: 2020-10-05.

Bettini, L. (2016). Implementing Domain Speciﬁc Lan-

guages with Xtext and Xtend - Second Edition. Packt

Publishing, 2nd edition.

Bruneliere, H., Cabot, J., Dup

e, G., and Madiot, F.

(2014). MoDisco: a Model Driven Reverse Engineer-

ing Framework. Information and Software Technol-

ogy, 56(8):1012–1032.

Czibula, I. G. and Czibula, G. (2011). Unsupervised trans-

formation of procedural programs to object-oriented

design. In Acta Universitatis Apulensis.

Everitt, B. S., Landau, S., and Leese, M. (2009). Cluster

Analysis. Wiley Publishing, 4th edition.

Fowler, M. (2010). Domain Speciﬁc Languages. Addison-

Wesley Professional, 1st edition.

Izurieta, C. and Bieman, J. (2013). A multiple case study of

design pattern decay, grime, and rot in evolving soft-

ware systems. Software Quality Journal, 21.

Langer, P., Wimmer, M., and Kappel, G. (2010). Model-

to-model transformations by demonstration. In Tratt,

L. and Gogolla, M., editors, Theory and Practice of

Model Transformations, pages 153–167, Berlin, Hei-

delberg. Springer Berlin Heidelberg.

McAffer, J., Lemieux, J.-M., and Aniszczyk, C. (2010).

Eclipse Rich Client Platform. Addison-Wesley Pro-

fessional, 2nd edition.

mtSystems (2020). mtSystems documentation. https://

www.mtsystems.com/. Accessed: 2020-10-05.

Oldevik, J., Neple, T., Grønmo, R., Aagedal, J., and Berre,

A.-J. (2005). Toward standardised model to text trans-

formations. In Hartman, A. and Kreische, D., editors,

Model Driven Architecture – Foundations and Appli-

cations, pages 239–253, Berlin, Heidelberg. Springer

Berlin Heidelberg.

erez-Castillo, R., Guzm

an, I., and Piattini, M. (2011).

Knowledge discovery metamodel-iso/iec 19506: A

standard to modernize legacy systems. Computer

Standards & Interfaces, 33:519–532.

Sneed, H. M. (2011). Migrating pl/i code to java. In 2011

15th European Conference on Software Maintenance

and Reengineering, pages 287–296.

Terekhov, A. and Verhoef, C. (2000). The realities of lan-

guage conversions. IEEE Software, 17(6):111–124.

Watson, G. and DeBardeleben, N. (2006). Developing sci-

entiﬁc applications using eclipse. Computing in Sci-

ence & Engineering, 8:50 – 61.

Ying Zou and Kontogiannis, K. (2001). A framework

for migrating procedural code to object-oriented plat-

forms. In Proceedings Eighth Asia-Paciﬁc Software

Engineering Conference, pages 390–399.

MODELSWARD 2021 - 9th International Conference on Model-Driven Engineering and Software Development

198
