Reduced Precision Strategies for Deep Learning:

A High Energy Physics Generative Adversarial Network Use Case

Florian Rehm

1,2

, Soﬁa Vallecorsa

, Vikram Saletore

, Hans Pabst

, Adel Chaibi

, Valeriu Codreanu

Kerstin Borras

2,5

and Dirk Kr

ucker

CERN, Switzerland

RWTH Aachen University, Germany

Intel, U.S.A.

SURFsara, The Netherlands

DESY, Germany

Keywords:

Reduced Precision, Quantization, Convolutions, Generative Adversarial Network Validation, High Energy

Physics, Calorimeter Simulations.

Abstract:

Deep learning is ﬁnding its way into high energy physics by replacing traditional Monte Carlo simulations.

However, deep learning still requires an excessive amount of computational resources. A promising approach

to make deep learning more efﬁcient is to quantize the parameters of the neural networks to reduced precision.

Reduced precision computing is extensively used in modern deep learning and results to lower execution

inference time, smaller memory footprint and less memory bandwidth. In this paper we analyse the effects

of low precision inference on a complex deep generative adversarial network model. The use case which

we are addressing is calorimeter detector simulations of subatomic particle interactions in accelerator based

high energy physics. We employ the novel Intel low precision optimization tool (iLoT) for quantization and

compare the results to the quantized model from TensorFlow Lite. In the performance benchmark we gain

a speed-up of 1.73x on Intel hardware for the quantized iLoT model compared to the initial, not quantized,

model. With different physics-inspired self-developed metrics, we validate that the quantized iLoT model

shows a lower loss of physical accuracy in comparison to the TensorFlow Lite model.

1 INTRODUCTION

Simulations in High Energy Physics (HEP) have,

due to their complex physical processes, a high de-

mand for computational hardware resources and re-

quire more than half of the worldwide Large Hadron

Collider (LHC) grid resources (Albrecht, 2019). Cur-

rently, the interactions of particles in the detectors are

simulated by employing the simulation toolkit Geant4

(Agostinelli et al., 2003) which uses detailed Monte

Carlo simulation for reproducing the expected detec-

tor output. Because of their dense material and the

highly granular geometry, calorimeters are among the

detectors that take longer time to simulate. Future

simulations of the LHC in the high luminosity phase

will require around 100 times more simulated data

which exceeds drastically the expected computation

resources, even taking into account technological de-

velopment (Apollinari et al., 2017). Therefore, in-

tense research is already ongoing for seeking faster

alternatives to the standard Monte Carlo approach.

Several prototypes based on Deep Generative

Models have shown great potential, by achieving sim-

ilar accuracy than traditional simulation (de Oliveira

and Paganini, 2017; Ghosh, 2019). Generative Ad-

versarial Networks (GANs) represent an example of

such model that have proven for creating calorimeter

shower images (Khattak et al., 2018).

In this paper we describe our developments to fur-

ther enhance the GAN approach for calorimeter sim-

ulations by quantizing the trained neural network into

lower precision. Lower precision operations lead to a

reduced computation time, smaller model storage re-

quirements and fewer data movements. We assess the

impact of quantization on the computational side by

measuring the inference time and the GPU memory

footprint. On the physical side we validate the ac-

curacy by comparing the energy deposition patterns

(”shower shapes”) observed in GAN and Geant4 im-

ages. We benchmark the new Intel Low Precision

Optimization Toolkit (Feng Tian and Gong, 2020) by

quantizing our model using Integer-8 (int8) format

Rehm, F., Vallecorsa, S., Saletore, V., Pabst, H., Chaibi, A., Codreanu, V., Borras, K. and Krücker, D.

Reduced Precision Strategies for Deep Learning: A High Energy Physics Generative Adversarial Network Use Case.

DOI: 10.5220/0010245002510258

In Proceedings of the 10th International Conference on Pattern Recognition Applications and Methods (ICPRAM 2021), pages 251-258

ISBN: 978-989-758-486-2

251

and compare the results to the quantized models ob-

tained using TensorFlow Light (TFL, 2020) in 16-bit

ﬂoating point (ﬂoat16) and int8 formats.

Section 2 provides a description of calorimeter

simulations and the data set format. Section 3 brieﬂy

introduces the GAN approach and the prototype we

use for this study. Section 4 covers an introduction

to reduced precision and to the quantization tools. A

brief review on related work is shown in section 5. In

section 6 results are evaluated in terms of computa-

tional resources and physical accuracy. The last sec-

tion summarizes the conclusions.

2 ELECTROMAGNETIC

CALORIMETERS

Calorimeters are one of the main components of

accelerator-based HEP experiments and detectors.

They are used to measure the energy of particles

(Brown and Cockerill, 2012) at collider experiments.

The primary particles which enter and interact with

the material of the calorimeter deposit their ener-

gies by creating showers of secondary particles as

they pass through the detector. The secondary par-

ticles in turn, create other particle showers by the

same mechanism. While the shower evolves, the

energy of the particles gradually reduces and is ab-

sorbed or measured by the calorimeter sensors. In

our work, we simulate electromagnetic calorimeters,

which are specially designed to measure energies

of electrons, positrons and photons that interact in

the detector volume via electromagnetic interactions

(mainly bremsstrahlung for electrons and pair produc-

tion for photons).

We use particle shower images, recorded by the

calorimeter, as data set for the simulations. The train-

ing and test data set are simulated using Geant4: they

represent a future electromagnetic calorimeter proto-

type. For the study in this paper, we are using 200 000

3-dimensional shower images of electrons with a pri-

mary particle energy in the range of 100-500 GeV and

a 3-dimensional shape of 25x25x25 pixels. Figure 1

shows an example shower image cutout.

It is worth noticing that we do not use any tim-

ing information: only static images of the energy de-

posits are used to train the GAN model (described in

section 3). Particle shower shapes are parameterized

according to the energy of the primary particle E

which is the energy of the electron which enters the

calorimeter volume and the ECAL value (for Elec-

tromagnetic CALorimeter), which corresponds to to-

tal energy measured by the calorimeter (summing the

estimated energy deposits over all calorimeter cells).

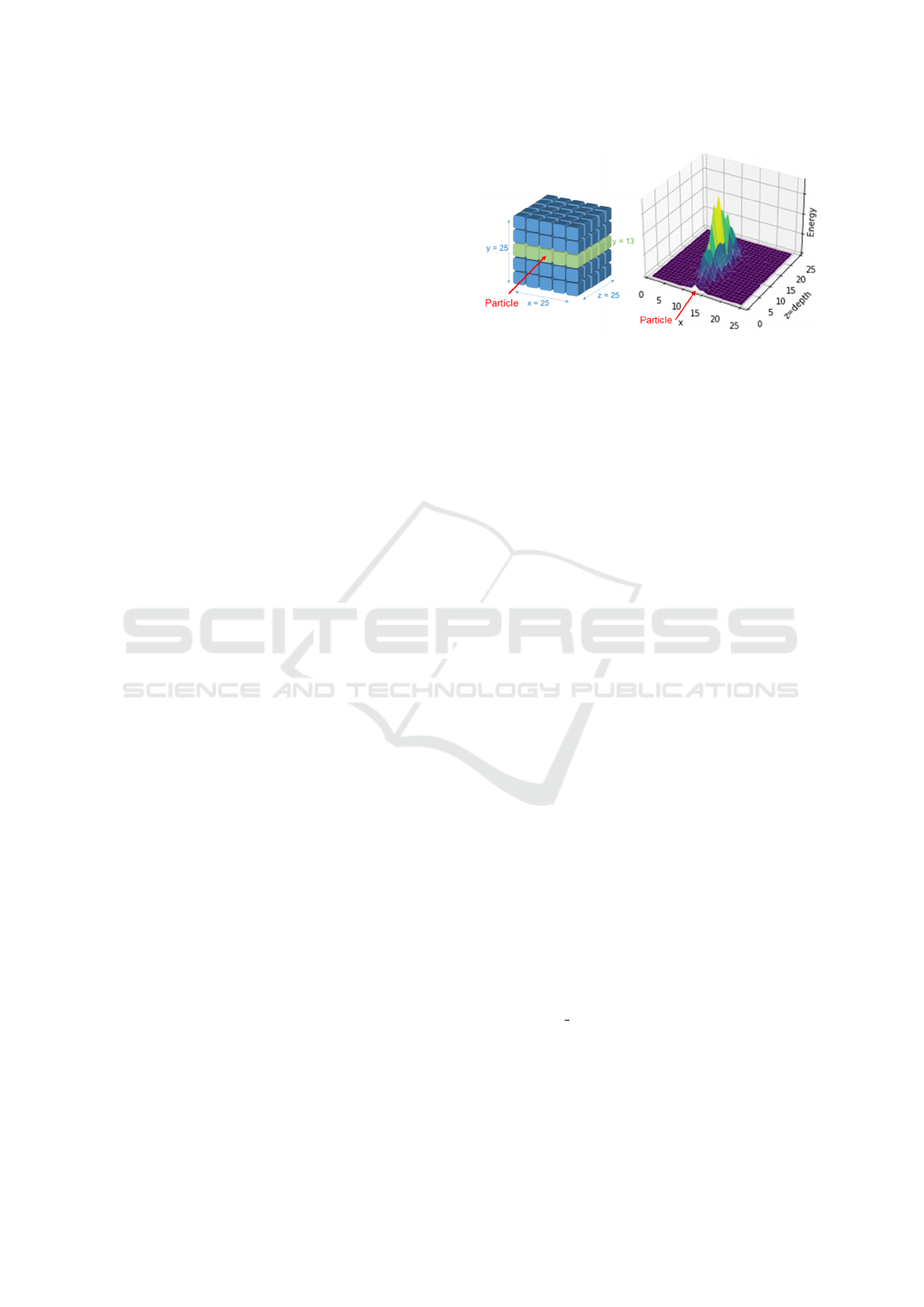

Figure 1: (Left): A simpliﬁed representation of the 3-

dimensional image. (right): An example shower develop-

ment at y = 13.

The relation between ECAL and E

depends on the

type, geometry and material of the calorimeter. For

our data we approximate it using polynomial func-

tion.

3 3D GENERATIVE

ADVERSARIAL NETWORKS

Generative Adversarial Networks (GANs) are being

successfully investigated for replacing some tradi-

tional Monte Carlo calorimeter simulations. It is

demonstrated, that GANs can achieve similar levels

of accuracy as the Monte Carlo simulations, on some

speciﬁc use case, while considerably decreasing the

simulation time (Khattak et al., 2018) (Erdmann M.,

2019). GANs were ﬁrst introduced by Ian Goodfel-

low (Goodfellow et al., 2014) in 2014. They belong

to the group of unsupervised learning methods and are

nowadays used for a large variety of different gener-

ative tasks. The whole GAN model consists of two

deep neural networks. A generator network which

generates images from random numbers and a dis-

criminator which is trained to evaluate and distinguish

between the generated and the training images.

The generator network receives as input a latent

vector with 200 uniform distributed random num-

bers multiplied by an energy scalar corresponding

to the primary particle energy E

. It produces a

3-dimensional shower image with the same shape

25x25x25, as the images of the training dataset.

The generator network uses a mix of convolutional

2D (Conv2D) layers and transposed convolutional

2D (Conv2D transpose) layers. Additionally, we

use batch normalization (BatchNorm), leaky recti-

ﬁed linear units activation function (LeakyReLU) and

dropout layers (Dropout). The detailed neural net-

work architecture of the generator is shown in ﬁgure

ICPRAM 2021 - 10th International Conference on Pattern Recognition Applications and Methods

252

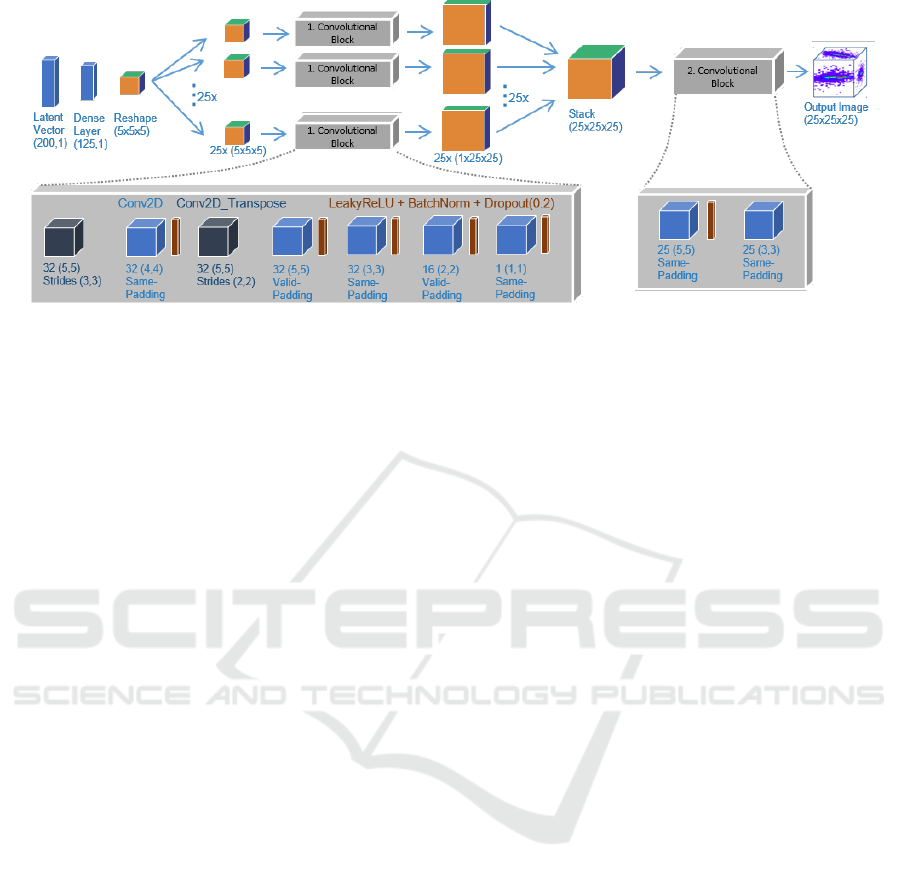

Figure 2: Generator neural network architecture. Input is a latent vector and output is the 3-dimensional shower image.

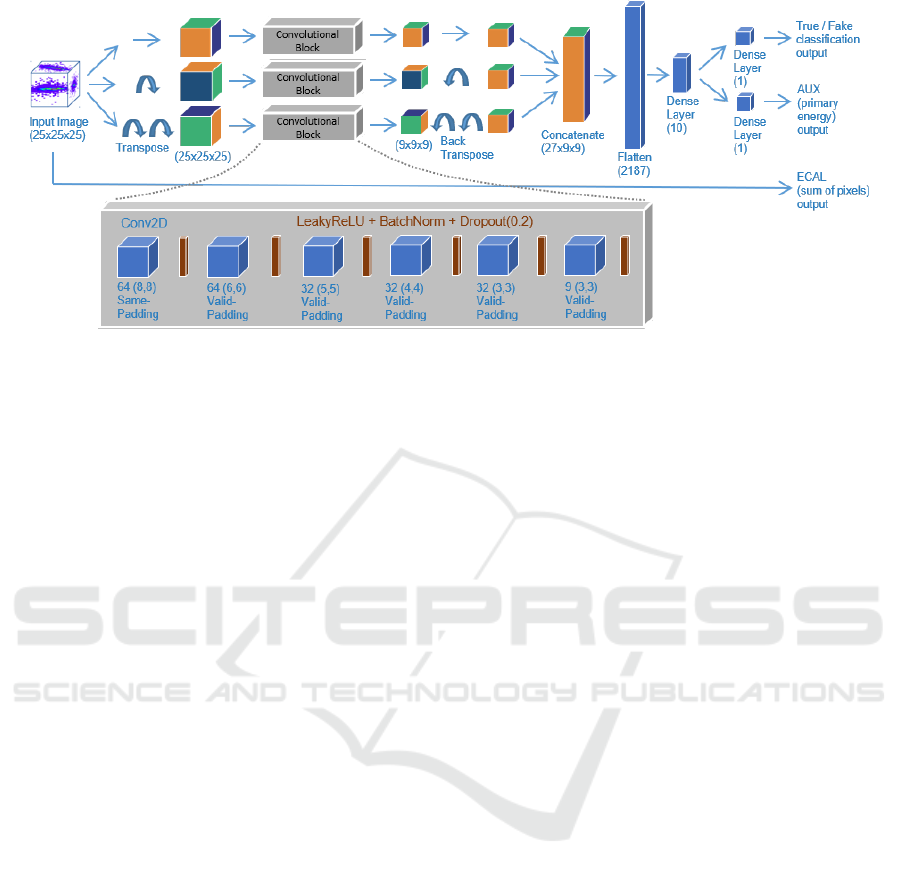

The discriminator produces three output values,

see ﬁgure 3. The ﬁrst is the typical GAN true/fake

probability (Goodfellow et al., 2014). The second

and third discriminator outputs are auxiliary losses to

support the GAN model to converge during training.

We name the second loss AUX (for AUXiliary loss)

which is a regression task to compare the discrimi-

nator output with the label of the primary energy E

The third discriminator output is named ECAL and is

a self-produced lambda layer calculating the sum over

the pixels of the input image which therefore, corre-

sponds to the total energy of the input image.

In previous papers we used convolutional 3D

(Conv3D) layers in the models but here we replace

them by Conv2D layers. The Conv2D layers re-

duce the computational complexity with respect to the

Conv3D approach and we gained a reduction in com-

putation time. In addition the Conv3D layers are not

supported in any quantization tool yet. We will de-

scribe the change from Conv3D to Conv2D more de-

tailed in a future paper, since this approach is appli-

cable for any kind of convolutional models with 3D

images and comes with a signiﬁcant decrease in com-

putation time.

4 REDUCED PRECISION

COMPUTATION

To achieve higher throughput and to reduce memory

bandwidth during inference we can shrink the size

of activations and weights of the trained neural net-

work to lower precision. This approach is named re-

duced precision computing and the process of con-

verting numbers from higher to lower precision is

named quantization. The standard number format in

machine learning is ﬂoating point 32 (ﬂoat32) or sin-

gle precision, speciﬁed in IEEE 754 (IEEE, 2008).

The format which uses just half of the bits of ﬂoat32

is ﬂoating point 16 (ﬂoat16) and is therefore called as

half precision, speciﬁed in IEEE 754 (IEEE, 2008).

The smallest format in which we want to quantize our

model is integer-8 (int8). Integer numbers can be ei-

ther signed int8 (sint8) with a range of [−127, 127] or

unsigned int8 (uint8) with a range of [0, 255].

Intel Low Precision Optimization Tool. The Intel

Low Precision Optimization Tool (iLoT) (Feng Tian

and Gong, 2020) is an open-source python library

for quantizing deep learning models and running low

precision inference across multiple frameworks. It

uses the Intel oneAPI Deep Neural Network Library

(oneDNNL) (Intel, ), which contains building blocks

for deep learning applications to improve the perfor-

mance on Intel processors. This paper presents results

of the ﬁrst test of the brand new iLoT tool on a real

use case.

Quantization of a trained model requires identify-

ing the best order of magnitude across pixels cover-

ing an entire layer instead of a single pixel. Once the

order of magnitude of an entire layer is known, it is

possible to drop single bits, named ”outliers”, which

are far away from the other values within this layer.

Dropping outliers, the choice of different statistical

means and repeated reﬁnement of the topology makes

quantization a delicate process rather than just a one-

step deployment task. iLoT tunes the quantization

process automatically with accuracy-driven strategies

for computational performance, model size and mem-

ory footprint (Feng Tian and Gong, 2020). During

the iterative and automatic quantization process iLoT

can keep a few single nodes in the neural network

in ﬂoat32 precision in order to increase the accuracy.

This is the advantage of iLoT compared to any other

recent quantization tool. The accuracy is measured

using a physics-inspired validation metric introduced

in section 6.

Reduced Precision Strategies for Deep Learning: A High Energy Physics Generative Adversarial Network Use Case

253

Figure 3: Discriminator neural network architecture. Input are the 3-dimensional shower images and output the loss values.

Previously, quantization in deep learning was

mainly applied to classiﬁcation problems which em-

ploy simpler neural network outputs (probability val-

ues of classes) compared to the complex shower im-

ages of our network. Moreover, our generator net-

work uses LeakyReLU activation functions instead

of standard ReLU. Since LeakyReLU can generate

negative weights, they require sint8 operations after

quantization. As the sint8 operations are not needed

for classiﬁcation networks with standard ReLU acti-

vations, sint8 are by default not yet implemented in

TensorFlow. Similarly no recent quantization tool im-

plements LeakyReLU activations functions. In this

study we make use of an Intel-customized Tensor-

Flow version supporting sint8 operations and an ad-

hoc implementation of LeakyReLU activations in the

iLoT tool.

Layers fusion is another strategy that can be used

to accelerate deep neural networks inference: iLoT

implements [Conv2D + LeakyReLU] fused operation

followed by a FusedBatchNorm layer. In its next re-

lease, iLoT (included in oneDNNL) will support a full

[Conv2D + LeakyReLU + BatchNorm] fuse, which

could further improve the performance.

TensorFlow Lite. TensorFlow Lite (TFL, 2020) is

part of the TensorFlow library and is created for de-

ploying machine learning models on mobile and in-

ternet of things (IoT) devices. It contains packages

for converting TensorFlow models to TensorFlow Lite

models and packages to quantize and deploy models.

It can quantize networks, layer-wise, from ﬂoat32 into

ﬂoat16 and int8 (TFL, 2020).

Because TensorFlow does not support sint8 opera-

tions yet, TensorFlow Lite does not support quantized

LeakyReLU activation functions as well. Addition-

ally, we do not have the compatible hardware for run-

ning quantized TensorFlow Lite models available for

this study, therefore we use TensorFlow Lite only for

measuring the accuracy of the quantized models and

not inference speed-up.

5 RELATED WORK

Generative Adversarial Networks. xz GANs are

today extensively used in a wide range of applications

(Brownlee, 2020).

In the ﬁeld of High Energy Physics, a lot of re-

search is ongoing to understand how to replace Monte

Carlo simulations by employing GANs. For example

in (Salamani et al., 2018) Variational Auto-Encoders

(VAEs) and GANs are proposed to simulate the out-

put of the ATLAS liquid Argon calorimeter. The ﬁrst

proof of concept, using 3D convolutional GANs for

electromagnetic calorim eters is represented by the

3DGAN prototype (Khattak et al., 2018) and (Val-

lecorsa et al., 2019) based on a simple auxiliary GAN

model. Other approaches investigated Wasserstein

GAN (Arjovsky et al., 2017) for improving the model

convergence (Erdmann M., 2019).

Int8 Quantization. Quantizing trained deep learn-

ing models to a reduced precision is being actively

researched in the recent years to allow, in particular,

fast inference on mobile devices where the compu-

tational power is strongly constrained. In more gen-

eral, with increasing model size and complexity, con-

straints on computing time and memory consumption

become relevant for other architectures, CPUs and ac-

celerators alike.

In most cases, quantization techniques are tar-

geted to int8, because it is a data format that most

modern hardware supports and because it maintains

ICPRAM 2021 - 10th International Conference on Pattern Recognition Applications and Methods

254

almost the same level of accuracy, compared to lower

precision formats (Jain et al., 2020). Most of the ex-

isting benchmarks represent classiﬁcation problems

(Wu et al., 2020), while in our case, we require an

accurate description of simulated data. There are

two main quantization techniques. The ﬁrst is post-

training quantization, where the model is trained in

ﬂoat32. Afterwards, it uses a calibration dataset to

calculate the maxima of the weights and activations

which are needed for the quantization process into

a lower precision. This is commonly the ﬁrst ap-

proach which is chosen and leads mostly to a satis-

fying level of accuracy (Wu, 2019), hence we use this

approach for the research in this paper. An alternative

method, named quantization-aware training, directly

trains models using lower precision formats.

Mixed Precision Training. One can go even fur-

ther and train models with mixed precision formats:

for example, using both ﬂoat32 and int8. In this case,

some weights are represented in int8 format to gain

a speed-up, but others are kept as ﬂoat32, to main-

tain the level of accuracy. Choosing which weights

are represented in higher or lower precision is done

by intelligent algorithms.

Different studies have evaluated mixed precision

for training (Micikevicius et al., 2017) (Nandakumar

et al., 2020): In particular (Osorio, ) applies a mixed

precision approach to the training of 3DGANs.

6 EVALUATION

This section describes the evaluation process in terms

of computational performance and physics accuracy

and discusses results in details.

6.1 Computational Evaluation

The computational throughput depends in practice on

the model and the hardware on which it runs. We per-

form all computational performance tests on an In-

tel 2S Xeon Processor 8280 with Cascade Lake ar-

chitecture and 28 cores (56 virtual cores or threads)

which supports int8 format. As explained above, the

iLoT int8 model is benchmarked against the original

ﬂoat32 model.

Multiple ﬂows of different input data are pro-

cessed concurrently on afﬁnitized threads (and taking

advantage of memory locality), which is referred to

multiple streams. We measured the total time and the

throughput by parallelising the inference process us-

ing multiple threads and multiple data streams: The

results are shown in ﬁgure 4. As expected, the number

of showers per seconds increases with the number of

streams and threads for both the int8 and ﬂoat32 mod-

els. In particular the best performance is achieved us-

ing 56 threads and 7 data streams. Beyond this point

the performance becomes worse, most probably be-

cause the memory bandwidth limit is exceeded and

the CPU gets oversubscribed. All tests were run in-

cluding a warm-up time with TensorFlow version 2.3.

Figure 4: Inference throughput in showers per seconds for

the ﬂoat32 and int8 model for different number of stream

and thread conﬁgurations.

Using 7 streams and 56 threads for both mod-

els we measure an inference time of 55.7 ms for the

ﬂoat32 model and 32.3 ms for the int8 model, as

shown in table 1, corresponding to a 1.73x speed-up

using the iLoT quantized model.

Table 1: Inference times in milliseconds [ms] for ﬂoat32

and INT8 GAN model measured on Cascade Lake CPU.

ﬂoat32 int8 Speed-up

55.7 ms 32.3 ms 1.73x

Details about the runtimes of some operations are

shown in table 2. It can be seen, that the FusedBatch-

Norm yields about 30% of the total runtime: replacing

this operation with a fused [Conv2D + LeakyReLU +

BatchNorm] will bring a signiﬁcant speed-up.

Table 2: Times in milliseconds (ms) for some operations of

the quantized int8 iLoT model.

Total FusedBatchNorm De-/Quantization

32.3 ms 9.37 ms 6.06 ms

Table 2 also shows the time needed by the de-

quantize operation, which is non negligible as it cor-

responds to

6.06 ms

32.3 ms

= 18.3% of the total runtime.

The dequantization step takes care of converting the

ﬂoat32 input data to int8 and then converting back the

model output data (int8) to ﬂoat32, expected for the

simulation output.

An additional effect is due to the fact that, a low-

precision unit internally demands higher bandwidth,

Reduced Precision Strategies for Deep Learning: A High Energy Physics Generative Adversarial Network Use Case

255

i.e. scratch memory bandwidth or cache bandwidth,

and this demand can limit operations depending on

the speciﬁc hardware implementation. Therefore,

practical implementations of low-precision in hard-

ware and software are challenged to speed-up infer-

ence by the full ratio of type-width.

Generally speaking, larger models might exhibit

a larger inference acceleration, simply thanks to the

relatively smaller weight represented by the quanti-

zation/dequantization steps with respect to the quan-

tized operations runtime. As an example, ResNet-

50 (He et al., 2015) has over 23 million parameters,

Inception-v3 (Szegedy et al., 2015) over 24 million

parameters whereas our model has only around 2 mil-

lion parameters. Being 10 times smaller, our GAN

network is more sensitive to the size of the quan-

tization and dequantization steps (10.5 ms) with re-

spect to the total run time (32.3 ms). In other words,

the smaller the model, the stronger the impact of the

quantization and dequantization functions at the be-

ginning and end of the model.

In any case, running inference using int8 preci-

sion, further increases the advantage with respect to

running standard Monte Carlo simulation. With re-

spect to the original Geant4 benchmarks quoted in

(Vallecorsa et al., 2019), the int8 quantized models

reaches a huge 67 000x speed-up. In terms of mem-

ory consumption, the iLoT int8 model decreases by a

factor 2.26x the total utilised physical memory (from

8 KB to 3.6 KB) with respect to the initial ﬂoat32.

6.2 Physical Evaluation

Evaluating performance of a Generative Model is not

an easy task, several methods have been proposed de-

pending on the speciﬁc applications (Borji, 2018).

In this work, we rely on physics inspired valida-

tion, visually inspecting the energy patterns across

the calorimeter volume by measuring the accuracy on

speciﬁc physics quantities, the energy deposits distri-

butions along the calorimeter y- and z-axis.

We compare the quantised models in three dif-

ferent formats (int8 iLoT, int8 TFLite and ﬂoat16

TFLite) to the baseline GAN model (ﬂoat32) and the

Geant4 validation set.

1. Particle Shower Shapes. Figure 5 represents

the ﬁrst visual validation method and shows the 2-

dimensional particle shower shapes along the y- and

the z-axis for the different models. The particle en-

ters the detector at the coordinates x = 13, y = 13

and z = 0, orthogonally to its surface: the larger en-

ergy depositions, in the transverse (x, y) plane, clus-

ter around the middle of the image while the patterns

along the z-axis develops as discussed in section 2.

For simplicity, we report only the energy distribu-

tion along the y-axis, since the patterns along the two

transverse directions are very similar. In ﬁgure 5 we

compare all models to the Geant4 prediction.

Figure 5: Generated shower shapes along y- (top) and z-axis

(bottom) of Geant4 (red), the TF ﬂoat32 model (blue), the

iLoT int8 model (pink), the TFLite ﬂoat16 model (green),

and the TFLite int8 model (orange). Horizontal we plot the

single pixels of the respective axis and vertical the average

energies contained in the single pixels. The vertical lines

corresponds to the statistical errors for the single pixels.

The ﬂoat32 prediction (our baseline) is very close

to the Geant4 test data. The quantized iLoT int8

and TFLite ﬂoat16 models are close to initial ﬂoat32

model and remain mostly within the range of the sta-

tistical error bars. However, the TFLite int8 model

is slightly off. This effect is larger at the edges of

the distribution, where the energy deposits are much

smaller (see ﬁgure 5).

Table 3 summarizes the statistical mean and stan-

dard deviation for the particle shower distributions in

ﬁgure 5. The TFLite int8 seems to yield worse predic-

tion with respect to both the GAN baseline (ﬂoat32)

and Geant4.

This can be visually conﬁrmed by looking at the

same shower shapes in logarithmic scale in ﬁgure 6.

In the y-axis plot we can see that TFLite ﬂoat16, and

especially TFLite int8 struggles with the low energies

at the tails. Tails we name the ﬁrst and last ﬁve pixels

ICPRAM 2021 - 10th International Conference on Pattern Recognition Applications and Methods

256

Table 3: Statistical values mean and standard deviation

(STD) for the different models.

Model: Mean: STD:

y-axis Geant4 12.00 1.45

y-axis ﬂoat32 12.02 1.46

y-axis iLoT int8 12.03 1.45

y-axis TFLite ﬂoat16 12.05 1.13

y-axis TFLite int8 12.10 1.19

z-axis Geant4 13.85 4.62

z-axis ﬂoat32 13.81 4.50

z-axis iLoT int8 13.91 4.48

z-axis TFLite ﬂoat16 13.78 4.50

z-axis TFLite int8 14.25 4.62

of the y-axis shower shape plot. On the other hand,

the iLoT int8 model has no troubles in representing

the low energy pixels at the tails. However, a more de-

tailed performance analysis is needed to conﬁrm this

result.

Figure 6: Logarithmic Shower Shapes.

2. Single Validation Number. In order to sim-

plify results evaluation, we deﬁne a composite accu-

racy value, calculated by building 2-dimensional pro-

jections of the particle shower distributions for the

GAN and Geant4 samples and then measuring the to-

tal mean squared error (MSE) between the two pro-

jections. The MSE-based metric values for the vari-

ous models are shown in table 4.

The iLoT model seem to reach a better accuracy

than the initial ﬂoat32 model. However, this is an arti-

Table 4: MSE-based values for the different models. The

lower the value, the better the accuracy.

ﬂoat32 iLoT TFLite ﬂoat16 TFLite int8

0.061 0.053 0.254 0.340

fact of the quantization process that relies on the same

metric to determine which weights are kept in ﬂoat32

format in a similar fashion as an architecture hyper-

parameter search. In contrast, both quantized TFLite

models loose accuracy.

3. Pixel-wise Image Comparison. In addition we

perform a pixel-wise image comparison, by ﬁxing the

input latent vector and generating a synthetic image.

We subtract then element-wise the entries of the sin-

gle pixels of the output image of the quantized model

from the baseline model and sum up the absolute val-

ues. The pseudo code for the pixel-wise comparison

looks like:

mean ( sum ( abs ( X_float32 - X_int8 ) ) )

With the corresponding values we can directly

compare how different the created images are. The

smaller the pixel-wise validation value, the closer are

the images and the better the model. We performed

the pixel-wise validation for all our quantized models

compared to the baseline ﬂoat32 model. The results

are shown in table 5. One can see that the TFLite

ﬂoat16 model performs best and the iLoT int8 model

is approximately three times better than the TFLite

int8 model in the pixel-wise comparison.

Table 5: Pixel-Wise validation values for the different quan-

tized models.

Model: Mean: STD:

TFLite ﬂoat16 0.133 0.291

TFLite int8 4.054 0.721

iLoT int8 1.550 0.191

All in all the iLoT tool reaches a better level of

physics accuracy in all our shown validation metrics

compared to TFLite int8.

7 CONCLUSION AND FUTURE

WORK

In this paper we studied the impact of int8 quantiza-

tion on a convolutional GAN model developed for

High Energy Physics detector simulation. Prelimi-

nary results seem to suggest that the iLoT tool per-

forms better than TFLite, in terms of physics accu-

racy. Additional studies are on-going in order to con-

ﬁrm these ﬁndings. We are interested, in particular,

Reduced Precision Strategies for Deep Learning: A High Energy Physics Generative Adversarial Network Use Case

257

in understanding what is the effect of the optimisa-

tion metric used by the iLoT tool on the overall output

quality.

Thanks to the quantization we obtain a 1.73x

speed-up on inference time compared to the initial

ﬂoat32 model. This brings the total speed-up with re-

spect to the standard Monte Carlo approach to several

orders of magnitude (67 000x). These results make

the proposed reduced precision strategies on GAN

models an attractive approach for future researches on

the detector simulations and could help to save large

computing resources in view of the future High Lu-

minosity LHC runs.

With this paper we hope to inspire colleagues to

models with more complex outputs than classiﬁcation

tasks. More use cases, in turn, will lead to an im-

provement of quantization methods and tools leading

to possible further decrease of inference times in the

future.

ACKNOWLEDGEMENTS

This work has been sponsored by the Wolfgang Gen-

tner Programme of the German Federal Ministry of

Education and Research.

REFERENCES

(2020). TensorFlow Lite. TensorFlow For Mobile & IoT.

Agostinelli, S. et al. (2003). GEANT4–a simulation toolkit.

Nucl. Instrum. Meth. A, 506:250–303.

Albrecht, Alvesand, A. e. a. (2019). A roadmap for hep

software and computing r&d for the 2020s. Comput-

ing and Software for Big Science, 3.

Apollinari, G., B

ejar Alonso, I., Br

uning, O., Fessia, P., La-

mont, M., Rossi, L., and Tavian, L. (2017). High-

Luminosity Large Hadron Collider (HL-LHC): Tech-

nical Design Report V. 0.1. 4/2017.

Arjovsky, M., Chintala, S., and Bottou, L. (2017). Wasser-

stein gan.

Borji, A. (2018). Pros and cons of gan evaluation measures.

Brown, R. and Cockerill, D. (2012). Electromagnetic

calorimetry. Nuclear Instruments and Methods in

Physics Research Section A, 666:47 – 79. Advanced

Instrumentation.

Brownlee, J. (2020). 18 Impressive Applications of Gener-

ative Adversarial Networks (GANs).

de Oliveira, L. and Paganini, Michela, B. (2017). Learning

particle physics by example: Location-aware genera-

tive adversarial networks for physics synthesis. Com-

puting and Software for Big Science, 1(1).

Erdmann M., G. J. . Q. T. (2019). Precise simulation of

electromagnetic calorimeter showers using a wasser-

stein generative adversarial network. Comput Softw

Big Sci 3.

Feng Tian, Chuanqi Wang, G. Z. P. C. P. Y. H. S. and Gong,

J. (2020). Intel

 low precision optimization tool.

Ghosh, A. (2019). Deep generative models for fast shower

simulation in ATLAS. Technical Report ATL-SOFT-

PROC-2019-007, CERN, Geneva.

Goodfellow, I. J., Pouget-Abadie, J., Mirza, M., Xu, B.,

Warde-Farley, D., Ozair, S., Courville, A., and Ben-

gio, Y. (2014). Generative adversarial networks.

He, K., Zhang, X., Ren, S., and Sun, J. (2015). Deep resid-

ual learning for image recognition.

IEEE (2008). Ieee standard for ﬂoating-point arithmetic.

IEEE Std 754-2008, pages 1–70.

Intel. oneapi deep neural network library (onednn).

Jain, A., Bhattacharya, S., Masuda, M., Sharma, V., and

Wang, Y. (2020). Efﬁcient execution of quantized

deep learning models: A compiler approach.

Khattak, G., Vallecorsa, S., and Carminati, F. (2018). Three

dimensional energy parametrized generative adversar-

ial networks for electromagnetic shower simulation.

In 2018 25th IEEE International Conference on Im-

age Processing (ICIP), pages 3913–3917.

Micikevicius, P., Narang, S., Alben, J., Diamos, G., Elsen,

E., Garcia, D., Ginsburg, B., Houston, M., Kuchaiev,

O., Venkatesh, G., and Wu, H. (2017). Mixed preci-

sion training.

Nandakumar, S. R., Le Gallo, M., Piveteau, C., Joshi, V.,

Mariani, G., Boybat, I., et al. (2020). Mixed-precision

deep learning based on computational memory. Fron-

tiers in Neuroscience, 14.

Osorio, J. Evaluating mixed-precision arithmetic for 3d

generative adversarial networks to simulate high en-

ergy physics detectors.

Salamani, D., Gadatsch, S., Golling, T., Stewart, G., Ghosh,

A., Rousseau, D., Hasib, A., and Schaarschmidt, J.

(2018). Deep generative models for fast shower sim-

ulation in atlas. pages 348–348.

Szegedy, C., Vanhoucke, V., Ioffe, S., Shlens, J., and Wojna,

Z. (2015). Rethinking the inception architecture for

computer vision.

Vallecorsa, S., Carminati, F., and Khattak, G. (2019). 3d

convolutional gan for fast simulation. EPJ Web of

Conferences, 214:02010.

Wu, H. (2019). Inference at reduced precision on gpus.

Wu, H., Judd, P., Zhang, X., Isaev, M., and Micikevicius, P.

(2020). Integer quantization for deep learning infer-

ence: Principles and empirical evaluation.

ICPRAM 2021 - 10th International Conference on Pattern Recognition Applications and Methods

258
