Reusability of Interfaces in Healthcare EAI Environments

Severin Linecker

1,2

and Wolfram W

oß

Johannes Kepler University Linz, Austria

Vinzenz Gruppe, Linz, Austria

Keywords:

Enterprise Application Integration, EAI, Middleware, Message-oriented Middleware, MOM, HL7, System

Integration, Healthcare.

Abstract:

Enterprise Application Integration (EAI) and HL7 (Health Level Seven) messaging are well established tech-

nologies in healthcare environments. Due to the widely adoption of HL7 messaging, especially the version

2, in the healthcare domain and its ﬂexibility, many vendor speciﬁc implementations exist. To integrate these

systems, messages have to be adapted to the vendor speciﬁc requirements, even if the functionality is nearly

the same. This leads to an increasing number of special interfaces and decreased maintainability. This paper

shows a generic architecture for reusable interfaces for HL7 messaging by considering reusability at data level

and interface level and the results when applied to a real production EAI environment of an austrian healthcare

provider.

1 INTRODUCTION

Exchanging clinical data between multiple heteroge-

neous medical information systems is very common

in healthcare environments. The Hospital Informa-

tion System (HIS) and other special (sub)systems,

such as the Radiological Information System (RIS)

need to be integrated for digital clinical workﬂows.

Therefore Enterprise Application Integration (EAI)

and HL7 (Health Level Seven) messaging are well es-

tablished technologies in healthcare environments.

Due to the message oriented nature of HL7,

Message-oriented Middleware (MOM) is a common

paradigm for implementing EAI in healthcare envi-

ronments (Bezerra et al., 2015). It allows systems to

communicate with each other by sending and receiv-

ing messages using interfaces directly connected to

the middleware, which is then responsible for rout-

ing these messages to their correct destinations. This

helps to reduce the total number of interfaces needed

to connect n systems from (n ∗(n−1))/2, when using

point-to-point interfaces, to n. Especially for com-

plex and big healthcare environments, which often

consist of 50 or more connected systems (like in the

case of the Vinzenz Gruppe, an association of seven

religious-order hospitals and other healthcare facili-

ties in Austria), this is a necessity. HL7 is a mes-

saging standard speciﬁcally developed for exchang-

ing data between information systems in healthcare

environments. Version 2 (HL7 V2.x) of the messag-

ing standard was ﬁrst released in 1987 and, accord-

ing to (HL7 International, 2020), is one of the most

widely used standard for healthcare information ex-

change. The HL7 V2.x standard (ISO, 2009) deﬁnes

message types and their (real world) trigger events for

clinical, ﬁnancial and administrative data exchange.

Messages have a data type and a trigger event, which

together deﬁne a speciﬁc sequence of segments and

segment groups. For example, the ADT (Admission,

Discharge and Transfer) message type and the trigger

event A02 is used for transmitting patient administra-

tion information about a patient transfer. The follow-

ing listing shows the message type deﬁnition of an

HL7 ADTˆA02 message:

MSH Message Header

[{ SFT }] Software Segment

EVN Event Type

PID Patient Identification

[ PD1 ] Additional Demographics

[{ ROL }] Role

PV1 Patient Visit

[ PV2 ] Patient Visit - Additional Info.

[{ ROL }] Role

[{ DB1 }] Disability Information

[{ OBX }] Observation/Result

[ PDA ] Patient Death and Autopsy

Segments are a logical grouping of data ﬁelds.

They may be required, optional or repetitive within

a message type. Two or more segments may be

Linecker, S. and Wöß, W.

Reusability of Interfaces in Healthcare EAI Environments.

DOI: 10.5220/0010242004170423

In Proceedings of the 14th International Joint Conference on Biomedical Engineering Systems and Technologies (BIOSTEC 2021) - Volume 5: HEALTHINF, pages 417-423

ISBN: 978-989-758-490-9

417

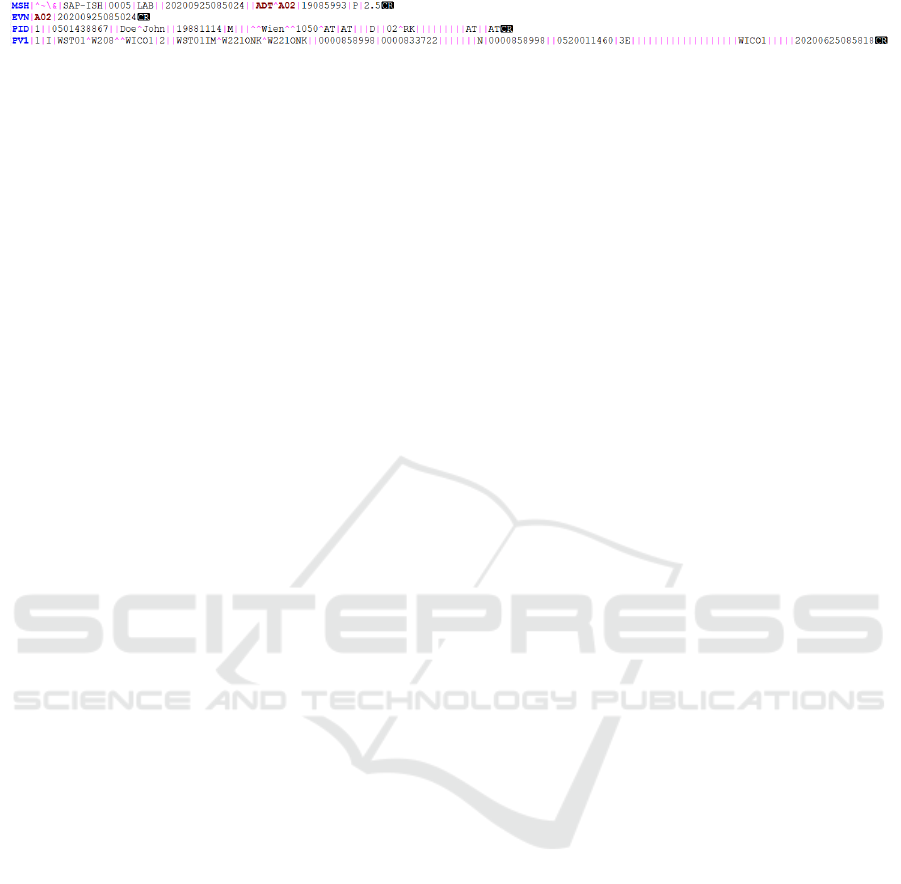

Figure 1: Example HL7 V2.5 ADTˆA02 message.

grouped together as a logical unit. Each segment has

a unique name called Segment ID with three upper

case characters (e.g., MSH, PID, PV1). Fields are char-

acter strings within a segment. They have an ordi-

nal position within the segment for reference (e.g.,

PID.3), have a data type, can be required or optional

and may be repetitive. Depending on its data type, a

ﬁeld may consist of components, which in turn may

contain subcomponents. HL7 V2.x messages are typ-

ically plain text messages with certain special char-

acters used as delimiter. They can be negotiated be-

tween applications, but typically the HL7 recommen-

dation is used. Figure 1 shows an ADTˆA02 message

with the HL7 V2.x typical delimiters | for ﬁelds, ˆ

for components, & for subcomponents, ˜ for repetitive

ﬁelds and \ as escape character. Segments are always

terminated by a carriage return.

No matter how detailed the speciﬁcation is, HL7

V2.x is a standard for syntactic but not for semantic

interoperability. The context of a ﬁeld is deﬁned in

the standard, but leaves the implementers the ﬂexibil-

ity to use a free text or a coded value from a stan-

dard terminology. These details have to be negotiated

between the issuer and the recipient of a message to

ensure correct interpretation. This step is not done

automatically, but usually in advance by the interface

developers of the corresponding systems.

In hospital environments the HIS is a central point

for data exchange. The connected systems send their

data to the HIS, but also require its data. Especially

patient administration data is required by most of the

systems. These are distributed to them with HL7 ADT

messages using middleware technology. The prob-

lem is that due to the ﬂexibility of the HL7 standard,

the messages often have to be adapted to meet the re-

quirements of the receiving system. This leads to an

increased number of special interfaces and decreased

maintainability. In order to save time and resources

during the development of integration projects, it is

important to have reusable interfaces available that al-

low these adaptions using conﬁguration. To meet the

objective above, this work introduces a generic archi-

tecture for creating reusable interfaces, by consider-

ing reusability 1) at data level by splitting up message

ﬂow in multiple interfaces and 2) at interface level by

using twelve reusable components.

The remainder of the paper is organized as fol-

lows: Section 2 contains related work. In Section 3

the two levels of the architecture are described in de-

tail. In Section 4 the evaluation results of applying the

proposed architecture to a real production healthcare

EAI environment are shown. The paper ﬁnishes with

Section 5 with conclusion and future work.

2 RELATED WORK

The authors of (Bezerra et al., 2020) show a middle-

ware architecture consisting of a cloud service and lo-

cal clients. Reusability was taken into account by sep-

arating the business rules from the persistence layer

on the client side, and on the server side by providing

the middleware functionalities via a central cloud ser-

vice. Reusability is also considered in the work of (Li-

Fan Ko et al., 2006), where a SOA based middleware

framework for healthcare information systems was

proposed. Another SOA based EAI approach (non

healthcare) is done by (Jun Gui and Hebiao Yang,

2010), where service components can be reused for

existing or newly developed components.

Even though there are some more studies about

HL7, healthcare information exchange, EAI and mid-

dleware architecture in the healthcare domain like

(Alenazi and Alhamed, 2015), (Wadhwa et al., 2015),

(Liu and Huang, 2012), (Lu et al., 2010), (Bortis,

2008) or (Vargas and Pradeep Ray, 2003), their main

objective is not reusability. Their concern is the in-

tegration problem itself and not reusing integration

components for further integration needs.

The contribution of this work is a generic architec-

ture for HL7 based messaging, used for implementing

highly reusable interfaces and components in (exist-

ing) healthcare EAI environments.

3 ARCHITECTURE

In this section, an architecture for interfaces is pre-

sented, where reusability is considered in all parts of

an EAI environment. This includes the general design

of message ﬂows between systems within the EAI en-

vironment (data level), which is shown in Section 3.1,

and a component based architecture for implementing

interfaces (interface level), shown in Section 3.2.

3.1 Messaging

Instead of creating one single interface for connect-

ing source and destination system(s), message paths

HEALTHINF 2021 - 14th International Conference on Health Informatics

418

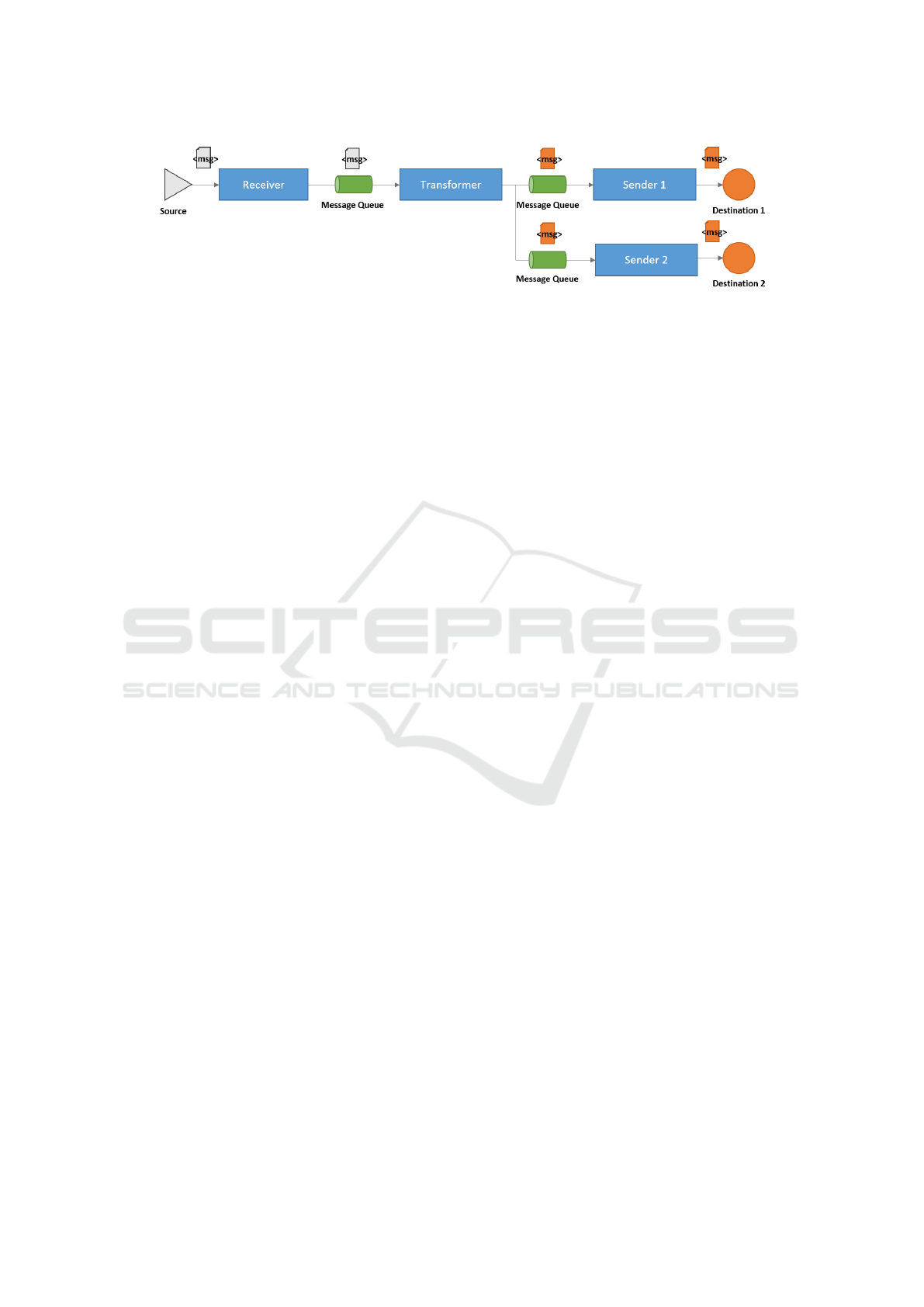

Figure 2: Asynchronous message ﬂow between multiple systems.

should be composed out of multiple interfaces inter-

connected with message queues. Figure 2 shows an

asynchronous message path from a source system to

two destination systems split up into three steps, each

with different responsibilities. This architecture al-

lows branching off messages after each step, reusing

the output of one interface as an input for another in-

terface. The following sections describe the function-

ality of each interface in more detail.

3.1.1 Receiver

The Receiver interface gets the message from a source

system via a communication channel (File, HTTP,

MLLP, SOAP, REST, ...). It checks the syntactical

correctness of the received message and generates an

appropriate response if required by the used com-

munication protocol. In HL7 messaging the Mini-

mal Lower Layer Protocol (MLLP) is widely used

for sending and receiving HL7 messages via network

sockets. After checking syntactical correctness, the

business keys of the message are extracted and stored

together with the raw message in a message back-

up/journal. This is needed for searching and resend-

ing messages manually in case of an error. Finally,

the message is passed to one or many message queues

or gets ﬁltered due to speciﬁed ﬁlter criteria. After-

wards, processing of the receiver interface ends.

Errors during message processing are reported to

the administrator, who is responsible for monitoring

the EAI environment. This applies to all other inter-

faces as well and is not mentioned anymore in the fol-

lowing sections.

3.1.2 Transformer

First, the Transformer interface reads the message

from a message queue. Afterwards, it transforms the

message as needed. This can be format conversion,

like transforming an XML message or a proprietary

HIS message format to an HL7 V2.x message, or per-

forming changes to a HL7 message. Finally, the trans-

formed message is passed to one or many message

queues or gets ﬁltered. Processing of the Transformer

interface ends afterwards.

The Transformer interface is not needed in all

message streams between source and destination sys-

tem and can be omitted in cases where no message

transformation is needed at all. But even if there

is no transformation needed, there are scenarios that

require special routing and ﬁltering capabilities be-

tween Receiver and Sender interfaces. In this case the

transformation part is skipped and only the routing

and ﬁltering part is done. These interfaces are called

Router or Forwarder interfaces.

3.1.3 Sender

The Sender interface reads a message from a message

queue. It checks the syntactical correctness and the

presence of all needed data for the destination system.

Like the Receiver interface, it also extracts business

keys from the message and stores them with the raw

message in a backup/journal. Finally, the message is

transmitted to the destination system using a commu-

nication channel (e.g., File, MLLP, SOAP, REST, DB,

SAP RFC). Restricting the number of outbound com-

munication channels to one has reliability reasons. If

Sender 1 in Figure 2 would also send to Destination 2,

and Destination 1 is not reachable, messages could

not be delivered to Destination 2 as well.

3.2 Interface Components

Reusable interfaces are built to reduce the amount of

effort and time needed to build integration solutions.

The main idea is to build an abstraction layer on top

of an existing EAI platform to abstract limitations re-

garding reusability and interface architecture in gen-

eral, and to provide a generic API for interface devel-

opment. The goal is that code, once written, can be

reused multiple times, saving a vast amount of time

in integration projects and in case of migrating to new

platforms.

Reusability is achieved by splitting up an inter-

face implementation into different components, each

with its own responsibility within the whole integra-

tion task. Figure 3 shows twelve components used for

interface implementation. The provided structure and

Reusability of Interfaces in Healthcare EAI Environments

419

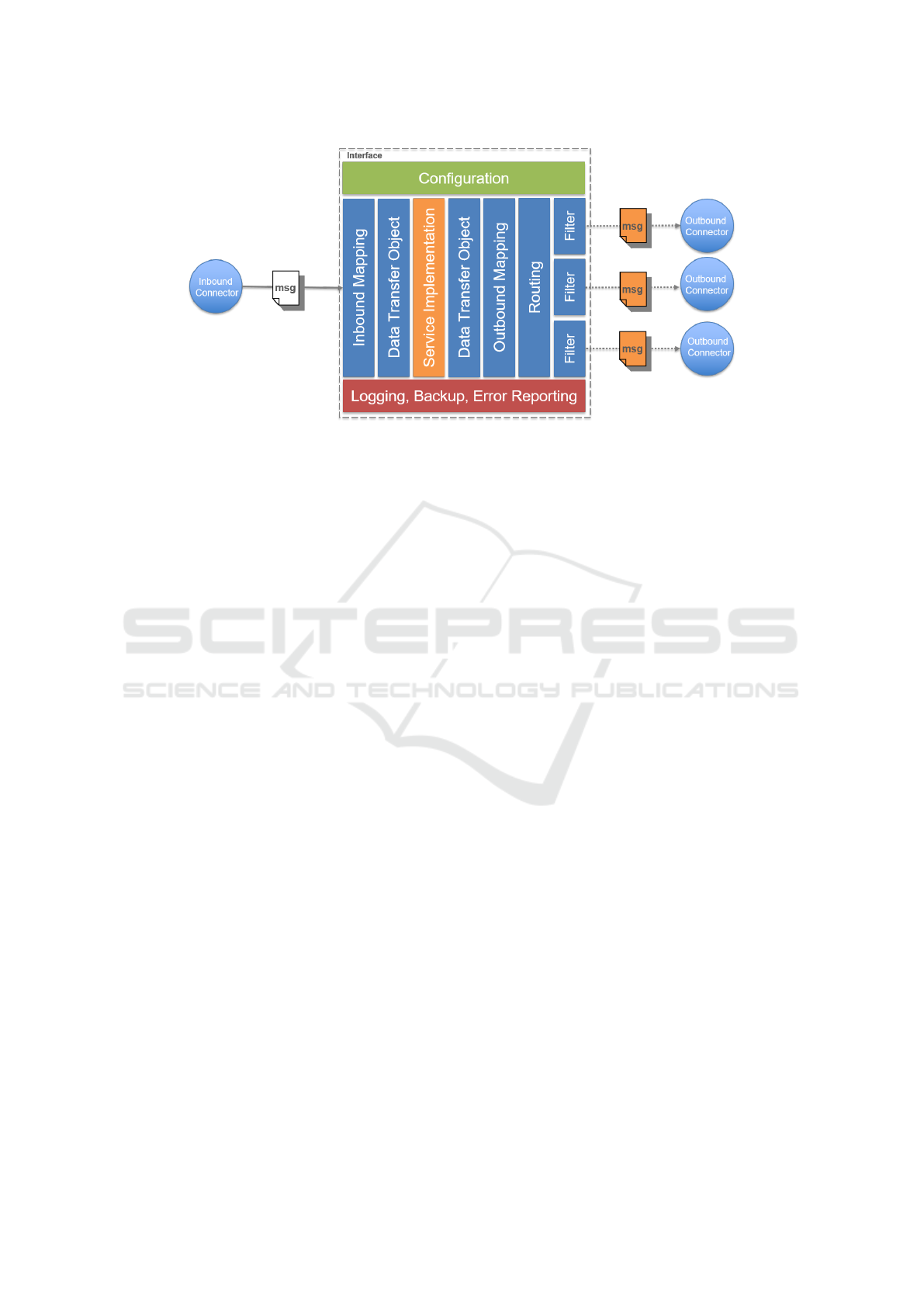

Figure 3: Components of an interface.

components can be implemented on top of an existing

EAI platform, or for standalone integration solutions.

The following twelve components are used to

build (reusable) interfaces:

• Inbound Connector:

The Inbound Connector component is used for

reading raw messages (e.g., text messages) from

a communication channel (File, Message Queue,

Socket, HTTP, ...).

• Data Transfer Object:

A Data Transfer Object (DTO) deﬁnes a data

structure, which is used by the Service Implemen-

tation during processing. It is an abstract repre-

sentation of the data being used by an interface.

DTOs form the basis for generic reusable inter-

faces by providing access to the required data in a

message structure independent way.

• Inbound Mapping:

The Inbound Mapping transforms the incoming

raw message to a DTO structure. Therefore it

uses appropriate parsers (e.g., HL7 parser) to ver-

ify the syntactic correctness of the incoming mes-

sage and to access its ﬁelds for extraction.

After parsing and DTO ﬁeld extraction, the data

has to be veriﬁed. This includes checking the

presence of all required ﬁelds and their semantic

correctness. After the successful completion of

all Inbound Mapping steps, the result is a DTO

message containing all ﬁelds necessary for the

Service Implementation component to perform its

task. Errors during parsing or ﬁeld validation get

logged by the Logging component and/or reported

using the Error Reporting component.

• Service Implementation:

The Service Implementation component is re-

sponsible for performing the business logic of the

interface. This is the main part of any interface

implementation. It only operates on DTOs and is

therefore independent of the original and/or target

message structure. Accessing other data, which is

not present in the DTO, requires the usage of Data

Access Objects (DAO).

• Outbound Mapping:

The Outbound Mapping component performs the

inverse operation to an Inbound Mapping. It takes

a DTO and transforms it to a target message struc-

ture (e.g., HL7 V2.x message). If necessary, char-

acter set transformation and proper escaping of

certain special characters is done here.

• Routing:

Selecting the correct destination Outbound Con-

nector for a given message is done by the Routing

component. Static and dynamic routing is sup-

ported and is achieved using conﬁguration or Fil-

ter components.

• Filter:

A Filter component produces a boolean output for

a given arbitrary input. Filters can be conjuncted

with the logical operations and, or and not.

• Outbound Connector:

Outbound Connectors are used for sending raw

message data to an outbound communication

channel (File, Message Queue, Socket, HTTP, ...).

• Conﬁguration:

Each component has to provide useful conﬁgu-

ration options, but always has a runnable default

conﬁguration suitable for most integration scenar-

ios. The principle convention over conﬁguration

applies here. Each interface has its own conﬁgu-

ration possibility, containing all conﬁguration op-

tions set for all components.

HEALTHINF 2021 - 14th International Conference on Health Informatics

420

• Logging:

The Logging component is used by all other com-

ponents. For traceability of message ﬂows at least

the incoming and the outgoing message(s) should

be logged.

• Backup:

The Backup component is used on messages en-

tering and leaving the EAI environment. The raw

data and business keys of the message are stored

in a database to enable searching and resending of

messages in case of errors during processing.

• Error Reporting:

When an error occurs, the Error Reporting com-

ponent is used to send notiﬁcations to responsible

addressees. To distinguish between different error

conditions, hierarchical error codes are used.

Not every component has to be used in a speciﬁc in-

terface implementation. They are to be seen as build-

ing blocks that enable or facilitate the development

of interfaces. There are three different approaches to

achieve reusability at interface level:

1. Implementation of multiple generic components

that serve as building blocks for interfaces. The

interfaces themselves cannot be reused, but their

individual components can. For example, a

generic Filter component can be implemented

which checks the content of a ﬁeld. Both the

speciﬁc ﬁeld (e.g., PID.3 from an HL7 message)

and the check itself (e.g., a REGEX) can be pro-

vided as a conﬁguration option. This approach is

most suited for environments having a (manage-

able) range of functionality that has to be com-

posed in many different ways and there is less or

no need of reusing an interface as a whole.

2. Implementation of interfaces using type speciﬁc

components. Here the interfaces are reusable

themselves, but not their individual compo-

nents. Therefore the components have to be re-

implemented for each type of interface. This ap-

proach is best suited for (smaller) environments

where interfaces can be grouped together based on

their functionality. For example, having only in-

terfaces for patient administrative data using HL7

ADT messages. This approach also suits well for

simple ad-hoc integration solutions, which may

not need an implementation for all different com-

ponent types.

3. A hybrid approach, where the implementation of

interfaces uses both, generic and speciﬁc compo-

nents. This approach suits well for environments,

having interfaces of certain types (patient admin-

istration, observations results, MLLP communi-

cation, ...) and also special interfaces which do

share some functionality. Furthermore some com-

ponents are available in a generic reusable way

(Logging, Backup, Error Reporting, Routing, Fil-

ter, ...).

4 EVALUATION

This architecture was implemented and deployed

in the EAI production environment of the Vinzenz

Gruppe. At the end of 2014 the production EAI envi-

ronment consisted of 342 interfaces deployed to three

production servers. Each of these interfaces was im-

plemented using its own Java class, thus class reusage

was not present at all, even many of the existing in-

terfaces did similar tasks. Code reusage was primar-

ily based on copy and paste with subsequent manual

adaptation. As a result many interfaces had a com-

mon basis, but there were numerous extensions and

variants concerning for example, the message struc-

ture, the use of free text ﬁelds, additional ﬁelds and

data mappings.

With the beginning of 2015 an analysis was ini-

tiated to ﬁnd interface categories sharing common

functionality. The hybrid approach for interface

reusability was then used to implement a conﬁg-

urable standard implementation for each interface

category. The four most important ones were: a

MLLP Sender interface [A], a MLLP Receiver in-

terface [B], an interface for routing and forward-

ing of arbitrary messages [C], and a standard HL7

ADT Transformer interface [D]. Furthermore, con-

ﬁgurable generic components were implemented for

functionalities that were required by many interfaces.

These were Logging, Backup, Error Reporting, Rout-

ing, Filter, Inbound- and Outbound Connector com-

ponents.

For new interfaces the standard interfaces were

used where appropriate, and the rollout was done by

conﬁguring instances of them accordingly. Further-

more old legacy interfaces were replaced with the

equivalent standard implementation whenever possi-

ble, or have been reimplemented with the proposed

architecture. This led to an increasing number of

reusable components and interface classes.

The current EAI production environment con-

sists of 534 interfaces, deployed to seven production

servers. 86 interfaces are legacy interfaces which do

not conform to the architecture presented in this pa-

per. Table 1 shows the number of interface classes

and the number of instances of each class running in

the production environment.

The pie chart of Figure 4 shows that the top four

interface classes which have a reusage count N >= 25

Reusability of Interfaces in Healthcare EAI Environments

421

Table 1: Reusage statistics of different interface classes.

N.o. interface classes Instances each Sum

1 [A] 70 70

1 [B] 46 46

1 [C] 45 45

1 [D] 27 27

3 9 27

4 8 32

9 7 63

2 6 12

5 5 25

4 4 16

3 3 9

11 2 22

54 1 54

legacy 86 86

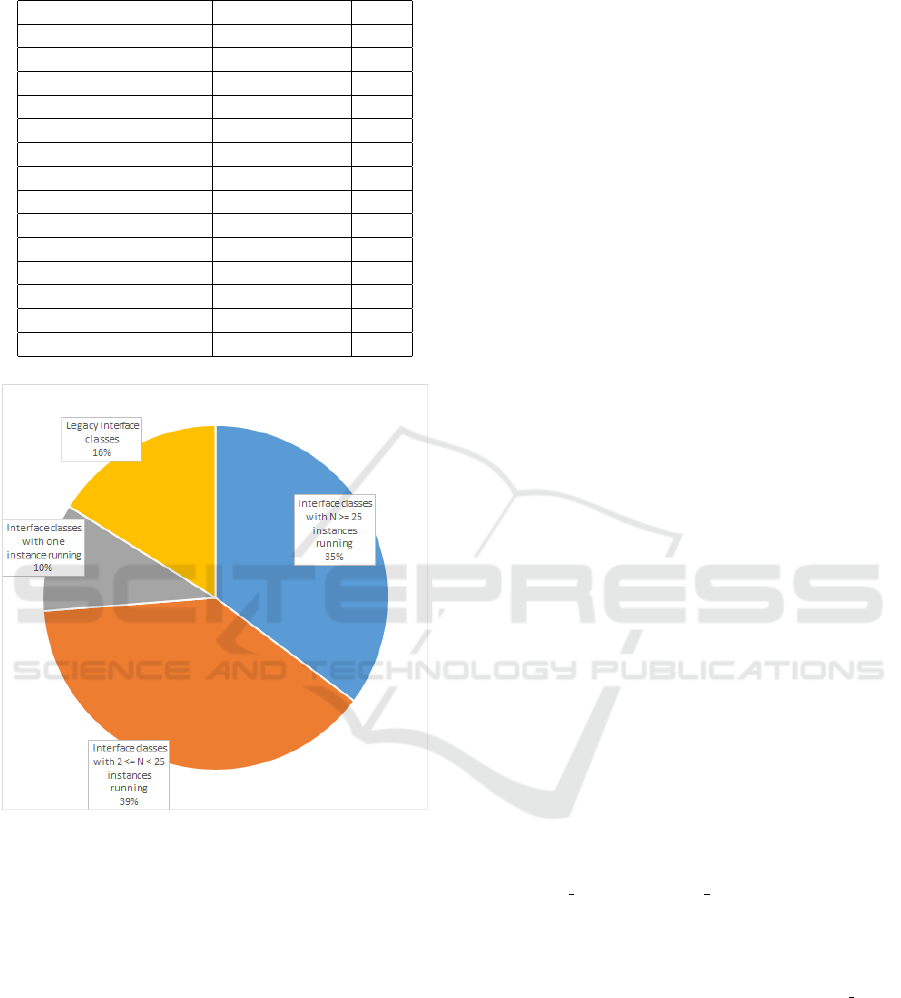

Figure 4: Pie chart of interface class reusage.

make up 35 % of all interfaces running. Adding the

39 % of all interface classes with a reusage count

2 <= N < 25, 74 % of all running interface instances

reuse an interface class. Using the proposed architec-

ture we could increase interface class reusage from

0 % to 74 % which helped saving time and money on

new integration projects.

5 CONCLUSION AND FUTURE

WORK

In this paper an architecture for reusable interfaces

using a multi step message ﬂow design and reusable

components for interface implementation was shown.

The introduction of an abstraction layer between an

EAI platform and the interface implementations eases

the implementation of generic reusable interfaces.

Code, that has been written once, can now easily be

reused either as a component in a new interface imple-

mentation or as an entire interface. This helps to save

resources when developing new integration projects.

The abstraction of the EAI platform is the ﬁrst step

to replace the existing system with a new one. It is

planned to analyse the reusability capabilities of in-

terfaces implemented with the architecture shown in

this paper when migrating them to a new EAI plat-

form.

REFERENCES

Alenazi, T. M. and Alhamed, A. A. (2015). A middleware

to support hl7 standards for the integration between

healthcare applications. In Balakrishnan, P., Srivat-

sava, J., Fu, W.-T., Harabagiu, S. M., and Wang, F.,

editors, ICHI, pages 509–512. IEEE Computer Soci-

ety.

Bezerra, C., Araujo, A., Sacramento, B., Pereira, W., and

Ferraz, F. (2015). Middleware for heterogeneous

healthcare data exchange: a survey. In ICSEA 2015

Tenth International Conference on Software Engineer-

ing Advances, pages 409–414.

Bezerra, C. A. C., de Ara

ujo, A. M. C., and Times, V. C.

(2020). An hl7-based middleware for exchanging data

and enabling interoperability in healthcare applica-

tions. In Latiﬁ, S., editor, 17th International Con-

ference on Information Technology–New Generations

(ITNG 2020), pages 461–467, Cham. Springer Inter-

national Publishing.

Bortis, G. (2008). Experiences with mirth: An open source

health care integration engine. In Proceedings of the

30th International Conference on Software Engineer-

ing, ICSE ’08, page 649–652, New York, NY, USA.

Association for Computing Machinery.

HL7 International (2020). Hl7 version 2 prod-

uct suite. https://www.hl7.org/implement/standards/

product

brief.cfm?product id=185. Last checked on

Sep 09, 2020.

ISO (2009). ISO/HL7 27931:2009 Data exchange standards

– health level seven version 2.5 – an application pro-

tocol for electronic data exchange in healthcare en-

vironments. http://www.iso.org/iso/catalogue detail.

htm?csnumber=44428.

Jun Gui and Hebiao Yang (2010). Realization of eai based

on service-oriented architecture. In 2010 Interna-

tional Conference on Educational and Information

Technology, volume 2, pages V2–424–V2–428.

Li-Fan Ko, Jen-Chiun Lin, Chi-Huang Chen, Jie-Sheng

Chang, Faipei Lai, Kai-Ping Hsu, Tzu-Hsiang Yang,

Po-Hsun Cheng, Chia-Chang Wen, Jun-Lian Chen,

and Siao-Lin Hsieh (2006). Hl7 middleware frame-

work for healthcare information system. In HEALTH-

COM 2006 8th International Conference on e-Health

HEALTHINF 2021 - 14th International Conference on Health Informatics

422

Networking, Applications and Services, pages 152–

156.

Liu, L. and Huang, Q. (2012). An extensible hl7 mid-

dleware for heterogeneous healthcare information

exchange. In 2012 5th International Conference

on BioMedical Engineering and Informatics, pages

1045–1048.

Lu, X., Gu, Y., Yang, L., Jia, W., and Lei Wang (2010).

Research and implementation of transmitting and in-

terchanging medical information based on hl7. In The

2nd International Conference on Information Science

and Engineering, pages 457–460.

Vargas, B. and Pradeep Ray (2003). Interoperability of

hospital information systems: a case study. In Pro-

ceedings 5th International Workshop on Enterprise

Networking and Computing in Healthcare Industry

(HealthCom), pages 79–85.

Wadhwa, R., Mehra, A., Singh, P., and Singh, M. (2015).

A pub/sub based architecture to support public health-

care data exchange. In 2015 7th International Conf.

on Communication Systems and Networks (COM-

SNETS), pages 1–6.

Reusability of Interfaces in Healthcare EAI Environments

423
