Real-time Active Vision for a Humanoid Soccer Robot using

Deep Reinforcement Learning

Soheil Khatibi

1 a

, Meisam Teimouri

1 b

and Mahdi Rezaei

2 c

Mechatronics Research Laboratory, Qazvin Azad University, Qazvin, Iran

Institute for Transport Studies, University of Leeds, Leeds, U.K.

Keywords:

Deep Reinforcement Learning, Active Vision, Deep Q-Network, Humanoid Robot, RoboCup.

Abstract:

In this paper, we present an active vision method using a deep reinforcement learning approach for a humanoid

soccer-playing robot. The proposed method adaptively optimises the viewpoint of the robot to acquire the

most useful landmarks for self-localisation while keeping the ball into its viewpoint. Active vision is critical

for humanoid decision-maker robots with a limited ﬁeld of view. To deal with active vision problem, several

probabilistic entropy-based approaches have previously been proposed which are highly dependent on the

accuracy of the self-localisation model. However, in this research, we formulate the problem as an episodic

reinforcement learning problem and employ a Deep Q-learning method to solve it. The proposed network only

requires the raw images of the camera to move the robot’s head toward the best viewpoint. The model shows

a very competitive rate of 80% success rate in achieving the best viewpoint. We implemented the proposed

method on a humanoid robot simulated in Webots simulator. Our evaluations and experimental show that

the proposed method outperforms the entropy-based methods in the RoboCup context, in cases with high

self-localisation errors.

1 INTRODUCTION

Active Vision, by deﬁnition, is the method of

actively planning, manipulating, and adjusting the

camera viewpoint, with the goal of obtaining

the most optimised information from a given

environment, which can be either static or dynamic.

Object/landmarks detection in an environment is an

important research problem that has already been

addressed and studied by many researchers such as

in (Rezaei and Klette, 2017), (Teimouri et al., 2019).

However, in active vision, the goal is to reach the

viewpoints which contain most important landmarks

and objects so that there is a chance to detect them.

Speaking about the importance of active vision, there

are lots of cases where we encounter with limited

computational and processing resources. In such

circumstances, the best plan is to try to use the

existing resources in an optimised manner in order

to make the most of it. Another application of the

active vision is when the ﬁeld of view of the camera

https://orcid.org/0000-0002-2968-3576

https://orcid.org/0000-0003-0465-6528

https://orcid.org/0000-0003-3892-421X

is limited. In such cases, in order to gain the most

possible observations, it would be wise to manipulate

the viewpoint in a way that more observations are

sensed. Furthermore, in case of occlusions and

partial visibility, using an active vision algorithm

to intelligently conduct the eyesight toward more

informative observations will be extremely helpful.

In order to plan for the best viewpoint of

the camera, knowing the accurate state of the

environment and the agent itself are crucial. In active

vision, due to dynamic nature of the objects and the

uncertainty in the state of the agent, the state of

the environment and the agent itself are not exactly

available. Therefore, an active vision system should

model its state and the environment as accurately as

possible. This is one of the major challenges in this

ﬁeld. On the other hand, trying to determine the

best viewpoint with a high efﬁciency considering the

limitations of an agent in a dynamic environment can

be computationally expensive. So active vision has

been studied from different points of view and there

are different approaches in this ﬁeld.

One of the common techniques is the probabilistic

based solutions. In this kind of attitudes, the belief of

the robot is modelled with a probability distribution.

742

Khatibi, S., Teimouri, M. and Rezaei, M.

Real-time Active Vision for a Humanoid Soccer Robot using Deep Reinforcement Learning.

DOI: 10.5220/0010237307420751

In Proceedings of the 13th International Conference on Agents and Artiﬁcial Intelligence (ICAART 2021) - Volume 2, pages 742-751

ISBN: 978-989-758-484-8

Such techniques choose the action that minimises

the uncertainty of the belief (Burgard et al., 1997).

In (Seekircher et al., 2010) and (Czarnetzki et al.,

2010), the belief models the position of the robot.

The concept of entropy is utilised as a measure

indicating the rate of uncertainty in a probability

distribution. Therefore, the best action is the one

that minimises the entropy of current belief. This

approach, however, has some weaknesses. For

example, in order to choose the next appropriate

action, we have to calculate the model entropy

by assuming all of the actions have already been

completed. In these circumstances, regardless of

the fact that the state of the dynamic objects can

not be estimated accurately, the performance of the

model will be highly dependent on the accuracy

of the current belief. Another approach in active

vision is to formulate the problem as a reinforcement

learning where a big variety of modern algorithms

can be utilised such as deep neural networks. These

approaches have witnessed great progress (Han et al.,

2019), (Cheng et al., 2018) in recent years thanks to

advances in reinforcement learning and deep neural

networks. However, these methods are substantially

in need of signiﬁcant processing resources as well as

time-consuming training procedures. Also due to the

complexity of the state and action space, training a

robust model will be non-trivial and challenging. As

another challenge, and depending on the complexity

of the task, usually performing a real-world training

is not feasible and this should be accomplished in a

simulator environment. However, the trained models

in the simulation environment can not necessarily

perform in real-world environments with the same

performance.

As of the main contributions of this research,

we ﬁrst formulate the problem as an episodic

reinforcement learning problem by deﬁning a Markov

Decision Process. The objective is to adjust the head

viewpoint through an optimum direction that will

have the best observations so that the self-localisation

reaches the highest accuracy, along with an accurate

belief from the current state of the environment. In

each episode, the best action is determined using an

entropy minimising methodology. Since the training

process is performed in the simulation environment,

the position of the robot is accurately available. So,

the entropy minimisation method for determining the

best action would be efﬁcient. The algorithm used

for training is DDQN and PER (Mnih et al., 2015),

(Van Hasselt et al., 2016) and (Schaul et al., 2015),

which uses an experience replay memory to keep

records of previous experiences so far. As the second

contribution in this research, we make the action

selection process independent of the localisation error

and the belief error of the environment. The input of

the algorithm is just the raw images and the output is

a vector of q-values indicating how useful each action

is. Thus, having a trained model, we can control the

head position by simply passing the current image to

the model and select the appropriate action with the

highest q-value without requiring any further input

information.

We provide further details in the next sections.

The rest of the paper is organised as follows: In

Section 2, the main research-works and achievements

accomplished in this ﬁeld has been outlined. In

Section 3, the problem is deﬁned and our proposed

method has been presented in details. In Section 4,

the outcome of the experimental results has been

discussed. And ﬁnally, the concluding remarks are

provided in Section 5.

2 RELATED WORK

Despite the fact that an active sensor transmits

and receives information from the environment,

active vision has been referred to as a planning

strategy challenge to control the process of

environment perception around an agent. This

can be accomplished by manipulating the agent or

robot’s viewpoint, although it does not transmit any

information, but only receives some environmental

information (Bajcsy, 1988).

It is now decades that this research ﬁeld has been

attracting interests for coping with challenges like

occlusions, limited ﬁeld of view, limited resolution

of the camera, and low computational resources.

(Swain and Stricker, 1993) outlines and explains

some ﬁelds and research areas in active vision such as

gaze control, hand-eye coordination, and embedding

techniques in robotic settings.

More recently, (Chen et al., 2011) summarised

some of the developments of active vision in the

robotic ﬁelds over the past 15 years, and describes

problems arising from applications such as object

recognition, tracking and search, localisation, and

mapping.

(Mitchell et al., 2014) has studied the visual

behaviour of Marmosets such as their saccadic

behaviours in different situations considering their

neurophysiology and neural mechanisms. From

the cognitive point of view, (Kieras and Hornof,

2014) surveys some advances in cognitive models

for human-computer interaction using active vision

systems. Also (Rolfs, 2015) investigates the

perceptual and cognitive processes and their relations

Real-time Active Vision for a Humanoid Soccer Robot using Deep Reinforcement Learning

743

with the memory from the psychological point of

view.

Very recently, (Ammirato et al., 2017) has

provided an active vision dataset including bounding

boxes of some detected objects which can be used not

only in object detection tasks, but also in active vision

methods as a simulated environment.

(Falanga et al., 2017) applies active vision for

manipulating quadrotor robot orientation in the task

of passing narrow gaps.

In RoboCup domain, Seekircher et al. (Seekircher

et al., 2010) have suggested a method for actively

sensing the environment in order to increase the

efﬁciency of self-localisation and ball tracking by

minimising the entropy of an underlying particle

distribution. They have demonstrated the approach

on a humanoid robot on a RoboCup soccer ﬁeld.

Czarnetzki et al (Czarnetzki et al., 2010) have

done a similar work in this ﬁeld which provides

optimal decisions based on the current localisation

and its uncertainty in a soccer robot scenario.

Mattamala et al. (Mattamala et al., 2015) propose

a method for mapping both static and dynamic

information to an action as the best head manoeuvre

action. The method determines the appropriated

head action using on a combined score based on the

existing obstacles in the scene, the cost of performing

each action, and the limitation ahead. The method

performs real-time.

Han et al. (Han et al., 2019) formulates active

object detection as a sequential action decision

process and propose a dueling architecture to resolve

it. It uses an object detector to detect and localise

the object in the image and feeds the image along

with a representation of the detected object to a deep

q-network. The model outputs the state-action values

in order to reach a higher rate of object detection.

Cheng et al. (Cheng et al., 2018) also use an object

detector module for both actor and critic networks in

their actor-critic architectures in situations where the

camera is active. They propose hand/eye controllers

that learn to move the camera to keep the object

within the visible ﬁeld of view, in coordination to

manipulating it to achieve the desired goal in cluttered

or occluded environments. Both recent works require

an object detector. Although this may help and

accelerate the course of learning, it can be unavailable

in some circumstances and environments.

3 METHODOLOGY

We are interested in reaching the best viewpoint

to perceive the most useful observations from the

environment for self-localisation while having an

object of interest within the viewpoint of the

Robot. First let’s provide more details on the task

speciﬁcations.

3.1 Task Speciﬁcations

In a humanoid robot, the viewpoint is controlled by

the actuators of the robot’s head and the environment

is a Robocup humanoid soccer ﬁeld. The important

object of interest in the humanoid soccer ﬁeld is the

ball and the observations are in fact the landmarks

that contribute to the process of the robot localisation.

Therefore the goal is not only to use perceived

observations to localise the robot in a dynamic

environment, but also to be in control of the match

as the consequence of always having the ball in the

viewpoint.

We see this as a sequential decision-making

problem; therefore, to cope with the challenge, we

offer an episodic reinforcement learning solution,

with two main actors: the agent and a dynamic

environment. Environment refers to the soccer ﬁeld

with its whole components that the agent should

interact with, and the agent is the humanoid robot

which aims to learn the optimal policy to optimise

the robot’s viewpoint. The agent-environment

interaction is formulated as a Partially Observable

Markov Decision Process (POMDP) represented by

observations o ∈ O, states s ∈ S , actions a ∈ A, and

the reward function r : S × A → R. The components

of this POMDP are described below:

• Observations: Visual Information has diversely

been used in sequential decision-making

problems so far in different forms. Here,

observation o

is a gray-scale image captured at

time step t by a camera mounted on the head of

the robot.

• State Representation: In this problem, states are

represented as a sequence of observations o

that

the robot sees. The size of the stack can vary

according to the circumstances of the problem.

• Action Space: The action space is a set of discrete

actions in which each action a

moves the robot

viewpoint in a speciﬁc direction to a little ﬁxed

extent.

• Reward Function: The goal of our reward

function is to encourage the robot to move its

head through the goal position and penalises the

robot from moving its head away from the goal

position, alongside considering a negative reward

for missing the ball. This function is speciﬁed as

below:

ICAART 2021 - 13th International Conference on Agents and Artiﬁcial Intelligence

744

Reward =

(

−2, for missing all balls

sign(D

− D), elsewhere

(1)

where D is the distance of head to the goal

position before taking the action and D

is the

same distance after taking the action.

3.2 Goal Determination

At the beginning of each episode, the best possible

viewpoint should be determined from the position

of the robot and the ball. As speciﬁed in

the previous sub-section, the goal position is the

viewpoint containing the landmarks that improve the

self-localisation model of the robot in the best way

while keeping the ball in it. To accomplish this

objective, we discretise the camera position space and

evaluate all possible positions to determine the goal

position. Every camera position p is represented by

the tuple

p = (θ

pan

, θ

tilt

) (2)

where

−π

< θ

pan

and

< θ

tilt

13π

are the pan and title angles of the head actuators,

which are discretised into 10 and 4 points,

respectively. Note that every camera position

corresponds to a viewpoint, so we can use these terms

interchangeably.

We represent the belief of the robot position using

a multivariate normal distribution:

X ∼ N (µ, Σ) (3)

where µ is the mean vector representing the position

of the robot and Σ is the covariance matrix that shows

the uncertainty related to the position.

To evaluate the efﬁciency of a viewpoint for

self-localisation we employed an entropy-based

method. The best viewpoint is one that contains the

ball and minimises the entropy of the Gaussian model.

The process of ﬁnding the best viewpoint is shown in

Algorithm 1. The algorithm takes the robot and ball

positions as input and returns the best viewpoint.

As shown in lines 2-11 of the algorithm, for each

viewpoint p, we compute the expected entropy and

update the best viewpoint p

∗

. First, all observations

measured from visible landmarks at the current

position of the robot and viewpoint p are determined

in line 4. Each observation z ∈ Z is related to a visible

landmark and represents the distance and angle of the

landmark to the robot.

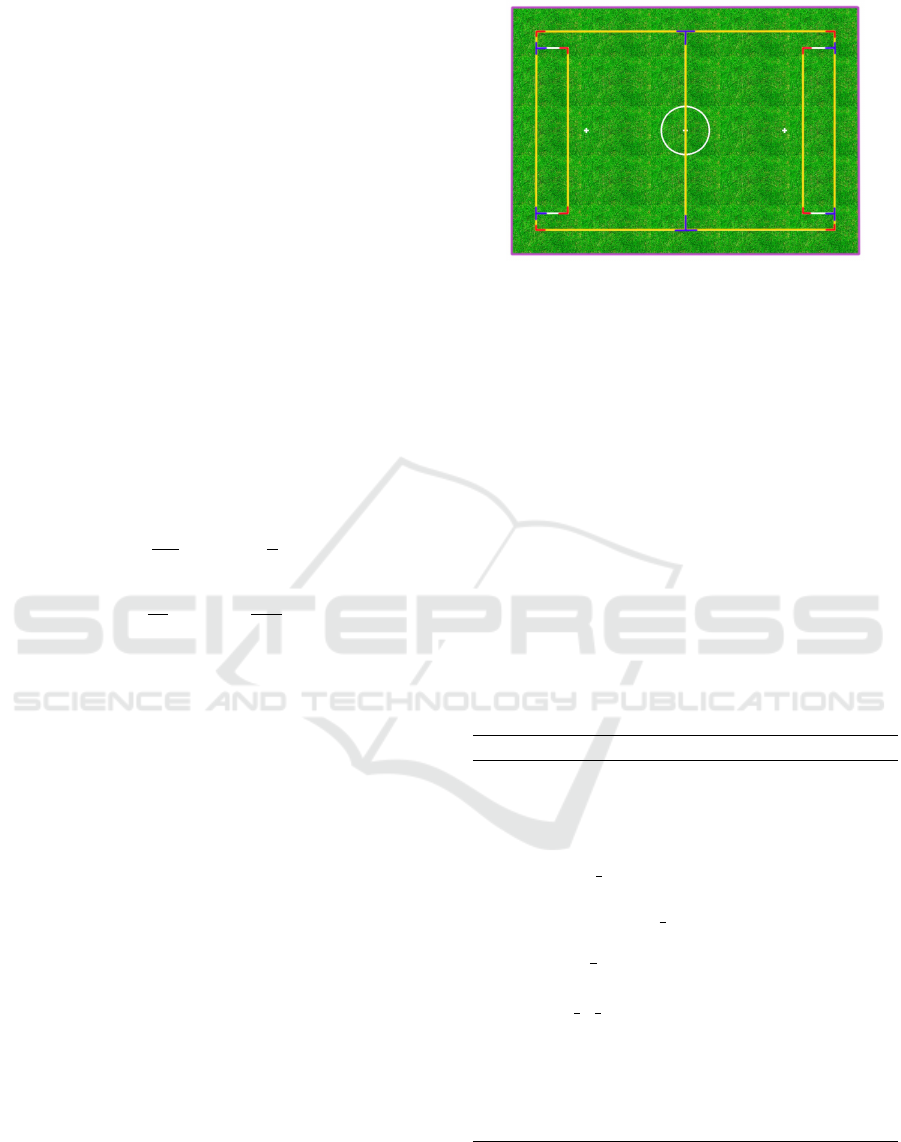

Figure 1: Different parts of the soccer ﬁeld markings,

categorised and colour coded based on their types. Red for

”L”s, blue for ”T”s, yellow for lines, and purple for the ﬁeld

boundary.

The visible landmarks can be determined easily

from the ﬁeld model. Figure 1 illustrates different

landmarks in the ﬁeld categorised by different

colours. However, the measurements of landmarks

are assumed to be noisy. So each landmark that

is projected to the viewpoint p and located at a

predetermined distance to the robot is considered as

visible. This distance is estimated experimentally

for each type of landmark. In (Seekircher et al.,

2010), a visibility model is learned using a neural

network. Then for every z we update the belief X

using Unscented Kalman ﬁlter (line 6) (Teimouri

et al., 2016)). The entropy for updated belief X

calculated in line 8.

Algorithm 1: Viewpoint exploration.

Input: X

= N (µ

, Σ

) , ball pose = (x

, y

)

1: H

min

= ∞

2: for each p ∈ P do

3: X

= X

4: Z = get observations(X

, p)

5: for each z ∈ Z do

6: X

= apply UKF(X

, z)

7: end for

8: H

ln(|(2πe)Σ|)

9: if H

< H

min

and

10: ball is visible(X

, ball pose) then

11: H

min

= H

12: p

∗

= p

13: end if

14: end for

15: return p

∗

Real-time Active Vision for a Humanoid Soccer Robot using Deep Reinforcement Learning

745

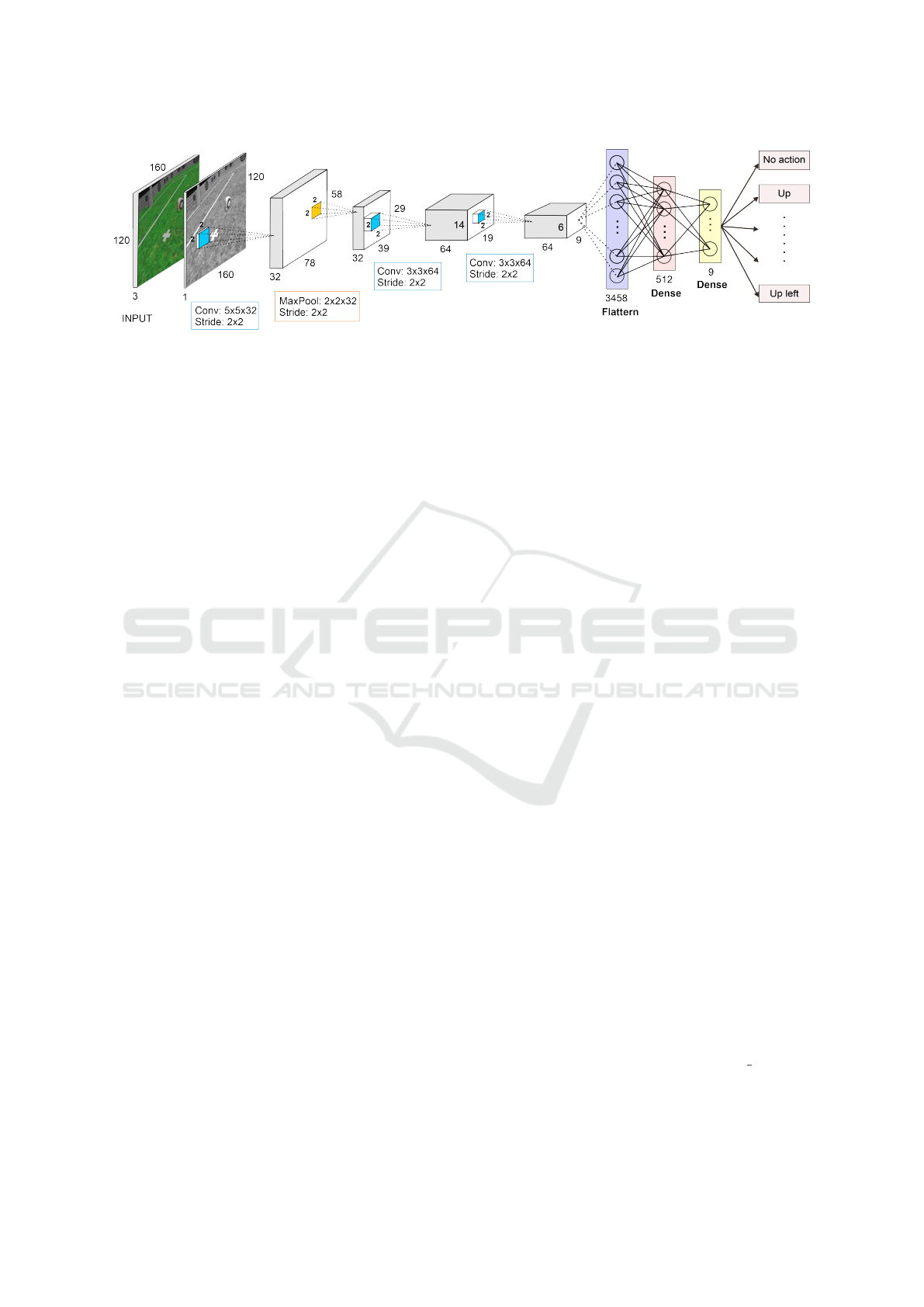

Figure 2: Neural network architecture. Note that ReLU activation function has been used for all layers except for the

max-pooling layer and the last layer.

3.3 Training Process and Details

(Seekircher et al., 2010) has used the output of an

entropy-based algorithm in online controlling of the

robot’s head. This can lead to wrong results in the

case of inaccurate localisation which is a common

issue in localisation algorithms (such as (Seekircher

et al., 2010) and (Teimouri et al., 2016)).

In our proposed sequential decision-making

method, the input is the current image which is

independent to the localisation accuracy. However,

this makes the task more complex and tricky in some

speciﬁc positions due to the symmetricity of the

soccer ﬁeld.

As mentioned earlier, this is an episodic task

where at the beginning of each episode, the ball and

robot are randomly positioned in the ﬁeld with a

random camera position. Then the goal (i.e. the

best viewpoint) is determined using the proposed

algorithm in the previous section. Afterwards, the

agent starts to take actions until termination. Note that

the episode ﬁnishes successfully if the agent reaches

the goal viewpoint and will fail if the agent misses

the ball from its ﬁeld of view. The episode also

terminates after 20 time steps to avoid long episodes.

After termination, the environment resets and another

episode begins.

The Algorithm that has been applied to solve

the represented problem is DDQN Algorithm

(Van Hasselt et al., 2016), which is an extension of

DQN (Mnih et al., 2015). Also Prioritised Experience

Replay (Schaul et al., 2015) has been utilised. In

DQN algorithms, Q-function is approximated using

a deep neural network. Q-values are real numbers

indicating the quality of each action in a speciﬁc state.

More formally, Q(s, a) is the expected cumulative

discounted reward after taking action a in state s. In

double deep Q-learning, selection and evaluation are

untangled. One network parameterised with θ is used

for selecting the action and another one parameterised

with θ

is used to evaluate Q-values. The Q-values

should be updated towards a target value:

DoubleQ

≡ R

t+1

+γQ(S

t+1

, arg max

Q(S

t+1

, a; θ

);θ

)

(4)

Each experience e

= (s

, a

, r

, s

t+1

) consists of state,

action, the reward after taking the action, and the

subsequent state after taking the action. In the training

phase, different batches are picked to train the neural

network from a prioritised experience replay in which

important transitions are picked more frequently.

The architecture of the convolutional neural

network is shown in Figure 2. It takes gray-scale

images as input and outputs a vector of Q-values

whose length equals the number of possible actions.

We fed a tensor with the size of 160 × 120 × 1 as the

input to the network. The ﬁrst hidden layer convolves

32 ﬁlters of 5 × 5 with Stride 2 and then applies a

non-linear activation function. The second hidden

layer applies a Max pooling of 2×2 with stride 2. The

third hidden layer convolves 64 ﬁlters of 3 × 3 with

stride 2, followed by a non-linear activation function.

This is then followed by another convolutional layer

that convolves 64 ﬁlters of 3×3 with stride 2 followed

by a non-linear activation function. Then there is

a hidden fully-connected layer that consists of 512

units. Finally, the output layer is a fully-connected

linear layer with an output for each action.

The hyperparameters used in our work are shown

in table 1. The Adam optimiser is used for the

training phase of the network. Also the learning rate

is constant during the whole training steps.

4 EXPERIMENTS AND RESULTS

The video link https://youtu.be/kOX vY6ir5M

represents the summary of our experiments.

This section is organised as follows. In Sec. 4.1,

we introduce the Reinforcement Learning (RL)

ICAART 2021 - 13th International Conference on Agents and Artiﬁcial Intelligence

746

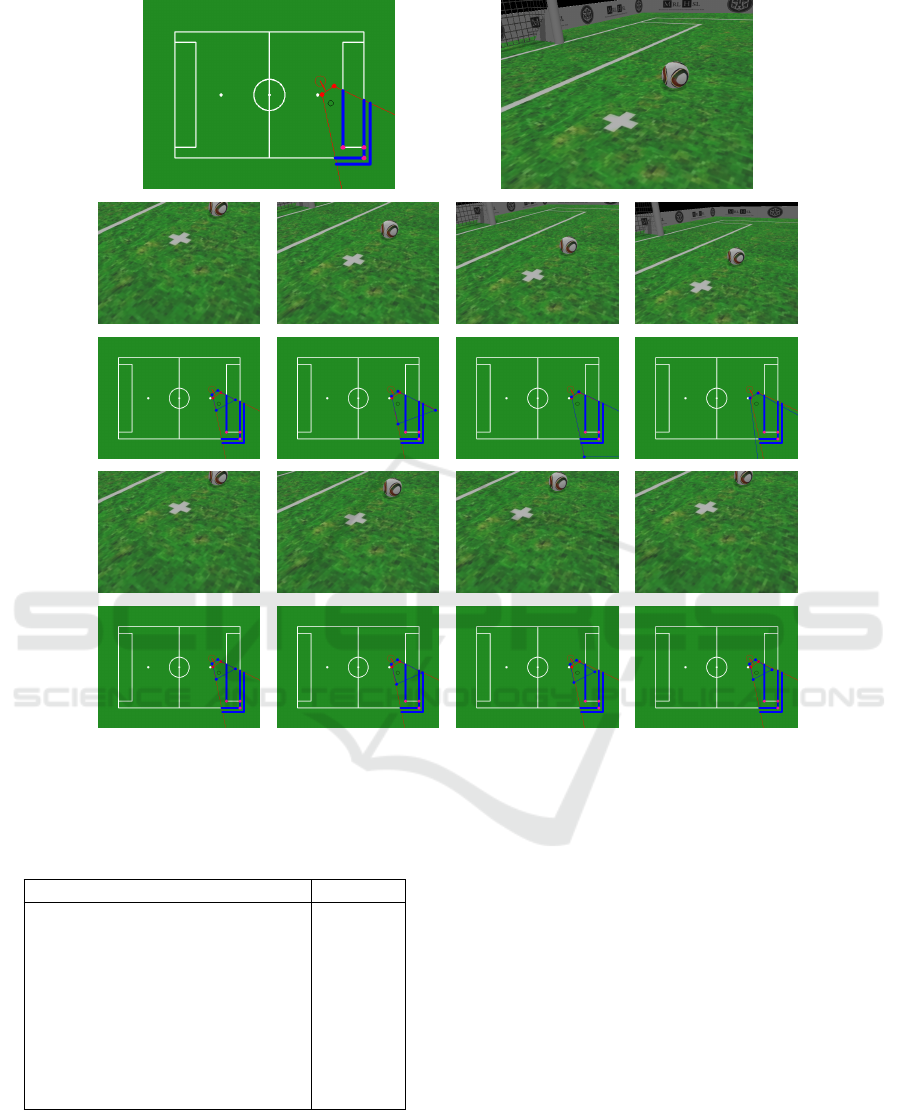

Figure 3: From top to bottom, Row 1: The best viewpoint of the robot (right) from speciﬁed position (left). Row 2, 3:

Active view point adjustment and visible landmarks started from left. Row 4, 5: Random viewpoint adjustment and visible

landmarks. Note that the robot’s position is marked with a red circle. the red polygons show the best viewpoint and the blue

ones show the current viewpoint. Also visible landmarks in the best viewpoint are illustrated with blue lines and pink points.

Table 1: HyperParameters.

Hyperparameter Value

Minibatch size 32

Replay memory size 1000000

Learning rate 0.0005

Discount factor 0.99

Target network update frequency 10000

Initial exploration rate 1

Final exploration rate 0.02

Prioritised replay buffer α 0.6

Initial prioritised replay buffer β 0.4

environment we used for the experiments and our

training procedure, as well as the specs of the agent

that has been trained. In Sec. 4.2, we assess the

performance of the proposed method during the

training phase. In Sec. 4.3, we check how the

self-localisation error affects the performance of the

proposed method against the entropy-based method.

We evaluate the proposed DQN through some

experiments and compare the results with previous

works in RoboCup competitions. While many types

of experiments can be considered to assess, in this

research, we limited our experiments on some of the

most important aspects such as the success rate in

reaching the best viewpoint, number of steps taken

to reach the best viewpoint, number of steps taken

to miss the ball from the viewpoint, and comparing

the proposed method with the entropy-based method

when the self-localisation error increases. Figure 3

shows the operation of the proposed method in an

example robot and camera position, compared to

random action selection.

Real-time Active Vision for a Humanoid Soccer Robot using Deep Reinforcement Learning

747

Figure 4: An overview of the simulator and training

environment.

4.1 Experiments Environment

Our training environment is designed and set up

using the Webots simulator (Michel, 2004). We used

Tensorﬂow (Abadi et al., 2016) and Stable-baselines

(Hill et al., 2018), an improved version of OpenAI

Baselines (Dhariwal et al., 2017), to implement

DDQN and PER. Position commands are used to

control the head joints at each time step. Each

command takes 320ms to rotate the camera viewpoint

by approximately 3 degrees. All processes such as

simulating, training, and inference are run in a PC

platform equipped with an Intel Core i7- 7700HQ

processor, and an Nvidia GeForce GTX 1060 GPU.

Note that the average time of inference on this PC was

0.0023 seconds which can be used in real-time.

We tested the proposed method on the MRL-HSL

humanoid robot (Mahmoudi et al., 2019) simulated in

Webots. An overview of the simulated environment

is shown in Figure 4. The goal of the agent is

clearly to reach the camera position in which the

best landmarks are visible from any initial random

position by manipulating neck and head joints. All

episodes are bound to 20 time steps but may terminate

prematurely in the case of missing the ball from

the ﬁeld of view (as failure) or reaching the best

viewpoint (as success).

The agent controls the camera viewpoint within a

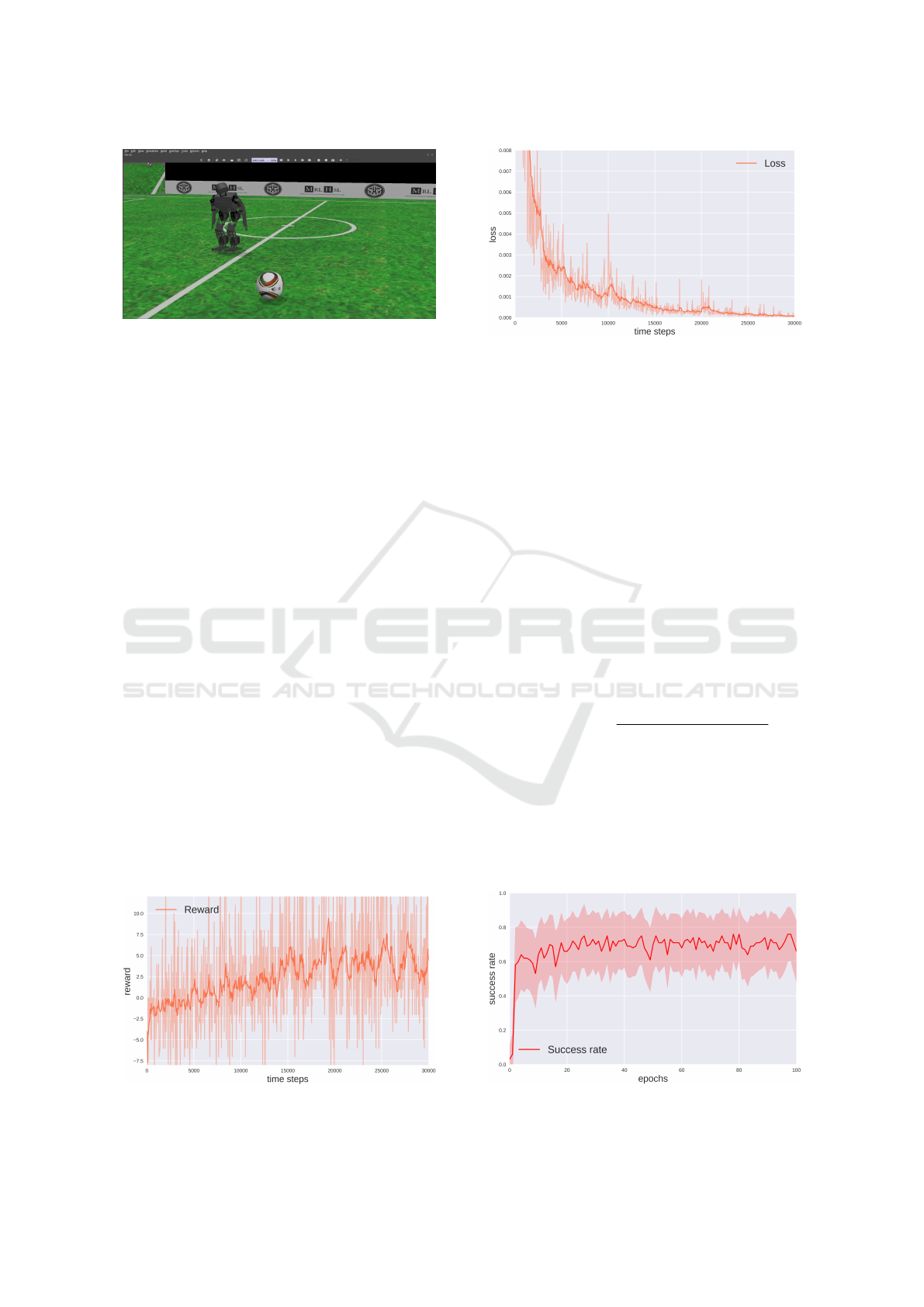

Figure 5: Total reward gained per episode during the

training course.

Figure 6: Loss function of the model during the training

course.

certain limited region. The camera actions, include

rotations to a speciﬁc extent (3 degrees in our case)

and in a certain directions, as described in section 3.1.

The other joint angles of the robot remain same as the

starting situation. When the camera position is within

a speciﬁc range of tolerance from the goal position,

the episode ends with success.

4.2 Model Performance

The agent has been trained for 30000 time steps. Total

reward per episode and loss function during training

phase are illustrated in Figure 5 and 6 respectively. To

evaluate the performance of the model, we propose

and measure 3 criteria during the training phase. The

ﬁrst criterion is Success rate. In an episode, we deﬁne

Success rate as

SuccessRate =

|{observed landmarks}|

|{desired landmarks}|

(5)

which indicates how much of the desirable landmarks

in the best viewpoint are observed. Since we know

the accurate position of the robot in simulation

environment, we can determine the best viewpoint

using algorithm 1. So the Success rate can be

calculated by dividing the current number of observed

landmarks to the number of visible landmarks in

Figure 7: The average Success rate measured during

training epochs.

ICAART 2021 - 13th International Conference on Agents and Artiﬁcial Intelligence

748

Figure 8: The average Ball loss duration measured during

training epochs.

the best viewpoint. The second criterion is Success

duration which is the time steps taken to reach the

goal. If the robot doesn’t reach the goal in that

episode, it will be 20 indicating not to reach the goal.

Finally, the third criterion(which was helpful for us

in the Ball loss rate reduction), is Ball loss duration

which is the time steps taken to lose the ball in each

episode. If the robot doesn’t lose the ball, it will be

20, indicating that the robot has not lost the ball in

that episode.

During the training phase, The Success rate

and the Ball loss duration are expected to increase

gradually as the robot learns to adjust its viewpoint

through more observations and keep the ball in the

viewpoint. Figure 7 and 8 show that the robot has

learned to achieve the best viewpoint and keep the ball

in its point of view. However, the Success duration

is expected to decrease. According to our reward

function, the robot receives a negative reward if it

doesn’t move its head through the best viewpoint and

in order to maximise the cumulative reward, it should

learn to reach the best viewpoint as fast as possible.

Figure 9 shows that the robot also has learned to

achieve the best viewpoint as fast as possible. We

have considered each 300 time steps of the training

phase as a training epoch and measured these criteria

in each epoch.

Figure 9: The average Success duration measured during

training epochs.

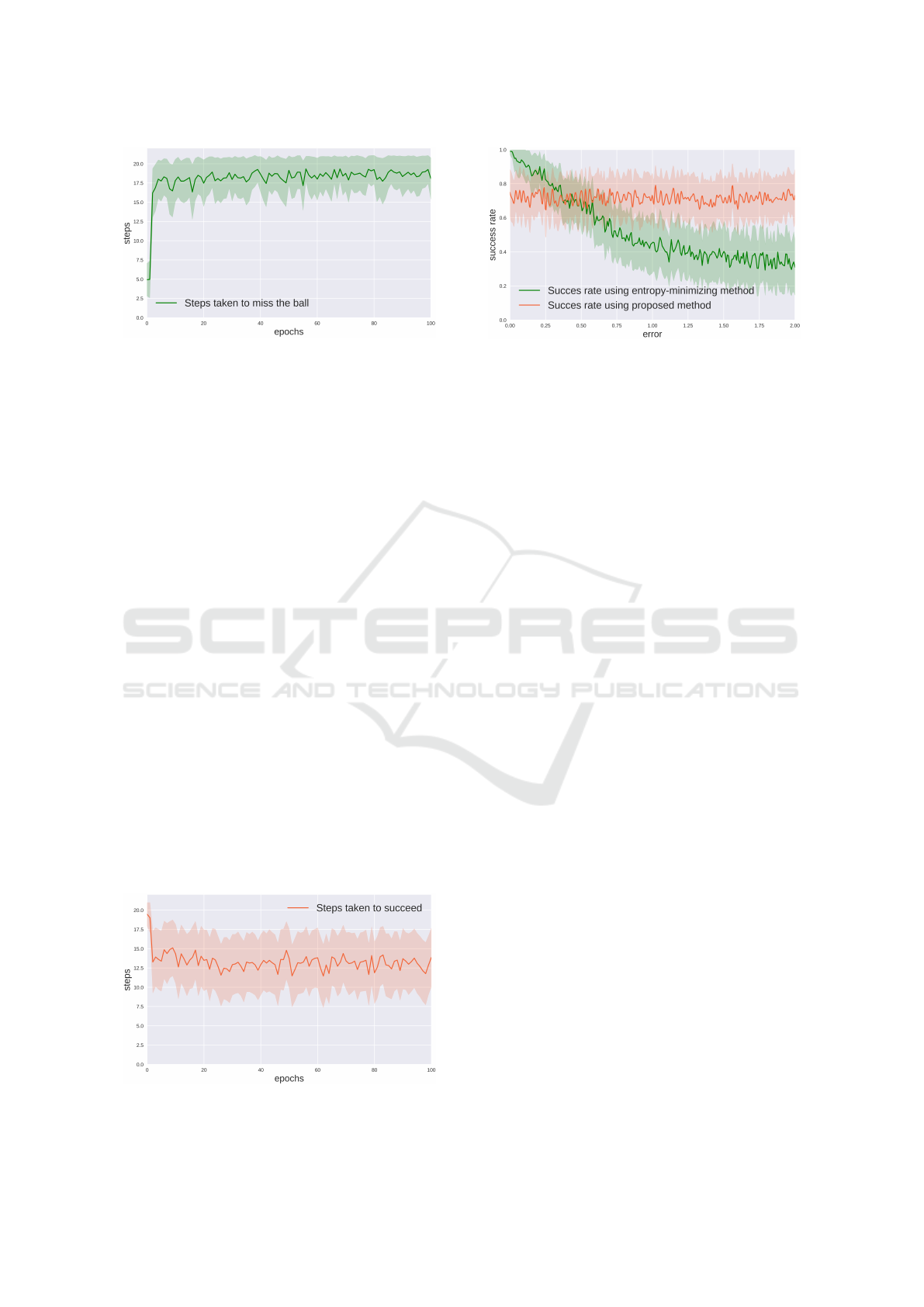

Figure 10: Comparison of our method’s average

Success rate against the entropy based method as the

self-localisation error increases.

4.3 Comparison with Entropy-based

Method

In this section, the effect of localisation error on

the performance of the proposed method is assessed

against the entropy-based method. The entropy-based

methods have had the best performance in active

vision tasks so far in RoboCup and similar contexts

as far as we know.

In this experiment we report the average Success

rate in different episodes starting from different

random positions as the self-localisation error

increases. The error shows the amount of inaccuracy

in both position(in meter) and direction(in radian) of

the robot.

Considering that localisation error is practically

inevitable in a soccer playing ﬁeld, just performing

the action that entropy-based methods output will not

be desirable for our viewpoint optimisation task.

Figure 10 illustrates the results of the experiment.

As shown in Figure 10, in entropy-based methods,

the more localisation error, the lower performance

can be expected. And this is because these methods

operate as a function of the robot and ball positions.

Therefore, they are highly dependent on the accuracy

of the self localisation.

On the other hand, Figure 10 conﬁrms that no

matter how inaccurate the localisation model is, the

performance of our method remains steady. It handles

the detrimental impact of localisation error. And this

is because our proposed method works as a function

of the current input image and doesn’t rely on the

localisation accuracy.

Real-time Active Vision for a Humanoid Soccer Robot using Deep Reinforcement Learning

749

5 CONCLUSION AND FUTURE

WORK

In this work, we presented an active vision problem

in the context of Robocup which intends to control

the head movements of a humanoid soccer robot. The

method formulated the problem as a Markov Decision

Process using Deep Reinforcement Learning. In

the action selection phase (at the beginning of each

episode), we used an entropy-minimising method

applied to the UKF model which is responsible for

the robot localisation. In this work we applied the

DQN algorithm. The results of the trained model

were presented and analysed. The proposed method

operates without reliance on the current belief of the

environment and is compared with the previous works

which only use entropy minimisation for the real-time

head control.

We deﬁned the problem as a Markov Decision

Process. Therefore the problem can be solved

with newer algorithms of reinforcement learning that

consider the continuous action space such as PPO

(Schulman et al., 2017) and DDPG (Lillicrap et al.,

2015). Also, the performance of the method might

be improved by passing a rough representation of the

robot position along with the image. This can handle

the problem of similarity between the symmetric

observations in the soccer ﬁeld.

REFERENCES

Abadi, M., Agarwal, A., Barham, P., Brevdo, E., Chen, Z.,

Citro, C., Corrado, G. S., Davis, A., Dean, J., Devin,

M., et al. (2016). Tensorﬂow: Large-scale machine

learning on heterogeneous distributed systems. arXiv

preprint arXiv:1603.04467.

Ammirato, P., Poirson, P., Park, E., Ko

seck

a, J., and

Berg, A. C. (2017). A dataset for developing

and benchmarking active vision. In 2017 IEEE

International Conference on Robotics and Automation

(ICRA), pages 1378–1385. IEEE.

Bajcsy, R. (1988). Active perception. Proceedings of the

IEEE, 76(8):966–1005.

Burgard, W., Fox, D., and Thrun, S. (1997). Active

mobile robot localization by entropy minimization. In

Proceedings second euromicro workshop on advanced

mobile robots, pages 155–162. IEEE.

Chen, S., Li, Y., and Kwok, N. M. (2011). Active vision

in robotic systems: A survey of recent developments.

The International Journal of Robotics Research,

30(11):1343–1377.

Cheng, R., Agarwal, A., and Fragkiadaki, K. (2018).

Reinforcement learning of active vision for

manipulating objects under occlusions. arXiv

preprint arXiv:1811.08067.

Czarnetzki, S., Kerner, S., and Kruse, M. (2010). Real-time

active vision by entropy minimization applied to

localization. In Robot Soccer World Cup, pages

266–277. Springer.

Dhariwal, P., Hesse, C., Klimov, O., Nichol, A., Plappert,

M., Radford, A., Schulman, J., Sidor, S., Wu, Y., and

Zhokhov, P. (2017). Openai baselines. https://github.

com/openai/baselines.

Falanga, D., Mueggler, E., Faessler, M., and Scaramuzza,

D. (2017). Aggressive quadrotor ﬂight through narrow

gaps with onboard sensing and computing using active

vision. In 2017 IEEE international conference on

robotics and automation (ICRA), pages 5774–5781.

IEEE.

Han, X., Liu, H., Sun, F., and Zhang, X. (2019). Active

object detection with multistep action prediction using

deep q-network. IEEE Transactions on Industrial

Informatics, 15(6):3723–3731.

Hill, A., Rafﬁn, A., Ernestus, M., Gleave, A., Kanervisto,

A., Traore, R., Dhariwal, P., Hesse, C., Klimov, O.,

Nichol, A., Plappert, M., Radford, A., Schulman, J.,

Sidor, S., and Wu, Y. (2018). Stable baselines. https:

//github.com/hill-a/stable-baselines.

Kieras, D. E. and Hornof, A. J. (2014). Towards accurate

and practical predictive models of active-vision-based

visual search. In Proceedings of the SIGCHI

conference on human factors in computing systems,

pages 3875–3884.

Lillicrap, T. P., Hunt, J. J., Pritzel, A., Heess, N., Erez,

T., Tassa, Y., Silver, D., and Wierstra, D. (2015).

Continuous control with deep reinforcement learning.

arXiv preprint arXiv:1509.02971.

Mahmoudi, H., Fatehi, A., Gholami, A., Delavaran, M. H.,

Khatibi, S., Alaee, B., Tafazol, S., Abbasi, M., Doust,

M. Y., Jafari, A., et al. (2019). Mrl team description

paper for humanoid kidsize league of robocup 2019.

Mechatronics Research Lab, Department of Computer

and Electrical Engineering, Qazvin Islamic Azad

University, Qazvin, Iran.

Mattamala, M., Villegas, C., Y

nez, J. M., Cano, P., and

Ruiz-del Solar, J. (2015). A dynamic and efﬁcient

active vision system for humanoid soccer robots. In

Robot Soccer World Cup, pages 316–327. Springer.

Michel, O. (2004). Cyberbotics ltd. webots™: professional

mobile robot simulation. International Journal of

Advanced Robotic Systems, 1(1):5.

Mitchell, J. F., Reynolds, J. H., and Miller, C. T.

(2014). Active vision in marmosets: a model system

for visual neuroscience. Journal of Neuroscience,

34(4):1183–1194.

Mnih, V., Kavukcuoglu, K., Silver, D., Rusu, A. A.,

Veness, J., Bellemare, M. G., Graves, A., Riedmiller,

M., Fidjeland, A. K., Ostrovski, G., et al. (2015).

Human-level control through deep reinforcement

learning. nature, 518(7540):529–533.

Rezaei, M. and Klette, R. (2017). Computer vision for

driver assistance. Springer.

Rolfs, M. (2015). Attention in active vision: A perspective

on perceptual continuity across saccades. Perception,

44(8-9):900–919.

ICAART 2021 - 13th International Conference on Agents and Artiﬁcial Intelligence

750

Schaul, T., Quan, J., Antonoglou, I., and Silver, D.

(2015). Prioritized experience replay. arXiv preprint

arXiv:1511.05952.

Schulman, J., Wolski, F., Dhariwal, P., Radford, A., and

Klimov, O. (2017). Proximal policy optimization

algorithms. arXiv preprint arXiv:1707.06347.

Seekircher, A., Laue, T., and R

ofer, T. (2010).

Entropy-based active vision for a humanoid soccer

robot. In Robot Soccer World Cup, pages 1–12.

Springer.

Swain, M. J. and Stricker, M. A. (1993). Promising

directions in active vision. International Journal of

Computer Vision, 11(2):109–126.

Teimouri, M., Delavaran, M. H., and Rezaei, M. (2019). A

real-time ball detection approach using convolutional

neural networks. In Robot World Cup, pages 323–336.

Springer.

Teimouri, M., Salehi, M. E., and Meybodi, M. R. (2016).

A hybrid localization method for a soccer playing

robot. In 2016 Artiﬁcial Intelligence and Robotics

(IRANOPEN), pages 127–132. IEEE.

Van Hasselt, H., Guez, A., and Silver, D. (2016). Deep

reinforcement learning with double q-learning. In

Thirtieth AAAI conference on artiﬁcial intelligence.

Real-time Active Vision for a Humanoid Soccer Robot using Deep Reinforcement Learning

751
