Multi-Stage Dynamic Batching and On-Demand I-Vector Clustering for

Cost-effective Video Surveillance

David Montero, Luis Unzueta, Jon Goenetxea, Nerea Aranjuelo, Estibaliz Loyo, Oihana Otaegui

and Marcos Nieto

Vicomtech, Mikeletegi 57, 20009 Donostia-SanSebastian, Spain

Keywords:

Face Recognition, Face Clustering, Video-Surveillance.

Abstract:

In this paper, we present a cost-effective Video-Surveillance System (VSS) for face recognition and online

clustering of unknown individuals at large scale. We aim to obtain Performance Indicators (PIs) for people

ﬂow monitoring in large infrastructures, without storing any biometric information. For this purpose, we

focus on how to take advantage of a central GPU-enabled computing server, connected to a set of video-

surveillance cameras, to automatically register new identities and update their descriptive data as they are re-

identiﬁed. The proposed method comprises two main procedures executed in parallel. A Multi-Stage Dynamic

Batching (MSDB) procedure efﬁciently extracts facial identity vectors (i-vectors) from captured images. At

the same time, an On-Demand I-Vector Clustering (ODIVC) procedure clusters the i-vectors into identities.

This clustering algorithm is designed to progressively adapt to the increasing data scale, with a lower decrease

in its effectiveness compared to other alternatives. Experimental results show that ODIVC achieves state-of-

the-art results in well-known large scale datasets and that our VSS can detect, recognize and cluster in real

time faces coming from up to 40 cameras with a central off-the-shelf GPU-enabled computing server.

1 INTRODUCTION

In recent years, there has been a growing interest in

obtaining a detailed operational experience of peo-

ple ﬂow monitoring in large infrastructures, by means

of Performance Indicators (PIs), such as ”waiting

times”, ”process throughput”, ”queue length overrun”

and ”area occupancy” (Mayer et al., 2015). Current

non-cooperative solutions are typically integrated in

the terminal infrastructure or use data from existing

processes, such as entrance pass scans or mobile de-

vices and Wi-Fi signals, from which PIs can be de-

rived. As stated in (Mayer et al., 2015), for this kind

of applications, computer-vision-based facial recog-

nition technology has been used mainly as a source to

infer ”waiting times”, by comparing biometric infor-

mation from entry and exit points.

Our motivation is to enhance and extend the ap-

plicability of computer-vision-based facial recogni-

tion technology to more cases than the estimation of

”waiting times” in a speciﬁc area of a large infras-

tructure. More speciﬁcally, our goal is to build a face

recognition-based solution from which all the PIs can

be derived for the whole infrastructure, trying to sim-

plify as much as possible the required hardware setup,

and with a better handling of data so that privacy is-

sues can be avoided. This requires building an ac-

curate and efﬁcient face recognition system that can

manage large-scale data, without storing the biomet-

ric information of the individuals. Deep Neural Net-

work (DNN)-based large-scale clustering approaches

are promising methodologies for this purpose (Wang

et al., 2019; Shi et al., 2018; Otto et al., 2018).

Deploying computer vision algorithms to build

a cost-effective Video-Surveillance System (VSS) is

challenging. The latest trends rely on distributed com-

puting infrastructures, based on cloud (Lim et al.,

2018), fog (Nasir et al., 2018) and/or edge comput-

ing paradigms (Chen et al., 2019). These solutions

are capable of processing multiple sensor data streams

more efﬁciently at a bigger scale, compared to the

traditional centralized infrastructures (Tsakanikas and

Dagiuklas, 2017). The main open questions in the

design of a VSS (distributed or centralized) are what

equipment should be used and how to take advantage

of the available computing capabilities. This work fo-

cuses on the second question when an off-the-shelf

GPU computing server is considered. This solution

directly addresses the centralized infrastructure case,

but is likely extendable to distributed infrastructures.

436

Montero, D., Unzueta, L., Goenetxea, J., Aranjuelo, N., Loyo, E., Otaegui, O. and Nieto, M.

Multi-Stage Dynamic Batching and On-Demand I-Vector Clustering for Cost-effective Video Surveillance.

DOI: 10.5220/0010236204360443

In Proceedings of the 16th International Joint Conference on Computer Vision, Imaging and Computer Graphics Theory and Applications (VISIGRAPP 2021) - Volume 5: VISAPP, pages

436-443

ISBN: 978-989-758-488-6

These are the main contributions of our work:

• A cost-effective VSS for face recognition and on-

line clustering of unknown individuals at large

scale, without storing their biometric information,

to obtain PIs for people ﬂow monitoring.

• A Multi-Stage Dynamic Batching (MSDB) pro-

cedure to efﬁciently extract face attributes and

i-vectors from captured images. This in-

cludes MB-MTCNN, a multi-batch version of

a Multi-Task Cascaded Convolutional Network

(MTCNN) (Zhang et al., 2016a), and an efﬁcient

dynamic batching strategy for the processing of

dynamic lists of facial images.

• An On-Demand I-Vector Clustering (ODIVC) al-

gorithm, designed to progressively adapt to the

data scale, with a lower decrease on its effective-

ness compared to state-of-the-art alternatives.

The paper is organized as follows. Section 2

presents the related work. Section 3 describes the

proposed VSS, followed by the computation improve-

ments and optimizations in section 4. Section 5 pro-

vides experimental results that show the potential of

our approach. Finally, section 6 concludes the paper.

2 RELATED WORK

The main challenges in our context are two: (A) how

to cluster faces by identity, using an online and unsu-

pervised approach, with the necessary accuracy and

scalability; and (B) how to build a cost-effective VSS

to deploy this technology.

2.1 Face Clustering

In recent years, face clustering in large-scale uncon-

strained scenarios has become a major challenge. The

huge number of faces and the intra-class changes due

to environmental variations (e.g., pose, illumination,

occlusions, resolution, noise) lead to complex distri-

butions of face representations. This makes it unsuit-

able to apply classic algorithms like K-Means (Lloyd,

1982), which tend to generate similar sized clusters,

or spectral clustering (Shi and Malik, 2000).

State-of-the-art methodologies combine DNN-

based face recognition models to extract i-vectors

with clustering algorithms that can group them in dis-

tinguishable identities, despite the intra-class variabil-

ity. In (Shi et al., 2018) the ConPaC algorithm is pro-

posed, which is based on the estimation of an adja-

cency matrix using pairwise similarities between i-

vectors. In (Wang et al., 2019) GCN is presented,

where a DNN decides which pairs of nodes should be

linked. In (Lin et al., 2018) an Agglomerative Hier-

archical Clustering approach is adopted, considering

the distance in the embedded space and the dissimilar-

ity between groups of faces. In (Otto et al., 2018) an

approximate rank-order clustering is presented, which

predicts whether a node should be linked to its k Near-

est Neighbors (kNN), and merges all linked pairs.

Nevertheless, these methodologies use ofﬂine al-

gorithms. They process entirely the gathered data ev-

ery time a new i-vector arrives with increasing com-

putational cost. In addition, most of them suffer from

scalability problems. For instance, the complexity of

ConPaC can scale up to O(T N

), where N is the num-

ber of i-vectors and T the number of iterations. (Wang

et al., 2019) and (Otto et al., 2018) reduce the com-

plexity using kNN graphs to reduce the number of

comparisons, but the cost is still too high for consid-

ering them for online applications.

To overcome these problems, we present On-

Demand I-Vector Clustering algorithm (ODIVC). It is

suitable for large-scale real-time applications, as it is

devised to dynamically adapt to the inclusion of data

samples without repeating the whole process.

2.2 Computing Infrastructures for

Automated Video-Surveillance

New automated surveillance systems incorporate

modern video sensors capable of capturing high def-

inition footage and DNN-based processing pipelines

in real-time. These systems frequently require large

computational resources and large storage size. Both

requirements could be resolved by integrating the

VSS in a distributed computing infrastructure, rely-

ing on cloud, fog and/or edge computing paradigms.

However, this introduces new challenges to be ad-

dressed (Tsakanikas and Dagiuklas, 2017).

A VSS relying on cloud computing (Lim et al.,

2018) needs to take into account the latency and extra

communication cost introduced between the sensors

and the cloud infrastructure. Furthermore, it needs

to deal with the latency introduced in IP networks,

which is not only large but also ﬂuctuating. Fog com-

puting is a complementary technology to cloud com-

puting, as it extends cloud capabilities to the edge

of the network, comprising devices that have enough

power to perform non-trivial computational tasks. A

representative example of fog-based VSS is presented

in (Nasir et al., 2018). Finally, edge computing refers

to transferring computational and storage capacities

from data centers to the video sensors, minimizing the

network latency. Its application in a VSS requires the

usage of special hardware and software close to the

video sensors (Chen et al., 2019).

Multi-Stage Dynamic Batching and On-Demand I-Vector Clustering for Cost-effective Video Surveillance

437

CAPTURING THREAD

CLUSTERINGTHREAD

IMAGES

I-VECTORS

DATABASE

GPU COMPUTING SERVERN IP CAMERAS

...

CPU

HDD

RAM

GPU

IMAGE PROCESSING THREAD

CPU

Figure 1: Overall processing architecture and data ﬂow diagram of the proposed VSS.

As stated in (Tsakanikas and Dagiuklas, 2017), a

promising approach for a VSS could be a distributed

architecture, where certain characteristics of each ap-

proach are utilized to maximize its efﬁciency. In any

case, effectively deploying DNN-based technology in

such kind of equipment to build a cost-effective VSS,

is a challenge to be addressed.

3 PROPOSED GPU COMPUTING

SERVER-BASED VSS

3.1 Capturing Thread

The capturing thread is in charge of three tasks:

camera connection handling, stream decoding and

image acquisition. The effective camera manage-

ment involves not only creating the connections when

the system startups, but also periodically checking

whether they are still working and reconnecting in

case of a lost connection. Image streaming uses a

compression method to reduce the network overload

(e.g., H.264, H.265, etc) (Jankar and Shah, 2017), so

a decoding phase is needed before feeding the images

into the processing thread. This can cause a delay in

the results. To reduce this effect, the capturing thread

decodes each image stream separately. Thus, the cur-

rent image is ready when the image processing thread

needs to get the next frame. The computational cost

of the capturing thread is low compared with the rest

and it only uses a small amount of the CPU for frame

decoding, mask applying, and connection checking.

3.2 Image Processing Thread

The image processing thread applies the DNN-based

face analysis algorithms to the captured images,

in order to get the required i-vectors for the re-

identiﬁcation. It consumes most of the computation

CPU GPURAM

IMAGE PROCESSING THREAD

MSDB Stage #3: I-Vector Extraction

Face Filtering

MSDB Stage #2: Face Attributes Based Filtering

Face Patch

Normalization

MSDB Stage #1: Normalized Face Patch Extraction

Face and Landmark

Detection

Face Attributes Extraction

N images

Q i-vectors

Figure 2: MSDB procedure in the image processing thread.

time of the entire VSS (90-95%). Thus, to improve

the global performance, the system exploits the GPU

resources for the DNN inferences, using the CPU for

minor tasks like processing ﬂow control, image crop-

ping and managing patch lists (Figure 2).

This procedure has three sequential stages: 1) nor-

malized face patch extraction, 2) facial attribute-based

ﬁltering, and 3) i-vector extraction.

The ﬁrst stage detects all the faces present in the

input image list and their facial landmarks, which are

used for the face patch normalization following the

method described in (Wang et al., 2018). For an efﬁ-

cient detection of the facial regions and landmarks in

the N images from the capture process we propose a

multi-batch version of MTCNN (MB-MTCNN), de-

scribed in section 4.1, with a batch size equal to the

number of images (i.e. N). This stage generates a list

of M face regions with a set of ﬁve facial landmarks.

The VSS captures images from uncontrolled en-

vironments, so the detected faces may have different

orientations, lighting conditions, partial occlusions,

etc., which can negatively inﬂuence in the i-vector ex-

traction, reducing the accuracy of the re-identiﬁcation

VISAPP 2021 - 16th International Conference on Computer Vision Theory and Applications

438

process (Tan and Triggs, 2010). It is well known that

the impact of these factors can be reduced by prepro-

cessing the face patches before extracting the i-vector,

as stated in (Chaudhari and Kale, 2010).

Thus, the second stage checks if the facial patch

is suitable for re-identiﬁcation using a set of automat-

ically detected attributes and previously deﬁned ﬁl-

tering considerations. In our context, we use head

orientation and a set of angle thresholds for the ﬁl-

tering process, but other descriptive attributes could

also be considered (e.g. age, gender, ethnic group,

etc.). These attributes are estimated with Multi-Task

Cascaded Convolutional Networks (TCDCN) (Zhang

et al., 2016b). All the patches that do not match the

established rules are removed.

Finally, the last stage extracts the i-vectors from

the list of ﬁltered face patches given by the ﬁltering

stage. For our experiments we use a DNN model

based on ResNet100 architecture (He et al., 2016)

with ArcFace loss (Deng et al., 2019). We use this

architecture, despite its complexity, because we need

to generate the i-vectors as robust as possible in or-

der to get highly-reliable PIs. The DNN inferences

applied to the dynamic lists of cropped facial images

are made following efﬁcient dynamic batching proce-

dures, as explained in section 4.2.

3.3 Clustering Thread

This thread analyzes the incoming i-vectors to auto-

matically register new people and update their de-

scriptive data with new samples as they are re-

identiﬁed, in an unsupervised way. Algorithm 1

shows our proposed ODIVC procedure for this task.

The identities database is represented with four

lists: C, containing the representative i-vector (cen-

troid) of each registered identity; SC, containing the

sum of the candidates i-vectors of each registered

identity; uid, with the unique identiﬁcation num-

bers for those identities; and nm, with the number

of detections matched with each identity. Thus, the

database is expressed as <C, SC, uid, nm>. The new

identity candidates do not get a unique identiﬁcation

number until they have reached a certain number of

matched detections. This is done to ﬁlter erroneous

new identity candidates, created with unsuitable faces

passed through the ﬁlters of the detection stage.

When the VSS is launched, the identities database

is empty. Therefore, the ﬁrst incoming i-vector will be

used as the representative i-vector of the ﬁrst identity

candidate in the database. From then on, every new

incoming i-vector is compared with the centroid of

every registered identity. The comparison is done by

computing the cosine similarity, as the employed face

Algorithm 1: On-Demand I-Vector Clustering.

Input: new i-vector u, database of identities

<C, SC, uid, nm> (initially empty),

low similarity threshold thresh

low

[-1,1], high similarity threshold

thresh

high

[-1,1], minimum cluster

members for low threshold nm

min

Output: Updated DB <C, SC, uid, nm>

norm

= ||u||

sim = u

norm

· C

match = -1, sim

best

= -1

if sizeo f (R) > 0 then

idx

best

= maxIdx(sim)

sim

best

= sim[idx

best

]

end

while sim

best

> thresh

low

if nm[idx

best

] > nm

min

sim

best

> thresh

high

then

match = idx

best

break

end

sim[idx

best

] = -1

idx

best

= maxIdx(sim)

sim

best

= sim[i

best

]

end

if match > −1 then

nm[match] = nm[match] + 1

SC[match] = SC[match] + u

norm

C[match] = ||SC[match]||

else

uid

new

= generateNewUID()

Append u

norm

to C & SC, uid

new

to uid

and 1 to nm

end

return <C, SC, uid, nm>

recognition model was trained to work with this met-

ric (Deng et al., 2019), but other similarity measures

may be considered. To speed up the computation

of the cosine similarity, every incoming i-vector and

centroids are normalized, so that only the dot prod-

uct between them needs to be computed. Besides, the

calculation of the dot product is parallelized. Once the

cosine similarity is extracted, the algorithm searches

for the best candidate above a predeﬁned minimum

threshold (thresh

low

). If the selected identity has more

than nm

min

members, then the centroid is considered

robust enough for using thresh

low

and the i-vector is

matched to that identity. Otherwise, the similarity

measure must be higher than thresh

high

. This search-

ing process is repeated until there is a match or until

the best similarity measure is lower than thresh

low

. If

there is a match between the incoming i-vector and a

registered identity, the new i-vector is used to update

Multi-Stage Dynamic Batching and On-Demand I-Vector Clustering for Cost-effective Video Surveillance

439

the sum and the normalized centroid of the identity,

as shown in the algorithm. Otherwise, it becomes

directly the representative centroid of a new iden-

tity. The time complexity of the algorithm is O(MC),

where M is the i-vector dimensionality and C is the

number of active identities.

Alternative registration and updating strategies

might be considered, for example, a set of i-vectors

per identity represented by their median for the com-

parisons (which theoretically is more robust to out-

liers than the running average). However, we regis-

ter each individual with only a single i-vector and up-

date it with the running average strategy. This ensures

the minimal amount of information is stored, which is

critical to handle large scales. In addition, according

to our experiments, it is less susceptible to noise, i.e.

erroneous faces that have reached the clustering stage.

The RAM memory is the fastest option to store

these data but it is not safe to system failures (e.g.

power supply failures). To avoid data loss, the sys-

tem also stores the registration information in a per-

sistent database, to use it as an information cache if

the system fails or needs to be restarted. Additional

spatiotemporal constraints related to characteristics of

the infrastructure (e.g. one-way zone-to-zone doors,

or one-way exit doors that assure that an individual

has left the infrastructure at least for a certain time,

etc.), allow reducing the number of comparisons and,

in consequence, potential erroneous matches.

4 MSDB OPTIMIZATIONS

4.1 Multi-Batch MTCNN

To improve the computation performance of the face

and landmark detections from full-images in the ﬁrst

stage of MSDB, we adopt and modify the MTCNN

method (Zhang et al., 2016a), resulting in the pro-

posed MB-MTCNN approach, which includes multi-

batch processing and a series of parallelization strate-

gies on each stage of MTCNN.

We chose MTCNN as the detection network be-

cause of some remarkable characteristics. First, it per-

forms a multi-scale search, generating candidate face

regions at several image scales. This allows us to par-

allelize the generation of candidates by image scale,

and also allows conﬁguring the scales to optimize the

inference time. Furthermore, it provides face regions

and landmarks in a single forward pass, sharing fea-

tures between both kinds of detections and saving in-

ference time. Finally, it needs a small size in memory,

allowing us to use more limited hardware resources.

MTCNN has three stages. The ﬁrst one pro-

cesses the input image at different scales, and gen-

erates facial region candidates using a convolutional

neural network (CNN) called Proposal Network (P-

Net). The second stage reﬁnes the candidate regions

using a CNN called Reﬁnement Network (R-Net). The

third stage reﬁnes the facial regions generated by R-

Net, and detects ﬁve landmarks inside each of them

using a CNN called Output-Network (O-Net).

In MB-MTCNN, the key factor to accelerate this

process is the inclusion of parallel while loops, built

upon ﬂexible and expressive control-ﬂow primitive

operators (TensorFlow, 2017), executed in execution

frames of the GPU that can be nested, allowing further

optimizations. Thus, in the ﬁrst parallel while loop

of MB-MTCNN, the images are scaled and processed

in batch using P-Net to obtain the region candidates.

With a nested parallel while loop, the candidates of

each scale and image are postprocessed following the

original implementation; scaled to their real size, re-

ﬁned and ﬁltered with a non-maximum suppression

(NMS). Finally, the candidates from all the scales are

grouped by image in batch and NMS is applied again

to merge candidates of different scales using a parallel

while loop. In the subsequent stages, the candidates

are ﬁltered and reﬁned using R-Net and O-Net net-

works. In these stages, the batches of candidates from

each image are processed in parallel. This is more ef-

ﬁcient than processing all the candidates in one batch,

as it avoids reallocating the candidates for preprocess-

ing and postprocessing.

4.2 Efﬁcient Dynamic Batching for

Facial Images Processing

The number of cropped facial images that reach stages

2 and 3 of MSDB is unknown and can vary in every

iteration. Different dynamic batching methods can be

considered, which depend on the used GPU architec-

ture and DNN deployment tool. We focus on NVIDIA

GPUs and Google’s TensorFlow and NVIDIA’s Ten-

sorRT frameworks, due to their suitability for the in-

ference of DNNs (Yadwadkar et al., 2019).

The naive dynamic batching approach consists in

putting the whole batch of candidates directly into the

network, varying the network’s input size in every it-

eration. In TensorFlow constantly varying the batch

size produces important time overheads, as the net-

work needs to be re-adapted for the new size. Ten-

sorRT, optimizes the network for a given batch size,

allowing handling smaller sizes with a drop in per-

formance. Nevertheless, in both cases there are time

overheads proportional to the network complexity.

VISAPP 2021 - 16th International Conference on Computer Vision Theory and Applications

440

Those time overheads due to network re-

adaptation can be avoided using parallel loops, built

upon ﬂexible and expressive control-ﬂow primitive

operators (Agarwal, 2019; Radul et al., 2019). For

instance, one can set the input size of the network

to a certain value, so the original input batch is di-

vided into mini-batches of that size, and process these

mini-batches with TensorFlow’s parallel while loop

(TensorFlow, 2017). The mini-batch size must be set

manually taking into account the expected minimum,

maximum, and average batch sizes. Nevertheless, if

there are big variations in the number of candidates,

the number of mini-batches may be too high for a sin-

gle parallelization, causing a drop in performance.

For this reason, our proposal for stages 2 and 3 of

MSDB is to load and infer multiple instances of the

network, optimized for different batch sizes. Thus,

for each inference, we divide the input batch size in

the minimum number of mini-batches that ﬁt the dif-

ferent network sizes. In order to require less GPU

memory to load and infer each network, we recom-

mend applying optimizations to the trained network

such as layer fusion, kernel auto-tuning, dynamic ten-

sor memory and multi-stream execution.

5 EXPERIMENTAL RESULTS

In this section, we present the results of two groups of

experiments conducted to evaluate the proposed clus-

tering algorithm (ODIVC) and VSS. The ﬁrst group

aims to measure the performance of ODIVC in terms

of accuracy and processing time, comparing it with

other state-of-the-art ofﬂine clustering methods. The

second group focuses on testing the performance and

scalability of the proposed VSS and the impact of the

optimizations presented in Section 4.

The server used for the experiments has the fol-

lowing speciﬁcations: 1 processor Intel XeonTM E5-

1650v4, 1 GPU NVIDIA Quadro P6000 and 2 RAM

modules, each one of 6GB DDR4 2400MHz.

5.1 Face Clustering Performance

For the ﬁrst experiment, we select the IJB-B dataset

(Whitelam et al., 2017), a well-known dataset of un-

constrained in-the-wild face images. This dataset in-

cludes a clustering protocol consisting of seven sub-

tasks that vary in the number of identities and the

number of faces. We select the last subtask, as it is

the most challenging one, with the highest number

of identities (1,845) and faces (68,195). The perfor-

mance is measured using BCubed F-Measure metric,

following the recomendations in (Amig

o et al., 2009).

Table 1: Comparison with baseline methods in terms of

BCubed F-Measure and processing time using IJB-B-1845.

Superscript* denotes results reported from original papers,

otherwise it uses the i-vectors from (Wang et al., 2019).

Method F-Meas Time

ARO (Otto et al., 2018) 0.755 00:01:13

PAHC* (Lin et al., 2018) 0.61 00:03:56

ConPaC* (Shi et al., 2018) 0.634 02:53:58

DDC (Lin et al., 2018) 0.800 00:05:32

GCN (Wang et al., 2019) 0.814 00:06:03

ODIVC (ours) 0.778 00:00:28

Table 2: Comparison with baseline methods in terms

of BCubed F-Measure and processing time using IJB-C

dataset. All methods use the same i-vectors extracted from

our VSS and the same hardware.

Method F-Meas Time

ARO (Otto et al., 2018) 0.768 00:09:39

GCN (Wang et al., 2019) 0.890 00:10:32

ODIVC (ours) 0.931 00:00:52

Since we want to demonstrate that ODIVC is inde-

pendent of the recognition model used and a fair com-

parison with other methods, the same vectors used in

(Wang et al., 2019) are selected for this experiment.

These vectors have 512 dimensions. We adjust the

parameters of ODIVC empirically: thresh

low

= 0.38,

thresh

high

= 0.4 and nm

min

= 4.

The results of the experiment are presented in Ta-

ble 1. It can be observed that our method achieves

the third position in terms of F-Measure, but outper-

forms the rest of the methods considering the process-

ing time. For instance, it runs 12 times faster than

GCN-A under the same hardware conditions.

In the second experiment we test the performance

of ODIVC using a different face recognition model

and a different dataset. We select the face recognition

model used by our VSS, described in Section 3.2. We

use IJB-C (Maze et al., 2018), another well-known

dataset of unconstrained face images, with 3531 iden-

tities and 140623 faces. We use MB-MTCNN for the

face and landmarks detection. In order to obtain better

quality feature vectors, we ﬁlter faces with less than

45 pixels per side and we normalize the patches as de-

scribed in Section 3.2. After ﬁltering, 120661 vectors

belonging to 3529 identities are extracted.

We compare our algorithm with the two best state-

of-the-art methods: GCN (Wang et al., 2019), which

achieved the highest accuracy in the ﬁrst experiment,

and ARO (Otto et al., 2018), which achieved the best

trade off between accuracy and speed (without con-

sidering ours). For both methods, we adjust the pa-

rameters in order to achieve the best performance.

Furthermore, for GCN, we retrain the network follow-

Multi-Stage Dynamic Batching and On-Demand I-Vector Clustering for Cost-effective Video Surveillance

441

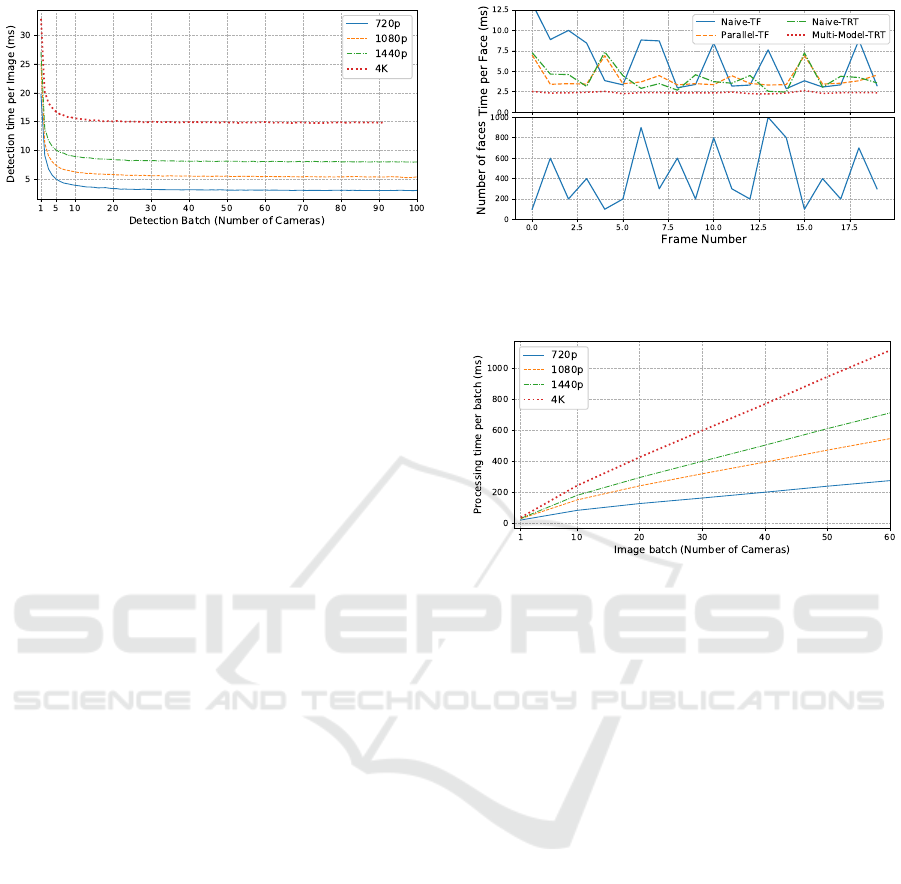

Figure 3: Detection time per image for different resolutions

and batch sizes in MB-MTCNN (in stage 1 of MSDB), com-

pared to MTCNN (batch=1).

ing recommendations in (Wang et al., 2019). Finally,

we tune the parameters of ODIVC: thresh

low

= 0.37,

thresh

high

= 0.4 and nm

min

= 4.

The results of this experiment, presented in Ta-

ble 2, show that our method outperform the others in

terms of F-Measure and processing time. Under the

same hardware conditions ODIVC runs more than 12

times faster than GCN and more than 11 times faster

than ARO. These time ratios show that our method

is more scalable than the others. In this experiment

ODIVC achieves a better F-Measure than GCN. We

believe this is because we have reduced the number

of outliers by ﬁltering the smallest faces and using by

a better face recognition network. Therefore, ODIVC

is more sensible to outliers, but it is more accurate

when using robust face representations.

5.2 Video Surveillance System

Performance

We start evaluating the performance of MB-MTCNN

compared to the original implementation. Figure 3

shows the average time of the detection stage per im-

age for different resolutions and batch sizes using our

approach (MTCNN corresponds to batch=1). The re-

sults show a great reduction in the processing time per

image (more than 5 times for 720p). This reduction

increases with the batch size but reaches a saturation

point due to hardware limitations.

We also test the performance of the proposed dy-

namic batching procedure compared to the alterna-

tives mentioned in Section 4.2. We measure the

recognition time per face when the VSS is process-

ing a sequence of images containing variable numbers

of faces. To better visualize time variations, we aug-

ment the number of faces by a factor of 10, so they

may vary from 10 to approximately 1000. The re-

sults are shown in Figure 4, where TF stands for Ten-

sorFlow and TRT for TensorRT. The mini-batch size

selected for the Parallel-Loop-TF approach is 20 and

Figure 4: Average time per face of the dynamic batching

procedure for stages 2 and 3 of MSDB, compared to alter-

native state-of-the-art approaches.

Figure 5: Average times per batch (for the image processing

thread) with the considered setup for different resolutions.

those used for Multi-Instance-TRT are 400, 200, 100,

and 20. It can be observed that the Multi-Instance-

TRT outperforms the other approaches, not only in

the average but also in the maximum peak times.

Finally, to test the potential scalability of our VSS,

we run it to process images captured from a scaling

number of videos, at different resolutions and with a

detection batch size set with the same value as the

number of videos. Then, we measure the average

times per image batch in the image processing thread,

the main bottleneck of the system. The results are

shown in Figure 5. In our context, it is enough to de-

liver the PIs with near-real time performance. Hence,

if we consider acceptable that the processing thread

responds every 200 ms, this setup could theoretically

be scaled up to 40 720p cameras. The results reveal

that the proposed VSS allows designing cost-effective

GPU-server-based solutions for our purpose.

6 CONCLUSIONS

In this work, we have presented a cost-effective VSS

for face recognition and online clustering of unknown

individuals at large scale, without storing their bio-

metric information, in order to obtain PIs for peo-

ple ﬂow monitoring in large infrastructures. The

VISAPP 2021 - 16th International Conference on Computer Vision Theory and Applications

442

VSS is composed of three main computing threads

executed asynchronously, using CPU and/or GPU

capabilities and sharing data sequentially. Experi-

mental results with challenging scenarios reveal the

high effectiveness and scalability of the proposed

approach. Furthermore, we have presented an on-

line and unsupervised clustering approach (ODIVC),

which achieves state-of-the-art results in well-known

large-scale datasets, with a reduced computational

cost compared to the alternatives.

Future work will focus on extending our VSS to

distributed computing infrastructures, with heteroge-

neous hardware as nodes of the VSS, including GPU

computing servers that process and share data for

video-surveillance purposes.

REFERENCES

Agarwal, A. (2019). Static automatic batching in Ten-

sorFlow. In 36th ICML, volume 97, pages 92–101.

PMLR.

Amig

o, E., Gonzalo, J., Artiles, J., and Verdejo, M. (2009).

Amig

o e, gonzalo j, artiles j et ala comparison of ex-

trinsic clustering evaluation metrics based on formal

constraints. inform retriev 12:461-486. Information

Retrieval, 12:461–486.

Chaudhari, S. T. and Kale, A. (2010). Face normalization:

Enhancing face recognition. In 2010 3rd ICETET,

pages 520–525.

Chen, J., Li, K., Deng, Q., Li, K., and Yu, P. S. (2019).

Distributed deep learning model for intelligent video

surveillance systems with edge computing. IEEE

Trans. on Industrial Informatics, pages 1–1.

Deng, J., Guo, J., Xue, N., and Zafeiriou, S. (2019). Ar-

cface: Additive angular margin loss for deep face

recognition. In 2019 IEEE CVPR, pages 4685–4694.

He, K., Zhang, X., Ren, S., and Sun, J. (2016). Deep

residual learning for image recognition. In 2016 IEEE

CVPR, pages 770–778.

Jankar, J. R. and Shah, S. K. (2017). Computational analy-

sis of hybrid high efﬁciency video encoders. In ICISS,

pages 250–255.

Lim, K.-S., Lee, S.-H., Han, J. W., and Kim, G. W. (2018).

Design considerations for an intelligent video surveil-

lance system using cloud computing. In PDCAT,

pages 84–89.

Lin, W., Chen, J., Castillo, C. D., and Chellappa, R. (2018).

Deep density clustering of unconstrained faces. In

2018 IEEE/CVF CVPR, pages 8128–8137.

Lloyd, S. P. (1982). Least squares quantization in pcm.

IEEE Trans. Inf. Theory, 28:129–136.

Mayer, C. A., Felkel, R., and Peterson, K. (2015). Best

practice on automated passenger ﬂow measurement

solutions. In Journal of Airport Management, vol-

ume 9, pages 144–153.

Maze, B., Adams, J., Duncan, J. A., Kalka, N., Miller, T.,

Otto, C., Jain, A. K., Niggel, W. T., Anderson, J., Ch-

eney, J., and Grother, P. (2018). Iarpa janus bench-

mark - c: Face dataset and protocol. In 2018 ICB,

pages 158–165.

Nasir, M., Muhammad, K., Lloret, J., Kumar, A., and Saj-

jad, M. (2018). Fog computing enabled cost-effective

distributed summarization of surveillance videos for

smart cities. Journal of Parallel and Distributed Com-

puting, 126.

Otto, C., Wang, D., and Jain, A. K. (2018). Clustering mil-

lions of faces by identity. IEEE TPAMI, 40(2):289–

303.

Radul, A., Patton, B., Maclaurin, D., Hoffman, M. D.,

and Saurous, R. A. (2019). Automatically batching

control-intensive programs for modern accelerators.

ArXiv, abs/1910.11141.

Shi, J. and Malik, J. (2000). Normalized cuts and image

segmentation. IEEE TPAMI, 22:888–905.

Shi, Y., Otto, C., and Jain, A. K. (2018). Face cluster-

ing: Representation and pairwise constraints. IEEE

Transactions on Information Forensics and Security,

13(7):1626–1640.

Tan, X. and Triggs, B. (2010). Enhanced local texture fea-

ture sets for face recognition under difﬁcult lighting

conditions. IEEE Transactions on Image Processing,

19(6):1635–1650.

TensorFlow, A. (2017). Implementation of control ﬂow in

tensorﬂow. TensorFlow Whitepaper.

Tsakanikas, V. and Dagiuklas, T. (2017). Video surveillance

systems-current status and future trends. Computers &

Electrical Engineering, 70.

Wang, H., Wang, Y., Zhou, Z., Ji, X., Gong, D., Zhou, J.,

Li, Z., and Liu, W. (2018). Cosface: Large margin co-

sine loss for deep face recognition. In 2018 IEEE/CVF

CVPR, pages 5265–5274.

Wang, Z., Zheng, L., Li, Y., and Wang, S. (2019). Linkage

based face clustering via graph convolution network.

2019 IEEE/CVF CVPR, pages 1117–1125.

Whitelam, C., Taborsky, E., Blanton, A., Maze, B., Adams,

J., Miller, T., Kalka, N., Jain, A. K., Duncan, J. A.,

Allen, K., Cheney, J., and Grother, P. (2017). Iarpa

janus benchmark-b face dataset. In 2017 IEEE

CVPRW, pages 592–600.

Yadwadkar, N. J., Romero, F., Li, Q., and Kozyrakis, C.

(2019). A case for managed and model-less inference

serving. In HotOS ’19, pages 184–191.

Zhang, K., Zhang, Z., Li, Z., and Qiao, Y. (2016a). Joint

face detection and alignment using multitask cascaded

convolutional networks. IEEE Signal Processing Let-

ters, 23(10):1499–1503.

Zhang, Z., Luo, P., Loy, C., and Tang, X. (2016b). Learning

deep representation for face alignment with auxiliary

attributes. IEEE TPAMI, 38(5):918–930.

Multi-Stage Dynamic Batching and On-Demand I-Vector Clustering for Cost-effective Video Surveillance

443
