Choosing the Appropriate QRS Detector

Justus Eilers

, Jonas Chromik

and Bert Arnrich

Hasso Plattner Institute, University of Potsdam, Rudolf-Breitscheid-Straße 187, Potsdam, Germany

Keywords:

Electrocardiography, QRS Detection, Heart Rate, Heart Rate Variability, Alarm Fatigue.

Abstract:

QRS detectors are used as the most basic processing tool for ECG signals. Thus, there are many situations and

signals with a wide range of characteristics in which they shall show great performance. Despite the expected

versatility, most of the published QRS detectors are not tested on a diverse dataset. Using 14 databases,

10,000 heartbeats for each different heartbeat type were extracted to show that there are notable performance

differences for the tested eight algorithms. Besides the analysis on heartbeat types, this paper also tests the

noise resilience regarding different noise combinations. Each of the tested QRS detectors showed signiﬁcant

differences depending on heartbeat type and noise combination. This leads to the conclusion that before

choosing a QRS detector, one should consider its use case and test the detector on data representing it. For

authors of QRS detectors, this means that every algorithm evaluation should employ a dataset that is as diverse

as the one used in this paper to assess the QRS detector’s performance in an objective and unbiased manner.

1 INTRODUCTION

Monitoring the heartbeat of a patient is done in two

levels of detail. The ﬁrst application is recording the

pace of the heart and the second the regularity of the

heart rate also known as heart rate variability analy-

sis. In the intensive care unit (ICU) the ﬁrst use case

applies as all physiological parameters of a patient are

constantly monitored. One of these parameters is the

patient’s heart rate. Because the care personnel can-

not calculate the heart rate for every recorded elec-

trocardiogram (ECG), this task is done by an algo-

rithm. Such algorithms, called QRS detectors, need

very high accuracy as errors may lead to false alarms,

that a nurse needs to check out. If too many false

alarms are raised, this causes nurses and doctors not

responding to them anymore (Drew et al., 2014). This

phenomenon is called alarm fatigue and has to be

avoided as good as possible.

If QRS detectors are used to perform a heart rate

variability analysis (HRV) some different metrics are

needed to see if a QRS detector is suitable. Since

HRVs use the time difference between QRS com-

plexes (Cygankiewicz and Zareba, 2013) it is not only

important that a QRS detector ﬁnds all heartbeats but

also predicts them with the same offset.

Patients need to have their heart tracked for multi-

https://orcid.org/0000-0002-9982-3562

https://orcid.org/0000-0002-5709-4381

ple reasons, one reason might be that they suffer from

a heart-related illness. On one hand, cause these ill-

nesses different kinds of heartbeats (MIT-LCP, 2020),

such as bundle branch blocks or premature ventricu-

lar contractions, that have sometimes vastly different

waveforms. Such special heartbeats might not be de-

tected as well as regular, healthy heartbeats thus re-

sulting in false alarms. On the other hand, are not all

patients required to lie down in bed all the time. The

movement of the patient causes noise, which can also

cause false alarms.

This paper shows the performance differences of

QRS detectors based on the ECG signals they are

evaluated on.

The rest of this work is structured as follows: In

section 2 electrocardiography in general and QRS de-

tection in particular are introduced. In section 3 the

related work is summarized. In section 4 it is ex-

plained how the QRS detectors are compared and

which databases are used. In section 5 the results of

our comparison are shown, described, and explained.

Finally, section 6 brieﬂy discusses the implications of

our ﬁndings.

Eilers, J., Chromik, J. and Arnrich, B.

Choosing the Appropriate QRS Detector.

DOI: 10.5220/0010234600500059

In Proceedings of the 14th International Joint Conference on Biomedical Engineering Systems and Technologies (BIOSTEC 2021) - Volume 4: BIOSIGNALS, pages 50-59

ISBN: 978-989-758-490-9

2 BACKGROUND

The heart beats because the sinoatrial node (Open-

Stax, 2013) propagates an electric pulse over the con-

ducting system of the heart. This electric potential can

be measured by placing electrodes on very speciﬁc

points on the human body. Based on the electrical

signal, so-called leads can be computed. These leads

may then be used to study the inner workings of the

heart and form the electrocardiogram (ECG). Medical

professionals use the ECG to diagnose illnesses for

example by looking at heartbeats with special shapes

in the ECG.

Moreover, the ECG is also used to calculate the

heart rate of a patient. To do this, algorithms called

QRS detectors locate in the ECG the largest, most

prominent spike called R-peak. The smaller spikes

before and after are called Q- and S-peak, therefore

the name QRS detector (Kohler et al., 2002).

Besides to compute the heart rate, the ECG signal

is also used for a heart rate variability analysis (Ma-

lik and Camm, 1990). Since the basis of this analy-

sis is the distribution of intervals from one R-peak to

the next, the R-peaks have to be found as precisely as

possible (Arzeno et al., 2008).

3 RELATED WORK

For medical professionals to decide for a QRS de-

tector, an evaluation of them is needed. In the ex-

isting research many such comparisons have been

performed (see (

Alvarez et al., 2013), (Francesca

et al., 2018), (Xiang et al., 2018), (Phukpattaranont,

2015)) but most of the time they are not compa-

rable with each other. This is caused by differing

dataset, thresholds, and preprocessing methodologies

(Elgendi et al., 2014). Additionally, all the previ-

ously listed evaluations use the MIT-BIH Arrhythmia

Database (Moody and Mark, 2001) as a resource for

the evaluation data. This has the issue that the MIT-

BIH Arrhythmia Database is so widespread, that au-

thors proposing new algorithms can optimize their al-

gorithm just for this database. Thus, the common

principle of having disjoint test and validation data

set is violated.

In (Liu et al., 2018) ten algorithms were evalu-

ated based on six different databases. As mentioned

in the paper, all the algorithms were executed on both

high-quality and low-quality ECG signals. Like the

paper mentions, the algorithms focus on speed and

not on noise resilience, their performance often does

differ a lot between high and low quality. Having

this evaluation over multiple databases, it becomes

clear how much the data quality differs in each of the

tested databases. For example, on the Telehealth ECG

Database, almost all the algorithms perform as bad as

on the ECG database explicitly labelled as poor qual-

ity.

A large listing of algorithms and their quality re-

garding robustness to noise, parameter choice and nu-

merical efﬁciency has been done by (Elgendi et al.,

2014). Even though the authors did not compute pos-

itive predictive value and sensitivity by themselves,

they list the values of these metrics determined by the

original publishers. Furthermore, the authors men-

tion that the robustness to noise suffers as many pa-

pers only use record from the MIT-BIH Arrhyth-

mia Database. Sometimes not even papers using

the MIT-BIT Arrhythmia Database are comparable

as they exclude certain unfavourable records or seg-

ments. (Arzeno et al., 2008) excludes a period at atrial

ﬂutter in record 204 and (Elgendi et al., 2010) does

not exclude anything. If different databases are used,

this also causes incomparable results. Thus, a stan-

dard database would be needed that contains already

prepared evaluation data. Furthermore, this database

would need to contain such diverse ECG recording

that makes it difﬁcult for authors to optimize their al-

gorithms just for this database as this is a case of over-

ﬁtting.

4 METHODS AND MATERIALS

This section gives a quick overview of the databases

used for the evaluation process presented in this paper.

For the latter one includes the data preparation, used

metrics and algorithms.

4.1 Databases

To not get biased towards a single database, especially

the MIT-BIH Arrhythmia Database, many databases

available on PhysioNet (Goldberger et al., 2000) were

inspected. It follows a list of the databases that got

into closer consideration. The most occurring exclu-

sion criteria where very special recordings for exam-

ple fetal ECG, automated/missing annotations or only

very short, hand-selected recordings. In Figure 1 the

decision process behind the exclusion of databases is

shown. Only databases with manual annotations can

be used as otherwise a QRS detector would be judged

based on the performance of another QRS detector.

The MIT-BIH Arrhythmia Database was excluded as

well in an attempt to reduce bias. Fetal and infant

ECG recordings are performed differently than their

adult counterparts and thus yield different ECG sig-

Choosing the Appropriate QRS Detector

ECG databases available

on Physionet (n=41)

Databases with manual annotation

from a medical professional (n=25)

Excluding fetal and

infant databases (n=19)

Excluding heart failure and

endocardial databases (n=17)

Excluding databases designed

for noise stress testing (n=15)

Databases with valid annotation

data format (n=14)

Figure 1: Decision process for including or excluding ECG

databases.

nals. Hence, this work focuses on adult ECG record-

ings. All databases containing heart failure were ex-

cluded as this is a very special scenario. Because this

scenario is so rarely recorded, even in the databases

containing heart failures there is not a representa-

tive number of these instances. Without reaching the

threshold of having a representative amount, all ﬁnd-

ings are not statistically signiﬁcant. Also, this work

focuses on externally measured ECG data and thus

the Intracardiac Atrial Fibrillation Database had to be

dropped. Left with 17 databases two more were de-

signed for testing noise resilience. Those contained

recordings with noise but as this paper wants to test

the noise inﬂuence it is important to know exactly

which and how much noise is added. Finally, one

database had to be dropped as it contained too many

ﬁles with invalid annotations or not processible anno-

tation ﬁles.

This leaves the following databases for evaluating

QRS detectors: ANSI/AAMI EC13 Test Waveforms

MIT-BIH Atrial Fibrillation Database

, CiPA ECG

Validation Study (Vicente et al., 2019), ECG Effects

of Dofetilide, Moxiﬂoxacin, Dofetilide+Mexiletine,

Dofetilide+Lidocaine and Moxiﬂoxacin+Diltiazem

(Johannesen et al., 2016), ECG Effects of Ranolazine,

Dofetilide, Verapamil, and Quinidine (Johannesen

et al., 2014), European ST-T Database (Taddei et al.,

https://physionet.org/content/aami-ec13/1.0.0/

https://physionet.org/content/afdb/1.0.0/

1992), St Petersburg INCART 12-lead Arrhythmia

Database, Long Term ST Database (Jager et al.,

2003), MIT-BIH Normal Sinus Rhythm Database

(Moody and Mark, 2001), MIT-BIH Noise Stress

Test Database (only for the noise recordings) (Moody

et al., 1984), QT Database (Laguna et al., 1997),

MIT-BIH Polysomnographic Database (Ichimaru and

Moody, 1999), MIT-BIH Supraventricular Arrhyth-

mia Database (Greenwald, 1990), MIT-BIH Malig-

nant Ventricular Ectopy Database (Greenwald, 1986)

Especially valuable are the databases with special

focus on certain illnesses or ECG recordings of pa-

tients under the inﬂuence of certain drugs. This is

because in the ICU people are often very sick, thus a

diverse set of drugs is used and QRS detectors need

to work regardless of these circumstances.

4.2 QRS Detectors

In this paper, eight algorithms for QRS detection are

evaluated. A brief description of them is given in the

following:

Engelse-Zeelenberg (Engelse and Zeelenberg,

1979) (Zeelenberg and Engelse, 1975): is the

oldest algorithm in the ones presented here with

a publishing date ranging back to 1979, which

is even earlier than the Pan-Tompkins algorithm.

It works with basic waveform comparison and

analysis techniques.

Pan-Tompkins (Pan and Tompkins, 1985): uses

two adaptive thresholds and bandpass ﬁltering

to detect the QRS-complexes. This means that

the algorithm performance on a speciﬁc QRS-

complex depends on the previously seen signal,

which inﬂuences the adaptive thresholds.

Hamilton (Hamilton and Tompkins, 1986): is very

similar to the Pan-Tompkins algorithm. It also

uses a low followed by a high-pass ﬁlter, calcu-

lates the derivative, computes the moving aver-

age, and ﬁnds the QRS complexes by peak detec-

tion and applying detection rules. The main dif-

ference between Hamilton and the Pan-Tompkins

algorithm are the two last stages.

GQRS:

has not been published yet but is distributed

in the wfdb software package, which is authored

by George B. Moody. Although this algorithm

has been optimized for sensitivity, the software

package comes with a post-processing algorithm,

called gqpost, that should increase the positive

predictions at cost of sensitivity. Nevertheless,

gqpost will not be used in the paper.

XQRS:

has not been published in any available pa-

per, just like the GQRS algorithm. But unlike with

BIOSIGNALS 2021 - 14th International Conference on Bio-inspired Systems and Signal Processing

GQRS, the exact QRS-detection algorithm is ex-

plained in the documentation. After initialization

and bandpass ﬁltering, moving wave integration

and Ricker wavelet are applied to the signal. The

next step is unique as the algorithm tries to learn

parameters for noise and the QRS amplitudes, the

QRS-detection threshold and recent R-R intervals.

The ﬁnal output is produced with the previously

processed signal and the learned parameters.

Christov (Christov, 2004): starts to process the sig-

nal by applying multiple moving average ﬁlters.

Then adaptive steep-slope thresholding is per-

formed. The initial parameters for that are kept for

the ﬁrst 5s, where the author expects at least two

QRS complexes to occur. Additionally, an adap-

tive integrating threshold, that should explicitly

remove muscle movement artefacts, is computed.

Also having adaptive beat expectation threshold-

ing shall then compensate for heartbeats with nor-

mal amplitude followed by beats with smaller am-

plitude. It generated the ﬁnal output called com-

bined adaptive thresholding with is the sum of the

previous thresholding approaches.

Two Moving Average (Elgendi et al., 2010): also

starts with a bandpass ﬁlter to remove unwanted

noise, such as power line noise. It follows

the generation of potential blocks containing

QRS-complexes. In this part, the authors assume

a duration of 100 ± 20 ms as the duration of the

QRS complex but also mention, that this is the

average for healthy adults. Thus this algorithm

might struggle for children or adults with severe

illnesses. Finally, the R-peaks are determined

using thresholding based on the statistics of a

healthy adult. This might face the same issues as

the previous step.

Stationary Wavelet Transform (Kalidas and

Tamil, 2017): uses the ﬁrst ten seconds of the

provided sample as the learning phase. The

signal is then split into three-second segments, on

which the detection is performed. The algorithm

begins with resampling to 80 Hz to reduce noise

and improve the computation speed. After that,

the stationary wavelet transform is computed on

which a squaring and moving window averaging

is performed. The ﬁnal step is the R-peak detec-

tion, consisting of initialization, threshold-based

peak detection, missed beat detection, threshold

updating, and ﬁnally R-peak localization.

4.3 Evaluation Procedure

To see how certain beat types inﬂuence the perfor-

mance of algorithms, enough examples of such beats

need to be extracted from the databases. In (Kohler

et al., 2002) the majority of the inspected algorithms

is listed as having more than 99% Sensitivity and Pos-

itive Predictive Value. Because QRS detectors per-

form so well, they need to be evaluated on a suf-

ﬁciently large dataset. As an adequate size at least

10,000 heartbeats has been chosen. This number al-

lows calculating the classiﬁcation metrics with ﬁve

decimal places. At the same time, this number can

be derived for a real-world consideration. When rec-

ognizing that the normal resting heart rate for an adult

lies at about 60 to 100 bpm (OpenStax, 2013), this re-

sults in 86,000 to 144,000 beats per day. The time

of 24 hours is chosen because it represents the com-

mon time for long-term ECG monitoring for exam-

ple to perform an HRV analysis. Usually, metrics

are recorded with two to four decimal places (such

as 99% or 99.99%). At the example of the Sensitivity

using a resolution of 10

−5

means that the algorithm

misses 8.6 to 14.4 beats per day with every decrease

of the Sensitivity by 0.0001. This is about ten ex-

tra seconds of missed beats. Using only one decimal

place fewer would mean that an algorithm only miss-

ing ten seconds or heartbeats is just as bad as an algo-

rithm missing one and a half minute.

After selecting 10,000 beats at random from the

available databases of each beat types they are ex-

tracted from the original recording. This is done to

reduce the computational effort as it is not needed to

run an algorithm on a half-hour recording if just the

prediction of a couple of beats is of interest. Thus,

each selected beat gets sliced with 10 beats before and

after. This length is chosen as 10 beats is the longest

any of the used algorithms needs to learn parameters.

The heartbeat types that were chosen for this eval-

uation are the ones that occur most often in the used

databases:

N normal beat

S supra-ventricular premature or ectopic beat

V premature ventricular contraction

R right bundle branch block

B unspeciﬁed bundle branch block

L left bundle branch block

A atrial premature beat (Goldberger et al., 2000)

To assess the noise resilience of the algorithms,

more or less noise-free ECG recordings need to be

induced with noise. The MIT-BIH Noise Stress Test

Database (Moody et al., 1984) is used as a source for

noise. The noise types contained in this database are

baseline wander, muscle artefacts, and electrode mo-

tion artefacts. Each combination of these three noises

was then added to each slice of the noise-free ECG

Choosing the Appropriate QRS Detector

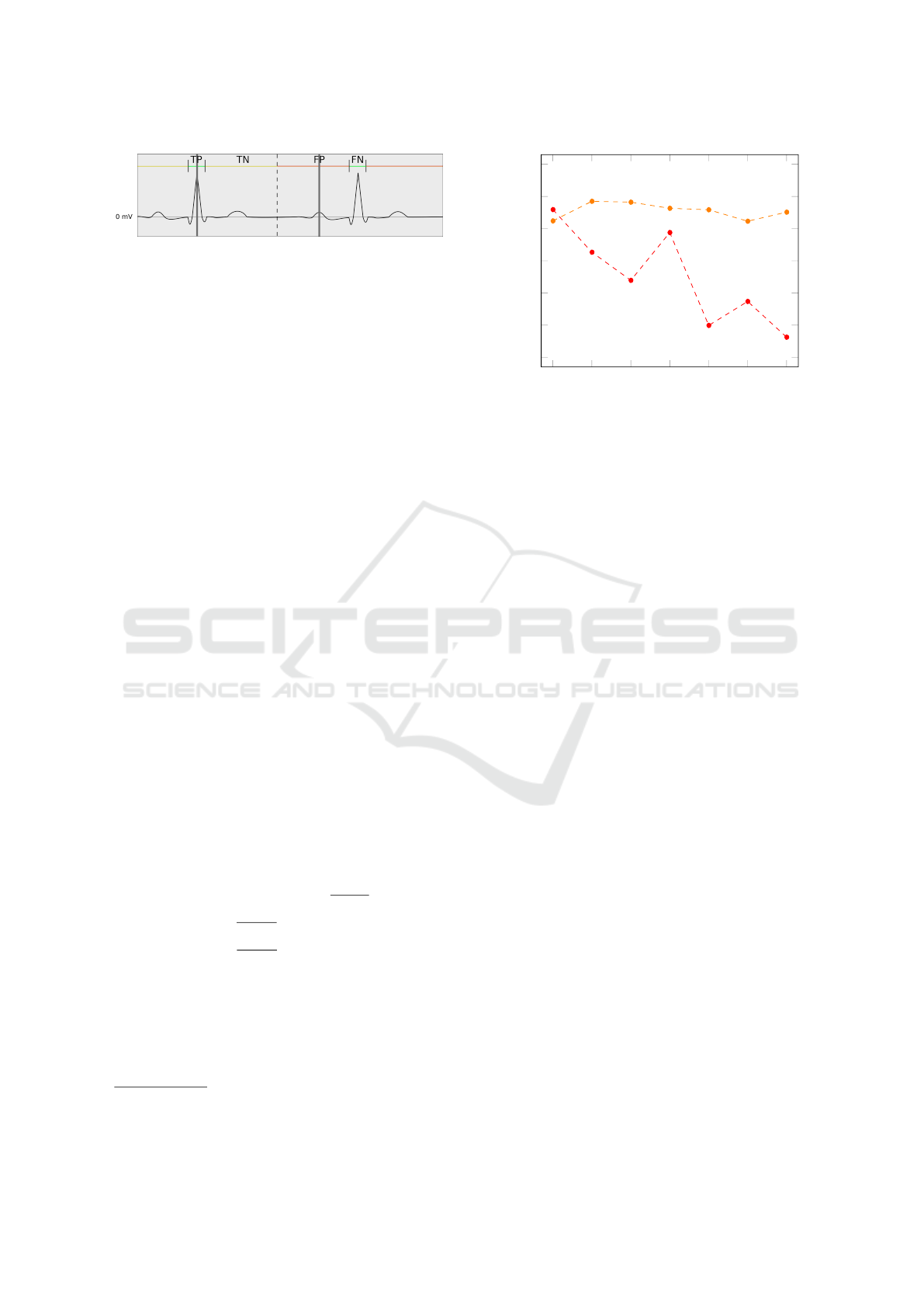

Figure 2: Exactly one example for each: True Positive (TP),

True Negative (TN), False Positive (FP), and False Negative

(FN). The green intervals represent the time frame in which

predictions are accepted as correct. In the yellow and red in-

tervals, no predictions are expected. The grey vertical lines

show predictions. As dashed line you see the mid-point be-

tween two QRS complexes, marking the end and beginning

of an interval that may be a TN or FP.

signal. This creates eight versions for each slice: One

with no noise, three with only one noise type added,

another three with each possible pair, and one with all

three noise types combined.

Just as many of the presented works, this paper

will also use the Positive Predictive Value and Sensi-

tivity as algorithm performance measures. Addition-

ally, the Speciﬁcity will be used to show how well

the algorithms are able to recognize periods without

heartbeats, and the Mean Error to show the prediction

offsets.

Detections within the range of 100 ms to the left

and right of each QRS complex are accepted as a valid

prediction. Each QRS complex interval containing a

valid prediction is counted as True Positive. If the

prediction is farther away than 100 ms from the QRS

complex, it is associated with the QRS complex that is

closest and counted as False Positive. For every 200

ms interval around a QRS complex not containing a

prediction, a False Negative is counted. When an in-

terval between two QRS complexes minus their 100

ms thresholds does not contain any prediction, this

counts as a True Negative. Visually are these metrics

explained in Figure 2. The green intervals represent

the threshold of 100 ms seconds around each QRS

complex. Grey vertical lines mark algorithm predic-

tions. Based on these metrics, the following three ag-

gregated metrics can be computed:

Positive Predictive Value (PPV)

T P

T P+FP

Sensitivity (Sens)

T P

T P+FN

Speciﬁcity (Spec)

T N

T N+FP

The Mean Error (ME)

gets calculated by averag-

ing the time differences between a prediction and the

closest actual QRS complex. This also means that if

no prediction is closest to a QRS complex, this is not

reﬂected in the metric.

here, Error is equivalent to Prediction Offset or Time Dif-

ference, respectively

V R B L A

0.4

0.5

0.6

0.7

0.8

0.9

Beat type

Sensitivity

Figure 3: Shows the problem of evaluating on record-

ings where normal beats (N) occur more often than other

heartbeat types. Orange is Hamilton and in red Engelse-

Zeelenberg, just as in Figure 5.

5 RESULTS AND DISCUSSION

In this section, the inﬂuence of different heartbeat

types, as well as noise on the performance of QRS

detectors, is shown. To have a baseline for comparing

the performance to, Figure 4 displays the performance

of algorithms on the MIT-BIH Arrhythmia Database.

5.1 Heartbeat Type Inﬂuence

When looking into the heartbeat dependent perfor-

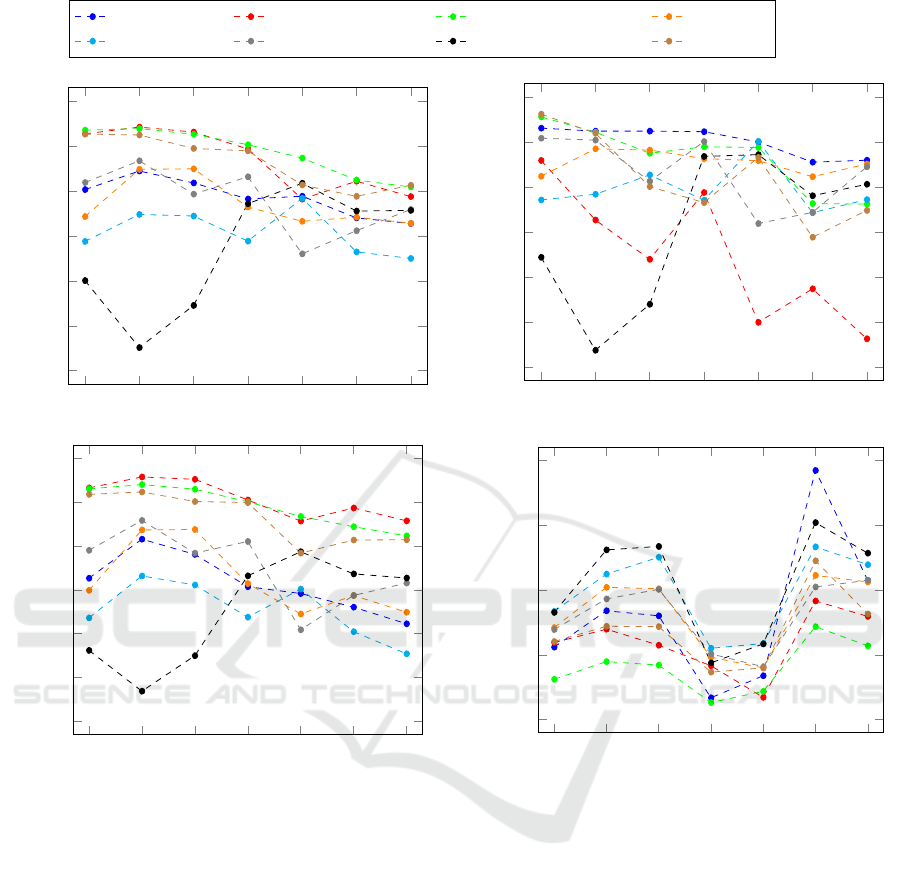

mance for QRS detectors, each of the seven heartbeat

types in Figure 5 has their individual impact on the

algorithms. But before diving into the general trends

for the heartbeat types and the four metrics, looking

at Figure 3 shows that evaluating algorithm on whole

ECG recordings does not encapsulate the true QRS

detector performance.

When whole real-world ECG recordings are used,

the vast majority of the occurring heartbeat types are

normal beats. This means that any computed met-

ric based on these evaluations will have a strong bias

towards normal beats. In the example of Figure 3

this would mean that here Engelse-Zeelenberg (red,

0.85905) would show a higher Sensitivity than Hamil-

ton (orange, 0.82392). Although, when all heartbeat

types are tested Hamilton shows a better average per-

formance with 0.85524 over 0.64961.

Following the principle of this evaluation, all the

other algorithms can be compared for the four metrics

Positive Predictive Value, Sensitivity, Speciﬁcity, and

Mean Error. For each of these metrics follows a de-

tailed analysis. The corresponding plots can be seen

in Figure 5.

BIOSIGNALS 2021 - 14th International Conference on Bio-inspired Systems and Signal Processing

PPV

Sens Spec

0.7

0.8

0.9

Christov Engelse-Zeelenberg GQRS Hamilton

Pan-Tompkins Stat. Wavel. Transf. Two Moving Average XQRS

Mean Error in Seconds

−4

−3

−2

−1

·10

−2

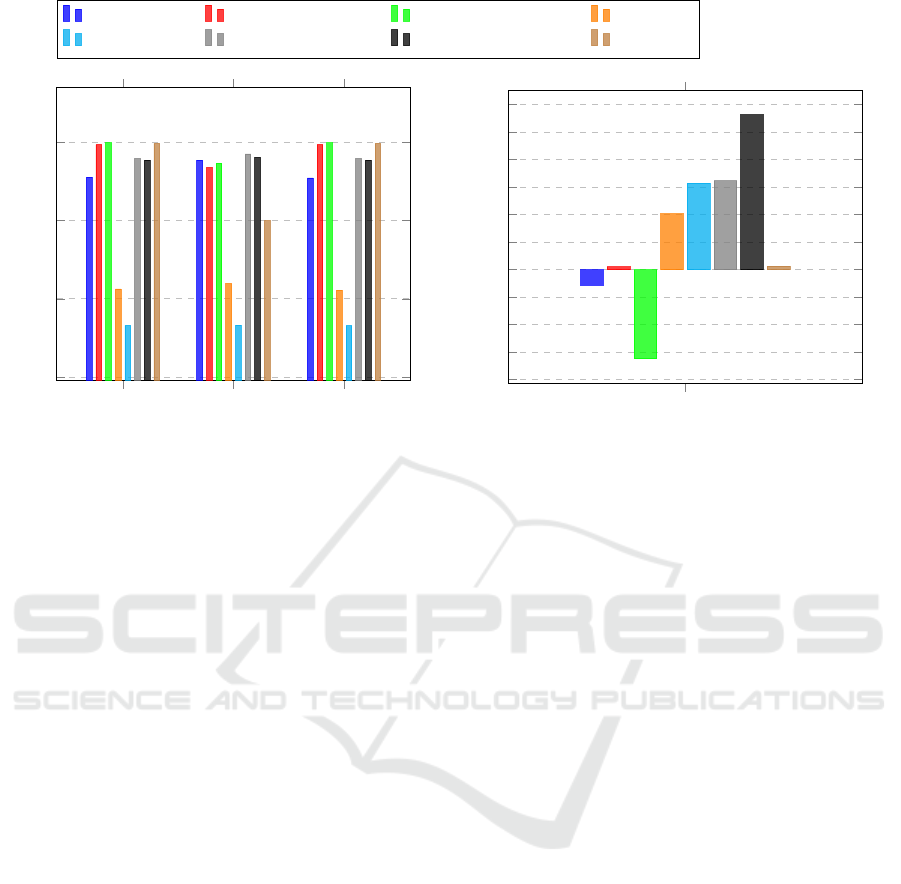

Figure 4: Algorithm results on the MIT-BIH Arrhythmia Database with our evaluation method.

5.1.1 Positive Predictive Value

As one of the two most used evaluation metrics, the

PPV shows consistent values for each of the heart-

beat types in Figure 5. Ignoring the outliers from Two

Moving Average, the values per type do not deviate

more than 10% to the mean of them. An exception to

this is the values for normal heartbeats. On a per algo-

rithm basis, Stationary Wavelet Transform shows that

even if an algorithm is in the good-performing cluster,

it can still show signiﬁcant value deviations (compare

type B at 0.66 with S at 0.86).

5.1.2 Sensitivity

As the other commonly used evaluation metric, the

Sensitivity shows a larger ﬂuctuation of the results

than the PPV. Mainly Engelse-Zeelenberg and again

Two Moving Average seem to struggle with many

False Negatives. The other algorithms show consis-

tently good results with again varying performance

for each of the heartbeat types. As for the PPV,

here again, atrial premature beats (A) and left bun-

dle branch blocks (L) are the worst two. The effect of

different heartbeat types is shown in this metric, for

example by Pan-Tompkins (see type B at 0.901 and L

at 0.742).

5.1.3 Speciﬁcity

Is not usually used and shows a wider spread of value

for every heartbeat type. Excluding normal beats (N)

that again have a higher deviation than all the other

types, the algorithms differ by about 15% around the

mean. Compared to the PPV the algorithms Speci-

ﬁcity values roughly share their performance i.e. a

high PPV leads to a high Speciﬁcity. Despite the con-

stant performance in PPV, Christov shows large dif-

ferences namely in types S at 0.816 and A at 0.622.

5.1.4 Mean Error

As the Mean Error can only be computed if a pre-

diction for a heartbeat was made, this metric is not

signiﬁcant for judging the False Negatives. This can

be seen in both the ﬁgure for Speciﬁcity as well as

Sensitivity, where left bundle branch blocks (L) do

not have the worst performances, even though all al-

gorithm struggle most with predicting this type. Fur-

thermore, the Mean Error shows how different the al-

gorithm predicts for each heartbeat type. Even though

normal beats showed one of the largest metric devi-

ations for each metric, this ﬁgure shows that it has

the most accurate predictions overall. Only right bun-

dle branch blocks (R) and unspeciﬁed bundle branch

blocks (B) have similarly accurate predictions.

5.2 Noise Resilience

For evaluating the impact of different noise types and

their combinations, in Figure 6 all possible combi-

nations of electrode movement, muscle artefacts, and

baseline wander are examined. Just like for the heart-

beat type-speciﬁc analysis, a more detailed evaluation

of the results follows.

Choosing the Appropriate QRS Detector

V R B L A

0.4

0.5

0.6

0.7

0.8

0.9

Beat type

PPV

Christov Engelse-Zeelenberg GQRS Hamilton

Pan-Tompkins Stat. Wavel. Transf. Two Moving Average XQRS

V R B L A

0.4

0.5

0.6

0.7

0.8

0.9

Beat type

Sensitivity

V R B L A

0.4

0.5

0.6

0.7

0.8

0.9

Beat type

Speciﬁcity

V R B L A

−0.05

0.05

0.1

0.15

Beat type

Mean Error in Seconds

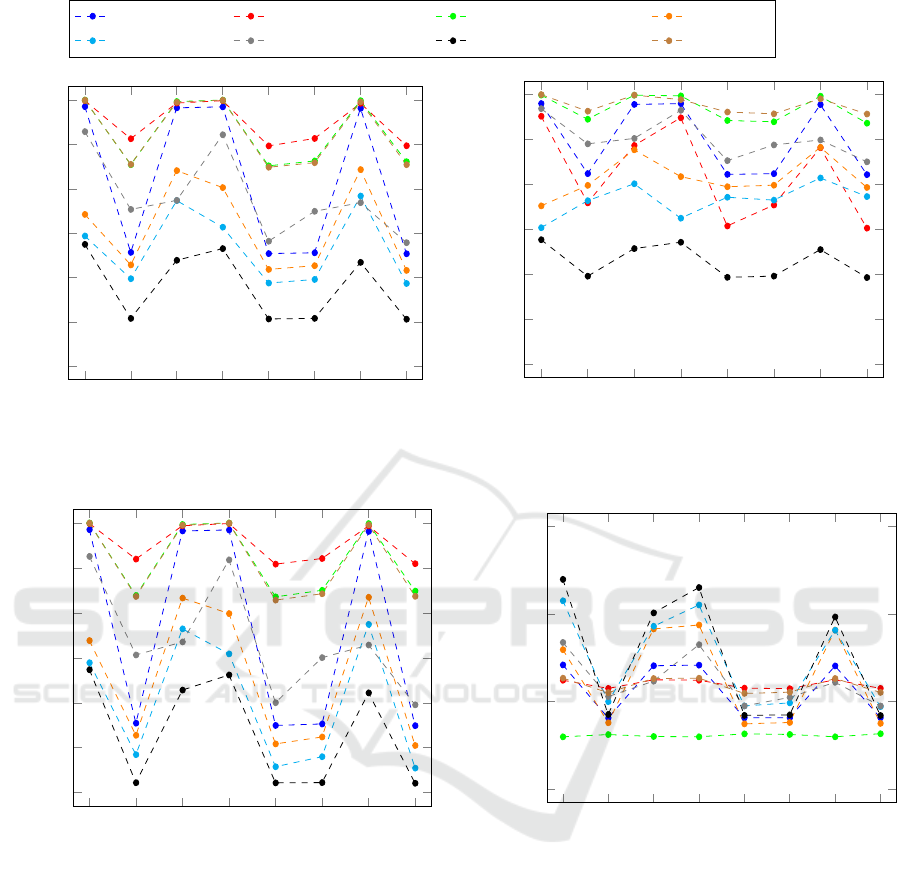

Figure 5: The algorithm results for Positive Predictive Value (PPV), Sensitivity, Speciﬁcity, and Mean Error show largely

different results for each beat type.

5.2.1 Positive Prediction Value

Figure 6 shows clearly that electrode movement re-

sults in noise that is harder for algorithms to distin-

guish from the clean ECG data than other types of

noise. The combinations with electrode movement

noise (em-noise) do not only show on average the

lowest values but also a higher spread among the algo-

rithms. For the non-em-noise combinations, the PPV-

values range from 0.6746 to 1.0 and for the em-noises

from 0.5076 to 0.9126.

Although all algorithms decreased in PPV from

the non-em noises to the em-noises, large differences

can be observed on a per algorithm basis. While the

Pan-Tompkins algorithm decreased from 0.7 (none)

to 0.6 (em), Christov dropped from almost 1 to 0.65.

5.2.2 Sensitivity

Generally, the same results can be observed as for

the PPV. The electrode movement noise combinations

show a worse Sensitivity than the other noise com-

binations. However, the decrease is not as large as

for the PPV. Comparing the em-noise to the no-noise

variant of the data, the biggest drop in Sensitivity

happens for the Engelse-Zeelenberg algorithm from

0.9517 to 0.7590. Nevertheless, there are algorithms

like Hamilton or Pan-Tompkins that even show an im-

provement.

Overall the Hamilton algorithm is very interest-

ing as it shows its best performance for the combi-

nation of muscle artefacts with baseline wander at

0.883. This is only slightly over the pure muscle arte-

fact variant which is at 0.877. The worst performance

BIOSIGNALS 2021 - 14th International Conference on Bio-inspired Systems and Signal Processing

none

em-ma

em-bw

ma-bw

em-ma-bw

0.4

0.5

0.6

0.7

0.8

0.9

Noise combination

PPV

Christov Engelse-Zeelenberg GQRS Hamilton

Pan-Tompkins Stat. Wavel. Transf. Two Moving Average XQRS

none

em-ma

em-bw

ma-bw

em-ma-bw

0.4

0.5

0.6

0.7

0.8

0.9

Noise combination

Sensitivity

none

em-ma

em-bw

ma-bw

em-ma-bw

0.4

0.5

0.6

0.7

0.8

0.9

Noise combination

Speciﬁcity

none

em-ma

em-bw

ma-bw

em-ma-bw

−0.05

0.05

0.1

Noise combination

Mean Error in Seconds

Figure 6: Large algorithm speciﬁc differences can be observed. Even each individual algorithm shows a wide range of results

depending on the noise combination from muscle artefacts (ma), electrode movement (em), and baseline wander (bw).

for Hamilton is actually for no noise all with a Sen-

sitivity of 0.752. The same pattern of Sensitivity in-

creasing in the presence of noise can also be observed

with the Pan-Tompkins algorithm. This is caused by

noise spikes that are detected as QRS complexes and

are close to actual QRS complexes so that these de-

tections are recognised as true positives. The drop for

Positive Predictive Value also supports this explana-

tion as it would mean that generally False Positives

are increasing and more heartbeats are detected.

5.2.3 Speciﬁcity

The trend of electrode movement noise showing the

worse results is also conﬁrmed by the Speciﬁcity.

All algorithms show almost identical results for all

the em-noise combinations. While XQRS, Engelse-

Zeelenberg, Christov, and GQRS give similar re-

sults for all the other noise combinations, Stationary

Wavelet Transform and Hamilton are not consistent at

all.

From all the classiﬁcation metrics, the Speci-

Choosing the Appropriate QRS Detector

ﬁcity shows the largest deviation of values. For pure

em-noise, the values range from 0.91946 (Engelse-

Zeelenbeerg) to 0.42204 (Two Moving Average).

5.2.4 Mean Error

At ﬁrst sight, it seems counter-intuitive that for the

recordings with no noise the Mean Error shows the

largest value deviation. However, the Mean Error can

only be computed if a prediction for a QRS com-

plex has been made. If an algorithm has not pre-

dicted anything, this will not count into the Mean

Error. The consequence of this is, that for very dif-

ﬁcult noise combinations, here the electrode move-

ment noise, only very obvious heartbeats get detected.

Such obvious or easy to detect heartbeats are also the

ones, that all algorithms can accurately locate.

When comparing the Mean Error per noise type

to the Mean Error per heartbeat type from Figure 5 it

shows that the predictions are on average more accu-

rate.

6 CONCLUSION

It has been shown that QRS detector evaluations

should be executed with more care and on diverse

datasets. Especially the large gap between the al-

gorithm performance on the MIT-BIH Arrhythmia

Database and a more diverse dataset justiﬁes the ques-

tion if some algorithms were optimized speciﬁcally

for this database and were not tested for rare beat

types or noise resilience. Furthermore, the results

showed that different heartbeat types and noise com-

binations have two different effects on the algorithms.

While different heartbeat types cause algorithms to

make more inaccurate predictions, noise has the ef-

fect of obfuscating heartbeats such that they are not

found at all.

The evaluated algorithms have a wide range of

noise resilience as well as the ability to deal with other

than normal heartbeat types. Especially for electrode

movement noise and almost all heartbeat types the

PPV, Sensitivity, and Speciﬁcity values that most of

the time were not even close to 99% in harsh con-

trast to what the authors state. Algorithms with 99%

Sensitivity would miss 864 heartbeats per day and all

of the evaluated ones showed worse performances. If

the wrong algorithms are used in clinical practice, it

will cause an unnecessary amount of false alarms. Be-

cause these false alarms result in alarm fatigue and in

the end, might result in a patient not receiving needed

help, it is important to allow medical practitioners to

choose the right QRS detector for each use case.

PPV

Sens

Spec

1-10*abs(ME)

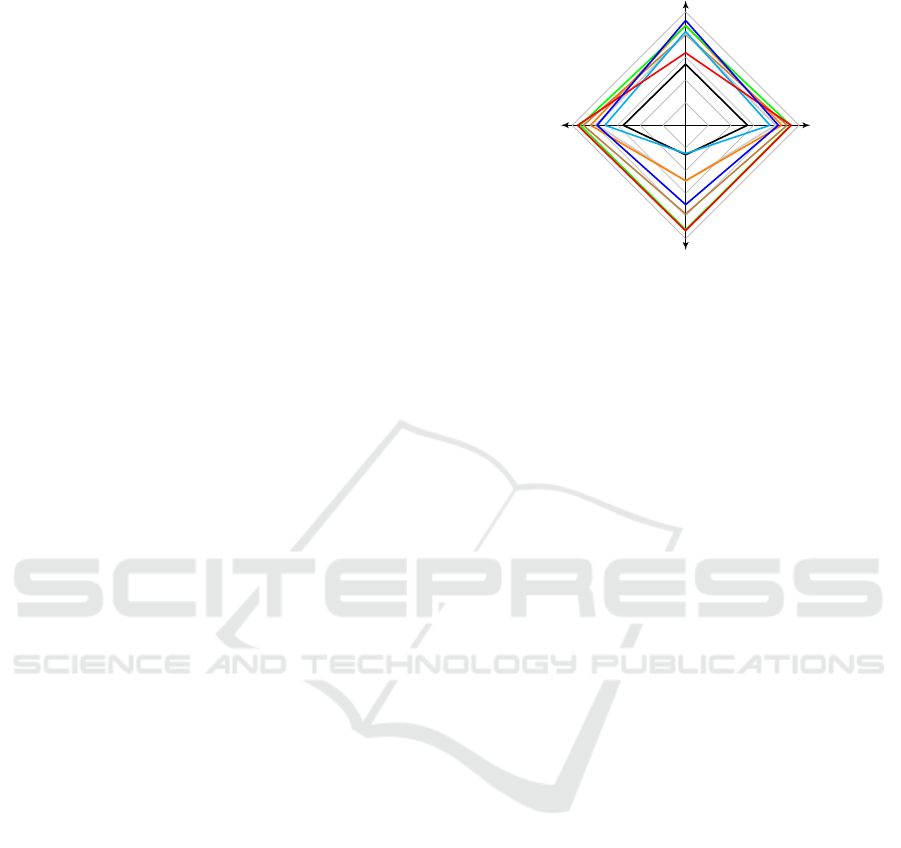

Figure 7: Deciding for an algorithm based on the perfor-

mance on premature ventricular contractions (V).

For that to be possible, the algorithm authors need

to test their algorithms on a dataset that is as diverse as

possible and contains equal amounts of heartbeats for

each type and is evaluated with different noise com-

binations.

For medical practitioners there needs to be an easy

way of understanding which algorithm performs best

in the use case at hand. In a ﬁrst attempt to visual-

ize how such a decision aid may look like Figure 7

shows the eight algorithms of this paper for the four

metrics Positive Predictive Value (PPV), Sensitivity

(Sens), Speciﬁcity (Spec) and Mean Error (ME). The

Mean Error had to be transformed to keep that the

more area a curve spans the better the algorithm per-

formance.

REFERENCES

Arzeno, N. M., Deng, Z.-D., and Poon, C.-S. (2008). Anal-

ysis of First-Derivative Based QRS Detection Algo-

rithms. IEEE transactions on bio-medical engineer-

ing, 55(2):478–484.

Christov, I. I. (2004). Real time electrocardiogram QRS de-

tection using combined adaptive threshold. BioMedi-

cal Engineering OnLine, 3:28. Publisher: Citeseer.

Cygankiewicz, I. and Zareba, W. (2013). Chapter 31 - Heart

rate variability. In Buijs, R. M. and Swaab, D. F., edi-

tors, Handbook of Clinical Neurology, volume 117 of

Autonomic Nervous System, pages 379–393. Elsevier.

Drew, B. J., Harris, P., Z

egre-Hemsey, J. K., Mammone,

T., Schindler, D., Salas-Boni, R., Bai, Y., Tinoco, A.,

Ding, Q., and Hu, X. (2014). Insights into the Prob-

lem of Alarm Fatigue with Physiologic Monitor De-

vices: A Comprehensive Observational Study of Con-

secutive Intensive Care Unit Patients. PLoS ONE,

9(10):e110274.

Elgendi, M., Eskoﬁer, B., Dokos, S., and Abbott, D.

(2014). Revisiting QRS Detection Methodologies for

BIOSIGNALS 2021 - 14th International Conference on Bio-inspired Systems and Signal Processing

Portable, Wearable, Battery-Operated, and Wireless

ECG Systems. PLoS ONE, 9(1):e84018.

Elgendi, M., Jonkman, M., and De Boer, F. (2010). Fre-

quency Bands Effects on QRS Detection. BIOSIG-

NALS, 2003:2002.

Engelse, W. A. H. and Zeelenberg, C. (1979). A single scan

algorithm for QRS-detection and feature extraction.

Computers in cardiology, 6(1979):37–42. Publisher:

IEEE Computer Society Press.

Francesca, S., Carlo, C. G., Nunzio, L. D., Rocco, F., and

Marco, R. (2018). Comparison of Low-Complexity

Algorithms for Real-Time QRS Detection using Stan-

dard ECG Database. Inter. Journal on Advanced Sci-

ence Engineering Information Technology, 8(2).

Goldberger, A. L., Amaral, L. A., Glass, L., Hausdorff,

J. M., Ivanov, P. C., Mark, R. G., Mietus, J. E., Moody,

G. B., Peng, C.-K., and Stanley, H. E. (2000). Phys-

ioBank, PhysioToolkit, and PhysioNet: components

of a new research resource for complex physiologic

signals. circulation, 101(23):e215–e220. Publisher:

Am Heart Assoc.

Greenwald, S. D. (1986). The development and analysis

of a ventricular ﬁbrillation detector. Thesis, Mas-

sachusetts Institute of Technology. Accepted: 2015-

01-20T17:51:30Z.

Greenwald, S. D. (1990). Improved detection and classi-

ﬁcation of arrhythmias in noise-corrupted electrocar-

diograms using contextual information. Thesis, Mas-

sachusetts Institute of Technology. Accepted: 2005-

10-07T20:45:22Z.

Hamilton, P. S. and Tompkins, W. J. (1986). Quantitative in-

vestigation of QRS detection rules using the MIT/BIH

arrhythmia database. IEEE transactions on biomedi-

cal engineering, BME-33(12):1157–1165. Publisher:

IEEE.

Ichimaru, Y. and Moody, G. B. (1999). Development of the

polysomnographic database on CD-ROM. Psychiatry

and Clinical Neurosciences, 53(2):175–177. eprint:

https://onlinelibrary.wiley.com/doi/pdf/10.1046/j.144

0-1819.1999.00527.x.

Jager, F., Taddei, A., Moody, G. B., Emdin, M., Antoli

c, G.,

Dorn, R., Smrdel, A., Marchesi, C., and Mark, R. G.

(2003). Long-term ST database: A reference for the

development and evaluation of automated ischaemia

detectors and for the study of the dynamics of myocar-

dial ischaemia. Medical & Biological Engineering &

Computing, 41(2):172–182.

Johannesen, L., Vicente, J., Mason, J. W., Erato, C.,

Sanabria, C., Waite-Labott, K., Hong, M., Lin, J.,

Guo, P., Mutlib, A., Wang, J., Crumb, W. J., Bli-

nova, K., Chan, D., Stohlman, J., Florian, J., Ugander,

M., Stockbridge, N., and Strauss, D. G. (2016). Late

sodium current block for drug-induced long QT syn-

drome: Results from a prospective clinical trial. Clin-

ical Pharmacology and Therapeutics, 99(2):214–223.

Johannesen, L., Vicente, J., Mason, J. W., Sanabria,

C., Waite-Labott, K., Hong, M., Guo, P., Lin, J.,

Sørensen, J. S., Galeotti, L., Florian, J., Ugander, M.,

Stockbridge, N., and Strauss, D. G. (2014). Differen-

tiating drug-induced multichannel block on the elec-

trocardiogram: randomized study of dofetilide, quini-

dine, ranolazine, and verapamil. Clinical Pharmacol-

ogy and Therapeutics, 96(5):549–558.

Kalidas, V. and Tamil, L. S. (2017). Real-time QRS de-

tector using Stationary Wavelet Transform for Auto-

mated ECG Analysis. In 2017 IEEE 17th Inter. Conf.

on Bioinformatics and Bioengineering (BIBE). IEEE.

Kohler, B.-U., Hennig, C., and Orglmeister, R. (2002). The

principles of software QRS detection. IEEE Engineer-

ing in Medicine and Biology Magazine, 21(1):42–57.

Laguna, P., Mark23, R. G., Goldberg, A., and Moody23,

G. B. (1997). A Database for Evaluation of Algo-

rithms for Measurement ofQT and Other Waveform

Intervals in the ECG. Computers in cardiology.

Liu, F., Liu, C., Jiang, X., Zhang, Z., Zhang, Y., Li, J., and

Wei, S. (2018). Performance Analysis of Ten Com-

mon QRS Detectors on Different ECG Application

Cases. Journal of Healthcare Engineering,2018:1–8.

Alvarez, R. A., Pen

ın, A. J. M., and Sobrino, X. A. V.

(2013). A comparison of three QRS detection algo-

rithms over a public database. Procedia Technology,

9:1159–1165. Publisher: Elsevier.

Malik, M. and Camm, A. J. (1990). Heart rate variability.

Clinical Cardiology, 13(8):570–576.

MIT-LCP (2020). PhysioBank Annotations.

Moody, G. and Mark, R. (2001). The impact of the MIT-

BIH Arrhythmia Database. IEEE Engineering in

Medicine and Biology Magazine, 20(3):45–50.

Moody, G. B., Muldrow, W., and Mark, R. G. (1984). A

noise stress test for arrhythmia detectors. Computers

in cardiology, 11(3):381–384.

OpenStax, C. (2013). Anatomy & Physiology. OpenStax

College.

Pan, J. and Tompkins, W. J. (1985). A Real-Time QRS De-

tection Algorithm. IEEE Transactions on Biomedical

Engineering, 32(3).

Phukpattaranont, P. (2015). Comparisons of wavelet func-

tions in QRS signal to noise ratio enhancement and

detection accuracy. arXiv:1504.03834 [cs]. arXiv:

1504.03834.

Taddei, A., Distante, G., Emdin, M., Pisani, P., Moody,

G. B., Zeelenberg, C., and Marchesi, C. (1992). The

European ST-T database: standard for evaluating sys-

tems for the analysis of ST-T changes in ambula-

tory electrocardiography. European Heart Journal,

13(9):1164–1172.

Vicente, J., Zusterzeel, R., Johannesen, L., Ochoa-Jimenez,

R., Mason, J. W., Sanabria, C., Kemp, S., Sager, P. T.,

Patel, V., Matta, M. K., Liu, J., Florian, J., Garnett, C.,

Stockbridge, N., and Strauss, D. G. (2019). Assess-

ment of Multi-Ion Channel Block in a Phase I Ran-

domized Study Design: Results of the CiPA Phase I

ECG Biomarker Validation Study. Clinical Pharma-

cology & Therapeutics, 105(4):943–953.

Xiang, Y., Lin, Z., and Meng, J. (2018). Automatic

QRS complex detection using two-level convolutional

neural network. BioMedical Engineering OnLine,

17(1):13.

Zeelenberg, C. and Engelse, W. (1975). On-Line Analysis

of Exercise Electrocardiograms.Computers in Cardi-

ology, 8(7).

Choosing the Appropriate QRS Detector
