Sensor Fusion Neural Networks for Gesture Recognition on Low-power

Edge Devices

Gabor Balazs

1,2,†

, Mateusz Chmurski

1,3,†

, Walter Stechele

and Mariusz Zubert

Inﬁneon Technologies AG, Am Campeon 1-15, Neubiberg, Germany

Technical University of Munich, Munich, Germany

Lodz University of Technology, Lodz, Poland

Keywords:

Sensor Fusion, Gesture Recognition, Convolutional Neural Network, Radar, Time of Flight.

Abstract:

The goal of hand gesture recognition based on time-of-ﬂight and radar sensors is to enhance the human-

machine interface, while taking care of privacy issues of camera sensors. Additionally, the system needs to

be deployable on low-power edge devices for applicability in serial-produced vehicles. Recent advances show

the capabilities of deep neural networks for gesture classiﬁcation but they are still limited to high performance

hardware. Embedded neural network accelerators are constrained in memory and supported operations. These

limitations form an architectural design problem that is addressed in this work. Novel gesture classiﬁcation

networks are optimized for embedded deployment. The new approaches perform equally compared to high-

performance neural networks with 3D convolutions, but need only 8.9% of the memory. These lightweight

network architectures allow deployment on constrained embedded accelerator devices, thus enhancing human-

machine interfaces.

1 INTRODUCTION

1.1 Background

In the upcoming cockpits of cars, the communication

with the machine will be different than known today.

A trend towards a system without touch sensors is

seen, for example, with the voice activated controls of

the phone or multimedia. Touch-less controls are also

beneﬁcial for safe driving, as the driver does not need

to split his concentration between the road and mul-

timedia controls (Young et al., 2003). The driver can

swiftly adjust any multimedia settings with his voice

or the help of hand gestures without driving blindly.

In accordance with the steadily increasing aware-

ness and need of privacy and personal data protection,

there is an interest in a system for driver monitoring

without camera sensors. Radar and depth sensors pro-

duce data that denies easy identiﬁcation of individu-

als, thus are a good choice for this task.

The different nature of data coming from time-of-

ﬂight (ToF) and radar sensors leads to different pre-

processing schemata and difﬁculties in combining the

information with traditional methods. The superior

†

Both authors contributed equally.

classiﬁcation accuracy and generalization capabilities

of networks come to the cost of immense computa-

tional effort for the processor (Alom et al., 2018).

To meet the requirements of mass-produced vehi-

cles, all computations have to be performed on auto-

motive microcontrollers and embedded convolutional

neural network (CNN) accelerators. This fact limits

the applicability of heavy, deep networks and favors

lightweight models, optimized for embedded infer-

ence. The main aspects of this work can be summa-

rized as follows:

• Introduction of a lightweight, yet robust, multi-

modal system for hand gesture recognition. The

system relies on combined radar and ToF sensory

data only. It offers variants that meet the different

model requirements of state-of-the-art embedded

accelerators.

• Ensurance of privacy by not relying on camera

sensors, thus addressing the growing concerns

about internet of things devices spying on the pri-

vate life of customers.

• A system design for edge devices with limited

compute capabilities. Accordingly, we propose

four CNN models with few parameters and stan-

dard neural network operations only.

Balazs, G., Chmurski, M., Stechele, W. and Zubert, M.

Sensor Fusion Neural Networks for Gesture Recognition on Low-power Edge Devices.

DOI: 10.5220/0010234101410150

In Proceedings of the 13th International Conference on Agents and Artiﬁcial Intelligence (ICAART 2021) - Volume 2, pages 141-150

ISBN: 978-989-758-484-8

141

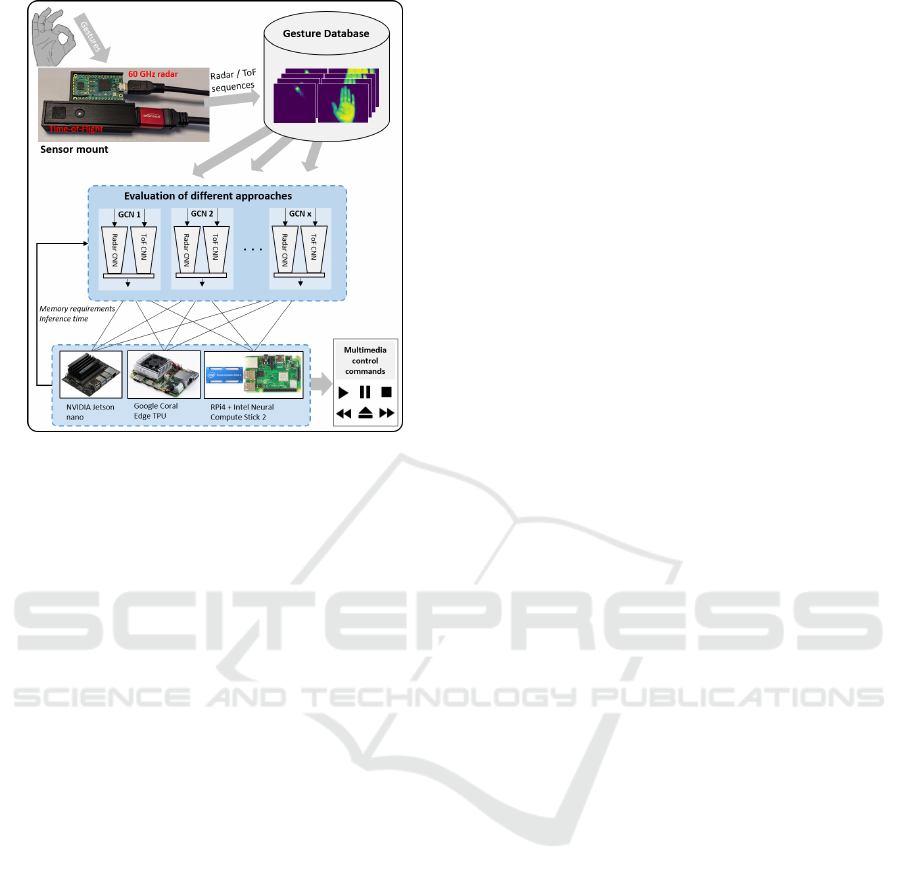

Figure 1: System overview: Gesture classiﬁcation networks

for multi-modal input data coming from radar and ToF sen-

sors. The resulting networks are deployed on various em-

bedded hardware accelerators.

1.2 Related Work

After the initial success of neural networks for static

image processing (Girshick et al., 2013) (Krizhevsky

et al., 2012), architectures were introduced to also

deal with spatio-temporal data such as video se-

quences. A way of interpreting it is to use the dif-

ferent video frames as feature channels of one input

tensor to 2D CNNs (Feichtenhofer et al., 2016).

The authors of (Donahue et al., 2014) use a com-

bination of convolutional layers and long-short term

memory (LSTM) cells in order to classify spatio-

temporal data. A CNN is applied frame-wise to ex-

tract features, which then are passed to the LSTM

for classiﬁcation over time. A similar approach used

3D CNNs to acquire local spatio-temporal features,

which are then fed into an LSTM to calculate global,

long-term features of the video (Molchanov et al.,

2016) (Tran et al., 2014).

These advances opened the door to activity classi-

ﬁcation and gesture classiﬁcation frameworks. Most

hand gesture sensing systems rely on optical sensors,

especially on vision data from camera sensors. A very

powerful approach was presented in (K

ukl

u et al.,

2018). An optical based multi-input system is pro-

posed by (Abavisani et al., 2018), where camera data

is fused with its optical ﬂow for improved classiﬁca-

tion results. Authors of (Concha et al., 2018) make

use of optical ﬂow information, too, but feed it along

with frame-wise features into a three-stream 2D CNN

for action recognition.

While vision based approaches show good results,

research also focuses on robust multi-modal systems

and systems not relying on cameras. Authors of

(Molchanov et al., 2015) present a system for driver’s

hand-gesture recognition based on permutations of

camera, radar and depth sensors. An early fusion

is applied within the input layer of the classiﬁcation

CNN by stacking the different sensor modalities in

the feature dimension. A robust gesture classiﬁca-

tion system is introduced in (Hazra and Santra, 2019),

where the authors use a self-attention neural network

with LSTM cells for range-Doppler map classiﬁca-

tions.

Whereas more and more applications focus on

mobile hardware platforms rather than on cloud so-

lutions, strict embedded requirements like model size

are not investigated by many works . Authors of (Ce-

olini et al., 2019) propose a sensor fusion network

for hand gesture classiﬁcation using electromyogra-

phy and vision data, specially designed for mobile us-

age. The model uses a combination of CNN and sup-

port vector machine parts, resulting in a model size

of 144 MB. Authors of (Wang et al., 2016) solely

rely on a 60 GHz frequency-modulated continuous-

wave (FMCW) radar for hand gesture recognition on

a wearable. Whereas it is designed for a low-power

device, the proposed architecture has a model size of

689 MB and consumes 265 MB of GPU memory. An

extensive analysis of efﬁcient neural network design

is presented in (K

ukl

u et al., 2020), where a two-

staged network is used for online gesture classiﬁca-

tion. With the NVIDIA Jetson TX2 as the inference

hardware, the network is based on three-dimensional

CNNs, which are supported by this GPU.

Besides the strict memory constraints, not all of

the currently available low-power CNN accelerators

support widely used operations like LSTM. Thus,

many approaches are not feasible for edge deploy-

ment on these constrained devices (Donahue et al.,

2014) (Molchanov et al., 2016) (Tran et al., 2014)

(Hazra and Santra, 2019) (Naguri and Bunescu, 2017)

(Wang et al., 2016)(Chai et al., 2016) (K

ukl

u et al.,

2020). Consequently, the lack of lightweight, privacy-

aware networks based on constrained operations is

addressed in this work. The proposed method is com-

pared to (Molchanov et al., 2015), as their analysis

also includes the fusion of radar and ToF data and fo-

cuses on ofﬂine classiﬁcation.

ICAART 2021 - 13th International Conference on Agents and Artiﬁcial Intelligence

142

Figure 2: Deployment on embedded HW accelerators.

2 SYSTEM DESIGN

The system is planned to avoid the usage of camera

sensors in order to ensure privacy of the users. With

this goal in mind, radar and time of ﬂight (ToF) sen-

sors are chosen.

Thus, no sensible camera data is available for pos-

sibly malicious use, e.g. technologies based on person

identiﬁcation. An additional advantage of this sensor

setup is that the system performance is not correlated

to environmental conditions such as poor lighting or

reﬂections of the bright sun.

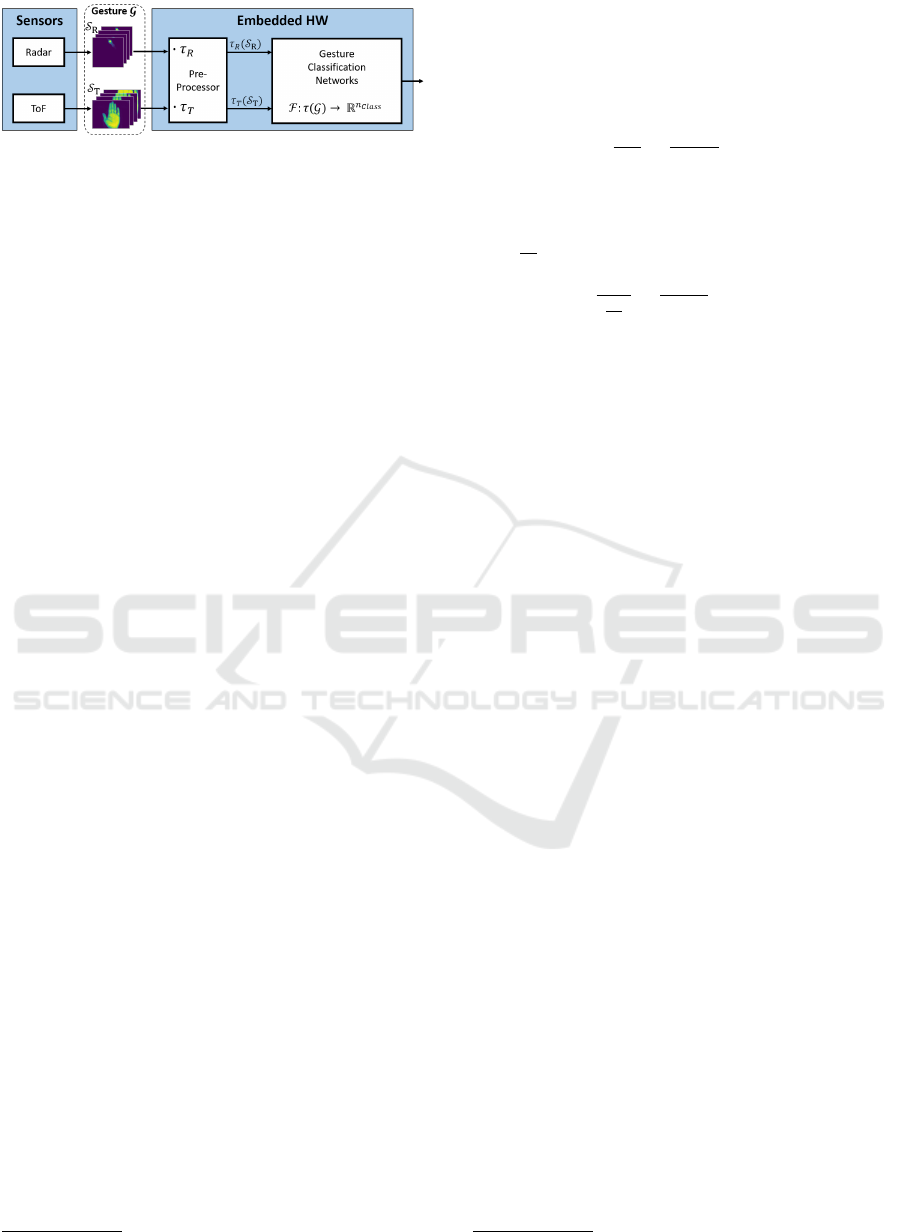

The system consists of a data pre-processor that

prepares the input streams, followed by the gesture

classiﬁcation network GCN. The network has the

structure of a classiﬁcation CNN with individual input

branches for each sensor modality and a late fusion in

the fully connected layers.

2.1 Dataset Description

In this section, we describe the dataset, its gathering,

and pre-processing steps that are needed for neural

network processing.

Data Gathering. The data was gathered indoors

and inside the car with the desired mounting posi-

tion in vicinity of the gear selection lever. With re-

gards to train an online-classiﬁcation system, a con-

stant stream of data is recorded as a raw base for fur-

ther processing. Two sensors are ﬁxed to a custom,

3D-printed mount. They monitor the hand gestures in

the proximity of the gear selector lever, pointing up

towards the rear mirror (see Fig. 1).

The gestures are expected to be performed close

to the sensors in a range of r = [0m,0.3m]. A Time-

of-Flight sensor

is conﬁgured to scan this distance

and it delivers a three-dimensional point cloud. This

point cloud is projected into a two-dimensional image

plane, where the depth is denoted by the grayscale in-

tensity. This image spans a ﬁeld of view of 62° in

azimuth and 45° in elevation with a resolution of

224 × 171 pixels.

pmd CamBoard pico ﬂexx.

The radar sensor

uses a FMCW radar. One

radar frame is composed of 32 chirps (N

= 32, T

0.8ms) and each chirp consists of 64 samples. The

radar is conﬁgured to measure 10 frames per second

= 0.1s). The resulting maximum velocity

max

5mm

3.2ms

= 1.56 m/s (1)

allows the system to detect gestures, even when car-

ried out quickly. The frequency bandwidth is 5 GHz

(58 GHz – 63 GHz), resulting in a range resolution of

∆r =

= 0.03m. The velocity resolution is

∆v =

max

= 9.75 cm/s. (2)

Both sensors of the system are synchronized to a rate

of 10 Hz.

From the constant stream of information, gestures

are extracted for building the training dataset. A

thresholding method is employed to the ToF and radar

streams to detect active gestures and mark the start

and end frames of a gesture. The gesture is saved to a

hard disk in raw format along with the corresponding

label. The classes form a set of intuitive gestures for

multimedia control.

In order to have a dataset with high variance,

multiple subjects were recorded performing the hand

movements above the sensors. Gestures performed

by left and right hands were recorded in order to learn

control inputs of both, the driver and the passenger.

In total the dataset consists of 2,225 gestures with

gesture lengths up to 29 frames, describing 9 gesture

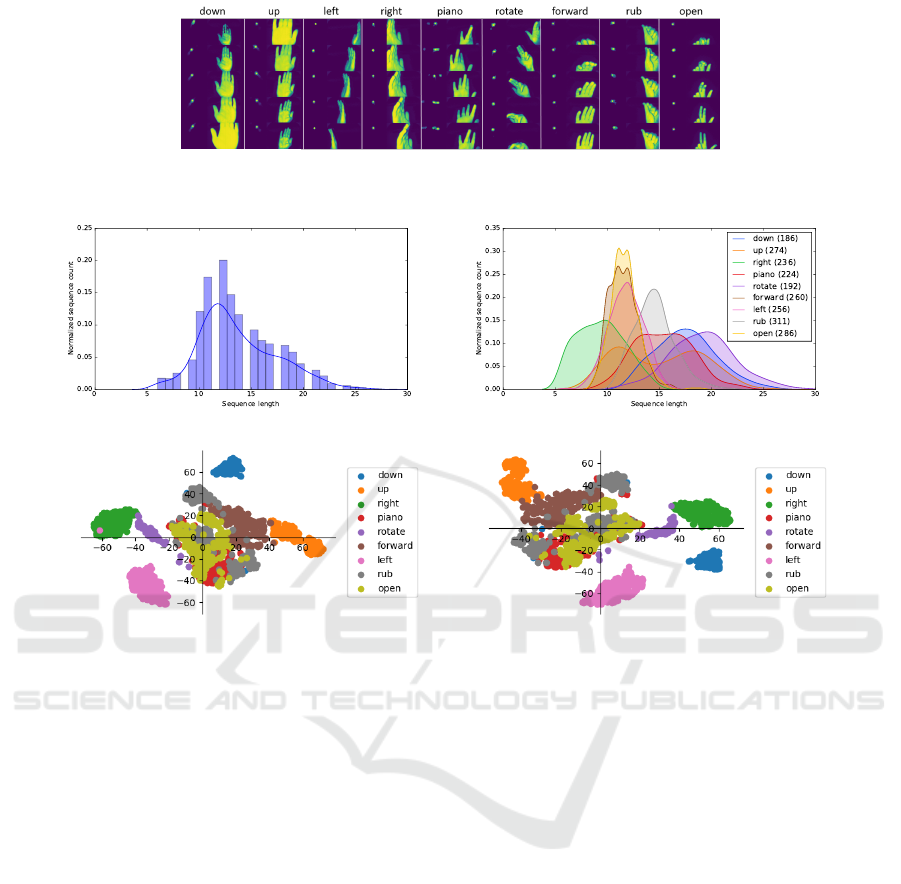

classes (Tab. 1, Fig. 3).

Data Pre-processing. The ToF images are pro-

cessed with a Wiener ﬁlter to smooth the noisy depth

values. Furthermore, the depth values beyond the de-

sired ranges are ﬁltered out.

The radar data is processed in multiple steps:

First, the chirps are brought to zero mean by subtract-

ing the mean value of a chirp from each of the sam-

ples. Then, the range is computed with a ﬁrst stage

fast Fourier transform (FFT) over the range samples

with an FFT size of 128, from which the positive half

is used. The range-Doppler images (RDI) are com-

puted with the second stage FFT with an FFT size of

64, resulting in an RDI dimension of 64 × 64. Before

each of the FFTs, the signal is multiplied with a Hann

window function. Subsequently, the absolute values

of the RDI are thresholded with an ordered statistic

CFAR (OS-CFAR) in order to maximize the signal-

to-noise ratio. OS-CFAR was chosen because of bet-

ter multi-target capabilities in comparison to cell av-

eraging CFAR (CA-CFAR). This is expected to have

Inﬁneon BGT60TR13C.

Sensor Fusion Neural Networks for Gesture Recognition on Low-power Edge Devices

143

Figure 3: Visualization of the gesture classes in the dataset. Only a few frames per class are taken for clarity, as the classes

vary in length.

(a) (b)

Figure 4: (a) The dataset consists of gestures of various lengths. During training, the gesture lengths are padded to a uniform

length in order to have constant length input tensors. (b) Per-class distribution of gesture lengths. The number in brackets

denotes the amount of gestures in this class. (c) and (d) show the t-SNE representation of the down-scaled ToF and radar

sequences of the dataset. The image dimensions are 32 × 32 and the sequences are padded to a uniform length. Clearly, the

gestures for navigation (left, right, up, down) form distinct clusters, whereas the other gesture classes are more difﬁcult to

distinguish. Both sensor modalities provide cluster information about the classes so that the networks can beneﬁt from both

sensor types.

a positive impact on the classiﬁcation of the gestures

with individual ﬁngers moving (compare RDIs of pi-

ano gesture in Fig. 3).

Data Format. After data pre-processing, the con-

tents of one training sample are the two input se-

quences and the corresponding label. A raw radar

sequence is a volume S

∈ R

t×x×y× f

, where t ≥ 1 de-

notes the timesteps in this sequence. Each timestep

stores a RDI with x × y as the range and Doppler di-

mensions, and f as the number of feature channels.

Here, f = 1, as only the intensity of the RDI is used.

A raw ToF sequence S

∈ R

t×x×y× f

is a similar vol-

ume to S

, but x × y denote the pixel dimensions of

the ToF sensor output and there might be a different

value of t. There is only one feature f = 1 for S

, too,

as it describes the distance of a target to the sensor.

A transformation τ needs to be performed in order to

feed these tensors into the network model. τ depends

on the network type and the embedded hardware to be

deployed on. Further information about τ is described

along the neural network models in 2.2.

In the following a gesture G denotes spatio-

temporal data in form of a tuple G = (S

). The

entries of G are a radar and a ToF sequence belong-

ing to one speciﬁc class.

Temporal Adjustments. The gestures vary in

length so that it is not possible to directly feed them

into a network of constant input size (Fig. 4a, b). In

order to adjust S

and S

to the same length t

, the

sequences are zero-padded, before and after the orig-

inal sequence. The ﬁx length t

is chosen to be the

maximum gesture length of the dataset. Within these

frames, the gesture is put into a random position.

ICAART 2021 - 13th International Conference on Agents and Artiﬁcial Intelligence

144

Table 1: Dataset of hand gestures recorded with radar and ToF sensors.

GESTURE down up left right forward rotate open piano rub TOTAL

AMOUNT 186 275 256 235 260 192 286 224 311 2,225

Data Augmentation. In order to increase robust-

ness of the system, following data augmentation tech-

niques are applied. They are utilized randomly to in-

dividual input streams.

Random Shifting of Complete Sequences: ToF

sequences S

are shifted in both pixel dimensions

(x, y) by a random value which can be up to 10%

of the respective pixel dimensions (±0.1x, ±0.1y).

Radar sequences S

are shifted randomly by up

to 5% in Doppler, and 10% in range dimension

(±0.05x, ±0.1y). The empty space is ﬁlled with ze-

ros.

Zeroing Out Regions: Random selection of ar-

eas in the images, which are then ﬁlled with zeros.

The selection can either be the borders of the image

for ToF, or patches within the image for both sensor

modalities. The border padding simulates different

scenarios of gestures that are not completely included

within the ﬁeld of view of the sensor. Random patch

zeroing reduces overﬁtting of the network to certain

regions. Patch sizes are from one pixel up to a square

of 5 × 5 pixels.

Adding Constants to the Sequence: To reduce

the impact of numerical values, a random integer with

a value up to 5% of the maximum pixel value is added

to the sequences.

2.2 Gesture Classiﬁcation Network

The GCN are composed of two parts. First, the spatio-

temporal data coming from the sensors is processed

to an intermediate representation with a transforma-

tion τ, followed by an encoder architecture A. After

the gestures G are transformed to the network-speciﬁc

format by transformation τ, the input tensors are ready

to be fed into the network models. Each network

has repeated individual encoding cells that consist of

a 2D convolution, max-pooling, batch normalization,

dropout, and ReLU activation (Fig. 5). Multiple cells

are stacked after each other until the processed ten-

sors reach a desired ﬁnal embedding shape. The em-

beddings are used for late fusion and classiﬁcation.

The fusion is done with a fully connected layer

that uses the concatenated information of both en-

coded inputs. n

class

neurons output the classiﬁcation

result. As a summary, each network F = (τ,A) maps

the input gesture G to an n

class

-dimensional vector

(F : G → R

class

In the following, four network architectures A

with individual transformations τ are described:

Time Distributed, F

T D

= (τ

T D

, A

T D

). In this

network version, each time step is processed with a

shared CNN backbone with TimeDistributed lay-

ers in Keras to retrieve spatial information, followed

by temporal integration using LSTM cells. Each

input stream has its own n

LST M

LSTM cells. For

this approach, no transformation is done with τ

T D

t×x×y× f

−→ R

t×x×y× f

The encoding cells use convolutions with

3 × 3 ﬁlter size, and are wrapped into Keras’

TimeDistributed layers. Once a spatial dimension

(x, y) is below 8, the embedding of the last cell is

passed to an LSTM cell. Each input modality is

assigned to its individual LSTM unit. Hence, the

temporal integration takes part after spatial feature

extraction and before the fusion.

3D Conv, F

= (τ

, A

). Here, 3D convolu-

tions are used directly on the spatio-temporal data

of each sensor type. No transformation is needed

for this approach, consequently τ

: R

t×x×y× f

−→

t×x×y× f

The encoding cells of the A

architecture use 3D

convolutions and 3D max pooling. Their ﬁlter di-

mensions are chosen in order to ﬁlter separately for

spatial and temporal features. For a given spatio-

temporal tensor C ∈ R

t×x×y× f

, three-dimensional

convolutional ﬁlter f

∈ R

1×3×3

is applied for spatial,

and f

∈ R

3×1×1

for temporal ﬁltering. Accordingly,

the max pooling sizes are chosen to reduce the respec-

tive dimension. Once the spatial dimension (x,y) is

below 8, both tensors are ﬂattened to vectors and con-

catenated for fusion and classiﬁcation.

Video as Image, F

V I

= (τ

V I

, A

V I

). Each RDI and

ToF image can be reshaped to vectors in order to solve

the problem of an additional dimension for the time.

Those vectors are stacked to one single image per ges-

ture, which can be processed with a standard network

with two-dimensional convolutions. The transforma-

tion needed is

V I

: R

t×x×y× f

−→ R

t×xy× f

. (3)

After the transformation τ

V I

, the input tensors do not

have the 4th dimension. Hence, they are processed

with a 2D CNN. As the individual frames in this ten-

sor are vectors, spatial feature extraction is done with

2D convolutions with ﬁlter size 1 × 3 along the vec-

tors dimension. Generally, 2 × 2 max pooling layers

Sensor Fusion Neural Networks for Gesture Recognition on Low-power Edge Devices

145

Gesture

𝒢

Radar Input Tensor

ToF Input Tensor

Concatenation

Concatenation Concatenation Concatenation

TimeDistributed

Encoding Cell

Conv2D (3, 3)

MaxPooling2D (2, 2)

BN + DO + ReLU

LSTM

H < 8

Encoding Cell

Conv3D (1, 3, 3)

MaxPooling3D (1, 2, 2)

BN + DO + ReLU

H < 8

Conv3D (3, 1, 1)

MaxPooling3D (2, 1, 1)

Encoding Cell

Conv2D (1, 3)

MaxPooling2D (1, 4)

BN + DO + ReLU

H < 32

Conv2D (1, 1)

Yes

Encoding Cell

Conv2D (3, 3)

MaxPooling3D (2, 2)

BN + DO + ReLU

H < 8

Conv2D (1, 1)

Yes

Conv2D (1, 1)

MaxPooling2D (2, 1)

Concatenation

Architecture

𝒜

𝜏

FC + Softmax FC + Softmax FC + Softmax FC + Softmax

Concatenation Concatenation Concatenation

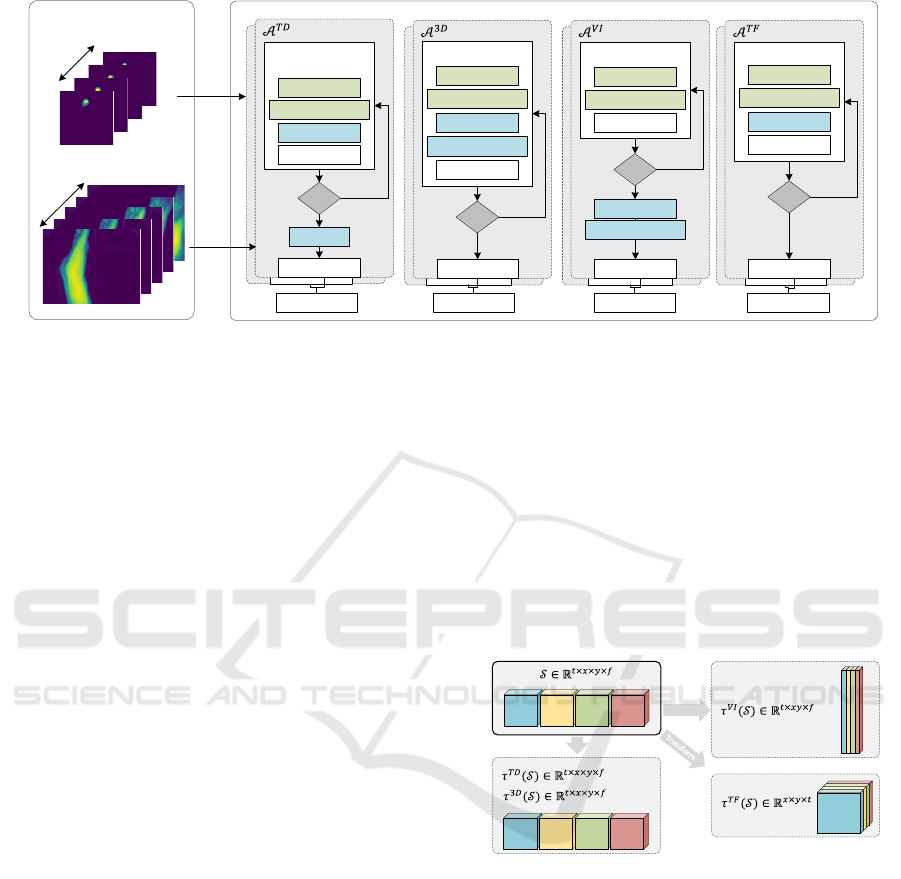

Figure 5: The general architecture of the proposed gesture classiﬁcation networks GCN. The gestures G from the dataset

are fed through the transformation τ to the architectures A. Together they form the network F = (τ,A). The individual

transformations τ is depicted in Fig. 6. At the end of each encoding cell, batch normalization (BN) and drop out (DO) are

applied before ReLU-activation. Green colored nodes denote operations for spatial feature extraction. Blue nodes show the

operations that reduce in the time dimension. Both sensor modalities are processed with the same architectural structure.

Here, the processing of only one modality is shown for visualization reason. The concatenation fuses the information of both

input streams.

reduce the image area by 1/4. Similarly, the max

pooling in this approach reduces by the same amount,

but in the single direction of the image vectors by

using 1 × 4 max pooling. These encoding cells are

stacked after each other until the image vector dimen-

sion z is below 32, resulting in an embedding of shape

t×z×1

,z ∈ (0,32).

Time as Feature, F

T F

= (τ

T F

, A

T F

). Both inputs

have only one feature ( f = 1), namely the reﬂectivity

in RDI, and distance in ToF images. This allows re-

arranging the input tensor in a way, so that the time

dimension t is placed as the feature channel f of the

input C . The transformation

T F

: R

t×x×y×1

−→ R

x×y×t

(4)

produces a three-dimensional input tensor C

T F

∈

x×y×t

to the network.

In contrast to τ

V I

, where the spatial context of the

frames is lost, the transformation τ

T F

preserves the

images, but still reduces the dimensionality to three.

The input tensors are processed with encoding cells

using 3 × 3 convolutions until the spatial dimension

(x,y) is below 8 for both inputs branches. The embed-

dings of the tensors are ﬂattened, concatenated and

then fed into the fully connected layer for classiﬁca-

tion.

Each above mentioned approaches F can process

various input tensor sizes, such as the raw input for-

mat (RDI: 64×64, ToF: 224×171) or a reduced input

size S (RDI: 32 ×32, ToF: 32×32) and each approach

can be tuned with the number of convolutional ﬁlters

b. The number is

b = b

+ 2

, (5)

where parameter b

is the offset and δ the depth of the

encoding cells.

Tran sform

t = 1 t = 2 t = 3 t = 4

Figure 6: The visualization of the two transformations τ

V I

and τ

T F

. Both transform 4D data to 3D tensors that can

be fed into CNNs without recurrent units. τ

T D

and τ

are

identity operations.

2.3 Embedded Deployment

With the rising demand for mobile applications,

the market for embedded accelerators is emerging

(Reuther et al., 2019). Mainly research teams and uni-

versities are offering chips in the regime of low-power

devices (MIT Eyeriss chip (Chen et al., 2016b), Intel

MovidiusX processor (Intel, 2020), Google EdgeTPU

(Google, 2020), the DianNao accelerator family

(Chen et al., 2016a), NVIDIA Jetson Nano (NVIDIA,

2020) and Rockchip RK3399Pro (Rockchip, 2020)).

ICAART 2021 - 13th International Conference on Agents and Artiﬁcial Intelligence

146

Table 2: Performances of the different gesture classiﬁcation

approaches in comparison to † 3DCNN from (Molchanov

et al., 2015) given the reduced input S (32 × 32, 32 × 32).

INPUT S

APPROACH ACC SIZE

T F

95.1% 598 KB

96.6% 529 KB

V I

96.9% 667 KB

T F

97.9% 967 KB

3DCNN † 98.6% 10.86 MB

Table 3: Model requirements for the low-power accelerators

The unsupported operations for our accelerator versions.

3D: Conv3D, BN: BatchNormalization, DO: Dropout. Ba-

sic OPs: Conv2D, ReLU and softmax, pooling and concat.

3DCNN from (Molchanov et al., 2015).

H/W RNN 3D BN DO BASIC 3DCNN

TPU - - - - X -

NCS - - X X X -

NANO X X X X X X

Out of this portfolio, only the Intel MovidiusX, used

in the Neural Compute Stick 2 (NCS2), the Google

EdgeTPU, and the NVIDIA Jetson Nano are commer-

cially available for a competitive price. These three

embedded CNN inference accelerators are used for

our evaluation.

In order to use the accelerators, the network model

constraints of each hardware are to be met. Many

state-of-the-art network topologies that claim to aim

for edge deployment, lack the applicability to various

low-power edge devices. The main disadvantage of

using hardware such as the EdgeTPU is the lack of

support for 3D convolutional layers. Table 3 shows

that not all accelerators support the operations needed

to compute the network models introduced in Sec-

tion 2.2 and models from literature. A

uses 3D con-

volutions, A

T D

relies on RNN and TimeDistributed

Keras layers. Thus, for the embedded deployment the

T F

and A

V I

architectures are used, as they comply

with the model requirements.

3 EXPERIMENTAL EVALUATION

3.1 Training Setup

The networks are trained on an NVIDIA TITAN V

GPU until convergence, which is achieved after 100

epochs of training with a train/test split of 80%. Each

network architecture is evaluated three times and the

mean performance values are reported. Weight train-

ing is done with an ADAM optimizer with β

0.5 and β

= 0.999. The learning rate is regulated

with a cosine decay with an initial value of 1e-4, a

warm-up of 10% of the total iterations and holding

the maximum learning rate for 10% of training it-

erations. ADAM optimizer minimizes the softmax

cross-entropy loss of the predicted n

class

classes. The

weights of the convolutional ﬁlters decay with an L2-

regularizer with a regularization factor of 1e-4 and a

dropout of 40% is applied to fully connected layers.

After each epoch, the class-wise accuracy α

evaluated on the test set and used for scaling the

weights of each class w

for the next training epoch.

The optimizer weights the classes according to

= 0.5 +

1 − α

. (6)

Weights range from 0.75 to 1.25, where higher accu-

racy leads to lower weights and vice versa.

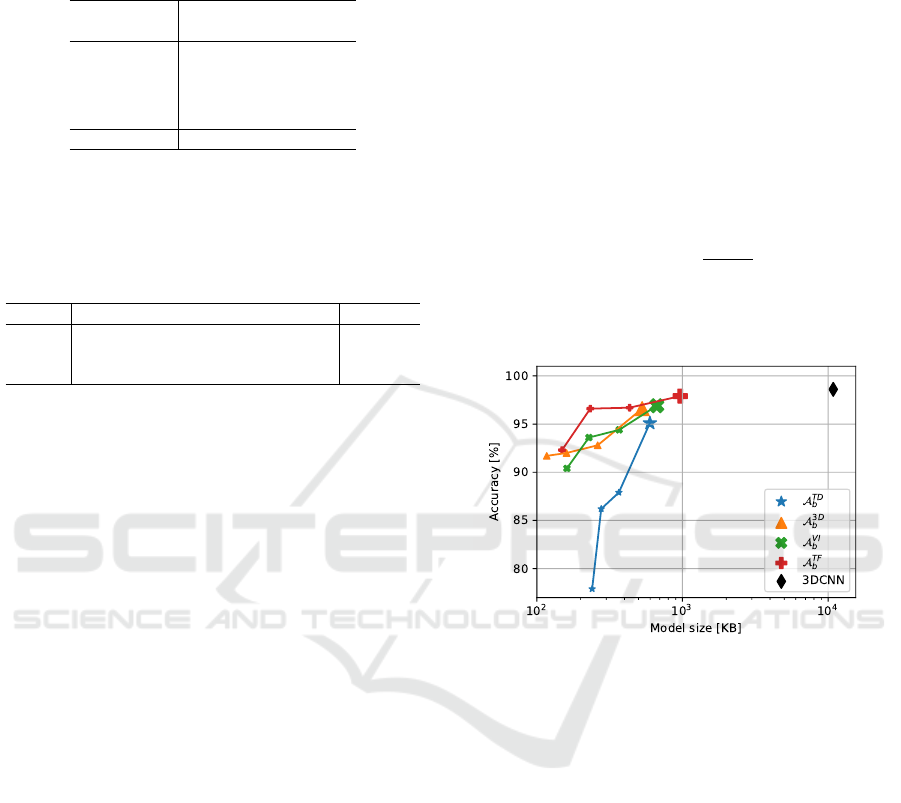

Figure 7: Classiﬁcation accuracies over the model sizes of

the network architectures from Section 2.2, compared to

3DCNN (Molchanov et al., 2015). Each of the investi-

gated architectures is evaluated in four different variants of

the parameter b ∈ {0,1,2,3}, describing an ever increasing

amount of convolutional ﬁlters (Eq. 5). The colored Pareto-

fronts are described by the best values out of three evalua-

tion runs for each network variant.

3.2 Results and Analysis

All of our approaches are evaluated after the training

on the GPU and saved to frozen network model ﬁles.

These representations are then used to be deployed

on the three accelerator devices (Section 2.3) by con-

verting the models to the corresponding intermediate

representations of the hardware.

Authors of (Molchanov et al., 2015) propose a net-

work architecture for fusing multi-modal input data

for gesture classiﬁcation. We re-implemented their

architecture and evaluated it on our dataset and on the

NVIDIA Jetson Nano accelerator. Their model is de-

noted as 3DCNN in the comparisons. Whereas the

Sensor Fusion Neural Networks for Gesture Recognition on Low-power Edge Devices

147

Table 4: Comparative results of proposed GCN architectures. Inference times t are averaged over 50 forward passes. M

denotes the model sizes. Values are measured for input resolution S (32 × 32,32 × 32).

∗

due to unsupported operations.

‡

uint8-quantized values.

†

ﬂoat16-quantized values.

3DCNN from (Molchanov et al., 2015).

GPU EDGE

EDGETPU NCS NANO

MODEL M[MB] ACC PREC REC F1 t [ms] M[KB] t [ms] M[KB] t [ms] M[MB]

V I

0.67 96.9% 97.1% 96.9% 97.1% 21.1 169

‡

11.4 316

†

20.3 0.67

T F

0.97 97.9% 98.0% 97.9% 97.9% 38.7 250

‡

5.4 459

†

16.5 0.97

3DCNN

10.86 98.6% 98.4% 98.3% 98.3% N/A

∗

N/A

∗

N/A

∗

N/A

∗

27.4 8.0

proposed network architecture is implemented with-

out quantization of weights, we use a uint8-quantized

form of the graph for comparison on the CNN accel-

erator. The model requires 10.86 MB of space in full

precision.

Classiﬁcation Performance. Our four

approaches—F

T D

, F

V I

, and F

T F

show a

good classiﬁcation performance that is strongly

dependent on the architectural parameter b. With

the largest number of convolutional ﬁlters in our

tests (b = 32), the best accuracy is achieved by

the time-as-a-feature approach 97.9% with a full-

precision model size of M

T F

= 967 KB. Compared

to 3DCNN (Molchanov et al., 2015), our proposed

model F

T F

shows similar classiﬁcation performance:

The accuracy is −0.7%, the precision −0.4%, the

recall −0.4%, and the F1-score −0.4%.

Decreasing the number of ﬁlters b in the models

leads to lower classiﬁcation performance. As seen in

Fig. 7, the accuracy is directly correlated to b. The

largest drop of accuracy (77.9%–95.1%) is with the

model F

T D

, b ∈ {4,8, 16, 32}.

Another impressive architecture is F

T F

, where

92.3% accuracy is achieved with only 149 KB of full

precision network parameters. Compared to 3DCNN

, this is an improvement of 69 times in the relation

between accuracy and model size

Acc

Size

Edge Device Deployment. The main advantage of

our approach is the application-oriented design, that

allows the network to be deployed on multiple em-

bedded accelerators. This is due to the simple model

architecture that only relies on supported operations

such as 3D-convolutions (Tab. 3). As a consequence

of the slim model, fewer weights have to be learned

during training, stored and convolved during infer-

ence. The full precision model size of our largest pro-

posed approach is only M

T F

= 967 KB. The quanti-

zation further improves the applicability, because the

model size is now compressed to only 250 KB.

Table 5: Comparison of results based on the classiﬁcation

of multi-modal inputs and singular modality, all evaluated

for network model F

T F

RADAR TOF RADAR+TOF

ACC 68.8% 87.7% 97.9%

PREC 66.9% 96.3% 98.0%

RECALL 64.9% 90.4% 97.9%

F1-SCORE 54.4% 53.4% 97.9%

Ablation Study—Sensor Modalities. In order to

underline the importance of a multi-modal system, the

classiﬁcation performance is evaluated with two sin-

gle modality inputs and compared to the result of the

multi-modal input. (Tab. 5). Results show that the

classiﬁcation performance is signiﬁcantly improved,

when using the fused information of both sensors.

Discussion. The beneﬁt of the sensor fusion of ToF

and radar can be seen especially for the gesture

classes piano and rub. For small input sizes, the ToF

does not deliver much information, as the reduction

to 32 × 32 pixels blurs the depth image quality. In

contrast to that, the networks can rely on the micro

Doppler signature of the individual ﬁngers moving up

and down.

Counter-intuitively, the inference of the larger

model F

T F

on NCS and Jetson Nano is faster than

the execution of the small model F

V I

(Tab. 4). The

reason is assumed to be the faster execution of stan-

dard 3 × 3 convolutions, instead of the 1 × 3 ﬁlters in

the F

V I

4 CONCLUSION

In this work, a privacy-aware gesture recognition sys-

tem based on a radar and a ToF sensor is proposed.

Current gesture sensing solutions typically rely

on camera sensors that may violate privacy standards

(Wang et al., 2016) (Ceolini et al., 2019). Moreover,

many solutions tend to large model sizes that are in-

feasible to deploy on resource-constrained embedded

accelerators. A further restriction of the embedded

ICAART 2021 - 13th International Conference on Agents and Artiﬁcial Intelligence

148

hardware is the high number of unsupported opera-

tions that limit the applicability of many state-of-the-

art networks (Tab. 3).

Our solution employs a lightweight, two-stage al-

gorithm that ﬁrst transforms the spatio-temporal 4D

data of each sensor modality to a 3D tensor with ﬁxed

shape. The gesture, now in the form of 3D data, is

then classiﬁed by a GCN with one input branch for

each sensor modality. The gesture recognition net-

works are designed for the deployment on EdgeTPU,

NCS2, and Jetson Nano, avoiding unsupported oper-

ations, such as recurrent layers or 3D convolutions.

Our largest proposed network achieves equal clas-

siﬁcation performance as 3DCNN (Molchanov et al.,

2015) with only 8.9% of the model size. On the low-

end of the model sizes, we propose a gesture clas-

siﬁcation network that only uses 149 KB of mem-

ory while still performing robustly (92.3% accu-

racy). Thus, our network models can be deployed

on resource-constrained embedded accelerators in the

performance range of the Google EdgeTPU, Intel

NCS2 and NVIDIA Jetson Nano.

In the future, the system is planned to be further

optimized in order to be deployed on automotive mi-

crocontrollers such as Inﬁneon’s AURIX.

REFERENCES

Abavisani, M., Joze, H. R. V., and Patel, V. M. (2018). Im-

proving the performance of unimodal dynamic hand-

gesture recognition with multimodal training. CoRR,

abs/1812.06145.

Alom, M. Z., Taha, T. M., Yakopcic, C., Westberg, S.,

Hasan, M., Esesn, B. C. V., Awwal, A. A. S., and

Asari, V. K. (2018). The history began from alexnet:

A comprehensive survey on deep learning approaches.

CoRR, abs/1803.01164.

Ceolini, E., Taverni, G., Khacef, L., Payvand, M., and Do-

nati, E. (2019). Sensor fusion using emg and vision

for hand gesture classiﬁcation in mobile applications.

In 2019 IEEE Biomedical Circuits and Systems Con-

ference (BioCAS), pages 1–4. IEEE.

Chai, X., Liu, Z., Yin, F., Liu, Z., and Chen, X. (2016).

Two streams recurrent neural networks for large-scale

continuous gesture recognition. In 2016 23rd Inter-

national Conference on Pattern Recognition (ICPR),

pages 31–36.

Chen, Y., Chen, T., Xu, Z., Sun, N., and Temam, O.

(2016a). DianNao Family: Energy-Efﬁcient Hard-

ware Accelerators for Machine Learning. Commun.

ACM, 59(11):105–112.

Chen, Y.-H., Krishna, T., Emer, J., and Sze, V. (2016b). Ey-

eriss: An Energy-Efﬁcient Reconﬁgurable Accelera-

tor for Deep Convolutional Neural Networks. In IEEE

International Solid-State Circuits Conference, ISSCC

2016, Digest of Technical Papers, pages 262–263.

Concha, D. T., Maia, H. D. A., Pedrini, H., Tacon, H.,

Brito, A. D. S., Chaves, H. D. L., and Vieira, M. B.

(2018). Multi-stream convolutional neural networks

for action recognition in video sequences based on

adaptive visual rhythms. In 2018 17th IEEE Inter-

national Conference on Machine Learning and Appli-

cations (ICMLA), pages 473–480.

Donahue, J., Hendricks, L. A., Guadarrama, S., Rohrbach,

M., Venugopalan, S., Saenko, K., and Darrell, T.

(2014). Long-term recurrent convolutional net-

works for visual recognition and description. CoRR,

abs/1411.4389.

Feichtenhofer, C., Pinz, A., and Zisserman, A. (2016). Con-

volutional two-stream network fusion for video action

recognition. CoRR, abs/1604.06573.

Girshick, R. B., Donahue, J., Darrell, T., and Malik, J.

(2013). Rich feature hierarchies for accurate ob-

ject detection and semantic segmentation. CoRR,

abs/1311.2524.

Google (2020). Google EdgeTPU Documentation.

Hazra, S. and Santra, A. (2019). Radar gesture recognition

system in presence of interference using self-attention

neural network. In 2019 18th IEEE International

Conference On Machine Learning And Applications

(ICMLA), pages 1409–1414.

Intel (2020). Intel Neural Compute Stick 2 Documentation.

ukl

u, O., K

ose, N., and Rigoll, G. (2018). Motion fused

frames: Data level fusion strategy for hand gesture

recognition. CoRR, abs/1804.07187.

ukl

u, O., Gunduz, A., Kose, N., and Rigoll, G. (2020).

Online dynamic hand gesture recognition including

efﬁciency analysis. IEEE Transactions on Biometrics,

Behavior, and Identity Science, 2(2):85–97.

Krizhevsky, A., Sutskever, I., and Hinton, G. E. (2012).

Imagenet classiﬁcation with deep convolutional neu-

ral networks. In Pereira, F., Burges, C. J. C., Bottou,

L., and Weinberger, K. Q., editors, Advances in Neu-

ral Information Processing Systems 25, pages 1097–

1105. Curran Associates, Inc.

Molchanov, P., Gupta, S., Kim, K., and Pulli, K. (2015).

Multi-sensor system for driver’s hand-gesture recog-

nition.

Molchanov, P., Yang, X., Gupta, S., Kim, K., Tyree, S., and

Kautz, J. (2016). Online detection and classiﬁcation

of dynamic hand gestures with recurrent 3d convolu-

tional neural networks. pages 4207–4215.

Naguri, C. R. and Bunescu, R. C. (2017). Recognition

of dynamic hand gestures from 3d motion data using

lstm and cnn architectures. In 2017 16th IEEE Inter-

national Conference on Machine Learning and Appli-

cations (ICMLA), pages 1130–1133.

NVIDIA (2020). NVIDIA Jetson Nano Documentation.

Reuther, A., Michaleas, P., Jones, M., Gadepally, V., Samsi,

S., and Kepner, J. (2019). Survey and benchmark-

ing of machine learning accelerators. 2019 IEEE

High Performance Extreme Computing Conference

(HPEC).

Rockchip (2020). Rockchip Documentation.

Tran, D., Bourdev, L. D., Fergus, R., Torresani, L., and

Paluri, M. (2014). C3D: generic features for video

analysis. CoRR, abs/1412.0767.

Sensor Fusion Neural Networks for Gesture Recognition on Low-power Edge Devices

149

Wang, S., Song, J., Lien, J., Poupyrev, I., and Hilliges, O.

(2016). Interacting with soli: Exploring ﬁne-grained

dynamic gesture recognition in the radio-frequency

spectrum. In Proceedings of the 29th Annual Sym-

posium on User Interface Software and Technology,

pages 851–860. ACM.

Young, K., Regan, M., and Hammer, M. (2003). Driver dis-

traction: A review of the literature. Distracted Driv-

ing.

ICAART 2021 - 13th International Conference on Agents and Artiﬁcial Intelligence

150
