A Deep Learning Method to Impute Missing Values and Compress

Genome-wide Polymorphism Data in Rice

Tanzila Islam

1a

, Chyon Hae Kim

1b

, Hiroyoshi Iwata

2c

, Hiroyuki Shimono

3d

, Akio Kimura

1

,

Hein Zaw

4

, Chitra Raghavan

4

, Hei Leung

4

and Rakesh Kumar Singh

5e

1

Department of Systems Innovation Engineering, Graduate School of Science and Engineering, Iwate University,

Morioka, Iwate, Japan

2

Department of Agricultural and Environmental Biology, Graduate School of Agricultural and Life Sciences,

The University of Tokyo, Bunkyo, Tokyo, Japan

3

Crop Science Laboratory, Faculty of Agriculture, Iwate University, Morioka, Japan

4

International Rice Research Institute (IRRI), Laguna, Philippines

5

International Center for Biosaline Agriculture (ICBA), Dubai, U.A.E.

kimura@cis.iwate-u.ac.jp, heinzawagri@gmail.com, chitrarag2006@gmail.com, hleung1155@gmail.com,

r.singh@biosaline.org.ae

Keywords: Genome-wide DNA Polymorphisms, Stacked Autoencoder, Deep Neural Network, Separate Stacking Model,

Genome Compression, Missing Value Imputation.

Abstract: Missing value imputation and compressing genome-wide DNA polymorphism data are considered as a

challenging task in genomic data analysis. Missing data consists in the lack of information in a dataset that

directly influences data analysis performance. The aim is to develop a deep learning model named

Autoencoder Genome Imputation and Compression (AGIC) which can impute missing values and compress

genome-wide polymorphism data using a separated neural network model to reduce the computational time.

This research will challenge the construction of a model by using Autoencoder for genomic analysis, in other

words, a fusion research between agriculture and information sciences. Moreover, there is no knowledge of

missing value imputation and genome-wide polymorphism data compression using Separated Stacking

Autoencoder Model. The main contributions are: (1) missing value imputation of genome-wide

polymorphism data, (2) genome-wide polymorphism data compression of Rice DNA. To demonstrate the

usage of AGIC model, real genome-wide polymorphism data from a rice MAGIC population has been used.

1 INTRODUCTION

Missing value imputation and genome-wide

polymorphism data compression have an important

role in genomic data analysis. Reducing the

dimension of genome-wide polymorphisms data

minimizes the calculation time. The general purpose

of this study is to develop a Deep Learning model

called Autoencoder Genome Imputation and

Compression (AGIC) which has a function for

a

https://orcid.org/0000-0002-3203-4083

b

https://orcid.org/0000-0002-7360-4986

c

https://orcid.org/0000-0002-6747-7036

d

https://orcid.org/0000-0002-7328-0483

e

https://orcid.org/0000-0001-7463-3044

imputing missing values as well as compressing

genome-wide polymorphism data at a time.

Deep learning has emerged from machine

learning methods inspired by artificial neural

networks with hierarchical feature learning. It

enhances analysis accuracy, and data analysis can be

performed with higher accuracy than conventional

methods. Deep Learning architectures like deep

neural networks, belief networks, and recurrent

neural networks, and convolutional neural networks

have found applications in the field of computer

Islam, T., Kim, C., Iwata, H., Shimono, H., Kimura, A., Zaw, H., Raghavan, C., Leung, H. and Singh, R.

A Deep Learning Method to Impute Missing Values and Compress Genome-wide Polymorphism Data in Rice.

DOI: 10.5220/0010233901010109

In Proceedings of the 14th International Joint Conference on Biomedical Engineering Systems and Technologies (BIOSTEC 2021) - Volume 3: BIOINFORMATICS, pages 101-109

ISBN: 978-989-758-490-9

Copyright

c

ξ 2021 by SCITEPRESS β Science and Technology Publications, Lda. All rights reserved

101

vision, audio or speech recognition, machine

translation, social network filtering, bioinformatics

(Li et al., 2019) and other diverse fields. Recently it

has been introduced in the field of agriculture

(Kamilaris & Prenafeta-BoldΓΊ, 2018). Deep Learning

provides many advanced methods, one of which is

autoencoder. An auto-encoder (Gulli & Pal, 2017) is

a type of neural network that can learn a compressed

and distributed representation (i.e. encoding) of the

input data, thus it can be used for dimensionality

reduction.

The main contributions of this paper are:

1. To develop a new method for imputing

missing values with an autoencoder based

on the Deep Neural Network. This method

demonstrates that by using an autoencoder,

it is possible to achieve accurate imputation

of missing values in genome-wide

polymorphism data.

2. To develop a genome compression method

by using Separated Stacking Autoencoder.

This compression method is scalable for a

large number of genome-wide

polymorphisms, and beneficial for saving

storage as well as computational time.

The remainder of this paper is structured as

follows: In Section 2, a review of some literatures of

missing value imputation and genome-wide

polymorphism data compression in the domain of

bioinformatics is discussed. Section 3 introduces the

pipeline of missing value imputation and genome

compression method AGIC. The pipeline of AGIC

method includes the pre-processing of genome-wide

polymorphism data, the autoencoder training for

missing value imputation as well as genome-wide

polymorphism data compression. Section 4 evaluates

the result by comparing the performance of existing

methods and AGIC, and finally conclusion is drawn

in Section 5.

2 LITERATURE REVIEW

It is a challenging task to compress genome-wide

polymorphism data (Grumbach & Tahi, 1994) and

impute missing values in the data effectively

(Troyanskaya et al., 2001). Since the last decade,

researchers have been exploring various approaches

to compress genome-wide polymorphism data (Wang

et al., 2018) and impute missing values (Gad,

Hosahalli, Manjunatha, & Ghoneim, 2020; Rana,

John, & Midi, 2012).

There have been many studies addressing the

traditional genotype imputation methods which are

typically based on haplotype-clustering algorithms

(Scheet & Stephens, 2006) and hidden Markov

models (Marchini, Howie, Myers, McVean, &

Donnelly, 2007). BEAGLE is another imputation tool

based on a graphical model of a set of haplotypes

(Browning & Browning, 2009; Browning, Zhou, &

Browning, 2018). It works iteratively by fitting the

model to the current set of estimated haplotypes. Then

resampling of new estimated haplotypes for each

individual is conducted based on a fitted model. The

probabilities of missing genotypes are calculated

from the fitted model at the final iteration. Recently,

deep learning based methods, especially

autoencoders have shown great potential to impute

missing values (Beaulieu-Jones & Moore, 2017;

Duan, Lv, Liu, & Wang, 2016); for example Abdella

and Marwala proposed a method to approximate

missing data by using an autoencoder and genetic

algorithm (Abdella & Marwala, 2005).

In 2018, Lina proposed a Denoising Autoencoder

with Partial Loss (DAPL) method to predict missing

values in pan-cancer genomic analysis (Qiu, Zheng,

& Gavaert, 2018). They showed that the DAPL

method achieves better performance with less

computational burden over traditional imputation

methods.

In 2019, Chen and Shi proposed a deep model

called a Sparse Convolutional Denoising

Autoencoder (SCDA) to impute missing values of

human and yeast genotype data respectively (Chen &

Shi, 2019). This SCDA model achieves significant

imputation accuracy compared with popular

reference-free imputation methods.

In 2020, Lina proposed a deep learning

imputation framework for transcriptome and

methylome data using a Variational AutoEncoders

(VAE) and showed that it can be a preferable

alternative to traditional methods for data imputation,

especially in the setting of large-scale data and certain

missing-not-at-random scenarios (Qiu, Zheng, &

Gevaert, 2020).

On the other hand, there have been many research

addressing genome compression based on neural

networks. In 2006, Hinton and Salakhutdinov

proposed a method based on neural networks by using

a Restricted Boltzmann Machine (RBM) to reduce the

binary stochastic information and dimensions of the

data (Hinton & Salakhutdinov, 2006). In 2016, Sento

introduced a method for image compression using an

autoencoder (Sento, 2016). The accuracy of this

method is high, and results showed that Deep Neural

Network (DNN) could be efficient for image

compression purposes.

BIOINFORMATICS 2021 - 12th International Conference on Bioinformatics Models, Methods and Algorithms

102

In 2019, Wang and Zang proposed DeepDNA to

compress human mitochondrial genome data using

machine learning techniques. The method has a good

compression result in the population genome with

large redundancy, and in the single genome with

small redundancy (Wang, Zang, & Wang, 2019).

As a recent paper, Absardi and Javidan introduced

a fast reference free genome compression using

Autoencoder to reduce the compression time and to

keep the compression ratio on an acceptable level

(Absardi & Javidan, 2019).

Above mentioned works have discussed either

missing value imputation, or genome-wide

polymorphism data compression individually. There

is no study has been done to impute missing values

and compress genome-wide polymorphisms data at a

time using a separated network. Hence in this study,

a deep learning method Autoencoder Genome

Imputation and Compression (AGIC) has been

introduced which can impute missing values and

compress genome-wide polymorphism data at a time

using a separated stacked autoencoder.

3 METHODS

A deep learning method AGIC comprises a few steps

which are shown in Figure 1. In the first step, the

genome-wide polymorphism data (genotype data) has

been read. Therefore, the genotype data has been pre-

processed by imputing missing values and then

converted into one hot encode. After processing the

categorical values through one hot encoding, an input

data splitting technique has been performed to reduce

the calculation time. Then, an autoencoder model has

been trained by taking each split portion of data as an

input. By training the autoencoder, the compression

and decompression have been done with encoder and

decoder, respectively. Finally, the model has been

evaluated by calculating the compression loss,

compression time and accuracy of imputing missing

values.

All experiments in this study have been conducted

on a PC with an Intel(R) Core(TM) i9-9900K, 3.60

GHz CPU, 32 GB RAM and 64 bit Windows 10

operating system.

3.1 Dataset

The genotype data used in this study was obtained

from a multiparent advanced generation intercross

(MAGIC) population derived from eight indica rice

varieties (Fedearroz 50, Shan-Huang Zhang-2,

IRRI123, IR77186-122-2-2-3, IR77298-14-1-2-10,

IR4630-22-2-5-1-3, IR45427-2B-2-2B-1-1, Sambha

Mahsuri + Sub1). The dataset comprises genotypes of

genome-wide polymorphisms of 1,316 lines for

27,041 SNPs in an excel file. This dataset contains 12

chromosomes and 4 bases of Rice DNA A (Adenine),

C (Cytosine), G (Guanine) and T (Thymine).

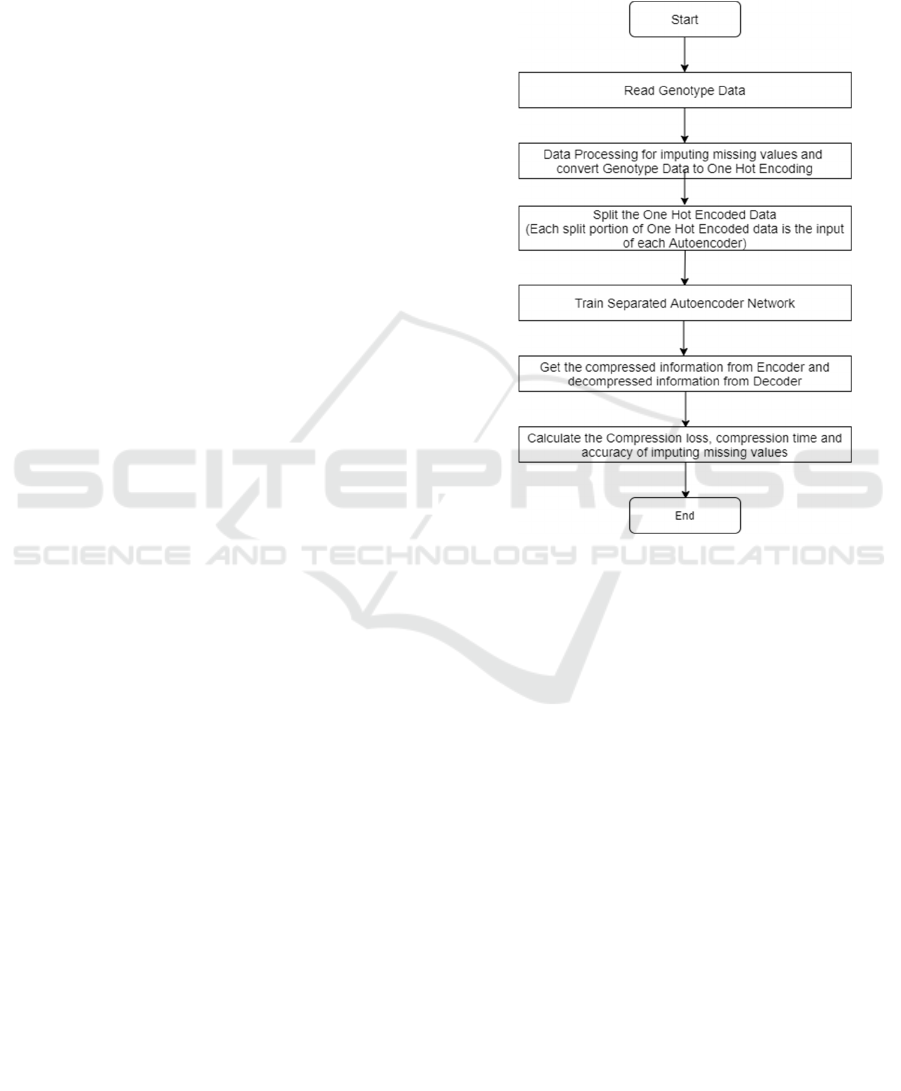

Figure 1: The flowchart of Autoencoder Genome

Imputation and Compression (AGIC).

3.2 Data Pre-processing

Data preprocessing plays an important role in

machine learning and deep learning algorithms, and

proper preprocessing of the data is compulsory for

achieving better performance. Machine learning and

deep learning models, like those in Keras, require all

input and output variables to be numeric. This means

that if the data contains categorical data, it is

mandatory to encode it to numbers before fitting and

evaluating a model. Therefore, a pre-processing

method is required to represent the categorical values

into numerical values. Pre-processing has been done

by applying the following steps:

3.2.1 One Hot Encoding

One hot encoding has been used to represent the

categorical values into numerical values. In this

strategy, each category value is converted into a new

column and assigned a 1 or 0 (notation for true/false)

A Deep Learning Method to Impute Missing Values and Compress Genome-wide Polymorphism Data in Rice

103

value to the column. The genotype data contains

categorical values such as A (Adenine), C (Cytosine),

G (Guanine) and T (Thymine).

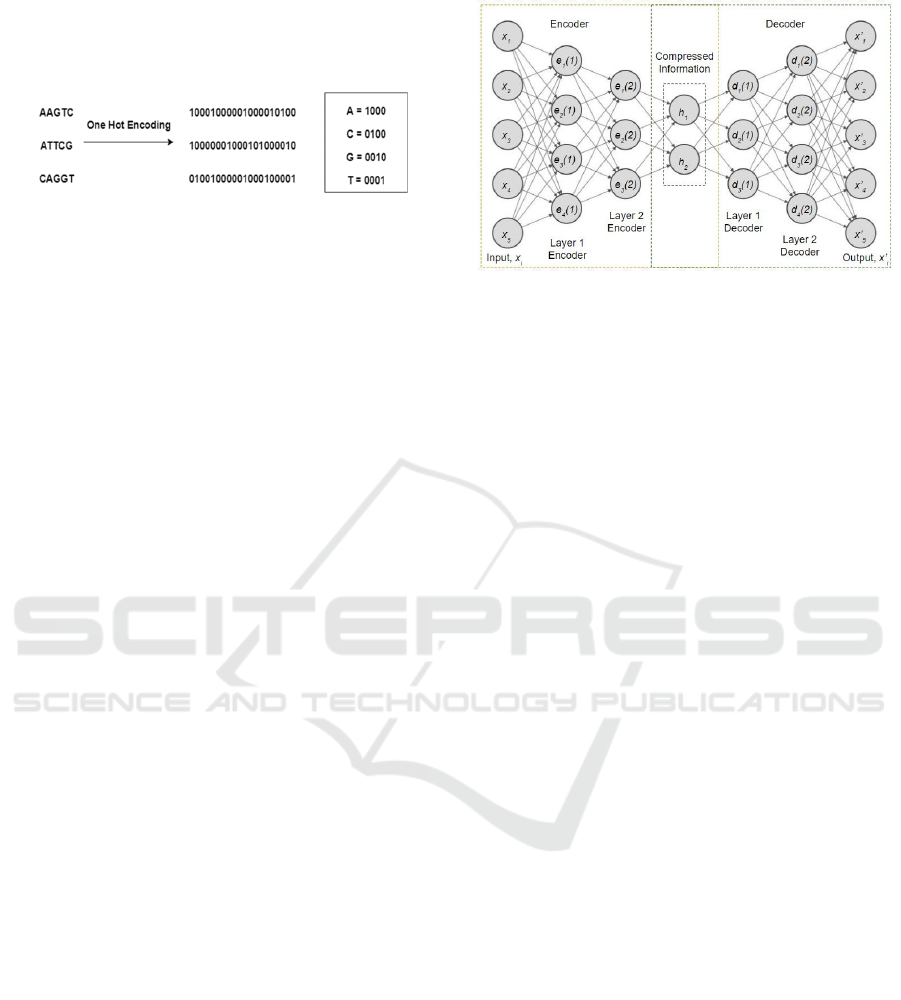

Figure 2: Data Pre-processing (One Hot Encoding).

The datasets may have missing values, this can

cause problems while training a model. In Python,

One Hot Encoding can be done using sci-kit learn

library approach or using dummies values approach.

In this study, a dummy values approach has been used

for one hot encoding. All genomes are encoded into

one hot encoding by a 4-bit coding scheme: βAβ, βCβ,

βGβ and βTβ are encoded by β1000β, β0100β, β0010β

and β0001β, respectively. Figure 2 shows an example

of one hot encoding which has applied some

sequences of genotypes.

3.2.2 Splitting Input Data

After processing the raw data (1316 x 27041) through

One Hot Encoding, the encoded data is transformed

into a Python NumPy array. Now the shape of data

has become (1316 x 108164). As the shape of input

data is large, the input data splitting technique has

been applied to reduce the computational time at a

time. By considering 3863 to be the number of splits,

numpy hsplit has been used to split the one hot encode

array horizontally (axis =1 i.e. 108164). Each split

contains (1316 x 28) of data i.e. an input layer with

28 neurons in each network. The next sections are

devoted to explaining the autoencoder training by

considering the splitted input data.

3.3 Autoencoder Training

In this study a deep autoencoder has been used, which

is composed of two symmetrical deep-belief

networks that typically have three or four shallow

layers representing the encoding half of the network,

and a second set of three or four layers represents the

decoding half. Figure 3 shows the basic structure of

Deep Autoencoder.

Figure 3: Basic structure of Deep Autoencoder.

Given a set of training samples οΌπ₯

ξ¬΅

,π₯

ξ¬Ά

,π₯

ξ¬·

,...ο½,

where π₯

ξ―

β π

ξ―

, an autoencoder first encodes an input

π₯

ξ―

to a hidden representation βοΊπ₯

ξ―

ο» based on (1), and

then it decodes representation βοΊπ₯

ξ―

ο»back into a

reconstruction π₯β²οΊπ₯

ξ―

ο» computed as in (2), as shown in:

βοΊπ₯ο» ξ΅

π

οΊππ₯ ξ΅
πο»

(1)

π₯β²οΊπ₯ο» ξ΅ ποΊπβ²βοΊπ₯ο» ξ΅
πο»

(2)

where π is an activation function, π is a weight

matrix, π is an encoding bias vector, π is a decoding

activation function, πβ² is a decoding matrix, and π is

a decoding bias vector.

The activation function of each layer except the

decoder layer is βReLUβ which stated in (3):

π

οΊπ₯ο» ξ΅ πππ₯οΊπ₯, 0ο»

(3)

The activation function of the decoder layer is

βsigmoidβ which is shown in (4):

ποΊπ₯ο» ξ΅ 1/οΊ1 ξ΅
π

ξ―«

ο»

(4)

The model has been implemented using Keras

Functional API, built on top of Tensorflow. The deep

structure of a network includes 9 layers. There are 2

layers in both the encoder and decoder without

considering the input and output. The number of

nodes per layer decreases with each subsequent layer

of the encoder and increases back in the decoder.

Also, the decoder is symmetric to the encoder in

terms of layer structure.

BIOINFORMATICS 2021 - 12th International Conference on Bioinformatics Models, Methods and Algorithms

104

Figure 4: Signal flow graph of an autoencoder network built

on a Keras framework with the input and output dimension.

In Figure 4, the input layer of a network has 28

nodes, the first hidden layer has 14 nodes, the second

hidden layer has 7 nodes, and the code size is 3.

Figure 5: Training and Validation Loss of Deep

Autoencoder.

The model has been trained using an Adam

optimizer with the objective of minimizing the mean

squared error (MSE). 20 percent data has been used

to validate the experiment. Figure 5 shows the

training and validation loss of Deep Autoencoder.

4 RESULTS

4.1 Missing Value Imputation

The presence of missing values is a frequent problem

in the analysis of genome-wide polymorphism data.

In the original dataset, there was no missing value.

We simulated a range of missing proportions at 5%,

10%, 15% and 20% of the original data. The imputed

genotypes and true genotypes of the simulated

missing entries have been compared to find the

accuracy of missing value imputation. Four

approaches have been compared to validate the

imputation accuracy.

a.

Imputing Missing Values by AGIC (Replacing 0):

The missing value βNβ has been replaced by 0, while

converting the genome-wide polymorphisms to one

hot encodes. After training the autoencoder model,

the decoded genotypes were compared with true

genotypes of the simulated missing entries based on

their one hot encodes to calculate the accuracy of the

imputation.

Figure 6: The accuracy of imputing missing values by

AGIC (Replacing 0).

Figure 6 illustrates the accuracy of imputing

missing values by AGIC (Replacing 0). The accuracy

of imputation at the 5%, 10%, 15% and 20% missing

proportions are 94.15%, 88.37%, 81.00% and

72.04%, respectively.

b.

Imputing Missing Values by Simple Imputer (SI):

A simple statistical approach has been used to impute

missing values. In this approach, the missing value

has been replaced by the most frequent value at the

polymorphism and then converted the replaced value

into a one hot encode.

Figure 7: The accuracy of imputing missing values by

Simple Imputer (SI).

A Deep Learning Method to Impute Missing Values and Compress Genome-wide Polymorphism Data in Rice

105

The accuracy has been calculated before training

the network. Figure 7 shows the accuracy of imputing

missing values by Simple Imputer (SI). The accuracy

of imputation at the 5%, 10%, 15% and 20% missing

proportions are 92.48%, 86.17%, 80.85% and

76.44%, respectively.

c.

Imputing Missing Values by SI_AGIC:

The

autoencoder model has been trained by taking simple

imputed values as an input. After training the

autoencoder model, the decoded genotypes were

compared with true genotypes of the simulated

missing entries based on their one hot encode to

calculate the accuracy of the imputation.

Figure 8: The accuracy of imputing missing values by

SI_AGIC.

Figure 8 shows the accuracy of imputing missing

values by SI_AGIC. The accuracy of imputation at

the 5%, 10%, 15% and 20% missing proportions are

95.97%, 93.25%, 89.89% and 86.39%, respectively.

In this approach, the accuracy was better than the

other two approaches.

d.

Imputing Missing Values by BEAGLE:

A

common imputation method using BEAGLE, which

is a familiar program in genomic data analysis, was

applied. In this method, the missing genome data

were imputed by using BEAGLE 5.1 (Browning et

al., 2018).

Figure 9: The accuracy of imputing missing values by

BEAGLE.

Figure 9 shows the accuracy of imputing missing

values by BEAGLE. The accuracy of imputation at

the 5%, 10%, 15% and 20% missing proportions are

99.91%, 99.80%, 99.69% and 98.40%, respectively.

Table 1 shows the summary of missing

proportions and the accuracies of imputation

methods.

Table 1: Summary of Missing Proportions and the

Accuracies of Imputation Methods.

Methods Accuracy

5% 10% 15% 20%

AGIC (Replacing 0) 94.15 88.37 81.00 72.04

SI 92.48 86.17 80.85 76.44

SI

_

AGIC 95.97 93.25 89.89 86.39

BEAGLE 99.91 99.80 99.69 98.40

Although the accuracy of BEAGLE method was

higher than AGIC method, BEAGLE does not

provide any function for compression of genome-

wide polymorphism data. AGIC method enables

compress genome-wide polymorphism data and

impute missing values in the data at the same time.

4.2 Genome Compression

The requirement of data compression is the

dimensionality of the input and output needs to be the

same. The number of nodes in the middle layer is a

hyperparameter that gives the compressed

information. The signal flow graph of Gene Data

Compression with the input and output dimensions is

shown in Figure 10. A separate stacked autoencoder

has been used as a learning algorithm. The primary

reason to use a separate stacked autoencoder is to

reduce the computational time of the network.

4.2.1 Performance Evaluation

Since each autoencoder consists of an input layer, a

hidden layer, and an output layer, when implementing

the stacking process of the stacked autoencoder, the

input samples are sent to the input layer of the first

layer autoencoder first, and then these data in the

input layer are mapped to the hidden layer. Next, the

hidden layer data are mapped to the output layer.

BIOINFORMATICS 2021 - 12th International Conference on Bioinformatics Models, Methods and Algorithms

106

Figure 10: Signal Flow Graph of Gene Data Compression.

After that, the value of the output layer and the

value of the input layer are used to calculate the

reconstruction error. The reconstruction error was

calculated as the mean squared error (MSE) function

shown in formula (5).

πππΈοΊπ₯, π₯β²ο» ξ΅ ||π₯ ξ΅ π₯β²||

ξ¬Ά

(5)

The MSE loss for compressing rice genome-wide

polymorphism data is 0.0078. The test time for

compressing genome data is 2244.89 sec.

4.2.2 Comparison with Other Compression

Methods

AGIC method was compared to one of a reference

free compression method which also used an

autoencoder to compress genome expressions of

Koref Dataset. (Absardi & Javidan, 2019).

The result of compressing Koref dataset by

considering AGIC method and Fast RefeTrence Free

method is presented below. In the Fast Reference Free

method, the input layer οΊπ₯ο» of a network has 15

neurons and the encoder layer οΊβο» has 3 neurons. The

Fast Reference Free model has been trained by

considering binary cross-entropy loss function. On

the other hand, in AGIC method, the input layer οΊπ₯ο»

of a network has 28 neurons and the encoder layer οΊβο»

has 3 neurons. The loss has been calculated by using

mean squared error (MSE) in AGIC method. The

compression ratio was calculated as in formula (6).

πΆππππππ π πππ π
ππ‘ππ ξ΅ π₯/β

(6)

Each training has been performed within 50

epochs considering an Adam optimizer. The

compression ratio, testing time and loss of Fast

Reference Free Method has been compared with

AGIC method in Table 2.

Table 2: Comparison of Fast Reference Free Method and

AGIC method by considering Koref Dataset.

Ratio Time Loss

Fast Reference Free

Metho

d

5 42.62 sec 0.2101

AGIC 9 8403.32 sec 0.2107

Though the compression time of AGIC is higher

than the Fast Reference Free method, the Fast

Reference Free method is not scalable to a large

number of genes. Because the calculation cost of Fast

Reference Free network will increase squared order

against the size of polymorphisms (sequences). On

the other hand, AGIC method is scalable for a large

number of genes, as a separated stacking network has

been considered. So, the calculation cost of AGIC

method will increase with linear order.

A Deep Learning Method to Impute Missing Values and Compress Genome-wide Polymorphism Data in Rice

107

5 CONCLUSIONS

In summary, a novel deep learning model AGIC as a

new paradigm was introduced to impute missing

values and compress genome expressions. The results

showed that AGIC model can achieve up to 96%

accuracy to impute missing values.

Moreover, this learning method is scalable for the

data of the large number of genome-wide

polymorphisms. A separate stacking model has been

implemented to minimize the calculation cost of the

network. The calculation cost of the network in AGIC

method increases with linear order, whereas

calculation costs of other popular methods increases

rapidly if the number of genome-wide

polymorphisms increases. AGIC model provides a

strong alternative to traditional methods for imputing

missing values and compressing genome expressions

at a time.

ACKNOWLEDGEMENTS

This research has been partially supported by the

JSPS KAKENHI (Grants-in-Aid for Scientific

Research) JP19H00938.

REFERENCES

Abdella, M., & Marwala, T. (2005). The use of genetic

algorithms and neural networks to approximate missing

data in database. IEEE 3rd International Conference on

Computational Cybernetics, 2005. ICCC 2005. (pp.

207β212). Presented at the IEEE 3rd International

Conference on Computational Cybernetics, 2005.

ICCC 2005., IEEE.

Absardi, Z. N., & Javidan, R. (2019). A Fast Reference-

Free Genome Compression Using Deep Neural

Networks. 2019 Big Data, Knowledge and Control

Systems Engineering (BdKCSE) (pp. 1β7). Presented at

the 2019 Big Data, Knowledge and Control Systems

Engineering (BdKCSE), IEEE.

Beaulieu-Jones, B. K., & Moore, J. H. (2017). Missing data

imputation in the electronic health record using deeply

learned autoencoders. Pacific Symposium on

Biocomputing, 22, 207β218.

Browning, B. L., & Browning, S. R. (2009). A unified

approach to genotype imputation and haplotype-phase

inference for large data sets of trios and unrelated

individuals. American Journal of Human Genetics,

84(2), 210β223.

Browning, B. L., Zhou, Y., & Browning, S. R. (2018). A

One-Penny Imputed Genome from Next-Generation

Reference Panels. American Journal of Human

Genetics, 103(3), 338β348.

Chen, J., & Shi, X. (2019). Sparse convolutional denoising

autoencoders for genotype imputation. Genes, 10(9).

Duan, Y., Lv, Y., Liu, Y.-L., & Wang, F.-Y. (2016). An

efficient realization of deep learning for traffic data

imputation. Transportation Research Part C: Emerging

Technologies, 72, 168β181.

Gad, I., Hosahalli, D., Manjunatha, B. R., & Ghoneim, O.

A. (2020). A robust deep learning model for missing

value imputation in big NCDC dataset. Iran Journal of

Computer Science.

Grumbach, S., & Tahi, F. (1994). A new challenge for

compression algorithms: Genetic sequences.

Information Processing & Management, 30(6), 875β

886.

Gulli, A., & Pal, S. (2017). Deep Learning with Keras (p.

318). Packt Publishing Ltd.

Hinton, G. E., & Salakhutdinov, R. R. (2006). Reducing the

dimensionality of data with neural networks. Science,

313(5786), 504β507.

Kamilaris, A., & Prenafeta-BoldΓΊ, F. X. (2018). Deep

learning in agriculture: A survey. Computers and

Electronics in Agriculture, 147, 70β90.

Li, Y., Huang, C., Ding, L., Li, Z., Pan, Y., & Gao, X.

(2019). Deep learning in bioinformatics: Introduction,

application, and perspective in the big data era.

Methods, 166, 4β21.

Marchini, J., Howie, B., Myers, S., McVean, G., &

Donnelly, P. (2007). A new multipoint method for

genome-wide association studies by imputation of

genotypes. Nature Genetics,

39(7), 906β913.

Qiu, Y. L., Zheng, H., & Gavaert, O. (2018). A deep

learning framework for imputing missing values in

genomic data. BioRxiv.

Qiu, Y. L., Zheng, H., & Gevaert, O. (2020). Genomic data

imputation with variational auto-encoders.

GigaScience, 9(8).

Rana, S., John, A. H., & Midi, H. (2012). Robust regression

imputation for analyzing missing data. 2012

International Conference on Statistics in Science,

Business and Engineering (ICSSBE) (pp. 1β4).

Presented at the 2012 International Conference on

Statistics in Science, Business and Engineering

(ICSSBE2012), IEEE.

Scheet, P., & Stephens, M. (2006). A fast and flexible

statistical model for large-scale population genotype

data: applications to inferring missing genotypes and

haplotypic phase. American Journal of Human

Genetics, 78(4), 629β644.

Sento, A. (2016). Image compression with auto-encoder

algorithm using deep neural network (DNN). 2016

Management and Innovation Technology International

Conference (MITicon) (p. MIT-99-MIT-103).

Presented at the 2016 Management and Innovation

Technology International Conference (MITicon),

IEEE.

Troyanskaya, O., Cantor, M., Sherlock, G., Brown, P.,

Hastie, T., Tibshirani, R., Botstein, D., et al. (2001).

Missing value estimation methods for DNA

microarrays. Bioinformatics, 17(6), 520β525.

BIOINFORMATICS 2021 - 12th International Conference on Bioinformatics Models, Methods and Algorithms

108

Wang, R., Bai, Y., Chu, Y.-S., Wang, Z., Wang, Y., Sun,

M., Li, J., et al. (2018). DeepDNA: a hybrid

convolutional and recurrent neural network for

compressing human mitochondrial genomes. 2018

IEEE International Conference on Bioinformatics and

Biomedicine (BIBM) (pp. 270β274). Presented at the

2018 IEEE International Conference on Bioinformatics

and Biomedicine (BIBM), IEEE.

Wang, R., Zang, T., & Wang, Y. (2019). Human

mitochondrial genome compression using machine

learning techniques. Human genomics, 13(Suppl 1),

49.International Conference (MITicon) (p. MIT-99-

MIT-103). Presented at the 2016 Management and

Innovation Technology International Conference

(MITicon), IEEE.

Troyanskaya, O., Cantor, M., Sherlock, G., Brown, P.,

Hastie, T., Tibshirani, R., Botstein, D., et al. (2001).

Missing value estimation methods for DNA

microarrays. Bioinformatics, 17(6), 520β525.

Wang, R., Bai, Y., Chu, Y.-S., Wang, Z., Wang, Y., Sun,

M., Li, J., et al. (2018). DeepDNA: a hybrid

convolutional and recurrent neural network for

compressing human mitochondrial genomes. 2018

IEEE International Conference on Bioinformatics and

Biomedicine (BIBM) (pp. 270β274). Presented at the

2018 IEEE International Conference on Bioinformatics

and Biomedicine (BIBM), IEEE.

Wang, R., Zang, T., & Wang, Y. (2019). Human

mitochondrial genome compression using machine

learning techniques. Human genomics, 13(Suppl 1), 49.

A Deep Learning Method to Impute Missing Values and Compress Genome-wide Polymorphism Data in Rice

109
