Ontology-based Cybersecurity and Resilience Framework

Helmar Hutschenreuter, Salva Daneshgadeh C¸ akmakc¸ı, Christian Maeder and Thomas Kemmerich

University of Bremen, Germany

Keywords:

Resilience Framework, Security Ontology, Maritime Port Cybersecurity, Ontology-based Response and

Recovery, SIEM, Inference System.

Abstract:

In the digital age, almost all organizations have become dependent on Information Technology (IT) systems

at different levels of their individual and collective activities. Physical infrastructures are inextricably tied to

the functioning of IT systems that are vulnerable to internal and external cyber threats. Attacks can cause

unavailability or malfunction of systems which in turn prevent or mislead ongoing business processes in or-

ganizations. Today, organizations not only require cybersecurity programs to protect themselves against cyber

threats but also need a resilience strategy to guarantee business continuity even during cyber incidents. This

paper includes the results of ongoing research for securing maritime port ecosystems and making them cyber

resilient. We propose a framework based on ontologies and logical inference to meet requirements of resilient

IT systems regarding response to and recovery from cyber incidents.

1 INTRODUCTION

Hosseini et al. (2016) associate the term resilience to

those of robustness, fault-tolerance, ﬂexibility, surviv-

ability and agility. In this paper, we consider a system

to be resilient, if it is able to operate during and to

continue normally after an adverse event. Edwards

(2009) depicts a resilience cycle in Figure 1 with ﬁve

phases: Prepare, Prevent, Protect, Respond, and Recover.

Cyber resilience deﬁnes the ability of an enterprise to

effectively prepare against, prevent, detect, respond

to, and recover from cyber incidents. If an enterprise

is at least partially able to continue its business opera-

tions during a cyber incident, it will be called a cyber

resilient enterprise.

The Prepare phase deals with the preparation

against cyber attacks by designing and setting up vul-

nerability warning systems. The Prevent phase aims

to implement measures for identiﬁed vulnerabilities

to prevent cyber attacks as much as possible. As it is

too good to be true to prevent all potential cyber at-

tacks, some techniques are required to detect success-

ful attacks. Threat detection is a very interesting sub-

ject of research in the area of cybersecurity and every

year many new commercial products and academic

papers are presented in the ﬁeld. However, there is no

product or framework that can guarantee the detec-

tion of all cyber incidents including zero-day attacks.

The Respond phase deals with fast and effective emer-

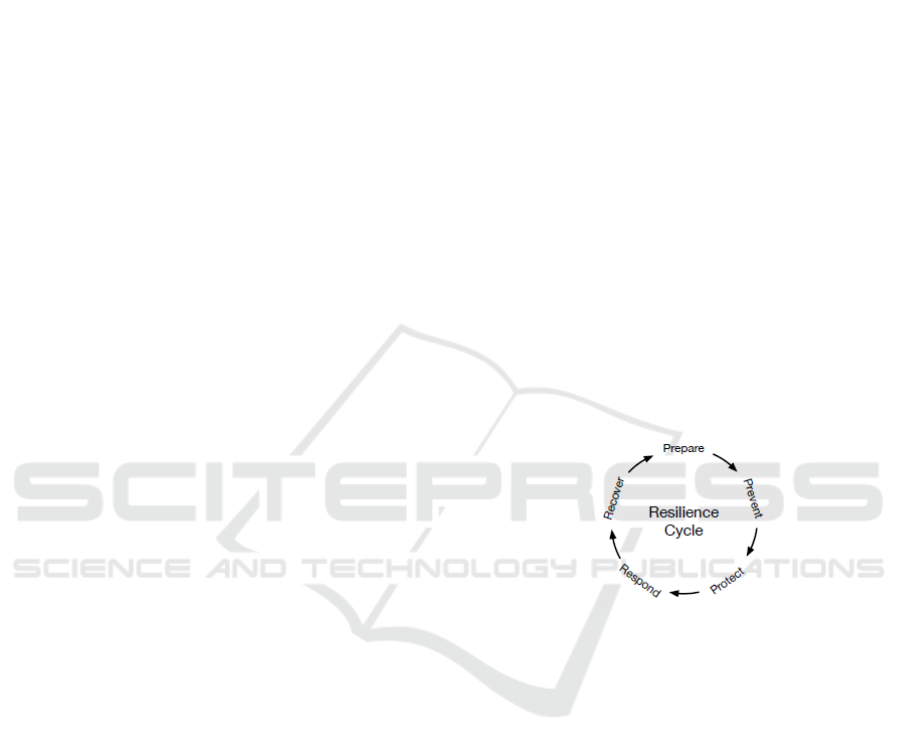

Figure 1: Resilience Cycle.

gency measures after an incident has been detected.

These measures should compensate for damages done

and take precautions to avoid further damages. The

Respond phase aims to ensure the survival of the sys-

tem. The Recover phase is the ultimate resilience goal

of resetting the system into its original state or even

into a better state in that lessons learned from past

incidents are documented and contribute to future re-

silience.

1.1 The Port Ecosystem

The maritime industry plays a major role in supplying

consumers with overseas goods including raw mate-

rials such as energy, iron, and products in local re-

tailers and supermarkets. In general, the shipping in-

dustry is responsible for 90% of trades in the world

(ICS, 2020). The maritime supply chain is very de-

pendent on port ecosystems with different stakehold-

ers such as port operators, terminals, port authori-

458

Hutschenreuter, H., Çakmakçı, S., Maeder, C. and Kemmerich, T.

Ontology-based Cybersecurity and Resilience Framework.

DOI: 10.5220/0010233604580466

In Proceedings of the 7th International Conference on Information Systems Security and Privacy (ICISSP 2021), pages 458-466

ISBN: 978-989-758-491-6

ties, navigation companies, shipping lines, and car-

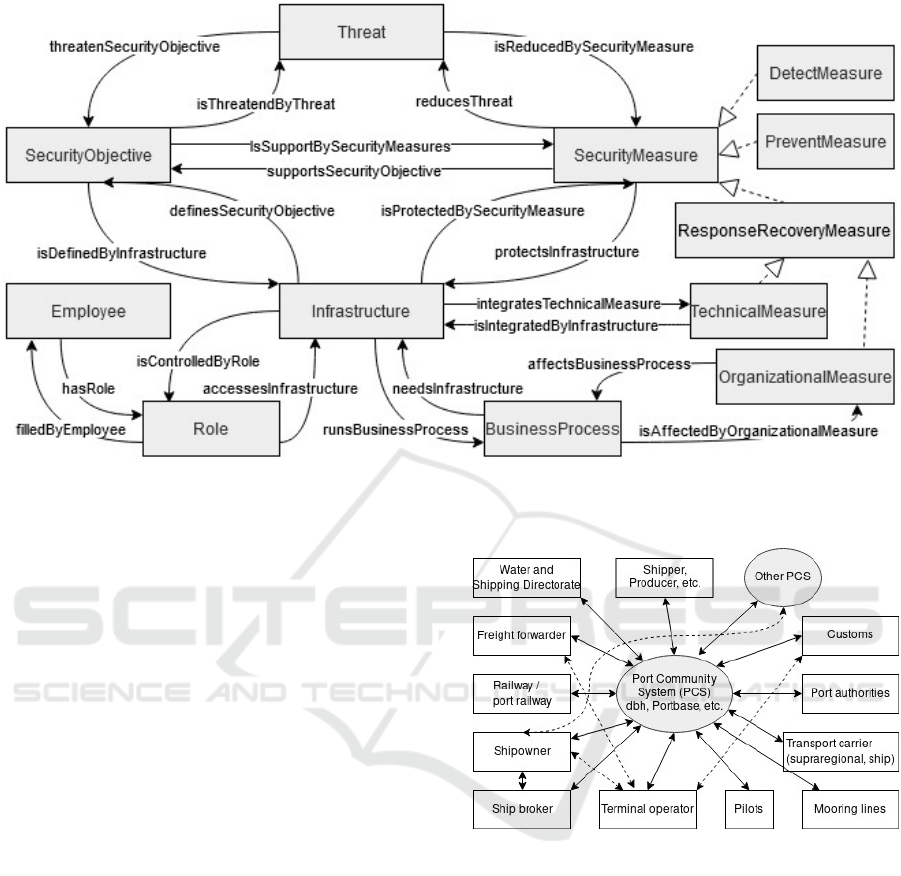

rier organizations (cf. Figure 6). Stakeholders of the

port ecosystem continue to adapt more Information

Technology (IT) and Operational Technology (OT)

systems to gain competitive advantages in the global

maritime industry.

As the number of digital components like IT, OT,

Internet of Things (IoT), and Bring Your Own Device

(BYOD) is increasing, the port ecosystem becomes

more vulnerable to cyber incidents and less cyber re-

silient. Unfortunately, the port ecosystem is still lag-

ging behind in cybersecurity. Most of the port sys-

tems are not supported by state-of-the-art security so-

lutions. Lack of effective maritime security regulation

(Hopcraft and Martin, 2018), the conservative nature

of the maritime industry, and lack of awareness can be

seen as major challenges for establishing resilience.

Surprisingly, there is a very limited number of aca-

demic studies in the ﬁeld of cyber resilience in port

systems.

1.2 Ontologies

In Computer Science an ontology is a formal descrip-

tion of concepts and relationships for an application

domain of the real word (Staab and Studer, 2009).

Computational ontologies are a means to formally

model the structure of a system which are useful to

our purposes. A central aspect is sharing of infor-

mation and knowledge using a common vocabulary

as supported by the Resource Description Framework

(RDF). A family of ontology languages are Descrip-

tion Logics (DL) based on a well-understood subset

of ﬁrst-order predicate logics. The quest for expres-

sive knowledge bases led to the development of the

Web Ontology Language (OWL) as the current rep-

resentation language of choice. The basic building

blocks of OWL are concepts, roles, and individuals.

Individuals present instances of concepts and roles re-

late them to each other. For classiﬁcation purposes

concepts are often hierarchically related to each other

to form a taxonomy. So there may be super- and

subconcepts, i.e. generalization and specialization of

concepts. There are two ﬂavors of relationships be-

tween instances of concepts that can be expressed via

OWL: abstract and concrete roles. Abstract roles con-

nect individuals and are also known as object proper-

ties. Concrete roles or data properties connect indi-

viduals with values of primitive data types (Pinkston

et al., 2003). In DL and their semantics, the terms

ABox and TBox are used to describe two different

types of statements. TBoxes contain so-called ter-

minological schema knowledge and ABoxes asser-

tional instance knowledge (Hitzler et al., 2008). OWL

does not provide a clear separation between TBoxes

and ABoxes (Brockmans et al., 2004). Nevertheless,

when describing OWL ontologies, it is helpful to in-

troduce a separation between TBoxes and ABoxes

which is based on intuitive criteria rather than being

strictly formal. In OWL a TBox mainly describes

static knowledge whereas an ABox is used for dy-

namic and frequently changing knowledge. There-

fore, a TBox often infers, tracks or veriﬁes class mem-

berships while an ABox checks consistencies, facts,

instances or operations in a rule-based manner.

1.3 Our Contribution

In this study, we present a novel resilience framework

by combining a Security Information and Event Man-

agement Systems (SIEM) for detecting cyber attacks

with ontologies and an inference system for support-

ing the selection of measures during cyber incidents

and IT infrastructure failures in an automatic way.

According to our literature review, there is no research

in the academia and industry that addresses a cyber

resilient port ecosystem framework. Of course, our

proposed framework can be applied to provide cyber

resilience for any IT-dependent organization.

The remainder of this paper is organized as fol-

lows. Section 2 presents a short literature review. Sec-

tion 3 presents the details of the proposed framework.

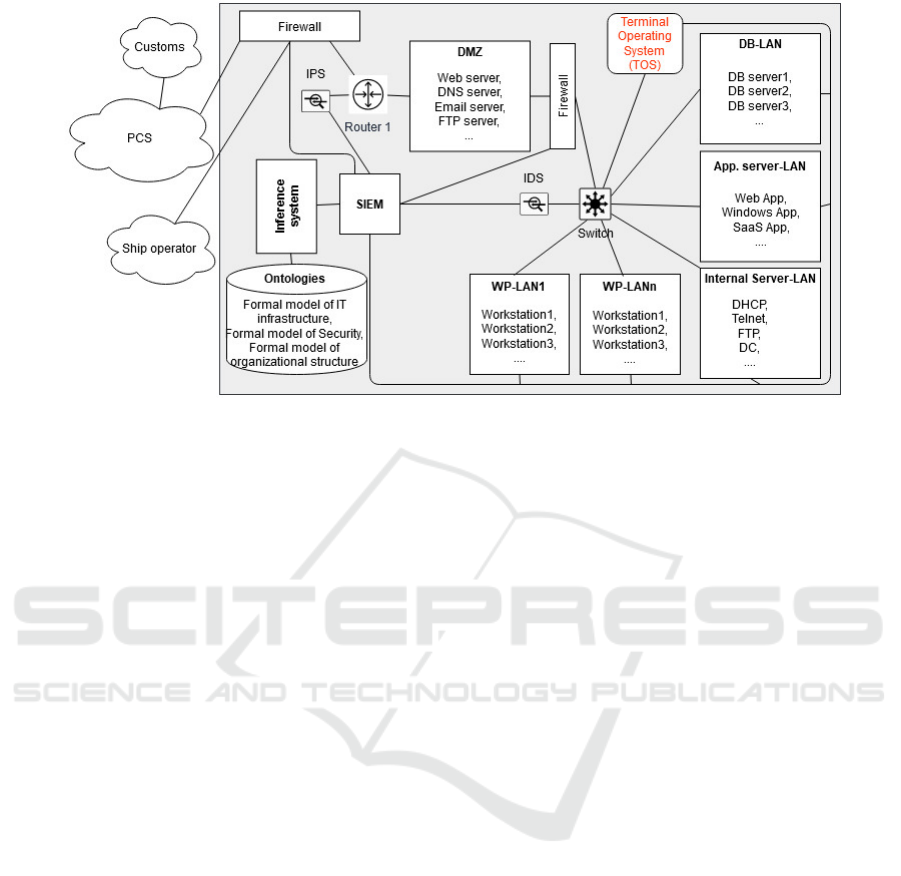

Section 4 describes a potential application of the pro-

posed framework at a port terminal. Section 5 con-

cludes with suggestions for future work.

2 LITERATURE REVIEW

Pinkston et al. (2003) and He et al. (2004) developed

an ontology-based Intrusion Detection Systems (IDS)

to spot different types of cyber attacks. Ekelhart et al.

(2006) proposed a three parts ontology for supporting

the cybersecurity of an organization including mod-

eling knowledge about the security domain, existing

IT infrastructure, and the people and their roles in

the organization. Fenz et al. (2007) reported on a

security ontology for the preparation of IT security

audits that describe an ontological mapping of the

structure of the IEC/ISO 27001 standard. Birkholz

et al. (2011) described an ontology as a medium for

the cross-company sharing of IT security knowledge.

Elfers (2014) used an ontology to normalize events

before event-correlation in the SIEM instead of stor-

ing the background knowledge in databases. Syed

et al. (2016) deﬁned a Uniﬁed Cybersecurity Ontol-

ogy (UCO) to support the understanding of the un-

derlying domain. UCO uniﬁes the most commonly

Ontology-based Cybersecurity and Resilience Framework

459

used standards and enables the integration of pub-

lic ontologies. It also enables sharing reasonable cy-

bersecurity intelligence data. Petrenko and Makove-

ichuk (2017) developed an ontology of cybersecurity

of self-recovering smart grids. Their devolved smart

grid is resistant to negative impacts of the information

confrontation and can quickly recover functions after

accidents. Narayanan et al. (2018) developed a col-

laborative cognitive assistant based on ontology to de-

tect cybersecurity events and attacks. Their proposed

system collects incomplete textual information from

different sources (e.g., CTI platforms) storing it in a

structural format and reassign over it. Choi and Choi

(2019) developed an ontology-based security context

reasoning for attack detection in the power IoT-cloud

environment. They proposed an attack context infer-

ence methodology based on the attack patterns in the

power IoT-cloud environment and the vulnerabilities

of each system in the major domains. V

alja et al.

(2020) developed an ontology framework to automat-

ically model threats in the IT architecture of enter-

prises. Data is collected from enterprise resources

(e.g., conﬁguration data, captured trafﬁc and scan

data) that is parsed, standardized and merged. The

reasoning patterns (i.e., queries on the ontology) are

used for automated modeling of threats based on in-

coming data.

2.1 Maritime Cyber Attacks

In the past, cyber attacks have impacted individual

stakeholders of the maritime industry like shipping

companies and individual ports. Examples are the

Danish Port Authority (2014), the Maersk shipping

line (2017), ports of Antwerp (2013), San Diego

(2018), Barcelona (2018), and Shahid Rajee (2020)

in Iran. The complex and distributed characteristics

of the port ecosystem makes it also vulnerable for a

distributed cyber attack (Senarak, 2020).

2.2 Resilience and the Port Ecosystem

Recently, there is an increasing interest in cyber-

security and cyber resilience projects in Asian Pa-

ciﬁc ports (Daffron et al., 2019), U.S. ports (LA,

2019), and EU ports (Rotterdam, 2016). The Cy-

berShip project (Sep

ulveda Estay, 2020) made a very

detailed systematic literature review in the ﬁeld of

Cyber Resilience Frameworks (CRF). They selected

ﬁve frameworks namely the Wave Analogy Model,

the AWaRE framework, the Byzantine Fault tolerant

framework, the Human Behavior Resilience frame-

work, and the NIST framework. All frameworks were

applied to ship operations and results were compared.

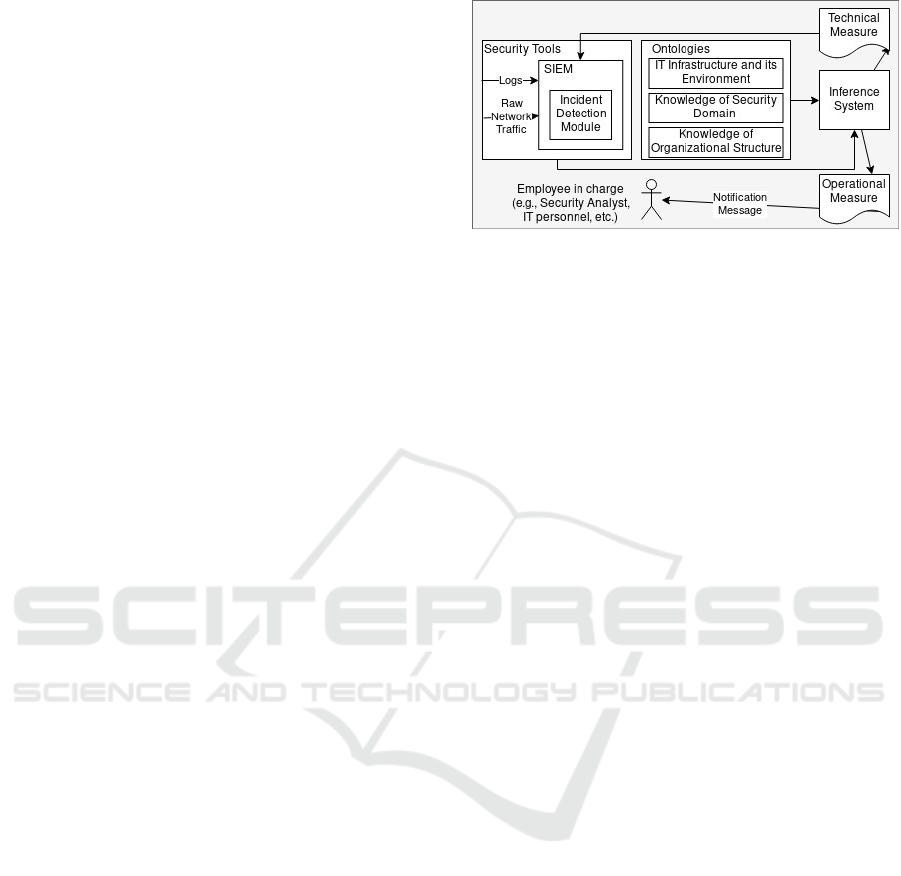

Figure 2: Resilience Framework.

3 PROPOSED FRAMEWORK

Our proposed framework is composed of three sub-

components as shown in Figure 2. The framework

only uses ontologies and inference to response to and

recover from cyber incidents in an automatic way.

The inference system is not responsible for incident

detection. Cyber incidents are detected by state-of-

the-art and recent security tools.

The security tools of the resilience component

should continuously monitor the IT systems using

different kinds of sensors. Sensors collect speciﬁc

and detailed information about what happens in the

network of an organization and communicates it to

the SIEM. Moreover, security tools like ﬁrewalls, an-

tivirus, IDS, or Intrusion Prevention Systems (IPS)

send their logs via Syslog messages over TCP or TLS

to the SIEM, directly. The whole network trafﬁc can

also be captured by tools like Netﬂow (B. Claise,

2004) or packet snifﬁng (Fuentes and Kar, 2005) and

fed to the SIEM for further analysis. Almost all

SIEMs have capabilities to reduce noise, ﬁne-tune

alerts, and to identify inside or outside threats. Some

recent SIEMs can also detect anomalies, i.e. they re-

port unexpected behavior of any IT component in-

cluding user input, hardware, and software. These

anomalies need to be investigated by security analysts

to be marked either as a dangerous activity or as a

change of the normal behavior. For example, an in-

crease in the number of requests for registering con-

tainers in a system might be a Distributed Denial of

Service (DDoS) attack or just an increase in the trade

rate. Berkovich and Solomon (2007) called an ob-

served increase of trade before the new year a Flash

Event (FE). The DDoS attack and the FE should be

treated differently. This is where the inference sys-

tem plays a signiﬁcant role in our proposed frame-

work by automatically applying required measures.

Rule-based, correlation, statistical analysis, machine

learning, deep learning are examples of currently used

techniques to detect cyber incidents by SIEM.

ICISSP 2021 - 7th International Conference on Information Systems Security and Privacy

460

3.1 Ontology of IT Infrastructures

The ontology of IT infrastructures serves to represent

explicit knowledge about real IT systems and to en-

able reasoning based on this knowledge. We divide

the infrastructure into two groups: Hard-IT and Soft-

IT infrastructures. The latter is used by people to ac-

cess stored data or use services available in Hard-IT

infrastructures. Then, security measures will be ap-

plied to these IT infrastructures.

Figure 3 depicts the TBox (the static part of the

ontology) for the Hard-IT. Solid arrows represent

the relations between the classes as roles and in-

verse roles. For example, the class Network allows

the modeling of networks using the subclasses Inter-

net or Intranet. The role partOfNetwork is supposed to

have a functional characteristic so that each network

connection—an instance of the class Link—can only

be assigned to exactly one network. If a physical

network connection has to be assigned to several net-

works, e.g., by using Virtual LANs (VLAN), it has to

be modeled by several parallel network connections.

Other classes and roles of the Hard-IT infrastructure

are to be interpreted in a similar manner.

For the practical usage of the ontology, an ABox,

which is the dynamic part of the ontology, needs to

be modeled in addition to the TBox. An ABox con-

tains concrete instances of the classes and roles. For

example, there may be two instances of the class PC

(PC1 and PC2) and one instance of the class WiredLink

(WLink1). Subsequently, the connectedToLink role

should be used to describe the connection between

PC1/PC2 and WLink1. From the ontology, it can now

be inferred that PC1 and PC2 are connected to each

other. In contrast to the TBox, the ABox of an on-

tology depends on the actual IT infrastructure of an

organization in which our proposed framework will

be applied. Summarizing, the TBox and an ABox to-

gether represent the following knowledge about an in-

frastructure:

1. The location of the Hard-IT components within

the buildings and rooms.

2. The physical connection between different com-

ponents of the Hard-IT (The IT devices are wired

in a way that an appropriate conﬁguration of them

enables an actual network connection.)

3. The places where security measures can be ap-

plied on the Hard-IT level

Figure 4 displays the modeling of the TBox for

the Soft-IT which is divided into Object and Subject

classes. These classes are inspired by an Access Con-

trol (AC) model where subjects (entities, e.g., users,

programs, processes) have certain permissions (e.g.,

rwx) to access objects (e.g., data, programs, devices)

based on AC policies.

Elements of the Soft-IT infrastructure cannot ex-

ist outside the Hard-IT infrastructure. Therefore, all

instances of the classes Subject and Object must be as-

signed to actual devices of the Hard-IT. The role valid-

ForDevice expresses that a subject is allowed to use a

set of devices. Subjects such as users or groups can

exist both locally for a device and globally within an

administered computer network (e.g., with a directory

service). Objects are assigned to devices via the role

hostedOnDevice and their inverse role hasObject. Here

again, hostedOnDevice is supposed to have a functional

characteristic so that each object can only be assigned

to exactly one device. If objects should be available

on several devices, they must be modeled as copies.

In short, the TBox and an ABox represent the fol-

lowing knowledge about the Soft-IT infrastructure:

1. The possible accesses of subjects to objects

2. The places where security measures can be ap-

plied on the Soft-IT level

3.2 Ontology of Security

Figure 5 shows a TBox for cybersecurity. The bot-

tom left depicts the TBox for the organizational struc-

ture via the class BusinessProcess to represent business

processes, the class Role to represent organizational

positions, and the class Employee to model employees

who ﬁll certain positions of a company.

Infrastructures are required for the execution of

business processes. This is expressed by the role

needsInfrastructure and its inverse role runsBusinessPro-

cess. Infrastructures are indirectly accessed via roles

that are assigned to responsible employees of an or-

ganization. The connection of responsible employ-

ees to infrastructures is given by the roles hasRole and

accessesInfrastructure with corresponding reverse roles

ﬁlledByEmployee and isControlledByRole. The following

knowledge is represented by this part of the TBox and

an ABox about a single organizational structure:

1. The responsible people who should be informed

in the case of a cyber threat.

2. The responsible people who should carry out tech-

nical or organizational measures

The top parts of Figure 5 are the classes Threat, Se-

curityObjective and SecurityMeasure. Security measures

are further subdivided into subclasses DetectMeasure,

PreventMeasure, and ResonseRecoveryMeasure. The

latter class for response and recovery measures fur-

ther differentiates between technical and organiza-

tional measures.

Ontology-based Cybersecurity and Resilience Framework

461

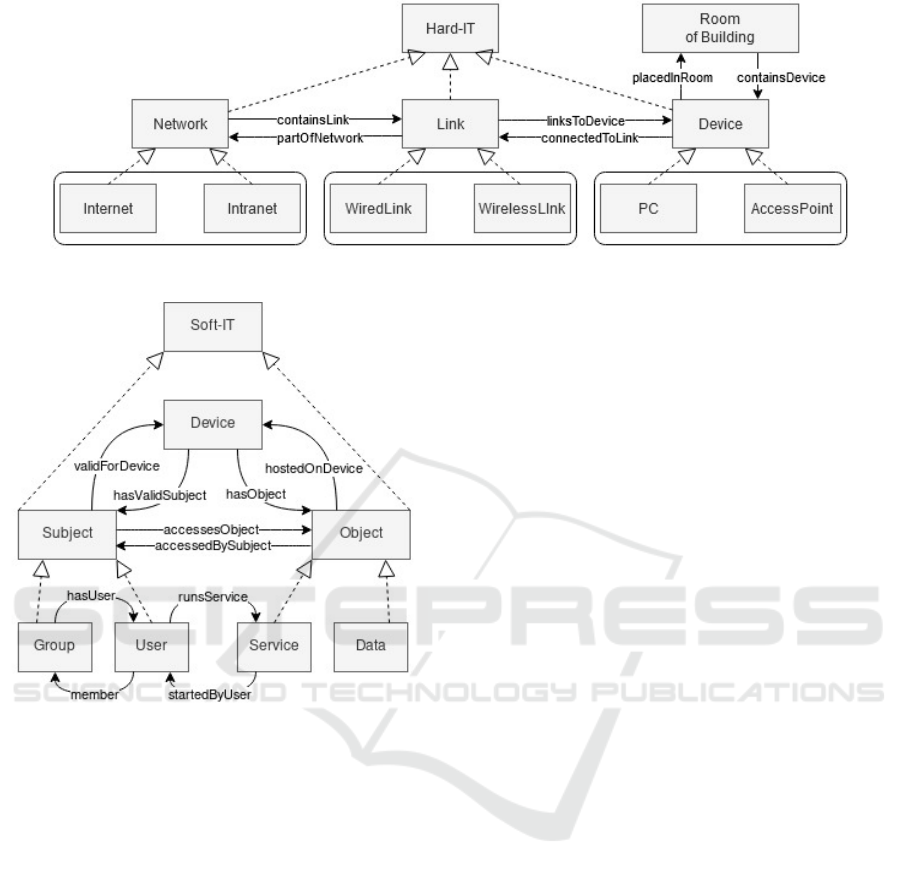

Figure 3: TBox for Hard-IT Infrastructures.

Figure 4: TBox for Soft-IT Infrastructures.

Security objectives are compromised by threats

that in turn are reduced by security measures that

support the security objectives. The relationships

between security objectives, security measures, and

threats exist independently of a speciﬁc application

scenario. Therefore, individuals of these classes and

their relationships can be modeled in an ABox inde-

pendently from a speciﬁc infrastructure.

The security objectives should be determined by

the protection requirements of an infrastructure. In

our ontology, we have chosen to implicitly model the

need for protection by relating the infrastructure to

the security objectives. Thus, we simpliﬁed the se-

curity ontology without modeling the need for pro-

tection. Security measures are used to achieve the

desired security objectives of an infrastructure. It is

possible that several security measures support a com-

mon security objective, but some measures may only

be suitable to protect a single infrastructure compo-

nent. This is modeled by the role protectsInfrastructure

and its inverse role isProtectedBySecurityMeasure. Ac-

tual technical measures are connected to infrastruc-

ture components by the role integratesTechnicalMeasure

and its inverse role isIntegratedByInfrastructure. For ex-

ample, a technical measure could be isolating the in-

fected node in the network by blocking ingoing and

outgoing trafﬁc using a ﬁrewall. An additional orga-

nizational measures could ensure business continuity

during an incident. Organizational measures are alter-

native solutions that affect the available business pro-

cesses to ensure resilience. For example, when a web-

site of an online shopping site is down, the company

continues to receive orders via email or telephone.

3.3 Inference System

All developed ontologies should be stored to be ac-

cessible by interested agents or other system compo-

nents. Subsequently, a reasoner is required to infer

logical consequences (desired knowledge) from de-

scriptive logics. Such a reasoner derives new state-

ments from given statements and then extends the on-

tology with these new statements. For the proposed

framework we need to use an OWL reasoner as an in-

ference engine; e.g., HermiT (2013) that comes with

Prot

e (Musen, 2015). Designing an ontology in a

manner that causes the inference engine to produce

intended logical statements for its main purpose is a

challenging task. It could be satisﬁed by a more com-

plex ontology design or by simpliﬁed required con-

clusions. In the proposed framework, we aim to sim-

plify the conclusions. For example, we do not want

to determine emergency measures with a single run

of the reasoner, instead we suggest using several runs

and adjusting the ontologies between each run. As a

result, we can reach a more complex conclusion via

several simple conclusions.

ICISSP 2021 - 7th International Conference on Information Systems Security and Privacy

462

Figure 5: TBox for Cybersecurity.

4 FRAMEWORK APPLICATION

Each organization has different business objectives,

business processes, and infrastructures. Therefore,

each organization requires unique modeling of its in-

frastructure and security to protect the continuity of

its main business, i.e. to keep executing its business

processes while facing security threats.

4.1 Case Study: Stowage Planning

This paper demonstrates a potential implementation

of our proposed solution using an example of a Port

Community System (PCS). A PCS is a central part of

a complex and distributed system in which different

stakeholders such as terminal operators, ship owners,

forwarders, port IT operators, railways, port author-

ities and customs network with each other. Figure 6

shows a simpliﬁed representation of a network around

a PCS.

IT plays a central role for communication between

the different stakeholders. To keep port communi-

cation systems resilient, all stakeholders should take

care of their internal cyber resilience. There is a large

number of processes within a port community. For

demonstration purposes, we only select a single sub-

process which is mainly handled by the terminal. Fig-

ure 7 shows the stowage planning subprocess at the

port terminal as a sequence diagram. The PCS for-

wards the customs clearance message to the terminal.

Figure 6: Port Community System.

Goods must not be loaded without customs clearance.

The terminal and the vessel operator negotiate the un-

loading and loading of goods from and to the vessel

via a stowage- or bayplan, also known and abbrevi-

ated as BAPLIE. This document contains information

such as the position of containers on board and the

weight of the containers. Since 2016, containers in

the EU require a Veriﬁed Gross Mass (VGM) to in-

crease safety on sea. Moreover, this document in-

cludes special information about dangerous goods or

cooling requirements for temperature-sensitive cargo.

4.2 Resilience Framework in Use

Figure 8 depicts potential IT equipment and our pro-

posed resilience framework of an imaginary port ter-

Ontology-based Cybersecurity and Resilience Framework

463

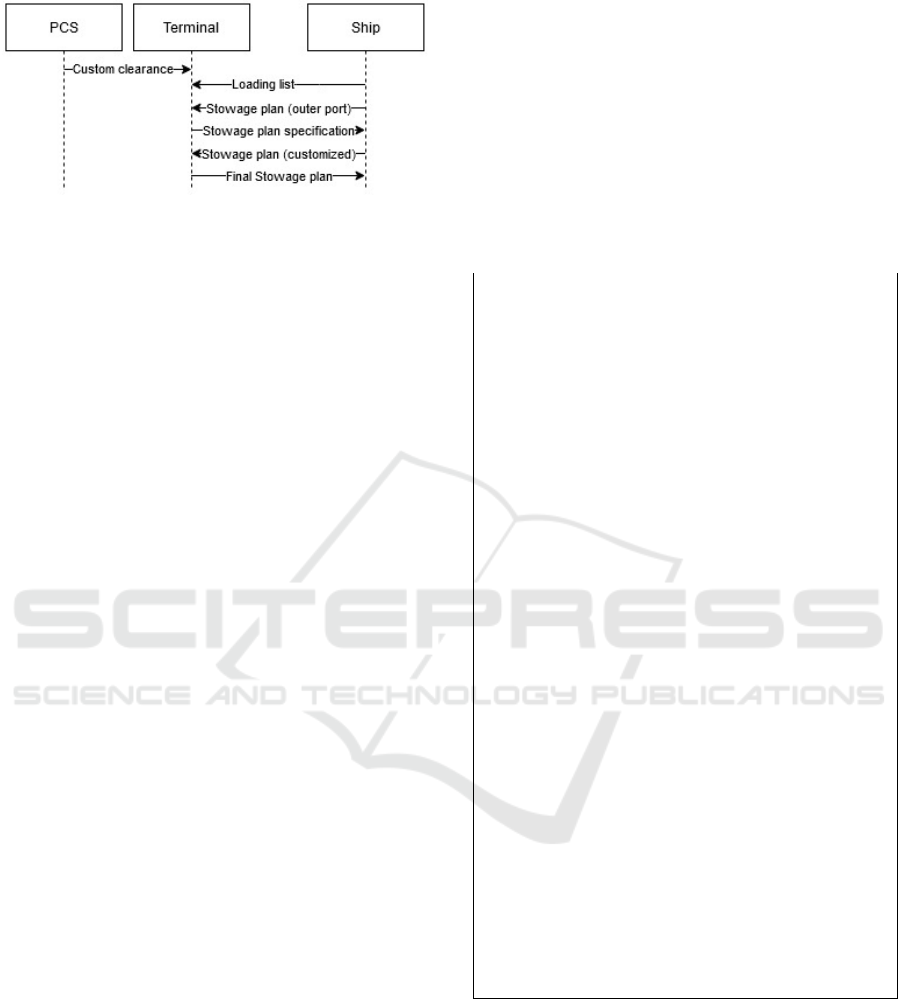

Figure 7: Stowage Planning Process.

minal in a simpliﬁed way. All IT infrastructures are

supposed to send their logs for storage and analysis

to the SIEM. When the SIEM detects an abnormal

event or a speciﬁc attack, it sends an alarm to the in-

ference system. The communication between SIEM

and the inference system is based on details of the

ontologies. In this study, we use low-level models

which imply low-level communications between the

SIEM and the inference system. For our example, the

SIEM only needs to provide two pieces of informa-

tion to the inference system. Whenever an incident is

detected we need to know the compromised/damaged

IT infrastructure (e.g., which PC, router, etc.) and the

attack/anomaly type (e.g., failure, malware, DDoS).

Subsequently, the inference system should take the

following steps:

1. The attack is transferred into the ontology by

adding facts about compromised or damaged in-

frastructure components (Hard-IT, Soft-IT).

2. The inference system starts a reasoning process

and infers the full impact of a failure including

further potential threats and affected business pro-

cesses.

3. The inference system provides some suggestions

of possible measures to overcome the failure, as

threats and measures are related to each other by

the security ontology.

4. To evaluate the effectiveness of a measure, the

measure is temporarily added as fact to the on-

tology.

5. The inference system performs another reason-

ing step to check if the situation has improved in

which case the measure is kept as fact and con-

veyed to the SIEM.

6. Steps 4 to 5 are repeated as long as the situation

improves and no further risks threaten business

processes.

4.3 Attack Scenarios with Automatic

Response and Recovery

A SIEM detects a known cyber incident or abnormal

behavior of a Terminal Operating Server (TOS) or

communicating workstations and reports incidents to

the inference system. The inference system checks its

knowledge-base for automatic responses. The follow-

ing list shows some of the potential SIEM detection

messages and corresponding response and recovery

proposals of the inference system:

Malware Is Detected on TOS. Install an updated an-

timalware tool, rescan the TOS server

Malware on TOS Is Not Removed by Antimalware.

Disconnect the TOS server, create a backup of ﬁles,

deploy a redundant TOS server, inform responsible IT

personnel to eliminate the malware manually

Ransomware Is Detected on TOS. Disconnect the

TOS server, wipe the system, install from scratch, re-

store backup ﬁles, inform responsible people, inform

the authorities, attempt to decrypt ﬁles by trusted tools,

deploy a redundant TOS server

DDoS Is Detected on TOS. Increase bandwidth on

the TOS server, locate proxy servers in front of the

TOS server with a load balancer, distribute arriving re-

quests between proxy servers via the load balancer,

enlarge the backlog queue for requests to the TOS,

increase the timeout of connections in backlog, block

suspicious Geo-IP addresses, inform responsible peo-

ple, inform authorities

Abnormal Behavior on TOS. Make backup, analyze

logs, inform responsible people

Abnormal Activities on a Workstation Communi-

cating with the TOS. Disconnect the workstation and

its LAN, collect and analyze data from the worksta-

tion (Application logs and system parameters), assign

a new workstation for communicating with the TOS, in-

form responsible people

TOS Is Ofﬂine for More than One Hour. Inform re-

sponsible people, inform partners who will be affected

by the unavailability of TOS, make announcement on

the webpage of terminal

TOS Is Recovered by IT-staff. Unplug a redun-

dant TOS server, deploy the main TOS server, restore

backup ﬁles, re-inform partners, update announce-

ment from the webpage of terminal

The inference system provides responses based on

its knowledge about available measures, IT infrastruc-

tures, and security objectives. For example, if there

is no redundant TOS server in the terminal, the in-

ference system will send an Inform-Partners message

rather than proposing to deploy the redundant TOS

server. If the terminal does not have any load balancer

between its IT infrastructures, the inference system

does not select a measure that requires the installation

of load balancer.

ICISSP 2021 - 7th International Conference on Information Systems Security and Privacy

464

Figure 8: A high-level overview of an imaginary terminal’s network.

Nowadays, most modern SIEMs can act auto-

matically including isolating, disabling, removing, or

changing Hard-IT infrastructures and their conﬁgura-

tions (Visser, 2020). Therefore, we assume that some

scripts should be newly written for terminal SIEMs to

execute special commands when receiving messages

from the inference system. For example, if a SIEM

receives a Disconnect-TOS message, it will reconﬁgure

the router setting to isolate the TOS server and prevent

network trafﬁc from and to the TOS server.

5 CONCLUSIONS

Today, cyber resilience should work in alliance

with traditional cybersecurity to protect organizations

against cyber incidents. Cyber resilience is more con-

cerned with respond to and recovery from cyber in-

cidents. There are many traditional and novel tools

like antivirus, ﬁrewall and second-generation SIEMs

to prevent and detect incidents. Nevertheless, inci-

dent response and recovery are often manual pro-

cesses done by security experts. In this paper, we pro-

posed a novel approach for the application of seman-

tic technologies. Our ontologies include the most ba-

sic deﬁnitions of IT infrastructures and security. Each

of these models can be expanded and ﬁne-tuned based

on the requirements and resources of an organization.

This paper is based on the result of an ongoing project

in the maritime transport industry. Port ecosystems

are far behind other industries regarding cybersecu-

rity as the number of available experts seems to be

rather limited. We try to develop a new framework

which automates not only the detection of cyber in-

cidents but also the response and recovery phases.

Subsequently, lessons learned from cyber incidents

and taken measures should also improve reoccuring

preparation, prevention, and protection phases of the

resilience cycle. The current paper lacks empirical

results that should be addressed in future work. The

detailed modeling of ABoxes will be based on the or-

ganizational and technological structure of a concrete

terminal. Calculations of IT infrastructure capacities

during incidents and exchanging these with business

partners is another interesting area for future work in

the ﬁeld of cyber resilience.

ACKNOWLEDGMENTS

This work was supported by the German Federal Min-

istry of Transport and Digital Infrastructure (BMVI)

under the grant 19H18012E (SecProPort project).

REFERENCES

B. Claise, E. (2004). Cisco systems NetFlow services export

version 9. https://www.hjp.at/doc/rfc/rfc3954.html.

Berkovich, E. and Solomon, O. (2007). Flash event detec-

tion with acoustic veriﬁcation. US Patent 7,233,546

https://patentimages.storage.googleapis.com/00/e8/

1b/100810723fac4e/US7233546.pdf.

Birkholz, H., Elfers, C., Samjeske, B., and Sohr,

K. (2011). Unternehmens

ubergreifender Aus-

tausch von sicherheitsrelevantem Wissen. Daten-

schutz und Datensicherheit-DuD, 35(4):258–261.

doi:10.1007/s11623-011-0063-5.

Ontology-based Cybersecurity and Resilience Framework

465

Brockmans, S., Volz, R., Eberhart, A., and L

ofﬂer, P.

(2004). Visual modeling of OWL DL ontologies us-

ing UML. In International Semantic Web Confer-

ence, pages 198–213. Springer. doi:10.1007/978-3-

540-30475-3 15.

Choi, C. and Choi, J. (2019). Ontology-based se-

curity context reasoning for power IoT-cloud se-

curity service. IEEE Access, 7:110510–110517.

doi:10.1109/ACCESS.2019.2933859.

Daffron, J., Rufﬂe, S., Coburn, A., Copic, J.,

Quantrill, K., Strong, K., and Leverett, E.

(2019). Shen attack: Cyber risk in asia pa-

ciﬁc ports. https://www.lloyds.com/

∼

/media/

ﬁles/news-and-insight/risk-insight/2019/shen-

attack/cyrim shenattack ﬁnalreport.pdf.

Edwards, C. (2009). Resilient nation. Demos. https://www.

continuitycentral.com/ResilientNation.pdf.

Ekelhart, A., Fenz, S., Klemen, M. D., and Weippl, E. R.

(2006). Security ontology: Simulating threats to cor-

porate assets. In International Conference on Infor-

mation Systems Security, pages 249–259. Springer.

doi:10.1007/11961635 17.

Elfers, C. (2014). Event Correlation Using Conditional

Exponential Models with Tolerant Pattern Matching

Applied to Incident Detection. Shaker. https://www.

shaker.de/shop/978-3-8440-3168-3.

Fenz, S., Goluch, G., Ekelhart, A., Riedl, B., and Weippl,

E. (2007). Information security fortiﬁcation by on-

tological mapping of the iso/iec 27001 standard. In

13th Paciﬁc Rim International Symposium on De-

pendable Computing (PRDC 2007), pages 381–388.

IEEE. doi:10.1109/PRDC.2007.29.

Fuentes, F. and Kar, D. C. (2005). Ethereal vs. tcpdump: a

comparative study on packet snifﬁng tools for educa-

tional purpose. Journal of Computing Sciences in Col-

leges, 20(4):169–176. https://dl.acm.org/doi/10.5555/

1047846.1047873.

He, Y., Chen, W., Yang, M., and Peng, W. (2004).

Ontology based cooperative intrusion detection sys-

tem. In IFIP International Conference on Network

and Parallel Computing, pages 419–426. Springer.

doi:10.1007/978-3-540-30141-7 59.

HermiT (2013). HermiT OWL Reasoner. http://www.

hermit-reasoner.com.

Hitzler, P., Kr

otzsch, M., Rudolph, S., and Sure, Y.

(2008). Semantic Web: Grundlagen. Springer.

doi:10.1007/978-3-540-33994-6.

Hopcraft, R. and Martin, K. M. (2018). Effective maritime

cybersecurity regulation–the case for a cyber code.

Journal of the Indian Ocean Region, 14(3):354–366.

doi:10.1080/19480881.2018.1519056.

Hosseini, S., Barker, K., and Ramirez-Marquez, J. E.

(2016). A review of deﬁnitions and measures of

system resilience. Reliability Engineering & System

Safety, 145:47–61. doi:10.1016/j.ress.2015.08.006.

ICS (2020). Shipping and world trade. https://www.ics-

shipping.org/shipping-facts/shipping-and-world-

trade.

LA (2019). Port of Los Angeles issues request

for proposal for new cyber resilience cen-

ter. https://www.portoﬂosangeles.org/references/

news 072419 rfp cyber resilience center.

Musen, M. A. (2015). The Prot

e project: A look

back and a look forward. AI Matters, 1(4):4–12.

doi:10.1145/2757001.2757003.

Narayanan, S. N., Ganesan, A., Joshi, K., Oates, T., Joshi,

A., and Finin, T. (2018). Early detection of cy-

bersecurity threats using collaborative cognition. In

2018 IEEE 4th International Conference on Collabo-

ration and Internet Computing (CIC), pages 354–363.

doi:10.1109/CIC.2018.00054.

Petrenko, S. A. and Makoveichuk, K. A. (2017). Ontology

of cyber security of self-recovering smart grid. In Se-

cure Information Technologies (BIT 2017), pages 98–

106. http://ceur-ws.org/Vol-2081/paper21.pdf.

Pinkston, J., Undercoffer, J., Joshi, A., and Finin, T. (2003).

A target-centric ontology for intrusion detection. In

Workshop on Ontologies in Distributed Systems, held

at The 18th International Joint Conference on Ar-

tiﬁcial Intelligence. https://ebiquity.umbc.edu/get/a/

publication/626.pdf.

Rotterdam (2016). Port of Rotterdam appoints port cyber

resilience ofﬁcer. https://www.portofrotterdam.

com/en/news-and-press-releases/port-of-rotterdam-

appoints-port-cyber-resilience-ofﬁcer.

Senarak, C. (2020). Port cybersecurity and threat: A

structural model for prevention and policy develop-

ment. The Asian Journal of Shipping and Logistics.

doi:10.1016/j.ajsl.2020.05.001.

Sep

ulveda Estay, D. A. (2020). CyberShip Project: Cyber

resilience for the shipping industry - Final Project Re-

port. DTU Orbit. https://orbit.dtu.dk/ﬁles/216595381/

200630 Report WP 5.pdf.

Staab, S. and Studer, R. (2009). Handbook on Ontologies.

Springer. doi:10.1007/978-3-540-92673-3.

Syed, Z., Padia, A., Finin, T., Mathews, L., and Joshi,

A. (2016). UCO: A uniﬁed cybersecurity ontology.

In Proceedings of the AAAI Workshop on Artiﬁcial

Intelligence for Cyber Security. AAAI Press. http:

//ebiquity.umbc.edu/get/a/publication/781.pdf.

alja, M., Heiding, F., Franke, U., and Lagerstr

om,

R. (2020). Automating threat modeling us-

ing an ontology framework: Validated with data

from critical infrastructures. Cybersecurity, 3(19).

doi:10.1186/s42400-020-00060-8.

Visser, J. (2020). An OODA-driven SOC Strat-

egy using: SIEM, SOAR and EDR. http:

//correlatedsecurity.com/an-ooda-driven-soc-

strategy-using-siem-soar-edr.

ICISSP 2021 - 7th International Conference on Information Systems Security and Privacy

466
