Textual Approach for Designing Database Conceptual Models:

A Focus Group

Jonnathan Lopes

, Maicon Bernardino

, Fábio Basso

and Elder Rodrigues

Federal University of Pampa, PPGES, LESSE, Av. Tiarajú, 810, Ibirapuitã, CEP 97546-550, Alegrete, RS, Brazil

Keywords:

Domain Speciﬁc Language, Conceptual Data Model, Conceptual Model, Database Modeling.

Abstract:

Different approaches to software development are based on at least three database models: conceptual, logical,

and physical, requiring distinct abstraction levels to represent complementary concepts. The selection of a

conceptual database modeling approach, among other things, depends on the problem domain, knowledge,

and preferences of the developer. This paper presents a new domain-speciﬁc textual language devoted to

the conceptual relational database modeling, i.e., entity-relationship modeling. Furthermore, we present a

preliminary evaluation conducted to analyze our proposed DSL, comparing two grammar versions in a focus

group research method.

1 INTRODUCTION

Software Engineering (SE) is not feasible without

persistence and data manipulation. According to

Date (Date and Warden, 1990), a database is a col-

lection of stored operational data, used by the appli-

cation systems of some organization. For Elmasri and

Navathe (Elmasri and Navathe, 2015), a database can

be deﬁned as an abstraction from the real world, also

called the mini-world, since it represents aspects that,

together, carry an implicit meaning. Databases can be

considered as the most important organizational as-

sets today. This is due to the fact that they do not only

store trivial information but, for instance, also billing

data, market research, and other aspects assisting in

decision making.

In this scenario, it is notable that there is an in-

creasing effort of academia to provide a good level

of preparation for future professionals who will enter

an increasingly demanding industry. Higher educa-

tion institutions, e.g. universities, often approach the

database curriculum with speciﬁc courses converging

in their programs. The database teaching area is an es-

sential part of computer professional training. The fo-

cus on database teaching is generally divided into four

stages: (i) design and modeling, (ii) database manage-

https://orcid.org/0000-0001-9402-801X

https://orcid.org/0000-0003-2776-8020

https://orcid.org/0000-0003-4275-0638

https://orcid.org/0000-0003-3431-2814

ment systems, (iii) comparative studies among these

systems, and (iv) the application development (Al-

Dmour, 2010; Connolly and Begg, 2006).

Assuming that there is a growing search for in-

struments supporting the teaching-learning process in

academia, we present a study focusing on the ﬁrst

stage: design and modeling. In general, teaching

database design and modeling includes the presen-

tation of essential topics and the subsequent intro-

duction of modeling tools using generally graphic

approaches. While graphical modeling is the most

popular approach, textual modeling can be an alter-

native to the teaching-learning process at a higher

level (Dimitrieski et al., 2015). This is due to the lack

of textual approaches for the ﬁrst stage. Hence, this

limitation can represent a gap in the teaching-learning

process of database modeling.

Considering that logical and physical modeling

occur mainly in text mode, an approach like the one

adopted in the ERtext tool can be considered viable

because it manages to maintain the same style work-

ﬂow in all modeling stages. Nowadays, the declara-

tive programming using Domain-Speciﬁc Languages

(DSLs) (Kelly and Tolvanen, 2008) is the domi-

nant paradigm of an extensive set of domains, e.g.

databases or templating. With this approach, instead

of hundreds of lines of verbose code it is possible to

make clearly deﬁned data schemes, providing an ab-

stract representation, semantically simpler and mean-

ingful. Built on a grammar perceived in the proposed

study as “ease to use” and as “useful”, the main aim

Lopes, J., Bernardino, M., Basso, F. and Rodrigues, E.

Textual Approach for Designing Database Conceptual Models: A Focus Group.

DOI: 10.5220/0010232801710178

In Proceedings of the 9th International Conference on Model-Driven Engineering and Software Development (MODELSWARD 2021), pages 171-178

ISBN: 978-989-758-487-9

171

of this paper is to report the ERtext, a modeling tool

based on a DSL for the database designing and mod-

eling with the scope in conceptual level modeling.

This paper is organized as it follows. Section 2

presents the related work. Section 3 provides the de-

sign decisions and the architecture adopted. Section 4

describes an overview of the tool operation. Finally,

Section 7 concludes this paper.

2 RELATED WORK

This section describes the most representative works

for the object of this study: conceptual database mod-

eling. After an extensive study composed of a Mul-

tivocal Literature Mapping (MLM) (DOI: doi.org/10.

5281/zenodo.4064987 - in portuguese), we selected

proposals and tools closely matching with our fea-

tures from our DSL.

Dimitrieski et al. (Celikovic et al., 2014; Dim-

itrieski et al., 2015) presents a tool called System

Modeling Tool (MIST). This tool uses a DSL called

EERDSL, a language based on the improved Ex-

tended Entity-Relationship (EER) model. The EER

includes all the concepts as extension from those in-

troduced by the original ER model proposed by Chen

(Chen, 1976). In addition, it includes the concepts

of subclasses and superclasses (Is-a), along with the

concepts of specialization and generalization. MIST

presents a bidirectional (graphical and textual) mod-

eling approach for the data model approach. From

the results obtained, the idea of MIST was conceived.

The purpose of the tool is to apply it both in the pro-

fessional market and for teaching designing and mod-

eling databases in the academic environment. MIST

was developed with the aid of the Xtext framework

for the notation of textual DSL and initially used the

Eugene framework, a project that was discontinued,

for its graphic version. As a result, Eugene was re-

placed by the Sirius framework. Besides, MIST also

supports the generation of SQL code.

Dbdiagram.io (https://dbdiagram.io/) is a web-

based open-source tool for drawing an Entity Rela-

tionship Diagram (ERD), with a textual approach im-

plementing its own DSL. This DSL uses a model sim-

ilar to the logic view, with a differential of fast learn-

ing curve and, in addition, an intuitive graphical rep-

resentation. The presentation of the diagram elements

can be freely organized by the user in real time. How-

ever, it is worth to note that all modeling is in fact per-

formed in a textual manner. Moreover, the tool also

offers automatic generation of SQL code.

Likewise, QuickDBD is a web-based tool adopt-

ing the same operational mode as dbdiagram.io, also

implementing its own textual DSL for database mod-

eling. However, it is a proprietary tool, i.e. paid

for and with an explicit focus on the industry. Both

tools are also very similar to the generation of graph-

ical model representations and highlight several ar-

guments for their adoption, such as the quick under-

standing of their DSL, the perspective of carrying out

ﬂuid works, the access of any platform and design

sharing.

Finally, the web-based open-source tool RelaX

(Relational Algebra Calculator) (Kessler et al., 2019)

is developed in the academic environment aiming at

teaching relational algebra through operations on re-

lational databases. It has a textual approach, using

a DSL called RelAlg, and including two operational

perspectives: RelAlg and SQL commands. RelaX

uses a model approach already at a physical level

for operations, such as DDLs for data structures and

DMLs for data manipulation e.g. queries. Despite its

functionality, RelaX is not built as a database design-

ing and modeling tool, but it intents for use restricted

for teaching in the academic environment.

Several different tools have been put forward, the

main difference from ERText is that the related work

focuses in the logical or in physical model design.

MIST on the other hand aims at the conceptual model,

and since it was not possible to ﬁnd the tool, or at

least its code, for an analysis of usage, unlike Dbdi-

agram.io, QuickDBD and RelaX, we cannot properly

compare MIST with ERText. This highlights another

important difference, since our proposal is completely

open-source, available for use, evaluation and learn-

ing. Among the mentioned tools, only RelaX has its

code also available. This may indicate that the general

applicability of our tool in the teaching-learning pro-

cess of database conceptual modeling in the academic

is possibly greater than these tools.

3 ANALYSIS AND DESIGN

This section presents the analysis and designing

phases, describing the requirements raised for the

DSL deﬁnition and its associated design decisions as

well as the grammar and the architecture are shown.

3.1 Software Requirements

Our focus is on the teaching process, so it is essen-

tial to tag ERText as an open-source license, allowing

the evolution and collaborative maintenance with the

involvement of other developers.

In the following, we listed the Software Require-

ments (SR) that were deﬁned based on the surveyed

MODELSWARD 2021 - 9th International Conference on Model-Driven Engineering and Software Development

172

literature: SR1. DSL must be made available under

an open-source license. SR2. The DSL should allow

for the textual representation of conceptual data mod-

els. SR3. Conceptual data models should support the

deﬁnition of fundamental domain concepts such as

entities, attributes, relationships, and their cardinali-

ties. SR4. Conceptual data models should support

the deﬁnition of attributes, identiﬁers, generalization

and specialization, self-relationships, and ternary re-

lationships. SR5. DSL implementation must trans-

form from the conceptual to the logical model dis-

playing the result generated to the user.

In the following we described the Design Deci-

sions (DD) supporting all the previously discussed

SRs: DD1. The solution must adopt an open-source

LW (Language Workbench) to aid the implementa-

tion of the textual DSL (SR1, SR2). Through the

investigation conducted during this study, we select

the LW Xtext for the development of our DSL. DD2.

A DSL must provide a textual representation equiva-

lent to the currently graphical ER model (SR3, SR4).

For the SRs covered by this DD, we adopted a strat-

egy to carry out an analysis on the tools identiﬁed

in an MLM, as well as in the Heuser’s reference

book (Heuser, 2009). DD3. The solution must per-

form the transformation among the models (e.g. con-

ceptual, logical, and physical) (RQ5).

3.2 The Language

In the current phase of the work, the language at the

conceptual level is not fully ﬁnalized. There are top-

ics related to the scope validation, as in the case of

the treatment of unwanted cross-references and other

restrictions inherent to the ER model that must be ana-

lyzed and then implemented. The grammar deﬁnition

of the created DSL is displayed in Figure 1.

The grammar command speciﬁes the DSL name,

while the with statement declares an inheritance from

another language. In the case of the proposed gram-

mar, a standard Xtext grammar, called Terminals,

will be used, which provides some predeﬁned rules

The generate command is the statement that pro-

duces the language’s AST.

The ﬁrst rule, called the input rule, deﬁnes what

the general language structure looks like. Words and

symbols in double or single quotes indicate reserved

words. For example, the object Entities must be

preceded by “Entities {”. This object represents a

kind of container as indicated through the assignment

operator +=. It is an object that can contains other

objects, in this case, one or more Entity. It is estab-

lished that each DSL ﬁle must also be composed of a

Domain and zero or more Relation objects.

grammar o r g . x t e x t . u n i v e r s i t y . e r t e x t . E R t e xt

wit h o r g . e c l i p s e . x t e x t . common . Ter min als

g e n e r a t e E R t e xt " h t t p : / / www . x t e x t . o rg / uni pampa / e r t e x t /

E Rtex t "

ERModel :

do ma in =Domain ’ ; ’

( ’ E n t i t i e s ’ ’ { ’ ) e n t i t i e s += E n t i t y + ( ’ } ’ ’ ; ’ )

( ’ R e l a t i o n s h i p s ’ ’ { ’ ) r e l a t i o n s += R e l a t i o n

( ’ } ’ ’ ; ’ ) ;

Domain :

’ Domain ’ name=ID ;

A t t r i b u t e :

name=ID t y p e =DataType ( i s Key ?= ’ i s I d e n t i f i e r ’ ) ? ;

E n t i t y :

name=ID ( ’ i s ’ i s += [ E n t i t y ] )

( ’ { ’ a t t r i b u t e s += A t t r i b u t e

( ’ , ’ a t t r i b u t e s += A t t r i b u t e )

’ } ’ ) ? ;

R e l a t i o n :

( name=ID ) ? ( ’ [ ’ l e f t E n d i n g = R e l a t i o n S i d e

’ r e l a t e s ’

r i g h t E n d i n g = R e l a t i o n S i d e ’ ] ’ )

( ’ { ’ a t t r i b u t e s += A t t r i b u t e

( ’ , ’ a t t r i b u t e s += A t t r i b u t e )

’ } ’ )

;

R e l a t i o n S i d e :

c a r d i n a l i t y = ( ’ ( 0 : 1 ) ’ | ’ ( 1 : 1 ) ’ | ’ ( 0 : N) ’ | ’ ( 1 : N) ’ )

t a r g e t =[ Entit y ] | t a r g e t =[ Relati o n ] ;

enum DataType :

INT= ’ i n t ’ | DOUBLE= ’ d o u b l e ’ |

MONEY= ’money ’ | STRING= ’ s t r i n g ’ |

BOOLEAN= ’ b o o l e a n ’ | DATETIME= ’ d a t e t i m e ’ |

BLOB= ’ f i l e ’ ;

Figure 1: Grammar deﬁnition of the DSL.

For a better understanding, it should be made clear

that multiplicity is indicated by * (zero or many), +

(one or many), or ? (zero or one). By not placing

any of these operators, then one implicitly is expected

to occur. Regarding assignments, when only one = is

speciﬁed it means that the object on the left expects

only one record. Therefore, for += then zero, one or

more occurrences are expected.

The Domain object is preceded by a reserved word

with the same name, followed by an identiﬁer. The

entity is deﬁned by the Entity statement and an iden-

tiﬁer name for this object. Deﬁning an inheritance

is optional using the reserved word is. After deﬁn-

ing the name, a body of keys opens in which the en-

tity attributes are speciﬁed. An entity must contain at

least one attribute and, due to the possible existence

of weak entity set, it does not need to be an identiﬁer.

The compound rules are only performed due to

the possibility of grouping expressions using paren-

theses, in addition to the possibility of using other

rules through cross-references. The brackets between

the Entity rule are used to indicate that you want to

use only the name attribute that identiﬁes the object.

Entity attributes are deﬁned by a name, inheriting the

ID rule from Terminals, and optional attributes e.g.

isIdentifier to symbolize primary keys.

The relationship is deﬁned, already within the

body of the Relationships block, with an op-

tional declaration of its identiﬁcation. Then, brack-

ets are opened and two elements must be speci-

ﬁed RelationSide as a reference to the attributes

leftEnding and rightEnding. These attributes rep-

Textual Approach for Designing Database Conceptual Models: A Focus Group

173

resent the sides of a relationship. These objects

must be separated by the expression relates. The

sides of the relation are deﬁned in the rule Relation-

Side, composed of two attributes. The cardinality

attribute is mandatory and uses numerals (0:1),

(1:1), (0:N), (1:N). The target attribute is like-

wise mandatory, accepting a cross-reference to a

Entity or Relation. In the case of a target ref-

erencing a Relation, then a ternary relationship is

highlighted. The attribute types are contained in an

enumerated list called DataType, on the left is the

representation in the model ECore. On the right is the

reserved word that is used in the language. The con-

ditional symbol | means the logical operator OR and

serves to separate each deﬁnition <key> = <value>

as an option within the list.

3.3 Tool Architecture

The solution architecture is shown in Figure 2 and was

built with the help of Xtext, which helped to gener-

ate most of the editor’s infrastructure, the parser and

ECore model i.e., a representation in memory at run-

time of the model created using DSL.

Editor

Ecore

Parser

Grammar

Conceptual Model

EMF Model

Generator

Logical Model

Rules

edit

parse

create

instance

handled

convert

Xtext Generator

into

(DSL Model)

Figure 2: ERtext architecture.

4 ERText

Our plugin can either be integrated with the Eclipse

Rich Client Platform (RCP), or it can be used as a

standalone application. The difference is that when

used as an Eclipse plugin the editor can provide, in

addition to the grammar features, support for other

languages, e.g. Java, PHP. On the other hand, a stan-

dalone product provides the entire infrastructure fo-

cused solely on the developed language and can be

distributed as an open-source tool as long as the EPL-

2.0 software license guidelines are followed.

4.1 Operation

Figure 3 shows a screenshot of the ERText. This

example is inspired on Chinook Sample Database

(Repository: github.com/lerocha/chinook-database),

and contains eleven (11) entities and ten (10) relation-

ships, including generalization and specialization, a

self-relationship and a ternary relationship. ERText is

embedded with design features assisted by real-time

validation including: a) syntax highlighting indicat-

ing syntax errors in writing time; b) code completion,

and c) hovering, a feature that displays information

about an item when the mouse cursor is placed over

it.

In addition, although the deﬁnition of data types is

not foreseen in the classic conceptual data model, for

reasons related to the future intention to perform the

generation of SQL commands, we decided to main-

tain this design decision in the grammar.

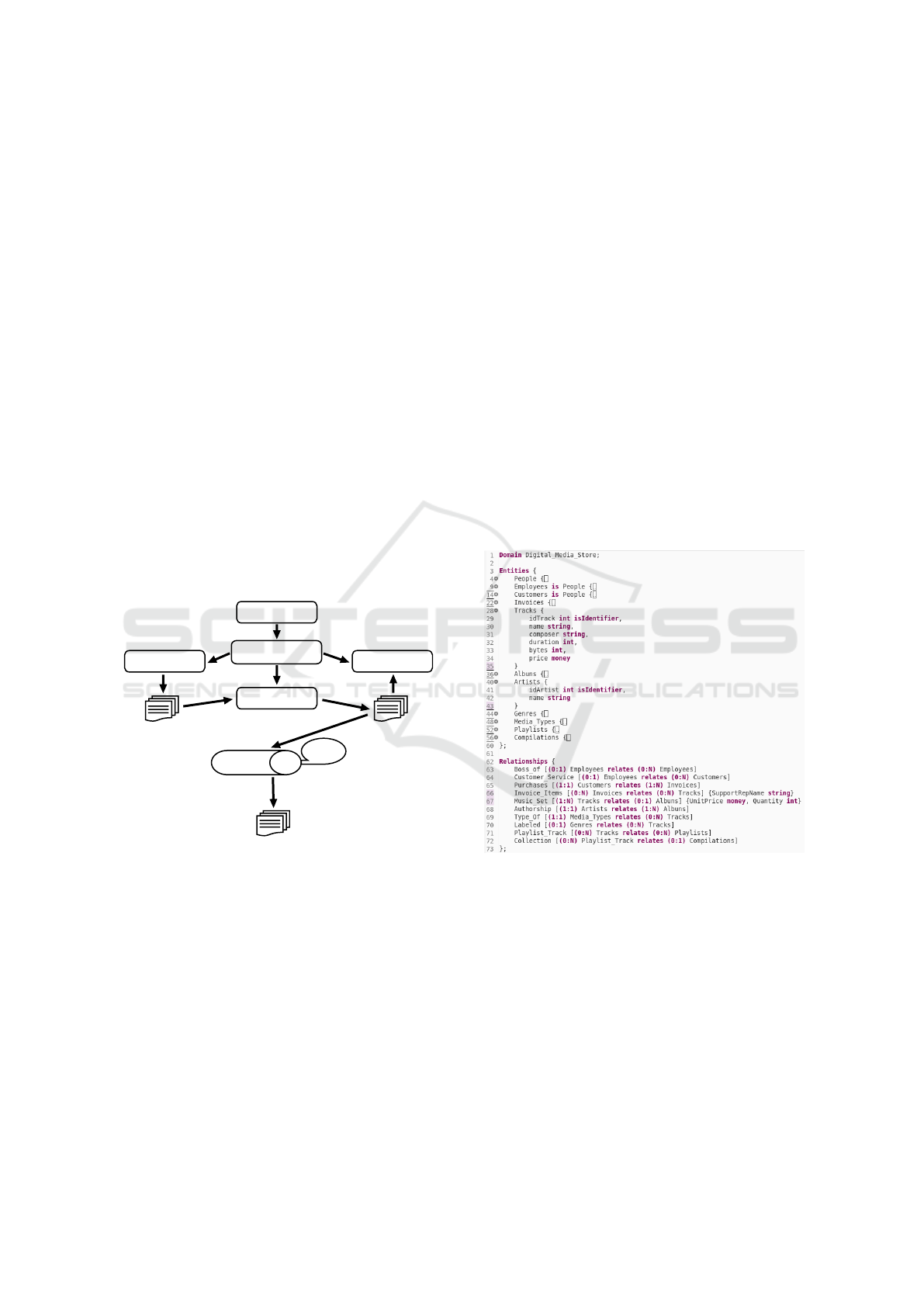

Figure 3: Snippet of the solution being used.

Files with this format were generated for a better view

from the text-markings using a model transformation

of type model-to-text. These markings can be ren-

dered by any browser, or even within the environ-

ment, increasing the power of understanding by the

user. The logical model mapping the conceptual data

model, i.e., derived by the generator, is shown in Fig-

ure 4.

The model-to-text transformation was mapped to

the save event. Considering the exempliﬁed model as

input, this transformation results in a new model com-

posed of fourteen (14) entities already having their in-

ferred referential integrity, i.e. the records that point

MODELSWARD 2021 - 9th International Conference on Model-Driven Engineering and Software Development

174

Figure 4: Snippet of the created logical model.

to other records are already established.

In order to map and transform from a concep-

tual data model to a logical data representation of

database, we adopted some assumptions proposed

by Heuser (Heuser, 2009). The assumptions imple-

mented so far can be summarized in: (i) column addi-

tion for 1:1 relationships; (ii) column addition for 1:N

relationships, and; (iii) creation of own table for N:N

relationships.

According to Heuser (Heuser, 2009), concerning

generalization and specialization concepts, there are

two alternatives that can be derived from a mapping

for the transformation. The ﬁrst one recommends the

use of a single table for the entire hierarchy of enti-

ties, i.e. it advises merging the tables. The second

one suggests the use of a table by modeled entity, as

long as respecting referential integrity, i.e. the pri-

mary keys of the child entities must necessarily point

to the primary key of the parent entity, creating a for-

eign keys references. We chose the second alternative

as assumption for this design decision.

The generator of the logical model was developed

with GPL Xtend, and currently has about four hun-

dred lines of code to carry out the transformation from

the conceptual data model to the logical data model.

5 PRELIMINARY EVALUATION

This section describes the preliminary evaluation con-

ducted to analyze the proposed grammar, aiming to

enhance it in a ﬁnal version of the solution.

For that, it was established the use of a focus

group, a qualitative research method that aims to gen-

erate feedback from a group of people in relation to

a speciﬁc topic. This approach is widely used as an

activity for market research in several areas, since it

can play an important role in supporting exploratory

research. Thus, starting from a previous investigation

(Edmunds, 2000; Frisina, 2006; Tong et al., 2007) the

process carried out in this step, expressed in Figure 5,

was based on the guidelines established in the work of

(Kontio et al., 2008), which cover the application of

this method in the context of Software Engineering.

Qualitative

Data

Analysis and Report

Planning Preparation

Execution

Figure 5: Focus Group Process (Kontio et al., 2008).

5.1 Planning

During the planning stage, a protocol was deﬁned

that should be followed. In this protocol, motivated

by the problem of generating a deﬁnitive version of

the proposed DSL grammar, the necessary documents

were created for its execution: (i) Informed Consent

Form (ICF); (ii) Glossary of Terms; (iii) Proﬁle Ques-

tionnaire; (iv) Discussion Instruments 1, 2 and 3;

(v) Models of the Grammars, and; (vi) Presentation

Script. All models of the documents produced are

available in a public repository (Repository: github.

com/JonnathanRiquelmo/Focus-Group-Protocol - in

portuguese).

5.2 Preparation

Typically evaluations using focus groups should con-

sist of four (4) to six (6) individual groups to the sci-

entiﬁc rigor to be considered high. The size of each

group can vary from three (3) to twelve (12) elements,

with the most common being a number between four

(4) and eight (8) participants (Kontio et al., 2008).

For the present study, it was possible to run one

(1) focus group for reasons of time and human re-

sources. After the invitation, a total of thirteen (13)

participants collaborated, all from the Software En-

gineering area. Of this total, three (3) participants

were undergraduate students, nine (9) were master’s

students and one (1) doctoral student.

The Proﬁle Questionnaire was then applied, in

which it was possible to identify that there was a

balanced level of knowledge among the participants.

This was veriﬁed because everyone already had con-

tact with DSL, having used this type of language, at

Textual Approach for Designing Database Conceptual Models: A Focus Group

175

least during graduation. It was also informed that the

entire process would be recorded on audio, a fact that

everyone agreed with it.

5.3 Execution

The focus group was held in the second half of 2019,

on the premises of a higher education institution, and

lasted for two (2) hours. Starting with the presenta-

tion script that should be followed, where there was

the presentation of the focus group objective and the

basic concepts involved, a request was made for the

participants to read and sign the ICF. With the signed

ICF, we continued the planned script.

For each discussion instrument available we

waited until all the participants answered individu-

ally. Afterwards, there was a group discussion on the

topic raised. The entire process was recorded in au-

dio and had the support of the researchers involved

in this study. A text transcription was made for the

observations raised by the debate that followed, thus

characterizing the brainstorming practices.

5.4 Results Analysis

According (Kontio et al., 2008), the analysis and in-

terpretation stage of the generated data constitutes an

important part of the qualitative research, consider-

ing the context, the behavior, and the perception of

the subjects. For the data analysis stage the audio was

analyzed in parallel to the taken notes. With these ma-

terials and the participant’s responses to each discus-

sion instrument, it was possible to evaluate the results

of the executed focus group.

After the presentation of the script prepared for

the focus group, the discussions on the three (3) in-

struments created for the dynamics began. The ﬁrst

instrument contained the following statement, associ-

ated with a Likert scale, composed of levels of agree-

ment, and arranged from one (1) to ﬁve (5), where

one (1) indicates totally disagree and ﬁve (5) totally

agree: “Domain-speciﬁc languages with a textual

approach can be applied in conceptual modeling as

they can describe certain properties quickly and con-

cisely. Therefore, these solutions can be used or

even adapted in an effective way with respect to the

representation of the domain they model.”

After all participants answered the instrument, a

moment of discussion was opened among all. As they

did not see the proposed DSL model, some doubts

arose and the researchers involved sought to resolve

all of them in order not to inﬂuence the following dis-

cussions. The debate continued with the participants

raising possible advantages of a textual model. Some

said they believed that this approach could be easier to

understand, but that it would depend on the user. This

assumption included two likely proﬁle types: analysts

and developers. The group came to the conclusion

that the approach could be seen as more productive by

users with a developer proﬁle, but less proﬁtable by

those who had a more analytical bias due to their ab-

straction level in relation to graphic approaches. Fig-

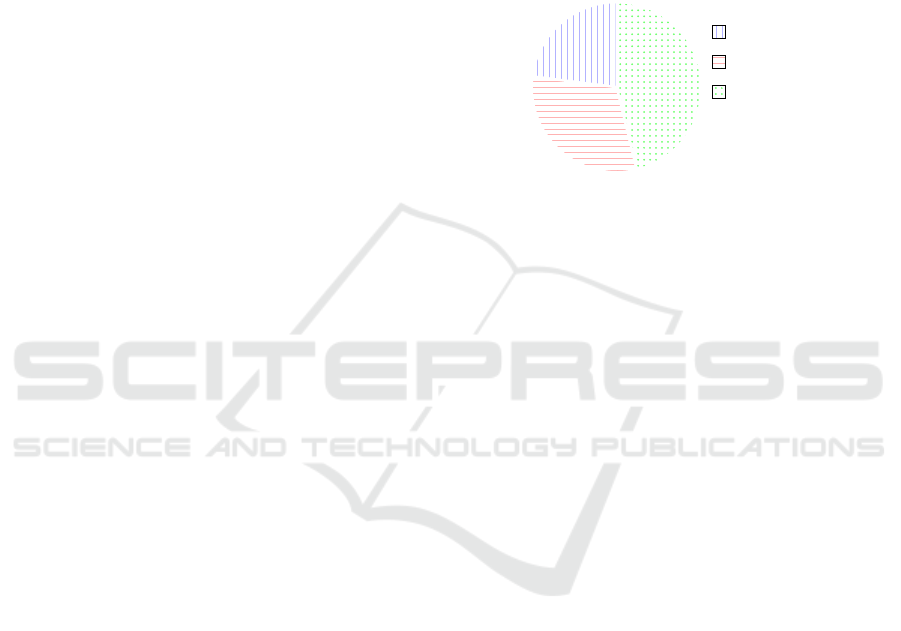

ure 6 shows the responses distribution for the ﬁrst dis-

cussion.

Totally Agree (3)

Neutral (4)

Agree (6)

23%

30.8%

46.2%

Figure 6: Results of Discussion 1 - Focus Group.

Next, the discussion of the second instrument was

carried out. The activity consisted of the follow-

ing question: “Considering that a conceptual data

model must deﬁne at least the domain entities, their

attributes and the number of possible occurrences

(cardinality) of associations (relationship), as you

would deﬁne a basic grammar (DSL) for your rep-

resentation?”

It is important to mention that the participants

could talk freely during the entire realization of this

instrument. After each one suggested its syntax, there

was a debate and an information exchange on how to

better structure the commands. The discussion was

mainly focused on how to represent the relations of

the ER model in a textual syntax.

The greatest difﬁculty observed is about how to

deﬁne an order. Another point worth mentioning

was the cardinality, where in general the nomencla-

ture used in Chen’s original diagram (e.g. 0,1) was

followed. However, at the end of the instrument,

there were very divergent opinions in relation to the

ideal representation. Apparently, each had a differ-

ent point of view, some choosing to include relation-

ships within the entities, and others outside. There

were also suggestions regarding possible keywords,

such as Element, ElementFather, ElementSource,

Type, and Referential. Still, six (6) participants

suggested the use of semicolons (;) to separate the

declarations of elements, and all thirteen (13) rec-

ommended the use of symbols such as parentheses,

brackets and/or keys to group similar sets of elements.

After the end of proposed dynamic, the last exper-

imental instrument is executed: An artifact composed

MODELSWARD 2021 - 9th International Conference on Model-Driven Engineering and Software Development

176

by an example of each grammar version produced

preliminary for this work. Based on both grammar

versions, we asked the participants to choose between

the options, thus indicating which one they evaluated

as the most feasible for ER modeling. In addition, we

also requested to indicate the pros and cons observed

in each model. The second model was eventually cho-

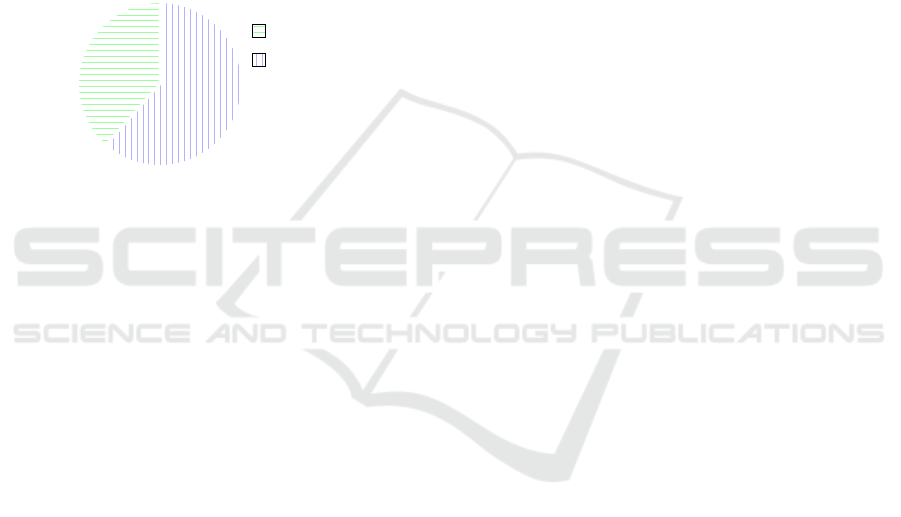

sen by the majority, as can be seen in Figure 7. How-

ever, at the end of the conditions we reached a con-

sensus: the way of deﬁning entities of the ﬁrst model

and the disposition of relationships for the second, es-

pecially the use of conventions in cardinalities, are the

most suitable for application in teaching-learning pro-

cess, thus indicating the need for a merger of both

versions.

Model 1 (5)

Model 2 (8)

38.5%

61.5%

Figure 7: Results of Discussion 3 - Focus Group.

6 THREATS TO VALIDITY

For the list of possible threats, the topics and recom-

mendations raised in the work of (Wohlin et al., 2012)

were used. These threats followed a pattern and were

divided into four (4) categories as follows.

Construct Validity: concerns the experimental

design and social factors. (i) Inadequate Preoper-

ational Explication: This threat is when the focus

group may not have the objective of the artifacts suf-

ﬁciently deﬁned before they are translated into mea-

sures or treatments. (ii) Interaction of different treat-

ments: If the subjects are involved in more than one

study, the treatments of the different studies may in-

teract and reverberate in the ﬁnal results. All subjects

did just this focus group at the time of realization.

Internal Validity: are inﬂuences that can affect

independent variables in relation to causality, without

the researcher’s knowledge. (i) History: There is a

risk that a speciﬁc time period will inﬂuence the ex-

periment. In order to mitigate this threat the entire

process was carried out upon the participants’ notice

of a period when everyone was not necessarily over-

whelmed with academic activities e.g. tests and as-

signments. (ii) Tests: If the tests are repeated, the

subjects may respond differently at different times,

as they know-how the test is performed. There was

no need to repeat the activities, since they were per-

formed once by each participant. (iii) Instrumenta-

tion: This threat is related to artifacts used for the

execution of the focus group, such as data collection

forms, etc. If these are poorly designed, the expe-

rience is negatively affected. To combat this threat

all artifacts were previously checked and validated at

meetings among the researchers involved in this work.

External Validity: are conditions related to repli-

cation of the evaluation. (i) Subjects: The subjects

selected for the focus group may not represent a sig-

niﬁcant group for the study area. In an attempt to mit-

igate this threat it was carried out with participants

from the area of Software Engineering and Computer

Science, inserted in the context of the use of concep-

tual modeling of databases. However, the fact that the

sample is of only one focus group is a threat indicated

in the literature. It was not possible to mitigate this

fact. (ii) Interaction of subjects with assessment arti-

facts: This is the threat related to the application of the

assessment artifacts with the subjects. Depending on

the moment this can affect the results. If, e.g. a ques-

tionnaire is carried out a few days after the execution

of the focus group, people tend to answer differently

than they would do moments after the activities. All

instruments were performed in the same session.

Conclusion Validity: are related to issues affect-

ing the ability to infer a correct conclusion about the

relationship between treatments and results of an eval-

uation. (i) Reliability of Results: This threats ob-

tained has a direct impact on the validity of the fo-

cus group as a whole. As it is an assessment with a

greater qualitative focus, this threat could not be mit-

igated due to the subjectivity inherent in the subjects’

responses in such assessments. (ii) Evaluation Envi-

ronment: The assessment should be carried out in a

controlled environment, trying to avoid external in-

ﬂuences. To mitigate this possible threat, participants

were instructed that conversations outside the scope

of the focus group could not take place during the en-

tire duration of the activities, as well as leaving the

environment or accessing electronic devices.

7 CONCLUSIONS

In this study, the requirements, the design decisions,

the architecture, and the ERText tool were exposed.

XText proved to be an LW capable of meeting the

needs of the project. Using this framework, a DSL

was deﬁned and implemented as an integrated plugin

in an Eclipse RCP, thus generating the ERText tool.

In this way, the modeling process with the newly

created language gained native features such as code

Textual Approach for Designing Database Conceptual Models: A Focus Group

177

completion, formatting, validation based on the re-

strictions described in the grammar, and syntax high-

lighting. It is important to note that the plugin could

only be tested due to the native integration provided

by XText with EMF, a set of Eclipse features to rep-

resent models and generate code.

With the investigation of the scientiﬁc literature

and the experience acquired mainly during the design

stage of the textual DSL development, we can also

mention the occurrence of a preliminary evaluation of

a prototype with 13 participants. With the feedback

obtained, it was possible to carry out the evolution

of development and the deﬁnition of an experimen-

tal protocol to perform an empirical evaluation of the

product developed.

Consequently, a controlled experiment (doi.org/

10.5281/zenodo.4064991) was carried out with 27

participants, all students of different levels and be-

longing to SE area. This evaluation used two treat-

ments, one with a graphical approach and the other

with ERtext, with the groups of subjects randomly

balanced. With the data collected it was possible

to execute a quantitative and qualitative analysis of

the tool’s viability. The results obtained show ev-

idence that, when performing modeling tasks with

both approaches, there is less effort associated with

the graphical approach. We believe this is due to the

fact that the textual approach to conceptual modeling

was not familiar to the subjects of the experiment. On

the other hand, the performance was very similar re-

garding the quality of the models made in both tools,

indicating some potential for competition of the pro-

posal concerning to the graphical approach tools.

As future work, the solution is expected to gener-

ate SQL code for different technologies (e.g. MySQL,

PostgreSQL), including as an improvement not only

the generation of DDLs but also, for example, stored

procedures of CRUD operations for each modeled en-

tity. Besides, we intend to generate Object Relation-

ship Mapping (ORM) input structures, for instance

Hibernate and Entity Framework.

Finally, the project for this solution is publicly

available under the EPL-2.0 license in the GitHub

repository (Repository: github.com/ProjetoDSL/

ERDSL), belonging to the Laboratory of Empirical

Studies in Software Engineering (LESSE) research

group of Unipampa.

REFERENCES

Al-Dmour, A. (2010). A cognitive apprenticeship based

approach to teaching relational database analysis and

design. Journal of Information & Computational Sci-

ence, 7(12):2495–2502.

Celikovic, M., Dimitrieski, V., Aleksic, S., Ristic, S., and

Lukovic, I. (2014). A DSL for EER data model spec-

iﬁcation. In 23rd Int. Conf. on Information Systems

Development, pages 290–297, Croatia. Springer.

Chen, P. P.-S. (1976). The entity-relationship model: To-

ward a uniﬁed view of data. ACM Transactions on

Database Systems, 1(1):9–36.

Connolly, T. M. and Begg, C. E. (2006). A constructivist-

based approach to teaching database analysis and de-

sign. Information Systems Education, 17(1):43–54.

Date, C. and Warden, A. (1990). Relational database writ-

ings, 1985-1989. Number v. 1 in Relational database /

C.J. Date. Addison-Wesley Longman Publishing Co.,

Boston, MA, USA.

Dimitrieski, V.,

Celikovi

c, M., Aleksi

c, S., Risti

c, S.,

Alargt, A., and Lukovi

c, I. (2015). Concepts and eval-

uation of the extended entity-relationship approach

to database design in a multi-paradigm information

system modeling tool. Comput. Lang. Syst. Struct.,

44(PC):299–318.

Edmunds, H. (2000). The Focus Group Research Hand-

book. McGraw-Hill Education.

Elmasri, R. and Navathe, S. B. (2015). Fundamentals of

Database Systems. Pearson, 7th edition.

Frisina, A. (2006). Back-talk focus groups as a follow-

up tool in qualitative migration research: The missing

link? Qualitative Social Research Forum, 7.

Heuser, C. A. (2009). Projeto de Banco de Dados. Book-

man, Porto Alegre, BR.

Kelly, S. and Tolvanen, J.-P. (2008). Domain Speciﬁc Mod-

eling: Enabling Full Code Generation. IEEE Com-

puter Society - John Wiley & Sons.

Kessler, J., Tschuggnall, M., and Specht, G. (2019). Re-

lax: A webbased execution and learning tool for rela-

tional algebra. In Proceedings of Datenbanksysteme

für Business, Technologie und Web, pages 503–506,

Bonn, Germany. Gesellschaft für Informatik, Bonn.

Kontio, J., Bragge, J., and Lehtola, L. (2008). The Focus

Group Method as an Empirical Tool in Software En-

gineering, pages 93–116. Springer London, London.

Tong, A., Sainsbury, P., and Craig, J. (2007). Consolidated

criteria for reporting qualitative research (COREQ): a

32-item checklist for interviews and focus groups. Int.

Journal for Quality in Health Care, 19(6):349–357.

Wohlin, C., Runeson, P., Hst, M., Ohlsson, M. C., Reg-

nell, B., and Wessln, A. (2012). Experimentation in

Software Engineering. Springer Publishing Company,

Incorporated, London, England.

MODELSWARD 2021 - 9th International Conference on Model-Driven Engineering and Software Development

178
