Blockchain based Secured Virtual Machine Image Monitor

Srijita Basu

, Sandip Karmakar

2 b

and Debasish Bera

1 c

Department of Computer Science and Engineering, Indian Institute of Information Technology, Kalyani, India

Department of Computer Science and Engineering, National Institute of Technology, Durgapur, India

Keywords:

Virtual Machine Image, Blockchai, Smart Contract, Auditability, Cloud.

Abstract:

Blockchain technology supports data immutability. Whereas, smart contracts are piece of self-executable

codes running inside the blockchain network, responsible for the transformation or state change of these

data. Furthermore, Cloud Computing is used in the application of data storage and usage. Several business

enterprises use cloud for hosting their applications and data with a minimized effort, cost and hurdles of

maintenance. However, ensuring security of client data and proper management of the Service Provider’s

infrastructure remains a crucial issue. In this article, an Ethereum based blockchain network has been proposed

that monitors and assures the safety of the Virtual Machine Images (VMI) stored at the Cloud Service Provider

(CSP) end. The proposed scheme tends to design a dedicated Smart Contract which handles each and every

function, starting from request of a VMI by the Cloud Service Consumer (CSC) to the usage of the same by

the later. The use of blockchain technology ensures that no single admin/third party can control/modify the

system. This prevents unwanted modiﬁcation of the VMIs by an intruder and guarantees the efﬁciency of the

scheme to be higher than any other methodology designed for the same purpose till date.

1 INTRODUCTION

Cloud based services have become very popular

among small and medium scale enterprises. It re-

duces not only the hardware and software mainte-

nance costs, but also facilitates the CSC with vari-

ous add-on features like on-demand scaling, pay per

use pricing model, ﬂexible and easy deployment op-

tions, etc. Cloud computing has drastically changed

the sphere of renting services, by providing rents on

softwares, operating environment, and even hardware

resources. A substantial apprehension comes with the

cloud based service usage in terms of security for both

the CSC’s data as well as CSP’s infrastructure.

The various security concerns (Hashizume et al.,

2013) include data locality, data segregation, Virtual

Machine (VM) life cycle management, and public

VM Image (VMI) repository regulation etc. In spite

of the fact that several cloud speciﬁc schemes (Wan

and Jiang, 2010) have been devised for each of these

issues, there are still some areas which lacks signif-

icant work. One such vital security issue is lack of

management and tracking of the Virtual Machine Im-

https://orcid.org/0000-0002-6835-947X

https://orcid.org/0000-0002-8150-3026

https://orcid.org/0000-0001-8888-6042

ages (VMI), which results in the sustainability of var-

ious malicious VMIs in the CSP’s data-centre.

Blockchain technology has been projected as one

of the most secured solutions for data storage and

monitoring. It has quite often been coined as a dis-

tributed and decentralized public ledger. Back in the

year 2008, Satoshi Nakamoto had used Blockchain

technology for constructing a crypto-currency plat-

form known as Bitcoin (Nakamoto, 2008). Later in

the year 2014, it was realized that blockchain could

be used to permanently record any kind of transac-

tion/change without a third party intervention. This

was followed by the 2nd generation of Blockchain-

Ethereum. Ethereum (Wood, 2014) introduced the

tech-world to Smart Contracts (Macrinici et al.,

2018). This new generation blockchain technology

helps not only digital transactions but any service, as-

set, bond etc. can be exchanged between peers, de-

pending on conditions that were depicted in the smart

contracts. The blockchain architecture (Halpin. and

Piekarska, 2017), with the help of mining algorithms

(Wang et al., 2019), clearly portrays the difﬁculty for

an intruder would face if he/she wishes to change

the entries of the block. Thus, it is quite evident

that blockchain with its smart contracts can be widely

used to ensure secured data/service preservation.

432

Basu, S., Karmakar, S. and Bera, D.

Blockchain based Secured Virtual Machine Image Monitor.

DOI: 10.5220/0010228804320439

In Proceedings of the 7th International Conference on Information Systems Security and Privacy (ICISSP 2021), pages 432-439

ISBN: 978-989-758-491-6

In this paper an effort has been made to design

an Ethereum (Blockchain) based Smart Contract that

would ensure VMI security and tracking. The use

of smart contract based blockchain technology in this

system ensures that no malicious VMI exists at the

CSP end and additionally tracks the entire life cycle

of a VM (Schwarzkopf, 2015) by providing a series of

authentic audit data (timestamp, violation action, etc)

which helps to identify the intended activity. The rest

of the paper is organized as follows. In Section II, a

survey of related work is presented. Section III dis-

cusses the architecture of the proposed system. Sec-

tion IV details the proposed methodology for VMI

management and tracking. In Section V result analy-

sis for the proposed scheme has been performed. Fi-

nally, Section VI concludes the article.

2 RELATED WORK

This section presents a brief survey of different

schemes on VM image tracking and security in a

cloud environment. Virtual machine images require

full-proof integrity schemes, as they initialize a VM

from scratch including its conﬁguration as well as se-

curity parameters or policies which if changed can

pose threat to the client applications or data.

In (Wei et al., 2009), an image management

scheme was proposed for secured cloud environ-

ment. The various sub-operations /sub-modules in

this scheme include access control framework, Image

ﬁlters, provenance tracking mechanism and a set of

repository maintenance functions. The image prove-

nance tracking system was used by the CSP to ad-

dress two major issues viz. tracing the introduction

of illegal or malicious content in a VMI and delega-

tion of patching information. The proposed scheme

achieved 4.9 times speedup and addressed VMI secu-

rity aspects from both the image publisher as well as

retriever sides. Though the scheme offered a proper

tracking mechanism, it did not alleviate the risk of

uploading a VMI with malicious content.

In (Kazim et al., 2013), Kazim et. al proposed

an Encrypted Virtual Disk Images in Cloud (EVDIC)

based on OpenStack Platform. The system ensured

the protection of the stored virtual machine disk im-

ages at the Cloud Service Provider’s end. The de-

sign consisted of a Virtual Machine Image encryp-

tion module, Virtual Machine Image disk decryption

module, and Key management Module. The scheme

aimed at protecting the disk images from getting com-

promised by some malicious internal user or adminis-

trator by unauthorized access. Though the work tends

to provide security to the Virtual Machine Images

from the malicious CSP users, it is unable to protect

the same from the external intruders/ malicious Cloud

Service Consumers.

A security framework that tried to protect the Vir-

tual Machine Images (VMI) in a cloud platform was

devised by Hussein, Alenezi, Wills and Walters in

(Hussein et al., 2016). The paper formulated a re-

search path following which VMI security could be

strengthened. A model has was suggested where the

industry based security controls have been taken in

parallel with the academic security controls. At the

later stage, the redundant security controls have been

eliminated by semantically comparing each of the in-

dustry and academic controls. Finally, a combined

security control model has been produced that is ex-

pected to meet the VMI security requirements in a

better way.

It is evident from the above discussion that the

existing VM/VMI management models are either in-

complete or depend on some central or third party au-

thority/CSP admin. Most of them have certain over-

heads and are unable to present a fool-proof solution

to CSP and/or CSC. Therefore, there is a need to de-

sign a comprehensive model constructed on the core

of blockchain network, that can not only identify the

stakeholders, processes and properties of the cloud

system involved, but also provide the required track-

ing and management to ensure a secured VMI repos-

itory.

3 SYSTEM MODEL

In this section, the basic system design is outlined

with an overall insight into the entities of the pro-

posed model. The well-established deﬁnition of cloud

(Buyya et al., 2009) portrays it as a distributed system

consisting of a collection of interconnected and vir-

tualized computers that are dynamically provisioned

and presented as one or more uniﬁed computing re-

source(s) (Buyya et al., 2009). The problem that is be-

ing dealt with in this article requires the system model

to be designed accordingly.

The proposed system has been modelled to con-

tain the following components. It might be noted that

this composition is done according to the proposed

work. However, there may be some additional enti-

ties which have been ignored here due to its lack of

relevance with the present work. Fig. 1 describes the

architectural design of the proposed model, describ-

ing every component as follows.

• Data-centre: A data-centre is a physical repos-

itory meant for gathering cloud computing re-

sources and other existing components (Sahli

Blockchain based Secured Virtual Machine Image Monitor

433

et al., 2014)

• Hosts/Server: These are the real/physical infras-

tructures hosted inside a data-centre, used to serve

the computation and execution requests coming

from the client end (Sahli et al., 2014).

• Virtual Machine (VM): It is the virtual abstraction

of the underlying infrastructure(Sahli et al., 2014)

that exists inside a host. Multiple VMs can be

instantiated as well as powered off or even killed

i.e. deleted on-demand inside single host as per

the user requests.

• Virtual Machine Image (VMI): These are the var-

ious ﬂavours of images (customized Operating

System images, sometimes pre-loaded with cer-

tain applications) that are used to boot a VM on

requirement.

• Cloud Storage: Different kinds of essential data

are stored in logical pools. The physical storage is

generally sketched in two ways (Abbadi, 2011). i)

It is distributed across different dedicated storage

servers that may be located in a replicated form in

geographically distant data-centres.

ii) Again in some instances of lesser storage re-

quirements, the storage server may be a part of

computation server itself (the one that hosts the

VM for running various applications).

• Block: A Block (Conti et al., 2018) is developed

from VM Request and Response documents. A

single block spans an entire VM request from

its initiation to completion (details will be dis-

cussed in the upcoming sections). In addition to

the main block there exists side block for every

main block which contains the smart contract re-

ports (explained in later section).

• Blockchain: As already mentioned, each block

represents each VM access request. A sequence

of such blocks forming a chain represents a se-

ries of requests from a particular user on different

VMs.

• Cloud Network: This can be physical as well as

virtual network. Since, the blockchain technology

is being used in this model the network as a whole

represents a blockchain P2P(peer-to-peer) model

where each cloud host/server and consumer con-

tains/shares the same copy of blockchain and

communicates accordingly as and when required

at the time of each blockchain consensus (Wang

et al., 2019).

• Smart Contract: Smart Contracts (Macrinici

et al., 2018) add enhanced feature to normal

blockchain network. They consist of a set of self-

executable code snippets embedded as a part of

the blockchain itself. In this model, how the Smart

Contracts control the entire process of VMI re-

quest and allocation, followed by the post alloca-

tion actions has been portrayed.

Figure 1: System Mode.

4 WORKING OF THE

BLOCKCHAIN BASED VMI

MONITORING SYSTEM

In this section, VMI Monitoring scheme is presented

with its detailed working methodology. The speciﬁc

issues that can be addressed by this scheme have been

identiﬁed as follows.

4.1 Methodology

• Authentication Phase: Here the user registers it-

self with the CSP and gets his/her name enlisted

as the CSC. In this Registration process, the user

needs to supply some of the basic information like

Name, Email, Contact, OrganizationName, Orga-

nization location and some additional information

if required, such as period of registration, spe-

ciﬁc purpose/project for which the user is regis-

tering etc. After this, the CSC logs in and sends

its request in the form of speciﬁc VM instance re-

quirement. E.g. the request contains the particular

Storage, RAM, CPU cycle, OS, etc. requirements.

In addition to that, the CSC might also add some

speciﬁc security requirements with respect to this

VM request. These requirements mainly depends

on the purpose for which the VM was requested.

ICISSP 2021 - 7th International Conference on Information Systems Security and Privacy

434

The kind of data to be deployed or applications

to be executed on the VM directly inﬂuences this

security requirements. After framing the request

packet, it is send to the CSP.

If the system notices that the user is not a regis-

tered CSC then the login process fails. Addition-

ally the system can also revert back/deny any ab-

normal request packet by analysing the requested

parameters (Storage, CPU cycles). The request

packet passing through all these process is for-

warded to the next phase after appending the re-

ceived request timestamp and the CSC ID with it.

• VM Allocation Phase: The request is pro-

cessed for the ﬁrst time in this phase. The re-

quested parameters are examined and accordingly

a VMI is selected from the public VMI repos-

itory. The VMI should be such that it fulﬁls

all the CSC requirements along with any spe-

ciﬁc security requirement the CSC has included.

For executing this allocation, the existing “vir-

tual

machine basic mapping” (explained in the

later section) is checked to ﬁnd the possible VMIs

with permissible hardware and software conﬁg-

urations. A list of VMIs is returned, out of

which one is selected, maintaining the load bal-

ancing (Ferris, 2014) criteria of the CSP. Af-

ter selecting the VMI, system creates a VMI re-

quest document. This document includes the

hashed timestamp of the received request, hash

of the VM ID (VM ID of any VM can be re-

trieved from the System Database), hash of the

host ID that deploys the concerned VM, hash of

the CSC ID initiating the request, and ﬁnally the

hashed data containing the purpose of request and

any speciﬁc security requirements of the CSC if

any. The necessary changes according to this

request document is made in the existing “vir-

tual machine allocation” mapping (explained in

the later section). The timestamp, CSC ID, VM

ID, Host ID and the additional security data if

any, are inserted into this mapping. The basic

details for the particular VMI is also updated in

the “virtua

machine basic” mapping, as the free

space, RAM, CPU cycles and any other resource

would now be changed with the new allocation

being done. Once all the changes have been made,

the time stamp for the same is also noted as the re-

sponse time stamp.

• VM Response Phase: In this step, the system con-

structs the VMI response document. This docu-

ment contains the hash of the timestamp of the

received response i.e. the timestamp when the al-

location was reﬂected in the blockchain, the hash

of the allocated VM login details (VM IP address

and password) and the hashed VM metadata. The

system logs the VM Request and Response docu-

ments in the blockchain (for the particular user) as

a new block. The block is appended in a chrono-

logical way, i.e. this block appears after the last

block which had been formed with respect to the

previous request from the same user. The change

of state of each VMI can now be easily tracked

from the blockchain network.

• VM Action Triggering Phase: The system now ex-

ecutes necessary function using which the CSC

can log in to the VMI, allocated to him/her us-

ing the valid VM IP and password. On success-

ful login, the system logs every action as an event

into the blockchain. For every action it consults

the Blockchain Database to return the policy list

mapped against this particular VMI. After fetch-

ing the list, it is compared with the most recent

CSC action. If this action is found to be a valid

one then no step is taken otherwise for every ille-

gitimate action the same is logged as an event with

the particular time stamp and CSC ID in the side

block. This phenomenon ensures auditability and

a rigorous monitoring of the VMI. Moreover, the

CSC is forcefully logged out by ending its session

and depending upon the sensitivity of the VMI,

the password for the same might also be modiﬁed

so that the CSC is unable to login again. In case of

lower VMI sensitivity the CSC is given a chance

to re-login in the VMI with the same credentials,

but this time the particular object for which access

was denied during the previous check is locked.

The above scenario mainly concentrates on the

immediate action taken against any illegitimate

access request. Along with this, the normal mod-

iﬁcations conducted on the VM should also be

noted. E.g. the user might install a new soft-

ware in the allocated VM or he/she might update

the version of some pre-installed software. Every

such action must be logged into the blockchain.

At the same time the overhead of this event log-

ging activities in the blockchain should be kept

as minimal as possible (as each transaction in-

volves consumption of Ether Gas (Wood, 2014)).

Keeping this in mind, the proposed system runs a

periodic blockchain write, which logs all the le-

gitimate VM modiﬁcation events for that partic-

ular period into the blockchain and modiﬁes its

policy list accordingly for that VM. This mini-

mizes the overhead of saving every change imme-

diately as it occurs in a particular VM and reﬂect-

ing the same in the policy list. Though the peri-

odic updates save transaction charges that would

have been incurred if continuous logging would

Blockchain based Secured Virtual Machine Image Monitor

435

have taken place, it induces another risk. Imag-

ine a scenario where User A is working with VM

X and some valid modiﬁcations have been made

by him/her on VM X. The periodic update is yet

to occur and in the meantime another user, User

B is also allocated VM X. It should be noted that

the actual version of VM X is different from what

the CSP checks before allocating the same to User

B. Moreover, the policy list with respect to VM X

has not been updated. This might be counted as a

vulnerability of the system. There might be cer-

tain unlogged changes in VM X and the Policy

list that needs to addressed against this new allo-

cation. A solution to this issue has been devised

where the system in the VM Allocation Phase

checks the following set of data viz. i) Whether

the allocated VM is already shared by some other

user at present. If the answer to this query is yes

then ii) Check the last update timestamp in the

blockchain, for the concerned VM (VM X). If this

timestamp is found to be right after the allocation

request was made, then no further action needs to

be taken and VM X is allocated to User B. But

if this timestamp is found to be before the allo-

cation request then the allocation is halted for the

time being. A forceful blockchain write is made

against the action User A-> VM X. After this the

new allocation of User B-> VM X is made.

Thus for the entire procedure of sending a request

by the CSC to fulﬁlment of the same, it has been

observed how the blockchain network and the em-

bedded smart contract not only helps to monitor the

VMIs across its lifecycle but also prevents any mali-

cious user to bring unintended changes to the VMI.

On one hand it secures the CSP infrastructure by as-

suring that the VMIs stored in the CSP public repos-

itory are safe. On the other hand any legitimate CSC

who is allocated a VM from this public repository can

now be sure enough to have received an uninfected

VM. Moreover, any unnatural change in a particular

VMI is auditable from the information present in the

side blocks. This information can be utilized by the

CSP, even at a later stage to decide directly whether

to accept a particular CSC request or to reject it as this

CSC might have been involved in some improper ac-

tions pertaining to any previous request which could

be easily tracked from the side blocks. Therefore, it

is evident that this scheme is beneﬁcial from both the

CSC as well as the CSP end.

4.2 Smart Contracts

The structure and role of the smart contract has been

discussed elaborately in this sections. As described

Table 1: Smart Contract Variables.

Name and Type of

Variable

Purpose and Nature

address public

csc

Stores the address of

CSC at the time of SLA

formation(S)

uint public vm ID VM/VMI identiﬁer(S)

mapping(uint-

> CSC

request)

publicvir-

tual machine request;

Stores the various re-

quest parameter against

each CSC Identiﬁer(S)

mapping(uint->

VMI

UI) publicvir-

tua machine allocation;

Stores the allocation

mapping of the VM

against each user(S)

uint public event ts Stores the timestamp of

the most current event

encountered by the CSC

(L)

String public ac-

tion

name

Stores the name of the

most current event en-

countered by the CSC

(L)

mapping(uint-

> VMI policy)

publicvir-

tual

machine policy;

Stores the Policy details

against each VM(S)

String public VM IP; Stores the VM IP ad-

dress (L)

String

password;

Stores the VM IP pass-

word (L)

enum VM state {

Idle;

Busy;

Dead; }

Stores the different

states of a Virtual Ma-

chinee(State Variable)

earlier, a smart contract serves as the main driv-

ing agent behind a successful and secure VM allo-

cation and monitoring process. The variables used

in this smart contract have been depicted in Table

I along with their name, purpose and nature (State

(S)/Local(L) (Anonymous, 2019)). Some of the vi-

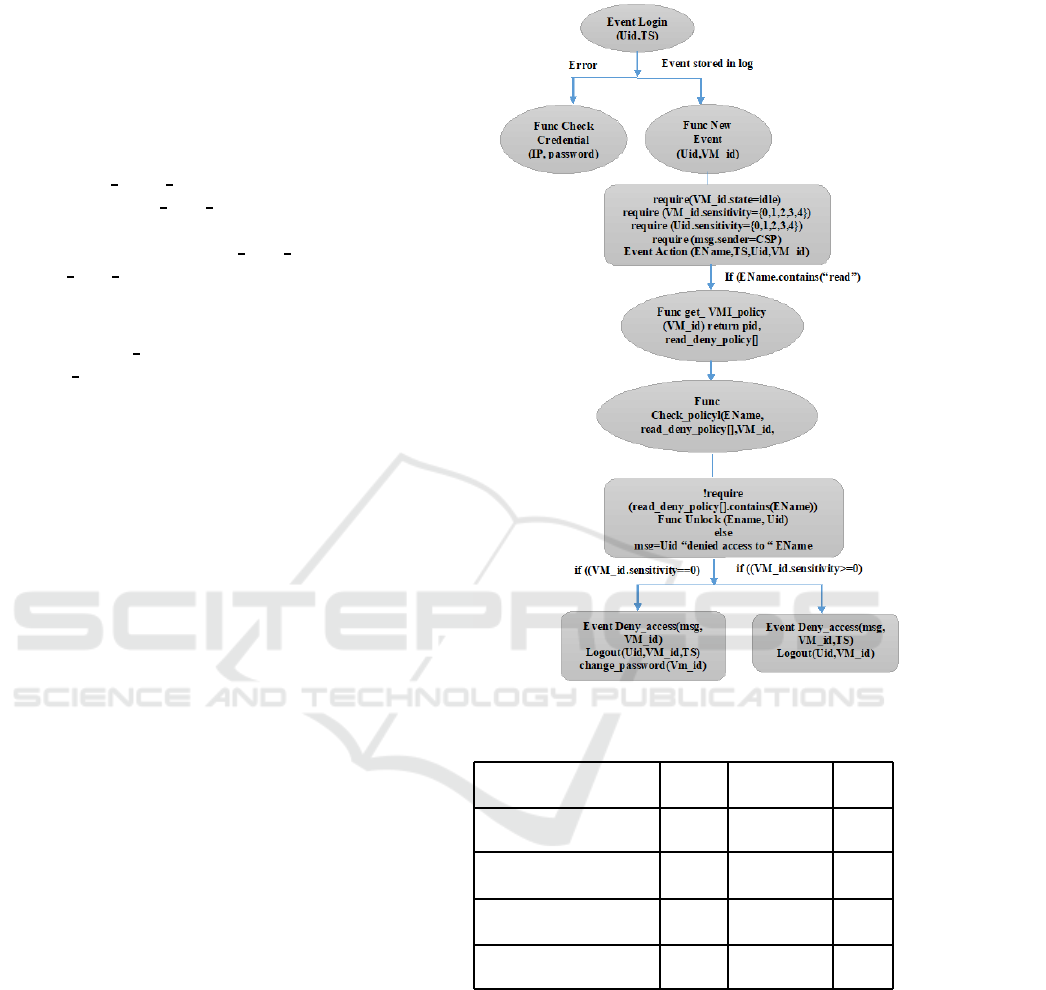

tal functions and events have also been elaborated as

follows:

• Event Login: It logs/stores the user id and the

Time stamp at which a valid CSC logs in to his/her

allocated VM.

• Function New Event: The function checks for the

VM and user sensitivity. It also checks whether

ICISSP 2021 - 7th International Conference on Information Systems Security and Privacy

436

the VM state is idle and the sender of this function

is a valid CSP. If all the conditions are true then

it stores the action that the user performs on the

VM as an event in a periodic manner as mentioned

in theVM Action triggering Phase in the previous

subsection. The event contains the action name,

timestamp, User ID and VM ID

• Func get

VMI policy: It returns the policy

id and the read deny policy containing the read

deny policies for the particular VM. The same

would have been write

deny policy and exe-

cute deny policy while checking the write and ex-

ecute deny policy list. So for each VM 3 deny

policy lists are maintained.

• Func Check policy: The function matches the

deny

policy list returned from the previous func-

tion with EName (action/event name) that the

CSS had just performed. If no match occurs, then

action can be allowed and the action is unblocked

with respect to this user where as if a match oc-

curs the function constructs a message “Uid + de-

nied access to + EName”. Now depending upon

the sensitivity of the VM two set of actions might

be possible, i) Event “Deny Access” takes place

that logs the above message along the particular

VM ID and the CSC is forcefully logged out of

the system, and the login password for the same

is changed so that the CSC might not re-login, or

ii) Event “Deny Access” takes place that logs the

above message along the particular VM ID and

the CSC is forcefully logged out of the system. In

the 2nd case the VM sensitivity is low and there-

fore the user is not permanently unallocated from

the VM. He/she is just temporarily logged out and

prevented from performing this particular action.

The functions associated with the Smart Contract that

mainly controls the VM Action Triggering Phase have

been separately depicted in Fig. 2. It acts as the core

control of the Smart Contract.

5 RESULT ANALYSIS

Here an Ethereum (Wood, 2014) based Smart Con-

tract with Solidity (Dannen, 2017) (Version 0.4.4)

over a Remix (Yann300, 2020) platform has been

used to design the intended system. In the private

blockchain setup the average Gas price has been taken

as 0.00000002 Ether, and 1 Ether =391.933 USD was

observed at the time of experiment. Table III shows

the cost associated with the functions that are mainly

involved in ensuring the VMI security as well as mon-

itoring.

Figure 2: Flow Chart for VMI Monitor Smart Contract.

Table 2: Associated Cost.

Function Gas

Used

Cost

(Ether)

USD

Event Login 13256 0.00079536 .31

Function New

Event

41567 0.00207835 0.82

Func get VMI pol-

icy

12754 0.00038262 0.15

Func Check policy 50153 0.00250765 0.98

The effect of the number of VMIs at the CSP end

on the Gas cost has been plotted in Fig 3. It has been

observed that the Gas cost increases linearly with the

number of VMIs deployed in the system. Another

observation has also been made in Fig 4., that shows

a linear relationship again, between the total no. of

policy statements in the Blockchain database and the

total Gas cost incurred.

In (Kazim et al., 2013), managing security of Vir-

tual Machine Images in a cloud environment has been

observed that there are mainly three facets of Virtual

Blockchain based Secured Virtual Machine Image Monitor

437

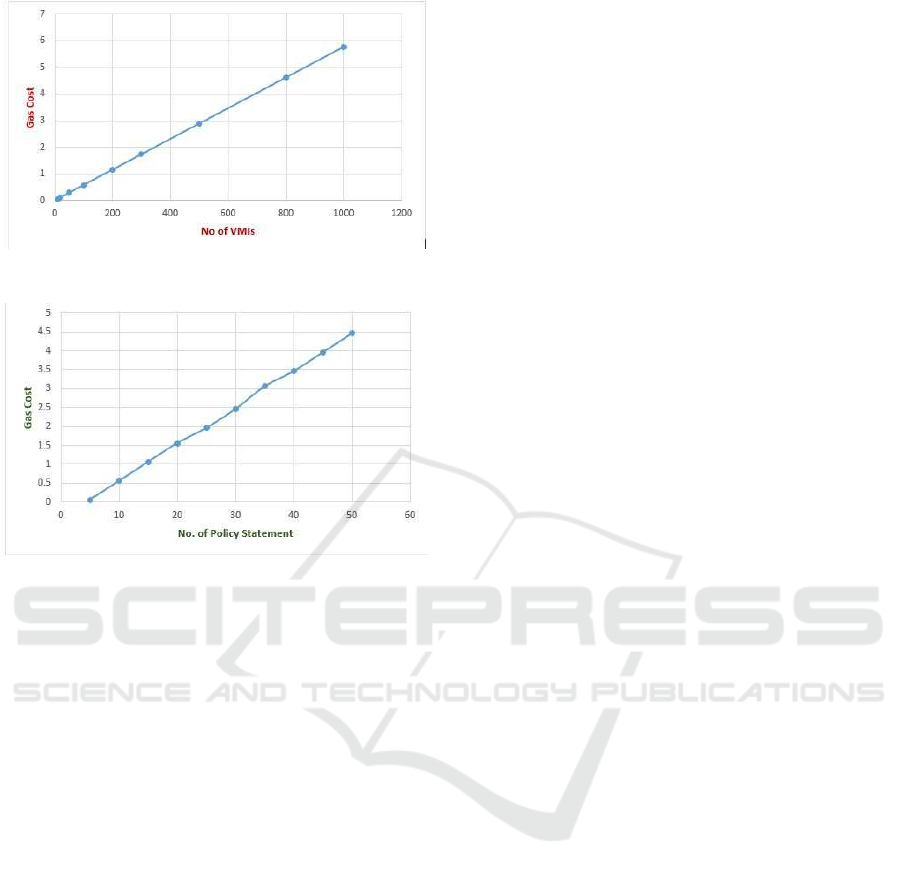

Figure 3: No. of VMIs v/s Gas Cost.

Figure 4: No. of Policy Statement v/s Gas Cost.

Machine Image that has been taken care of. The sys-

tem proposes and combines three different systems

each for access control, image ﬁltering, and prove-

nance tracking. In a real life scenario, the minimal

size of the VMI is approximately 10 GB. In gen-

eral, on an average, more than 5000 ﬁles run on each

VMI (when deployed as VM). A CSP (private) with

a medium sized data centre running at least 500 such

VM instances (Marr and Kowalski, 2014). Therefore,

running and maintaining the above model at the CSP

end would result in a high percentage of over-head.

The access control policies have inevitable dependen-

cies on their owner as proposed by the system. This

creates a bottle neck and makes it vulnerable at the ad-

ministrator/owner level. Once the central authority is

compromised the entire system loses and its viability.

Finally, the provenance tracking system is designed

to track the derivation history of 500 VMIs separately.

Each new VMI can experience a huge number of state

transitions in its entire lifespan. Any centralized sys-

tem, maintaining this record, would encounter a high

number of system entries triggered by each such tran-

sition.

On a contrary, the Blockchain based VMI Mon-

itor, proposed in this article, assures that no change

in any VMI occurs without the consent of the CSP or

all the concerned hosts that are part of the blockchain

network. The Smart Contract, as already seen, is a set

of auto executable codes that run when some speciﬁc

criteria/conditions are met. Here, the blockchain net-

work with its embedded smart contract, i) Maintains

the access control policies for the VMIs, ii) Takes the

post violation decision depending on its in-built code,

and iii) Monitors or tracks the VMI state changes.

The violation reports are stored in the side blocks of

the block chain, which provides a full-proof means

of monitoring/auditing the VMIs. The VMIs can un-

dergo innumerable state changes, all of which are

well reﬂected in the blockchain that stores the entire

VMI metadata. Moreover, due to the inherent prop-

erty of immutability in blockchain,it can be assumed

that an adversary can not control a majority of the

computing power in the network, as a result avoiding

51 percent attack (Conti et al., 2018). The adminis-

trator/system admin level compromise also becomes

quite difﬁcult in this environment due to the presence

of miners. Impersoniﬁcation by the intruder also be-

comes a tough job here, as the private cryptographic

keys (Conti et al., 2018) represents each uniquepartic-

ipant of the network.

6 CONCLUSION

In this article, a formal model of blockchain based

VMI Monitor has been proposed that runs on an

Ethereum platform. Different components of the pro-

posed model have been described in detail. The Cloud

or the VMI operations are main concern in this work.

They have been elaborated and the different phases

of the entire procedure have been detailed. Further-

more, the smart contract for this particular problem

has also been designed along with the utility and role

of the various variables and functions. It has also been

established that the proposed system is better than the

previous scheme(Kazimet al., 2013) that has been im-

plemented to solve the same set of issues.

It has been observed that the smart contract based

system not only provides a proper VMI access con-

trol mechanism but also provides the scope of VMI

auditability and secured operations from the perspec-

tive of CSC as well (as observed that the side blocks

are checked when any CSC with high sensitivity is

dealt with). This methodology turns to be beneﬁcial

not only for the CSP, who can now maintain a secured

Cloud infrastructure but also for the Cloud Service

Consumer (CSC) who can now deploy his applica-

tion/data in a VMI without the fear of getting his/her

data compromised.

The main overhead lies in the scalability of the

system with the number of VM transactions i.e. num-

ICISSP 2021 - 7th International Conference on Information Systems Security and Privacy

438

ber of CSC request. The more the number of re-

quest, more the size of the blockchain and with the

increased number of blocks the time required to ﬁnal-

ize the same and add it to the main chain using the

PoS (Baliga, 2017) consensus method increases. An

effort has been made here (as mentioned in the previ-

ous sections) to balance the number of transactions by

following a user deﬁned periodic update method. This

avoids unnecessary immediate transactions involving

blockchain write.

Future work is geared towards the development of

an automated tool based on the proposed methodol-

ogy. Another aspect that can be considered as fu-

ture work is enactment of the security issues related

to virtual machine instances for multi-provider feder-

ated clouds. The model, in its current form, considers

only single CSP set-ups.

REFERENCES

Abbadi, M. I. (2011). Clouds’ infrastructure taxonomy,

properties, and management services. In Advances in

Computing and Communications, Part IV, edited by

A. Abraham, J. L. Mauri, J. Buford, J. Suzuki, and S.

M. Thampi, Heidelberg: Springer-Verlag, 406-420.

Anonymous (2019). Local and state solidity vari-

ables and use of parameters. BitDegree Learn.

https://www.bitdegree.org/learn/solidity-variables,

Accessed 30 September 2019.

Baliga, A. (2017). Understanding blockchain consensus

models. InPersistent. https://www.persistent.com/wp-

content/uploads/2018/02/wp-understanding-

blockchain-consensus-models.pdf, Accessed April

2017.

Buyya, R., Yeo, C. S., Venugopal, S., Broberg, J., and

Brandic, I. (2009). Cloud computing and emerging

it platforms: Vision, hype, and reality for delivering

computing as the 5th utility. Future Generation com-

puter systems, 25(6), 599-616.

Conti, M., Kuma, E. S., Lal, C., and Ruj, S. (2018). A

survey on security and privacy issues of bitcoin. IEEE

Communications Surveys and Tutorials. 20(4), 3416-

3452.

Dannen, C. (2017). Introducing ethereum and solidity.

In: Dannen, C. (eds.) (Vol. 1), Berkeley: Apress, pp.

1–185. Springer Nature Switzerland.

Ferris, J. M. (2014). Red hat inc.: Load balancing in cloud-

based networks. U.S. Patent 8,849,971.

Halpin., H. and Piekarska, M. (2017). Introduction to se-

curity and privacy on the blockchain. In 2017 IEEE

European Symposium on Security and Privacy Work-

shops (EuroS and PW), pp. 1-3, IEEE.

Hashizume, K., Rosado, D. G., Fern´andez-Medina, E., and

Fernandez, E. B. (2013). An analysis of security is-

sues for cloud computing. In Journal of internet ser-

vices and applications. SPRINGER.

Hussein, R. K., Alenezi, A., Wills, G. B., and Walters, R. J.

(2016). A framework to secure the virtual machine

image in cloud computing. In 2016 IEEE international

conference on smart cloud (SmartCloud), pp. 35-40,

IEEE.

Kazim, M., Masood, R., and Shibli, M. A. (2013). Secur-

ing the virtual machine images in cloud computing.

In Proceedings of the 6th International Conference on

Security of Information and Networks, pp. 425-428.

Macrinici, D., Cartofeanu, C., and Gao, S. (2018). Smart

contract applications within blockchain technology: A

systematic mapping study. Telematics and Informat-

ics, 35(8), 2337-2354.

Marr, M. D. and Kowalski, M. P. (2014). Amazon tech-

nologies inc. scaling a virtual machine instance. U.S.

Patent 8,825,550.

Nakamoto, S. (2008). Bitcoin: A peer-to-peer electronic

cash system. https://bitcoin.org/bitcoin.pdf.

Sahli, H., Belala, F., and Bouanaka, C. (2014). Model-

checking cloud systems using bigmc. In 8th Inter-

national Workshop on Veriﬁcation and Evaluation of

Computer and Communication Systems, pp. 25-33.

Schwarzkopf, R. (2015). Virtual machine lifecy-

cle management in grid and cloud computing.

https://doi.org/10.17192/z2015.0407.

Wan, Z. and Jiang, X. (2010). Hypersafe: a lightweight ap-

proach to provide lifetime hypervisor control-ﬂow in-

tegrity. In IEEE Symposium on Security and Privacy,

pp. 380-395, IEE.

Wang, W., Hoang, D., Hu, P., Xiong, Z., Niyato, D., Wang,

P., Wen, Y., and Kim, D. I. (2019). A survey on

consensus mechanisms and mining strategy manage-

ment in blockchain networks. IEEE Access. 7, 22328-

22370.

Wei, J., Zhang, X., Ammons, G., Bala, V., and Ning, P.

(2009). Managing security of virtual machine images

in a cloud environment. In Proceedings of the 2009

ACM workshop on Cloud computing security, pp. 91-

96.

Wood, G. (2014). Ethereum: A secure decentralised gen-

eralised transaction ledger. Ethereum project yellow

paper, 151, 1-32.

Yann300 (2020). Remix documentation. Re-

lease 1, https://readthedocs.org/projects/remix-

ide/downloads/pdf/latest/.

Blockchain based Secured Virtual Machine Image Monitor

439
