An MDE Method for Improving Deep Learning Dataset Requirements

Engineering using Alloy and UML

Beno

ıt Ries

, Nicolas Guelﬁ

and Benjamin Jahi

University of Luxembourg, Esch-sur-Alzette, Luxembourg

Keywords:

Model-driven Engineering, Software Engineering, Requirements Engineering, EMF, Sirius, Alloy.

Abstract:

Since the emergence of deep learning (DL) a decade ago, only few software engineering development methods

have been deﬁned for systems based on this machine learning approach. Moreover, rare are the DL approaches

addressing speciﬁcally requirements engineering. In this paper, we deﬁne a model-driven engineering (MDE)

method based on traditional requirements engineering to improve datasets requirements engineering. Our

MDE method is composed of a process supported by tools to aid customers and analysts in eliciting, specifying

and validating dataset structural requirements for DL-based systems. Our model driven engineering approach

uses the UML semi-formal modeling language for the analysis of datasets structural requirements, and the

Alloy formal language for the requirements model execution based on our informal translational semantics.

The model executions results are then presented to the customer for improving the dataset validation activity.

Our approach aims at validating DL-based dataset structural requirements by modeling and instantiating their

datatypes. We illustrate our approach with a case study on the requirements engineering of the structure of a

dataset for classiﬁcation of ﬁve-segments digits images.

1 INTRODUCTION

Deep Learning (DL) has emerged in the last decade

from artiﬁcial intelligence, dating from the Dart-

mouth conference in 1956, combined with the recent

emergence of Graphical Processing Units (GPUs).

These GPUs, providing a boost in computational

power, initiated the popularity of artiﬁcial intelligence

in everyday life applications, such as vocal personal

assistants, entertainment.

Deep learning techniques require large datasets ei-

ther for their training phase, in the case of supervised

learning neural networks, or for their learning phase

in the case of unsupervised learning networks. It is

common for real applications to have datasets as large

as tens of thousands of data. In one of our previ-

ous study (Jahic et al., 2019; Jahic et al., 2020), by

analysing the datasets and learning outcomes of the

training of neural networks, we discovered that many

issues were related to the poor speciﬁcation of the

datasets’ structure.

Datasets are critical input artefacts necessary to

https://orcid.org/0000-0002-8680-2797

https://orcid.org/0000-0003-0785-3148

https://orcid.org/0000-0002-1120-1196

construct DL-based systems. As such they should be

precisely speciﬁed. Let’s take the following exam-

ple to illustrate our claim: a DL-based system aiming

to classify hand-written digits will have difﬁculty to

classify sevens without a bar if the training/learning

dataset comprises solely sevens with bars. With our

method proposed in this paper, we address this type of

issues by exploring the dataset requirements, before

the actual learning phase starts. Errors in datasets are

then detected earlier in the software engineering de-

velopment lifecycle, reducing consequently the cost

of dealing with these errors.

Software engineering appeared in 1968 (Naur and

Randell, 1969) as a solution to the so-called “soft-

ware crisis”. In the last 50 years, software applica-

tions have beneﬁtted from research and development

effort in the area of software engineering. Unfortu-

nately DL-based systems are rarely deﬁned system-

atically following a software engineering methodol-

ogy. DL approaches could take advantage of tradi-

tional software engineering methodologies. Typical

DL dataset requirements engineering is limited to an

activity whose output is informal and not based on

standard modeling languages neither grounded on for-

mal semantics. Datasets are also used in the context

of software test engineering. In this context, the se-

Ries, B., Guelﬁ, N. and Jahi

c, B.

An MDE Method for Improving Deep Learning Dataset Requirements Engineering using Alloy and UML.

DOI: 10.5220/0010216600410052

In Proceedings of the 9th International Conference on Model-Driven Engineering and Software Development (MODELSWARD 2021), pages 41-52

ISBN: 978-989-758-487-9

lection of relevant test datasets using model-driven

software engineering has shown to be an interesting

approach (Ries, 2009). It is only recently that inter-

est is growing in the research community to cross-

fertilize the aforementioned two areas (Hill et al.,

2016; Khomh et al., 2018; Vogelsang and Borg, 2019;

Burgue

no et al., 2019).

In this paper, we provide a model-driven software

engineering (MDSE) method using semi-formal and

formal modeling. The dataset requirements engineer-

ing team is composed of the analysts, formal experts

and the customer. On the one hand, semi-formal mod-

eling allows one to describe concepts of the dataset

under development and to communicate them among

the heterogeneous stakeholders at the desired level

of abstraction. We use semi-formal modeling to de-

scribe the concepts required for the structure of the

datasets, i.e., the datatypes of interest.On the other

hand, formal modeling allows us to construct a pre-

cise description of the requirements on the structure

of the datasets. Formal interpretation tools like the

Alloy Analyzer and Kodkod provide instances of data

speciﬁcation that satisfy the modeled requirements.

In this paper, we contribute to the introduction of

software engineering rigor in the requirements speci-

ﬁcation of datasets for DL-based systems. Section 2

presents our iterative process for dataset requirements

engineering with formal model execution. Section 3

illustrates our approach with a case study on the en-

gineering of the requirements for a ﬁve-segments dig-

its dataset with UML-compliant modeling and Alloy

models execution. Section 4 discusses some impor-

tant aspects. Section 5 positions our paper w.r.t. some

current related works. Finally, we conclude in Sec-

tion 6 and present some future works in Section 7.

2 AN ITERATIVE EXECUTABLE

DATASET REQUIREMENTS

MDE METHOD

2.1 Using Executable Models to

Improve the Engineering of

Datasets Requirements

In this paper, our iterative method focuses on the en-

gineering of datasets structural requirements. Con-

cretely, our focus is on the elicitation and modeling

of data types for the dataset under development. With

this method the DL scientist can follow a clear pro-

cess for dataset requirements engineering, supported

by tools, while beneﬁtting from advances in estab-

lished software engineering methods.

Following traditional software engineering, our

method takes place in a typical requirements engi-

neering phase. This phase is usually (Sommerville,

2016) composed of the following activities: elici-

tation, speciﬁcation, validation and evolution. Re-

quirements engineering is performed by an analyst

together with the customer of the system to be pro-

duced. Overall, requirements engineering is a crucial

phase. It is well-known that the workload put in pro-

ducing quality requirements reduces the amount of

workload put in the succeeding phases, i.e., design,

production, testing, deployment. Moreover, improv-

ing the requirements engineering phase eases the ear-

lier discovery of errors in the dataset under develop-

ment. Consequently, we make the hypothesis that im-

proving the engineering of the dataset requirements

phase will improve the dataset design and production

phases.

Our approach is based on executing dataset re-

quirements to improve their speciﬁcations. The so-

lution that we explore is to specify the datasets re-

quirements with an executable model, that we name

the dataset requirements concept model (DRCM).

DRCM is given an operational semantics as a trans-

lation to a formal language. Thanks to MDE tech-

niques, we generate a skeleton speciﬁcation of the

formal DRCM (FDRCM). The formal analysts then

ﬁnalise the FDRCM. With this formal semantics, we

are able to interpret the dataset requirements concept

model. We name these formal interpretations: model

executions. A model execution is a set of datatype

speciﬁcation instances. The resulting model execu-

tions are formatted in a way that should suit the cus-

tomer and the analyst such that they are able to decide

on the validation of the DRCM.

The objective of our method is to provide help

to the requirements analysts for the validation of the

datatypes that will structure the dataset. Typically, in

our context, these analysts are data scientists who are

responsible for the dataset engineering.

2.2 Iterative Dataset Requirements

Elicitation Process

2.2.1 Process Overview

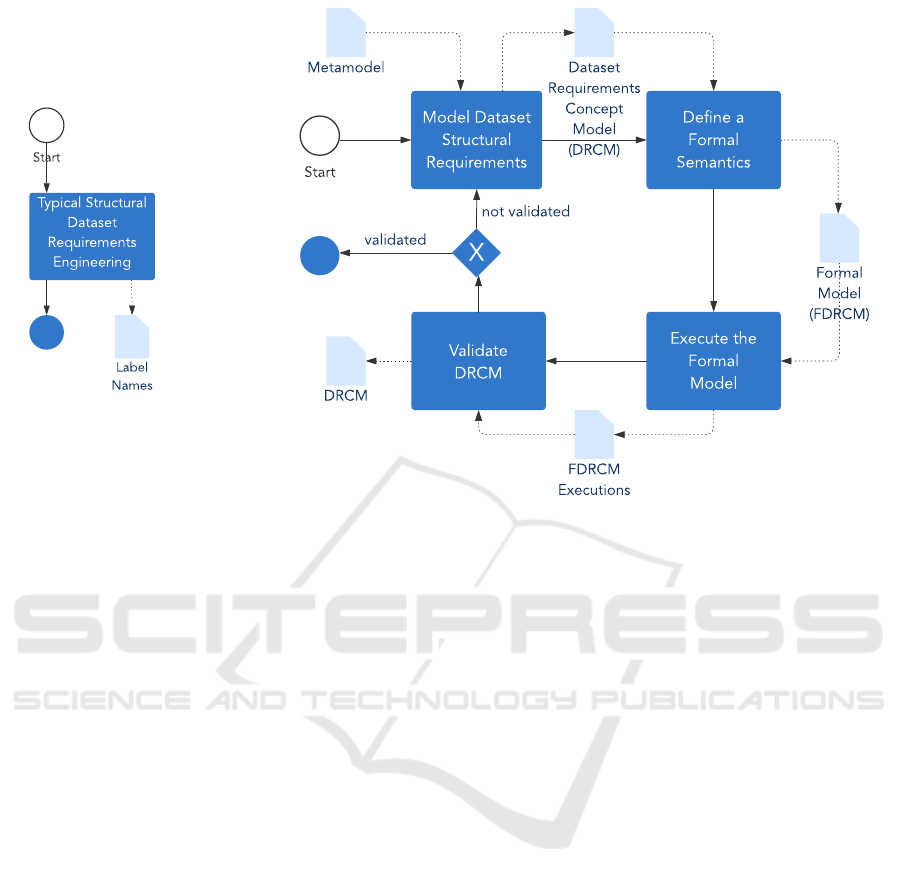

Figure 1 shows the main elements of the business pro-

cess we propose in this paper using the BPMN (Ob-

ject Management Group, 2011) notation. Our process

is composed of: four activities denoted by dark-blue

horizontal rectangles; ﬁve artefacts denoted by light-

blue vertical rectangles with a folded top-right cor-

ner; one exclusive gateway denoted by a dark-blue di-

amond with a white X, this gateway allows numerous

MODELSWARD 2021 - 9th International Conference on Model-Driven Engineering and Software Development

iterations in our process until reaching the validation

of the dataset requirements concept model; one start

event denoted by a white circle; one end event denoted

by a dark blue-ﬁlled circle.

2.2.2 Model Dataset Structural Requirements

The ﬁrst activity in our process is the modeling

of dataset structural requirements. Its objective is

to produce a Dataset Requirements Concept Model

(DRCM). As in a traditional requirements engineer-

ing phase, the output artifact of the requirements mod-

eling phase describes what are the constraints that the

system should satisfy. In our method, systems un-

der study are datasets in DL approaches. This model

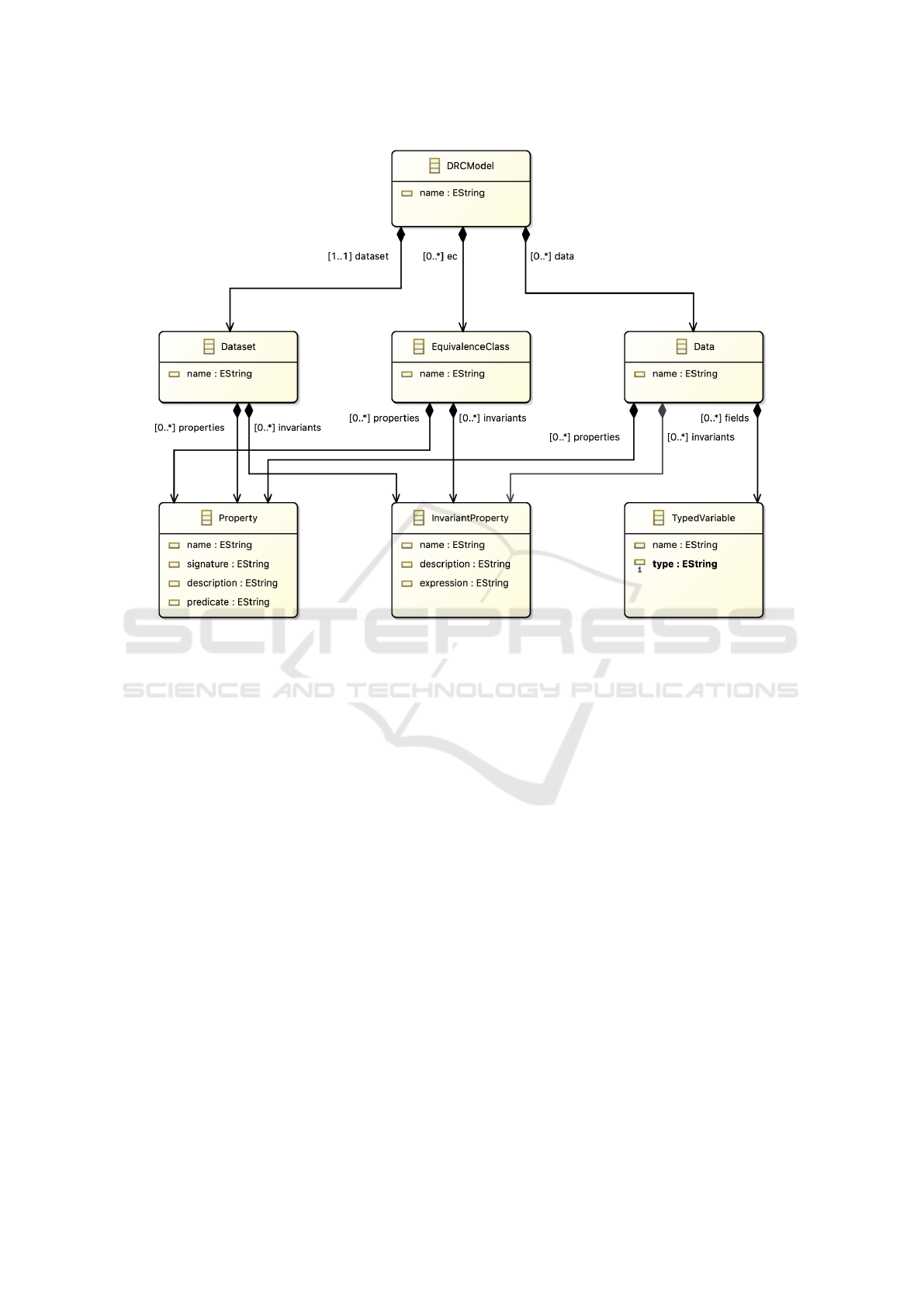

should be compliant with the Metamodel given as in-

put artefact, see further Section 2.3.

In our approach, we concentrate on the structural

requirements of datasets for DL-based systems, i.e.,

on what should be the datatypes for the dataset un-

der development. The DRCM model describes the

requirements of the structure to be satisﬁed by the

dataset of the DL-based system under development.

The structural requirements may be described using

various modeling constructs, described in the further

Section 2.3.2.

During this activity, the main stakeholders are: on

the one hand the customer, and on the other hand an

analyst from the provider’s team. This activity may be

realised in a number of ways. Typically requirements

elicitation is performed through discussions among

the stakeholders and results in the elicitation of the

requirements model.

The content of the model under creation should

describe the concepts related to the required structure

of the dataset under development. More concretely

the data, their type and attributes as well as proper-

ties that they should satisfy, need to be elicited. This

activity is further described in Section 2.3.

2.2.3 Deﬁne a Formal Semantics

The second activity of our process is performed by a

formal language expert. It aims at producing an exe-

cutable formal requirements speciﬁcation of the struc-

tural properties of the dataset under study. This activ-

ity takes as input the DRCM produced in the previous

activity. The format of the FDRCM is tool-dependent,

Section 2.3, below, gives insight on how we use the

Alloy language (Jackson, 2012) for this purpose.

Using formal techniques brings precision on the

deﬁnition of data structure and rigorous validation us-

ing mathematically deﬁned semantics supported by

automated tools. This results in a higher quality of

requirements engineering.

2.2.4 Execute the Formal Speciﬁcation

This activity consists in taking as input the FDRCM

speciﬁed earlier and to execute it. By executing, we

mean that the requirements should be fed to a formal

engine allowing one to query the formal model. The

aim of the queries is to provide enough data speci-

ﬁcation instances for the further validation activity.

It may then either comfort the analyst in the current

speciﬁcation, or encourage the analyst to introduce

changes in the model. There are two kinds of queries

that we suggest to perform:

• Exploration Queries. Such queries result in a set

of data speciﬁcation instances. For instance, if

SevenEC is the name of the equivalence class that

should contain all images representing the digit

seven, then an example of exploration query is

to “ﬁnd possible data speciﬁcation instances of a

given DRCM satisfying the SevenEC equivalence

class”.

• Veriﬁcation Queries. Such queries check that the

dataset/data structure is coherent with some given

property. For instance, here is a sample veri-

ﬁcation query: “No data speciﬁcation instance

should satisfy properties of more than one equiv-

alence class”.

This activity should be performed by formal ex-

perts together with analysts. On the one hand, the role

of the analyst is to identify the queries of best interest

to improve the dataset requirements, and on the other

hand the role of the formal expert is to make sure that

the queries are well-formalised.

2.2.5 Validate the Dataset Requirements

Concept Model

Its goal is the interpretation of the FDRCM execu-

tions, performed in the former activity, in order to

conclude whether these executions are satisfactory,

or not. If not satisfactory, then the requirements are

not validated, and the process proceeds to redoing an-

other iteration starting with the ﬁrst activity Modeling

Dataset Structural Requirements. If the analysis of

the model execution results is satisfactory, then the

DRCM is validated and our process ends here. The

stakeholders may then continue with the succeeding

dataset engineering activities.

2.3 Syntax and Semantics of the DRCM

In this subsection, we give some details on the lan-

guage to be used for the modeling of the dataset struc-

tural requirements during the activities of our pro-

cess. We follow a typical modeling approach in three-

An MDE Method for Improving Deep Learning Dataset Requirements Engineering using Alloy and UML

Typical Structural

Dataset

Requirements

Engineering

Label

Names

Start

Event

(a)

not validated

Start

Model Dataset

Structural

Requirements

Define a

Formal

Semantics

Execute the

Formal

Model

validated

Metamodel Dataset

Requirements

Concept

Model

(DRCM)

Formal

Model

(FDRCM)

FDRCM

Executions

DRCM

Validate

DRCM

Event

(b)

Figure 1: A Typical Dataset Structural Requirements Engineering (a) in contrast with our Method (b).

levels, namely: meta-modeling, modeling and model

execution. Firstly, we deﬁne a metamodel that de-

scribes the types of modeling elements usable for the

modeling. Secondly, we present the scope of mod-

eling in our approach, i.e., dataset structural require-

ments. And lastly we discuss the semantics of DRCM

models allowing their consequent executions.

In our approach, we use the traditional standard

semi-formal modeling language UML (Object Man-

agement Group, 2017) to support the modeling ac-

tivity. It beneﬁts from decades of industrial practice.

In our context of improving the DL requirements en-

gineering practices, we have chosen a small and re-

stricted set of UML concepts to ease its transfer to

non-Software Engineering practionners.

2.3.1 The DRCM Metamodel

A metamodel is a model deﬁning the base elements

of a modeling language (Object Management Group,

2017). We deﬁned the metamodel using the Eclipse

Modeling Framework, EMF (Steinberg et al., ), as an

ecore metamodel. Figure 2 is a diagram represent-

ing graphically our DRCM metamodel with the EMF

framework. In the following, we present shortly the

main concepts of a DRCM model through its meta-

model:

• property is a boolean characteristic of the dataset,

data, or equivalence classes. It may be described

by its name, signature (ie name and variable

parameters), informal textual description, and/or

formal expression in Alloy.

• Invariant Property: a property that is always true,

it is a constraint on a DRCM model that must be

satisﬁed.

• Dataset represents the set of data under study. It

contains a set of properties and a set of invariants.

A given DRCM focuses on the description of a

single dataset.

• Data: is a structured element. It contains ﬁelds

describing its structure. Fields are described as

typed variables, with a name and a type. The type

may either be a primitive type (Boolean, String,

Int) or another Data deﬁned in the same DRCM

model. Data also contains a set of properties and

a set of invariants.

• Data Equivalence Class: is a concept that repre-

sents a subset of the dataset’s data and is charac-

terised by a set of properties and invariant proper-

ties.

2.3.2 DRCM Modeling

In our approach, we use a subset of the base ele-

ments deﬁned in the UML metamodel for class di-

agrams and follow the concrete graphical syntax of

MODELSWARD 2021 - 9th International Conference on Model-Driven Engineering and Software Development

Figure 2: The DRCM Ecore Metamodel.

UML class diagrams. Based on the metamodel pre-

sented above, we describe in the following the dataset

structural requirements concepts that may be modeled

in a DRCM, their graphical syntax and map them to

the corresponding UML elements. Each DRCM de-

scribes the requirements for a single dataset, a set of

data and a set of equivalence classes.

• property is modeled as a UML Operation return-

ing a boolean value. A property predicate is de-

scribed as plain text between curly brackets {} af-

ter the operation signature. Note that the proper-

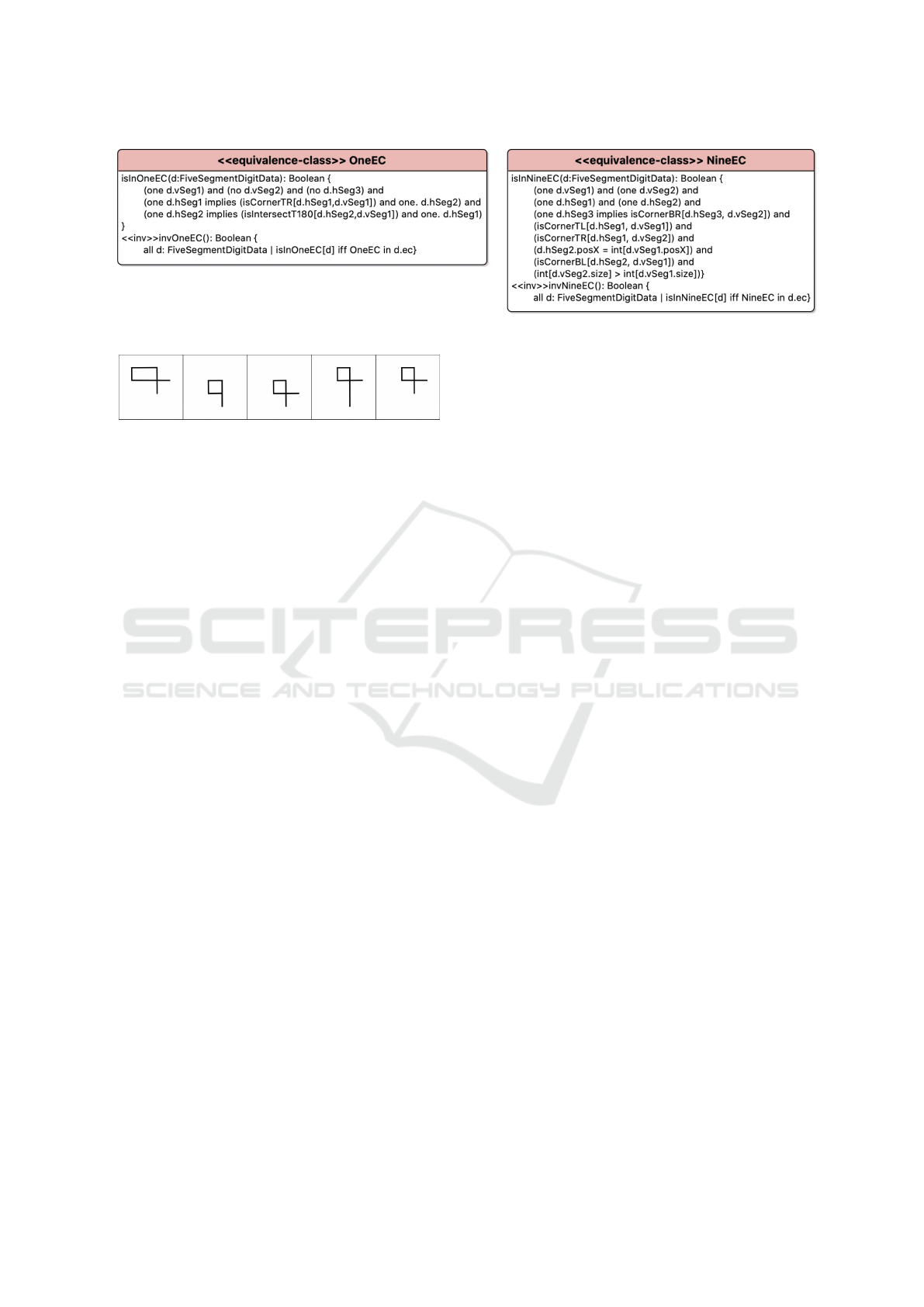

ties in our case study, as for instance, isInOneEC

of data equivalence class OneEC in Figure 4, are

described with Alloy language as a textual expres-

sion.

• invariant property is modeled as a UML Opera-

tion returning a boolean value and preﬁxed by a

stereotype <<inv>>. As for properties, its expres-

sion may be described in curly brackets following

the operation’s signature.

• Dataset: is modelled as a UML Class with

green header background. Its name is suf-

ﬁxed with Dataset and the class has a stereo-

type <<dataset>>. Properties and invariants

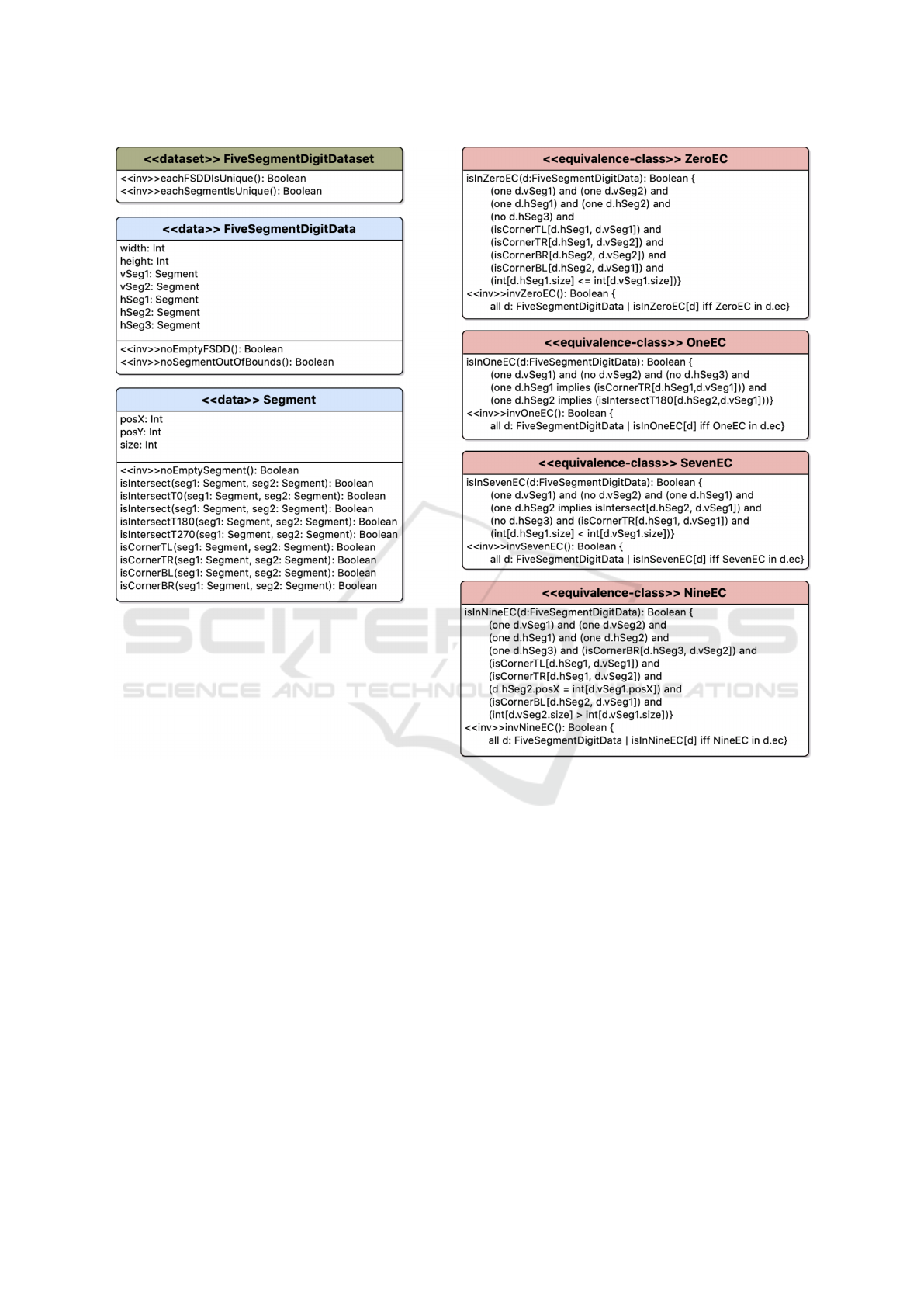

may be described as UML Operations. See

FiveSegmentDigitsDataset class in Figure 4

for an illustration.

• Data is modeled as a UML Class with blue header

background. Its name is sufﬁxed with Data and

the class has a stereotype <<data>>. It possibly

contains UML Attributes to describe its ﬁelds and

boolean operations to describe its properties and

invariants. (e.g. FiveSegmentDigitData and

Segment classes in Figure 4).

• Data equivalence classe is modeled as a UML

Class with red header background. Its name is

sufﬁxed with EC and the class has a stereotype

<<equivalence-class>>. It contains boolean

operations to describe its properties and invari-

ants. (e.g. ZeroEC and OneEC classes in Figure 4).

2.3.3 Alloy Language-based Formal

Speciﬁcation Syntax and Semantics

In this subsection, we deﬁne the following operational

semantics given as an informal translation from the

DRCM concepts to Alloy language (Jackson, 2012)

constructs.

• DRCM classes are speciﬁed as Alloy signatures.

An MDE Method for Improving Deep Learning Dataset Requirements Engineering using Alloy and UML

• DRCM metamodel classes are deﬁned as abstract

signatures.

• DRCM class attributes are deﬁned as ﬁelds in the

related signature.

• The semantics of operations of classes depend on

whether it has an <<inv>> stereotype or not.

– DRCM class operations with an <<inv>>

stereotype are considered to be invariant prop-

erties. We deﬁne the semantics of such opera-

tions as Alloy signature facts.

– DRCM class operations without stereotype are

considered to be properties to be checked in dif-

ferent contexts. As such, they are given the se-

mantics of Alloy predicates.

2.4 MDE Toolset for Our Approach

The toolset supporting our approach is composed of

four tools: a modeling language editor; a formal lan-

guage editor; a formal execution engine; and an ad-

hoc software application for the creation of synthetic

data based on their speciﬁcation instantiations. The

source code of the toolset is available publicly (Ries,

2020).

2.4.1 DRCM Modeling Editor

To support the modeling of the DRCM requirements

model, we implemented a graphical modeling editor

based on the Sirius (Viyovi

c et al., 2014) framework.

The metamodeling concepts are deﬁned in a .ecore

ﬁle based on Section 2.3.1. The concrete modeling

syntax is deﬁned compliant with UML class diagram

syntax with the help of the Sirius framework.

When a DRCM is modeled, our toolset allows to

generate a FDRCM based on the information mod-

eled in the DRCM. This generation is implemented

with the XTend (Bettini, 2013) language well-suited

for such Model2Text model transformations.

2.4.2 FDRCM Textual Editor

Alloy Analyzer (Jackson, 2012) allows one to write

formal speciﬁcations in the Alloy language and of-

fers typical textual language editor features, such as

syntax highligthing and static analysis. We recom-

mend using the Alloy Analyzer to complete the for-

mal speciﬁcation based on the FDRCM generated by

our Model2Text model transformation.

2.4.3 FDRCM Execution

Kodkod is a SAT-based constraint solver and is used

as a model ﬁnder (Torlak and Jackson, 2007) for spec-

iﬁcations written in the Alloy language. It allows exe-

cuting Alloy models and provide instances satisfying

the given speciﬁcation in the context of a given exe-

cution command. The Kodkod tool, now part of the

Alloy Analyzer tool, allows one to parse Alloy spec-

iﬁcation and provide possible executions, i.e., model

instances. This feature is particularly interesting in

our context as it allows us to perform queries on our

FDRCM, see Section 2.2.4.

2.4.4 Data Speciﬁcation Requirements

Visualiser

The objective of this tool is to show a representation

of the data based on the speciﬁcation instance gener-

ated by the Alloy formal engine. For instance, if the

speciﬁcation describes a dataset of images, this tool

would create synthetic images based on the formal

data speciﬁcations instances created by Kodkod. In-

deed, and unfortunately, no generic tool would exist

that generates the representation based on the speci-

ﬁcation, as this is tightly coupled with the expected

concrete format of the data under speciﬁcation. It is

thus necessary to develop an ad-hoc tool for this need.

In our toolset, we have implemented a Java program

that performs the FDRCM executions by calling the

Kodkod SAT-based constraint solver and interpreting

the model execution to create possible visual repre-

sentation of the data requirements speciﬁcation in-

stances.

3 CASE STUDY: STRUCTURAL

REQUIREMENTS

ENGINEERING OF A

FIVE-SEGMENTS DIGITS

DATASET

The aim of this section is to provide a proof-of-

concept of our approach by conducting a step-by-step

instantiation of our process. This instantiation is per-

formed on the ﬁve-segments digits (FSD) case study

that we deﬁne in this paper. The DL-based system, for

which this dataset is deﬁned, aims at recognising im-

ages of digits from 0 to 9. The case study is available

publicly (Ries, 2020).

3.1 Modeling the Five-segments Digits

DRCM

In this case study, a ﬁve-segments digit is charac-

terised by at most ﬁve segments, more precisely three

horizontal segments and two vertical segments, as

MODELSWARD 2021 - 9th International Conference on Model-Driven Engineering and Software Development

shown with the sample zero and nine digits in Fig-

ure 3.

hSeg1

hSeg2

hSeg3

(none)

vSeg2

vSeg1

hSeg1

hSeg2

hSeg3

vSeg2

vSeg1

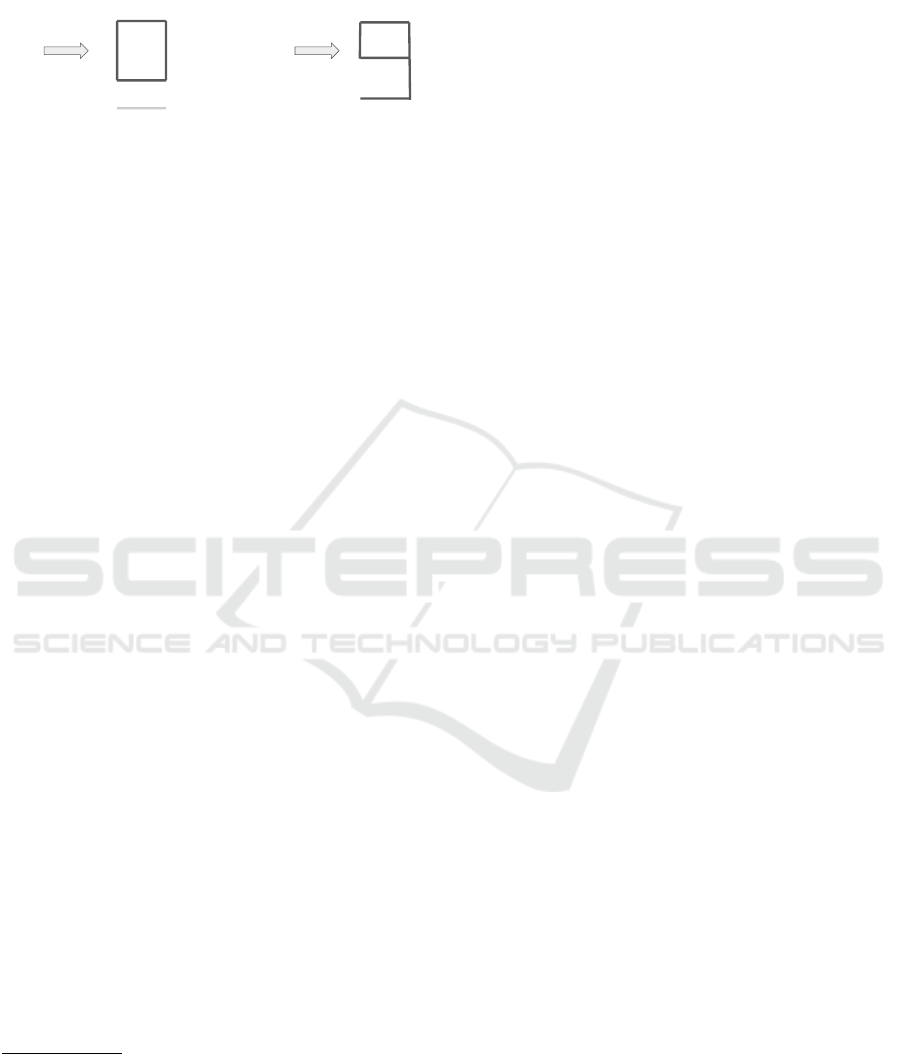

Figure 3: Samples of Five-Segments Digits (a zero and a

nine).

In the ﬁrst activity of our process, we elicit and

model the initial structural requirements for the FSD-

dataset. An extract of the resulting model of this ac-

tivity is shown in Figure 4. This activity is composed

of two tasks. The ﬁrst task of this activity is to elicit

the main elements structuring the data in this dataset.

Here are some of the structural requirements that we

deﬁne:

• Each data in the FSD-dataset shall be representing

one digit, from 0 to 9, using at most ﬁve segments.

• The segments shall be line segments, either verti-

cal or horizontal.

• There shall be at most three horizontal segments,

named hSeg1, hSeg2 and hSeg3 and at most two

vertical segments, named vSeg1, vSeg2.

• The segments shall be characterised by their size,

and x-y position in an orthonormal 2D-space.

• All data should be distinct, i.e., no two data having

the same segments

• All horizontal segments should be distinct, i.e., no

two horizontal segments with the same x-y posi-

tion and the same size.

• All vertical segments should also be distinct.

• There is no empty data, i.e., no data without seg-

ment.

The second task of this activity is the elicitation

of the equivalence classes and their properties. In or-

der to ease the speciﬁcation of equivalence classes’

properties, we deﬁned a set of geometric property op-

erations: intersect, intersectT, isCornerTR, etc.

Let’s describe one of them: isCornerTR.

• Property isCornerTR[seg1,seg2:Segment]

true when the segment seg1 ends

where the seg-

ment seg2 starts.

seg1 is assumed to be an horizontal segment and seg2

a vertical segment.

As a convention, the start, resp. the end, of an hori-

zontal segment is the point with the lowest x-value, resp.

the highest x-value. Similarly, the start, resp. the end, of a

vertical segment is the point with the highest y-value, resp.

lowest y-value.

Let’s describe informally the ZeroEC equivalence

class, modelled in Figure 4:

• ZeroEC: a digit is a zero-digit if it has two hor-

izontal segments (hSeg1, hSeg2) and two ver-

tical segments (vSeg1, vSeg2) such that the

start of vSeg1 coincides with the start of hSeg1

(isCornerTL[hSeg1,vSeg1] is true), the end

of hSeg1 coincides with the start of vSeg2

(isCornerTR[hSeg1,vSeg2] is true), the end

of vSeg2 coincides with the end of hSeg2

(isCornerBR[hSeg2,vSeg2] is true) and the

start of hSeg2 coincides with the end of vSeg1

(isCornerBL [hSeg2,vSeg1] is true).

3.2 Specifying the Formal

Requirements for the Five-segments

Digits’ DRCM

We, taking the role of a formal expert, specify in Al-

loy each requirement elicited formerly in the DRCM

based on the FDRCM generated by our toolset. After

completion of the speciﬁcation, the Alloy FDRCM is

as follows:

• Firstly, the metamodel concepts:

– 3 abstract signatures for each of the 3 meta-

model concepts: Data, EquivalenceClass

and Dataset.

– 3 relations between: Data and

EquivalenceClass (named ec).

– each metamodel properties, invariant or not, are

deﬁned at the level of the model.

• Then, the Alloy constructs for the speciﬁcation of

the model concepts speciﬁc to the FSD case study:

– 1 signature FiveSegmentDigitDataset ex-

tending the Data signature.

– 10 signatures extending the

EquivalenceClass signature: ZeroEc,

OneEC, TwoEC, ThreeEC, FourEC, FiveEC,

SixEC, SevenEC, EightEC, NineEC.

– each of the 10 signatures specify one predicate

characterising the equivalence class of a digit.

– 9 predicates for expressing the geometrical

boolean operations.

• Finally, the Alloy invariants as 4 facts:

– Specifying the metamodel’s

eachDataIsUnique invariant implied

writing two invariants at the model-level:

eachFSDDIsUnique and eachSegIsUnique.

– Similarly for the metamodel’s invariant

noEmptyData, which resulted in the speciﬁca-

tion of noEmptyFSDD and noEmptySegment.

An MDE Method for Improving Deep Learning Dataset Requirements Engineering using Alloy and UML

Figure 4: Case Study: Extract of the Dataset Requirements Concept Model Resulting from the First Iteration of Our Process.

3.3 Executing the Formal Speciﬁcations

In this activity, we deﬁne two Alloy commands to run

two different executions of the DRCM model.

The objective of the ﬁrst execution is to explore

the possible data speciﬁcation instances. We spec-

ify an Alloy command to instantiate all digits of size

5x5. Figure 5a shows one of the instance generated

from the execution of this command. In this ﬁgure,

the model execution corresponds to a speciﬁcation of

a digit with 3 segments: one horizontal segment start-

ing in position (2,2) of size 1, one vertical segment

starting in position (2,1) of size 1 and a second verti-

cal segment starting in position (3,2) of size 2. This

instance satisﬁes the property of the FourEC equiva-

lence class.

Thanks to the Alloy Analyzer tool API and the

Java program that we develop to support this ap-

proach, the generated Alloy speciﬁcation is inter-

preted and a ﬁle is created to represent the ﬁve-

segment digit speciﬁcation instance as an image, see

Figure 5b.

In this execution, we generate, more than 400 dif-

ferent digit speciﬁcations. Figure 6 shows a visual

interpretation of an extract of these generated digits.

We also perform a second model execution with

the objective to check that there is no data satisfy-

ing the properties of more than one equivalence class.

It returns a non-empty set of digits that satisfy two

equivalence classes: OneEC and SevenEC. Figure 7

shows the interpreted results of this second Alloy

model execution.

MODELSWARD 2021 - 9th International Conference on Model-Driven Engineering and Software Development

(a)

(b)

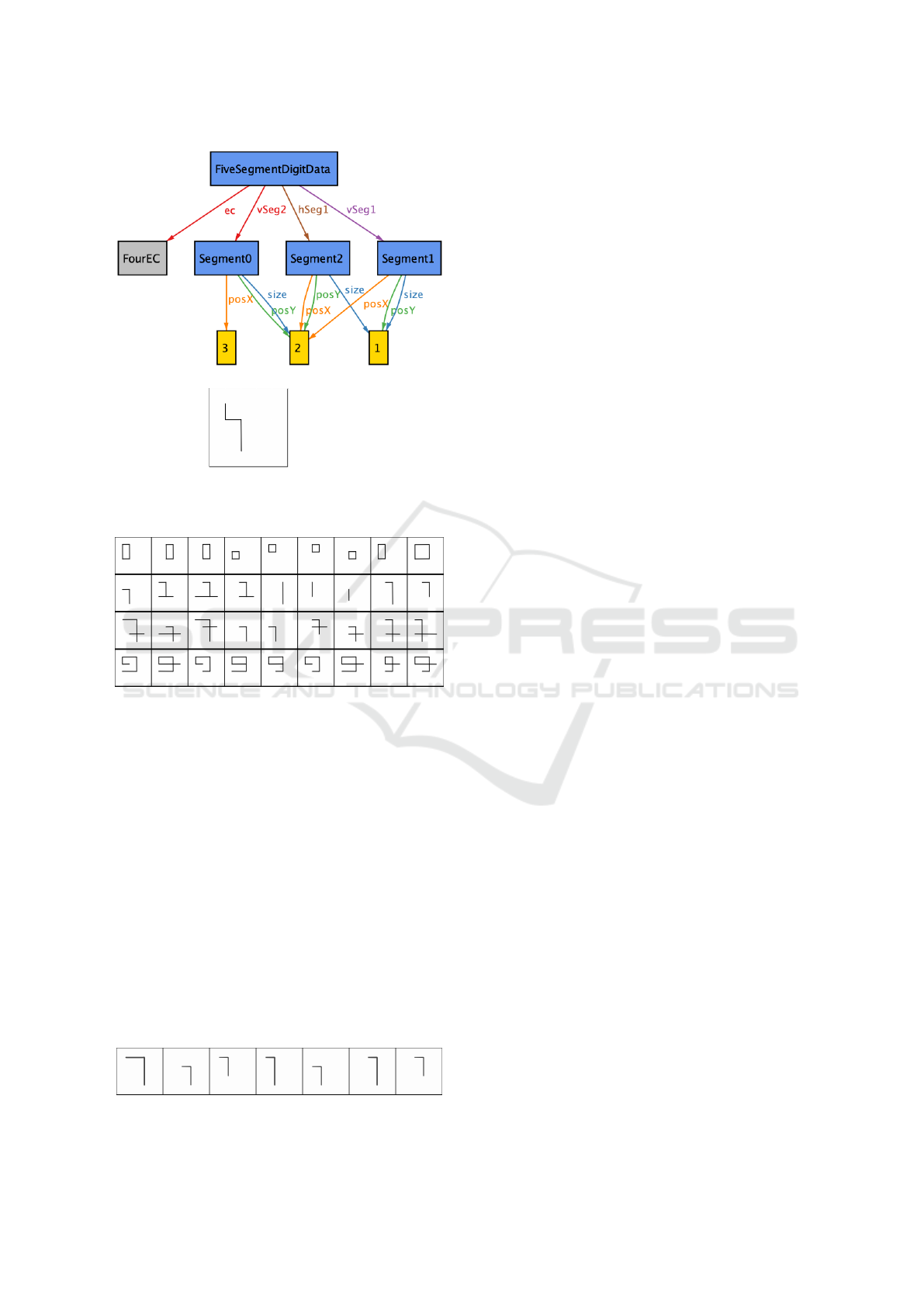

Figure 5: An Alloy model execution (a) and its visual rep-

resentation (b).

Figure 6: Extract of the interpreted digits instantiated by the

exploration query.

3.4 Validating the DRCM

In this last step of our process, we analyse the

FDRCM execution in order to evaluate if the DRCM

is validated, or not. Here are the three points conclud-

ing the analysis:

1. We are satisﬁed by the model executions con-

cerning the characterisation of the zero-digit data

structure, thus we validate the DRCM related to

the zero-digit equivalence class.

2. The veriﬁcation execution is not satisfactory. In-

deed, in this case study, we expect that the relation

between digit instances and equivalence class is

unambiguous by relating a digit data with exactly

one equivalence class. Thus this execution ex-

Figure 7: Digits corresponding to speciﬁcations in more

than one equivalence class.

hibits an issue in our DRCM, namely the fact that

several speciﬁcation instances satisfy the proper-

ties of both one-digit’s equivalence class (OneEC)

and seven-digit’s equivalence class (SevenEC).

3. We wish to improve the DRCM such that nine-

digits without the bottom horizontal segment

should also be part of the dataset requirements.

In the end, we conclude that the DRCM of this

ﬁrst iteration is not validated due to the two identiﬁed

issues in points 2. and 3. above. Thus there is a need

to perform a second iteration of the process.

3.5 Second Iteration of the Process

3.5.1 Updating the DRCM and the FDRCM

In the second iteration, we update the DRCM and the

FDRCM. We introduce modiﬁcations on the property

descriptions of:

• the NineEC in which we state that the third hori-

zontal segment is optional with a logical implies

statement.

• the OneEC. There should be now either zero hori-

zontal segments or two horizontal segments, but

never a single horizontal segment such that the

ones are not mistaken for sevens.

3.5.2 Executing the Updated FDRCM and

Validation of the Updated DRCM

We deﬁne a ﬁrst Alloy command and run it to explore

the new nine-digits speciﬁcation. Figure 9 shows

an extract of some of the new nine digits result-

ing from the change in the DRCM’s model property

isInNineEC of the NineEC class. A second command

is deﬁned and we execute it to conﬁrm that there is

no digit satisfying the properties of two equivalence

classes at the same time. In particular, the one-digits

and the seven-digits are now partitioned. Thus in the

end of this second iteration, we validate the DRCM

and end the process.

Consequently, we may then go on with the further

activity in the dataset development process, namely

dataset construction, which is out of the scope in this

paper. Among possible activities, this could typically

involve: data labelling, data preparation, data synthe-

sis, etc.

As a conclusion, we improved the quality of the

dataset by using our method and tool. Firstly by pro-

viding a model of the dataset structural requirements.

Secondly our method allowed us to detect the issue

with ambiguous ones and sevens, as well as allowing

us to explore a different possible kind of nines. Our

An MDE Method for Improving Deep Learning Dataset Requirements Engineering using Alloy and UML

Figure 8: DRCM Changes in Classes OneEC and NineEC.

Figure 9: Explored Model Executions of Nines Without 3rd

Horizontal Segment.

method helped detect these issues earlier in the DL-

based system development process.

4 DISCUSSION

In this section, we discuss shortly about some impor-

tant aspects of this paper. The ﬁrst aspect is the scal-

ability of our method. In this paper, we present our

model-driven engineering method for requirements of

datasets and we validate it experimentally by apply-

ing it to the ﬁve-segments digits case study. Our

case study is of rather low combinatory complexity.

Due to this low complexity, we could specify its re-

quirements models: DRCM and FDRCM at a low-

level of abstraction, with precise details on the data

structure, i.e., horizontal/vertical segments and their

size/position. We could also execute all model exe-

cutions due to the low number of combinations, i.e.,

around 400 possible data instances. Let’s note that

it is rarely possible to be able to perform all possi-

ble model executions. So ﬁrst of all, it is most im-

portant that there should be enough model executions

to either comfort the analyst and the customers that

their requirements model is valid; or to exhibit some

requirements to be improved thanks to our so-called

exploration or validation queries. Secondly, require-

ments models allow to describe conceptual domains

at a chosen level of abstraction. Thus, as for any mod-

eling methods, it must be decided what is the right

level of abstraction adapted to the project under devel-

opment. Indeed, when using our method for a larger-

scale case study, the level of abstraction should con-

sequently be higher in order to be tractable. This is

especially true for formal methods whose interest is

not in being applicable for a full real system but in

its contribution to increase the quality of the system

under development.

The second aspect that we would like to discuss

is the toolset limitation. The presented toolset is a

prototype implementation, intended to make a proof-

of-concept in terms of tool-support for our method.

Some parts of the toolset must indeed be improved be-

fore being transfered to an industrial context, or used

at a larger scale. For instance, some limitations in-

clude, the fact that the different textual editors are the

default ones provided by EMF, thus there is no syntax

checking, nor syntax highlighting on the textual ex-

pressions written in Alloy, nor rich text editing on the

properties and invariants descriptions.

5 RELATED WORK

Only few works are available on requirements engi-

neering for DL-based systems. The ﬁrst one by Hill

et al. (Hill et al., 2016) presents a process comprising

nine stages for a machine learning workﬂow, but with-

out going into the details of the ﬁrst stage, model re-

quirements. The second one by Amershi et al. (Amer-

shi et al., 2019) present a general SE process for ML-

based systems. Their process includes a requirements

engineering phase that considers the system in the

large without giving particular concerns about the re-

quirements of the dataset.

Industry also contributes to this area of ML-based

systems development. As for instance, Google de-

scribes a ML Workﬂow (Google, 2020), but the ﬁrst

activity is Source and Prepare your data and the

requirements engineering is basically skipped. Mi-

crosoft deﬁnes the TDSP (TDSP, 2020; Mathew et al.,

2018) process, standing for Team Data Science Pro-

cesss. This process is composed of a lifecycle start-

ing with a Problem Deﬁnition phase, with an activity

Data characteristics questions. Unfortunately, these

two related works lack support for semi-formal and

formal modeling of dataset structural requirements.

In the MDE community, common interest in MDE

MODELSWARD 2021 - 9th International Conference on Model-Driven Engineering and Software Development

and AI is also quite recent, a ﬁrst workshop on AI and

MDE was held in 2019 (Burgue

no et al., 2019).

Regarding model execution, a large number of re-

lated works are available, published in the last two

decades in the literature, around the formalisation

and execution of UML models (Object Management

Group, 2018; Shah et al., 2009; Mellor et al., 2002),

but none of these approaches tackle speciﬁcally the

modeling of datasets requirements for DL-based sys-

tems.

Lastly, a number of approaches, mainly in the

AI community, e.g. DeepXplore (Pei et al., 2017),

Scenic (Fremont et al., 2019), DeepTest (Tian et al.,

2018), CARLA (Dosovitskiy et al., 2017), have been

published on designing and generating datasets for

DL-based systems. Whereas in our paper, we provide

an iterative method involving the customer and SE/DS

analysts focused on the production of a requirements

speciﬁcation model, i.e., our method is not about de-

signing, nor producing datasets.

6 CONCLUSION

In this paper, we contributed to the introduction

of software engineering rigor in the engineering of

datasets for DL-based systems. We presented our

model-driven engineering method composed of a pro-

cess deﬁned with BPMN and supported by a toolset.

Our Dataset Requirements Concept Model (DRCM)

is modeled in compliance with UML syntax. We pre-

sented a DRCM graphical editor implemented EMF

and Sirius that allows creating diagrams to ease the

requirements elicitation discussions. The DRCM

model is executable with the Alloy Analyzer tool,

thanks to our informal deﬁnition of the DRCM opera-

tional semantics as a translation from UML to Alloy.

Our Xtend implementation allows us to generate a

FDRCM skeleton code in Alloy. Lastly, we presented

an instantiation of our process in a case study related

to the requirements engineering of a ﬁve-segments

digits dataset and discuss some current issues.

7 FUTURE WORK

In this paper, we present a method for improving DL

dataset requirements engineering, which has raised a

number of interesting future works.

In order to increase the MDE dimension of our

approach, in our method, the deﬁnition of the transla-

tional semantics of DRCM models will ﬁrstly be im-

proved using an Alloy metamodel. Together with the

deﬁnition of Model-2-Model transformations from

DRCM concepts to Alloy concepts. Secondly, we

plan to deﬁne a textual domain-speciﬁc language

(DSL) to allow specifying the DRCM textually. The

textual and graphical DRCM will be synchronised

such that changes in diagrams update the textual

counterpart and vice-versa.

Some other future works are related to the rigor-

ous validation of our method. For this, we plan to con-

duct additional experimentations, with well-known

examples like MNIST (Yann et al., 2018). These ex-

perimentations will serve for comparative evaluation

of our method against existing methods on common

case studies. Moreover, we will apply our method on

a larger-case study, in the area of earth’s ecosystems

health monitoring. This latter case study will investi-

gate scalability, practicality, and possibly adaptation,

of our method for potential transfer to larger exam-

ples.

Lastly, some ﬁnal future works are related to the

software engineering aspects of our approach. We

will improve our approach in two ways. Firstly, we

will broaden the work on the dataset requirements

engineering phase by including other types of func-

tional and non-functional requirements. Moreover

this phase should be placed in the more general con-

text of DL-based software requirements. How do

the dataset requirements involve (or are involved in)

the DL-based software requirements ? Secondly, we

will concentrate on the deﬁniton of the succeeding

dataset engineering lifecycle phases, e.g., dataset de-

sign, dataset production, dataset assessment, dataset

deployment.

REFERENCES

Amershi, S., Begel, A., Bird, C., DeLine, R., Gall, H., Ka-

mar, E., Nagappan, N., Nushi, B., and Zimmermann,

T. (2019). Software Engineering for Machine Learn-

ing: A Case Study. In 2019 IEEE/ACM 41st Inter-

national Conference on Software Engineering: Soft-

ware Engineering in Practice (ICSE-SEIP), Montreal,

Canada.

Bettini, L. (2013). Implementing Domain-Speciﬁc Lan-

guages with Xtext and Xtend: Learn How to Imple-

ment a DSL with Xtext and Xtend Using Easy-to-

Understand Examples and Best Practices. Commu-

nity Experience Distilled. Packt Publ, Birmingham.

Burgue

no, L., Burdusel, A., G

erard, S., and Wimmer, M.

(2019). Preface to MDE Intelligence: 1st Workshop

on Artiﬁcial Intelligence and Model-Driven Engineer-

ing. In ACM/IEEE 22nd International Conference on

Model Driven Engineering Languages and Systems

Companion.

Dosovitskiy, A., Ros, G., Codevilla, F., Lopez, A., and

An MDE Method for Improving Deep Learning Dataset Requirements Engineering using Alloy and UML

Koltun, V. (2017). CARLA: An Open Urban Driving

Simulator. arXiv:1711.03938 [cs].

Fremont, D. J., Dreossi, T., Ghosh, S., Yue, X.,

Sangiovanni-Vincentelli, A. L., and Seshia, S. A.

(2019). Scenic: A Language for Scenario Speciﬁca-

tion and Scene Generation. Proceedings of the 40th

ACM SIGPLAN Conference on Programming Lan-

guage Design and Implementation - PLDI 2019, pages

63–78.

Google (Last visited on Sept. 2020). Machine

learning workﬂow. https://cloud.google.com/ai-

platform/docs/ml-solutions-overview.

Hill, C., Bellamy, R., Erickson, T., and Burnett, M. (2016).

Trials and tribulations of developers of intelligent

systems: A ﬁeld study. In 2016 IEEE Symposium

on Visual Languages and Human-Centric Computing

(VL/HCC), pages 162–170, Cambridge. IEEE.

Jackson, D. (2012). Software Abstractions: Logic, Lan-

guage, and Analysis. The MIT Press.

Jahic, B., Guelﬁ, N., and Ries, B. (2019). Software En-

gineering for Dataset Augmentation using Genera-

tive Adversarial Networks. In Proceedings of the

10th IEEE International Conference on Software En-

gineering and Service Science (ICSESS 2019), Bei-

jing, China. IEEE.

Jahic, B., Guelﬁ, N., and Ries, B. (2020). Specifying Key-

Properties to Improve the Recognition Skills of Neural

Networks. In Proc. of the 2020 European Symposium

on Software Engineering, Roma, Italy. ACM.

Khomh, F., Adams, B., Cheng, J., Fokaefs, M., and Anto-

niol, G. (2018). Software Engineering for Machine-

Learning Applications: The Road Ahead. IEEE Soft-

ware, 35(5):81–84.

Mathew, S., Danielle, D., and Tok, W. H. (2018). Deep

Learning with Azure - Building and Deploying Arti-

ﬁcial Intelligence Solutions on the Microsoft AI Plat-

form. Apress.

Mellor, S. J., Balcer, M., and Jacoboson, I. (2002). Exe-

cutable UML: A Foundation for Model-Driven Archi-

tectures. Addison-Wesley Longman Publishing Co.,

Inc., USA.

Naur, P. and Randell, B. (1969). Software Engineering

Report of a conference sponsored by the NATO Sci-

ence Committee Garmisch Germany 7th-11th October

1968.

Object Management Group (2011). Business Process

Model and Notation (BPMN) v2.0. OMG Standard

Full Speciﬁcation formal/2011-01-03.

Object Management Group (2017). Uniﬁed Modeling Lan-

guage: Superstructure (UML), v. 2.5.1. OMG Stan-

dard Full Speciﬁcation formal/17-12-05.

Object Management Group (2018). Semantics of a Founda-

tional Subset for Executable UML Models (fUML), v.

1.4. OMG Standard Full Speciﬁcation formal/18-12-

01.

Pei, K., Cao, Y., Yang, J., and Jana, S. (2017). DeepXplore:

Automated Whitebox Testing of Deep Learning Sys-

tems. Proceedings of the 26th Symposium on Operat-

ing Systems Principles.

Ries, B. (2009). SESAME - A Model-Driven Process for

the Test Selection of Small-Size Safety-Related Em-

bedded Software. PhD thesis, University of Luxem-

bourg, Luxembourg.

Ries, B. (2020). DRCM Editor and FSDD Case Study.

https://doi.org/10.5281/zenodo.4020938.

Shah, S. M. A., Anastasakis, K., and Bordbar, B. (2009).

From UML to Alloy and back again. In Proceedings

of the 6th International Workshop on Model-Driven

Engineering, Veriﬁcation and Validation - MoDeVVa

’09, pages 1–10, Denver, Colorado. ACM Press.

Sommerville, I. (2016). Software Engineering. Pearson,

tenth edition edition.

Steinberg, D., Budinsky, F., Paternostro, M., and Merks,

E. Eclipse Modeling Framework Second Edition.

page 14.

TDSP (Last visited on Sept. 2020). The Team Data

Science Process. https://docs.microsoft.com/en-

us/azure/machine-learning/team-data-science-

process/.

Tian, Y., Pei, K., Jana, S., and Ray, B. (2018). DeepTest:

Automated Testing of Deep-Neural-Network-driven

Autonomous Cars.

Torlak, E. and Jackson, D. (2007). Kodkod: A Relational

Model Finder. In Grumberg, O. and Huth, M., editors,

Tools and Algorithms for the Construction and Analy-

sis of Systems, volume 4424, pages 632–647. Springer

Berlin Heidelberg, Berlin, Heidelberg.

Viyovi

c, V., Maksimovi

c, M., and Perisi

c, B. (2014). Sir-

ius: A rapid development of DSM graphical editor.

In IEEE 18th International Conference on Intelligent

Engineering Systems INES 2014.

Vogelsang, A. and Borg, M. (2019). Requirements En-

gineering for Machine Learning: Perspectives from

Data Scientists. arXiv:1908.04674 [cs].

Yann, L. C., Corinna, C., and Christopher, B. (2018). THE

MNIST DATABASE of handwritten digits.

MODELSWARD 2021 - 9th International Conference on Model-Driven Engineering and Software Development
