ChartSight: An Automated Scheme for Assisting Visually Impaired in

Understanding Scientiﬁc Charts

Mandhatya Singh

and Puneet Goyal

Indian Institute of Technology, Ropar, Punjab, India

Keywords:

Visually Impaired, Chart Classiﬁcation, Chart Extraction, Document Reader, Assistive Technologies.

Abstract:

The visual or Non-Textual components like charts, graphs, and plots are frequently used to represent the la-

tent information in digital documents. These components bolster in better comprehension of the underlying

complex information. However, these data visualization techniques are of not much use to visually impaired.

Visually impaired people, especially in developing countries, rely on braille, tactile, or other conventional

tools for reading purposes. Through these approaches, the understanding of Non-Textual components is a

burdensome process with serious limitations. In this paper, we present ChartSight, an automated and interac-

tive chart understanding system. ChartSight extracts and classiﬁes the document images into different chart

categories, and then uses heuristics-based content extraction methods optimized for line and bar charts. It

ﬁnally represents the summarized content in audio format to the visually impaired users. We have presented a

densely connected convolution network-based data-driven scheme for the chart classiﬁcation problem, which

shows comparatively better performance with the baseline models. Multiple datasets of chart images are used

for the performance analysis. A comparative analysis of supporting features has also been performed with the

other existing approaches.

1 INTRODUCTION

A digital document contains mainly two components:

Textual and Non-textual. Extraction and transforma-

tion of the textual components have been well ex-

plored (Goncu and Marriott, 2012). However, for

the Non-textual parts (charts, graphs, plots, tables,

etc.), the process is arduous and an active research

area. The Non-textual or visual components are com-

monly used for representing the underlying quantita-

tive information in a summarized way and generally

preferred over the textual parts because of their cog-

nitive advantages.

In today’s world, we are equipped with advanced

visualization methods to represent and understand the

available information. However, visually impaired

users (VIU) are deprived of insights and understand-

ing as offered through these Non-Textual compo-

nents. The VIU relies mainly on the textual compo-

nents and often uses the braille technique for reading

purposes; all the notable books and study materials

are generally in braille. The braille has its own lim-

https://orcid.org/0000-0001-9581-352X

https://orcid.org/0000-0002-6196-9347

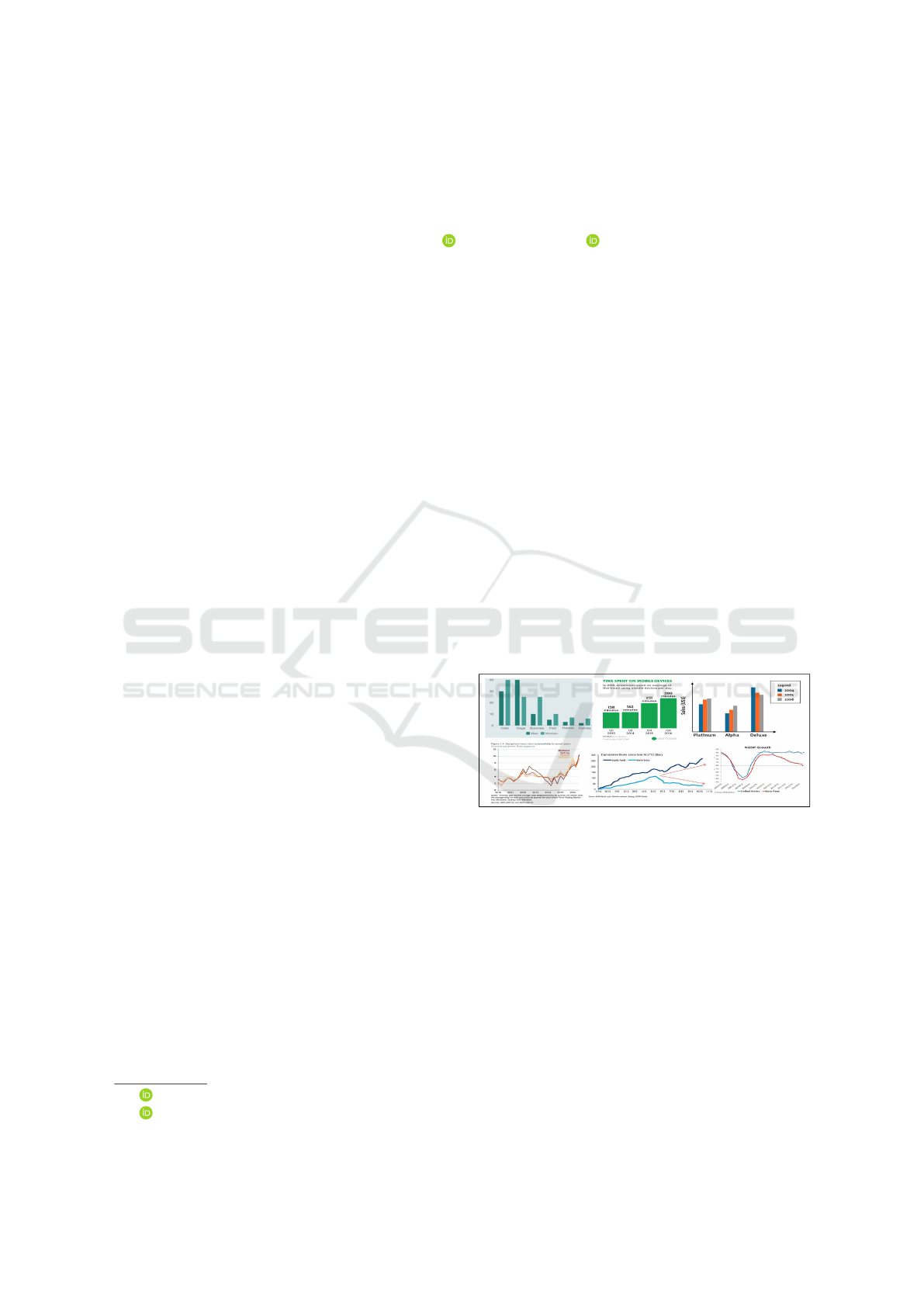

Figure 1: Sample line and bar charts demonstrating the vari-

ability and complexity in representation.

itations. It is also challenging, and for some cases,

it is currently impossible to represent these visual-

ization methods through conventional techniques like

braille. Apart from conventional techniques, VIU re-

lies on screen readers (JAWS, NVDA ec.) to read and

understand digital documents. However, these exist-

ing screen readers fail to comprehend the understand-

ing from these Non-Textual components, causing loss

of information. The existing chart understanding ap-

proaches and systems have limitations like manual in-

tervention, generalizability, and compatibility.

The complexity and design variability of the chart

images makes the chart understanding process more

challenging. The representation of the same quanti-

Singh, M. and Goyal, P.

ChartSight: An Automated Scheme for Assisting Visually Impaired in Understanding Scientiﬁc Charts.

DOI: 10.5220/0010201203090318

In Proceedings of the 16th International Joint Conference on Computer Vision, Imaging and Computer Graphics Theory and Applications (VISIGRAPP 2021) - Volume 5: VISAPP, pages

309-318

ISBN: 978-989-758-488-6

309

tative data can be performed in different styles and

through various chart types. Some sample line and

bar charts used in this work, demonstrating the com-

plexity and variability, are shown in Fig. 1. The pro-

posed system ChartSight receives pdf ﬁles as input,

speciﬁcally research papers and articles. It automat-

ically extracts the Non-Textual components (all im-

ages) from the given pdf document. ChartSight clas-

siﬁes these images into respective chart categories (11

Categories). Non-Textual component classiﬁcation is

a critical step of an automatic chart understanding

process as errors in this stage will propagate further in

the chart understanding pipeline and affect the whole

understanding process. In this work, we have primar-

ily focused on the Non-Textual component classiﬁca-

tion task and propose a classiﬁcation system to pre-

dict the respective component categories, that can be

utilized in the content extraction stage. We have also

proposed a preliminary content extraction approach

based on image processing and heuristics-based tech-

niques for content extraction from line and bar charts.

Through this work, the following contributions

have been made :

1. We present a holistic trainable deep learning ap-

proach for Non-Textual (charts and tables) com-

ponents classiﬁcation.

2. This paper presents a preliminary heuristic based

content extraction approach, respective to line and

bar charts.

3. We performed a user response based analysis,

demonstrating that in most of the graphs, there is

always a deviation in perceiving the exact values,

it differs from user to user.

4. This paper presents an automatic, interactive and

easy to use graphical user interface, speciﬁcally

customized for the visually impaired users (VIU),

and its features comparison with recent methods.

The rest of the paper is organized as follows: Re-

lated work is described in Section 2. ChartSight

Framework module, including classiﬁcation, content

extraction, and summarization sub-modules, is pre-

sented in Section 3. Experiment and Results are

discussed in Section 4. Prototype and a compara-

tive feature-based analysis with existing tools and ap-

proaches are discussed in Section 5 and 6. Conclusion

and Future Scope are discussed in Section 7.

2 RELATED WORK

Assistive technologies related to reading the Non-

Textual components for VIU had some less schol-

arly focus until recently. Screen readers like JAWS

and NVDA are popular and preferred screen read-

ers, particularly in developing countries. A compara-

tive study between these two has been shown in (Mc-

Carthy et al., 2012). The issue with these readers

is the access and efﬁcient interpretation of graphical

components. Standard devices like Flash PIAF and

IVEO-3 can make graphs tactile images, but the hard-

ware requirement is one of the concerns.

SIGHT (Elzer et al., 2007) assists VIU in read-

ing bar charts, present in the web pages. Graphi-

cReader (Nazemi and Murray, 2013) extracts the con-

tent from graphical components like bar charts, pie

charts, line charts, and maths graphs. Graphics Ac-

celerator (GraphicsAccelerator, 2020) is a tool, spe-

cially designed for VIU, for reading the contents of

chart images. The tool’s main concern is that it does

not support general chart images; it only works for

standard chart images prepared on their dedicated en-

vironment. For making the whole chart understand-

ing process automatic, Non-Textual component clas-

siﬁcation is an important step. In literature (Huang

and Tan, 2007), (Savva et al., 2011) various machine

learning-based approaches have been proposed that

rely on handcrafted features like histogram of ori-

ented gradients (HOG), scale-invariant feature trans-

form (SIFT) etc. Recently, various deep learning ap-

proaches (Jung et al., 2017), (Poco and Heer, 2017),

(Choi et al., 2019) have been introduced for chart and

table images classiﬁcation task. The proposed ap-

proach comprises of a deeper architecture for captur-

ing the inter-class dissimilarities and intra-class simi-

larities.

Automated Analysis of line charts has been per-

formed in (Nair et al., 2015). Emphasis on chart

ﬁelds extraction has been done, rather than the con-

tent extraction. ReVision (Savva et al., 2011) clas-

siﬁes chart images into 10 categories and automat-

ically extracts data from bar charts and pie charts.

It has a classiﬁcation accuracy of 80% on average,

and it extracts marks successfully from 71% of bar

charts and 64% of pie charts. ChartSense (Jung et al.,

2017) is semi-automatic method that adopts a mixed-

initiative approach for chart data extraction. Figure-

Seer (Siegel et al., 2016) is an application, utilizing

quantitative and qualitative approaches for better per-

formance, and is designed for querying charts, plots,

and other ﬁgures in the scholarly articles. The exist-

ing ﬁgure question answering (QA) approaches (Ka-

hou et al., 2017; Kaﬂe et al., 2018) fails to retrieve

numerical data from the charts in case of single color

marks (i.e., single color bar). The ChartSight pipeline

can aid existing chart ﬁgure captioning and ﬁgure QA

approaches (Kahou et al., 2017; Kaﬂe et al., 2018) by

presenting the charts’ raw content and thus improving

VISAPP 2021 - 16th International Conference on Computer Vision Theory and Applications

310

Fi gur e Ext r act i on

Char t Cl assi f i cat i on

Summar i zat i on

TTS

Others

- Max/Min

- Trend

- Meaningful Sentences

Axis and Label Parsing (Algorithm 1)

Cont ent Ext r act i on

Content Parsing (Algorithm 2,3,4)

Line

Bar

Pie

Pareto

area

Table

Scatter

Pie Radar

Map

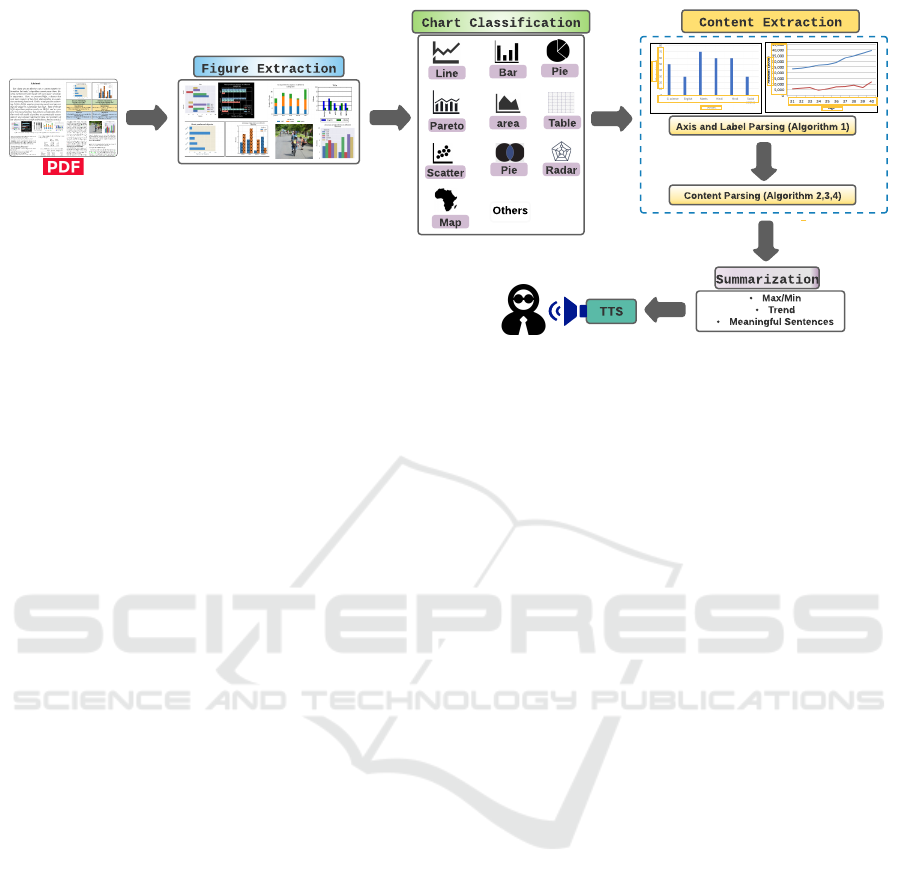

Figure 2: Block Diagram. The proposed system receives pdf document or chart image as input. It extracts the Non-Textual

components (all images) from the document, classiﬁes it into respective chart category (11 categories), extract the content,

summarizes it and convert it into audio format using text-to-speech (TTS) engine for VIU.

the performance in case of reasoning based questions.

WebPlotDigitizer (Rohatgi, 2014) is a web-based

tool and has both automatic and manual modes. Ac-

curacy is a concern in automatic mode. In manual

mode, users have to specify some initial points in the

image. iVoLVER (M

endez et al., 2016) is a chart re-

construction, web-based tool and requires users’ in-

puts for extraction. It heavily relies on the user for

an efﬁcient extraction process. Ycasd (Gross et al.,

2014) also, requires user input for extracting the data

from line charts.

3 PROPOSED FRAMEWORK

ChartSight offers an automated and efﬁcient chart un-

derstanding process for VIU. The pipeline encom-

passes of following steps: (1) Image extraction, (2)

Chart classiﬁcation, (3) Content extraction, (4) Sum-

marization. The pipeline has been shown in Fig. 2.

Individual components in the pipeline are discussed

below:

3.1 Figure Extraction

In this module, we have performed document seg-

mentation and Image extraction. The document

is segmented into two parts - Textual and Non-

Textual. The Non-Textual segment consists of graph-

ical (charts, plots, graphs, etc.) as well as generic im-

ages. The extracted images will get passed into the

classiﬁcation engine that classiﬁes it into respective

chart categories. For the purpose, we have experi-

mented with three different pdf extractors libraries -

(a) PyMuPDF - a python binding for the MuPDF li-

brary, (b) Poppler - a python binding for the poppler-

cpp library, and (c) Minecart - a python package for

ﬁgure extraction from PDF’s. We have evaluated

these libraries’ performance over different PDF doc-

uments and selected the best performing one (results

are presented in Section 4.1).

3.2 Chart Classiﬁcation

Classiﬁcation of chart images differs from classiﬁca-

tion of natural images. Some of the distinctive fea-

tures/characteristics in chart images are: low pixel

variances in neighborhood, similar pattern of graphi-

cal ﬁelds (i.e ticks, marks and labels), frequent occur-

rence of textual ﬁelds within image such as legend,

labels, tick values etc, corner points and Edges distri-

bution, spread of graphical part area and orientation

of the graphical ﬁelds.

Recent advancements in deep learning approaches

enable the network to incorporate more depth via

short connections between the network layers. The-

oretically, the deeper networks proved to be efﬁcient,

but empirically the training process in these deeper

network suffers from issues like - vanishing gradient

and large number of parameters further affecting the

overall information ﬂow across the network. The pre-

sented scheme utilizes the DenseNet (Huang et al.,

2017) architecture, which eliminates the mentioned

issues with robust feature propagation, feature reuse,

and self regularizing ability. DenseNet provides the

access (to each layer) of gradients from the loss func-

tion as well as the input layer, as shown in Fig. 3.

ChartSight: An Automated Scheme for Assisting Visually Impaired in Understanding Scientiﬁc Charts

311

Max Pooling

DB1

Conv (7x7)

Transition Layer 3

Transition Layer 1

Transition Layer 2

Zero Padding(1x1)

DB2 DB3 DB4

Global Avg. Pooling

Dense Layers

Dropout

Classification Layer

Prediction

Transition

Layer

ReLu

Conv(1x1)

Avg. Pooling

Conv

Block

ReLu

Conv(1x1)

ReLu

Conv(3x3)

(6 DL) (12 DL)

(24 DL) (16 DL)

DB - Dense Block

- Concatenation

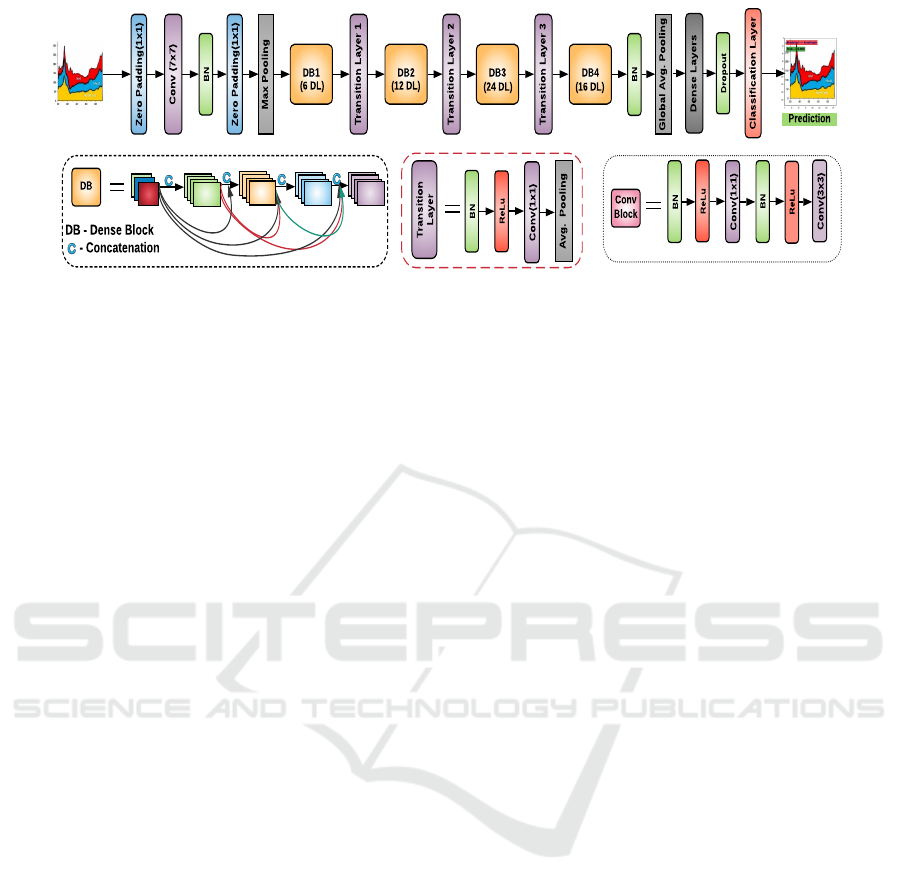

Figure 3: Proposed Classiﬁcation framework. Upper network shows the overall ﬂow. In lower part, the individual components

are unfolded. Each dense block (DB) consists of multiple convolutional blocks. Four DBs with a total of 58 dense layers (DL)

have been used.

3.2.1 Implementation Details

The two main components of the network are Dense

blocks (DB) and Transition blocks. Each DB con-

sists of multiple convolution blocks (CB). Each

CB consists of two convolution layers of 1 × 1

and 3 × 3 stacked with Batch Normalization (BN)

and ReLu [(BN-RELU-CONV(1 × 1)-BN-RELU-

CONV(3 × 3)]. Four dense blocks with a set of 6,

12, 24, 16 CBs are used. For reducing the num-

ber of feature maps, each DBs are connected through

transition layers. The transition layer improves the

overall model compactness by compressing the model

via [(BN-RELU-CONV(1 × 1)- AVERAGE POOL-

ING] operations. The total number of layers in the

presented architecture is 121. The growth rate is set

to 32 in our experiment. Here growth rate denotes the

size of feature maps produced at any layer and rep-

resents the actual contribution from that layer. We

have used a global average pooling layer just before

the fully connected layer for ﬂattening.

The input image is resized to 224 × 224 as image

dimensions vary within the data sets. An extra set

of dense layers has been added with a dropout of 0.3

for regularization. We have initialized the learning

rate with 0.1 with a decay rate of 1e-6 and Nesterov

momentum of 0.8. SGD optimizer with categorical

cross-entropy as loss function is used. The model is

initialized with pre-trained weights on the ImageNet

dataset. The ﬁrst four layers are frozen to avoid re-

learning the same generic standard features of training

images and accelerating the overall training process.

The model is trained with mini-batches of size 16 for

50 epochs with data augmentation (horizontal ﬂip,

vertical ﬂip, rotation, and zoom) and patience factor

of 4. For efﬁcient training, we have normalized the

category weights for weighting the loss function (per-

formed during training). So, the model can equally

focus on data points from an under-represented cat-

egory. The training and testing are performed on

Nvidia GTX1080 GPU, and for other experimenta-

tion, Intel Core i7-8700 CPU has been used.

3.3 Chart Content Extraction

Automatic and efﬁcient content extraction from chart

images is a complex process. We have proposed a pre-

liminary content extraction framework using image

processing and heuristic-based approaches. Through

our proposed algorithms [EHLC (Extraction heuris-

tics for line chart) and EHBC (Extraction heuristics

for bar chart)], we have improved upon the limita-

tions of previous works including performance (in the

absence of axis), and multi-scale support. The pro-

posed algorithms utilize the texture as well as color-

based information. It works effectively even when

multi-color bar/lines are present in chart images. The

proposed algorithms use some assumptions like chart

image should be 2D, and axes appear at the left and

bottom of the chart image. The content extraction

steps and algorithms are described in the sections be-

low.

3.3.1 Axes and Label Parsing

The Axes and Label parsing involves locating axes (X

and Y), followed by extracting axes tick values and

axes labels, as described in Algorithm 1. Before pars-

ing, images are resized to 640x480. Hough (Duda

and Hart, 1972) method is applied for detecting the

vertical and horizontal lines. The extreme bottom line

(EBL) and extreme left line (ELL) are selected from

the detected lines as the X and Y-axis. Pattern match-

ing and LSTM based OCR method (Kay, 2007) is ap-

plied to the regions below the EBL and on the left of

ELL for axis tick and label recognition. All the axes

tick and label regions are detected as text boxes. The

text boxes with the same x values (below EBL) and

VISAPP 2021 - 16th International Conference on Computer Vision Theory and Applications

312

the same y values (left of ELL) have been extracted.

Further, for enhancement of the extracted ﬁelds, im-

age sharpening (using unsharp masking) is applied.

The proposed approach works even in the absence of

axis lines in the chart images. In this scenario, a vir-

tual axis is constructed with the help of axis ticks po-

sition. Firstly, OCR is applied over full chart image

region for detection of all the textual components. A

heuristic (denoted as HA in Algorithm 1) involving

detecting the largest group of text boxes aligned with

their x and y values are applied to the OCR output.

These groups represent the axes tick marks and based

on their position, both y and x-axis are created.

Algorithm 1: Axes and Label Parsing.

Input : I [Original Chart Image]

1 Resize I to 640 × 480 ;

2 DetectLines(I);

3 if DetectLines(I) ! = φ then

4 Select ELL and EBL;

5 T B ← OCR(EBL, ELL);

6 TextBoxes ← DetectTextBox(T B) ;

7 count ← length(TextBoxes) ;

8 while count ! = 0 do

9 ImageSharpening(TextBoxes(count));

10 Save(TextBoxes(count)) ;

11 count = count-1 ;

12 end

13 else

14 T B1 ← OCR(I);

15 TextBoxes ← HA(T B1) ;

16 Repeat Steps 8 to 12 ;

17 end

3.3.2 Content Parsing

In the content parsing step, we aim to retrieve the em-

bedded data in line and bar chart images (Algorithm

(2,3)). The extracted data (image space) needs to be

mapped to the data space (actual values in X and Y

space). Generally, the Y-axis tick values are on linear

scale or logarithmic scale. So, computing the scaling

factor (yFactor) is an essential step in the MAPPING

process (Algorithm 4). yFactor is calculated between

each possible pair of Y-axis tick values, as shown in

Eq. (1), and all these values are stored in yFactorList.

Final yFactor is computed as a median of the yFac-

torList. This will ensure yFactor values correctness

even when some of the labels were incorrectly de-

tected or even missed.

yFactor =

[yTick

− yTick

]

(1)

Where,

yP = number of pixels between the yTick

and yTick

yTick

= numerical value of yTick

yTick

= numerical value of yTick

In some cases where the maximum and mini-

mum values of the Y axis are not present, the ob-

tained results show some discrepancies. Both algo-

rithms tackle this issue by correctly predicting those

values based on yFactor. The proposed approaches

use pattern matching and LSTM based OCR (Kay,

2007) engine for extracting the textual contents within

the graph, i.e. (axes labels and axes marks values).

The sensitivity factor is chosen on hit and trial based

method. Morphological operation (opening) ensures

the removal of irrelevant information.

Algorithm 2: ehlc: Line Detection.

Input : L [Line Chart]

1 L1 ← MO(L, 2); // Morphological operation

2 Convert L1 to HSV Space. ; // Only Hue

channel is considered

3 CL ← Clust(L1); // Clustering pixels having

same ranges of color values

4 NumLines ← Length(CL);

5 for i ←1:NumLines do

6 TRACING(CL(i)) ;

7 MAPPING((CL(i)) ;

8 end

Morphological operation (opening) is applied

with a sensitivity factor of 2. It’s tuning provides con-

trol over the selection of targeted lines and bars. It

also removes the legends, labels, and gridlines which

are not required in this stage. For further process-

ing, the image is converted into HSV space. Cluster-

ing based on color values is performed. Each clus-

ter accounts for the respective lines (multiple lines in

case of a multi-line chart). For each cluster, the cor-

responding points are located in the image. Multiple

points are located on each line by approximating the

curve using the canny edge method termed as TRAC-

ING in Algorithm 2. In the intersection case, the next

point of the corresponding line is traced using neigh-

borhood pixels information. MAPPING process (Al-

gorithm 4) is applied iteratively for each line to get

the exact content.

MO, followed by horizontal line detection using

the Hough method, provides the upper part of indi-

vidual bars, as shown in Fig. 5 (j). X coordinates of

the detected horizontal lines (of each bar) are matched

(MATCHING) with the axes ticks positions, height,

and span of each bar. MAPPING process is applied

for each bar to get the exact content.

ChartSight: An Automated Scheme for Assisting Visually Impaired in Understanding Scientiﬁc Charts

313

Algorithm 3: ehbc: Bar detection.

Input : B [Bar Chart]

1 B1 ← MO(B,4);

2 HorizontalLines ← HoughLines(B1);

3 Replace each horizontal lines with their

middle point ;

4 [U pperPartLowerPart] ←

MATCHING(HorizontalLines); ;

5 MAPPING([UpperPart LowerPart]) ;

Algorithm 4: mapping.

Input : A : [Array of X & Y

Co-ordinates]

1 counter = 0 ;

2 L ← Length(A);

3 while counter ¡ L do

4 if A(counter(Xcordinate)) ==

AXES(Xcordinate) then

5 NewYcordinate =

(Ypixelval(Ycordinate)∗ yFactor)

+yMin;

6 end

7 end

Only those points are chosen in the MAPPING

process whose X-axis ticks coordinate matches with

extracted Y-axis ticks coordinates. Corresponding Y-

axis values are calculated by multiplying the Y-axis

pixel coordinates of that point and yFactor followed

by adding yMin (Minimum value on Y-axis).

3.4 Summarization

In this module, we are generating a meaningful tex-

tual summary of the extracted content. Depending

upon the ﬁgure type and data extracted, a textual

summary considering the VIU persona usage is be-

ing generated. For example, increasing/decreasing

trend, maximum/minimum, slope information, etc.

We compare each data value corresponding to the re-

spective axis tick for calculating the trend characteris-

tics. The extracted visual ﬁelds were combined with

the trend characteristics and then fed to the text-to-

speech engine for converting it into audio format.

4 EXPERIMENTS AND RESULTS

4.1 Figure Extraction

We have evaluated the performance of all three pdf

extractor libraries on scientiﬁc articles. 25 research

articles from IEEE Xplore Digital Library, have been

used for the performance analysis of the pdf extrac-

tors. A total of 96 images are present in the pdf doc-

uments. In Table 1, it is showed that PyMuPDF per-

formance is better than the other two popular pdf ex-

tractors. PyMuPDF achieves 96.8% accuracy show-

ing better rendering capability.

Table 1: PDF extractor’s performance.

pdf extractor Images Extracted Accuracy

poppler 86 89.5%

minecart 82 85.4%

PyMuPDF 93 96.8%

However, extraction of images that contains wa-

termarks is not possible with the current versions of

these libraries. We have tested some pdf ﬁles that

contain watermarked images, and found that, these li-

braries were not able to extract most of the images.

4.2 Chart Classiﬁcation

The dataset, evaluation scheme and results for pro-

posed classiﬁcation approach are discussed in this

section.

4.2.1 Dataset Description

For training and evaluation purpose, we have used

MixChart, Savva(Savva et al., 2011) and Junior (Ju-

nior et al., 2017) datasets. Each image represents a

single chart category.

• MixChart. This dataset consists of chart and ta-

ble images collected from other available sources

(Cliche et al., 2017), (Siegel et al., 2016) along

with a set of Non-Textual images downloaded

from the web. This dataset contains 11 cate-

gories of chart images (including ”other” class).

The total image count in this MixChart data set is

11,319.

• (Savva et al., 2011). A subset from ReVision(10

Category) dataset is acquired. We are only able

to acquire 544 images from this dataset as most

of the images in the dataset are not available. We

have used this entire dataset only for testing dif-

ferent methods.

• (Junior et al., 2017). This dataset contains 10

categories of chart images (including table class).

The total number of images are 4,891.

4.2.2 Evaluation Scheme

The evaluation scheme for estimating the effective-

ness of the proposed classiﬁcation framework is de-

VISAPP 2021 - 16th International Conference on Computer Vision Theory and Applications

314

Table 2: Description of evaluation scheme for proposed chart classiﬁcation approach. # denotes the number of images and

NA denotes not applicable.

Training Set

Testing Sets

MixChart (Junior et al., 2017) (Savva et al., 2011) (Junior et al., 2017) MixChart

(Test set) (Test set) (Complete) (Complete) (Complete)

MixChart Training set S

# 9269 (11 classes) # 2050 # 451 # 544 # 4440

(Junior et al., 2017) Training set S

NA S

# 4440 (10 classes) # 1786 # 451 # 544 # 11319

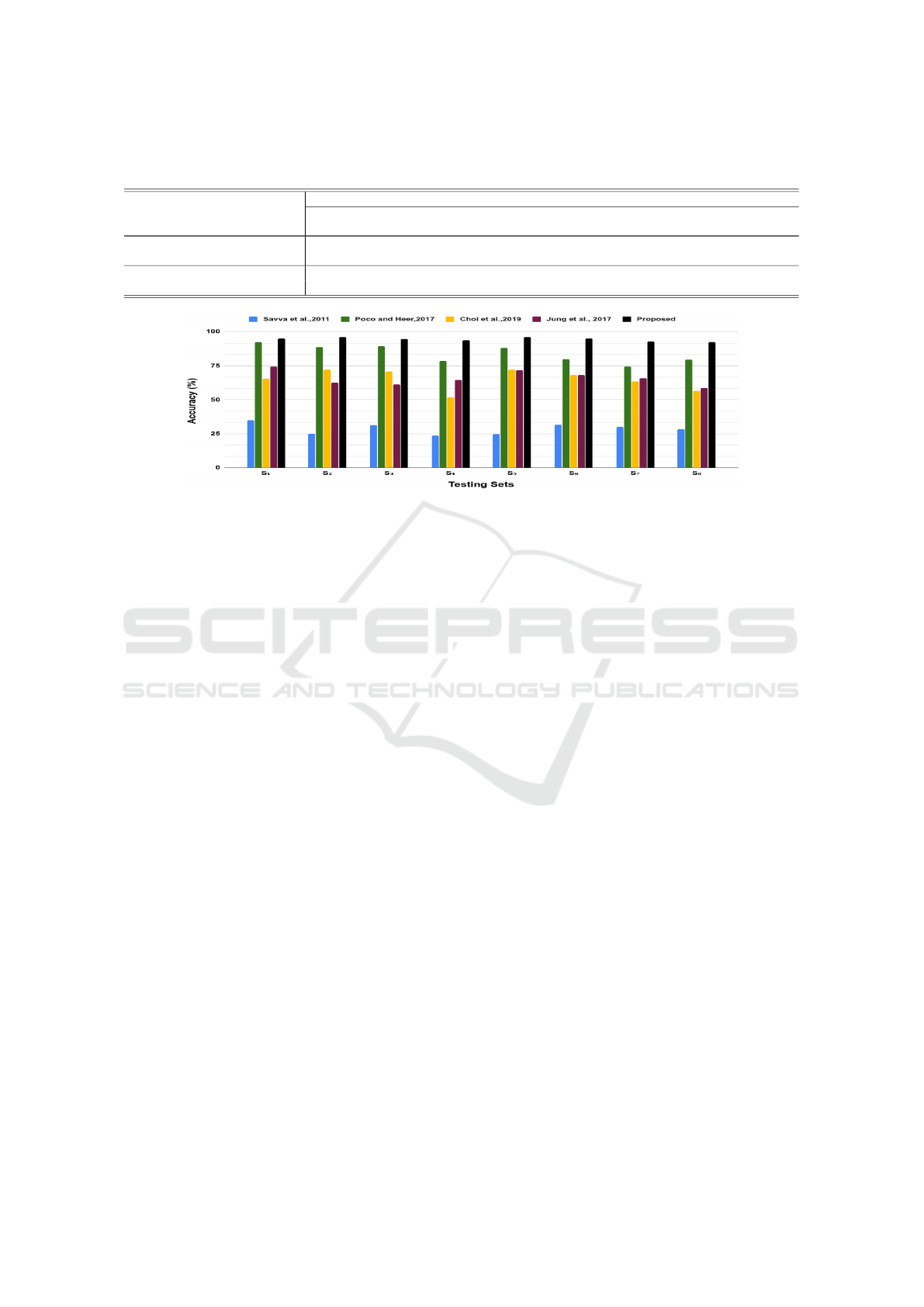

Figure 4: Dataset wise performance. The graph shows the weighted average accuracy of models across different test sets

...S

scribed in this section. We have evaluated the pro-

posed framework based on two factors : General-

ization i.e how the model generalizes when tested

across different datasets (Dataset wise performance),

and other is Prediction i.e how accurate the category

wise predictions are across different datasets (Cate-

gory wise performance). We have categorised the

datasets into multiple train and test sets as shown in

Table 2. The rows represents a combination for train-

ing and testing pairs. There are respective group of

testing sets [S

j=1:4

, S

j=5:8

] for both the training sets.

The test sets (S

j=1:8

) are deﬁned as S = {S

j=1

φ} except pairs of (S

) and (S

). In spite of be-

ing the same set (S

-S

and S

-S

), these both test sets

pairs are formulated as different due to the different

corresponding training sets. The evaluation scheme

intends to capture the model performance on the sim-

ilar sets when trained on different train sets. First

row shows the models trained on MixChart (Train)

set and tested on [MixChart (Test) set, (Junior et al.,

2017) (Test) set, (Junior et al., 2017) (Complete) set,

(Savva et al., 2011) (Complete) set]. Second row fol-

lows the similar pattern. Testing sets S

, S

, and

consist all the images i.e (training + testing) from

the respective dataset. For fair evaluation the respec-

tive complete (the complete denotes the full dataset)

set of the training set have not been considered and

it is denoted by NA as shown in Table 2. The set

and set S

are the same sets, even then size(S

)

<size(S

). The difference is of additional Other class

in MixChart dataset. For dataset-wise performance,

the average accuracy over each set S

j=1:8

has been

computed. For category-wise performance, the cate-

gory wise average accuracy for all test sets have been

considered. Training and testing split is set to ap-

proximately 80-20 (80-train and 20-test) ratio for the

MixChart dataset. Junior (Junior et al., 2017) dataset

consists of pre-deﬁned set of 4,440 images in train-

ing set (Junior(Train)) and 451 images in test set (Ju-

nior(Test)). The complete denotes the full dataset.

Existing models (Savva et al., 2011), (Jung et al.,

2017), (Poco and Heer, 2017), (Choi et al., 2019) are

also evaluated with the same evaluation scheme.

4.2.3 Analysis

In this section, we have evaluated the proposed clas-

siﬁcation approach for Non-Textual images classiﬁ-

cation task. Fig. 4 reports the test set wise average

accuracy (overall S

j=1:8

) for all models. The proposed

classiﬁcation framework shows consistently top per-

formance over all the test sets as compared to other

approaches. These show the proposed approach bet-

ter generalization aspect as compared to parallel ap-

proaches. Table 3 reports the category wise perfor-

mance (average accuracy) of the models. The pro-

posed framework is competent in capturing the in-

trinsic discriminative features of Non-Textual images.

The results demonstrate the proposed classiﬁcation

approach robustness towards the inter class similarity

problem (for example, Pareto chart holds a signiﬁcant

similarity with line graphs and bar graphs, same goes

for a group of pie-radar-Venn charts (circles and frag-

ments are common)). Also, speciﬁcally for these set

ChartSight: An Automated Scheme for Assisting Visually Impaired in Understanding Scientiﬁc Charts

315

Table 3: Category wise performance (average accuracy) of the chart classiﬁcation models.

Category (Savva et al., 2011) (Jung et al., 2017) (Poco and Heer, 2017) (Choi et al., 2019) Proposed

Area 42.50% 59.10% 88.00% 79.26% 96.73%

Bar 60.21% 74.33% 89.41% 67.84% 96.28%

Pie 02.82% 88.40% 81.10% 69.09% 97.18%

Line 22.60% 36.63% 76.80% 63.32% 87.88%

Map 79.47% 34.82% 79.49% 12.11% 91.52%

Radar 28.76% 70.40% 85.84% 75.54% 95.33%

Table 30.50% 92.74% 86.97% 96.60% 94.56%

Scatter 14.16% 63.37% 77.11% 68.97 92.00%

Pareto 08.53% 51.32% 82.74% 37.51 84.20%

Venn 03.41% 84.44% 84.33% 87.50 96.86%

Others 02.70% 66.28% 92.20% 11.36% 98.86%

(a)

(b)

(d)

(e)

(f)

(g)

(h)

(c)

Figure 5: Results of proposed content extraction pipeline on two sample images from MixChart dataset. (a,e) Axes extraction,

(b,f) Axis ticks extraction, (c,g) Label extraction, (d) Line tracing, (h) Bar detection.

of categories having high inter-class similarities, the

machine learning model (Savva et al., 2011) have the

least performance (the handcrafted features are not

detailed enough to capture the intrinsic differences).

The consistent and accurate results across different

evaluation schemes show the proposed classiﬁcation

approach generalization and consistent prediction ca-

pabilities. Also, the proposed model has a compara-

tively lesser number of parameters, which is around

7.30 million as compared to (Poco and Heer, 2017)

and (Choi et al., 2019) (both have more than 20 Mil-

lion Parameters) models.

4.3 Content Extraction

The ﬁnal content extraction process’s performance

depends on the sequential performance at each

pipeline stage (axis extraction, axis tick values extrac-

tion, label extraction, and line and bar detection), as

shown in Table 4. The results on sample images (for

individual steps) are shown in Fig. 4. Randomly se-

lected 200 images (100 line and 100 bar charts) from

the MixChart dataset have been used to evaluate indi-

vidual stages’ performance in the pipeline. For eval-

uating the performance of axes and label parsing, we

individually measured the accuracy of axes detection,

axis-tick values, and label recognition. We have used

the approach of (Siegel et al., 2016) for computing the

axes, axis ticks, and label parsing accuracy.

Table 4: Chart content extraction performance.

Line Chart Bar Chart

Axes Detection 92.3% 94.6%

Axis tick recognition 85.2% 87.2%

Axis label recognition 82.1% 83.6%

Content extraction 80.6% 81.5%

For axes detection, the predicted bounding box

(PB) of the respective ﬁeld is compared with the

ground truth bounding box (GB) of that ﬁeld, based

on computed Jaccard index(J) If J> 0.6, then it re-

gards as correct prediction. We have used the edit

distance metric for evaluating the performance of axes

tick, and axes label recognition.

We have considered the approximated tolerance

value; if the predicted numerical content (Y-axis) is

within the tolerance value, then it has been consid-

ered a correct prediction. We have demonstrated the

results of intermediate steps in Fig. 5.

4.3.1 User Study for Tolerance Approximation

We conducted a controlled experiment to capture the

variations in users’ responses to approximate the tol-

erance value. The experiment’s objective is to record

the deviations and hence track the average tolerance

for the exact content in line and bar charts. We have

considered the prediction within this tolerance as an

accurate prediction. The contemplation of chart im-

ages are more inclined towards the trend information

VISAPP 2021 - 16th International Conference on Computer Vision Theory and Applications

316

Table 5: ChartSight Feature Comparative analysis.

Approaches Automatic Input Output Low Active Multi-line

(pdf) (Audio) Quality Images Exploration color| black

endez et al., 2016) - - - - - -|-

(Rohatgi, 2014) + - - + - -|-

(Savva et al., 2011) + - - + - +|-

(Jung et al., 2017) - - - + - +|-

(Siegel et al., 2016) + - - - + +|+

(GraphicsAccelerator, 2020) + - + - + +|+

ChartSight + + + + + +|-

such as the trend is increasing or decreasing, the slope

between points, etc. So, even in case of false extrac-

tion within some appropriate ranges can serve to un-

derstand the given charts.

We recruited 8 normally sighted participants from

our institution. We have divided the participants into

two categories, ﬁrst who are well versed with graphs

and charts; these participants were research scholars,

second those who have an intermediate level of expe-

rience with the charts, these participants were under-

grad students. At the starting of each session, we had

provided a brief introduction regarding the procedure.

Participants were asked to note down the content of

the chart images. Each session takes around 55 min-

utes for completion. We analyzed the participants’

responses and observed an average deviation of 4.8%

for line charts and 3.1% for bar charts. This deviation

has been used as tolerance in the performance analy-

sis of the content extraction module. The performance

is shown in Table 4.

5 PROTOTYPE

We implemented ChartSight as a desktop application.

Users can input the individual pdf ﬁle, and in out-

put, the content of Non-Textual parts (line and bar

charts) will be represented in audio format. Chart-

Sight can also be used as a chart content extractor;

a user can directly provide the chart image as input

and receive the raw and summarized content in au-

dio format. ChartSight supports active exploration,

as the user can access and explore the output at indi-

vidual stages. VIU can use the ChartSight prototype

through existing screen readers. A sample demonstra-

tion of the prototype as a chart content extractor has

been provided with the article.

6 FEATURE COMPARISON

Comparison has been performed, based on the feature

compatibility and capability of existing approaches.

In Table 5, the comparison is shown based on over-

all supportive features that are required in the case of

VIU. The ﬁrst three features (Automatic, Input, Out-

put) represent the compatibility, and the last three fea-

tures represent the methods’ capability. + shows the

presence of that feature and - shows the absence of

that feature in an individual approach. Features are

chosen from both the content extraction potential and

the essential requirements of visually impaired per-

sons. Most of the approaches are not fully automated,

making them unsuitable for the visually impaired sce-

nario. Also, the system’s input is a concern as all

mentioned methods directly take the images as in-

put instead of pdf. The analysis shows better perfor-

mance ability and compatibility for the visually im-

paired scenario of ChartSight.

7 CONCLUSION AND FUTURE

SCOPE

We presented ChartSight, a framework that classi-

ﬁes charts, extracts their graphical ﬁelds and underly-

ing content and then represents the textually summa-

rized content in audio format to facilitate better read-

ing experience to visually impaired. We conducted a

controlled experiment to show that there is always a

tolerance regarding observing the chart images con-

tent. The results show that ChartSight is compar-

atively more relevant and efﬁcient for visually im-

paired users. The proposed tool can also be used by

sighted users for an enhanced audio reading experi-

ence of any pdf document, especially when multitask-

ing. In the future, we would like to enhance our tool to

support more features, including additional chart cat-

egories and evaluation on a much larger dataset. We

would like to extend the content extraction pipeline.

Focus on hybrid sequential models for generating tex-

tual summaries is also a future scope of the current

work. We also aim to conduct usability studies, in-

cluding visually impaired persons, to better access

and address their needs.

ChartSight: An Automated Scheme for Assisting Visually Impaired in Understanding Scientiﬁc Charts

317

ACKNOWLEDGEMENT

This research is supported by the IIT Ropar under

ISIRD grant 9-231/2016/IIT-RPR/1395 and by the

DST under CSRI grant DST/CSRI/2018/234.

REFERENCES

Choi, J., Jung, S., Park, D. G., Choo, J., and Elmqvist, N.

(2019). Visualizing for the non-visual: Enabling the

visually impaired to use visualization. In Computer

Graphics Forum, volume 38, pages 249–260. Wiley

Online Library.

Cliche, M., Rosenberg, D., Madeka, D., and Yee, C. (2017).

Scatteract: Automated extraction of data from scat-

ter plots. In Joint European Conference on Machine

Learning and Knowledge Discovery in Databases,

pages 135–150. Springer.

Duda, R. O. and Hart, P. E. (1972). Use of the hough trans-

formation to detect lines and curves in pictures. Com-

munications of the ACM, 15(1):11–15.

Elzer, S., Schwartz, E., Carberry, S., Chester, D., Demir,

S., and Wu, P. (2007). A browser extension for pro-

viding visually impaired users access to the content of

bar charts on the web. In WEBIST (2), pages 59–66.

Citeseer.

Goncu, C. and Marriott, K. (2012). Accessible graphics:

graphics for vision impaired people. In International

Conference on Theory and Application of Diagrams,

pages 6–6. Springer.

GraphicsAccelerator, S. (2020). Product-speciﬁc resources.

Gross, A., Schirm, S., and Scholz, M. (2014). Ycasd–a tool

for capturing and scaling data from graphical repre-

sentations. BMC bioinformatics, 15(1):219.

Huang, G., Liu, Z., Van Der Maaten, L., and Weinberger,

K. Q. (2017). Densely connected convolutional net-

works. In Proceedings of the IEEE conference on

computer vision and pattern recognition, pages 4700–

4708.

Huang, W. and Tan, C. L. (2007). A system for understand-

ing imaged infographics and its applications. In Pro-

ceedings of the 2007 ACM symposium on Document

engineering, pages 9–18. ACM.

Jung, D., Kim, W., Song, H., Hwang, J.-i., Lee, B., Kim,

B., and Seo, J. (2017). Chartsense: Interactive data

extraction from chart images. In Proceedings of the

2017 CHI Conference on Human Factors in Comput-

ing Systems, pages 6706–6717. ACM.

Junior, P. R. S. C., De Freitas, A. A., Akiyama, R. D., Mi-

randa, B. P., De Ara

ujo, T. D. O., Dos Santos, C. G. R.,

Meiguins, B. S., and De Morais, J. M. (2017). Archi-

tecture proposal for data extraction of chart images us-

ing convolutional neural network. In 2017 21st Inter-

national Conference Information Visualisation (IV),

pages 318–323. IEEE.

Kaﬂe, K., Price, B., Cohen, S., and Kanan, C. (2018).

Dvqa: Understanding data visualizations via question

answering. In Proceedings of the IEEE Conference

on Computer Vision and Pattern Recognition, pages

5648–5656.

Kahou, S. E., Michalski, V., Atkinson, A., K

ar,

A.,

Trischler, A., and Bengio, Y. (2017). Figureqa: An

annotated ﬁgure dataset for visual reasoning. arXiv

preprint arXiv:1710.07300.

Kay, A. (2007). Tesseract: An open-source optical character

recognition engine. Linux J., 2007(159):2.

McCarthy, T., Pal, J., Cutrell, E., and Marballi, T. (2012).

An analysis of screen reader use in india. In Proceed-

ings of ICTD 2012, the 5th ACM/IEEE International

Conference on Information and Communication Tech-

nologies and Development. ACM.

endez, G. G., Nacenta, M. A., and Vandenheste, S.

(2016). ivolver: Interactive visual language for vi-

sualization extraction and reconstruction. In Proceed-

ings of the 2016 CHI Conference on Human Factors

in Computing Systems, pages 4073–4085. ACM.

Nair, R. R., Sankaran, N., Nwogu, I., and Govindaraju,

V. (2015). Automated analysis of line plots in doc-

uments. In Document Analysis and Recognition (IC-

DAR), 2015 13th International Conference on, pages

796–800. IEEE.

Nazemi, A. and Murray, I. (2013). A method to provide ac-

cessibility for visual components to vision impaired.

International Journal of Human Computer Interaction

(IJHCI), 4(1):54.

Poco, J. and Heer, J. (2017). Reverse-engineering visual-

izations: Recovering visual encodings from chart im-

ages. In Computer Graphics Forum, volume 36, pages

353–363. Wiley Online Library.

Rohatgi, A. (2014). Web plot digitizer. ht tp. arohatgi.

info/WebPlotDigitizer/app/(accessed June, 2.

Savva, M., Kong, N., Chhajta, A., Fei-Fei, L., Agrawala,

M., and Heer, J. (2011). Revision: Automated clas-

siﬁcation, analysis and redesign of chart images. In

Proceedings of the 24th annual ACM symposium on

User interface software and technology, pages 393–

402. ACM.

Siegel, N., Horvitz, Z., Levin, R., Divvala, S., and Farhadi,

A. (2016). Figureseer: Parsing result-ﬁgures in re-

search papers. In European Conference on Computer

Vision, pages 664–680. Springer.

VISAPP 2021 - 16th International Conference on Computer Vision Theory and Applications

318
