From User Stories to Models: A Machine Learning Empowered

Automation

Takwa Kochbati, Shuai Li, Sébastien Gérard and Chokri Mraidha

Université Paris-Saclay, CEA, List, F-91120, Palaiseau, France

Keywords:

User Story, Machine Learning, Word Embedding, Clustering, Natural Language Processing, UML Use-case.

Abstract:

In modern software development, manually deriving architecture models from software requirements ex-

pressed in natural language becomes a tedious and time-consuming task particularly for more complex sys-

tems. Moreover, the increase in size of the developed systems raises the need to decompose the software

system into sub-systems at early stages since such decomposition aids to better design the system architecture.

In this paper, we propose a machine learning based approach to automatically break-down the system into

sub-systems and generate preliminary architecture models from natural language user stories in the Scrum

process.

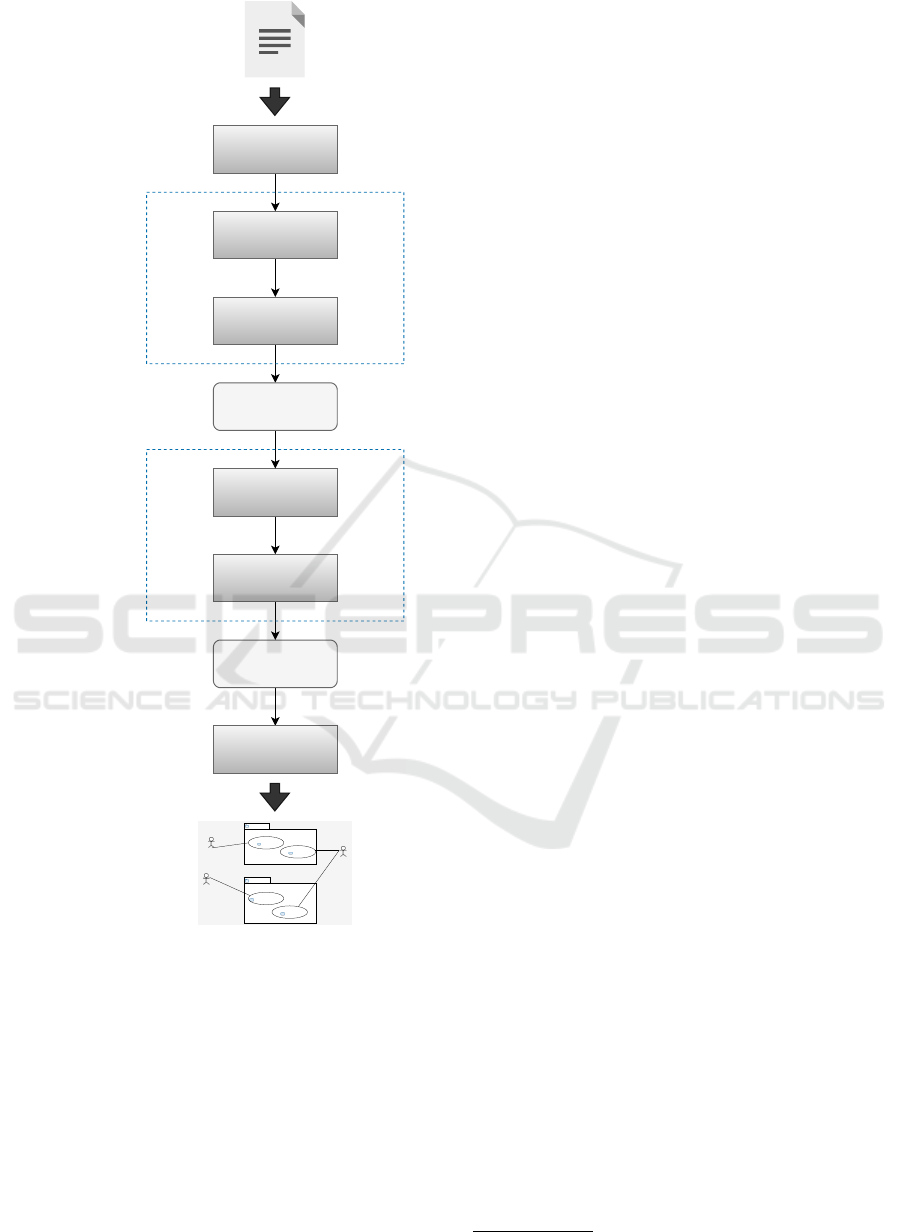

Our approach consists of three pillars. Firstly, we compute word level similarity of requirements using

word2vec as a prediction model. Secondly, we extend it to the requirement level similarity computation,

using a scoring formula. Thirdly, we employ the Hierarchical Agglomerative Clustering algorithm to group

the semantically similar requirements and provide an early decomposition of the system. Finally, we imple-

ment a set of speciﬁc Natural Language Processing heuristics in order to extract relevant elements that are

needed to build models from the identiﬁed clusters.

Ultimately, we illustrate our approach by the generation of sub-systems expressed as UML use-case models

and demonstrate its applicability using three case studies.

1 INTRODUCTION

In order to improve their performance, organizations

tend to shift to Agile methodologies (Lindvall et al.,

2002). A key feature of their success is that they em-

power the customer-developer relationship in order to

develop quicker, better and higher-quality products.

In order to meet this goal, Agile methodologies such

as Scrum (Schwaber, 1997) rely on incremental, it-

erative and adaptive processes. The ﬁrst objective in

the Scrum process is to deﬁne the product backlog,

that is, a list of elicited and prioritized requirements

that should be implemented. Then, Scrum processes

in sprints. Each sprint contains the tasks to achieve by

the developer teams.

Requirements analysis is essential for the suc-

cess of this process as developers need to understand

requirements before moving to the implementation

phase (Verner et al., 2005). In this context, user sto-

ries are increasingly adopted to express requirements

in Scrum (Kassab, 2015; Lucassen et al., 2016a).

They represent a high-level deﬁnition of requirements

expressed in semi-structured natural language nota-

tion. Many textual templates have been proposed for

user stories. The one that is most used by practitioners

has the form of: ” As a <type of user> I want <some

goal> so that <some reason>” (Cohn, 2004).

Since the size of the developed systems increases

due to the increasing number of partners involved in

the process, the number of user stories consequently

grows. This growth in number raises the need to

break-down the system into a set of sub-systems, each

covering a set of semantically similar user stories.

Such early decomposition helps the developers to bet-

ter understand and realize the target software and it

may be a basis to build the product backlog. Eventu-

ally, each sub-system needs to be expressed in a semi-

formal manner such as visual models in order to keep

stakeholders involved in the requirements engineering

tasks (Alexander and Maiden, 2004).

In this context, the Uniﬁed Modeling Language

(UML) (Booch et al., 2015) has been employed as a

visual language that supports requirements engineer-

ing. It has been widely used to specify the features

of software systems, and to reduce the ambiguity be-

tween the requirement speciﬁcations and the design,

Kochbati, T., Li, S., Gérard, S. and Mraidha, C.

From User Stories to Models: A Machine Learning Empowered Automation.

DOI: 10.5220/0010197800280040

In Proceedings of the 9th International Conference on Model-Driven Engineering and Software Development (MODELSWARD 2021), pages 28-40

ISBN: 978-989-758-487-9

on the basis of models. Among these models, use-

cases have been widely used to capture the require-

ments from the user’s point of view. In addition, they

are easy to understand and provide an excellent way

for communicating (Bittner, 2002).

However, manually grouping similar user sto-

ries and generating UML models is a tedious and

time-consuming task especially for large scale sys-

tems. Furthermore, the integration of model-based

approaches in Scrum process has been hard to per-

form due to the lack of powerful automation tools

as well as the focus of teams on the implementation

rather than analysis or documentation (Löfﬂer et al.,

2010).

Several studies found in literature have focused on

automating models generation from natural language

software requirements (Elallaoui et al., 2015), (Elal-

laoui et al., 2018), (Arora et al., 2016). Other works

focused on the clustering of natural language require-

ments with the goal of decomposing the target sys-

tem at early stages (Barbosa et al., 2015), (Amanne-

jad et al., 2014). On the one hand, we observed that

current requirement clustering approaches are lacking

accuracy and fail to achieve a high degree of automa-

tion. On the other hand, using requirement clustering

as a ﬁrst step to automatically derive models has never

been considered in the literature.

In order to overcome these limitations, we pro-

pose a machine learning based approach to automati-

cally break-down the target system into a set of sub-

systems as a ﬁrst step towards architecture models

generation. The core of our approach is a cluster-

ing solution that groups natural language user sto-

ries based on their semantic similarity. Accordingly,

our work promotes the integration of model-based ap-

proaches in Scrum.

Speciﬁcally, in this paper we make the follow-

ing contributions: 1) we employ a word embedding

model, word2vec, as a prediction model to compute

word level semantic similarity as it has shown to out-

perform traditional counting models (Baroni et al.,

2014). Then, we extend it to the requirement level

using a scoring formula for text similarity; 2) we use

the Hierarchical Agglomerative Clustering algorithm

(HAC) to cluster natural language user stories based

on their semantic similarity. As the selection of the

number of clusters is not straightforward and requires

manual intervention, we implement an operation to

automatically estimate the optimal number of clusters

; 3) ﬁnally, we implement a set of speciﬁc Natural

Language Processing (NLP) heuristics in order to ex-

tract relevant elements that are needed to build the re-

quired UML use case models from the identiﬁed clus-

ters of user stories.

We illustrate our approach on three complemen-

tary case studies. Through these case studies, we pro-

pose several Key Performance Indicators (KPIs) in or-

der to assess the performance of our approach, and

demonstrate its added value in automating the tran-

sition from user stories to models in Scrum. The re-

mainder of the paper is structured as follow: Section 2

provides the background and the assumptions.Section

3 describes the proposed approach and Section 4 dis-

cusses the results as well as the evaluation of the ap-

proach. Section 5 raises the limitations and the threats

to validity. Section 6 discusses the related works and

ﬁnally, Section 7 concludes the paper.

2 BACKGROUND AND

ASSUMPTIONS

In this section we discuss and clarify the key concepts

underpinning this work as well as the considered as-

sumptions.

2.1 User Stories and Use-Cases

A user story is a structured natural language descrip-

tion of requirements. It follows a compact template

that describes the type of user, what they want and

(optionally) why (Wautelet et al., 2014). User stories

help to capture the description of the software features

to be implemented from an end-user perspective.

Although many different templates exist, 70%

of practitioners use the template (Lucassen et al.,

2016a): “As a « type of user » , I want « goal », [so

that « some reason »]”. In our approach, we assume

that the considered user stories rely on the following

templates:

• “As a « type of user », I want « goal », [so that/so

« some reason »]”.

• “As a « type of user », I’m able to « goal », [so

that/so « some reason »]”.

Use-cases are on their side used to describe one

speciﬁc interaction between the stakeholders and the

system. For each user story, we consider that the «

goal » part corresponds to the use-case.

However, the identiﬁed use-case can be either a

whole use-case or a partial use-case, having inclusion

or extension relationships to other use-cases (Sasse

and Johnson, 1999). In our work, we assume that the

« goal » part in each user story represents a whole

single use-case.

From User Stories to Models: A Machine Learning Empowered Automation

2.2 Novel Approaches to Semantic

Similarity

Semantic similarity plays a major role in various

ﬁelds such as information retrieval, data integration

and data mining (Varelas et al., 2005; Rodriguez and

Egenhofer, 2003).

As we aim to group textual requirements in order

to decompose the target system, we need to identify

textual requirements that are semantically similar or

related to one another.

Traditionally, semantic text matching have been

deﬁned using lexical matching and linguistic analysis

(Lapata and Barzilay, 2005). Going beyond these tra-

ditional methods, ﬁnding semantic similarity between

words is a fundamental part of text similarity. Then,

it can be used as a primary stage to text similarity.

Word embedding allows to capture the context of

a word in a document, semantic and syntactic similar-

ity, as well as its relations with other words (Lebret

and Collobert, 2014).

In this context, the vector-based approach of

word2vec (Mikolov et al., 2013), a two-layer neural

network for word embedding, enables predicting se-

mantically similar words. As a prediction model, it

has shown to outperform common traditional count

models (Baroni et al., 2014).

Using the word2vec model, words with similar

meaning end up lying close to each other. Thus, it

gives best word representations. Moreover, it allows

to use vector arithmetic to work with analogies, e.g.,

vector (king) - vector (man) + vector (woman) = vec-

tor (queen).

Although these new methods have not yet been ap-

plied in the requirements engineering literature, they

are steadily being adopted in industry thanks to their

excellent performance. Therefore, we rely on them in

our approach to go from word-level to requirement-

level semantic similarity.

2.3 Clustering

Textual requirements clustering refers to the process

of taking a set of requirements and grouping them so

that, requirements in the same cluster are similar and

requirements in different clusters are different. In this

context, we aim to adopt the clustering of user stories

on the basis of their semantic similarity.

Clustering methods can be classiﬁed either as hi-

erarchical or partitional (Hotho et al., 2005).

Hierarchical clustering algorithms work iteratively by

joining, or dividing, clusters that are organized as a

tree. These algorithms don’t require any input param-

eters, they require only a similarity measure.

Partitional clustering algorithms such as k-means re-

quire the number of clusters to start running. Thus,

they rely heavily on the analyst’s knowledge as they

require the identiﬁcation of the number of clusters to

be generated in advance (Perner, 2002).

In our case, we don’t have any condition on the

number of clusters to be generated. Therefore, we

use the hierarchical clustering methods, as they don’t

require us to pre-specify the number of clusters in

advance. We employ the HAC algorithm (Zepeda-

Mendoza and Resendis-Antonio, 2013). HAC algo-

rithm works in a bottom-up manner, each object is

initially considered as a single-element cluster (leaf).

At each step of the algorithm, the two clusters that are

the most similar are combined into a new bigger clus-

ter (node). This procedure is iterated until all points

are member of just one single big cluster. Moreover,

using the HAC algorithm we can visualize a dendro-

gram, which represents the arrangement of the gen-

erated clusters in a hierarchical tree structure and it

may help to graphically identify the hierarchy of the

clusters.

In the next section, we explain in more details how

we applied our clustering solution as well as how we

generated UML use-cases from each cluster.

3 THE PROPOSED APPROACH

In this section, we present how our approach how our

approach automatically generates UML models from

natural language user stories. First, an overview of the

process is given, then each subsection gives details on

its implementation.

As shown in Figure 1, the user stories document

is initially preprocessed. Text preprocessing is an es-

sential step in the pipeline of a NLP system as this

transforms the text into a form that is predictable and

analyzable for machine learning tasks.

Then, we implement a semantic similarity module

that computes the semantic similarity between each

pair of the requirements. It takes as input the prepro-

cessed requirements generated in the ﬁrst step.

The similarity computation module includes two

levels: (i) word level similarity, in which we use a pre-

trained word embedding model, word2vec, to com-

pute word-to-word semantic similarity as mentioned

in Section 2.2, then we extend it to the (ii) requirement

level similarity by means of the Mihalcea scoring for-

mula for documents similarity computation (Mihalcea

et al., 2006). The output of this module is a require-

ment similarity matrix.

Subsequently, in step 3, we feed the obtained re-

quirements similarity matrix into the HAC algorithm.

MODELSWARD 2021 - 9th International Conference on Model-Driven Engineering and Software Development

Word level similarity

computation

Clustering

Labelled Clusters

Requirements

Similarity

Computation

Preprocessing

UML Use Case

Model Generation

Requirement

Similarity Matrix

Step 2

Labelling

administrator

user

Managesite

UseCase1

UseCase2

Searchevent

UseCase1

UseCase2

visitor

Step 3

Step 1

Step 4

Natural language user

stories

UML use case model

Figure 1: Architecture of the approach.

Step 4 illustrates the generation of UML use-cases

from each identiﬁed sub-system. It takes as input the

generated clusters of the semantically similar require-

ments from which we extract the relevant use case

model elements using a set of speciﬁc NLP heuris-

tics.

Finally, the extracted elements are programmatically

mapped into UML use case model using the UML2

SDK of Eclipse.

More details on each of these steps are found in the

following subsections.

3.1 Step 1: Preprocessing

This step is needed for transferring text from natural

language to a machine-readable and analyzable for-

mat for further processing. Words should be trans-

formed into numerical vectors that work with ma-

chine learning algorithms.

First, we start by normalizing requirements

through four steps: (i) tokenization, i.e., the decom-

position of a sentence into a set of individual words;

(ii) stop-words removal, i.e., the elimination of com-

mon English words; (iii) punctuation removal ; (iv)

stemming, i.e., the transformation of each word to its

root (e.g: "adding" becomes "add").

Then, we use the word2vec model, a two-layer

neural network that is used to produce word embed-

dings (i.e., vectors). Since a word embedding model

is supposed to be of high quality when trained with

large corpus, we use the pretrained word2vec model

on 100 million words of Google News dataset

However, even if the used corpus is too large

(Google News), some domain-speciﬁc words did not

exist in the corpus. In this case we assign to the miss-

ing word a random vector (Kim, 2014).

The resulting vectors are used for semantic sim-

ilarity computation, which is explained in the next

step.

3.2 Step 2: Semantic Similarity

Computation Module

In this section, we explain in details how we com-

puted the semantic similarity of each pair of require-

ment statements, taking into account both word level

and requirement level.

• Word Level Similarity.

At ﬁrst level, we measure the semantic similarity

between each pair of word vectors belonging to

two different requirement statements using cosine

similarity. The cosine similarity measure consists

of computing the cosine of the angle between two

words vectors. The cosine similarity of two simi-

lar words vectors is close to 1, and close to 0 oth-

erwise.

• Requirement Level Similarity.

Traditional approaches to ﬁnd the semantic simi-

larity between two text segments is to use lexical

matching method, and produce a similarity score

based on the number of lexical units that occur in

both input segments. However, these lexical sim-

ilarity methods cannot always identify the seman-

tic similarity of texts (Mihalcea et al., 2006).

https://code.google.com/archive/p/word2vec

From User Stories to Models: A Machine Learning Empowered Automation

Thus, going beyond the simple lexical matching

methods used for this task, we were inspired by

the work of Mihalcea et al. (Mihalcea et al.,

2006), to derive the requirement level semantic

similarity from the word level semantic similar-

ity. Consequently, we used the Mihalcea scoring

formula for text similarity computation (Equation

1).

Sim(R

) =

(

∑

w∈R

maxSim(w,R

) × id f (w)

∑

w∈R

id f (w)

∑

w∈R

maxSim(w,R

) × id f (w)

∑

w∈R

id f (w)

)

(1)

First, we identify for each word w

in text re-

quirement R

, the word w

in the text require-

ment R

that have the highest semantic similar-

ity maxSim(w

) (Equation 2), according to

the word-to-word semantic similarity computa-

tion stated in the previous subsection. Next, the

same process is applied to determine the most

similar word in R

starting with words in R

maxSim(w

) = max

∈R

wordSim(w

) (2)

In addition to the similarity of words, we also take

into account the speciﬁcity of words using the in-

verse document frequency id f . The speciﬁcity of

a word w, id f (w) (Equation 3) has been deﬁned

as the log of the total number of documents in the

corpus divided by the total number of documents

including that word (Jones, 1988).

id f (w) = log(Total number o f documents/

Number o f documents with word w in it) (3)

The word similarities are then weighted with the

corresponding word speciﬁcity. Thus, given two

text requirement units R

and R

, Mihalcea scor-

ing formula combines word-to-word similarity

and word speciﬁcity to derive text-to-text seman-

tic similarity that is a potentially good indicator of

the semantic similarity of two input texts.

The resulting requirement similarity has a value

between 0 and 1, with a value of 1 indicating iden-

tical requirement text segments, and a value of 0

indicating no semantic overlap between the two

segments. Therefore, given a document contain-

ing N requirements, the output of this step is a

N × N semantic similarity matrix that contains the

semantic similarity of each pair of requirements.

3.3 Step 3: Clustering Module

The semantic similarity matrix is fed into the HAC

algorithm as stated in Section 2.3.

When the dendrogram is cut off at a speciﬁc point,

a set of clusters is obtained which can represent a clus-

tering solution of the system.

However, identifying the optimal number of clus-

ters is not a trivial task. It can be either graphically

identiﬁed by the analyst, then he can cut-off the den-

drogram according to the desired number of the soft-

ware sub-systems.

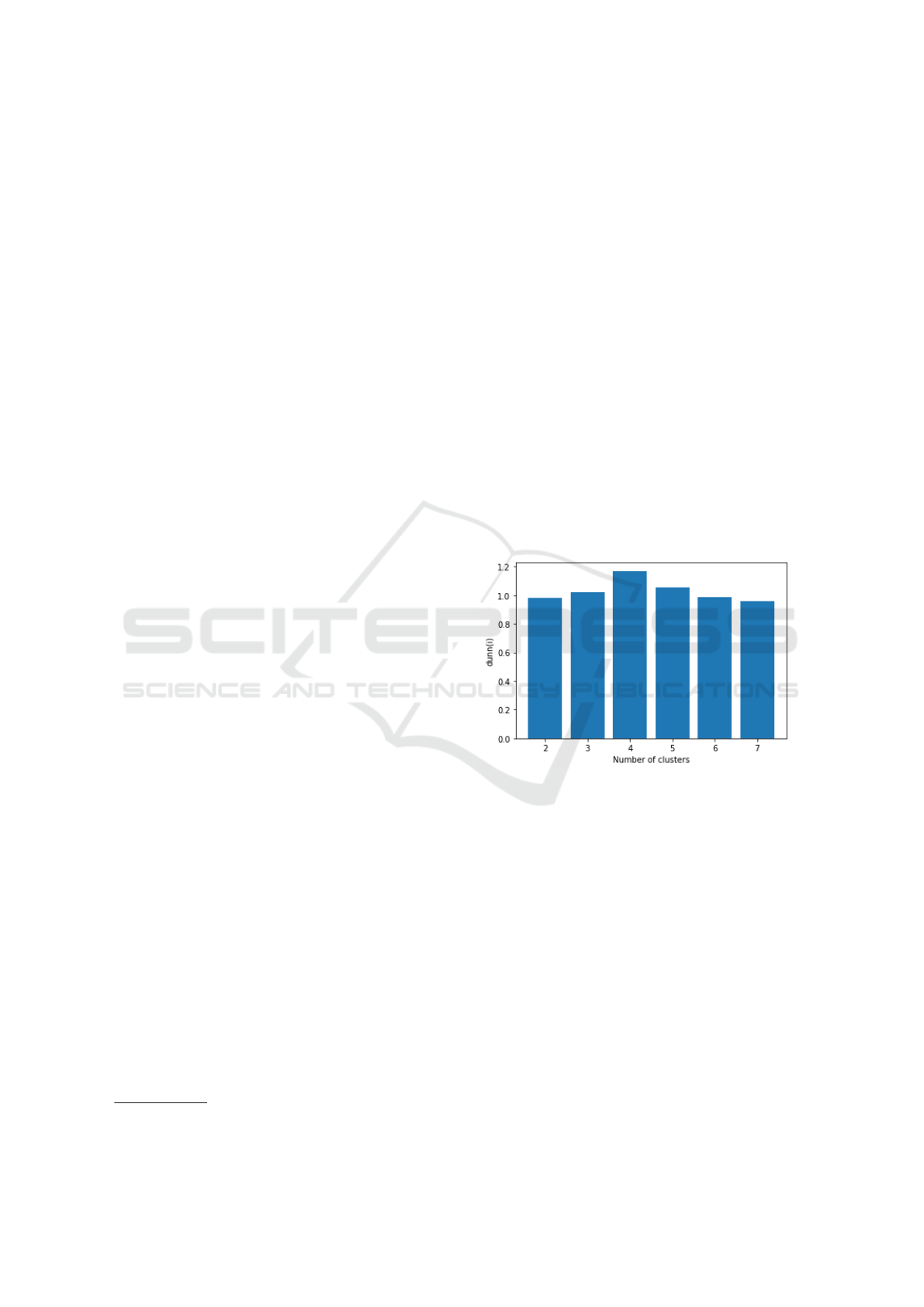

In order to reduce the need for manual interven-

tion, we implement an operation that identiﬁes auto-

matically the best number of clusters using the Dunn

index (Dunn, 1974) since a higher Dunn index indi-

cates better clustering solution. Therefore, we com-

pute the Dunn index each time, while varying the

number of clusters.

The generated clusters are then labelled using the

Gensim library for text summarization

. Gensim is a

free Python library designed to automatically extract

semantic topics from documents.

This summarizer is based on the ranks of text sen-

tences using a variation of the TextRank algorithm

proposed by Mihalcea et al. (Mihalcea and Tarau,

2004) and it summarizes a given text, by extracting

one or more important sentences from the text. In a

similar way, it can also extract keywords, i.e., the set

of terms that best describe the document.

Thus, we label each generated cluster using Gen-

sim’s summarizer by extracting the best representa-

tive keywords embedded in the cluster.

3.4 Step 4: UML Use Case Model

Generation Module

In this section we will explain how we automatically

generate UML use case models from the resulting

clusters that express early sub-systems. We deﬁne a

set of speciﬁc NLP heuristics in order to extract use

case model elements then, we programmatically cre-

ate UML use case models on Eclipse Papyrus using

the Eclipse UML2 tool SDK plugin.

NLP Heuristics. The extracted use case model el-

ements are actors, use cases, and their associations.

They are extracted using text chunking i.e., breaking

the text down into smaller parts, with a set of speciﬁc

NLP heuristics.

https://radimrehurek.com/gensim/auto_examples/

tutorials/run_summarization.html

MODELSWARD 2021 - 9th International Conference on Model-Driven Engineering and Software Development

We implement the proposed NLP heuristics using

the Spacy library

, a free and open-source library for

advanced Natural Language Processing (NLP). The

rules used to extract relevant elements from each user

story, are the following:

• Actor is the ﬁrst noun phrase chunk that exists af-

ter the pattern "as a". It can be a noun, noun plural

or compound noun.

• Use case is the chunk that always exists between

the patterns: "I’m able to" / "I want" and "so

that/so" if it exists.

• In each user story, there is an association between

the two elements resulting from the two previous

rules.

UML2 Tool SDK Plugin to Automatically Gener-

ate Models. In order to illustrate our approach, we

implemented a translator using the Eclipse UML2

SDK. The tool takes as input the extracted use case

model elements, as well as the cluster to which they

belong to. Then, it programmatically generates UML

use case models.

The generated clusters are mapped into UML

packages and each user story is mapped into a triplet

actor, use case and their association.

4 EVALUATION

In order to demonstrate the applicability of our ap-

proach, we conduct three case studies. In this section,

we present the Key Performance Indicators (KPIs) to

be evaluated and the evaluation metrics. Moreover,

we present the description of the case studies as well

as the results.

4.1 Key Performance Indicators (KPIs)

• KPI1: Accuracy of the Clustering Solution.

The aim of this KPI is to measure how much the

identiﬁed clustering solution is accurate.

• KPI2: Accuracy of the Generated Use Case

Models.

For this KPI, we aim at identifying the accuracy of

the use case models generated from each cluster.

• KPI3: End-to-end Execution Time.

For this KPI, we aim to establish whether our ap-

proach runs within reasonable time in realistic set-

tings.

https://spacy.io/

In order to evaluate our approach w.r.t. the KPIs, we

consider two metrics in our technique to be evaluated.

• Clustering Evaluation Metric for KPI1.

In clustering theory, a wide range of metrics ex-

ist in order to evaluate the accuracy of clustering,

each with its own advantages and limitations.

We employ the Dunn index (Dunn, 1974) as an

internal validity index. This internal index is used

to evaluate the goodness of a clustering structure

without reference to external information. It can

be also used for estimating the number of clusters

and the appropriate clustering algorithm without

any external data. Subsequently, we compute this

index for different number of clusters. The num-

ber of clusters for which we have the higher Dunn

index value is the optimal number of cluster and

indicates a better clustering solution.

To the best of our knowledge, there is no baseline

in the literature to compare our clustering results

with. Consequently, we estimate whether a rea-

sonable clustering is selected based on how well

the clusters match the ground truth that is man-

ually created by the team experts. To this end,

we use precision, accuracy and F-measure metrics

(Manning et al., 2005) to evaluate clustering re-

sults with respect to the manually identiﬁed clus-

ters.

True Positive (TP) elements are similar require-

ments assigned to the same cluster. False Positive

(FP) elements are dissimilar requirements as-

signed to the same cluster. False Negative (FN)

are similar requirements assigned to different

clusters. Thus, the evaluation metrics are com-

puted as follow:

Precision = TP / ( TP + FP )

Recall = TP / ( TP + FN )

F-measure = 2 * Precision * Recall / (Precision

+ Recall)

• UML Use Case Models Evaluation Metric for

KPI2.

This evaluation is based on a comparison of the

UML use case models, generated from our pro-

posed approach, and the UML use case models

manually created by experts from the user stories.

We use the same metrics stated in clustering eval-

uation; precision, recall and F-measure (Manning

et al., 2005), to evaluate the accuracy of the gen-

erated UML use case models.

For each generated use case model, True Posi-

tive (TP) elements are the elements identiﬁed both

manually and by the automatic approach. False

Positive (FP) elements are the elements identiﬁed

From User Stories to Models: A Machine Learning Empowered Automation

by the automatic approach but not manually. False

Negative (FN) are those identiﬁed manually but

not by the automatic approach.

Furthermore, we compare our results with the ap-

proach proposed by Elallaoui et al. (Elallaoui

et al., 2018). We consider the work in (Elallaoui

et al., 2018) as our baseline because it closely re-

lates to our work (extracting use case models from

user stories) although authors didn’t consider the

clustering of user stories as a preliminary step to-

wards model generation.

4.2 Description of Case Studies

We evaluated our approach on three real-world case

studies available in the University of Bath’s Institu-

tional Repository (IRDUS1). The three case studies

belong to different domains presenting different writ-

ing styles and different number of user stories. In the

following, we introduce each in more detail:

• CMS Company Case Study:

This case study involves a company develop-

ing complex Content Management System (CMS)

products for large enterprises. 34 user stories are

supplied. The user stories follow the template pro-

posed by Cohn (Cohn, 2004) deﬁned as follows

‘As a [type of user], I want to [some goal] so

that [some reason]’. Despite the smaller size,

this case study contains lengthy user stories with

non-trivial sentence structuring.

• Web Company Case Study:

This case study comes from a Dutch company

that creates tailor-made web applications for busi-

nesses. The Web Company supplied 84 user sto-

ries covering the development of an entire web ap-

plication focused on interactive story telling. The

user stories in this case study rely on the template:

‘As a [type of user], I’m able to [some goal] so

that [some reason]’.

However, the structure of the user stories in this

case study is more complex than in the CMS

Company case study.

• Archive Space Case Study:

Archive Space is an open-source software prod-

uct created by archivists. The user stories of this

project are available online

. It contains 51 user

stories that rely on the template ’As a [type of

user], I want [some goal]’. All user stories in

this collection omit the ’so that’ token. Moreover,

many user stories contain unnecessarily capital-

ized words, compound nouns, and idiosyncratic

archivesspace.atlassian.net

phrases such as ’...either the [creator | source |

subject] of an [Accession | Resource | Resource

Component]...’

4.3 Results and Discussions

In this section, we present the results of applying our

approach to the case studies.

4.3.1 Assessing KPI1: Accuracy of the

Clustering Solution

For KPI1, the accuracy of the clustering solution de-

pends on the choice of the number of clusters (i.e.

clusters). We automated the identiﬁcation of the opti-

mal number of clusters by means of Dunn index as

stated in Section 4.1. We run the HAC algorithm

with different number of clusters for each run and

we check Dunn index of the outcome. Thus, we car-

ried out 6 runs for each case study. The best number

of clusters is the number of clusters with the largest

Dunn index value.

Figure 2: Dunn index bar graph of CMS Company case

study.

For example, the best clustering result for the

CMS Company case study was achieved in the fourth

run, followed by the ﬁfth, third and second ones.

Thus, as shown in Figure 2 the optimal number of

clusters for CMS Company case study is four clus-

ters.

Moreover, it is possible to graphically verify the

conformance of the distribution of the user stories

and the optimal number of clusters that we identiﬁed

based on the dendrograms as shown in Figure 3.

The output of this step is a set of labelled clusters

of semantically similar user stories. Table 1 shows an

example of a cluster labelled "page, URL, attribute" in

the case of CMS Company case study which perfectly

matches with the ground truth.

In Figure 4, we show results for precision, recall

and F-measure metrics for the three case studies. Val-

MODELSWARD 2021 - 9th International Conference on Model-Driven Engineering and Software Development

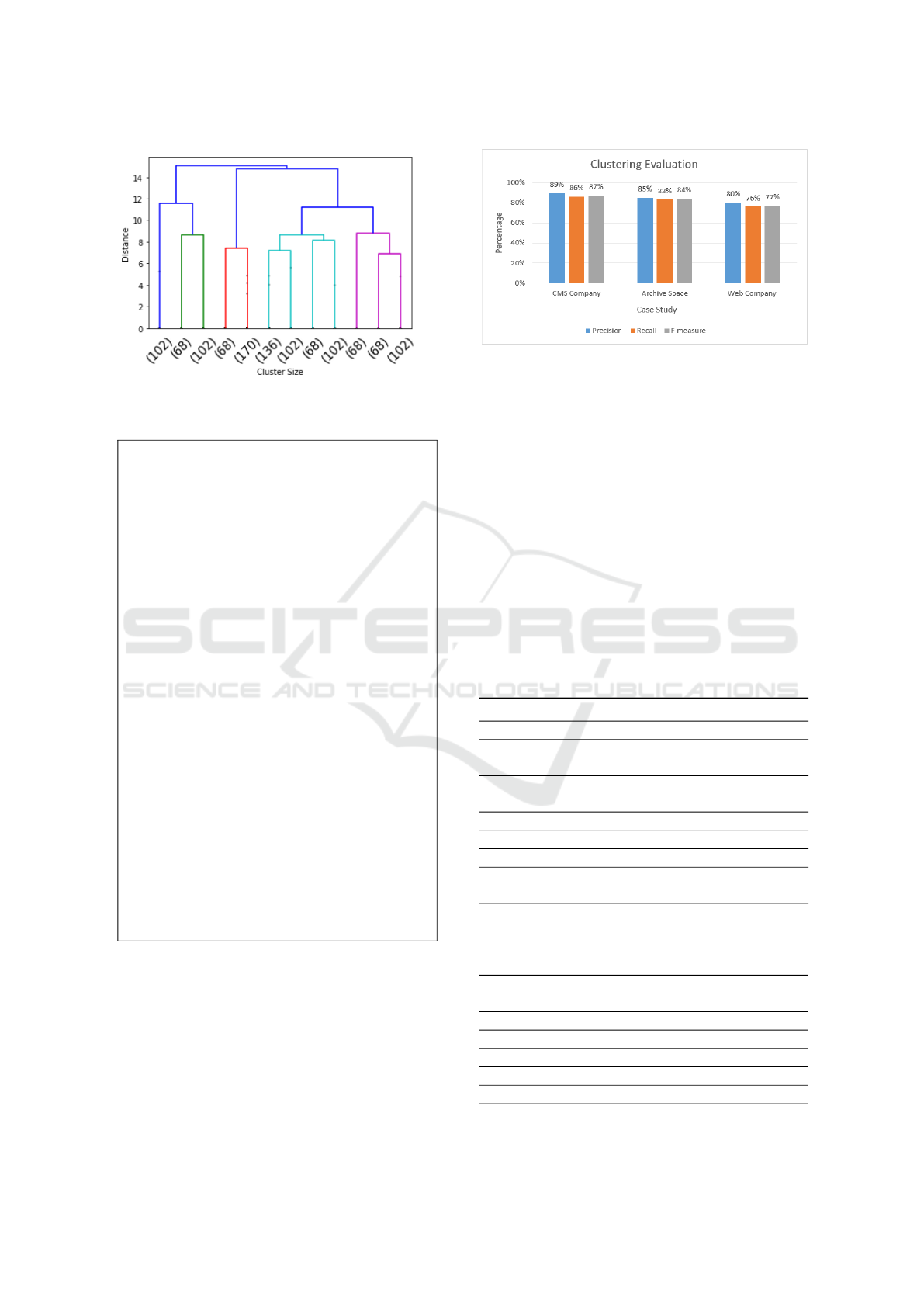

Figure 3: CMS Company case study dendrogram.

Table 1: Cluster: "page, URL, attribute".

1- As a marketeer, I want to set the title attribute

of a link so I can improve the SE ranking of the

website.

2- As a marketeer, I want to switch URLs when

URL duplication occurs between pages so that I

can solve conﬂicts between pages easily without

having to search all pages in the tree.

3- As a marketeer, I want to create friendly URLs

for my nested product pages so I can improve the

SE ranking of the product section of my website.

4- As a marketeer, I want to set the rel attribute

of external links so I can make sure that SE bots

do no affect SE rankings for pages with many

external links.

5- As a marketeer, I want to set canonical tags to

individual pages so I can avoid duplicate content

easily without having to set permanent redirects

and thereby will improve the SE ranking of the

website.

6- As a marketeer, I want to be solve URL con-

ﬂicts immediately so I avoid not-friendly URLs

and thereby will positively inﬂuence the overall

SE ranking of the website.

7- As an editor, I want to assign page sections to

pages using the current page section structure so

I can easily and efﬁciently manage page sections

assigned to pages.

ues are around 0.8 which is close to 1, and thus, indi-

cate a relatively accurate clustering result. Moreover,

the result reveals that the majority of the requirements

is assigned to the correct cluster, which matches the

ground truth accurately. Thus, the evaluation shows

results with relatively high quality that can be appli-

cable. Moreover, in spite of the fact that user stories

of the three case studies belong to different domains,

our experiments show that the clustering solution pro-

Figure 4: Bar graph of the clustering evaluation.

cessed the same for the three case studies with the

same parameter settings. What’s more, we success-

fully avoid manual intervention by recommending an

optimal number of clusters.

4.3.2 Assessing KPI2: Accuracy of the

Generated Use Case Models

In order to evaluate KPI2, we speciﬁed True Positive

(TP), False Negative (FN) and False Positive (FP) el-

ements applied to actors, use cases and their relation-

ships for each case study. Tables 3, 4 and 5 summarize

the evaluation of the generated UML use case models

in terms of precision, recall and F-measure.

Table 2: Example of the extracted elements for the cluster

"page URL attribute".

Actor Use case

marketeer set the title attribute of a link

marketeer switch URLs when URL duplication

occurs between pages

marketeer create friendly URLs for my

nested product pages

marketeer set the rel attribute of external links

marketeer set canonical tags to individual pages

marketeer solve URL conﬂicts immediately

editor assign page sections to pages using

the current page section structure

Table 3: Accuracy of the generated UML use case model

for the "Web Company" case study.

Actors Use Cases

Relation-

ships

TP FP FN TP FP FN TP FP FN

84 0 0 84 2 7 69 17 10

Precision 100% 97% 97%

Recall 100% 92% 90%

F-measure 100% 94% 93%

From User Stories to Models: A Machine Learning Empowered Automation

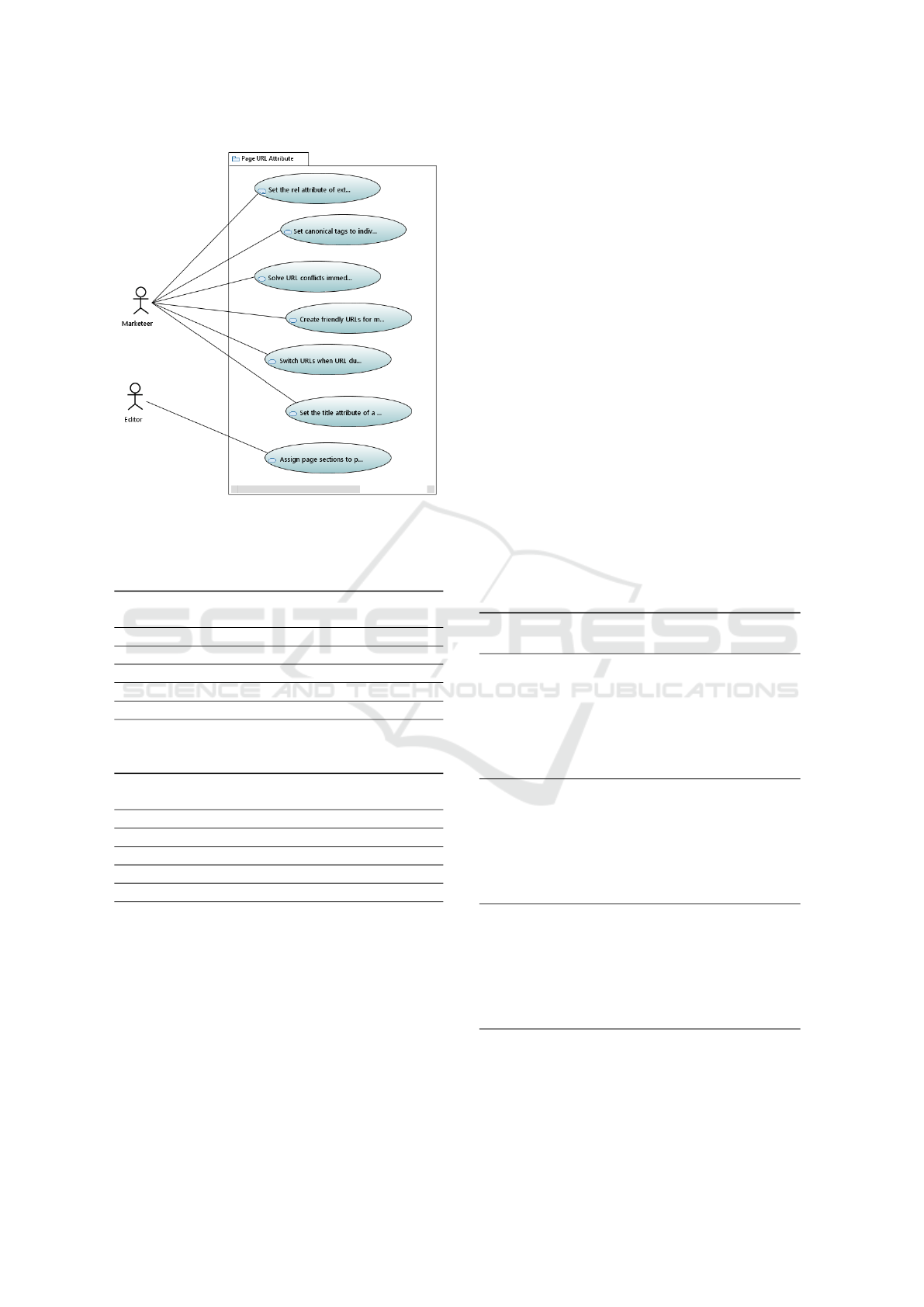

Figure 5: Overview of the generated UML use case model

for the "CMS Company" case study.

Table 4: Accuracy of the generated UML use case model

for the "CMS Company" case study.

Actors Use Cases

Relation-

ships

TP FP FN TP FP FN TP FP FN

34 0 0 32 2 2 28 4 4

Precision 100% 94% 88%

Recall 100% 94% 88%

F-measure 100% 94% 88%

Table 5: Accuracy of the generated UML use case model

for the "Archive Space" case study.

Actors Use Cases

Relation-

ships

TP FP FN TP FP FN TP FP FN

56 0 0 51 1 6 33 11 6

Precision 100% 98% 75%

Recall 100% 89% 84%

F-measure 100% 93% 79%

The accuracy of the generated UML use case

models is reasonable for the three case studies.

For actors, F-measure value is equal to 100% as

we succeeded to extract all the actors even actors

with compound nouns such as "read Only user" and

"repository Manager".

For use cases and relationships, F-measure values

take high-range (93%-94%) and (79%-93%) respec-

tively. In relationships detection, these values are due

in particular to inclusion or extension relationships

between use-cases that are not supported by our ap-

proach.

Moreover, we compare our results to the work in

the baseline (Elallaoui et al., 2018) which has been

evaluated only for the Web Company case study. Re-

sults indicate that our approach succeeded in extract-

ing all the actors while the approach in the baseline

(Elallaoui et al., 2018) failed to extract actors with

compound nouns such as "newly registered user".

Moreover, for use-cases and relationships, our ap-

proach achieves better F-measure results than the

baseline (Elallaoui et al., 2018) by 8 and 10 percent-

age points respectively.

As an illustration, Figure 5 shows the generated

UML use case model based on the extracted elements

presented in Table 2 for the cluster "page, URL, at-

tribute" (Table 1).

4.3.3 Assessing KPI3: Execution Time

For KPI3, table 6 shows the execution time for the

different steps of our approach measured on a laptop

with a 2.10 Ghz Intel (R) Core (TM) i7-4600U CPU

and a 8GB of memory.

Table 6: Execution time.

Case Study Phase Execution

Time

CMS preprocessing 5s

Company Clustering (similarity

computation+HAC 28s

+labelling)

UML use case 2s

generation

Total 35s

Web preprocessing 11s

Company Clustering (similarity

computation +HAC 56s

+labelling)

UML use case 5s

generation

Total 1m12s

Archive preprocessing 7s

Space Clustering (similarity

computation +HAC 35s

+labelling)

UML use case 3s

generation

Total 45s

For the three case studies, the execution time is

dominated by the clustering step as well as the in-

ferring of the words vectors in the semantic similar-

ity computation step. Figure 6 shows a linear growth

MODELSWARD 2021 - 9th International Conference on Model-Driven Engineering and Software Development

trend for the impact of the number of user stories on

the execution time. Given such linear relation and the

fact that the end-to-end execution time takes few sec-

onds to few minutes, we anticipate that our approach

should be practical for much larger user stories docu-

ments.

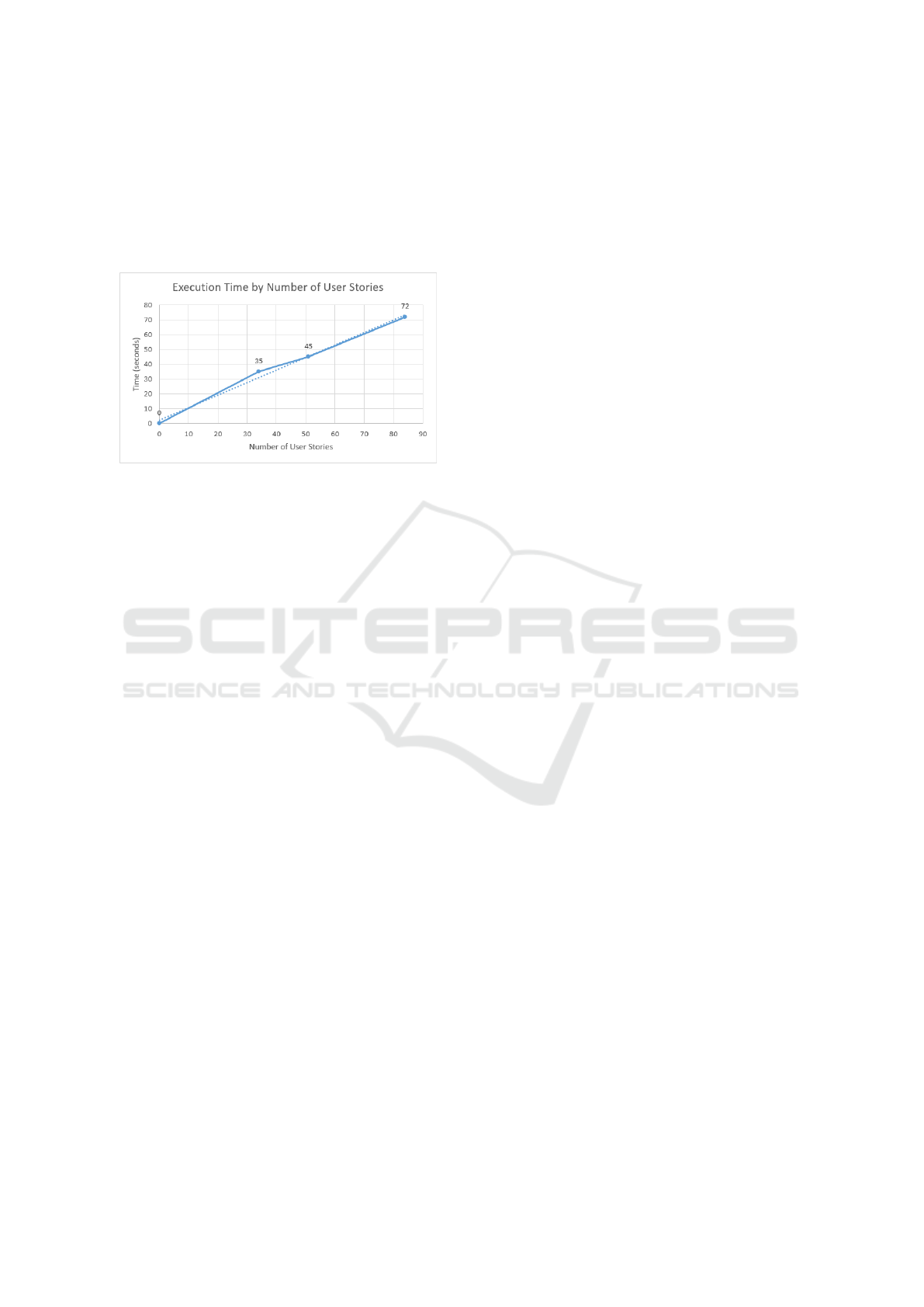

Figure 6: Impact of the number of user stories on the exe-

cution time.

5 THREATS TO VALIDITY

In this section, we discuss the limitations of our pro-

posal in terms of internal threats, construct threats and

external threats. These threats are as follows:

Internal Validity. With regard to computing word

similarity, some domain-speciﬁc words don’t occur in

the corpus used to train the word vector space which

might slightly affect the efﬁciency of word similarity

computation. To mitigate this limitation, we map such

words to a random vector.

Construct Validity. With regard to assessing the

accuracy of the clustering, the deﬁnition of what a

"better" cluster is might be a subjective procedure

since there is no baseline in the literature to compare

our clustering results with. Although this may lead to

bias of evaluating clusters, we still achieve relatively

accurate results compared with ground truth.

External Validity. We evaluate the applicability of

our approach on three case studies. Although the eval-

uation gives promising results, we need to evaluate

the approach on further case studies including indus-

trial case studies.

Ultimately, as mentioned above, there are several

threats to our approach that have to be considered in

order to improve our proposal.

6 RELATED WORK

Many work found in the literature aim at deriving

models from early requirements expressed in natural

language.

Fabian et al. (Gilson and Irwin, 2018) propose

an automatic transformation from user stories to ro-

bustness diagrams. The approach aims at helping re-

quirements engineers and users to validate user stories

and to perform structured analysis. Thus, the work

consists in identifying loosely deﬁned or ambiguous

stories, extracting core concepts as well as relations

between them using NLP techniques.

Ellaoui et al. (Elallaoui et al., 2015), propose an

approach that helps engineers to reduce ambiguity in

requirements speciﬁcations in scrum processes. The

approach consists in generating sequence diagrams

from user stories in order to generate test cases. It is

based on a set of rules that are used to extract model

elements. Then, an XMI ﬁle for each user story deﬁn-

ing the corresponding sequence diagram is generated.

In (Elallaoui et al., 2018), the authors propose an

automatic transformation of user stories into UML

use case diagrams to assist the work of the develop-

ment team and the Product Owner. The approach is

based on a set of NLP heuristics that allows to extract

use-case elements. However, the proposed approach

is unable to detect actors with compound nouns as

well as inclusion and extension relations between use-

cases.

In a similar approach, Arora et al. (Arora et al.,

2016) developed a domain model extractor from nat-

ural language requirements. They are able to identify

classes, relations and attributes with a variable suc-

cess rate.

These works commonly employ a syntactic trans-

formation to bridge the gap between natural language

requirements and models. Although there are multi-

ple approaches that transform requirements to mod-

els, decomposing the target system into a set of sub-

systems from early requirements is also needed as the

number of requirements grows. Hence, the usage of

clustering techniques in the early phases of software

engineering has gained a lot of attention in recent

years.

In (Amannejad et al., 2014), the authors developed

a tool based on hierarchical clustering of requirements

in order to propose a packaging solution for software

engineers. They deﬁned a similarity measure that

aims to cluster classes with high number communi-

cation in the same package. However, the optimal

number of clusters is manually selected by software

engineers based on the hierarchical tree generated by

the clustering algorithm.

From User Stories to Models: A Machine Learning Empowered Automation

Lucassen et al. (Lucassen et al., 2016b) present

an approach based on concepts clustering to visualize

requirements at different levels of granularity. They

employed word2vec as a prediction model to compute

similarity between concepts.

Agustin et al. (Casamayor et al., 2012) propose

an initial clustering of responsibilities from require-

ments, in order to detect architecture components.

The approach is validated using four different clus-

tering algorithms and several validity metrics. The

similarity function is computed according to the verb

phrase each responsibility contains and the direct ob-

ject it is related to.

Barbosa et al. (Barbosa et al., 2015) present an

approach to cluster and sequence user stories in or-

der to assist software engineers in the implementation

phase. They employed a clustering algorithm and the

silhouette score to identify the best clustering solu-

tion.

In (Jalab and Kasirun, 2014), the authors propose

an approach that clusters similar requirements in or-

der to reuse them in software product lines (SPLs).

They compared the performance of two clustering al-

gorithms based on a distance measure in order to iden-

tify similar requirements.

In (Salman et al., 2018), the authors demonstrate

the use of the HAC algorithm to break-down the

project into a set of sub-projects based on related

functional software requirements. They use tradi-

tional vector space models to vectorize text require-

ments. The clustering framework that they propose

is dynamic and can be extended to include different

clustering algorithms and distance measures.

All these techniques inspire our work. However,

some of these approaches suffer from a lack of au-

tomation when deﬁning the optimal number of clus-

ters (Amannejad et al., 2014), others rely on the simi-

larity between words or concepts in each requirement

(Lucassen et al., 2016b), (Casamayor et al., 2012).

Moreover, some of them utilize traditional count

models, for instance, Vector Space Model (VSM)

(Salman et al., 2018), Latent Semantic Analysis

(LSA) (Jalab and Kasirun, 2014), and TF-IDF (Bar-

bosa et al., 2015) to calculate the similarity. Mean-

while these count models can not achieve synonymy

and polysemy, which decreases the similarity accu-

racy. Consequently, they usually achieve worse re-

sults than prediction models (Baroni et al., 2014).

The main novelty of our proposal is that we beneﬁt

from using word2vec as prediction model, to compute

word level similarity and then, derive the requirement

level similarity using a scoring formula for text simi-

larity. Then, we automatically generate clusters from

natural language user stories using HAC algorithm

and we implement an operation that recommends the

optimal number of clusters in order to avoid the man-

ual intervention. Finally, we implement a set of spe-

ciﬁc NLP heuristics to extract relevant use case model

elements in order to instantiate our approach in UML

use case models and hence, foster the integration of

model-based approaches in Scrum process.

7 CONCLUSION

In this paper, we proposed a machine learning based

approach to automatically derive preliminary UML

behavioral models from early natural language user

stories in Scrum process. The core of the approach

is the clustering of the natural language requirements

with similar functionalities in order to break-down the

system into sub-systems.

Such automatic decomposition of the software

system is highly desired at early stages speciﬁcally

for large scale systems to facilitate the design process

and help in saving in cost and time.

Therefore, we employed the HAC algorithm to

group the semantically similar user stories. In or-

der to improve the accuracy of the generated clus-

ters, semantic similarity was computed taking into ac-

count both word level and requirement level similar-

ity. Word level similarity was ﬁrstly computed using

word2vec as prediction model, then it was extended to

the requirements level using the Mihalcea scoring for-

mula for text similarity computation. Then, we imple-

mented a set of speciﬁc NLP heuristics to extract rele-

vant use case model elements from each cluster. Sub-

sequently, our approach was illustrated by the genera-

tion of sub-systems expressed as UML use case mod-

els and hence, it promotes the integration of model-

based methodologies in Scrum.

Our approach was evaluated through three case

studies and a set of KPIs. For the clustering solu-

tion, we succeeded to avoid manual intervention by

recommending an optimal number of clusters. Fur-

thermore, evaluation results of the generated clusters

against ground truth clusters made by experts reveals

reasonable F-measure values which are around 80%.

As for precision and recall values of the generated

UML use case models, they are equal to 100% for ac-

tors detection, up to 98% for use-cases detection and

up to 97% for relationships detection. Meanwhile,for

the same case study presented in the baseline (Elal-

laoui et al., 2018), we achieved a better F-measure

score. Our algorithm succeeded to detect all the actors

compared to (Elallaoui et al., 2018) and F-measure

values of use-cases and relationships detection, are

better by 8% and 10% respectively.

MODELSWARD 2021 - 9th International Conference on Model-Driven Engineering and Software Development

Given these promising results, we plan to extend

our work to support other templates of user stories.

Moreover, we plan to further assess the effectiveness

of the approach on larger software requirement doc-

uments, possibly taken from different domains using

a prediction model (word2vec) trained with domain-

speciﬁc corpus.

REFERENCES

Alexander, I. F. and Maiden, N. A. M. (2004). Scenar-

ios,stories, use cases: Through the systems develop-

ment life-cycle.

Amannejad, Y., Moshirpour, M., Far, B. H., and Al-

hajj, R. (2014). From requirements to software de-

sign: An automated solution for packaging software

classes. In Proceedings of the 2014 IEEE 15th Inter-

national Conference on Information Reuse and Inte-

gration (IEEE IRI 2014), pages 36–43.

Arora, C., Sabetzadeh, M., Briand, L. C., and Zimmer,

F. (2016). Extracting domain models from natural-

language requirements: approach and industrial eval-

uation. In MODELS ’16.

Barbosa, R., Januario, D., Silva, A. E., de Oliveira Moraes,

R. L., and Martins, P. (2015). An approach to clus-

tering and sequencing of textual requirements. 2015

IEEE International Conference on Dependable Sys-

tems and Networks Workshops, pages 39–44.

Baroni, M., Dinu, G., and Kruszewski, G. (2014). Don’t

count, predict! a systematic comparison of context-

counting vs. context-predicting semantic vectors. In

Proceedings of the 52nd Annual Meeting of the As-

sociation for Computational Linguistics (Volume 1:

Long Papers), pages 238–247, Baltimore, Maryland.

Association for Computational Linguistics.

Bittner, K. (2002). Use Case Modeling. Addison-Wesley

Longman Publishing Co., Inc., USA.

Booch, G., Rumbaugh, J. E., Jacobson, I., and Hoberman,

S. (2015). The uniﬁed modeling language user guide

(2nd edition).

Casamayor, A., Godoy, D., and Campo, M. R. (2012).

Functional grouping of natural language requirements

for assistance in architectural software design. Knowl.

Based Syst., 30:78–86.

Cohn, M. (2004). User Stories Applied: For Agile Software

Development. Addison Wesley Longman Publishing

Co., Inc., USA.

Dunn, J. C. (1974). Well-separated clusters and optimal

fuzzy partitions.

Elallaoui, M., Naﬁl, K., and Touahni, R. (2015). Auto-

matic generation of uml sequence diagrams from user

stories in scrum process. In 2015 10th International

Conference on Intelligent Systems: Theories and Ap-

plications (SITA), pages 1–6.

Elallaoui, M., Naﬁl, K., and Touahni, R. (2018). Automatic

transformation of user stories into uml use case dia-

grams using nlp techniques. In ANT/SEIT.

Gilson, F. and Irwin, C. (2018). From user stories to use

case scenarios towards a generative approach. 2018

25th Australasian Software Engineering Conference

(ASWEC), pages 61–65.

Hotho, A., Nürnberger, A., and Paass, G. (2005). A brief

survey of text mining. LDV Forum, 20:19–62.

Jalab, H. A. and Kasirun, Z. M. (2014). Towards require-

ments reuse: Identifying similar requirements with la-

tent semantic analysis and clustering algorithms.

Jones, K. S. (1988). A statistical interpretation of term

speciﬁcity and its application in retrieval. Journal of

Documentation, 60:493–502.

Kassab, M. (2015). The changing landscape of require-

ments engineering practices over the past decade. In

2015 IEEE Fifth International Workshop on Empirical

Requirements Engineering (EmpiRE), pages 1–8.

Kim, Y. (2014). Convolutional neural networks for sentence

classiﬁcation. In EMNLP.

Lapata, M. and Barzilay, R. (2005). Automatic evaluation

of text coherence: Models and representations. In IJ-

CAI.

Lebret, R. and Collobert, R. (2014). Word embeddings

through hellinger pca. In EACL.

Lindvall, M., Basili, V. R., Boehm, B. W., Costa, P., Dangle,

K. C., Shull, F., Tvedt, R. T., Williams, L. A., and

Zelkowitz, M. V. (2002). Empirical ﬁndings in agile

methods. In XP/Agile Universe.

Löfﬂer, R., Güldali, B., and Geisen, S. (2010). To-

wards model-based acceptance testing for scrum.

Softwaretechnik-Trends, 30.

Lucassen, G., Dalpiaz, F., van der Werf, J. M. E. M., and

Brinkkemper, S. (2016a). The use and effectiveness

of user stories in practice. In REFSQ.

Lucassen, G., Dalpiaz, F., van der Werf, J. M. E. M., and

Brinkkemper, S. (2016b). Visualizing user story re-

quirements at multiple granularity levels via semantic

relatedness. In ER.

Manning, C. D., Raghavan, P., and Schütze, H. (2005). In-

troduction to information retrieval.

Mihalcea, R., Corley, C., and Strapparava, C. (2006).

Corpus-based and knowledge-based measures of text

semantic similarity. In AAAI.

Mihalcea, R. and Tarau, P. (2004). Textrank: Bringing order

into texts. In EMNLP 2004.

Mikolov, T., Sutskever, I., Chen, K., Corrado, G. S.,

and Dean, J. (2013). Distributed representations of

words and phrases and their compositionality. ArXiv,

abs/1310.4546.

Perner, P. (2002). Data mining - concepts and techniques.

KI, 16:77.

Rodriguez, M. A. and Egenhofer, M. J. (2003). Deter-

mining semantic similarity among entity classes from

different ontologies. IEEE Trans. Knowl. Data Eng.,

15:442–456.

Salman, H. E., Hammad, M., Seriai, A.-D., and Al-Sbou,

A. (2018). Semantic clustering of functional require-

ments using agglomerative hierarchical clustering. In-

formation, 9:222.

From User Stories to Models: A Machine Learning Empowered Automation

Sasse, M. A. and Johnson, C. (1999). Human-computer

interaction interact ’99: Iﬁp tc. 13 - 1999 edinburgh.

Schwaber, K. (1997). Scrum development process.

Varelas, G., Voutsakis, E., Raftopoulou, P., Petrakis, E.

G. M., and Milios, E. E. (2005). Semantic similarity

methods in wordnet and their application to informa-

tion retrieval on the web. In WIDM ’05.

Verner, J. M., Cox, K., Bleistein, S. J., and Cerpa, N. (2005).

Requirements engineering and software project suc-

cess: an industrial survey in australia and the u.s. Aus-

tralasian J. of Inf. Systems, 13.

Wautelet, Y., Heng, S., Kolp, M., and Mirbel, I. (2014).

Unifying and extending user story models. In CAiSE.

Zepeda-Mendoza, M. L. and Resendis-Antonio, O. (2013).

Hierarchical Agglomerative Clustering, pages 886–

887. Springer New York, New York, NY.

MODELSWARD 2021 - 9th International Conference on Model-Driven Engineering and Software Development
