LSTM Architectures for Facade Structure Completion

Simon Hensel

, Steffen Goebbels

and Martin Kada

Institute for Pattern Recognition, Niederrhein University of Applied Sciences, Reinarzstrasse 49, Krefeld, Germany

Institute of Geodesy and Geoinformation Science, Technical University of Berlin, Kaiserin-Augusta-Allee 104-106, Berlin,

Germany

Keywords:

Deep Learning, LSTM, Facade Reconstruction, Structure Completion.

Abstract:

3D city models are often generated from oblique aerial images and photogrammetric point clouds. In con-

trast to roof surfaces, facades can not directly be reconstructed in a similar high level of quality from this

data. Distortions of perspective might appear in images, due to the camera angle. Occlusions and shadow-

ing occur as well. Objects, such as windows and doors, will have to be detected on such data if facades are

to be reconstructed. Although one can use inpainting techniques to cover occluded areas, detection results

are often incomplete and noisy. Formal grammars can then be used to align and add objects. However, it

is difﬁcult to ﬁnd suitable rules for all types of buildings. We propose a post-processing approach based on

neural networks to improve facade layouts. To this end, we applied existing Recurrent Neural Network archi-

tectures like Multi-Dimensional Long Short-term Memory Network and Quasi Recurrent Neural Network in

a new context. We also propose a novel architecture, the Rotated Multi-Dimensional Long Short Term Mem-

ory. In order to deal with two-dimensional neighborhoods this architecture combines four two-dimensional

Multi-Dimensional Long Short-term Memory Networks on rotated images. We could improve the quality of

detection results on the Graz50 data set.

1 INTRODUCTION

In most cases, facades cannot be reconstructed in the

same high quality as roofs due to their limited visi-

bility on aerial photographs. Camera angles can lead

to perspective distortions. In addition, occlusions and

shadows can be caused by various objects. In order

to be able to reconstruct facades, objects such as win-

dows and doors have to be recognized. Neural net-

works for object detection and instance segmentation,

see Section 2, search for individual object instances,

but do not consider overall layout patterns. Thus, re-

lationships between windows are not considered.

One can apply inpainting techniques on input im-

ages or use model knowledge to suggest missing ob-

jects. Inpainting is a standard computer vision tech-

nique to extrapolate visual information to ﬁll or re-

place damaged, fuzzy or missing areas in images. As

shown in (Bertalmio et al., 2000), inpainting is effec-

tive in removing texts or other objects present in im-

ages. Since inpainting is performed on images, it has

to be used as a processing step prior to segmentation

or detection of facade objects. Therefore, it does not

beneﬁt from knowledge gathered by object detection.

Techniques based on model knowledge can bene-

ﬁt from detection results and can be applied in a post-

processing step. For building reconstruction, split

grammars are described in (Wonka et al., 2003). Such

grammars are a collection of rules by which object

placement and orientation can be described. They al-

low adding missing facade objects and even to gen-

erate facades from scratch procedurally. However,

grammar rules have to ﬁt for a given building style.

Unique facade styles might require individual rules

that have to be provided manually. In a situation in

which it is difﬁcult to deﬁne rules, machine learning

is well suited.

Instead of deﬁning grammars, we propose to ap-

ply Recurrent Neural Networks (RNNs) with Long

Short Term Memory (LSTM). They are typically used

for time-dependent, one-dimensional input data. A

main application is speech recognition. Our aim is

to restore missing facade objects based on available,

incomplete detection results. These results are rep-

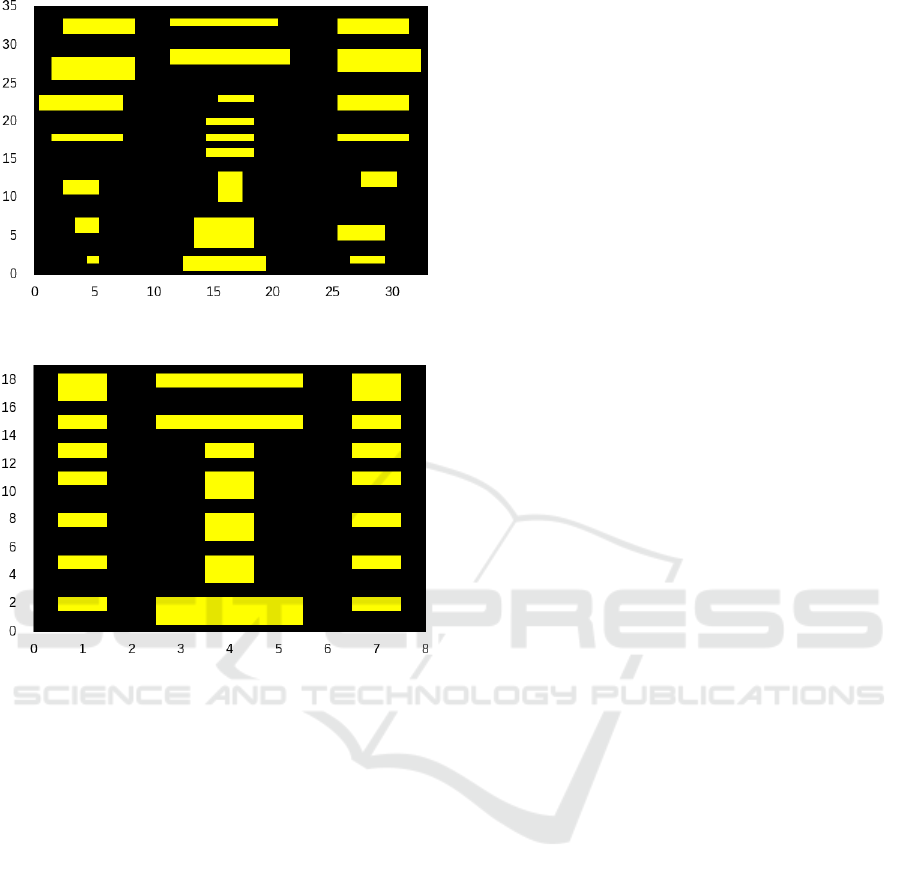

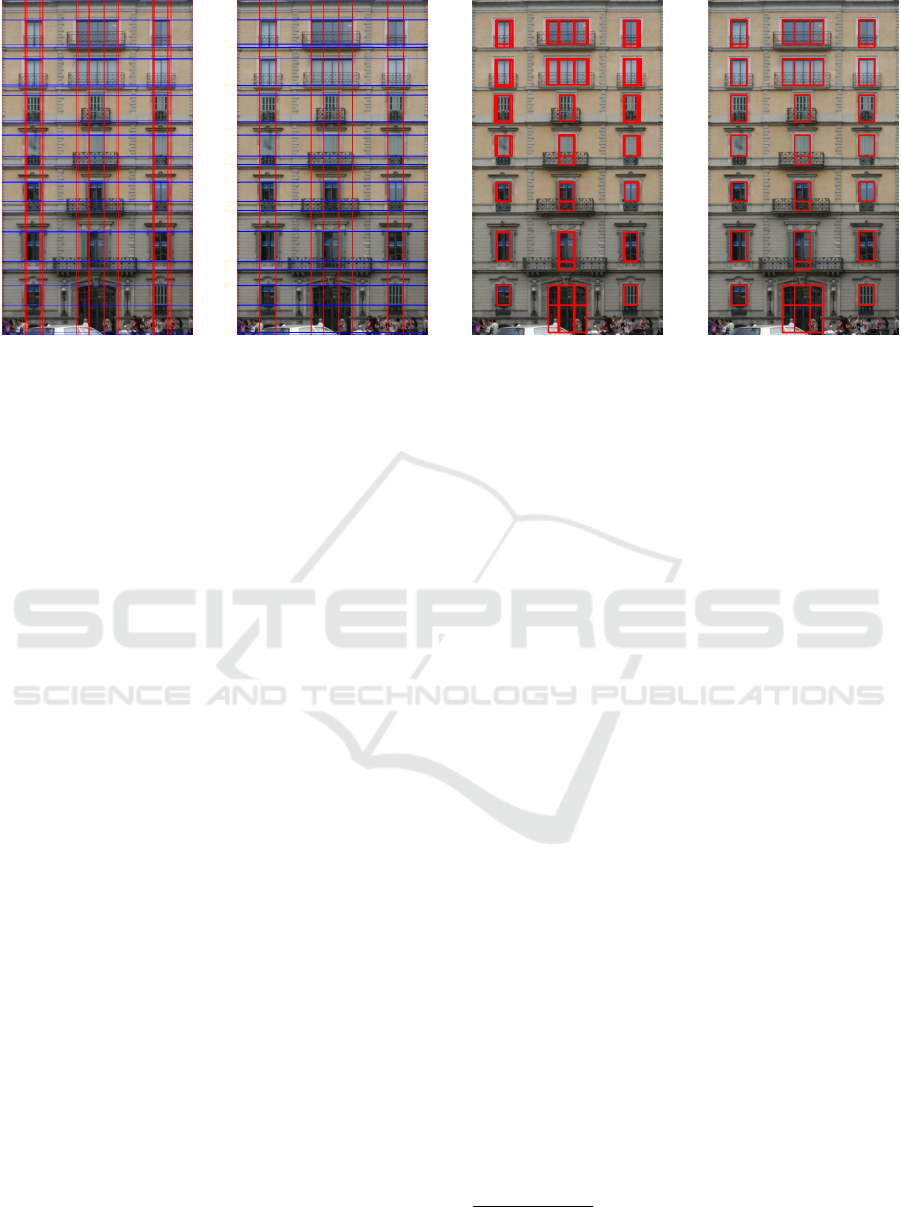

resented by bounding boxes. By extending edges of

these bounding boxes to lines, we obtain an irregu-

lar rectangular lattice (IRL). This is a collection of

horizontal and vertical lines where the distances be-

tween the lines can vary. We merge parallel lines

into a single one if lines are within a threshold dis-

Hensel, S., Goebbels, S. and Kada, M.

LSTM Architectures for Facade Structure Completion.

DOI: 10.5220/0010194400150024

In Proceedings of the 16th International Joint Conference on Computer Vision, Imaging and Computer Graphics Theory and Applications (VISIGRAPP 2021) - Volume 1: GRAPP, pages

15-24

ISBN: 978-989-758-488-6

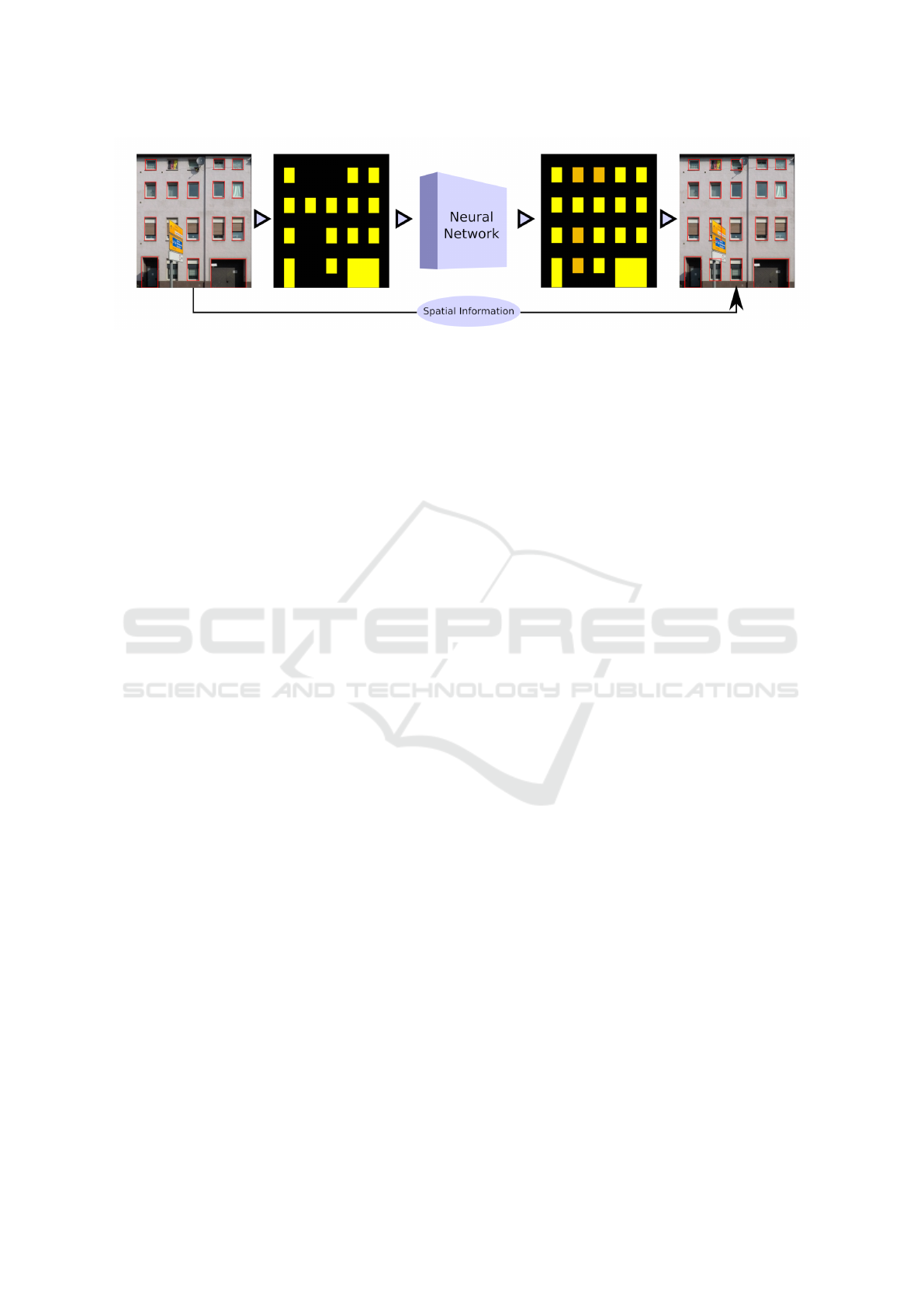

Figure 1: Workﬂow for facade structure completion: Due to a signpost, a satellite dish and a ﬂag, four windows could not be

detected. They were added with a LSTM.

tance that corresponds with the average image reso-

lution, see Section 3.1. Areas that are bounded but

not intersected by the lines are called cells. In ac-

cordance with given detection results, cells are ini-

tially labeled either as background or as belonging

to a facade object class (windows, doors). Now the

task is to correct labels of cells that belong to miss-

ing objects. The proposed workﬂow is shown in Fig-

ure 1. To this end, we compare the proposed Rotated

Multi-Dimensional LSTM (RMD LSTM, see Section

3) with Quasi Recurrent Neural Network (QRNN),

see (Bradbury et al., 2016), Section 4.

2 RELATED WORK

For the 3D reconstruction of facades their compo-

nents have to be recognized. If images of the fa-

cades are available (e.g. from oblique aerial images),

this can be done using neural networks. During the

last decade, Convolutional Neural Networks (CNNs)

have become a standard tool for image-based object

detection and segmentation. For image segmentation

on low-performance hardware YOLO (Bochkovskiy

et al., 2020) is widely used. By reducing the number

of weights through adding connections between lay-

ers and outputs, ResNET (He et al., 2016) was a mile-

stone in deep learning. In the ﬁeld of object detection

is Mask R-CNN (He et al., 2017) an enhancement of

a regional convolutional network with added segmen-

tation capabilities. RetinaNet (Lin et al., 2017) in-

troduced the concept of focal loss to distinguish be-

tween fore- and background. These image segmenta-

tion or object detection networks can be used within

a 3D building reconstruction framework. In this re-

gard, CityGML is the standard open data model for

semantic 3D city models, see (Gr

oger et al., 2007).

We use bounding boxes of detected objects to re-

construct facades. To this end, two problems have

to be solved: Boxes might not be aligned properly

and boxes of occluded objects might be missing. The

alignment problem can be seen as a combinatorial op-

timization problem, see (Hensel et al., 2019) and (Hu

et al., 2020). In this paper, we deal with adding miss-

ing boxes. Image inpainting techniques as well as the

application of formal grammars can be applied to es-

timating such missing information. The given paper

discusses a third deep-learning-based method that can

be applied to facade layouts.

Two inpainting methods that were used early are

diffusion-based or example-based, cf. (Guillemot and

Le Meur, 2014). Diffusion-based inpainting with

smoothing priors is capable of repairing sparsely dis-

tributed small holes, but fails in the event of major

disturbances. Example-based inpainting is able to ex-

tend textures into larger areas that need to be ﬁlled.

However, it does not preserve the edges, which are

an important feature of facade objects. Both methods

try to keep simple textures instead of detecting more

complex structures. Therefore, they are not suitable

for facades. This issue is addressed in (Dai et al.,

2013). The authors use a Random Forest-based ap-

proach to obtain a semantic segmentation. Edges of

segment borders are used to deﬁne an IRL. Corre-

sponding cells are initially labeled based on semantic

segmentation similar to our approach that is based on

bounding boxes, see Section 3.1. The IRL is inter-

preted as an undirected graph to deﬁne a graph label-

ing problem. The labeling is optimized by minimiz-

ing an energy function. This function measures the

image and structural consistency. In contrast to the

measurement of structural consistency, facade objects

are clustered in our approach.

The article (Huang et al., 2014) deals with another

inpainting algorithm that is applied in connection with

the reconstruction of facade structures. This approach

is based on line segments of edges. Corresponding

lines might intersect in vanishing points. The algo-

rithm detects all vanishing points and classiﬁes line

segments according to their vanishing point. Areas

that are covered by line segments belonging to two

vanishing points might be part of a 3D plane. The

GRAPP 2021 - 16th International Conference on Computer Graphics Theory and Applications

knowledge of planes is then used to continue textures.

The method is implemented as a random search algo-

rithm supported by various cost functions based on

appearance, guidance, orthogonal direction and prox-

imity.

The introduction of Generative Adversarial Net-

works (GANs), see (Goodfellow et al., 2014) is a

milestone in inpainting techniques, see for example

the application of Wasserstein GAN (Arjovsky et al.,

2017) in (Yu et al., 2018). A more recent example of

image inpainting with GANs is EdgeConnect (Nazeri

et al., 2019). Here, edge images serve as GAN inputs.

Typically, it is necessary to specify the area that

is to be ﬁlled by an inpainting algorithm. This ad-

ditional complexity does not occur with model-based

techniques. GANs tend to be unstable and are there-

fore harder to train, see (Arjovsky and Bottou, 2017).

That is one reason why we use more robust LSTM

architectures.

In contrast to data-based approaches like inpaint-

ing, model based methods consider typical facade lay-

outs that can be either learned (as proposed here) or

explicitly given in terms of rules by formal gram-

mars. The ﬁrst used formal grammars for facade un-

derstanding and reconstruction were split grammars

(Wonka et al., 2003). In the article (Teboul et al.,

2011) shape grammars to generate probabilities for

facade object classes are described. The initial proba-

bility map for terminal symbols is provided by a dis-

criminative model. To further optimize labels, the

model is used in a Markov Decision Process. Rein-

forced learning is applied to optimize the model. A

system consisting of immediate and cumulative re-

wards is used to obtain facade segmentations which

are close to reality. A greedy-type algorithm com-

putes ﬁnal results.

Also, formal grammars are not limited to be used

on 2D images, see (Dehbi et al., 2016). Utilizing

point cloud data, values along horizontal and verti-

cal lines are cumulated with a Kernel Density Estima-

tion. Lower values correspond with the occurrence

of doors and windows. On those values, weighted at-

tribute context-free grammars are applied to reﬁne a

facade model. In a weighted attributed context-free

grammar, attributes deﬁne semantic rules and these

rules are weighted with probabilities.

Since we do not want to deﬁne grammar rules

manually, we apply deep learning. The essence of

RNN and LSTM architectures is to provide a neu-

ral network with memory and previous predictions,

cf. (Sherstinsky, 2020). These networks are mostly

used for recognition of speech, text or generally one-

dimensional data, cf. (Salehinejad et al., 2017) and

(Mtibaa et al., 2020). The ability to process one-

dimensional data with memory gives them high capa-

bilities over one-dimensional CNNs, see (Zhang and

Wang, 2016).

Extensions of LSTMs are Multi-Dimensional

LSTM (Graves et al., 2007), on which the new Ro-

tated Multi-Dimensional LSTM is built upon, Quasi

RNN (Bradbury et al., 2016) and Grid LSTM (Kalch-

brenner et al., 2015). To our knowledge, LSTMs have

not been applied to the problem of facade reconstruc-

tion so far. Due to memory connections and a two-

dimensional input serialized to one dimension, RNN

and LSTM architectures have a high demand for hard-

ware resources. Especially for Grid LSTM this causes

problems. In Section 3.1 we explain how we reduce

the size of data so that it can be processed by an RNN

or LSTM.

3 RECURRENT NEURAL

NETWORKS FOR PATTERN

COMPLETION

We consider the ability of RNNs to utilize predictions

from the past (processed spatial regions) to learn fa-

cade layouts. Our contribution consists of

• a workﬂow for reﬁning facade object detection

• the Rotated Multi-Dimensional LSTM for facade

completion and object recommendation.

• a comparison of outcomes of Quasi RNN, RMD

LSTM (and MD LSTM).

3.1 Data Preparation

With the CMP facade data set (Tyle

cek and

ara,

2013) and the Graz50 data set (Riemenschneider

et al., 2012) we used two different data sets to train

and evaluate the RNN architectures. The CMP data

set provides 606 facade images with ground truth in-

formation for object detection and segmentation. The

Graz50 data set consists of 50 images with corre-

sponding annotations for segmentation. The larger

CMP data set was used for training. Images of one

data set belong to a different facade style than im-

ages of the second set do. Thus, we avoided effects

of overﬁtting, and we were able to demonstrate the

ability to complete facade layouts of arbitrary facade

types. Since we wanted to improve already detected

facade layouts, we did not work with the RGB facade

images of both data sets but we only considered cor-

responding ground truth information. We focused on

windows and doors and ignored other classes of fa-

cade objects. Either ground truth of these data sets or

LSTM Architectures for Facade Structure Completion

(a) (b)

Figure 2: Images (a) and (b) show an IRL representation of the facade from the CMP data set. Images (c) and (d) show

corresponding bounding boxes. IRL in (b) was generated by merging lines of the IRL in (a).

detection results deﬁne position and size of windows

and doors. This information can be interpreted as an

IRL, see Section 1. Then each cell of the IRL is as-

signed to an entry of a matrix M. For example, the

facade in Figure 1 is represented by

M =







0 0 0 0 0 0 0 0 0 0 0

0 1 0 0 0 0 0 1 0 1 0

0 0 0 0 0 0 0 0 0 0 0

0 1 0 1 0 1 0 1 0 1 0

0 0 0 0 0 0 0 0 0 0 0

0 1 0 0 0 1 0 1 0 1 0

0 0 0 0 0 0 0 0 0 0 0

0 1 0 0 0 1 0 1 1 1 0

0 1 0 0 0 0 0 1 1 1 0







. (1)

However, these derived IRLs result in matrices that

are by far too large to be used directly as input of

RNNs. Therefore, we further simplify IRLs by merg-

ing grid lines. We iterate through all lines, determine

for each line all other lines of the same orientation

within a distance of at most 8 pixels and then replace

them with a mean line. Figure 2 (b) shows an IRL and

the effect of merging close lines in comparison with

Figure 2 (a). Figures 2 (c) and 2 (d) represent the

corresponding bounding box representation. Merging

close lines improves simplicity and size of generated

matrices, see Figure 3, without changing the facade

layout signiﬁcantly. Note that the IRLs Figure 2 ﬁt

with matrices in Figure 3. Figure 3 also shows that

merging can lead to patterns and symmetry. Using the

simpliﬁed IRL we generate a two-dimensional matrix

consisting of zeroes (cell belongs to background) and

ones (cell covered by a facade object). Spatial infor-

mation for restoring bounding boxes, i.e. the IRL, is

stored separately. The combination of matrix and IRL

allows us to reconstruct bounding boxes. Depending

on the complexity of the facade we are able to re-

duce a label image to a matrix with a size between

10 × 10 and 100 × 100 entries. We restrict ourselves

to network inputs of size 25 × 25. To ﬁt matrices into

this format, we experimented with scaling. To ob-

tain good results however, we only worked with fa-

cades that lead to matrices which did not exceed in-

put size. This are 359 facades of CMP and 46 facades

of Graz50 data. We applied zero padding. Whereas

MD LSTM and RMD LSTM allow 2D matrix input,

matrices have to be serialized for QRNN.

3.2 Workﬂow

Merging lines of the IRL leads to aligned bound-

ing boxes. However, both in an additional pre- and

post-processing step, one can apply the algorithms in

(Hensel et al., 2019) or (Hu et al., 2020) to further im-

prove alignments. Between these steps, facade struc-

tures have to be completed by adding missing facade

objects. For building , training and testing of neural

networks we use Tensorﬂow (Abadi et al., 2015) and

provide source code

. To this end, we propose the

following workﬂow.

Training. At ﬁrst, we process the object detec-

tions into a 2D matrix, like explained in Section 3.1.

Randomly generated data showed great potential in

other work, see (Tobin et al., 2017), and also should

minimize effects of overﬁtting. Hence, we select ma-

trices randomly to generate training batches on the ﬂy.

Then we randomly select a matrix entry that belongs

to a facade object. Using ﬂood ﬁlling, we reset all

entries of the chosen object to represent background.

Source code available to the general public at https://

github.com/SimonHensel/LSTM-Facade-Completion

GRAPP 2021 - 16th International Conference on Computer Graphics Theory and Applications

(a) Matrix representation of IRL before merging of lines

within threshold distance.

(b) Resulting Matrix with merged horizontal and vertical

lines.

Figure 3: Impact of merging horizontal and vertical grid

lines in the IRL of Figure 2(a). Note that axes are scaled

differently, such that the resulting matrix of the simpliﬁed

IRL is much smaller.

We repeat this step until 20% of objects are re-labeled.

With this we trained networks using a batch size of 16

and 20,000 batches. We trained on a total of 320,000

randomly generated matrices. Networks are trained

so that missing facade objects are added to the input.

Therefore, the ground truth is the original matrix. To

further improve results, we deﬁne clusters such that a

number of the cluster serves as a reﬁned label. Differ-

ent classes (windows, doors) belong to different clus-

ters. Objects of one class belong to the same cluster if

they are positioned in exactly the same rows and if all

objects possess the same number of columns. As seen

in Figure 5(d)-(f), this results in a horizontal cluster-

ing. We enumerate clusters and use the numbers as

new object labels, i.e., as new matrix entries. Clus-

tering is only applied to input data, ground truth and

network output consist of probability values. To avoid

overﬁtting, we add noise to background entries of the

input. For comparison we tested RMD LSTM against

MD LSTM and QRNN. MD LSTM and RMD LSTM

take about a full day to ﬁnish training on an NVIDIA

P6000 GPU. The QRNN, on the other hand, is much

faster, the training was ﬁnished after 3 hours. All net-

works were trained with the same number of iterations

using the Adam optimizer and a Mean Squared Error

loss function. After training we tested on matrices

derived from the Graz50 data set (Riemenschneider

et al., 2012).

Multi-Dimensional LSTM. MD LSTM is a RNN

architecture that allows for multi-dimensional input

by using separate memory connections for each di-

mension. In the two-dimensional case for example, a

cell (x, y) is connected with (x − 1, y) and (x, y − 1).

Thus, a directed spatial context is established. The

proposed Rotational MD LSTM is based on this net-

work.

Quasi Recurrent Neural Network. The QRNN

is a CNN that emulates memory connections with an

embedded pooling layer. For inputs x

to x

three vec-

tors at timestep t are the outputs of the convolutional

layers. A candidate vector z

, a forget vector f

and an

output vector o

are calculated as follows

= tanh(conv

, . . . , x

t−k+1

))

= σ(conv

, . . . , x

t−k+1

))

= σ(conv

, . . . , x

t−k+1

)) .

The convolution conv uses a ﬁlter size of k and the

weight vectors are represented by W

, W

and W

. The

immediate outputs z

, f

and o

are then used to calcu-

late the hidden states c

in the pooling layers. In this

step

= f

 c

t−1

+ (1 − f

)  z

= o

 c

where h

is the network output for timestep t. c

and

are initialized with 0. Operator  denotes element-

wise multiplication. An advantage of the QRNN is

that input can be processed in parallel, while regu-

lar RNNs compute intermediate outputs sequentially.

Network operations including pooling are cheap to

perform such that the network is fast and memory ef-

ﬁcient. A sequential processing only takes place in

the pooling layer.

Rotated Multi-Dimensional LSTM. RNNs are

mainly used for time-dependent problems where in-

formation from the past have to be taken into ac-

count. To solve spatial problems, often data of a

complete spatial neighborhood is relevant. However,

when MD LSTM for two-dimensional input deals

with cell (x, y), information of ”future” cells (x+1, y)

and (x, y +1) needs to be considered but has not been

computed. Especially when applying MD LSTM to

LSTM Architectures for Facade Structure Completion

Figure 4: Rotated Multi-Dimensional LSTM.

facade completion, missing facade objects in the up-

per left image region can’t be added. To overcome

this problem, we combine four MD LSTMs, work-

ing on facade inputs that are rotated by k × 90

◦

, k ∈

{0, 1, 2, 3}. Thus, each single MD LSTM starts in a

different corner of the facade. The outputs of the MD

LSTMs are rotated back to the original facade orienta-

tion. These results are combined with fully connected

layers and sigmoid activation function, see Figure 4.

We also experimented with maximum pooling instead

of fully connected layers, which only resulted in a

small increase by an absolute values of 0.05 for IoU.

Reconstruction. To use the neural network in re-

construction tasks, the detected objects have to be pre-

pared as described in Section 3.1. The resulting ma-

trix is then processed by the chosen neural network

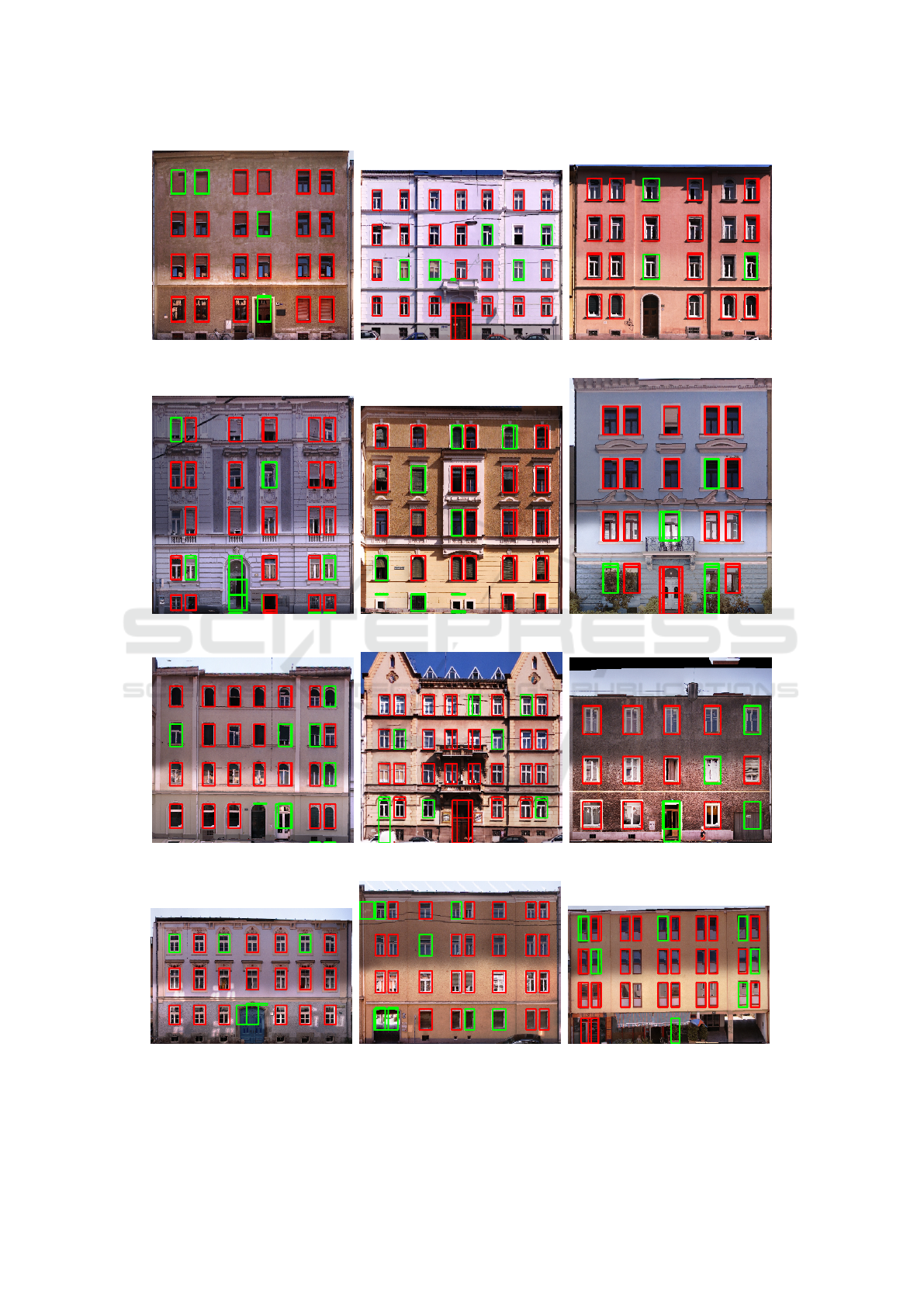

to obtain object recommendations, see Figure 1. Rec-

ommended objects are equipped with bounding boxes

by considering cell coordinates of the IRL. However,

this might lead to multiple boxes covering a single ob-

ject. Such boxes can be merged in a post-processing

step.

4 EXPERIMENTS

All evaluations were performed on the Graz50 data

set. To be able to compare results, ﬁxed evaluation

data with 10000 sets was generated beforehand by re-

moving 20% of facade objects using the same method

as mentioned in Section 3.2. We start with quantita-

tive results and discuss qualitative results later. Tables

1 and 2 show a comparison of results with and with-

out pre-clustering. The output of the neural networks

consist of a probability map. Object probabilities be-

low 0.5 were considered as background. For calculat-

ing scores, we counted every classiﬁed matrix entry

in one of four sums: true positive (tp), false positive

(fp), true negative (tn) and false negative (fn). Tables

1 and 2 show average values of

Accuracy (Acc.) =

tp+tn

tp+tn + fp+fn

Precision (Prec.) =

tp+fp

Recall (Rec.) =

tp+fn

IoU =

tp+fp + fn

We focused on Intersection over Union (IoU) as the

most meaningful evaluation score since it does not

consider background. All scores were computed sep-

arately on single facades. Then arithmetic means

over all facades of the evaluation data set were taken.

To determine whether the networks really improved

the facade layouts, we also calculated the values for

the unchanged network input. Here, precision is 1.0

because annotated facade objects also belong to the

ground truth. Missing facade objects contribute to

fn but not to accuracy. As it can be seen in Table 2,

the proposed RMD LSTM produces better results in

terms of accuracy, recall and IoU.

Figure 5 shows how QRNN and RMDLST make

recommendations for missing objects. Although we

trained the networks on the different CMP data set,

RMD LSTM was able to also complete Graz50 lay-

outs. QRNN somewhat failed to achieve similar re-

sults. Furthermore, Figure 6 shows a variation of ex-

amples of RMD LSTM recognition completion on the

data set used for evaluation. It can be seen that it com-

GRAPP 2021 - 16th International Conference on Computer Graphics Theory and Applications

pletes missing objects on facades like in Figure 6 (a),

(b), (h) and (i) in a good manner. But also that there

are some difﬁculties with objects that are composed of

more than one cell. It also adds door-shaped objects

in some places which the network considers useful but

which are not present in the original images.Besides

testing with graz50 data set, we also calculated scores

on training data. Here, QRNN performed better than

RMD LSTM. QRNN brought an absolute increase of

the IoU value by 0.18. If the style of facades is known

and if one can train networks on facades of the given

style then QRNN might be superior to RMD LSTM.

Furthermore, experiments were also conducted

with GridLSTM (Kalchbrenner et al., 2015), as it per-

formed better in language and text translation com-

pared to LSTM networks. It has an advantage over

them due to its grid of multi-way interactions. The

overhead generated by this grid is a disadvantage, be-

cause it increases the memory requirements. How-

ever, the memory requirement became too high for

the problem of facade structure completion discussed

in Section 1. Thus, we had to reduce batch size and

the number of hidden units, with these restrictions the

trained network classiﬁed all objects as background.

Table 1: Comparison of network results on binary input ma-

trices (without cluster labels).

Acc. Prec. Rec. IoU

START 0.938 1.000 0.682 0.682

MD LSTM 0.980 0.913 0.787 0.732

QRNN 0.973 0.888 0.720 0.664

RMD LSTM 0.979 0.907 0.785 0.726

Table 2: Comparison of QRNN and RMD LSTM on input

data labeled by clustering.

Acc. Prec. Rec. IoU

START 0.938 1.000 0.682 0.682

QRNN 0.969 0.901 0.641 0.604

RMD LSTM 0.984 0.925 0.832 0.779

5 CONCLUSIONS

Our experiments with RMD LSTM showed that

LSTMs are a suitable means to ﬁll gaps in facade lay-

outs. RMD LSTM performed better than the origi-

nal MD LSTM and QRNN with an increase by 14%

in IoU compared to input data. The advantage of

such deep learning methods over grammar-based al-

gorithms is that no rules have to be deﬁned explicitly.

Results shown in Figure 6 indicate that there is

still room for improvements. The main issue are ob-

(a) Ground truth (b) Ground truth (c) Ground truth

(d) Input (e) Input (f) Input

(g) QRNN (h) QRNN (i) QRNN

(j) RMD LSTM (k) RMD LSTM (l) RMD LSTM

Figure 5: Network output consisting of 25 × 25 probability

values (0 = blue, 1 = red) for three facades of the Graz50

data set: images (a) to (c) represent the ground truth, images

(d) to (f) show the input, images (g) to (i) present the output

of QRNN, and images (j) to (l) show the results of RMD

LSTM.

jects that are represented by more than one matrix en-

try. This occurs in rare cases and is therefore trouble-

some for learning. Examples are shown in Figure 6

(a), (d) and (j), where doors are incomplete or mis-

taken for a window. Other problems that can occur

are that objects are added by mistake, existing objects

are expanded, or a combination of both, resulting in

an unwanted contiguous cluster of objects.

So far, we have limited the training of neural net-

works to windows and doors. However, other facade

objects can be treated in a similar way. A major lim-

itation in the application of LSTMs is currently the

high memory usage. MD LSTM and RMD LSTM

required between 21 and 23 GB of GPU memory of

LSTM Architectures for Facade Structure Completion

(a) (b) (c)

(d) (e) (f)

(g) (h) (i)

(j) (k) (l)

Figure 6: Objects were randomly removed from the ground truth of the Graz50 dataset. Remaining objects are marked with

red boxes. The RMD LSTM network added most of the missing objects. Added objects are annotated with green boxes.

GRAPP 2021 - 16th International Conference on Computer Graphics Theory and Applications

the graphics card, depending on the number of hidden

units used. Future work should deal with reducing

memory consumption.

REFERENCES

Abadi, M., Agarwal, A., Barham, P., Brevdo, E., Chen,

Z., Citro, C., Corrado, G. S., Davis, A., Dean, J.,

Devin, M., Ghemawat, S., Goodfellow, I., Harp, A.,

Irving, G., Isard, M., Jia, Y., Jozefowicz, R., Kaiser,

L., Kudlur, M., Levenberg, J., Man

e, D., Monga,

R., Moore, S., Murray, D., Olah, C., Schuster, M.,

Shlens, J., Steiner, B., Sutskever, I., Talwar, K.,

Tucker, P., Vanhoucke, V., Vasudevan, V., Vi

egas,

F., Vinyals, O., Warden, P., Wattenberg, M., Wicke,

M., Yu, Y., and Zheng, X. (2015). TensorFlow:

Large-scale machine learning on heterogeneous sys-

tems. arXiv:1603.04467.

Arjovsky, M. and Bottou, L. (2017). Towards principled

methods for training generative adversarial networks.

arXiv:1701.04862.

Arjovsky, M., Chintala, S., and Bottou, L. (2017). Wasser-

stein GAN. arXiv:1701.07875.

Bertalmio, M., Sapiro, G., Caselles, V., and Ballester, C.

(2000). Image inpainting. In Proceedings of the 27th

annual conference on Computer graphics and inter-

active techniques, pages 417–424.

Bochkovskiy, A., Wang, C.-Y., and Liao, H.-Y. M. (2020).

YOLOv4: Optimal speed and accuracy of object de-

tection. arXiv:2004.10934.

Bradbury, J., Merity, S., Xiong, C., and Socher, R.

(2016). Quasi-recurrent neural networks. arXiv

arXiv:1611.01576.

Dai, D., Riemenschneider, H., Schmitt, G., and Van Gool,

L. (2013). Example-based facade texture synthesis. In

Proceedings of the IEEE International Conference on

Computer Vision (ICCV), pages 1065–1072.

Dehbi, Y., Staat, C., Mandtler, L., Pl, L., et al. (2016). In-

cremental reﬁnement of facade models with attribute

grammar from 3D point clouds. ISPRS Annals of the

Photogrammetry, Remote Sensing and Spatial Infor-

mation Sciences, 3:311.

Goodfellow, I., Pouget-Abadie, J., Mirza, M., Xu, B.,

Warde-Farley, D., Ozair, S., Courville, A., and Ben-

gio, Y. (2014). Generative adversarial nets. In Ghahra-

mani, Z., Welling, M., Cortes, C., Lawrence, N. D.,

and Weinberger, K. Q., editors, Advances in Neu-

ral Information Processing Systems 27, pages 2672–

2680. Curran Associates, Inc.

Graves, A., Fern

andez, S., and Schmidhuber, J. (2007).

Multi-dimensional recurrent neural networks. CoRR,

abs/0705.2011.

oger, G., Kolbe, T. H., and Czerwinski, A. (2007).

OpenGIS CityGML Implementation Speciﬁcation

(City Geography Markup Language). Open Geospa-

tial Consortium Inc, OGC.

Guillemot, C. and Le Meur, O. (2014). Image inpaint-

ing: Overview and recent advances. Signal Processing

Magazine, IEEE, 31:127–144.

He, K., Gkioxari, G., Dollar, P., and Girshick, R. (2017).

Mask R-CNN. In Proceedings of the IEEE Interna-

tional Conference on Computer Vision (ICCV), pages

2961–2969.

He, K., Zhang, X., Ren, S., and Sun, J. (2016). Deep resid-

ual learning for image recognition. In Proceedings of

the IEEE Conference on Computer Vision and Pattern

Recognition (CVPR), pages 770–778.

Hensel, S., Goebbels, S., and Kada, M. (2019). Fa-

cade reconstruction for textured LoD2 citygml mod-

els based on deep learning and mixed integer linear

programming. ISPRS Annals of Photogrammetry, Re-

mote Sensing and Spatial Information Sciences, IV-

2/W5:37–44.

Hu, H., Wang, L., Zhang, M., Ding, Y., and Zhu, Q. (2020).

Fast and regularized reconstruction of building fa-

cades from street-view images using binary integer

programming. ISPRS Annals of Photogrammetry, Re-

mote Sensing and Spatial Information Sciences, V-2-

2020:365–371.

Huang, J.-B., Kang, S. B., Ahuja, N., and Kopf, J. (2014).

Image completion using planar structure guidance.

ACM Transactions on graphics (TOG), 33(4):1–10.

Kalchbrenner, N., Danihelka, I., and Graves, A. (2015).

Grid long short-term memory. arXiv:1507.01526.

Lin, T.-Y., Goyal, P., Girshick, R., He, K., and Dollar, P.

(2017). Focal loss for dense object detection. In

Proceedings of the IEEE International Conference on

Computer Vision (ICCV), pages 2980–2988.

Mtibaa, F., Nguyen, K.-K., Azam, M., Papachristou, A.,

Venne, J.-S., and Cheriet, M. (2020). LSTM-based

indoor air temperature prediction framework for hvac

systems in smart buildings. Neural Computing and

Applications, pages 1–17.

Nazeri, K., Ng, E., Joseph, T., Qureshi, F. Z., and Ebrahimi,

M. (2019). Edgeconnect: Generative image inpainting

with adversarial edge learning. arXiv:1901.00212.

Riemenschneider, H., Krispel, U., Thaller, W., Donoser,

M., Havemann, S., Fellner, D., and Bischof, H.

(2012). Irregular lattices for complex shape grammar

facade parsing. In Proceedings of the 2012 IEEE Con-

ference on Computer Vision and Pattern Recognition,

pages 1640–1647.

Salehinejad, H., Sankar, S., Barfett, J., Colak, E., and

Valaee, S. (2017). Recent advances in recurrent neural

networks. arXiv:1801.01078.

Sherstinsky, A. (2020). Fundamentals of Recurrent Neu-

ral Network (RNN) and Long Short-Term Memory

(LSTM) network. Physica D: Nonlinear Phenomena,

404:132306.

Teboul, O., Kokkinos, I., Simon, L., Koutsourakis, P., and

Paragios, N. (2011). Shape grammar parsing via rein-

forcement learning. In Proceedings of the IEEE Con-

ference on Computer Vision and Pattern Recognition

(CVPR), pages 2273–2280. IEEE.

Tobin, J., Fong, R., Ray, A., Schneider, J., Zaremba, W., and

Abbeel, P. (2017). Domain randomization for transfer-

ring deep neural networks from simulation to the real

world. In Proceedings of the 2017 IEEE/RSJ Interna-

LSTM Architectures for Facade Structure Completion

tional Conference on Intelligent Robots and Systems

(IROS), pages 23–30.

Tyle

cek, R. and

ara, R. (2013). Spatial pattern templates

for recognition of objects with regular structure. In

Weickert, J., Hein, M., and Schiele, B., editors, Pat-

tern Recognition, pages 364–374, Berlin, Heidelberg.

Springer.

Wonka, P., Wimmer, M., Sillion, F., and Ribarsky, W.

(2003). Instant architecture. ACM Transactions on

Graphics (TOG), 22(3):669–677.

Yu, J., Lin, Z., Yang, J., Shen, X., Lu, X., and Huang,

T. S. (2018). Generative image inpainting with con-

textual attention. In Proceedings of the IEEE Con-

ference on Computer Vision and Pattern Recognition

(CVPR), pages 5505–5514.

Zhang, D. and Wang, D. (2016). Relation classiﬁcation:

CNN or RNN? In Lin, C.-Y., Xue, N., Zhao, D.,

Huang, X., and Feng, Y., editors, Natural Language

Understanding and Intelligent Applications. ICCPOL

2016, NLPCC 2016. Lecture Notes in Computer Sci-

ence, volume 10102, pages 665–675, Cham. Springer

International Publishing.

GRAPP 2021 - 16th International Conference on Computer Graphics Theory and Applications
