Robustness-driven Exploration with Probabilistic Metric Temporal

Logic

Xiaotian Liu

1

, Pengyi Shi

1

, Tongtong Liu

1

, Sarra Alqahtani

1

, Paul Pauca

1

and Miles Silman

2

1

Computer Science Department, Wake Forest University, Winston Salem, NC, U.S.A

2

Biology Department, Wake Forest University, Winston Salem, NC, U.S.A.

Keywords: Exploration, Metric Temporal Logic, Robustness, MCMC.

Abstract: The ability to perform autonomous exploration is essential for unmanned aerial vehicles (UAV) operating in

unknown environments where it is difficult to describe the environment beforehand. Algorithms for

autonomous exploration often focus on optimizing time and full coverage in a greedy fashion. These

algorithms can collect irrelevant data and wastes time navigating areas with no important information. In this

paper, we aim to improve the efficiency of exploration by maximizing the probability of detecting valuable

information. The proposed approach relies on a theory of robustness based on Probabilistic Metric Temporal

Logic (P-MTL) which is traditionally applied to offline verification and online control of hybrid systems. The

robustness values would guide the UAV towards areas with more significant information by maximizing the

satisfaction of the predefined P-MTL specifications. Markov Chain Monte Carlo (MCMC) is utilized to solve

the P-MTL constraints. We tested our approach over Amazonian rainforest to detect areas occupied by illegal

Artisanal Small-scale Gold Mining (ASGM) activities. The results show that our approach outperforms a

greedy exploration approach from the literature by 38% in terms of ASGM coverage.

1 INTRODUCTION

Exploration is often an important first step in tasks of

robotics and autonomous vehicles, such as mapping,

rescue missions, or path planning in unknown

environments. Techniques that tackle this problem

typically focus on exploration time and coverage, i.e.

how fast and how much of an unexplored area can be

explored (Bircher et al., 2016; Yamauchi, 1997; Selin

et al., 2019). Although optimizing coverage and time

for exploration problems is crucial, it is important in

some problem domains to consider exploiting the

detected information about the environment while

exploring it to prioritizing the exploration of

interesting areas encountered during flight. Adding

such spatial and temporal considerations into

exploration enhances the decision robustness about

the navigation behaviour of the UAV and introduces

some predictability on where the vehicle could move

next. Moreover, it is usually more desirable to gather

knowledge and information about certain areas than

wasting the vehicle’s resources such as flight time or

its local storage exploring the whole environment.

In this paper, we address the problem of mapping

mercury-based Small-scale Gold Mining (ASGM) in

Amazonian Forest (Koymans, 1990). Mercurybased

ASGM causes more mercury pollution than any other

human activity on Earth, leading to major effects on

the environment, health, and local economies. It is a

global issue affecting 10 to 19 million people in over

70 countries (Adler et al., 2014). Though satellite

remote sensing would be ideal for monitoring ASGM

sites (e.g. (Heng et al., 2015)), satellites do not

currently produce images of sufficient resolution to

accurately detect ASGM and differentiate, for

example, between active and inactive mining sites

(e.g. (González-Baños and Latombe, 2002)).

Moreover, satellite monitoring is not possible in

cloudy and rainy weather which is very common in

areas like the Amazon forest. UAVs can overcome

those issues. They are affordable, easy to use,

versatile, and even suitable in barely accessible areas.

They also deliver high resolution data, mostly

independent of cloud cover condition. However, the

UAV field of view is significantly smaller than that

of a satellite. To use UAVs to collect information in

Amazon, its acquisition of image data needs to reduce

the flight time, the required storage, and classification

burden of the collected images. According to

researchers who collect images using a small UAV in

Liu, X., Shi, P., Liu, T., Alqahtani, S., Pauca, P. and Silman, M.

Robustness-driven Exploration with Probabilistic Metric Temporal Logic.

DOI: 10.5220/0010192100570066

In Proceedings of the 13th International Conference on Agents and Artiﬁcial Intelligence (ICAART 2021) - Volume 2, pages 57-66

ISBN: 978-989-758-484-8

Copyright

c

2021 by SCITEPRESS – Science and Technology Publications, Lda. All rights reserved

57

Amazon Forest for their ASGM research (Karaman

and Frazzoli, 2019), a full exploration of a small area

as of 8x8 km2 requires almost 8 separate flights; each

flight has been done in 4 hours; acquiring 7200

images.

In this specific instance of exploration problem,

the UAV would explore the given simulated map

looking for ASGM. The environment is unknown and

the only input to the system is the onboard recognition

system for materials and machinery used in ASGM.

The goal is to improve the efficiency of exploration:

i.e. to maximize the probability of detecting ASGM

relative to the exploration effort that has been

expended. To achieve that, we develop a novel

robustness-driven exploration (RDE) approach to

constrain a UAV movement according to user-

defined spatial and temporal constraints expressed in

P-MTL. These constraints guide the exploration into

ASGM areas in the environment which we call Areas

of Interest (AoI) based on the online detection of

ASGM features. The first contribution of our work is

the proposal of a method to explore unknown

environment according to a robustness function that

considers the degree of satisfaction of P-MTL

specifications of AoI. By utilizing the notion of

robustness for Metric Temporal Logic (MTL)

(Karaman and Frazzoli, 2011), we can quantify how

robustly a UAV’s exploration decision satisfies a P-

MTL specification.

The second contribution is adopting MCMC to

solve the P-MTL constraints. The MCMC technique

is used as a local exploration strategy and is combined

with a simplified version of Frontier Exploration

(Yamauchi, 1997) for global exploration. When a

new AoI is available close to the UAV, the local

exploration strategy is used, but when it is far away

from any AoI, previously seen but not-visited-yet

positions with potential high robustness are explored

instead. This simple technique helps the MCMC

avoid getting stuck locally when exploring large areas

with small or zero robustness values (i.e. no ASGM).

The performance of RDE is evaluated by

simulating UAV exploration over five different

regions of the Amazon Forest in Peru to detect areas

occupied by illegal mining activities. We test RDE

against the Autonomous Exploration Planner (AEP)

proposed in (Selin et al., 2019). The results show that

our proposed approach outperforms AEP in terms of

AoI coverage by 38%.

The remainder of this paper is organized as

follows. The next section further discusses the related

work of the autonomous exploration and the temporal

logic robustness and its application to exploration and

navigation problems. In section 3, we introduce the

problem definition and briefly review MTL

robustness and P-MTL. Section 4 discusses the

proposed approach, and Section 5 presents the results

and discusses future work.

2 RELATED WORK

Early autonomous exploration methods explored

simple environments, for example, by following walls

or similar obstacles. Frontier exploration (Yamauchi,

1997) was the first exploration method that could

explore a generic 2D environment. It defines frontier

regions as the borders between free and unexplored

areas. Exploration is done by sequentially navigating

close frontiers. Repetition of this process leads to

exploring the whole space. Advanced variants of this

algorithm were presented in (Alqahtani et al., 2018;

Ayala et al., 2013; Vasile et al., 2017) also improving

the coverage of unknown space along the path to the

frontier.

Next-best-view (NBV) exploration is a common

alternative to frontier-based exploration. A Receding

Horizon NBV planner is developed in (Bircher et al.,

2016), for online autonomous exploration of

unknown 3D spaces. The proposed planner employed

the rapidly exploring random tree RRT with a cost

function that considers the information gain at each

node of the tree. A path to the best node was extracted

and the algorithm was repeated after each time the

vehicle moved along the first edge of the best path.

An extension of this work is proposed in (Selin et al.,

2019) to resolve the problem of getting stuck in local

minima by extending it with frontier-based planner

for global exploration. Our approach also samples

NBV according to the current vision of the UAV. In

contrast to previously mentioned research, the views

are randomly sampled as potential targets in our

approach via MCMC and evaluated by their

robustness values of the P-MTL constraints. In most

cases, very few sampled positions suffice to

determine a reasonably good next target.

Recently, temporal logics have been used in the

context of robotic motion and path planning in

unknown environments. For instance, deterministic

μ-calculus was used to define specifications for

sampling-based algorithms (Barbosa et al., 2019),

Linear Temporal Logic (LTL) was coupled with

RRT* (Caballero et al., 2018), robustness of Metric

Temporal Logic (MTL) has been embedded in A*

(Esdaile and Chalker, 2018) to increase the safety of

UAVs navigating adversarial environments. Ayala et

al. assumed that some properties of unknown

environments can be identified earlier and used in

ICAART 2021 - 13th International Conference on Agents and Artiﬁcial Intelligence

58

Linear Temporal Logic (LTL) formulas, such that the

exploration terminates once the formula is satisfied

(Swenson et al., 2011). In (Asner, 2013), the

researchers use co-safe LTL (cs-LTL) in their motion

planning algorithm to compromise between

satisfaction of customer demands and violation of

road rules).

3 PRELIMINARIES

In this section, we provide the syntax and semantics

for MTL and P-MTL specifications and how we use

them to formally define our exploration problem.

3.1 MTL Robustness

Definition 1: (MTL Syntax). Let AP be the set of

atomic propositions and be a time interval of . The

MTL formula is recursively defined using the

following grammar (Karaman and Frazzoli, 2011):

(1)

T is the Boolean True, , ¬ is the Boolean

negation, and are the logical OR and AND

operators, respectively.

is the timed until operator

and the interval I imposes timing constraints on the

operator. Informally,

means that

must hold

until

holds, which must happen within the interval

I. The implication (), Always (□), Next (○), and

Eventually (◊) operators can be derived using the

above operators.

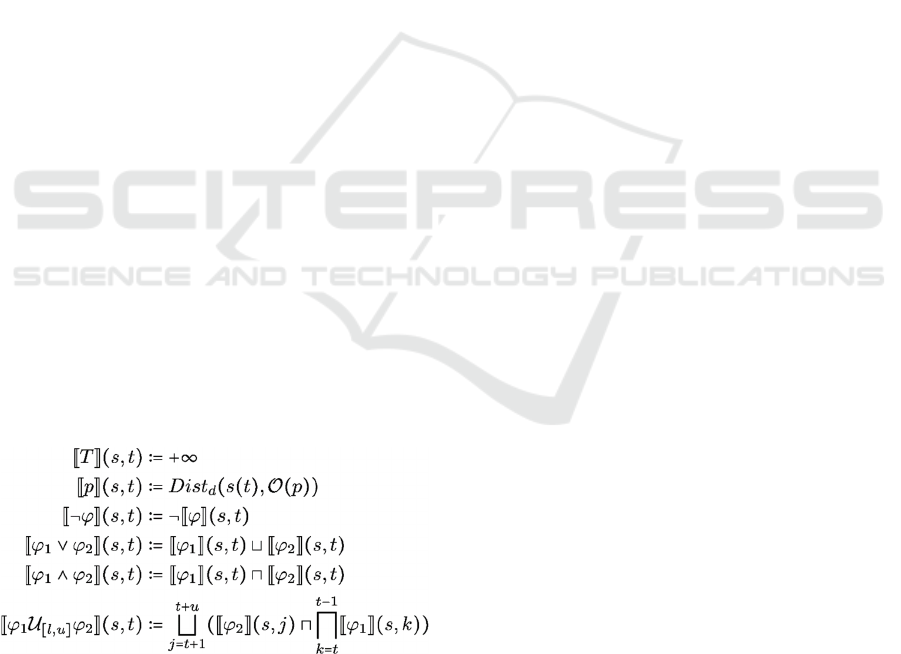

To formally measure the robustness degree of at

the trajectory position at time , the robustness

semantics of is recursively defined as taken directly

from (Dokhanchi et al., 2014):

where stands for maximum, stands for minimum,

,and . The robustness is a real-valued

function of the trajectory position s with the following

important property stated in Theorem 1.

Theorem 1 (Dokhanchi et al., 2014): For any

and MTL formula , if is negative, then

does not satisfy the specification at time . If it is

positive, then satisfies at . If the result is zero,

then the satisfaction is undefined.

MTL robustness is adopted in this research to

measure how robust the exploration decision of the

UAV at any point of time with respect to its

specification expressed in MTL (Dokhanchi et al.,

2014). If an MTL specification valuates to positive

robustness , then the decision is right and, moreover,

can tolerate perturbations up to and still satisfy the

specification. Similarly, if is negative, then the

decision does not satisfy with a violation equal to -

.

3.2 P-MTL

Probabilistic-MTL (P-MTL) (Fainekos and Pappas,

2006) is an extension of MTL supporting reasoning

over both stochastic states and stochastic predictions

of states. The predictive operator is used to

refer to observed, estimated, and predicted states. The

predictive operator is informally defined as follows:

Observed state value:

Estimated state value:

Predicted state value:

where is the observation time, is the prediction

time, and is the stochastic state under investigation.

The value of

is the observed value of state at

time . On the other hand,

is the estimated value

of state s at time which is the prediction made at

time about the value of s at time . This operator is

useful when the detection results are in form of

probability distribution. The value of

is a

prediction made at time about the value of state s at

time

′

.

′

may be larger than (prediction about

the future) or smaller than (prediction about the

past).

4 AUTONOMOUS

EXPLORATION WITH P-MTL

ROBUSTNESS

The question we address in this work is: starting with

partially known map, which decisions should the

UAV perform to explore

completely and as fast

as possible guided by the detection results of ASGM?

Problem (P-MTL Satisfaction). For an P-MTL

specification , the P-MTL satisfaction problem

consists of finding an output state of the system

starting from some initial state

under a control

Robustness-driven Exploration with Probabilistic Metric Temporal Logic

59

input signal such that does satisfy the

specification with the required robustness .

An overview of our proposed approach to resolve

Problem (P-MTL Satisfaction) is shown in Fig.1. At

every time step, the object recognition module would

generate probabilities for the detected AoI inside the

UAV’s vision. Then, based on the detection results,

MCMC sampler would select a position from the set

of neighbors and a vector of parameters that

characterize the control input signal (i.e. speed and

altitude). The selected position is then analyzed by the

P-MTL robustness analyzer which would return a

robustness score . In turn, if is less than a

predefined threshold then the stochastic sampler

would be called again to select another position for

analysis. If in this process, a position with greater

than is found, it is used by the path planner RA*

(Esdaile and Chalker, 2018) to move the UAV to that

position. RA* has been originally implemented to

embed MTL robustness into A* to avoid mobile

obstacles in hostile environments. We change its

MTL constraints to allow the UAV to explore the AoI

available around the path while still be target

oriented.

Using the MTL syntax (Definition 1) and the

informal definition of P-MTL, we define the P-MTL

specification of our problem of RDE as follows:

(2)

The first property of the formula

represents a safety constraint requiring the UAV to

keep its battery level above a certain threshold

to get back to homebase. The threshold

would

be updated dynamically based on the current position

of the UAV in the map.

specifies that the UAV should stay inside areas with

a likelihood of being AoI above . This property is

classified as a liveness (i.e. preferred) property.

To decrease the possibility that the UAV wastes

time exploring non-AoI, the conditional liveness

property

asks the UAV to stay a

maximum of time steps inside areas with likelihood

of being less than and when that happened the

UAV must immediately (i.e. next decision) find

another area with higher estimation of AoI or

terminate the mission and go back to homebase.

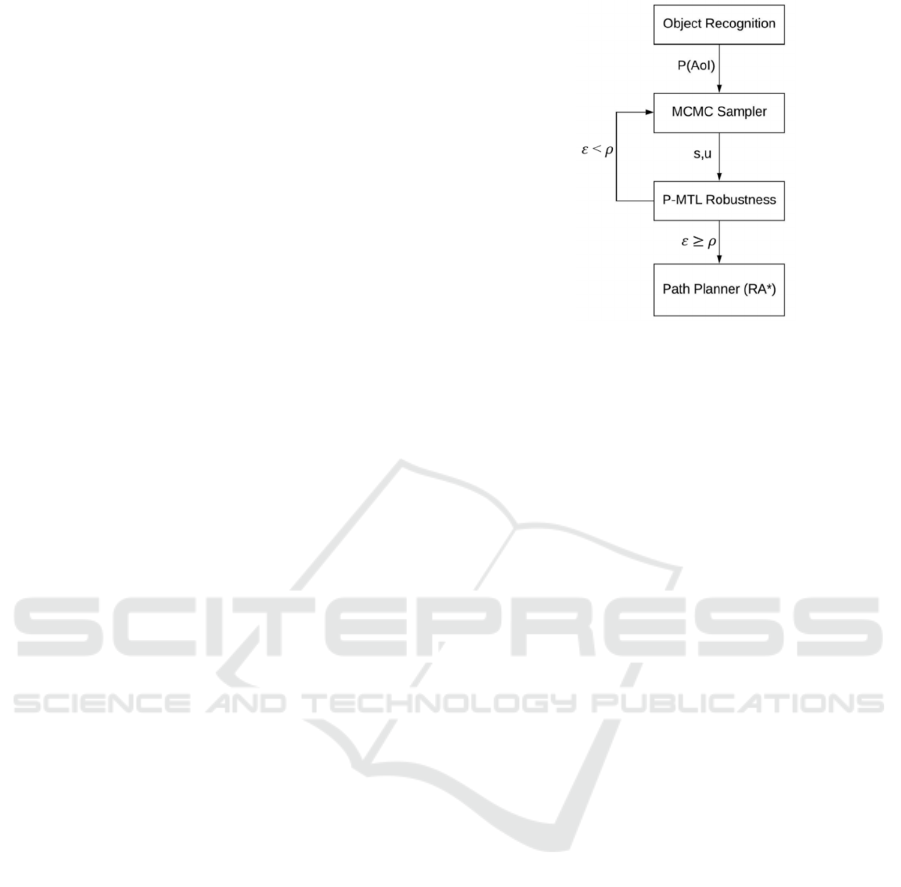

Figure 1: Proposed approach for RDE problem.

In order to compute the P-MTL robustness for our

exploration problem, we must define the Signed

Distance,

to reflect the domain properties

(Dokhanchi et al., 2014). In this paper, we define two

functions to measure the distance from the

propositions of the AoI and the minimum battery

level Bmin (Fig.2). The location pins symbol

represents AoI and the quadrotor drone symbol is the

exploring UAV. The proposed approach analyzes the

neighbor positions of the current position of the

UAV and makes a decision about the next target

based on the distance and depth functions given in

Definition 2 and 3 next.

Definition 2 (AoI function): Given that

is

the position that is under robustness analysis, is the

probability of

being inside an AoI given by the

object recognition system, and is the minimum

threshold for the detection results, the

between

and the closest AoI is defined as:

) =

(3)

Then, we define a depth function to measure the

distance between the position

that is under

robustness analysis and the UAV resource limit.

We assume that the UAV starts its mission with full

battery (B=100%) to explore the assigned

environment. Given that the UAV moves with

velocity, we define a region centered at with

radius

to find the farthest positions that the

UAV could travel while still being able to go back

home.

With this region defined (Fig. 2), we can define

the function

.

ICAART 2021 - 13th International Conference on Agents and Artiﬁcial Intelligence

60

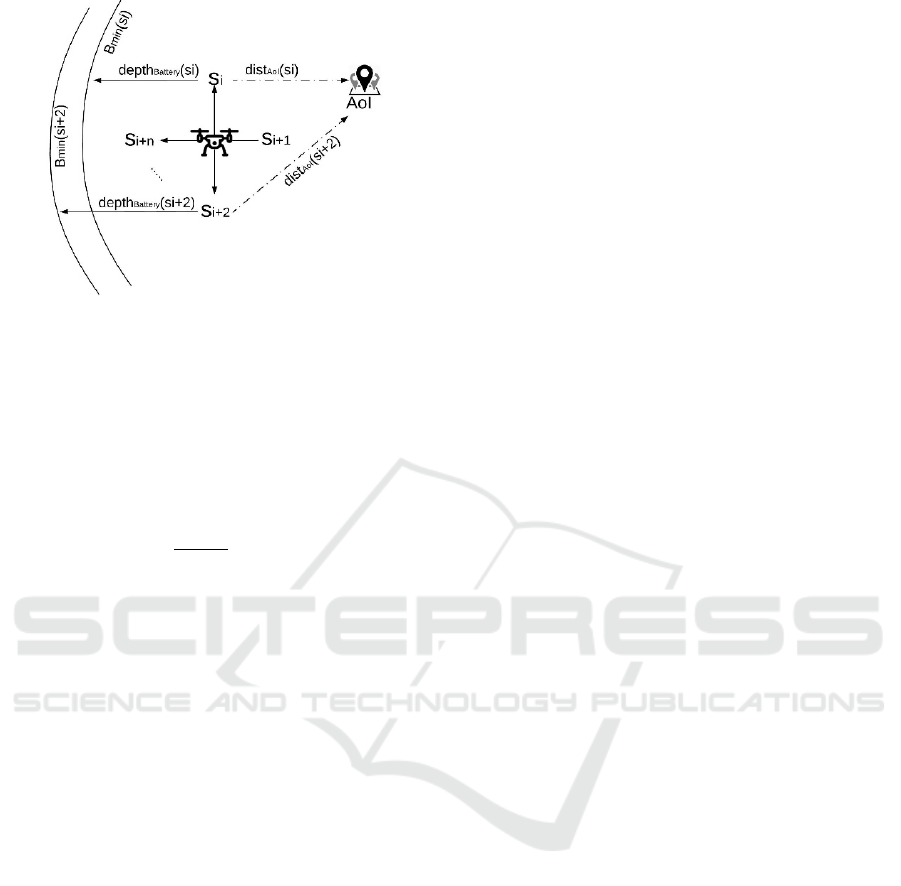

Figure 2: The structure of the Signed Distance in RDE

domain.

Definition 3 (Battery Life function): Given

that B is the current level of the battery life and

is the battery minimum threshold,

function for the UAV at position

is

defined as:

(4)

The function

measures the distance

to the closest edge of the region defined by a

constraint centered on the position

. It should be

noted that the defined regions include a third

dimension for time. Therefore, the outer edges of the

structure shown in Fig.2 would shrink over time.

Given a position

, we have defined a robustness

metric

that denotes how

robustly

satisfies (or falsifies) at time t. The

robustness metric

maps each position

to a real

number . The sign of indicates whether

satisfies

and its magnitude || measures its robustness value.

More generally, given a robustness threshold

and a neighboring function to return a set of

positions which are in neighboring distance (i.e.

within the range of the UAV) from the UAV’s current

location, we need to find:

(5)

Using the dist and depth functions, the P-MTL

robustness degree of in equation 2 can be point-

wise computed for each position

under robustness

analysis to solve the RDE problem in equation 5.

The robustness of the safety property in equation

2 measured at each neighbor position since it must

hold during the whole trajectory. To measure the

robustness of the safety constraint for position s, we

use the MTL robustness semantic with duration of [1,

1] to guarantee the constraint satisfaction during all

time steps. In order to apply the robustness semantic,

the always, eventually, and next operators are

converted into the Until operator using the conversion

rules in (Barbosa et al., 2019). Then, the robustness

becomes a minimum function of the robustness of True

value and the

function as illustrated in

equation 6. Since the robustness of True by semantic is

positive infinity, the robustness function becomes

about the value of

. Equation 6 measures

how far away the UAV is from being out of battery if

it chooses to explore position

.

(6)

The robustness of the liveness property evaluates

the reachability of AoI

from position

in equation 7.

The robustness becomes about the distance from

to

the closest AoI.

(7)

On the other hand, the robustness of the conditional

liveness property evaluates the ability of the UAV to

avoid being stuck in non-AoI for longer than time

steps in equation 8. This property forces the UAV to

find another position closer to an AoI or to go to

homebase and terminate the mission indicating that it

has successfully explored the AoI of the given

environment. The robustness of the P-MTL semantic

for this property selects the closest position to an AoI.

In order to be able to explore another AoI even when

the neighbor positions are all classified as non-AoI, we

develop a simple technique to allow the UAV to

memorize the locations of previously seen but not-

explored-yet areas that can be potentially classified as

AoI inspired by the developed behavior of Frontier

Exploration in (Selin et al., 2019). We call those

locations cached points. Hence, the UAV would keep

a local list of cached points while exploring other areas

with higher likelihood of being AoI in order to use

them to satisfy its conditional liveness property.

The robustness function in equation 2 becomes

about finding the minimum values of the results of

equations 6-8.

Robustness-driven Exploration with Probabilistic Metric Temporal Logic

61

(8)

4.1 MCMC Sampling

In this section, we explain our sampling method using

Markov Chain Monte Carlo to solve equation 5 based

on the computed robustness in equations 6-8. The

MCMC technique presented here is based on

acceptance-rejection sampling (Tiger and Heintz,

2016). Typically, Monte-Carlo based techniques are

widely used for solving global optimization problems

(Chib and Greenberg, 1995). In this paper, we adopt

a class of MCMC sampling techniques called the

Metropolis-Hastings (Tiger and Heintz, 2016) to

stochastically walk the UAV over a Markov chain

that is defined by the P-MTL robustness.

Our sample space consists of the neighbors of the

UAV’s current position such that the next generated

position for the UAV to explore is randomly selected

satisfying the problem specification in equation 5.

Algorithm 1 maximizes the robustness of equation 5

to find a position that has higher estimation of AoI.

First, the function is used to find the neighbors of

the input position

. Then, the algorithm uniformly

chooses one random neighbor

and sample the

robustness function at the neighbor

. If

, then the neighbor position is returned as the

next target. Otherwise, the ratio

is computed as the acceptance probability for

the new proposal. Note that if (i.e,

), then the proposed neighbor is accepted with

certainty. Even if

, the proposal may

still be accepted with some non-zero probability. If

the proposal is accepted, then

is returned as the next

target position. Failing this,

remains as the next

target. In general, MCMC techniques require the

design of a proposal scheme for choosing a proposal

given the current position

. The convergence of

the sampling to the underlying distribution defined by

f depends critically on the choice of this proposal

distribution. In this paper, we choose the Gibbs-

Boltzmann function following the Metropolis-

Hastings algorithm (Tiger and Heintz, 2016) because

of its relatively fast convergence. In Gibbs-

Boltzmann distribution, is a constant 1/kT, which is

the inverse of the product of Boltzmann's constant k

and thermodynamic temperature T.

Our sample space consists of the neighbors of the

UAV’s current position such that the next generated

position for the UAV to explore is randomly selected

satisfying the problem specification in equation 5.

Algorithm 1 maximizes the robustness of equation 5 to

find a position that has higher estimation of AoI. First,

the function is used to find the neighbors of the input

position

. Then, the algorithm uniformly chooses one

random neighbor

and sample the robustness function

at the neighbor

. If

, then the neighbor

position is returned as the next target. Otherwise, the

ratio

is computed as the

acceptance probability for the new proposal. Note that

if

(i.e,

)

, then the proposed neighbor is

accepted with certainty. Even if

, the

proposal may still be accepted with some non-zero

probability. If the proposal is accepted, then

is

returned as the next target position. Failing this,

remains as the next target. In general, MCMC

techniques require the design of a proposal scheme for

choosing a proposal

given the current position

.

The convergence of the sampling to the underlying

distribution defined by f depends critically on the

choice of this proposal distribution. In this paper, we

choose the Gibbs-Boltzmann function following the

Metropolis-Hastings algorithm (Tiger and Heintz,

2016) because of its relatively fast convergence. In

Gibbs-Boltzmann distribution, is a constant 1/kT,

which is the inverse of the product of Boltzmann's

constant k and thermodynamic temperature T.

Algorithm 1: MCMC Sampling Algorithm.

Input:

: current position, f(

)=

Robustness Function,

:

Robustness threshold

Output:

begin

Uniformly choose one random neighbor

if f(

) > && f(

) >f(

)

return

else

r ← UniformRandomReal(0, 1) ;

if (r) then

return

else

return

end

4.2 RDE Algorithm

Algorithm 2 implements a local-search technique in

an unknown environment to compute a trajectory that

ICAART 2021 - 13th International Conference on Agents and Artiﬁcial Intelligence

62

(a)

(b) (c)

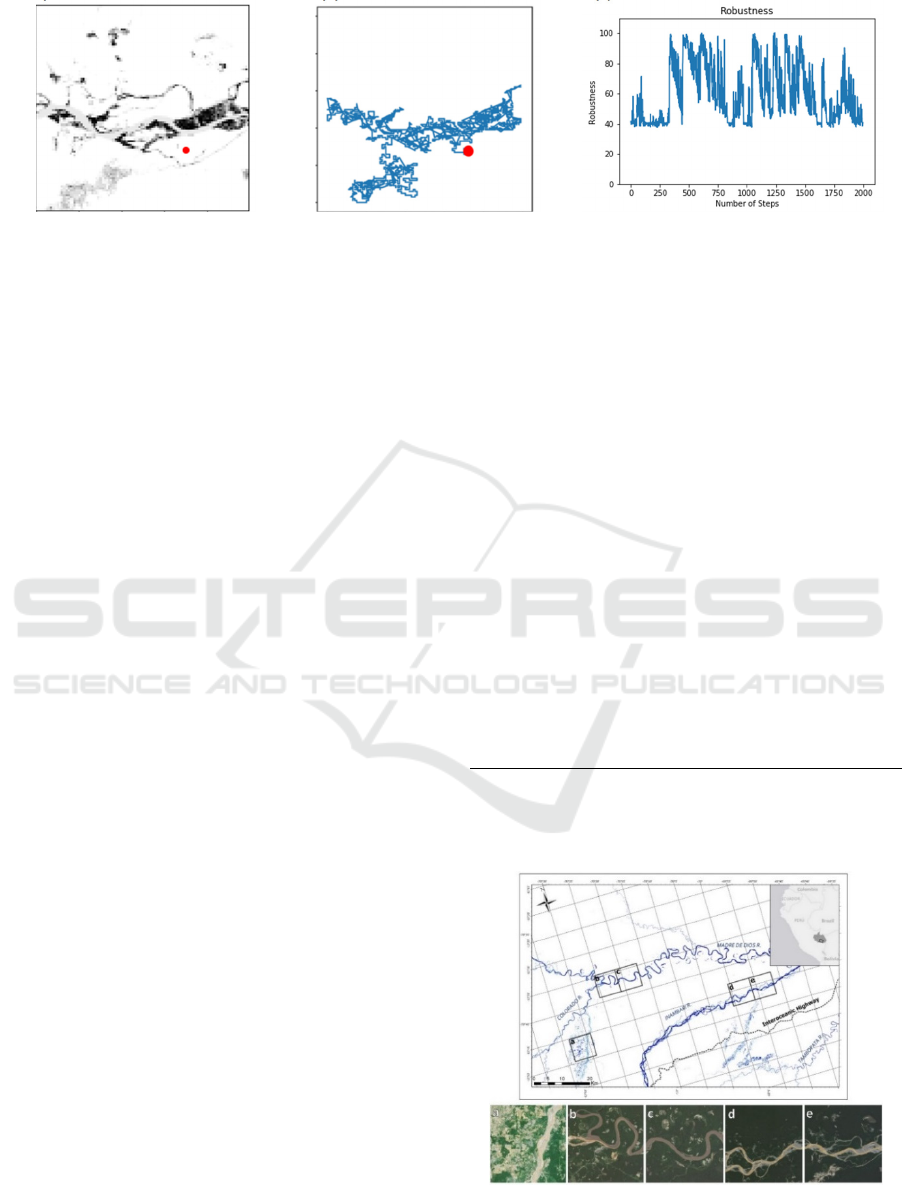

Figure 3: (a) Satellite image from Amazon Forest in Peru, (b) Flight trajectory generated by RDE, and (c) robustness value of

the exploration decision at each time step.

would lead the UAV to navigate more AoI while

maintaining its battery constraint. The algorithm

starts by picking a random position to begin the flight.

The algorithm would move the UAV at each time step

to a position with a robustness larger than generated

via the MCMC algorithm (Algorithm1). However,

MCMC is a stochastic algorithm by nature and it

could take many iterations to converge from the

current position to the target position with an

acceptable robustness. Moreover, MCMC runs the

risk of getting stuck in local maxima; areas where the

robustness is higher for the current position than for

its close neighbors, but lower than for locations that

are further away. This could potentially happen when

the UAV explores a large area with little to zero

significant interest. This is remedied by setting a

threshold α to stop the MCMC from generating the

same results and enforce the algorithm to use one of

the cached points, which in this case, represent further

away locations with more robustness values. After

making a decision about the next target, we use RA*,

a path planner algorithm that has been developed

using MTL robustness and A* (Esdaile and Chalker,

2018) to find the path from the current to the next

positions that would give the UAV exposure to more

AoI if there is any around the path.

Back to our ASGM problem, Fig.3(a) shows a

simulated map of the likelihood of finding ASGM for

an area in Amazon forest in Peru. The darker the color

the higher the likelihood is for the area to have

ASGM. Such likelihood values would be provided by

the object detection system onboard the UAV for

small areas within its range of vision. The red circle

represents the starting point of the flight. Fig. 3(b)

shows the flight trajectory that satisfies our RDE

specification in equation 2 and generated by

Algorithm 2 such that AoI is defined as areas of

ASGM. Fig.3(c) plots the robustness of the

exploration decision at each time step. Clearly, the

selected positions for the UAV’s trajectory in the

given map are concentrated in the more promising

regions with higher robustness values above

.

However, the resulting trajectory directly depends on

the starting point and the number of steps which

simulates the battery life of the UAV. More details

about this experiment are shown in next section.

Algorithm 2: RDE Algorithm.

Input: (2): Mission specification, f()=

Robustness

Function

: Robustness threshold,

: neighboring function.

begin

Randomly pick a starting point

While (

)

count=0

While

==

&& count

MCMC(

)

count++

end

if count> && cachedPoints!=

= getCachedPoint();

else

= home;

RA*(

)

End

5 EXPERIMENT

Figure 4: Satellite images for (a) Delta, (b) Colorado, (c)

Madre de Dios, (d) Inambari, (e) La Pampa.

Robustness-driven Exploration with Probabilistic Metric Temporal Logic

63

(a)

(b)

(c)

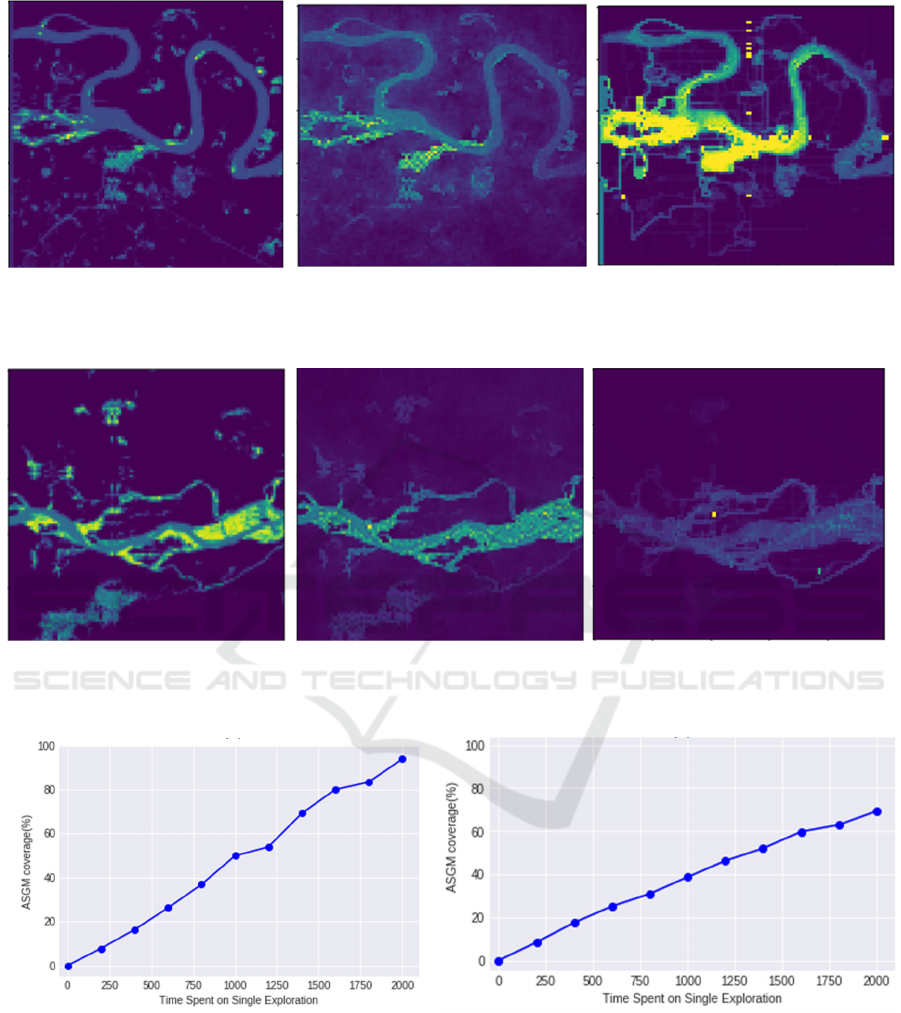

Figure 5: (a) Distributed ASGM in Colorado region(Figure 4.b), (b) Distribution of most frequent explored locations using

RDE, and (c) Distribution of most frequent explored locations using AEP.

(a)

(b) (c)

Figure 6: (a) Distributed ASGM in La Pampa (Figure 4.e), (b) Distribution of most frequent explored locations using RDE,

and (c) Distribution of most frequent explored locations using AEP.

(a)

(b)

Figure 7: (a) ASGM coverage with RDE (b) ASGM coverage with AE.

The main motivation for this paper is to increase the

UAV’s exploration percentage of ASGM in the

Amazon forest in Peru with limited resources (i.e.

battery and onboard storage). As part of this research,

we have developed an object recognition module

using YOLO (Rubinstein, 1981). Our object

recognition has been trained to detect different

components that are usually found around ASGM

areas such as dredges, floats, sluices, shacks/rooftops,

sand, water, and plantations. The results from the

object recognition have been simulated in this paper

to test the proposed RDE approach.

To help guide the UAV flights to areas with real

information, we implemented our RDE approach over

ICAART 2021 - 13th International Conference on Agents and Artiﬁcial Intelligence

64

actual five 8x8 km

2

regions in Peru (.a.Delta,

b.Colorado, c.Madre de Dios, d.Inambari, e. La

Pampa) (Fig.4). We simulate motion of the UAV (as

well as the onboard object detection system) and keep

its altitude fixed by setting the field of view to 200x200

m

2

. We test our RDE approach against the AEP

approach developed in (Selin et al., 2019). However,

due to the space limitation, we only showed the heat

maps for two regions b and e (Colorado, La Pampa).

Fig.5 (a) shows the likelihood of ASGM areas in

the regions b and e shown in (Fig. 4), the color scale

is between yellow and green such that dark yellow

areas have higher probability of having ASGM. Fig.

5 (b) shows the most frequent explored positions in

region b using the proposed RDE approach. We

collected those points by running RDE on 100 trials

with 2000 time steps per each trail starting from

random positions in each run. The green and yellow

colors represent the most visited areas such that areas

in yellow are visited more than areas with green color.

We then explored the same region b using the AEP

(Fig. 4 (c)). The testing results for region e are

illustrated in Fig. 5. For both regions, our approach

was clearly able to navigate the majority of ASGM

areas in comparison to AEP while spending less time

inside vegetation areas. However, AEP was faster in

making decisions than RDE by average of 29% when

exploring the areas shown in Fig.4. AEP uses a

greedy algorithm which guaranteed faster execution

but not necessarily good coverage for ASGM while

RDE needs to compute the robustness of P-MTL

constraints before each exploration decision and use

the MCMC sampler to select the next target with

higher robustness.

Fig.7 illustrates the average coverage of ASGM in

all regions shown in Fig.4 using our RDE and AEP

with different numbers of time steps respectively. The

time steps here represent the battery life for the UAV.

The percentage of coverage grows linearly with the

allotted time for both approaches, but the RDE covers

more ASGM areas by approximately 38% over AEP.

6 CONCLUSIONS

In this paper, we presented a new exploration

approach RDE that incorporates the online discovered

knowledge into the exploration decisions for UAVs.

RDE uses the robustness of P-MTL specifications to

guide the stochastic process of MCMC to make the

exploration decisions in completely unknown

environment. We have tested our approach on four

simulated areas in Amazon forest in Peru to look for

mining areas (e.g. ASGM). In comparison to a greedy

approach called AEP (Selin et al., 2019), our

approach leads the UAV into more areas classified as

ASGM than AEP without getting stuck or spending

long time in vegetation areas. In future work, we

intend to test our approach on real UAVs in Amazon

forest. In order to do that, we have to incorporate the

dynamics of the UAV and the control information

(i.e. speed, altitude) into the P-MTL specifications of

the problem.

REFERENCES

A. Bircher, M. Kamel, K. Alexis, H. Oleynikova, and R.

Siegwart (2016). Receding horizon "Next-Best-View"

planner for 3D exploration. In Proceedings of

International Conference on Robotics and Automation

ICRA, 2016.

A. Dokhanchi, B. Hoxha, and G. Fainekos (2014), On-Line

monitoring for temporal logic robustness.In

Proceedings of International Conference on Runtime

Verification, 2014.

A.I.M Ayala, S.B. Andersson, and C. Belta (2013).

Temporal logic motion planning in unknown

environments. In IEEE/RSJ International Conference

on Intelligent Robots and Systems, 2013.

B. Adler, J. Xiao, and J. Zhang (2014), Autonomous

exploration of urban environments using unmanned

aerial vehicles. Journal of Field Robotics, 2014.

B. Yamauchi (1997). A frontier-based approach for

autonomous exploration. In Proceedings of IEEE

International Symposium on Computational

Intelligence in Robotics and Automation CIRA, 1997.

C. Vasile, J. Tumova, S. Karaman, C. Belta, and D. Rus

(2017). Minimum-violation scLTL motion planning for

mobility-on-demand. In Proceedings of the IEEE

International Conference on Robotics and Automation

(ICRA), 2017

F. S. Barbosa, D. Duberg, P. Jensfelt, and J. Tumova

(2019). Guiding autonomous exploration with signal

temporal logic. In Proceedings of IEEE Robotics and

Automation, 2019.

G. Asner, W. Llactayo, R. Tupayachi, E. Ráez-Luna (2013).

Elevated rates of gold mining in the Amazon revealed

through high-resolution monitoring. In Proceedings of

the National Academy of Sciences of the United States

of America, 2013.

G. Fainekos, and G. Pappas (2006), Robustness of temporal

logic specifications. In Proceedings of the First

combined international conference on Formal

Approaches to Software Testing and Runtime

Verification. 2006.

H. Abbas, G. Fainekos, S. Sankaranarayanan, F. Ivan, and

A. Gupta (2013). Probabilistic Temporal Logic

Falsification of Cyber-Physical Systems. ACM

Transactions on Embedded Computing Systems

(TECS), 2013.

Robustness-driven Exploration with Probabilistic Metric Temporal Logic

65

H. González-Baños, and J. Latombe (2002). Navigation

strategies for exploring indoor environments. The

International Journal of Robotics Research, 2002. p.

829-848.

J. Caballero, M. Messinger, F. Román, C. Ascorra, L.

Fernandez, M. Silman (2018). Deforestation and forest

degradation due to gold mining in the Peruvian

Amazon: A 34-Year perspective. Remote Sensing,

2018.

J. Swenson, C.E Carter, J.C. Domec, C.I, Delgado (2011).

Gold mining in the Peruvian Amazon: global prices,

deforestation, and mercury imports. PLOS ONE, 2011.

L. Esdaile, and J. Chalker (2018), The mercury problem in

artisanal and small-scale gold mining. Chemistry - A

European Journal, 2018.

L. Heng, A. Gotovos, A. Krause, and M. Pollefeys (2015).

Efficient visual exploration and coverage with a micro

aerial vehicle in unknown environments. In

Proceedings of IEEE International Conference on

Robotics and Automation (ICRA), 2015

M. Messinger, G. Asner, and M. Silman (2016). Rapid

assessments of Amazon Forest structure and biomass

using small unmanned aerial systems. Remote Sensing,

2016.

M. Selin, M. Tiger, D. Duberg, F. Heintz, and P. Jensfelt

(2019). Efficient autonomous exploration planning of

large-scale 3-D environments. In Proceedings of IEEE

Robotics and Automation Letters.

M. Tiger, and F. Heintz (2016). Stream reasoning using

temporal logic and predictive probabilistic state

models . In Proceedings of 23rd International

Symposium on Temporal Representation and

Reasoning (TIME), 2016.

Redmon, J., et al. You Only Look Once: Unified, Real-

Time Object Detection. in 2016 IEEE Conference on

Computer Vision and Pattern Recognition (CVPR).

2016.

R. Koymans (1990). Specifying real-time properties with

metric temporal logic. Real-Time Systems.1990. p.

255-299.

Rubinstein, R.Y., Simulation and the Monte Carlo Method.

1981: John Wiley \& Sons, Inc. 304.

S. Alqahtani, I. Riley, S. Taylor, R. Gamble, and R, Mailler

(2018). MTL robustness for path planning with A*. In

Proceedings of the 17th International Conference on

Autonomous Agents and MultiAgent Systems. 2018. p.

247-255

S. Chib, and E. Greenberg (1995). Understanding the

Metropolis-Hastings algorithm. American Statistician,

1995.

S. Karaman, and E. Frazzoli (2009). Sampling-based

motion planning with deterministic μ-calculus

specifications. In Proceedings of the IEEE Conference

on Decision and Control (CDC), 2009.

S. Karaman, and E. Frazzoli (2011), Sampling-based

algorithms for optimal motion planning. The

International Journal of Robotics Research, 2011. p.

846-894.

ICAART 2021 - 13th International Conference on Agents and Artiﬁcial Intelligence

66
