Real-time and Online Segmentation Multi-target Tracking

with Track Revival Re-identiﬁcation

Martin Ahrnbom

1 a

, Mikael Nilsson

1 b

and H

akan Ard

2 c

Centre for Mathematical Sciences, Lund University, Lund, Sweden

Axis Communications AB, Lund, Sweden

Keywords:

Multi-target Tracking, Segmentation Tracking, Instance Segmentation, Real-time, Online Tracking.

Abstract:

The ﬁrst online segmentation multi-target tracking algorithm with reported real-time speeds is presented.

Based on the popular and fast bounding box based tracker SORT, our method called SORTS is able to utilize

segmentations for tracking while keeping the real-time speeds. To handle occlusions, which neither SORT

nor SORTS do, we also present SORTS+RReID, an optional extension which uses ReID vectors to revive

lost tracks from SORTS to handle occlusions. Despite only computing ReID vectors for 6.9% of the detec-

tions, ID switches are decreased by 45%. We evaluate on the MOTS dataset and run at 54.5 and 36.4 FPS

for SORTS and SORT+RReID respectively, while keeping 78-79% of the sMOTSA of the current state of

the art, which runs at 0.3 FPS. Furthermore, we include an experiment using a faster instance segmentation

method to explore the feasibility of a complete real-time detection and tracking system. Code is available:

https://github.com/ahrnbom/sorts.

1 INTRODUCTION

Visual object tracking in videos is a key component in

modern Computer Vision research. The use of Convo-

lutional Neural Networks (CNN) for object detection

has led to a signiﬁcant improvement in Tracking-by-

Detection approaches. Typically, objects’ locations

are represented by Axis-Aligned Bounding Boxes

(AABBs). For several applications, a more detailed

description of the position and pose of objects are

needed or useful, which has led to the use of seg-

mentation methods that localize objects on a pixel

level. Segmentation has typically been limited to

single-image tasks, but recently segmentation track-

ing, where objects are tracked in videos with pixel-

level localization, has begun to receive attention in

the Computer Vision community. In particular, the

CVPR 2020 MOTS Challenge (Voigtlaender et al.,

2019) drew attention to this research ﬁeld. This pa-

per addresses the problem of segmentation tracking,

speciﬁcally.

The MOTS dataset (Voigtlaender et al., 2019) is

a recent and high quality dataset for comparing seg-

https://orcid.org/0000-0001-9010-7175

https://orcid.org/0000-0003-1712-8345

https://orcid.org/0000-0001-6214-3662

0 10 20 30 40 50 60

Figure 1: sMOTSA and FPS of all methods tested on the

MOTS dataset, including the CVPR 2020 MOTS Chal-

lenge. Some highlighted methods are named. All frame

rates are reported by the authors. Our methods, in bold,

run faster than all other methods, while performing about

78-79% of the state of the art in terms of sMOTSA.

mentation tracking results. For the currently tested

methods, the fastest one runs at 10 Frames Per Sec-

ond (FPS), while the rest are slower than 4 FPS.

This makes them poorly suited for real-time appli-

cations. We introduce the ﬁrst, to the best of our

knowledge, online segmentation multi-target tracking

method with reported real-time speeds. Based on the

AABB tracker called Simple, Online and Real-Time

Tracker (SORT) (Bewley et al., 2016), we introduce

the Simple, Online and Real-Time Tracker with Seg-

mentations (SORTS). We extend SORT by using a

Ahrnbom, M., Nilsson, M. and Ardö, H.

Real-time and Online Segmentation Multi-target Tracking with Track Revival Re-identiﬁcation.

DOI: 10.5220/0010190907770784

In Proceedings of the 16th International Joint Conference on Computer Vision, Imaging and Computer Graphics Theory and Applications (VISIGRAPP 2021) - Volume 5: VISAPP, pages

777-784

ISBN: 978-989-758-488-6

777

Instance

Segmentation

and AABBs by

Mask R-CNN

SORTS

Output

Segmentation

Tracks

Mask IOU new

detections against

existing tracks

Hungarian

association

Destroy tracks

RReID

Create new tracks

Compute ReID vector

and store

Compare ReID,

revive track ID

upon match

Predict new masks for

existing tracks

with Kalman Filter



Red box: old AABB detection

Green box: Kalman predicted AABB

Red mask: Old mask

Green mask: New predicted mask from AABB motion



Green: Predicted mask

Blue: New frame's mask

IOU is computed over pixels

Figure 2: Overview of SORTS and the optional RReID logic (dashed arrows). Existing tracks are updated by a Kalman Filter,

and these changes are applied to existing masks. Then, a Mask IOU is used to compare existing tracks with the new detections,

and Hungarian association matches them. Tracks that have not been updated for some time are destroyed, and new tracks are

started for detections that do have no match. With the optional RReID extension, ReID vectors are computed for destroyed

tracks that meet some criteria. When new tracks are created, their ReID vectors are checked against the ReID vectors, and if

a match is found, they revive the ID of the previous track. Best viewed in color.

mix of AABB and segmentation logic, to keep the ex-

ecution speed high while utilizing segmentations for

more robust matching of detections.

Because the MOTS dataset does not come with

publicly available segmentation detections, we use the

popular Detectron2 framework (Wu et al., 2019) and

its implementation of Mask R-CNN (He et al., 2017)

as a strong baseline for generating the per-frame seg-

mentation detections. SORTS is used for temporally

connecting those per-frame segmentations into tracks.

SORT does not handle occlusions, and neither

does SORTS, by default. To address this limitation,

we also introduce Revival Re-Identiﬁcation (RReID),

an optional extension of our method where ReID vec-

tors, computed by a deep CNN, are used for this pur-

pose. By only computing ReID vectors at carefully

chosen times and locations, a high execution speed

can still be maintained, although it is signiﬁcantly

slower than the default SORTS method. This is in

stark contrast to most segmentation tracking methods

that compute ReID vectors at every detection. Alter-

natively, one could consider SORTS to generate track-

lets, that are joined into tracks by the RReID logic.

Our main contributions are:

• We introduce the ﬁrst online segmentation multi-

target tracking algorithm with reported real-time

speeds.

• We present an optional extension where ReID

vectors are used sparingly to handle occlusions

and improve accuracy at the cost of execution

speed, while still running above 30 FPS.

2 RELATED WORKS

2.1 Instance Segmentation

One of the most popular instance segmentation meth-

ods is Mask R-CNN (He et al., 2017). Based on Faster

R-CNN (Ren et al., 2015), the CNN is extended to

produce pixel-level segmentation masks for each de-

tected object. While not real-time, Mask R-CNN is

widely used for its accurate segmentation masks.

An example of real-time instance segmentation is

InstanceMotSeg (Mohamed et al., 2020). They ap-

ply segmentation to videos, using optical ﬂow-like

motion features, but do not track instances. Their

method runs at 39 FPS. Another example is SEG-

YOLO (Wang, 2019) which runs at 17-30 FPS, and

performs about 5 mAP worse than Mask R-CNN.

YOLACT (Bolya et al., 2019) and CenterMask-

Lite (Lee and Park, 2020) are other examples of

fast instance segmentation networks. Fast methods

like these could be used as replacements for Mask

R-CNN; an example using CenterMask-Lite is pre-

sented in Section 4.7.

2.2 Segmentation Single-target

Tracking

These methods only track a single object, and its posi-

tion is typically given in the ﬁrst frame. Segmentation

single-target tracking has received some attention, for

example a Siamese CNN that runs at 55 FPS (Wang

VISAPP 2021 - 16th International Conference on Computer Vision Theory and Applications

778

et al., 2019), and a method based on an Absorbing

Markov Chain model and runs at about 4 FPS (Yeo

et al., 2017).

2.3 AABB Multi-target Tracking with

Re-identiﬁcation

AABB-based multi-target tracking is a wide research

ﬁeld and some methods that are related to SORTS and

SORTS+RReID are presented here.

SORT

sort is a popular and fast AABB-based

multi-target tracking method and several approaches

are based on it. One example is DeepSORT (Wo-

jke et al., 2017; Wojke and Bewley, 2018) which

extends SORT using a ReID network. Unlike

SORTS+RReID, they use the ReID network on ev-

ery detection on every frame, and this contributes to

their method being signiﬁcantly slower, at around 20

FPS. DeepSORT reduced the number of ID switches

by 45% compared to SORT, which is the same effect

we get when comparing SORTS+RReID and SORTS,

indicating that our sparse use of ReID is likely suf-

ﬁcient for this goal, although the numbers were ob-

tained on different datasets.

2.4 Segmentation Multi-target Tracking

A multi-target segmentation tracking method using

foreground-background segmentation alongside an

AABB-based detector (Milan et al., 2015) frames

tracking as a graph cut problem. Their solution is not

online, runs at 0.2 FPS and requires static cameras.

A method using a Markov Chain Monte-

Carlo approach combined with foreground segmen-

tation (Zhao et al., 2008) performs multi-target seg-

mentation tracking. The method is again limited to

scenes with static cameras, and it runs at about 2 FPS.

An example of early works in this ﬁeld, a segmen-

tation tracking method that runs at 30 FPS, was pub-

lished in 2010 (Bibby and Reid, 2010). It requires

initial AABBs for the targets to be given, so it does

not contain logic for creating new tracks as objects

appear in the scene. In addition, it can only handle at

most 12 tracks at once, so it works more like a single-

target tracking algorithm applied on several objects at

once. We therefore do not consider this method to be

a true multi-target tracking algorithm.

On the CVPR 2020 MOTS Challenge (Voigtlaen-

der et al., 2019), the winner was ReMOTS (Yang

et al., 2020), which achieves an excellent sMOTSA

score, and runs at 0.3 FPS. This is also the only

method with published results on the MOTS dataset,

except for the baseline method (TrackRCNN). The

closest method to ours in terms of execution speed

is PointTrack and PointTrack++ (Xu et al., 2020) that

are online and run at 22 and 10 FPS respectively and

PointTrack++ won second place at the CVPR 2020

MOTS Challenge. No other competing method was

reported to run faster than 4 FPS.

There was another paper at the CVPR 2020

MOTS Challenge that share some ideas with our

method (Koeferl et al., 2020), where SORT was used

with some tricks to make it work with segmenta-

tions. They seem to have run SORT on AABBs

while simply outputting the segmentations associated

with each AABB. This is in stark contrast to our ap-

proach, where the segmentations themselves are used

for computing the Intersection Over Union (IOU).

They also do not report run time speeds, and their re-

sults do not appear on the MOT Challenge website.

In summary, to the best of our knowledge,

there has not been any previous online segmentation

multi-target tracking methods with reported real-time

speeds. Furthermore, in our framework, we introduce

a novel revival ReID approach.

3 OUR METHOD

3.1 SORTS

A basic overview of the method is shown in Figure 2.

The detector provides both AABBs and segmenta-

tion masks for each detection, which are the input to

SORTS. The algorithm extends SORT with the fol-

lowing changes:

• When computing IOU, which is done using seg-

mentations to get a pixel-level IOU score. The

segmentations are represented as binary maps,

NumPy (van der Walt et al., 2011) arrays of bool.

This allows both intersection and union to be

computed as fast binary operations. By cropping

the segmentation images based on their AABBs,

computations are only performed on the relevant

parts of the images. If the AABBs do not overlap,

this computation is skipped entirely.

• When the Kalman Filter predicts a new AABB, a

predicted segmentation is also created which will

then be used when computing IOU with incoming

frames. These predicted segmentations are sim-

ply the previous segmentation for that track, trans-

lated by the same translation as the center points

of the AABBs before and after the prediction. No

scaling or other modelling is done with the mask.

• When computing IOU, a part at the bottom of

each detection is removed. The amount of each

detection to be removed is deﬁned by the constant

Real-time and Online Segmentation Multi-target Tracking with Track Revival Re-identiﬁcation

779

cutoff

. The reasoning for this is that walking hu-

mans typically vary the shape of their legs more

quickly as they walk than the rest of their bodies.

• Tracks are not included in the output of SORTS

unless it has received detections for a number

of frames that correspond to A

min

seconds, ex-

cept for the ﬁrst A

min

seconds of each sequence.

This removes many false and poor tracks typically

caused by incorrect detections by Mask R-CNN.

• Detections that are shorter in height than h

min

are

ignored as a preprocessing stage. This avoids un-

necessary computations about many tracks that

are in the do-not-care regions of the MOTS

dataset. The parameter h

min

is deﬁned as a per-

centage of the total image height, to scale with

different video sizes.

3.2 SORTS+RReID

As an option, we implemented a fast method for using

ReID for handling occlusions. The method uses the

ReID network deﬁned in (Luo et al., 2019; Luo et al.,

2019). In order to keep a high execution speed, ReID

vectors are only computed sparingly, on average on

only 6.9% of all track appearances.

Whenever a track is considered lost in the method

described in Section 3.1, before being discarded, a

few checks are performed. If fulﬁls any of the fol-

lowing conditions, the track is discarded as usual:

• The track is too short with fewer than R

short

sec-

onds.

• The track’s ﬁnal position was close to the borders

of the image within R

border

%, except if the track

is near both the top and bottom of the screen,

in which case it is standing close to the camera

and should still be included. This prevents RReID

from being used on tracks that walk out of the im-

age.

• The height of the track’s ﬁnal AABB is lower than

height

% of the image height.

Otherwise, a ReID vector is computed for that track.

First, a reasonable frame number is chosen, for which

the ReID vector will be computed. When SORTS is

running in RReID mode, each track stores R

memory

many previous masks, and if the number of stored

masks for the track is at least R

lookback

, then the

lookback

seconds old mask is used. Otherwise, what-

ever mask is stored in the middle of the track is used

instead, to avoid using the ﬁrst and last frames where

it is more likely that the track is partially occluded.

Then, for the chosen frame, the corresponding

video frame is loaded into memory, using a cache in

case multiple tracks do this for a single frame, and the

cache hit-rate is about 40%. The section correspond-

ing to where the track was at that time is extracted

from the image, and fed into the ReID network. The

ReID network is used without its ﬁnal pooling layer,

providing a spatial map of ReID vectors. The mask

that the track had at that time is shrunk by the same

factor as the spatial map, using nearest neighbour in-

terpolation. Finally, the average ReID vector corre-

sponding to those pixels that belong to the shrunk

mask is computed, and stored for the track. The tracks

with ReID vectors computed are stored in a list, where

they are kept for R

storage

seconds.

Then, whenever a track is about to get its ID as-

signed, after being associated to A

min

detections, it

has a chance to inherit the ID of a previous track, if

the ReID vectors match up. Before computing a ReID

vector for the track, a few checks are performed, and

if any of this conditions hold, the track is simply as-

signed a new ID and no ReID vector is computed:

• There are no previous tracks with computed ReID

vectors.

• The height of the track’s latest AABB is lower

than R

height

% of the image height.

• The track’s latest mask does not have any pixels

when shrunk.

Then, the ReID vector of the track is computed as be-

fore. The vector is compared to the ReID vectors in

the list, picking the one with the highest normalized

dot product, assuming it is above R

thresh

. If such a

match can be made, the track inherits the ID of the

matched previous track, and the old track is effec-

tively “revived”.

4 EXPERIMENTS

4.1 Instance Segmentation

For most of our experiments, we use Detec-

tron2’s (Wu et al., 2019) implementation of Mask

R-CNN 101 (He et al., 2017). Because the MOTS

dataset requires that each pixel belongs to at most

one object, a pixel-wise Non-Maximum Suppres-

sion (NMS) is implemented as a ﬁnal stage of the

instance segmentation pipeline, similar to (Koeferl

et al., 2020). If a single pixel belongs to multiple de-

tections, it gets assigned to the one with the higher

conﬁdence score. This operation runs on the GPU

at takes about 0.2 ms per image. The total execution

time of the instance segmentation step with this model

is about 8 FPS, for the batch size one.

VISAPP 2021 - 16th International Conference on Computer Vision Theory and Applications

780

The detector was retrained on the MOTS dataset,

using pre-trained weights from the MS COCO

dataset (Lin et al., 2014) as a starting point. 4-fold

cross validation was used for early stopping, using the

four sequences as folds. Then, the detector was re-

trained for the found mean number of epochs, which

was 7500, on the entire training set. All other hyper-

parameters were chosen by hand waving, in particular

the learning rate (0.00025), batch size (2) and batch

size for the ROI heads (256).

4.2 Hyperparameter Optimization

SORTS has several parameters that are non-trivial to

tune. From SORT, it has inherited the Kalman Fil-

ter (Labbe, 2014) parameters R

, P

scale

and Q

scale

as well as a few others:

• A

max

, the time in seconds without a new detec-

tion after which a track is considered ﬁnished, al-

though this parameter was measured in frames in

SORT

• I

thresh

, the minimum IOU for a match between

new detections and existing tracks

These, and the new y

cutoff

and A

min

parameters need

to be tuned. A random search was ﬁrst applied where

parameters were picked randomly within hand-picked

ranges, and the performance was tested using a score

deﬁned by

S = sMOTSA +

FPS

500

, (1)

where S is the score, sMOTSA is deﬁned by the

MOTS dataset, and FPS is the execution speed (in

Hz).

The reason for including the FPS in the score is

that it was found that certain parameters lead to signif-

icantly lower frame rates and those parameters should

be avoided if other parameters give similar sMOTSA

scores.

The parameters found by random search are then

used as a starting point in a Nelder-Mead opti-

mization (Nelder and Mead, 1965; Gao and Han,

2012), optimizing over only the sMOTSA, as smaller

changes to the parameters seem to have little impact

on the frame rate. To prevent overﬁtting to the train-

ing dataset, only three of the four sequences were

used for these optimization strategies, with the fourth

(the sequence called ’09’) being used as a validation

set for early stopping.

For SORTS+RReID, the process was similar. The

parameters found in Section 3.1 were used as-is. The

new parameters R

thresh

, R

short

, R

border

, R

height

, R

memory

lookback

and R

storage

were optimized, ﬁrst by random

testing over the score S, and then using Nelder-Mead,

Table 1: Final parameters for SORTS (left column) and

SORTS+RReID (left and right columns).

Parameter Value Parameter Value

0.171 R

thresh

0.897

3171.191 R

border

9.9%

scale

203.685 R

memory

1.739 s

scale

0.0277 R

storage

1.723 s

min

0.131 s R

short

0.166 s

max

0.0487 s R

lookback

0.165 s

cutoff

35.0% R

height

7.40%

thresh

0.30

min

3.66%

optimizing over sMOTSA. Again, the ’09’ sequence

was used as a validation set for early stopping.

The optimal parameters found after optimization

can be seen in Table 1.

4.3 MOTS Evaluation

The primary experiment of this research was the eval-

uation of SORTS and SORTS+RReID on the MOTS

dataset.

A comparison between SORTS, SORTS+RReID

and all other methods with publicly available results

on MOTS or the CVPR 2020 MOTS Challenge, in

terms of sMOTSA and FPS, is shown in Figure 1. A

more detailed table of SORTS and SORTS+RReID

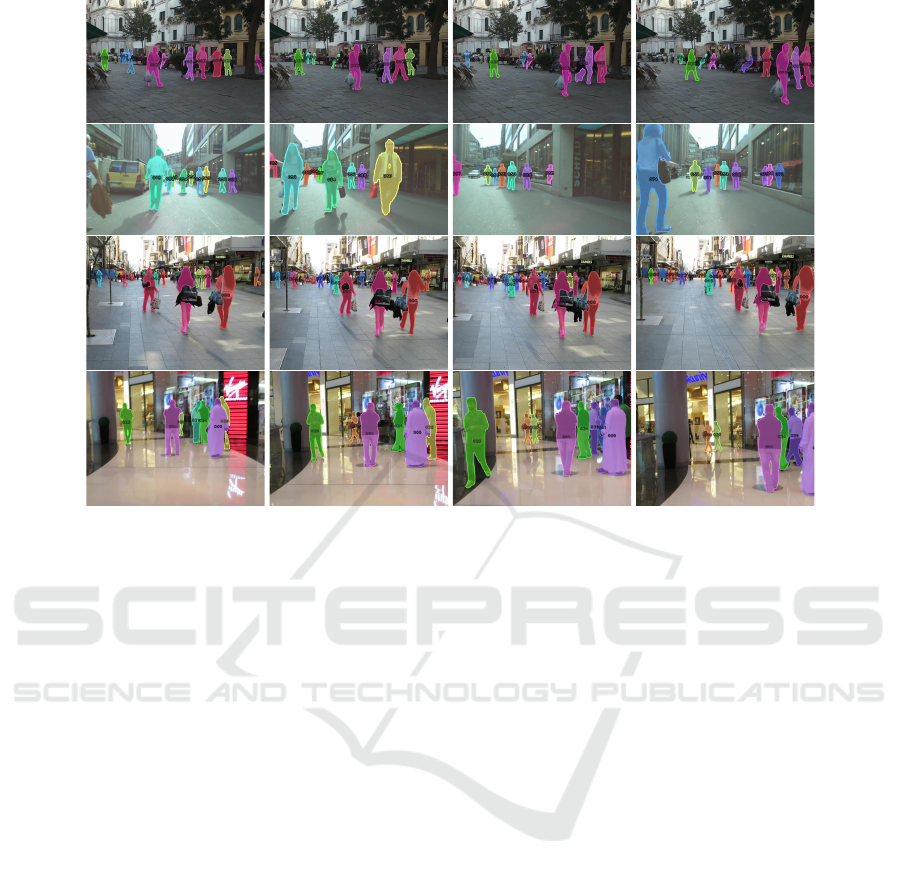

for the various metrics is shown in Table 2. Some

example output images from the test set can be seen

in Figure 5.

4.4 Ablation Study

In order to see the contribution of various aspects of

our method, we have evaluated variants of SORTS

and SORTS+RReID on the MOTS validation set, se-

quence ’09’, because test set evaluations are limited

on the MOTS dataset. Parameters are not re-trained in

the interest of time. When not training Mask R-CNN,

pretrained weights from the MS COCO dataset (Lin

et al., 2014) were used instead. The results of the ab-

lation study is presented in Table 3.

4.5 Resolution Dependence

A commonly used approach for creating a trade-off

between accuracy and execution speed is to run meth-

ods at different image resolutions. To measure this ef-

fect on our methods, the three 1080p sequences in the

MOTS training set were shrunk to several different

commonly used video resolutions. The test was then

redone on each resolution, including re-computing

the detections. Parameter optimization was skipped

Real-time and Online Segmentation Multi-target Tracking with Track Revival Re-identiﬁcation

781

Table 2: Detailed metrics of SORTS and SORTS+RReID on the MOTS test set. The latter is an improvement or the same, in

all metrics except the frame rate. Most importantly, the number of ID switches was cut by 45%. Surprisingly, this has very

little impact on most metrics even though it can be important for applications.

sMOTSA IDF1 MOTSA MOTSP MODSA MT ML

SORTS 55.0 57.3 68.3 81.9 70.0 107 52

SORTS+RReID 55.8 65.8 69.1 81.9 70.0 107 52

TP FP FN Recall Precision ID Sw. Frag FPS

SORTS 23,671 1,076 8,598 73.4 95.7 552 577 54.5

SORTS+RReID 23,671 1,076 8598 73.4 95.7 304 576 36.4

Table 3: Ablation study results on the MOTS validation set (sequence “09”). The two rightmost columns are the ﬁnal versions

of SORTS and SORTS+RReID, respectively. The leftmost column roughly corresponds to standard SORT.

Training Mask R-CNN

Mask IOU

cutoff

min

RReID

sMOTSA 63.9 64.5 65.6 65.7 65.7 66.4

FPS 61.4 78.8 48.6 46.5 47.5 40.5

30 40 50 60 70 80 90 100 110 120

480x848

720x1280

1080x1920

Figure 3: sMOTSA and FPS of SORTS and

SORTS+RReID on the high-resolution subset of the

training set, downscaled to 720p and 480p. As the resolu-

tion decreases, it is possible to get a high execution speed,

at the cost of sMOTSA score.

in order to save time. The Mask R-CNN detector ran

at 8.2 FPS in 480p, 8.0 FPS in 720p and 7.6 FPS in

1080p. The results can be seen in Figure 3.

4.6 Execution Time Details

All experiments were performed with a Intel Core i7-

3930K CPU @ 3.20GHz × 12 CPU, and a Nvidia

GeForce GTX 1080 Ti GPU. As is common, not all

operations are included in the execution time. We ex-

clude the following, to be consistent with the recom-

mendations of the MOT Challenge (MOT Challenge,

2020):

• The detections

• Reading and writing to ﬁles, including images

• Run-length encoding and decoding of segmenta-

tion masks to and from text format

SORTS SORTS+RReID

Figure 4: Timing of various parts of SORTS (left) and

SORTS+RReID (right) on the test set. The presented times

are the average time per frame spent on each task. The “dot-

ted” sections are not included in the calculated FPS, as per

the recommendations of the MOT Challenge. Best viewed

in color.

We present the execution time of SORTS and

SORTS+RReID, divided into different segments for

different kinds of computations, in Figure 4.

4.7 Using CenterMask-Lite

For applications where the entire pipeline needs to

run in real-time, Mask R-CNN is too slow. For this

purpose, we also tested SORTS and SORTS+RReID

using CenterMask-Lite (Lee and Park, 2020), a re-

cent and fast instance segmentation method. With

our setup, it runs at 17.3 FPS. The difference in ex-

ecution speed between our setup and the reported 35

FPS could be explained by a combination of factors:

VISAPP 2021 - 16th International Conference on Computer Vision Theory and Applications

782

Figure 5: Examples of images from the MOTS test set, with segmentation tracks by SORTS+RReID. Images are taken 30

frames apart. Best viewed in color, preferably on a screen.

them using the more powerful Titan Xp GPU, per-

forming detections in batches and not using pixel-

wise NMS. Regardless, this is a step towards a true

real-time pipeline.

We tested both Mask R-CNN and CenterMask-

Lite on our validation set (sequence “09”), af-

ter training on the other three sequences from the

MOTS training set. We then ran both SORTS and

SORTS+RReID on these detections. Going from

Mask R-CNN to CenterMask-Lite, the sMOTSA on

the validation set dropped from 65.7 to 51.2 for

SORTS, and from 66.4 to 52.0 for SORTS+RReID.

The execution speed dropped too, to 35 FPS for

SORTS and 29 FPS for SORTS+RReID. We believe

this is due to CenterMask-Lite creating a larger num-

ber of detections, as CenterMask-Lite creates 38%

more detections on the MOTS training set than Mask

R-CNN, with the same conﬁdence threshold (0.4).

While this threshold could be increased, doing so

would likely further reduce the tracking accuracy.

5 DISCUSSION

SORTS+RReID greatly improves upon SORTS by re-

ducing the number of ID switches, but this improve-

ment is not really reﬂected in the sMOTSA score,

which puts a large weight on the precise shape of the

tracked objects. This should be taken into consid-

eration for real applications, as consistent tracks are

sometimes more important than accurate segmenta-

tions. Looking at IDF1, which does not depend on the

precise shapes, the improvement of SORTS+RReID,

compared to SORTS, is more noticeable.

The experiment with CenterMask-Lite shows that

real-time instance segmentation is still not quite good

enough to compete with Mask R-CNN. But more re-

search will be made, and hopefully a real-time in-

stance segmentation network will soon perform simi-

larly to slower CNNs in terms of accuracy. When that

happens, SORTS and SORTS+RReID can be used

with it, as a drop-in replacement for Mask R-CNN.

We like to evaluate SORTS and SORTS+RReID

on other datasets and in other scenarios, to see how

well it works in practice for various applications. We

would also like to continue experimenting with faster

instance segmentation methods to build a true end-

to-end online real-time system. Such a system could

have important applications in autonomous driving,

robotics and smart city surveillance, for example.

6 CONCLUSION

We present SORTS, and its optional extension

SORTS+RReID, the ﬁrst online multi-target seg-

mentation tracking methods with reported real-time

speeds of 54.5 and 36.4 FPS respectively. The

Real-time and Online Segmentation Multi-target Tracking with Track Revival Re-identiﬁcation

783

sMOTSA scores for these methods were 55.0 and

55.8 on the MOTS test set, which is about 78-79%

of the current state of the art which runs at 0.3 FPS.

The RReID system is able to cut ID switches by

45% while only computing ReID vectors for about

7% of all track instances, which helps it stay real-

time despite the added workload of the ReID net-

work. We have further experimented with and dis-

cussed using faster detectors. We hope that SORTS

and SORTS+RReID can be a strong baseline for real-

time segmentation multi-target tracking in the future.

REFERENCES

Bewley, A., Ge, Z., Ott, L., Ramos, F., and Upcroft, B.

(2016). Simple online and realtime tracking. In 2016

IEEE International Conference on Image Processing

(ICIP), pages 3464–3468.

Bibby, C. and Reid, I. (2010). Real-time tracking of multi-

ple occluding objects using level sets. In 2010 IEEE

Computer Society Conference on Computer Vision

and Pattern Recognition, pages 1307–1314.

Bolya, D., Zhou, C., Xiao, F., and Lee, Y. J. (2019).

YOLACT: Real-time instance segmentation. In ICCV.

Gao, F. and Han, L. (2012). Implementing the nelder-mead

simplex algorithm with adaptive parameters. Compu-

tational Optimization and Applications, 51:259–277.

He, K., Gkioxari, G., Doll

ar, P., and Girshick, R. (2017).

Mask R-CNN. In Proceedings of the IEEE interna-

tional conference on computer vision, pages 2961–

2969.

Koeferl, F., Link, J., and Eskoﬁer, B. (2020). Application

of SORT on Multi-Object Tracking and Segmentation.

In 5th BMTT MOTChallenge Workshop: Multi-Object

Tracking and Segmentation.

Labbe, R. (2014). Kalman and bayesian ﬁl-

ters in python. https://github.com/rlabbe/

Kalman-and-Bayesian-Filters-in-Python.

Lee, Y. and Park, J. (2020). Centermask: Real-time anchor-

free instance segmentation.

Lin, T., Maire, M., Belongie, S. J., Bourdev, L. D., Girshick,

R. B., Hays, J., Perona, P., Ramanan, D., Doll

ar, P.,

and Zitnick, C. L. (2014). Microsoft COCO: common

objects in context. CoRR, Arxiv: 1405.0312.

Luo, H., Gu, Y., Liao, X., Lai, S., and Jiang, W. (2019).

Bag of tricks and a strong baseline for deep person re-

identiﬁcation. In The IEEE Conference on Computer

Vision and Pattern Recognition (CVPR) Workshops.

Luo, H., Jiang, W., Gu, Y., Liu, F., Liao, X., Lai, S., and

Gu, J. (2019). A strong baseline and batch normal-

ization neck for deep person re-identiﬁcation. IEEE

Transactions on Multimedia, pages 1–1.

Milan, A., Leal-Taixe, L., Schindler, K., and Reid, I. (2015).

Joint tracking and segmentation of multiple targets. In

Proceedings of the IEEE Conference on Computer Vi-

sion and Pattern Recognition (CVPR).

Mohamed, E., Ewaisha, M., Siam, M., Rashed, H., Yoga-

mani, S. K., and Sallab, A. E. (2020). Instancemot-

seg: Real-time instance motion segmentation for au-

tonomous driving. CoRR, abs/2008.07008.

Nelder, J. A. and Mead, R. (1965). A simplex method

for function minimization. Computer Journal, 7:308–

313.

MOT Challenge (2020). Mot challenge website. https://

motchallenge.net/user account.php. Accessed 2020-

09-02.

Ren, S., He, K., Girshick, R. B., and Sun, J. (2015). Faster

R-CNN: towards real-time object detection with re-

gion proposal networks. CoRR, abs/1506.01497.

van der Walt, S., Colbert, S. C., and Varoquaux, G. (2011).

The NumPy Array: A structure for efﬁcient numeri-

cal computation. Computing in Science Engineering,

13(2):22–30.

Voigtlaender, P., Krause, M., Osep, A., Luiten, J.,

Sekar, B. B. G., Geiger, A., and Leibe, B. (2019).

MOTS: Multi-Object Tracking and Segmentation.

arXiv:1902.03604[cs]. arXiv: 1902.03604.

Wang, Q., Zhang, L., Bertinetto, L., Hu, W., and Torr,

P. H. (2019). Fast online object tracking and segmen-

tation: A unifying approach. In Proceedings of the

IEEE/CVF Conference on Computer Vision and Pat-

tern Recognition (CVPR).

Wang, Z. (2019). SEG-YOLO: Real-Time Instance Segmen-

tation Using YOLOv3 and Fully Convolutional Net-

work. PhD thesis.

Wojke, N. and Bewley, A. (2018). Deep cosine metric learn-

ing for person re-identiﬁcation. In 2018 IEEE Win-

ter Conference on Applications of Computer Vision

(WACV), pages 748–756. IEEE.

Wojke, N., Bewley, A., and Paulus, D. (2017). Simple on-

line and realtime tracking with a deep association met-

ric. In 2017 IEEE International Conference on Image

Processing (ICIP), pages 3645–3649. IEEE.

Wu, Y., Kirillov, A., Massa, F., Lo, W.-Y., and Gir-

shick, R. (2019). Detectron2. https://github.com/

facebookresearch/detectron2.

Xu, Z., Zhang, W., Tan, X., Yang, W., Su, X., Yuan, Y.,

Zhang, H., Wen, S., Ding, E., and Huang, L. (2020).

Pointtrack++ for effective online multi-object tracking

and segmentation. In CVPR Workshops.

Yang, F., Chang, X., Dang, C., Zheng, Z., Sakti, S.,

Nakamura, S., and Wu, Y. (2020). ReMOTS: Self-

supervised reﬁning multi-object tracking and segmen-

tation.

Yeo, D., Son, J., Han, B., and Hee Han, J. (2017).

Superpixel-based tracking-by-segmentation using

markov chains. In Proceedings of the IEEE Confer-

ence on Computer Vision and Pattern Recognition

(CVPR).

Zhao, T., Nevatia, R., and Wu, B. (2008). Segmentation

and tracking of multiple humans in crowded environ-

ments. IEEE Transactions on Pattern Analysis and

Machine Intelligence, 30(7):1198–1211.

VISAPP 2021 - 16th International Conference on Computer Vision Theory and Applications

784
