SAT-MARL: Speciﬁcation Aware Training in Multi-Agent

Reinforcement Learning

Fabian Ritz

, Thomy Phan

, Robert M

uller

, Thomas Gabor

, Andreas Sedlmeier

, Marc Zeller

Jan Wieghardt

, Reiner Schmid

, Horst Sauer

, Cornel Klein

and Claudia Linnhoff-Popien

Mobile and Distributed Systems Group, LMU Munich, Germany

Corporate Technology (CT), Siemens AG, Germany

Keywords:

Multi-Agent, Reinforcement Learning, Speciﬁcation Compliance, AI Safety.

Abstract:

A characteristic of reinforcement learning is the ability to develop unforeseen strategies when solving prob-

lems. While such strategies sometimes yield superior performance, they may also result in undesired or even

dangerous behavior. In industrial scenarios, a system’s behavior also needs to be predictable and lie within

deﬁned ranges. To enable the agents to learn (how) to align with a given speciﬁcation, this paper proposes to

explicitly transfer functional and non-functional requirements into shaped rewards. Experiments are carried

out on the smart factory, a multi-agent environment modeling an industrial lot-size-one production facility,

with up to eight agents and different multi-agent reinforcement learning algorithms. Results indicate that

compliance with functional and non-functional constraints can be achieved by the proposed approach.

1 INTRODUCTION

Reinforcement Learning (RL) enables an autonomous

agent to optimize its behavior even when its hu-

man programmers do not know what optimal be-

havior looks like in a speciﬁc situation (Sutton and

Barto, 2018). Recent breakthroughs have shown

that RL even allows agents to surpass human perfor-

mance (Silver et al., 2017). Yet, RL systems are typ-

ically given a well-deﬁned target, e.g. “win the game

of chess”. But when applying RL to real-world prob-

lems such as industrial applications, the ideal target

itself is often less clear. In this paper, we consider an

adaptive production line as it is supposed to be part of

the factory of the near future (Wang et al., 2016).

Typically, a smart factory is given a clear func-

tional requirement in the form of an order of items

that can be translated into a series of tasks for the

present machines (Phan et al., 2018). Its goal is to

produce all ordered items within a certain time frame.

However, there often exist a lot of non-functional re-

quirements as well: the system should not exhaust all

of its time if faster production is possible; it should

avoid operations that could damage or wear down the

machines; it should be robust to unexpected events

and human intervention (Cheng et al., 2009; Belzner

et al., 2016; Bures et al., 2017). The full set of func-

tional and non-functional requirements is the speciﬁ-

cation of a system.

The fulﬁllment of a given speciﬁcation could be

regarded as a clear target for an RL agent. How-

ever, it involves an intricate balance of achieving the

convoluted requirements at the same time, resulting

in a sparse reward signal that prohibits any learning

progress. Still, weighing various requirements while

neither introducing erratic nor unsafe behavior was

also discovered to be difﬁcult challenge in the litera-

ture (see Sec. 3). E.g., if multiple agents need to leave

through the same exit, approaches such as restricting

single actions might prevent collisions but would not

incentivize the agents to learn coordinated behavior,

thus resulting in a deadlock. In Sec. 4, we introduce

a new domain based on a smart factory populated by

multiple agents acting independently. For this setting,

we show how a full speciﬁcation of functional and

non-functional requirements can be transferred into

reward functions for RL (see Sec. 5). Evaluating the

different reward schemes in Sec. 6, we observe that

some non-functional requirements are (partially) sub-

sumed by overarching functional requirements, i.e.

they are learned easily, while others signiﬁcantly af-

fect convergence and performance. Our main contri-

butions are:

• A novel multi-agent domain based on the indus-

trial requirements of a smart factory

Ritz, F., Phan, T., Müller, R., Gabor, T., Sedlmeier, A., Zeller, M., Wieghardt, J., Schmid, R., Sauer, H., Klein, C. and Linnhoff-Popien, C.

SAT-MARL: Speciﬁcation Aware Training in Multi-Agent Reinforcement Learning.

DOI: 10.5220/0010189500280037

In Proceedings of the 13th International Conference on Agents and Artiﬁcial Intelligence (ICAART 2021) - Volume 1, pages 28-37

ISBN: 978-989-758-484-8

• The application of speciﬁcation-driven reward en-

gineering to a multi-agent setting

• A thorough evaluation of the impact of typical

secondary reward terms on different multi-agent

reinforcement learning algorithms

2 FOUNDATIONS

2.1 Problem Formulation

We formulate our problem as Markov game M

hD, S , A, P , R , Z, Ωi, where D = {1, ..., N} is a set of

agents, S is a set of states s

, A = A

× ... × A

is the

set of joint actions a

= ha

t,1

, ..., a

t,N

i, P (s

t+1

, a

)

is the transition probability, r

t,i

= R

, a

) is the re-

ward of agent i ∈ D, Z is a set of local observa-

tions z

t,i

for each agent i, and Ω(s

, a

) = z

t+1

t+1,1

, ..., z

t+1,N

i ∈ Z

is the joint observation func-

tion. For cooperative MAS, we assume a common

reward function r

= R (s

, a

) for all agents.

The behavior of a MAS is deﬁned

by the (stochastic) joint policy π(a

) =

hπ

t,1

), ..., π

t,N

)i, where π

t,i

)

is the local policy of agent i.

The goal of each agent i is to ﬁnd a

local policy π

t,i

) as probability distribu-

tion over A

which maximizes the expected dis-

counted local return or local action value function

, a

) = E

[

∑

∞

k=0

t+k

, a

t+k

) | s

, a

], where

π = hπ

, ..., π

i is the joint policy of all agents and

γ ∈ [0, 1] is the discount factor. The optimal local pol-

icy π

∗

of agent i depends on the local policies π

all other agents j 6= i.

2.2 Multi-Agent Reinforcement

Learning

In Multi-Agent Reinforcement Learning (MARL),

each agent i searches for an (near-)optimal local pol-

icy π

∗

t,i

), given the policy π

of all other agents

j 6= i. In this paper, we focus on value-based RL. Lo-

cal action value functions are commonly represented

by deep neural networks like DQN to solve high-

dimensional problems (Mnih et al., 2015; Silver et al.,

2017).

DQN has already been applied to MARL, where

each agent is controlled by an individual DQN and

trained independently (Leibo et al., 2017; Tampuu

et al., 2017). While independent learning offers scala-

bility w.r.t. the number of agents, it lacks convergence

guarantees, since the adaptive behavior of each agent

renders the system non-stationary, which is a require-

ment for single-agent RL to converge (Laurent et al.,

2011).

Recent approaches to MARL adopt the paradigm

of centralized training and decentralized execution

(CTDE) to alleviate the non-stationarity problem

(Rashid et al., 2018; Sunehag et al., 2018; Son et al.,

2019). During centralized training, global informa-

tion about the state and the actions of all other agents

are integrated into the learning process in order to sta-

bly learn local policies. The global information is

assumed to be available, since training usually takes

place in a laboratory or in a simulated environment.

Value decomposition or factorization is a com-

mon approach to CTDE for value-based MARL in

cooperative MAS. Value Decomposition Networks

(VDN) are the most simple approach, where a lin-

ear decomposition of the global Q

∗

, a

)-function

is learned to derive individual value functions for

each agent (Sunehag et al., 2018). Alternatively,

the individual value functions of each agent can be

mixed with a non-linear function approximator to

learn the Q

∗

, a

)-function (Rashid et al., 2018; Son

et al., 2019). QMIX is an example for learning

non-linear decompositions which uses a monotonic-

ity constraint, where the maximization of the global

∗

, a

)-function is equivalent to the maximization

of each individual value function (Rashid et al., 2018).

2.3 Reward Shaping in RL

Reward shaping is an evident approach to inﬂuence

an RL agent’s behavior. Speciﬁcally, potential based

reward shaping (PBRS) (Ng et al., 1999) was proven

not to alter the optimal policy in single-agent systems

and not introducing additional side-effects that would

allow reward hacking. In PBRS, the actual reward

applied for a time step is the difference between the

prior and the posterior state’s potential:

F(s, s

) = γ · Φ(s

) − Φ(s) (1)

Initially requiring a static potential function, the prop-

erties of PRBS were later shown to hold for dy-

namic potential functions as well (Devlin and Ku-

denko, 2012). Subsequently, PBRS has also been the-

oretically analyzed in and practically applied to MAS

and episodic RL (Devlin et al., 2014; Grze

s, 2017).

The fundamental insight is that PBRS does not alter

the Nash equilibria of MAS, but may affect perfor-

mance in any direction, depending on scenario and

applied heuristics. This paper’s reward shaping dif-

fers from PBRS in one detail: It uses γ = 1.0 dur-

ing reward shaping while the learning algorithms use

γ = 0.95 in most experiments. For the theoretic guar-

SAT-MARL: Speciﬁcation Aware Training in Multi-Agent Reinforcement Learning

antees of PBRS to hold, learning algorithm and re-

ward shaping must use the same value of γ. Note

that, however, the results of the fourth evaluation sce-

nario (see Sec. 6) indicate that the practical impact

is negligible (at least in our case) and there is cur-

rently no proven optimality guarantee for DQN-based

algorithms using deep neural networks for function

approximation anyway.

3 RELATED WORK

Regarding safety in RL, prior work compiled a list

of challenges for learning to respect safety require-

ments in RL (Amodei et al., 2016) and provided a

set of gridworld domains allowing to test a single RL

agent for safety (Leike et al., 2017). Yet, the funda-

mental issues remain unsolved. Further, a compre-

hensive overview of safe RL approaches subdivides

the ﬁeld into modeling either safety or risk (Garc

ıa

et al., 2015). While some approaches use these con-

cepts to constrain the MDP to prevent certain actions,

this paper does not model risk or safety explicitly. In-

stead, it aims for agents learning (how) to align to a

given speciﬁcation as constraining the MDP may be-

come infeasable in complex multi-agent systems.

Regarding learned safety in RL, one recent ap-

proach extends the MDP by a function mapping state

and action to a binary feedback signal indicating the

validity of the taken action (Seurin et al., 2019). A

second neural network is trained to predict this va-

lidity in addition to training a DQN. The DQN’s

training objective is augmented by an auxiliary loss

pushing Q-values of forbidden actions below those of

valid actions. Similarly, another approach accompa-

nies the Q-Network with an Action Elimination Net-

work (AEN) that is trained to predict the feedback sig-

nal (Zahavy et al., 2018). A linear contextual bandit

facilitates the features of the penultimate layer of the

AEN and eliminates irrelevant actions with high prob-

ability, therefore directly altering the action set. Both

approaches reduced certain actions and improved per-

formance, but were evaluated in single agent domains

only and not compared with reward shaping.

Regarding the training of MARL system,

population-based approaches such as FTW enable

individuals to learn from internal, dense reward

signals complementing the sparse, delayed global

reward (Jaderberg et al., 2019). Distinct environ-

ment signals are used in handcrafted rewards and

a process during that agents learn to optimize the

internal rewards in accordance with maximizing

the global reward. Similrly, separate discounts

can be used to individually adjusts dense, internal

rewards to optimize the top level goal (Liu et al.,

2019). While these approaches demonstrated the

capabilities of shaped, dense rewards in MARL and

how automatically evolved rewards can outperform

hand-crafted rewards, they only aim on boosting the

system’s performance and do not consider additional

speciﬁcation constraints. While in (video) games,

MARL lead to innovative strategies of which humans

were unaware before (Silver et al., 2017), the goal

of speciﬁcation compliance is to avoid unintended

side-effects which is especially important for indus-

trial and safety-critical domains (Belzner et al., 2016;

Bures et al., 2017).

Reward shaping has also been applied to improve

cooperation in MAS by addressing the credit assign-

ment problem, where all agents observe the same re-

ward signal. For example, Kalman ﬁltering can be

used to extract individual reward signals from the

common reward (Chang et al., 2004). Moreover, the

difference between the original reward and an alterna-

tive reward where the agent would have chosen a de-

fault action can be used to derive an individual train-

ing signal for each agent (Wolpert and Tumer, 2002).

Also, counterfactual baselines can be used to improve

credit-assignment in policy gradient algorithms (Fo-

erster et al., 2018). While these approaches address

the problem of improving cooperation, they do not ex-

plicitly address non-functional requirements to avoid

side-effects.

4 SMART FACTORY DOMAIN

This paper’s smart factory is inspired by a domain

proposed in the literature (Phan et al., 2018) with

respect to modeling the components and production

processes of a highly adaptive facility in a virtual sim-

ulation. It consists of a 5 × 5 grid of machines with

different machine types as shown in Fig. 1. Each item

is carried by one agent i and needs to be processed at

various machines according to its randomly assigned

processing tasks tasks

= [{a

i,1

, b

i,1

}, {a

i,2

, b

i,2

}, ...],

where each task a

i, j

is contained in a bucket.

Fig. 1b shows an example for an agent i, rendered

as a green cylinder, with tasks

= [{5, 6}], rendered

as green boxes. While tasks in the same bucket can

be processed in any order, buckets themselves have

to be processed in a speciﬁc order. Consequently, i

can choose between different machines to process the

tasks a

i,1

= 5 and b

i,2

= 6. The agent’s initial posi-

tion is ﬁxed (Fig. 1a). The agent can move along the

machine grid (left, right, up, down), enqueue at the

current position or stay put (no-op). The domain is

discrete in all aspects including agent motion. Each

ICAART 2021 - 13th International Conference on Agents and Artiﬁcial Intelligence

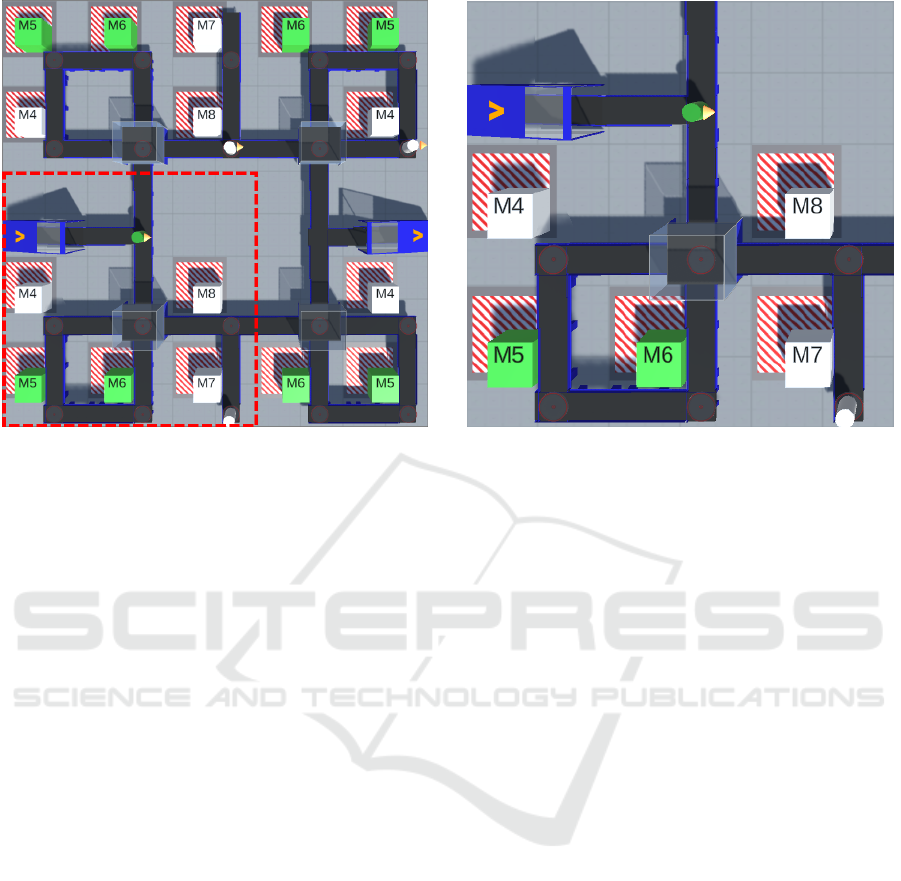

(a) Smart Factory Overview (b) Zoom-in on Bottom Left

Figure 1: 3d visualization of the discrete domain used in this paper. Contrary to a fully connected grid world, the agents can

only move to adjacent cells via a connecting path and can only doge each other via on one of the 4 capacitive cells (rendered

with transparent boxes). Agents spawn on the entry position on the left and ﬁnish on the exit position on the right (both

rendered with blue boxes).

machine can process exactly one item per time step.

Enqueued agents are unable to perform any actions.

If a task is processed, it is removed from its bucket. If

a bucket is empty, it is removed from the item’s tasks

list. An item is complete if its tasks list is empty.

Contrary to fully-connected grid worlds, every

grid cell in the present smart factory has an agent

capacity limit and deﬁned connections (paths) to the

surrounding grid cells. An agent may only move to

another grid cell if a connecting paths exists and the

target grid cell’s maximum capacity is not exceeded.

Entry and exit can hold all agents simultaneously, the

four grid cells fully connected to their neighbors can

hold half the agents. Fig. 1b shows such a grid cell, lo-

cated south to example agent i, rendered with a trans-

parent box. All other grid cells can only hold one

agent. In presence of multiple agents, coordination is

required to avoid conﬂicts when choosing appropriate

paths and machines.

5 TRANSFERRING

SPECIFICATION

CONSTRAINTS

Inspired by PBRS, this paper proposes to omit pri-

mary rewards, transfer both functional and non-

functional requirements into a potential function and

use potential differences as rewards. Setting the func-

tional domain goal to complete items as fast as possi-

ble, a ﬁrst approach is to increase the potential by α

once an agent completes its item and decrease it by δ

per step. This is implemented by reward scheme r0.

As positive feedback in r0 is sparse and delayed, a de-

composition into more dense, positive terms β, added

whenever a single task is ﬁnished, may improve learn-

ability. This is implemented by reward scheme r1.

Given an industrial background, the system may

need to comply with a certain non-functional spec-

iﬁcation, resulting in behavioral constraints. In this

domain, the evaluated soft constraints are to only use

the machine type needed by the task, to stay on the

deﬁned paths and not to collide with other agents. In

the simulation, items processed by wrong machines

remain unaltered and any agent trying to move to a

grid cell without sufﬁcient capacity or path connec-

tion stays put. Therefore, soft constraints do not op-

pose the goal of completing items (fast) as agents

would not beneﬁt from violations anyway. Moreover,

agents shall freeze if the emergency signal is active as

a hard constraint. In the simulation, the agents can

ignore the emergency signal in order to ﬁnish their

tasks faster. Therefore, the hard constraint introduces

a target conﬂict. As constraint violations shall be min-

imized, they are transferred into negative terms ζ (ma-

chine operation cost), η (path violation penalty), θ

(agent collision penalty) and ι (emergency violation

penalty) of different quantity, considered in the re-

ward schemes r2, r3, r4 and r5.

SAT-MARL: Speciﬁcation Aware Training in Multi-Agent Reinforcement Learning

Table 1: Reward overview.

(a) reward components: variables and signs

reward component variable sign

item completion rew. α +

single task reward β +

step cost δ -

machine operation cost ζ -

path violation penalty η -

agent collision penalty θ -

emergency violat. pen. ι -

(b) reward schemes: variable values

scheme α β δ ζ η θ ι

r0 5.0 0.1

r1 1.0 0.1

r2 1.0 0.1 0.2

r3 1.0 0.1 0.1

r4 1.0 0.1 0.4

r5 1.0 0.1 0.2 0.1 0.4 1.0

rx 1.0 0.1 0 − 0.2 0.1 0 − 0.4 0 − 1.0

Inspired by curriculum learning (Bengio et al.,

2009), reward scheme rx only contains β, δ and η in

the ﬁrst part of the training process in order to learn

the basic task. ζ, θ and ι are added later during train-

ing, so that some constraints are introduced to the

agents gradually. A summary of all reward schemes,

their components and values is given in Tab. 1. To ac-

tually employ the reward schemes, the smart factory

provides a corresponding interface for each compo-

nent, e.g. the number of completed items, at any time

step. Depending on the learning algorithm, the poten-

tial function is evaluated either per agent or globally.

Bringing all together:

Φ(s) = α · itemCompleted(s) + β · tasksFinished(s)

+ δ · stepCount(s) + ζ · machinesUsed(s)

+ η · pathViolations(s) + θ · agentCollisions(s)

+ ι · emergencyViolations(s)

6 EVALUATION

6.1 Experimental Setup

The reward schemes listed in Table 1b were evaluated

on different layouts of the smart factory domain. The

reported layout (see Fig. 1a) turned out to be most

challenging. Agents always spawn on an entry (on

the left), should then process two buckets of each two

random tasks and ﬁnally move to the exit (the mirror

position to the entry). Machines are not grouped by

type as one might expect in a real world setting but

distributed equally to maintain solvability in presence

of up to 8 agents. Episode-wise training is carried out

for 5000 episodes, each limited to 50 steps. While the

components of reward schemes r0 to r5 remain ﬁxed

during training, rx alters ζ, θ and ι during training.

After adding or altering values, the exploration rate is

set back to 0.25 and the optimizer momentum is reset.

As a white-box test, independent DQN is trained

in each scenario: due to the individual rewards, agents

are able to directly associate the shaped feedback sig-

nals with their actions. The DQN consists of two

dense layers of 64 and 32 neurons, using ELU acti-

vation. The output dense layer consists of |A

| = 6

neurons with linear activation. ADAM is used for op-

timization. Except evaluation scenario 4, Q-values are

discounted with γ = 0.95. ε−greedy exploration with

linear decay lasts for approx. 1000 steps. The expe-

rience buffer holds up to 20000 elements. The target

network is updated after each 4000 training steps. Per

training step, a batch of 64 elements is sampled via

prioritized experience replay.

As a black-box test, VDN and QMIX agents were

trained: due to the global reward, agents cannot di-

rectly associate the shaped feedback signal with their

individual actions (at least in the beginning of the

training). Both VDN and QMIX use the same hy-

perparameters as DQN and the same architecture for

their local Q-networks. In addition, QMIX uses a

mixing network with one hidden, dense layer of 64

neurons using ELU activation and an output dense

layer with a single neuron using linear activation.

Performance is captured through steps until

solved, representing the episode step in which all

agents have ﬁnished their tasks. By this paper’s def-

inition, a lower value indicates better performance.

Compliance is measured in soft and hard constraint

violations. These are summed over all agents and all

steps of an episode. Again, by deﬁnition, lower val-

ues indicate higher compliance. Depending on po-

tential function and learning algorithm, these metrics

may not always be fully visible to the agents. For all

values, mean and 95% conﬁdence interval of 10 inde-

pendently trained networks are reported. Experiments

are structured in four scenarios:

1. To analyze the impact of isolated reward com-

ponents on compliance and performance during

training, reward schemes r2, r3 and r4 are ap-

plied on 4 DQN agents. For comparison, reward

scheme r1 is always evaluated. The sparse reward

scheme r0 and the combined reward scheme r5

ICAART 2021 - 13th International Conference on Agents and Artiﬁcial Intelligence

are evaluated in an additional overview.

2. To quantify the impact of combined reward com-

ponents on scalability, reward scheme r5 is ap-

plied on 8 agents with DQN, VDN and QMIX and

compared with reward scheme r1.

3. To examine whether scalability can be improved,

reward scheme rx is gradually applied on 8 agents

with DQN, VDN and QMIX and compared to the

static reward schemes r1 and r5.

4. To outline whether the proposed approach could

be used in safety-critical domains, reward scheme

rx is compared to r5 during the training of 6 DQN

agents in a scenario with emergency signals that

introduce target conﬂicts. To not break with the

theoretical guarantees of PBRS in this particular

scenario, DQN discounts with γ = 1.0 and agents

are moved to an absorbing state with zero poten-

tial at the end of each episode as proposed in the

literature (Devlin et al., 2014), thus the number of

steps peaks at 51.

6.2 Results

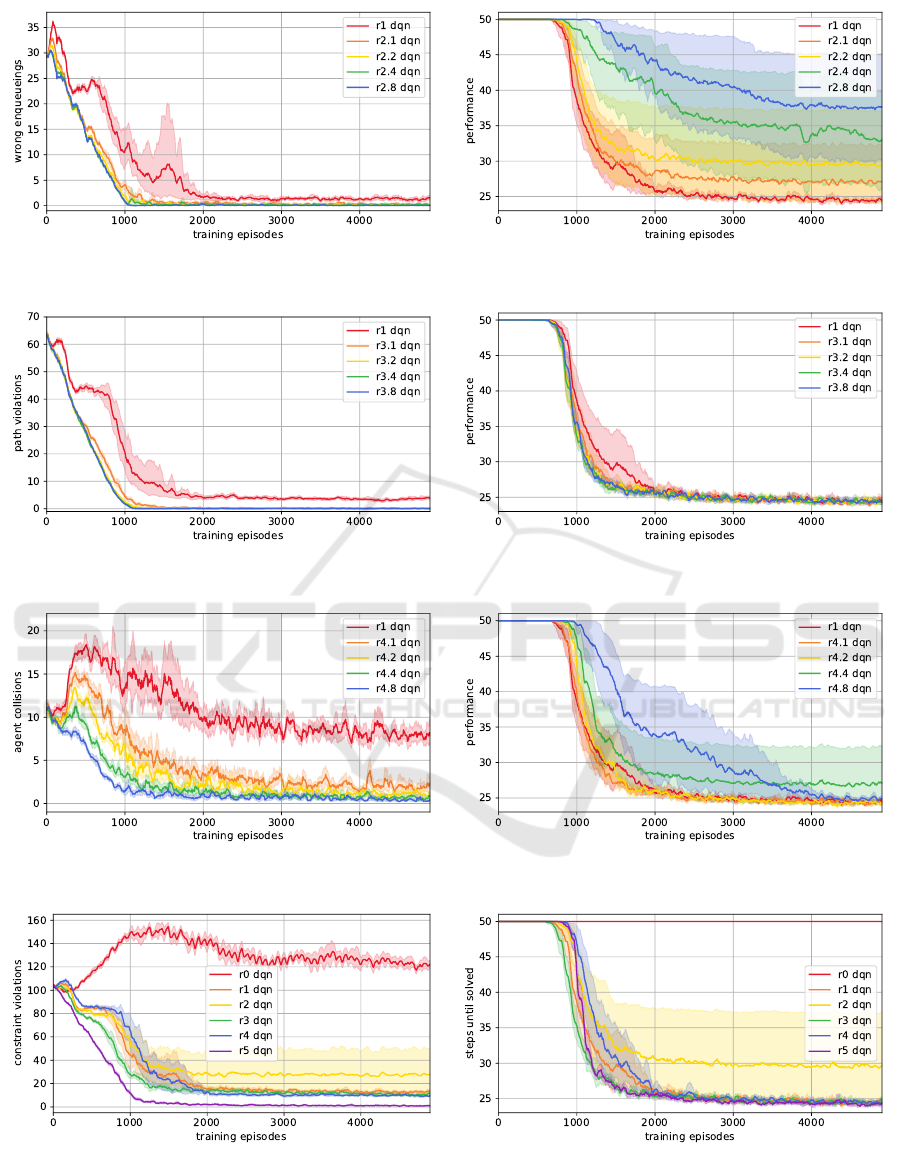

The results of the ﬁrst scenario are depicted in Fig. 2.

Excluding the sparse reward scheme r0 (see Fig. 2g,

2h), convergence can be observed for all other reward

schemes in all subﬁgures. Regarding compliance,

wrong enqueueing and path violations can be mini-

mized with small negative terms (see Fig. 2a, 2c). In

contrast, minimizing agent collisions requires greater

negative potentials (see Fig. 2e). Regarding perfor-

mance, punishing path violations makes no differ-

ence at all (see Fig. 2d) and punishing agent collisions

slows down convergence only in case of big penalties

(see Fig. 2f). However, punishing wrong enqueueing

results in more steps until all tasks are ﬁnished. This

effect becomes more signiﬁcant with higher penalties

(see Fig. 2b). Summing up the ﬁrst scenario, reward

scheme r5 notable decreases the overall constraint vi-

olations while the number of steps until all tasks are

ﬁnished remains the same.

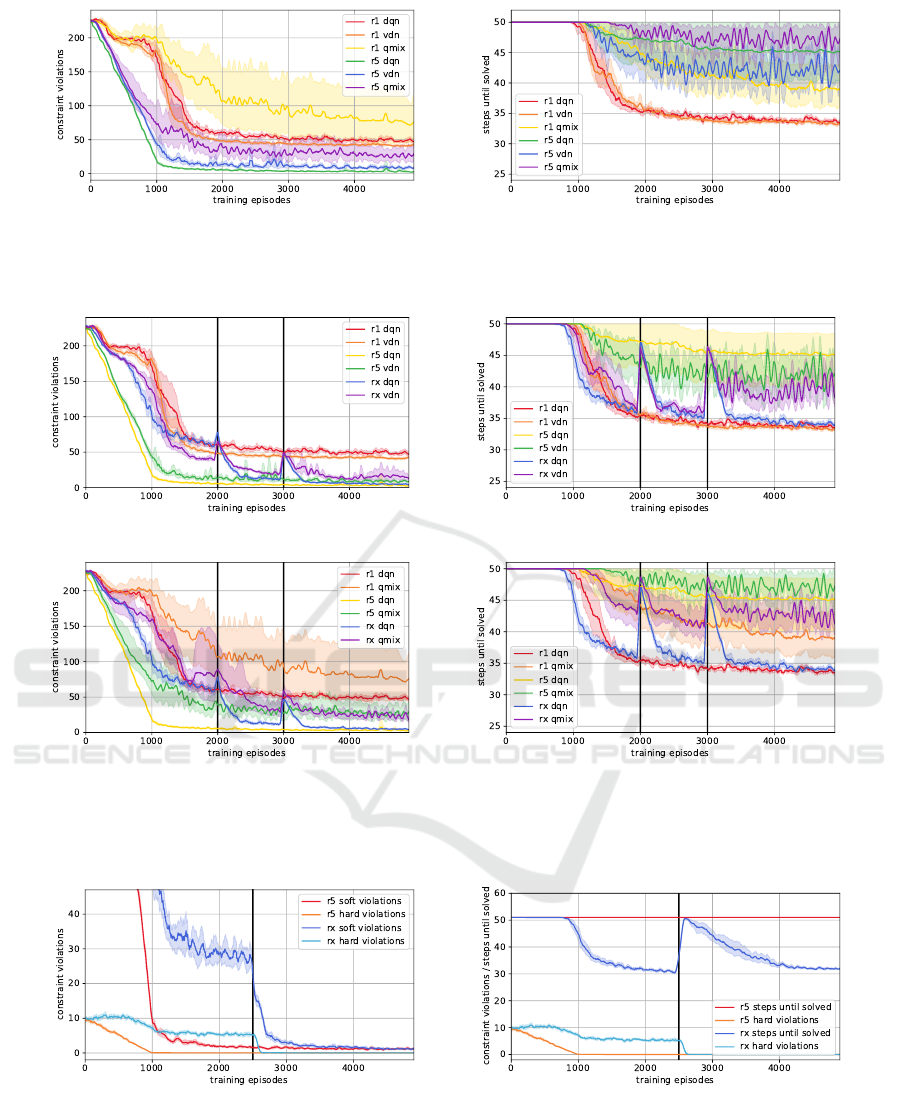

The results of the second scenario are shown in

Fig. 3. When scaled to 8 agents, r5 also lowers the

number of constraint violations with the impact dif-

fering per learning algorithm. Compared to DQN,

VDN causes less violations with r1 and more viola-

tions with r5 (see Fig. 3a). Independent of the reward

function, QMIX always causes more violations than

DQN and VDN. Regarding performance, r5 causes

an increased number of steps with compared to r1

with DQN, VDN and QMIX (see Fig. 3b). Overall in

the second scenario, reward scheme r5 decreases the

overall constraint violations but increases the number

of steps until all tasks are ﬁnished.

The results of the third scenario are depicted in

Fig. 4. Note that in all subﬁgures, characteristic

spikes at episode 2000 and 3000 are present in the

data series of rx. In terms of compliance, DQN and

VDN show a reduced number of constraint violations

with rx compared to r1, nearly as low as with r5 at the

end of the training (see Fig. 4a). The same applies to

QMIX, even though it converges slower (see Fig. 4c).

Regarding performance, DQN with rx approaches the

level of r1 step-wish which is signiﬁcantly lower than

that of r5 (see Fig. 4b). Contrarily, rx disrupts VDN’s

convergence, resulting in more steps than r1 and only

sightly less than r5. QMIX with rx shows the same

phenomenon (see Fig. 4d), although the ﬁnal number

of steps is between r1 and r5. Summing up the third

scenario, reward scheme rx leads to a step-wise de-

crease of constraint violations nearly to the level of

r5. However, agents with rx solve the scenario faster

than with r5, sometimes as fast as with r1.

The results of the fourth scenario are depicted in

Fig. 5. Due to a single reward adjustment, only one

characteristic spike can be seen around episode 2500.

While DQN with r5 succeeds to prevent hard con-

straint violations and minimizes soft constraint vio-

lations with 6 agents (see Fig. 5b), it fails to solve

the environment in less than 50 steps (see Fig. 5b).

Contrary, rx resolves the target conﬂict introduced by

the emergency signals after the reward adjustment by

maintaining adequate performance while minimizing

all constraint violations.

6.3 Discussion

First of all, results indicate that the presented domain

is suitable to benchmark practically relevant proper-

ties of a MAS. While this smart factory can be solved

straightforwardly with up to 4 agents, deploying 6

and 8 agents resulted in more constraint violations.

Also, notably more steps were required and naive

approaches struggled to ﬁnish their tasks. In such

settings, we suppose agents to effectively compete

for machines (to process items) and path segments

(to navigate to the machines), leading to conﬂicts.

Such scenarios require cooperative behavior between

agents to perform well. Techniques restricting the ac-

tion space cannot solve such scenarios alone as dead-

locks would not necessarily be resolved.

Also, we observed sparse reward schemes such as

r0 do not lead to convergence, which is not surpris-

ing. However, its decomposed counterpart r1 lead to

solid performance throughout all scenarios. Although

soft speciﬁcation violations in the smart factory are

actions not solving the environment, r1 fails to com-

pletely minimize them in limited training time. In-

SAT-MARL: Speciﬁcation Aware Training in Multi-Agent Reinforcement Learning

(a) Compliance when punishing wrong enqueueing (b) Performance when punishing wrong enqueueing

(e) Compliance when punishing agent collisions (f) Performance when punishing agent collisions

(g) Compliance comparison of static reward schemes (h) Performance comparison all static reward schemes

Figure 2: Impact of isolated reward components (schemes r2, r3 and r4) on compliance and performance during training of 4

DQN agents. r0 is sparse with only functional components, r1 its dense counterpart. r5 contains all components of r1-r4.

ICAART 2021 - 13th International Conference on Agents and Artiﬁcial Intelligence

(a) Compliance of 8 agents (b) Performance of 8 agents

Figure 3: Impact of combined reward components (scheme r5) on compliance and performance during training of DQN, VDN

and QMIX. r1 has only functional components.

(a) Compliance: DQN, VDN (b) Performance: DQN, VDN

Figure 4: Impact of gradually adding components at steps 2000 and 3000 via rx on compliance and performance during

training. r5 is a static scheme with all components, r1 is a static scheme with only functional components. 8 agents were

trained with DQN, VDN and QMIX.

(a) Compliance of 6 agents (b) Performance of 6 agents

Figure 5: Impact of gradually adding components at step 2500 via rx during training of 6 DQN agents. Agents shall freeze

in steps with active emergency signal (hard constraint). All prior constraints are considered soft constraints. r5 is a static

scheme with the same components as rx but weights them fully during the whole training.

stead, reward schemes containing more speciﬁcation

components such as r5 turned out to increase compli-

ance throughout all scenarios, which is considered a

major insight.

Yet, depending on the learning algorithm and the

number of agents, r5 partially increase the time until

the environment was solved, especially when scaled

to 8 agents. Moreover, r5 failed to resolve the target

SAT-MARL: Speciﬁcation Aware Training in Multi-Agent Reinforcement Learning

conﬂict introduced with the hard constraints in Fig. 5.

Obviously, providing the whole speciﬁcation to the

agents from the beginning on does not necessarily

lead to optimal behavior. Results of adaptive reward

schemes such as rx further show that starting with a

basic reward scheme and gradually adding more com-

ponents once the learner started to converge is capable

of increasing speciﬁcation compliance while main-

taining performance. Conversely, some reward com-

ponents may simply be unsuitable to begin the train-

ing with as they negatively affect exploration. As the

learning algorithms also reacted differently to rx, tim-

ing when to add components and the correct value is

assumed to be substantial. Such side-effects of reward

shaping have also been reported in the literature (De-

vlin et al., 2014).

7 CONCLUSION AND FUTURE

WORK

In this work, we considered the problem of speciﬁca-

tion compliance in MARL.

We introduced an involved multi-agent domain

based on a smart factory setting. We translated the

system’s goal speciﬁcation into a shaped reward func-

tion and analyzed how the system’s non-functional re-

quirements can be modeled by adding more terms to

that reward function. Besides the raw performance,

we also evaluated speciﬁcation compliance in RL on

a multi-agent setting.

While simple shaped rewards, which weight only

functional requirements like the task rewards or the

step cost, can lead to agents that are able to achieve

the basic goal, our results show that they still have

a high tendency to violate the non-functional re-

quirements, which could be harmful for industrial or

safety-critical domains.

Our approach to explicitly translating these re-

quirements into a shaped reward function was shown

to still enable agents to solve the global goal, while

being able to consider these additional requirements,

making them speciﬁcation-aware. In accordance with

other results (Bengio et al., 2009; Gupta et al., 2017),

we found an inherent beneﬁt due to gradually applied

rewards where reward function and scenario become

increasingly more complicated.

An immediate generalization of our experiments

would be to replace the hand crafted shaping and

scheduling with some kind of auto-curriculum mech-

anism. This would allow the reward functions to ad-

just themselves in direct response to the agents’ learn-

ing progress (Jaderberg et al., 2019; Liu et al., 2019)

but focusing on non-functional objectives. Such tech-

niques have also been employed for adversarial learn-

ing (Lowd and Meek, 2005), but our results sketch a

path on how to implement reward engineering as an

adversary given a ﬁxed speciﬁcation.

As we now only considered a cooperative setting,

it seems natural to expand our study to groups of self-

interested agents with (partially) opposing goals. As

these all have their own reward signal, deriving re-

ward functions from a shared speciﬁcation for the

whole systems becomes dramatically more difﬁcult

(at least doing so manually). However, especially in

industrial applications, ensuring safety between par-

ties with different interests is all the more crucial and

formulating the right secondary reward terms to en-

sure “fair play” might allow for even greater improve-

ment in the whole system’s performance than it does

for the cooperative setting.

Eventually, we would suspect that results from our

evaluation can be applied back to the formulation of

the original speciﬁcation. Requirements that are not

needed within the reward function might not right-

fully belong in the speciﬁcation. This way, the usu-

ally human-made speciﬁcation can be improved via

the translation to a reward function and the execution

of test runs of RL.

REFERENCES

Amodei, D., Olah, C., Steinhardt, J., Christiano, P. F.,

Schulman, J., and Man

e, D. (2016). Concrete prob-

lems in AI safety. CoRR, abs/1606.06565.

Belzner, L., Beck, M. T., Gabor, T., Roelle, H., and Sauer,

H. (2016). Software engineering for distributed au-

tonomous real-time systems. In 2016 IEEE/ACM 2nd

International Workshop on Software Engineering for

Smart Cyber-Physical Systems (SEsCPS), pages 54–

57. IEEE.

Bengio, Y., Louradour, J., Collobert, R., and Weston, J.

(2009). Curriculum learning. In Proceedings of the

26th Annual International Conference on Machine

Learning, ICML ’09, pages 41–48. ACM.

Bures, T., Weyns, D., Schmer, B., Tovar, E., Boden, E.,

Gabor, T., Gerostathopoulos, I., Gupta, P., Kang,

E., Knauss, A., et al. (2017). Software engineer-

ing for smart cyber-physical systems: Challenges and

promising solutions. ACM SIGSOFT Software Engi-

neering Notes, 42(2):19–24.

Chang, Y.-H., Ho, T., and Kaelbling, L. P. (2004). All learn-

ing is local: Multi-agent learning in global reward

games. In Advances in neural information processing

systems, pages 807–814.

Cheng, B. H., de Lemos, R., Giese, H., Inverardi, P., Magee,

J., Andersson, J., Becker, B., Bencomo, N., Brun, Y.,

Cukic, B., et al. (2009). Software engineering for

self-adaptive systems: A research roadmap. In Soft-

ware engineering for self-adaptive systems, pages 1–

26. Springer.

ICAART 2021 - 13th International Conference on Agents and Artiﬁcial Intelligence

Devlin, S. and Kudenko, D. (2012). Dynamic potential-

based reward shaping. In Proceedings of the 11th

International Conference on Autonomous Agents and

Multiagent Systems - Volume 1, AAMAS ’12, pages

433–440. International Foundation for Autonomous

Agents and Multiagent Systems.

Devlin, S., Yliniemi, L., Kudenko, D., and Tumer, K.

(2014). Potential-based difference rewards for mul-

tiagent reinforcement learning. In Proceedings of

the 2014 International Conference on Autonomous

Agents and Multi-agent Systems, AAMAS ’14, pages

165–172. International Foundation for Autonomous

Agents and Multiagent Systems.

Foerster, J. N., Farquhar, G., Afouras, T., Nardelli, N., and

Whiteson, S. (2018). Counterfactual multi-agent pol-

icy gradients. In Thirty-Second AAAI Conference on

Artiﬁcial Intelligence.

Garc

ıa, J., Fern, and o Fern

andez (2015). A comprehen-

sive survey on safe reinforcement learning. Journal of

Machine Learning Research, 16(42):1437–1480.

Grze

s, M. (2017). Reward shaping in episodic reinforce-

ment learning. In Proceedings of the 16th Conference

on Autonomous Agents and MultiAgent Systems, AA-

MAS ’17, pages 565–573. International Foundation

for Autonomous Agents and Multiagent Systems.

Gupta, J. K., Egorov, M., and Kochenderfer, M. (2017).

Cooperative multi-agent control using deep reinforce-

ment learning. In International Conference on Au-

tonomous Agents and Multiagent Systems, pages 66–

83. Springer.

Jaderberg, M., Czarnecki, W. M., Dunning, I., Marris, L.,

Lever, G., Casta

neda, A. G., Beattie, C., Rabinowitz,

N. C., Morcos, A. S., Ruderman, A., Sonnerat, N.,

Green, T., Deason, L., Leibo, J. Z., Silver, D., Has-

sabis, D., Kavukcuoglu, K., and Graepel, T. (2019).

Human-level performance in 3d multiplayer games

with population-based reinforcement learning. Sci-

ence, 364(6443):859–865.

Laurent, G. J., Matignon, L., Fort-Piat, L., et al. (2011).

The world of Independent Learners is not Marko-

vian. Journal of Knowledge-based and Intelligent En-

gineering Systems.

Leibo, J. Z., Zambaldi, V., Lanctot, M., Marecki, J.,

and Graepel, T. (2017). Multi-Agent Reinforcement

Learning in Sequential Social Dilemmas. In Proceed-

ings of the 16th Conference on Autonomous Agents

and Multiagent Systems, pages 464–473. IFAAMAS.

Leike, J., Martic, M., Krakovna, V., Ortega, P. A., Everitt,

T., Lefrancq, A., Orseau, L., and Legg, S. (2017). AI

safety gridworlds. CoRR, abs/1711.09883.

Liu, S., Lever, G., Merel, J., Tunyasuvunakool, S., Heess,

N., and Graepel, T. (2019). Emergent coordination

through competition. In 7th International Conference

on Learning Representations, ICLR 2019, New Or-

leans, LA, USA.

Lowd, D. and Meek, C. (2005). Adversarial learning. In

Proceedings of the eleventh ACM SIGKDD interna-

tional conference on Knowledge discovery in data

mining, pages 641–647. ACM.

Mnih, V., Kavukcuoglu, K., Silver, D., Rusu, A. A., Veness,

J., Bellemare, M. G., Graves, A., Riedmiller, M., Fid-

jeland, A. K., Ostrovski, G., et al. (2015). Human-

Level Control through Deep Reinforcement Learning.

Nature.

Ng, A. Y., Harada, D., and Russell, S. J. (1999). Pol-

icy invariance under reward transformations: Theory

and application to reward shaping. In Proceedings

of the Sixteenth International Conference on Machine

Learning, ICML ’99, pages 278–287. Morgan Kauf-

mann Publishers Inc.

Phan, T., Belzner, L., Gabor, T., and Schmid, K. (2018).

Leveraging statistical multi-agent online planning

with emergent value function approximation. In Pro-

ceedings of the 17th International Conference on Au-

tonomous Agents and MultiAgent Systems, AAMAS,

pages 730–738.

Rashid, T., Samvelyan, M., de Witt, C. S., Farquhar, G., Fo-

erster, J., and Whiteson, S. (2018). QMIX: Monotonic

Value Function Factorisation for Deep Multi-Agent

Reinforcement Learning. In International Conference

on Machine Learning, pages 4292–4301.

Seurin, M., Preux, P., and Pietquin, O. (2019). ”i’m sorry

dave, i’m afraid i can’t do that” deep q-learning from

forbidden action. CoRR, abs/1910.02078.

Silver, D., Schrittwieser, J., Simonyan, K., Antonoglou, I.,

Huang, A., Guez, A., Hubert, T., Baker, L., Lai, M.,

Bolton, A., et al. (2017). Mastering the Game of Go

without Human Knowledge. Nature, 550(7676):354.

Son, K., Kim, D., Kang, W. J., Hostallero, D. E., and Yi, Y.

(2019). QTRAN: Learning to Factorize with Transfor-

mation for Cooperative Multi-Agent Reinforcement

Learning. In International Conference on Machine

Learning, pages 5887–5896.

Sunehag, P., Lever, G., Gruslys, A., Czarnecki, W. M.,

Zambaldi, V., Jaderberg, M., Lanctot, M., Sonnerat,

N., Leibo, J. Z., Tuyls, K., et al. (2018). Value-

decomposition networks for cooperative multi-agent

learning based on team reward. In Proceedings of the

17th International Conference on Autonomous Agents

and Multiagent Systems (Extended Abstract), pages

2085–2087. IFAAMAS.

Sutton, R. S. and Barto, A. G. (2018). Reinforcement Learn-

ing: An Introduction. A Bradford Book, Cambridge,

MA, USA.

Tampuu, A., Matiisen, T., Kodelja, D., Kuzovkin, I., Korjus,

K., Aru, J., Aru, J., and Vicente, R. (2017). Multia-

gent Cooperation and Competition with Deep Rein-

forcement Learning. PloS one, 12(4):e0172395.

Wang, S., Wan, J., Zhang, D., Li, D., and Zhang, C.

(2016). Towards smart factory for industry 4.0: a

self-organized multi-agent system with big data based

feedback and coordination. Computer Networks,

101:158–168.

Wolpert, D. H. and Tumer, K. (2002). Optimal payoff func-

tions for members of collectives. In Modeling com-

plexity in economic and social systems, pages 355–

369. World Scientiﬁc.

Zahavy, T., Haroush, M., Merlis, N., Mankowitz, D. J.,

and Mannor, S. (2018). Learn what not to learn: Ac-

tion elimination with deep reinforcement learning. In

Bengio, S., Wallach, H., Larochelle, H., Grauman, K.,

Cesa-Bianchi, N., and Garnett, R., editors, Advances

in Neural Information Processing Systems 31, pages

3562–3573. Curran Associates, Inc.

SAT-MARL: Speciﬁcation Aware Training in Multi-Agent Reinforcement Learning
