Clothing Parsing using Extended U-Net

Gabriela Vozáriková

, Richard Sta

and Gabriel Semanišin

Institute of Computer Science, Pavol Jozef Šafárik University in Košice, Jesenná 5, Košice, Slovakia

Keywords:

U-Net, Clothing Parsing, Segmentation, Computer Vision, Multitask Learning, Deep Learning,

Fully-convolutional Network.

Abstract:

This paper focuses on the task of clothing parsing, which is a special case of the more general object seg-

mentation task well known in the ﬁeld of computer vision. Each pixel is to be assigned to one of the clothing

categories or background. Due to complexity of the problem and lack of data (until recently) performance

of the modern state-of-the-art clothing parsing models expressed in terms of mean Intersection over Union

metric (IoU) does not exceed 55%. In this paper, we propose a novel multitask network by extending fully-

convolutional neural network U-Net with two side branches – one solves a multilabel classiﬁcation task and

the other predicts bounding boxes of clothing instances. We trained this network using a large-scaled iMate-

rialist dataset (Visipedia, 2019), which we reﬁned. Compared to well performing segmentation architectures

FPN, DeepLabV3, DeepLabV3+ and plain U-Net, our model achieves the best experimental results.

1 INTRODUCTION

Recently, the fashion industry has been undergoing a

digital transformation by expanding into online plat-

forms. Automated processing and analysis of fashion

images have been gaining much attention. Clothing

parsing in itself is an important tool in fashion image

analysis (e.g. for automatic colour tagging of clothing

items), but also serves as an important intermediate

step in many other tasks. For example in (Aoki et al.,

2019) a fashion segmentation model is used to boost

the performance of a fashion style estimation model.

Segmentation models are also often utilized in Deep

Generative models, as is the case for clothing pars-

ing in the image synthesis model proposed in (Xian

et al., 2018). Another example outside the fashion

domain is described in (Simon et al., 2020), in which

a clothing parsing model is used as one of the four

steps of ﬁltering candidates for person identiﬁcation

in surveillance videos based on their outﬁt.

Although being part of the more general segmen-

tation task, clothing parsing poses its speciﬁc chal-

lenges. They consist mainly in ambiguous and numer-

ous clothing categories (sometimes difﬁcult to differ-

entiate between even for human annotators), occlu-

sion, deformities, high intra-class variation. These

https://orcid.org/0000-0002-0111-972X

https://orcid.org/0000-0001-7938-2117

https://orcid.org/0000-0002-5837-2566

obstacles, in combination with very limited amount of

data (until recently), result in the state-of-the-art seg-

mentation models’ performance not exceeding 55%

mean Intersection over Union metric. (Martinsson

and Mogren, 2019) reports state-of-the-art perfor-

mance on two benchmark datasets for clothing pars-

ing - Reﬁned Fashionista with mean IoU of 51.78%

and CFPD with mean IoU of 54.65%. (Zheng et al.,

2018) provides a description of a recently released

large-scale fashion dataset and reports IoU between

28% and 68% separately for 13 clothing categories

for DeepLabV3+ architecture.

In this paper, we approach the clothing parsing

problem using an extended and modiﬁed version of

U-Net architecture trained on the large-scaled Kaggle

iMaterialist (Fashion) dataset (Visipedia, 2019). U-

Net (Ronneberger et al., 2015) is a fully-convolutional

network developed for biomedical image segmenta-

tion, but it proved to be successful in many other

domains. Deep layers of the U-Net network extract

semantically rich features, while spatial information

is preserved by cross connections. We used a mod-

iﬁed version of U-Net by replacing backbone with

Resnet34 pre-trained on ImageNet and extended it

by two side branches solving object detection and

multilabel classiﬁcation task. The evaluation shows

that these additional branches contribute to the in-

creased performance in the clothing parsing segmen-

tation task.

Vozáriková, G., Sta

na, R. and Semanišin, G.

Clothing Parsing using Extended U-Net.

DOI: 10.5220/0010177700150024

In Proceedings of the 16th International Joint Conference on Computer Vision, Imaging and Computer Graphics Theory and Applications (VISIGRAPP 2021) - Volume 5: VISAPP, pages

15-24

ISBN: 978-989-758-488-6

Our contribution lies namely in:

• We propose a simpliﬁed version of the clothing

parsing task that we argue is still complex enough

to sufﬁce many real-life applications.

• We propose an extension to the standard U-

Net architecture by providing additional two side

branches in order to increase the capacity of the

model to capture global dependencies.

• We perform a reﬁnement of the large-scaled iMa-

terialist dataset (Visipedia, 2019), which results in

a signiﬁcant performance boost of the proposed

segmentation model.

• We provide results of a selection of modern seg-

mentation models, namely Feature Pyramid Net-

works (FPN), DeepLabV3, DeepLabV3+ and U-

Net trained on the reﬁned iMaterialist dataset.

This paper is organized into ﬁve sections. Sec-

tion 2 reviews prior work in semantic segmentation

of clothing items. Section 3 describes the proposed

network architecture and training speciﬁcs. Section 4

focuses on the reﬁned version of iMaterialist dataset,

discusses the model performance and identiﬁes its

bottleneck. Section 5 closes with a summary and con-

clusion.

2 RELATED WORK

Clothing parsing, also known as semantic segmenta-

tion of clothing items, is an important tool in fash-

ion image analysis. One of the ﬁrst approaches to

clothing parsing and creation of Fashionista dataset

(685 images) for benchmarking purposes is described

in (Yamaguchi et al., 2012). This approach was

highly reliant on the performance of the pose estima-

tion model. (Liu et al., 2013) used additional color-

category meta tags provided by users and introduced

CFPD dataset with 2 682 annotated images.

More recent work has used powerful deep con-

volutional neural networks achieving state-of-the-art

results without the need for additional meta tags.

Tangseng et al. (Tangseng et al., 2017) augment fully-

convolutional networks (FCNs) by a branch that pre-

dicts combinatorial preference of garments. In (Khu-

rana et al., 2018) texture cues extracted by Gabor ﬁl-

ters are used for clothing type classiﬁcation boosting.

In (Martinsson and Mogren, 2019) architecture based

on feature pyramid networks with a ResNeXt back-

bone was used for the clothing parsing task.

All of these models were trained and evaluated

on rather small-size datasets (aforementioned Fash-

ionista and CFPD). Recently, in order to facilitate the

training of better performing models, three big-scale

datasets were released - namely ModaNet (Zheng

et al., 2018), DeepFashion2 (Ge et al., 2019) and a

dataset (Visipedia, 2019) released as part of the Kag-

gle iMaterialist (Fashion) Challenge 2019 at FGVC6

(iMaterialist). ModaNet and DeepFashion2 papers

also provide an overview of the performance of a se-

lection of modern segmentation models trained on the

corresponding datasets. To our knowledge, no re-

search was conducted using the iMaterialist dataset.

3 ARCHITECTURE OF THE

PROPOSED NETWORK

We base our neural network on the modiﬁed U-

Net architecture with the input image dimension of

288x192x3 (Ronneberger et al., 2015), which we en-

rich by two side branches - bounding box and mul-

tilabel classiﬁcation branch. Figure 1 illustrates the

architecture of our network. Our compound loss func-

tion consists of 3 parts - object detection, multilabel

and segmentation loss term.

3.1 U-Net

U-Net architecture is a special type of fully-

convolutional neural networks. It has a typical

encoder-decoder structure with the aim of dense

pixel-wise predictions generation. We have made a

couple of modiﬁcations to the original U-Net archi-

tecture, namely:

1. Taking our hardware constraints into account, we

decided to use ResNet34 pre-trained on ImageNet

as the encoder.

2. Simple nearest neighbor technique was used as

an upsampling layer. We also experimented with

trainable upsampling layers, but we did not ac-

quire better results.

3.2 Additional Branches

Our U-Net branch extensions were deeply inspired

by the clothing parsing architecture described in

(Tangseng et al., 2017). They used VGG-16 based

fully convolutional network FCN 8s extended by a

side path that encoded and predicted combinatorial

preference of garment items. In simpler terms, the

added side path solves multilabel classiﬁcation task

- predicts what clothing categories are present in the

input image. This side branch proved useful as was

demonstrated by increased Intersection over Union

metric. Inspired by this paper, we extended U-Net

VISAPP 2021 - 16th International Conference on Computer Vision Theory and Applications

I/2

Expansion

Softmax

Conv(kernel1x1)

Conv(kernel7x7)

Conv(kernel3x3) + ReLU

Conv(kernel1x1) + ReLU

Fully-connected + ReLU + Batchnorm + Dropout 0.25

Fully-connected

DownsamplingResNet34 block

Standard ResNet34 block without Batchnorm

Standard ResNet34 block

MaxPool (stride 2, kernel 3x3)

Batchnorm+ Upsampling

Flatten + ReLU + Dropout 0.25

AdaptivePooling + Batchnorm+ Dropout 0.25

Batchnorm+ Concatenation (BranchesConcatenation without Batchnorm)

646464

I/4

128 128 128

I/8

256 256 256 256 256

I/16

512 512

I/32

1024

adaptConcatPool

1024

multiLabel

multiLabelExp

27648

ﬂatten

512

objDet

objDetExp

1024

I/32

512

I/32

256

I/16

512 512

I/16

256

I/8

384 384

I/8

192

I/4

256 256

I/4

128

I/2

96 96

I/2

136

9 9

Softmax

Figure 1: Visualization of Our model. Standard and downsampling ResNet34 blocks are described in ResNet paper (He

et al., 2016). ‘Adaptive Pooling’ stands for the concatenation of Adaptive Max Pooling and Adaptive Average Pooling layer.

Basic nearest neighbor upsamling layer was used. ‘multiLabel’ stands for the ‘ClassBranch’ logit output, additional sigmoid

function is used before the multilabel classiﬁcation binary cross-entropy loss calculation. ‘objDet’ stands for the ‘BBbranch’

logit output, additional sigmoid function is used before the object detection smooth L1 loss calculation. ‘Expansion’ is

described in subsection 3.2. Please, zoom in if content not visible.

not only by the aforementioned multilabel classiﬁca-

tion branch (’ClassBranch’), but also by object detec-

tion/localization bounding box branch (‘BBbranch’) -

the goal of this branch is to predict bounding boxes of

clothing instances (maximum of 1 instance per cloth-

ing category). In other words, ‘BBbranch’ focuses on

where the clothing items are on the more global im-

age (not pixel) level. On the contrary, ’ClassBranch’

is location agnostic. Insertion of the branches is illus-

trated in Figure 1.

’ClassBranch’ is implemented as a subnetwork

consisting of an adaptive average and max pooling

layer followed by two fully connected layers with

dimensions 512 and number of clothing categories.

The ﬁrst fully connected layer is followed by ReLU,

Batchnorm and dropout layer. ‘BBbranch’ is imple-

mented as two fully connected layers without any pre-

ceding pooling layer. We want to emphasize that ‘BB-

branch’ is not solving the object detection task in its

general form, which has no prior knowledge about the

number of objects in the input image. On the contrary,

we use the fact that there is a maximum of one in-

Clothing Parsing using Extended U-Net

stance of each clothing category in the input image.

Each output channel of ‘BBbranch’ is dedicated to

bounding box prediction of a speciﬁc clothing cate-

gory, and no complex region proposal subnetwork is

needed. It is important to note that no additional anno-

tation work was done, the ground truth bounding box

position calculation was inferred automatically from

the ground truth segmentation mask.

Output layers of these additional branches are in-

jected back into the segmentation network by con-

catenation. More speciﬁcally, logit outputs of the

branches are expanded so that they match the reso-

lution of the input image (e.g. for the ’ClassBranch’

eight logit output neurons are transformed into eight

layers of resolution 288x192. Each layer contains

288x192 clones of the corresponding output neuron).

This way of branches injection enables gradient ﬂow

from the main segmentation loss to the branches. The

concatenation is followed by a residual convolutional

layer and ﬁnal convolutional layer outputting segmen-

tation mask logit prediction. We also experimented

with the setting, in which no inclusion of the addi-

tional branches into the main segmentation part was

performed.

3.3 Loss Function

Loss function used in our network is a weighted sum

of three terms:

First is a weighted cross-entropy loss (WCE) per-

taining to the main pixel-wise segmentation task. Be-

cause of the data imbalance (dominance of the back-

ground class), we have set the weight of WCE to 1

for the background class and 2 for every of the fore-

ground classes. This loss term was used with a weight

of 1.

Second loss term is binary cross-entropy pertain-

ing to the multilabel classiﬁcation task of the ‘Class-

Branch’. This loss term was used with a weight of

0.5.

Third component is the smooth L1 loss described

in (Girshick, 2015). According to the paper, this loss

is less sensitive to outliers. The ground truth bound-

ing box position was expressed relative to the input

image size (resulting in values in [0,1] range). There-

fore, additional sigmoid function was introduced be-

fore the smooth L1 loss calculation. Not all clothing

categories were present in the input image. There-

fore, only loss terms from the channels corresponding

to the clothing categories present in the input image

contributed to the ﬁnal loss term. This loss term was

used with a weight of 75.

Weights of the particular loss terms were de-

termined empirically, so that each loss term would

contribute approximately evenly to the ﬁnal com-

pound loss (unweighted loss terms have different

value ranges).

3.4 Network Training Speciﬁcs

For reproducibility, this subsection provides our net-

work training details.

Preprocessing - based on the most prevalent height

to width ratio in our dataset (3:2) and the fact that

Resnet34 backbone downsizes images by 32, we re-

size every image to 288x192.

Data augmentation - rather conservative data aug-

mentation was performed, namely horizontal ﬂip,

mild changes in lighting and rotation. It is impor-

tant to note, that segmentation mask was transformed

in the same way as the original input image, and

the ground truth bounding box was inferred from the

transformed mask (calculation performed more efﬁ-

ciently on the GPU).

We used a batch size of 16. Because of GPU mem-

ory constraints while still aiming for a batch of sufﬁ-

cient size, regarding the weights and activations the

whole training was performed using half-precision

(ﬂoating point 16), but loss terms and gradients were

32 ﬂoating-point precision.

We used GPU NVidia GTX 1080. The training

was two-phased, which is characteristic of transfer

learning. In the ﬁrst phase, we froze the Resnet34

backbone pre-trained on Imagenet and trained only

the rest of the network (all the branches included).

This phase was ten epochs long, using Adam op-

timizer and cyclical learning rate scheduler (Smith,

2017) with learning rate maximum of 10

−4

. Then

we unfroze the whole network, continued for an-

other ten epochs, Adam optimizer and cyclical learn-

ing rate scheduler with learning rate maximum of

−4

. Weight decay of 10

−3

was used in both phases

(weight decay decoupled from the Adam optimizer

was used as described in (Loshchilov and Hutter,

2017)). This training procedure was determined em-

pirically based on the training behavior of the Plain

U-Net. Training of all of the models was closely mon-

itored in terms of losses and metrics. There was no in-

dication of performance suffering from poorly chosen

training hyperparameters, hence no speciﬁc training

hyperparameters modiﬁcations for particular models

were performed.

The implementation of the network design and

training was done in FastAI (Howard et al., 2018)

and PyTorch (Paszke et al., 2017) environment.

(Yakubovskiy, 2020) implementation of DeepLabV3,

DeepLabV3+ and FPN architectures was used.

VISAPP 2021 - 16th International Conference on Computer Vision Theory and Applications

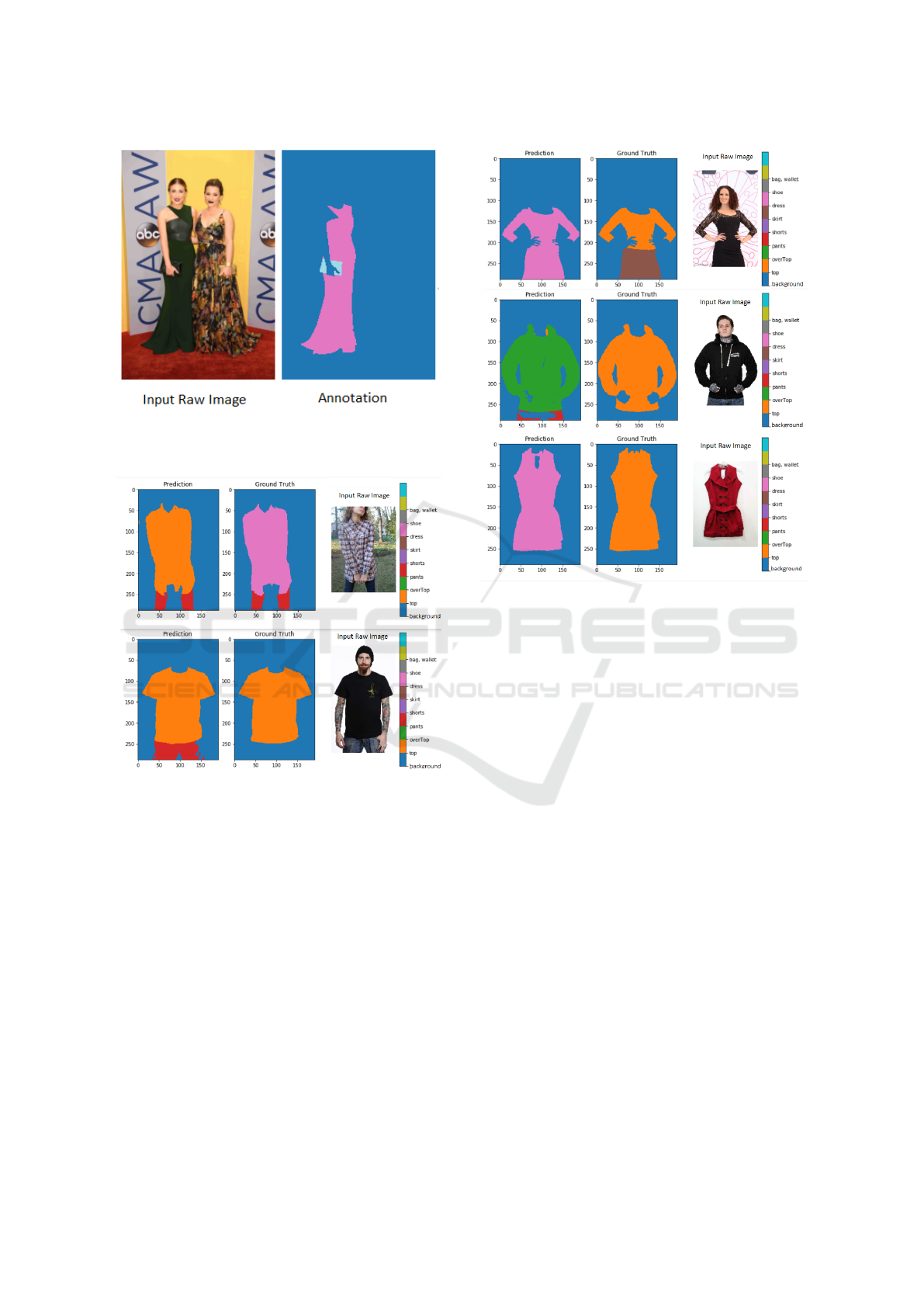

Figure 2: Example of an annotation issue in iMaterialist

dataset (Visipedia, 2019). In images with more than one

person present, only one of the people was segmented.

Figure 3: Example of annotation inconsistency in the iMa-

terialist dataset. In the case of images with a partial view,

sometimes the cut off lower body garment was annotated

as ‘pants’ and sometimes it was annotated as ‘background’.

‘Ground Truth’ stands for the annotation, ‘Prediction’ is the

output of our segmentation model.

4 DATASET AND RESULTS

This section provides a description of the dataset used

and model results.

4.1 Dataset

As discussed in the introduction section, the major-

ity of the previous clothing parsing research was per-

formed on datasets of small size.

We use a large-scale dataset (Visipedia, 2019) re-

leased as part of the Kaggle iMaterialist (Fashion)

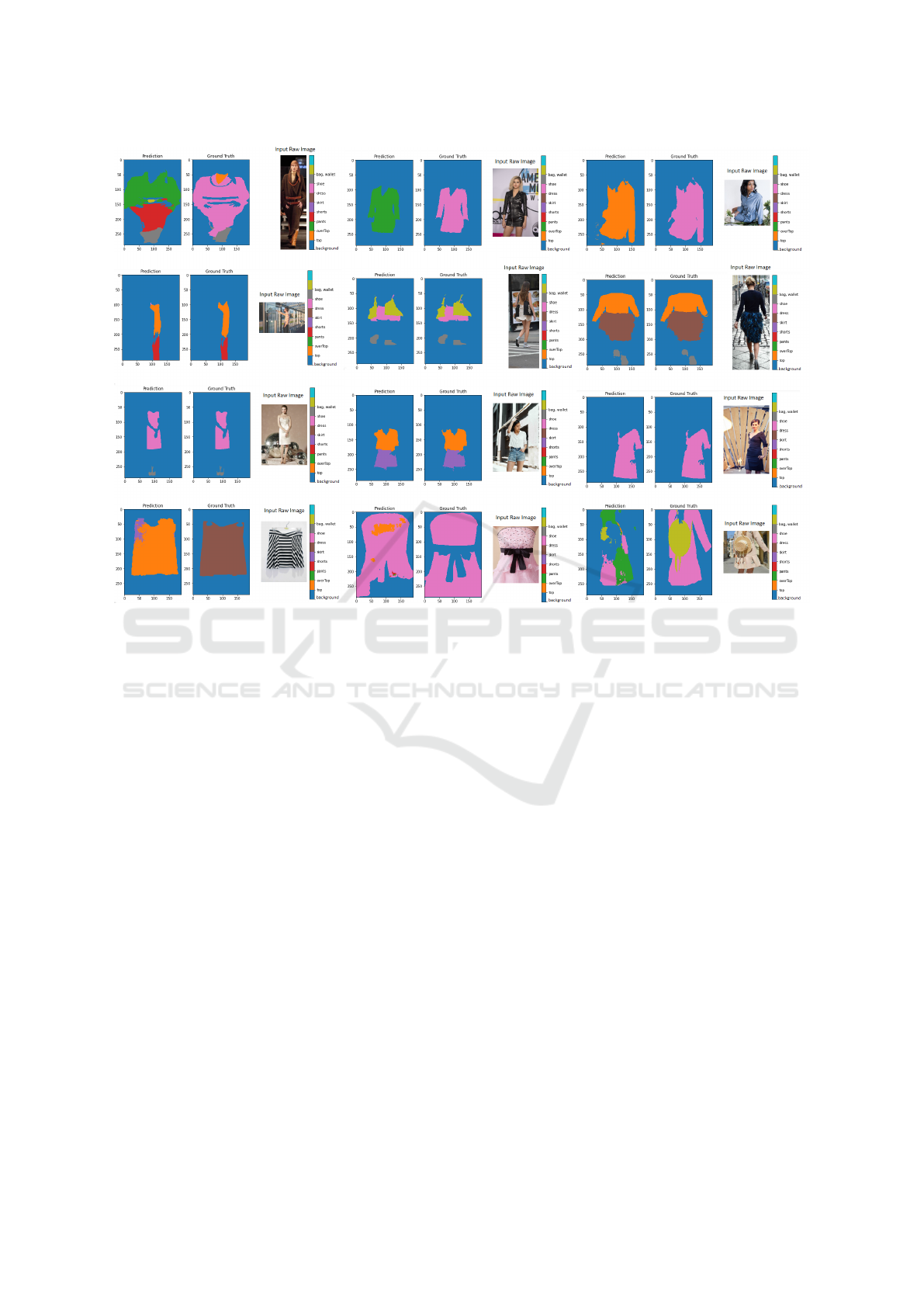

Figure 4: Demonstration of challenging nature of the cloth-

ing parsing task. Some very common clothing combina-

tions are easily confused even for human annotators, e.g.

dress vs top+skirt combination as depicted in the ﬁrst row.

Furthermore, assignment to a clothing category might be

fuzzy for some items, especially when depicted solo with-

out any referential human models. The third row provides

an example of such an item - without additional info about

the length of the item, its assignment to clothing category is

rather ambiguous. ‘Ground Truth’ stands for the annotation,

‘Prediction’ is the output of our segmentation model.

Challenge 2019 at FGVC6. It contains the total of

45 622 clothing images (from which approx. 3 500

depict single clothing item, while the rest depict com-

plex clothing outﬁts as worn by people) from daily-

life, celebrity events, and online shopping with di-

verse poses (not limited to the full-frontal view), oc-

clusion types, scales, viewpoints, clothes layering.

The dataset recognizes 27 main clothing categories.

We made a couple of modiﬁcations to the dataset.

Upon inspection rather ambiguous (even for a hu-

man) and numerous clothing categories we reduced

the number of clothing categories by merging or ex-

cluding some of them. Final clothing categories and

their relation to the original dataset:

‘top’: merging of ‘shirt, blouse’ and ‘top, t-shirt,

sweatshirt’

‘overtop’: merging of ‘sweater’, ‘cardigan’, ‘jacket’,

‘vest’ and ‘coat’

‘pants’: ‘pants’

Clothing Parsing using Extended U-Net

Table 1: Performance of the plain U-Net model trained on the base vs reﬁned dataset. ‘IoU excl. bg’ stands for IoU excluding

the background category, ‘IoU overall’ means IoU including background, ‘IoU Mask’ is IoU of special segmentation with

only two possible classes - foreground and background.

Dataset IoU excl. bg IoU overall Iou Mask

Base 70.01 89.44 91.38

Reﬁned 72.10 90.23 92.03

Dataset Bg Top Overtop Pants Shorts Skirt Dress Shoe Bag

Base 97.02 69.22 69.43 76.61 59.31 47.54 75.20 62.37 40.10

Reﬁned 97.24 71.02 71.72 78.25 61.60 51.12 77.21 65.05 46.04

Table 2: Performance expressed in terms of IoU. ‘IoU excl. bg’ stands for IoU excluding background, ‘IoU overall’ means

IoU including background, ‘IoU Mask’ is IoU of special segmentation with only two possible classes - foreground and

background. The best performance of each category is bold.

Method IoU excl. bg IoU overall Iou Mask

FPN 67.77 88.18 89.44

DeepLabV3 68.91 88.33 88.80

DeepLabV3+ 70.85 89.31 90.15

Plain U-Net 72.10 90.23 92.03

Our model 73.38 90.66 92.18

ClassBranch only 73.01 90.57 92.16

Branches 72.72 90.44 92.13

Method Bg Top Overtop Pants Shorts Skirt Dress Shoe Bag

FPN 96.29 66.74 66.56 74.35 55.99 47.91 73.68 56.31 33.69

DeepLabV3 96.03 68.05 68.81 74.28 59.41 49.26 74.18 53.80 39.64

DeepLabV3+ 96.54 70.14 70.05 76.33 60.93 50.88 76.45 58.18 40.36

Plain U-Net 97.24 71.02 71.72 78.25 61.60 51.12 77.21 65.05 46.04

Our model 97.29 72.49 72.68 79.81 65.90 53.83 77.97 65.97 48.31

ClassBranch only 97.30 72.23 72.70 78.95 63.83 51.84 77.61 65.70 46.47

Branches 97.27 71.46 72.24 79.08 63.56 53.39 77.42 65.60 48.09

‘shorts’: ‘shorts’

‘skirt’: ‘skirt’

‘dress’: ‘dress’

‘shoe’: ‘shoe’

‘bag, wallet’: ‘bag, wallet’.

Additionally, we excluded the ‘jumpsuit’ category

with approximately 900 images. We argue that this re-

duced version still sufﬁces many real-life applications

(automatic colour extraction in the fashion domain,

suspicious person detection in surveillance videos,

etc.) while signiﬁcantly lowering the complexity of

the clothing parsing task.

There was one major dataset annotation issue we

had to address. In images with more than one per-

son present, only one of the people was segmented.

Figure 2 shows an example of such an annotation.

We could not even identify the selection criterion for

choosing the person to be segmented. It proved to be

malicious for the model training, as when training on

these images, we were by means of the loss function

penalizing the model for correctly identifying cloth-

ing items of all the people in the input image.

To address this issue, ﬁrstly we applied Mask R-

CNN (Massa and Girshick, 2018) object detection

model to select out images with more than one per-

son (in a total of 12 188 images more than one person

was detected). Then we performed an iterative im-

age cropping with respect to the segmentation ground

truth mask (GT mask) - we cropped the rectangle con-

taining the GT mask keeping the original height of the

image and adding extra x% of the GT mask width to

the left and right of the rectangle (iteratively

x = 30%, 10%, 0%). After each iteration, cropped im-

ages with only one detected person were put aside, the

rest proceeded to the next iteration. Finally, cropped

images after the most restrictive type of cropping

(with x = 0%) with more than one detected person

were manually inspected (approx. 1 030 images). The

ﬁnal cleaned dataset contained 43 470 images. The

effect of this dataset cleaning is shown in Table 1. It

contributed to more than 2% increase in IoU exclud-

ing background metric.

During visual inspection of the results of our

model, we identiﬁed another annotation inconsis-

tency. In the case of images with a partial view, some-

times the cut off lower body garment was annotated

VISAPP 2021 - 16th International Conference on Computer Vision Theory and Applications

Table 3: Confusion matrix (in %) for predictions of our model on the test dataset. The ﬁrst matrix expresses row percentages,

i.e. looking at the particular clothing category ground truth pixels what is the distribution of the corresponding predicted

labels. The second expresses column percentages, i.e. looking at the particular clothing category predicted pixels what is the

distribution of the corresponding ground truth labels.

Predicted

top

overTop

pants

shorts

skirt

dress

shoe

bag

Ground Truth

98.08 0.30 0.38 0.36 0.03 0.08 0.52 0.18 0.09

top

1.88 83.56 8.59 0.33 0.09 0.19 5.26 0.00 0.11

overTop

1.96 7.03 86.53 0.48 0.04 0.26 3.34 0.00 0.37

pants

2.62 0.79 0.92 92.14 0.37 1.23 1.20 0.56 0.16

shorts

1.61 2.13 0.57 4.38 79.78 7.21 4.18 0.01 0.14

skirt

1.80 0.83 0.97 3.21 2.99 65.08 24.72 0.05 0.34

dress

1.98 3.00 2.35 0.19 0.08 2.15 90.10 0.04 0.11

shoe

11.08 0.01 0.15 3.30 0.02 0.10 0.73 84.41 0.21

bag

13.64 2.69 10.71 1.20 0.55 1.90 5.81 0.13 63.37

Predicted

top

overTop

pants

shorts

skirt

dress

shoe

bag

Ground Truth

99.21 3.82 4.87 9.96 5.57 4.90 4.48 21.20 20.05

top

0.15 84.45 8.68 0.71 1.48 0.95 3.54 0.00 1.92

overTop

0.15 6.65 81.83 0.97 0.60 1.20 2.10 0.03 6.31

pants

0.09 0.34 0.40 84.83 2.48 2.63 0.34 2.21 1.22

shorts

0.01 0.13 0.04 0.58 77.20 2.24 0.17 0.01 0.15

skirt

0.03 0.19 0.22 1.53 10.34 72.20 3.66 0.10 1.36

dress

0.22 4.27 3.35 0.58 1.80 15.28 85.43 0.46 2.77

shoe

0.09 0.00 0.01 0.69 0.03 0.05 0.05 75.92 0.37

bag

0.06 0.16 0.62 0.15 0.50 0.55 0.22 0.07 65.86

as ‘pants’ and sometimes it was annotated as ‘back-

ground’ (see Figure 3). It resulted in almost 10% of

the predicted ‘pants’ pixels being annotated as ‘back-

ground’, see confusion matrix Table 3. The issue is

beyond the scope of this paper.

The dataset was divided into training, validation

and test subsets of sizes 30 429, 3 913 and 9 128

respectively. Stratiﬁed sampling was used, so that

the clothing categories distribution would be approx-

imately the same in the training, validation and test

subset.

4.2 Evaluation Metrics

We used several evaluation metrics to measure the

performance of the main clothing parsing task, and

also the performance of the tasks solved by the side

branches.

Clothing parsing task - we calculated Intersection

over Union metrics (IoU), also known as Jaccard in-

dex, in several subversions - IoU excluding the back-

ground category ‘IoU excl. bg’, IoU including back-

ground ‘IoU overall’, IoU of a special segmentation

with only two possible classes - foreground and back-

ground (how well the model predicts which pixels are

clothing pixels regardless of the speciﬁc clothing cat-

egory assignment) ‘IoU Mask’ and IoU of each cloth-

ing category separately.

Multilabel classiﬁcation task - F1, F2 score and

accuracy for the clothing classes separately.

Bounding boxes localization task - only visual in-

spection in combination with the ﬁnal loss term as-

sessment.

Performance of our ﬁnal model in terms of these

metrics is presented in Table 2 and 4. To our knowl-

edge, there is no clothing parsing research performed

on the dataset (Visipedia, 2019), so we resort to

comparing our model to a plain U-Net, DeepLabV3,

DeepLabV3+ and FPN architectures, which have

proved to perform well in the segmentation task.

Clothing Parsing using Extended U-Net

Table 4: Performance of the ClassBranch of our model.

F1 F2 % of images Top Overtop Pants Shorts Skirt Dress Shoe Bag

87.14 87.17 66.26 87.22 91.33 94.82 97.50 93.22 91.17 96.02 92.58

Table 5: Comparison of our model performance without and with the ground truth (GT) clothing category information injec-

tion. ‘IoU ex. bg’ stands for overall IoU excluding the background category and the rest of the columns represent IoU per

corresponding clothing category.

Method IoU ex. bg Bg Top Overtop Pants Shorts Skirt Dress Shoe Bag

Without GT 73.38 97.29 72.49 72.68 79.81 65.90 53.83 77.97 65.97 48.31

With GT 87.37 97.32 87.62 86.25 89.02 83.51 86.27 91.01 67.63 52.94

4.3 Model Performance Analysis

Table 2 summarizes the performance of our model

(and two additional) compared to various baselines.

Compared to FPN, DeepLabV3, DeepLabV3+ and a

plain U-Net, our model achieves the best experimen-

tal results. We reason that the contribution of the ad-

ditional branches lies in increasing the capacity of the

model to capture global dependencies.

Additional two models are provided for the abla-

tion study purposes. ‘ClassBranch only’ represents

the model with only the ‘ClassBranch’ with its output

being incorporated back into the segmentation trunk

by means of multiplication. ‘Branches’ stands for the

model with both ‘ClassBranch’ and ‘BBbranch’, but

no incorporation into the main segmentation trunk is

performed. Advantage of the ‘Branches’ model stems

from the fact that during inference, both branches can

be detached. Hence in inference time no extra compu-

tation is required compared to the plain U-Net, while

still achieving better performance.

Confusion matrix calculated on the segmentation

masks shown in Table 3 clearly shows that our model

is not performing well in distinguishing between dress

vs skirt + top, between top vs overtop and shorts vs

skirt combinations. As Figure 4 demonstrates, due

to diversity in the fashion domain, different view-

points, poses, clothes deformities in the input image

and sometimes absence of referential human models,

image clothing category classiﬁcation task poses a

challenge even for a human. Performance metrics of

the ClassBranch shown in Table 4 (particularly sur-

prisingly low percentage of matched images) indicate

the same issue.

To put it quantitatively, we injected the ground

truth clothing category information to our model dur-

ing inference and performed model evaluation in this

new setting. The results of this evaluation can be seen

in Table 5. With the ground truth injection IoU ex-

cluding background metric rises from 73.38 to 87.37.

The evaluation supports the hypothesis that clothing

category identiﬁcation is the bottleneck of our model.

Figure 5 visually demonstrates the effect of partial

Figure 5: Demonstration of the effect of the partial ground

truth clothing category information injection to the model.

First row depicts output of our model with no prior informa-

tion. Second row shows output of our model after injection

of the ‘no-dress’ information (probabilities for the ‘dress’

category were set to 0).

ground truth information injection to the model.

On the other hand, the high value of IoU of

segmentation with only foreground and background

classes ‘Iou Mask’ implies good ability of our model

to eliminate the background.

4.4 Qualitative Evaluation

To visually demonstrate the performance of our

model, we randomly sampled 1 000 images from the

test subset and sorted outputs according to their loss.

Figure 6 provides example outputs at each of the 3

loss levels. Majority of the failure cases were because

of the wrong clothing category assignment, as dis-

cussed in the previous subsection. This issue is more

frequent in images of women fashion since it is more

diverse. Our model shows good performance in the

background elimination.

VISAPP 2021 - 16th International Conference on Computer Vision Theory and Applications

Figure 6: Visual demonstration of the performance of our model. 1 000 images were randomly sampled from the test dataset,

and corresponding outputs were sorted according to their loss value. The ﬁrst row represents outputs with the highest loss

value, the second outputs from the middle loss category, and the third row presents outputs with the lowest loss term. The last

row provides examples of failure cases.

5 CONCLUSION AND FUTURE

WORK

This paper addresses the clothing parsing task with

motivation of its applicability in real-life scenarios.

Inspired by (Tangseng et al., 2017), an extended ver-

sion of U-Net architecture was proposed by attaching

two side branches. The ﬁrst branch solves the mul-

tilabel clothing category classiﬁcation task, the other

localizes bounding boxes of the clothing items. This

paper introduces a simpliﬁed version of the clothing

parsing task. Reﬁnement of the iMaterialist dataset

(Visipedia, 2019) was performed. The empirical re-

sults presented in this paper support the hypothesis

that additional branches of our model contribute to the

performance improvement.

The model performance analysis subsection indi-

cates that the bottleneck of our model is clothing cat-

egory classiﬁcation. Therefore, our recommendation

is to inject to the model any (even partial) known

prior knowledge about which clothing categories are

present in the input image. For example, in auto-

matic color extraction for fashion e-shops application,

one should for images in ‘skirts’ subsection inject this

‘skirt, but no dress’ information.

In our future work, we would like to address the

issue of our model’s confusion with the clothing cate-

gories. We would like to explore whether incorporat-

ing the annotators’ confusion regarding clothing cat-

egory assignment could be useful.

REFERENCES

Aoki, R., Nakajima, T., Oki, T., and Miyamoto, R. (2019).

Accuracy improvement of fashion style estimation

with attention control of a classiﬁer. In 2019 IEEE

9th International Conference on Consumer Electron-

ics (ICCE-Berlin), pages 289–294. IEEE.

Ge, Y., Zhang, R., Wang, X., Tang, X., and Luo, P. (2019).

Deepfashion2: A versatile benchmark for detection,

pose estimation, segmentation and re-identiﬁcation of

clothing images. In Proceedings of the IEEE con-

ference on computer vision and pattern recognition,

pages 5337–5345.

Clothing Parsing using Extended U-Net

Girshick, R. (2015). Fast r-cnn. In Proceedings of the IEEE

international conference on computer vision, pages

1440–1448.

He, K., Zhang, X., Ren, S., and Sun, J. (2016). Deep resid-

ual learning for image recognition. In Proceedings of

the IEEE Conference on Computer Vision and Pattern

Recognition (CVPR).

Howard, J. et al. (2018). Fastai.

https://github.com/fastai/fastai.

Khurana, T., Mahajan, K., Arora, C., and Rai, A. (2018).

Exploiting texture cues for clothing parsing in fashion

images. In 2018 25th IEEE International Conference

on Image Processing (ICIP), pages 2102–2106. IEEE.

Liu, S., Feng, J., Domokos, C., Xu, H., Huang, J., Hu, Z.,

and Yan, S. (2013). Fashion parsing with weak color-

category labels. IEEE Transactions on Multimedia,

16(1):253–265.

Loshchilov, I. and Hutter, F. (2017). Fixing weight decay

regularization in adam. CoRR, abs/1711.05101.

Martinsson, J. and Mogren, O. (2019). Semantic segmen-

tation of fashion images using feature pyramid net-

works. In Proceedings of the IEEE International Con-

ference on Computer Vision Workshops.

Massa, F. and Girshick, R. (2018). Maskrcnn-

benchmark: Fast, modular reference im-

plementation of Instance Segmentation and

Object Detection algorithms in PyTorch.

https://github.com/facebookresearch/maskrcnn-

benchmark.

Paszke, A., Gross, S., Chintala, S., Chanan, G., Yang, E.,

DeVito, Z., Lin, Z., Desmaison, A., Antiga, L., and

Lerer, A. (2017). Automatic differentiation in pytorch.

Ronneberger, O., Fischer, P., and Brox, T. (2015). U-net:

Convolutional networks for biomedical image seg-

mentation. In International Conference on Medical

image computing and computer-assisted intervention,

pages 234–241. Springer.

Simon, J., Bilodeau, G.-A., Steele, D., and Mahadik, H.

(2020). Color inference from semantic labeling for

person search in videos. In International Conference

on Image Analysis and Recognition, pages 139–151.

Springer.

Smith, L. N. (2017). Cyclical learning rates for training

neural networks. In 2017 IEEE Winter Conference on

Applications of Computer Vision (WACV), pages 464–

472. IEEE.

Tangseng, P., Wu, Z., and Yamaguchi, K. (2017). Looking

at outﬁt to parse clothing. CoRR, abs/1703.01386.

Visipedia (2019). iMaterialist Competition - Fashion.

https://github.com/visipedia/imat_comp.

Xian, W., Sangkloy, P., Agrawal, V., Raj, A., Lu, J., Fang,

C., Yu, F., and Hays, J. (2018). Texturegan: Con-

trolling deep image synthesis with texture patches. In

Proceedings of the IEEE Conference on Computer Vi-

sion and Pattern Recognition, pages 8456–8465.

Yakubovskiy, P. (2020). Segmentation models pytorch.

https://github.com/qubvel/segmentation_models.

Yamaguchi, K., Kiapour, M. H., Ortiz, L. E., and Berg, T. L.

(2012). Parsing clothing in fashion photographs. In

2012 IEEE Conference on Computer Vision and Pat-

tern Recognition, pages 3570–3577. IEEE.

Zheng, S., Yang, F., Kiapour, M. H., and Piramuthu, R.

(2018). Modanet: A large-scale street fashion dataset

with polygon annotations. In Proceedings of the 26th

ACM international conference on Multimedia, pages

1670–1678.

VISAPP 2021 - 16th International Conference on Computer Vision Theory and Applications
