Autonomous Braking and Throttle System: A Deep Reinforcement

Learning Approach for Naturalistic Driving

Varshit Dubey

, Ruhshad Kasad

and Karan Agrawal

Department of Electronics and Telecommunication Engineering, College of Engineering Pune, Pune, India

Keywords:

Autonomous Systems, Collision Avoidance System, Deep Reinforcement Learning, Naturalistic Driving,

Simulation.

Abstract:

Autonomous Braking and Throttle control is key in developing safe driving systems for the future. There exists

a need for autonomous vehicles to negotiate a multi-agent environment while ensuring safety and comfort. A

Deep Reinforcement Learning based autonomous throttle and braking system is presented. For each time step,

the proposed system makes a decision to apply the brake or throttle. The throttle and brake are modelled as

continuous action space values. We demonstrate 2 scenarios where there is a need for a sophisticated braking

and throttle system, i.e when there is a static obstacle in front of our agent like a car, stop sign. The second

scenario consists of 2 vehicles approaching an intersection. The policies for brake and throttle control are

learned through computer simulation using Deep deterministic policy gradients. The experiment shows that the

system not only avoids a collision, but also it ensures that there is smooth change in the values of throttle/brake

as it gets out of the emergency situation and abides by the speed regulations, i.e the system resembles human

driving.

1 INTRODUCTION

The past decade has seen exponential growth in tech-

nologies associated with autonomous vehicles. Ma-

jor technology companies and vehicle manufacturers

have invested in autonomous vehicles. Autonomous

vehicles are exposed to countless dynamic scenarios

involving multiple agents such as vehicles, pedestri-

ans and signs. Autonomous vehicles require reliable

control systems to deal with such uncertainty. Active

safety measures such as collision avoidance systems

are becoming increasingly popular on cars.

Autonomous Braking systems are already available

on most cars. Such systems detect an impending crash

and take corrective action in time to avoid accidents.

These systems work independent of the driver and ap-

ply brakes to decelerate and stop the vehicle avoiding

incidents or reduce impact. Autonomous Braking sys-

tems work in the narrow zone between braking early

to avoid accidents and braking late to conserve perfor-

mance.

Advanced cruise control systems use a combina-

https://orcid.org/0000-0001-6238-217X

https://orcid.org/0000-0002-6864-9506

https://orcid.org/0000-0001-6600-0044

tion of throttle and braking to maintain a constant

velocity following a vehicle. Such features elevate

vehicles to Level 1 of driving automation. However,

they fall short of creating a high level of automation.

Traditionally rule-based control systems are unable

to adapt to the dynamic environment autonomous ve-

hicles have to operate in. Rule-based systems specify

a distance threshold or a speed threshold and often

require human assistance in complex situations. An

intelligent system is required to cover a wide spectrum

of scenarios.

Intelligent algorithms are required to make such

systems viable. Autonomous Throttle and Braking

Systems need to be accurate in a high percentage of

scenarios. False-alarm scenarios erode driver conﬁ-

dence and can be dangerous. Such systems cannot be

programmed for the near inﬁnite scenarios which may

occur, therefore there exists a need for such systems

to be able to learn and adapt. Driving and speciﬁcally,

scenarios requiring emergency brake action can be

considered a multi-agent problem with only a partial

observable space at any given instant.

The death of a pedestrian due to collision with an

Uber self-driving car highlights the need for evolved

braking and throttle systems. Despite detecting the

pedestrian early, the system failed to act and exceeded

Dubey, V., Kasad, R. and Agrawal, K.

Autonomous Braking and Throttle System: A Deep Reinforcement Learning Approach for Naturalistic Driving.

DOI: 10.5220/0010157401730180

In Proceedings of the 13th International Conference on Agents and Artiﬁcial Intelligence (ICAART 2021) - Volume 1, pages 173-180

ISBN: 978-989-758-484-8

173

its assured clear distance ahead.

Reinforcement Learning is a methodology allow-

ing an agent to learn by interacting and participating in

an environment. The aim of using such methods is to

obtain an optimal policy which maximizes the reward

when the agent interacts with the environment. Policy

Gradient methods optimizes the policy directly. The

ability of Policy Gradient methods to learn stochas-

tic policy is integral in implementing a throttle and

braking control system. (Sutton and Barto, 2018)

In this paper a throttle and braking control sys-

tem is developed using Deep Reinforcement Learning.

Speciﬁcally, policy gradient methods are utilized to

dictate discrete brake and throttle inputs. The perfor-

mance of the system is tested in two scenarios which

are simulated in CARLA simulator. (Dosovitskiy et al.,

2017)

The rest of the paper is organized as follows. Sec-

tion 2, will include a brief review of research into

braking control systems implemented using Deep Re-

inforcement Learning.Section 3 presents the scenarios

and simulation environment to test the proposed brak-

ing and throttle system. Section 4 contains details

regarding the reinforcement learning methods used

and the proposed reward function. Section 5 contains

the result of conducted experiments and Section 6 dis-

cusses future work.

2 RELATED WORK

Simulation is integral in the development of au-

tonomous vehicles. Developing algorithms to navigate

in dense urban environments has been a key focus area.

Dosovitskiy (Dosovitskiy et al., 2017) noted that there

are obstacles to real-life research such as government

regulation, logistical difﬁculties and the possibility of

accidents. Training an agent for the possibility of a

rare event such as jaywalkers is also a necessity. One

way to resolve the testing and training of autonomous

vehicles is the use of simulation software. CARLA

open-source simulator provides an urban environment

for simulation with the ability to generate pedestrians,

vehicles and common road signs. The ability to gather

data such as velocity, coordinates and distance to other

vehicles reduces the effort in acquiring specialized

data. Moreover, the ability to set up an environment

for scenarios to train is beneﬁcial.

According to 2007 statistics for road accidents in

Germany, 14 % of accidents occur between a vehicle

following a moving vehicle ahead or a static vehicle.

Analysis of frontal collisions with stationary obsta-

cles exhibited that 21% of the drivers do not brake

at all prior to the accident. Kaempchen (Kaempchen

et al., 2009) proposes an emergency braking system

which generates potentially dangerous scenarios after

detecting an object or vehicle. The paper analyses

all possible trajectories of the host and object, while

calculating the possibility of a collision. Speciﬁcally,

it provides insight in two common scenarios, rear-end

collision and collisions at cross-sections.

Traditionally rule-based systems were utilized to

create braking and throttle control systems. Such sys-

tems had limited scope and needed speciﬁc protocols

for speciﬁc scenarios and would be handicapped in

the real-world. Chae (Chae et al., 2017) concludes

that a learning-based system is likely to achieve better

results in adapting to new and dynamic scenarios than

rule-based systems. The paper realizes braking control

systems as a discrete Markov Decision Process. More-

over the braking decision is initiated at a trigger point

which is calculated.

However such an approach is counterintuitive to

real-life driving since, braking decision can be decided

at any point during the approach. The author has used

DQN to design a braking system with 4 discrete action

values,

low

mid

high

(Chae et al., 2017). The

main drawback of this approach is that DQN works

on discrete state space whereas braking is continuous

value in the real world, which makes it difﬁcult for

DQN to ﬁnd optimal policy. This paper considers the

continuous space of the brake/throttle and uses DDPG

which is similar to DQN, but uses different subroutines

to ﬁnd the optimal policy and works for continuous

action spaces. The details of DDPG will be explained

in the subsequent section.

Reinforcement Learning considers the problem of

an agent trying to achieve a goal while interacting with

an unknown environment, therefore it is well-suited to

deal with the problem of a vehicle navigating in trafﬁc.

Talpeart (Talpaert. et al., 2019) focuses on teaching an

agent to establish a policy while interacting with an

environment to maximize a numerical reward.

Vasquez (Vasquez and Farooq, 2019). focuses on

emergency braking to avoid accidents with pedestri-

ans. A key aspect of the paper is modelling comfort

as reduction of jerk while braking and creating a nat-

uralistic dataset which closely mimics pedestrian be-

haviour. Early-braking methods combined with the

throttle action as discussed in this paper are designed

to reduce jerk. However the idea of creating datasets to

mimic real-world behaviour can be extended to driving

policies in order to make policies more naturalistic.

Y.Fu (Fu et al., 2020). examines Deep Determinis-

tic Policy Gradient (DDPG) algorithm based on Actor-

Critic infrastructure to reduce the difﬁculty of learning

in more complex environments. The paper proposes

that a reward function should accommodate multiple

ICAART 2021 - 13th International Conference on Agents and Artiﬁcial Intelligence

174

objectives, such as safety, comfort. A DDPG system

consisting of only braking action outperforms similar

braking systems based on fuzzy logic and DQN. An-

other key criteria examined is reducing the probability

of exceeding comfortable deceleration or experiencing

jerk. On the same count, DDPG systems exceed com-

fortable deceleration limits on fewer occasions than

DQN or fuzzy logic systems.

There has been an increased interest in using a

DRL method for emergency braking scenarios. The

reward function penalizes early braking and collisions

with other vehicles and pedestrians. A Deep Deter-

ministic Policy Gradient method allows the agent to

rapidly discover optimal policies in simulation by us-

ing stochastic policies for exploration to learn a deter-

ministic policy.(Porav and Newman, 2018)

Previous research largely focuses on braking action

as a ﬁnal resort to either prevent or mitigate collisions.

Such measures are limited in scope. Braking action

along with throttle control is more closely related with

real-world driving practices. This paper focuses on 2

scenarios. The ﬁrst scenario tests the control systems

braking ability while scenario 2, works with throttle

action necessary after an emergency situation.

3 SYSTEM DESCRIPTION

Society of Automotive Engineering deﬁnes 6 levels

of driving automation from level 0 to level 5. Level

5 of driving automation can drive a vehicle anywhere

under all possible conditions. A driver is not required

to take control at any point and vehicles provide a safe

and comfortable journey. The biggest challenge in

achieving driverless cars is safety. A broad overview

of braking and throttle system using reinforcement

learning is shown in ﬁgure 1. A car should detect

the surrounding objects and take decisions such as

deciding velocity,steering angle and braking to avoid

accidents. An object in the surrounding environment

of the vehicle could be a static obstacle, pedestrian, a

stop sign or a moving car.

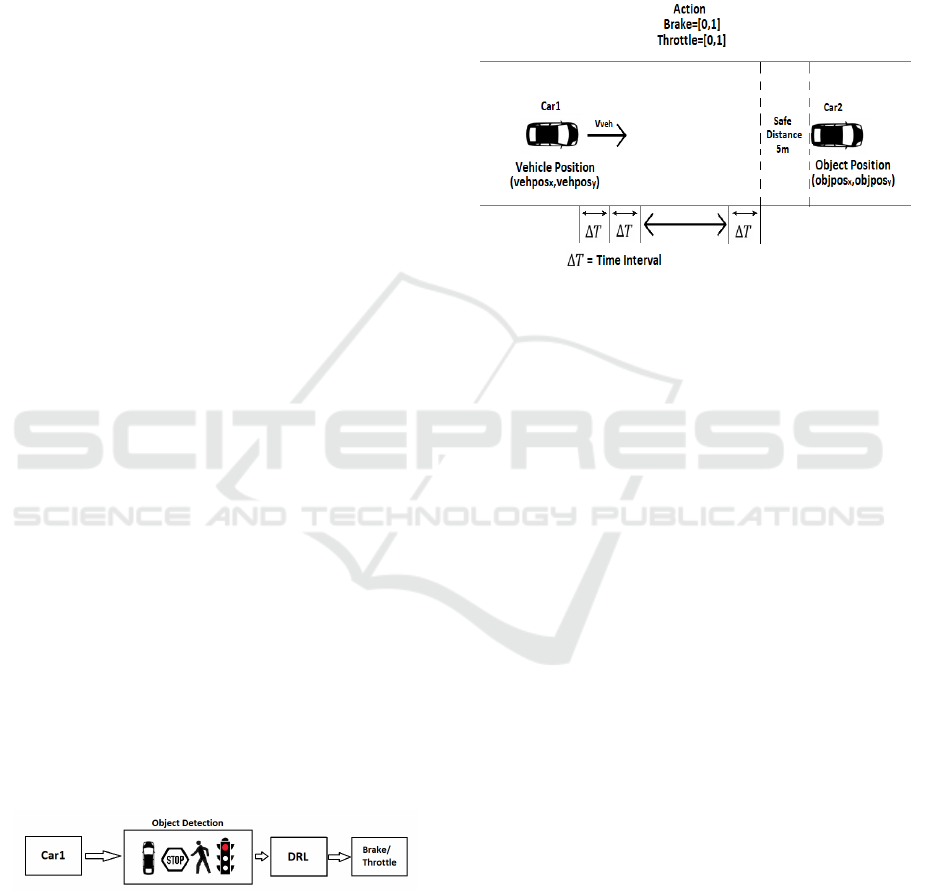

Figure 1: High level overview of Autonomous Brak-

ing/throttle system.

Once the object is detected, different parameters of

the car and the object will be passed into the neural

network (Goodfellow et al., 2016) and then via rein-

forcement learning an output will be generated. The

output can be a throttle or brake value which should

be applied by the car as shown in ﬁgure 1. The pa-

rameters to be passed into the network as input can be

initial velocity of car, relative position of the object to

the car, relative velocity etc.

In this paper we are considering 2 common scenarios,

where there is a need for effective braking and throttle

system to avoid accidents.

Figure 2: System description for Scenario 1.

3.1 Scenario 1

The ﬁrst scenario is shown in ﬁgure 2. There is

a static obstacle in front of the car at some dis-

tance. The static obstacle can be another vehicle, stop

sign etc. The autonomous agent is moving with the

velocity of

veh

from a position

(vehpos

,vehpos

)

As soon as the static object is detected, the vehi-

cle receives the relative position of the object, i.e

(ob j pos

− vehpos

,ob jpos

− vehpos

)

. From the

coordinates, the relative distance and direction from

the agent vehicle is calculated. Utilizing this infor-

mation, the agent decides whether to apply brake or

throttle at each time step. The brake and throttle values

are between [0,1].

3.2 Scenario 2

In the second scenario, 2 cars are approaching the in-

tersection. We consider that the other car approaching

the intersection is not abiding by trafﬁc rules. This cre-

ates a scenario in which an agent is required to make

a quick decision to apply brakes to avoid an accident.

After we avoid this emergency situation, we can again

apply throttle to move forward. We will try to make

our autonomous agent learn this policy. Here, the au-

tonomous agent and the object are moving with veloci-

ties

veh

and

ob j

respectively. When the episode starts,

the agent starts from position

(vehpos

,vehpos

)

and

the other car starts from

(ob j pos

,ob jpos

)

. We as-

sume that at a certain time, using sensors, our agent

Autonomous Braking and Throttle System: A Deep Reinforcement Learning Approach for Naturalistic Driving

175

gets information about the object approaching the in-

tersection. Our agent after receiving useful parameters

such as relative distance and also relative velocities

makes the decision whether to apply brake or throt-

tle. A similar scenario can be applied to pedestrians

suddenly crossing the road. Figure 3 explains the pro-

posed scenario.

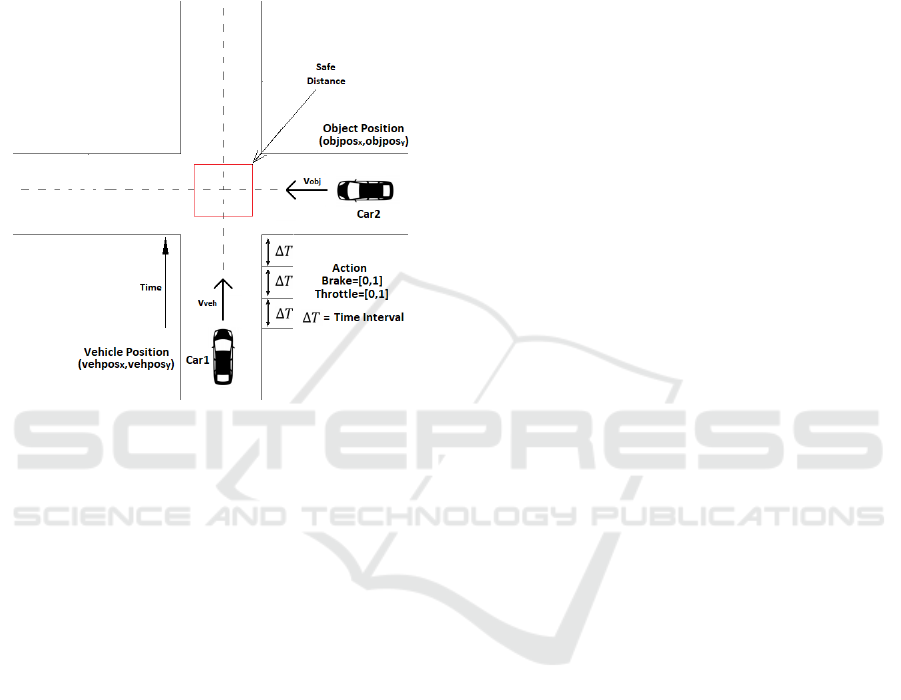

Figure 3: System description for Scenario 2.

4 DEEP REINFORCEMENT

LEARNING

In this section we present the details of our DRL-

based braking and throttle system. The aim of re-

inforcement learning algorithms is to learn a pol-

icy which maximizes the expected cumulative award

which will be received in the future. The agent per-

forms an action

given the state

under policy

. After performing the action, the agent receives

a new state and a reward

. Here the state consists

of relative position of the vehicle and the object, i.e

(ob j pos

− vehpos

,ob jpos

− vehpos

)

and relative

velocity of the vehicle and object for the past 10 steps.

The action that the agent takes consists of brake or

throttle. Brake and Throttle control are both real val-

ued with values in range [0,1].

The initial position of the agent and the objects is

ﬁxed for all the simulation. The values of

veh

(velocity

of agent) and

ob j

(velocity of other car) are set as

random so that our reinforcement learning agent learns

a wide variety of cases.

For each scenario, there exists a set of events which

will result in the termination of the episode. For sce-

nario 1, the episode will end if there is:

•

Collision: The agent vehicle has breached the safe

distance limit of the object.

•

Early stop: The agent vehicle moving stops too

early, i.e the static object is very far away from the

agent.

The events for scenario 2 are mentioned below:

•

Collision: The agent vehicle has breached the safe

distance limit of the object.

•

Early Stopping: Similar to scenario 1, if our ve-

hicle stops very early compared to the distance to

the object in the environment.

•

High speed at intersection: The velocity of our

autonomous agent is very high during crossing at

intersection.

4.1 Deep Deterministic Policy Gradient

Policy methods (Sutton et al., 2000) are preferred for

numerous reasons. First, they do not compute the

immediate maximum reward and instead rely on total

rewards. Secondly, for a continuous action space, such

as braking or throttle control, we cannot calculate the

Q value (Watkins and Dayan, 1992), of each action, as

the action space will grow exponentially, which makes

Policy methods more appealing.

Deep Deterministic Policy Gradient is a determin-

istic, model-free, off-policy method which is used in

situations where the action space is continuous. It

is inspired by DQN and Deterministic Policy Gradi-

ents(DPG). DQN (Mnih et al., 2013) calculates the

Q function for all actions, using a neural network

and selects the action with maximum Q value. DPG

uses actor-critic style and learns a deterministic pol-

icy, i.e. for each state there is a ﬁxed action deﬁned.

For continuous action space, we need a differentiable

action-value function approximator to avoid calcula-

tion of Q value for each action. DDPG is thus an al-

gorithm which combines both the deterministic policy

approach and the neural network as function approxi-

mators. DDPG also has a target actor and target critic

along with actor and critic networks. The important

steps in the algorithm are shown as follows. First, the

current state is given as input to actor network and

a = µ(s; θ

) + N

is computed, where

is the output

action for state

and

is the weights of the actor net-

work.

is the random process chosen for exploration

of action space. We will be using Ornstein-Uhlenbeck

process to add noise to the action output. (Uhlenbeck

and Ornstein, 1930). Next, the updated Q value, i.e

is computed as the sum of the immediate reward

and the outputs of the target actor and target critic

networks for the next state.

ICAART 2021 - 13th International Conference on Agents and Artiﬁcial Intelligence

176

= r

+ γQ

i+1

,µ

i+1

|θ

)|θ

) (1)

Here,

is the discounting factor. The critic network

is updated by minimizing the mean-squared loss be-

tween

and the original Q value calculated using

critic network, i.e

Q(s

|θ

)

. Since DDPG is an off-

policy method, for a mini-batch, we take the mean

of the sum of policy gradients while updating actor

network (Lillicrap et al., 2015). The target networks

are time-delayed copies of the original networks and

they help bring stability to the system by only moving

a factor

from the original networks at each step, i.e

← τθ + (1 − τ)θ

,τ << 1

, where

is the original

weight of the actor/critic network and

is the weight

of the corresponding target network.

DDPG makes use of a ﬁnite buffer to store each

step of every episode as a tuple

t+1

)

. These

tuples are randomly sampled, thus they remain undif-

ferentiated between episodes during learning (Lillicrap

et al., 2015).

4.2 Reward Function for Scenario 1

The reward function is the most important component

of the reinforcement learning algorithm. It must be

formulated such that it closely resembles the proposed

braking and throttle system. The main objective which

our control system should achieve are:

• Collision must be avoided at all costs

•

The car should apply control smoothly instead of

sudden brake/throttle, so that the driving is more

realistic to human driving.

•

The car should not stop very early as it makes

no sense if the obstacle is very far away from the

agent.

•

The car should not cross the intersection at very

high speed.

To achieve the above objectives, we propose the fol-

lowing reward function for scenario 1:











−(αdistance

+ β)abs(action)

−(ηv

veh

+ λ), if Collision

−(αdistance

+ γ), if Early Stopping

+δ, otherwise

(2)

where

distance

= (ob jpos

− vehpos

)

(ob j pos

− vehpos

)

α,β,η, λ,γ,δ > 0

veh

the velocity of the vehicle, and action is the value of

throttle or brake taken by agent at any instant of time.

The ﬁrst condition is proposed by Chae (Chae et al.,

2017). It suggests that the penalty in case of collision

is proportional to the square of the velocity of the ve-

hicle. The second and third part of the reward function

are proposed by us. We want the agent to decide when

to apply brakes once the obstacle is detected, we don’t

want our vehicle to stop if the obstacle is far away

from the vehicle. So the second condition gives the

penalty proportional to the square of the distance be-

tween obstacle and vehicle. Finally if we are in a safe

state, i.e there is neither collision or early stopping, we

simply give a constant positive reward for being in a

safe state. In an episode, we want our agent to gather

as much positive reward as possible.

4.3 Reward Function for Scenario 2

The reward function for the scenario where both the

agent and the car is moving towards an intersection is:











−(αdistance

+ β)abs(action)

−(η(v

veh

− v

ob j

)

+ λ), if Collision

−(αdistance

+ γ), if Early Stopping

−(αv

veh

+ µ), if High speed at intersection

+δ, otherwise

(3)

Here

distance

is the same as the one deﬁned in sce-

nario 1 and α,β,η, λ,γ,δ,µ > 0.

The reward function looks very similar to the one

proposed for scenario 1. There is one additional condi-

tion. In a real-world scenario, we do not drive at very

high speed while driving through an intersection. We

give a penalty proportional to the square of the velocity

of agent. These conditions will ensure that our agent

will avoid a collision and also take decisions which

closely resemble human driving. The values of weight

parameters

α,β,η

etc, should be carefully chosen as

they serve as a trade-off between each objective. We

can assign each of these objectives a certain priority.

We give collision avoidance the highest priority, hence,

we assign maximum penalty in case of collision. Next

comes early stopping and high speed at intersection

which are given equal priority. However, the penalty is

lower as compared to collision avoidance. Considering

this argument, we conclude λ > γ,µ.

5 EXPERIMENT

5.1 Simulation Setup

We use CARLA (Car Learning to act) (Dosovitskiy

et al., 2017), an open-source driving simulator which

provides an environment to create scenarios commonly

Autonomous Braking and Throttle System: A Deep Reinforcement Learning Approach for Naturalistic Driving

177

Table 1: Simulation Setup for experiment.

(a) Scenario 1.

init

of agent U(8.33, 27.77) m/s

init

of obstacle 0 m/s

Rel. Position of obstacle 60 m

Safety Distance 5 m

Throttle ∈ IR with values [0,1]

Brake ∈ IR with values [0,1]

∆T 0.1 s

(b) Scenario 2.

init

of agent U(8.33, 27.77) m/s

init

of obstacle U(8.33, 27.77) m/s

Pos. of agent from junction 45 m

Pos. of obstacle from junction 45 m

Safety Distance 5 m

Throttle ∈ IR with values [0,1]

Brake ∈ IR with values [0,1]

∆T 0.1 s

encountered by vehicles and allow the agent to learn

from the interactions. We simulated our environment

by spawning vehicles according to the scenario men-

tioned in ﬁgure 2 and 3. In the simulations it is as-

sumed that the relative distance of the other objects

like cars, stop sign to the agent is known. For each

simulation the agent will be spawned at the same lo-

cation. The 2 scenarios which we simulated to make

models are:

•

Scenario 1: Static obstacle in front of agent. (Car,

Stop sign).

•

Scenario 2: Dynamic Obstacle, i.e both cars mov-

ing towards an intersection.

For scenario 2, we also want our agent to start again

after emergency braking, so we do not end the episode

once the agent avoids the collision. We keep a maxi-

mum limit of 7.5 seconds for an episode to end. Time

to collision(TTC) is chosen within this maximum limit.

For both the scenarios, the time to collision (TTC)

is chosen to be between 1.5 s to 5 s. Also the safety

distance to the obstacle is kept to be 5

. For scenario

2, a safety distance box is made as shown in ﬁgure 3.

The velocity of agent is sampled from uniform dis-

tribution, with

min

init

= 8.33m/s(30km/h)

and

max

init

27.77m/s(100km/h)

. The wide range of values will

make our agent learn to apply brake/throttle in most

extreme cases also. The detailed simulation setup for

both of these scenarios is shown in Table 1

5.2 Training

The neural network architecture consists of a fully

connected feed-forward neural network with 5 hidden

layers for both the actor and critic networks. We use

the same architecture for both of the scenarios, the

difference is in their reward functions. Adam optimizer

is used for both actor and critic networks. (Kingma and

Ba, 2014). A total of 2000 episodes have been trained

for both scenarios.The details of the architecture is

shown below:

• State buffer size : n = 10

•

Network architecture - Fully connected feed-

forward network with 5 hidden layers

•

Number of nodes for each layers: [40(Input layer),

400, 200, 100, 200, 400, 1(Output Layer)]

• Non linear Function - leaky ReLU.

• Actor learning rate - 0.00005

• Critic learning rate - 0.0005

• Replay buffer size - 20000

• Minibatch size - 16

• Gamma - 0.99

• Tau - 0.001

•

Reward function -

α = 0.01

β = 0.1

η = 0.01

λ = 50

(Scenario 1) = 15,

(Scenario 2) = 20,

µ = 30 ,δ = 0.5.

Figure 4: Value function during training.

ICAART 2021 - 13th International Conference on Agents and Artiﬁcial Intelligence

178

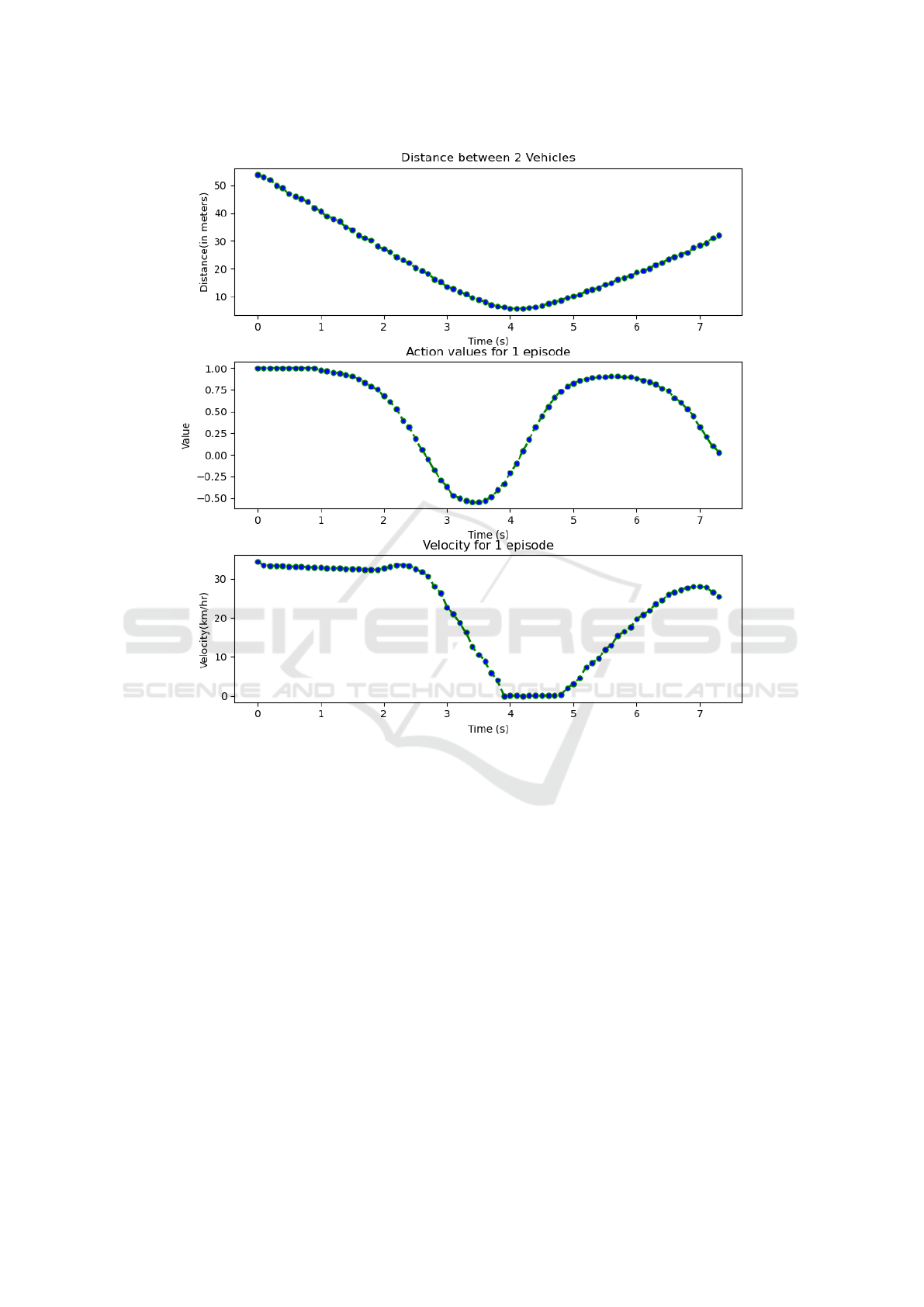

Figure 5: Trajectory of action and velocity of agent during 1 episode.

There is one neuron at the output. We have used

tanh activation layer at the output, so that the network

outputs the value between -1 and 1. If the output is less

than 0, we apply the brake and if the value is greater

than 0, we apply throttle.

5.3 Results

Figure 4 depicts the accumulated reward for scenario

1 and 2. For scenario 1,we can see that our model

makes quite an improvement in the accumulated re-

ward after 200 episodes, from 200 episodes to 700-750

episodes, it follows an increasing curve and later the

curve remains more or less the same. Occasionally

the curve shows some small spikes which is expected

since we are sampling the initial velocity of a car to

be 100 km/hr which is very high and even if we apply

full braking action from the start of the episode, we

cannot avoid the collision. The accumulated reward

curve for scenario 2 follows a similar trend as scenario

1. But there are more spikes as compared to scenario

1. This can be attributed to scenario 2 being more

complex and the agent needing to take into account

the high speed at intersection, which makes it hard to

learn a good policy. Now we consider one test episode

of scenario 2. Figure 5 shows the velocity of the car

as the agent takes braking or throttle decisions during

one episode. We observe that as the car approaches

the intersection, the agent slowly decreases throttle, so

there is very less decrease in velocity, but after 3 sec-

onds, it detects the object crossing the intersection at

high speed, so it applies brakes till the vehicle reaches

a speed of 0. Once the car avoids an emergency situ-

ation (collision), it again applies throttle to speed up

the car. This explains the valley like curve of velocity

in ﬁgure 5, between 2 and 6 seconds of the episode.

At last, when the vehicle achieves desired velocity, it

reduces the throttle input to make it constant. This

Autonomous Braking and Throttle System: A Deep Reinforcement Learning Approach for Naturalistic Driving

179

curve closely resembles human driving while cross-

ing intersections. The inclusion of early stopping and

avoiding high speed at intersections ensures the car is

always in a safe state. Since we are using real values

of brake and throttle as compared to previous study by

Chae (Chae et al., 2017) where the author proposes

discrete values of deceleration, we get a smooth de-

crease/increase in velocity. Also the velocity is in the

safety limits as we have imposed penalties for high

speed.

6 CONCLUSION AND FUTURE

WORK

We have demonstrated the braking and throttle control

system for 2 scenarios. One where braking is very

important, while the other scenario needs both braking

and throttle action. DDPG is used to ensure that the

values of brake and throttle are smoothly changing in-

stead of a sudden change. We have proposed measures

to avoid early stopping and high speed movement at

an intersection, making autonomous driving similar

to human driving. This work can be further extended

to other such situations, where the vehicle must apply

brake or throttle to avoid emergency situations. An

interesting study would be to see the effect of braking

and throttle actions along with steering of the vehicle

in these situations. One can create a uniﬁed model

for all these scenarios with a singular reward func-

tion. Also, the effect of change of weather conditions

can also be considered so as to make the model more

realistic.

ACKNOWLEDGEMENTS

The authors would like to thank Dr. Prashant P. Bar-

takke, Department of Electronics and Telecommuni-

cation Engineering, College of Engineering Pune, for

guiding us throughout the project.

REFERENCES

Chae, H., Kang, C. M., Kim, B., Kim, J., Chung, C. C.,

and Choi, J. W. (2017). Autonomous braking system

via deep reinforcement learning. In 2017 IEEE 20th

International Conference on Intelligent Transportation

Systems (ITSC), pages 1–6.

Dosovitskiy, A., Ros, G., Codevilla, F., Lopez, A., and

Koltun, V. (2017). CARLA: An open urban driving

simulator. In Proceedings of the 1st Annual Conference

on Robot Learning, pages 1–16.

Fu, Y., Li, C., Yu, F. R., Luan, T. H., and Zhang, Y. (2020).

A decision-making strategy for vehicle autonomous

braking in emergency via deep reinforcement learn-

ing. IEEE Transactions on Vehicular Technology,

69(6):5876–5888.

Goodfellow, I., Bengio, Y., and Courville, A. (2016). Deep

Learning. The MIT Press.

Kaempchen, N., Schiele, B., and Dietmayer, K. (2009).

Situation assessment of an autonomous emergency

brake for arbitrary vehicle-to-vehicle collision scenar-

ios. IEEE Transactions on Intelligent Transportation

Systems, 10(4):678–687.

Kingma, D. P. and Ba, J. (2014). Adam: A method for

stochastic optimization.

Lillicrap, T. P., Hunt, J. J., Pritzel, A., Heess, N., Erez, T.,

Tassa, Y., Silver, D., and Wierstra, D. (2015). Continu-

ous control with deep reinforcement learning.

Mnih, V., Kavukcuoglu, K., Silver, D., Graves, A.,

Antonoglou, I., Wierstra, D., and Riedmiller, M. (2013).

Playing atari with deep reinforcement learning.

Porav, H. and Newman, P. (2018). Imminent collision miti-

gation with reinforcement learning and vision. In 2018

21st International Conference on Intelligent Trans-

portation Systems (ITSC), pages 958–964.

Sutton, R. S. and Barto, A. G. (2018). Reinforcement Learn-

ing: An Introduction. A Bradford Book, Cambridge,

MA, USA.

Sutton, R. S., McAllester, D. A., Singh, S. P., and Mansour,

Y. (2000). Policy gradient methods for reinforcement

learning with function approximation. In Advances

in neural information processing systems, pages 1057–

1063.

Talpaert., V., Sobh., I., Kiran., B. R., Mannion., P., Yoga-

mani., S., El-Sallab., A., and Perez., P. (2019). Ex-

ploring applications of deep reinforcement learning

for real-world autonomous driving systems. In Pro-

ceedings of the 14th International Joint Conference

on Computer Vision, Imaging and Computer Graphics

Theory and Applications - Volume 5: VISAPP,, pages

564–572. INSTICC, SciTePress.

Uhlenbeck, G. E. and Ornstein, L. S. (1930). On the theory

of the brownian motion. Phys. Rev., 36:823–841.

Vasquez, R. and Farooq, B. (2019). Multi-objective au-

tonomous braking system using naturalistic dataset. In

2019 IEEE Intelligent Transportation Systems Confer-

ence (ITSC), pages 4348–4353.

Watkins, C. J. and Dayan, P. (1992). Q-learning. Machine

learning, 8(3-4):279–292.

ICAART 2021 - 13th International Conference on Agents and Artiﬁcial Intelligence

180
