Towards Quantitative Trade-off Analysis in Goal Models with Multiple

Obstacles using Constraint Programming

Christophe Ponsard

and Robert Darimont

CETIC Research Centre, Charleroi, Belgium

Respect-IT SA, Louvain-la-Neuve, Belgium

Keywords:

Requirements Engineering, Obstacle Analysis, Risk Minimisation, Search-based Software Engineering,

Quantitative Reasoning, Pareto Front, Attack Trees, Case Study, Tool Support.

Abstract:

Goal Models capture system goals and their decomposition into operational requirements assigned to human,

hardware or software agents. This reﬁnement process supports alternatives both when reﬁning goals processes

but also when reasoning and reﬁning obstacles to goals. This leads to large design space to explore in order

to select a speciﬁc solution fulﬁlling a set of set of non-functional requirements (e.g. reliability, security,

performance) or business goals (e.g. costs, satisfaction). This paper investigates how optimisation techniques

can be used to efﬁciently explore the design space where multiple objectives have to be met simultaneously.

This works extends previous work by allowing one not only to select a single alternative but also to combine

different alternatives together to produce a more robust design. In order to explore the potentially very large

design space, we show how to translate a model with many goals and obstacle alternatives, expressed in the

KAOS notation, into a constraint programming (CP) problem. The OscaR.CP engine is then used to compute

a set of Pareto-optimal solutions regarding the targeted evaluation objectives. Our method is implemented as a

tool plugin of a requirements engineering platform and is benchmarked on a security case study close to attack

trees.

1 INTRODUCTION

Requirements Engineering (RE) is concerned with

the elicitation, evaluation, speciﬁcation, consolida-

tion, and evolution of the objectives, functionalities,

qualities, and constraints of a software-based system

(van Lamsweerde, 2009). RE is a crucial phase and

the failure of many projects can be related to ﬂaws

in requirements. In addition to dealing with require-

ments quality, RE also support the process of taking

high-level design decisions related to alternative ways

to achieve the system goals or avoid obstacles to reach

such goals, generally also resulting in different trade-

offs in terms of Non-Functional Requirements (NFR)

such as performance, security and usability, in addi-

tion to more global cost constraints. Such alterna-

tive designs can be precisely modelled using Goal-

Oriented Requirements Engineering (GORE) nota-

tions like KAOS (Dardenne et al., 1993), i* (Yu and

Mylopoulos, 1997) or GRL (ITU, 2012).

The design of a complex system is the combina-

tion of many choices leading to a potentially combi-

natorial explosion of possible solutions which must

meet various constraints about feasibility or speciﬁc

properties to optimise, especially NFR. The process

leading to the selection of an adequate design can ac-

tually be described as a multi-objective optimisation

problem over the system design space (Mogk, 2014).

This leads to computing a set of solutions known as

Pareto-optimal from which trade-offs can be explic-

itly evaluated (Zhang et al., 2008). To support this

activity, a specialised ﬁeld of software engineering

concerned with the application of optimisation tools

is Search-Based Software Engineering (SBSE). A fa-

mous problem in this ﬁeld is the Next Release Prob-

lem which is NP-Hard (Bagnall et al., 2001).

This paper explores how to use SBSE to tackle the

problem of alternative selections in a multi-objective

context by efﬁciently computing the Pareto front con-

taining all solutions and then selecting from it. Our

approach is to translate a GORE model into an op-

timisation model to perform the search phase. Our

work builds upon previous work by us (Ponsard and

Darimont, 2020) and other research teams in this

ﬁeld using different GORE notations and optimisa-

tion tools (Heaven and Letier, 2011; Calderon et al.,

Ponsard, C. and Darimont, R.

Towards Quantitative Trade-off Analysis in Goal Models with Multiple Obstacles using Constraint Programming.

DOI: 10.5220/0009972105370543

In Proceedings of the 15th International Conference on Software Technologies (ICSOFT 2020), pages 537-543

ISBN: 978-989-758-443-5

537

2012; Nguyen et al., 2018). Our proposed contribu-

tion here is twofold:

• we extend the reasoning beyond goals to also cope

with the concept of obstacles to reason in terms of

risks for applications in security and safety areas.

Concretely, our generic framework is applied to

the study of attack trees.

• we allow to combine different alternatives to build

a more robust solution. This makes a lot of sense

when considering obstacles because different re-

duction strategies can be mixed to reach the re-

quired assurance level. In our security context,

multiple countermeasures may be combined to

make sure a critical asset is well protected.

We rely on the KAOS notations but our work can

easily be applied to the other GORE notations men-

tioned above. On the SBSE side, we consider the use

of Constraint Programming (CP) which is a power-

ful paradigm for solving combinatorial search prob-

lems by expressing constraints in a declarative way

and letting the system search the solution space, e.g.

using backtracking or branch and bound algorithm

combined with inference that propagates information

from one constraint to neighbouring ones in order to

efﬁciently reduce the size of the search space (van

Harmelen et al., 2008). More speciﬁcally we use the

Open Source OscaR library which provide support for

multi-objective problems (OscaR Team, 2012). In or-

der to illustrate our approach, we have focused on a

security case study inspired by a malicious insider

case study adapted from (Butts et al., 2005).

Our paper is structured as follows. Section 2

presents our case study and our notations. Section

3 illustrates how we map a GORE model into a CP

model. Section 4 then exploits the model to perform

single and multi-objective searches and illustrate the

result on our case study. Section 5 discusses our ap-

proach in the light of related work. Finally, Section 6

concludes and identiﬁes our future work.

2 MODELLING OF THE

MALICIOUS INSIDER

This section presents key modelling concepts and our

supporting security case related to reasoning on attack

trees.

2.1 Key Concepts

Goals prescribe, at different levels of abstrac-

tion, key properties the considered system should

achieve. Goal models reﬁne high-level strategic

goals. Such goals are related to the global sys-

tem for example in a banking system: Main-

tain[RapidAndSecureBankOperations]. It contains

a security NFR which is made explicit when re-

ﬁning it into a lower level goal such as Main-

tain[ProtectionState] which will be considered here.

When a goal can be controlled by an agent (such as

SecurityPatching by the Operating System agent), it

becomes a requirement. Obstacle is the dual concept

of a goal; it deﬁnes a set of undesirable behaviours

(van Lamsweerde and Letier, 2000). Obstacles can

occur from the environment (like a safety hazard) or

be deliberately caused by an attacker in the security

area considered here, e.g. insider sending a forged

banking order. Like goals, obstacles can be reﬁned

using AND/OR trees, leading to decomposition struc-

tures that are quite similar to attack trees in security

(Weiss, 1991; Schneier, 1999).

2.2 Attack Tree Modelling

When applied to security goals, obstacle analysis is

very close to Attack Trees (AT) and provides a me-

thodical way of describing the security of systems,

based on varying attacks. They represent attacks

against a system in a tree structure, with the goal as

the root node and different ways of achieving that

goal as leaf nodes. There are two kinds of nodes:

an AND node requires the achievement of all its sub-

goals while an OR node only requires one (but possi-

bly multiple can be tried, e.g. for raising chances of

success). A typical AT structure is shown in Figure 1.

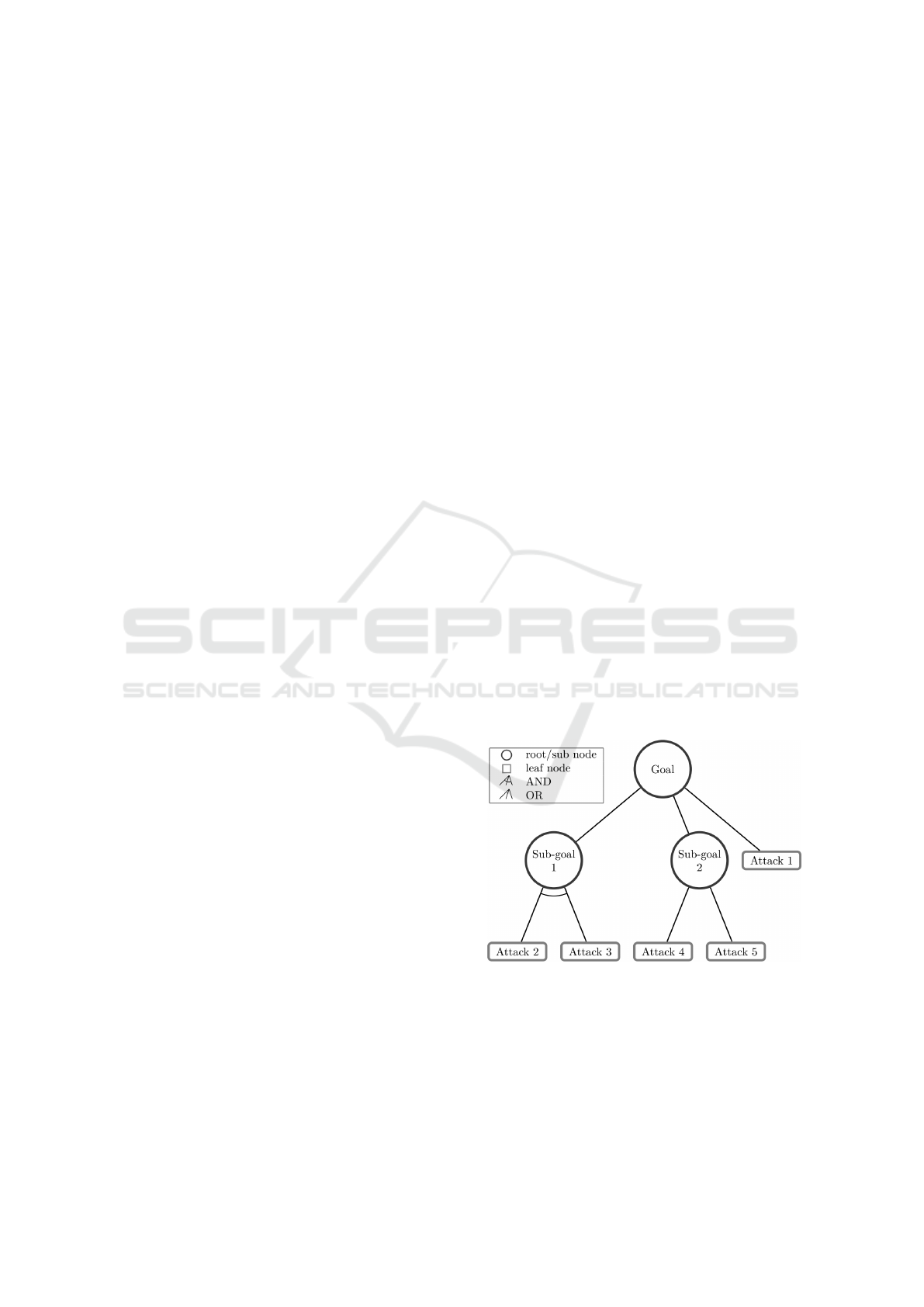

Figure 1: Example of Attack Tree (Siddiqi et al., 2018).

Our Malicious Insider case was developed with the

goal to provide a quite generic and reusable tax-

onomy of attacks against the Protection State of a

system which encompasses all activities that are al-

lowed according to organisation policy or system

access controls. In Figure 2, we represent this

as as the top goal, depicted using a blue parallel-

ICSOFT 2020 - 15th International Conference on Software Technologies

538

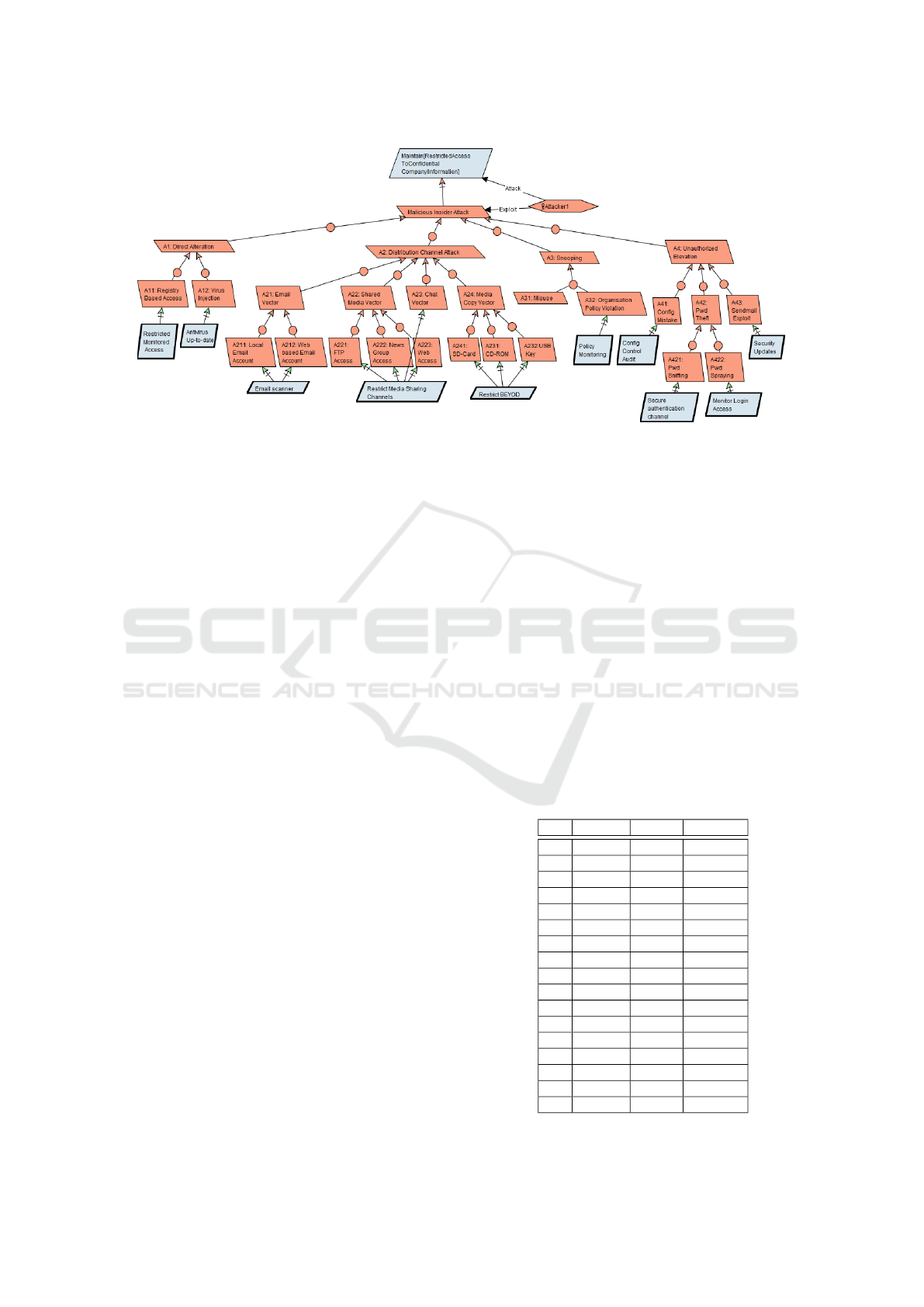

Figure 2: Attack Tree for a Malicious Insider.

ogram. Note this Maintain[ProtectionState] goal

could be instantiated more speciﬁcally, e.g. Main-

taint[RestrictedAccessToConﬁdentialInformation]

The malicious insider is the attacker whose goal

is to violate the Protection State of the system as de-

picted the threat as a red parallelogram just below the

top-goal in Figure 2. The attacker is also depicted

with its links with both the goal and the threat (also

called obstacle or anti-goal in the general KAOS no-

tation used here (van Lamsweerde, 2009)). A num-

ber of possible ways to violate the Protection State

are the following and compose the ﬁrst level of OR-

reﬁnement of our AT:

• Change another user or object’s rights (Alteration)

• Leak user or object information to an unautho-

rised entity (Distribution)

• Obtain protected information about another user

or object (Snooping)

• Change the rights on themselves (Elevation)

Note than our notations use AND-OR relationship

modelling: AND nodes are depicted as circular nodes

while OR nodes are deﬁned by the presence of multi-

ple AND nodes. In Figure 2, all reﬁnements are done

through OR nodes, except one: threat “A3: snooping”

is AND-reﬁned into two children: “A31: misuse” and

“A32: Organisation Policy Violation”. We will not

detail the whole decomposition process which is fully

described in (Butts et al., 2005).

2.3 Attack Tree Attributes

In our case, we will focus on the following attributes:

• Probability of success in the threat by the attacker

• Cost of the effort required the deploy the threat

• Impact of the threat, i.e. company loss related to

the success of the speciﬁc threat by the attacker

Values for leaf nodes are expert estimations possibly

based on recorded history of each kind of threat. They

are of course subject to some level of imprecision

whose impact is not studied in the scope of this paper.

Typical ﬁgures are presented in Table 1. Intermediary

values are computed using propagation rules:

• Probability are propagated with the assumption

of threat independence resulting in a formula of

the form p

. p

for two AND nodes and 1 − (1 −

).(1 − p

) for two OR-nodes (Ketel, 2008).

• Cost is the sum of the costs of the selected chil-

dren of the OR-node (at least one child must be

selected but more than one is possible).

• Impact is also estimated using a summation.

Table 1: Attributes values for leaf nodes.

ID Probability Cost (K$) Impact (M$)

A11 0.08 50 200

A12 0.1 60 130

A211 0.15 70 100

A212 0.2 100 300

A221 0.1 150 250

A222 0.4 190 275

A223 0.1 100 300

A213 0.1 110 150

A241 0.1 90 225

A242 0.25 250 250

A243 0.3 275 275

A31 0.2 100 100

A32 0.15 120 120

A41 0.15 100 300

A421 0.3 30 200

A422 0.2 40 150

A43 0.5 170 50

Towards Quantitative Trade-off Analysis in Goal Models with Multiple Obstacles using Constraint Programming

539

3 TRANSLATING AN AT MODEL

INTO A CP MODEL

A CP model is composed of a set of declarations, a set

of constraints among those variables and one or sev-

eral variables that will be optimised. OscaR.CP sup-

ports a wide variety of variables (Int, Bool, Set) and

constraints (equality, inequality, arithmetic/logic ex-

pression, set inclusion/exclusion, etc) which will be

detailed in the translation process. As we use quite

standard CP features, the proposed mapping can eas-

ily be adapted to other CP frameworks.

The translation process of the AT model into an

OscaR.CP model requires the following three main

steps detailed in the rest of this section:

• transposing nodes as variables of the CP model

• generating speciﬁc constraints across alternatives

• for each target quality: producing an objective

function

3.1 Extracting Nodes

Extracting nodes is done by performing a query on

our model repository. In our experimental setting,

we used the Objectiver tool which can be queried us-

ing OCL based on an EMF meta-model (Respect-IT,

2005). E.g. OR nodes can be collected using:

Goal.allInstances()->reject(g:Goal |

GRefinement.allInstances()-> collect(parent)

->size()<2)

Such queries can easily be adapted to other model

variants. The result matches the content of Table 1.

In order to encode an OR-Node (also called al-

ternative in what follows), we use a OrVar which is

a sequence of CPBoolVar, i.e. an array of boolean

variables (or bits). The number of variables matches

the number of children in the OR node. For exam-

ple, the 4 nodes at the top level are mapped to an ar-

ray of 4 bits, meaning there are 16 possibles conﬁg-

urations, 0000 means nothing selected (which is not

valid here), 0110 means only alternative 2 and 3 are

selected, 1111 means all alternatives are selected. In

addition, some utility functions are deﬁned in order to

ease the expression of constraints:

• no(v : OrVar) returns true iff there is no alterna-

tive selected (i.e. all bits are set to 0)

• one(v : OrVar) returns true iff there is exactly one

alternative selected (i.e. one bit is set to 1)

• some(v : OrVar) returns true iff there is at least

one alternative selected (i.e. one or more bits are

set to 1)

• isIn(n : Int; v : OrVar) returns true iff the n

alter-

native is selected (i.e. the n

bit is set to 1)

3.2 Generating Constraints

In what follows, we will call sub −alternative, an al-

ternative in the subtree of another alternative.

The following constraints are generated:

• all top level alternatives are enabled (i.e.

some(G))

• if an alternative is not selected, all its sub-

alternatives should be disabled (by recursion, it is

enough to disable the closest sub-alternatives us-

ing reﬁnement links)

• if an alternative is selected, its sub-alternatives

should be enabled (again the same recursion re-

mark holds)

• domain speciﬁc constraints are generated, for ex-

ample if some alternatives need to be selected to-

gether or if two alternatives are mutually exclu-

sive.

The expression of those constraints is easy to translate

using the operators deﬁned previously and result in

the model of Listing 1.

Listing 1: CP model for MI attack tree.

var G = c r e a t e ( 4 , ”G” )

var A1 = c r e a t e ( 2 , ”A1” )

v a l A2 = c r e a t e ( 4 , ”A2” )

v a l A4 = c r e a t e ( 3 , ”A4” )

v a l A21 = c r e a t e ( 2 , ”A21 ” )

v a l A22 = c r e a t e ( 3 , ”A22 ” )

v a l A24 = c r e a t e ( 3 , ”A24 ” )

v a l A42 = c r e a t e ( 2 , ”A42 ” )

/ / t o p l e v e l a t l e a s t one

add ( some (G ) )

/ / c o n s t r a i n t s on G

add ( ! i s I n ( 1 ,G) ==> no (A1 ) )

add ( ! i s I n ( 2 ,G) ==> no (A2 ) )

add ( ! i s I n ( 4 ,G) ==> no (A4 ) )

add ( i s I n ( 1 ,G) ==> some ( A1 ) )

add ( i s I n ( 2 ,G) ==> some ( A2 ) )

add ( i s I n ( 4 ,G) ==> some ( A4 ) )

/ / c o n s t r a i n t s on A2

add ( ! i s I n ( 1 , A2 ) ==> no ( A21 ) )

add ( ! i s I n ( 2 , A2 ) ==> no ( A22 ) )

add ( ! i s I n ( 4 , A2 ) ==> no ( A24 ) )

add ( i s I n ( 1 , A2 ) ==> some ( A21 ) )

add ( i s I n ( 2 , A2 ) ==> some ( A22 ) )

add ( i s I n ( 4 , A2 ) ==> some ( A24 ) )

/ / c o n s t r a i n t s on A4

add ( ! i s I n ( 2 , A4 ) ==> no ( A42 ) )

add ( i s I n ( 2 , A4 ) ==> some ( A42 ) )

Using a binaryStatic search on all the variables with-

ICSOFT 2020 - 15th International Conference on Software Technologies

540

out any objective will enumerate all combinations

(see Listing 2). There are more than 65000 combina-

tions with multiple alternatives, while only 16 if only

one alternative can be selected for each OR node, i.e.

by replacing constraints some by one in our model.

This illustrates the importance of the combinatorial

explosion when mixing variants.

Listing 2: Optimisation search.

s e a r c h {

b i n a r y S t a t i c (G++A1++A2++A4++

A21++A22++A24++A42 )

} o n S o l u t i o n {

p r i n t S o l ( Seq (G, A1 , A2 , A4 ,

A21 , A22 , A24 , A42 ) )

n s o l s = n s o l s +1

} s t a r t ( )

3.3 Objective Function

Objective functions are encoded as CPIntVar and can

be expressed using expressions involving our OrVar

variables. The rules described in Section 2 are ap-

plied to produce evaluations at all levels enabling leaf

values to propagate up to the top level. The alter-

native selection operator is simply our isIn operator

which will evaluate to 0 when false and to 1 when

true. Based on the data of Table 1, the impact evalua-

tion function can be encoded as shown in Listing 3.

Listing 3: Optimisation search.

d e f i m pa ct G =

i s I n ( 1 ,G)

impa c t A 1 + i s I n ( 2 ,G)

impa c t A 2 +

i s I n ( 3 ,G)

impa c t A 3 + i s I n ( 4 ,G)

impa c t A 4

d e f i m p ac t A 1 = i s I n ( 1 , A1)

200+ i s I n ( 2 , A1)

130

d e f i m p ac t A 2 =

i s I n ( 1 , A2 )

impac t A 2 1 + i s I n ( 2 , A2)

impac t A 2 2 +

i s I n ( 3 , A2)

150+ i s I n ( 4 , A2)

impac t A 2 4

d e f i m p a ct A 2 1 = i s I n ( 1 , A21 )

100+ i s I n ( 2 , A21 )

300

d e f i m p a ct A 2 2 = i s I n ( 1 , A22 )

250+ i s I n ( 2 , A22)

275+

i s I n ( 3 , A22 )

300

d e f i m p a ct A 2 3 = 150

d e f i m p a ct A 2 4 = i s I n ( 1 , A24 )

225+ i s I n ( 2 , A24)

250+

i s I n ( 3 , A24 )

275

d e f i m p ac t A 3 = 100 + 120 / / AND

d e f i m p ac t A 4 = i s I n ( 1 , A4)

300+

i s I n ( 2 , A4 )

impac t A 4 2 + i s I n ( 3 , A4)

d e f i m p a ct A 4 2 = i s I n ( 1 , A42 )

200+ i s I n ( 2 , A42 )

150

At this point, it is easy to perform a single objec-

tive search. Trying to maximising the impact can

be done through the command maximize(Impact_G)

but will without surprise yield a conﬁguration where

all possible attacks are selected. Using an objec-

tive combining some conﬂicting attributes such as

maximize(impact_G-cost_G*3) will identify a few

threats resulting in a good ROI (A11, A421, A422) as

depicted in Listing 4.

Listing 4: Optimisation search.

o b j e c t i v e t i g h t e n e d t o 190 l b : −6136

G={1 4} A1={1} A2={} A4={2}

A21={} A22={} A24={} A42={1 2}

4 MULTI-OBJECTIVE

OPTIMISATION

Encoding the cost objective is simply achieved by

adapting the numbers from Table 1. The probability

combination function is a bit more tricky for two rea-

sons. First, it requires computing independent prob-

abilities. Second, as we are restricted to integers, the

probabilities are encoded in percents and the multipli-

cation introduces a 100 factor that needs to be com-

pensated using a division constraint as shown in List-

ing 5. An additional utility function for OR nodes

with more than two children is also introduced.

Listing 5: Multi-objective search (for costs see Listing 5.

d e f c o st G = i s I n ( 1 ,G)

c o st A 1 + i s I n ( 2 ,G)

c o st A 2 +

i s I n ( 3 ,G)

c o st A 3 + i s I n ( 4 ,G)

c o st A 4

d e f c o s t A 1 = i s I n ( 1 , A1)

50+ i s I n ( 2 , A1)

. . .

d e f p r U n io n ( a : CPIntVar , b : CPIntVar ) : CPIntVar = {

v a l c a l c : CPIntVar = ( a −10 0)

( b −100)

( −1)+10000

v a l r e s =CPIntVar ( 0 , 1 0 0 )

add ( new I n t D i vi s i o nA C ( r e s , c al c , 1 0 0 ) )

r e s

}

d e f p r o b a G = p r U n i o n ( i s I n ( 1 ,G)

pro ba A1 ,

i s I n ( 2 ,G)

pro ba A2 , i s I n ( 3 ,G)

pro ba A3 ,

i s I n ( 4 ,G)

proba A 4 )

d e f p r o b a A1 = p r U n i o n ( i s I n ( 1 , A1)

8 , i s I n ( 2 , A1)

1 0 )

. . .

v a l o bj1 =proba G

imp a c t G

v a l o bj2 = c os t G

( −1)+1000

s o l v e r . p ar e t oM a x im i ze ( obj 1 , o b j2 )

var t a b v a r s =Seq (G, A1 , A2 , A4 , A21 , A22 , A24 , A42 )

s e a r c h {

b i n a r y S t a t i c ( t a b v a r s )

} o n S o l u t i o n {

p a r e t o P l o t . i n s e r t ( o bj1 . v a lue , o b j2 . v a l u e )

} s t a r t ( )

Performing a multi-objective search is quite easy us-

ing the multi-objective search function and Pareto

Towards Quantitative Trade-off Analysis in Goal Models with Multiple Obstacles using Constraint Programming

541

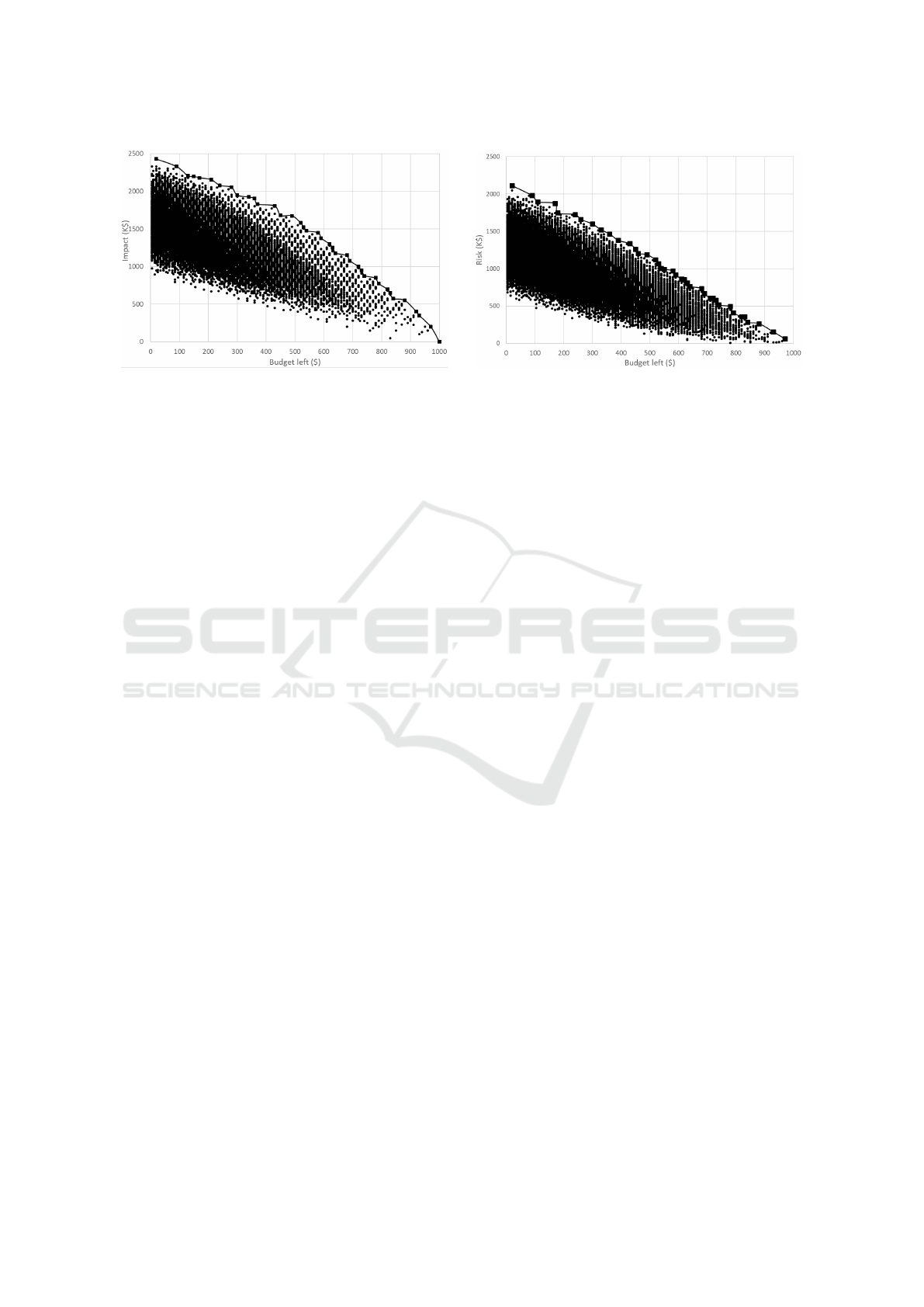

Figure 3: Structure of search space (points) and Pareto front (top line) for Budget vs Cost (left) and Budget vs Risk (right).

visualisation (Hartert and Schaus, 2014). Af-

ter deﬁning a second objective function, the op-

timisation command before the search becomes

paretoMaximize(obj1, obj2) as shown in the sec-

ond part of Listing 5. Note the ﬁrst objective function

was turned into a budget left function to maximise.

The two plots of Figure 3 depict two different

searches. The complete cloud of points is shown to

illustrate the respective size of the search space and

of the resulting Pareto front (located above) assum-

ing a maximal budget of 1000$. The left plot shows

the budget left vs impact analysis while the right plot

shows the budget vs risk (i.e. impact x probability)

analysis. In both cases, a low budget means high

spending and thus also more impact/risk. On the con-

trary, there is no possible attack thus impact when the

total budget (1000$) is left. The Pareto front could

be analysed further, e.g. to identify some common

threats. It could also be restricted based on speciﬁc

attacker assumptions (e.g. expertise or budget) but

we did not performe such analysis at this point.

5 RELATED WORK

This section focuses on works using CP or multi-

objective analysis of obstacles and attack trees.

First, it is interesting to point that a seminal pa-

per about attack trees also describes a system se-

curity engineering process where candidate architec-

tures are selected based on security cost vs resid-

ual risk (Parero) optimisation (Weiss, 1991). In our

work, we investigated such trade-off although not at

the residual risk level given we have not yet included

countermeasures.

In order to analyse an attack tree, a composi-

tional semantics in terms of priced timed automata

has been proposed by (Kumar et al., 2015). The Up-

paal CORA model checker is then used to evaluate

security queries expressed in weighted CTL and to

infer optimal attack paths from the resulting cost op-

timal traces. Like our work, it supports ranking of

attacks and evaluation of Pareto-optimal curves that

show trade-offs when multiple conﬂicting objectives.

The translation is closer to the denotational semantics

of AT however far more complex than ours. It can

also take the attack timing into consideration. The

attribute propagation seems however limited to accu-

mulation and less general than our approach.

Constraint satisfaction is considered by (Buldas

et al., 2020) in order to give a formulation of the

attack-tree decoration problem as a constraint satis-

faction problem. The purpose is different than ours:

CP is used to infer values in incomplete AT, e.g. using

data measured in intermediary nodes to infer missing

data in some leaf nodes. In our work, we implicitly

focused on bottom-up inference. However, we could

also generalise our approach to post such constraints.

The need to consider multiple parameters for

the successful selection of adequate measures from

attack-defence trees is stressed in (Fila and Wideł,

2019) which proposes a sound framework for multi-

parameter security analysis. A mathematical founda-

tions is presented as well as a python-based imple-

mentation related to the ATDtool and a case study

validation (electricity theft). The technique used for

optimisation is not discussed but is linear program-

ming. Like us, the focus is on the attacker although

the defender point of view could also be considered.

In a wider scope, the problem of efﬁciently de-

ploying security countermeasures to simultaneously

stay within the budget and minimise the residual dam-

age is addressed by (Dewri et al., 2007). It is also

formulated as a multi-objective optimisation problem

and relies on evolutionary algorithm to solve it. At-

tack graphs are also used to optimally deploy security

countermeasures w.r.t. risks associated with potential

cyber-attacks modelled using probabilities (Bhuiyan

et al., 2016). A sample average approximation al-

gorithm is proposed in conjunction with the Benders

ICSOFT 2020 - 15th International Conference on Software Technologies

542

decomposition algorithm. It also enables to perform

sensitivity analysis on different parameters such as

defender budget and uncertainty in probability esti-

mations. In our work, we did not cover counter-

measure optimisation but we could consider how to

model the residual risk and try to minimise it from the

point of view of the defender, including using multi-

objective approach.

6 CONCLUSION & NEXT STEPS

In this paper, we extended our approach to explore

the design space by allowing combination of alterna-

tives using model-based approach more speciﬁcally

goal-oriented. We focused our work on the concept

of obstacles as they generate many alternatives which

need to be combined to reach a good assurance level.

We illustrated the approach on a security context to

explore an attack tree. In order to investigate multi-

ple risk and cost factors, we showed how to imple-

ment a multi-objective approach computing a Pareto

front. Our work was implemented with the Objectiver

toolset and using the OscaR.CP optimisation library.

Our future work will focus on enriching our ap-

proach. First, we plan to analyse in deeper details

the composition of a Pareto front. Then, we aim at

supporting specialised forms of obstacle reﬁnement

for the safety and security contexts, possibly in a co-

engineering approach. Finally, we would like to ex-

tend our work to cover the resolution step which can

introduce more alternatives. Based on this, different

optimisations can be investigated to propose how to

best control and improve the design of a system.

REFERENCES

Bagnall, A., Rayward-Smith, V., and Whittley, I. (2001).

The next release problem. Information and Software

Technology, 43(14):883 – 890.

Bhuiyan, T. H. et al. (2016). Minimizing expected max-

imum risk from cyber-attacks with probabilistic at-

tack success. In IEEE Symposium on Technologies

for Homeland Security.

Buldas, A. et al. (2020). Attribute evaluation on attack trees

with incomplete information. Computers & Security,

88.

Butts, J. W., Mills, R. F., and Baldwin, R. O. (2005). De-

veloping an insider threat model using functional de-

composition. In Computer Network Security.

Calderon, A. et al. (2012). Webred: A model-driven tool

for web requirements speciﬁcation and optimization.

In Web Engineering.

Dardenne, A., van Lamsweerde, A., and Fickas, S. (1993).

Goal-directed requirements acquisition. Sci. Comput.

Program., 20(1-2):3–50.

Dewri, R. et al. (2007). Optimal security hardening using

multi-objective optimization on attack tree models of

networks. In Proc. of the 14th ACM Conference on

Computer and Communications Security.

Fila, B. and Wideł, W. (2019). Efﬁcient attack-defense tree

analysis using pareto attribute domains. In IEEE 32nd

Computer Security Foundations Symposium (CSF).

Hartert, R. and Schaus, P. (2014). A support-based algo-

rithm for the bi-objective pareto constraint. In Proc.

of the 28th AAAI Conference on Artiﬁcial Intelligence,

July 27-31, Qu

ebec, Canada.

Heaven, W. and Letier, E. (2011). Simulating and optimis-

ing design decisions in quantitative goal models. In

IEEE 19th Int. Requirements Engineering Conference.

ITU (2012). Z.151 (10/12), User Requirements Notation

(URN) - Language Deﬁnition.

Ketel, M. (2008). It security risk management. In Proceed-

ings of the 46th Annual Southeast Regional Confer-

ence on XX, ACM-SE 46.

Kumar, R., Ruijters, E., and Stoelinga, M. (2015). Quanti-

tative attack tree analysis via priced timed automata.

In Formal Modeling and Analysis of Timed Systems.

Mogk, N. W. (2014). A requirements management system

based on an optimization model of the design process.

Procedia Computer Science, 28:221 – 227. 2014 Con-

ference on Systems Engineering Research.

Nguyen, C. M. et al. (2018). Multi-objective reasoning with

constrained goal models. Requir. Eng., 23(2).

OscaR Team (2012). OscaR: Operational Research in Scala.

https://bitbucket.org/oscarlib/oscar.

Ponsard, C. and Darimont, R. (2020). Towards multi-

objective optimisation of quantitative goal models us-

ing constraint programming. In Proc. of the 9th Int.

Conf. on Operations Research and Enterprise Sys-

tems, ICORES, Valletta, Malta, Feb. 22-24.

Respect-IT (2005). The Objectiver Goal-Oriented Require-

ments Engineering Tool. http://www.objectiver.com.

Schneier, B. (1999). Attack trees. Dr. Dobb’s journal,

24(12).

Siddiqi, M. A. et al. (2018). Attack-tree-based threat mod-

eling of medical implants. In PROOFS 2018, 7th Int.

Workshop on Security Proofs for Embedded Systems,

Amsterdam, The Netherlands.

van Harmelen, F., Lifschitz, V., and Porter, B. (2008).

Handbook of Knowledge Representation. ISSN. El-

sevier Science.

van Lamsweerde, A. (2009). Requirements Engineering -

From System Goals to UML Models to Software Spec-

iﬁcations. Wiley.

van Lamsweerde, A. and Letier, E. (2000). Handling obsta-

cles in goal-oriented requirements engineering. IEEE

Trans. on Software Engineering, 26(10):978–1005.

Weiss, J. (1991). A System Security Engineering Process.

Yu, E. S. K. and Mylopoulos, J. (1997). Enterprise mod-

elling for business redesign: The i* framework. SIG-

GROUP Bull., 18(1):59–63.

Zhang, Y., Finkelstein, A., and Harman, M. (2008). Search

based requirements optimisation: Existing work and

challenges. In Requirements Engineering: Founda-

tion for Software Quality.

Towards Quantitative Trade-off Analysis in Goal Models with Multiple Obstacles using Constraint Programming

543
