Improving UI Test Automation using Robotic Process Automation

Marina Cernat

, Adelina-Nicoleta Staicu

and Alin Stefanescu

Department of Computer Science and Research Institute of the University of Bucharest, University of Bucharest, Romania

Cegeka, Romania

Keywords: Robotic Process Automation, RPA, UI Testing, Test Automation.

Abstract: Robotic Process Automation (RPA) is now one of the fastest growing segments in enterprise software. This

technology uses so called “software robots” that can mimic humans interacting with various applications at

the UI level. Thus, RPA achieves automation of various UI scenarios, without writing dedicated software to

implement them. In this position paper, we open a discussion on the opportunities and challenges of using

RPA to improve the test automation.

1 INTRODUCTION

Robotic Process Automation (RPA) (van der Aalst,

2018; Syed, 2020) is one of the strongest contenders

in the enterprise software market, being also the

fastest growing segment in 2019 (Gartner, 2019). The

technology found a sweet spot in enterprise

automation by emulating repetitive tasks done by a

human operating a computer. The first-class citizen in

this context is a so-called “software robot” that

interacts with the system at the UI level, e.g., clicking

or filling web forms with data copied from various

data sources that are accessible through the front-end.

Being in principle agnostic to the technology behind

the UI, RPA can be easily deployed and integrated in

the workflows of a company including legacy

applications that do not offer proper APIs. In fact, one

of the promises of RPA is that it is cheaper and

quicker to implement compared to writing a dedicated

software. More precisely, the most suitable tasks for

RPA are those that are repetitive, but not frequent and

structured enough to economically justify full

enterprise automation. On the other end of the

spectrum are those tasks that require a lot of creative

human input, are ad-hoc, or too infrequent to be worth

the investment in automation (van der Aalst, 2018).

In fact, due to its nature, UI testing is an area that

would be amenable to RPA automation, and this is the

very idea that we explore in this paper.

Software testing is a very important stage in

software development, with a proportion of 25% of

https://orcid.org/0000-0002-8418-2643

IT spending dedicated to QA and testing (Sogeti,

2019). However, less than 20% of the testing

processes are automated, so there is a lot of potential

to improve the state-of-the-practice. In fact, the need

for test automation is reflected in its healthy growth –

the automation testing market is estimated to double

its size from USD 12.6 billion in 2019 to USD 28.8

billion in 2024 (Markets and Markets, 2019). Testing

activities are very diverse: from unit testing, to

integration testing, to UI testing. While unit testing is

almost entirely automatic, UI testing still involves a

lot of manual testing, with testers clicking through

interfaces following certain scenarios for acceptance

testing or using their intuition in exploratory testing.

In general, automating UI testing is regarded as

challenging (Aho, 2018) due to fragile scripts when

the interface is changing, high maintenance

(Alegroth, 2016), difficulty in defining the test

oracles (Memon, 2013), estimating the costs of

automation (Dobslaw, 2019), or combinatorial

explosion of the states to be explored (Nguyen, 2014;

Vos, 2015). Moreover, other complications appear

when the UI testing needs to deal with scenarios

involving several applications or even remote ones.

In this situation, one does not have the same control

of the GUI elements as when only one web

application is under test (via e.g., Selenium). RPA

may provide a solution to some of these problems

since it works very well at the UI level, in a

heterogeneous environment, is in many cases

scriptless (thus easier to learn), more stable, and

260

Cernat, M., Staicu, A. and Stefanescu, A.

Improving UI Test Automation using Robotic Process Automation.

DOI: 10.5220/0009911202600267

In Proceedings of the 15th International Conference on Software Technologies (ICSOFT 2020), pages 260-267

ISBN: 978-989-758-443-5

profits from recent advanced features such as

computer vision. Industry already started to

understand its potential benefits to UI test automation

(Bhukan, 2017; Murphy, 2019), even though RPA

cannot be applied to UI testing out-of-the-box

(Ariola, 2019). We hope that we spark the interest of

the academic community to investigate and combine

state-of-the-practice in RPA with state-of-art in

testing to improve test automation (Arcuri, 2018).

The structure of the paper is the following: After

a short introduction in RPA, we describe two usage

scenarios examples. Then, we discuss opportunities

and challenges as well as related work. Finally, we

conclude with future work and an appendix.

2 A SHORT INTRO TO RPA

Robotic Process Automation is the technology that

enables the automation of a process by imitating and

integrating the actions of a person who interacts with

digital systems when executing a process. Note that

the RPA does not replace existing systems. Instead, it

works with the current enterprise landscape and

executes well-established actions. RPA interacts with

the system in the same way a human would, but faster,

at a lower cost, and with less errors. This technology

offers the possibility to integrate modules developed

in programming languages such as VB.NET, C#,

Python, or Java.

The RPA tool market is highly dynamic with

several companies competing in a fast-expanding

environment (

Gartner, 2019). The biggest players are

UiPath, Automation Anywhere, and Blue Prism. In

the rest of the paper, we will refer to the UiPath

platform, because it is currently the leader in the field

and, also, the second author of the paper has 2+ years

of industrial experience using its technology.

The main components of UiPath platform are:

• UiPath Studio: An IDE that relies on Microsoft

Workflow Designer and Microsoft Visual Studio

tools and uses the Visio-style process views to

graphically model workflows as sequences,

flowcharts, or state machines. It gives the user an

ergonomic experience. Built on .Net framework,

UiPath Studio allows working with all types of

variables, arguments, reading data from several

formats (Excel, PDF, common databases, Word,

desktop or web-based applications), writing data,

creating reports, handling keyboard strokes and

mouse clicks, as well as Optical Character

Recognition (OCR).

• UiPath Robot: The workflows created in UiPath

Studio are executed by a UiPath robot. There are

two main types of robots: attended and

unattended, the difference being that the former

requires human inputs at some point during the

execution.

• UiPath Orchestrator: A component that manages

the UiPath robots across various platforms.

Due to requests and needs from the users, RPA has

become, in the past years, a conglomerate of different

technologies that are combined in order to help and

ease the development of an RPA project. Advanced

plugins, including machine learning, cognitive

automation and computer vision, can now be used by

the robots. Also, third party integration with popular

cognitive services from Microsoft, Google, IBM are

readily available.

Another challenge and opportunity for RPA is the

automation in virtual or remote environments a.k.a.

VDIs (virtual desktop interfaces). There is a clear

growth in VDI usage among enterprise customers,

proving a need of quick and stable UI automations for

technologies such as Citrix, VMware and Windows

Remote Desktop. UiPath was among the first ones to

implement it using latest breakthroughs in computer

vision research. Thus, it solved for the robot the

difficult problem to have obtain the underlying

properties of UI elements (buttons, text fields, etc.).

In VDI, this ability is damaged because of the lack of

a traditional interface since the robot only obtains an

image of a remote desktop. Mixing computer vision,

machine learning, OCR, text fuzzy matching and a

multi-anchoring system, robots now automatically

recognize on-screen elements, not relying on IDs,

hidden properties or metadata. Also, this solution for

VDIs can be extended also to work for similar

situation of scanned PDFs, Microsoft Silverlight,

images etc.

Yet another area of great progress of RPA recently

is that of processing and understanding unstructured

information, especially text, through data mining,

natural language processing, and machine learning.

These RPA advancements could be very helpful

when solving some of the problems of UI testing.

3 A SIMPLE EXAMPLE OF

TESTING USING RPA

To illustrate better how RPA could be used for test

automation, we will provide a small example.

Assume that we want to test two calculator apps, one

installed locally (e.g., the Windows calculator app),

Improving UI Test Automation using Robotic Process Automation

261

but also one online (e.g., the calculator that appears

on top of the Google page when you search for

“calculator”). A scenario that a human would follow

to test them could be: take two numbers, for instance

1 and 2, add them on the calculator (desktop and

online) and verify if the output of the calculator is

indeed the expected value of 3.

To automate this in RPA, we quickly build a robot

that can test in parallel both calculators using test data

extracted from an Excel spreadsheet. The spreadsheet

contains test data with operands and an operator (1+2,

5+7, 3*8) and the expected computation result for

them (3, 12, 24, respectively). The robot can

implement two test cases, one for each app, in the

usual way of doing testing, by reading the data,

executing the application under test and comparing

the output with the expected values. If the values are

equal, the test has passed, otherwise it failed. The

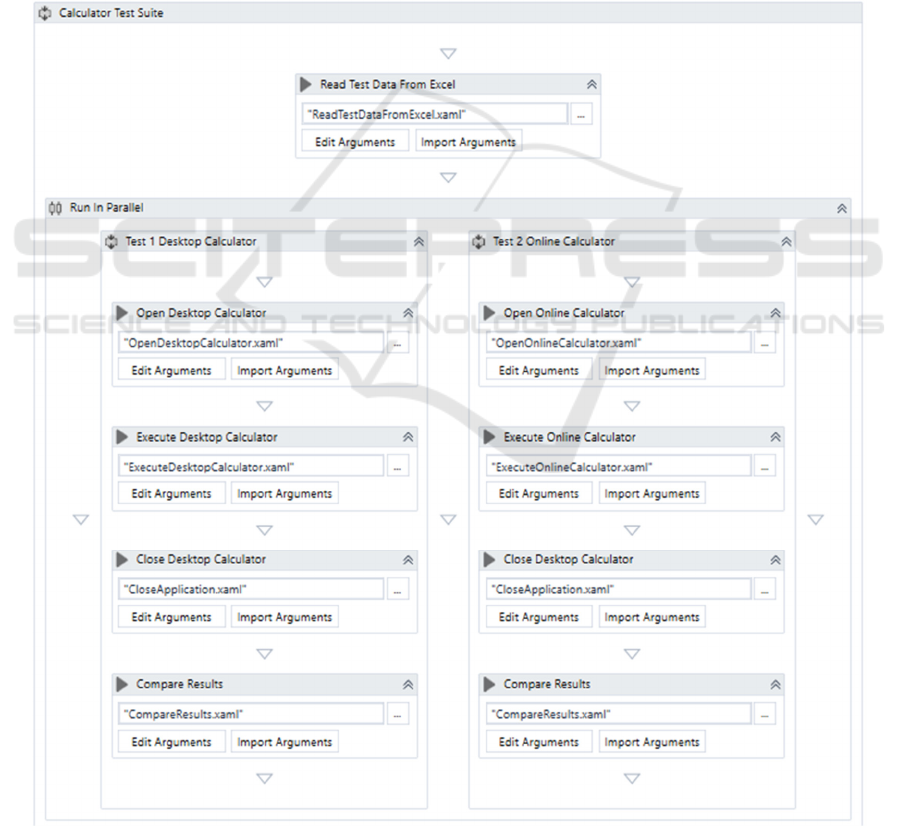

graphical model of the robot is provided in Fig. 1 in

the Appendix, where we have the sequence with the

steps. When it runs, the robot will do the following

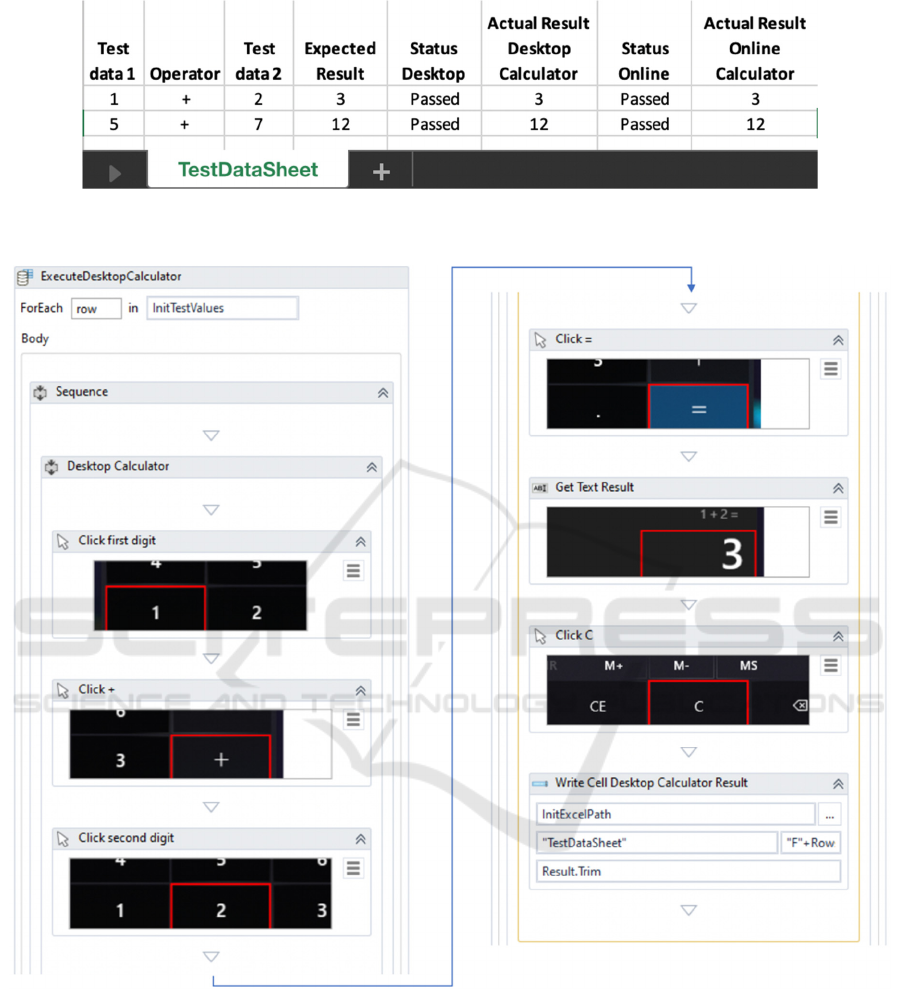

• Step 1 (test setup): It reads the values from Excel

(see Fig. 2 in the Appendix) and keeps them into

an internal data table variable.

• Step 2: It opens the desktop and online calculator

in the same time, but in different threads.

• Step 3 (test execution): For each row of the data

table (which contained the test data, 1, +, and 2),

the robot performs the encountered operation by

clicking the buttons of the calculator, then it takes

the obtained result and writes them back in the

Excel spreadsheet (to be used for debugging, if the

tests fail). See Fig. 3 in the Appendix.

• Step 4: It closes both calculators.

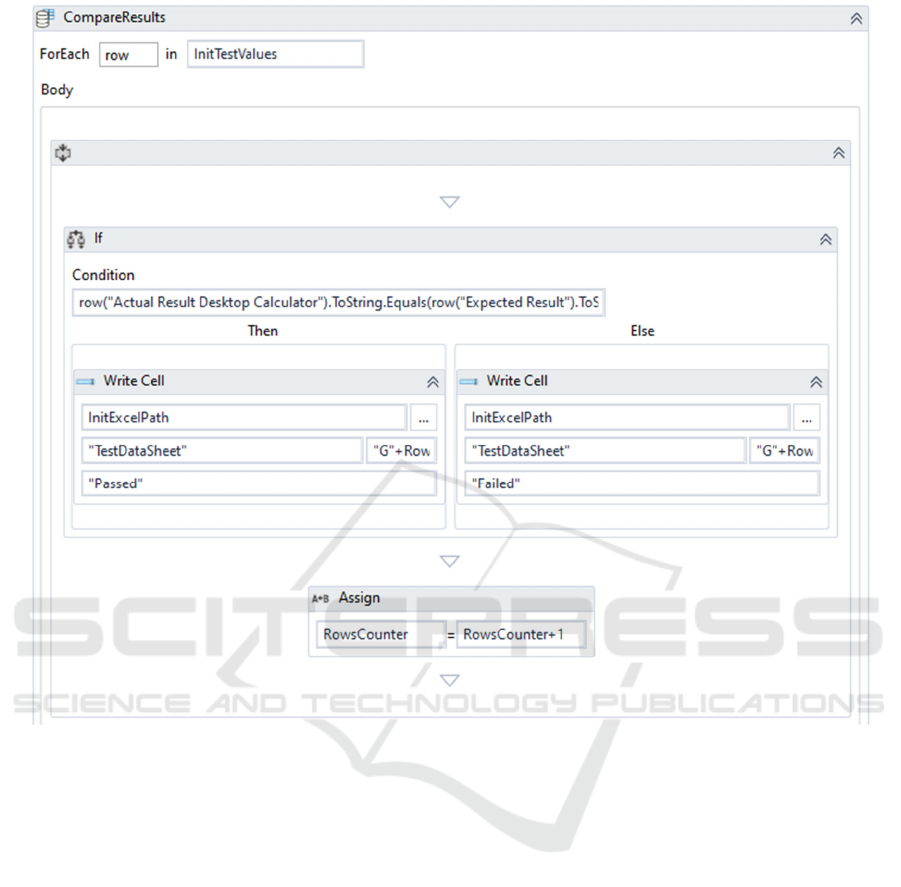

• Step 5 (test assert): It compares the column of the

actual results and the column of the expected

results from the spreadsheet and put into the

“Status Desktop”, respectively “Status Online”

columns, the test results for each test being

“Passed”, if the results were equal, and “Failed”

otherwise. See Fig. 4 in the Appendix.

Thus, the robot is graphically modelled and will

automatically click through the interfaces of a

desktop app, but also of a web app in the browser,

implementing a data-driven test suite and writing the

results back into a file for the test reports. Note that

everything is done at the UI level and the robot

seamlessly switches between applications (Excel,

desktop app, web browser). This would not be

possible using a classical UI web testing framework

such as Selenium, which would only be able to deal

with the web app in the browser, but not with the

desktop app.

4 AN END-TO-END EXAMPLE

OF TESTING USING RPA

To understand how RPA may improve UI testing, we

exemplify a more complex testing scenario that uses

several applications and technologies.

Assume we want to test various functionalities of

a back-office banking application. An unattended

robot could be implemented to do the following tasks.

First of all, we want to test if the application is

working on several web browsers, so the robot should

successfully login regardless of the used browser. The

robot keeps an oracle application testing suite logging

if the test passed or not in an Excel format. If the login

is successful, the test has passed, else the test failed.

After testing the login functionality, the robot tests

the ability of internal money transfers in the

application. So, it transfers an amount of money to

another account, then it checks if the money arrived.

If the transfer is successful, the test passed, and the

result is saved. After doing the payment, the bank

clerk, and now also the robot, should be able to see

and save the payment confirmation in PDF format.

So, the robot also tests this functionality, opening the

menu where it finds the payment confirmations and

saves the most recent file. In order to check if the PDF

file contains the fields that represent the amount of

money sent and the account to which the money was

transferred, the robot opens the PDF file and checks

the corresponding fields. If they exist and are correct,

the test passed.

After this check, we move forward and test an

application that loads these PDF files in a database.

First, the robot checks the database connection.

Then, the robot checks if the files are correctly loaded

in the database. For all the files previously processed,

the robot interrogates the database and checks if the

actual result corresponds to the expected result.

Last but not least, the robot will access for some

final verifications a sensitive, more restricted area of

the bank system remotely through a VDI. In this case,

the robot has access only to screenshots of the remote

applications, without access to the logical elements of

the UI. However, also in this case the robot can use

the latest computer vision RPA add-ons (see previous

section) and smoothly solve the given tasks.

We notice that writing test scripts to implement all

these test cases is not at all easy, whereas using the

advanced capabilities of RPA, the task becomes

feasible.

ICSOFT 2020 - 15th International Conference on Software Technologies

262

5 OPPORTUNITIES AND

CHALLENGES OF USING RPA

FOR TESTING

As already hinted until now, we consider that there

are many opportunities of using RPA to improve UI

test automation.

First of all, RPA is much more accessible than test

scripting or programming. Most RPA tool providers,

including UiPath, offer some products that do not

require technical knowledge (see the lightweight

UiPath StudioX solution aimed at non-technical

users). Therefore, businesspersons, field experts or

manual testers without technical knowledge can

automate some of their UI testing tasks. Thus, using

RPA, we can imagine that acceptance tests can be

automated easier and at a lower cost even by the end

users (for example, the doctors from a hospital) with

some training before, because they are the experts in

the respective field and this is the best way to check

if the tested application or usage scenario is correct.

Then, a robot can access through the UI any tools

available irrespective if APIs are provided or not.

Thus, if certain tools, including testing tools, are used

inside an organization, the robot can use them to

achieve its goal. An RPA robot could implement test

scenarios that are more flexible, maintainable, stable,

easier to integrate (ERP legacy systems, CRM,

calendar, email, PDF, VDIs), and also accurate. This

was proved by the fast adoption of RPA in enterprise

automation, but we expect that this will still hold in

the UI test automation domain (in fact, that could

constitute a good topic for an empirical software

engineering research project).

Last but not least, using RPA for testing could

capitalize on the high growth and advanced

developments of the RPA tool providers. They are

now in a race to include as many sophisticated

features as possible, and UI testing could benefit from

them, since the UI testing tool providers are not so

fast in implementing the latest technologies,

especially in the field of AI. So, the robots will

become smarter in several dimensions and this could

clearly benefit a UI testing process deploying them.

However, with great opportunities come also

challenges. First of all, the RPA as-is must be adapted

to the UI testing requirements. This means that one

should define a suitable test infrastructure, RPA tools

must be better integrated with existing test tools for

test management, reporting, test execution, and other

test automation tools such that the strengths of all are

combined. Then, one should see what can be further

automated such that state-of-the-art in testing can be

used also in the context of RPA-based testing. So, we

should investigate how model-based testing, search-

based testing, automatic test generation, keyword-

driven and data-driven testing, fuzz-testing,

exploratory testing, to name a few, could be

embedded into RPA test robots. Also, the challenges

of UI testing (Aho, 2018) should be revisited,

investigating which of them could be solved by RPA-

based UI testing. Last but not least, in order to be

attractive to industry, cost models that include RPA

licenses should be devised such that the final testing

toolchain and process will provide a good return-on-

investment (Dobslaw, 2019).

6 RELATED WORK

We could not find any reference in the academic

literature reading the idea of using RPA technologies

to automate UI testing. This is understandable since

the RPA is a very recent technology that only recently

reached maturity (van der Aalst, 2018) and whose

challenges are started to be discussed (Syed, 2020).

There are only a handful of research papers that

may be relevant to our discussion involving RPA for

quality assurance. (Lübke, 2016) discussed the

possibility of using BPMN for test case design, which

is similar to the graphical modeling of RPA robots.

(

Moffitt, 2019) proposed an approach of using RPA for

auditing, which resembles in some way a testing

process. (

Beschastnikh, 2017) envisaged a framework

that deploys “bots” to do code analysis during the

software development process, but they do not work

at UI level and do not use RPA. (Enoiu, 2019)

investigated the general concept of test agents that

could distributively and cooperatively run a test plan.

It is an interesting idea to adapt for the context of RPA

test robots. (White, 2019) studied the problem of UI

testing for VDIs and implemented a solution to

extract UI test relevant information from images. This

could complement the current RPA plugins that do

the same task.

We analysed the industrial UI test tools. We tried

to be as comprehensive as possible in our

comparative analysis and we downloaded (whenever

possible) the tools and experimented with them in

order to understand their main features, strengths and

weaknesses. We do not have space in this short paper

to discuss the findings, but we only mention those that

offer interesting or advanced features that could be

used in combination with an RPA-based test

framework: Selenium (see also (Besant

Technologies, 2019)), Applitools, Robotframework,

Power Automate, Eggplant, Eyeautomate, Squish,

Improving UI Test Automation using Robotic Process Automation

263

Tricentis, Mabl, test.ai, apptest.ai, Functionize,

testim.io, as well as academic tools such as GUITAR

(Nguyen, 2014) and TESTAR (Vos, 2015).

Note that some of the RPA tools evolved from UI

testing tools, e.g., Automation Anywhere (which in

the meanwhile is not active anymore in the testing

market), while UI testing companies, e.g., Tricentis

(Murphy, 2019), Leapwork, want to enter the RPA

market. On the other hand, some RPA companies

such as UiPath are starting to provide RPA-based

testing solutions

7 CONCLUSIONS

The goal of this short paper is to promote the idea of

using the latest RPA technologies and research in

order to improve the state-of-the-art in UI test

automation. Based on our initial investigations, we

believe that there is a great potential in this idea both

from an academic as well as industrial point of view.

As future work, there are many aspects that we

plan to address. First, we will implement several

complex test scenarios using UiPath tooling to make

an inventory of strengths and weaknesses with respect

to testing. Then, we will try to enhance them by

integrating state-of-the-art tools and approaches from

the testing research (see also the discussion at the end

of Section 5), but also existing commercial UI tools

(see the tool list in Section 6). Some of the topics to

focus on are: the use of AI to obtain a “smarter” test

robot; the generation of test robots using process

discovery and understanding (Gao, 2019)

(see also

UiPath Explorer component); but also the

development of methods to test the RPA

implementations themselves (see also (Cewe, 2018)).

Last but not least, we will perform all the above in the

context of a collaboration with UiPath, which showed

interest to provide feedback, access to tooling and

industrial use cases to validate the resulting ideas and

prototypes.

ACKNOWLEDGEMENTS

This work was supported by a grant of Romanian

Ministry of Research and Innovation CCCDI-

UEFISCDI, project no. 17PCCDI/2018. We also

thank to Ingo Philipp, Vice President at UiPath, for

inspiring discussions on the topic of the paper.

https://www.uipath.com/product/test-suite

REFERENCES

van der Aalst, W., Bichler, M., A. Heinzl, A., 2018. Robotic

Process Automation. Business & Information Syst. Eng.

60 (4), pp. 269-272, Springer.

Aho, P., Vos, T., 2018. Challenges in Automated Testing

Through Graphical User Interface. In Proc. of ICST

Workshops 2018, pp. 118-121, IEEE.

Alegroth, E., Feldt, R., Kolstrom, P., 2016. Maintenance of

automated test suites in industry: An empirical study on

visual GUI testing. Information and Software

Technology, 73, pp. 66–80, Elsevier.

Arcuri, A., 2018. An experience report on applying

software testing academic results in industry: we need

usable automated test generation. Empirical Software

Engineering 23 (4), pp. 1959-1981, Springer.

Ariola, W., 2019. RPA for Software Test Automation: Not

So Simple. CIO Magazine. Online at:

https://www.cio.com/article/3409056/rpa-for-

software-test-automation-not-so-simple.html

Besant Technologies, 2019. RPA vs Selenium. Industry

blog post, 2019. Online at:

https://www.besanttechnologies.com/rpa-vs-selenium

Bhukan, S., 2017. Robotic Process Automation and the

Testing Future. Industry blog post. Online at:

https://www.testingbits.com/robotic-process-

automation-and-the-testing-future

Beschastnikh, I., Lungu, M., Zhuang, Y., 2017.

Accelerating Software Engineering Research Adoption

with Analysis Bots. In Proc. of ICSE-NIER, 2017, pp.

35-38, IEEE.

Cewe, C., Koch, D., Mertens, R., 2018. Minimal Effort

Requirements Engineering for Robotic Process

Automation with Test Driven Development and Screen

Recording. In Proc. of BPM’18 Workshops, LNBIP vol.

308, pp. 642-648, Springer.

Dobslaw F., et. al, 2019. Estimating Return on Investment

for GUI Test Automation Tools. arXiv report no.

CoRR abs/1907.03475, 12 pp.

Enoiu E., Frasheri, M., 2019. Test Agents: The Next

Generation of Test Cases. In Proc. of NEXTA’19, ICST

Workshops 2019, pp. 305-308, IEEE.

Gao, J., van Zelst, S., Lu, X., van der Aalst, W, 2019.

Automated Robotic Process Automation: A Self-

Learning Approach. In Proc. of OTM Conferences

2019, LNCS 11877, pp. 95-112, Springer.

Gartner, 2019. Magic Quadrant for Robotic Process

Automation Software. Market research report, no.

G00379618.

Lübke D., van Lessen, T., 2016. Modeling test cases in

BPMN for behavior-driven development. IEEE

Software 33 (5), pp. 15-21, IEEE.

Moffitt, K., Rozario, A., Vasarhelyi M., 2019. Robotic

Process Automation for Auditing. J. of Emerging

Technologies in Accounting 15 (1), pp. 1-10.

Markets and Markets, 2019. Automation Testing Market by

Component, Endpoint Interface, Organization Size,

ICSOFT 2020 - 15th International Conference on Software Technologies

264

Vertical, and Region - Global Forecast to 2024. Market

research report no. TC 6163.

Memon, A., Banerjee, I., Nagarajan, A., 2013. What Test

Oracle Should I Use for Effective GUI Testing? In

Proc. of ASE 2003, pp. 164-173, IEEE.

Murphy, T., 2019. Test automation + RPA,” Tricentis

industry webinar Online at:

https://www.tricentis.com/resources/test-automation-rpa

Nguyen, B., Robbins, B., Banerjee, I., Memon, A., 2014.

GUITAR: an innovative tool for automated testing of

GUI-driven software. Automated Softw Engineering 21

(1), pp. 65-105, Springer.

Sogeti, 2019. World Quality Report 2019-2020, 11th

edition. Market research report.

Syed R. et al., 2020. Robotic Process Automation:

Contemporary themes and challenges. Computers in

Industry 115.

Vos, T., Kruse, P., Condori-Fernández, N., Bauersfeld, S.,

Wegener, J., 2015. TESTAR: Tool support for test

automation at the user interface level. Int. Journal of

Information System Modeling and Design 6 (3), pp. 46-

83, IGI Global.

White, T., Fraser, G., Brown, G., 2019. Improving random

GUI testing with image-based widget detection. In

Proc. of ISSTA 2019, pp. 307-317, ACM.

APPENDIX

Figure 1: Implementation of a test robot in UiPath for a test suite with two test cases: the one on the left to verify the desktop

calculator and the one on the right to verify an online calculator.

Improving UI Test Automation using Robotic Process Automation

265

Figure 2: Excel file containing the test data: The first input data in the first 3 columns and output data in the 4th column. The

rest of the columns are used to record the results of the tests.

Figure 3: The RPA sequence for automating the calculation 1+2 in the desktop calculator (the screenshots show the clicks

performed by the robot).

ICSOFT 2020 - 15th International Conference on Software Technologies

266

Figure 4: The implementation of the comparison between the expected value (oracle) and the calculated value.

Improving UI Test Automation using Robotic Process Automation

267
