A Comprehensive Quantiﬁed Approach for Security Risk Management

in e-Health Systems

Sondes Ksibi, Faouzi Jaidi and Adel Bouhoula

Digital Security Research Lab, Higher School of Communications of Tunis, University of Carthage, Tunisia

Keywords:

e-Health, IoT, Risk Management, Trust, Security.

Abstract:

As a major advancement technology in healthcare industry, e-health contributes to setting up efﬁcient and

highly automated healthcare infrastructures. Internet of things (IoT) holds great promise for healthcare

providers as well as for its end users. Internet of Medical Things (IoMT) applications are among the ma-

jor trends of the moment. Nonetheless, numerous security features remain as main issues towards secure,

reliable and privacy-preserving e-health systems. Indeed, the participating nodes in IoMT networking for

e-health service delivery; which are heterogeneous and resource-constrained; generate, collect and exchange

huge amounts of private and extremely sensitive data. These facts, among others, expand the attack surface

and decrease the trustworthiness in e-health systems. In this research work, we propose a framework to en-

hance trust and help with making decisions based on a quantiﬁed risk assessment approach. This framework

relies on a novel approach/model for improving trust and risk management in an e-health context.

1 INTRODUCTION

Networking of smart electronic devices, commonly

called Internet of Things (IoT) is gaining a rising fo-

cus from business developers and end users. Things

are interconnected and exchanging data to perform a

programmed task with reduced human exertion, im-

proved efﬁciency and increased economic beneﬁts.

One of the most attractive opportunities seems to be

healthcare. As per statistics, according to Meticulous

Research Report, IoT healthcare market is expected to

grow from 55.5 Billion USD in 2019 to 322.2 Billion

USD by 2025 (Research, 2019). IoMT applications

are among the main trends of the moment. Indeed,

from simple diagnostics to complex surgical proce-

dures, connected things with computing and network-

ing advancements led to create the new concept of

modern medicine. IoT is transforming the way pa-

tients are treated to more efﬁcient, helping healthcare

industry workers and improving research results.

Despite this advancement, e-health is still facing

several challenges such as ubiquity, cost, complexity

of data manipulation, resources constraints and deﬁ-

nitely the most important are security and privacy is-

sues. Indeed, worries about protecting and preserving

privacy in e-health systems do not only concern these

systems themselves but also their increasingly open,

heterogeneous and scalable eco-systems. The ability

to conﬁdentially and reliably transmit highly sensitive

data between connected devices seems to be a com-

plex challenge since: (i) medical connected devices

can be located in un-trusted areas that may be under

attacker’s control; this may threaten patient’s lives;

(ii) in IoMT industry, the main occupation is provid-

ing required functionality at a reasonable cost. So, se-

curity is an after-thought, often placed at the bottom

of the priority list in the development life cycle; (iii)

traditional security solutions are not pretty suitable

with resource-constrained IoT and medical devices;

and (iv) last but not least, e-health systems require si-

multaneously rigorous (sufﬁciently robust controls to

prevent unauthorized accesses) and ﬂexible (smoothly

and transparently weaving ﬂexible controls to allow

emergency accesses) security solutions. It has been

proved that this irregular balance between ﬂexibility

and robustness has a wide impact on the compliance

of deployed solutions (Ja

ıdi et al., 2016).

The aim of this paper is to carry on a relevant anal-

ysis of security risk management aspects. This analy-

sis will mainly help us in setting up our solution to ad-

dress the security risks within an e-healthcare context.

As a main contribution, we deﬁne a framework to en-

hance trust and help with making decisions based on

a quantiﬁed risk assessment approach. Our proposal

is based on a novel approach for improving trust and

managing security risk in e-healthcare.

652

Ksibi, S., Jaidi, F. and Bouhoula, A.

A Comprehensive Quantiﬁed Approach for Security Risk Management in e-Health Systems.

DOI: 10.5220/0009893806520657

In Proceedings of the 17th International Joint Conference on e-Business and Telecommunications (ICETE 2020) - SECRYPT, pages 652-657

ISBN: 978-989-758-446-6

The reminder of the paper is organized as follows.

In section 2, we introduce the security risk concept

and review related works. In section 3, we outline

the idea of our proposal. We introduce the main con-

cepts of our approach for security trust-risk manage-

ment within e-health contexts, work on case of study

and highlight guidelines and perspectives. Finally, we

conclude the paper and present ongoing works.

2 SECURITY RISK

MANAGEMENT IN E-HEALTH

2.1 Terminologies and Deﬁnitions

Risk: According to the International Standardization

Organization (ISO) [ISO 31000; ISO 27005], risk is

the effect (positive and/or negative) of uncertainty on

objectives (ﬁnancial, health, safety, etc.) (ISO, 2009).

Concretely, it is often expressed as a combination of

the consequences (costs) of an event and the corre-

sponding likelihood of occurrence.

Security Risk: It is, in Information Systems (IS), the

risk that occurs due to loss of data or system conﬁden-

tiality, integrity, or availability. It considers potential

adverse impacts to the organization (assets, mission,

functions, image, or reputation), users, other organi-

zations, and the country (Force, 2018).

Risk Assessment: The risk assessment is an overall

process that consists of risk identiﬁcation (recognition

and description of risks), risk analysis and risk evalu-

ation. The assessment may be based on qualitative or

quantitative approaches.

Risk Management: Security and cyber security risk

management consist of a range of activities under-

taken for protecting information and systems from cy-

ber threats such as unauthorized access, in order to: (i)

maintain awareness of security and cyber threats; (ii)

identify anomalies, misconﬁgurations and incidents

adversely affecting the system and/or data; and (iii)

mitigate the impact of, respond to, and recover from

incidents. The ISO 31000 risk management process

consists of systematic application of policies, proce-

dures and practices to the activities of: communica-

tion and consulting; context establishment, risk as-

sessment (identiﬁcation, analysis and evaluation), risk

treatment, risk monitoring and review.

2.2 The Trust-risk Awareness Context

In a risk awareness context, addressing risk manage-

ment, like illustrated by ﬁgure 1, deals mainly with

two basic concepts: risk and trust. It is important

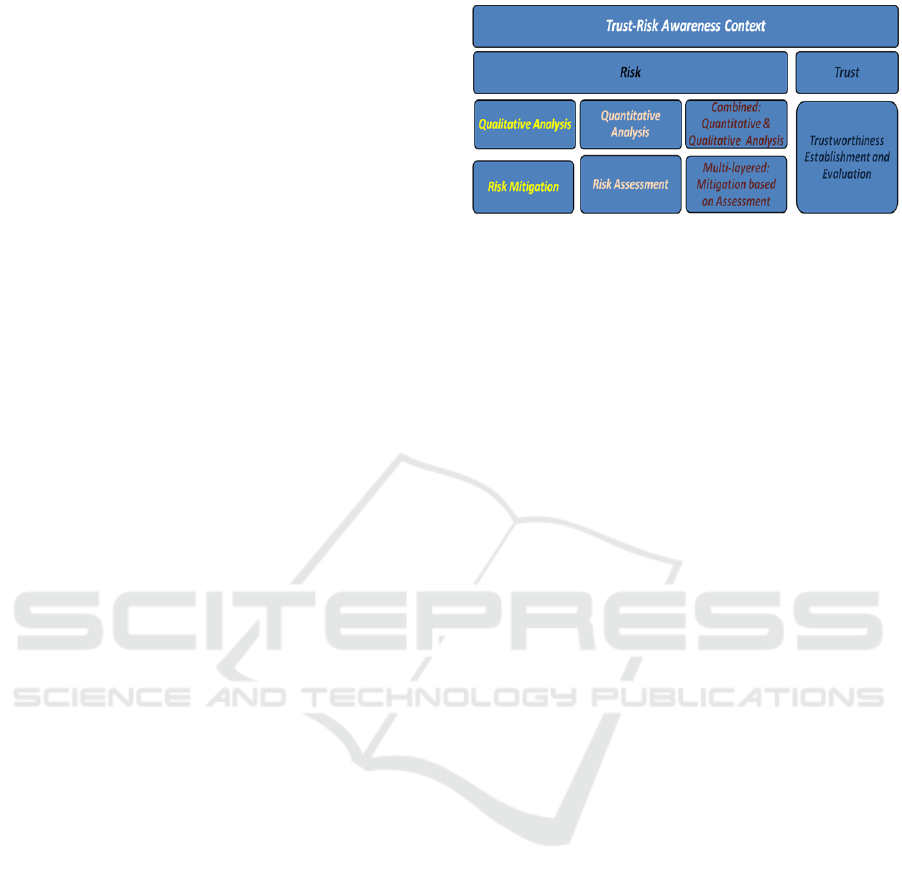

Figure 1: The Trust-Risk awareness context.

to notify that the risk concept is highly coupled with

the trust concept. Indeed, a system with a low level

of risk is seen with a high level of trust and vice

versa. Incorporating risk awareness in IS may pursue

one of the following analysis approaches: qualitative

approach, quantitative approach and a combination

of them. Qualitative approaches use qualifying at-

tributes to describe potential consequences as well as

their occurrence probability. In practice, via a qualita-

tive approach, we generally focus on how to mitigate

a risk without evaluating its value. Quantitative ap-

proaches use numerical values, instead of descriptive

attributes, for consequences and corresponding like-

lihoods. In practice, via a quantitative approach, we

generally focus on how to assess the value of a risk. In

case of combining both approaches, qualitative anal-

ysis is often used ﬁrst to obtain a general indication of

the level of risks and to highlight the main risks.

2.3 Summary of Security Risk

Management Solutions for e-Health

Trust-risk Awareness Methods and Models: Several

methods, models and frameworks for trust-risk aware-

ness are deﬁned in literature. The OCTAVE (Car-

alli et al., 2007) method allows investigating recovery

impact areas based on a questionnaire. The TARA

method deﬁned in (Wynn et al., 2011), as a predic-

tive framework for defending vulnerabilities, allows

targeting only most critical exposures. The CVSS de-

ﬁned in (CVSS, 2018) computes scores of vulnerabil-

ities severity based on simple mathematical approxi-

mations that translate expert’s opinions to numerical

scores. Exostar (Shaw et al., 2017) is a system that

deals with cyber-security of supply chains (it does

not evaluate the enterprise stand-alone risk) and reg-

ulatory conformity of providers partners. A comple-

mentary approach to Exostar is CMMI (CMMI, 2017)

that deals with stand-alone enterprise risk and risk

associated to products development life cycle. The

ISO model (ISO, 2009) addresses the standardization

(based on consensus) of risk management and assess-

ment. It offers guidelines and standards to help set-

A Comprehensive Quantiﬁed Approach for Security Risk Management in e-Health Systems

653

ting up risk management systems but it does not pro-

vide mechanisms to guarantee their compliance. The

NIST model (Force, 2018) deﬁnes effective and docu-

mented processes (as a set of standards and guidelines

addressing risk assessment and risk management) that

require automation tools and software development to

make it usable. The FAIR model (FAIR, 2017) is

based on a quantitative approach for the assessment

of risk impact. It aims to establish a standard which is

not based on consensus, but it promotes commercial

software. As example of software promoted by FAIR,

RiskLens (RiskLens, 2017) and CyVaR (Cyber Value

at Risk) (Sanna, 2016) are black box tools that may

engender standard deviation, consistence and trust-

worthiness problems.

Trust-risk Awareness for IoT, IoMT and e-Health:

Several research works addressed the trust-risk as-

sessment in e-health. Authors in (Radanliev et al.,

2018) proposed a quantitative model, based on the

coupling of the Cyber Value-at-Risk (CyVaR) and

the MicroMort (MM) models, for the economic im-

pact assessment of IoT cyber risk. In (Nurse et al.,

2017), authors studied the application of existent se-

curity risk assessment approaches in an IoT context.

They demonstrated that current solutions are not ad-

equate for IoT context due to: shortcomings of pe-

riodic assessment, changing systems boundaries, yet

limited system knowledge, challenge of understand-

ing the glue, and failure to consider assets as an at-

tack platform. They highlighted the need of new ap-

proaches to assess IoT system risk. Authors in (Ma-

lik and Singh, 2019), dealt with security vulnerabil-

ities identiﬁcation and mitigation in IoT based on a

smart software vendor that lists common vulnerabil-

ities (stored in its database) and provides a possible

mitigating solution. In (Radanliev et al., 2019), au-

thors focused on a transformation roadmap for stan-

dardizing IoT risk impact assessment (based on func-

tional dependency) and calculating the economic im-

pact of cyber risk (based on a goal oriented approach).

Authors in (Akinrolabu et al., 2019) proposed a quan-

titative model, called CSCCRA, to assess the risk of a

SaaS application and its supply chain mapping.

Trust-risk Awareness for Access Control: integrating

risk awareness in role based access control (RBAC)

systems concerns four main concepts: (i) enhanc-

ing trustworthiness relationships; (ii) deﬁning miti-

gation strategies based on constraints; (iii) manag-

ing accesses based on quantiﬁed approaches; or (iv)

assessing policies critical breaches for a secure and

efﬁcient policy management. Several works pro-

posed integrating trust relationships in RBAC model

(Chakraborty and Ray, 2006), (Feng et al., 2008).

This allows evaluating trust levels of policy compo-

nents and only trusted accesses are authorized. The

risk mitigation concept deals particularly with impos-

ing hard constraints on the policy components in order

to tone down associated risks. Different constraint-

based risk mitigation approaches and models have

been proposed to formally specify Static Separation

of Duty (SSoD) and Dynamic Separation of Duty

(DSoD) policies (Simon and Zurko, 1997), (Gligor

et al., 1998), (Jaeger, 1999). Authors in (Chen and

Crampton, 2011) proposed to use a strategy of mit-

igation based on risk thresholds and an associated

obligation pairs. As for access risk quantiﬁcation,

proposed approaches deal mainly with risk assess-

ment of access requests. Several authors have focused

on risk quantiﬁcation approaches and proposed dif-

ferent frameworks (Ni et al., 2010), (Molloy et al.,

2012), (Ma et al., 2010). Finally, concerning the mon-

itoring of policies compliance based on risk assess-

ment/management approaches, few works addressed

this important thematic. Contributions deals mainly

with the assessment of the risk associated to the pol-

icy defects and anomalies (Ja

ıdi et al., 2018) as well as

the management of policies against attack scenarios in

a correlated anomalies context (Evina et al., 2018).

2.4 Discussion

The thematic of security in e-health and particularly

IoMT applications is still a challenging task. Among

the concerned security concepts that need to be en-

hanced for ensuring the security and preserving the

privacy in e-healthcare, we address the theme of se-

curity risk management in IoMT. The application

of well established risk assessment approaches and

methodologies in an IoMT context fails due to sev-

eral constraints (such as context speciﬁcities, resource

constraints, context dynamism, no standards estab-

lished yet, high level of surety required, shortcomings

of periodic assessment, changing systems boundaries

yet limited system knowledge, the challenge of un-

derstanding the glue, failure to consider assets as an

attack platform, continuous evolution of new and ad-

vanced threats, etc.). Hence, we need new approaches

to assess IoMT system risk. Recent works in IoT

risk assessment addressed mainly the evaluation of

the economic impact of IoT cyber-security threats.

From the perspective of access control, current solu-

tions failed to manage end-to-end risk and to combine

both aspects simultaneously: assessing risks associ-

ated to access requests and risks of policies critical

breaches anomalies and attacks. In the next section

we introduce a novel approach that aims to address

the discussed limitations of current solutions.

SECRYPT 2020 - 17th International Conference on Security and Cryptography

654

3 THE SECURITY RISK

MANAGEMENT APPROACH

3.1 Objectives

E-health applications involve a variety of contexts for

managing security risks as well as strategies for risk

mitigation which may suit particular cases and do

not in other cases. To ensure effectiveness and efﬁ-

ciency of the risk management method/strategy, we

propose a dynamic quantiﬁed risk-based approach.

As a ﬁne-grained approach, the risk zone is divided

to three main areas of focus: data acquisition area

(devices), data gathering and transmission area (PAN,

WiFi, Bluetooth, 2G/3G/4G, etc.) and ﬁnally data

processing and storage area (typically databases).The

main purposes of the proposed approach are:

• Evaluating the cumulative risk for a global e-

health service delivery process.

• Establishing a ﬁne-grained risk management pro-

cess based on context speciﬁc risk metrics, quali-

ﬁers, thresholds, factors, etc.

• Automating the update procedure for risk mitiga-

tion response.

3.2 Principle

Our approach, illustrated by ﬁgure 2, consists of three

basic sub-systems and a centralized module, an or-

chestrator called core risk manager. These subsys-

tems can either: (i) make decisions based on identi-

ﬁed and assessed risk metrics autonomously regard-

ing speciﬁc pre-deﬁned risk thresholds; or (ii) dele-

gate the decision making to the orchestrator.

Device Risk Manager (DRM): as a ﬁrst level

decision-maker, this module performs risk manage-

ment in the context of data acquisition layer. The

DRM analyzes data generated by devices in order to

evaluate the inherent risks, then, it compares obtained

risk values with predeﬁned thresholds. In case of

a risky behavior, the DRM interrupts the data trans-

fer. Otherwise, the quantiﬁed risk value is stored and

transmitted to the core manager for a deeper analysis.

Network Risk Manager (NRM): its role is to identify

risks related to communication channels used within

the e-health system. The NRM applies the quantiﬁ-

cation function to the speciﬁc risk factors related to

the applied protocols. Risk values are assessed and

compared to predeﬁned thresholds. Results are then

communicated to the CRM.

Storage and Processing Risk Manager (SPRM): it

is related to the data storage and processing subsys-

tem. It performs the same process as the other mod-

ules taking into account speciﬁc risk factors related to

the databases as inputs.

Core Risk Manager (CRM): it performs end-to-end

risk management, via collecting information from

other subsystems. Collected data is stored in a global

repository; classiﬁcations, prioritization and correla-

tion between results are done to reﬁne decisions and

update thresholds. Other risk factors related to the en-

vironment or speciﬁc use cases can be analyzed here.

The CRM updates the elementary databases of other

units if optimized metrics are obtained.

3.3 Case of Application (SPRM)

The SPRM allows computing the risk values associ-

ated to non-compliance anomalies or attacks scenar-

ios in RBAC policies. It is deﬁned to deal with rela-

tional databases as storage entities and also with cloud

databases (as a main extension of our previous ap-

proach discussed in (Ja

ıdi et al., 2018). The SPRM

disposes of the following principal components. A

RAE (Risk Assessment Engine) in charge of the as-

sessment of risk values related to identiﬁed anomalies

and threats as well as the estimation/re-estimation of

the risk thresholds and rating, taking into account a set

of risk factors. A RM (Response Monitor) responsi-

ble for analyzing and classifying obtained risk values

with respect to corresponding thresholds and rating.

Based on this classiﬁcation and other parameters, the

RM may react autonomously vis-

a-vis risky situations

via blocking access, desactivating privileges, while in

normal cases it simply delegates the decision to CRM

for a global decision. A RD (Risk Depository) stores,

for each case, all the required metrics (risk values, rat-

ings, thresholds, etc.). A RFD (Risk Factors Depos-

itory) stores a collection of established risk factors,

such as context factors, historical events, etc., used

for a dynamic evaluation of the risk metrics and for a

dynamic analysis and classiﬁcation of the defects and

attacks. A RFM (Risk Factors Monitor) responsible

for managing the risk factors collection. As an illus-

trative example of the assessment model, we consider

a ﬁrst risk rating (Extremely High: ≥ 80%; High:

≥ 60% and < 80%; Moderate: ≥ 40% and < 60%;

Low: ≥ 20% and < 40%; Minor: ≥ 0% and < 20%).

The RAE evaluates the risk of the permission Pi ac-

cording to formula (1), where Pr(k) denotes the prob-

ability of occurrence of a particular malicious usage

k, k = 1, ..., m; C(k) is the cost associated to this ma-

licious usage, and CM is the value associated to exist-

ing countermeasures.

R(Pi) =

∑

(k=1)

P(k) ∗C(k) −CM. (1)

A Comprehensive Quantiﬁed Approach for Security Risk Management in e-Health Systems

655

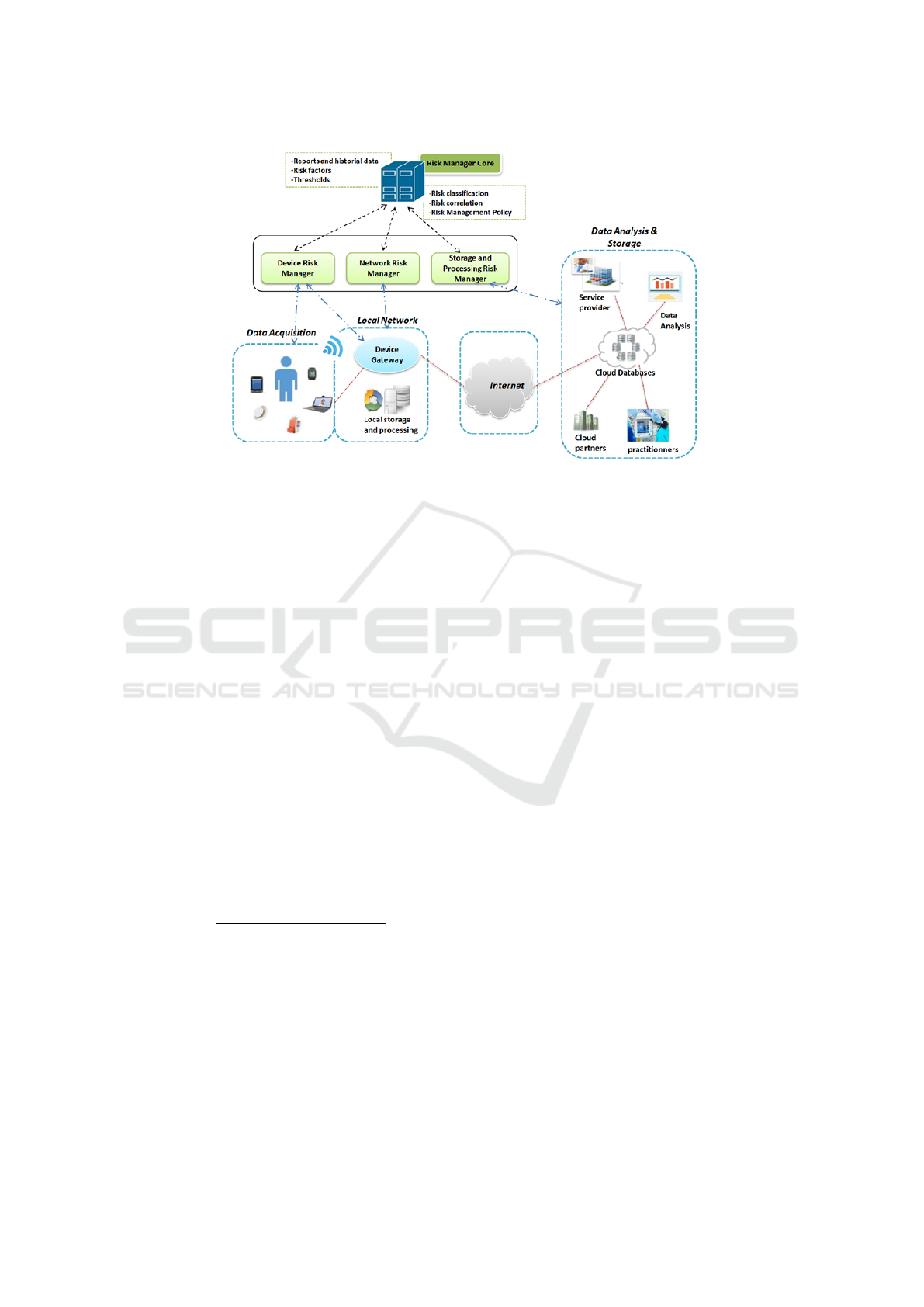

Figure 2: Dynamic-Quantiﬁed risk management approach.

Therefore, the risk of the role R j is evaluated, ac-

cording to formula (2), as the sum of the risk values of

all permissions assigned to it, where APR(R j) is the

set of permissions assigned to R j. The risk of the user

Ui is computed, via formula (3), as the sum of the risk

values of roles assigned to that user noted AUR(Ui).

R(R j) =

∑

(i=1)

R(Pi)|Pi ∈ APR(R j). (2)

R(Ui) =

∑

( j=1)

R(R j)|R j ∈ AUR(Ui). (3)

To assess the risk of the policy defects, we de-

termine the impact/effect of each abnormality on the

system, in other words we worked to quantify the in-

ﬂuence of identiﬁed breaches on the system. For this,

we assess the anomaly risk, according to formula (4),

as the ratio between the anomaly sub-elements risk

values and the system elements risk values where the

selected elements are from the same type.

R(Anomaly) =

∑

( j=1)

R(x)|x ∈ {Anomaly}

∑

(l=1)

R(y)|y ∈ System

∗ 100%.

(4)

Obtained results from application in a real world

context (a medical system application) highlight the

effectiveness as well as the usefulness of the SPRM.

3.4 Discussion and Perspectives

E-health systems still offer neither clear controls for

patients security and privacy preservation nor doc-

umentation to inform a user about risks introduced

when speciﬁc applications are deployed. Several

research works addressed the problem of security

in these constrained systems.The issue is about re-

architecting security solutions to suit the emerging ap-

plications in e-health paradigms. We believe that the

proposed approach may signiﬁcantly improve the se-

curity of IoMT infrastructures and minimize the costs

associated with the collateral damage that would af-

fect the system users. The objective of this inno-

vative dynamic-quantiﬁed security risk management

framework are to predict and evaluate risk damages,

identify new or unseen threats within IoMT applica-

tions and help security architects implementing coun-

termeasures for mitigating risks. This framework is

based on a cyclical risk management process and ﬁne-

grained automatic decision-making. We worked on

the SPRM subsystem and we plan setting up the rest

of the risk management subsystems. As a primary

case of application, we addressed access control vio-

lations and threats as basic security issues.

4 CONCLUSIONS

Security solutions for e-health in the emerging IoT

landscape offer exciting opportunities to the industry.

Risk management frameworks are one of the promis-

ing solutions to minimize costs of eventual damages

that would affect e-health system users and threaten

their private data and their safety. We studied risk

management methods and models in literature and

highlighted some proposed frameworks by the re-

search community. We proposed a novel approach

based on a quantiﬁed risk management method com-

SECRYPT 2020 - 17th International Conference on Security and Cryptography

656

posed of three distributed and chained subsystems and

an orchestrator module. The proposal aims to evalu-

ate risks related to three vulnerable zones of the e-

health system: devices landscape, network part and

storage infrastructure. Ongoing work deals with the

formalization of the approach and setting up the in-

teractions between the different subsystems.

REFERENCES

Akinrolabu, O., New, S., and Martin, A. (2019). Csccra:

A novel quantitative risk assessment model for saas

cloud service providers. Computers, 8(3):66.

Caralli, R. A., Stevens, J. F., Young, L. R., and Wilson,

W. R. (2007). Improving the information security risk

assessment process–.

Chakraborty, S. and Ray, I. (2006). Trustbac: integrating

trust relationships into the rbac model for access con-

trol in open systems. In Proceedings of the eleventh

ACM symposium on Access control models and tech-

nologies, pages 49–58.

Chen, L. and Crampton, J. (2011). Risk-aware role-based

access control. In International Workshop on Security

and Trust Management, pages 140–156. Springer.

CMMI (2017). What is capability maturity model inte-

gration (cmmi). http://cmmiinstitute.com/capability-

maturity-model-integration. Accessed: 2020-04-30.

CVSS (2018). Common vulnerability scoring system sig.

https://www.ﬁrst.org/cvss/. Accessed: 2020-04-30.

Evina, P. A., Ayachi, F. L., Jaidi, F., and Bouhoula, A.

(2018). Anomalies correlation for risk-aware access

control enhancement. In ENASE, pages 299–304.

FAIR (2017). Quantitative information risk management -

the fair institute, factor analysis of information risk.

http://www.fairinstitute.org. Accessed: 2020-04-30.

Feng, F., Lin, C., Peng, D., and Li, J. (2008). A trust and

context based access control model for distributed sys-

tems. In 2008 10th IEEE International Conference on

High Performance Computing and Communications,

pages 629–634. IEEE.

Force, J. T. (2018). Risk management framework for in-

formation systems and organizations. NIST Special

Publication, 800:37.

Gligor, V. D., Gavrila, S. I., and Ferraiolo, D. (1998). On the

formal deﬁnition of separation-of-duty policies and

their composition. In Proceedings. 1998 IEEE Sympo-

sium on Security and Privacy (Cat. No. 98CB36186),

pages 172–183. IEEE.

ISO (2009). Risk Management: Principles and Guidelines.

International Standardization Organization.

Jaeger, T. (1999). On the increasing importance of con-

straints. In Proceedings of the fourth ACM workshop

on Role-based access control, pages 33–42.

ıdi, F., Labbene-Ayachi, F., and Bouhoula, A. (2016). Ad-

vanced techniques for deploying reliable and efﬁcient

access control: Application to e-healthcare. Journal

of medical systems, 40(12):262.

ıdi, F., Labbene Ayachi, F., and Bouhoula, A. (2018). A

methodology and toolkit for deploying reliable secu-

rity policies in critical infrastructures. Security and

Communication Networks, 2018.

Ma, J., Adi, K., Mejri, M., and Logrippo, L. (2010). Risk

analysis in access control systems. In 2010 Eighth

International Conference on Privacy, Security and

Trust, pages 160–166. IEEE.

Malik, V. and Singh, S. (2019). Security risk management

in iot environment. Journal of Discrete Mathematical

Sciences and Cryptography, 22(4):697–709.

Molloy, I., Dickens, L., Morisset, C., Cheng, P.-C., Lobo, J.,

and Russo, A. (2012). Risk-based security decisions

under uncertainty. In Proceedings of the second ACM

conference on Data and Application Security and Pri-

vacy, pages 157–168.

Ni, Q., Bertino, E., and Lobo, J. (2010). Risk-based access

control systems built on fuzzy inferences. In Proceed-

ings of the 5th ACM Symposium on Information, Com-

puter and Communications Security, pages 250–260.

Nurse, J. R., Creese, S., and De Roure, D. (2017). Secu-

rity risk assessment in internet of things systems. IT

professional, 19(5):20–26.

Radanliev, P., De Roure, D. C., Nicolescu, R., Huth, M.,

Montalvo, R. M., Cannady, S., and Burnap, P. (2018).

Future developments in cyber risk assessment for the

internet of things. Computers in Industry, 102:14–22.

Radanliev, P., De Roure, D. C., Nurse, J. R., Burnap, P.,

Anthi, E., Uchenna, A., Santos, O., Montalvo, R. M.,

et al. (2019). Cyber risk management for the internet

of things.

Research, M. (2019). Internet of things (iot)

in healthcare market - global opportunity

analysis and industry forecast (2018-2025).

https://meticulousresearch.com/product/healthcare-

iot-market/. Accessed: 2020-04-30.

RiskLens (2017). Risk analytics platform, fair platform

management. https://www.risklens.com/platform.

Accessed: 2020-04-30.

Sanna, N. N. (2016). What is a cyber value-at-risk

model? www.fairinstitute.org/blog/what-is-a-cyber-

value-at-risk-model. Accessed: 2020-04-30.

Shaw, R., Takanti, V., Zullo, T., Director, M., and Llc,

E. (2017). Best practices in cyber supply chain risk

management boeing and exostar cyber security supply

chain risk management interviews.

Simon, R. T. and Zurko, M. E. (1997). Separation of duty in

role-based environments. In Proceedings 10th Com-

puter Security Foundations Workshop, pages 183–

194. IEEE.

Wynn, J., Whitmore, J., Upton, G., Spriggs, L., McKin-

non, D., McInnes, R., Graubart, R., and Clausen, L.

(2011). Threat assessment & remediation analysis

(tara): Methodology description version 1.0. Tech-

nical report, MITRE CORP BEDFORD MA.

A Comprehensive Quantiﬁed Approach for Security Risk Management in e-Health Systems

657
