An Innovative Self-Healing Approach with STIX Data Utilisation

Arnolnt Spyros

1 a

, Konstantinos Rantos

2 b

, Alexandros Papanikolaou

1 c

and Christos Ilioudis

3 d

Innovative Secure Technologies P.C., Thessaloniki, Greece

Department of Computer Science, International Hellenic University, Kavala, Greece

Department of Information and Electronic Engineering, International Hellenic University, Thessaloniki, Greece

Keywords:

Self-Healing Mechanisms, Cyberdefense, Cyberthreats, STIX, Mitigation.

Abstract:

Organisations nowadays devote many resources in maintaining a robust security posture against emerging

cyber-threats. This typically requires rapid response against newly identiﬁed or shared threat information so

that appropriate countermeasures are immediately deployed to eliminate these threats or reduce the associated

risks. For many shared indicators, like malicious IPs or URLs, such a response might only require minor

modiﬁcations to the conﬁguration of security appliances. Self-Healing systems are the mechanism that allows

a system to discover any misconﬁgurations and apply the necessary corrections in an automated or semi-

automated manner. This paper proposes such a mechanism that can be deployed within large organisations that

either do not have the resources to devote in security and therefore automation is one of their main priorities,

or they outsource their infrastructure’s protection. The use of such a mechanism can relax the increased need

for human resources and can also reduce response times in confronting emerging threats. The architecture and

the details of a reference implementation for local public administrations is also provided.

1 INTRODUCTION

The complexity of modern computing environments

continuously increases and poses signiﬁcant chal-

lenges to organisations with regards to the efﬁciency

and reliability of systems. As modern computing en-

vironments require more effort to properly control

and manage, human administrators are sometimes not

able to cope effectively with the aforementioned chal-

lenges. This makes systems more expensive to man-

age and maintain, as well as vulnerable to faults or

external threats. Moreover, the increased system com-

plexity makes them more error-prone to human errors.

Self-Healing systems are introduced as a use-

ful approach in addressing the rising complexity re-

quirements of systems management (Schneider et al.,

2015; Keromytis, 2007). Self-Healing is described

as the ability of systems to autonomously diagnose

and recover from faults with transparency and within

certain criteria. Self-Healing offers advantages such

as reducing the required human interaction, system

https://orcid.org/0000-0002-4681-104X

https://orcid.org/0000-0003-2453-3904

https://orcid.org/0000-0002-0251-0990

https://orcid.org/0000-0002-8084-4339

maintenance cost and the required workload of hu-

man administration. Furthermore, Self-Healing sys-

tems enhance durability and improve existing mitiga-

tion techniques. One of the main advantages of Self-

Healing is that fault mitigation is accomplished either

autonomously, i.e. without human interaction or re-

quire partial human interaction.

This paper proposes a Self-Healing mechanism

that is speciﬁcally designed to facilitate rapid re-

sponse to emerging threats, based on the informa-

tion that the organisation receives in the context of

cyber-threat information sharing (Schaberreiter et al.,

2019a; Rantos et al., 2020). The aim is to provide ad-

ministrators with the means to (semi-)automatically

and remotely adjust their security appliances to con-

front cybersecurity threats. As such, it relaxes the

needs for many human resources devoted to constant

monitoring and adjustment of their conﬁgurations.

This is particularly important for organisations, such

as local public administrations, that have multiple de-

vices to monitor but not necessarily have the required

resources. The mechanism proposed in this paper was

designed and developed in the context of CS-AWARE

(A cybersecurity situational awareness and informa-

tion sharing solution for local public administrations

based on advanced big data analysis), a H2020 re-

Spyros, A., Rantos, K., Papanikolaou, A. and Ilioudis, C.

An Innovative Self-Healing Approach with STIX Data Utilisation.

DOI: 10.5220/0009893306450651

In Proceedings of the 17th International Joint Conference on e-Business and Telecommunications (ICETE 2020) - SECRYPT, pages 645-651

ISBN: 978-989-758-446-6

645

search project, which aims to provide a cybersecurity

situational awareness solution for small-to medium-

sized IT infrastructures.

The rest of this paper is structured as follows: Sec-

tion 2 provides background information about the in-

troduction of Self-Healing mechanisms in organisa-

tions’ infrastructures. Section 3 introduces the Self-

Healing mechanism in the context of the CS-AWARE

project, while Section 4 describes the architecture of

the proposed solution and Section 5 provides the de-

tails of a reference implementation. Section 6 con-

cludes the paper.

2 BACKGROUND

The concept of Self-Healing is to classify and anal-

yse sensory data in order to autonomously detect and

mitigate potential system faults. The main proper-

ties of Self-Healing implementation are fault detec-

tion, failure root cause diagnosis and deriving a rem-

edy, and recovering with a sound strategy (Psaier and

Dustdar, 2011). One categorisation of Self-Healing

implementation is the level of supervision. Super-

vision is referred to as the degree of required hu-

man interaction concerning the feedback mechanism

and the expansion of Self-Healing mechanisms. Self-

Healing systems are categorised into fully supervised,

semi-supervised or unsupervised (Psaier and Dustdar,

2011; Dean et al., 2012).

One of the main advantages of Self-Healing is

that fault mitigation can be accomplished either au-

tonomously, i.e. without human interaction, or re-

quire partial human interaction, and therefore reduce

the required human interaction, system maintenance

cost and the required workload of human adminis-

tration. Figure 1 provides an overview of the re-

search work accomplished on Self-Healing properties

as published in (Psaier and Dustdar, 2011).

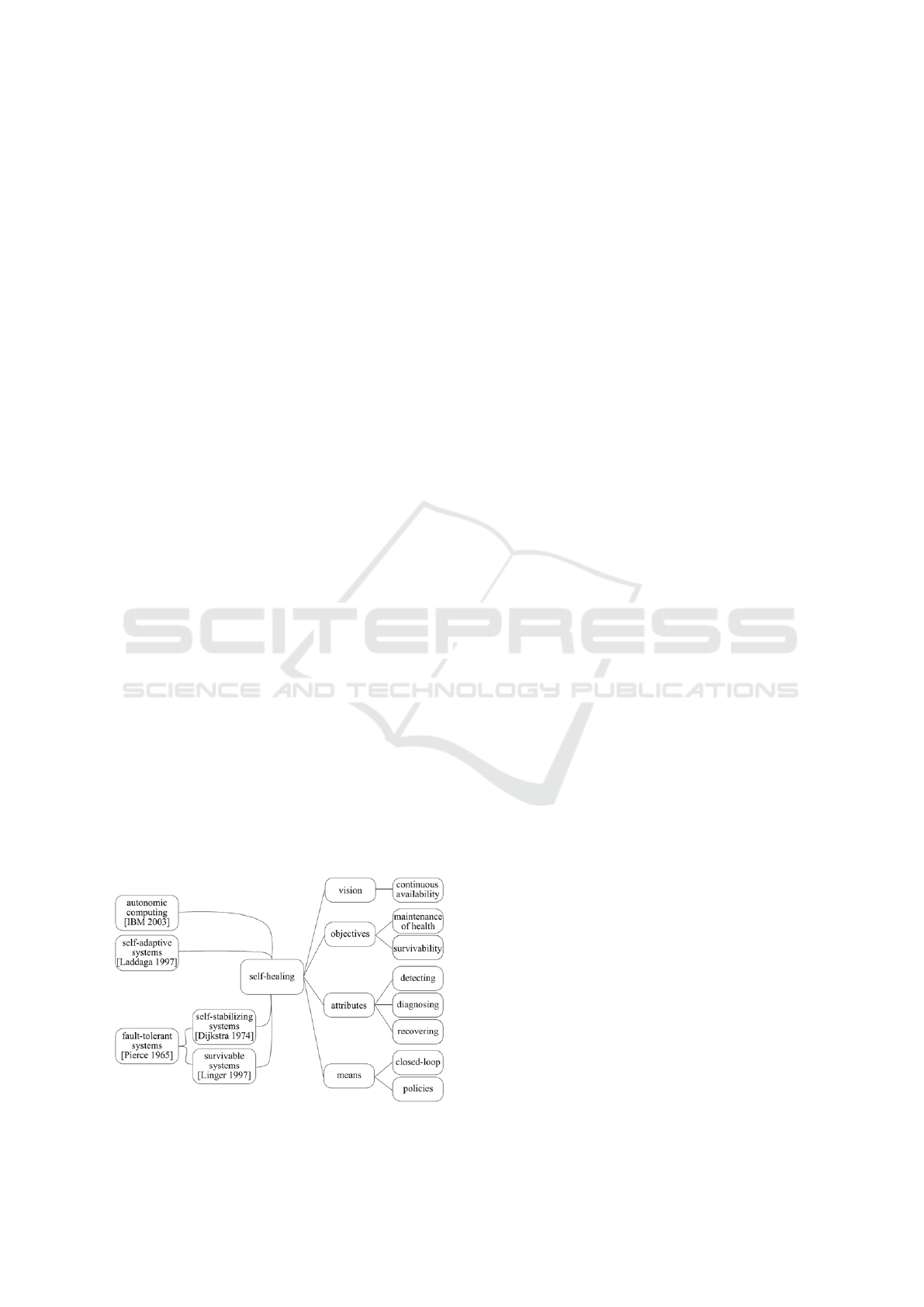

Figure 1: Self-Healing Systems (Psaier and Dustdar, 2011).

There are many Self-Healing models which can

be categorised based on speciﬁc criteria. Some of the

most important criteria are:

• Management style.

• Application environment.

• Learning methodology.

Another categorisation of Self-Healing implemen-

tation is the level of required supervision, i.e. the

degree of required human interaction concerning the

feedback mechanism and the expansion of Self-

Healing mechanisms. Self-Healing systems are cat-

egorised as fully supervised, semi-supervised or un-

supervised. Fully supervised Self-Healing imple-

mentations require frequent human interaction, semi-

supervised implementations require periodic human

interaction and unsupervised implementations oper-

ate autonomously without requiring human interac-

tion.

Although unsupervised implementations have

more advantages than semi-supervised and unsuper-

vised approaches, the most common approach of Self-

Healing implementations are top-down fully super-

vised Self-Healing systems. This is due to the fact

that semi-supervised and unsupervised approaches

are more complex. Unsupervised implementations

are usually implemented through the use of ma-

chine learning, thus require more resources, Further-

more, Self-Healing systems that exhibit self-elected

behaviours (system behaviour that derives from au-

tonomous conﬁguration changes) that have not been

previously tested and validated, are more difﬁcult to

maintain and meet the operational goals. Supervised

Self-Healing implementation provides a controllable

environment in which the produced mitigation solu-

tions have been validated by the administrator who is

also aware of the system’s behaviour.

Self-Healing mechanisms have also been designed

for speciﬁc domains, addressing the requirements

thereof, like the ones proposed for smart grids (El-

genedy et al., 2015; Zidan and El-Saadany, 2012).

3 CS-AWARE AND

SELF-HEALING

CS-AWARE enables detection, classiﬁcation and vi-

sualisation of cybersecurity incidents in real-time,

supporting the prevention or mitigation of cyber at-

tacks. The solution CS-AWARE provides is a big

step towards automation of cyber incident detection,

classiﬁcation and visualisation, and is based on ma-

ture big data analysis tools and methodologies. An

SECRYPT 2020 - 17th International Conference on Security and Cryptography

646

overview of the CS-AWARE architecture is provided

in (Schaberreiter et al., 2019b).

In the context of the CS-AWARE project, an in-

novative Self-Healing approach has been developed

to provide a (semi-) automated external Self-Healing

system which utilises Cyber Threat Intelligence. The

rest of this paper refers to the Self-Healing system as

Self-Healing component.

Other CS-AWARE components associated with

the Self-Healing one are the Data Analysis & Pattern

Recognition component and the Visualisation compo-

nent. The Data Analysis & Pattern Recognition com-

ponent provides input data to the Self-Healing com-

ponent which the latter analyses in order to compose

a mitigation rule. After the successful composition

of the mitigation rule the Self-Healing component en-

riches the data received from the Data Analysis com-

ponent and provides them to the Visualisation compo-

nent.

The Cyber Threat Intelligence data that are being

exchanged are structured in JSON format in compli-

ance with the STIX 2.0 format (STIX, 2017). STIX

2.0 was chosen instead of STIX 1.x due to the advan-

tages offered by the use of JSON schemas.

4 SELF-HEALING

ARCHITECTURE

The Self-Healing component consists of three main

subcomponents and three auxiliary subcomponents.

The main subcomponents are deﬁned in the deliver-

able D2.4 of the CS-AWARE project (CS-AWARE,

2018). Auxiliary subcomponents were designed dur-

ing the development process in order to facilitate the

composition of mitigation rules.

4.1 Main Subcomponents

4.1.1 Self-Healing Policies

Self-Healing Policies is a database which contains

records of potential threats that might be detected in

an LPA (Local Public Administration) system and the

corresponding mitigation rules. The mitigation rules

are stored in a human-readable format as well as in

machine-readable format. Self-Healing Policies are

implemented on a MySQL database whose tables de-

scribe threats, mitigation rules and policies.

Records in these tables contain ﬁelds which de-

termine the threat type as well as other information

related to the detected incident. This information is

utilised by the Decision Engine subcomponent to de-

termine which policies apply to the detected threat.

Moreover, the Self-Healing Policies subcom-

ponent includes entries which contain the CLI

(command-line interface) syntax of LPAs central

nodes.

4.1.2 Decision Engine

The Decision Engine initiates the composition of a

rule when a match is found. The matching process is

done by scanning the Threat table in the Self-Healing

policies subcomponent database based on the Threat

Type ﬁeld in order to identify the threat. Subse-

quently, Decision Engine performs a scan on the Poli-

cies table for a matching rule.

In case of a successful match, Decision initiates

its composition. The output of Decision Engine sub-

component is a rule in a human-readable format.

4.1.3 Security Rules Composer

Security Rules Composer accepts input from the De-

cision Engine subcomponent. The Decision Engine

provides a rule in a human-readable format as in-

put data and Security Rules Composer subcomponent

converts the mitigation rule in a machine-readable

format based on the CLI syntax of the affected node.

In case that the vendor of the affected node does not

provide CLI, then the mitigation rule cannot be con-

verted to a machine-readable format and the Self-

Healing provides the rule in a human-readable format

as a recommendation.

4.2 Auxiliary Subcomponents

4.2.1 Parser

The Parser parses the STIX package and extracts use-

ful data for the process of mitigation rules composi-

tion. The extracted data is used for the initialisation

of Java objects which contain information about de-

tected threats, the affected LPA and the affected node

or nodes.

4.2.2 Rule Applicator

Rule Applicator is responsible for enriching the STIX

package with the mitigation rule, sending data to the

Visualisation component and for applying the rule on

the remote machine. Rule Applicator enriches the

STIX package with a Course of Action SDO (STIX

Domain Object) which contains information about the

mitigation rule composed by the Self-Healing. Sub-

sequently, Rule Applicator sends the enriched STIX

package to the Visualisation component via a REST

An Innovative Self-Healing Approach with STIX Data Utilisation

647

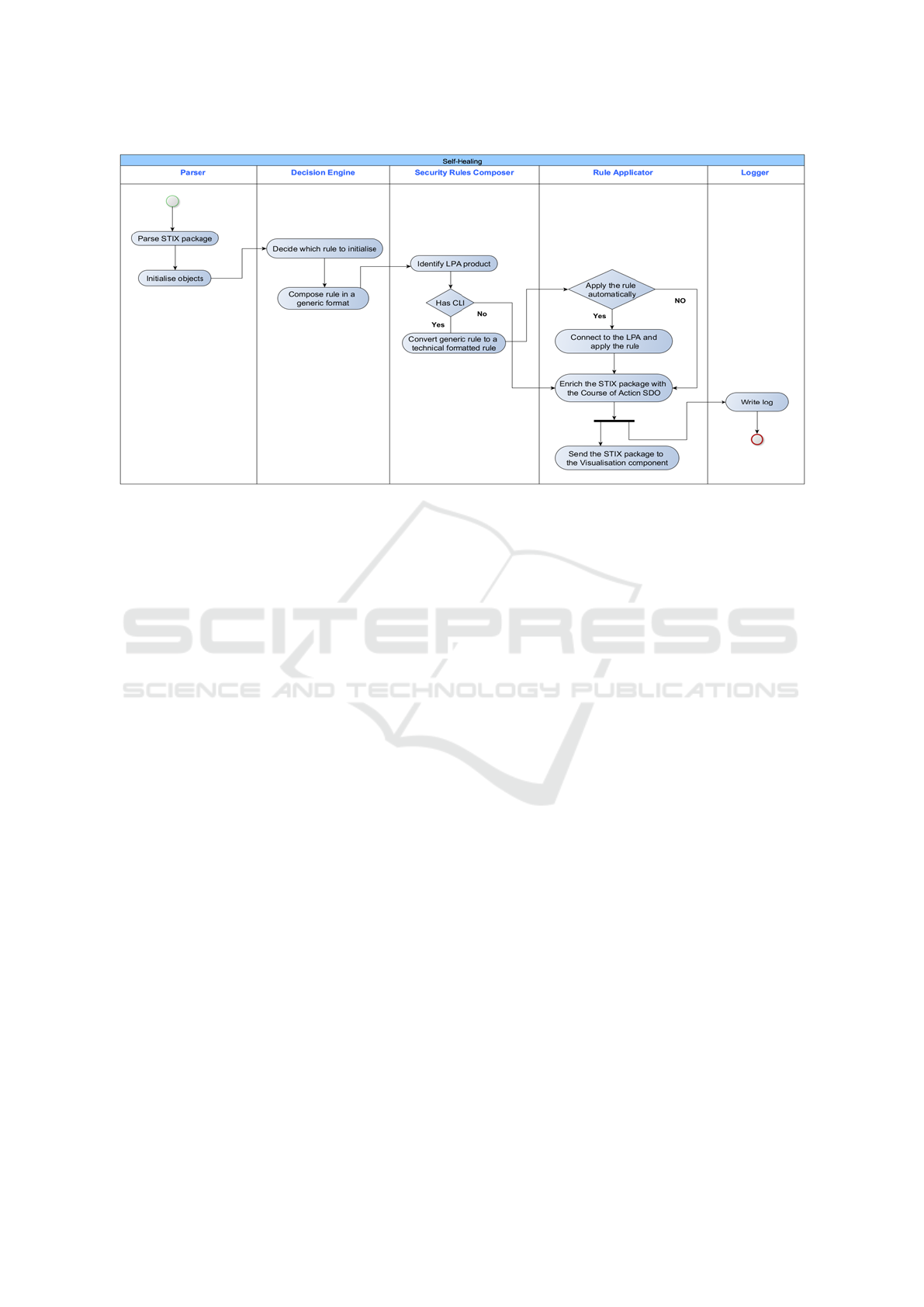

Figure 2: Self-Healing activity diagram.

API. In case the mitigation rule must be applied re-

motely then the Self-Healing connects to the remote

node via SSH using credentials that are deﬁned exclu-

sively for the Self-Healing component. Self-Healing

has the required privileges on the affected node in

order to apply mitigation rules without encounter-

ing any restrictions. The connection is established

only if the LPA admin has provided such permission

to the Self-Healing component. In case the STIX

package does not include sufﬁcient information about

the threat source, then the Self-Healing provides a

generic mitigation rule as a recommendation.

4.2.3 Logger

Logger writes a log entry in the log ﬁle which con-

tains information about how the mitigation rule was

implemented. Mitigation rules composed by the Self-

Healing component incorporate three alternatives: In-

form LPA admin upon which acts to perform in order

to avoid the threat or reduce the impact, ask for ad-

min’s permission in order to apply the mitigation rule,

automatically apply the rule.

4.2.4 Input-output

Self-Healing component accepts input data from the

Data Analysis & Pattern Recognition component via

a REST API. They contain various information about

detected threats and the affected LPA which is used to

determine the proper mitigation rule (Table 1).

4.3 Relevant Dynamic Behaviour

The Self-Healing component operations are organised

in four levels:

• Data parsing (performed by the Parse subcompo-

nent),

• Human-readable mitigation composition (per-

formed by the Decision Engine subcomponent),

• Machine-readable mitigation composition (per-

formed by the Security Rules Composer subcom-

ponent), and

• Mitigation application (performed by the Rule

Applicator subcomponent).

Figure 2 shows the interaction among the Self-

Healing sub-components while Figure 3 demonstrates

the interaction between the Self-Healing and Visuali-

sation component as a result of the input provided by

the Data Analysis & Pattern Recognition component.

Received data is ﬁrst parsed to retrieve useful data

which is then used as input data for the Decision

Engine to diagnose the threat type and initiate the

corresponding mitigation rule which is provided in a

human-readable format. The mitigation rule is then

forwarded to the Security Rules Composer subcom-

ponent to query the Self-Healing Policies database if

the LPA security mechanism has a CLI and determine

whether the human-readable rule can be converted to

a machine-readable set of actions.

• Security mechanism does not support CLI: The

mitigation rule cannot be converted to a machine-

readable format and therefore is directly provided

SECRYPT 2020 - 17th International Conference on Security and Cryptography

648

CS-AWARE Post-Analysis Activity DiagramCS-AWARE Post-Analysis Activity Diagram

Self-HealingSelf-Healing Information SharingInformation SharingVisualizationVisualizationData AnalysisData Analysis

Interaction among Data Analysis, Visualization, Information Sharing and Self

-healing components

Interaction among Data Analysis, Visualization, Information Sharing and Self

-healing components

Information

Aggregation and

Sanitization

Identify healing

solution

Information

Sanitization

Provide analysis

result

STIX

Combine with info from

other sources

Prepare statistics/

reports

LPA-specific

information

No user interaction required

Need to be able to

uniquely identify

incidents to combine

data-analysis result

with healing

suggestion

Enforce self-healing

solution

Visualize output for

user

Request LPA/CS-

AWARE-admin

permission

User interaction

required

Permission

Granted

Report action

Report solution &

User Decision

No permission granted

No solution/Generic

solution found

Solution identified

Publish for external

entities

Solution requires

admin action

(self-healing does

not have the

capacity to enforce

measures)

Needs permission

Permission not

required

Multi-language support,

users, types of users

Needs

Permission

Any LPA-specific

information has

to be removed

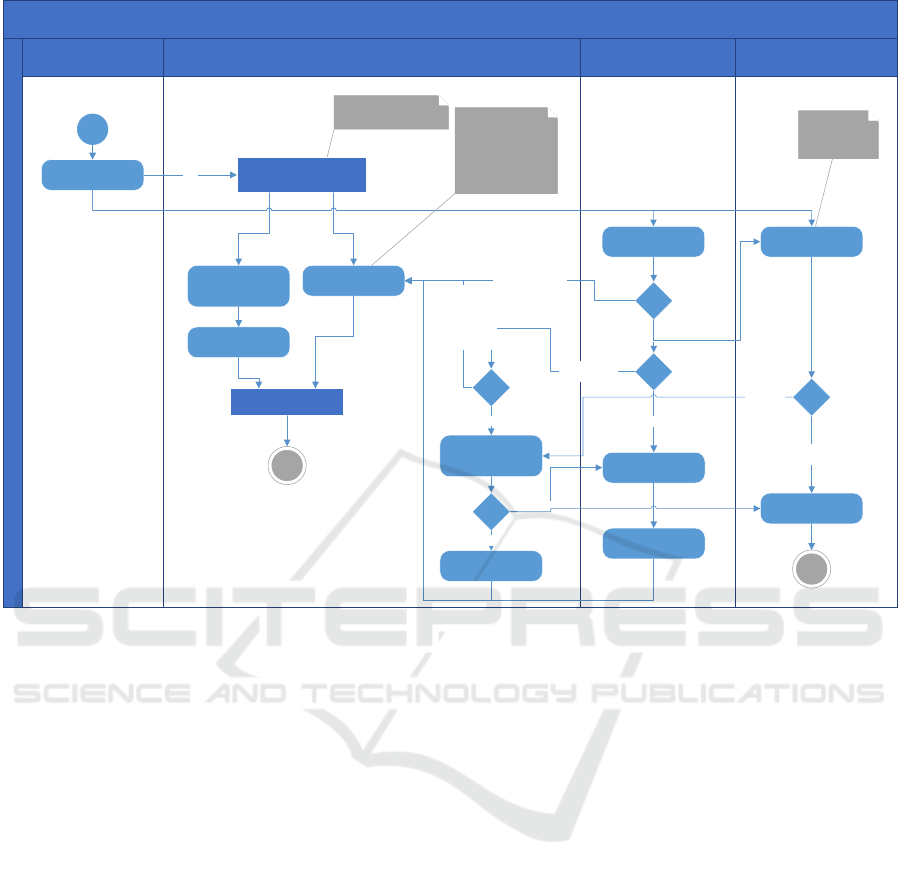

Figure 3: Post-Analysis activity diagram.

as a recommendation. The received STIX pack-

age is enriched with a Course of Action SDO and

a Relationship SDO which links the mitigation

with the given threat and then forwarded to the Vi-

sualisation component. Self-Healing writes a log

entry in the log ﬁle.

• Security mechanism supports CLI: The mitiga-

tion rule is converted in a machine-readable for-

mat based on product’s CLI syntax. The machine-

readable rule is forwarded to the Rule Applicator

that forwards the rule to the Visualisation compo-

nent in order to ask for the LPA administrator’s

permission to apply the rule automatically.

– Administrator accepts the automatic applica-

tion: The mitigation rule is applied on the af-

fected machine. The received STIX package is

enriched with a Course of Action SDO and a

Relationship SDO which links the mitigation

with the given threat, and is then forwarded

to the Visualisation component. Self-Healing

writes a log entry in the log ﬁle.

– Administrator declines the automatic applica-

tion: The mitigation rule is provided as a rec-

ommendation. The received STIX package is

enriched with a Course of Action SDO and a

Relationship SDO which links the mitigation

with the given threat, and is then forwarded

to the Visualisation component. Self-Healing

writes a log entry in the log ﬁle.

Each Self-Healing subcomponent supports a speciﬁc

set of operations which diagnose the threat type and

compose the proper mitigation rule. At ﬁrst the miti-

gation rule is composed in a human-readable format.

Subsequently the human-readable mitigation is con-

verted to a machine-readable rule which can then be

applied on the affected node remotely and without re-

quiring human interaction.

5 USE CASE

A STIX package is provided to the Self-Healing com-

ponent as input. The STIX package contains infor-

mation about a Brute Force Attack that was detected

in an LPA system. Apart from threat information,

the package contains information concerning the af-

fected LPA. After ﬁnishing the parsing process the

Self-Healing extracts the following information:

1. The Brute Force Attack is performed from the

123.183.209.131 IPv4 address.

An Innovative Self-Healing Approach with STIX Data Utilisation

649

Table 1: Fields of the STIX2.0 package received from the

Data Analysis & Pattern Recognition component.

NAME DESCRIPTION

Threat id Threat’s STIX package id.

Threat type

(optional)

DoS, DDoS, Ransomware, etc.

Threat group

Server threats, Network threats,

System threats, or Database

Threats

LPA

Name of the LPA at which the

threat was detected

Severity (LPA-

speciﬁc)

Level of threat’s severity with re-

gards to the LPA.

Tool used (op-

tional)

Information about the tool that

was used to develop or spread the

threat.

Affected Prod-

ucts

Malicious or vulnerable products

info.

LPA Affected

Products

LPA malicious or vulnerable prod-

ucts information.

OS informa-

tion

OS distribution, OS version, OS

system type.

Firewall infor-

mation

Firewall software name.

Risk Mitiga-

tion Strategy

Actions to mitigate the detected

threat.

2. The affected node runs Linux Ubuntu 16.04.

3. The affected node uses the iptables as ﬁrewall.

For the needs of the Use Case test the affected LPA

system is virtualised using a VM (Virtual Machine)

created with the Oracle VM VirtualBox. Initially, the

VM contains only the default chains as well as the

CSAWARE-IN custom chain (see Figure 4).

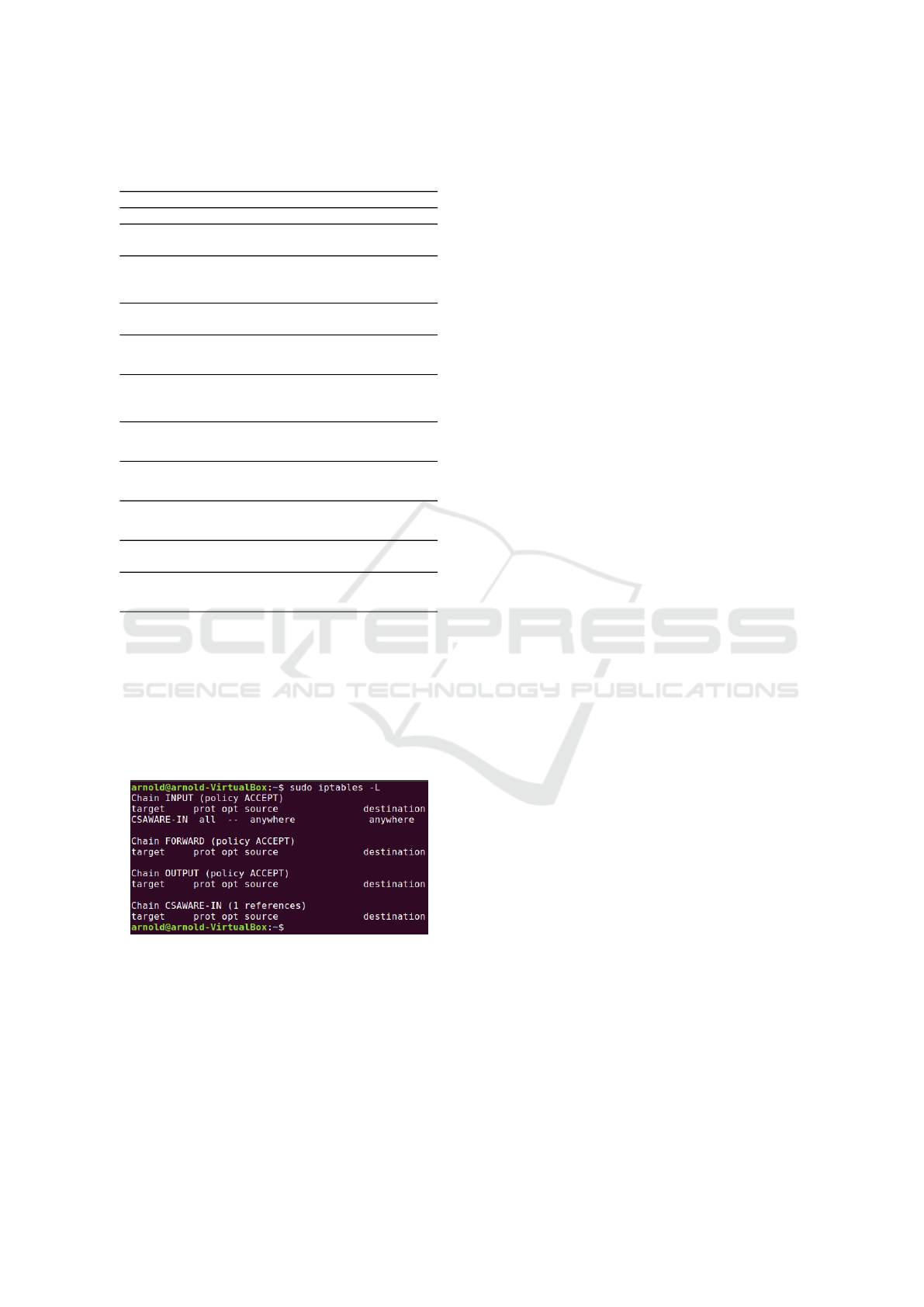

Figure 4: VM iptables chains listing before applying miti-

gation rule.

The steps followed by the Self-Healing systems as

a response to receiving the aforementioned malicious

IP are the following:

1. The Self-Healing component receives the follow-

ing STIX package as input data.

{

"type":"bundle",

"id":"bundle--ab68225c-91cf-47fc-b27b

-78949b703437",

"objects":[

{

"type":"indicator",

"id":"indicator--6742956c-f31a-465f-

bde8-1453822d9948",

"created":"2018-05-06T06:34:55.000Z",

"modified":"2018-05-08T13:49:12.000Z

"name":"Brute Force Attack",

"pattern":"[ipv4-addr:value =

’123.183.209.131’]",

"valid_from":"2018-05-06T06:34:55Z",

"labels":[

"malicious-activity"

]

{

"type":"identity",

"id":"identity--023d105b-752e-4e3c

-941c-7d3f3cb15e9e",

"created":"2016-08-23T18:05:49.307Z",

"modified":"2016-08-23T18:05:49.307Z

"name":"affected_LPA_x",

"identity_class":"organization"

{

"type":"observed-data",

"id":"observed-data--32dab7d0-1522-4

a08-826b-015fc1369bdb",

"created":"2016-08-23T18:05:49.307Z",

"first_observed":"2018-03-26T14

:21:25.283Z",

"last_observed":"2018-03-26T14

:21:25.283Z",

"modified":"2018-03-26T14:21:25.283Z

"number_observed":1,

"objects":{

"0":{

"name":"Canonical Ubuntu Linux

16.04 LTS",

"type":"software",

"vendor":"Canonical",

"version":"7.0",

"cpe":"cpe:2.3:o:canonical:

ubuntu_linux:16.04:*:*:*:lts

:*:*:*"

"1":{

"name":"iptables Firewall",

"type":"software",

"vendor":"Linux",

"version":"1.8.0"

}

]

}

SECRYPT 2020 - 17th International Conference on Security and Cryptography

650

2. After completing all required Self-Healing opera-

tions, the mitigation rule is remotely applied on

the virtual machine. Furthermore, Self-Healing

composes a human-readable mitigation which is

displayed to the user.

3. The Rule Applicator subcomponent of the Self-

Healing enriches the STIX package with a Course

of Action SDO which contains information about

the mitigation rule that was generated by the Self-

Healing component.

...

{

"type":"course-of-action",

"id":"course-of-action--8e2e2d2b-17d4

-4cbf-938f-98ee46b3cd3f",

"created":"2016-08-31T11:37:49.307Z",

"modified":"2016-08-31T11:37:49.307Z

"name":"mitigation",

"description":"iptables -A CSAWARE-IN

-s 123.183.209.131 -j REJECT"

}

4. The CSAWARE-IN chain now contains the miti-

gation rule that was generated by the Self-Healing

component.

6 CONCLUSIONS

The extensive exposure of organisations to existing

and emerging cyberthreats has forced them to invest

on mechanisms that efﬁciently consume shared threat

intelligence information and reduce response times in

adapting their security posture. Self-Healing mech-

anisms provide the means for administrators to ad-

dress the complexity of systems management and mit-

igate potential system faults. In this paper we pro-

posed a Self-Healing solution that has been designed

in the context of the CS-AWARE project to address

the needs of local public administrations that typi-

cally do not have the expertise or the resources to

manage security and other appliances. The proposed

solution provides a method to appropriately mitigate

cyber threats, while still allowing the system admin-

istrator to have control over these actions.

ACKNOWLEDGEMENTS

This work has been supported by the EU research pro-

gram CS-AWARE (A cybersecurity situational aware-

ness and information sharing solution for local public

administrations based on advanced big data analysis)

project. Call: DS-02-2016, Grand Agreement No.:

740723.

REFERENCES

CS-AWARE (2018). CS-AWARE framework. Deliverable

D2.4. Available online: https://cs-aware.eu/2019/03/

28/d2-4-cs-aware-framework/.

Dean, D. J., Nguyen, H., and Gu, X. (2012). UBL: unsu-

pervised behavior learning for predicting performance

anomalies in virtualized cloud systems. In Proceed-

ings of the 9th international conference on Autonomic

computing - ICAC ’12, page 191, San Jose, California,

USA. ACM Press.

Elgenedy, M. A., Massoud, A. M., and Ahmed, S. (2015).

Smart grid self-healing: Functions, applications, and

developments. In 2015 First Workshop on Smart Grid

and Renewable Energy (SGRE), pages 1–6, Doha,

Qatar. IEEE.

Keromytis, A. D. (2007). Characterizing software self-

healing systems. In Gorodetsky, V., Kotenko, I., and

Skormin, V. A., editors, Computer Network Security,

pages 22–33, Berlin, Heidelberg. Springer Berlin Hei-

delberg.

Psaier, H. and Dustdar, S. (2011). A survey on self-

healing systems: approaches and systems. Comput-

ing, 91(1):43–73.

Rantos, K., Spyros, A., Papanikolaou, A., Kritsas, A., Il-

ioudis, C., and Katos, V. (2020). Interoperability

Challenges in the Cybersecurity Information Sharing

Ecosystem. Computers, 9(1):18.

Schaberreiter, T., Kupfersberger, V., Rantos, K., Spyros, A.,

Papanikolaou, A., Ilioudis, C., and Quirchmayr, G.

(2019a). A quantitative evaluation of trust in the qual-

ity of cyber threat intelligence sources. In Proceedings

of the 14th International Conference on Availabil-

ity, Reliability and Security, ARES ’19, pages 83:1–

83:10, New York, NY, USA. ACM.

Schaberreiter, T., R

oning, J., Quirchmayr, G., Kupfers-

berger, V., Wills, C. C., Bregonzio, M., Koumpis, A.,

Sales, J. E., Vasiliu, L., Gammelgaard, K., Papaniko-

laou, A., Rantos, K., and Spyros, A. (2019b). A Cy-

bersecurity Situational Awareness and Information-

Sharing Solution for Local Public Administrations

based on Advanced Big Data Analysis: The CS-

AWARE Project. In Bernabe, J. B. and Skarmeta,

A., editors, Challenges in Cybersecurity and Pri-

vacy – the European Research Landscape, RIVER

PUBLISHERS SERIES IN SECURITY AND DIGI-

TAL FORENSICS, pages 149–180. River Publishers,

Netherlands.

Schneider, C., Barker, A., and Dobson, S. (2015). A survey

of self-healing systems frameworks: A SURVEY OF

SELF-HEALING SYSTEMS. Software: Practice and

Experience, 45(10):1375–1398.

STIX (2017). Structured threat information expression

(STIX) version 2.0. OASIS standard https://www.

oasis-open.org/standards#stix2.0.

Zidan, A. and El-Saadany, E. (2012). A cooperative multi-

agent framework for self-healing mechanisms in dis-

tribution systems. Smart Grid, IEEE Transactions on,

3:1525–1539.

An Innovative Self-Healing Approach with STIX Data Utilisation

651
