SMSNet: A Novel Multi-scale Siamese Model for Person

Re-Identiﬁcation

Nirbhay Kumar Tagore

and Pratik Chattopadhyay

Department of Computer Science and Engineering, Indian Institute of Technology, Banaras Hindu University,

Varanasi, 221005, India

Keywords:

Person Re-Identiﬁcation, SMSNet, Deep Learning.

Abstract:

We propose a novel multi-scale Siamese architecture to perform person re-identiﬁcation using deep learning.

The scenario considered in this work is similar to that found in movie/concert halls, where persons enter in

a queue one-by-one through the entry gates and leave in a similar way through the exit gates. Effectiveness

of Siamese network based re-identiﬁcation is evident from the recent research work in this domain. Here,

we focus on improving the accuracy of the existing re-identiﬁcation techniques by introducing different di-

lation rates in the convolution layers of the Siamese network, thereby enabling capturing of detailed visual

features. We also introduce a silhouette part-based analysis to preserve the spatial relationships among the

different silhouette segments at a high resolution. The proposed Siamese network model has been ﬁne-tuned

through cross-validation and the pre-trained network has been made available for further comparison. Rigor-

ous evaluation of our approach against varying training parameters, as well as comparison with state-of-the-art

methods over four popularly used data sets, namely, CUHK 01, CUHK 03, Market1501, and VIPeR, verify

its effectiveness.

1 INTRODUCTION

Tracking persons in videos or sequence of image

frames is very important in terms of surveillance, se-

curity and multimedia applications. The continuous

recording of videos from a camera network yields a

large amount of data, and monitoring of this high vol-

ume of data by trained persons is laborious and prone

to manual-error. Thus, there is an urgent need for the

development of an automated re-identiﬁcation system

that can track individuals robustly against varying il-

lumination conditions, walking poses, etc. An ef-

fective re-identiﬁcation system can be potentially de-

ployed in public zones such as movie/concert halls

or some meeting place. Cameras positioned at the

entry and exit gates of such places can be used to

track subjects seamlessly and understand their activ-

ities. The importance of surveillance cameras has

been revealed in a past study (Ashby, 2017) where it

is mentioned that CCTV footage videos have helped

in resolving 65% of all the criminal cases recorded

by British Transport Police between years 2011 and

2015. Since the past two decades, researchers of

https://orcid.org/0000-0002-4011-0453

https://orcid.org/0000-0002-5805-6563

1

2

3

4

3

1

4

2

Surveillance Zone

Entry

Exit

Figure 1: Re-Identiﬁcation scenario.

the computer vision community are developing var-

ious techniques to automate the process of tracking

and monitoring activity of persons in videos. Among

these, person re-identiﬁcation deals with associat-

ing images of the same person across multiple cam-

era views (overlapping/non-overlapping). Before the

commencement of deep learning, researchers used to

derive handcrafted features from images/videos for

small-scale evaluation. However, improved surveil-

lance systems and camera networks, as well as avail-

ability of deep learning tools and techniques in the

recent years have signiﬁcantly beneﬁted research on

person re-identiﬁcation.

The re-identiﬁcation scenario considered in this

work is shown schematically in Figure 1. With ref-

erence to the ﬁgure, two cameras are positioned at the

Tagore, N. and Chattopadhyay, P.

SMSNet: A Novel Multi-scale Siamese Model for Person Re-Identiﬁcation.

DOI: 10.5220/0009885001030112

In Proceedings of the 17th International Joint Conference on e-Business and Telecommunications (ICETE 2020) - DCNET, OPTICS, SIGMAP and WINSYS, pages 103-112

ISBN: 978-989-758-445-9

103

entry and exit gates of a surveillance zone. Subjects

enter into the zone through the entry gate and assem-

ble inside the hall. As each person enters into the

zone, their video gets recorded by the entry gate cam-

era, and a gallery set is formed from the videos corre-

sponding to all the subjects who enter the zone. Sce-

narios like this are commonly found in movie/concert

halls, or meeting places. On completion of the meet-

ing, subjects leave the surveillance zone one-by-one

through the exit gate, during which their videos get

recorded by the exit gate camera. Since, the order

in which the individuals enter may not be the same

as the order in which they exit the zone, there is a

need for re-identifying a person as he/she approaches

the exit gate camera from among the gallery set al-

ready captured by the entry gate camera. Establishing

correspondence between individuals in the two cam-

era ﬁelds-of-view through re-identiﬁcation can help

in performing a number of other high-level computer

vision tasks such as activity monitoring, gait recogni-

tion, etc. The important contributions to the paper can

be summarized as follows:

• Developing a new architecture for person re-

identiﬁcation based on Siamese network that

computes multi-scale features to capture intrinsic

details of input images at a higher resolution.

• Carrying out silhouette part-based analysis by

segmenting each of the two input images into

three parts, and performing SMSNet based feature

comparison which helps in preserving the contex-

tual information or spatial relationship among the

different silhouette regions at a higher resolution.

• Carrying out extensive experimental evaluation to

verify the effectiveness and superiority in perfor-

mance of our network over state-of-the-art tech-

niques.

The rest of the paper is organized as follows. In Sec-

tion 2, we discuss about the research trend in person

re-identiﬁcation approaches starting from the early

non-deep learning-based to the modern deep learning-

based methods. Next, in Section 3, we discuss about

the overall framework and network conﬁguration of

the proposed SMSNet in detail. Data set description,

experiment protocols and detailed evaluation of the

proposed work are presented in Section 5. Conclu-

sions and future scopes are ﬁnally highlighted in Sec-

tion 6.

2 RELATED WORK

In this section, we will discuss the research trend on

person re-identiﬁcation with a major focus on the re-

cently developed methods.

2.1 Early Approaches for Person

Re-Identiﬁcation

Most of the early attempts to solve person re-

identiﬁcation are passive approaches, i.e., approaches

without any supervised or unsupervised feature learn-

ing mechanism. These techniques deal with extrac-

tion of handcrafted features from silhouette images

followed by comparison using standard distance met-

rics ((Bazzani et al., 2010), (Bazzani et al., 2013),

(Forss

en, 2007)). Few examples of re-identiﬁcation

methods based on hand-crafted features include (Li

and Wang, 2013) which computes Gabor features

from images, or the color histogram-based techniques

discussed in (Koestinger et al., 2012) and (Xiong

et al., 2014).

The approach described in (Kang et al., 2004)

used color Gaussian model to count the edge pix-

els in an image and polar bins have been used to

generate the feature descriptor from the same im-

age. Later these polar bins are used to ﬁnd the best

match by comparing the most similar feature descrip-

tors. A color histogram clustering based person re-

identiﬁcation approach is described in (Sivic et al.,

2006) in which the color information is quantized into

a 16-bit histogram, and next clustering of these quan-

tized features is carried out. A part-based model us-

ing HS color histograms was explored in (Bedagkar-

Gala and Shah, 2011), in which HS color histograms

of stable body parts such as torso, left arm, right

arm and legs. A HOG (Histogram Oriented Gradi-

ent) based body part detector is used to detect these

body parts. The reported results from most passive

re-identiﬁcation approaches are not accurate enough

due to use of simple features and distance metrics. In-

troduction to deep learning has paved the way for the

development of more effective techniques for person

re-identiﬁcation, which are discussed in the following

sub-section.

2.2 Deep Learning-based Approaches

In this sub-section we will discuss about the two

broad categories of deep learning approaches for per-

son re-identiﬁcation in the literature, namely (a) Clas-

siﬁcation models ((Wu et al., 2016), (Ma et al., 2012),

(Wu et al., 2017), (Xiao et al., 2016), (Su et al., 2017),

(Li et al., 2017)) in which a probe subject is compared

against a large gallery of subjects, and (b) Siamese

models ((Yi et al., 2014), (Ahmed et al., 2015), (Ding

et al., 2015), (Zhang et al., 2015), (Cheng et al.,

2016),(Su et al., 2016)) in which at a time two silhou-

SIGMAP 2020 - 17th International Conference on Signal Processing and Multimedia Applications

104

ettes are compared to test whether they belong to the

same class or not. A generalized model for person re-

identiﬁcation has been proposed in (Song et al., 2019)

in which the model is trained on a particular domain,

but the trained model can be conveniently used to per-

form re-identiﬁcation on a different data set without

any model update.

Classiﬁcation Models. Since labeling across multi-

ple non-overlapping views in surveillance videos con-

sumes up a considerable amount of time, in (Meng

et al., 2019), a weakly supervised learning scheme

has been developed to match a target person with

an untrimmed gallery video without the requirement

of annotating individuals in the video frames dur-

ing the training phase. A feature fusion-based re-

identiﬁcation technique has been proposed in (Ma

et al., 2012) in which deep features computed from

a Convolutional Neural Network (CNN) are fused

with hand-crafted features extracted by ELF descrip-

tor (Tian et al., 2014) at the penultimate layer, fol-

lowing which a soft-max layer does the classiﬁca-

tion by minimizing the cross-entropy loss. In an-

other work (Xiao et al., 2016), Xiao et al. proposed

a CNN model, in which network pruning is done by

observing the contribution of each neuron towards op-

timizing the loss function. Also, the standard dropout

mechanism is replaced by a deterministic domain-

guided dropout in which least important neurons are

discarded to reduce the computational complexity. In

(Li et al., 2017), a multi-scale context aware network

is employed which is trained on full body as well as

smaller body parts. This network also uses convolu-

tions at different scales to enable capturing of large

spatial information without incorporating redundant

information in an efﬁcient manner.

Siamese Architecture-based Models. The shallow

Siamese architecture was proposed for the ﬁrst time

in (Bromley et al., 1994) for signature matching way

back in 1994. In a basic sense, a Siamese network

consists of two or more similar sub-networks, that

takes as input individual feature vectors at the in-

put layer of each sub-network and compare the fea-

tures generated at the ﬁnal layer to obtain a similarity

score. Post 2014, several re-identiﬁcation approaches

were developed that extend the Siamese network to

a deeper architecture. Some of these are highlighted

next. The re-identiﬁcation approach proposed in (Yi

et al., 2014) jointly handles both feature learning as

well as metric learning, and has been seen to perform

robustly against high variations in illumination and

other factors. A pair-wise Siamese deep learning ar-

chitecture has been proposed in (Ahmed et al., 2015)

in which the ﬁnal layer is used to calculate cross-

input neighborhood differences to capture intrinsic re-

lations from the mid-layer features. Finally, a patch

summary layer is used to extract the high-level sum-

mary features from the output layer.

The architecture proposed in (Ding et al., 2015)

is a triplet Siamese network that generates a large

number of triplet pairs from a given data set. It

uses L2 distance metric to train a model that learns

a hyperspace to maximize the separation between the

matched pairs and mismatched pairs present in the

gallery set. A multi-channel part-based convolutional

neural network (CNN) model is introduced in (Cheng

et al., 2016) that learns features from both full-body

and local body parts. The model proposed is trained

upon an improved triplet loss function that pushes fea-

tures from different identities further while simultane-

ously pulling features from similar identities closer.

In (Varior et al., 2016), a Siamese long short term

memory (LSTM) architecture has been proposed to

develop a relationship between features of sequen-

tial images. In (Subramaniam et al., 2016), another

Siamese architecture based model (X-Corr) is intro-

duced to learn the similarity features between two in-

put images by applying normalized correlation. Re-

cently, in (Guo and Cheung, 2018) authors fused

two different networks called Convolution Similarity

Network (CSN) and Spatial Transformer Networks

(STN) to learn and combine the visual similarities

at the different levels of the network. Human track-

ing for identity retrieval have got signiﬁcant atten-

tion in recent years. In (Munjal et al., 2019) a query

based person re-identiﬁcation approach has been in-

troduced where person detection and re-identiﬁcation

works jointly. A query-guided Siamese squeeze-and-

excitation network (QSSE-Net) introduced that uses

query and gallery images as a global context.

Existing Siamese based person re-identiﬁcation

approaches have shown signiﬁcant effectiveness in

learning features from a rigid body. However, none of

these focus on learning the multi-scale features from

input images. It may be noted that multi-scale fea-

tures are important for establishing higher-order rela-

tionship between the input pairs. To address this prob-

lem of multi-scale feature extraction using Siamese

network, we propose a novel architecture namely the

Siamese Multi-scale Network (SMSNet) to learn and

compare between multi-scaled features correspond-

ing to a pair of inputs, and evaluate its effectiveness

for different large scale person re-identiﬁcation data

sets.

SMSNet: A Novel Multi-scale Siamese Model for Person Re-Identiﬁcation

105

3 PROPOSED WORK

In this section, we discuss the individual steps of our

proposed approach in detail including the network ar-

chitecture, training algorithm and the ﬁnal classiﬁca-

tion step in the different sub-sections.

3.1 Multi-Scale Siamese Architecture

An insight view of the proposed Siamese Multi-scale

Network (SMSNet) model is given in Figure 2.

Table 1 presents the detailed network conﬁgura-

tion used in the study.

Table 1: Layer speciﬁcation of each Siamese Multi-scale

Network (SMSNet).

Layer kernel No. of ﬁlters

Conv2d 0 5×5 32

Conv2d 1 3×3 32

Conv2d 2 3×3 32

Conv2d 3 3×3 32

Conv2d 4 3×3 32

Layer No. of neurons

Fully Connected 500

With reference to Figure 2 and Table 1, the ﬁrst layer

of the network consists of two parallel tied convolu-

tion layers (Conv2d

0) that accepts two input images

of size 60×160, and this is followed by four more

convolution layers, each equipped with dilation rates

of 1,2 and 3 (Conv2d 1, Conv2d 2, Conv2d 3, and

Conv2d 4). As already explained before, application

of dilation in the convolution layers helps in obtain-

ing a multi-scale feature representation that encodes

the visual characteristics of an input image at a high

resolution. The size of the ﬁlters at every convolu-

tion layer is 3×3, except for the ﬁrst layer in which

the size is 5×5, and the number of ﬁlters used in each

layer is the same (i.e, 32). The feature difference layer

shown after all the convolution layers is used to com-

pute the cross-input neighborhood difference (Ahmed

et al., 2015) between the outputs of the aggregated

features extracted from both the branches of the SM-

SNet. Mathematically, if f

and g

represent the i

feature maps at a particular layer corresponding to the

two images input to the SMSNet, then, the cross-input

neighborhood distance K between f

and g

at each

pixel location (x,y) is computed as follows:

K(x, y) = f

(x, y) ∗ I(n, n) − N [g

(x, y)], (1)

where, n is the neighborhood size, f

(x, y) is the pixel

value of feature map f

at location (x,y), I(n, n) de-

notes a n×n matrix of ones, and N [g

(x, y)] denotes a

n×n neighborhood around pixel (x,y) of feature map

. In the present work, the value of n has been chosen

as 5. Use of the cross-input neighborhood difference

is advantageous in the sense that it helps in obtain-

ing the positional differences between the two input

features.

3.2 Network Training

We propose dividing each silhouette into multiple

segments, and pass each of these segments in paral-

lel through different SMSNet channels. This helps

in preserving the spatial relationship among the in-

put features at a high resolution and preserve better

contextual information. The above re-identiﬁcation

process is explained clearly using Figure 3. It can

be seen from the ﬁgure that each of the two input

images is segmented into three equal parts, namely,

Segment1, Segment2, and Segment3. These three im-

age segments from each image pair are provided as

inputs to the three different SMSNets (namely, SM-

SNet1, SMSNet2, SMSNet3) in a manner as shown in

Figure 3. With reference to the ﬁgure, SMSMNet1

computes the cross-neighborhood distance between

the ﬁrst segments of the two images at its ﬁnal layer

denoted by fc 1, while SMSNet2 and SMSNet3 com-

pute the cross-neighborhood distances between the

second and third segments at their ﬁnal layers denoted

by fc 2 and fc 3, respectively. Each of the features in

the fc 1, fc 2 and fc 3 layers is 500 dimensional, and

provide useful information regarding the dissimilarity

between the corresponding segments in the two in-

put images. These features are next concatenated into

a single feature vector of dimension 1500, denoted

by FC. The FC layer is now fully connected with

a ﬁnal classiﬁcation layer with two nodes represent-

ing Similar Class and Dissimilar Class, respectively.

Training of the complete network is done using Adam

optimizer (Kingma and Ba, 2014) by computing the

binary cross-entropy loss at the ﬁnal layer nodes in

multiple epochs until convergence.

To train the network, we ﬁrst prepare a gallery set

in the form of positive and negative pairs of images.

Positive pairs are formed from the image sequences

of the same identity, whereas each negative pair is

formed with two different identities. The procedure

for sampling the data into positive and negative pairs

is explained with an example next. CUHK 03 (Li

et al., 2014), one of the popular re-identiﬁcation data

sets consists of 13164 images from 1360 subjects.

From this data, we randomly sample 1160 person ids

(i.e., 90% of total number of subjects) for training and

two sets of 100 test ids for testing and validation, re-

spectively. A similar training-test split criterion has

also been considered for each of the other data sets

used in the study.

SIGMAP 2020 - 17th International Conference on Signal Processing and Multimedia Applications

106

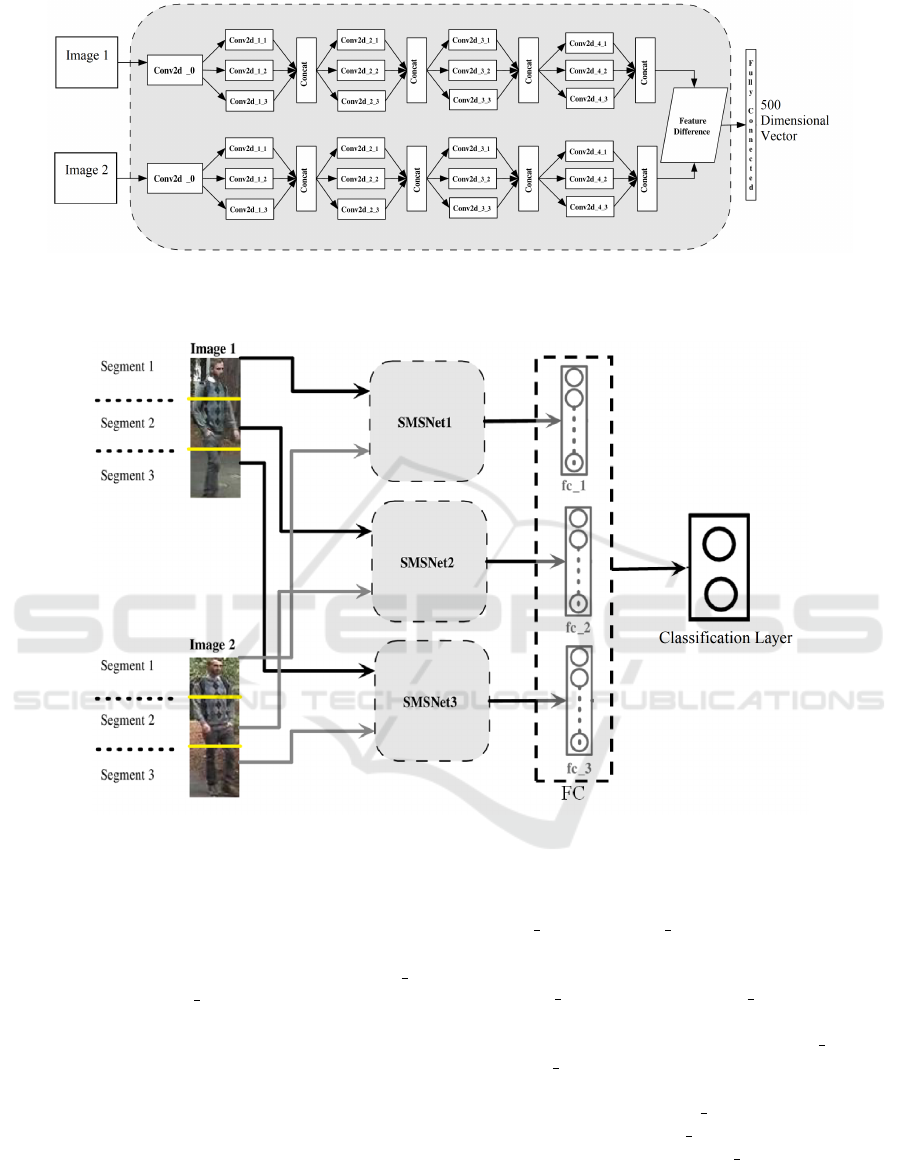

Figure 2: Insight view of the proposed Siamese Multi-scale Network (SMSNet) architecture. First layer of convolution is

unaffected of dilation parameters. All other layers are dilated with rate 1,2,3 and feature aggregation has been done after each

convolution layer in form of concatenation. Feature difference is computed after 4

convolution layer.

Figure 3: Overall framework of the re-identiﬁcation approach.

4 DATA SET DESCRIPTION

For experiments, we consider four large scale data

sets, namely, VIPeR (Gray et al., 2007), CUHK 01

(Li et al., 2012), CUHK 03 (Li et al., 2014) and Mar-

ket1501 (Zheng et al., 2015).

VIPeR: VIPeR stands for Viewpoint Invariant Pedes-

trian Recognition data set. In this data set, the images

of persons are captured from two different camera

viewpoints. The complete data set consists of 1264

images from 632 persons, with exactly two images

per person from different viewpoints. We use this

data for evaluating our network performance only. It

has not been used to train the SMSNet model, since

it consists of only a few number of samples which is

likely to be insufﬁcient to train a deep network accu-

rately.

CUHK 01 and CUHK 03. Both these data sets are

captured by the Chinese University of Hongkong.

There is a total of 3884 images from 971 persons

in CUHK 01 whereas in CUHK 03 13164 images

from 1360 persons. There are exactly four images

from two different camera views for CUHK 01, while

in CUHK 03 images are captured from six different

cameras, and a single person is observed from two dif-

ferent viewpoints. In CUHK 01 there are four images

per person, but in CUHK 03 there are ﬁve to eight

images per person. The CUHK 03 data is stored in

two forms one is ’labeled’ and another is ’detected’.

In ’detected’ the bounding box is drawn with a pedes-

trian detector whereas in ’labeled’ it is drawn manu-

ally.

SMSNet: A Novel Multi-scale Siamese Model for Person Re-Identiﬁcation

107

Market1501. The Market1501 data set is collected

in an open environment at Tsinghua University. This

data is collected with six overlapping camera views:

ﬁve with high-resolution and one with low-resolution.

In total, there are 32268 images from 1501 individu-

als captured simultaneously from two different cam-

era views, out of which 12936 images are marked as

training images and 19732 images are marked as test

images. This data set is quite extensive as well as

challenging due to its large size and variability.

It may be noted that, the above-mentioned data

sets already provide the silhouette images extracted

from video frames. However, during working with

video data in real-life scenarios, accurate localization

(i.e., estimating the bounding box) of individuals in

each video frame has to be carried out. Since, the

re-identiﬁcation scenario considered in this work as-

sumes one person to be present in the camera ﬁeld-

of-view at a time, localizing the moving person in the

background can be done effectively using recent tech-

niques such as (Jiang et al., 2019). Even if the bound-

ing box detected around the moving person is not very

precise, it would still not affect the re-identiﬁcation

accuracy much, since the proposed algorithm consid-

ers the RGB information of the entire bounding box,

and does not require segmentation of clean object sil-

houette from the background. Hence, as long as a

major portion of a target subject appears in the esti-

mated bounding box, our approach should be able to

work satisfactorily.

5 EXPERIMENTS AND RESULTS

A detailed evaluation of our algorithm as well as per-

formance comparison with state-of-the-art algorithms

are presented in this section. All experiments have

been performed using Tensorﬂow (Abadi et al., 2016)

on a system having 64 GB RAM, NVIDIA TITAN Xp

and NVIDIA RTX-1080Ti GPUs with a total capacity

of 34 GB memory capacity.

We train the proposed Siamese Multi-scale Net-

work (SMSNet) model with the l2 regularizer using

a learning rate of 0.001. To avoid over-ﬁtting dur-

ing training the network, a weight decay factor (γ)

of 5e-4 is introduced at each convolution layer. The

optimal values of the hyper-parameters, i.e., learning

rate (η) and weight decay (γ) are determined by carry-

ing out three-fold cross-validation on the training set

for different combination of these hyper-parameters,

and next choosing the conﬁguration that yields the

highest cross-validation accuracy. Corresponding to

each data set, namely CUHK

01, CUHK 03 and

Market1501, we consider three different combina-

tions of η and γ namely, C1 (0.01,2.5e-3), C

(0.01,5e-

4), C

(0.03,5e-4), and for each of these combinations,

we perform three-fold cross-validation and observe

the effectiveness of learning the training data for ﬁve

different initialization of the network weights. Figure

4 presents the results of this experiment by means of

box and whiskers plot.

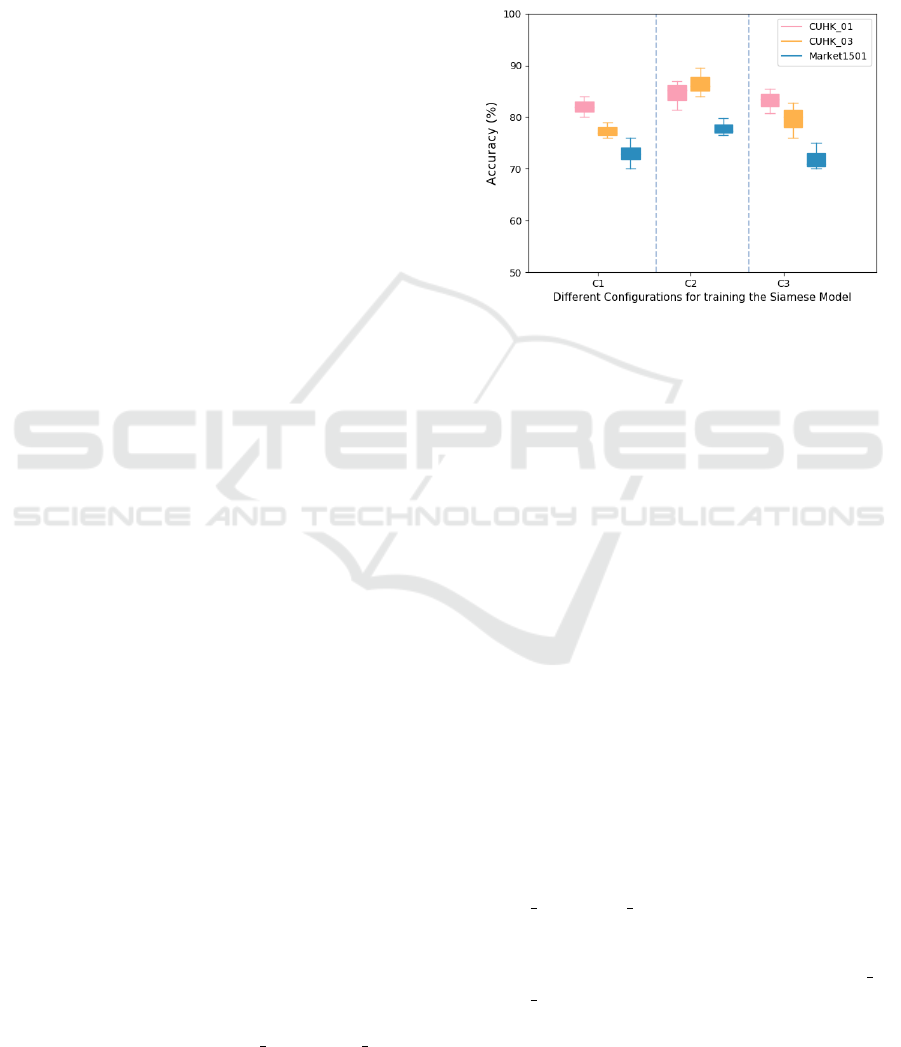

Figure 4: Range of three-fold cross-validation accuracy for

various combinations of parameters η and γ corresponding

to different the data sets by setting different initial weights

of the network.

In this ﬁgure, each box represents the variation of

Rank 1 training accuracy for a particular data set and

network conﬁguration. From the ﬁgure, it can be

seen that, the conﬁguration C2 (0.01,5e-4), in general,

works best for all the data sets used in the study. The

accuracy values obtained using C2 is signiﬁcantly bet-

ter than that obtained from C1 and C3. Hence, these

values of η and γ have been used to report the results

for all the future experiments.

Next, we test the robustness of the proposed net-

work (SMSNet) on unknown test data for different

initialization of the network weights as well as for the

different combinations of training and test sets. Basi-

cally, we train the SMSNet ﬁve different times, with

a different training set, and next evaluate its perfor-

mance on the same test set. Figure 5 presents the

results of this experiment in terms of the box and

whiskers plot.

The four boxes in the ﬁgure correspond to the

range of accuracy obtained for the following data sets:

CUHK 01, CUHK 03, Market1501, and VIPeR for

the ﬁve runs. With reference to the ﬁgure it can be ob-

served that, the inter-quartile range (i.e., between 25

to 75

percentile) corresponding to the CUHK 01,

CUHK 03 and Market 1501 data sets are 1.5%, 1.7%

and 2.6%, respectively which is quite small. The

corresponding number for the VIPeR data set is 5%

which is slightly larger than the others, and this is be-

SIGMAP 2020 - 17th International Conference on Signal Processing and Multimedia Applications

108

Figure 5: Boxplot showing the performance of the proposed

approach after ﬁve different times of run on three data set

i.e., CUHK 01, CUHK 03, and Market1501.

cause the network does not get trained properly due

to availability of limited training data as already ex-

plained in Section 4. The small range of the whiskers

in Figure 5 emphasize the robustness of our approach

against a wide variety of data sets.

Next, we compare the effectiveness of the pro-

posed approach with respect to other state-of-the-art

techniques, namely ((Varior et al., 2016),(Guo and

Cheung, 2018),(Ahmed et al., 2015),(Subramaniam

et al., 2016)) along with two non-Siamese Network

based techniques: Deep-Reid (Li et al., 2014), and

MuDeep (Qian et al., 2017). Results are shown in Ta-

ble 2 in terms of Rank 1 accuracy percentage. For

this experiment also we use a similar training-test set

combination as already discussed in Section 3.2. The

ﬁrst two rows in Table 2 correspond to the two Non-

Siamese Network-based approaches while the rest of

the rows show the performance of Siamese Network-

based approaches developed in the recent past.

With reference to the table, it has been observed

that the proposed SMSNet model for person re-

identiﬁcation usually performs better than the state-

of-the-art approaches in terms of accuracy. Only in

the case of the CUHK 01 data, our approach falls

short of the accuracy obtained from (Guo and Che-

ung, 2018) by a very small percentage of 0.8. How-

ever, in all other situations our approach stands out to

be the winner. The superior performance of the pro-

pose SMSNet on the VIPeR data set is due to the fact

that our model is ﬁrst trained on an extensive data,

namely, CUHK 03 data, and next ﬁne-tuned using the

VIPeR data. This prevents the network from getting

under-ﬁtted thereby improving its accuracy.

Often instead of ﬁnding the best match only, we

are interested in observing if the correct class falls

within the top few predictions of the model. Cu-

mulative Matching Characteristic (CMC) curves are

Table 2: Comparison of Rank 1 accuracy (in %) for 100

test ids of our proposed approach with state-of-the-art tech-

niques.

Methods

Rank 1 Accuracy (%)

VIPeR CUHK 01 CUHK 03 Market

1501

Non-Siamese based

Li et al. 56.1 27.9 20.6 44.4

Qian et al. 44.7 79.6 82.4 71.2

Siamese based

Ahmed et al. 35.2 64.2 55.0 56.7

Subramaniam et al. 68.7 81.2 72.3 76.7

Varior et al. 68.7 - 57.3 61.6

Guo et al. 50.9 88.1 88.3 -

SCap Net 76.2 83.0 79.0 67.4

Proposed SMSNet 91.5 87.3 89.6 79.2

usually used to study the rank-wise performance im-

provement of a model with increase in rank. In

this curve, the rank value (plotted along horizon-

tal axis) indicates the number of top predictions to

be considered for computing the accuracy (plotted

along vertical axis). The CMC curves corresponding

to the different data sets used in the study, namely

CUHK 01, CUHK 03, Market1501 and VIPeR data

are presented in Figures 6(a)-(d) respectively up to

Rank 10. Once again, it is observed from the CMC

curves that our proposed model provides a high accu-

racy for most rank values for the different data sets.

Although the Rank 1 accuracy of our approach on

CUHK 01 data was lower than that of (Guo and Che-

ung, 2018) (as seen in Table 2), from Rank 2 on-

wards, our approach performs better than (Guo and

Cheung, 2018) throughout. In general, the rank-wise

accuracy of each of the other competing techniques is

considerably lower than our approach for the differ-

ent rank values. Also, it is observed that our method

achieves the 90% accuracy mark at Rank 1 for the

VIPeR data, and within Rank 2 for both the CUHK 01

and CUHK 03 data, and within Rank 7 for the Mar-

ket1501 data. We also observe that the average Rank

5 accuracy of our work is 96.02%, which is better than

that of (Guo and Cheung, 2018) (i.e., the approach

with the second best performance (85.65%)) by about

10%, which is remarkable. From the above experi-

ments, we can conclude that the proposed SMSNet-

based person re-identiﬁcation performs robustly and

more accurately than the state-of-the art techniques.

SMSNet: A Novel Multi-scale Siamese Model for Person Re-Identiﬁcation

109

(a) (b)

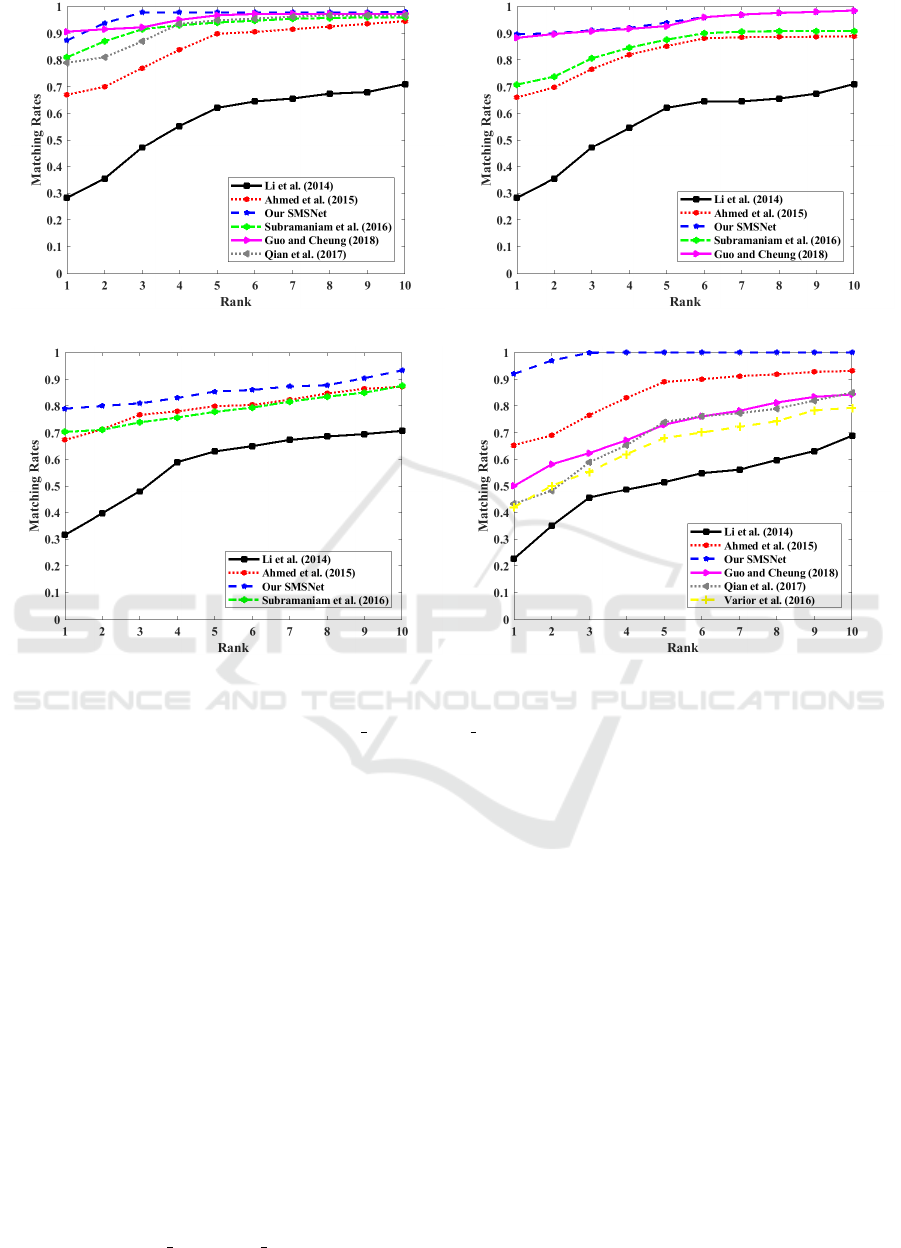

Figure 6: Cumulative matching characteristic curves showing improvement in re-identiﬁcation accuracy with rank for the

different approaches corresponding to: (a) CUHK 01, (b) CUHK 03, (c) Market1501 and (d) VIPeR data sets.

6 CONCLUSIONS AND FUTURE

WORK

In this work, we have presented a part-based Siamese

Multi-scale Network (SMSNet) that is capable of

learning multi-scale visual context information due to

its dilation architecture which increases the receptive

view of the network. It helps in detecting the ﬁne

details at higher resolution and also makes the net-

work response more efﬁcient with few parameter tun-

ing. Fusion of features from three parallel SMSNets

corresponding to three different body parts has been

done for capturing contextual information of the im-

ages at a higher resolution. The proposed approach

is view-invariant, cost-effective, and can be conve-

niently integrated with existing surveillance setup in

public places such as movie/theater halls, conference

venues, and similar places. Extensive evaluation of

our algorithm on three large publicly available data

sets, namely, CUHK 01, CUHK 03, and Market1501

verify its effectiveness. However, similar to most ex-

isting appearance-based re-identiﬁcation approaches,

our approach will work well in situations where per-

sons are expected to wear different colored clothes.

Application of the proposed method in school, col-

leges, or other similar application sites where every-

one wears a standard uniform, is not expected to pro-

vide reliable results. In such situations, biometric in-

formation may be fused with the re-identiﬁcation al-

gorithm to achieve a better performance. This can be

considered as a part of the future work. Other scopes

for future work include extending the proposed ap-

proach to perform open-set re-identiﬁcation, multi-

person tracking, and straining the network with a dif-

ferent distractor set during training, which is likely to

improve the robustness of the model further.

SIGMAP 2020 - 17th International Conference on Signal Processing and Multimedia Applications

110

ACKNOWLEDGEMENTS

The authors would like to acknowledge NVIDIA for

supporting their research with the TITAN Xp Graph-

ics processing unit.

REFERENCES

Abadi, M., Barham, P., Chen, J., Chen, Z., Davis, A.,

Dean, J., Devin, M., Ghemawat, S., Irving, G., Isard,

M., et al. (2016). Tensorﬂow: A system for large-

scale machine learning. In 12th {USENIX} Sympo-

sium on Operating Systems Design and Implementa-

tion ({OSDI} 16), pages 265–283.

Ahmed, E., Jones, M., and Marks, T. K. (2015). An

improved deep learning architecture for person re-

identiﬁcation. In Proceedings of the IEEE Conference

on Computer Vision and Pattern Recognition, pages

3908–3916.

Ashby, M. P. J. (2017). The value of cctv surveillance cam-

eras as an investigative tool: An empirical analysis.

European Journal on Criminal Policy and Research,

23(3):441–459.

Bazzani, L., Cristani, M., and Murino, V. (2013).

Symmetry-driven accumulation of local features for

human characterization and re-identiﬁcation. Com-

puter Vision and Image Understanding, 117(2):130–

144.

Bazzani, L., Cristani, M., Perina, A., Farenzena, M.,

and Murino, V. (2010). Multiple-shot person re-

identiﬁcation by hpe signature. In Proceedings of the

International Conference on Pattern Recognition,

pages 1413–1416. IEEE.

Bedagkar-Gala, A. and Shah, S. K. (2011). Multiple per-

son re-identiﬁcation using part based spatio-temporal

color appearance model. In Proceedings of the IEEE

International Conference on Computer Vision Work-

shops (ICCV Workshops), pages 1721–1728. IEEE.

Bromley, J., Guyon, I., LeCun, Y., S

ackinger, E., and Shah,

R. (1994). Signature veriﬁcation using a” siamese”

time delay neural network. In Proceedings of the

Advances in Neural Information Processing Systems,

pages 737–744.

Cheng, D., Gong, Y., Zhou, S., Wang, J., and Zheng,

N. (2016). Person re-identiﬁcation by multi-channel

parts-based cnn with improved triplet loss function.

In Proceedings of the IEEE Conference on Computer

Vision and Pattern Recognition, pages 1335–1344.

Ding, S., Lin, L., Wang, G., and Chao, H. (2015). Deep

feature learning with relative distance comparison

for person re-identiﬁcation. Pattern Recognition,

48(10):2993–3003.

Forss

en, P.-E. (2007). Maximally stable colour regions for

recognition and matching. In Proceedings of the IEEE

Conference on Computer Vision and Pattern Recogni-

tion, pages 1–8. IEEE.

Gray, D., Brennan, S., and Tao, H. (2007). Evaluating ap-

pearance models for recognition, reacquisition, and

tracking. In Proceedings of the IEEE International

Workshop on Performance Evaluation for Tracking

and Surveillance (PETS), volume 3, pages 1–7. Cite-

seer.

Guo, Y. and Cheung, N.-M. (2018). Efﬁcient and deep per-

son re-identiﬁcation using multi-level similarity. In

Proceedings of the IEEE Conference on Computer Vi-

sion and Pattern Recognition, pages 2335–2344.

Jiang, Y., Wang, J., Liang, Y., and Xia, J. (2019). Combin-

ing static and dynamic features for real-time moving

pedestrian detection. Multimedia Tools and Applica-

tions, 78(3):3781–3795.

Kang, J., Cohen, I., and Medioni, G. (2004). Object reac-

quisition using invariant appearance model. In Pro-

ceedings of the 17

International Conference on Pat-

tern Recognition, 2004. ICPR 2004., volume 4, pages

759–762. IEEE.

Kingma, D. P. and Ba, J. (2014). Adam: A

method for stochastic optimization. arXiv preprint

arXiv:1412.6980.

Koestinger, M., Hirzer, M., Wohlhart, P., Roth, P. M., and

Bischof, H. (2012). Large scale metric learning from

equivalence constraints. In Proceedings of the IEEE

Conference on Computer Vision and Pattern Recogni-

tion, pages 2288–2295. IEEE.

Li, D., Chen, X., Zhang, Z., and Huang, K. (2017). Learn-

ing deep context-aware features over body and latent

parts for person re-identiﬁcation. In Proceedings of

the IEEE Conference on Computer Vision and Pattern

Recognition, pages 384–393.

Li, W. and Wang, X. (2013). Locally aligned feature trans-

forms across views. In Proceedings of the IEEE Con-

ference on Computer Vision and Pattern Recognition,

pages 3594–3601.

Li, W., Zhao, R., and Wang, X. (2012). Human reidentiﬁca-

tion with transferred metric learning. In Proceedings

of the Asian Conference on Computer Vision, pages

31–44. Springer.

Li, W., Zhao, R., Xiao, T., and Wang, X. (2014). Deep-

reid: Deep ﬁlter pairing neural network for person re-

identiﬁcation. In Proceedings of the IEEE Conference

on Computer Vision and Pattern Recognition, pages

152–159.

Ma, B., Su, Y., and Jurie, F. (2012). Local descriptors en-

coded by ﬁsher vectors for person re-identiﬁcation.

In Proceedings of the European Conference on Com-

puter Vision, pages 413–422. Springer.

Meng, J., Wu, S., and Zheng, W.-S. (2019). Weakly su-

pervised person re-identiﬁcation. In Proceedings of

the IEEE Conference on Computer Vision and Pattern

Recognition, pages 760–769.

Munjal, B., Amin, S., Tombari, F., and Galasso, F. (2019).

Query-guided end-to-end person search. In Proceed-

ings of the IEEE Conference on Computer Vision and

Pattern Recognition, pages 811–820.

Qian, X., Fu, Y., Jiang, Y.-G., Xiang, T., and Xue, X.

(2017). Multi-scale deep learning architectures for

person re-identiﬁcation. In Proceedings of the IEEE

International Conference on Computer Vision, pages

5399–5408.

SMSNet: A Novel Multi-scale Siamese Model for Person Re-Identiﬁcation

111

Sivic, J., Zitnick, C. L., and Szeliski, R. (2006). Finding

people in repeated shots of the same scene. In Pro-

ceedings of the British Machine Vision Conference,

volume 2, page 3.

Song, J., Yang, Y., Song, Y.-Z., Xiang, T., and Hospedales,

T. M. (2019). Generalizable person re-identiﬁcation

by domain-invariant mapping network. In Proceed-

ings of the IEEE Conference on Computer Vision and

Pattern Recognition, pages 719–728.

Su, C., Li, J., Zhang, S., Xing, J., Gao, W., and Tian, Q.

(2017). Pose-driven deep convolutional model for

person re-identiﬁcation. In Proceedings of the IEEE

International Conference on Computer Vision, pages

3960–3969.

Su, C., Zhang, S., Xing, J., Gao, W., and Tian, Q.

(2016). Deep attributes driven multi-camera per-

son re-identiﬁcation. In Proceedings of the Euro-

pean Conference on Computer Vision, pages 475–491.

Springer.

Subramaniam, A., Chatterjee, M., and Mittal, A. (2016).

Deep neural networks with inexact matching for per-

son re-identiﬁcation. In Proceedings of the Ad-

vances in Neural Information Processing Systems,

pages 2667–2675.

Tian, C., Zeng, M., and Wu, Z. (2014). Person re-

identiﬁcation based on spatiogram descriptor and col-

laborative representation. IEEE Signal Processing

Letters, 22(10):1595–1599.

Varior, R. R., Shuai, B., Lu, J., Xu, D., and Wang, G. (2016).

A siamese long short-term memory architecture for

human re-identiﬁcation. In Proceedings of the Euro-

pean Conference on Computer Vision, pages 135–153.

Springer.

Wu, L., Shen, C., and Van Den Hengel, A. (2017). Deep

linear discriminant analysis on ﬁsher networks: A hy-

brid architecture for person re-identiﬁcation. Pattern

Recognition, 65:238–250.

Wu, S., Chen, Y.-C., Li, X., Wu, A.-C., You, J.-J., and

Zheng, W.-S. (2016). An enhanced deep feature rep-

resentation for person re-identiﬁcation. In Proceed-

ings of the IEEE Winter Conference on Applications

of Computer Vision (WACV), pages 1–8. IEEE.

Xiao, T., Li, H., Ouyang, W., and Wang, X. (2016). Learn-

ing deep feature representations with domain guided

dropout for person re-identiﬁcation. In Proceedings

of the IEEE conference on Computer Vision and Pat-

tern Recognition, pages 1249–1258.

Xiong, F., Gou, M., Camps, O., and Sznaier, M. (2014).

Person re-identiﬁcation using kernel-based metric

learning methods. In Proceedings of the Euro-

pean Conference on Computer Vision, pages 1–16.

Springer.

Yi, D., Lei, Z., Liao, S., and Li, S. Z. (2014). Deep met-

ric learning for person re-identiﬁcation. In Proceed-

ings of the 22

International Conference on Pattern

Recognition, pages 34–39. IEEE.

Zhang, R., Lin, L., Zhang, R., Zuo, W., and Zhang, L.

(2015). Bit-scalable deep hashing with regularized

similarity learning for image retrieval and person re-

identiﬁcation. IEEE Transactions on Image Process-

ing, 24(12):4766–4779.

Zheng, L., Shen, L., Tian, L., Wang, S., Wang, J., and Tian,

Q. (2015). Scalable person re-identiﬁcation: A bench-

mark. In Proceedings of the IEEE International Con-

ference on Computer Vision, pages 1116–1124.

SIGMAP 2020 - 17th International Conference on Signal Processing and Multimedia Applications

112
