A Real-time Integration of Semantics into Heterogeneous Sensor
Stream Data with Context in the Internet of Things
Besmir Sejdiu
1a
, Florije Ismaili
1b
and Lule Ahmedi
2c
1
Contemporary Sciences and Technologies, South East European University, Tetovo, Macedonia
2
Faculty of Electrical and Computer Engineering, University of Prishtina, Prishtinë, Kosova
Keywords: Sensor Stream Data, Semantic Annotations, Semantic Sensor Web (SSW), Internet of Things (IoT).
Abstract: Recently, billions Internet of Things (IoT) devices, including sensors are producing sensed data continuously
in the stream data, and transmit these data to a centralized server. Due to the dramatically increase of streaming
data, their management and exploitation has become increasingly important and difficult to process and
integrate the semantic to sensor stream data in real-time. This research focuses on real-time integration of
semantics into heterogeneous sensor stream data with context in the IoT. In this context, an IoT real-time air
quality monitoring system and different semantic annotations are developed for sensor stream data in the
format of Sensor Observation Service (SOS).
1 INTRODUCTION
The Internet of Things (IoT) represents an active
scientific research field due to its importance in
development of many domains, including
environmental monitoring, healthcare, homes, cities,
traffic control, energy systems, industry, etc. Sensors
are one of the main components that enable IoT,
which send the observation in stream data.
Furthermore, sensor data are enabled to the web
through the Sensor Web. Sensor Web by
incorporating technologies of the Semantic Web
creates the Semantic Sensor Web. In this way, sensor
data stream can be annotated with semantics by
providing machine-interpretable descriptions on what
the data represents, where it originates from, how it
can be related to its surroundings, who is providing it,
and what are the quality, technical, and non-technical
attributes (Barnaghi, 2012). The real-time integration
of sensor data as dynamic data with semantics is
defined as real-time semantic annotation, while
sensor data that are stored in repository (data store) as
static data, and then integrated with semantics is
defined as non-real-time semantic annotation
(Sejdiu, 2020).
a
https://orcid.org/0000-0002-2786-5384
b
https://orcid.org/0000-0002-3627-0147
c
https://orcid.org/0000-0003-0384-6952
Organizations like Open Geospatial Consortium
(OGC) and World Wide Web Consortium (W3C)
have proposed several standards for sensor data. The
OGC defines standardization for the Sensor Web
named Sensor Web Enablement (SWE). It’s a
framework and a set of standards that allow
exploitation of sensors and sets of sensors connected
to a communication network. Is founded on the
concept of “Web Sensor” using standard protocols
and application interfaces (Pradilla, 2016).
In this paper, we will investigate on how to
integrate semantic annotations into the sensor stream
data. In particular, we will discuss the annotation
techniques for real-time integration of semantics into
heterogeneous sensor observation data and sensor
metadata with context in the IoT.
The paper is organized as follows: Section II
provides a discussion on related work for semantic
annotations to the sensor stream data. Section III is an
overview of the sensor stream data and semantic
annotations concepts. Selection of technologies and
standards for semantic annotations are presented in
Section IV, while a system architecture is presented
in Section V. Section VI represents the implemented
system, including received sensor data format,
integration of semantic annotations to the sensor data,
376
Sejdiu, B., Ismaili, F. and Ahmedi, L.
A Real-time Integration of Semantics into Heterogeneous Sensor Stream Data with Context in the Internet of Things.
DOI: 10.5220/0009884403760383
In Proceedings of the 15th International Conference on Software Technologies (ICSOFT 2020), pages 376-383
ISBN: 978-989-758-443-5
Copyright
c
2020 by SCITEPRESS Science and Technology Publications, Lda. All rights reserved
and system outputs. Finally, Section VII concludes
the paper and identifies some of the future
perspectives of the semantic integrations into the
sensor stream data.
2 RELATED WORK
Authors in (Aggarwal, 2013) brought together
semantic web and data mining in the context of IoT
with a focus on sensors as interconnected devices,
concluding that practical data mining applications can
be built by usage of real world sensors ontologies,
query mechanisms and linked sensor data available.
SSW is described as a synthesis of sensor data and
semantic metadata in (Sheth, 2008). It represents an
approach by OGC and Semantic Web Activity of the
W3C to provide meaning for sensor data.
Construction of a Semantic Sensor Observation
Service (SemSOS) based on the SWE standards is
discussed in (Henson, 2009), by adding semantic
annotations to sensor data and by using the ontology
models to reason over sensor observations.
An extension of the SWE framework in order to
support standardized access to sensor data is
described in (Lee, 2015). Furthermore, they list as
future work the extension of SOS server with
semantics, since the lack of semantically rich
mechanism is seen as a significant issue, which makes
it hard to explore related concepts, subgroups of
sensor types, or other dependencies between the
sensors and data collected.
The objective of this paper is to present a real-
time integration of semantics into heterogeneous
sensor stream data with context in the IoT.
3 SENSOR STREAM DATA AND
SEMANTIC ANNOTATIONS
IoT applications are enabled using heterogeneous
sensors, which send observational data referred to as
sensor stream data to a remote server. Raw sensor
stream data is useless unless properly annotated.
Therefore, the researchers proposed Semantic Sensor
Web (SSW), which is a combination of Sensor Web
and technologies of Semantic Web. Based on study
(Sejdiu, 2020), the explored publications show that
major number of research are accepting the proposed
industry standards, such as SWE, and techniques that
1
http://spark.apache.org
2
https://kafka.apache.org
can be used for annotating sensor data, such as
Resource Description Framework in attributes
(RDFa), XML Linking Language (Xlink), and
Semantic Annotations for WSDL and XML Schema
(SAWSDL), by different organizations like OGC and
W3C. However, how to advance techniques for
integration of the semantic annotations in real-time is
still an open issue that should be addressed.
4 SELECTED TECHNOLOGIES
AND STANDARDS
Currently, billions of interconnected IoT devices
produce sensed data continuously in the stream data,
and transmit these data to a centralized server. Due to
the dramatically increase of streaming data, their
management
and exploitation has become increasingly
important and difficult to process and integrate the
semantic to sensor data stream in real time. Therefore,
the selection of technologies and standards for
technique development of real-time integration of
semantics into heterogeneous sensor observation data
and sensor metadata with context in the IoT is highly
important. The proposed real-time semantic
annotation system utilizes Spark Streaming
1
, Apache
Kafka
2
, Apache Cassandra database
3
, and standards
like OGC Sensor Web Enablement standards, which
will be discussed below.
4.1 Spark Streaming
Several stream data processing systems including
Spark Streaming, Storm, Google Data Flow, and
Flink have emerged to support real-time analytics for
the streaming data sets (Karimov, 2018). Majority
studies conclude that Spark Streaming works best
with high throughput when the incoming volume is
huge (Gorasiya, 2019). Therefore, we have chosen
Sparking Streaming to develop our system for real-
time integration of semantic annotations to sensor
stream data.
Spark Streaming is an extension of the Apache
Spark that enables to build scalable fault-tolerant IoT
applications for real-time processing sensor stream
data. It can receive data from different input sources
such as Apache Kafka, TCP sockets, Flume, Kinesis,
Hadoop Distributed File System (HDFS), or Twitter,
and can be processed using complex algorithms
expressed with high-level functions like map, join,
3
http://cassandra.apache.org
A Real-time Integration of Semantics into Heterogeneous Sensor Stream Data with Context in the Internet of Things
377
Figure 1: An overview of the system architecture.
reduce and window. Finally, processed streaming
data can be published in IoT real-time applications or
can be pushed out to databases or file systems.
4.2 Apache Kafka
Apache Kafka is a distributing streaming platform
with capabilities to publish and subscribe to streams
of records, similar to a message queue or enterprise
messaging system, store streams of records in a fault-
tolerant durable way, and process streams of records
as they occur. Kafka is generally used for building
real-time streaming data pipelines that reliably get
data between systems or applications (Kafka, 2020).
In our system Kafka is used as middleware between
sensor stream data and Spark Streaming.
4.3 Apache Cassandra Database
The Apache Cassandra database is a free and open
source, distributed store for structure data that scale-
out on cheap, commodity hardware or cloud
infrastructure make it the perfect platform for
mission-critical data. It is designed to handle large
amounts of data across many commodity servers,
providing high availability with no single point of
failure. The Spark Streaming interacts well with
Cassandra database. Therefore, in our system, the
sensor stream data with their semantic annotations
processed by Spark Streaming are stored in Cassandra
database.
4.4 OGC Standards
The OGC defines standardization for the Sensor Web
named Sensor Web Enablement (SWE), which is
divided into two parts (OGC, 2020):
SWE Information Model: Is comprised of
conceptual language encodings that permits
sensor observations visibility on the Internet. The
SWE information model includes the following
specifications: Sensor Model Language
(SensorML), Observation and Measurement
(O&M), and Transducer Model Language
(TransducerML).
SWE Service Model: Is a set of Web Service
specifications that allow a client to search and find
the required information. The SWE Service model
includes the following specifications: Sensor
Observation Service (SOS), Sensor Alert Service
(SAS), Sensor Planning Service (SPS), and Web
Notification Services (WNS).
To encode semantic annotations and data gathered by
sensors, in this paper is used SOS O&M, which will
be discussed in section 6.2.
5 SYSTEM ARCHITECTURE

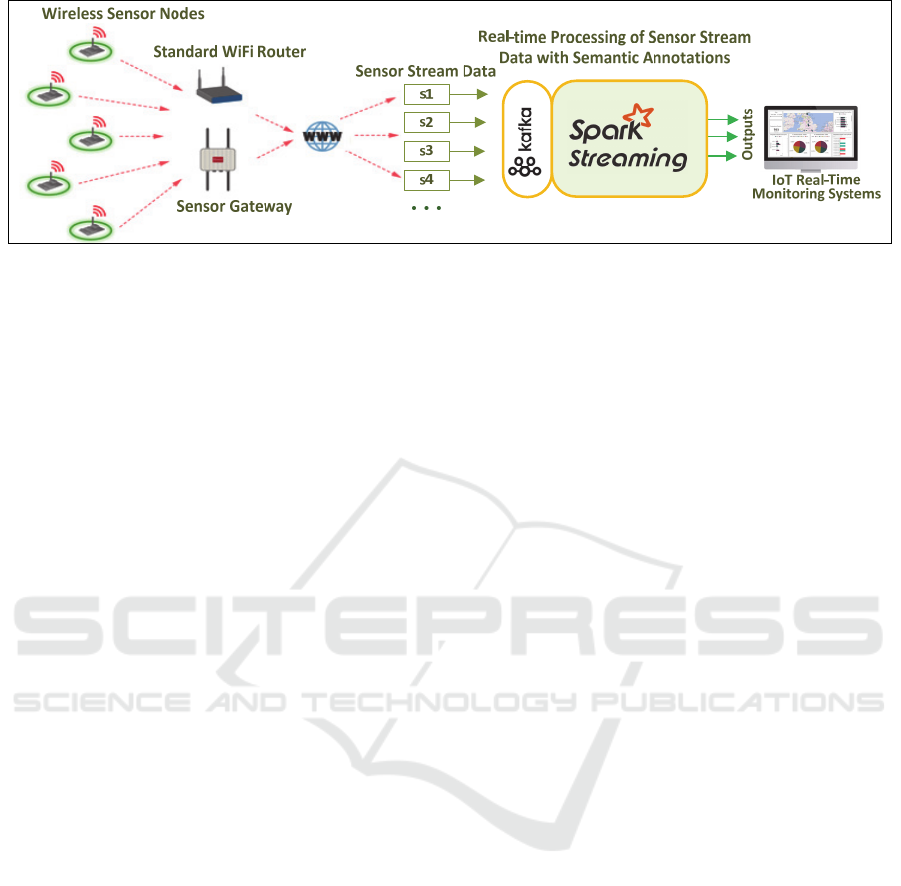

In the Figure 1, an overview of the system
architecture for real-time integration of semantics
into heterogeneous sensor stream data with context in
the Internet of Things is presented. As mentioned
above, the proposed real-time semantic annotation
system utilizes Apache Kafka, Spark Streaming,
Apache Cassandra database, and SOS O&M
standards.
The heterogeneous sensor stream data from the
IoT-based sensor device is wirelessly transmitted to
serve as the “producer” for the Kafka server. The
“producer” client publishes streams of data to Kafka
“topics” distributed across one or more cluster
nodes/servers called “brokers”. The published
streams of data from Kafka are then processed by
Apache Spark Streaming in parallel and real-time.
Kafka server is utilized to receive various formats
of sensor data streams (e.g. text, binary, JSON, XML
etc.), and to transform them in a particular format that
will be processed by Spark Streaming.
ICSOFT 2020 - 15th International Conference on Software Technologies
378
The Spark Streaming enables a real-time
integration of semantics into heterogeneous sensor
stream data with context in the IoT, by using sensor
metadata, archival data streams, mining data streams,
association rules for adding semantic annotations
with concept definitions from ontologies or other
semantic sources, which allows the understanding of
senor data and metadata elements. The semantic
annotations will be implemented into SOS O&M by
using stakes, such as XLink (without including
XPath) and Embedded (only a single value-scalar of
semantic annotation) to add annotations in XML files.
These annotations can point to extra sources of
information (e.g. a file), or Uniform Resource Name
(URN).
The enriched sensor stream data with the semantic
annotations results will be stored in the Cassandra
database, and will be displayed in IoT real-time
monitoring system. It is worth mentioning that Spark
Streaming will process sensor data stream in format
of OGC standards like SWE, respectively version 2.0
of the SOS standard to encode semantic annotations
and data gathered by sensors (Bröring, 2012).
The detailed description is presented in section 6.2
where an example of integration of semantic
annotations into the sensor stream data with context
in the IoT is given.
6 IMPLEMENTED SYSTEM
An IoT real-time air quality monitoring system is
developed to visualize sensor stream data and their
semantic annotations, based on web platform. Sensor
data of Hydrometeorological Institute of Kosovo
(HMIK
4
) are used, through World Air Quality Index
API (AQI API). The AQI API can be used for
advanced programmatic integration, such as: access
to more than 11000 station-level and 1000 city-level
data, station name and coordinates, search station by
name, geo-location query based on latitude/longitude,
individual Air Quality Index (AQI) for all pollutants,
current weather conditions, etc (Aqicn, 2020).
6.1 Received Sensor Stream Data
Format
The system receives raw sensor stream data from AQI
API in JSON format, as presented in Figure 2, which
supports measuring in real-time of the following
parameters: Carbon Monoxide (co), Humidity (h),
4
http://ihmk-rks.net/
Figure 2: Sensor stream data - JSON format.
Nitrogen Dioxyde (no2), Ozone (o3), Pressure (p),
PM
10
(pm10), PM
25
(pm25), Sulphur Dioxide (so2),
Temperature (t), Wind (w), and Water Gauge (wg).
As shown in Figure 2, JSON data contains also
attributes such as: data (station data: idx - unique id
for the city monitoring station, aqi - real time air
quality information, time - measurement time
information, s - local measurement time, and tz -
station time zone), city (information about the
monitoring station: name - name of the monitoring
station, geo - latitude/longitude of the monitoring
station, and url - url for the attribution link),
attributions (EPA Attribution for the station), and
iaqi (measurement time information: pm25 -
individual AQI for the PM2.5, v - individual AQL for
the PM2.5).
A Real-time Integration of Semantics into Heterogeneous Sensor Stream Data with Context in the Internet of Things
379
Data received by sensors every 6 minutes, through
AQI API, are represented in corresponding numerical
formats, e.g. in -3.8 (°C) for temperature parameter.
6.2 Integration of Semantic
Annotations to the Sensor Stream
Data
In our system, different semantic annotations for
sensor stream data are developed, such as:
#AIQ_Index,
#Air_Pollution_Level, and
#Health_Implications
#AIQ_Index annotation is an index for reporting
daily air quality, and tells how clean or polluted air is.
United States Environmental Protection Agency
(EPA
5
) calculates the AQI for five major air
pollutants regulated by Clean Air Act: ground-level
ozone, particle pollution (also known as particulate
matter), carbon monoxide, sulfur dioxide, and
nitrogen dioxide. The AQI range values is from 0 to
500. According to EPA, the higher the AQI value, the
greater the level of air pollution and the greater the
health center (take the maximum of all individual
AQI), as presented equation 1:
AQI = max(AQI
PM2.5
, AQI
PM10
, AQI
O3
, ...) (1)
#Air_Pollution_Level annotation – based on the AQI
value, its divided into six Air Quality Index Levels of
Health Concern’ categories:
Good (AQI is 0 to 50)
Moderate (AQI is 51 to 100)
Unhealthy for Sensitive Groups (101 to 150)
Unhealthy (AQI is 151 to 200)
Very Unhealthy (AQI is 201 to 300)
Hazardous (AQI is 301 to 500)
#Health_Implications annotation each of six
categories described above, corresponds to a different
level of health concert. #Health Implications
annotation tells what they mean, for example
”Unhealthy for Sensitive Groups” category means:
‘Although general public is not likely to be affected
at this AQI range, people with lung disease, older
adults and children are at a greater risk from exposure
to ozone, whereas persons with heart and lung
disease, older adults and children are at greater risk
5
https://www.epa.gov
from the presence of particles in the air., or for
”Moderate” category: ‘Air quality is acceptable;
however, for some pollutants there may be a moderate
health concern for a very small number of people who
are unusually sensitive to air pollution.’
The above described annotations are developed
into ontology named ‘ont-core’.
After describing different types of the semantic
annotations for sensor stream data, in the following is
presented the process of semantic annotations.
The sensor stream data may arrive in different
formats to Kafka server (JSON format - in our case),
which will transform them in a specific format that
will be processed by Spark Streaming. After that,
through the Spark Streaming, based on measuring
values, the sensor data stream will semantically be
annotated and converted in SOS O&M format. A

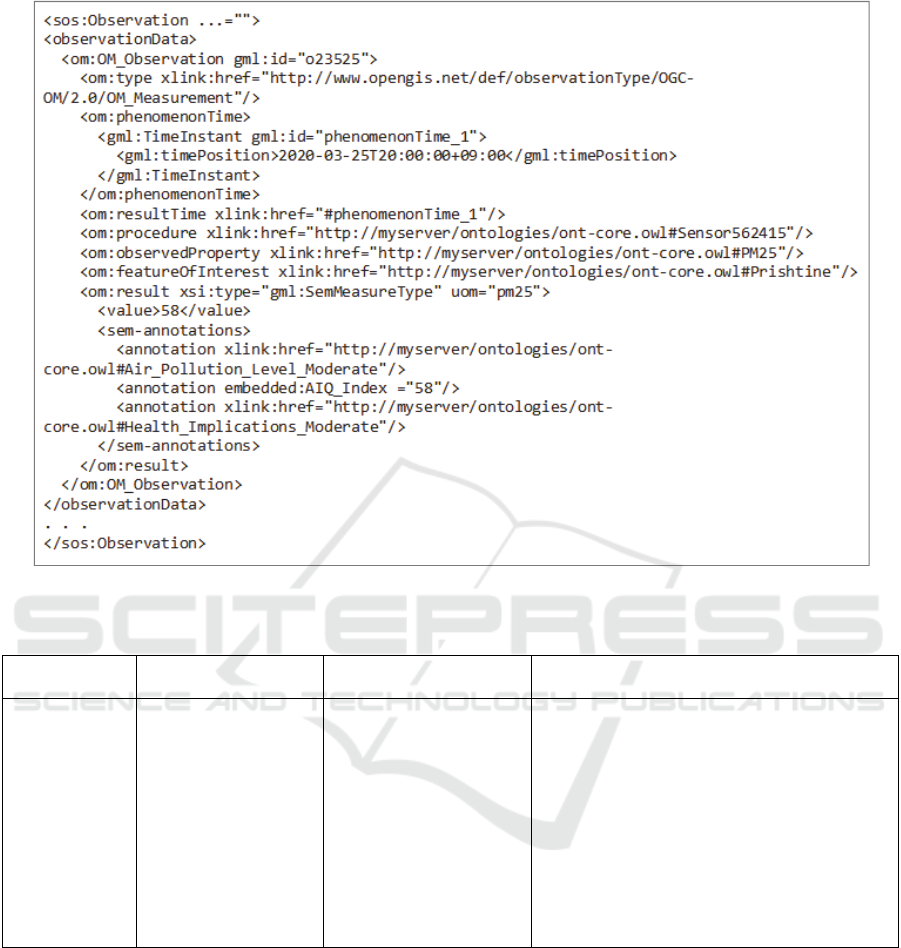

fragment of an example of integrated semantic
annotations to the SOS O&M format by using stakes
like XLink and Embedded, is presented in Figure 3.
SOS O&M observation document comprise zero
or multiple observationData entries, and each store
an instance of an observation. In the following are
presented common observation properties (the prefix
gml indicates that this element is defined in OGC 07-
033, while the prefix om indicates that the element is
defined in OGC 10-025r1) (Jirka, 2014):
gml:identifier (mandatory): identifies or refers to
a specific observation.
om:phenomenonTime (mandatory): describes the
time instant or time period for which the
observation contains sensor data.
om:resultTime (mandatory): provides the time
when the result became available (often this is
identical to the phenomenonTime).
om:procedure (mandatory): the identifier of the
sensor instance that has generated the observation.
om:observedProperty (mandatory): the identifier
of the phenomenon that was observed.
om:featureOfInterest (mandatory): an identifier
of the geometric feature (e.g. sensor station) to
which the observation is associated.
om:result (mandatory): the observed value, the
type of the result is restricted to the types such as:
gml:MeasureType, xs:integer, xs:boolean,
gml:ReferenceType, xs:string, swe:DataArray.
We have developed a new type of observation to add,
named SemObservation with gml:Sem
MeasureType’ result type, as shown and described in
Table 1.
ICSOFT 2020 - 15th International Conference on Software Technologies
380
Figure 3: An example of integrated semantic annotations to the sensor stream data.
Table 1: The developed SemObservation observation type.
Observation
Type
Result Type Description Example
SemObservation gml:SemMeasureType
Inside the result element,
two children elements will
be added: value and sem-
annotations. The value
element will contain a
scalar numerical value,
while the sem-annotations
element will contain one
or more annotation empty
elements.
<om:result xsi:type="gml:SemMeasureType"
uom="pm25">
<value>58</value>
<sem-annotations>
<annotation xlink:href="http://
myserver/ontologies/ont-core.owl#Air_
Pollution_Level_Moderate"/>
<annotation embedded:AIQ_Index ="58"/>
<annotation
xlink:href="http://myserver/ontologies/ont-
core.owl#Health_Implications_Moderate"/>
</sem-annotations> </om:result>

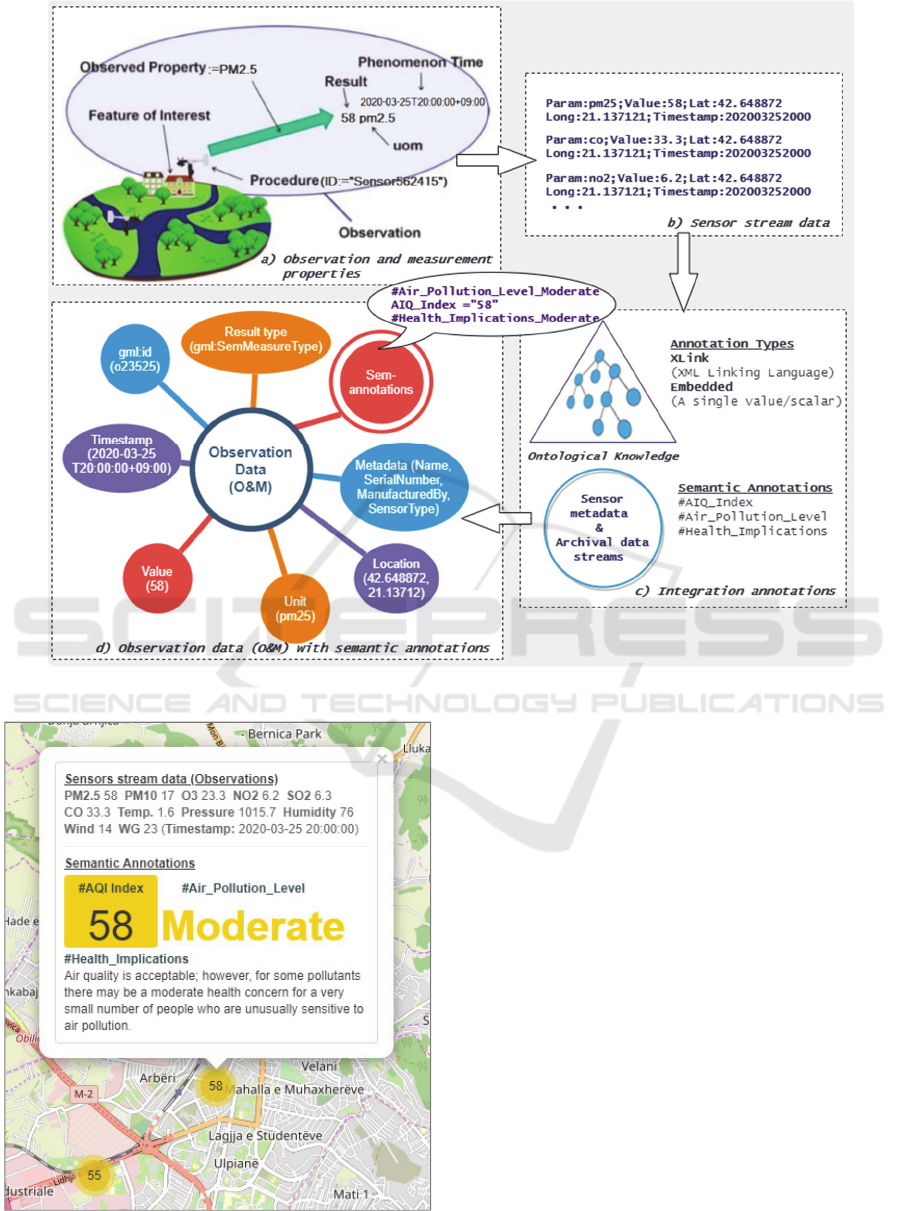

For clearer explanation of semantic integration to
sensor observation data, Figure 4 illustrates (a) the
concept of the O&M and relationship between the
entities involved in observations, (b) data streams
generated from wireless sensor networks, (c) the
sensor data integrated with sensor metadata, archival
data streams and the ontological knowledge, and
finally, (d) the semantic annotated data with
attributes: sem-annotations data, the observed value,
unit, metadata, location, timestamp, result type, and
gml:id of observation.
6.3 System Outputs
To display the heterogeneous sensor stream data and
their semantic annotations, is developed an real time
IoT application in the ASP.NET Core MVC, a
cross-platform, high-performance, open source
framework for building modern, cloud-based, and
Internet-connected applications. The DataStax C#
for Apache Cassandra is used to read data from
Apache Casandra database. It’s a modern, feature-
rich and highly tunable C# client library. To display
A Real-time Integration of Semantics into Heterogeneous Sensor Stream Data with Context in the Internet of Things
381
Figure 4: Integrating semantics to sensor observation data.
Figure 5: System Outputs.
the data in the map, is used Leaflet, an open-source
JavaScript library for interactive web maps. Leaflet is
designed with simplicity, performance and usability
in mind. It works efficiently across all major desktop
and mobile platforms out of the box, taking advantage
of HTML5 and CSS3 on modern browsers while
being accessible on older ones too.
As shown in Figure 5, the users can observe the
quality of air pollution on certain geographical points
in map marked as measuring nodes. Each node
(marker) has an AQI Index, to indicate air pollution.
When clicking over a whatever marker, the latest
measurement values obtained for that point will be
shown, such as: PM2.5, PM10, O3, NO2, SO2, CO,
Temperature, Pressure, Humidity, Wind, Water
Gauge, and semantic annotations, such as: #AQI
Index, #Air Pollution Level, and #Health
Implications.
7 CONCLUSIONS
The IoT represents an active scientific research field
ICSOFT 2020 - 15th International Conference on Software Technologies
382
due to its importance in different domain
applications. Sensors are one of the most important
components of the IoT. Raw sensor stream data are
useless unless properly annotated. Therefore, by
adding semantic annotations with concept definitions
from ontologies, it’s possible the interpretation and
understanding of sensor stream data.
This study presents a system for real-time
integration of semantics into heterogeneous sensor
stream data with context IoT. First, selected
technologies and standards for semantic annotations,
such as Spark Streaming, Apache Kafka, Apache
Cassandra, and OGC standards are described. Then,
the system architecture and implementation of an IoT
real-time air quality monitoring system is presented,
including:
a) Received sensor data in JSON format of the
following measuring parameters: co, h, no2, o3,
pm10, pm25, so2, t, w, and wg,
b) Integration of semantic annotations such as
#AIQ Index, #Air Pollution Level, and #Health
Implications to the sensor stream data in SOS O&M
format. One of the most important point of this
research is that a new type of observation
SemObservation (with gml:Sem MeasureType result
type) is developed, and
c) System outputs to display the heterogeneous
sensor stream data and their semantic annotations.
Extending the system with more advanced real-
time annotation techniques of semantics such as
XPath annotations and development of techniques for
real-time interpretation of semantic annotations is left
for future work.
REFERENCES
Aggarwal, C. C., Ashish, N., & Sheth, A. (2013). The
internet of things: A survey from the data-centric
perspective. In Managing and mining sensor data.
Springer US. (383-428).
Aqicn, API Air Quality Programmatic APIs, [Online,
Accessed 20/02/2020]. Available: https://aqicn.org/api.
Barnaghi, P., Wang, W., Henson, C., & Taylor, K. (2012).
Semantics for the Internet of Things: Early Progress and
Back to the Future. International Journal on Semantic
Web and Information Systems (IJSWIS), 8(1), 1-21.
Bröring, A., Stasch, C., & Echterhoff, J. (2012). OGC
sensor observation service interface standard. Open
Geospatial Consortium Interface Standard, 12-006.
Gorasiya, D. V., 2019. Comparison of Open-Source Data
Stream Processing Engines: Spark Streaming, Flink and
Storm. Technical Report, DOI: 10.13140/RG.2.2.
16747.49440.
Henson, C. A., Pschorr, J. K., Sheth, A. P., & Thirunarayan,
K. (2009). SemSOS: Semantic sensor observation
service. In International Symposium on Collaborative
Technologies and Systems, 2009. CTS'09. IEEE. (44-
53).
Jirka, S., Stasch, Ch. & Bröring, A. (2014). OGC Best
Practice for Sensor Web Enablement, Lightweight SOS
Profile for Stationary In-Situ Sensors. Open Geospatial
Consortium. Version 1.0, ref. no. 11-169r1.
Kafka Apache, Kafka Apache A distributed streaming
platform, [Online, Accessed 15/02/2020]. Available:
https://kafka.apache.org.
Karimov, J., Rabl, T., Katsifodimos, A., Samarev, R.,
Heiskanen, H., & Markl, V., 2018. Benchmarking
Distributed Stream Data Processing Systems. In
Proceedings of the IEEE 34th International Conference
on Data Engineering (ICDE). Paris, France.
Lee, Y. J., Trevathan, J., Atkinson, I., & Read, W. (2015).
The Integration, Analysis and Visualization of Sensor
Data from Dispersed Wireless Sensor Network Systems
Using the SWE Framework. Journal of Telecommuni-
cations and Information Technology, (4), 86.
OGC Standards, Open Geospatial Consortium (OGC),
[Online, Accessed 05/01/2020]. Available: https://
www.ogc.org /docs/is/.
Pradilla, J., Palau C., & Esteve, M. (2016). SOSLITE:
Lightweight Sensor Observation Service (SOS) for the
Internet of Things (IOT). ITU Kaleidoscope: Trust in
the Information Society, Barcelona.
Sejdiu, B., Ismaili F., and Ahmedi L., (2020). “Integration
of semantics into sensor data for the IoT - A Systematic
Literature Review” - International Journal on Semantic
Web and Information Systems (IJSWIS). Volume 16,
Issue 4, Article 1.
Sheth, A., Henson, C., & Sahoo, S. S. (2008). Semantic
sensor web. IEEE Internet computing, 12(4), (78-83).
W3C Semantic Sensor Network Incubator Group (SSN-
XG), Semantic Sensor Network Ontology. [Online,
Accessed 25/02/2020]. Available: https://www.w3.org
/2005/ Incubator/ssn/ssnx/ssn.
A Real-time Integration of Semantics into Heterogeneous Sensor Stream Data with Context in the Internet of Things
383
