An Approach That Stimulates Architectural Thinking during

Requirements Elicitation: An Empirical Evaluation

Preethu Rose Anish

, Maya Daneva

Smita Ghaisas

and Roel J. Wieringa

TCS Research, India

University of Twente, Enchede, The Netherlands

Keywords: Empirical Evaluation, Grounded Theory, Requirements Elicitation, Software Architecture.

Abstract: In many global outsourcing projects, the software requirement specifications (SRS) are often orchestrated by

requirements analysts who have sufficient business knowledge but are not equipped to ask the kind of

questions that are needed to unearth architecturally relevant information from the customer. Often, the

resultant SRS therefore lacks some critical details needed by software architects to make informed

architectural decisions. To remedy this, the software architects either make assumptions or conduct additional

stakeholder interviews resulting in expensive refactoring efforts and project delays. Using an empirical

approach, we have designed an approach of using architectural knowledge that can serve as a communication

medium between requirements analyst and software architects. In this paper, we present a detailed empirical

evaluation of our proposed approach, with practitioners from real-world organizations. Using two studies, we

found that in the experience of the participating practitioners, the approach is relevant, easy to use and

effective.

1 INTRODUCTION

Requirements engineering (RE) is the early phase of

software development projects in which the system

requirements in the form of both functional as well as

non-functional requirements are developed and

managed. In global distributed software engineering

and outsourcing projects, communication between

Business Analysts (BAs) and Software Architects

(SAs) mostly takes place through a Software

Requirements Specification (SRS) and expertise is

not shared. The SRS resulting out of these RE

activities therefore often lack the details needed by

software architects (SAs) to make informed

architectural decisions. In the absence of such details,

the SAs either make assumptions, which incorrect

could lead to expensive refactoring efforts or go back

to the business analysts (BAs) for clarifications

resulting in project delays. Asking BAs to provide

architecturally richer specification may seem like a

good idea, but is going to be ineffective, given that

BAs lack the technical architectural knowledge

needed to ask the kind of questions that are needed to

extract architectural details from the customer. This

is typical in large-scale software engineering, global

development and outsourcing projects where

communication between BAs and SAs mostly takes

place through an SRS and expertise is not shared.

This problem has been well acknowledged by other

researchers as well (Li, 2013, Chen, 2013, Gross,

2012).

As a solution to this problem, we have developed

an approach (Anish et al., 2015, 2016) that leverages

the knowledge of experienced SAs and make it

available to the BAs so that they are equipped to elicit

a more complete set of requirements that feeds

sufficient information into the architectural design

process. In (Anish, 2017), we presented our initial

research plan for an empirical evaluation of our

approach. In this paper, we present the detailed

design, executions and results of our systematic

empirical evaluation study. In particular, we intend to

investigate three aspects namely the ease of use,

effectiveness and relevance of our approach. In our

research design, we first evaluate the ease of use,

effectiveness and relevance from the perspective of

practicing BAs. By referring to the ease of use

concept originally published in (Davis, 1989), we

measure ease of use by gauging how easy it is for the

BAs to use the approach as a part of their

requirements gathering exercise, whether they find it

easy to adapt to this new way or do they consider this

Anish, P., Daneva, M., Ghaisas, S. and Wieringa, R.

An Approach That Stimulates Architectural Thinking during Requirements Elicitation: An Empirical Evaluation.

DOI: 10.5220/0009876801870195

In Proceedings of the 15th International Conference on Software Technologies (ICSOFT 2020), pages 187-195

ISBN: 978-989-758-443-5

187

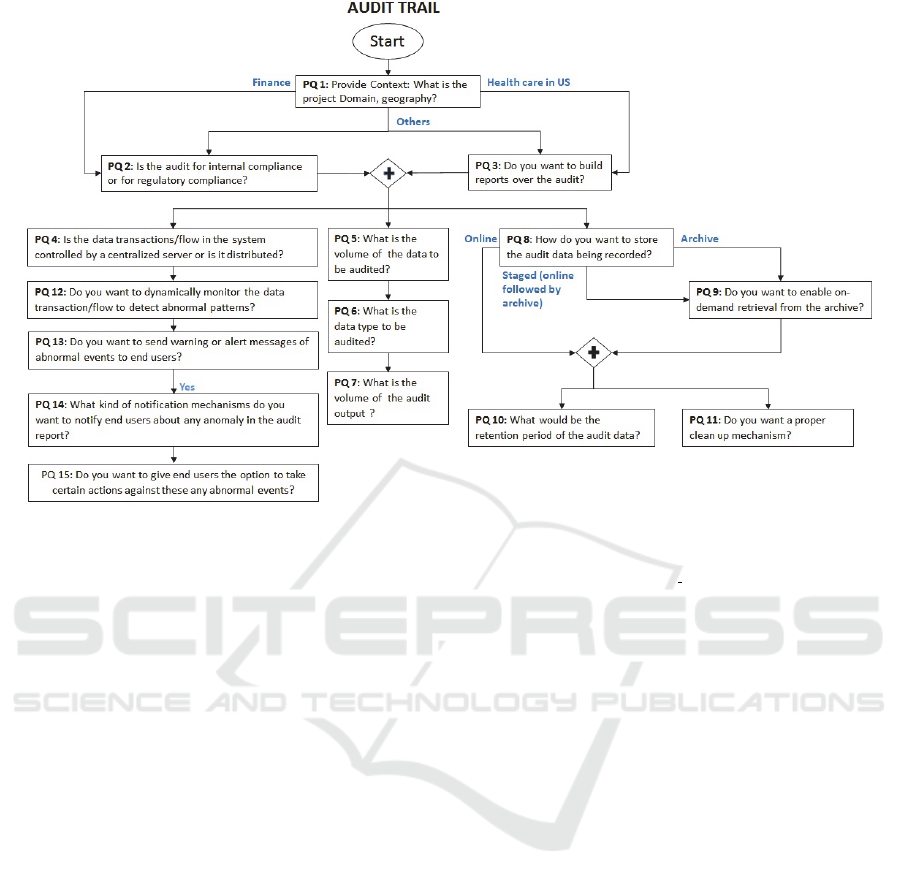

Figure 1: PQ-flow for Audit Trail.

as a paradigm shift that they are not able to relate to.

By effectiveness, we intend to investigate the degree

to which our approach is successful in producing a

desired result i.e. assist the BAs in unearthing

architectural information from the client during

requirements gathering. By relevance, we mean to

investigate whether the BAs find the approach

important to their requirement gathering practices and

would add value to it. Furthermore, regarding

examination of generalizability, we include the

perspectives of practising SAs. For examining

generalizability, the strategies described in (Anish et

al., 2015) are considered

The rest of the paper is organized as follows: In

Section 2 we provide definitions of key terms used in

our approach, Section 3 provides background and

presents details on the approach subjected to

evaluation. Section 4 is on our research questions,

Section 5 is on research methodology and research

process, Section 6 presents discussions while Section

7 concludes the paper.

2 DEFINITIONS

As terminology is not uniform across all authors

in the field of RE and software architecture, we

define some key terms here. We consulted

definitions from different sources such as IREB

(https://www.ireb.org/en) and for our purpose, we use

the following working definitions. A requirement is

called architecturally significant if it has a

measurable impact on the architecture of the software

system. A functional requirement (FR) is a desired

behavior triggered by some event or condition

change, and delivering some desired output of the

system. Any other desired property of the system is

called a non-functional requirement (NFR). We thus

distinguish architecturally significant functional

requirements (ASFRs) from architecturally

significant non-functional requirements (ASNFRs).

While both FRs and NFRs can have an impact on

architectural design, for our purpose, we focus on

ASFRs only. The questions that one may ask to

extract architectural information are called Probing

Questions (PQs) and PQs when logically sequenced

in dialogs are called PQ-flows (Probing Question

flows). A Business Analyst (BA) is the central role

responsible for understanding (from the client) the

business or functional aspects of the requirements for

IT projects. Based on this, the BA is responsible for

creating a detailed SRS to be used in the subsequent

phases of project development. A Software Architect

(SA) is a role responsible for converting the business

requirements captured by the BA into architecture

and design.

ICSOFT 2020 - 15th International Conference on Software Technologies

188

3 BACKGROUND AND THE

APPROACH SUBJECTED TO

EVALUATION

As indicated in Section 2, both FRs as well as NFRs

have a significant impact on the architecture of the

software system. However, to scope our research

work, we focus only on FRs. We define ASFRs as

those functional requirements that have a significant

impact on the architecture of the software system.

Through a series of interview with SAs from various

business domains and geographies (Anish et al.,

2015, 2016), we identified various categories of

ASFRs. For each of these categories, through a series

of interviews and on-line surveys, we created a set of

PQ-flows (Probing Question flows). An example of

the PQ-flows for ASFR category – Audit Trail is

depicted in Figure 1. Audit Trail facilitates auditing

of system execution (Anish et al., 2015). An example

Audit Trail FR is: “System must record every

modification to customer records for audit purposes.”

We currently have 15 such ASFR categories in the

knowledge base. Out of these 15 ASFR categories,

we have created PQ-flows for 10 categories. The 10

ASFR categories are: Audit Trail, Batch Processing,

Business Process State Alert, Print, Report, Search,

Localization/Multilingual, Online Help, Third Party

Interaction and Workflow. In Table 1, we reproduce

from (Anish et al., 2015), the definitions of each of

these 10 ASFR categories along with obfuscated

examples.

4 RESEARCH QUESTIONS

The purpose of this empirical study is to evaluate the

ease of use, effectiveness and relevance of our

approach (the PQ-flows), from the perspective of

practitioners in the field.

To this end, we set out to find answers to the

following research questions (RQs):

RQ 1: To what extent does a BA perceive it easy to

use the approach?

RQ 1.1: How easy or difficult is it for the BAs

understand the PQs on their own?

RQ 1.2: What kind of effort / training is

needed so that the BA can start using the approach on

their own?

Table 1: ASFR Categories, their Definitions and Examples (Anish et al., 2015).

ASFR Category Definition Example

Audit Trail Audit Trail facilitates auditing of system

execution.

System must record every modification to

customer records for audit purposes.

Batch Processing This includes requirements facilitating batch

processing

The disbursement process should be a daily

batch process for regular claim pay-outs

Business Process “State”

Alerts

This class of ASFR is concerned with

notifications, generated often as a part of

executing a business process by the

respective system.

Workflow is required to send notification to

Underwriters.

Print This includes requirements facilitating

support for printing document.

The commission statement should be printed

using the package-supplied format.

Report This category includes FRs that facilitate

Report generation.

System should generate reports on complaint

Search This category includes FRs that provide

support for Search functionality.

Claims Assessor should be able to search for

claim records to be process.

Localization/Multilingual Localization/Multilingual involves

providing support for multiple language.

During the term, the authority may require

the contractor to deliver specific

communications in other languages.

Online Help This category includes requirements

pertinent to providing online help facility.

An online help facility should be available for

claim intimation process.

Third Party Interaction This category includes requirements that

facilitate interaction with third party

components.

Once an application has been applied for, it

will be exported to ABC back office where it

may be processed both automatically by ABC

back office system and manually by an

underwriter.

Workflow This includes requirements that provide

support to move work items, facilitate

reviews and approvals.

The claim is assigned to the claim-handling

clerk with the latest ‘last assignment’ time

stamp. It is then passed on to the claim

assessor.

An Approach That Stimulates Architectural Thinking during Requirements Elicitation: An Empirical Evaluation

189

RQ 2: How do the PQ-flows of the 10 categories

help improve architectural relevance of

requirements in a SRS?

RQ 2.1: To what extent are the questions in

each category architecturally relevant (no

superfluous questions), and

RQ 2.2: To what extent are all architecturally

relevant questions for each category asked?

RQ 2.3: To what extent are all ASFR

categories architecturally relevant for the system

being specified?

We conducted two empirical studies: (1) to

answer RQ1 (henceforth referred to as Study 1) and

(2) to answer RQ2 (henceforth referred to as Study 2).

Study 1 takes the perspective of BAs, while Study 2

takes the perspective of BAs and SAs playing the role

of clients (called here “pseudo-clients”). The two

studies, though different in terms of participants and

execution style, build upon each other. Each study’s

research process is organized into three main phases:

Design, Execution and Analysis (Yin, 2014). In the

next section, we present each of the studies in more

detail.

5 RESEARCH PROCESS AND

RESULTS IN OUR TWO

STUDIES

5.1 Study 1

In this section, we detail the research methodology,

threats to validity and results of Study 1.

5.1.1 Research Methodology

Design. We compared the research methodologies

that are most relevant to evaluation studies in SE

(Anish et al., 2015). We chose a qualitative interview-

based evaluation research method and followed R.

Yin’s guidelines for case study design (Yin, 2016).

Our choice for case study research method was

grounded on the suitability of this method to our

research context and research perspective, namely the

one of practitioners working as BAs and SAs in real-

world projects. Furthermore, we chose interviews to

obtain a detail-rich, holistic and contextualized

description from the participants about the approach.

The interview technique was selected for two reasons:

(1) it is suitable for inquiry like ours, and (2) the

resulting data offers a robust alternative (Saldana,

2013) to more traditional survey methods. We

triangulated the data collected from multiple sources

(e.g. participants with varied domain expertise, years

of experience, educational background). Below, we

present the participants and our interview

questionnaire that are part of the design of Study 1:

a) Participants. Our research plan for Study 1

included 10 participants who were BAs in a very large

company in the sector of IT consulting and

outsourcing services. The practitioners were actively

engaged in projects in India and Israel. As

confidentiality agreements were a premise for the

study, we cannot provide any information on the

organizations employing these participants.

However, as practicing BAs, their professional

profiles had the following common characteristics:

(1) all of them work on large business information

system projects, (2) they had at least 2 years of

professional experience as a BA, (3) most of them are

experienced in more than one domain, (4) they were

employed in large scale inter-organizational projects

in which the BAs and the SAs were not co-located (5)

all participants are BAs from the vendor’s side. The

profiles of our 10 participants is described in Table 2.

Therein, the first column shows the participant’s ID

(P1 to P10), the second column indicates the current

application domain in which the participant is

involved in systems development activities, the third

column indicates the country, the fourth column

indicates the years of experience as BA, and the last

column indicates the educational degrees of the

participant. As shown, the practitioners are active in

application domains such as insurance, banking,

financial management, and telecom. Eight

participants have an MBA degree and two hold a

bachelor degree. The experience of the practitioners

varied from 2 to 18 years. We deliberately searched

for diversity across years of experience and domains,

in order to assure that our approach is evaluated from

participants of various profiles.

b) Interview Questionnaire. As we wanted to collect

BAs’ feedback, we designed our interview study by

(1) composing an interview questionnaire to help the

participant structure her response (2) testing the

questionnaire with an experienced researcher and

implement changes to improve it; (3) doing a pilot

interview to check the applicability of the

questionnaire in a real-life context; (4) carrying out

in-depth interviews according to the finalized

questionnaire presented in the Appendix.

Execution. All the BAs were informed in advance of

our research goals and the interview process. The

ICSOFT 2020 - 15th International Conference on Software Technologies

190

interviews were on a one-to-one basis. The first

author of this paper conducted all the interviews. The

10 ASFR categories were shared with participating

BAs and they were asked to choose one category that

they are most familiar with and one that they are least

familiar with. For the two chosen categories, we

shared the corresponding PQ-flows and the interview

questionnaire. The duration of each interview was

between 30 and 60 minutes. The questionnaire

included sections designed to collect information

about the BA’s (i) experience and application domain

(ii) understanding of ASFRs and PQ-flows.

Table 2: Details of participants for Study 1.

Participant

Application

Domain

Country Total Years

Experience

as a BA

Educational

Background

P1 Insurance India 4 B.COM,

MBA

P2 Banking India 3 BE, MBA

P3 Telecom Israel 13 BSc.

P4 Insurance India 6 BE, MBA

P5 Insurance India 6 BSc., MBA

P6 BFSI India 2 B.COM,

MBA

P7 Telecom India 18 BSc., MBA

P8 Telecom Israel 10 BSc.

P9 Telecom India 7 BCA, MCA

P10 Telecom India 3 BE, MBA

B.COM – Bachelors of Commerce, MBA – Masters of Business

Administration, BE – Bachelors of Engineering, BSc. – Bachelors

of Science, BCA – Bachelors of Computer Application, MCA –

Masters of Computer Application

Analysis. We used qualitative coding of our data

(Saldana, 2013), which helps us classify the various

reasons as to why BAs perceive a particular category

and/or PQs as more difficult or easier than others,

what techniques can be adopted to improve the ease

of using the approach and make it more effective in

assisting the BAs in eliciting architecturally richer

specifications.

5.1.2 Threats to Validity

Regarding Study 1, we devised measures to counter

the following validity threats (Yin, 2014):

(1) Researcher’s bias: as the authors were involved

in creation of the PQ-flows, there is an elevated risk

of passing bias into data collection and

analysis. To

reduce this risk, the authors let the BA select the

category to discuss and freely explain the kind of

difficulties felt. The authors took conscious steps to

avoid providing any unnecessary information or

explanation, except those that the BA asked

explicitly.

(2) Interviewee background: BAs could vary in

terms of collaboration relationships they established

with their respective SAs in a project. Some BAs

might be more exposed to SAs’ work than others. We

think however that this threat is minimal because our

participants worked in organizations that have

standard project delivery process; where knowledge

sharing standards and tools are instrumental in

keeping SDLC processes consistent across projects in

the same domain

5.1.3 Results

This section presents our findings regarding our RQ

RQ 1: To what extent does a BA perceive it

easy to use the approach?

As indicated in Table 1, we received responses

from 10 BAs. Our results on sub-RQs in RQ 1 are as

follows:

RQ 1.1: How easy or difficult is it for the BAs

to understand the PQs on their own?

In our study, we found that the senior BAs (those

with 10 or more years of experience) could

understand all the PQs on their own. The BAs at the

mid-level of experience (5 to 9 years) needed

guidance to understand some questions (on average 3

questions) and junior BAs (less than 5 years’

experience) needed relatively more guidance (on

average 5 questions).

Moreover, we found that the domain expertise did

not really have any influence on the understanding of

the PQs, which indicated that our PQs are generic

across business information system domains. Another

factor that affected the result was the BA’s

educational background. This observation was

especially relevant for junior BAs (less than 5 years’

experience). Junior BAs with a computer science

(CS) background found it easier to understand the

PQs than the junior BAs with non-CS background.

The BAs attributed this difference to the fact that the

BAs with CS background had already taken software

architecture course as a part of their educational

curriculum and therefore they are familiar with the

PQs vocabulary. This indicates that our approach can

be used to improve the level of architectural

understanding of junior BAs with non-CS

background.

An Approach That Stimulates Architectural Thinking during Requirements Elicitation: An Empirical Evaluation

191

RQ 1.2: What kind of effort / training is needed

so that the BA can start using the approach on

their own?

From the responses received from the BAs, we

observed that providing some form of guidance to

further elaborate the PQs would improve the

understandability of the PQs.

In the words of participant P9, “elaboration of

PQs is important. When we ask questions to the client,

they sometime ask us to elaborate it or sometimes they

ask counter questions to us. So, we should be well

versed with what the PQ is all about.”

Another participant P7 mentioned, “We cannot

use PQs as a black box. We need to know what it

entails”.

Based on the analysis of the interview responses,

we found that a guidance mechanism for elaborating

PQs could take multiple forms: (1) a one hour self-

training module for junior BAs, (2) an embedded self-

training module in the tool, (3) a user manual with

‘how to start working’ steps detailed, (4) some kind

of look up facility in the tool as and when required.

5.2 Study 2

In this section, we detail the research methodology,

threats to validity and results of Study 2.

5.2.1 Research Methodology

Design. As in Study 1, the design of Study 2 rests on

the methodological sources already presented in

Section 5.1.1. Study 2 was planned as an interview-

based research process with participants and

interview questions described in the sub-sections (a)

and (b) below. We planned is to ask volunteer BAs,

pseudo-clients and SAs (5 each) to simulate a process

in which requirements are specified by the BA in

consultation with the pseudo-client and is used by the

SA to design software. The goal is to observe and

analyse simulations in which BAs and SAs use our

approach, and to use these observations to answer RQ

2. The design includes a volunteer BA and a pseudo-

client who simulates a RE process using our

approach, and a volunteer SA who assesses how

much the resultant SRS contributes in explicating the

hidden architectural requirements. Based on a post-

simulation interview with the SAs, we collect their

reflections on their experience.

a) Participants. Our research plan for Study 2

included BAs, SAs and pseudo-customers who

worked in very large company in the sector of IT

consulting and outsourcing services.The BAs and

SAs were experienced team members responsible for

delivering large projects in varied domains. Any

person with more than 20 years of experience

working closely with clients to understand their

requirements and to architect systems qualified as a

pseudo-client. Based on the domain expertise, we

grouped the BAs, SAs and pseudo-client. We created

five such tuples (T1 to T5). The details of the

participants in each tuple is presented in Table 3. As

indicated in Table 3, T1 and T2 worked in Insurance

domain, T3 and T4 in banking domain while T5

worked in healthcare domain.

b) Interview Questionnaire. Our post-simulation

interview questionnaire is developed using the same

steps as in Study 1 and is presented in the Appendix.

Execution. We sent the study participation request

through email to BAs, pseudo-clients and SAs

explaining them our study goal and process. The

study execution included the following steps:

(1) We provided the list of 10 ASFR categories along

with their description to each of the participating BA.

(2) We asked each BA to choose an ASFR category

of her choice based on her expertise and familiarity

with the category. If a category was chosen by a BA,

we marked the same in the provided list. We told the

BAs that for us to ensure validation of more number

of categories; we would prefer them to choose a

category that is not previously chosen by other BAs.

However, we clearly mentioned that this is just our

preference and they are free to choose otherwise. To

our delight, each BA chose a different ASFR

category. The category chosen by each of the five

BAs is indicated in Table 3.

(3) The PQ-flow corresponding to the chosen ASFR

category was provided to the BA along with detailed

instructions on how to use it.

(4) At the meeting between the BA and the pseudo-

client, we provided one sample requirement from real

life SRS document corresponding to the domain and

the chosen ASFR category. The selected requirement

corresponding to each of the chosen ASFR category

is also presented in Table 3. The BA used the PQ-flow

to assist the pseudo-client in elaborating the selected

requirement with architectural details and create a

much detailed requirement.

ICSOFT 2020 - 15th International Conference on Software Technologies

192

Table 3: Details of participants for Study 2.

Tuple

Exp.

(years)

SA Exp.

(Years)

Pseudo-

client Exp.

(Years)

Domain Chosen

ASFR

Category

Requirement from SRS

T1 7 10 21 Insurance Audit Trail All changes shall be logged so you can see who

added/edited/deleted a client and when.

T2 6 9 23 Insurance Business

Process

‘State’ Alert

A notification shall appear when the user logs

onto the system (to inform that the client has

converted the quotation to a policy).

T3 6 12 27 Banking Report The system shall create a detailed client report

at the end of each quarter.

T4 5 8 20 Banking Batch

Processing

On a daily basis, there shall be a batch process

that activates the future to-dos, changes the

urgency level, and close to-dos.

T5 8 8 21 Healthcare Search The system must search in the systems

mentioned in the <<document name>> and

identify the patient record.

(5) This detailed requirement specific to the chosen

ASFR category along with the complete SRS from

which this requirement was taken was then given to

the participating SA. The SA assessed the elaborated

requirement and gave feedback on whether the PQ-

flows helped in detailing the requirement further by

providing architectural details pertinent to the

requirement. In addition to the assessment of PQ-

flows, we also provided each SA with the list of all

the 15 ASFR categories so that they can comment on

the relevance of each of the category.

Analysis. As we collected participants’ reflections in

the form of qualitative data, we used the coding

method similar to Study 1. We expected it to yield

codes that explain why the approach worked

according to the participant or why they would (or

would not) use the approach in their next project and

what improvements are needed in the approach to

make it practically more relevant.

5.2.2 Threats to Validity

Regarding Study 2, our most important concern is that

the simulation is dependent on BA, SA and pseudo-

client tuples and as we are relying on volunteers in

each role, the relationship between the three is not

known to us. However, we relied on professional

code of conduct and even if the BA, SA and the

pseudo-client have prior working history, we asked

them to avoid referring to it during the simulation.

Following (Basili & Zelkowitz, 2007), while a

simulation in practical settings may be hard to

generalize to other context, its key value is in

experiencing what in a method works and why it

works (or why not). We take this simulation as a pilot

and expect the learning from it to be instrumental in

improving our approach and its application scenario.

5.2.3 Results

In this section, we present our findings regarding our

RQ 2.

RQ 2: Can the PQ-flows help improve

architectural relevance of requirements in a SRS?

Below are our findings based on the responses we

received from each of the five SAs who participated

in the simulation study.

Our analysis of the responses revealed that even

though all the SAs found the approach to be very

relevant to unearth implicit architectural concerns, the

opinion of the SAs on the relevance of an ASFR

category or a PQ was highly influenced by

application domain and the current project the

respective SA was working on. Each SA viewed the

ASFR category or the specific PQ from the angle of

how relevant it is in her/his current project context.

None of the SAs said that the existing ASFRs and/or

the PQ-flows are irrelevant. However, they did

comment on the relative significance of few of the

PQs and ASFRs based on their current project

context, changing business trends and the

advancements in technology. For example, the SA in

T1 with experience in Insurance domain mentioned

the following about an ASFR category:

“If you see the category User behaviour Analysis.

This is too specific to applications with consumer-

oriented front end. Generally, an Insurance

application for Indian clientele would not worry

much about this category as even today in India as

An Approach That Stimulates Architectural Thinking during Requirements Elicitation: An Empirical Evaluation

193

you know most of the insurance policies are bought

off line from agents. So we would not worry much

about user experience in this case.”

From this response we also gauged that in

addition to domain, the geography in which project

needs to be deployed also has an impact on the

relevance of an ASFR Category and/or PQ. For

example, a law prevalent in certain geography may

advocate certain architectural considerations.

In addition, all of the SAs mentioned that the PQs

and ASFR categories would get updated based on the

latest trends in the business sector and technology

sector. For example, SA in T5 with experience in

healthcare domain mentioned the following:

“With the advent of, say for example, eHealth,

mHealth, Telehealth, we would see new ASFR

categories and therefore new PQs. Some of the

existing PQs may become irrelevant as well”.

Further, SA in T3 talked about block chain

technology and how is it reshaping the banking sector

and therefore how new ASFR categories and PQs

would be needed to address the new architectural

needs.

From the responses received from the SAs, it is

clear that our approach comprising of ASFR

categories and PQ-flows to assist BAs in unearthing

implicit architectural concerns during requirements

elicitation is relevant. However, the relevance of the

existing ASFR categories and the corresponding PQ-

flows is heavily dependent on factors such as the

project domain, geography and technology and this is

subject to evolution based on the specific project

context. We consider this feedback important as it

sheds light on the possible directions that our work

can take to make the repository of ASFR Category

and PQs-flows more useful to its users.

6 DISCUSSION

Our approach stimulates architectural thinking during

requirements elicitation by equipping the BAs to ask

architecturally relevant questions to the customer. We

found 15 categories of ASFRs and created PQ-flows

for 10 of these categories. In this paper, we presented

the empirical evaluation of our approach. Our

evaluation has some implications for practitioners

and researchers.

For RE practitioners, knowing which categories

of ASFR have architectural impact can help the BAs

to elicit a more complete set of requirements to feeds

sufficient information into the architectural design

process. This would, in turn, help the architects to

make informed decisions and can potentially reduce

wasted effort caused by the need to rework the

solution later in the project. More empirical research,

however, is needed to explore the best improvement

scenarios that could be implemented in organizations.

We therefore consider this as a line for future

research.

Our empirical evaluation has some research

implications as well. First, it is the starting point for a

series of empirical studies in the industrial context in

which the PQ-flows were developed in the first place.

More empirical data would lead to more generalizable

results, which would allow us to draw some

recommendations to practitioners on the use of our

approach in contexts. Second, we consider the PQ-

flows as “living artefacts” that could grow over time;

for example, SA in new application domain (e.g.

Internet of Things) might come up with additional

PQs. Our evaluation research design (grounded on the

chosen research methodology) could be used as a

blueprint for the empirical evaluation of these new

PQ-flows. Third, researchers in RE and SA might

find it interesting to compare and contrast our

approach with other existing collaborative

approaches that help requirements specialists and

SAs work together. For example, the approach of

Gross et al. (2011), Keim, and Koziolek (2019) could

be good candidates for inclusion in such a

comparative evaluation.

7 CONCLUSIONS

In this paper, we presented the findings of the

empirical evaluation of our approach designed to

stimulate architectural thinking during requirements

elicitation. This evaluation was intended to gauge the

ease of use, effectiveness, relevance and

generalizability of our approach. From the responses

received from the BAs, we conclude that the tool

based on the approach should have an embedded self-

training module for the BAs. Further, each PQ should

include some explanatory text along with it as a ready

reckoner for the BA. The BA can look up this text

while gathering requirements.

Next, regarding relevance, we observed that the

SAs found our approach to be relevant. However, the

relevance of the existing ASFR categories and PQ-

flows is heavily dependent on factors such as the

project domain, geography and technology. For

example, the ASFR category User Behaviour

Analysis is not critical for an Insurance application for

ICSOFT 2020 - 15th International Conference on Software Technologies

194

Indian clientele as in India most of the insurance

policies are bought off line from agents. This finding

also provides answers to the question on

generalizability of our approach. The approach itself

is generalizable, but the ASFRs and PQ-flows are not.

The set of ASFRs and PQ-flows would evolve

depending on the project context and therefore a KB

with knowledge about the ASFR categories and PQ-

flows would support such an evolution.

REFERENCES

Anish, P.R., Daneva, M., Cleland-Huang, J., Wieringa,

R.J., Ghaisas, S., What You Ask Is What You Get:

Understanding Architecturally Significant Functional

Requirements, RE 2015, IEEE Press, 86-95

Anish, P.R., Balasubramaniam, B., Sainani, A., Cleland-

Huang, J., Daneva, M., Wieringa, R.J., Ghaisas, S.,

Probing for Requirements Knowledge to Stimulate

Architectural Thinking, ICSE 2016

Anish, P.R., Empirical Evaluation of an Approach that

Stimulates Architectural Thinking during

Requirements Gathering. In REFSQ Workshops, 2017

Davis, F.D., Perceived Usefulness, Perceived Ease Of Use,

And User Acceptance of Information Technology, MIS

Quarterly; Sep 1989; 13, 3; ABI/INFORM Global pg.

319

Wieringa, R., Daneva, M., Six strategies for generalizing

software engineering theories. Sci. Comput. Program.

101: 136-152 (2015)

Yin, R.K., Case study research, Sage, 2014.

Saldaña J. (2013), The coding manual of qualitative

researchers (2. ed.). Los Angeles, London, New Delhi.

Basili, V. R., Zelkowitz, M.V., Empirical studies to build a

science of computer science. Commun. ACM 50(11):

33-37 (2007)

Gross, A.,Dörr, J., What do software architects expect from

requirements specifications? Results of initial

explorative studies. TwinPeaks@RE 2012: 41-45

Keim, J., Koziolek, A., Towards consistency checking

between software architecture and informal

documentation. In 2019 IEEE International Conference

on Software Architecture Companion (ICSA-C), March

2019, pages 250–253.

Li, Z., Liang, P., Avgeriou, P., Application of knowledge-

based approaches in software architecture: a systematic

mapping study, Information & Software Technology,

55, 2013, pp. 777-794

Chen, L., Ali Babar, M., Nuseibeh, B., Characterizing

architecturally significant requirements, in IEEE

Software, 30(2)2013: 38–45

International Requirement Engineering Board (IREB)

Website: https://www.ireb.org/en Last accessed on 25-

03-2020

APPENDIX

‘About you’ question common to both the studies

 Total years of IT experience

 Number of years’ experience in working as

a software architect /Business Analyst

 Business sector

 Educational Background

Study 1

Q 1. Are all the PQs self-explanatory or do you need

explanation?

Q1.1. Please list down the PQs that are not self-

explanatory and need further explanation.

Q 1.2. Please suggest how the understandability of

these PQs can be improved.

Q 2. What kind of a training module do you think

would be required to enable you to use the approach

on your own?

Q.2.1 How much of training effort do you think

would be required to use this approach on your own?

Q 2.2 How much of a training effort would you be

able to put in?

Study 2

Q 1. Are there any superfluous PQs in the given

ASFR category? If yes, specify which ones.

Q 2. Are all architecturally relevant questions for the

given ASFR category present as a PQ? If no, specify

which ones are missing.

Q 3. Are all ASFRs architecturally relevant for the

system being specified? If no, specify the missing

ones.

An Approach That Stimulates Architectural Thinking during Requirements Elicitation: An Empirical Evaluation

195
