A Study on Performance of Explicit Rate Report based Congestion
Control under Coarse-grained Clock Management
Toshihiko Kato, Takumi Enda, Ryo Yamamoto and Satoshi Ohzahata
Graduate School of Informatics and Engineering, University of Electro-Communications,
1-5-1, Chofugaoka, Chofu, Tokyo 182-8585 Japan
Keywords: NDN, Congestion Control, Rate Control, MIRCC, Clock Management.
Abstract: Named Data Networking (NDN) is a widely adopted future Internet architecture for large scale content
retrieval. The congestion control in NDN is actively studied, and the rate-based congestion control method
is considered to be well suited. From the viewpoint of implementation, however, the rate-based method has
an issue that it requires the fine-grained clock management, which is hard to implement in off-the-shelf
computers. Among the rate-based congestion control methods, an approach in which intermediate nodes
report a maximum rate for a flow explicitly is considered to work well. In this paper we pick up MIRCC
(Multipath-aware ICN Rate-based Congestion Control) as an example of explicit rate report based scheme,
and examine the impact of system clock granularity of the performance of NDN rate based congestion control.
This paper provides the performance evaluation when consumers and NDN routers use the system clock with
long time interval.
1 INTRODUCTION
Resulting from a drastic increase in Internet traffic
(Cisco, 2020), there are many studies on the future
Internet architecture called Information Centric
Network (ICN), which is well suited for large scale
content retrieval. Named Data Networking (NDN)
(Jacobson et al., 2009) is a widely adopted platform
for the ICN researches. NDN relies on the name of
required content, not the address of hosts containing
the content, as a fundamental concept. NDN uses two
types of packets in all communications: an Interest
packet and a Data packet. A consumer that requests
a specific content sends an Interest packet containing
the content name. A producer that provides the
corresponding content data returns a Data packet to
the consumer. NDN routers transferring the Data
packet cache the packet for future redistribution.
The congestion control is one of the hot research
topics in NDN (Ren et al., 2016). Although it has
been also a hot topic in TCP, the mechanisms in TCP
congestion control are limited to the congestion
window management at data senders (Afanasyev et
al., 2010) and the simple explicit congestion
notification at intermediate routers (Ramakrishnan et
al., 2001). In contrast, various techniques can be
introduced to the NDN congestion control. One is a
receiver-driven window-based congestion control
approach. In this approach, a consumer maintains a
window size for Interest packet sending, just link a
sender in TCP. Congestion is detected by timeout
(Carofiglio et al., 2012) (Saino et al., 2013) or the
congestion notification (Zhang et al., 2014), and the
window for Interest packets are managed
heuristically, e.g., through an Additive Increase and
Multiplicative Decrease (AIMD) mechanism.
Another methods adopts CUBIC TCP mechanism
(Liu et al., 2016) or BIC TCP mechanism (Schneider
et al., 2016) in the window control. In NDN, the rate-
based congestion control approach is applicable. In
this approach, a consumer and routers maintain a rate,
in which Interest packets are transmitted contiguously.
The rate is determined heuristically by use of
congestion notification (Cheng et al., 2013) or by the
explicit rate reporting (Rozhnova and Fdida, 2014)
(Zhang et al., 2015) (Mahdian et al., 2016).
Among these methods, the rate-based method
with explicit rate reporting provides the best
performance. The overview of this method is as
follows. Each router monitors the total of data packet
traffic receiving over an individual link to an
upstream router or a producer, and calculates the
optimal Interest packet rate for each Interest-Data
82
Kato, T., Enda, T., Yamamoto, R. and Ohzahata, S.
A Study on Performance of Explicit Rate Report based Congestion Control under Coarse-grained Clock Management.
DOI: 10.5220/0009876200820088
In Proceedings of the 17th International Joint Conference on e-Business and Telecommunications (ICETE 2020) - DCNET, OPTICS, SIGMAP and WINSYS, pages 82-88
ISBN: 978-989-758-445-9
Copyright
c
2020 by SCITEPRESS Science and Technology Publications, Lda. All rights reserved
flow. Each router sends this optimal rate in a Data
packet toward a consumer, and a consumer sends
Interest packets according to the reported rate.
Among the proposed explicit rate reporting methods,
the Multipath-aware ICN Rate-based Congestion
Control (MIRCC) specified in (Mahdian et al., 2016)
provides the most stable and highest performance.
From the viewpoint of implementation, however,
the rate-based congestion control approach has some
problems. Since the transmission speed in recent data
links becomes high, e.g., 10 Gbps in an access link,
the fine-grained clock management is required in the
rate-based congestion control. For example, if the
Data packet size is 10,000 bits and the link speed is
10 Gbps, the interval of Interest packet transmission
is 1 micro seconds (corresponding to 1 MHz) when
Interest packets are transmitted in a line speed. If the
rate is 5 Gbps or 3 Gbps, the Interest transmission
interval will be 2 micro seconds (500 KHz) or 3.33
micro seconds (300 KHz), respectively. In order to
handle these cases, it is supposed that higher precision
clock with shorter tick, such as 0.1 micro second (10
MHz), will be required to control the Interest packet
sending timing.
On the other hand, it is considered that the fine-
grained clock management is hard to implement in
off-the-shelf computers. For example, TCP
implementation uses 200 msec (5Hz) and 500 msec
(2Hz) clocks for the delayed acknowledgement and
retransmission, respectively (Fall and Stevens, 1994).
Therefore, implementing rate-based mechanism with
micro second order clock is extremely hard.
We pointed out this issue and discussed how a
coarse-grained clock system influences the NDN
rate-based congestion control, in our previous paper
(Kato et al., 2018). We adopted the Stateful
Forwarding (Cheng et al., 2013) as a target system of
the evaluation, and showed that the performance,
specifically the Data packet throughput, is degraded
largely when a coarse-grained clock is introduced.
Moreover, we proposed a method to send Interest
packets more smoothly even in the coarse-grained
clock environment.
However, the Stateful Forwarding is not the best
example of the NDN rate-based congestion control
methods. As stated above, the explicit rate reporting
methods, especially MIRCC, provide better
performance. In this paper, we examine how the
coarse-grained clock system influence the
performance of MIRCC.
The rest of this paper is organized as follows.
Section 2 gives the related work focusing on the
overview of NDN congestion control and MIRCC.
Section 3 describes the implementation of MIRCC
over the ndnSIM simulator (Afanasyev et al., 2012),
which is a widely used network simulator for NDN,
and the modification for the coarse-grained clock
system. Section 4 gives the performance evaluation
results. In the end, Section 5 concludes this paper.
2 RELATED WORK
2.1 Related Work on NDN Congestion
Control
As described above, the congestion control methods
in NDN are categorized as the window-based and the
rate-based methods. As for the window-based
methods, we can pick up the following three
examples. The Interest Control Protocol (ICP)
(Carofiglio et al., 2012) and the Content Centric TCP
(CCTCP) (Saino et al., 2013) are examples of the
traditional TCP like window-based methods. Here, a
consumer sends Interest packets continuously within
the window size, and the window size is changed
according to the AIMD mechanism triggered by Data
packet reception and congestion detected by timeout.
The Chunk-switched Hop Pull Control Protocol
(CHoPCoP) (Zhang et al., 2014) is another window-
based method. It introduces the explicit congestion
notification with random early marking instead of the
timeout-based congestion detection. Although these
use the AIMD mechanism, (Liu et al., 2016) proposes
a window control according to CUBIC TCP. The
Practical Congestion Control (PCON) scheme
(Schneider et al., 2016) uses the CoDel active queue
management scheme (Nichols and Jacobson, 2012),
which watches out the delay of packets in sending
queues, to detecting congestion. When congestion is
detected, a router signals it to consumers by explicitly
marking Data packets. In respond to this reporting,
the rate reducing is performed by consumers. PCON
follows AIMD or BIC TCP for the window control.
In the window-based methods, the window size itself
may not be optimal resulting from the Data packet
caching in different routers.
On the other hand, the rate-based methods are
classified into the non-deterministic scheme, which
uses the AIMD mechanism in determining the
Interest sending rate, and the explicit rate notification
scheme, in which intermediate routers report the
optimal Interest rate to a consumer. The Stateful
Forwarding (Cheng et al., 2013) is an example of the
former scheme. It introduces a negative
acknowledgment (NACK) packet as a response to an
Interest packet. It is sent back to a consumer when an
Interest packet is discarded in an intermediate router.
A Study on Performance of Explicit Rate Report based Congestion Control under Coarse-grained Clock Management
83
A consumer and a router manage the Interest sending
rate locally by AIMD, when a Data packet is received,
or a NACK packet is received / a timeout happens.
In contrast with those non-deterministic methods,
new methods have been introduced that enable
routers to report a maximum allowed Interest sending
rate. In the Hop-By-Hop Interest Shaping (HoBHIS)
(Rozhnova and Fdida, 2014), routers decide the
maximum allowed Interest sending rate
independently and accordingly shape Interest packet.
The maximum allowed rate is also reported to a
consumer and this allow a consumer to send Interest
packets without invoking congestion. In the Explicit
Congestion Notification (ECN) based Interest
sending rate control method proposed in (Zhang et al.,
2015), a consumer uses a minimum rate among the
reported rates from all intermediate routers. MIRCC
introduces a similar per-link Interest shaper at every
router and rate reporting to consumer. It takes
account of the case that a flow uses multipath transfer.
In those methods, the maximum allowed rate is
calculated from the parameters including link
capacity and utilization, queue size, inflated Interest
rate, and average round-trip time (RTT). They are
able to control Interest transmission so as to suppress
congestion, and as a result they can provide higher
throughput compared with other rate-based methods.
In spite of these merits, their implementation
requires the precise timing control for sending
Interest packets. However, the fine-grained clock is
hard to implement. There are some traditional rate-
based schemes, but they use some hardware
mechanism instead of the fine-grained clock. For
example, the Asynchronous Transfer Mode (ATM)
uses a kind of rate-based cell transfer (ITU-T, 1999),
but ATM uses null cells discarded at a receiving side
to regulate cell streams at a specific rate. (Yamamoto,
2008) introduced pause packets over Gigabit Ethernet,
corresponding to null cells in ATM, that are used only
between end nodes and switching hubs. Those
approaches are implemented by the MAC level
hardware, but NDN Interest packets are handled as a
higher level, which makes the hardware support
difficult.
2.2 Details of MIRCC
In MIRCC, consumers and routers that forward
Interest packets, called forwarders, maintain the
parameters indicated in Table 1. Each forwarder
calculates the Interest sending rate R(t) for individual
flows, at each interval T. R(t) is specified as the sum
of base_rate(t) and excess_rate(t), each of which is
given in the following way.

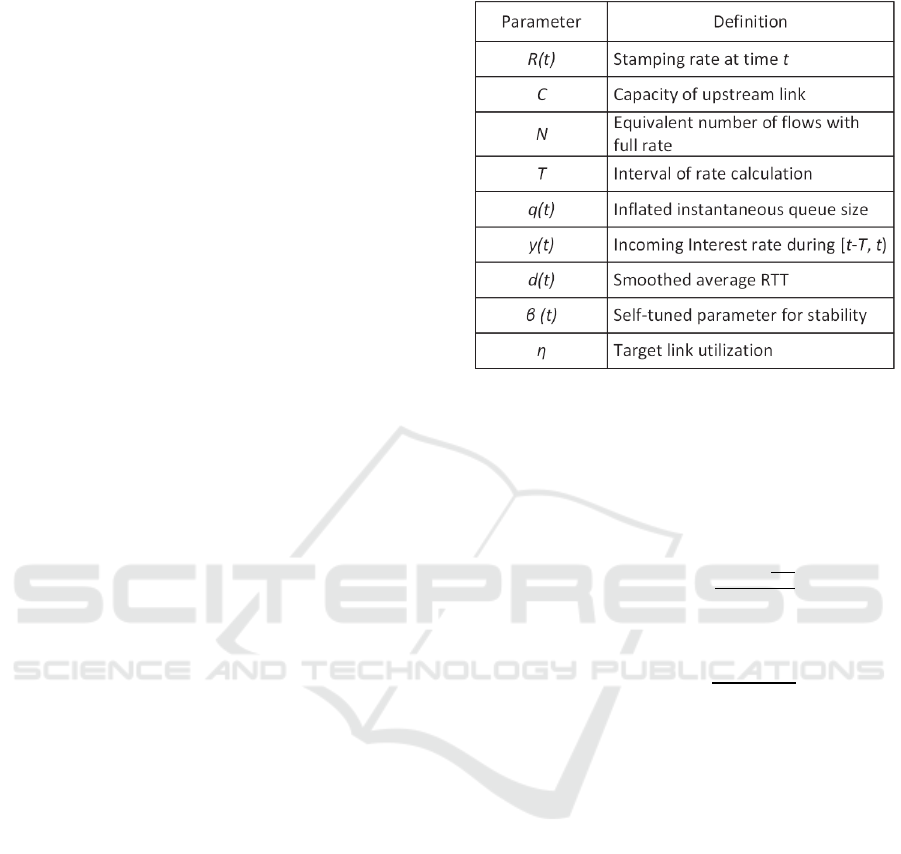

Table 1: List of MIRCC parameters.
In order to calculate base_rate(t), a forwarder
estimates the number of flows by equation (1).
𝑁
𝑚𝑎𝑥 𝐶,𝑦
𝑡
𝑅𝑡 𝑇
(1)
Then, base_rate(t) is computed as follows:
𝑏𝑎𝑠𝑒_𝑟𝑎𝑡𝑒𝑡



(2)
Here, 𝛽𝑡 is given by
𝛽𝑡  𝑚𝑎𝑥0.1,


(3)
As for excess_rate(t), the following equation is
used.
𝑒𝑥𝑐𝑒𝑠𝑠_𝑟𝑎𝑡𝑒𝑡 𝑅
𝑡𝑇
𝑦𝑡
𝑁
(4)
In order to avoid high-frequency oscillation, an
exponential weighted moving average (EWMA) is
applied to both base_rate(t) and excess_rate(t) with
weight 0.5. Finally, R(t) is given by the following
equation.
𝑅
𝑡
𝑏𝑎𝑠𝑒_𝑟𝑎𝑡𝑒_𝑒𝑤𝑚𝑎𝑡 
𝑒𝑥𝑐𝑒𝑠𝑠_𝑟𝑎𝑡𝑒_𝑒𝑤𝑚𝑎𝑡 (5)
When a router receives a Data packet, it compares the
stamping rate included in the packet, and if the
included rate is larger than the computed R(t), then
R(t) is set in the Data packet.
DCNET 2020 - 11th International Conference on Data Communication Networking
84
3 MIRCC WITH
COARSE-GRAINED CLOCK
3.1 Implementation of MIRCC over
ndnSIM
In order to evaluate the performance of MIRCC
described in the previous section, we implemented it
over the ndnSIM simulator version 1.0. The reason
we used this version is that we reused the coarse-
gained clock implementation in our previous paper.
We implemented MIRCC in the following way.
(1) Add R(t) Parameter in Data Packet
In order to convey R(t) in a Data packet, we defined
the corresponding parameter, m_rate, and the
methods to access and modify it, in files
model/ndn-data.{h,cc}. Besides, the
methods for formatting a Data packet,
Serialize() and Deserialize(), is modified
in model/wire/ndnsim.cc.
(2) Implement a Method Calculating R(t)
A method called CalculateRate() is
implement-ed in utils/ndn-limits.cc. This
method is invoked every T interval, and calculates
R(t) according to equations (1) through (5) specified
above. Here, we need to mention that y(t) is given by
dividing the number of received Interest packets by T,
that the leaky bucket size is used as g(t), and that η=1
in this case.
(3) Add Various Functions in Interest/Data
Handling
Interest and Data packets are handled in file
model/fw/ndn-forwarding-strategy.cc.
We added the following functions in this file.
Counting received Interest packets.
Evaluating smoothed RTT at receiving Data
packets.
Setting R(t) in a Data packet if the
corresponding value in the Data packet is larger
than the calculated R(t).
(4) Behaviour of Consumer
A consumer sends Interest packets according to the
reported R(t) in Data packets. We implemented this
kind of consumer as a new class called
ConsumerLi.

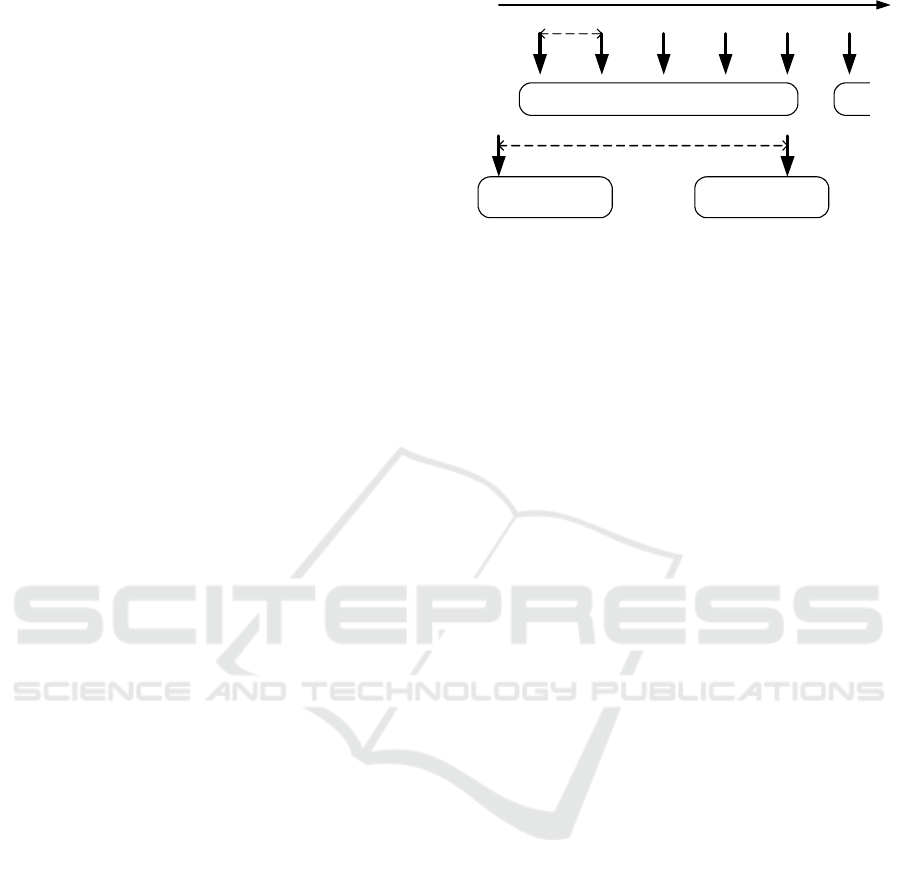

Figure 1: Implementation scheme of coarse-grained clock
system in a consumer.
3.2 Implementation of Coarse-grained
Clock based MIRCC
In the original NDN, the rate control in the consumer
is implemented as follows. The sending of Interest
packets with a specific rate is done in the
ScheduleNextPacket() method of the
ConsumerLi class. In this method, the
SendPacket() method of the Consumer class,
which is the superclass, is invoked periodically,
every 1.0/m_frequency seconds. The
SendPacket() method sends one Interest packet
actually.
We emulated a course-grained clock system in the
Consumer class in the following way (see Figure 1).
A clock system with longer tick, such as 100
msec, is implemented in the ConsumerLi
class. It calls itself periodically with the
Schedule() method of the Simulator
class.
We also introduced a queue storing Interest
packets temporarily. This queue is implemented
using the list class.
In the SendPacket() method, Interest
packets are stored in the queue, instead of being
sent actually.
When the longer clock tick is invoked, all the
queued Interest packets are transmitted actually.
In the router side in MIRCC, we implemented a
coarse-grained clock system, by assigning a large
value, such as 100 msec, in the interval T. Basically,
we assumed that the longer tick in a consumer and T
in a router take the same value. We also evaluate the
cases when the longer tick and T take different values.
ti
me
1/m_frequency sec
queuing Interest packets
long term clock
sending queued
Interest packets
sending queued
Interest packets
A Study on Performance of Explicit Rate Report based Congestion Control under Coarse-grained Clock Management
85

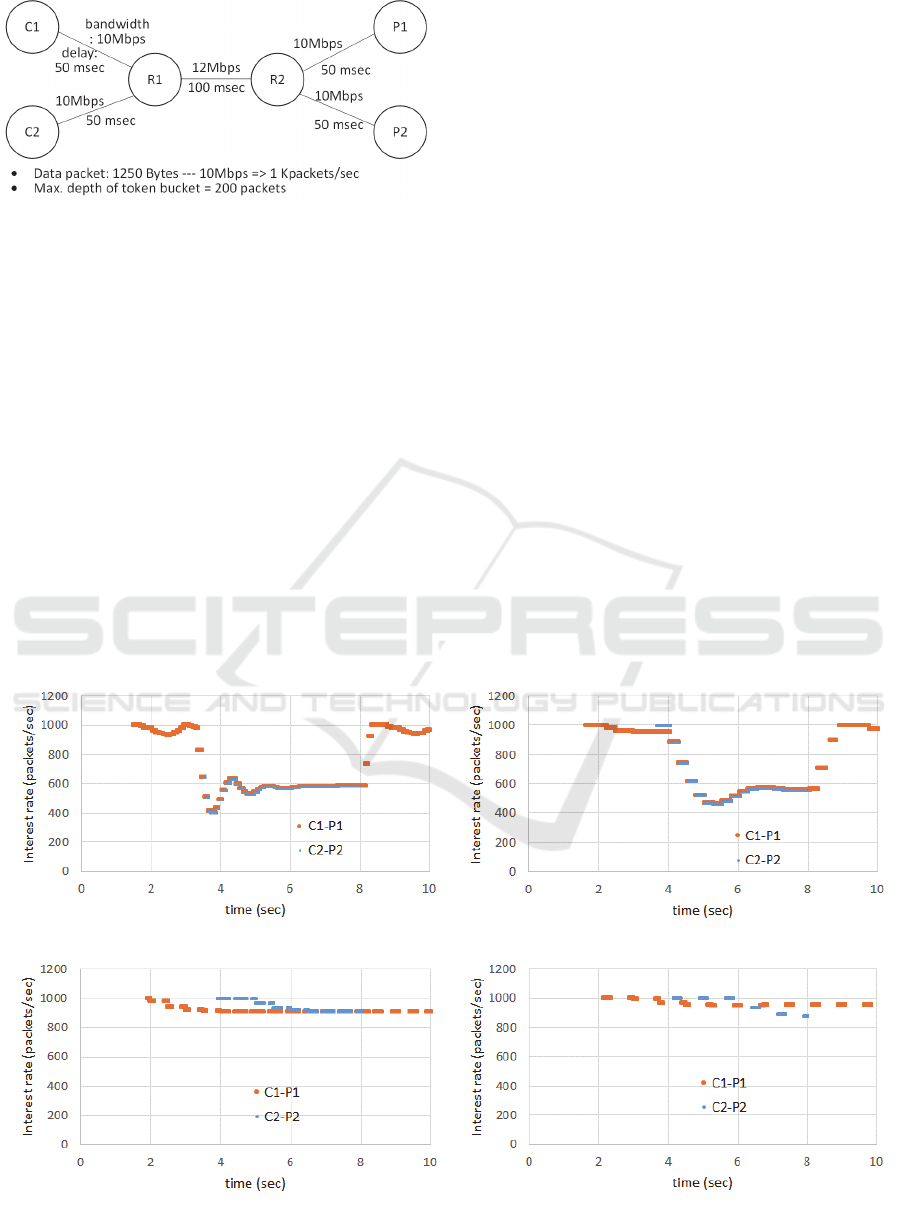

Figure 2: Network configuration for performance
evaluation.
4 EXPERIMENT RESULTS
4.1 Experimental Setup
The network configuration used in this evaluation is
shown in Figure 2, which is a dumbbell configuration
where two consumers (C1 and C2) and two producers
(P1 and P2) are connected through two routers (R1
and R2). The bandwidth and delay between a
consumer and a router, and between a router and a
producer are 10Mbps and 50 msec, respectively.
Those between routers are 12Mbps and 100 msec,
respectively. The length of a Data packet is 1250
bytes, and so the link speed 10Mbps and 12Mbps
corresponds 1,000 packets/sec and 1,200 packets/sec,
respectively. The depth of a token bucket used for
policing the Interest packet flow is set to 200 packets
in consumers and routers.
Under these conditions, we evaluated the cases
that the coarse-grained clock has 100 msec, 250 msec,
500 msec and 750 msec interval values. In all the
evaluation runs, consumer C1 transmits Interest
packets to producer P1 between time 1 sec and 10 sec,
and consumer C2 sends Interest packets to producer
P2 between time 3 sec and 8 sec. In this evaluation,
cache is not used.
4.2 Results of Performance Evaluation
First of all, we evaluated the performance when the
longer tick in consumers and interval T in routers
have the same value. Figure 3 shows the results,
where the time interval value is set to 100 msec, 250
msec, 500 msec, and 750 msec. The graphs show the
Interest sending rate at consumers C1 and C2.
The result in Figure 3(a) corresponds to the case
that the time interval is 100 msec. In the beginning,
the Interest sending rate at C1 takes the value around
1,000 packets/sec although there is little fluctuations.
When C2 starts the communication the Interest
sending rates at C1 and C2 go to 600 packets/sec, with
some fluctuations. This result shows that two flows
from C1 and C2 share the bandwidth of the bottleneck
link evenly. It is considered that MIRCC performs
well, even if the time interval is relatively large.
(a) time interval = 100 msec. (b) time interval = 250 msec.
(c) time interval = 500 msec. (d) time interval = 750 msec.
Figure 3: Results when longer tick and interval T are equal.
DCNET 2020 - 11th International Conference on Data Communication Networking
86
(a) interval T = 100 msec. (b) interval T = 250 msec.
(c) interval T = 500 msec. (d) interval T = 750 msec.

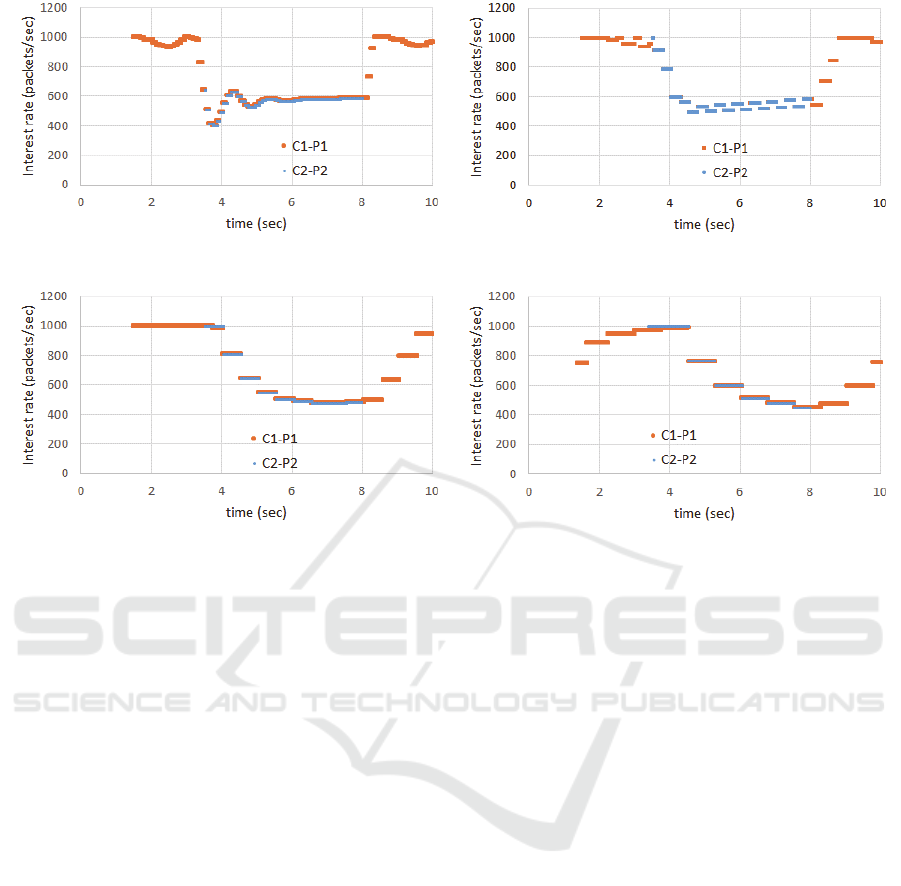

Figure 4: Results when longer tick is set to 100 msec.
Figure 3(b) shows the result in the case that the
time interval is 250 msec. The result seems to be
similar with the case of 100 msec. The difference is
the convergence to 600 packets/sec when C2 starts
the communication takes larger period, around 2 sec.
In contrast these results, those in Figures 3(c) and 3(d)
show a catastrophic situation. Even if C2 starts its
session, the Interest sending rates in C1 and C2 keep
1,000 packets/sec as if the individual consumer
communicates alone. These results indicate that the
MIRCC mechanism does not work well. It should be
noted that the time interval values in those cases are
larger than RTT (400 msec) between the consumer
and the producer.
Next, we evaluated the performance when the
longer tick in consumers is set to 100 msec and
interval T in routes has large values. Figure 4(a) is
the result when T is 100 msec, and this is the same as
the result shown in Figure 3(a).
Figure 4(b) is the result when interval T is 250
msec. Comparing with the result in Figure 3(b), the
tendency of Interest sending rate is similar. In both
cases, the rates in two consumers are set to 600
packets/sec while C2 communicates with P2.
The results in Figures 4(c) and 4(d) are completely
different from those in Figures 3(c) and 3(d). When
the longer tick in consumers is set to 100 msec, the
MIRCC mechanism works well even if interval T in
routers is set to 500 msec or 750 msec.
5 CONCLUSIONS
In this paper, we showed the performance evaluation
of MIRCC, which is an effective rate-based
congestion control mechanism, under the condition
that the coarse-grained clock system is used in
consumers and routers. The congestion control
mechanism is an important issue in NDN, and the
MIRCC is considered as one of the effective
approaches. However, MIRCC requires a precise
system clock and it is an implementation issue for off-
the-shelf computers. We evaluated how the Interest
sending rate is realized when the coarse-grained
system clock is used in consumers and routers. The
evaluation results showed that a large clock interval
degrades the performance of MIRCC. The results
also showed that the clock granularity in consumers
for controlling Interest sending is more important
than the control interval used by MIRCC in routers.
Even if the interval values in routers is large, the
performance of MIRCC is kept well when the system
clock interval value is small in consumers.
A Study on Performance of Explicit Rate Report based Congestion Control under Coarse-grained Clock Management
87
REFERENCES
Cisco public White paper, 2020. Cisco Annual Internet
Report (2018-2023). https://www.cisco.com/c/en/us/
solutions/collateral/executive-perspectives/annual-
internet-report/white-paper-c11-741490.pdf.
Jacobson, V., et al., 2009. Networking Named Content. In
Proc. of CoNEXT ’09, pp. 1-12.
Ren, Y., Li, J., Shi, S., Li, L., Wang, G., Zhang, B., 2016.
Congestion control in named data networking - A
survey. Computer Communications, vol. 86, no. 15, pp.
1-11.
Afanasyev, A., Tilley, N., Reiher, P., Kleinrock, L., 2010.
Host-to-Host Congestion Control for TCP. IEEE
Commun. Surveys & Tutorials, vol. 12, no. 3, pp. 304-
342.
Ramakrishnan, K., Floyd, S., Black, D., 2001. The Addition
of Explicit Congestion Notification (ECN) to IP. IETF
RFC 3168.
Carofiglio, G., Gallo, M., Muscariello, L., 2012. ICP:
Design and Evaluation of an Interest Control Protocol
for Content-Centric Networking. In Proc. of IEEE
INFOCOM 2012, pp. 304-309.
Saino, L., Cocora, C., Pavlou, G., 2013. CCTCP: A
Scalable Receiver-driven Congestion Control Protocol
for Content Centric Networking. In Proc. of IEEE ICC
2013, pp. 3775-3780.
Zhang, F., Zhang, Y., Reznik, A., Liu, H., Qian, C., Xu, C.,
2014, A Transport Protocol for Content-Centric
Networking with Explicit Congestion Control. In Proc.
of IEEE ICCCN 2014, pp. 1-8.
Liu, Y., Piao, X., Hou, C., Lei, K., 2016. A CUBIC-Based
Explicit Congestion Control Mechanism in Named
Data Networking.In Proc. of IEEE CyberC 2016, pp.
360-363.
Schneider, K., Yi, C., Zhang, B., Zhang, L., 2016. A
Practical Congestion Control Scheme for Named Data
Networking. In Proc. of ACM ICN 2016, pp. 21-30.
Cheng, Y., Afanasyev, A., Moiseenko, I., Zhang, B., Wang,
L., Zhang, L., 2013. A case for stateful forwarding
plane, Computer Communications, vol. 36, no. 7, pp.
779-791.
Rozhnova, N and Fdida, S., 2014. An extended Hop-by-
Hop Interest shaping mechanism for Content-Centric
Networking. In Proc. of IEEE GLOBECOM 2014, pp.
1-7.
Zhang, J., Wu, Q., Li, Z., Kaafar, M., Xie, G., 2015. A
Proactive Transport Mechanism with Explicit
Congestion Notification for NDN. In Proc. of IEEE
ICC 2015, pp. 5242-5247.
Mahdian, M., Arianfar, S., Gibson, J., Oran, D., 2016.
Multipath-aware ICN Rate-based Congestion Control.
In Proc. of ACM ICN 2016, pp. 1-10.
Fall, K. and Stevens, W., 1994. TCP/IP Illustrated,
Volume1; The Protocols, Second Edition. Addison-
Wesley.
Kato, T., Osada, K., Yamamoto, R., Ohzahata, S., 2018. A
Study on How Coarse-grained Clock System Influences
NDN Rate-based Congestion Control. In Proc. of
IARIA ICN 2018, pp. 35-40.
Afanasyev, A., Moiseenko, I., Zhang, L., 2012. ndnSIM:
NDN simulator for NS-3. NDN, Technical Report
NDN-0005.
Nichols, K. and V. Jacobson, V., 2012. Controlling Queue
Delay. ACM Magazine Queue, vol. 10, issue 5, pp. 1-
15.
ITU-T, 1999. B-ISDN asynchronous transfer mode
functional characteristics, Series I: Integrated Services
Digital Nework, Recommendation I.150.
Yamamoto, Y., 2008. Estimation of the advanced TCP/IP
algorithms for long sistance collaboration. Fusion
Engineering and Design, vol. 83, issue 2-3, pp. 516-519.
NDN, Overall ndnSIM documentation; Forwarding
Strategies. http://ndnsim.net/1.0/fw.html.
DCNET 2020 - 11th International Conference on Data Communication Networking
88
