An in-Depth Requirements Change Evaluation Process using

Functional and Structural Size Measures in the Context of Agile

Software Development

Hela Hakim

, Asma Sellami

and Hanêne Ben Abdallah

Mir@cl Laboratory, University of Sfax, FSEGS, BP 1088. 3018, Sfax, Tunisia

Mir@cl Laboratory, University of Sfax, ISIMS, BP 242. 3021, Sfax, Tunisia

Higher Colleges of Technology, Dubai, U.A.E.

Keywords: Requirement Change RC, Functional Change FC, Structural Change SC, Functional Size Measurement

FSM, Structural Size Measurement SSM, User Story Description, COSMIC-ISO 19761, Structural Size

Measurement Method, Scrum, User Stories US, Agile.

Abstract: The Agile methodology known as Scrum is increasingly used in software development as a response to the

challenges of managing frequent requirements changes. However, a number of agile-based projects yield

unsatisfactory results mainly because of a lack of a well-defined change evaluation process. In fact, such a

process should be set-up early in the Software Life-Cycle (SLC). This paper proposes an in-depth evaluation

process for requirements changes affecting either an ongoing sprint or an implemented sprint. This evalua-

tion process involves two levels of details: a functional change level and a structural change level based, re-

spectively, on the COSMIC functional size measurement method –ISO 19761 and the Structural Size Meas-

urement Method. We investigate the use of both COSMIC FSM and SSM methods for rapid and detailed

evaluation-based measures of a requirement change request.

INTRODUCTION

Compared to other projects, software projects are

more difficult to manage due mainly to invisibility,

complexity, conformity and changeability of the

software products (Fairley, 2009). In particular, at

the beginning of the Software Life-Cycle (SLC),

requirements are often unclear, ambiguous, and

incomplete. Hence, they may change frequently

throughout the Software Life-Cycle (SLC). In

addition, other reasons may incur requirement

changes (e.g., missing functionality, defects

corrections, etc.) (Bano, 2012) and (Shalinka et al.,

2018). These SLC early changes have lower cost

than requirements changes that occur at the later

SLC phases (Fairley, 2009).

Overall, researchers have adopted two strategies

to reduce the cost of software requirements changes:

anticipate changes, and use flexible models more

adapted to embrace changes, such as Agile methods

(Sellami et al., 2018) (Abdalhamid et al., 2017).

Currently, agile methods (e.g., extreme

programming, Scrum, crystal, etc.) are increasingly

being adopted in software organizations. Two of the

most popular agile methods are eXtreme

Programming and Scrum (Hamed et al., 2013)

(Dikert, 2016). These are more adapted to the

software evolution and encourage an active

collaboration between development teams and the

product owner. Although Scrum is gaining

popularity in comparison with other agile methods,

61% of agile projects end in failure (Gilb, 2018).

This is due mainly to the lack of comprehensive

documentations in Scrum (Furtado, 2016), the

inappropriate application of Scrum concepts, the

limited use of standardized measures, and the poorly

change evaluation. For a successful project

development, Gilb reported that it is important to use

standardized measurement on reviewing

development progress, re-evaluating user stories

priorities, etc. (Gilb, 2018).

More specifically, requirements are seen at a

high level of description in the functional level

(black box), while these same requirements are

described in detail in the structural level (white box).

Consequently, a well-defined change evaluation

process based on both functional and structural size of

a change is required at any step of the Scrum process,

even within an ongoing sprint. In this paper, we will

focus on both ongoing and implemented sprints.

Hakim, H., Sellami, A. and Ben Abdallah, H.

An in-Depth Requirements Change Evaluation Process using Functional and Structural Size Measures in the Context of Agile Software Development.

DOI: 10.5220/0009876003610375

In Proceedings of the 15th International Conference on Software Technologies (ICSOFT 2020), pages 361-375

ISBN: 978-989-758-443-5

361

In practice, changes requested throughout the

Scrum process are often evaluated by “expert

judgment”. The development teams may have the

required knowledge about the changed product and

the required modifications that must be done with

respect to the change request. However, a change

evaluation that is based only on the expert judgment

is hardly criticized because there is no guarantee of

their effectiveness (Abran, 2015).

Thus, we propose an in-depth requirements

changes evaluation process that is based on the

standardized COSMIC functional size measure (ISO

19761) as well as the structural size measure (Sellami

et al., 2015) to achieve more accurate results. An

appropriate evaluation of a change request will help

the decision makers responding to the change request.

The remainder of this paper is organized as

follows: Section 2 first overviews the Scrum

process, the COSMIC FSM method (ISO/IEC

19761), and the structural size measurement method.

Secondly, it discusses some related works. Section 3

presents our proposed evaluation process that

development teams and other stakeholders can use to

make appropriate decisions about a change request.

Section 4 evaluates our approach. Section 5

discusses several threats to validity. Finally, Section

6 summarizes the presented work and outlines some

of its possible extensions.

BACKGROUND

2.1 Overview of the Scrum Process

Scrum process is a framework for a complete project

management method developed and sustained by

Scrum creators: Ken Schwaber and Jeff Sutherland

(Ken Schwaber, et al., 2017). It allows the

management of the development of complex

applications. It involves Scrum Teams and their

associated roles, events, artifacts, and rules. Each

component within this framework serves a specific

purpose and is essential to Scrum’s success and

usage. It allows a better communication across the

development team and the product owner. For a

successful Scrum project, the development team

must learn how to manage themselves efficiently. In

addition, the product owner must be actively

involved in every single phase of the software

development. Scrum appears to work better with

teams of 5 to 9 people, with large projects being

typically handled by several scrum teams.

Nevertheless, some companies adapt Scrum for

large-scale projects (Dikert et al., 2016). The Scrum

process, illustrated in Figure 1, starts with a high-

level definition of the project scope (requirements).

Scrum uses the product backlog as a list of stories

created by the product owners based on their initial

requirements that clients/stakeholders/customers

describe. Indeed, these stories may increase or

decrease in size based on decisions made throughout

the software development process. The list of stories

is prioritized by the product owner to be used as an

iterative input for different sprints (Iterations)

(Schwaber et al., 2004). Thus, the active

involvement of the product owner is mandatory to

explain, elucidate the next iteration that should be

implemented and evaluate/test the work done.

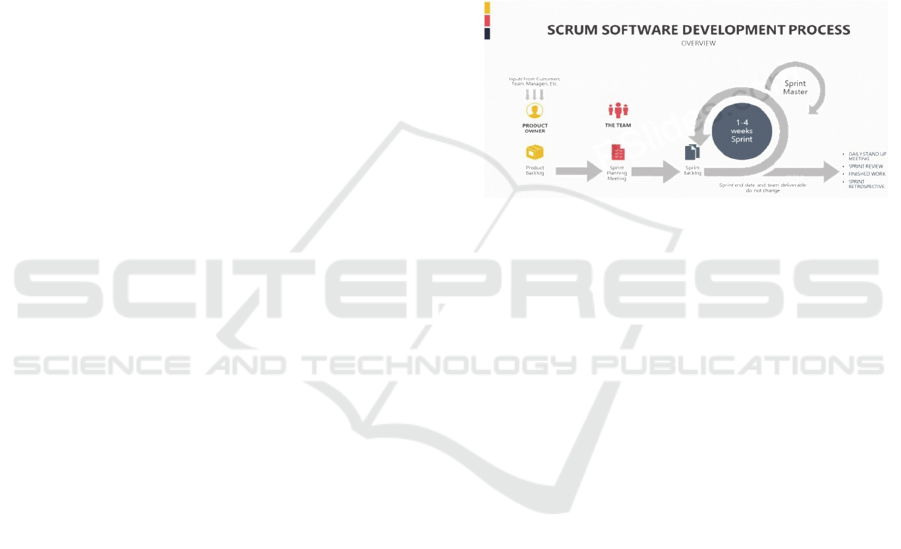

Figure 1: Scrum software development process.

For a single sprint, four types of meetings

should be held: 1-sprint planning meeting, daily

Scrum, sprint retrospective meeting, and sprint

review meeting. The stories to be implemented in a

sprint are captured during the planning meeting.

They are selected from the product backlog

according to their priorities and placed in a sprint

backlog. In practice, usually, only the first two or

three sprints are identified and planned. Daily stand

up meetings are held during the sprint to discuss:

what has been done, what to do, and what are the

issues (Cohn, 2004) (Ken Schwaber et al., 2017).

Each sprint is ended by a sprint retrospective

meeting, during which the team reviews the sprint

and decides which change will be made, and how

they can improve their work in the next sprint.

As we mentioned previously, Scrum uses the

user stories to represent the user requirements at

different levels of details. A user story is a

requirement written in a specific way illustrating the

type of user, feature or functionality that the user

want to do in order to realize some benefit (Cohn,

2004). The user story description adapted in practice

is presented below. This description identifies who

will do the user story or find it valuable, What it can

be used for, and Why it is valuable or important. “As

a user I want to … So that …”.Typically,

development team members use the user story point

to determine the effort required for the

ICSOFT 2020 - 15th International Conference on Software Technologies

362

accomplishment of a user story compared to other

user stories in the same product backlog. Although

its popularity, user story point is not a good

estimation technique. It has been widely criticized

(cf., (Berardi et al., 2011), (Commeyne et al.,2016),

(Desharnais etal.,2012), etc.) In fact, user story point

is only meaningful for a specific development team

and project. Thus, it is crucial to use a standardized

measurement method (such as the COSMIC FSM

method) as a means for sizing the work product

(e.g., the user story). It is also required to use a

combination of COSMIC method with structural

size measurement method to exhibit a fine-grain

measure of requirements. Many situations require a

detailed description of requirements to derive

estimations that are more accurate. In addition, the

study in (Commeyne et al., 2016) reports on the

performance of estimation models built using Story

Points and COSMIC Function Points. The study

showed that the use of COSMIC leads to estimation

models with much smaller variances and

demonstrates that the use of COSMIC allows

objective comparison of productivity across tasks

within a Scrum environment. For these reasons, we

selected to use not only COSMIC FSM method but

also structural size method for sizing respectively

functional changes and structural changes, and

therefore, provide a real and precise evaluation of

the change request.

2.2 COSMIC FSM Method–ISO19761

COSMIC –ISO 19761 considers that a FUR involves

a number of functional processes each of which is

detailed by a set of sub-processes of two types: data

manipulation and data movement. A data

manipulation sub-process processes data

internally/locally. In contrast, a data movement sub-

process moves a data group from/to a functional user

(respectively Entry and eXit data movement) or

from/to a persistent storage (respectively Read and

Write data movement). The software size is

measured by counting one CFP (COSMIC Function

Point) for each data movement. The size of each

functional process is measured separately, and the

sizes of all functional processes are added to provide

the whole software size.

Compared to other Functional Size Measurement

methods, COSMIC is the most straightforward

method that measures the size of a change to

software (COSMIC, 2020). It defines a functional

change as “any combination of additions of data

movements or of modifications or deletions of

existing data movements” (COSMIC, 2017). To

measure the Functional Size of a Functional Change,

referred to as FS(FC), COSMIC attributes one CFP

for each changed data movement, irrespectively of

the change type (addition, deletion, or modification).

FS(FC) is given by the aggregation of the sizes of all

the added, deleted and modified data movements.

The functional size of the software after a functional

change is given as the sum of all added data

movements minus the functional size of all removed

data movements (COSMIC, 2017).

2.3 Structural Size Measurement

Method

The Structural Size Measurement (SSM) is a

measurement method proposed by (Sellami et al.,

2015) for UML sequence diagrams. It was designed

by following the measurement process

recommended in (Abran, 2010). The main reason for

creating such method is the need of detailed

measures to quantify data manipulation.

The proposed Structural Size Measurement is

applied to the combined fragments of a sequence

diagram to measure its Structural Size (SS). The SS

also called control structural size to refer to the

structural size of both Conditional Control

Structures (CCS) and Iterative Control Structures

(ICS), described respectively through the alt, opt and

loop constructs. The SS of a sequence diagram is

defined at a fine level of granularity (i.e., the size of

the flow graph of its control structures).

The use of SS requires the identification of two

types of data manipulation depending on the

structure type CCS (alt and opt combined fragments

in the flow graph) and/or ICS (loop combined

fragment in the flow graph).

Each data manipulation is equivalent to 1 CSM

(Control Structure Manipulation) unit. The sequence

structural size is computed by adding all data

manipulations identified for every flow graph.

2.4 Related Work

Researchers and practitioners agree that agile

development provides a rapid response methodology

to handle requirements change. Thus, many research

studies have addressed the issues of managing

requirement changes in Scrum process

In Scrum, a change priority in the backlog is the role

of the Product Owner. In fact, the product backlog is

the Product Owner’s tool. This implies that the

elements of the backlog are ordered by priority.

A Product Owner may need to change the order

of priority for various reasons among which we cite

An in-Depth Requirements Change Evaluation Process using Functional and Structural Size Measures in the Context of Agile Software

Development

363

the following:

 each time a story is added to the backlog, it

must be given higher priority over other

elements. It is not necessarily placed last;

 the better knowledge of a story can lead to

change its priority;

 the discovery of a bug or a problem can lead

to a review of the priorities;

 estimating the cost of developing a story can

have an impact on its priority; and

 planning a sprint can change priorities to

adjust the scope to team engagement

Change evaluation process followed by a

Decision-making process in agile project has

received an increased interest in recent years. In fact,

the output of one process (change evaluation

process) is the input of the second process

(decisions-making process). For instance, Drury-

Grogan and O’Dwyer explored the decision-making

in Scrum process and identified the factors that may

influence the decisions made during the sprint

planning and daily Scrum meetings (Drury-Grogan

et al., 2013).In practice, Scrum teams follow

sometimes a three-step process for making-decisions

during the sprint planning and daily Scrum

meetings: problem identification, solution

development, and selection of best alternative. They

make decisions in a collaborative manner and they

may be influenced by three main factors, according

to (Drury-Grogan et al., 2013): Sprint duration,

experience and resource availability. However, the

final decisions are usually made based on the Scrum

team members’ experiences. Although expert

judgment is much closer to reality, it is often

considered as subjective (Abran, 2015).

It is less transparent compared to any other

techniques and depends mainly on the experts’

skills. Consequently, it is important to provide

quantitative values (output of change evaluation

process) as measurement results (derived from the

use of both COSMIC functional and structural size

measurement methods). These measurement results

should both be accurate, and cover the functional

and structural levels.

In addition, there are many studies that addressed

the issues of managing requirements changes not

only in Scrum process but also in other areas of

development (such as distributed agile) and its

exploitation beyond its traditional use.

For instance, in agility many types of problems

have been identified. In (Lloyd et al., 2017), the

authors addressed the problem of requirements

changes during the software development in

distributed agile development. They proposed a

supporting tool to help managing requirements

changes in distributed agile development. On the

other hand, (Stålhane et al., 2014) proposed to

analyze the impact of technical change requests.

They focused on the safety requirements. Regarding

the use of functionality measures in agile project,

(Commeyne et al, 2016) proved that the use of ISO

standards to measure the size of agile projects is

mandatory. This study demonstrated the reliability

of COSMIC in estimating the size and therefore, the

effort required to accomplish the defined

requirements. (Sellami et al., 2018) proposed a

COSMIC-based tool for evaluating functional

changes within the Scrum process. This tool assists

the decision-makers to decide whether to accept,

deny or defer a given functional change request.

These findings are summarized in Table 1.

Table 1: Summary of the proposals, focusing on changes

in Scrum.

Study Focus Type Findings

(Lloyd et al.,

2017)

Requirements

change

management in

distributed agile

development

Experimental A supporting

tool

(Commeyne

et al.,2016)

Evaluation of

teams’ productivity

using COSMIC

Experimental COSMIC is

more reliable

in estimating

models with

much smaller

variances

(Alsalemi

and

Yeoh, 2015)

Product backlog

change

management and

requirement

traceability

Survey Lack of

requirement

change

traceability

(

Stålhane

et al., 2014)

Impact of technical

changes in safety

requirements

Exploratory A supporting

tool that

ensures the

validity of

safety

(Sellami et

al., 2018)

Evaluation of

functional changes

in Scrum process

using COSMIC

Exploratory Quantify FC

request to

make

appropriate

decisions

Our study In-Depth

Requirements

Changes Evaluation

Process based on

functional and

structural size

methods

Exploratory Quantify RC at

functional and

structural level

to help in

making

accurate

decisions

From Table 1, we noticed that some studies

focused on functional changes (cf., (Lloyd, 2017)),

while other studies focused on technical changes

(cf., (Stålhane et al., 2014). However, changes in

these works have been always considered as new

requirements. In addition, none of the previous

ICSOFT 2020 - 15th International Conference on Software Technologies

364

studies used in-depth requirements changes

evaluation process. This is due to the lack of detailed

measurements and poorly defined scope (or

requirements change requests). However, it is

important to evaluate requirements’ changes at two

levels of details and provide useful and accurate

information for the right audience (e.g., the product

owner or the development team).This will certainly

help during the software maintenance as well as for

new software development.

In practice, usually, Scrum teams do not allow

changes in the middle of iteration (sprint), since

developers may already have preceded the

implementation. In fact, practitioners consider that

changes during an ongoing sprint may introduce

defects. However, other authors (Sellami et al.,

2018) believe that some changes must be authorized

during an ongoing sprint. For example, a change

request that proposes the deletion of a user story

selected in the current sprint must be authorized.

Since it is useless to implement a user story that will

be deleted in the next sprint. Nevertheless, changes

introduced during an ongoing sprint need

prioritization. In this paper, we believe that an in-

depth change evaluation within the Scrum process

will increase its flexibility.

AN IN-DEPTH EVALUATION

PROCESS OF REQUIREMENTS

CHANGES

This section describes an in-depth requirements

changes evaluation process. We will focus on how to

evaluate a requirement change request that occurs

within the Scrum process and that it may affect

functional requirements and-or structural

requirements. In Scrum, requirements are

represented in a user story format and epics. This

format does not represent all the COSMIC FSM

concepts (e.g., data movement’s identification) nor

the SSM concepts (e.g., data manipulations). Thus,

we propose a detailed description of a user story that

provides the information required to apply both

COSMIC (COSMIC, 2020) and structural size

method (Sellami et al., 2015). Thereafter, we

propose a number of algorithms to provide size-

driven prioritizations of user stories (when

requirements changes occur).We also propose a set

of measurement formulas to be used for sizing

requirements as described in the user stories formats

at different levels of details (i.e., functional and

structural levels).

The six generic steps described herein provide a

structured in-depth evaluation process that

development teams use to evaluate the status of

requirements changes. These steps are presented

below.

1. Refining and grooming the User Story

description

2. Mapping of the US concepts with

measurement concepts

3. Sizing requirements from the US description

4. Prioritizing US in the product/sprint backlog

5. Evaluating the status of requirements changes

requests

6. Facilitating ‘good’ decision-making

Each of the change evaluation steps is described in

the following sections.

3.1 Step 1: Refining and Grooming the

User Story Description

Refining the user story description sets the stage for

applying software size measurement methods.

Clearly, well-defined requirements changes avoid

ambiguity and misinterpretations. It can be evaluated

with a high level of accuracy. In contrast, unclear

requirements changes are prone to different

interpretations and judgments. They can be

evaluated approximately. In (Ken Schwaber et al.,

2017), a set of rules are established to provide the

meaning of a “good” User Story. It should be: i)

Independent: there is no independency from other

User Stories in the backlog (it is sufficient on its

own to avoid dependencies with other User Stories.

Because any dependency generates planning and

testing issues.) ii) Negotiable: it is a support for

discussion with a view to improving the initial need

(It can be modified and refined until it is integrated

into an iteration or Sprint). iii) Valuable: the creation

of one User Story must perform service to the user

(It only makes sense if it brings business value).iv)

Estimable: it must be well-defined to be easily

estimable. v) Small: it must be achievable on a

sprint, either sufficiently small or cut so that it can

be deployed on a single sprint and minimize the

tunnel effects over several sprints. And, vi) testable:

it must tell a story from which the acceptability

criteria and the tests must flow clearly to facilitate its

validation.

Different templates are proposed to determine

what the users will need the software for (Sellami et

al., 2018). However, there is no standardized

representation of a user story. Some rules are

proposed to define what Is a ‘good’ user story, but it

is defined at a high level of details (Desharnais et al.,

An in-Depth Requirements Change Evaluation Process using Functional and Structural Size Measures in the Context of Agile Software

Development

365

2011). This is not sufficient for an in-depth change

evaluation.

Thus, we propose a detailed description of a user

story that expands the previous template (Sellami et

al., 2018), and represents all the information

required to apply not only the COSMIC FSM

method but also the structural size measurement

method (see Table 3). Some of the detailed US

statements that need to be described includethe

following:

 <If(condition)><Then>

<User/System><ActionType: Entry, Read, Write,

eXit, Expletive><DataTransferred><Action>

It describes the first type of alternative scenario in

a detailed description of a user story. This

typically means that there is an option and the

corresponding concept in the SSM method is the

‘opt’ combined fragment.

 <If(condition)>

<User/System><ActionType: Entry, Read, Write,

eXit, Expletive><DataTransferred><Action>

<else>

<User/System><ActionType: Entry, Read, Write,

eXit, Expletive><DataTransferred><Action>

It describes the second type of alternative

scenario in the detailed description of a user story.

That means that there are two alternatives (i.e.,

two scenarios), and the corresponding concept in

the SSM method is the ‘alt’ combined fragment.

 <If(condition)>

<User/System><ActionType: Entry, Read, Write,

eXit, Expletive><DataTransferred><Action>

<User/System><ActionType: Entry, Read, Write,

eXit, Expletive><DataTransferred><Action>

<else>

<User/System><ActionType: Entry, Read, Write,

eXit, Expletive><DataTransferred><Action>

It describes the third type of alternative scenario

in the detailed description of a user story. This

means that there are more than two alternatives

(i.e., more than two scenarios), and the

corresponding concept in the SSM method is also

the ‘alt’ combined fragment.

 <Loop(condition)[n]>

<User/System><ActionType: Entry, Read, Write,

eXit, Expletive><DataTransferred><Action>

It describes the iterative scenario in the detailed

description of a user story. This means that there

are n iterations to be executed (i.e., iterative

scenarios), and the corresponding concept in the

SSM method is the ‘loop’ combined fragment.

3.2 Step 2: Mapping of the User Story

Concepts with the Measurement

Concepts

Step 1 produces a detailed description of a user story

(i.e., a new refined format of a US). This description

serves as the basis for sizing requirements/

requirements changes at different levels of details.

For this reason, it is important to map the US

concepts with those of COSMIC and structural size

methods.

Table 2 presents a mapping of US concepts (as

described in step 1) with those of COSMIC

functional and Structural size methods.

Table 2: Mapping of US concepts with measurements

methods’ concepts.

User Story COSMIC FSM

Concepts

SSM

Concepts

<UserType> Functional User or

System or

Persistent storage

Not Applied

<Object> Object of interest Not Applied

<Action> Data movement Not Applied

<value or expected

benefit>:

Optional Not Applied

<NFR> Optional Not Applied

Functional user,

System, and

Persistent storage.

Not Applied

<DataTransfered> Data Group Not Applied

<ActionType> Data movements

(Entry,Read,

Write,eXit)

Not Applied

<Action> Data movement Not Applied

<Then >

Not Applied Optcombined

fragment(one

alternative in the

flow graph)

<else >

Not Applied Altcombined

fragment (two

alternatives in the

flow graph)

<else >

Not Applied Altcombined

fragment (more than

two alternatives in

the flow graph)

<Loop

(condition)[n]>

Not Applied LoopCombined

fragment(n

iterations in the

flow graph)

ICSOFT 2020 - 15th International Conference on Software Technologies

366

3.3 Step 3: Sizing Requirements from

the User Story Description

Once the requirements/ requirements changes are

clearly identified and described in the US format,

software size measurements can be applied. Thus,

sizing requirements or sizing requirements changes

can be determined according to a set of measurement

formulas that are based on the refined US format.

Using measurement formulas will facilitate the

measurement process. Based on the established

formulas, requirements functional size with their

corresponding structural size is easily generated. Note

that the requirements size (either requirements

functional size or requirements structural size) derived

from the product backlog are different from the

requirements size derived from the increment product.

Because, most often changes occur during the Scrum

process (

Schwaber et al, 2017). Hence new functionality

may appear with or without a structural requirement,

while others may be modified or deleted. The

product/sprint backlog/USfunctional size and

respectively the product/sprint backlog/USstructural

size are determined using COSMIC functional size

measurement method and respectively the structural

size method. Of course, the Product backlog size

depends on the size of all sprints initially identified.

The functional size, respectively, the structural size of

the product backlog or the increment product is the

sum of all the functional sizes, respectively; the

structural sizes of all the sprints it includes (see

Equation 1 and Equation 1’).

𝐹𝑆



𝑃





∑〖

𝐹𝑆



𝑆



〗







(1)

𝑆𝑆



𝑃





∑

𝑆𝑆𝑆









(1’)

Where:

•

FS(P)is the functional size of the product

backlog or the increment product.

•

SS(P)is the structural size of the product

backlog or the increment product.

•

FS(S

) is the functional size of sprinti.

•

SS(S

) is the structural size of sprinti.

•

n is the number of sprints initially identified in

the case when sizing the product backlog or the

number of implemented sprints in the case

when sizing the increment product.

The functional size, respectively, the structural size of

a sprint is the sum of all the functional sizes,

respectively, the structural sizes of all the user stories

(US) it includes (see Equation2 and Equation2’).

𝐹𝑆



𝑆







∑

𝐹𝑆𝑈𝑆









(2)

𝑆𝑆



𝑆







∑

𝑆𝑆𝑈𝑆









(2’)

Where:

•

)

is the functional size of sprint

≤

•

SS(S

)is the structural size of sprint

≤

•

FS(US

)is the functional size of the US

•

SS(US

)is the structural size of the US

in S

•

m is

the

number of user stories in sprint S

Note that FS(US

)is the sum of all the functional

sizes of its actions(see Equation 3).TheSS( US

) is

the sum of all the Structural sizes of its alternatives

(conditional and iterative) (see Equation 3’).

𝐹𝑆𝑈𝑆





∑

𝐹𝑆

𝐴

𝑐𝑡









(3)

𝑆𝑆𝑈𝑆





∑

𝑆𝑆

𝐴

𝑙𝑡









(3’)

where

•

FS(US

) is the functional size of the

in S

•

SS(US

) is the structural size of the

in S

•

FS(Act

ijk

)is the functional size of action

Act

ijk

in US

≤

and1

≤

•

SS(Alt

ijk

) is the structural size of alternative

Alt

ijk

in US

≤

and1

≤

•

p is the number of actions in user storyj.

•

r is the number of Alternatives in user story j.

3.4 Step 4: Prioritizing User Stories in

the Product/Sprint Backlog

Prioritizing US that clearly states the product owners’

expectations is essential to software project success.

In Scrum, user stories are prioritized as requested

by the product owner. However, the product owner

perspective may not have enough knowledge about

the implementation details. Hence, ordering user

stories based only on priority is not sufficient. In

fact, the developer’s view is also important in the

user stories prioritization. Taking into account the

developer’s perspective is important to maximize the

business value released at the end of every sprint.

Therefore, it is important to adopt comprehensive

product owner/development team perspectives

according to three parameters: US importance, US

priority, and a combination of a US functional size

with its structural size. The priority of user stories is

defined by the product owner. For example, P(US1)

is more prior than P(US2), and P(US2) is more prior

than P(US3), etc.

The importance of a user story is defined by the

development teams and it can be Essential or

Desirable. For example, User stories importance

(noted by I(US1) and I(US2))in the same cluster of

classes (the same data base, service, etc.) address the

P(US1) that is put the US 1 on top priority.

An in-Depth Requirements Change Evaluation Process using Functional and Structural Size Measures in the Context of Agile Software

Development

367

same importance(i.e., I(US1)= I(US2)

then I(US1)

and I(US2) have the same importance(regardless of

there are Essential or desirable).

The US functional size is determined according

to COSMIC FSM method, while the US structural

size is determined using the structured size

measurement method.

Use of Algorithm 1 provides a basis for

prioritizing which user stories to select in the product

backlog. The Algorithm 1 can also be used to

reorganize user stories in an on-going sprint when

requirements changes occur.

Algorithm 1: Prioritizing user stories.

Aim: Prioritizing user stories taking into account

inputs defined as below.

Inputs: P(US) the priority of a User Story (US),

I(US) the importance of a US, FS(US) the functional

size of a US, SS(US) the structural size of aUS.

Outputs: User stories are organized by taking into

account their priorities, importance and then their

functional sizes and structural sizes.

BEGIN

1. If I(USi) == I(USj) && P(USi)!= P(USj) then

a. Select the more prior user story (US);

2. Else if I(USi) != I(USj) && P(USi) != P(USj) ||

P(USi) == P(USj) then

a. Select the most important (Essential)

3. Else if I(USi) == I(USj) && P(USi) == P(USj)

&& FS(USi) != FS(USj) && SS(USi) ==

SS(USj) then

a. Select the user story with minimum

functional size;

4. Else if I(USi) == I(USj) & P(USi) == P(USj) &

FS(USi) == FS(USj) & SS(USi) != SS(USj)

then

a. Select the user story with minimum

Structural size;

5. Else if I(USi) == I(USj) && P(USi) == P(USj)

&& FS(USi) != FS(USj) && SS(USi) !=

SS(USj) then

a. Select the user story with minimum

Structural size and minimum

functional size

6. Else

a. Select the user story that requires less

demand on resources (time or budget)

END

On the other hand, developers identify the status

of a user story that can be used to control the

development progress. Thus, the status of a user

story can be:

• New is the status of a user story in the

product backlog.

I(US1) that is put the US 1 on top importance

• To do is the status of a user story assigned to

an on-going sprint

• In Progress is the status of a user story

currently being implemented?

• To Verify is the status of a user story ready

for testing.

• Done is the status of a user story tested with

success in the customer environment.

When changes occur throughout the Scrum

process, it may affect US independently of its status.

Thus, we keep only two main status “done” and

“undone” (including “new”, “to do”, “in progress”,

and “to verify”).

3.5 Step 5: Evaluating Requirements

Changes Requests Status

This step is the basis core of the RC evaluation

process. It focuses on how to evaluate the status of a

Requirements Changes request. RC request may occur

within an Ongoing Sprint or an Implemented Sprint.

Each identified RC is evaluated separately (i.e., when

only FC occurs, or when only SC occurs, or when

both FC and SC occur) as depicted in Figure 2. RC

may be handled with or without extra cost/time.

Consequently, every RC needs to be evaluated

based on the Functional Change (FC) and its

corresponding Structural Change (SC).

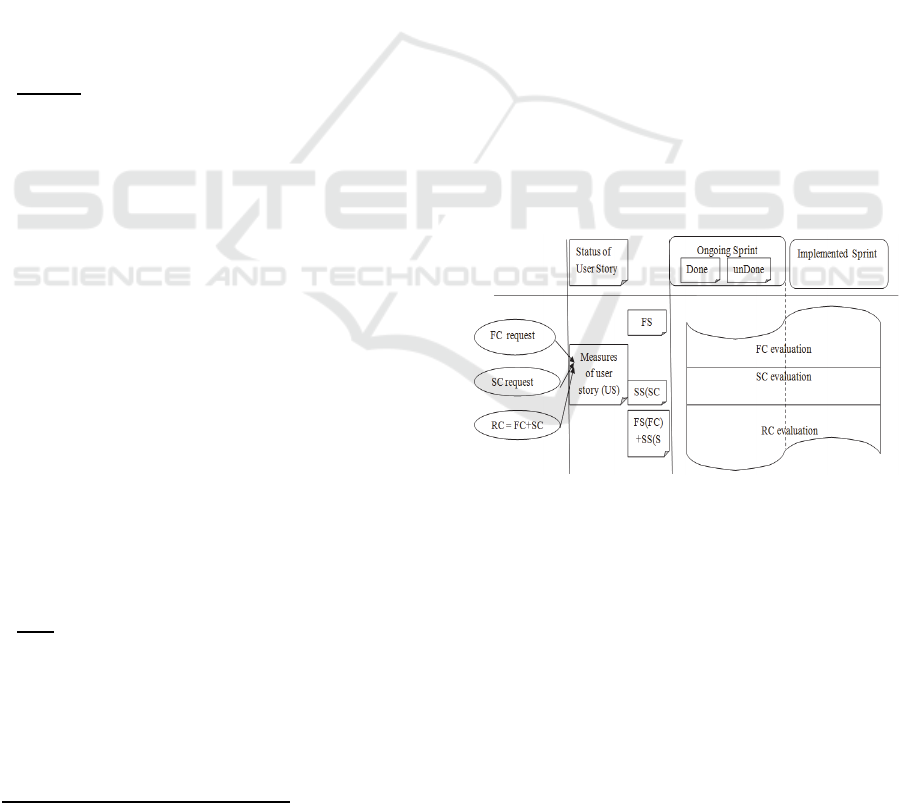

Figure 2: Evaluating requirement changes described in a

US Format.

Functional and structural change measurements

represent a means for guiding the evaluation process

so that the right decision can be made. This

evaluation is used later to provide recommendations

to the decision-makers to accept, defer or deny a RC

request. It depends on three main factors: the FS of

the changed US, the SS of the changed US and the

US status (done or undone).

Note that a RC request (either FC or SC or both)

can be requested by the PO or the development

team. First, it should be described in the US

refinement format (see section 3.1) to identify the

ICSOFT 2020 - 15th International Conference on Software Technologies

368

US affected by the change (referred to as USc). The

USc should have a current status that can be “done”

(i.e., this change occurs in an implemented sprint) or

“undone”(i.e., this change occurs in an ongoing

sprint). In the case of an ongoing sprint, we identify

the attributes of the sprint where the change occurs

(e.g., the sprint size, start date), and then we measure

the FS(FC), the FS(USc), and the functional sizes of

all the undone user stories, respectively, the SS(SC),

the SS(USc), and the Structural sizes of all the

undone user stories in the same sprint. In the case of

an implemented sprint, we measure the FS(FC) and

the FS(USc), respectively, the SS (SC) and the

SS(USc).

3.5.1 Evaluating RC Status in an Ongoing

Sprint

When a RC occurs in an ongoing sprint, it may

contain both “done” and “undone” user stories. This

RC request can be a FC request or SC request or

both of them (FC and SC). Thus, we propose to

evaluate each RC request separately (i.e., the cases

when FC occurs, SS occurs, or both of them).

a) The case when FC occurs

When the status of USc (the user story affected by a

change) is either “undone” or “done”, we propose to

compare the FS(FC) to the functional size of all the

undone user stories (USundone), respectively, to the

functional size of all the done user stories(USdone)

in the same sprint. Hence, different baselines will be

used to evaluate the status of the FC (see Table 3).

A “High” FC is a change with a functional size

greater than the total functional sizes of undone/done

user stories in the same sprint. It will have a

potential impact on the software development

progress. However, a “Low” FC has a functional

size of 1 CFP. This change can be handled without

any impact on the software development progress.

Where as a “Moderate” FC is a change with

functional size lowest than the functional size of

undone/done user stories in the same sprint. It will

produce few changes in the software development

progress.

Table 3: Evaluating a FC request when USc status = un-

done/done.

Low Moderate High

𝐹𝑆



𝐹𝐶



1𝐶𝐹𝑃

2𝐶𝐹𝑃  𝐹𝑆𝐹𝐶

 𝐹𝑆𝑈𝑆𝑢𝑛𝑑𝑜𝑛𝑒

/𝑈𝑆𝑑𝑜𝑛𝑒

𝐹𝑆𝐹𝐶

 𝐹𝑆𝑈𝑆𝑢𝑛𝑑𝑜𝑛𝑒/𝑈𝑆𝑑𝑜𝑛𝑒

b) The case when SC occurs

In an analogical way, if the status of the changed

user story (USc) is either “undone” or “done”, we

propose to compare the SS(SC) to the Structural size

of all the undone user stories respectively, to the

structural size of all the done user stories in the same

sprint. Different baselines will be used here to

evaluate the status of the SC (see Table 4).

A “High” SC is a change with a structural size

greater than the total structural sizes of undone/done

user stories in the same sprint. This change will

increase the complexity of the code and the costs of

the project, since it will have a potential impact on

the software development progress. However, a

“Low” SC has a structural size of 1 CSM. This

change can be handled without any impact on the

software development progress. Whereas, a

“Moderate” SC is a change with structural size

lowest than the structural size of undone/done user

stories in the same sprint. It will produce few

structural changes. It means that there is few

alternative scenario, no complexity in the code, and

no impact on the software development progress.

Table 4: Evaluating a SC request when USc status = un-

done/done.

Low Moderate High

𝑆𝑆



𝑆𝐶



1𝐶𝑆𝑀

2𝐶𝑆𝑀  𝑆𝑆𝑆𝐶

 𝑆𝑆𝑈𝑆𝑢𝑛𝑑𝑜𝑛𝑒

/𝑈𝑆𝑑𝑜𝑛𝑒

𝑆𝑆𝑆𝐶

 𝑆𝑆𝑈𝑆𝑢𝑛𝑑𝑜𝑛𝑒

/𝑈𝑆𝑑𝑜𝑛𝑒

c) The Case when FC and SC occurs

simultaneously

When the status of the changed user story (USc) is

“undone” or “done”, we propose to compare at the

same time SS(SC) to the Structural size of all the

undone/done user stories, respectively, we compare

the FS(FC) to the functional size of all the undone

user stories in the same sprint. Table5 shows the RC

status evaluation.

A “High” RC is a change with a structural size

bigger than the total structural sizes of undone user

stories and having a functional size bigger than the

total functional sizes of undone/done user stories in

the same sprint. It will have a potential impact on the

software development progress. However, the RC is

considered as “Low” if it has a functional size of 1

CFP and a structural size of 1 CSM. This change can

be handled without any impact on the software

development progress. Whereas, a “Moderate” RC

(summarizing both a SC and a FC) is a change with

structural size lowest than the structural size of

undone/done user stories and having a functional

size lowest than the functional size of undone/done

user stories in the same sprint.

An in-Depth Requirements Change Evaluation Process using Functional and Structural Size Measures in the Context of Agile Software

Development

369

Table 5: Evaluating RC (FC and SC) request when USc

status = undone/done.

Low Moderate High

𝑆𝑆



𝑆𝐶



 1𝐶𝑆𝑀&&

FSFC1

2 𝐶𝐹𝑃  𝐹𝑆



𝐹𝐶



 𝐹𝑆𝑈𝑆𝑢𝑛𝑑𝑜𝑛𝑒

/𝑑𝑜𝑛𝑒&& 2𝐶𝑆𝑀  𝑆𝑆𝑆𝐶

 𝑆𝑆𝑈𝑆𝑢𝑛𝑑𝑜𝑛𝑒/𝑈𝑆𝑑𝑜𝑛𝑒

𝐹𝑆



𝐹𝐶



 𝐹𝑆𝑈𝑆𝑢𝑛𝑑𝑜𝑛𝑒

/𝑑𝑜𝑛𝑒 && 𝑆𝑆



𝑆𝐶



 𝑆𝑆𝑈𝑆𝑢𝑛𝑑𝑜𝑛𝑒

/𝑈𝑆𝑑𝑜𝑛𝑒

3.5.2 Evaluating RC Status in an

Implemented Sprint

An implemented sprint in the increment product

includes a number of done user stories. In this study,

we assume that a RC request (including FC request

and-or SC request) affecting a “done” US means that

the work that has already been done must be

changed depending on the change request types (FC

or SC or both). Thus, an additional time and effort

may be required to take into account this change.

As it is described in section 3.5, requirements

change request evaluation is done separately,

depending on the nature of the requirement change

(functional change or structural change or both of

them) in an Implemented Sprint.

a) The case when FC occurs

A “High” FC is a change with a functional size

bigger than the functional size of the user story

changed in the implemented sprint (USc). An

important effort may be required to implement this

change. However, a “Low” FC has a functional size

of 1 CFP. This change can be handled without any

required effort. However, a “Moderate” FC is a

change with functional size less than the functional

size of the user story affected by the change in the

implemented sprint. A little effort may be required

to implement a “Moderate” change.

b) The case when SC occurs

A “High” SC is a change with a structural size

bigger than the structural size of the user story

changed in the implemented sprint (USc). An

important effort may be required to implement this

change. However, a “Low” SC has a structural size

of 1 CSM. This change can be handled without any

required effort. However, a “Moderate” SC is a

change with structural size less than the structural

size of the user story affected by the change in the

implemented sprint. A little effort may be required

to implement a “Moderate” change.

c) The case when both FC and SC occur

simultaneously

A “High” RC (i.e., FC and SC) is a change with a

structural size bigger than the structural size of the

user story affected by the change, respectively; its

functional size is bigger than the functional size of

the user story affected by the change in the

implemented sprint (USc). An important effort may

be required to implement this change. However, a

“low” RC is a change with a “Low” SC having a

structural size of 1 CSM, respectively a FC of 1

CFP. This change can be handled without any

required effort. However, a “Moderate” RC involves

FC having functional size less than the functional

size of the user story affected by the change, and the

SC having structural size less than the structural size

of the user story affected by the change in the

implemented sprint. A little effort may be required

to implement a “Moderate” change.

3.6 Step 6: Facilitating ‘Good’

Decision-Making

In this step, we focus on how to facilitate change

decisions. We believe that good decision making

depends not only on the accuracy of requirements, but

also on the use of the right measures. Thus, important

decisions are made regarding many criteria including

software size measurements. In fact, software size can

be used for many exploitations, such as effort/cost

estimations, quality, etc. (Abran, 2015).

In addition to these considerations, software size

measurement could be viewed from different

perspectives during the evaluation process. And

therefore, quickly and specific recommendations that

decision-makers (cf., product owner, development

team and the Scrum master) can apply to contribute

to the software project success. Recall that a RC

may affect either an ongoing sprint or an

implemented sprint. Thus decisions can be made to:

 accept the RC request (FC and-or SC

Requests) that is implement the RC in the

current sprint.

 deny the RC request (FC and-or SC

Requests) that is if the RC proposes a new

software, then restarting the development

from the beginning.

 defer the RC request to the next sprint (FC

and-or SC Requests)that is accept the RC and

implement it in the next sprint not in the

current one.

3.6.1 Deciding on RC Requests That Occur

in an Ongoing Sprint

When the RC request (FC and-or SC) is a

modification and affects a US in an ongoing sprint,

we propose Algorithm 2that provides

recommendations to help in making decisions. These

recommendations are based mainly on:

ICSOFT 2020 - 15th International Conference on Software Technologies

370

• The comparison between the FS(FC), the

functional size of all undone user stories in the

current sprint referred to as FS(USundone) in

Algorithm 2, and the functional size of the

changed user story referred to as FS(USc) in

Algorithm 2.

• The comparison between the SS(SC), the

Structural size of all undone user stories in the

current sprint referred to as SS(USundone) in

Algorithm 2, and the structural size of the

changed user story referred to as SS(USc)in

Algorithm 2).

For the purpose of demonstrations, we assume that

the FC and SC are both included in the same user

stories and in the same sprint. For instance, if the

FS(FC) is greater than the total functional size of all

the undone user stories. And, if the SS(SC) is greater

than the total sizes of all the undone user stories in

this same current sprint, we recommend to defer

both FC and SC. Then, the user story changed (after

the FC and the SC) is deleted from the current sprint

and added after modification with respect to the

change to the next sprint.

In the case when the FS(FC) is less than the total

functional size of all the undone user stories. And, if

the SS(SC) is less than the total size of all the undone

user stories in the same current sprint, it is required to

compare the FS(FC) to the FS(USc) before the change

(referred to as FS(USc)i in Algorithm 2), respectively,

we compare the SS(SC) to the SS(USc) before the

change (referred to as SS(USc)i in Algorithm 2).

Thus, if the FS(FC) is greater than the FS(USc)i.

And, if the SS(SC) is greater than the SS(USc), we

recommend to defer the FC, the SC and the USc after

the change (referred to as (USc)f in Algorithm 2) to

the next sprint.

On the other hand, if the FS(FC) is less than the

FS(USc)i and if the SS(SC) is less than the SS(USc)i,

the decision will be made based on the impact of the

change on the FS(USc)i, respectively, the impact of

the change on the SS(USc)i.

In the case when a FC proposes the addition of a

user story without changing any user story in the

sprint, a comparison must be done between the

FS(FC) and the functional size of all the undone user

stories.

In the same way, we compare the SS(SC) to the

structural size of all the undone user stories in the

sprint. Hence, if the FS(FC) is less than the

FS(USundone) and the SS(SC) is less than the

SS(USundone), then both the FC and the SC should

be accepted. Otherwise, the FC and the SC is deferred

to the next sprint.

A deletion of FC request and a SC request do not

have any influence on the development progress.

Algorithm 2: Deciding on a RC based FC and SC in an

ongoing sprint.

Aim: Deciding on a FC and SC in an ongoing sprint

Require: FS(FC), SS(SC), FS(USundone), SS(USundone),

FS(USc), and SS(USc).

BEGIN

1. if FS(FC)>FS(USundone)

&&SS(SC)>SS(USundone) then

a. Defer the FC to the next sprint;

b. Defer the SS to the next sprint;

c. Delete (USc)i from the ongoing sprint;

d. Add (USc)f to the next sprint;

2. else if FS(FC) <FS(USundone)&&SS(SC) <

SS(USundone) then

3. if FS(FC)>FS(USc)i && SS(SC)>SS(USc)i

then

a. Defer the FC to the next sprint;

b. Defer the SC to the next sprint;

c. Delete (USc)i from the current sprint;

d. Add (USc)f to the next sprint;

4. else ifFS(FC)<FS(USc)&& SS(SC)<SS(USc) then

5. if FS(USc)f>FS(USc)i && SS(USc)f>SS(USc)i

then

6. IfRemainingtime(USc)f

<requiredtime&&teamprogress= early then

a. Accept the FC;

b. Accept the SC;

c. Delete(USc)i from the current sprint;

d. Add(USc)f to the current sprint;

7. else

a. Defer the FC;

b. Defer the SC;

c. Delete (USc)i

d. Add (USc)f to the next sprint;

8. else if FS(USc)f<FS(USc)i &&

SS(USc)f<SS(USc)i then

a. Accept the FC;

b. Accept the SC;

c. Delete(USc)i from the current sprint;

d. Add (USc)f to the current sprint;

9. else if FS(FC) == 1 CFP &&SS(SC) == 1 CSM

then

a. Accept the FC;

b. Accept the SC;

c. Delete (USc)i from the current sprint;

d. Add (USc)f to the current sprint;

10. END

3.6.2 Deciding on RC Requests That Occur

in an Implemented Sprint

When one or more user stories are already

developed in a sprint, any change may involve

further discussion with the product owner. After all,

the product owner will validate the final product’s

acceptance test results.

An in-Depth Requirements Change Evaluation Process using Functional and Structural Size Measures in the Context of Agile Software

Development

371

In this case, we suggest to deny the requirements

change (whether FC or SC or both of them).

However, the Product Owner’ needs must be taken

to handle his/her requested changes. For this end, we

provide some analysis that allows the Product

Owner to determine the importance of the change

request, such as a comparison among the time spent

to implement the changed user story (noted T) and

the time predicted to re-develop the user story after

the change (noted Tpre). We propose for this end the

analysis below:

If(I(Usa)is essential and T<Tpre) analyze 1:“the US

is essential”.

If (P(USa) is less than the priorities of the number of

all US n divided by2 (P(n/2))and (T<Tpre) analyze

2:“the US is prior”.

Else analyze 3: “The US is complicated and must be

re-developed”.

These analysis does not offer decision-makers

with an answer on a RC request, but it highlights

when it is required to discuss with the Product

Owner the importance of the RC(whether it is really

needed or not.)

CASE STUDY

The case study “IT-commerce” is developed by a

team of engineers. The web site allows the customer

to buy IT equipment on-line. This web site has been

delivered after six sprints each one lasts for two

weeks. It includes initially ten user stories. We

provide the detailed measurement results that are

given in Table 6.

The development team defined the first sprint S1

backlog. By choosing the user stories organized

according to their importance/priority. US5, US6, and

US7 have been implemented during the sprint S1. All

the user stories have the importance = Essential noted

by “E” and the priority = P1. In sprint S2, and based

on the importance/ priority of user stories in the

product backlog, US4, US8, US9 and US10 have

been chosen to be implemented in S2. As mentioned

in Table 6, US4 is with importance = “E” and priority

= P2. Whereas, US8, US9 and US10 are with

importance = Essential and priority = P3. Hence, the

development team starts by US4.

After the implementation of US4 (i.e., the US4

status is done), the PO proposes to add US11, US12,

and US13(See Table 7). Where:

FS(US11) = 4 CFP, FS(US12) = 3 CFP,FS(US13) =

3 CFP. And, SS(US11) =2 CSM, SS(US13)= 3CSM

and the importance/priority for all the added user

stories is (Essential/P3). Note that the status of the

user stories initially in the sprint is: US4 status =

done and US8 status = US9 status = US 10 status =

undone. (Colored in red in the table 7)

The question here is whether to accept the RC that

may include FC and-or SC (in other words,

implement RC in the current sprint S2 or defer the

(FC and-or SC) to the next sprint S3).To do this, we

must apply our proposed an in-depth process.

First, we apply the step1, 2 and 3 respectively

(refinement and grooming step, mapping step and

sizing step) Table 6 lists these results.

Second, we apply the step 4 in which user stories

are prioritized based not only on their priority and

importance but also on their functional and structural

sizes. For this end, based on the proposed Algorithm

1, the results of step 4 are provided in Table

7.Hence, the user stories will be organized as

follows: US9, US12, US11, US8, US13, and US10.

After that, we apply step5 to evaluate the RC

status. Recall that the RC (FC and-or SC)in this case

occur in an ongoing sprint and propose the addition

of three user stories (US11,US12,US13) without

changing any user story in the sprint This RC is

considered as a moderate change (see Table 5)

Finally, we apply the step 6: The total

functional size of undone user stories has the value

of 12 CFP (US8, US9, and US10). While, the FC

has a functional size of 10 CFP (US11, US12, and

US13). The total structural size of undone user

stories has the value of to 4 CSM (US8, US9, and

US10). While the SC has a structural size of 5 CSM

(US11, US12, US13)

Thus, after applying Algorithm 2, we make the

following decisions:

 Accept US 9(FC and SC), US 12 (FC and SC),

and US 11(FC and SC),

 Defer US 8(FC and SC), US 13 (FC and SC),

and US 10 (FC and SC), to the next sprintS3.

Table 6: Product Backlog initially organized.

ToDo LIST

Sprint User

Stories

FS(US)

CFP

SS(US)

CSM

Status

I (US)

P(US)

US1

3 2 New D P3

US 2

3 2 New D P3

US 3

3 0 New D P3

US 4

3 1 New E P2

US 5

4 2 New E P1

US 6

6 2 New E P1

US 7

6 2 New E P1

US 8

3 2 New E P3

US 9

3 1 New E P3

US 10

6 0 New E P3

ICSOFT 2020 - 15th International Conference on Software Technologies

372

Table 7: Product Backlog after change.

ToDo LIST

Sprint User

Stories

FS(US)

CFP

SS(US)

CSM

Status

I(US)

P(US)

US1

3 2 New D P3

US 2

3 2 New D P3

US 3

3 0 New D P3

US 4

3 1

Done

E P2

US 5

4 2 done E P1

US 6

6 2 done E P1

US 7

6 2 done E P1

US 8

3 2

undone

E P3

US 9

3 1

undone

E P3

US 10

6 0

undone

E P3

US11

4 2

US12

3 0

US13

3 3

THREATS TO VALIDITY

The proposed process in this paper has been

illustrated through the case study “IT-commerce”.

However, the validity of the above results is subject

to two types of threats (internal and external)

(Wohlin et al., 2000):

 The internal validity threats are related to four

issues. The first issue affecting the internal va-

lidity of our process is its dependence on a de-

tailed description of the user story; such details

may not always be available. Thus, for further

work, we consider that approximate/ rapid RC

evaluation is required especially for an urgent

RC request. The second issue is related to the

productivity of the development team. In fact,

two functional processes with exactly the same

functional size or the same structural size do

not require always the same development time.

Moreover, the rapidity of the development

team at the beginning of the sprint and the end

of the sprint are not the same (this depends on

the development team skills). Thus, for further

work, we will use other criteria. The third is-

sue is related to the evaluation of the FC which

is based only on the FS(FC) without taking in-

to account the FC type (deletion, addition or

modification). However, we consi-der that this

factor is important in the evaluation of a FC

request. Finally, in this study we did not take

into account the relationship between the user

stories. In fact, a FC affecting a use story may

lead to an impact on the functional size and

the structural size of other use stories. For



Table 8: Summary of the detailed user story refinement description format.

User story

US(Sellami et al.,

2018)

/*description*/

As a <UserType>I want to <Action><Object>so

that <value or expected benefit><NFR>

/*Scenario nominal description*/

<User/System><ActionType: Entry, Read, Write,

eXit, Expletive>

User story with

refinement

different

alternatives

scenario

/*description*/

/*Scenario alternative

description 1*/

<Then >

<User/System><ActionType:

Entry, Read, Write,

eXit,Expletive>

/*description*/

/*Scenario alternative

description 2*/

<User/System><ActionType:

Entry, Read, Write, eXit,

Expletive><DataTransferred>

<else >

<User/System><ActionType:

Entry, Read, Write, eXit,

Expletive><DataTransferred

><Action>

/*Scenario alternative description 3*/

<User/System><ActionType: Entry,

Read, Write,

eXit,

Expletive><DataTransferred><Action>

<User/System><ActionType: Entry,

Read, Write, eXit,

Expletive><DataTransferred><Action>

<else >

<User/System><ActionType: Entry,

Read, Write,eXit,

Expletive><DataTransferred><Action>

User story with

refinement

iterative scenario

/*description*/

/*Scenario iterative description 4*/

<User/System><ActionType: Entry, Read, Write,

eXit, Expletive><DataTransferred><Action>

An in-Depth Requirements Change Evaluation Process using Functional and Structural Size Measures in the Context of Agile Software

Development

373

further work, we will focus on the relationships

between user stories and change propagation.

 The external validity threats deal with the

possibility to generalize the results of this study

to other case studies including the usability of

the proposed process and the making decision

algorithms. The first issue is the limited number

of case studies used to test the proposed

process. In fact, only one case study has been

used: the ‘IT-commerce”. Thus, testing the

proposed process and algorithms in an industrial

environment is required in order to get the

feedback from the practitioners.

CONCLUSION AND FUTURE

WORK

This work proposed an in depth requirement change

evaluation process based on the use of US functional

and structural size measurement methods. Thus, user

stories are expressed in terms of CFP units using the

standard COSMIC FSM method, and respectively,

in terms of CSM units using the structural size

measurement method. In addition, Requirement

Changes are measured and evaluated so that the

decision-makers will be guided to decide which RC

request should be accepted, deferred or denied.

Finally, other works will focus necessary on the

automation of this in-depth requirement change

evaluation process and a tool will be so promoted to

help making the right decision that can be used by

the PO in the Scrum method. This tool may be

developed as an API to be integrated into JIRA or

any other developed solutions for software

organization

REFERENCES

Abran, A. (2010). Software Metrics and Software Metro-

logy. IEEE Computer Society.

Abran, A. (2015). Software Project Estimation: The Fun-

damentals for Providing High Quality Information to

Decision Makers. Wiley-IEEE Computer Society Pr, 1st

edition.

Abdalhamid, S. and Mishra, A., 2017. Adopting of agile

methods in software development organizations: sys-

tematic mapping. TEM Journal, 6(4), p.817

Al Salemi, A. M. and Yeoh, E. T. (2015). A survey on

product backlog change management and require- ment

traceability in agile (Scrum). In the 9th Malay- sian

Software Engineering Conference (MySEC), pa- ges

189–194.

Ambler, S. W. (2014). User Stories: An Agile Introduction.

Bano, M., Imtiaz, S., Ikram, N., Niazi, M., and Usman, M.

(2012). Causes of requirement change - a systematic lit-

erature review. In EASE 2012.

Berardi E., Buglione L., S. L. S. C. T. S. (2011). Guideline

for the use of cosmic fsm to manage agile projects, v1.0.

Cohn, M. (2004). User Stories Applied: For Agile Software

Development. Addison-Wesley Professional.

Commeyne, C., Abran, A., and Djouab, R. (2016). Effort

Estimation with Story Points and COSMIC Function

Points: An Industry Case Study.

COSMIC (2017). The COSMIC Functional Size Measure-

ment Method, Version 4.0.2, Measurement Manual.

COSMIC (2020). The COSMIC Functional Size Measure-

ment Method, Version 5.0,Announcement of Version 5.0

of the COSMIC Measurement Manual – March 31,

2020

Drury-Grogan, M., O’Dwyer, O.: An investigation of the

decision-making processin agile teams. Int. J. Inf. Tech-

nol. Decis. Mak. 12(6), 1097–1120 (2013)

Desharnais, J. M., Kocaturk, B., and Abran, A. (2011).

Using the cosmic method to evaluate the quality of the

documentation of agile user stories. In 2011Joint Con-

ference of the 21st International Workshop onSoft-

wareMeasurementandthe6thInternationalConference on

Software Process and Product Measurement, pag-

es269–272.

Dikert, K., Paasivaara, M., and Lassenius, C. (2016). Chal-

lenges and success factors for large-scale agile trans-

formations. Journal of Systems and Software,

119(C):87–108.

Fairley, R. E. (2009). Managing and Leading Software Pro-

jects. Wiley-IEEE Computer SocietyPr.

Furtado, F., Zisman, A.: Trace++ (2016): a traceability

approach to support transitioningto agile software engi-

neering. In: The 24th International Requirements Engi-

neering Conference (RE), pp. 66–75.

Gilb, T. (2018). Why agile product development systemati-

cally fails, and what to do about it!

Haoues, M., Sellami, A., and Ben-Abdallah, H. (2017).

Functional change impact analysis in use cases: An ap-

proach based on COSMIC functional size measu- re-

ment. Science of Computer Programming, Special Is-

sueonAdvancesinSoftwareMeasurement,135:88– 104.

Hamed, A.M.M and Abushama, H.Popular Agile Ap-

proaches in Software Development: Review and Analy-

sis. Computing, Electrical and Electronics Engineering

(ICCEEE), 2013 International Conference on (2013),

pp. 160-166.

Ken Schwaber and Jeff Sutherland, TheScrum Guide™ The

Definitive Guide to Scrum: The Rules of the Game No-

vember 2017.

Lloyd, D., Moawad, R., and Kadry, M. (2017). A suppor-

ting tool for requirements change management in

distributedagiledevelopment.FutureComputingandInfor-

matics Journal, 2(1):1–9.

Schwaber, K. (2004). Agile Project Management with

Scrum (Developer Best Practices). Microsoft Press;

1edition.

ICSOFT 2020 - 15th International Conference on Software Technologies

374

Sellami, A., Hakim, H., Abran, A., and Ben-Abdallah, H.

(2015). A measurement method for sizing the struc- ture

of UML sequence diagrams. Information & Soft ware

Technology, 59:222–232.

Sellami, A., Haoues, M., Borchani, N., & Bouassida, N.

(2018, July). Guiding the Functional Change Decisions

in Agile Project: An Empirical Evaluation.

In International Conference on Software Technolo-

gies (pp. 327-348). Springer, Cham.

Sellami, A., Haoues, M., Borchani, N., & Bouassida, N.

Orchestrating Functional Change Decisions in Scrum

Process using COSMIC FSM Meth-

od. ICSOFT 2018: 516-527

Sellami, A., Haoues, M., Borchani, N., & Bouassida,

N.Towards an Assessment Tool for Controlling Func-

tional Changes in Scrum Process. IWSM-

Mensura 2018: 34-47

Shalinka Jayatilleke, Richard Lai, A systematic review of

requirements change management , Information and

Software Technology 93 (2018) 163–185

Stålhane,T.,Hanssen,G.K.,Myklebust,T.,andHaugset,B.

(2014). Agile change impact analysis of safety cri- tical

software. In Bondavalli, A., Ceccarelli, A., and Ortmei-

er,F.,editors,ComputerSafety,Reliability,and Security,

pages444–454.

Verwijs, C. (2016). 10 useful strategies for breaking down

large user stories (and a cheatsheet).

Wohlin, C., Runeson, P., Hst, M., Ohlsson, M. C., Regnell,

B., and Wessln, A. (2000). Experimentation in Software

Engineering: An Introduction. Kluwer Academic Pub-

lisher.

An in-Depth Requirements Change Evaluation Process using Functional and Structural Size Measures in the Context of Agile Software

Development

375
