Efﬁcient and Secure Statistical DDoS Detection Scheme

Hussein Majed

, Hassan N. Noura

1,2

, Ola Salman

, Mohammad Malli

and Ali Chehab

Arab Open University, Department of Computer Sciences, Beirut, Lebanon

American University of Beirut, Department of Electrical and Computer Engineering, Lebanon

Keywords:

DDoS, Intrusion Detection, Trafﬁc Aggregation, Network Security.

Abstract:

One of the hardest challenges in cybersecurity is the detection and prevention of Distributed Denial of Service

(DDoS) attacks. In this paper, a lightweight statistical approach for DDoS detection is presented, in addition

to preventive and corrective countermeasures. The proposed solution is designed to be applied at the Internet

Service Provider (ISP) level. Based on aggregated NetFlow statistics, the proposed solution relies on the Z-

score and co-variance measures to detect DDoS trafﬁc as a deviation from normal trafﬁc. The implementation

results show a high detection rate (up to 100%) for 30 seconds time slot.

1 INTRODUCTION

Cyber threats are becoming more sophisticated and

more severe than ever before, taking advantage of ex-

isting security vulnerabilities such as the enormous

network scale, the heterogeneity of the adopted com-

munication protocols and connected devices, and the

wide deployment of applications. Organizations are

relying on different security techniques to protect

their systems and networks against cyber attacks to

minimize the associated ﬁnancial losses.

Distributed Denial of Service (DDoS) attacks are

among the most disruptive threats in the cyber world.

DDoS is a variant of DoS attacks, where the attacker

attempts to make a device or network resources un-

available to its legitimate users, by temporarily or per-

manently disrupting its services. DoS attacks can be

divided into two types (Zargar et al., 2013; Gulihar

and Gupta, 2020): the ﬁrst type is when an attacker

mystiﬁes the protocol or application running on the

victim’s machine by sending malicious packets (vul-

nerability attack). The second one is when the at-

tacker sends huge trafﬁc to take up all the resources

of the victim’s machine, making it unable to inter-

act with legitimate users (bandwidth/ﬂooding attack).

The difference between DoS and DDoS attacks is that

the former uses only one single entity as a source,

while the latter uses a distributed set of source de-

vices. Also, DDoS attacks can be launched against

one or several victims (Douligeris and Mitrokotsa,

2004). The distributed nature of DDoS attack makes

them more devastating compared to DoS attacks.

In February 2000, a high-proﬁle DDoS attack was

presented by targeting popular websites such as ebay,

Yahoo, Buy.com, Amazon.com, Excite.com, and Ca-

ble News Network (CNN) (Radware, 2017). Unfortu-

nately, the number of DDoS incidents is continuously

growing. Recently, DDoS attackers have been using

techniques that are very hard to detect, and the attack

size and frequency are rising rapidly (Zargar et al.,

2013). A recent major attack was recorded in 2016,

reaching approximately 1 Tbps and targeting a host-

ing cloud computing company by using more than

152,000 Internet of Things (IoT) devices (Bertino and

Islam, 2017; Kolias et al., 2017; De Donno et al.,

2018)). Because of the drastic impacts of DDoS at-

tacks, researchers are continuously trying to build

efﬁcient, robust and comprehensive DDoS detection

and mitigation solutions (Bhatia et al., 2018). De-

fending against this type of attacks is crucial due to its

negative impact on online services availability, espe-

cially that almost every sector is becoming connected

to the Internet, including governmental, health, bank-

ing, etc.

Current DDoS detection solutions are based on

statistical or machine learning approaches. However,

these solutions suffer from performance and/or accu-

racy issues, as explained in Section 2. Hence, there is

a pressing need for a reliable and efﬁcient solution to

respond better to these security challenges. This work

focuses on the early detection of DDoS attacks at the

ISP level. The main goal is to achieve a high level

of efﬁciency and speed with minimum computational

complexity. Thus, we present a fast and reliable solu-

tion based on the NetFlow statistics at edge routers of

an ISP network.

The rest of the paper is organized as follows. Sec-

tion 2 reviews the different approaches used in DDoS

Majed, H., Noura, H., Salman, O., Malli, M. and Chehab, A.

Efﬁcient and Secure Statistical DDoS Detection Scheme.

DOI: 10.5220/0009873801530161

In Proceedings of the 17th International Joint Conference on e-Business and Telecommunications (ICETE 2020) - DCNET, OPTICS, SIGMAP and WINSYS, pages 153-161

ISBN: 978-989-758-445-9

153

detection. Section 3 presents the proposed solution

for DDoS detection including data collection, data

aggregation and features extraction, attack detection,

and attack mitigation. Section 4 presents the exper-

imental setup and results. Finally, we conclude the

paper in Section 5.

2 RELATED WORK

The various sub-classes of DDoS detection solutions

are described in this section, mainly the ones based

on the statistical and machine learning approaches.

2.1 Statistical Approach

In the statistical approach for DDoS detection, trafﬁc

statistics are extracted, and these include the number

of destination/source Internet Protocol (IP) addresses,

Transmission Control Protocol (TCP) ﬂags, packet

sizes, ﬂow rate, and others, to identify any abnormal

trafﬁc behavior.

In (Hofstede et al., 2013), a lightweight intrusion

detection solution was presented using three metrics,

the number of ﬂows per second, the number of bytes

per ﬂow, and the number of packets per ﬂow. Two

algorithms were applied on a dataset captured on the

backbone link of the Czech national research and ed-

ucation network CESNET. The ﬁrst algorithm is the

Exponentially Weighted Moving Average (EWMA)

for mean calculation, extended by thresholds and cu-

mulative sum (CUSUM), and the second algorithm

is a combination of the ﬁrst algorithm with season-

ality modeling. Both algorithms rely on EWMA for

calculating the mean over the past values. The re-

sults showed that a response time of 5 seconds can be

achieved with a reduction in detection delays to about

10% compared to the Netﬂow Sensor (NfSen) tool,

which uses time slots of 5 minutes, resulting into an

average delay of 150 seconds. In fact, the delay is

calculated based on the difference between the time a

packet is metered and the time ﬂow data is made avail-

able to analysis. The distance-based statistical ap-

proach was introduced in (You et al., 2007) for DDoS

detection using two techniques: the average distance

estimation and the distance-based trafﬁc separation.

The DDoS attack detection is based on analyzing dis-

tance values and trafﬁc rates by computing the Mini-

mum Mean Square Error (MMSE) of the trafﬁc rates

from different distances. However, one limitation of

the proposed method is that detection is unfeasible

when ﬁnal TTL values of all packets are equal be-

cause the distance values, based on TTL, will be the

same for all packets. In (Girma et al., 2015), mul-

tiple statistical approaches such as co-variance ma-

trix, Kendall’s Tau, and entropy were evaluated and

a hybrid method was proposed based on entropy and

co-variance matrices. Finding the best threshold that

separates normal and abnormal trafﬁc is the hardest

part for statistical-based DDoS detection. In (David

and Thomas, 2015), David et al. proposed an adap-

tive threshold algorithm to update the threshold based

on trafﬁc conditions. The authors used fast entropy to

calculate the mean and standard deviation of the ﬂow

count during a particular time interval, and the differ-

ence between the mean value and the fast entropy, to

decide if a DDoS attack is taking place.

While most of the proposed DDoS detection so-

lutions rely on the ﬂow source IP address, attackers

can spoof these addresses, yet they cannot control

the hop counts. This key point motivated the authors

in (Shamsolmoali and Zareapoor, 2014) to propose a

model based on hop counts and the frequency count

of each packet. The model has the ability of quickly

detecting DDoS attacks with minimum storage over-

head; it showed a 97% accuracy with minimum false

alarms.

Passively monitoring abrupt changes, in network

trafﬁc fractal parameters, was also used to detect ab-

normal changes in network trafﬁc. In (Xia et al.,

2012), an auto-regressive system was used to esti-

mate the Fractal dimension D and Hurst parameter

H of normal trafﬁc. The proposed method relies on

the maximum likelihood estimate-based detection ap-

proach in order to determine the change point of pa-

rameters D and H. The changes in these two points

indicate the occurrence of a DDoS ﬂood attack.

Other methods rely on the Domain Name Servers

Block List (DNSBL) to check if the trafﬁc originated

from sources with bad reputations. This approach

consists of studying the ﬂow source in a network to

detect the Weird Host List (WHL) (Sawaya et al.,

2011). Analysing the destination port for each en-

tity in the WHL aims to check if the port is receiv-

ing many connections from unknown hosts. The re-

searchers used DNSBLs to check if the entities in the

WHL are blacklisted. The method showed 90% de-

tection rate, but it needs synchronization of DNSBLs.

2.2 Machine Learning Approach

Recently, machine learning techniques have been

adopted for the detection of network attacks. The

machine learning models are used to extract pat-

terns from the network trafﬁc, and they can be used

for clustering and detecting abnormalities. In (Zekri

et al., 2017), Zekri et al. proposed a DDoS detection

system based on the C4.5 algorithm for classiﬁcation,

WINSYS 2020 - 17th International Conference on Wireless Networks and Mobile Systems

154

and Naive Bayes was applied for anomaly detection,

whereas Snort was used for signature-based attack de-

tection. Four classes were considered in the proposed

system: normal, TCP SYN attack, User Datagram

Protocol (UDP) attack, and Internet Control Mes-

sage Protocol (ICMP) attack. High detection and efﬁ-

ciency rates (up to 98%) were achieved. In (Alkasass-

beh et al., 2016), Alkasassbeh at al. compared differ-

ent machine learning methods, Multi Layer Percep-

tron (MLP), Random Forest (RF), and Na

ıve Bayes

(NB), on a dataset including HTTP ﬂood, SQL Injec-

tion DDoS (SIDDOS), UDP ﬂood, and smurf attacks.

The obtained accuracy results were 98.63%, 98.02%

and 96.91% for MLP, RF and NB, respectively. How-

ever, RF and NB failed to show good rates for the

Smurf class, while MLP achieved a high precision

rate. In (Hou et al., 2018), Hou et al. applied RF

on NetFlow for DDoS detection. The results had 99%

true positives and 0.5% false positives. Deep learning

was also applied for DDoS detection. An approach

called DeepDefense was proposed to detect DDoS at-

tacks in (Yuan et al., 2017). The method is based on

Recurrent Neural Network (RNN) by feeding histori-

cal information to the RNN in the aim of recognizing

repeated patterns and locating them. The method was

evaluated based on a dataset recorded for 7 days and

containing DDoS attacks in 2 days out of the 7. The

experimental results demonstrated that DeepDefense

reduces the error rate by 39.69% for the ﬁrst dataset

and from 7.517% to 2.103% for the second, compared

with traditional machine learning methods. For ab-

normality detection, the Modiﬁed Global K-means al-

gorithm (MGKM) was considered as an incremental

clustering algorithm to identify clusters in (Zi et al.,

2010). The linear correlation coefﬁcient for feature

ranking was used to recalculate the clusters. The

proposed method proved to be effective and adaptive

in detecting the different phases of DDoS. Entropy-

based approaches were also considered for DDoS de-

tection. In (Singh et al., 2018), Singh et al. consid-

ered normalized router entropy, which is the overall

probability distribution of the captured ﬂow for some

time window, the router entropy for a particular ﬂow

(calculated by combining the entropy of distinct ﬂows

during the time window), packet rate, and entropy

rate to measure the growth rate of the entropy of any

random process, to deﬁne the threshold of the attack

detection. For a series of n random variables, they

calculated the entropy rate (ER) of a stochastic pro-

cess (xi). The threshold values used in the algorithm

were evaluated ofﬂine by considering the malicious

and legitimate trafﬁc ﬂows. Another hybrid approach

using entropy, with Support Vector Machine (SVM),

was proposed in (Hu et al., 2017) to measure network

features. The SVM classiﬁer was applied to iden-

tify network anomalies, and the experimental results

showed minimal overhead and high accuracy. Simi-

larly, in (Yun Liu et al., 2010), SVM and Trafﬁc Fea-

ture Conditional Entropy (TFCE) were considered for

DDoS detection. The proposed solution is based on

analyzing the multiple-to-one relation between the at-

tacked IP and the source IP addresses. SVM was ap-

plied to identify DDoS attacks based on the output of

the entropy extracted by TFCE. The experimental re-

sults showed an accuracy of 93% for DDoS detection,

within a time window of 5 seconds.

Detecting DDoS attacks is a complicated task due

to the variety of attack types (TCP ﬂooding attack,

UDP ﬂooding attack, ICMP ﬂooding attack, etc.).

Addressing this problem requires real trafﬁc and up-

to-date datasets before applying any approach for de-

tection. A common limitation of the existing research

works is the quality of datasets that have been used

during the experiments. Most of these datasets are

old or based on simulating attacks in virtual labs. An-

other issue that should be addressed is the speed of

detection in the real world scenario because apply-

ing machine learning or statistical methods on current

datasets will indicate the time taken for detection after

collection, when the time taken for collecting trafﬁc

should be added as well. In this paper, a lightweight

and high-speed statistical approach is proposed for

DDoS detection. A real and new dataset was collected

in an ISP network. NetFlow statistics are collected

and aggregated to lessen the time overhead and com-

plexity. Thus, the proposed method is easy to deploy,

scalable, robust, and ﬂexible. It is also efﬁcient to

detect well known and unknown (“Zero-day”) attacks

with low false alarm rate. It exhibits an adaptive tech-

nique for the deﬁnition of the corresponding rules and

thresholds values. It incurs a low computational cost

and resources compared to existing solutions.

3 PROPOSED DDoS DETECTION

SCHEME

The proposed DDoS attack detection method consists

of 4 main steps: data collection, data aggregation,

DDoS detection, and mitigation (see Figure 1).

3.1 Data Collection

In this step, the incoming network trafﬁc at the ISP

is collected at regular intervals, such as one minute.

This can be achieved by using a software installed at

the edge router or by using an external monitoring de-

Efﬁcient and Secure Statistical DDoS Detection Scheme

155

Figure 1: Proposed DDoS detection scheme.

Table 1: Table of notations.

Symbol Deﬁnition

µ Mean

σ Standard deviation

The coefﬁcient variation of the

number of source addresses per des-

tination IP

TCP

The coefﬁcient variation of a se-

quence of TCP ﬂows

UDP

The coefﬁcient variation of a se-

quence of UDP ﬂows

ICMP

The coefﬁcient variation of a se-

quence of ICMP ﬂows

ZSC

The Z-score of the number of ﬂows

per destination IP

ZSC

TCP

The Z-score of the number of TCP

ﬂows per destination IP

ZSC

UDP

The Z-score of the number of UDP

ﬂows per destination IP

ZSC

InputByte

The Z-score of the sum of incoming

bytes per destination IP

ZSC

TimeDuration

The Z-score of the time duration per

destination IP

ZSC

ICMP

The Z-score of the number of ICMP

ﬂows per destination IP

NIP The number of unique destination

vice. The collected NetFlow statistics will be aggre-

gated in the next step.

3.2 Data Aggregation and Features

Extraction

At this stage, the collected NetFlow statistics are ag-

gregated per destination IP. NetFlow gives informa-

tion about the ﬂows including: source IP address, des-

tination IP address, source port number, destination

port number, duration, number of packets, number of

bytes, and IP protocol. The collected statistics at the

ﬁrst step are aggregated in a custom manner. As such,

the proposed aggregation method calculates the fol-

lowing features for each destination address:

• The sum of received bytes

• The sum of received packets

• The count of source addresses who communicated

with each destination address

• The sum of time duration

• The count of UDP Flows

• The count of TCP Flows

• The count of ICMP Flows

• The count of ”S” Flag

• The count of ”F” Flag

• The count of ”R” Flag

• The count of ”U” Flag

• The count of ”A” Flag

• The count of ”P” Flag

Then, the aggregated statistics are analyzed using

the Z-score metric (see Algorithm 1. The basic Z-

score formula for a sample x is:

z =

x–µ

(1)

where µ and σ represent the mean and the standard

deviation of the tested samples, respectively.

The Z-score of several features (number of

TCP/UDP/ICMP ﬂows per destination IP, sum of in-

coming packets per destination IP, sum of incoming

bytes per destination IP, time duration per destination

IP, count of source IP per destination IP) are com-

puted for each address. These values are used as input

to the next step, which can be seen as a form of non-

reversible compression. The advantage of this step

is to reduce the required processing complexity and

storage overhead.

3.3 DDoS Detection

For each aggregated ﬂow, the obtained Z-scores of

three features are compared to the corresponding

threshold values that are based on the coefﬁcient of

variation (CV). CV represents a statistical indicator

for the dispersion of data points in a data set (series)

WINSYS 2020 - 17th International Conference on Wireless Networks and Mobile Systems

156

around the mean. It is the ratio of the standard devi-

ation to the mean, and it is a useful statistical metric

for comparing the degree of variation from one data

series to another, even if the means are different. CV

is computed as illustrated in the following equation:

CV =

(2)

Accordingly, a DDoS attack is detected if the ob-

tained Z-score values of these features are greater or

equal to the corresponding thresholds (see lines 14, 17

or 20 of Algorithm 1). These thresholds are set based

on a training step (initial step), which depends on the

ISP proﬁle (trafﬁc and network characteristics). Us-

ing statistical thresholds is not practical because they

need to be updated manually, each time a bandwidth

upgrade takes place. In addition, they might lead to

false positives and false negatives. To make the pro-

posed solution based on a dynamic threshold, the Z-

score value of each feature is compared to its Coefﬁ-

cient of Variation (CV). In case of an attack, the at-

tacked IP address will deﬁnitely receive a large num-

ber of packets from multiple sources within a time

window. The attack will increase the mean value

and standard deviation for each affected feature of the

whole set, resulting into a high Coefﬁcient of Vari-

ation for each affected feature. By calculating the

Z-score of each feature for each data point, the data

point of the attacked IP will have a high z-score value

for each affected feature, indicating that it is relatively

different. Since we have the CV value of each feature,

we can compare it to the z-score of each data point;

if the z-score is higher than the CV, it’s considered an

outlier compared to the rest of the ﬂows.

Receiving a high number of packets or bandwidth

from a high number of source IPs on a speciﬁc IP will

deﬁnitely make the standard deviation and mean val-

ues high for each addressed feature. The Z-score is a

well known method for the detection of outliers. Ap-

plying the Z-score on each value in the aggregated

ﬂow will clearly reveal the outlier, but each type of

an attack has its own characteristics. TCP ﬂood at-

tacks are fast, from multiple sources, and share the

same ﬂag. UDP ﬂood attacks rely on high incoming

bytes, from multiple sources, and all the packets are

destined to same IP. ICMP ﬂood attacks try to over-

whelm the targeted device ability to respond to the

high number of requests and/or overload the network

connection with bogus trafﬁc, it is fast, and the trafﬁc

will be destined to the same IP from probably mul-

tiple sources. Thus, the following detection features

are selected and used for each DDoS attack type:

• TCP: time duration, number of TCP packets, and

number of Source IP.

• UDP: sum of incoming bits, number of UDP

packets, and number of source IP.

• ICMP: sum of incoming bits, number of ICMP

packets, and number of source IP.

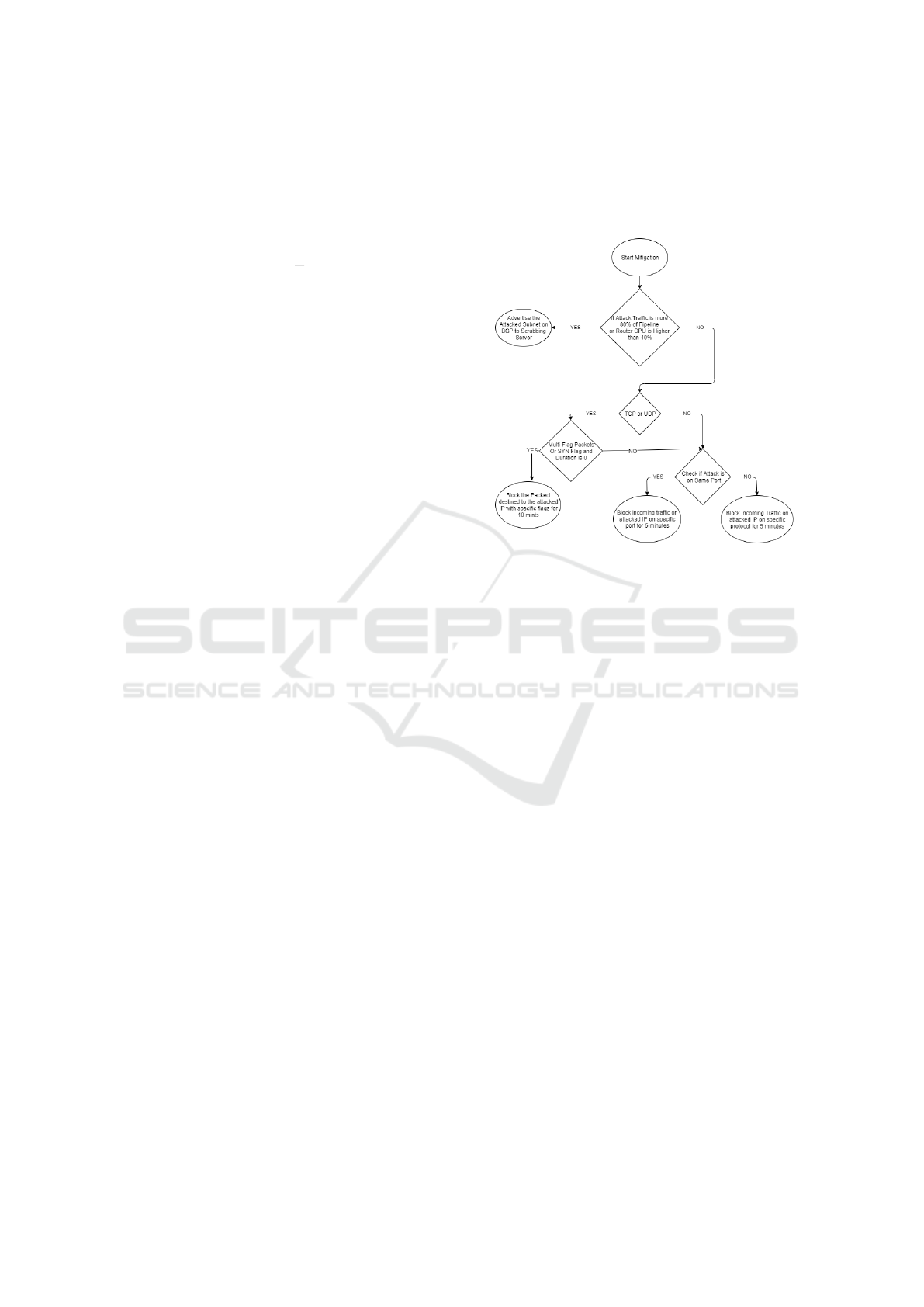

Figure 2: Mitigation process.

3.4 Mitigation Process

When a DDoS attack is detected, the prevention coun-

termeasure is activated to mitigate it. The proposed

mitigation process is illustrated in Figure 2, and it can

be realized locally by blocking the incoming trafﬁc

for a certain period of time (depending on the DDoS

attack scenario such as TCP or UDP), or by using the

scrubbing server (high volume trafﬁc case). Indeed,

if the attack trafﬁc (≥ 80%) of the total trafﬁc and

the router CPU ≥ 40% of its total capacity, the attack

cannot be mitigated by blocking the incoming trafﬁc,

but by advertising the attacked sub-net on the Border

Gateway Protocol (BGP) to the scrubbing server.

4 EXPERIMENTAL SETUP AND

RESULTS

In this section, we explain the implementation of the

proposed DDoS detection and prevention scheme in

detail.

4.1 NetFlow Collection

For collecting data, the setup was realized in an ISP

network with full trafﬁc visibility. NetFlow is a fea-

ture introduced by Cisco to enable in/out IP network

trafﬁc statistics collection at the router interface(s).

Efﬁcient and Secure Statistical DDoS Detection Scheme

157

Algorithm 1: Proposed detection algorithm.

Input: Aggregated Flow AF

Output: R

1: procedure R = Detection(AF)

2: NIP ← Numbero f Rows(AF)

3: CV

←

std(C

)

mean(C

)

4: CV

TCP

←

std(C

TCP

)

mean(C

TCP

)

5: CV

UDP

←

std(C

UDP

)

mean(C

UDP

)

6: CV

ICMP

←

std(C

ICMP

)

mean(C

ICMP

)

7: for i ← 0 to NIP do

8: ZSC

← Zscore(C

)

9: ZSC

TCP

← Zscore(C

TCP

)

10: ZSC

UDP

← Zscore(C

UDP

)

11: ZSC

ICMP

← Zscore(C

ICMP

)

12: ZSC

InputByte

← Zscore(C

InputByte

)

13: ZSC

TimeDuration

← Zscore(C

TimeDuration

)

14: if |ZSC

| ≥ CV

& &|ZSC

TCP

| ≥ CV

TCP

& &ZSC

TimeDuration

≤ 0 then

15: TCP DDoS Attack Detected on DA

16: end if

17: if |ZSC

| ≥ CV

& &|ZSC

UDP

| ≥ CV

UDP

& &|ZSC

InputByte

| ≥ CV

InputByte

then

18: UDP DDoS Attack Detected on DA

19: end if

20: if |ZSC

| ≥ CV

& &|ZSC

ICMP

| ≥ CV

ICMP

& &|ZSC

InputByte

| ≥ CV

InputByte

then

21: ICMP DDoS Attack Detected on DA

22: end if

23: end for

24: end procedure

A virtual CentOS machine was created with vmware

ESXi 6.0. This machine has 2 network interfaces, the

ﬁrst one is for NetFlow collection, and the second one

is for trafﬁc management. To isolate the communi-

cation between this machine and the edge routers, a

separate VLAN was created. Two Cisco edge routers

(ASR 9K) running IOS XR Release 7.0.1 were con-

ﬁgured to send all incoming NetFlow trafﬁc to the

CentOS machine.

”nfcapd” was installed on the CentOS machine to

capture the NetFlow information. Multiple instances

of ”nfcapd” were conﬁgured to listen on different

ports and to write the captured ﬂows, each minute,

in a separate ﬁle, and for each router, in a separate

folder.

nfcapd -w -D -l /ﬂow base dir/router1 -p 23456

NetFlow statistics of both routers were collected

for one month. During this period, multiple DDoS at-

tacks hit the ISP network. A time table was updated

each time an attack occurred to be used later on to dif-

ferentiate the benign trafﬁc from the attack one. The

attack usually saturates the international links of the

ISP and increases the CPU usage on edge routers.

The ”nfcapd” tool saves the ﬁles in raw format,

and the ”nfdump” tool is applied to read the input ﬁle,

and to provide statistics, aggregation, searching, sort-

ing, and conversion to another format such as CSV.

Thus, the conversion option was used to convert the

raw ﬁles to CSV ﬁles, which represent the dataset

used for evaluating the proposed detection method.

4.2 Data Aggregation

The captured ﬂows can be visualized using ”nfdump”

statistics feature by aggregating the trafﬁc by destina-

tion IP and sorting the results by number of packets

received for each destination IP. The results showed

that the attacked IP always had the highest number of

packets during the speciﬁed time duration (here one

minute) (See Figure 3).

Examining the trafﬁc destined to the IP with

the highest number of received packets, the results

showed that, for UDP trafﬁc, this IP receives trafﬁc

from more than 40,000 different IPs on a speciﬁc port,

during one minute. Repeating the same test on multi-

ple ﬁles, containing different types of attacks, the out-

WINSYS 2020 - 17th International Conference on Wireless Networks and Mobile Systems

158

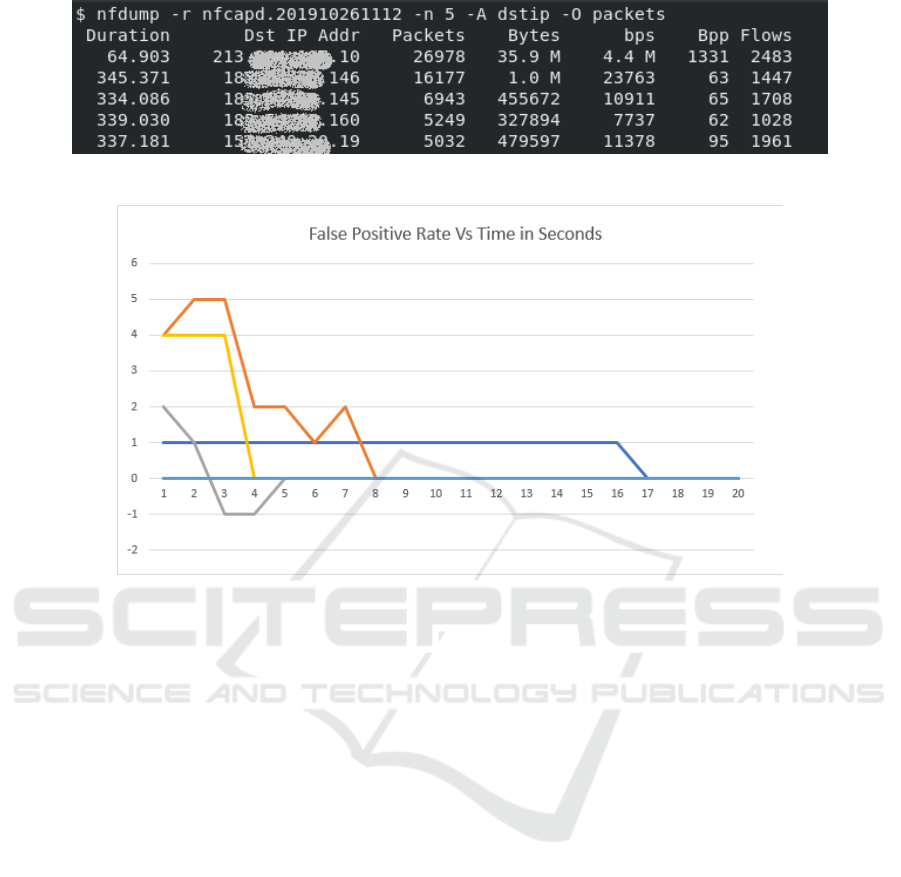

Figure 3: NetFlow aggregation using nfdump.

Figure 4: False positive VS time.

come was similar, and the only difference was in TCP

attacks where the ﬂows shared the same TCP ﬂag

(SYN ﬂooding, Ack ﬂooding, etc.). Figure 3 shows

that the statistics provided by ”nfdump” are limited

and not enough in order to detect the abnormality in

the NetFlow trafﬁc, because the destination port and

many ﬁelds that might be useful for DDoS detection

are missing. Although NetFlow aggregation using

”nfdump” presents promising results in detecting out-

liers, yet some features such as the count of source

IP addresses, the sum of UDP/ICMP/TCP packets are

key for DDoS detection. Consequently, a customized

aggregation method of NetFlow is needed for detect-

ing various types of DDoS attacks. Another chal-

lenge is the use of the appropriate statistical approach

on the customized aggregated ﬂow to detect the out-

liers. This was considered by our proposed NetFlow

aggregation method, which extracts main features for

DDoS detection. The Z-score and co-variance are cal-

culated for the extracted features to detect DDoS as

shown in the next section.

4.3 DDoS Detection

Identifying the best time window to detect attacks is

very difﬁcult. For this purpose, the proposed solu-

tion was tested for different time slots. The collected

datasets were aggregated based on 10, 30, and 60 sec-

onds time windows. The results, shown in Figure 5

for TCP DDoS attacks and in Figure 6 for UDP DDoS

attacks, clearly indicate that using the coefﬁcient of

variation as a dynamic threshold is efﬁcient for cor-

rectly detecting DDoS attacks. For TCP attacks, the

method worked perfectly for 10, 30, and 60 seconds

time windows. For UDP attacks, as shown in Fig-

ure 6, some destination IPs had the number of source

addresses greater than the threshold (blue dots), but

other features (number of bytes and number of pack-

ets ) are not higher than the thresholds. Thus, these

ﬂows are not detected as attacks. To lower the de-

tection time, we studied the minimum required delay

(seconds) to detect DDoS attacks. Figure 4 presents

the variation of false-positives versus the time for

several DDoS cases (each color represents a type of

DDoS attack). According to the results in Figure 4, a

time window greater or equal to 30 seconds showed

zero false positives and 100% true positives for TCP

DDoS attacks. Note that for a time window of 10

seconds, several of these attacks were detected, but

other ones were not detected. Therefore, the results

indicated that the proposed method is efﬁcient if ap-

plied on a time window of 30 seconds, but some cru-

cial real-time applications and high sensitive servers

might get harmed if the attack lasts for 30 seconds

Efﬁcient and Secure Statistical DDoS Detection Scheme

159

(a) DDoS detection within 10 seconds (b) DDoS detection within 30 seconds (c) DDoS detection within 60 seconds

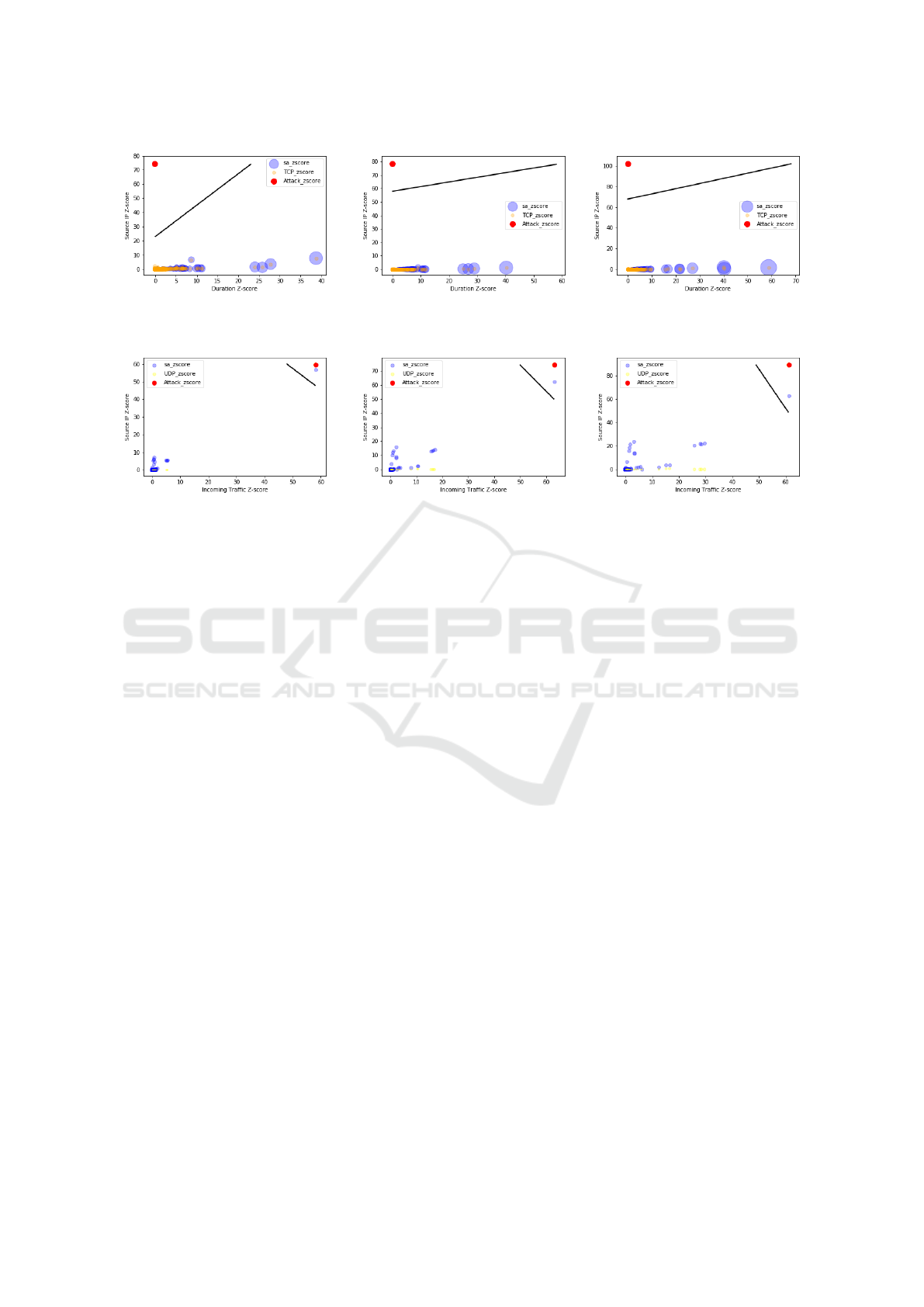

Figure 5: TCP DDoS detection within 10, 30, and 60 seconds.

(a) DDoS detection within 10 seconds (b) DDoS detection within 30 seconds (c) DDoS detection within 60 seconds

Figure 6: UDP DDoS detection within 10, 30, and 60 seconds.

before being detected. For this reason, the maximum

Z-score of each feature, in the datasets showing false

positive alerts, was studied. We concluded that the

threshold of Z-score, which is the coefﬁcient of vari-

ation, should not be less than 17 for sensitive services

that need detection within 10 seconds. The script

should ignore the alert if the CV value is less than

17 since these are most likely due to false positives.

4.4 DDoS Mitigation

The proper mitigation technique should be based on

the type and the volume of the attack. For this pur-

pose, a workﬂow for mitigation was created in Fig-

ure 2. If the attack volume and severity are accept-

able, the mitigation can be done locally by blocking

the attack trafﬁc on the edge router of the ISP before

reaching the customers network. However, if the at-

tack severity and volume are huge, the proposed so-

lution forces the edge router to advertise the attacked

sub-net on BGP to the scrubbing server, which blocks

the attack trafﬁc and sends the benign trafﬁc back to

the ISP using Generic Routing Encapsulation (GRE)

tunnels. Cleaning the trafﬁc locally, if possible, is bet-

ter than sending it to scrubbing servers since the GRE

tunnel increases the delay and consumes 5% of the

trafﬁc.

5 CONCLUSION

DDoS attacks are very serious security threats that

need to be detected and prevented in current and fu-

ture networks. In this paper, we proposed detective,

preventative and corrective measures against inbound

DDoS attacks. The proposed solution was designed

at the ISP level, and it is based on a lightweight sta-

tistical approach. Technically, the proposed method

applies ﬁrst aggregation on NetFlow, then statistical

analysis to detect DDoS trafﬁc as outliers by using

the Z-score and co-variance variation metrics. The

proposed technique requires 30 seconds to be conﬁ-

dent that a DDoS attack is taking place. The main

target of this work is to solve the issue of DDoS at-

tacks by reducing the required resources and latency,

which is considered as one of the hardest obstacles to

overcome in cybersecurity.

REFERENCES

Alkasassbeh, M., Al-Naymat, G., Hassanat, A., and Alm-

seidin, M. (2016). Detecting distributed denial of ser-

vice attacks using data mining techniques. Interna-

tional Journal of Advanced Computer Science and Ap-

plications, 7(1):436–445.

Bertino, E. and Islam, N. (2017). Botnets and internet of

things security. Computer, 50(2):76–79.

Bhatia, S., Behal, S., and Ahmed, I. (2018). Distributed de-

nial of service attacks and defense mechanisms: Cur-

WINSYS 2020 - 17th International Conference on Wireless Networks and Mobile Systems

160

rent landscape and future directions. In Versatile Cy-

bersecurity, pages 55–97. Springer.

David, J. and Thomas, C. (2015). Ddos attack detection us-

ing fast entropy approach on ﬂow-based network traf-

ﬁc. Procedia Computer Science, 50:30–36.

De Donno, M., Dragoni, N., Giaretta, A., and Spognardi,

A. (2018). Ddos-capable iot malwares: Comparative

analysis and mirai investigation. Security and Com-

munication Networks, 2018.

Douligeris, C. and Mitrokotsa, A. (2004). Ddos attacks and

defense mechanisms: classiﬁcation and state-of-the-

art. Computer Networks, 44(5):643–666.

Girma, A., Moses, G., Li, J., Lui, C., and Abayomi, K.

(2015). Analysis of ddos attacks and an introduction

of a hybrid statistical model to detect ddos attacks on

cloud computing environment.

Gulihar, P. and Gupta, B. (2020). Cooperative mechanisms

for defending distributed denial of service (ddos) at-

tacks. In Handbook of Computer Networks and Cyber

Security, pages 421–443. Springer.

Hofstede, R., Barto

s, V., Sperotto, A., and Pras, A. (2013).

Towards real-time intrusion detection for netﬂow and

ipﬁx. In Proceedings of the 9th International Con-

ference on Network and Service Management (CNSM

2013), pages 227–234. IEEE.

Hou, J., Fu, P., Cao, Z., and Xu, A. (2018). Machine learn-

ing based ddos detection through netﬂow analysis. In

MILCOM 2018-2018 IEEE Military Communications

Conference (MILCOM), pages 1–6. IEEE.

Hu, D., Hong, P., and Chen, Y. (2017). Fadm:

Ddos ﬂooding attack detection and mitigation sys-

tem in software-deﬁned networking. In GLOBE-

COM 2017-2017 IEEE Global Communications Con-

ference, pages 1–7. IEEE.

Kolias, C., Kambourakis, G., Stavrou, A., and Voas, J.

(2017). Ddos in the iot: Mirai and other botnets. Com-

puter, 50(7):80–84.

Radware (2017). Ddos attack history — radware security.

https://security.radware.com/ddos-knowledge-center/

ddos-chronicles/ddos-attacks-history/. (Accessed on

05/17/2020).

Sawaya, Y., Kubota, A., and Miyake, Y. (2011). Detection

of attackers in services using anomalous host behav-

ior based on trafﬁc ﬂow statistics. In 2011 IEEE/IPSJ

International Symposium on Applications and the In-

ternet, pages 353–359.

Shamsolmoali, P. and Zareapoor, M. (2014). Statistical-

based ﬁltering system against ddos attacks in cloud

computing. In 2014 International Conference on Ad-

vances in Computing, Communications and Informat-

ics (ICACCI), pages 1234–1239.

Singh, K., Dhindsa, K. S., and Bhushan, B. (2018).

Threshold-based distributed ddos attack detection in

isp networks. Turkish Journal of Electrical Engineer-

ing & Computer Sciences, 26(4):1796–1811.

Xia, Z., Lu, S., and Li, J. (2012). Ddos ﬂood attack de-

tection based on fractal parameters. In 2012 8th In-

ternational Conference on Wireless Communications,

Networking and Mobile Computing, pages 1–5.

You, Y., Zulkernine, M., and Haque, A. (2007). Detecting

ﬂooding-based ddos attacks. In 2007 IEEE Interna-

tional Conference on Communications, pages 1229–

1234. IEEE.

Yuan, X., Li, C., and Li, X. (2017). Deepdefense: identify-

ing ddos attack via deep learning. In 2017 IEEE Inter-

national Conference on Smart Computing (SMART-

COMP), pages 1–8. IEEE.

Yun Liu, Jianping Yin, Jieren Cheng, and Boyun Zhang

(2010). Detecting ddos attacks using conditional en-

tropy. In 2010 International Conference on Computer

Application and System Modeling (ICCASM 2010),

volume 13, pages V13–278–V13–282.

Zargar, S. T., Joshi, J., and Tipper, D. (2013). A survey

of defense mechanisms against distributed denial of

service (ddos) ﬂooding attacks. IEEE communications

surveys & tutorials, 15(4):2046–2069.

Zekri, M., El Kafhali, S., Aboutabit, N., and Saadi, Y.

(2017). Ddos attack detection using machine learn-

ing techniques in cloud computing environments. In

2017 3rd International Conference of Cloud Comput-

ing Technologies and Applications (CloudTech), pages

1–7. IEEE.

Zi, L., Yearwood, J., and Wu, X. (2010). Adaptive clus-

tering with feature ranking for ddos attacks detection.

In 2010 Fourth International Conference on Network

and System Security, pages 281–286.

Efﬁcient and Secure Statistical DDoS Detection Scheme

161
