Exploiting Exclusive Higher Resolution to Enhance Response Time of

Embedded Flash Storage

Jung-Hoon Kim

and Young-Sik Lee

Device Solution Research, Samsung Electronics Co., Hwasung, Republic of Korea

Keywords:

NAND Flash Memory, Embedded Flash Storage, Flash Translation Layer, Internal Overhead, Response Time.

Abstract:

NAND ﬂash-based embedded storage may spend a long time on responding to a host storage system. Most of

the ﬂash translation layers (FTLs) of the embedded ﬂash storage utilize a granular page-mapping level. How-

ever, they did not pay heed to page mapping management that causes the internal overhead of the page-level

FTL. This overhead might damage the response time, especially after the random writes to the embedded ﬂash

storage. In this paper, we propose a novel method to reduce the internal overhead related to the page mapping

write. This method exploits a virtually-shrunk segment exclusively to the page mapping table, which is im-

plemented by our mapping-segmented ﬂash translation layer (MSFTL). One mapping segment is intrinsically

composed of consecutive page mappings smaller in size than a logical page of the host system. As a result,

MSFTL drastically reduces the amount of page mapping data written and therefore improves both the average

and worst response time compared with the ﬁne-granularity page-level FTLs.

1 INTRODUCTION

Over the past decade, an embedded ﬂash storage de-

vice (e.g., UFS (Standard, 2018) or eMMC (Whitaker,

2015b)) has been able to adopt NAND ﬂash memory

by leveraging many mapping schemes (Ban, 1995;

Gupta et al., 2009; Kim et al., 2002; Lee et al., 2006;

Lee et al., 2007). Among the mapping schemes, a

ﬂash translation layer (FTL) of the embedded ﬂash

storage arguably considers a page mapping as the

best mapping scheme, which serves storage space in

smartphones, autonomous vehicles, and Internet-of-

Things (IoT) devices. Because the page mapping is

a granular component, the page-level FTL can eas-

ily combine the other techniques improving the per-

formance and lifetime of NAND ﬂash-based storage.

However, the granular page details give birth to a

large page mapping table.

To manage the large page mapping table contain-

ing all the page mappings, the page-level FTL uses

both volatile and non-volatile memory in the embed-

ded ﬂash storage. When preparing for translating the

page mapping locations, the page-level FTL should

ﬁrst locate the page mappings in the volatile memory.

And, if the page mappings are for the user data written

https://orcid.org/0000-0002-4369-866X

https://orcid.org/0000-0003-3095-3729

by the host system, the page-level FTL should record

the corresponding page mappings into the volatile

memory. Besides, to keep the consistency (Moon

et al., 2010) of those up-to-date page mappings, the

page-level FTL has to store the page mappings into

the non-volatile memory, such as NAND ﬂash mem-

ory.

The data amount of the page mappings to be writ-

ten may rise in the embedded ﬂash storage as one of

the internal overheads. When storing the page map-

pings into NAND ﬂash memory, the page-level FTL

should use NAND page programming soliciting data

as much as a NAND page (Grupp et al., 2009). In

this constraint, the page-level FTL needs to maximize

the throughput of storing the page mappings updated

into one NAND page. However, even when storing a

few page mappings updated, the page-level FTL saves

them by ﬁlling the insufﬁcient amount with data, such

as other page mappings unchanged. Furthermore,

since the NAND page size has increased (Kim et al.,

2015b; Takeuchi, 2009) continually by NAND fab-

rication evolution, the NAND page enlarged might

exacerbate the insufﬁcient amount to store the page

mappings and degrade the performance of the embed-

ded ﬂash storage.

Many researchers have studied several tech-

niques (Lee et al., 2017; Lee et al., 2013; Ma et al.,

2011; Park and Kim, 2011) based on the page-level

470

Kim, J. and Lee, Y.

Exploiting Exclusive Higher Resolution to Enhance Response Time of Embedded Flash Storage.

DOI: 10.5220/0009859804700477

In Proceedings of the 15th International Conference on Software Technologies (ICSOFT 2020), pages 470-477

ISBN: 978-989-758-443-5

FTL to reduce the internal overhead. They have in-

spected the behavior of the data, such as the data lo-

cality and I/O request size, and tried to improve the

garbage collection overhead of the page-level FTL.

However, as well as conducting the garbage collec-

tion, the page-level FTL should govern the page map-

pings and preserve them in NAND ﬂash memory. To

improve the internal overhead of the page mapping

writes, the page-level FTL could set the granularity

to the smaller mini-page size (Lv et al., 2018). How-

ever, if the granularity decreases by half, even twice

the resources (e.g., volatile and non-volatile memory)

should be needed for the page mapping table. As

another technique, the page-level FTL might employ

the sub-page programming (Kim et al., 2015a) storing

data with a smaller size than one NAND page. But,

this technique decreases the NAND page size physi-

cally and focuses on improving the lifetime of NAND

ﬂash memory.

In this paper, we state a new mapping segmenta-

tion method that is to exploit a virtually-shrunk seg-

ment. Exposing this small segment exclusively to the

page mapping table makes a higher resolution. There-

fore, the page-level FTL can adjust the page map-

pings more precisely without being more granular

to its page-mapping level. Our mapping-segmented

ﬂash translation layer (MSFTL) integrates this novel

method into the page-level FTL. Because the data

amount of the segment is less than the NAND page,

MSFTL collects it as much as the necessary data

amount for the NAND page programming. The evalu-

ation results show that MSFTL drastically reduces the

data amount of page mappings written and therefore

improves both the average and worst response time

compared with the ﬁne-granularity page-level FTLs.

2 BACKGROUND AND

MOTIVATION

Because of the advantage of the small page granular-

ity, the page-level FTL conducts the data transactions

lightly. This ﬂexibility also gives many chances to im-

prove the performance and lifetime of NAND ﬂash-

based storage (Gupta et al., 2009; Kim et al., 2002;

Lee et al., 2017; Lee et al., 2013; Lee et al., 2006;

Lee et al., 2007; Lv et al., 2018; Ma et al., 2011; Park

and Kim, 2011). By referring to the host system, such

as an operating or a ﬁle system, the page-level FTL

deﬁnes the page mapping granularity as the 4-KiB

size nowadays. However, this small page granular-

ity gives birth to a large page mapping table in NAND

ﬂash-based storage. For example, 1-TiB NAND ﬂash-

based storage needs the 1-GiB space if an entry of

the page mapping table is four bytes. Consequently,

the page-level FTL manages this entire page mapping

table to operate the page mapping-level scheme cor-

rectly.

The embedded ﬂash storage, as one of the NAND

ﬂash-based storages, employs both volatile and non-

volatile memory to keep the page mappings consis-

tently. The volatile memory works as the mapping

cache and holds only a fraction of the entire page

mapping table. When the host system or the inter-

nal operation, such as a garbage collection (GC) of

the page-level FTL, writes its data to NAND ﬂash

memory of the embedded ﬂash storage, the page-level

FTL updates the corresponding page mappings into

the mapping cache ﬁrst. After that, to prevent the data

loss of the page mappings from the event of a power

cycle, the page-level FTL intentionally stores the page

mappings into the non-volatile NAND ﬂash memory.

We deﬁne this writing activity for the page mappings

as a mapping ﬂush. The mapping ﬂush is typically

related to the booting time (Whitaker, 2015a; Zhang

et al., 2014) of the embedded ﬂash storage. Besides,

because of the small amount of the volatile memory in

the embedded ﬂash storage, the page-level FTL usu-

ally writes the page mappings when they are evicted

from the mapping cache by the cache policy.

When conducting the mapping ﬂush, the page-

level FTL writes the page mappings by using the

NAND page programming of NAND ﬂash memory.

Because NAND ﬂash memory operates with its pe-

culiarities (Grupp et al., 2009), such as erase-before-

program constraint, unbalanced operation latency,

and different ﬁxed unit sizes of operations, the page-

level FTL ensures these characteristics of NAND

ﬂash memory. For these reasons, when performing

the NAND page programming, the page-level FTL

ﬁlls the necessary minimum amount with the page

mappings, which is commonly called a translation

page since the demand-based ﬂash translation layer

(DFTL) (Gupta et al., 2009). The translation page

consists of continuous page mappings of the page

mapping table (PMT) similar to the simple linear ad-

dressing organization (Wei et al., 2015). Based on the

NAND page size, the page-level FTL determines the

number of the page mappings in the translation page.

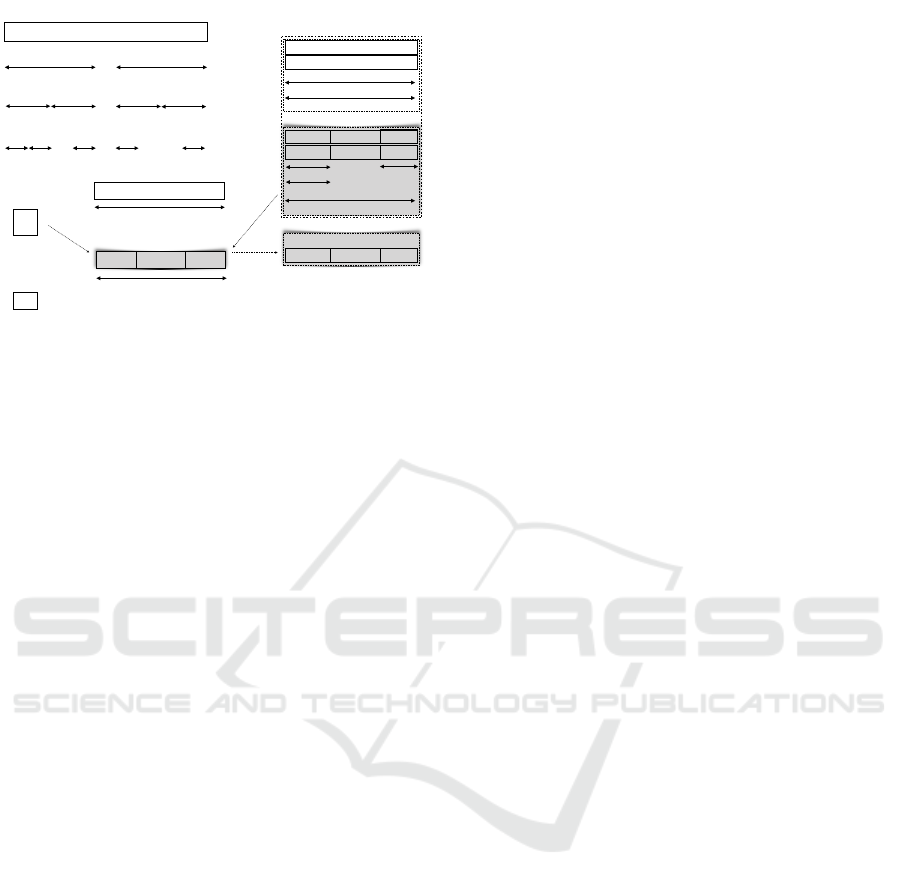

For instance, Figure 1 depicts PMT0 that starts from

a logical page number 0 (LPN0) and ends up in each

last LPN (i.e., LPN4095, LPN2047, or LPN1023).

Utilizing the latest three-dimensional (3D) NAND

ﬂash memory with the 16-KiB NAND page size, we

have implemented the baseline page-level FTL, which

is called Base-DFTL. Base-DFTL manages the entire

page mapping table with the translation pages written

in the translation blocks. The mapping ﬂush of Base-

Exploiting Exclusive Higher Resolution to Enhance Response Time of Embedded Flash Storage

471

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Linear page addressing organization

PMT

Global

Translation

Directory

(MSD)

A NAND page

PMT

MST

2n+1

MST

2m+1

Two segments (2S)

16 segments (16S)

MST

16m+15

……

MST

16m

MST

16n+ 6

MST

127

MST

624

………

…

PMT

624

…

NAND block

for translation pages

A translation page (TP)

PMT

A page mapping table on

a NAND page

Mapping

Cache

. . . . . . .

Versus

MST

112 6

A translation update block

………

MST

624

…

A NAND page

…

(1) MST

sources

read

(2) Batch

update

(3) NAND

page

programming

(4) MSD

update

A virtually-shrunk segment

Figure 3: Virtual-Shrunk segmentation and the collection of

the mapping segments for the page mapping write.

how to gather the small mapping segments in detail.

3.2 Mapping Flush for Mapping

Segments

MSFTL aims to store all the MSTs containing any

page mappings updated. During the mapping ﬂush,

whenever the condition of the minimum data amount

accepts, MSFTL conducts the NAND page program-

ming. Because this collection technique merges the

different MSTs into one NAND page, the number of

the page mappings updated increases naturally on the

NAND page programming. Therefore, MSFTL takes

advantage of the collection technique to improve the

updated ratio commented in Section 2.

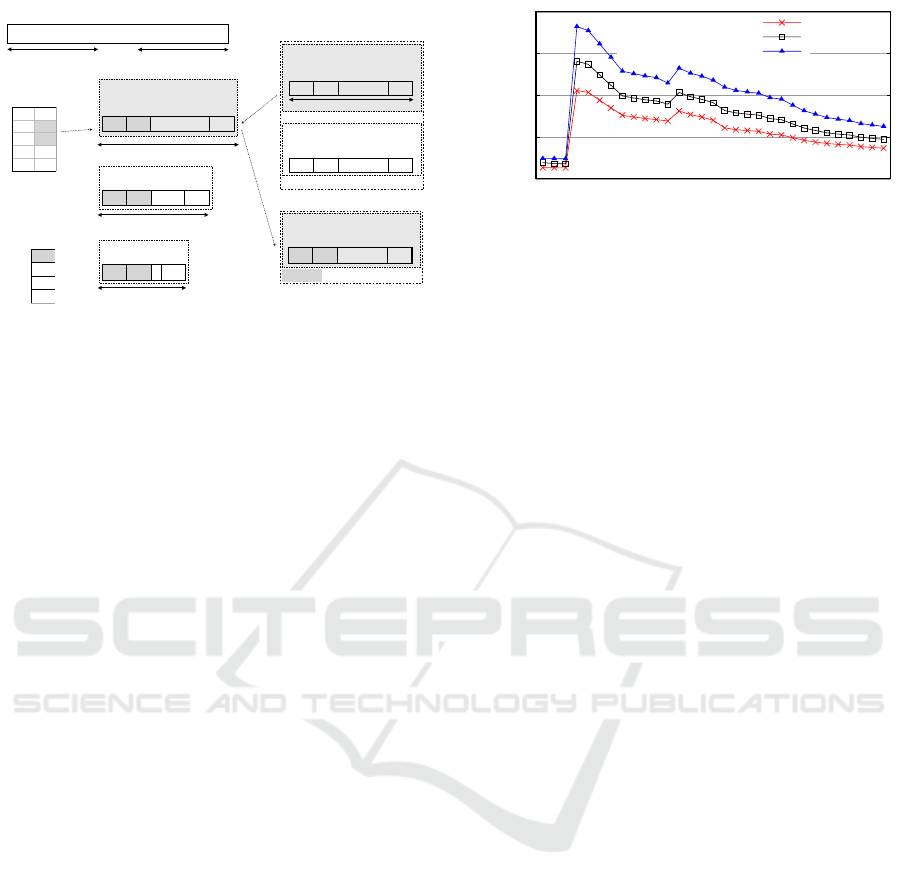

We depict the collection of the MSTs in Figure 3.

Instead of using one PMT source of Base-DFTL, MS-

FTL gathers several MST sources for one NAND

page programming. First, MSFTL fetches the cor-

responding MST sources by looking up the mapping

segment directory table (MSD). Then, all the page

mappings belong to the MSTs are updated from the

mapping cache. If one NAND page buffer is full of

the MSTs, the NAND page programming executes.

This collection of the MSTs increases the number of

the updated page mappings on one NAND page pro-

gramming. We also describe this processing sequence

from (1) of Figure 3 to (4).

When gathering several MSTs, MSFTL could

raise the additional overhead not happened in Base-

DFTL. During the batch update of one PMT source,

Base-DFTL spends one NAND page read timing on

loading the translation page from NAND ﬂash mem-

ory. However, MSFTL should collect the differ-

ent MSTs until one NAND page buffer is full. If

the MSTs have spread to several different NAND

pages, MSFTL consumes more NAND page read tim-

ing than Base-DFTL. By the way, in addition to the

NAND page read timing, the mapping ﬂush contains

other remaining processes to be done. In Table 1, we

can notice that a NAND page programming timing is

ten times longer than the NAND page read. Because

MSFTL reduces the number of the NAND page pro-

grammings as many as the number of the MSTs col-

lected, MSFTL lowers the entire operation time of the

mapping ﬂush.

3.3 Mapping Segment Directory Table

MSFTL uses the mapping segment directory (MSD)

table to direct the locations of the MSTs written in

NAND ﬂash memory. Because the number of the

MSTs is more than that of the PMTs, the MSD ta-

ble size increases, and it correlates to one MST size.

As the MST size becomes small, the MSD table size

increases linearly. And the higher storage capacity

enlarges the MSD table size as well. If we apply

a 128-GiB storage capacity, NS uses 32-KiB space

and, 16S needs (i.e., 1-KiB MST) 512-KiB space six-

teen times of NS. However, this space is worth bring a

higher resolution to the page mapping table. So then,

MSFTL caches the entire MSD table to the volatile

memory. Similar to this approach, we can consider

the ﬁne-granularity FTL, such as the mini-page level

FTL (Lv et al., 2018). However, this smaller page-

mapping granularity needs 512-MiB space to adopt

the same 1-KiB level.

To keep the MSD table consistency after a power

cycle, MSFTL stores the MSD table to the translation

block along with the MST. After writing the MSTs

to the translation block, MSFTL records the locations

of the MSTs in the MSD table of the volatile mem-

ory ﬁrst. Whenever this MSD table changes, MSFTL

does not store the MSD table immediately into the

translation block, however. Because MSFTL can re-

cover the MST locations by scanning the translation

block, MSFTL stores the entire MSD table sparsely

before conducting the GC of the translation blocks.

3.4 Garbage Collection for Translation

Blocks

MSFTL utilizes the update block scheme to store the

MST and MSD table. If there is no free space in the

translation update block, MSFTL conducts the GC of

the translation blocks with the traditional greedy pol-

icy (Rosenblum and Ousterhout, 1992). As the victim

block for the GC, MSFTL chooses one of the transla-

tion blocks. To retain the free space maximum after

conducting the GC, MSFTL considers the number of

up-to-date MSTs held in the translation block. There-

Exploiting Exclusive Higher Resolution to Enhance Response Time of Embedded Flash Storage

473

fore, among all the translation blocks, the number of

up-to-date MSTs in the victim block is the smallest.

We realize that the number of MSTs increases by

shortening the PMT. In the 16S case, the total num-

ber of MSTs is sixteen times as large as that of NS.

During the GC of the translation block, MSFTL relo-

cates all the up-to-date MSTs of the victim block into

a free block. However, the up-to-date MSTs could

exceed the free page limit, such as the number of free

pages in a free block.

To resolve this problem, MSFTL assembles the

up-to-date MSTs of the victim block during the GC

of the translation block. This process is similar to the

MST collection of the MSFTL mapping ﬂush. The

more granular MSFTL raises the number of MSTs.

However, MSFTL minimizes the internal overhead by

employing this kind of MST collection method.

4 EXPERIMENTS

4.1 Evaluation Methodology

To investigate the detail of the page mapping writes

in the page-level FTLs, we have implemented a trace-

driven FTL simulator that processes block-level traces

of the host system. The ﬁrst page-level FTL is

the baseline Base-DFTL that ordinarily allocates one

NAND page for the translation page, which is iden-

tical to the DFTL scheme (Gupta et al., 2009). The

second one is the mini-page FTL (Lv et al., 2018)

using the logical small page-level granularity as the

translation page (i.e., 4 KiB). Lastly, we evaluate MS-

FTL exploiting two types of the segment, such as

2 KiB and 1 KiB. They are called as MSFTL-2KiB

and MSFTL-1KiB, respectively. To conduct the map-

ping ﬂush along with the user writes, we nominate

9 MiB that accounts for the data amount written to the

embedded ﬂash storage as much as one NAND block

size. And, the logical page-mapping granularity is the

same as 4 KiB in all the FTLs.

We have simulated 128-GiB NAND ﬂash-based

storage by using four 3D NAND ﬂash chips (Sam-

sung, 2014). Table 1 describes the features of the

NAND ﬂash chip. Because the response time of the

embedded ﬂash storage is highly relevant to the per-

formance of NAND ﬂash memory, we calculate the

FTL operation time, lastly, with the NAND perfor-

mance parameters such as the NAND access time of

Table 1. Note that the over-provisioning space (Smith,

2012) is about 5.0% of the entire capacity made from

four NAND ﬂash chips. The block layout of the

over-provisioning space is composed of the transla-

tion update block, the user update block, the trans-

Table 1: Characteristics of 256-Gb TLC 3D NAND ﬂash.

NAND Structure Page Size 16 KiB

Block Size 9 MiB

Block Count 3776

NAND Access Time Page Read 49 µs

Page Program 0.6 ms

Block Erase 4.0 ms

Byte Transfer 1.25 ns

lation blocks, and the free blocks. The remaining

blocks become the user data space visible as the em-

bedded ﬂash storage capacity to the host system.

First, we evaluate two kinds of synthesized data

patterns to analyze the aspect of page mappings writ-

ten by the three different page-level FTLs. These syn-

thesized patterns are composed of sequential and ran-

dom address patterns. And then, in the end, we exper-

iment with the data patterns of the real-device smart-

phone. Because the smartphone workloads logged

from various kinds of applications (Zhou et al., 2015),

the data patterns of the smartphone show us mixed

address patterns with sequential and random data pat-

terns. Using these data patterns, we measure the data

amount of page mappings written, which reﬂects the

update ratio mentioned in Section 2.

4.2 Analysis with Synthesized Data

Pattern

We measure the data amount of page mappings writ-

ten by using the sequential data pattern. The trace-

driven FTL simulator writes 126.14-GiB with a 16-

KiB chunk consecutively to the FTL, which starts

from the clean-slate state. In our evaluation, the

clean-slate state means that the FTL has never writ-

ten the data after the FTL simulator initialized.

In the result of the sequential pattern, Base-DFTL

stored 339.9-MiB page mappings to NAND ﬂash

memory. This data amount is only 0.3% of the en-

tire data written, however. Because the batch up-

date by the sequential patterns has updated almost ev-

ery page mapping in the translation page, this data

amount of the page mappings written should be small

in quantity. Though, both the mini-page FTL and

MSFTL reduced that amount. Since they have col-

lected the page mappings spread between two adja-

cent PMTs, the data amounts of the page mappings

written reduced to 224.3 MiB. Therefore, the mini-

page FTL and MSFTL drop the page mappings writ-

ten by 33.3% of Base-DFTL. As we expected, the data

amount of the directory and the MSD table written has

increased slightly. Consequently, the mini-page FTL

lowers them totally by 32.6% of Base-DFTL. Because

of the enlarged MSD table, MSFTL reduces them by

either 32.2% or 28.1%.

ICSOFT 2020 - 15th International Conference on Software Technologies

474

0.0

20.0

40.0

60.0

80.0

100.0

120.0

140.0

9:1 8:2 7:3 6:4 5:5

The amount of data written (GiB)

Locality of reference

User data

Base-DFTL mapping data

Minipage-FTL mapping data

MSFTL-2KiB mapping data

MSFTL-1KiB mapping data

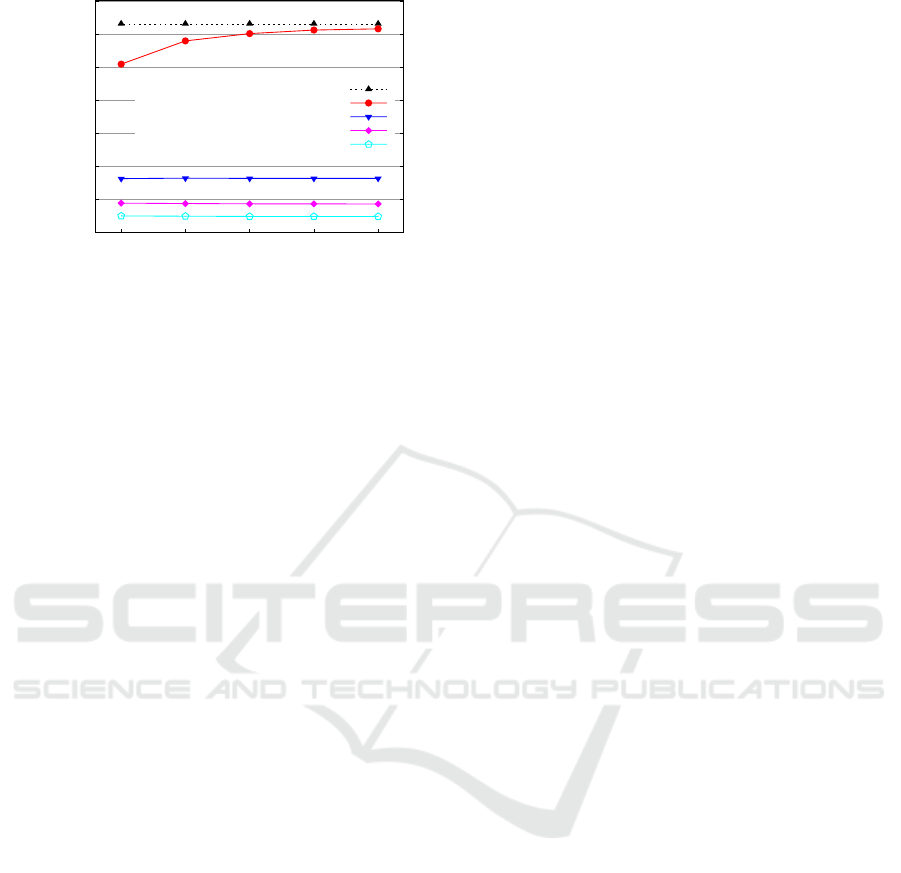

Figure 4: A comparison of every data amount written with

various spatial localities.

To start over with the random address pattern, we

access data with several degrees of the spatial local-

ity. The degree of the spatial locality is different in

the size of the user space and the data amount writ-

ten to that space. For example, a high spatial locality

(i.e., 9:1) represents that many user data write to the

small user data space. And, a uniform spatial locality

(i.e., 5:5) means that we write data evenly to the entire

user data space. Similar to the sequential data pattern,

the data write operates with the 16-KiB chunk. And,

the total amount of data written is 126.14 GiB as the

whole user data space.

Figure 4 shows every data amount written, which

consists of the user and page mapping data. Contrary

to the sequential results, the data amount of page map-

pings written to NAND ﬂash memory is considerable.

Because the batch update by the random patterns has

only updated a few page mappings in the translation

page, the mapping ﬂush should write the page map-

pings updated in many different translation pages by

using NAND page programming. Especially in the

result of Base-DFTL, the data amount of page map-

pings written reached to 97.6% of the amount of user

data written. Thanks to the small translation page, the

mini-page FTL dropped the page mappings written by

48.5% of Base-DFTL.

Differently, MSFTL adopts the virtually-shrunk

segment without extending resources for the page

mapping table, such as the mini-page FTL scheme.

The smaller segment of MSFTL has more advantage

of raising the resolution to the speciﬁc page map-

ping area. Therefore, MSFTL-1KiB reduced the data

amount of page mappings written by up to 92.1% in

the random patterns. The data amounts of the GTD

and MSD table written were quite small, by the way.

Their averages were less than 1.0% of the total page

mapping data written. After this section, the data

amount of page mappings written includes the GTD

and MSD table data.

4.3 Analysis with Real-device

Workloads

Finally, we evaluate three different page-level FTLs

by using the smartphone workloads of embedded

ﬂash storage. These workloads consist of 31 block-

level I/O traces logged from 18 typical applica-

tions (e.g., Email and Twitter) of a Nexus-5 smart-

phone (Zhou et al., 2015). The I/O traces in (Zhou

et al., 2015) show a mixed pattern with the sequential

and random address. However, most of the data pat-

terns are close to the randomness, and the amounts of

data are not sufﬁcient to provoke the GC in the clean-

slate state. So, the FTL simulator writes a certain

amount of data with the synthesized random pattern

in advance. Through this precondition, the FTL can

conduct the GC when the FTL simulator injects the

smartphone workloads into the FTL. The amount of

data written is a quarter, half, or full of the entire user

storage space. The x-axis of Figure 5 differentiates

the precondition. Lastly, we evaluate the FTLs with

the smartphone workloads in these preconditions.

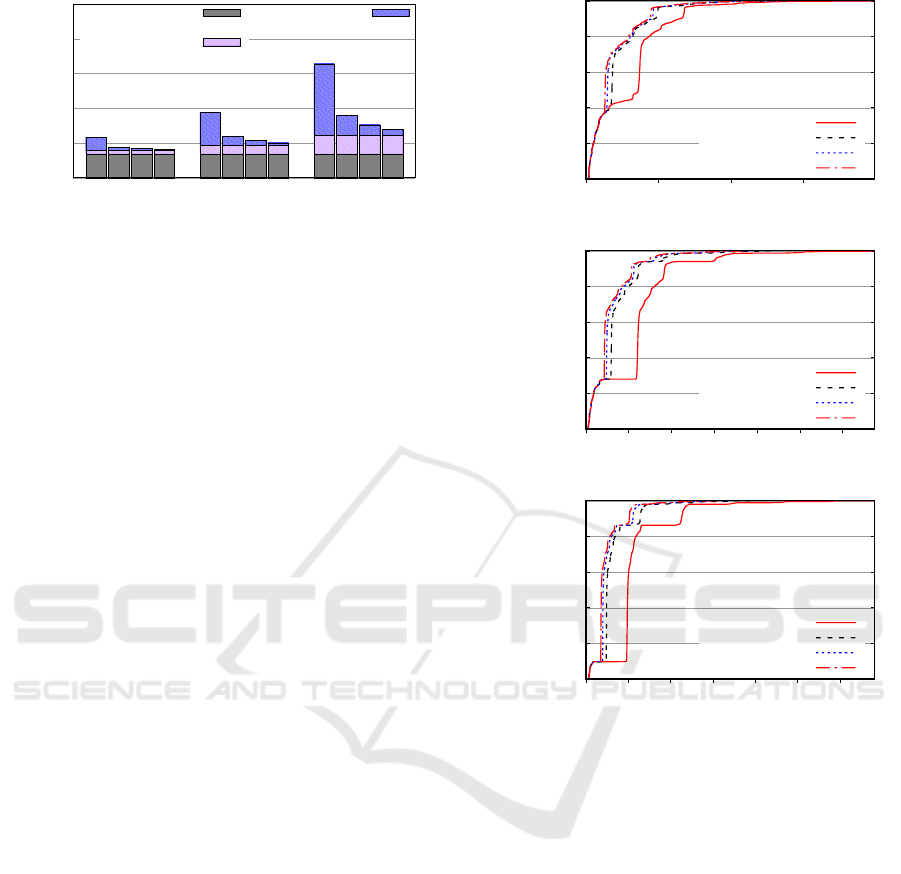

In the results of the smartphone workloads shown

by Figure 5, three different FTLs show the same

amount of user data written by the smartphone work-

loads. However, the precondition escalates the data

amount of the GC data written. This GC worsens the

data amount of page mappings written along with the

random patterns of the I/O traces. Consequently, it

reaches up to 177.9% of the user data written, espe-

cially in Base-DFTL.

By utilizing the small logical page granularity of

the host system to the translation page, the mini-

page FTL reduces the data amounts of the page map-

pings written. However, MSFTL brings more en-

hanced results than the mini-page FTL by adopting

the virtually-shrunk segment that details the granu-

larity, especially for the page mappings. Figure 5

compares the results evaluated by Base-DFTL, the

mini-page FTL, and MSFTL. MSFTL-1KiB drops

the entire amount of data written by 31.4%, 48.2%,

and 58.8% of Base-DFTL in the quarter, half, and

full case, respectively. Moreover, MSFTL-1KiB im-

proves by up to 8.5%, 16.0%, and 23.0% of the mini-

page FTL.

To clarify the performance gain occurred by low-

ering the data amount of page mappings written, we

judge the operation time with the performance pa-

rameters of NAND ﬂash memory, such as the NAND

access time of Table 1. And we assume the data

I/O transaction sharing the dual-channel NAND ﬂash

controller (SiliconMotion, 2019). Because the em-

bedded ﬂash storage spends most of the time in the

data I/O transaction to NAND ﬂash memory, we ex-

Exploiting Exclusive Higher Resolution to Enhance Response Time of Embedded Flash Storage

475

0.0

20.0

40.0

60.0

80.0

100.0

Base-DFTL

minipage-FTL

MSFTL-2KiB

MSFTL-4KiB

Base-DFTL

minipage-FTL

MSFTL-2KiB

MSFTL-1KiB

Base-DFTL

minipage-FTL

MSFTL-2KiB

MSFTL-1KiB

The amount of data written (GiB)

User

User GC

Page mappings

FullHalfQuarter

Figure 5: Total data amounts of page mappings written by

the mapping ﬂush.

amine every response time of a request, which is

about 270K requests from all the I/O traces.

Figure 6 presents the cumulative distribution re-

sult for the response time. Both the mini-page FTL

and MSFTL reduce all the response times of the

smartphone workloads. The mini-page FTL improves

the average response times by up to 28.9%, 37.1%,

and 44.3% of Base-DFTL in the quarter, half, and

full cases, respectively. However, MSFTL-1KiB im-

proves them by up to 36.3%, 43.4%, and 56.1% by

exploiting the virtually-shrunk segment. Also, MS-

FTL beneﬁts from a higher resolution to decrease the

worst response time. MSFTL-1KiB drops them by up

to 85.3%, 71.6%, and 65.1% of Base-DFTL. As a re-

sult, MSFTL-1KiB improves by up to 41.9%, 26.8%,

and 27.7% of the mini-page FTL.

5 RELATED WORK

There have been many studies improving the perfor-

mance and lifetime of NAND ﬂash-based storage by

using the page-level FTL. These studies (Gupta et al.,

2009; Kim et al., 2002; Lee et al., 2017; Lee et al.,

2013; Lee et al., 2006; Lee et al., 2007; Lv et al.,

2018; Ma et al., 2011; Park and Kim, 2011) utilized

the user data behaviors, such as the temporal data

locality, the data preemption, the data compression,

and the data caching. For example, DFTL (Gupta

et al., 2009) exploits the signiﬁcant temporal local-

ity and ﬁnally reduces the amount of the GC data

written. A semi-preemptible GC (PGC) scheme (Lee

et al., 2013) allows the GC preemption to hide the

GC cost. And, the new NVM cache technique (Lee

et al., 2017) mitigates the GC overhead. For a data re-

duction, zFTL (Park and Kim, 2011) utilized the data

compression with the prediction scheme that differen-

tiates incompressible data in advance. However, these

0.99

0.992

0.994

0.996

0.998

0 0.5 1 1.5

Cumulative Probability

(a) Response time (sec) on the quarter

Base-DFTL

minipage-FTL

MSFTL-2KiB

MSFTL-1KiB

0.99

0.992

0.994

0.996

0.998

0 0.5 1 1.5 2 2.5 3

(b) Response time (sec) on the half

Base-DFTL

minipage-FTL

MSFTL-2KiB

MSFTL-1KiB

0.99

0.992

0.994

0.996

0.998

0 1 2 3 4 5 6

Base-DFTL

minipage-FTL

MSFTL-2KiB

MSFTL-1KiB

Figure 6: Cumulative distribution result for the response

times spent by NAND ﬂash memory.

kinds of proposals focused on the user data but did not

pay attention to the page mappings that they should

manage.

As the aspect of the page mapping-level granu-

larity, the sub-page programming (Kim et al., 2015a)

used a fraction of the NAND page to improve the life-

time of NAND ﬂash memory. Since this method has

limited the amount of data written, at least two NAND

page programmings should be needed to write the

data as much as one NAND page. To overcome the

enlarged physical NAND page, the new PM-FTL (Lv

et al., 2018) was developed by utilizing the smaller

mini-page granularity. However, this kind of smaller

mapping scheme needs vast amounts of resources to

handle the entire page mapping table.

ICSOFT 2020 - 15th International Conference on Software Technologies

476

6 CONCLUSION

To enhance the response time of the embedded ﬂash

storage, we exploit a virtually-shrunk segment exclu-

sively to the page mapping table. Our novel mapping-

segmented ﬂash translation layer (MSFTL) imple-

ments the page-level FTL combined with the new

mapping segmentation method. The mapping seg-

ment of MSFTL is composed of consecutive page

mappings with a smaller size than the logical page of

the host system. When storing the mapping segments,

MSFTL gathers every mapping segment that has any

updated page mappings. As a result, MSFTL reduces

the data amount of page mappings written by up to

58.8% compared with the ﬁne-granularity page-level

FTLs. Finally, MSFTL improves both the average and

worst response time by up to 56.1% and 85.3% in the

real-device smartphone workloads.

REFERENCES

Ban, A. (1995). Flash ﬁle system. Patent No. 5,404,485,

Filed Mar. 8th., 1993, Issued Apr. 4th., 1995.

Grupp, L. M., Caulﬁeld, A. M., Coburn, J., Swanson, S.,

Yaakobi, E., Siegel, P. H., and Wolf, J. K. (2009).

Characterizing ﬂash memory: anomalies, observa-

tions, and applications. In Proceedings of the 42nd

Annual IEEE/ACM International Symposium on Mi-

croarchitecture (MICRO-42), pages 24–33. IEEE.

Gupta, A., Kim, Y., and Urgaonkar, B. (2009). Dftl: A

ﬂash translation layer employing demand-based selec-

tive caching of page-level address mappings. In Pro-

ceedings of the International Conference on Architec-

tural Support for Programming Languages and Oper-

ating Systems (ASPLOS’09).

Kim, J., Kim, J. M., Noh, S. H., Min, S. L., and Cho, Y.

(2002). A space-efﬁcient ﬂash translation layer for

compactﬂash systems. IEEE Transactions on Con-

sumer Electronics, 48(2):366–375.

Kim, J.-H., Kim, S.-H., and Kim, J.-S. (2015a). Subpage

programming for extending the lifetime of nand ﬂash

memory. In 2015 Design, Automation & Test in Eu-

rope Conference & Exhibition (DATE), pages 555–

560. IEEE.

Kim, J.-Y., Park, S.-H., Seo, H., Song, K.-W., Yoon, S.,

and Chung, E.-Y. (2015b). Nand ﬂash memory with

multiple page sizes for high-performance storage de-

vices. IEEE Transactions on Very Large Scale Inte-

gration (VLSI) Systems, 24(2):764–768.

Lee, E., Kim, J., Bahn, H., Lee, S., and Noh, S. H. (2017).

Reducing write ampliﬁcation of ﬂash storage through

cooperative data management with nvm. ACM Trans-

actions on Storage (TOS), 13(2):1–13.

Lee, J., Kim, Y., Shipman, G. M., Oral, S., and Kim, J.

(2013). Preemptible i/o scheduling of garbage col-

lection for solid state drives. IEEE Transactions on

Computer-Aided Design of Integrated Circuits and

Systems, 32(2):247–260.

Lee, S.-W., Choi, W.-K., and Park, D.-J. (2006). Fast: An

efﬁcient ﬂash translation layer for ﬂash memory. In

International Conference on Embedded and Ubiqui-

tous Computing, pages 879–887. Springer.

Lee, S.-W., Park, D.-J., Chung, T.-S., Lee, D.-H., Park, S.,

and Song, H.-J. (2007). A log buffer-based ﬂash trans-

lation layer using fully-associative sector translation.

ACM Transactions on Embedded Computing Systems

(TECS), 6(3):18.

Lv, H., Zhou, Y., Wu, F., Xiao, W., He, X., Lu, Z., and

Xie, C. (2018). Exploiting minipage-level mapping to

improve write efﬁciency of nand ﬂash. In 2018 IEEE

International Conference on Networking, Architecture

and Storage (NAS), pages 1–10. IEEE.

Ma, D., Feng, J., and Li, G. (2011). Lazyftl: a page-level

ﬂash translation layer optimized for nand ﬂash mem-

ory. In Proceedings of the 2011 ACM SIGMOD Inter-

national Conference on Management of data, pages

1–12. ACM.

Moon, S., Lim, S.-P., Park, D.-J., and Lee, S.-W. (2010).

Crash recovery in fast ftl. In IFIP International

Workshop on Software Technolgies for Embedded and

Ubiquitous Systems, pages 13–22. Springer.

Park, Y. and Kim, J.-S. (2011). zftl: Power-efﬁcient data

compression support for nand ﬂash-based consumer

electronics devices. IEEE Transactions on Consumer

Electronics, 57(3):1148–1156.

Rosenblum, M. and Ousterhout, J. K. (1992). The design

and implementation of a log-structured ﬁle system.

ACM Transactions on Computer Systems (TOCS),

10(1):26–52.

Samsung (2014). Samsung V-NAND technology.

SiliconMotion (2019). Ufs and emmc controllers.

Smith, K. (2012). Understanding ssd over-provisioning.

Flash Memory Summit.

Standard, J. (2018). Univeral ﬂash storage (ufs) card exten-

sion starndard.

Takeuchi, K. (2009). Novel co-design of nand ﬂash mem-

ory and nand ﬂash controller circuits for sub-30 nm

low-power high-speed solid-state drives (ssd). IEEE

Journal of Solid-State Circuits, 44(4):1227–1234.

Wei, B., Cheok, S. T., Chng, Y., and Toh, C. (2015). Logical

block address mapping. Patent No. 9,146,683, Filed

Apr. 20th., 2011, Issued Sep. 29th., 2015.

Whitaker, K. (2015a). A comparative study of ﬂash storage

technologies for embedded devices.

Whitaker, K. (2015b). Embedded multimediacard (eMMC)

eMMC/card product standard, high capacity, includ-

ing reliable write, boot, and sleep modes.

Zhang, C., Wang, Y., Wang, T., Chen, R., Liu, D., and Shao,

Z. (2014). Deterministic crash recovery for nand ﬂash

based storage systems. In Proceedings of the 51st An-

nual Design Automation Conference, DAC’14, pages

1–6, New York, NY, USA. ACM.

Zhou, D., Pan, W., Wang, W., and Xie, T. (2015). I/o char-

acteristics of smartphone applications and their impli-

cations for eMMC design. In 2015 IEEE International

Symposium on Workload Characterization (IISWC),

pages 12–21. IEEE.

Exploiting Exclusive Higher Resolution to Enhance Response Time of Embedded Flash Storage

477
